Liebert

®

AC Power Systems

for Business-Critical Continuity

Interceptor®Active Tracking®Filter Series

The Ultimate Solution To Power Disturbance Problems

2

When You Require The

Ultimate In Surge Protection

In today's world, almost every business depends on

sensitive microprocessor-based electronics to conduct

their day to day operations. This means that electric

power line disturbances can disrupt or cripple equipment

causing a major loss in productivity — and money.

Liebert understands this problem and offers a way to

keep these power problems from getting into your

facility in the first place.

The answer is the Liebert Interceptor®Series Active

Tracking®Filter. These series-connected systems

provide the highest level of protection with the lowest

UL 1449 clamping ratings available.

By closely controlling voltage at every location along

the sinewave, our Active Tracking filter technology

protects sensitive electronic equipment from the

potentially damaging effects of low-energy voltage

transients and the ringwaves that follow. The filter also

stores and releases energy to fill and reduce sinewave

spikes and notches.

Proven Performance

High-energy current diversion is handled by the

Interceptor's sophisticated parallel system of computer-

matched MOV (metal-oxide varistor) arrays. Each array

module is sand-encapsulated and screened to provide

exact current sharing and prevent component

degradation. Our patented, coordinated fusing is UL

Listed for 200kAIC at 600VAC to ensure absolute safety,

yet allow surge current capability to be attenuated.

The Interceptor Series Active Tracking Filter is UL

1449, UL 1283 and CSA Listed. Our manufacturing

facility is ISO 9001 Registered. Surge current ratings are

independently tested, so you can specify a Liebert

product with complete confidence. And we back every

Liebert Interceptor Series filter with the industry's only

five-year warranty for on-site labor.

Features That Make The Difference

The Industry's Best Attenuation Of Voltage

Transients Proprietary Active Tracking sinewave correction

filter continuously provides close voltage control at any

location on the sinewave.

The Industry's Best Attenuation Of 100 kHz Ringwaves

The Active Tracking filter system minimizes the aftershocks

of voltage transients and the inherent energy storage system

smoothes the sinewave by filling notches and reducing spikes.

Stringent, Independent Testing For Performance

■UL 1449, UL 1283 and CSA Listed.

■ANSI/IEEE C62.11, C62.41, C62.45 Categories A, B,

and C3 tested.

■Independently tested surge current ratings from 100kAmps

to 300kAmps.

■Life cycle tested: will survive in excess of 12,000 10kAmp

surges per IEEE Category C3.

Engineered For Superior Surge Current Ratings

And Long Life

■Computerized "smart" array technology for surge protection.

■Unique sand-packed silver fuse network allows rated surge

current to pass through without fuse operation.

■Unprecedented redundancy offers expanded mean-time-

between-failure (MTBF).

■Sinewave tracking EMI/RFI filtering.

■Fast response time — less than .5 nanoseconds.

■All modes of protection.

Compatible With All Linear Loads

■Provides flexibility for a wide range of applications.

Modular Design For Ease Of Customization And Service

■Enables you to specify an Interceptor system to match the

needs of a specific application. Also allows easy replacement

of surge modules if required.

Sophisticated User-Friendly Diagnostics

■On-line system monitoring/testing for all suppression

components in all modes of protection.

■Standard features include: audible alarm, transient

counter, door LEDs indicating unit status, individual

module status LEDs, and Form C dry contacts for

remote system integrity monitoring and indication

of undervoltage, phase and/or power loss.

■Optional features include: additional seven-digit transient

counter for normal mode, additional Form C dry contacts.

Manufactured To The Most Stringent ISO Quality Standards

■ISO 9001 registration for design, manufacturing and service.

A Dedicated Service Network Protects You Too

■Dedicated service network with over 400 Liebert-trained

and authorized technicians.

■Toll-free service hotline manned 24 x 7.

3

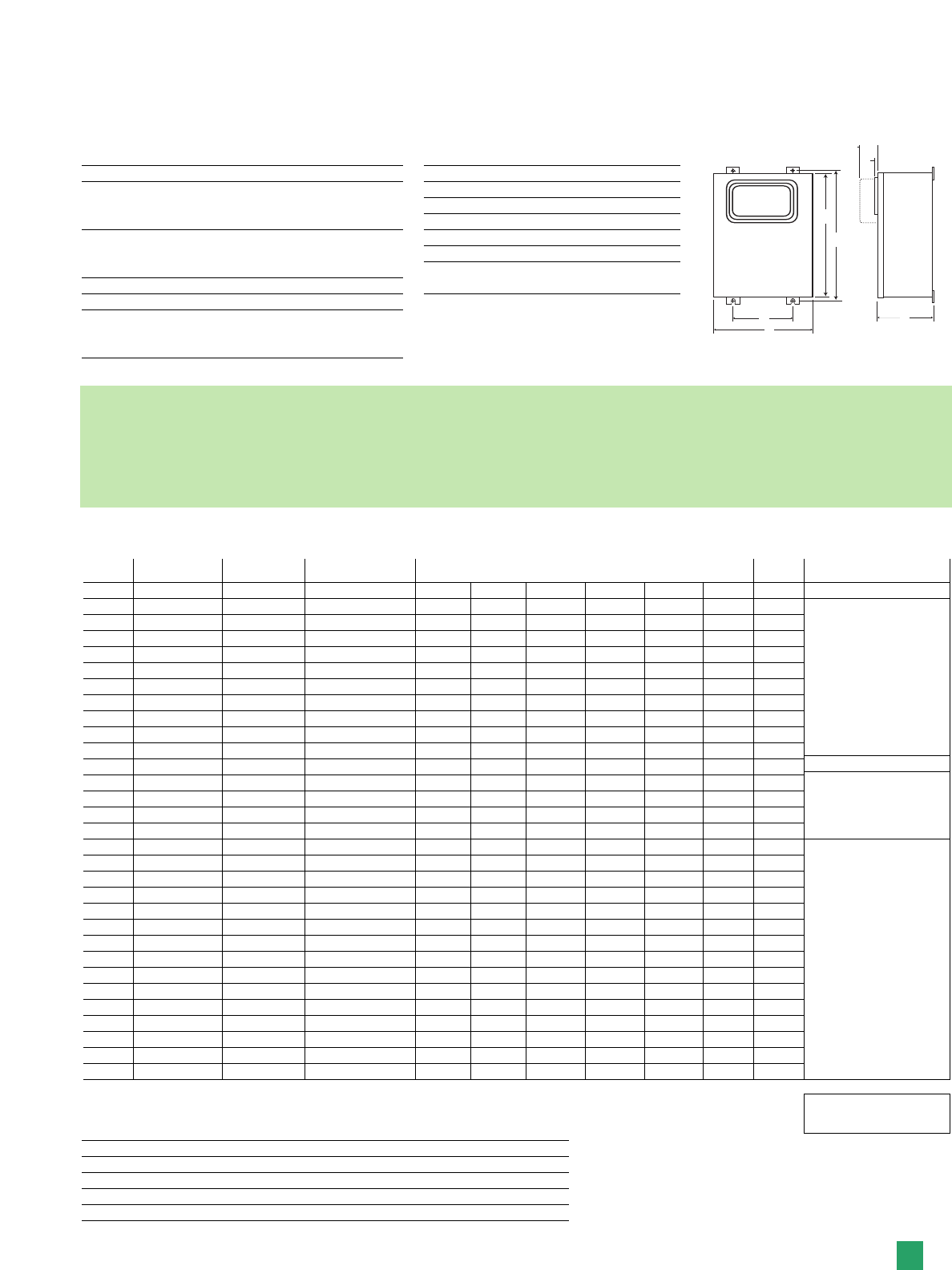

Specifications

Connection Type Series connected

Agency Listings UL 1449, UL 1283, CSA

Protection Modes All modes standard (Line to Neutral,

Line to Ground, Neutral to Ground,

Line to Line); any combination optional

EMI/RFI Filtering Normal mode — 60 dB maximum from

10 kHz to 500 MHz; Common mode

50 dB maximum from 10 kHz to 500 MHz

Response Time less than .5 nanoseconds

Load Regulation 1% no load to full load

Enclosure NEMA 12 standard; options include

NEMA 3R, 4, 4X and caseless for

switchgear applications

Current Model Number Surge Current Capability Dimensions

Rating Configuration (xxx=voltage code) per phase (L-N or L-L+L-G) (inches) Weight

ABCDE FLbs.

30A Single Phase L-L FXXXL30 100kA 24.0 20.0 9.0 21.25 10.0 .44 40

30A Single Phase L-N FXXXN30 100kA 24.0 20.0 9.0 21.25 10.0 .44 35

30A Split Phase FXXXS30 100kA 24.0 20.0 9.0 25.25 14.0 .44 45

30A Three Phase Delta FXXXD30 100kA 24.0 20.0 9.0 25.25 14.0 .44 50

30A Three Phase Wye FXXXY30 100kA 24.0 20.0 9.0 25.25 14.0 .44 60

60A Single Phase L-L FXXXL60 100kA 24.0 20.0 9.0 21.25 10.0 .44 40

60A Single Phase L-N FXXXN60 100kA 24.0 20.0 9.0 21.25 10.0 .44 35

60A Split Phase FXXXS60 100kA 24.0 20.0 9.0 25.25 14.0 .44 45

60A Three Phase Delta FXXXD60 100kA 24.0 20.0 9.0 25.25 14.0 .44 50

60A Three Phase Wye FXXXY60 100kA 24.0 20.0 9.0 25.25 14.0 .44 60

100A Single Phase L-L FXXXL100 150kA 30.0 24.0 9.0 31.25 18.0 .44 65

100A Single Phase L-N FXXXN100 150kA 30.0 24.0 9.0 31.25 18.0 .44 60

100A Split Phase FXXXS100 150kA 30.0 24.0 9.0 31.25 18.0 .44 70

100A Three Phase Delta FXXXD100 150kA 30.0 24.0 9.0 31.25 18.0 .44 70

100A Three Phase Wye FXXXY100 150kA 30.0 24.0 9.0 31.25 18.0 .44 80

125A Single Phase L-L FXXXL225 150kA 30.0 24.0 9.0 31.25 18.0 .44 65

125A Single Phase L-N FXXXN225 150kA 30.0 24.0 9.0 31.25 18.0 .44 60

225A Split Phase FXXXS225 150kA 30.0 24.0 9.0 31.25 18.0 .44 70

225A Three Phase Delta FXXXD225 150kA 30.0 24.0 9.0 31.25 18.0 .44 70

225A Three Phase Wye FXXXY225 150kA 30.0 24.0 9.0 31.25 18.0 .44 80

400A Three Phase Delta FXXXD400 150kA 48.0 36.0 12.0 49.25 30.0 .44 275

400A Three Phase Wye FXXXY400 150kA 48.0 36.0 12.0 49.25 30.0 .44 300

800A Three Phase Delta FXXXD800 choose 200 or 300 kA 60.0 48.0 12.0 - - - 500

800A Three Phase WyeFXXXY800 choose 200 or 300 kA 60.0 48.0 12.0 - - - 530

1200A Three Phase Delta FXXXD1200 choose 200 or 300 kA 60.0 48.0 20.0 - - - 700

1200A Three Phase Wye FXXXY1200 choose 200 or 300 kA 60.0 48.0 20.0 - - - 750

2000A Three Phase Delta FXXXD2000 choose 200 or 300 kA 60.0 48.0 20.0 - - - 875

2000A Three Phase Wye FXXXY2000 choose 200 or 300 kA 60.0 48.0 20.0 - - - 950

4000A Three Phase Delta FXXXD4000 choose 200 or 300 kA 60.0 48.0 20.0 - - - 1175

4000A Three Phase Wye FXXXY4000 choose 200 or 300 kA 60.0 48.0 20.0 - - - 1300

How To Specify The Appropriate Model:

1) Go to Chart A, choose your Current Rating from column one and corresponding Configuration from column two.

2) Follow column two across to column three to determine your Model Number.

3) Refer to Chart B to determine the Voltage Code from the available choices. Substitute the Voltage Code for “XXX.”

(Use the first three digits of the Voltage Code for split phase and three phase configurations).

4) Finally, to complete your model number, go to the last column or (Monitoring Options) and choose the suffix for Standard Features (-06) or

Optional Features (-03).

Chart A - Active Tracking®Filter Systems

Chart B - Nominal Voltage Codes

(substitute for “xxx” to complete model number)

Single Phase, 2 wire plus ground 100, 110, 120, 230, 240, 277, 346, 400, 480, 600

Split Single Phase, 3 wire plus ground 100/173, 110/190, 120/208 or 240, 230/400, 277/480, 346/600

Three Phase Delta, 3 wire plus ground 208, 240, 380, 400, 480, 600

Three Phase Delta Hi-Leg, 4 wire plus ground 120/240

Three Phase Wye, 3 or 4 wire plus ground 100/173, 110/190, 120/208, 230/400, *277/480, 346/600

A

D

F

E

B

- Diameter

C

- Optional Features

2.0” MAX

- Standard Features

.50” MAX

Line Frequency 47 to 63 Hz

Line Voltage ±15% nominal

Temperature -40 to +60°C

Operating Humidity 0 to 95% noncondensing

Altitude 0 to 18,000 feet

Audible Noise Less than 45 dBa

Operational Crest Factor 3.0

Warranty 10-Years Parts and

5-Years On-Site Labor

Monitoring

Options

Standard Features Include:

•Audible Alarm,

Transient Counter

• Door LEDs indicating

unit status

•Individual Module

Status LEDs, and -06

Form C Dry Contacts

for Remote System

Integrity Monitoring

and Indication of

Under Voltage, Phase

and/or Power Loss.

Optional Features Include:

• Additional Seven-

Digit Transient Counter

for Normal Mode -03

• Additional Form C

Dry Contacts

NOTES: For configurations not

mentioned, including caseless

units for switchgear applications

and ungrounded delta units,

consult factory. For different levels

of surge current capacity mode

and/or phase, consult factory.

CODE:

L - N = Line to Neutral

L - G = Line to Ground

N - G = Neutral to Ground

L - L = Line to Line

*Valid for 220/380 and

240/415 per IEC.

Example Model Number:

F120Y30-03
