Fisherr657 and 667 Diaphragm Actuators
Fisher 657 and 667 spring-opposed diaphragm
actuators position the valve plug in the valve in
response to varying controller or valve positioner
pneumatic output signals applied to the actuator
diaphragm. Zero setting of the actuator is determined
by the compression of the actuator spring. Span is set
by both the actuator spring rate and the number of
springs available. The 657 actuator is direct-acting; the
667 is reverse-acting. These actuators are designed to
provide dependable on-off or throttling operation of
automatic control valves.
Features
Application Versatility–Five actuator types in eleven
sizes are available for an extensive variety of
applications. Spring rates, travel stops, and manual
operators are available for nearly any control valve
application.
Excellent Linearity Between Loading Pressure and
Travel–A molded diaphragm travels in a deep
diaphragm casing, minimizing area change
throughout the travel.
High Degree of Dynamic Stability and Frequency
Response–A shallow casing on the pressure side
means reduced volume on that side, thereby
minimizing response time.
High Thrust Capability–The molded diaphragm
allows maximum thrust for given diaphragm size.
Long Service Life–Rugged thick-walled cast iron and
steel construction provides increased stability,
corrosion protection, and protection from
deformation should over-pressurization occur.
657 ACTUATOR 667 ACTUATOR
W2174-2 W1916-3

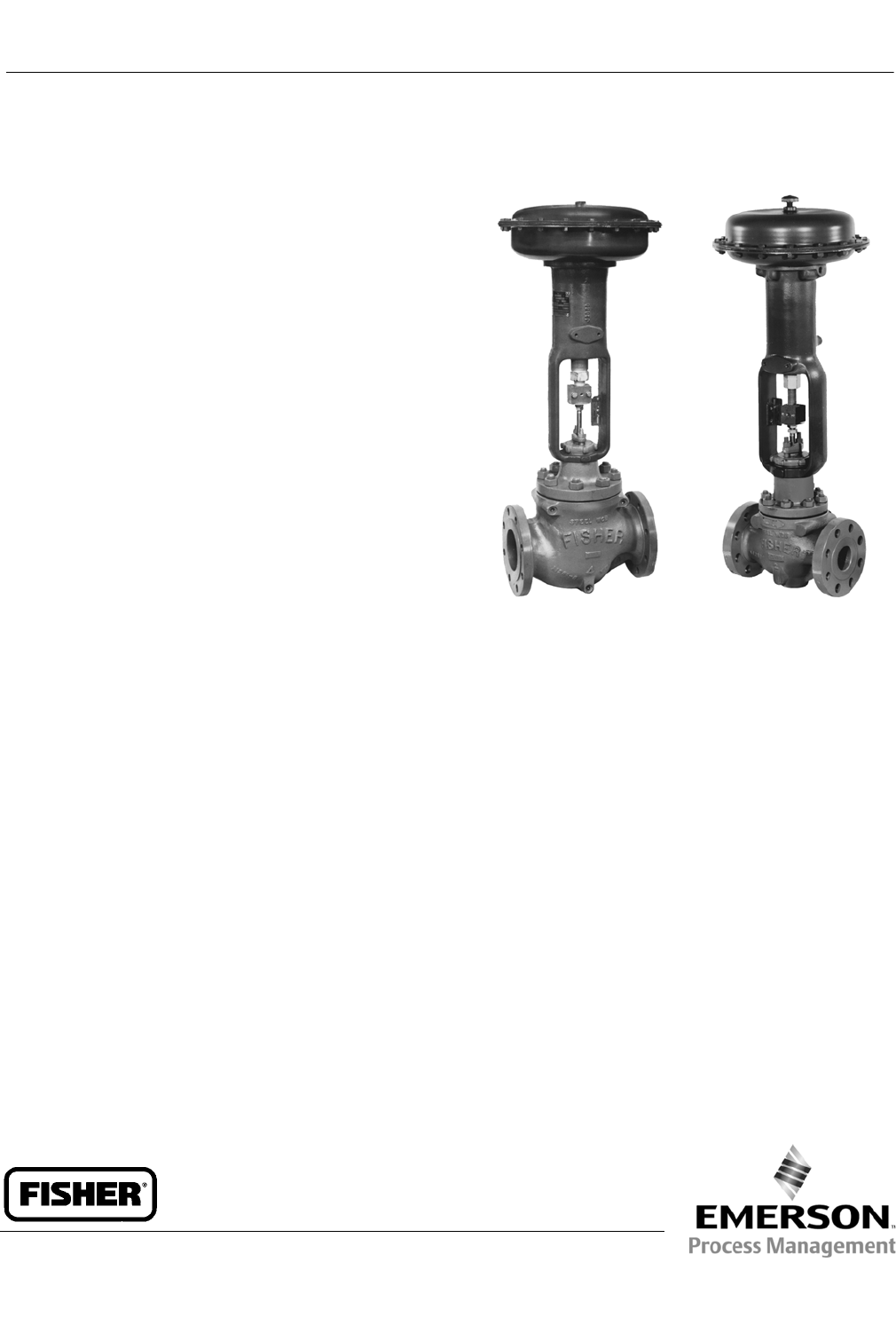

Fisher 657 and 667 Actuators Mounted on
easy-etValves
Cold Service Applications–Enhanced product
specifications for all sizes of 657 and 667 diaphragm
actuators allow performance to -50_C(-58_F). Use
of a positioner is recommended to ensure
responsiveness in applications operating below
-40_C(-40_F).
Positive Connections–A split block stem connection
provides a solid transfer of motion while allowing
easy mounting. The absence of linkages helps to
avoid lost motion and inaccurate valve positioning.
657 and 667 Actuators
D100087X012
Product Bulletin
61.1:657
May 2012
657 and 667 Actuators
D100087X012
Product Bulletin
61.1:657
May 2012
2
Specifications
Standard Operating Pressure Range(1)
657 and 667: J0.2to1.0bar(3to15psig)orJ0.4
to 2.0 bar (6 to 30 psig)
657-4 and 667-4: 0.2to1.9bar(3to27psig)
667 Size 76: J0.4to2.0bar(6to30psig)orJ0to
3.1 bar (0 to 45 psig)
Maximum Travel
See table 1
Output Indication
Stainless steel disk or pointer and graduated scale
Stroking Speed
Dependent on actuator size, travel, spring rate, initial
spring compression, and supply pressure. If stroking
speed is critical, consult your Emerson Process
Management sales office
Maximum Allowable Thrust(2)
See table 1
Operating Temperature Range(1)
Standard Construction (Nitrile Elastomers): -40 to
82_C(-40to180_F)
Optional Construction (Silicone Diaphragm): -40 to
149C(-40to300F)
Maximum Valve Packing Box Temperature: 427_C
(800_F) with cast iron yoke
Volumetric Displacement
See table 2
Signal Connections
Sizes 30 -60 and 667 Size 76: 1/4 NPT internal
Sizes 70 and 87: 1/2 NPT internal
Size 80
657: 3/4 NPT internal with 1/4 NPT internal bushing
667: 1/2 NPT internal with 1/4 NPT internal bushing
Size 100: 1 NPT internal with 1/4 NPT internal bushing
Effective Diaphragm Area
See table 1
Construction Materials (refer to figure 1)
Diaphragm Casing
Sizes 30
-
87: Steel
Size 80: JCast iron or Jsteel
Size 100: JCast aluminum
Diaphragm
Sizes 30
-
87: JNitrile on nylon, JSilicone on
polyester
Size 100: Nitrile on polyester
Diaphragm Plate
657 Sizes 30
-
60, 100: JCast aluminum
657 Sizes 70
-
87: JCast iron or Jsteel
667 Sizes 30
-
60, 100: JCast aluminum or Jsteel
667 Sizes 70
-
87: JCast iron or Jsteel
Actuator Spring: Steel
Spring Adjustor: Steel
Spring Seat: JSteel or Jcast iron
Actuator Stem: Steel
Travel Indicator: Stainless steel
O-Rings: Nitrile
Seal Bushing: Brass
Stem Connector: Zinc-plated steel
Yoke
Sizes 30
-
80: JCast iron or Jsteel
Size 100: Steel
Construction Materials for Cold Service
[to -50_C(-58_F)] 657 and 667--all sizes
Yoke: Steel (Grade LCC)
Diaphragm: Silicone
O-Rings:(3) Ethylene Propylene
Bolting: Stainless Steel B8M Cl 2
Stem Connector: Stainless Steel
Lubricant: Silicone
Stem and Yoke Boss Diameters
See table 1
Approximate Weight
See table 3
Options
JOversize signal connections, JPlastic yoke covers,
JWatertight yoke (sealed construction for certain
applications where valve stem and packing must be
protected)
1. The pressure and temperature limits in this bulletin and in any applicable standard or code limitation should not be exceeded.
2. Do not exceed the thrust limits in this bulletin.
3. Includes diaphragm casing seals, casing-mounted handwheel on 657, seal bushing on 667.
657 and 667 Actuators
D100087X012
Product Bulletin
61.1:657
May 2012
3
Available Configurations
Direct Action
All 657 actuators are direct acting. Applying air
pressure to the upper diaphragm casing forces the
actuator stem downward. When this pressure is
reduced, the opposing spring force moves the
actuator stem upward. Should the loading pressure
fail, the spring forces the stem to the extreme upward
position. This provides fail-open action for
push-down-to-close valves and fail-closed action for
push-down-to-open valves.
657–Adirect-acting actuator used on sliding-stem
valves. Available in sizes 30 through 100. See figures 1,
2, 5, and 6.
657-4–A 657 actuator in sizes 70 and 87, designed
with 102 mm (4-inch) travel.
Reverse Action
All 667 actuators are reverse acting. Applying air
pressure to the lower diaphragm casing forces the
actuator stem upward against the opposing spring
force. When this loading pressure is reduced, the
spring moves the actuator stem downward. Should
the loading pressure fail, the spring forces the stem to
the extreme downward position. These actuators
provide fail-closed action for push-down-to-close
valves and fail-open action for push-down-to-open
valves.
667–A reverse-acting actuator used on sliding-stem
valves. Available in sizes 30 through 100 and 76. See
figures1,2,and7.
667-4–A 667 actuator in sizes 70 and 87, designed
with 102 mm (4-inch) travel.
Accessories
Handwheels
Handwheels for diaphragm actuators are often used as
adjustable travel stops. They also provide a ready
means of positioning the control valve in an
emergency. The specifications in tables 5 and 6 apply
to handwheels on both 657 and 667 Series actuators.
For repeated or daily manual operation, the unit
should be equipped with a side-mounted handwheel
actuator.
Top-Mounted Handwheels–Typical 657 and 667
actuators with handwheels mounted on the
diaphragm case are shown in figure 2 (not available on
a 667 actuator, size 80). On the 657 actuator, the
handwheel can be set to limit the travel in the upward
direction; on the 667 actuator, travel in the downward
direction can be restricted. A P-2 travel stop (figure 4)
is available for a 667 actuator, sizes 45-60 to limit
travel in either the upward ordownwarddirections.An
actuator with a P-2 travel stop is limited to a maximum
travel of 19 mm (0.75 inch). The handwheel on the size
100 is similar in function to those on the smaller sizes,
but it uses a gear drive similar to the drive employed
on the integral side-mounted handwheels (see figure
2).
Contents
Features 1.....................................
Specifications 2................................
Available Configurations 3.......................
Direct Action 3.................................
Reverse Action 3...............................
Accessories 3..................................
Handwheels 3.................................
Adjustable Travel Stops 7........................
Other 7.......................................
Ordering Information 14.........................
Tables
Additional Specifications 5.......................
Volumetric Casing Displacement 6................
Approximate Actuator Weights
(without handwheel) 6........................
Thrust Capabilities 7............................
Handwheel Specifications 10.....................
Adjustable Travel Stop Styles 11..................
Dimensions 14.................................
657 and 667 Actuators
D100087X012
Product Bulletin
61.1:657
May 2012
4
Figure 1. Typical Actuators
W0364-2W0363-2
DIAPHRAGM CASINGS
667 SIZES 30-87 657 SIZES 30-87
W0366-1
657 SIZE 100
DIAPHRAGM
DIAPHRAGM PLATE
ACTUATOR SPRING
ACTUATOR STEM
SPRING SEAT
SPRING ADJUSTOR
STEM CONNECTOR
YOKE
TRAVEL INDICATOR DISK
INDICATOR SCALE
657 and 667 Actuators
D100087X012
Product Bulletin
61.1:657
May 2012
5
Table 1. Additional Specifications for Fisher 657 and 667 Series Actuators
ACTUATOR
SIZE
EFFECTIVE
DIAPHRAGM
AREA
YOKE
BOSS
DIAMETER
STEM
DIA
MAXIMUM
TRAVEL
MAXIMUM
ALLOWABLE
THRUST(1)
cm2mm N
30 297 54 9.5 19 10,231
34 445 54 9.5 29 10,231
40 445 71 12.7 38 12,010
45 677 71 12.7 51 25,132
46 1006 71 12.7 51 33,584
50 677 90 19.1 51 25,131
60 1006 90 19.1 51 30,246
70(2) 1419 90 19.1 76 39,142
102(3)
76(667) 1006 90 19.1 51 30,246
80 1761 127 25.4 76 63,392
31.8 88,075(4)
87(2) 1419 127 25.4 76 39,142
102(3)
100 2902 127H(5) 31.8 102 200,160
178 50.8
Inch2Inch Lb
30 46 2-1/8 3/8 0.75 2300
34 69 2-1/8 3/8 1.125 2300
40 69 2-13/16 1/2 1.5 2700
45 105 2-13/16 1/2 25650
46 156 2-13/16 1/2 27550
50 105 3-9/16 3/4 25650
60 156 3-9/16 3/4 26800
70(2) 220 3-9/16 3/4 38800
4(3)
76(667) 156 3-9/16 3/4 26800
80 273 51314,150
1-1/4 19,800(4)
87(2) 220 5 1 38800
4(3)
100 450 5H(5) 1-1/4 445,000
7 2
1. These values are based on material limitations such as yoke, stem connection, diaphragm plate, and travel stop strengths.
2. Values also apply to 657-4 and 667-4 actuators.
3. For 657-4 and 667-4 actuator constructions.
4. Steel construction.
5. H=Heavy actuator-to-valve bolting.
657 and 667 Actuators
D100087X012
Product Bulletin
61.1:657
May 2012
6
Table 2. Volumetric Casing Displacement for Fisher 657 and 667 Series Actuators
ACTUATOR
SIZE
CLEARANCE
VOLUME(1)
TRAVEL, mm
11 16 19 29 38 51 76 102
cm3Casing Volume(2),cm
3
30 540 918 1080 1180 --- --- --- --- ---
34 and 40 934 1470 1700 1850 2330 2790 --- --- ---
45 and 50 1560 --- 2790 3000 3720 4420 5410 --- ---
46, 60, and 76 2180 --- 3880 4210 5280 6340 7740 --- ---
70 and 87 3490 5240 5950 6420 7830 9240 11,110 14,880 18,570
80 4820 --- --- --- 10,490 12,450 14,860 19,340 ---
100 657 10,880 --- --- 16,400 19,170 21,940 25,630 33,000 40,380
667 12,780 --- --- 18,320 21,070 23,840 27,530 34,900 42,280
Inch3
TRAVEL, INCH
0.4375 0.625 0.75 1.125 1.5 2 3 4
Casing Volume(2),Inch
3
30
34 and 40
45 and 50
33
57
95
56
90
---
66
104
170
72
113
183
---
142
227
---
170
270
---
---
330
---
---
---
---
---
---
46, 60, and 76
70 and 87
80
133
213
294
---
320
---
237
363
---
257
392
---
322
478
640
387
564
760
472
678
907
---
980
1180
---
1133
---
100 657 664 --- --- 1002 1170 1339 1564 2014 2464
667 780 --- --- 1118 1286 1455 1680 2130 2580
1. Clearance volume indicates casing volume at zero travel.
2. Includes clearance volume.
Table 3. Approximate Actuator Weights (without handwheel)
ACTUATOR
SIZE
ACTUATOR
657 667 657 667
Kg Lb
30 16 15 36 34
34 22 22 48 48
40 23 23 51 50
45 37 41 82 90
46 49 55 107 121
50 42 43 92 94
60 53 55 116 122
70 107 115 235 254
76 --- 86 --- 190
80 234 284 515 626
87 116 118 255 260
100 346 544 762 1200
657 and 667 Actuators
D100087X012
Product Bulletin
61.1:657
May 2012
7
Table 4. Thrust Capabilities(1) by Input Signal Range
TRAVEL ACTUATOR
SIZE
PRESSURE RANGE
TO ACTUATOR
DIAPHRAGM(2)
THRUST
CAPABILITIES
657 667
mm Bar N
19
30 0.2-12250 1840
0.4-23890 3270
34 0.2-13380 3380
0.4-25830 5530
29
40 0.2-13380 2760
0.4-25530 3680
45 0.2-14670 4670
0.4-28410 8870
46 0.2-16940 6250
0.4-213,190 11,800
38
50 0.2-15140 3740
0.4-28410 7010
60 0.2-16940 4860
0.4-213,190 8330
51
70 0.2-17830 7830
0.4-218,590 13,700
80 0.2-110,110 11,250
0.4-218,950 19,680
87 0.2-16850 7830
0.4-218,590 13,700
76
100
0.2-116,010 8010
0.4-232,030 36,030
102 0.2-112,010 ---
0.4-222,019 28,024
Inch Psig Lb
0.75
30 3-15 506 414
6-30 874 736
34 3-15 759 759
6-30 1311 1242
1.125
40 3-15 759 621
6-30 1242 828
45 3-15 1050 1050
6-30 1890 1995
46 3-15 1560 1404
6-30 2964 2652
1.5
50 3-15 1155 840
6-30 1890 1575
60 3-15 1560 1092
6-30 2964 1872
2
70 3-15 1760 1760
6-30 4180 3080
80 3-15 2272 2528
6-30 4260 4424
87 3-15 1540 1760
6-30 4180 3080
3
100
3-15 3600 1800
6-30 7200 8100
43-15 2700 ---
6-30 4950 6300
1. For Size 76 667 actuators, contact your Emerson Process Management sales office.
2. Consult Fisher 657 and 667 instruction manuals (D100306X012, D100307X012,
D100310X012, and D100311X012) for additional information on maximum pressure
limitations.
Clockwise rotation of the handwheel on the 657
actuator moves the actuator stem downward,
compressing the spring. Spring action returns the
stem as the handwheel is turned counterclockwise.
With the 667 actuator, counterclockwise rotation
moves the stem upward, and spring action returns the
stem on clockwise rotation.
Side-Mounted Handwheels–Figure 3 shows the
side-mounted handwheels (designated by the letters
MO) applicable to sizes 34 through 87, 657 and 667
actuators. Size 30 actuators do not have a
side-mounted handwheel available.
All side-mounted handwheels can be used to stroke
the valve in either direction at any point in the actuator
stem travel. Unlike the top-mounted handwheel, the
side-mounted handwheel can be positioned to limit
travel in either direction, but not both at the same
time. With the handwheel in the neutral position,
automatic operation is possible throughout full valve
travel. In any other position, valve travel will be
restricted. The handwheel is furnished with a
spring-loaded ball detent which prevents vibration
from changing the setting.
Adjustable Travel Stops
Top-mounted adjustable travel stops are available for
657 and 667 Series actuators. They are used to limit
travel in the up, down, or up and down directions.
Figure 4 illustrates the different constructions. Table 7
locates the different style constructions with actuator
type and use.
Other
Accessories such as transducers, positioners, position
transmitters, air relays, volume boosters, switching
valves, lockup valves, limit switches, and solenoid
valves are also available for actuator mounting. They
are described in separate publications. Contact your
Emerson Process Management sales office for details.
657 and 667 Actuators
D100087X012
Product Bulletin
61.1:657
May 2012
8
Figure 2. Typical Top-Mounted Handwheels
657 ACTUATOR
(EXCEPT SIZE 100)
W0368-2
TOP VIEW
W0369-2
W0370-1
W0370-1
667 ACTUATOR
(EXCEPT SIZES 80 AND 100)
657 ACTUATOR SIZE 100
(GEAR DRIVEN)
657 and 667 Actuators
D100087X012
Product Bulletin
61.1:657
May 2012
9
Figure 3. Typical Side-Mounted Handwheels for Fisher 657 and 667 Series Actuators
SECTION A-A
SIZES 34 THROUGH 60 SIZES 70, 76, 80, AND 87
W0371-1W0372-1
Figure 4. Adjustable Travel Stops
40A8764-E
40A38A1211-E
STYLE 1
657 AND 657-4
UP STOP
STYLE 2
657 AND 657-4
DOWN STOP
STYLE 10
667 DOWN STOP
STYLE 11
667 UP
AND DOWN STOP
STYLE 12
667 UP STOP
STYLE 13
667 UP STOP
STYLE 14
667 UP STOP
STYLE P2
667 UP AND
DOWN STOP
657 and 667 Actuators
D100087X012
Product Bulletin
61.1:657
May 2012
10
Table 5. Fisher 657 Handwheel Specifications
657
ACTUATOR
SIZE
TOP-MOUNTED HANDWHEEL SIDE-MOUNTED HANDWHEEL
Handwheel
Diameter Turns Per
mm Travel
Rim Force(1)
Maximum
Handwheel
Output
Force(3)
Handwheel
Diameter Turns Per
mm Travel
Rim Force(1)
Maximum
Handwheel
Output
Force(3)
mm N N mm N N
30 171 0.3 190 6670 --- --- --- ---
34 and 40 222 0.3 210 10,010 304 0.2 230 10,010
45 and 50 222 0.3 420 15,080 355 0.3 360 15,080
46 and 60 222 0.3 490 22,690 355 0.3 540 22,690
70 and 87 355 0.3 590 29,360 432 0.8 160 29,360
80 355 0.3 770 37,770 432 0.4 240 37,770
100(2) 406 6270 160,000 --- --- --- ---
Inch Turns Per
Inch Travel Lb Lb Inch Turns Per
Inch Travel Lb Lb
30 6.75 842 1500 --- --- --- ---
34 and 40 8.75 848 2250 12 5.14 52 2250
45 and 50 8.75 895 3390 14 6.65 81 3390
46 and 60 8.75 8110 5100 14 6.65 122 5100
70 and 87 14 8132 6600 17 20 36 6600
80 14 8173 8490 17 10 53 8490
100(2) 16 144 60 36,000 --- --- --- ---
1. Tangential handwheel force required to produce the handwheel output force shown. (Proportional to handwheel output force).
2. Top-mounted with gear drive.
3. Maximum force available to compress the actuator spring and close the valve.
657 and 667 Actuators
D100087X012
Product Bulletin
61.1:657
May 2012
11
Table 6. Fisher 667 Handwheel Specifications
667
ACTUATOR
SIZE
TOP-MOUNTED HANDWHEEL SIDE-MOUNTED HANDWHEEL
Handwheel
Diameter
Turns
Per
mm
Travel
Rim
Force(1)
Maximum
Handwheel
Output
Force(3)
667
ACTUATOR
SIZE
Handwheel
Diameter Turns Per
mm Travel
Rim Force(1)
Maximum
Handwheel
Output
Force(3)
mm N N mm N N
30 171 0.3 200 6670 30 --- --- --- ---
34 and 40 222 0.3 230 10,010 34 and 40 304 0.2 230 10,010
45 and 50 222 0.2 460 17,790 45 and 50 355 0.3 360 15,080
355 0.2 430 26,690
46, 60, and 76 222 0.2 460 17,790 46 and 60 355 0.3 540 22,690
355 0.2 430 26,690
70 and 87 355 0.2 520 26,690 70, 76, and 87 432 0.8 160 29,360
762 mm Bar 0.2 410 44,480
100(2) 406 6270 160,000 80 432 0.4 240 37,770
667
ACTUATOR
SIZE
Inch
Turns
Per
Inch
Travel
Lb Lb
667
ACTUATOR
SIZE
Inch Turns Per
Inch Travel Lb Lb
30 6.75 845 1500 30 --- --- --- ---
34 and 40 8.75 851 2250 34 and 40 12 5.14 52 2250
45 and 50 8.75 6103 4000 45 and 50 14 6.65 81 3390
14 697 6000
46, 60, and 76 8.75 6103 4000 46 and 60 14 6.65 122 5100
14 697 6000
70 and 87 14 6118 6000 70, 76, and 87 17 20 36 6600
30 Inch Bar 692 10000
100(2) 16 144 60 36,000 80 17 10 53 8490
1. Tangential handwheel force required to produce the handwheel output force shown. (Proportional to handwheel output force).
2. Top-mounted with gear drive.
3. Maximum force available to compress actuator spring.
Table 7. Adjustable Travel Stop Styles (1)
Actuator Size 30 34 40 45 46 50 60 and
667 Size 76 70 87 80 100
657 Up Stop 1 1 1 1 1 1 1 1 1 NOTE 2 NOTE 2
657 Down Stop 2 2 2 2 2 2 2 2 2 --- ---
667 Up Stop 12, 13(3),
14
12, 13(3),
14
12, 13(3),
14
12, 13(3),
14
12, 13(3),
14
12, 13(3),
14
12, 13(3),
14 12 12 13(3) ---
667 Down Stop 10 10 10 10 10 10 10 10 10 --- NOTE 2
667 Up and
Down Stop --- 11 11 11(4),P2
(5) 11(4),P2
(5) 11(4),P2
(5) 11(4),P2
(5) --- --- --- ---
1.Seefigure4.
2. Top-mounted handwheel, see figure 2.
3. Adjustable handwheel up stop.
4. 38 mm (1.5 inch) maximum travel.
5. Adjustable handwheel up and down stop, 19 mm (0.75 inch) maximum travel.
657 and 667 Actuators
D100087X012
Product Bulletin
61.1:657
May 2012
12
Figure 5. Fisher 646 Electro-Pneumatic Transducer
on 657 Actuator
W4917-1
Figure 6. Fisher 3582i Valve Positioner on
657 Actuator
W4930
Figure 7. Fisher 4200 Position Transmitter on
667 Actuator
W4273-1
657 and 667 Actuators
D100087X012
Product Bulletin
61.1:657
May 2012
13

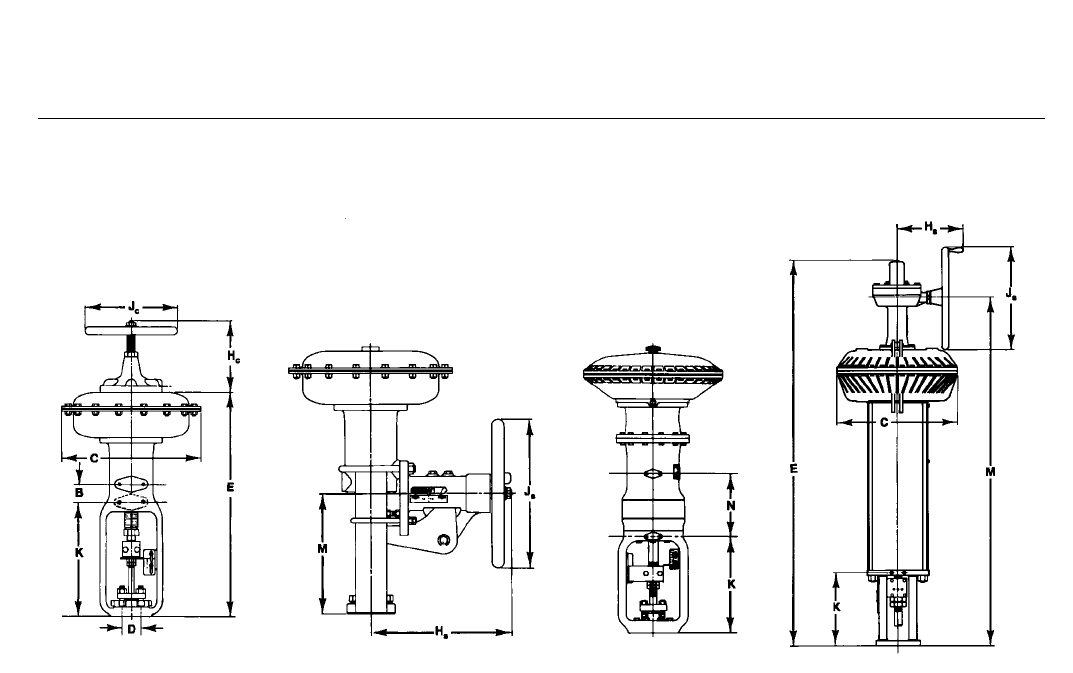

Table 8. Dimensions
DIMENSION
REFERENCE
ACTUATOR SIZE
30 34 40 45 46 47 50 60 70 76 80 87 100
mm
B657, -4
667, -4
0
38
25
38
25
38
38
38
38
38
38
38
38
38
38
38
38
38
---
38
---
---
38
38
---
---
C289 333 333 406 473 536 406 473 536 473 635 536 729
D54 54 71 71 71 71 90 90 90 90 127 127 127(2)
E
657
657-4
657MO(1)
657-4 MO
440
---
440
---
498
---
498
---
548
---
548
---
659
---
659
---
656
---
656
---
---
---
---
---
722
---
722
---
722
---
722
---
840
994
976
1124
---
---
---
---
1075
---
1183
---
938
1089
1057
1204
NOTE 3
---
NOTE 4
---
667
667-4
667MO
657-4 MO
478
---
478
---
573
---
573
---
594
---
594
---
768
---
768
---
748
---
748
---
---
---
---
---
784
---
784
---
784
---
784
---
933
1070
1164
1314
881
---
1112
---
1257
---
1392
---
1003
1143
1245
1394
1857
---
2346
---
Hc
657
667
121
119
164
121
164
137
202
159
202
159
---
---
202
159
202
159
313
286
---
159
227
---
313
286
---
---
Hs--- 284 286 375 375 --- 378 378 292 222 303 292 401
Jc171 222 222 222 222 356 222 222 356 356 356 356 ---
Js--- 305 305 356 356 --- 356 356 432 432 432 432 406
K657, -4
667, -4
213
194
222
224
272
244
291
310
291
310
395
---
354
325
354
325
406
375
---
375
435
432
780
419
451
451
M657, -4
667, -4
---
---
226
214
248
248
306
362
306
362
---
---
370
378
370
378
446
446
---
446
503
503
527
527
NOTE 5
2105
N
657
657MO
657-4MO
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
219
219
---
---
---
254
384
---
---
219
219
---
---
---
667
667MO
667-4MO
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
219
219
---
219
---
254
384
---
---
219
219
---
---
---
Inches
B657, -4
667, -4
0.00
1.50
1.00
1.50
1.00
1.50
1.50
1.50
1.50
1.50
1.50
1.50
1.50
1.50
1.50
1.50
1.50
1.50
---
1.50
---
---
1.50
1.50
---
---
C11.38 13.12 13.12 16.00 18.62 21.12 16.00 18.62 21.12 18.62 25.00 21.12 28.69
D2.125 2.125 2.8125 2.8125 2.8125 2.8125 3.5625 3.5625 3.5625 3.5625 5 5 5(2)
E
657
657-4
657MO
657-4 MO
17.31
---
17.31
---
19.62
---
19.62
---
21.56
---
21.56
---
25.94
---
25.94
---
25.81
---
25.81
---
---
---
---
---
28.44
---
28.44
---
28.44
---
28.44
---
33.06
39.12
38.44
44.25
---
---
---
---
42.31
---
46.56
---
36.94
42.88
41.62
47.38
NOTE 3
---
NOTE 4
---
667
667-4
667MO
657-4 MO
18.81
---
18.81
---
22.56
---
22.56
---
23.38
---
23.38
---
30.25
---
30.25
---
29.44
---
29.44
---
---
---
---
---
30.88
---
30.88
---
30.88
---
30.88
---
36.75
42.12
45.81
51.75
34.70
---
43.76
---
49.50
---
54.81
---
39.50
45.00
49.00
54.88
73.12
---
92.38
---
Hc
657
667
4.75
4.69
6.44
4.75
6.44
5.38
7.94
6.25
7.94
6.25
---
---
7.94
6.25
7.94
6.25
12.31
11.25
---
6.25
8.94
---
12.31
11.25
---
---
Hs--- 11.19 11.25 14.75 14.75 --- 14.88 14.88 11.50 11.50 11.94 11.50 15.78
Jc6.75 8.75 8.75 8.75 8.75 14.00 8.75 8.75 14.00 8.75 14.00 14.00 ---
Js--- 12.00 12.00 14.00 14.00 --- 14.00 14.00 17.00 17.00 17.00 17.00 16.00
K657, -4
667, -4
8.38
7.62
8.75
8.83
10.69
9.62
11.44
12.19
11.44
12.19
15.56
---
13.94
12.81
13.94
12.81
16.00
14.75
---
14.75
17.12
17.00
18.88
16.50
17.75
17.75
M657, -4
667, -4
---
---
8.88
8.44
9.75
9.75
12.06
14.25
12.06
14.25
---
---
14.56
14.88
14.56
14.88
17.56
17.56
---
17.56
19.81
19.81
20.75
20.75
NOTE 5
82.88
N
657
657MO
657-4MO
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
8.62
8.62
---
---
---
10.00
15.12
---
---
8.62
8.62
---
---
---
667
667MO
667-4MO
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
8.62
8.62
---
8.62
---
10.00
15.12
---
---
8.62
8.62
---
---
---
1. MO = Manual operator.
2. Also available with 7 inch boss.
3. With group 1 springs, E=1959 mm (77.12 inch). With group 2 springs, E=1497 mm (58.94 inch).
4. With group 1 springs, E=2345 mm (92.31 inch). With group 2 springs, E=1883 mm (74.12 inch).
5. With group 1 springs, M=2103 mm (82.81 inch). With group 2 springs, M=1654 mm (65.12 inch).
657 and 667 Actuators
D100087X012
Product Bulletin
61.1:657
May 2012
14
Figure 8. Dimensions (also see table 8)
AU6713-DAU6713-DA0171-240A8196
657, 667,
657-4, AND 667-4
SIZES 30 THROUGH 87
657, 667,
657-4, AND 667-4
SIZES 30 THROUGH 87
ALL TYPES
SIZES 70, 80, 87, AND
667 SIZE 76
657 AND 667
SIZE 100
Ordering Information
When ordering, specify:
Application
1. On-off or throttling service
2. Input signal range
3. Maximum supply pressure
4. Valvebodytypeandsizewithwhichtheactuator
will be used
5. Valve plug travel
6. Actuator thrust required with actuator stem both
fully retracted and fully extended
7. Stroking time requirements, if critical
8. Seismic requirements, if critical
9. Ambient temperature range
Actuator and Positioner
Be sure to specify: actuator type number; whether a
positioner is required; whether a top-mounted
handwheel is required; and whether an adjustable up
or down travel stop is required. Refer to the
Specifications section. Review the information under
each specification and in the referenced tables and
figures. Specify the desired choice wherever there is a
selection to be made.
Valve Body and Accessories
Refer to the separate valve body bulletin and bulletins
covering accessories for ordering information.
657 and 667 Actuators
D100087X012
Product Bulletin
61.1:657
May 2012
15
657 and 667 Actuators
D100087X012
Product Bulletin
61.1:657
May 2012
16
Emerson Process Management
Marshalltown, Iowa 50158 USA
Sorocaba, 18087 Brazil
Chatham, Kent ME4 4QZ UK
Dubai, United Arab Emirates
Singapore 128461 Singapore
www.Fisher.com
The contents of this publication are presented for informational purposes only, and while every effort has been made to ensure their accuracy, they arenot
to be construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicability. All sales are
governed by our terms and conditions, which are available upon request. We reserve the right to modify or improve the designs or specifications of such
products at any time without notice.
E1990, 2012 Fisher Controls International LLC. All rights reserved.
Fisher and easy-e are marks owned by one of the companies in the Emerson Process Management business unit of Emerson Electric Co. Emerson Process
Management, Emerson, and the Emerson logo are trademarks and service marks of Emerson Electric Co. All other marks are the property of their respective
owners.
Neither Emerson, Emerson Process Management, nor any of their affiliated entities assumes responsibility for the selection, use or maintenance
of any product. Responsibility for proper selection, use, and maintenance of any product remains solely with the purchaser and end user.

Navigation menu
