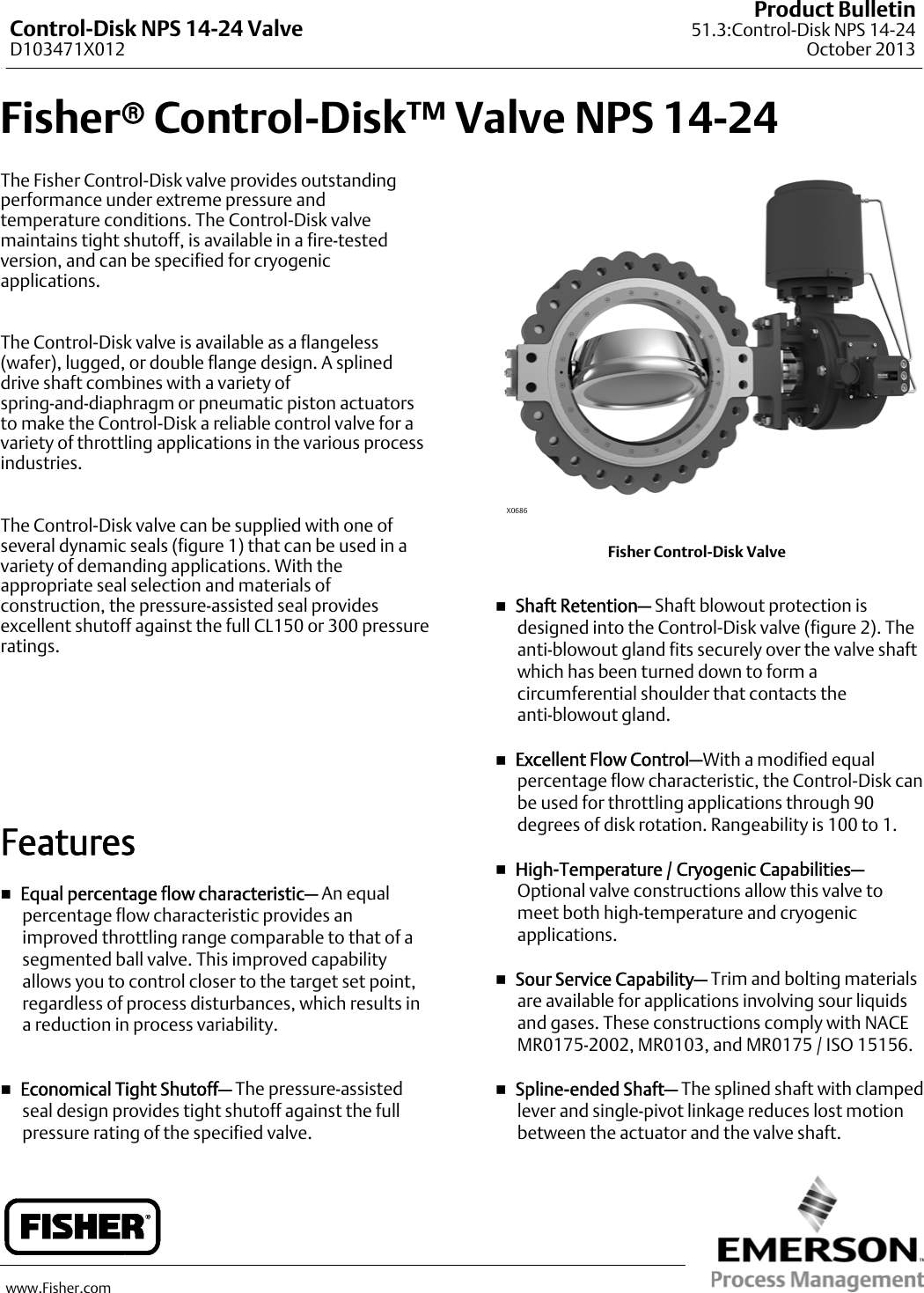

FisherrControl-Disk™ Valve NPS 14-24

The Fisher Control-Disk valve provides outstanding

performance under extreme pressure and

temperature conditions. The Control-Disk valve

maintains tight shutoff, is available in a fire-tested

version, and can be specified for cryogenic

applications.

The Control-Disk valve is available as a flangeless

(wafer), lugged, or double flange design. A splined

drive shaft combines with a variety of

spring-and-diaphragm or pneumatic piston actuators

to make the Control-Disk a reliable control valve for a

variety of throttling applicationsinthevariousprocess

industries.

The Control-Disk valve can be supplied with one of

several dynamic seals (figure 1) that can be used in a

variety of demanding applications. With the

appropriate seal selection and materials of

construction, the pressure-assisted seal provides

excellent shutoff against the full CL150 or 300 pressure

ratings.

Features

Equal percentage flow characteristic– An equal

percentage flow characteristic provides an

improved throttling range comparable to that of a

segmented ball valve. This improved capability

allows you to control closer to the target set point,

regardless of process disturbances, which results in

a reduction in process variability.

Economical Tight Shutoff– The pressure-assisted

seal design provides tight shutoff against the full

pressure rating of the specified valve.

Fisher Control-Disk Valve

X0686

Shaft Retention– Shaft blowout protection is

designed into the Control-Disk valve (figure 2). The

anti-blowout gland fits securely over the valve shaft

which has been turned down to form a

circumferential shoulder that contacts the

anti-blowout gland.

Excellent Flow Control–With a modified equal

percentage flow characteristic, the Control-Disk can

be used for throttling applications through 90

degrees of disk rotation. Rangeability is 100 to 1.

High-Temperature / Cryogenic Capabilities–

Optional valve constructions allow this valve to

meet both high-temperature and cryogenic

applications.

Sour Service Capability– Trim and bolting materials

are available for applications involving sour liquids

and gases. These constructions comply with NACE

MR0175-2002, MR0103, and MR0175 / ISO 15156.

Spline-ended Shaft– The splined shaft with clamped

lever and single-pivot linkage reduces lost motion

between the actuator and the valve shaft.

Control-Disk NPS 14-24 Valve

D103471X012

Product Bulletin

51.3:Control-Disk NPS 14-24

October 2013

Control-Disk NPS 14-24 Valve

D103471X012

Product Bulletin

51.3:Control-Disk NPS 14-24

October 2013

Application Versatility–Standard construction

materials and seal assemblies provide long life and

outstanding performance in a broad range of liquid

and gas applications.

Easy Installation–The valve body self-centers on the

line flange bolts as a fast, accurate means of

centering the valve in the pipeline.

Reliable Flange Gasketing Surface–Seal retainer

screws are located so there is no interference with

the sealing function of either flat sheet or spiral

wound line flange gaskets.

Powder paint as standard– The Emerson Process

Managementtpowder paint finish offers an

excellent corrosion-resistant finish to all steel parts.

Excellent Emissions Capabilities– The optional

ENVIRO-SEALtpacking systems, are designed with

very smooth shaft surfaces and live-loading to

provide improved sealing, guiding, and loading

force transmission. The seal of the ENVIRO-SEAL

system can control emissions to below 100 ppm

(parts per million).

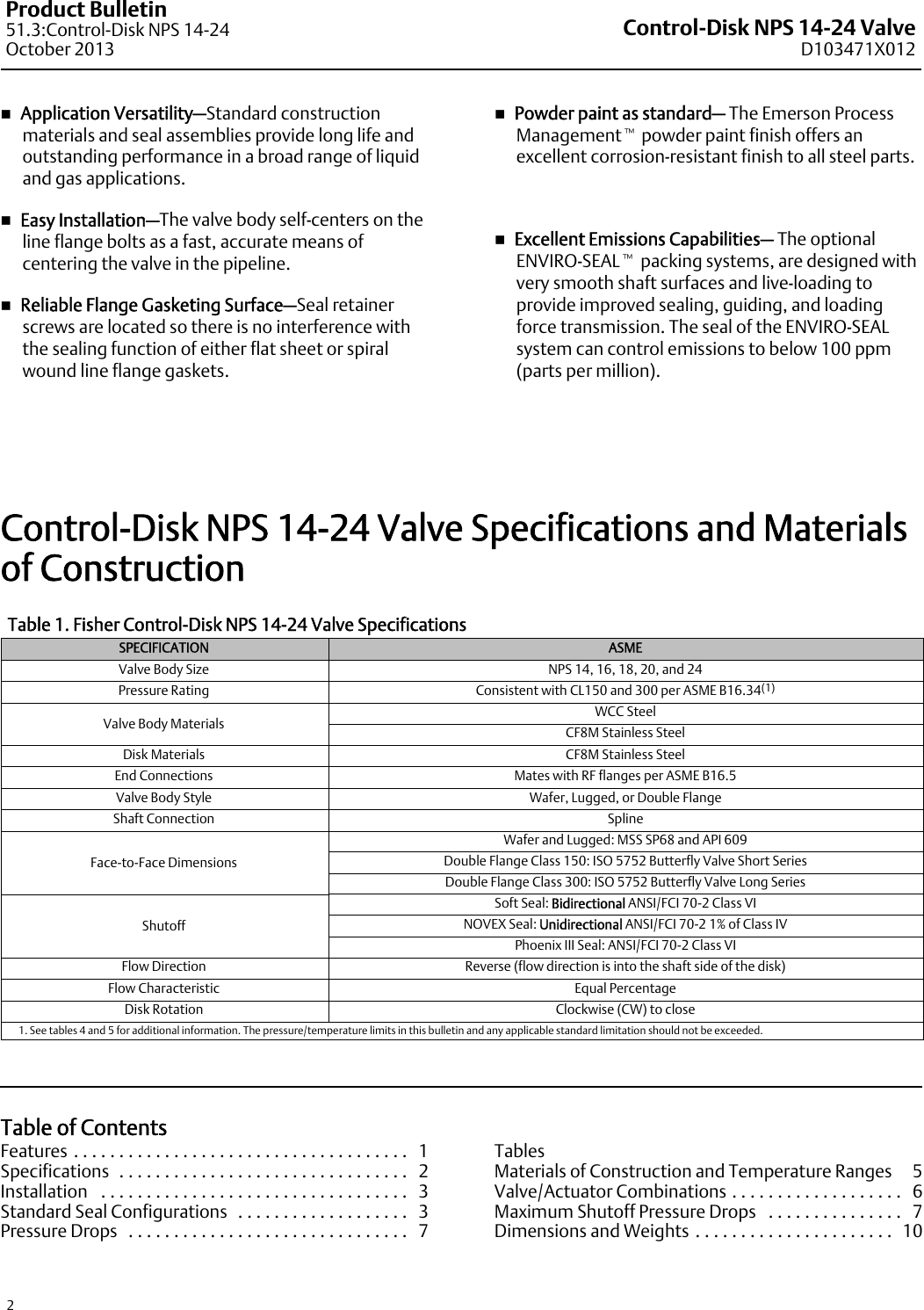

Control-Disk NPS 14-24 Valve Specifications and Materials

of Construction

Table 1. Fisher Control-Disk NPS 14-24 Valve Specifications

SPECIFICATION ASME

Valve Body Size NPS 14, 16, 18, 20, and 24

Pressure Rating Consistent with CL150 and 300 per ASME B16.34(1)

Valve Body Materials WCC Steel

CF8M Stainless Steel

Disk Materials CF8M Stainless Steel

End Connections Mates with RF flanges per ASME B16.5

Valve Body Style Wafer, Lugged, or Double Flange

Shaft Connection Spline

Face-to-Face Dimensions

Wafer and Lugged: MSS SP68 and API 609

Double Flange Class 150: ISO 5752 Butterfly Valve Short Series

Double Flange Class 300: ISO 5752 Butterfly Valve Long Series

Shutoff

Soft Seal: Bidirectional ANSI/FCI 70-2 Class VI

NOVEX Seal: Unidirectional ANSI/FCI 70-2 1% of Class IV

Phoenix III Seal: ANSI/FCI 70-2 Class VI

Flow Direction Reverse (flow direction is into the shaft side of the disk)

Flow Characteristic Equal Percentage

Disk Rotation Clockwise (CW) to close

1. See tables 4 and 5 for additional information. The pressure/temperature limits in this bulletin and any applicable standard limitation should not be exceeded.

Table of Contents

Features 1.....................................

Specifications 2................................

Installation 3..................................

Standard Seal Configurations 3...................

Pressure Drops 7...............................

Tables

Materials of Construction and Temperature Ranges 5

Valve/Actuator Combinations 6...................

Maximum Shutoff Pressure Drops 7...............

Dimensions and Weights 10......................

Control-Disk NPS 14-24 Valve

D103471X012

Product Bulletin

51.3:Control-Disk NPS 14-24

October 2013

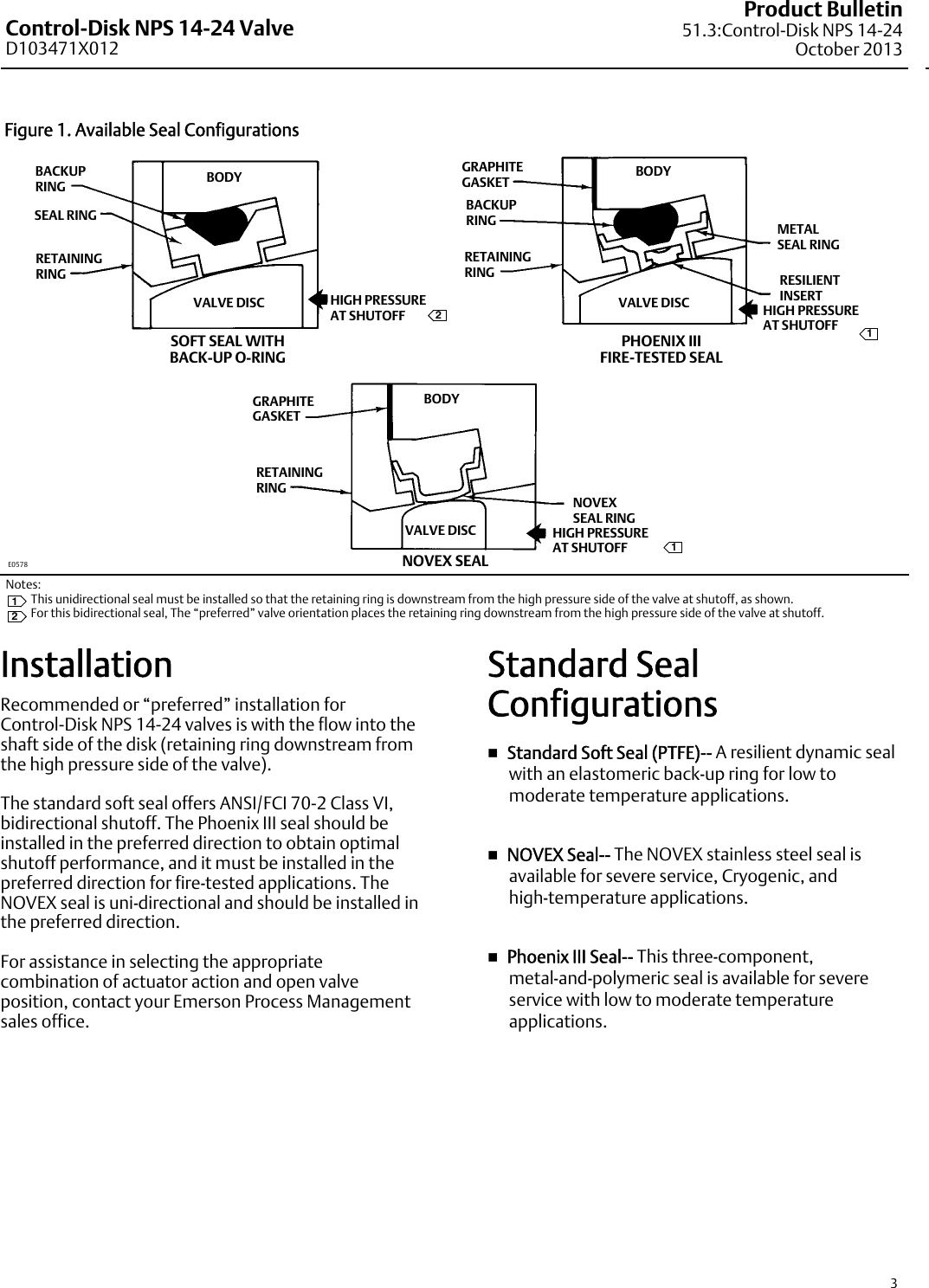

Figure 1. Available Seal Configurations

Notes:

This unidirectional seal must be installed so that the retaining ring is downstream from the high pressure side of the valve at shutoff, as shown.

For this bidirectional seal, The “preferred” valve orientation places the retaining ring downstream from the high pressure side of the valve at shutoff.

E0578

SOFT SEAL WITH

BACK-UP O-RING

PHOENIX III

FIRE-TESTED SEAL

NOVEX SEAL

VALVE DISC

BODY

BACKUP

RING

SEAL RING

HIGH PRESSURE

AT SHUTOFF

RETAINING

RING

VALVE DISC

BODY

RETAINING

RING

GRAPHITE

GASKET

NOVEX

SEAL RING

HIGH PRESSURE

AT SHUTOFF

VALVE DISC

BODY

BACKUP

RING

RETAINING

RING

GRAPHITE

GASKET

METAL

SEAL RING

RESILIENT

INSERT

HIGH PRESSURE

AT SHUTOFF

Installation

Recommended or “preferred” installation for

Control-Disk NPS 14-24 valves is with the flow into the

shaft side of the disk (retaining ring downstream from

the high pressure side of the valve).

The standard soft seal offers ANSI/FCI 70-2 Class VI,

bidirectional shutoff. The Phoenix III seal should be

installed in the preferred direction to obtain optimal

shutoff performance, and it must be installed in the

preferred direction for fire-tested applications. The

NOVEX seal is uni-directional and should be installed in

the preferred direction.

For assistance in selecting the appropriate

combination of actuator action and open valve

position, contact your Emerson Process Management

sales office.

Standard Seal

Configurations

Standard Soft Seal (PTFE)-- A resilient dynamic seal

with an elastomeric back-up ring for low to

moderate temperature applications.

NOVEX Seal-- The NOVEX stainless steel seal is

available for severe service, Cryogenic, and

high-temperature applications.

Phoenix III Seal-- This three-component,

metal-and-polymeric seal is available for severe

service with low to moderate temperature

applications.

Control-Disk NPS 14-24 Valve

D103471X012

Product Bulletin

51.3:Control-Disk NPS 14-24

October 2013

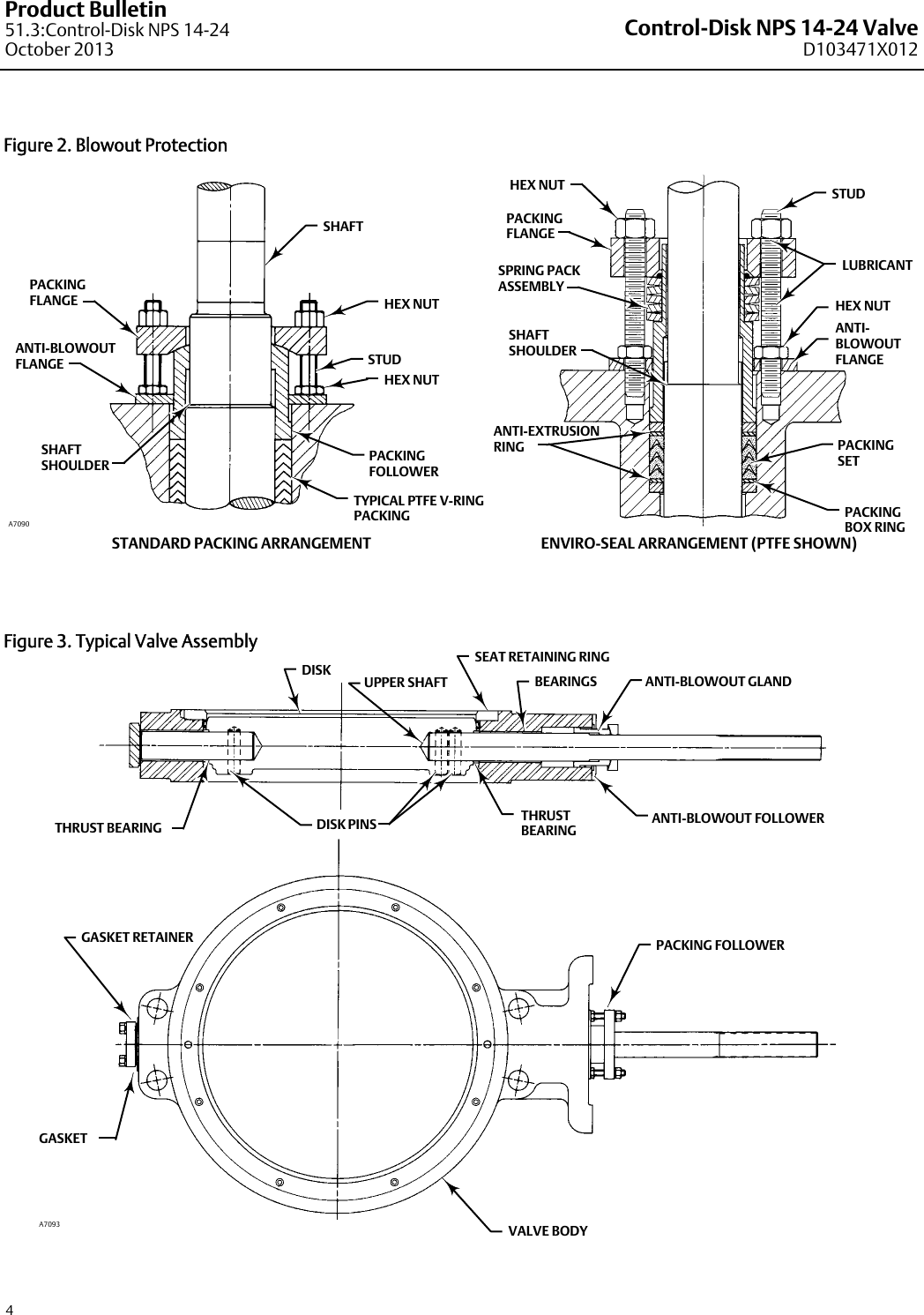

Figure 2. Blowout Protection

PACKING

FLANGE

ANTI-BLOWOUT

FLANGE

SHAFT

SHOULDER

SHAFT

HEX NUT

STUD

PACKING

FOLLOWER

HEX NUT

TYPICAL PTFE V-RING

PACKING

HEX NUT

PACKING

FLANGE

SHAFT

SHOULDER

STUD

HEX NUT

ANTI-

BLOWOUT

FLANGE

SPRING PACK

ASSEMBLY

PACKING

SET

ANTI-EXTRUSION

RING

PACKING

BOX RING

LUBRICANT

A7090

STANDARD PACKING ARRANGEMENT ENVIRO-SEAL ARRANGEMENT (PTFE SHOWN)

Figure 3. Typical Valve Assembly

DISK UPPER SHAFT

SEAT RETAINING RING

BEARINGS ANTI-BLOWOUT GLAND

ANTI-BLOWOUT FOLLOWER

THRUST

BEARING

DISK PINS

THRUST BEARING

GASKET RETAINER

GASKET

VALVE BODY

PACKING FOLLOWER

A7093

Control-Disk NPS 14-24 Valve

D103471X012

Product Bulletin

51.3:Control-Disk NPS 14-24

October 2013

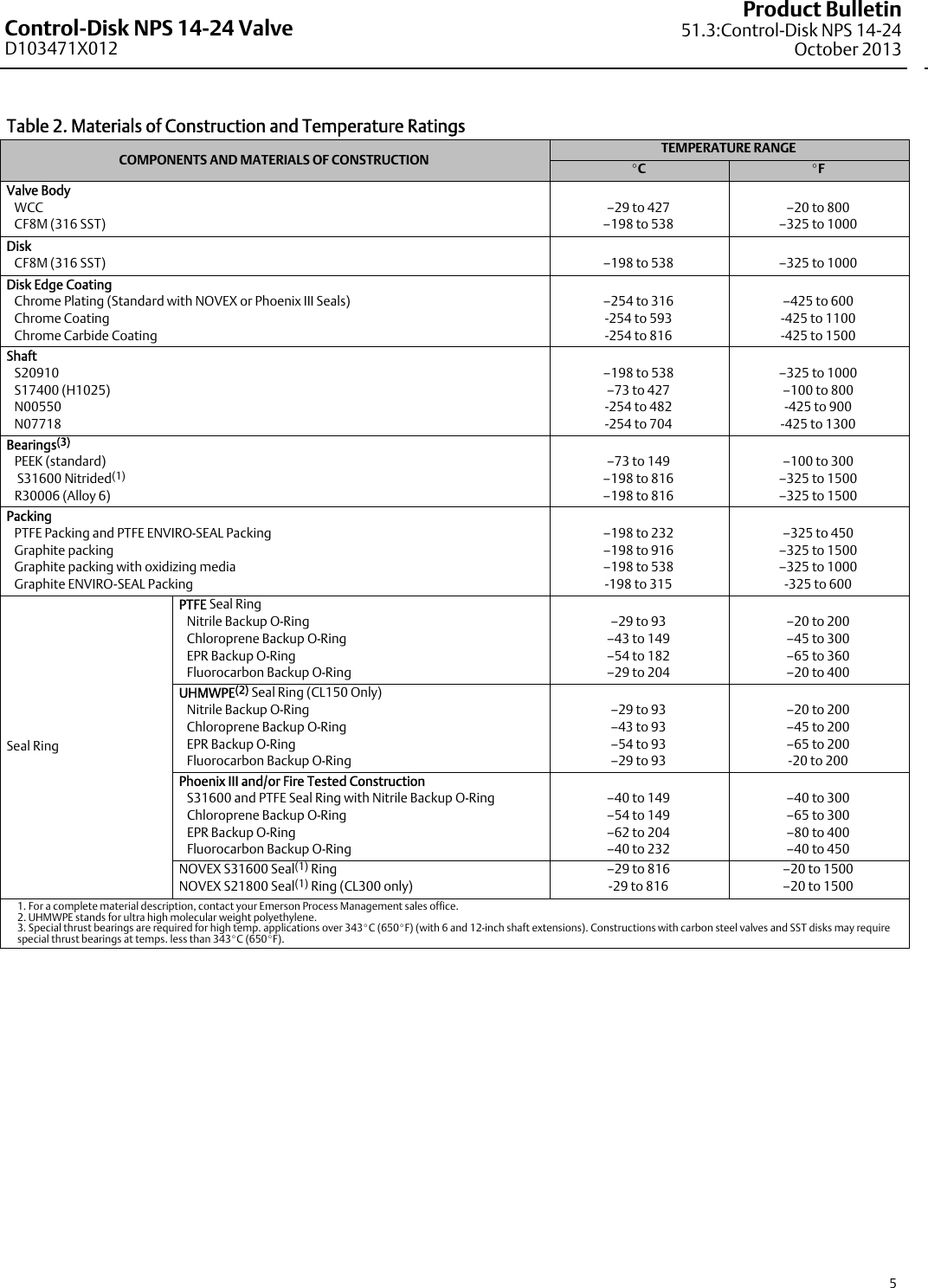

Table 2. Materials of Construction and Temperature Ratings

COMPONENTS AND MATERIALS OF CONSTRUCTION TEMPERATURE RANGE

_C_F

Valve Body

WCC

CF8M (316 SST)

—29 to 427

—198 to 538

—20 to 800

—325 to 1000

Disk

CF8M (316 SST) —198 to 538 —325 to 1000

Disk Edge Coating

Chrome Plating (Standard with NOVEX or Phoenix III Seals)

Chrome Coating

Chrome Carbide Coating

—254 to 316

-254 to 593

-254 to 816

—425 to 600

-425 to 1100

-425 to 1500

Shaft

S20910

S17400 (H1025)

N00550

N07718

—198 to 538

—73 to 427

-254 to 482

-254 to 704

—325 to 1000

—100 to 800

-425 to 900

-425 to 1300

Bearings(3)

PEEK (standard)

S31600 Nitrided(1)

R30006 (Alloy 6)

—73 to 149

—198 to 816

—100 to 300

—325 to 1500

Packing

PTFE Packing and PTFE ENVIRO-SEAL Packing

Graphite packing

Graphite packing with oxidizing media

Graphite ENVIRO-SEAL Packing

—198 to 232

—198 to 916

—198 to 538

-198 to 315

—325 to 450

—325 to 1500

—325 to 1000

-325 to 600

Seal Ring

PTFE Seal Ring

Nitrile Backup O-Ring

Chloroprene Backup O-Ring

EPR Backup O-Ring

Fluorocarbon Backup O-Ring

—29 to 93

—43 to 149

—54 to 182

—29 to 204

—20 to 200

—45 to 300

—65 to 360

—20 to 400

UHMWPE(2) Seal Ring (CL150 Only)

Nitrile Backup O-Ring

Chloroprene Backup O-Ring

EPR Backup O-Ring

Fluorocarbon Backup O-Ring

—29 to 93

—43 to 93

—54 to 93

—29 to 93

—20 to 200

—45 to 200

—65 to 200

-20 to 200

Phoenix III and/or Fire Tested Construction

S31600 and PTFE Seal Ring with Nitrile Backup O-Ring

Chloroprene Backup O-Ring

EPR Backup O-Ring

Fluorocarbon Backup O-Ring

—40 to 149

—54 to 149

—62 to 204

—40 to 232

—40 to 300

—65 to 300

—80 to 400

—40 to 450

NOVEX S31600 Seal(1) Ring

NOVEX S21800 Seal(1) Ring (CL300 only)

—29 to 816

-29 to 816

—20 to 1500

1. For a complete material description, contact your Emerson Process Management sales office.

2. UHMWPE stands for ultra high molecular weight polyethylene.

3. Special thrust bearings are required for high temp. applications over 343_C(650_F)(with6and12-inch shaft extensions). Constructions with carbon steel valves and SST disks may require

special thrust bearings at temps. less than 343_C(650_F).

Control-Disk NPS 14-24 Valve

D103471X012

Product Bulletin

51.3:Control-Disk NPS 14-24

October 2013

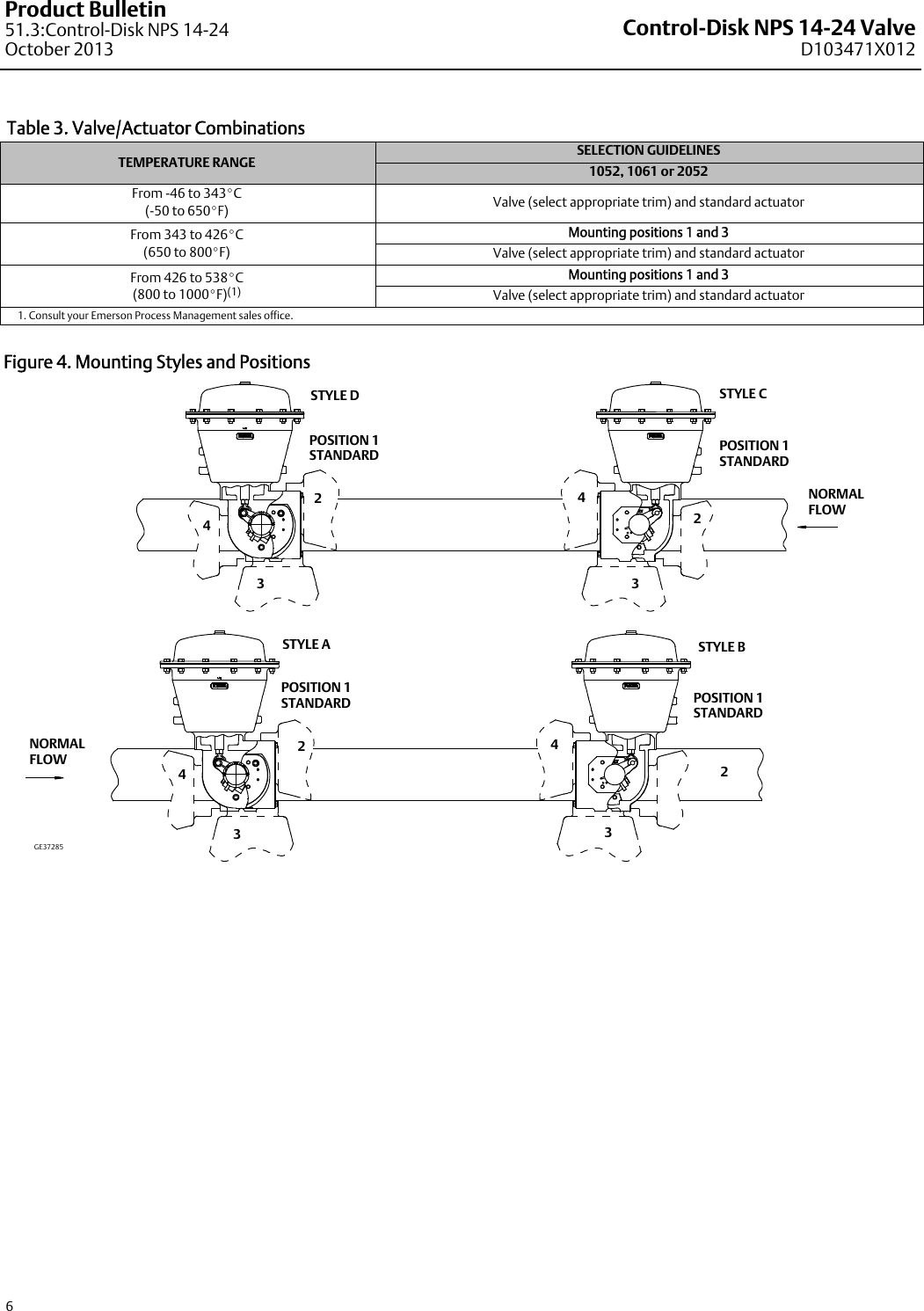

Table 3. Valve/Actuator Combinations

TEMPERATURE RANGE SELECTION GUIDELINES

1052, 1061 or 2052

From -46 to 343_C

(-50 to 650_F) Valve (select appropriate trim) and standard actuator

From 343 to 426_C

(650 to 800_F)

Mounting positions 1 and 3

Valve (select appropriate trim) and standard actuator

From 426 to 538_C

(800 to 1000_F)(1)

Mounting positions 1 and 3

Valve (select appropriate trim) and standard actuator

1. Consult your Emerson Process Management sales office.

Figure 4. Mounting Styles and Positions

STYLE A

STYLE C

STYLE B

STYLE D

POSITION 1

STANDARD

NORMAL

FLOW

POSITION 1

STANDARD

POSITION 1

STANDARD POSITION 1

STANDARD

NORMAL

FLOW

GE37285

Control-Disk NPS 14-24 Valve

D103471X012

Product Bulletin

51.3:Control-Disk NPS 14-24

October 2013

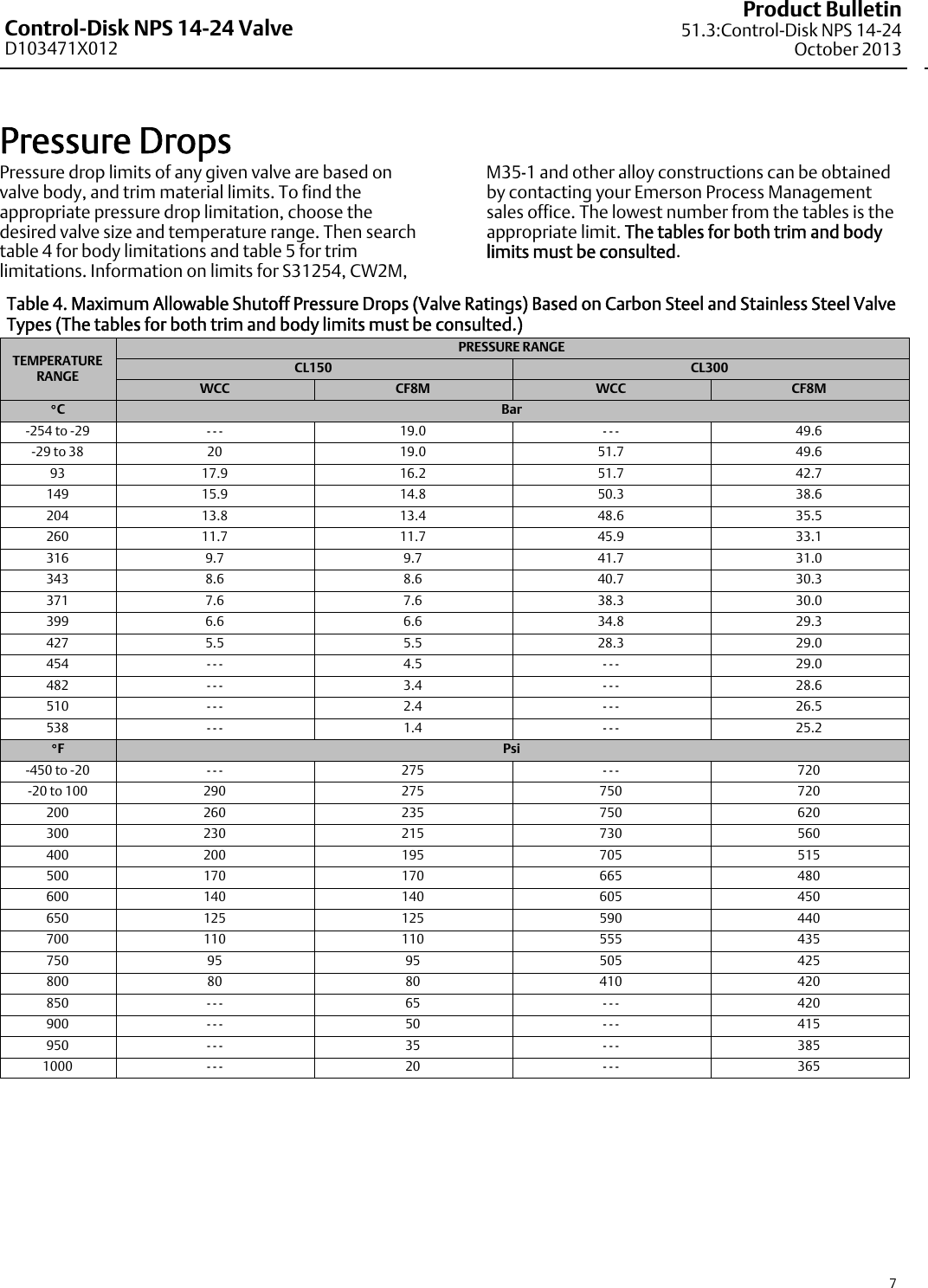

Pressure Drops

Pressure drop limits of any given valve are based on

valve body, and trim material limits. To find the

appropriate pressure drop limitation, choose the

desired valve size and temperature range. Then search

table 4 for body limitations and table 5 for trim

limitations. Information on limits for S31254, CW2M,

M35-1 and other alloy constructions can be obtained

by contacting your Emerson Process Management

sales office. The lowest number from the tables is the

appropriate limit. The tables for both trim and body

limits must be consulted.

Table 4. Maximum Allowable Shutoff Pressure Drops (Valve Ratings) Based on Carbon Steel and Stainless Steel Valve

Types (The tables for both trim and body limits must be consulted.)

TEMPERATURE

RANGE

PRESSURE RANGE

CL150 CL300

WCC CF8M WCC CF8M

_CBar

-254 to -29 --- 19.0 --- 49.6

-29 to 38 20 19.0 51.7 49.6

93 17.9 16.2 51.7 42.7

149 15.9 14.8 50.3 38.6

204 13.8 13.4 48.6 35.5

260 11.7 11.7 45.9 33.1

316 9.7 9.7 41.7 31.0

343 8.6 8.6 40.7 30.3

371 7.6 7.6 38.3 30.0

399 6.6 6.6 34.8 29.3

427 5.5 5.5 28.3 29.0

454 --- 4.5 --- 29.0

482 --- 3.4 --- 28.6

510 --- 2.4 --- 26.5

538 --- 1.4 --- 25.2

_FPsi

-450 to -20 --- 275 --- 720

-20 to 100 290 275 750 720

200 260 235 750 620

300 230 215 730 560

400 200 195 705 515

500 170 170 665 480

600 140 140 605 450

650 125 125 590 440

700 110 110 555 435

750 95 95 505 425

800 80 80 410 420

850 --- 65 --- 420

900 --- 50 --- 415

950 --- 35 --- 385

1000 --- 20 --- 365

Control-Disk NPS 14-24 Valve

D103471X012

Product Bulletin

51.3:Control-Disk NPS 14-24

October 2013

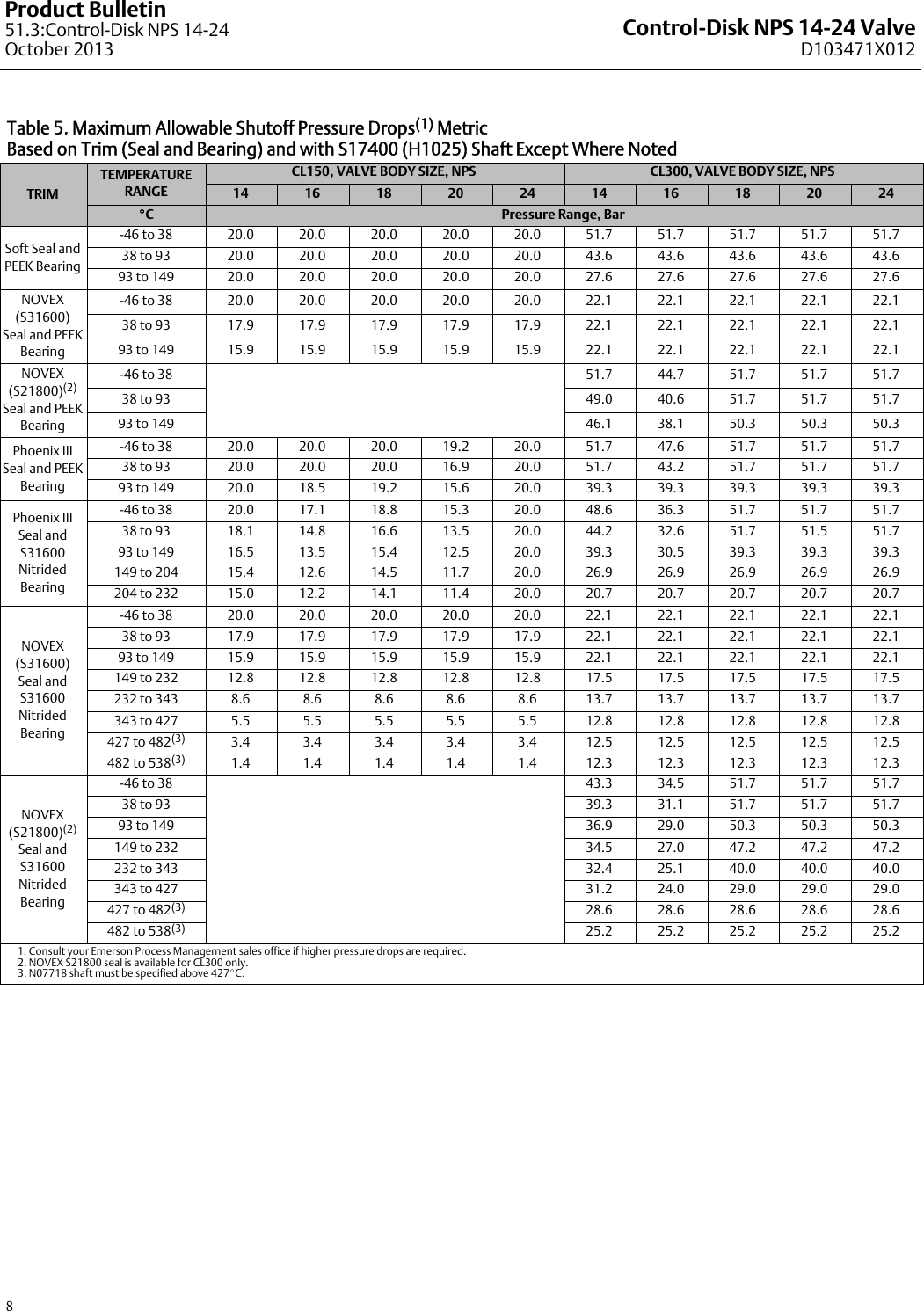

Table 5. Maximum Allowable Shutoff Pressure Drops(1) Metric

Based on Trim (Seal and Bearing) and with S17400 (H1025) Shaft Except Where Noted

TRIM

TEMPERATURE

RANGE

CL150, VALVE BODY SIZE, NPS CL300, VALVE BODY SIZE, NPS

14 16 18 20 24 14 16 18 20 24

_CPressure Range, Bar

Soft Seal and

PEEK Bearing

-46 to 38 20.0 20.0 20.0 20.0 20.0 51.7 51.7 51.7 51.7 51.7

38 to 93 20.0 20.0 20.0 20.0 20.0 43.6 43.6 43.6 43.6 43.6

93 to 149 20.0 20.0 20.0 20.0 20.0 27.6 27.6 27.6 27.6 27.6

NOVEX

(S31600)

Seal and PEEK

Bearing

-46 to 38 20.0 20.0 20.0 20.0 20.0 22.1 22.1 22.1 22.1 22.1

38 to 93 17.9 17.9 17.9 17.9 17.9 22.1 22.1 22.1 22.1 22.1

93 to 149 15.9 15.9 15.9 15.9 15.9 22.1 22.1 22.1 22.1 22.1

NOVEX

(S21800)(2)

Seal and PEEK

Bearing

-46 to 38 51.7 44.7 51.7 51.7 51.7

38 to 93 49.0 40.6 51.7 51.7 51.7

93 to 149 46.1 38.1 50.3 50.3 50.3

Phoenix III

Seal and PEEK

Bearing

-46 to 38 20.0 20.0 20.0 19.2 20.0 51.7 47.6 51.7 51.7 51.7

38 to 93 20.0 20.0 20.0 16.9 20.0 51.7 43.2 51.7 51.7 51.7

93 to 149 20.0 18.5 19.2 15.6 20.0 39.3 39.3 39.3 39.3 39.3

Phoenix III

Seal and

S31600

Nitrided

Bearing

-46 to 38 20.0 17.1 18.8 15.3 20.0 48.6 36.3 51.7 51.7 51.7

38 to 93 18.1 14.8 16.6 13.5 20.0 44.2 32.6 51.7 51.5 51.7

93 to 149 16.5 13.5 15.4 12.5 20.0 39.3 30.5 39.3 39.3 39.3

149 to 204 15.4 12.6 14.5 11.7 20.0 26.9 26.9 26.9 26.9 26.9

204 to 232 15.0 12.2 14.1 11.4 20.0 20.7 20.7 20.7 20.7 20.7

NOVEX

(S31600)

Seal and

S31600

Nitrided

Bearing

-46 to 38 20.0 20.0 20.0 20.0 20.0 22.1 22.1 22.1 22.1 22.1

38 to 93 17.9 17.9 17.9 17.9 17.9 22.1 22.1 22.1 22.1 22.1

93 to 149 15.9 15.9 15.9 15.9 15.9 22.1 22.1 22.1 22.1 22.1

149 to 232 12.8 12.8 12.8 12.8 12.8 17.5 17.5 17.5 17.5 17.5

232 to 343 8.6 8.6 8.6 8.6 8.6 13.7 13.7 13.7 13.7 13.7

343 to 427 5.5 5.5 5.5 5.5 5.5 12.8 12.8 12.8 12.8 12.8

427 to 482(3) 3.4 3.4 3.4 3.4 3.4 12.5 12.5 12.5 12.5 12.5

482 to 538(3) 1.4 1.4 1.4 1.4 1.4 12.3 12.3 12.3 12.3 12.3

NOVEX

(S21800)(2)

Seal and

S31600

Nitrided

Bearing

-46 to 38 43.3 34.5 51.7 51.7 51.7

38 to 93 39.3 31.1 51.7 51.7 51.7

93 to 149 36.9 29.0 50.3 50.3 50.3

149 to 232 34.5 27.0 47.2 47.2 47.2

232 to 343 32.4 25.1 40.0 40.0 40.0

343 to 427 31.2 24.0 29.0 29.0 29.0

427 to 482(3) 28.6 28.6 28.6 28.6 28.6

482 to 538(3) 25.2 25.2 25.2 25.2 25.2

1. Consult your Emerson Process Management sales office if higher pressure drops are required.

2. NOVEX S21800 seal is available for CL300 only.

3. N07718 shaft must be specified above 427_C.

Control-Disk NPS 14-24 Valve

D103471X012

Product Bulletin

51.3:Control-Disk NPS 14-24

October 2013

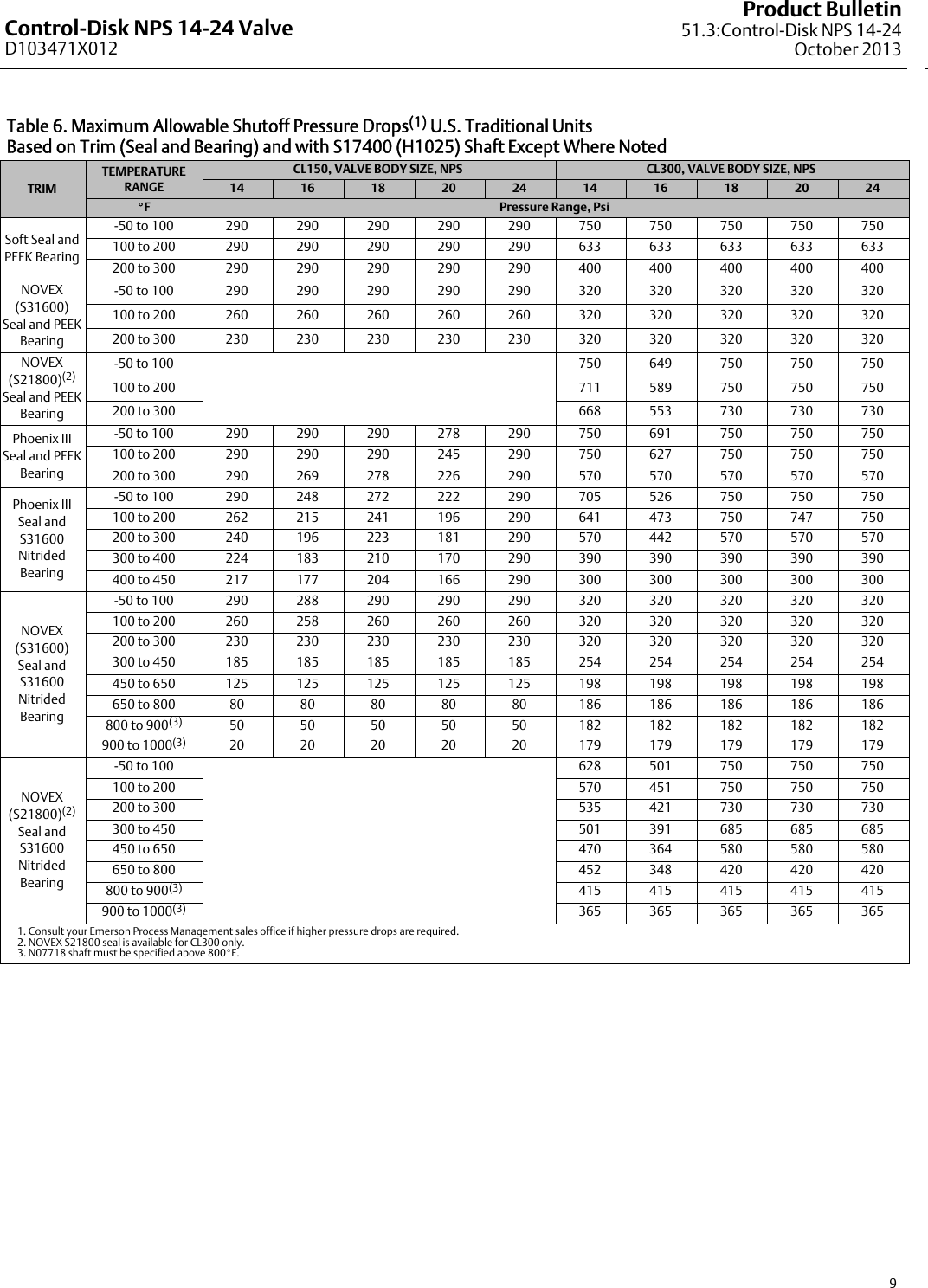

Table 6. Maximum Allowable Shutoff Pressure Drops(1) U.S. Traditional Units

Based on Trim (Seal and Bearing) and with S17400 (H1025) Shaft Except Where Noted

TRIM

TEMPERATURE

RANGE

CL150, VALVE BODY SIZE, NPS CL300, VALVE BODY SIZE, NPS

14 16 18 20 24 14 16 18 20 24

_FPressure Range, Psi

Soft Seal and

PEEK Bearing

-50 to 100 290 290 290 290 290 750 750 750 750 750

100 to 200 290 290 290 290 290 633 633 633 633 633

200 to 300 290 290 290 290 290 400 400 400 400 400

NOVEX

(S31600)

Seal and PEEK

Bearing

-50 to 100 290 290 290 290 290 320 320 320 320 320

100 to 200 260 260 260 260 260 320 320 320 320 320

200 to 300 230 230 230 230 230 320 320 320 320 320

NOVEX

(S21800)(2)

Seal and PEEK

Bearing

-50 to 100 750 649 750 750 750

100 to 200 711 589 750 750 750

200 to 300 668 553 730 730 730

Phoenix III

Seal and PEEK

Bearing

-50 to 100 290 290 290 278 290 750 691 750 750 750

100 to 200 290 290 290 245 290 750 627 750 750 750

200 to 300 290 269 278 226 290 570 570 570 570 570

Phoenix III

Seal and

S31600

Nitrided

Bearing

-50 to 100 290 248 272 222 290 705 526 750 750 750

100 to 200 262 215 241 196 290 641 473 750 747 750

200 to 300 240 196 223 181 290 570 442 570 570 570

300 to 400 224 183 210 170 290 390 390 390 390 390

400 to 450 217 177 204 166 290 300 300 300 300 300

NOVEX

(S31600)

Seal and

S31600

Nitrided

Bearing

-50 to 100 290 288 290 290 290 320 320 320 320 320

100 to 200 260 258 260 260 260 320 320 320 320 320

200 to 300 230 230 230 230 230 320 320 320 320 320

300 to 450 185 185 185 185 185 254 254 254 254 254

450 to 650 125 125 125 125 125 198 198 198 198 198

650 to 800 80 80 80 80 80 186 186 186 186 186

800 to 900(3) 50 50 50 50 50 182 182 182 182 182

900 to 1000(3) 20 20 20 20 20 179 179 179 179 179

NOVEX

(S21800)(2)

Seal and

S31600

Nitrided

Bearing

-50 to 100 628 501 750 750 750

100 to 200 570 451 750 750 750

200 to 300 535 421 730 730 730

300 to 450 501 391 685 685 685

450 to 650 470 364 580 580 580

650 to 800 452 348 420 420 420

800 to 900(3) 415 415 415 415 415

900 to 1000(3) 365 365 365 365 365

1. Consult your Emerson Process Management sales office if higher pressure drops are required.

2. NOVEX S21800 seal is available for CL300 only.

3. N07718 shaft must be specified above 800_F.

Control-Disk NPS 14-24 Valve

D103471X012

Product Bulletin

51.3:Control-Disk NPS 14-24

October 2013

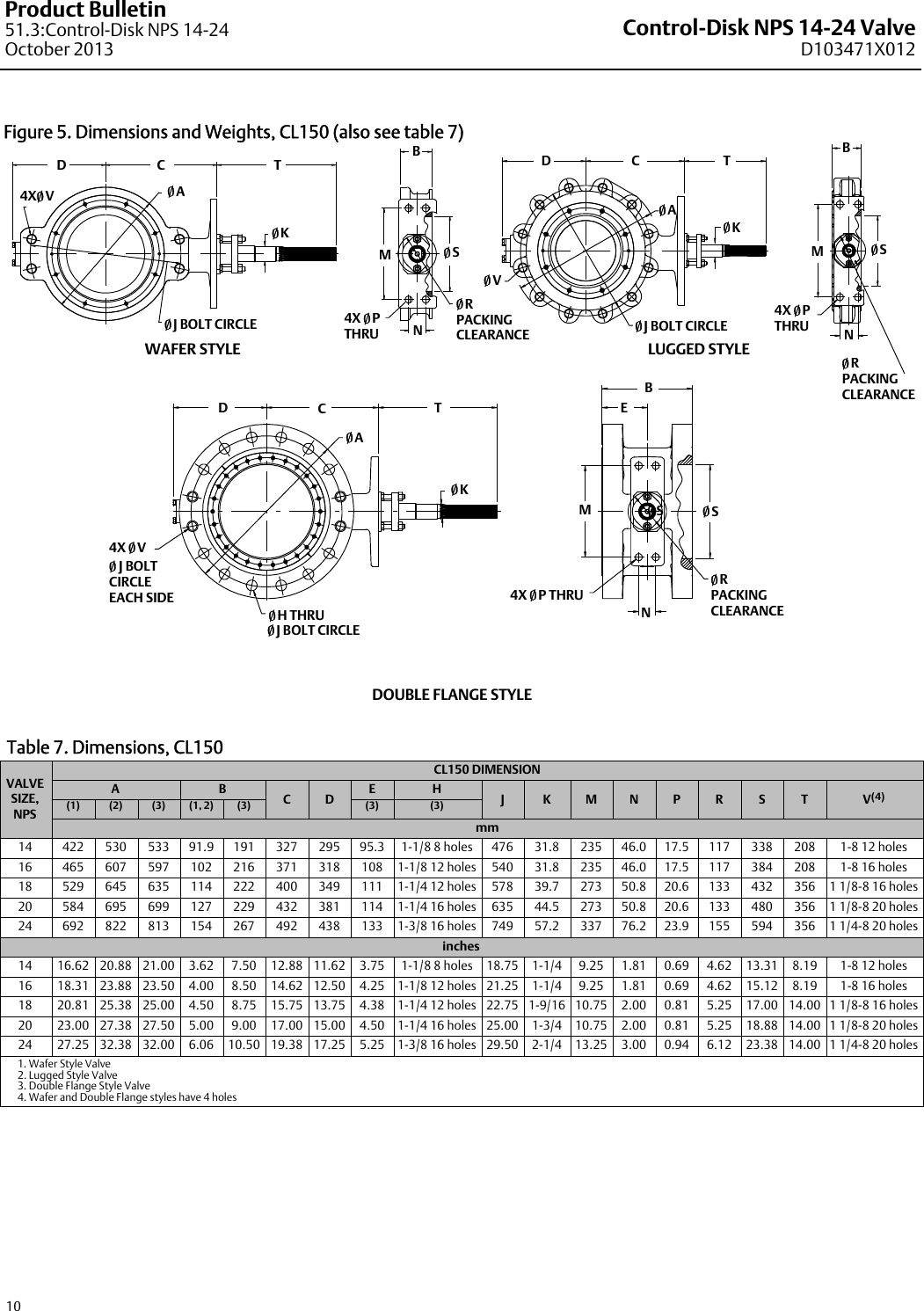

Figure 5. Dimensions and Weights, CL150 (also see table 7)

WAFER STYLE LUGGED STYLE

DOUBLE FLANGE STYLE

A

JBOLTCIRCLE JBOLTCIRCLE

V

S

K

R

PACKING

CLEARANCE

4XV

K

S

R

PACKING

CLEARANCE

DCT

K

A

4X V

JBOLT

CIRCLE

EACH SIDE

JBOLTCIRCLE

HTHRU

R

PACKING

CLEARANCE

4X PTHRU

MSS

4X P

THRU

4X P

THRU

Table 7. Dimensions, CL150

VALVE

SIZE,

NPS

CL150 DIMENSION

A B C D E H J K M N P R S T V(4)

(1) (2) (3) (1, 2) (3) (3) (3)

14 422 530 533 91.9 191 327 295 95.3 1-1/8 8 holes 476 31.8 235 46.0 17.5 117 338 208 1-812holes

16 465 607 597 102 216 371 318 108 1-1/812holes 540 31.8 235 46.0 17.5 117 384 208 1-816holes

18 529 645 635 114 222 400 349 111 1-1/412holes 578 39.7 273 50.8 20.6 133 432 356 1 1/8-8 16 holes

20 584 695 699 127 229 432 381 114 1-1/416holes 635 44.5 273 50.8 20.6 133 480 356 1 1/8-8 20 holes

24 692 822 813 154 267 492 438 133 1-3/816holes 749 57.2 337 76.2 23.9 155 594 356 1 1/4-8 20 holes

inches

14 16.62 20.88 21.00 3.62 7.50 12.88 11.62 3.75 1-1/8 8 holes 18.75 1-1/4 9.25 1.81 0.69 4.62 13.31 8.19 1-812holes

16 18.31 23.88 23.50 4.00 8.50 14.62 12.50 4.25 1-1/812holes 21.25 1-1/4 9.25 1.81 0.69 4.62 15.12 8.19 1-816holes

18 20.81 25.38 25.00 4.50 8.75 15.75 13.75 4.38 1-1/412holes 22.75 1-9/16 10.75 2.00 0.81 5.25 17.00 14.00 1 1/8-8 16 holes

20 23.00 27.38 27.50 5.00 9.00 17.00 15.00 4.50 1-1/416holes 25.00 1-3/4 10.75 2.00 0.81 5.25 18.88 14.00 1 1/8-8 20 holes

24 27.25 32.38 32.00 6.06 10.50 19.38 17.25 5.25 1-3/816holes 29.50 2-1/4 13.25 3.00 0.94 6.12 23.38 14.00 1 1/4-8 20 holes

1. Wafer Style Valve

2. Lugged Style Valve

3. Double Flange Style Valve

4. Wafer and Double Flange styles have 4 holes

Control-Disk NPS 14-24 Valve

D103471X012

Product Bulletin

51.3:Control-Disk NPS 14-24

October 2013

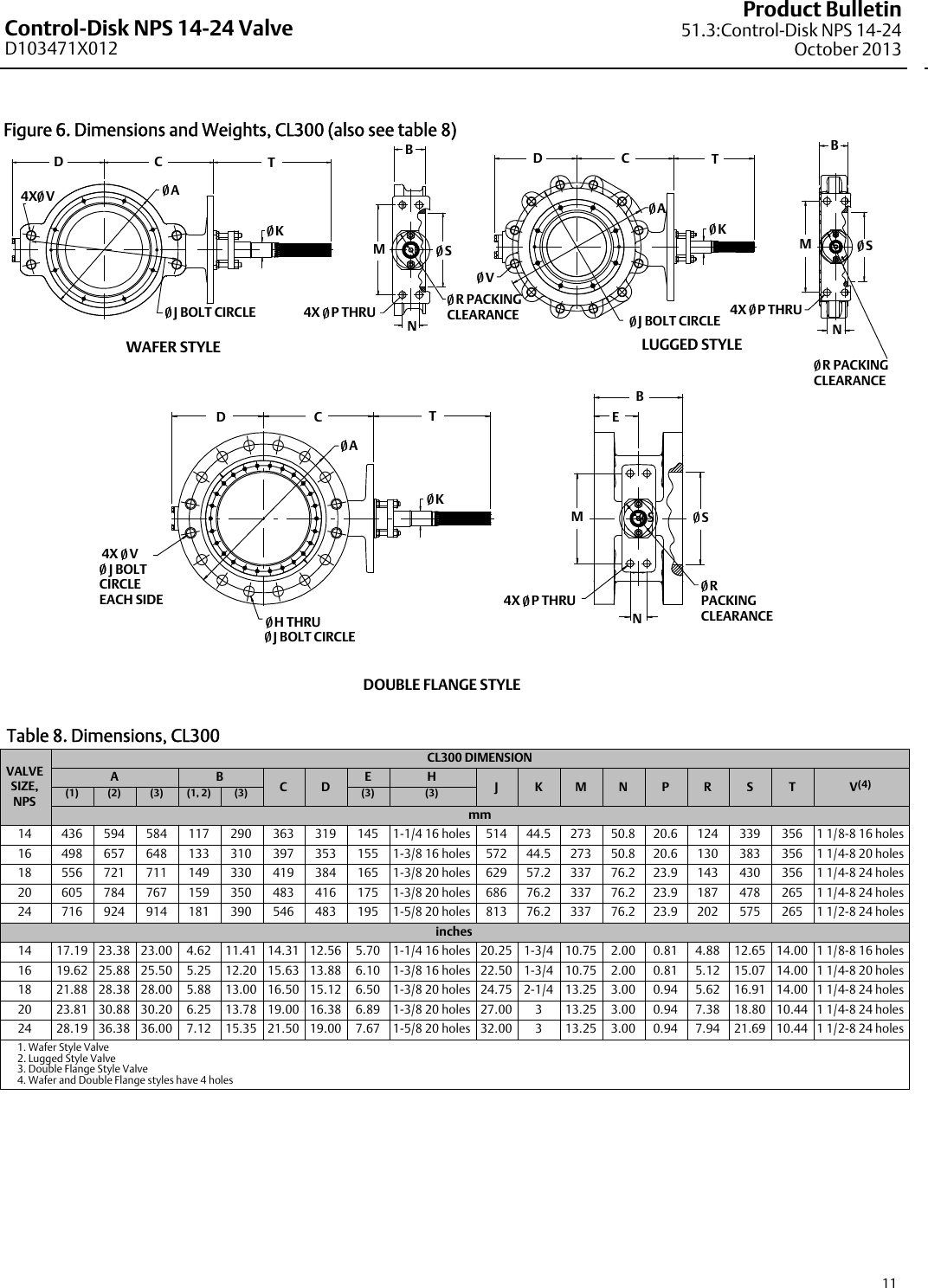

Figure 6. Dimensions and Weights, CL300 (also see table 8)

WAFER STYLE LUGGED STYLE

DOUBLE FLANGE STYLE

DCT

A

K

JBOLTCIRCLE

V

JBOLTCIRCLE

A

S

DC T

K

RPACKING

CLEARANCE

S

RPACKING

CLEARANCE

DCT

K

A

JBOLT

CIRCLE

EACH SIDE

JBOLTCIRCLE

HTHRU

R

PACKING

CLEARANCE

4X PTHRU

MS

4X V

S

4XV

4X PTHRU 4X PTHRU

Table 8. Dimensions, CL300

VALVE

SIZE,

NPS

CL300 DIMENSION

A B C D E H J K M N P R S T V(4)

(1) (2) (3) (1, 2) (3) (3) (3)

14 436 594 584 117 290 363 319 145 1-1/416holes 514 44.5 273 50.8 20.6 124 339 356 1 1/8-8 16 holes

16 498 657 648 133 310 397 353 155 1-3/816holes 572 44.5 273 50.8 20.6 130 383 356 1 1/4-8 20 holes

18 556 721 711 149 330 419 384 165 1-3/820holes 629 57.2 337 76.2 23.9 143 430 356 1 1/4-8 24 holes

20 605 784 767 159 350 483 416 175 1-3/820holes 686 76.2 337 76.2 23.9 187 478 265 1 1/4-8 24 holes

24 716 924 914 181 390 546 483 195 1-5/820holes 813 76.2 337 76.2 23.9 202 575 265 1 1/2-8 24 holes

inches

14 17.19 23.38 23.00 4.62 11.41 14.31 12.56 5.70 1-1/416holes 20.25 1-3/4 10.75 2.00 0.81 4.88 12.65 14.00 1 1/8-8 16 holes

16 19.62 25.88 25.50 5.25 12.20 15.63 13.88 6.10 1-3/816holes 22.50 1-3/4 10.75 2.00 0.81 5.12 15.07 14.00 1 1/4-8 20 holes

18 21.88 28.38 28.00 5.88 13.00 16.50 15.12 6.50 1-3/820holes 24.75 2-1/4 13.25 3.00 0.94 5.62 16.91 14.00 1 1/4-8 24 holes

20 23.81 30.88 30.20 6.25 13.78 19.00 16.38 6.89 1-3/820holes 27.00 313.25 3.00 0.94 7.38 18.80 10.44 1 1/4-8 24 holes

24 28.19 36.38 36.00 7.12 15.35 21.50 19.00 7.67 1-5/820holes 32.00 313.25 3.00 0.94 7.94 21.69 10.44 1 1/2-8 24 holes

1. Wafer Style Valve

2. Lugged Style Valve

3. Double Flange Style Valve

4. Wafer and Double Flange styles have 4 holes

Control-Disk NPS 14-24 Valve

D103471X012

Product Bulletin

51.3:Control-Disk NPS 14-24

October 2013

Emerson Process Management

Marshalltown, Iowa 50158 USA

Sorocaba, 18087 Brazil

Chatham, Kent ME4 4QZ UK

Dubai, United Arab Emirates

Singapore 128461 Singapore

www.Fisher.com

The contents of this publication are presented for informational purposes only, and while every effort has been made to ensure their accuracy, they arenot

to be construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicability. All sales are

governed by our terms and conditions, which are available upon request. We reserve the right to modify or improve the designs or specifications of such

products at any time without notice.

Fisher, Control-Disk, and ENVIRO-SEAL are marks owned by one of the companies in the Emerson Process Management business unit of Emerson Electric Co.

Emerson Process Management, Emerson, and the Emerson logo are trademarks and service marks of Emerson Electric Co. All other marks are the property

of their respective owners.

Neither Emerson, Emerson Process Management, nor any of their affiliated entities assumes responsibility for the selection, use or maintenance

of any product. Responsibility for proper selection, use, and maintenance of any product remains solely with the purchaser and end user.

Emerson Fisher Control Disk Data Sheet

Navigation menu

Versions of this User Manual:

Views

Navigation
