www.Fisher.com
FisherrLarge ET and ED Valves
NPS 12 through 16 and NPS 30
Fisher NPS 12 through 16 and NPS 30 CL150 through
CL600 ET and ED control valves are used for either
throttling or on-off control of a wide variety of liquids
and gasses.
ET valves with a hanging cage are available for
demanding applications in oil and natural gas up to
232_C(450_F). The hanging cage, with the seat ring
threaded into the cage, provides the valve with
easymaintenance trim. The seal between the plug and
cage and the seal between the seat ring and body are
springloaded PTFE. The springloaded PTFE seal
configuration can provide Class V shutoff per ANSI/FCI
702 and IEC 605344. The temperature range can be
extended to 316_C(600_F) for nonoxidizing service
and to 260_C(500_F) for oxidizing service by using
the High Temperature (HTS1) seal.
ED valves utilize a hanging cage and a seat ring that is
bolted into the body. These valves have two graphite
piston rings between the cage and plug. They are used
for high temperature applications between 316_C
(600_F) and 593_C (1100_F) with a Class IV standard
shutoff. Shutoff can be improved to Class V by using
theBoreseal.
To help reduce aerodynamicnoiseingasservice,
Whisper TrimtIII and WhisperFlotcages are
available. CavitroltIII cages are available to eliminate
the effects of liquid cavitation damage and DST, Dirty
Service Trim, is available for cavitating liquid with
particulates.
Features
Stable Control at High Pressure Drops– Rugged
cage guiding stabilizes the valve plug at all points in
itstravelrange.Thisguidingreducesvibration,
mechanical noise, and the need for hydraulic
snubbers.
W9156-1
Fisher NPS 24 Valve Assembly with Piston Actuator
Economy– Streamlined flow passages provide
greater capacities per initial investment than most
globe valves of the same size. Balanced valve plug
design can allow use of smaller actuators for high
pressure drops.
Cost-Effective Operation– Increased wear
resistance of the standard hardened stainless steel
trim means long-lasting service.
Easy Maintenance– The valve can stay in the
pipeline during removal of trim parts for inspection
or maintenance.
Large ET and ED Valves
D103554X012
Product Bulletin
51.1:ET/ED (Large)
March 2015
Large ET and ED Valves
D103554X012
Product Bulletin
51.1:ET/ED (Large)
March 2015
2
Specifications
Valve Sizes
JNPS 12, J14, J16, and J30
End Connection Styles
Flanged: CL150, 300, and 600 raised-face or ring-type
joint flanges per ASME B16.5. NPS 30 valve size has
series A flanges as standard, per ASME B16.47
Buttwelding: All ASME B16.25 schedules through
schedule 120 that are compatible with the ASME
B16.34 valve body rating
For other end connections, contact your Emerson
Process Management sales office for details.
Maximum Inlet Pressure(1)
Flanged: Consistent with CL150, 300, and 600
pressure-temperature ratings per ASME B16.34
Buttwelding: Consistent with CL600 per
ASME B16.34
Material Temperature and Pressure Drop
Capabilities(1)
See tables 3, 5, and 6
Shutoff Classifications per ANSI/FCI 70-2andIEC
60534-4
ET and ET-C with Metal Seats
Standard: Class V
Optional (for all trims except 2
-
Stage Cavitrol Trim):
Class IV
ED with Metal Seats
Standard: Class IV
Optional: Class V
Construction Materials
Valve Body and Bonnet: JWCC steel, JLCC steel,
JWC9 alloy steel,JC12A alloy steel, JCF8M
stainless steel, JCD3MN duplex stainless steel, or
JCD3MWCuN super-duplex stainless steel. For
other materials, consult your Emerson Process
Management sales office
Trim and Other Parts: See table 3
Flow Characteristics
Standard Cages:JLinear or Jequal percentage
Whisper Trim III and WhisperFlo Cages: Linear
Cavitrol III Cages: Linear
For other characteristics, contact your Emerson
Process Management sales office for details.
Flow Direction
Standard and Cavitrol III Cages: Down
Whisper Trim III and WhisperFlo Cages: Up
Flow Coefficients
See Fisher Catalog 12
Port Diameters
See table 2
Valve Plug Travel
102 through 505 mm (4 to 19-7/8 inches).
Contact your Emerson Process Management sales
office for further details if needed
Yoke Boss and Stem Diameters
J127 mm (5H-inch) diameter yoke boss, with 31.8
mm (1.25 inch) diameter valve stem for all valves
except NPS 30
J179 mm (7-inch) diameter yoke boss, with
50.8mm(2inch)diametervalvestemforNPS30
valve
Typical Bonnet Style
Standard: Style 1 extension
Optional: Style 3 extension
Dimensions and Approximate Weights
Seefigure4andtable7
1. The pressure/temperature limits in this bulletin and any applicable standard or code limitation for valve should not be exceeded.
Table of Contents
Features 1.....................................
Specifications 2................................
ET High Temperature (HTS1) Seal 4...............
ET-C 5........................................
ED Bore Seal 5.................................
Construction Materials 7.........................
Dimensions and Approximate Weights 11..........
Large ET and ED Valves
D103554X012
Product Bulletin
51.1:ET/ED (Large)
March 2015
3

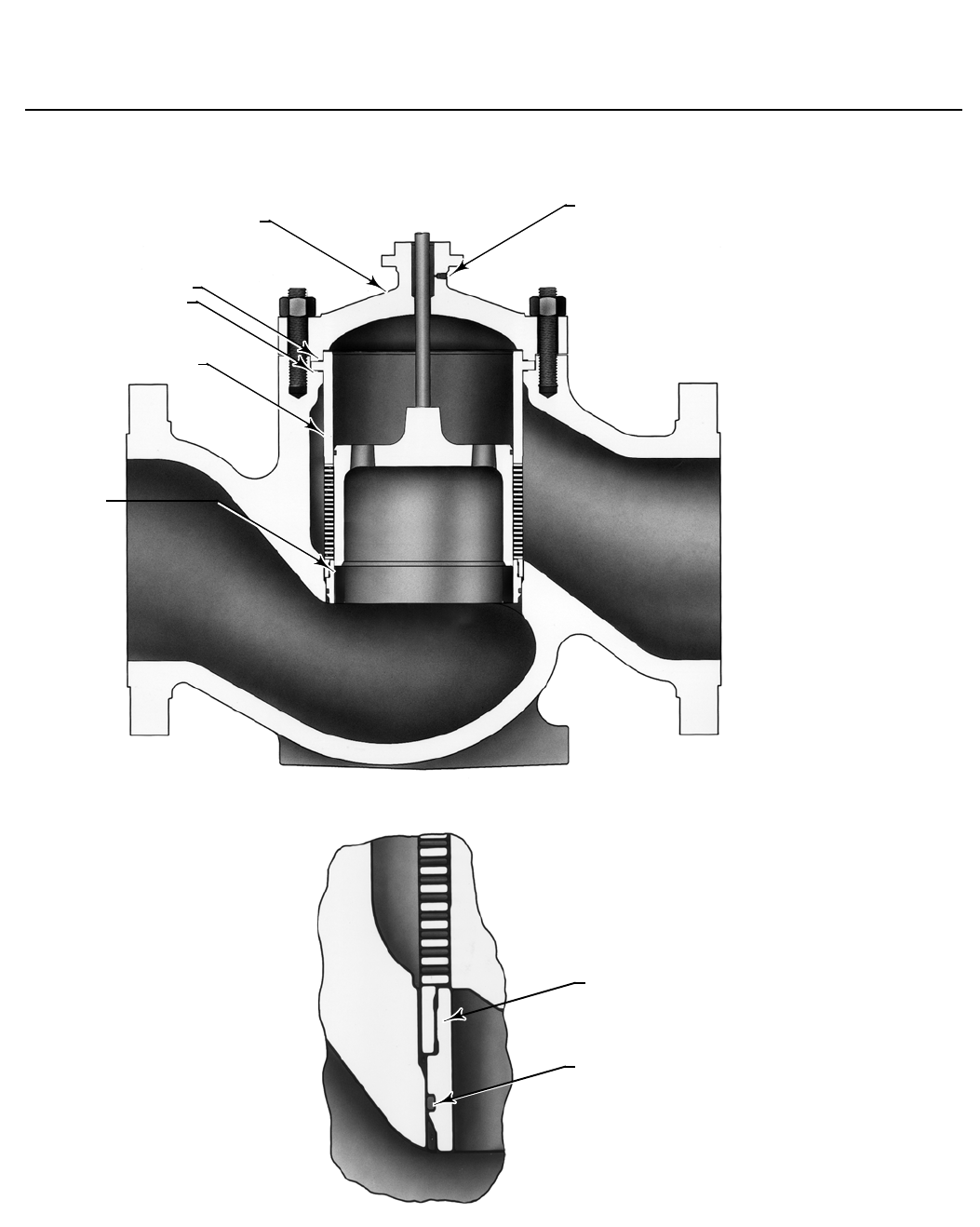

Figure 1. Typical Fisher Large ET Valve
W6088-2
W6089-1A
COMPLETE VALVE
SEAT RING SEAL DETAIL
SEAT RING SEAL RING
HANGING
CAGE
DESIGN
BONNET
BONNET GASKET
CAGE GASKET
SEAT RING
THREADED
TO CAGE
SEAT RING
THREADED TO CAGE
TAPPED BONNET
(OPTIONAL)
Large ET and ED Valves
D103554X012
Product Bulletin
51.1:ET/ED (Large)
March 2015
4
ET High Temperature Seal
(HTS1)
The High Temperature Seal (HTS1) is available for the
ET only and is required for applications where the
service temperature exceeds 232_C(450_F). This seal
is available for all sizes and trims of the ET and allows
the valve to be used in temperatures up to 316_C
(600_F). See table 3 for temperature limits and figure
2.
The High Temperature Seal is used in place of the
standard plug seal ring and seat ring seal ring. This seal
employs an identical seal ring as the standard ET, but
with the addition of an antiextrusion ring, backup
ring, and retaining ring. At temperatures above 232_C
(450_F) the elastomer material the seal ring is
constructed from becomes soft and can be damaged
due to an extrusion process that could occur when the
valve plug is moved inside the cage. The purpose of
the antiextrusion ring and backup ring is to prevent
the seal ring from being extruded.

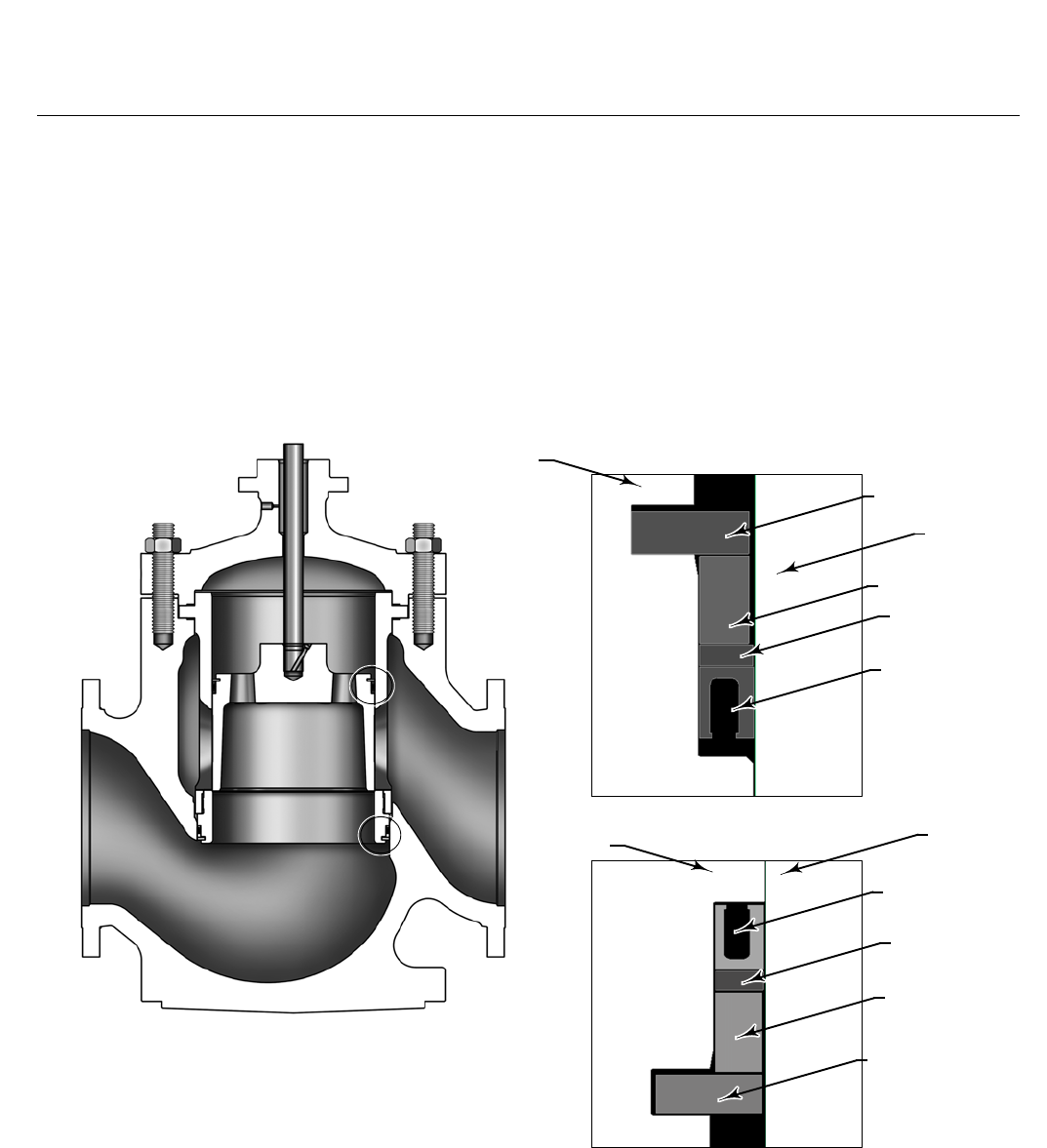

Figure 2. Typical Fisher Large ET Valve with HTS1 Seal (Flow Down)
X0216-1
A
B
VIEW A
RETAINING RING
ANTI-EXTRUSION
RING
CAGE
BACKUP RING
PLUG
PLUG SEAL RING
VIEW B
RETAINING RING
ANTI-EXTRUSION
RING
VALVE
BODY
BACKUP RING
SEAT
RING
SEAT RING
SEAL RING
Large ET and ED Valves
D103554X012
Product Bulletin
51.1:ET/ED (Large)
March 2015
5
ET-C
The ET-C is designed to provide throttling or onoff
control of liquids and gases at cryogenic temperatures
as low as 198_C(325_F). These valves are identical to
the standard ET, but with a few differences, which
allow the valve to tolerate the very low temperatures.
These differences include:
Style 3 Extension Bonnet
BoltedIn Seat Ring
Cryogenic Plug Seal
The style 3 extension bonnet is different from the
standard style 1 in that it is designed to locate the
temperature sensitive packing parts further away from
the valve body, preventing them from being exposed
to temperature extremes. The boltedin seat ring is
similar to that used with the ED valve and
accommodates the unavoidable material shrinkage
that occurs at cryogenic temperatures, which would
otherwise loosen the ET’s standard threadedin seat
ring. The cryogenic plug seal is used in place of the
standard ET plug seal ring. At cryogenic temperatures
below 73_C(100_F) the elastomer material the
standard seal ring is constructed from becomes brittle,
impacting the ability of the valve to shut off. The
maximum valve shutoff that can be attained at these
cryogenic temperatures with the cryogenic seal is
Class V.
See tables 3 and 5 for temperature limits.
ED Bore Seal
TheBoreSealisavailablefortheEDonlyandis
required for Class V shutoff applications where the
service temperature exceeds 316_C (600_F). For
service temperatures below 316_C(600_F) the ET
should be used when Class V shutoff is required. See
table 1 for availability and temperature limits and
figure 3.
TheBoreSealemploysametalCshaped seal ring that
is secured to the outside diameter of the valve plug.
When the valve plug comes into contact with the seat
ring, to close the valve, the Bore Seal is compressed
against the cage wall thereby blocking a secondary
leakage path that exists between the plug and cage
wall. When the valve plug is not in contact with the
seat ring (i.e. valve open) the Bore Seal is not engaged
and the piston rings that are also secured to the
outsidediameteroftheplugassumetheroleof
blocking this secondary leakage path.
Table 1. Bore Seal Availability and Temperature Limits (ED Only)
VALVE
(PRESSURE
CLASS)
VALVE SIZE, NPS TRIM
DESIGNATION(1)
VALVE BODY
MATERIAL
TEMPERATURE LIMIT ANSI/FCI/IEC
SHUTOFF CLASS
_C_F
ED
(CL150 to CL600) 12, 14, 16, and 30
40 WCC/WC9 -29 to 371 -20 to 700
V
41
WCC -29 to 427 -20 to 800
WC9 -29 to 566 -20 to 1050
C12A -29 to 593 -20 to 1100
42 C12A -29 to 621 -20 to 1150
954 WCC -29 to 427 -20 to 800
WC9 -29 to 482 -20 to 900
1.Seetables3,5,and6formaterials.
Large ET and ED Valves
D103554X012
Product Bulletin
51.1:ET/ED (Large)
March 2015
6
Figure 3. Typical Fisher Large ED with Bore Seal
W6022-2
SEAT RING
BOLTED TO
VALVE BODY
A
RETAINER PISTON
RING
CAGE
SEATING AREA
BORE SEAL
PLUG
FLOW DOWN
RETAINER PISTON
RING
CAGE
SEATING AREA
BORE SEAL
PLUG
FLOW UP
VIEW A
Table 2. Port Diameters and Valve Plug Travels
VALVE SIZE,
NPS VALVE TRIM (CAGE) PORT DIAMETER MAXIMUM VALVE PLUG
TRAVEL
mm Inches mm Inches
12, 14, and 16 ED and ET
Whisper Trim III Level D 254 10 203 8.00
Standard; Whisper Trim III
Levels A, B, and C; WhisperFlo 279 11
102 4.00
140 5.50
203 8.00
30
ED All 610 24 302 11.88
505 19.88
ET
Standard; Whisper Trim III
Level D; WhisperFlo 610 24 302 11.88
505 19.88
Whisper Trim III Levels A, B, and C 660 26 302 11.88
505 19.88
Large ET and ED Valves
D103554X012
Product Bulletin
51.1:ET/ED (Large)
March 2015
7
Table 3. Construction Materials (WCC, WC9, CF8M, LCC, and C12A Valves)
PART MATERIAL TEMPERATURE
_C_F
Valve Body and Bonnet
WCC Steel
WC9 Alloy Steel(2)
CF8M Stainless Steel
LCC Steel
C12A Alloy Steel
-29 to 427
-29 to 593
-198 to 593
-46 to 343
-29 to 649
-20 to 800(3)
-20 to 1100
-325 to 1000(1)
-50 to 650
-20 to 1200
Cage, Seat Ring, and Valve Plug See tables 5 and 6 See table 5 and 6
Valve Stem S20910 Not a Limiting Factor
Valve Body-to-Bonnet
Bolting
WCC Valve SA-193-B7 Studs, SA-194-2H Nuts -29 to 427 -20 to 800
SA-193-B7M Studs(4),SA-194-2HM Nuts(4) -29 to 427 -20 to 800
LCC Valve SA-193-B7 Studs, SA-194-2H Nuts -46 to 343 -50 to 650
SA-193-B7M Studs(4),SA-194-2HM Nuts(4) -29 to 316 -20 to 600
WC9 Valve
SA-193-B7 Studs, SA-194-2H Nuts -29 to 427 -20 to 800
SA-193-B16 Studs, SA-194-7 Nuts -29 to 566 -20 to 1050
N07718 HT Studs
N07718 HT Chrome Coat Nuts -29 to 427 -20 to 800
C12A Valve N07718 HT Studs
N07718 HT Chrome Coat Nuts -29 to 621 -20 to 1150
CF8M Valve
SA479 S20910 Chrome Coat Studs
SA479 S20910 Nuts -198 to 538 -325 to 1000
SA-193-B8M Class 2 Studs
SA-194-8M Nuts -198 to 427 -325 to 800
SA479 S20910 Chrome Coat Studs
SA479 S20910 Nuts -198 to 593 -325 to 1100
Seat Ring Cap Screws N07718 -198 to 593 -325 to 1100
Bonnet, Seat Ring, and Cage Gaskets N06600/Graphite Oxidizing -198 to 427 -325 to 800
Non-Oxidizing -198 to 593 -325 to 1100
ED Piston Ring or Lower Graphite Piston Ring
(254 mm [10 inch] port only)
Graphite (Fisher
Designation FMS 17F27)
Oxidizing -46 to 427 -50 to 800
Non-Oxidizing -46 to 482 -50 to 900
Graphite (Fisher
Designation FMS 17F39)
Oxidizing -46 to 538 -50 to 1000
Non-Oxidizing -46 to 593 -50 to 1100
ED Bore Seal N07718 -198 to 593 -325 to 1100
ET Seat Ring Seal Ring and Plug Seal Ring Glass and Moly-Filled PTFE with N10276 spring -73 to 232 -100 to 450
ET HTS1 Seal
Anti-extrusion Ring PEEK (poly ether ether ketone)
Not a Limiting Factor Not a Limiting Factor
Backup Ring S41000
S31600
Retaining Ring 18-8
Seat Ring Seal Ring
Plug Seal Ring PTFE/graphite with R30003 spring 232 to 316 450 to 600
ET Cryogenic Seal Ring UHMWPE -198 to 66 -325 to 150
Packing (Temperatures shown are in-body
temperatures with Style 1 extension bonnet.)
PTFE V-Ring -46 to 232 -50 to 450
PTFE Composition -46 to 232 -50 to 450
Graphite
Ribbon/Filament
Oxidizing -198 to 354 -325 to 700
Non-Oxidizing -198 to 538 -325 to 1000
Packing Flange, Studs, and Nuts Steel -29 to 427 -20 to 800
S31600 -198 to 593 -325 to 1100
PackingFollower,Spring(PTFEV-Ring Packing), or
Lantern Ring S31600 Not a Limiting Factor
Packing Box Ring S31600 -198 to 593 -325 to 1100
1. May be used up to 1100_F if manufacturing controls carbon content to 0.04% minimum or 0.08% maximum.
2. Flanged valve bodies are limited to 427_C(800_F).
3. Limited to 354_C(700_F) in flanged valve bodies.
4. Compliant to NACE MR0175-2002, NACE MR0175/ISO15156, and NACE MR0103.
Large ET and ED Valves
D103554X012
Product Bulletin
51.1:ET/ED (Large)
March 2015
8
Table 4. Construction Materials (CD3MN and CD3MWCuN Valves)
PART MATERIAL TEMPERATURE
_C_F
Valve Body and Bonnet CD3MN Duplex Stainless Steel
CD3MWCuN Super-Duplex Stainless Steel
-51 to 316
-51 to 316
-60 to 600
-60 to 600
Valve Stem S32760 Not a Limiting Factor
Valve Body-to-Bonnet Bolting
SA-193-B7 Studs, SA-194-2H Nuts -46 to 427 -50 to 800
S32760 Studs and Nuts Not a Limiting Factor
SA-193-B7/Zinc HDG Studs,
SA-194-2H/Zinc HDG Nuts -46 to 200 -50 to 400
Seat Ring Cap Screws N07718 Not a Limiting Factor
Bonnet, Seat Ring, and Cage Gaskets N06600/Graphite Oxidizing Not a Limiting Factor
Non-Oxidizing
ED Piston Ring or Lower Graphite Piston Ring
(254 mm [10 inch] port only)
Graphite (Fisher
Designation FMS 17F27)
Oxidizing Not a Limiting Factor
Non-Oxidizing
Graphite (Fisher
Designation FMS 17F39)
Oxidizing Not a Limiting Factor
Non-Oxidizing
ET Seat Ring Seal Ring and Plug Seal Ring Glass and Moly-Filled PTFE with N10276 spring -73 to 232 -100 to 450
ET HTS1 Seal
Anti-extrusion Ring PEEK (poly ether ether ketone)
Not a Limiting Factor Not a Limiting FactorBackup Ring S41000
S31600
Retaining Ring 18-8
Seat Ring Seal Ring
Plug Seal Ring PTFE/graphite with R30003 spring 232 to 316 450 to 600
Packing (Temperatures shown are in-body
temperatures with Style 1 extension bonnet.)
PTFE V-Ring -46 to 232 -50 to 450
PTFE Composition -46 to 232 -50 to 450
Graphite
Ribbon/Filament
Oxidizing Not a Limiting Factor
Non-Oxidizing
Packing Flange, Studs, and Nuts S31600 Not a Limiting Factor
Packing Follower,
Lantern Ring, and Box
Ring
CD3MN Valve S31803 Not a Limiting Factor
CD3MWCuN Valve S32760 Not a Limiting Factor
Large ET and ED Valves
D103554X012
Product Bulletin
51.1:ET/ED (Large)
March 2015
9
Table 5. Standard, Whisper Trim III, and Cavitrol III Trim Descriptions
VALVE TRIM
DESIGNATION
BODY
MATERIAL VALVE PLUG SEAT RING CAGE CAP SCREWS TEMPERATURE LIMIT
_C_F
ED
40
WCC/WC9 CA6NM
(modified
410 SST)
CB7CU-1
H1075
CB7CU-1
H1075 N07718
-29 to 427 -20 to 800
LCC -46 to 343 -50 to 650
41
WCC WC9 Steel
with CoCr-A
WC9 Steel
with CoCr-A
WC9 -
Nitrided N07718 -29 to 427 -20 to 800
LCC -46 to 343 -50 to 650
WC9 WC9 Steel
with CoCr-A
WC9 Steel
with CoCr-A
WC9 -
Nitrided N07718 -29 to 566 -20 to 1050
C12A -29 to 593 -20 to 1100
42 C12A F91 with
CoCr-A
F91 with
CoCr-A F91 - Nitrided N07718 -29 to 621 -20 to 1150
43(1)
WCC/WC9 CF8M with
CoCr-A on
seat & guide
CF8M with
CoCr-A seat
CF8M Chrome
Plate N07718
-29 to 343 -20 to 650
LCC -46 to 343 -50 to 650
CF8M -73 to 343 -100 to 650
44(1) CF8M
CF8M with
CoCr-A on
seat & guide
CF8M with
CoCr-A seat
CF8M
Chrome-
Coated
N07718 -73 to 538(2) -100 to
1000(2)
49(4) CD3MN
S31803 with
R31233 on
seat & guide
S31803 with
CoCr-A seat
S31803
Chrome Plate N07718 -51 to 316 -60 to 600
50(5) CD3MWCuN
S32760 with
R31233 on
seat & guide
S32760 with
CoCr-A seat
S32760
Chrome Plate N07718 -51 to 316 -60 to 600
ET
45
WCC/WC9
CA6NM HT CB7CU-1
H1075
CB7CU-1
H1075 ---
-29 to 316 -20 to 600
LCC -46 to 316 -50 to 600
CF8M -46 to 316 -50 to 600
46
WCC/WC9 CF8M with
CoCr-A on
seat & guide
CF8M with
CoCr-A seat
CF8M Chrome
Plate ---
-29 to 316 -20 to 600
LCC -46 to 316 -50 to 600
CF8M -73 to 316 -100 to 600
47(3) WCC/WC9 CF8M with
CoCr-A on
seat & guide
CF8M with
CoCr-A seat
CB7CU-1 DBL
H1150 ---
-29 to 93 -20 to 200
LCC -46 to 93 -50 to 200
48(1) CF8M
CF8M with
CoCr-A on
seat & guide
CF8M
CF8M
Chrome-
Coated
--- -198 to 66 -325 to 150
49(4) CD3MN
S31803 with
R31233 on
seat & guide
S31803 with
CoCr-A seat
S31803
Chrome Plate --- -51 to 316 -60 to 600
50(5) CD3MWCuN
S32760 with
R31233 on
seat & guide
S32760 with
CoCr-A seat
S32760
Chrome Plate --- -51 to 316 -60 to 600
1. NACE MR0175-2002, MR0175, ISO15156, and MR0103 approved trim combinations. Environmental restrictions apply to MR0175/ISO15156.
2. May be used up to 593_C (1100_F) if 316H valve body material is used. Contact your Emerson Process Management sales office for additional information.
3. NACE MR0175-2002 approved trim combination.
4. NACE MR0175/ISO15156 approved trim combinations. Environmental restrictions apply to MR0175/ISO15156.
5. NACE MR0175-2002 and MR0175/ISO15156 approved trim combinations. Environmental restrictions apply to MR0175/ISO15156.
Large ET and ED Valves
D103554X012
Product Bulletin
51.1:ET/ED (Large)
March 2015
10
Table 6. WhisperFlo Trim Descriptions
VALVE TRIM
DESIGNATION
BODY
MATERIAL VALVE PLUG SEAT RING CAGE CAP SCREWS TEMPERATURE LIMIT
_C_F
ED
954 WCC CA6NM WC9 with
CoCr-A seat
S41000/
ENC/Ult N07718 -29 to 427 -20 to 800
WC9 -29 to 482 -20 to 900
951(1)
WCC CF8M with
CoCr-A on
seat & guide
CF8M with
CoCr-A seat
S31600/
ENC/Ult N07718
-29 to 427 -20 to 800
WC9 -29 to 566 -20 to 1050
CF8M(2) -29 to 593 -20 to 1100
ET 955 WCC/WC9 CA6NM S17400
H1075
S41000/
ENC/Ult --- -29 to 316 -20 to 600
ET 953(1) WCC/WC9 CF8M with
CoCr-A on
seat & guide
CF8M with
CoCr-A seat
S31600/
ENC/Ult ---
-29 to 316 -20 to 600
CF8M -29 to 316 -20 to 600
1. NACE approved trim combinations. Environmental restrictions apply to MR0175/ISO15156.
2. May be used up to 593_C (1100_F) if 316H valve body material is used. Contact your Emerson Process Management sales office for additional information.
Large ET and ED Valves
D103554X012
Product Bulletin
51.1:ET/ED (Large)
March 2015
11
Table 7. Dimensions and Approximate Weights
END
CONNECTION
APPROXIMATE
WEIGHT
(LONG-NECK
VALVE(2)
DIMENSION
A
G
Standard Style 1 Extension Bonnet
CL150 CL300 CL600 Short-Neck Valve Long-Neck Valve
DMax. Travel DMax. Travel
Size,
NPS Type(1) Kg Lb mm Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm Inch
12
RF 1410 3100 737 29.00 775 30.50 819 32.25
338 13.31 592 23.32 140 5.5 745 29.32 203 8
RTJ 746 29.38 790 31.12 822 32.38
BW 1220 2700 --- --- --- --- 819 32.25
14
RF 1565 3450 889 35 927 36.5 972 38.25
379 14.92 561 22.07 140 5.5 713 28.06 203 8
RTJ --- --- --- --- --- ---
BW 1340 2950 --- --- --- --- 972 38.25
16
RF 1720 3800 1016 40.00 1057 41.62 1108 43.62
389 15.31 561 22.07 140 5.5 713 28.06 203 8
RTJ 1026 40.38 1073 42.25 1111 43.75
BW 1450 3200 --- --- --- --- 1108 43.62
30
CL300
RF 6690 14750 2134 84.00 2134 84.00 --- --- 673 26.5 1134 44.64 372 14.63 1401 55.14 504 19.84
CL600
RF 13600 30000 --- --- --- --- 2210 87.00 699 27.5 1134 44.64 372 14.63 1401 55.14 504 19.84
1. RF--raised face; RTJ--ring-type joint; BW--buttwelding.
Figure 4. Dimensions and Approximate Weights (also see table 7)
A6068
MATCH LINE FOR ACTUATORS
D
G
A
A
2
Large ET and ED Valves
D103554X012
Product Bulletin
51.1:ET/ED (Large)
March 2015
12
Emerson Process Management
Marshalltown, Iowa 50158 USA
Sorocaba, 18087 Brazil
Chatham, Kent ME4 4QZ UK
Dubai, United Arab Emirates
Singapore 128461 Singapore
www.Fisher.com
The contents of this publication are presented for informational purposes only, and while every effort has been made to ensure their accuracy, they arenot
to be construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicability. All sales are
governed by our terms and conditions, which are available upon request. We reserve the right to modify or improve the designs or specifications of such
products at any time without notice.
E2011, 2015 Fisher Controls International LLC. All rights reserved.
Fisher, Whisper Trim, WhisperFlo, and Cavitrol are marks owned by one of the companies in the Emerson Process Management business unit of Emerson
Electric Co. Emerson Process Management, Emerson, and the Emerson logo are trademarks and service marks of Emerson Electric Co. All other marks are
the property of their respective owners.
Neither Emerson, Emerson Process Management, nor any of their affiliated entities assumes responsibility for the selection, use or maintenance
of any product. Responsibility for proper selection, use, and maintenance of any product remains solely with the purchaser and end user.
