Fisher Vee-Ball Rotary Control Valves

™

®

Highly efficient rotary valves to meet a variety of applications

Emerson wants to be your partner.

With Emerson, you’ll have the support of a global

company with extensive international engineering,

research, sales, marketing, manufacturing, and service

operations. Which means you’ll have access to leading

control valve and instrument technologies that offer

new levels of performance and reliability. Regardless of

your industry. And regardless of your location.

If you can’t count on your control valves, you can’t

count on your process! That’s why operations like yours

have chosen Fisher final control elements.

Fisher Vee-Ball Rotary

Control Valve

T he Fisher® Vee-Ball™ rotary control valve combines

the best of Emerson application experience with

the latest in control valve technology.

The Vee-Ball valve offers broad range application

versatility. It can be coupled with a full range of Fisher

actuators and FIELDVUE™ digital valve controllers to yield

compact, easy-to-handle control valve packages. All

components work together, delivering superior dynamic

performance and low operating cost.

Your best choice for performance and cost-effectiveness

across a broad range of applications.

Fisher®

Vee-Ball™

Rotary

Control Valve

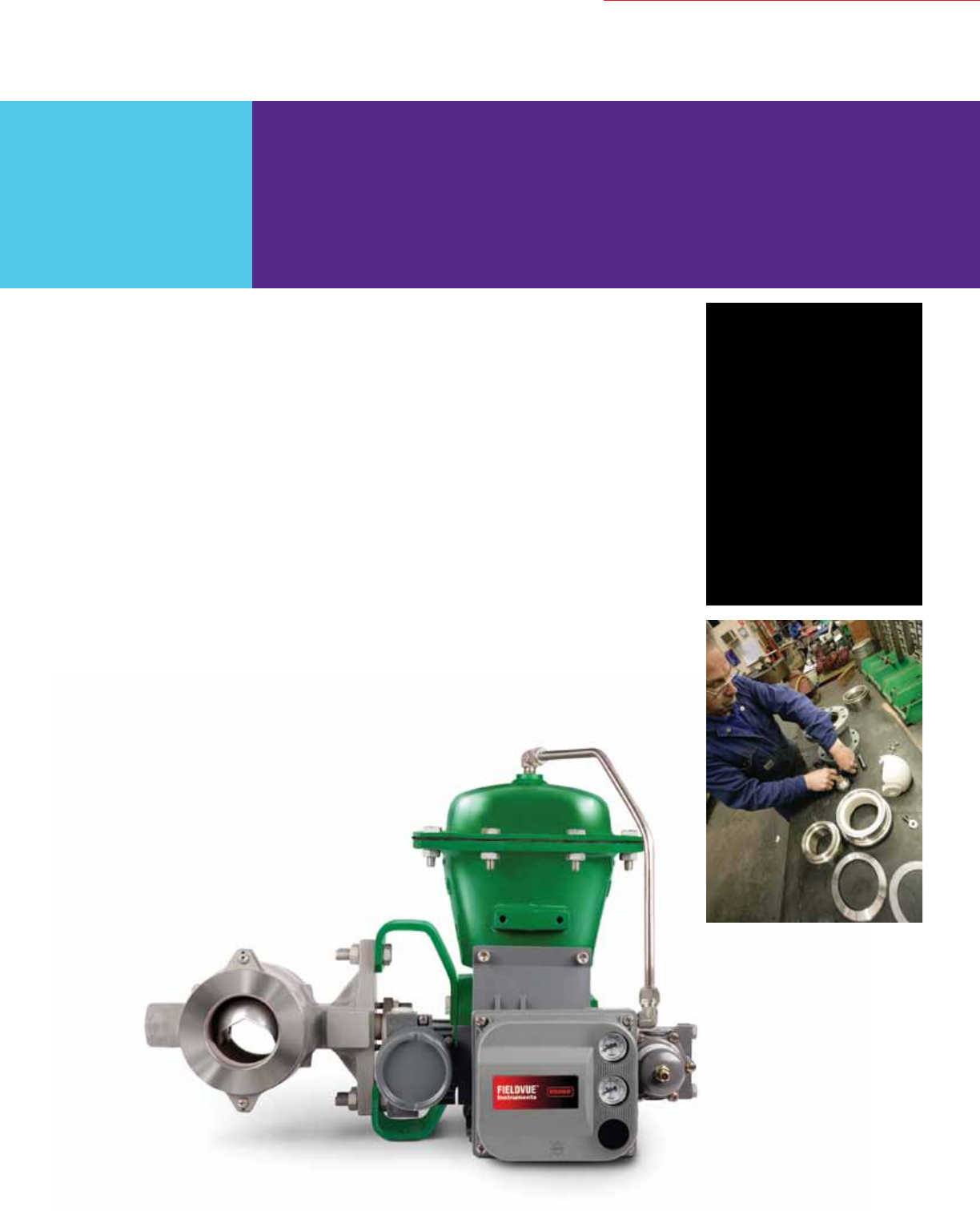

Fisher Vee-Ball Control Valve:

The Fisher Vee-Ball valve with its

V-notch ball provides positive

shearing action and a nearly equal

percentage flow characteristic. It

provides non-clogging, high-capacity

flow control of gas, steam, clean

and dirty fluids, abrasive chemicals,

and fibrous slurries. You will find

this valve hard at work in the pulp

and paper, power, chemical, and

petrochemical industries.

Fisher® Vee-Ball™ Rotary Control Valves | 3

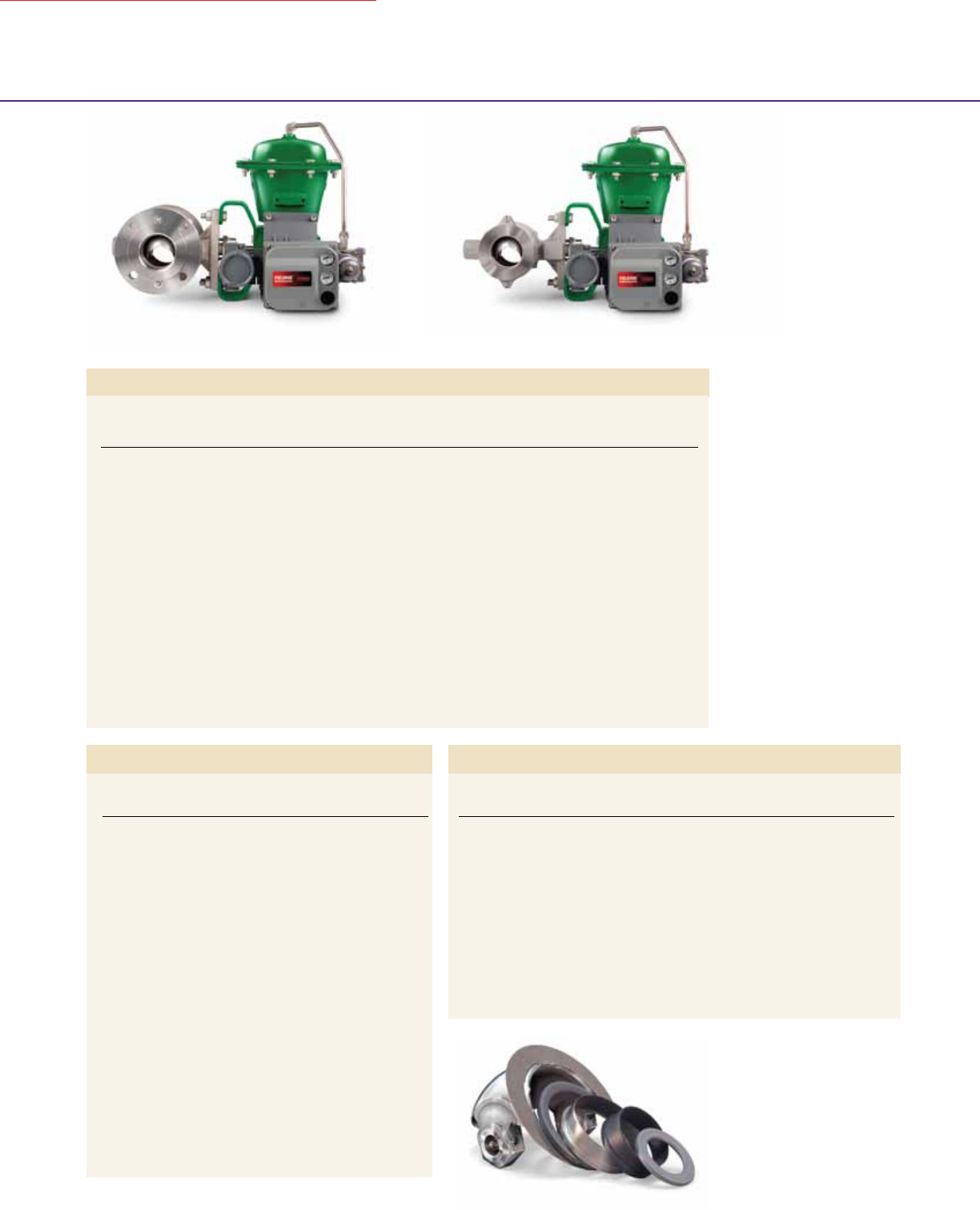

Easy Installation

To reduce installation time and

headaches, the Vee-Ball rotary

control valve is available with

either a flangeless ANSI body or

an integral flange body. The

flangeless design uses integral

centering lugs to help simplify

alignment procedures.

Regardless of the application, incorporating the Fisher

Vee-Ball valve into your process can have significant

money and time-saving benefits:

• Improve Total Cost of Ownership - Quality Fisher construction

enables long-term performance from your Vee-Ball valve.

• Reduce Process Variability - The Vee-Ball rotary control valve

is a highly engineered component essential to the accuracy

and controllability of your flow system. Extensive flow loop

testing has demonstrated the Vee-Ball valve’s low friction

performance advantage in controlling process variability.

• Reduce Downtime - The rugged Vee-Ball valve incorporates

large margins of safety in its design. This, coupled with

extensive flow testing and evaluation, results in a rotary

control valve that is the industry standard for reliability.

• Improve Operational Efficiency - The Vee-Ball valve’s high

capacity and excellent characteristics mean your process can

be controlled with less system pressure drop across the

control valve.

• Reduce Parts Inventory - Commonality of parts across the

Vee-Ball line helps you trim inventory costs to a minimum,

resulting in bottom-line savings.

• Reduce Maintenance Costs - The V-notch ball seal can be

replaced without valve disassembly or actuator removal.

• Reduce Training Costs - The Vee-Ball valve meets the

requirements of a broad range of applications, which means

engineering and maintenance training can focus on a single

valve design. Your staff can quickly take advantage of the

Vee-Ball valve’s flexibility, saving training time and expense.

• Achieve Worldwide Consistency - With manufacturing plants

and service facilities worldwide, you can count on Emerson

and its Fisher products to deliver the same high level of

performance wherever your operations are located.

In addition to providing top quality, expertly engineered valves,

Emerson is committed to providing you with exceptional

customer service. Emerson’s application assistance, responsive

replacement parts service, control valve repair, and training add

even more value to the Fisher Vee-Ball rotary control valve.

Money and Time-Saving Benefits

4 | Fisher® Vee-Ball™ Rotary Control Valves

Fisher® Vee-Ball™ Rotary Control Valves | 5

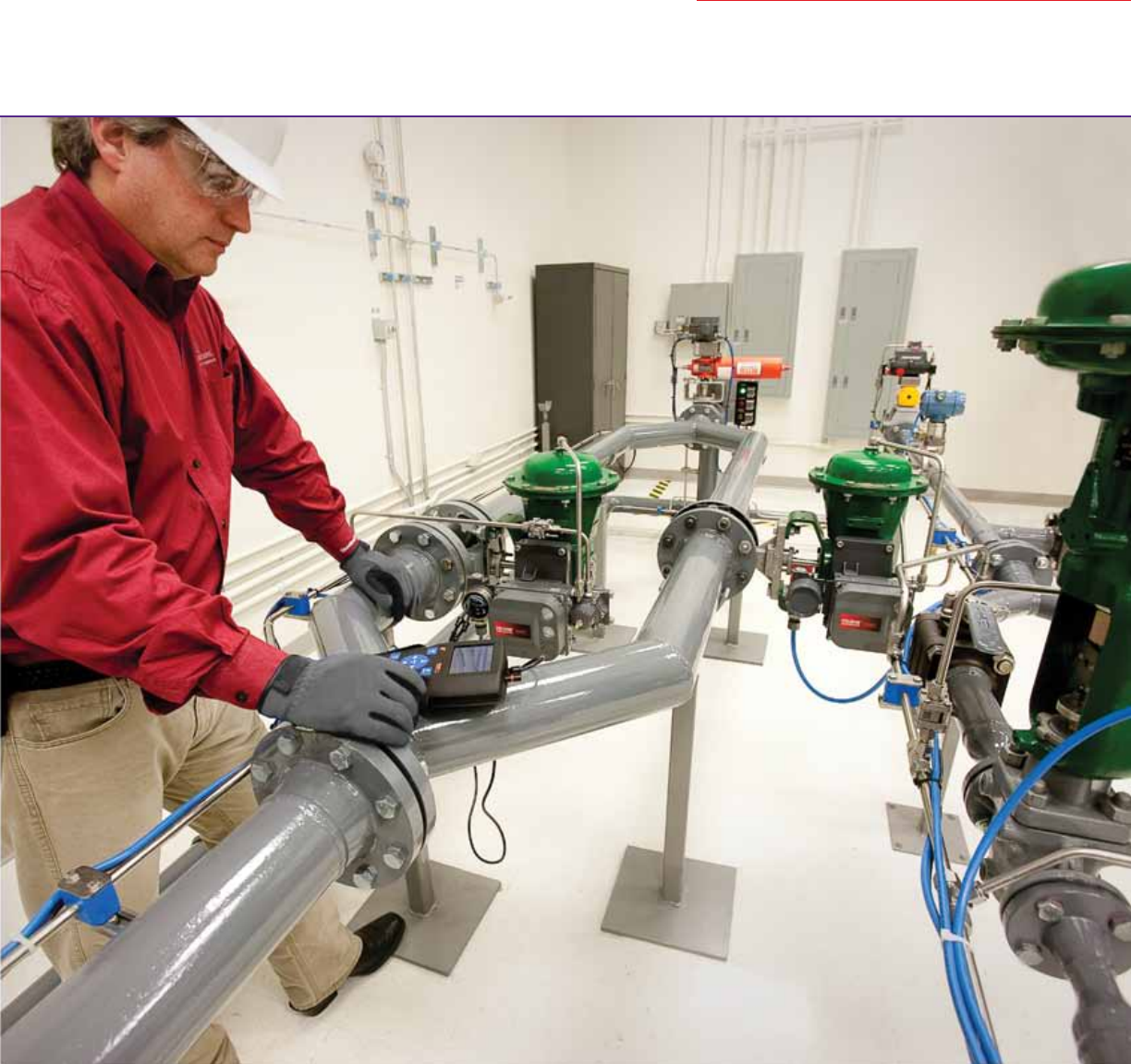

Demonstrated Performance

Vee-Ball control valves undergo extensive testing for proof of performance. The PlantWeb™

dynamic performance lab enables thorough product testing and analysis.

Added-Value Features

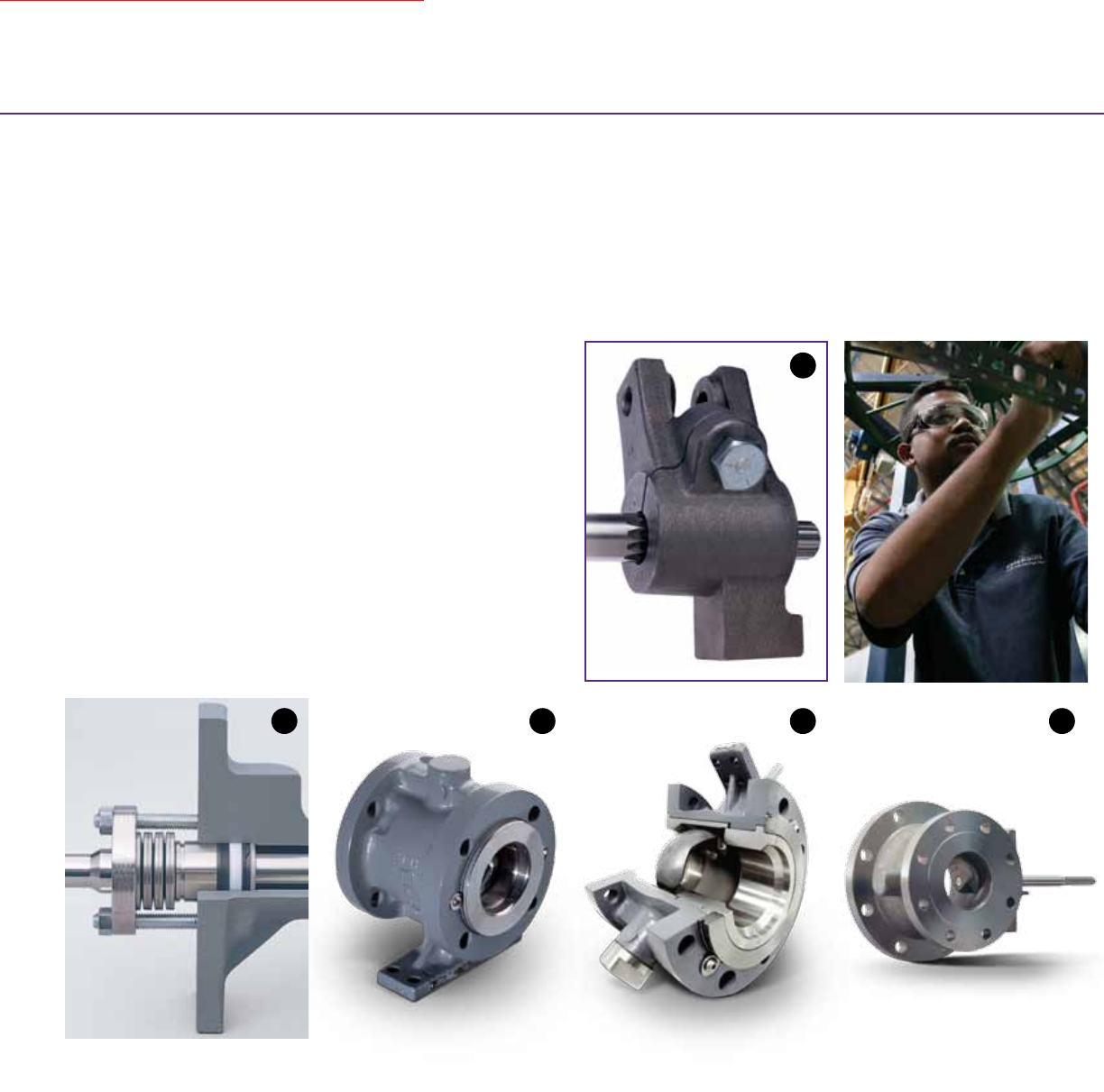

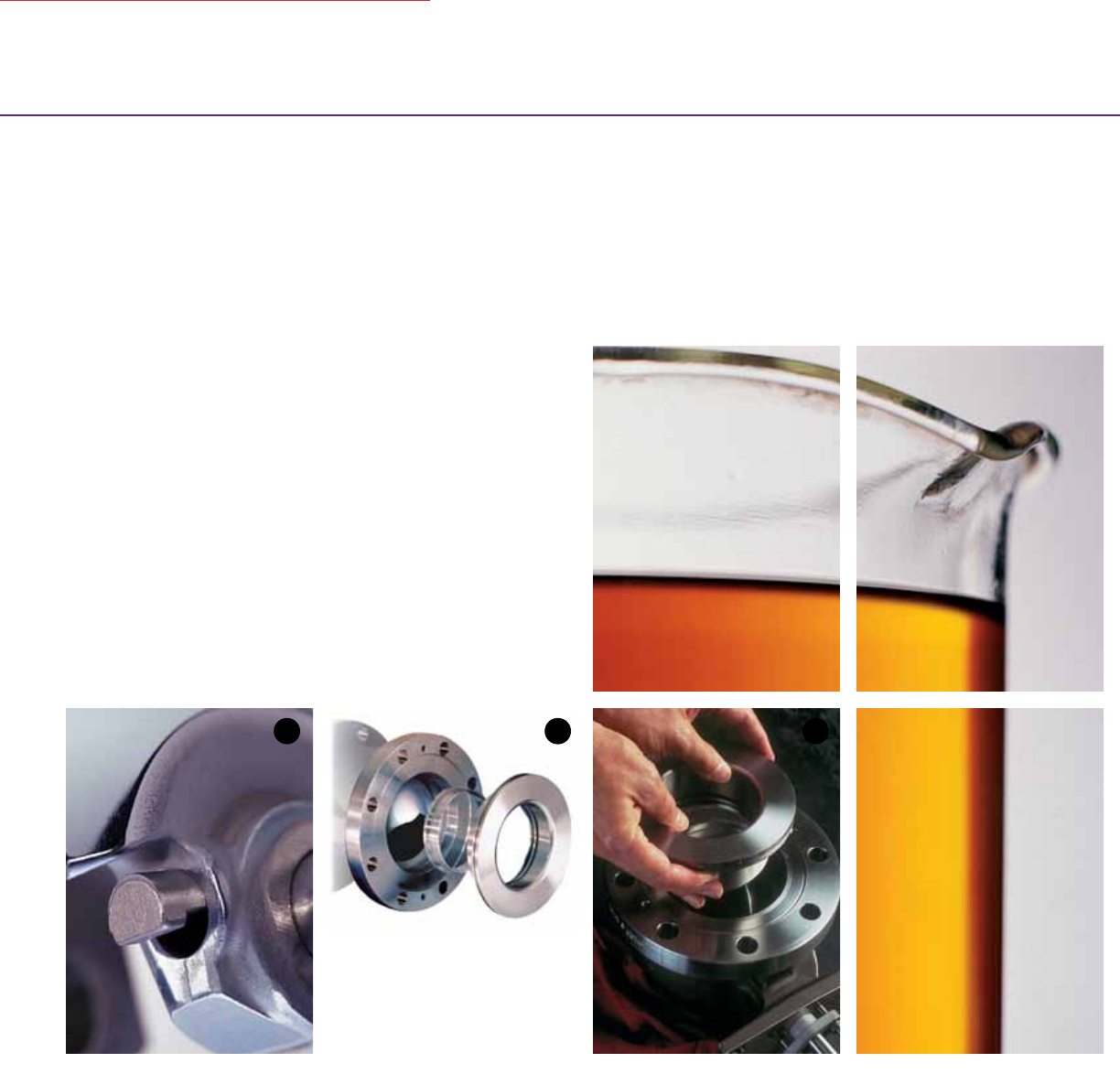

Minimal Deadband - A patented, taper key

ball-to-shaft connection (see ) eliminates

lost motion and minimizes deadband. During

maintenance procedures, this arrangement proves

to be more reliable and easier to assemble than

conventional connections.

Heavy-Duty (HD) Seal - The Fisher patented

heavy-duty ball seal (see ) offers exceptional wear

and pressure drop performance over a wide range of

steam, gas, liquid, and slurry applications. The metal

seal is pressure-balanced, which reduces operating

torques and allows higher pressure drops without

excessive wear.

Easy Seal Replacement and Inspection - Once the

valve is removed from the pipeline, just remove

two screws and the seal assembly (see ) is easily

extracted from the body. No need to disassemble the

valve body or remove the actuator. Metal and soft

seals are fully interchangeable.

Taper key provides solid ball-to-shaft

connection.

6 | Fisher® Vee-Ball™ Rotary Control Valves

HD metal seal fights off scale

and sludge buildup; inspects

and replaces easily since it

requires no adjustment.

12 3

Trim Interchangeability - Across the Vee-Ball line,

size-for-size, trim components remain the same

regardless of body style. This reduces parts inventory

requirements and costs. It also simplifies maintenance

training and procedures.

Better Linkage Protection - Integral mounting of

positioner protects linkages.

Fisher® Vee-Ball™ Rotary Control Valves | 7

Available in ceramic

and R30006 cobalt

alloy (Alloy 6), as well

as chromium plated

CG8M SST materials,

Micro-Notch balls

allow extremely small

flow rates.

Rotary attenuator

reduces liquid

cavitation and

aerodynamic noise.

Superior Bearings - To enhance the performance

and service life of the valve, a patented, low-friction,

high-load bearing system fully supports both drive

and follower shafts. To reduce maintenance costs, this

bearing system is designed to easily drop into place.

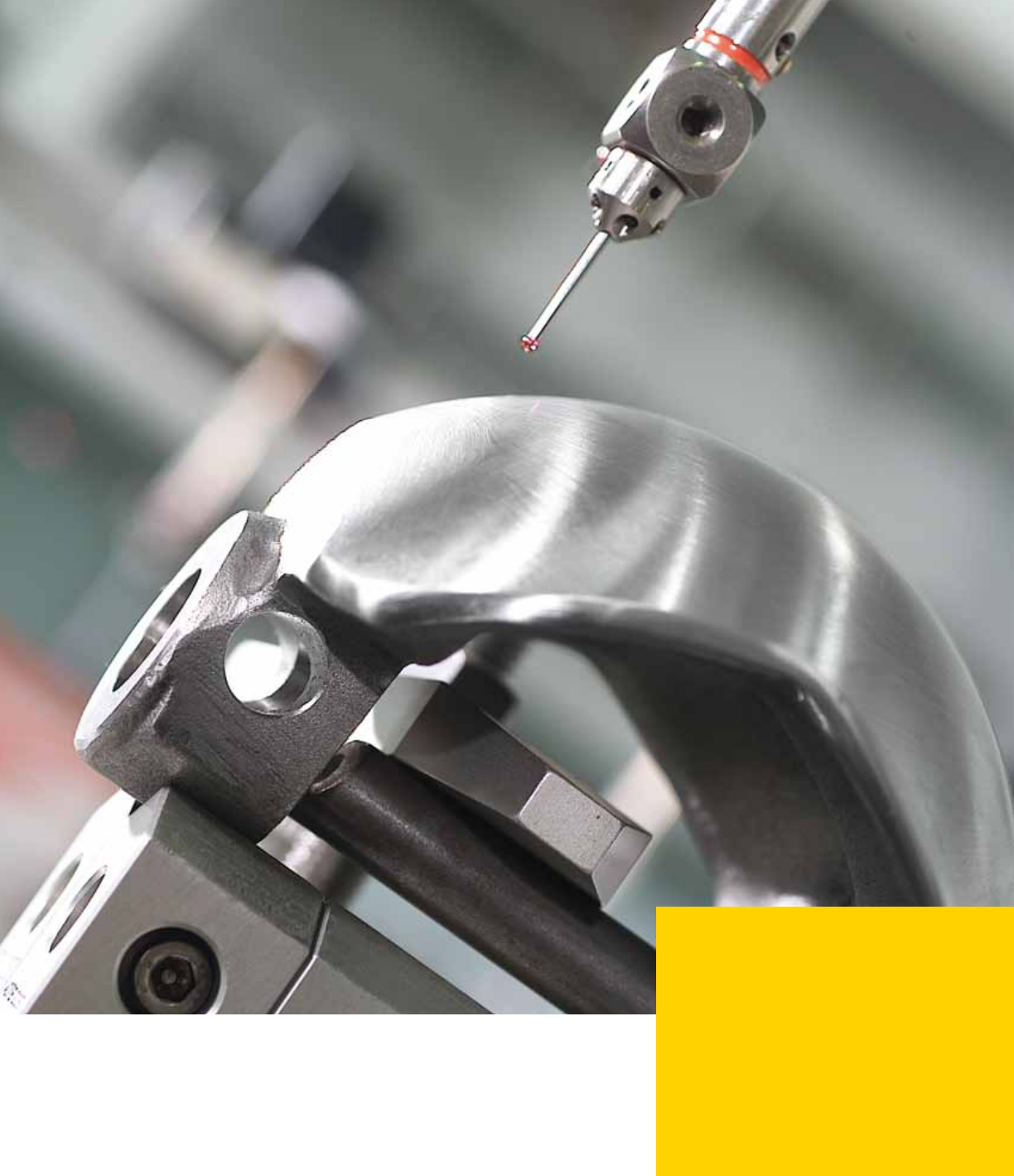

Characterized V-Notch Ball Design - The V-notch

ball provides positive shearing action for fibrous

flows and creates an inherently equal percentage

flow characteristic. It has been specially contoured to

maximize capacity and enhance seal life and shutoff

integrity. The Vee-Ball valve offers high capacity with

its unrestricted, straight-through flow path. The result

is accurate throttling control over a wide range of

flow conditions.

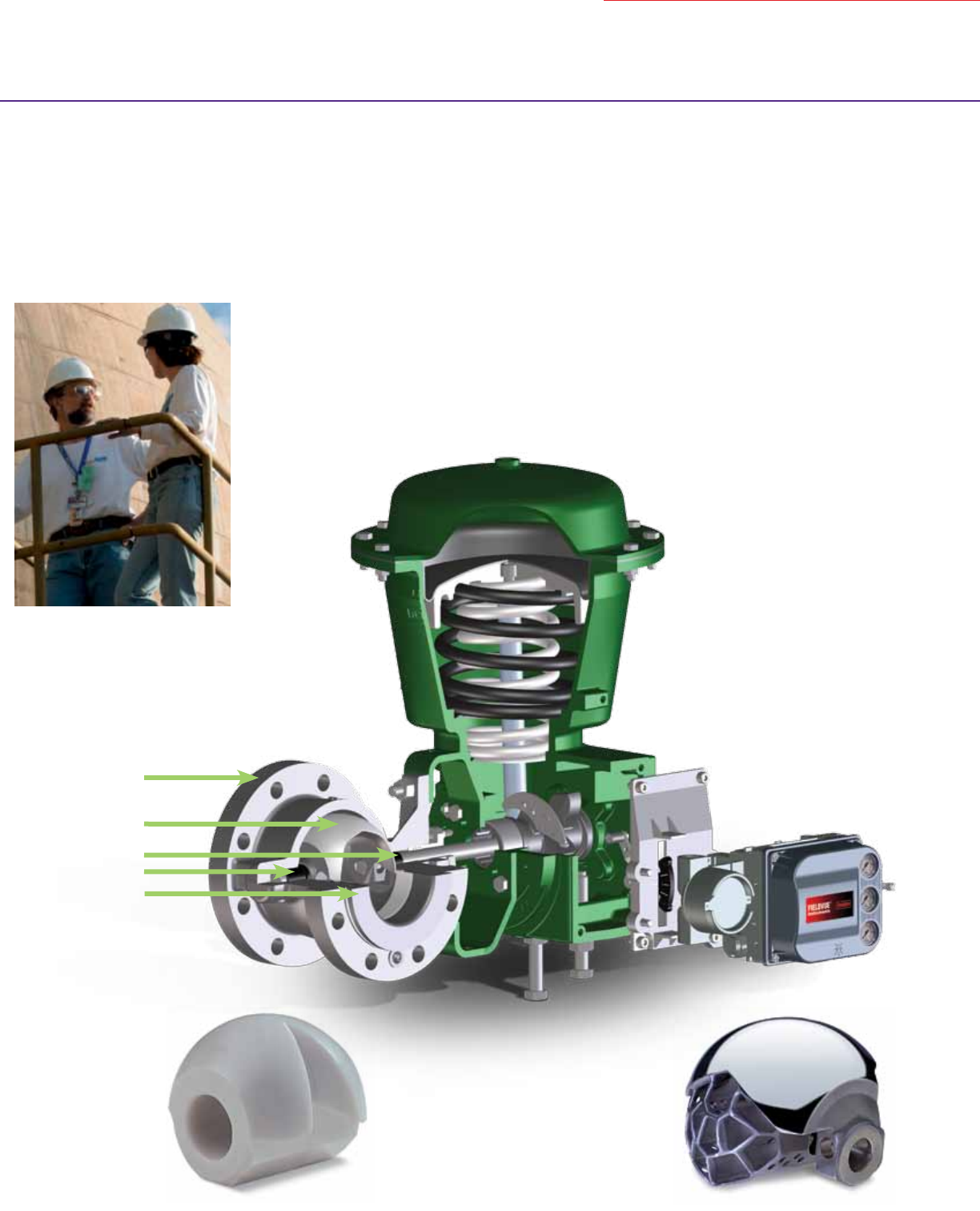

Body

V-Notch Ball

Drive Bearing

Follower Bearing

Seal Protector Ring

Added-Value Features

8 | Fisher® Vee-Ball™ Rotary Control Valves

Shaft Packing Options - A choice of shaft packing

systems (see ) provides enhanced shaft sealing to

meet specific application requirements.

Structural Integrity - One-piece body (see )

improves structural integrity of the pressure

boundary by eliminating the potential leak paths

found in two-piece, bolted valve designs.

Accurate Positioning - Splined driveshaft (see )

coupled with clamped actuator lever helps ensure

zero lost motion.

Process Compatibility - A wide choice of materials

for valve body, V-notch ball, ball seals, shafts, and

other components allows you to specify a Vee-Ball

valve to meet most process applications.

Standard body materials include both CG8M

(317) and CF3M (316L) stainless steel as well as

WCC carbon steel materials. Additional body

materials include CK3MCuN superaustenitic SST, and

nickel alloys CN7M (Alloy 20), M35-2 (Alloy 400) and

CW2M (Alloy C).

ENVIRO-SEAL® packing, which is available

in all Vee-Ball valves, helps meet

stringent emission control requirements.

45

6

Erosive Slurry Control - The V150S Slurry

Vee-Ball valve (see ) has a body liner, V-notch ball,

and flow ring all constructed of high-chromium iron.

A ceramic flow ring insert is available for especially

aggressive slurry services.

Medium Consistency Pulping - The V150E expanded

outlet Vee-Ball valve (see ) accommodates expanded

downstream piping.

7

V150S erosion-resistant trim

components protect the body from

erosive wear and are retained

without the use of press fits or

threads for easy replacement.

8

The V150E outlet flange is one

standard line size diameter larger

than the inlet. The expanded outlet

geometry streamlines the flow

through the valve as the flow

area increases from inlet to outlet.

For Even Greater Versatility,

FIELDVUE Digital Valve Controllers —

Capabilities That Extend Beyond

Traditional Valve Control

While a traditional valve positioner serves a single

purpose, which is to maintain a valve in its intended

control position, FIELDVUE digital valve controllers

(see ) provide much more.

FIELDVUE instrumentation collects

real-time data about valve performance,

which proves crucial not only to reducing

process variability but also to enhancing

plant operations.

Designed for PlantWeb™

digital plant architecture,

FIELDVUE digital valve

controllers and ValveLink™

software enable you to

run your operation more

efficiently, safely, and profitably by

delivering new insights on valve health.

Fisher® Vee-Ball™ Rotary Control Valves | 9

Choose the Actuator and Accessories to Fit the Control Situation

A choice of Fisher pneumatically operated rotary

actuators makes it easy to specify the right Vee-Ball

control valve package for each application. The rotary

actuators, available in spring-and-diaphragm and piston

styles, share design and construction features that

enable efficient and stable valve operation, even under

application extremes.

•

All actuator/positioner/valve linkages are enclosed for

both personnel safety and protection against damage.

•

Actuator housings are rugged to meet repeated, high-

torque requirements.

•

Splined-and-clamped valve shaft lever, plus a single-

point actuator rod connection, minimize lost motion

for maximum throttling control accuracy.

•

A selection of actuator sizes allows matching actuator

output to operating torque requirements.

•

Corrosion-resistant powder coat paint and corrosion-

resistant fasteners are standard.

•

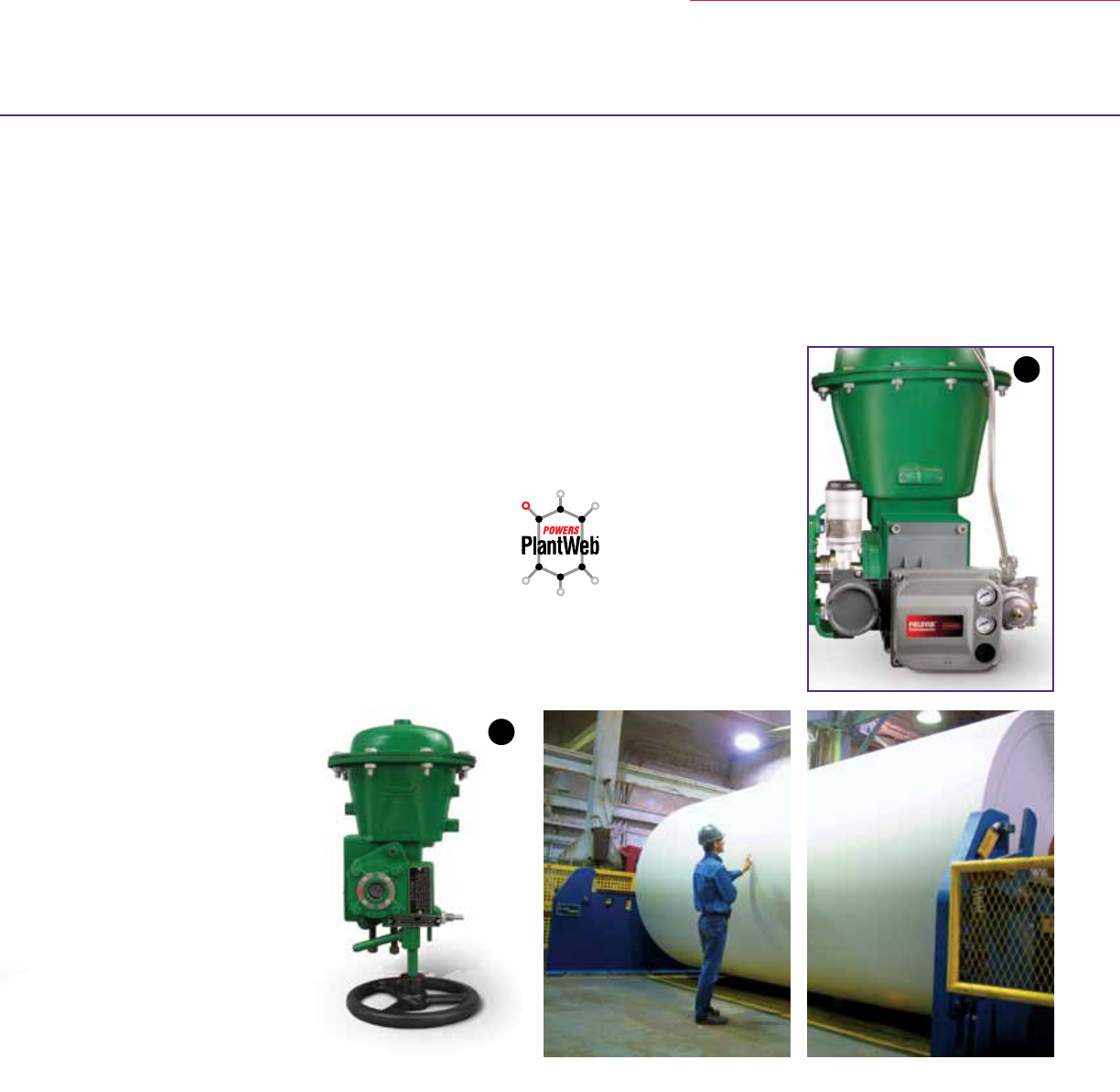

Optional declutchable manual operators (see ) will

override the actuator to position the valve.

10

9

Declutchable manual operator mounts

directly to the actuator.

Flangeless body provides a multiclass rating.

10 | Fisher® Vee-Ball™ Rotary Control Valves

Seal Overview

Vee-Ball Seal

Constructions

Temperature

Range

Shutoff Classification per

ANSI/FCI 70-2 and IEC 60534-4

Flow Ring -325 to 800°F 5% of max rated flow

(bi-directional)

Flat Metal -325 to 800°F Class IV (forward flow)

TCM Plus/Ultra -50 to 450°/500°F Class VI (forward flow)

Heavy-Duty (HD) -50 to 550°F Class IV (bi-directional)

HD - High

Temperature -50 to 800°F Class III (bi-directional)

Vee-Ball Valve Selection Guide

Vee-Ball seal types

shown include Flat Metal,

TCM (composition), and HD.

Flanged body design with a Class 150 or Class 300 rating.

Vee-Ball Capacity

NPS Cv With Ball Wide Open (90° Rotation)

V150, V200, V300 V150S

1 26

1 1/2 77

2 127

3 321 170

4 596 380

6 1100 705

8 1820 1150

10 3000 2200

12 3980 2850

14 5610

16 8270

20 10,300

Availability Overview

End Size Rating Rating Flow Flow

Connection NPS ANSI(1) DIN Characteristic Coefficient

Ratio

Flanged 1 - 20 150 — Equal Percentage 300:1

Flanged 1 - 12 — PN10 or 16 Equal Percentage 300:1

Flangeless 1 - 2 150/300/600 PN10,16,25, Equal Percentage 300:1

multi-rated 40,63,100

3 - 4 150 or 300/600 —

multi-rated

6 - 8 150/300 and 600 —

multi-rated

10 150 —

Flanged 1 - 20 300 PN25 or 40(2) Equal Percentage 300:1

(1) ASME/ANSI B 16.34 Class Rating

(2) NPS 1 - 4 Only

Fisher® Vee-Ball™ Rotary Control Valves | 11

In the battle for performance and production, you

need every advantage you can get. From application

expertise to training to quick replacement parts to

valve repairs, you can always count on Emerson for

quality, service, and expertise.

Application Assistance From the Experts

The next time you need to specify a control valve for

your system, whether for general service or severe,

consider the Fisher Vee-Ball rotary control valve.

Contact the Emerson Local Business Partner or sales

office in your area. If you don’t know who they are, visit

our Web site at www.EmersonProcess.com/Fisher and

click on Sales Contacts. Highly skilled and experienced

applications personnel are ready to help you take

advantage of the many benefits of the Vee-Ball valve.

Control Valve Training Puts You in the Know

Emerson offers comprehensive customer training and

education programs that cover a wide range of process

topics. The programs consist of structured courses that

are geared to real-world situations. Customer training

is provided at our educational facilities located near

you. In addition to standard programs, tailored courses

designed for the specific needs of an organization are

conducted on-site. Prepackaged Fisher training courses

are available in video format, making self training

convenient and cost effective.

Whatever Your Need

FAST Replacement Parts Service Keeps You Up

and Running

Access FAST parts system, and you’re in touch

with one of the valve industry’s largest valve parts

inventory dedicated solely to meeting repair and

replacement needs. Computerized and centralized,

FAST gives you express delivery of parts orders to help

meet emergency as well as day-to-day repair parts

requirements. Now you can fine-tune your in-plant

maintenance inventory with the knowledge that

replacement valve parts are readily available to support

plant turnarounds and scheduled control

valve maintenance programs, as well as unplanned

valve repair.

Serving You for the Life of Your Plant

For over 35 years Emerson has been a provider of

premium service for valves and instruments. Backed

by hundreds of people and locations, highly skilled

technicians focus on local customer needs and stand

ready to support life cycle management of new or

existing control valves.

D350004X012 / MX102 (H:) / Dec11

This mark indicates a core

component of Emerson’s

PlantWeb™ digital plant

architecture.

Emerson Process Management

Marshalltown, Iowa 50158 USA

Sorocaba, 18087 Brazil

Chatham, Kent ME4 4QZ UK

Dubai, United Arab Emirates

Singapore 128461 Singapore

www.EmersonProcess.com/Fisher

© 2009, 2011 Fisher Controls International LLC. All rights reserved.

Fisher, Vee-Ball, FIELDVUE, PlantWeb, ENVIRO-SEAL, and ValveLink are marks owned by one of the companies

in the Emerson Process Management business division of Emerson Electric Co. Emerson Process Management,

Emerson, and the Emerson logo are trademarks and service marks of Emerson Electric Co. All other marks are

the property of their respective owners.

The contents of this publication are presented for informational purposes only, and while every effort has

been made to ensure their accuracy they are not to be construed as warranties or guarantees, express

or implied, regarding the products or services described herein or their use or applicability. All sales are

governed by our terms and conditions, which are available upon request. We reserve the right to modify

or improve the designs or specifications of such products at any time without notice. Neither Emerson,

Emerson Process Management, nor any of their affiliated entities assumes responsibility for the selection,

use, or maintenance of any product. Responsibility for proper selection, use, and maintenance of any

product remains solely with the purchaser and end user.
