www.Fisher.com

ValveLinkt Software Signature Series

Performance Testing

ValveLink Software Signature Series factory-executed

performance testing is available for any Fisherr control

valve assembly that includes a FIELDVUEt digital valve

controller.

Signature Series performance testing creates a

benchmark of an assembled valve's performance just

prior to shipment. This benchmark provides a starting

point for future data comparison, enabling you to

track the operating condition of your control valve and

maximize valve performance.

When ordered with your FIELDVUE equipped control

valve, our factory uses the diagnostic capability of

ValveLink software to thoroughly test each valve

assembly.

Test Levels

Three levels of Signature Series tests are available, with

each level providing valuable diagnostic data. When

you order a Signature Series test, you will receive the

test results electronically from your Emerson Process

Management sales office.

Signature Series 1

Within the Signature Series 1 test level, you receive:

n Instrument Configuration

n Status Monitor (@50% travel)

n Valve Spec Sheet

n Valve Signature, as recorded from -5 to 105% input.

n Dynamic Error Band Curve, as recorded from

-5 to 105% input

n Drive Signal, as recorded from -5 to 105% input

W9363-3

Signature Series 2

In addition to Signature Series 1 information, you

receive:

n Performance Step Test

n Status Monitor (0, 25, 50, 75, 100% travel)

Signature Series 3

Series 3 testing provides user specified Series 1 and 2

tests and allows customization of end points or scan

times. This capability lets you tailor the testing to your

specific requirements or process needs.

Signature Series 3 with Dead Band

plus Hysteresis

Provides user specifications from Series 1, 2, 3, and

Dead Band plus Hysteresis estimation per dead band

specifications. Refer to Bulletin 62.1:ValveLink

Software(S3) (D103549X012), available from your

Emerson Process Management sales office, for details.

ValveLink Software

D102687X102

Product Bulletin

62.1:ValveLink Software(S2)

October 2012

ValveLink Software

D102687X102

Product Bulletin

62.1:ValveLink Software(S2)

October 2012

2

Data Comparison

If your control valve is equipped with a FIELDVUE

instrument that includes diagnostic capability, after

the valve has been in service you can use ValveLink

Software to run the same tests that were originally run

at the factory. Then, by importing the Signature Series

data into ValveLink Software, you can compare the

as‐shipped performance with the valve's current

operating condition. The current data can be

compared to the baseline data to quickly pinpoint

issues, as shown in figure 1.

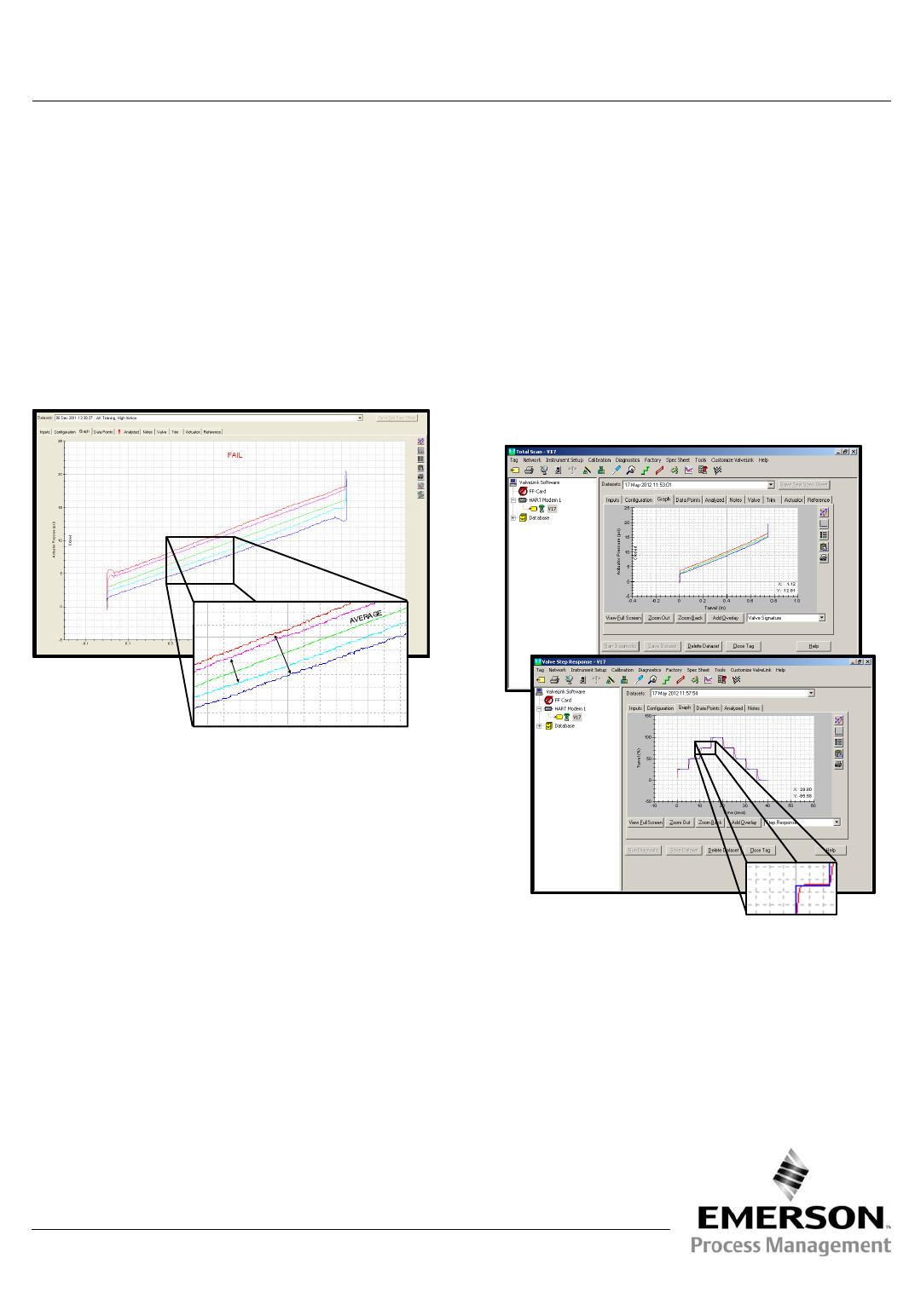

Figure 1. Data Comparison

INCREASED SPAN INDICATES

INCREASED FRICTION

ORIGINAL

TEST

NEW

TEST

Signature Series Availability

Signature Series testing is available for all Fisher

control valves when specified as part of the original

valve order. To order Signature Series testing, simply

specify your Signature Series testing requirements on

your Fisher control valve orders. Signature Series tests

are only available when specified as part of the original

valve order.

Take Advantage of the

Signature Series

You can begin to take advantage of the Signature

Series by contacting your Emerson Process

Management sales office. Remember to specify your

Signature Series testing requirements when placing

your order. Emerson Process Management can provide

you with the diagnostic data you need to keep your

valves operating at top performance!

Figure 2. Performing a Diagnostic Test with

ValveLink Software Provides an Analysis of Control

Valve Operating Parameters
