AC Power

For Business-Critical Continuity™

Liebert® GXT3™ UPS 120V/208V 500VA-3000VA

User Manual

i

TABLE OF CONTENTS

IMPORTANT SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

SAVE THESE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

GLOSSARY OF SYMBOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

1.0 PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.2 Available Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.3 Appearance and Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.3.1 Front Panel and Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.3.2 Rear Panel Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.4 Major Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1.5 Operating Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.5.1 Utility (AC) Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.5.2 Manual Bypass Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.5.3 Battery Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

1.5.4 Battery Recharge Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

1.5.5 Frequency Converter Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.0 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.1 Unpacking and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.2 What’s Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.3 Preparation for Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.3.1 Installation Environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.4 Mechanical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.4.1 Tower Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.4.2 Rack Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.5 Cable Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.5.1 Connecting Input Plug and Loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.5.2 Connecting Battery Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.6 Connecting Communication Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.6.1 Connecting USB Communication Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.6.2 Installing the Optional Liebert IntelliSlot® Card and Communication Cables . . . . . . . . . . . 18

3.0 CONTROLS AND INDICATORS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

3.1 Control Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.1.1 On/Alarm Silence/Manual Battery Test Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.1.2 Standby/Manual Bypass Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.2 Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3.2.1 Level Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3.2.2 UPS Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

ii

4.0 OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

4.1 Startup Checklist for the Liebert GXT3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

4.2 Starting the UPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

4.3 Manual Battery Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

4.4 Manual Bypass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

4.5 Shut Down the Liebert® GXT3™. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4.6 Disconnecting Input Power from the Liebert GXT3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.0 COMMUNICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

5.1 Liebert IntelliSlot Communication Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.1.1 Liebert MultiLink. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.2 USB Port Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

5.2.1 Configuration Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

5.3 Terminal Block Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

5.3.1 Any-Mode Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

5.3.2 Battery Mode Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

5.3.3 On Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

5.3.4 Low Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

6.0 MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

6.1 Replacing the Internal Battery Pack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

6.1.1 Battery Replacement Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

6.2 Battery Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

6.3 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

6.4 Checking UPS Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

6.5 Checking UPS Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

7.0 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

7.1 UPS Symptoms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

7.1.1 Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

7.1.2 Audible Alarm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

7.2 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

8.0 BATTERY CABINET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

9.0 SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

9.1 Product Warranty Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

iii

FIGURES

Figure 1 Liebert GXT3 rack/tower models—front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Figure 2 Liebert GXT3 minitower—front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

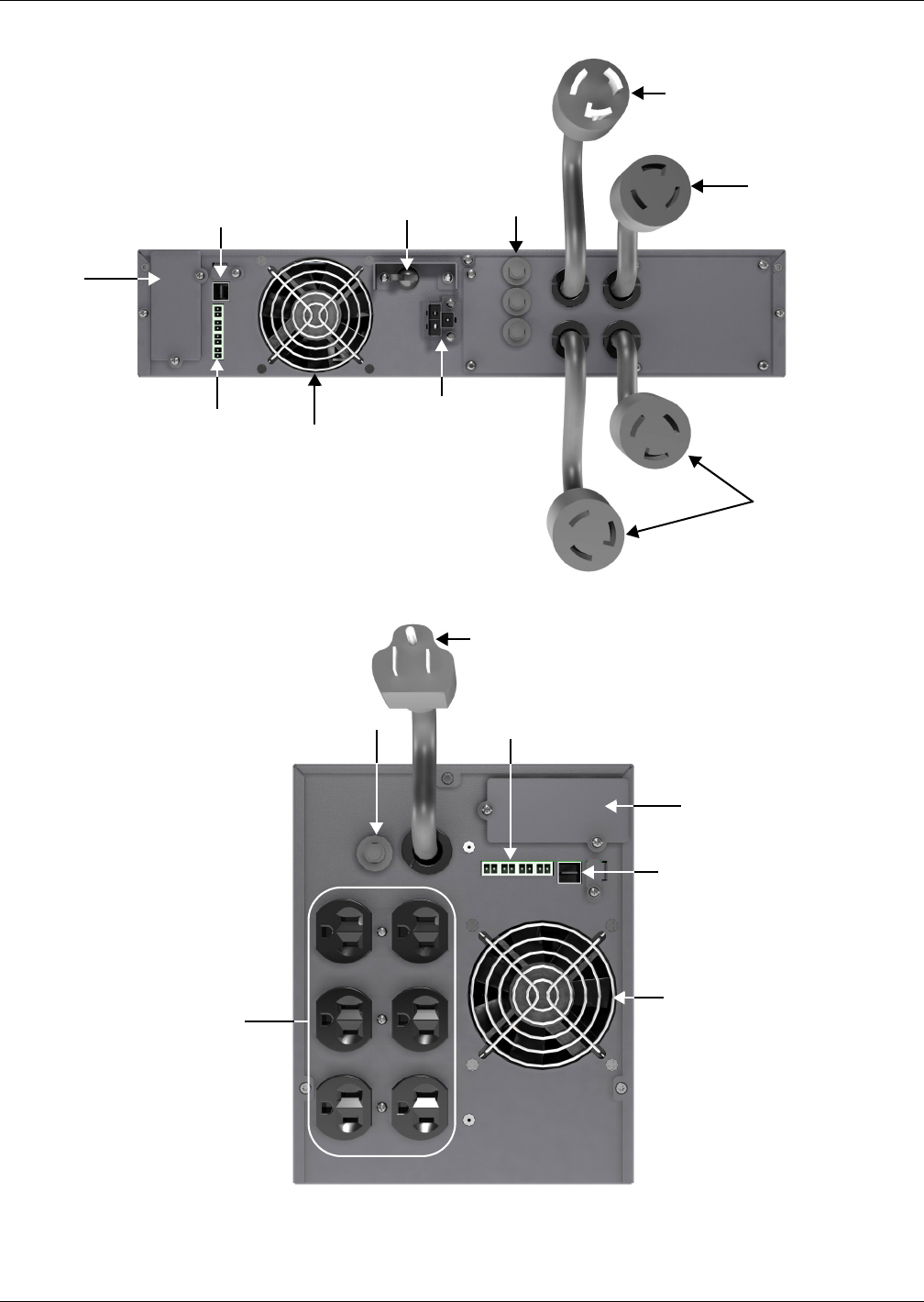

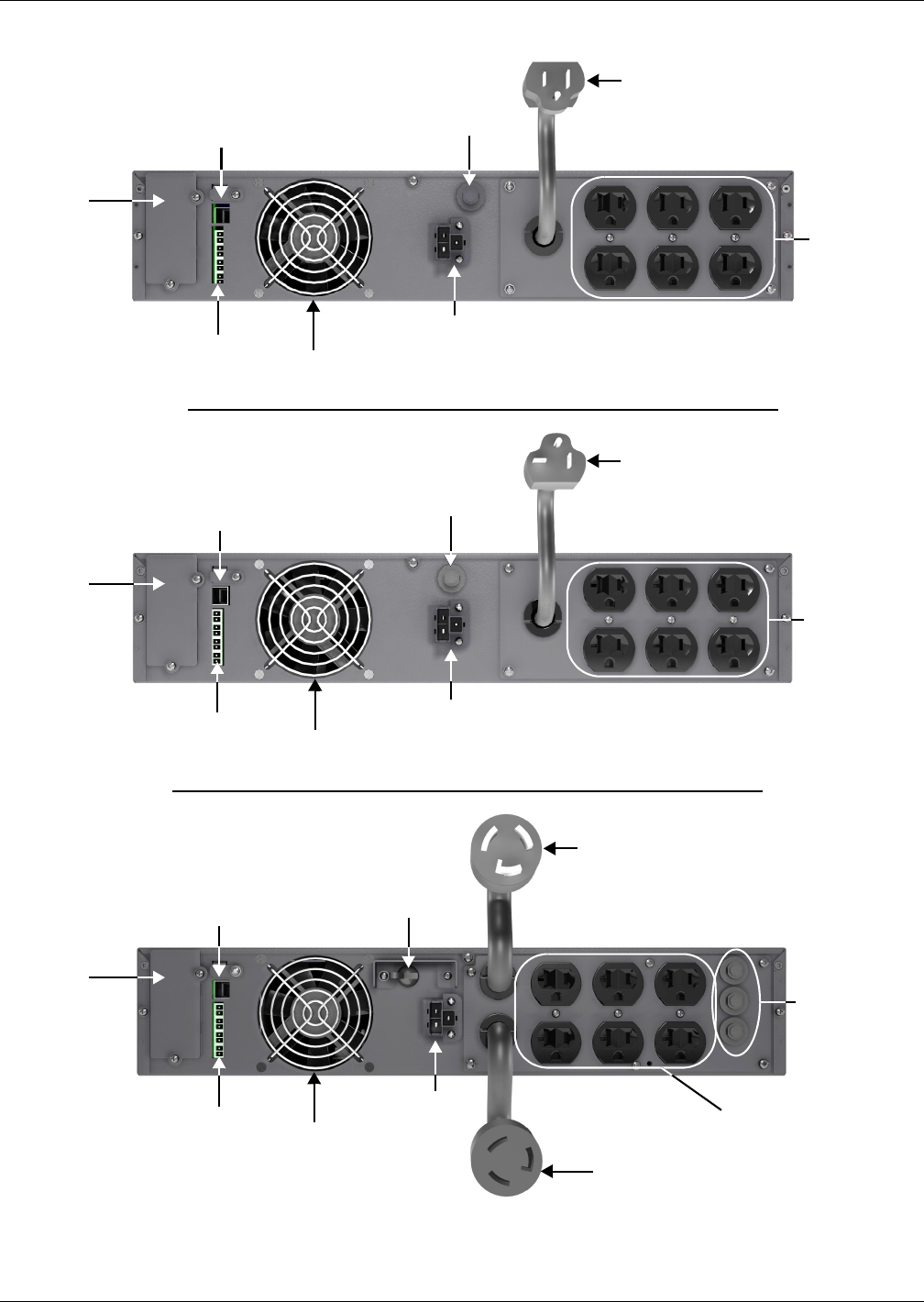

Figure 3 Liebert® GXT3™ 120V rack/tower models—rear panel components . . . . . . . . . . . . . . . . . . . . . . . . 6

Figure 4 Liebert® GXT3™ 208V rack/tower models—rear panel components . . . . . . . . . . . . . . . . . . . . . . . . 7

Figure 5 Liebert GXT3-1000MT120™—rear panel components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Figure 6 Operating principle diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

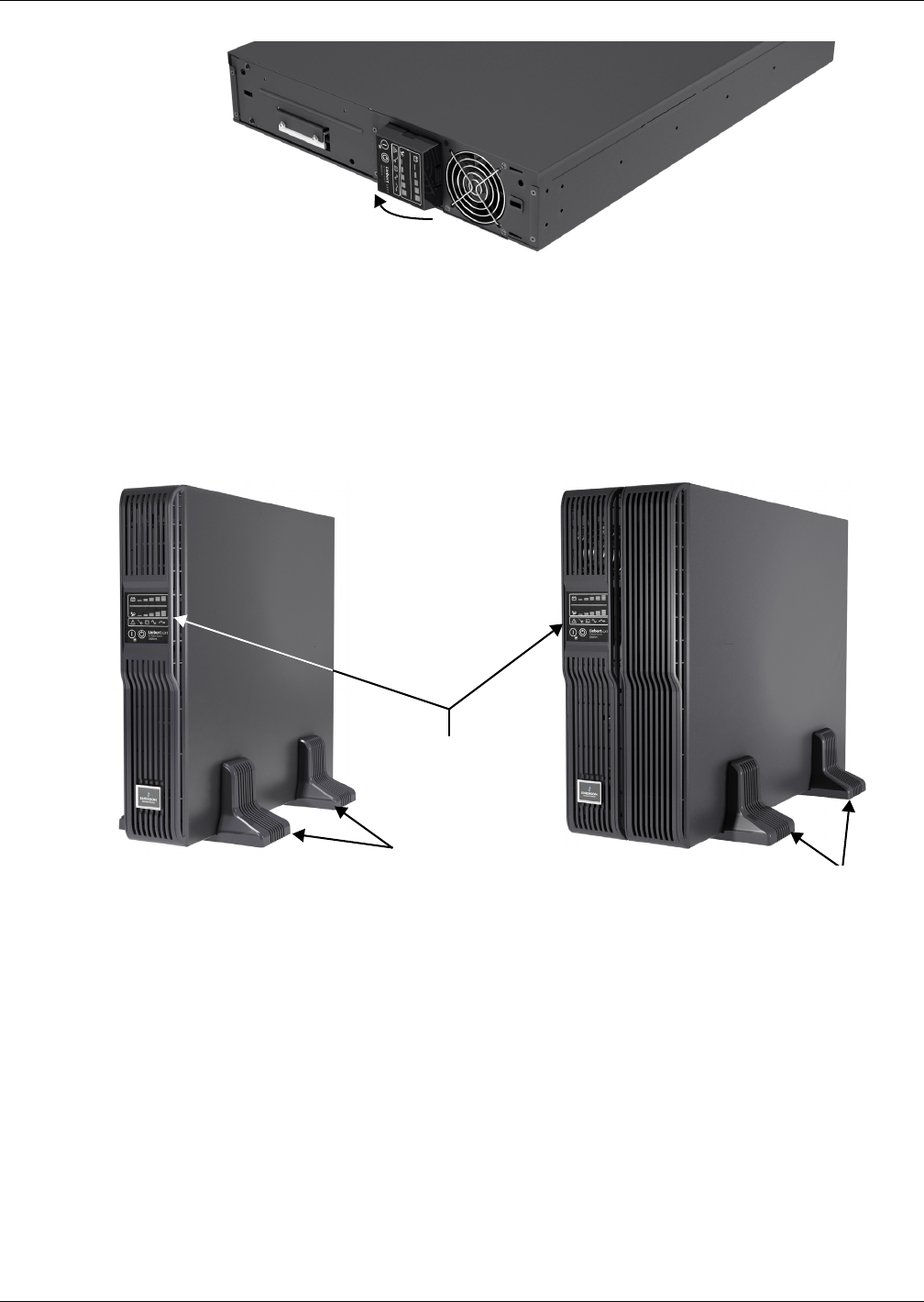

Figure 7 Support bases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Figure 8 Remove the front plastic bezel cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Figure 9 Rotate the operation and display panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Figure 10 Tower installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

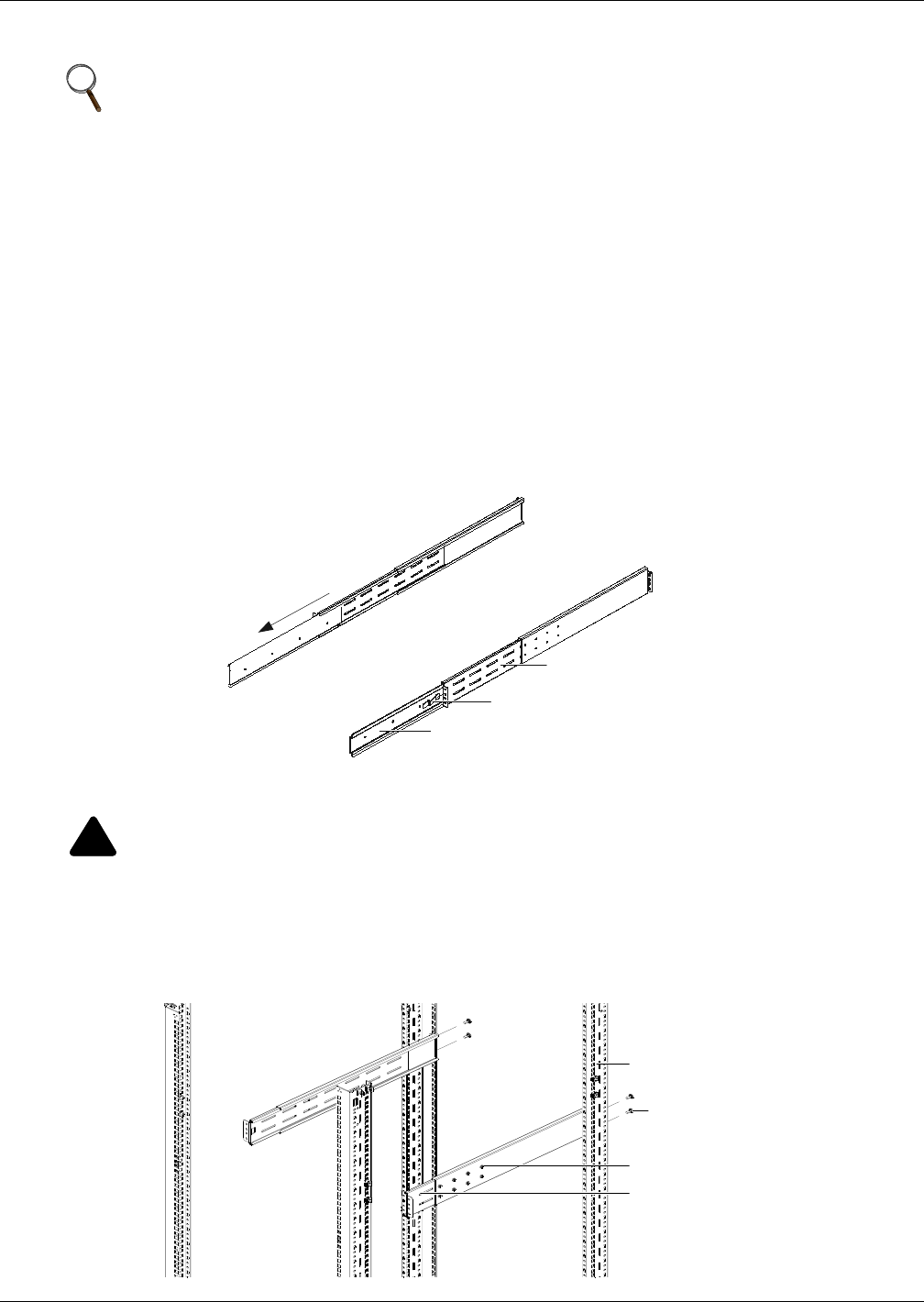

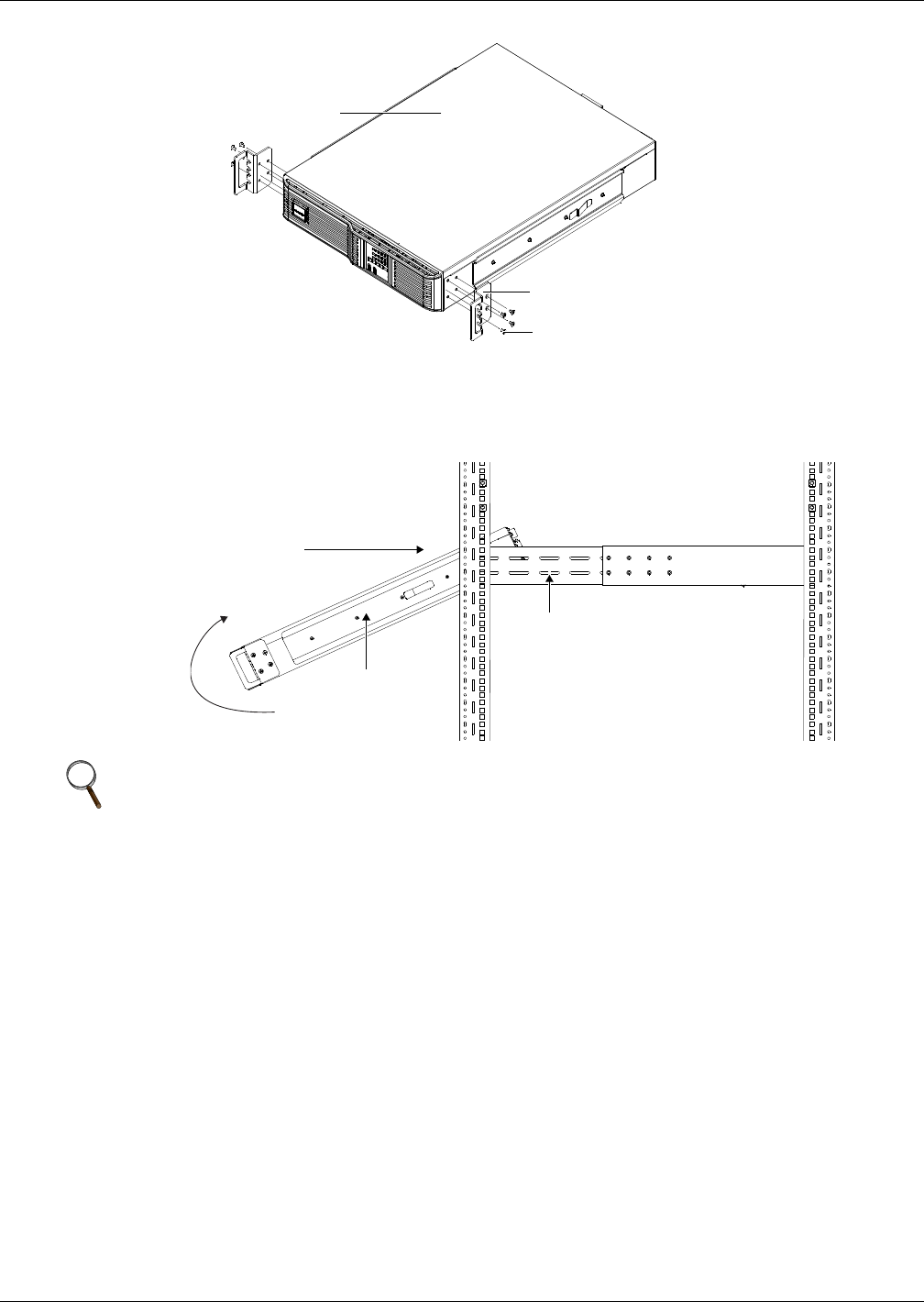

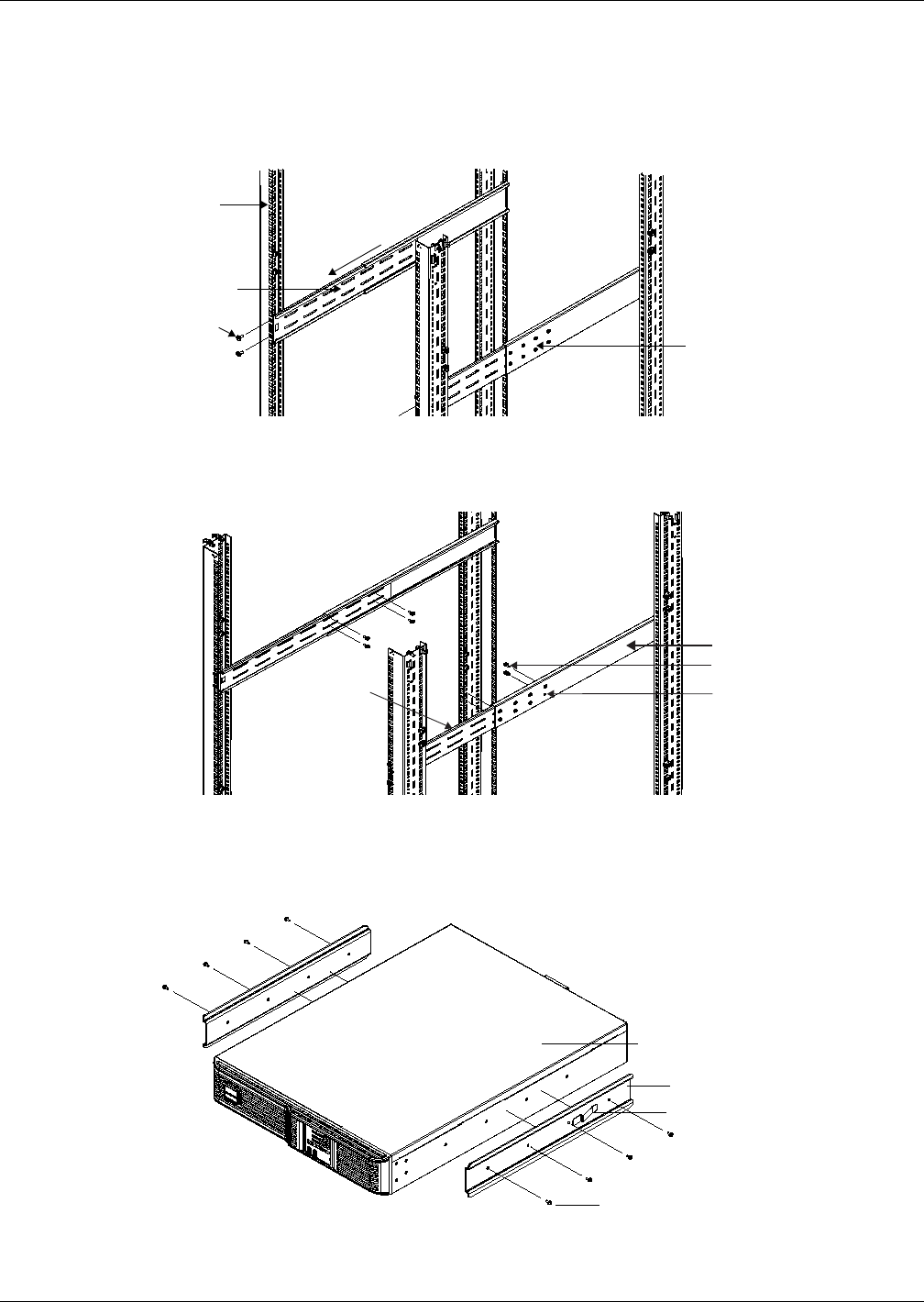

Figure 11 Pulling inner member from each slide rail assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Figure 12 Installing rear member of each slide rail assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Figure 13 Installing front member of each slide rail assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Figure 14 Fastening rear member and front member together . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Figure 15 Installing inner members . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Figure 16 Installing rack-mount handles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Figure 17 Insert the UPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

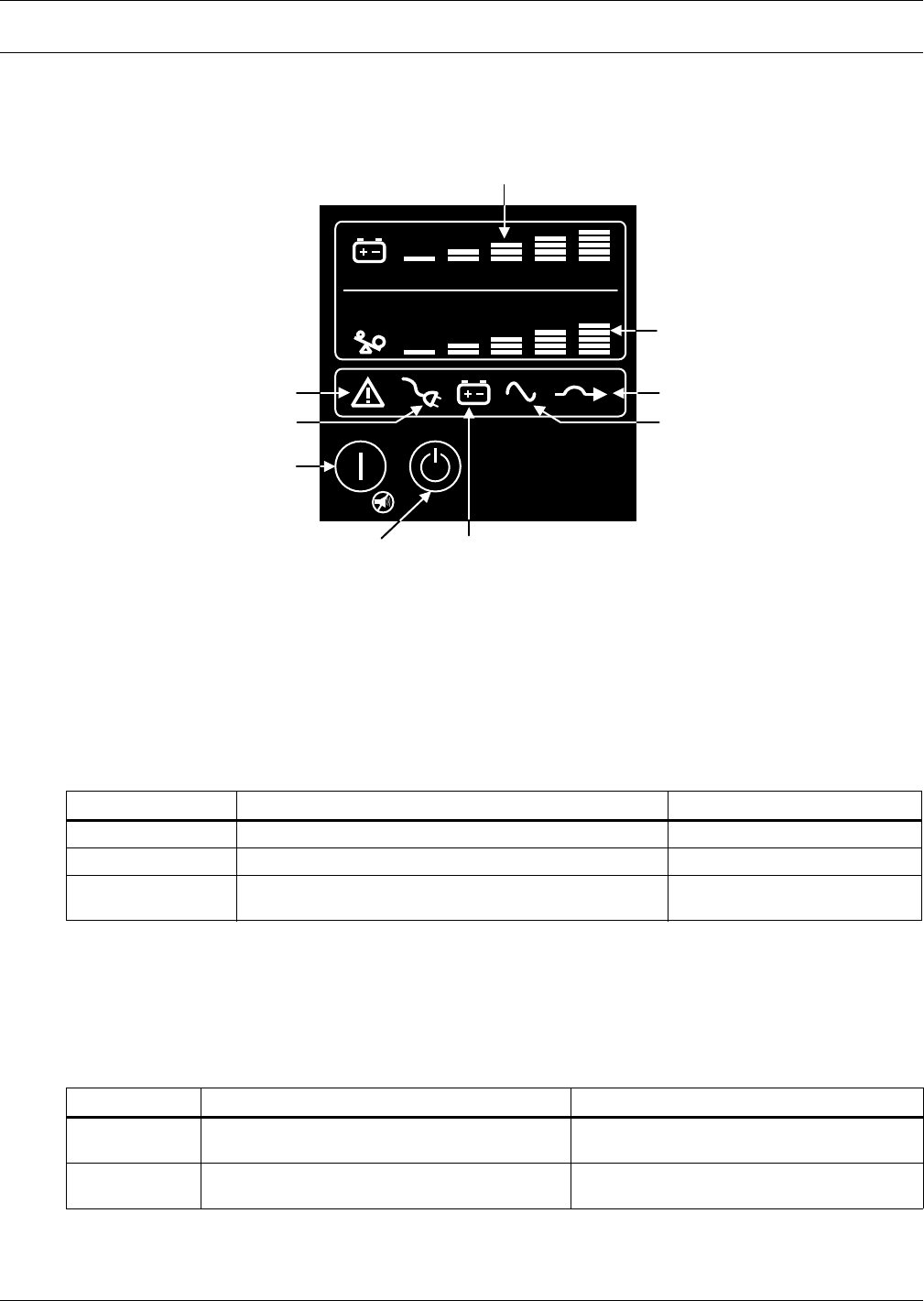

Figure 18 Operation and display panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

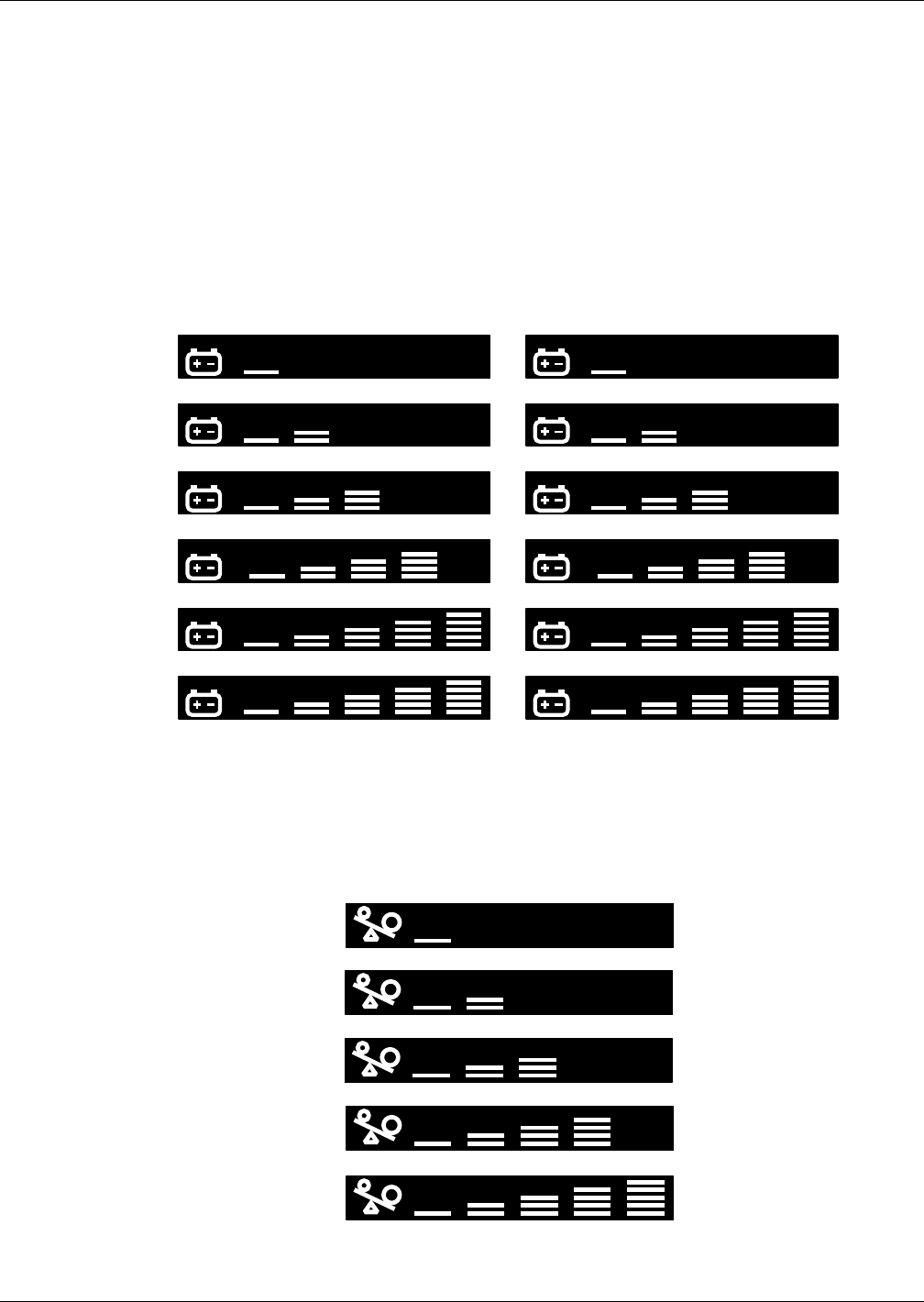

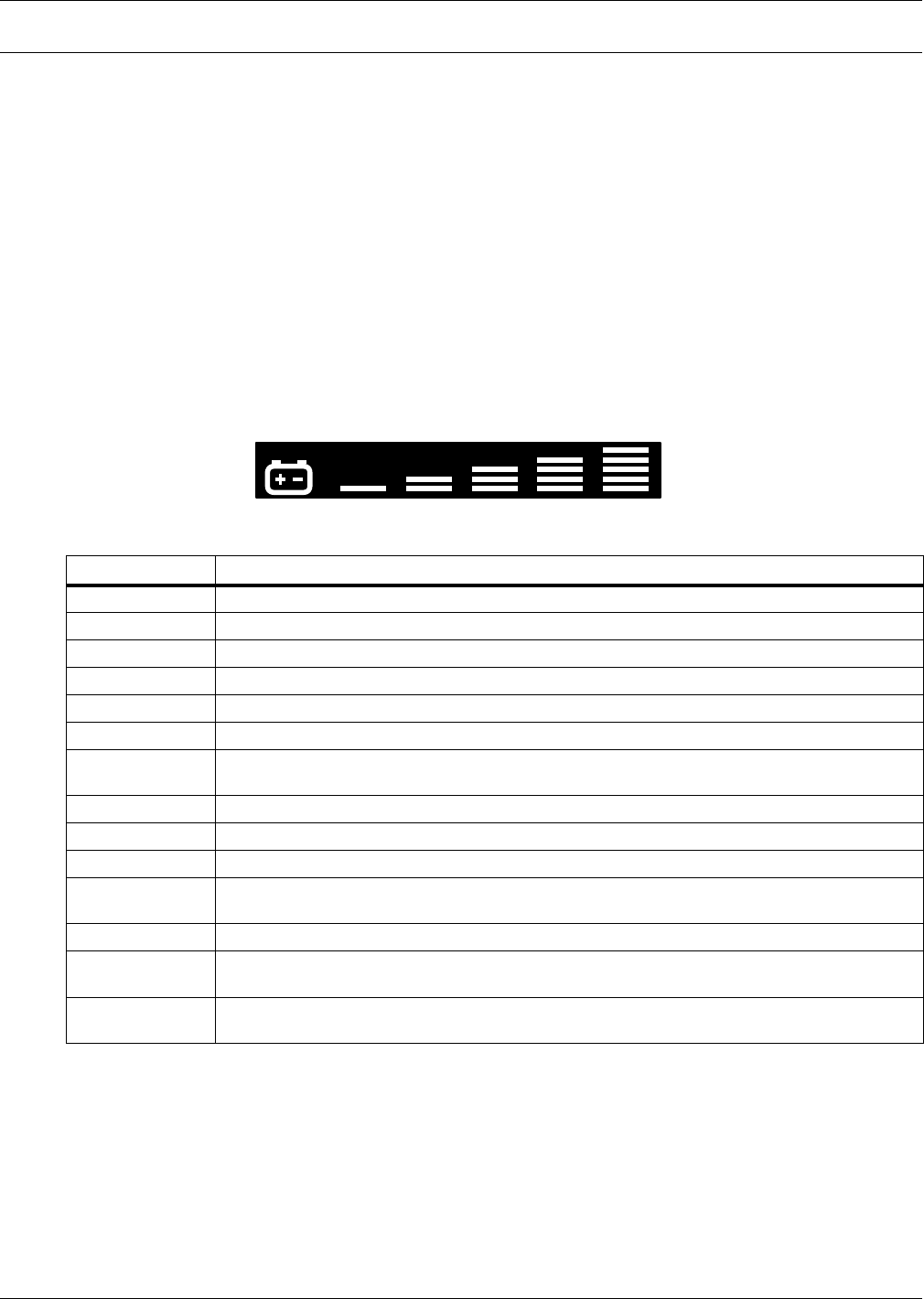

Figure 19 Battery level indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Figure 20 Load level indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Figure 21 Terminal block communication pin layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

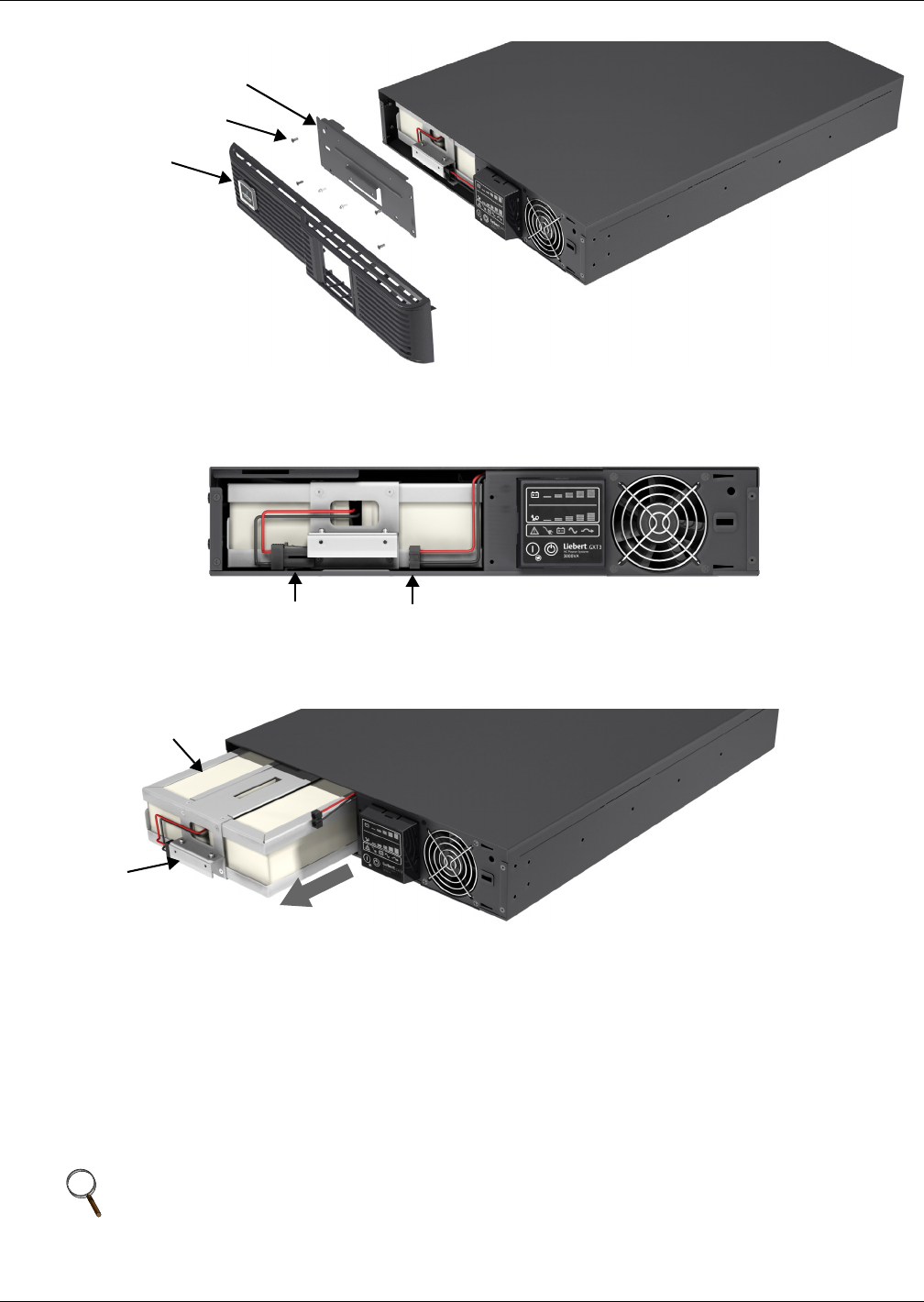

Figure 22 Removing the front bezel cover and battery door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Figure 23 Disconnecting the battery plug and battery receptacle (front view) . . . . . . . . . . . . . . . . . . . . . . . 29

Figure 24 Pull out the battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Figure 25 Battery level indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Figure 26 Battery cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

TABLES

Table 1 UPS models, power ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Table 2 Input circuit breaker specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Table 3 Functions of On/Alarm Silence/Manual battery test button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Table 4 Functions of Standby/Manual Bypass button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Table 5 UPS status indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Table 6 Output voltage option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Table 7 Replacement internal battery pack model number. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Table 8 Indicator descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 9 Audible alarm description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 10 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 11 Specifications of GXT3-500RT120 - GXT3-1000RT120 and GXT3-1000MT120 UPS . . . . . . . . . . 35

Table 12 Specifications of GXT3-1500RT120 - GXT3-3000RT120 and GXT3-3000RT208 UPS . . . . . . . . . 36

Table 13 Operating temperature parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Table 14 Battery cabinet specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Table 15 Battery run times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

iv

1

IMPORTANT SAFETY PRECAUTIONS

SAVE THESE INSTRUCTIONS

This manual contains important safety instructions that must be followed during the installation and

maintenance of the UPS and batteries. Read this manual thoroughly before attempting to install or

operate this UPS.

UPS Safety Notes

This UPS contains no user-serviceable parts except the internal battery pack. The Off/Bypass

push button does not electrically isolate internal parts. Under no circumstances attempt to gain

internal access other than to replace the batteries due to risk of electric shock or burn. Do not

continue to use the UPS if the front panel indications are not in accordance with these operating

instructions or if the UPS performance alters in use. Refer all faults to your local dealer, Emerson

Network Power representative or Emerson Network Power Channel Support.

This UPS has an internal battery, and the output receptacles of the UPS may carry live voltage even

if the UPS is not connected to utility input power.

Before moving or rewiring this UPS, disconnect utility input power and the battery and make sure

that the UPS is completely shut down. Otherwise, the output terminal may carry live voltage,

presenting an electric shock hazard.

To ensure human safety and normal UPS operation, the UPS must be properly grounded before use.

When the UPS is connected to an IT power distribution system, a short-circuit protection device must

be installed on the neutral line.

Install and use the Liebert® GXT3™ in the following environments:

• Temperature: 32°F - 104°F (0°C - 40°C), relative humidity: 0% ~ 95% non-condensing

• Out of direct sunlight

• Away from heat sources

• Stable surface, not subject to vibrations or shocks

• Away from dust and other particulates

• Away from corrosive substances, salts and flammable gases

Keep the air inlet and outlet of this UPS unobstructed. Poor ventilation will increase the internal

temperature of the UPS and can adversely affect the UPS and its batteries.

Keep liquid and foreign objects away from the UPS.

In case of fire, use a dry chemical fire extinguisher to put out the fire. Using a fluid fire extinguisher

may cause electric shock.

This UPS is not intended for use with life support and other designated critical devices. Maximum

load must not exceed that shown on the UPS rating label. This UPS is designed for data processing

equipment. If uncertain, consult your local dealer or Emerson representative.

This UPS is not for use in a computer room as defined in the standard for the Protection of Electronic

Computer/Data Processing Equipment, ANSI/NFPA 75.

The Liebert® GXT3-3000RT120™ was tested under 30A branch circuit in accordance with the

National Electrical Code, ANSI/NFPA 70. To reduce the risk of fire, connect only to a circuit provided

with 30A maximum branch overcurrent protection.

!

WARNING

Observe all cautions and warnings in this manual. Failure to do so may result in serious

injury or death.

Refer all UPS and battery service to properly trained and qualified service personnel. Do not

attempt to service this product yourself.

Opening or removing the cover may expose you to lethal voltages within this unit even when

it is apparently not operating and the input wiring is disconnected from the electrical source.

Never work alone.

2

The Liebert® GXT3™-3000RT208 was tested under 20A branch circuit in accordance with the

National Electrical Code, ANSI/NFPA 70. To reduce the risk of fire, connect only to a circuit provided

with 20A maximum branch overcurrent protection.

Battery Safety

ELECTROMAGNETIC COMPATIBILITY—The Liebert GXT3 complies with the limits for a

CLASS A DIGITAL DEVICE, PURSUANT TO Part 15 of FCC rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference and (2) this device must

accept any interference received, including interference that may cause undesired operation.

Operating this device in a residential area is likely to cause harmful interference that users must

correct at their own expense.

The Liebert GXT3 series complies with the requirements of EMC Directive 2004/108/EC and the

published technical standards. Continued compliance requires installation in accordance with these

instructions and use of accessories approved by Emerson.

Information for the Protection of the Environment

UPS Servicing: UPS makes use of components dangerous for the environment (electronic cards,

electronic components). The components removed must be taken to specialized collection and disposal

centers.

!

CAUTION

Do not dispose of batteries in a fire. The batteries may explode.

Do not open or mutilate the batteries. Released electrolyte is toxic and is harmful to skin and

eyes.

Dispose of used batteries according to the instructions.

!

CAUTION

A battery can present a risk of electrical shock and high short circuit current. The following

precautions should be observed when working on batteries:

• Remove watches, rings and other metal objects.

• Use tools with insulated handles.

• Wear rubber gloves and boots.

• Do not lay tools or metal parts on top of batteries.

• Disconnect charging source prior to connecting or disconnecting battery terminals.

• Determine if the battery is inadvertently grounded. If it is inadvertently grounded, remove

the source of the ground. Contact with any part of a grounded battery can result in electri-

cal shock. The likelihood of such shock will be reduced if grounds are removed during

installation and maintenance (applicable to a UPS and a remote battery supply not having

a grounded supply circuit).

3

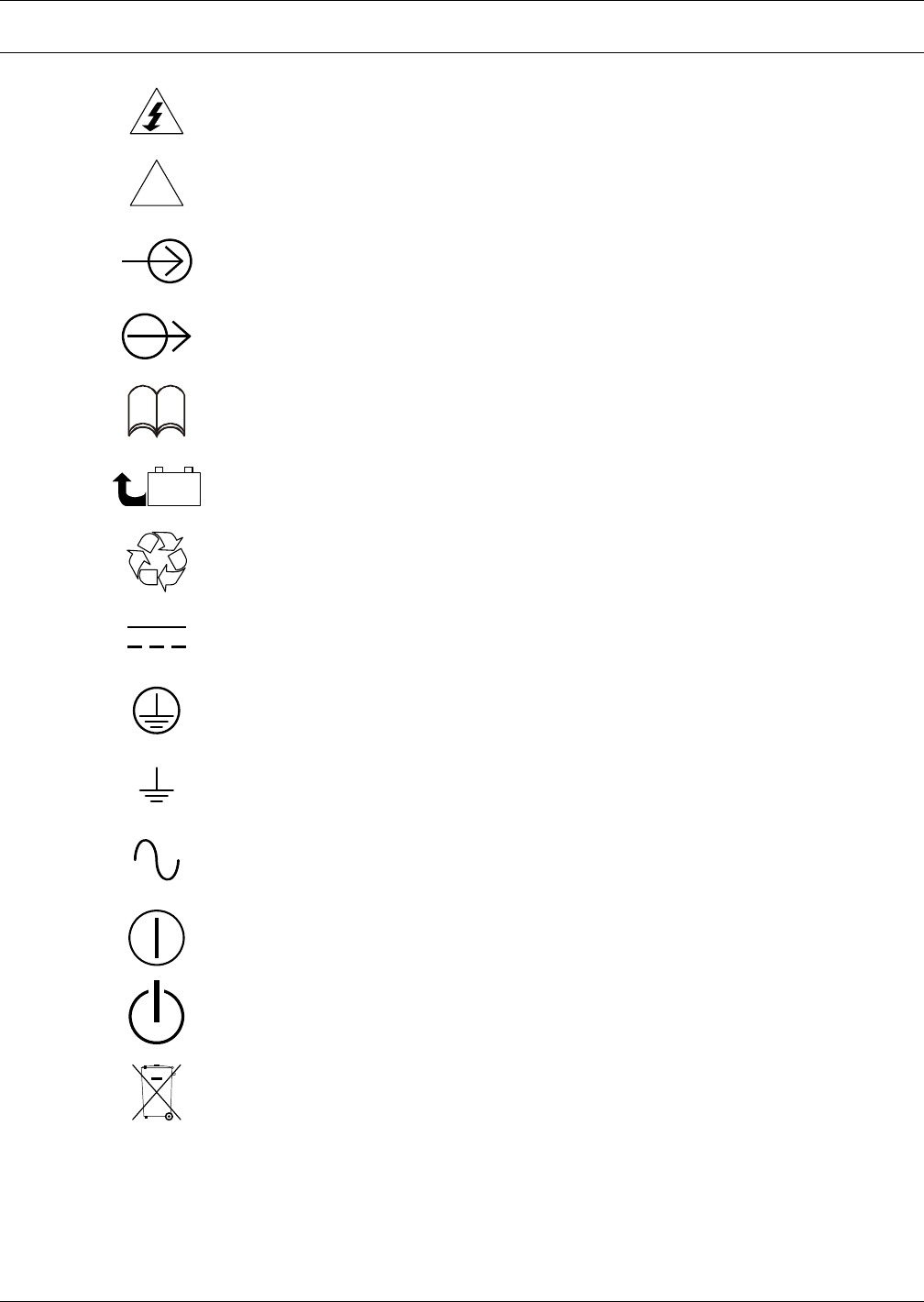

GLOSSARY OF SYMBOLS

Risk of electrical shock

Indicates caution followed by important instructions

AC input

AC output

Requests the user to consult the manual

Indicates the unit contains a valve-regulated lead acid battery

Recycle

DC voltage

Equipment grounding conductor

Bonded to ground

AC voltage

ON/Alarm Silence/Battery Test

OFF/Bypass

WEEE

!

i

PbH2SO4

-

+

R

Product Description

4

1.0 PRODUCT DESCRIPTION

The Liebert® GXT3™ is a compact, online uninterruptible power system (UPS) that continuously

conditions and regulates its output voltage. The Liebert GXT3 is designed to supply microcomputers

and other sensitive equipment with clean sine wave input power.

Upon generation, AC power is clean and stable. However, during transmission and distribution it is

subject to voltage sags, spikes and complete failure that may interrupt computer operations, cause

data loss and damage equipment.

The Liebert GXT3 protects equipment from these disturbances. The Liebert GXT3 continuously

charges its batteries from utility power, enabling it to supply power to connected loads, even when

utility power fails.

This sections describes the UPS, its features, models, appearance and components, operating

principles and operating mode.

1.1 Features

• Intelligent battery management to extend the battery life

• Operation and display panel with LED for monitoring load percentage and battery capacity inde-

pendently

• Flexible network management with Liebert MultiLink™ software

• Fan fault self-inspection and automated diagnostic function

• Intelligent fan operation, automatically changing rotation speed depending on system require-

ments, to decrease power consumption and noise

• Input circuit breaker to ease recovery from overloads

• Safety approval from UL and cUL

• Communication options: USB port, Liebert IntelliSlot® port and terminal block communication

• Dry contacts for remote monitoring

• Input power factor greater than0.99

• Output voltage selection function

1.2 Available Models

Eight UPS models are available.

Table 1 UPS models, power ratings

Model Nominal Power Rating

GXT3-500RT120 500VA/450W

GXT3-700RT120 700VA/630W

GXT3-1000RT120 1000VA/900W

GXT3-1000MT120 1000VA/900W, minitower

GXT3-1500RT120 1500VA/1350W

GXT3-2000RT120 2000VA/1800W

GXT3-3000RT120 3000VA/2700W

GXT3-3000RT208 3000VA/2700W

Product Description

5

1.3 Appearance and Components

1.3.1 Front Panel and Controls

The Liebert® GXT3™ rack/tower and minitower models in various power ratings have the same

general appearance, controls and features (see Figure 1). The various rack/tower and minitower

models differ largely in the type of receptacles each has.

Figure 1 Liebert GXT3 rack/tower models—front view

The Liebert GXT3-1000MT120™ has the same controls and features in a minitower arrangement (see

Figure 2).

Figure 2 Liebert GXT3 minitower—front view

1.3.2 Rear Panel Features

The rear panel of the Liebert GXT3 has these features:

•USB port

• Cooling fan

• Power output receptacles

• Input circuit breaker

• Liebert IntelliSlot® port

• Communication terminal block

• Input power cable

Operation and

Display Panel

Ventilation Slots

Operation and

Display Panel

Ventilation Slots

Product Description

6

Figure 3 Liebert® GXT3™ 120V rack/tower models—rear panel components

Input Power Plug

and Cable 5-15P

External

Battery

Connector

Terminal Block

Communication

USB Port Input Circuit

Breaker

Output

Receptacles,

5-15R

500VA, 700VA, 1000VA, 1500VA Models

Input Power Plug

and Cable, 5-20P

External

Battery

Connector

USB Port Input Circuit

Breaker

Output

Receptacles,

5-15/20R

2000VA Model

Input Power Plug

and Cable, L5-30P

USB Port

External

Battery

Connector

Input Circuit

Breaker

Output Receptacles,

5-15/20R

Output

Circuit

Breakers

3000VA Model

Liebert

IntelliSlot

Port

Liebert

IntelliSlot

Port

Liebert

IntelliSlot

Port

Terminal Block

Communication

Terminal Block

Communication

Output Receptacle,

L5-30R

Cooling

Fan

Cooling

Fan

Cooling

Fan

Product Description

7

Figure 4 Liebert® GXT3™ 208V rack/tower models—rear panel components

Figure 5 Liebert GXT3-1000MT120™—rear panel components

3000VA Model

Input Power Plug

and Cable, L6-20P

External

Battery

Connector

USB Port

Cooling

Fan

Input Circuit

Breaker

Output

Receptacle,

L6-20R

Output

Circuit

Breakers

Liebert

IntelliSlot

Port

Terminal Block

Communication

Output

Receptacles,

L6-15R

Liebert IntelliSlot Port

1000VA Model

Input Power Plug

and Cable, 5-15P

USB Port

Cooling Fan

Input Circuit

Breaker

Output

Receptacles,

5-15R

Terminal Block

Communication

Product Description

8

1.4 Major Components

The operating principle of the UPS is illustrated in Figure 6.

Figure 6 Operating principle diagram

The UPS is composed of utility input, TVSS and EMI/RFI filters, rectifier/PFC, inverter, battery

charger, DC-to-DC converter, battery, dynamic bypass and UPS output.

Transient Voltage Surge Suppression (TVSS) and EMI/RFI Filters

The Liebert® GXT3™ has surge protection and filters that protect the connected load from power

surges, electromagnetic interference (EMI) and radio frequency interference (RFI). These features

can minimize any surges or interference present in the utility power. The filters also prevent surges

or interference generated by the UPS from adversely affecting devices connected on the same branch

as the UPS.

Rectifier/Power Factor Correction (PFC) Circuit

In normal operation, the Liebert GXT3’s rectifier/power factor correction (PFC) circuit converts utility

power to regulated DC power for use by the inverter while ensuring that the wave shape of the input

current used by the UPS is near ideal. Extracting this sinewave input current achieves two objectives:

• Efficient power use by the UPS

• Reduced reflected harmonics

This results in cleaner power being available to other devices in the building not being protected by

the Liebert GXT3.

Inverter

In normal operation, the Liebert GXT3’s inverter utilizes the DC output of the PFC to produce

precise, regulated sine wave AC power. When utility power fails, the inverter receives DC power from

the DC-to-DC Converter. In either operation mode, the UPS inverter is online, continuously

generating clean, precise, regulated AC output power.

L1

Dynamic

Bypass

Input

DC-to-DC

Converter

Rectifier /

PFC Inverter

Battery

Battery

Charger

L1 TVSS & EMI/

RFI Filters

L2/N

Output

L2/N

GG

Product Description

9

Battery Charger

The battery charger utilizes energy from the utility power and precisely regulates it to continuously

float charge the batteries. The batteries are being charged whenever the Liebert® GXT3™ is plugged

in, even when the UPS is not turned On.

DC-to-DC Converter

The DC-to-DC converter raises the DC voltage from the battery to the optimum operating voltage for

the inverter. This allows the inverter to operate continuously at its optimum efficiency and voltage,

thus increasing reliability.

Battery

The Liebert GXT3 uses valve-regulated, nonspillable, lead acid batteries. To maintain battery design

life, operate the Liebert GXT3 in an ambient temperature of 32°F to 77°F (0°C to 25°C).

Optional external battery cabinets are available to extend battery run times.

Dynamic Bypass

The Liebert GXT3 provides an alternate path for utility power to the connected loads in the unlikely

event of a UPS malfunction. Should the Liebert GXT3 have an overload, overtemperature or UPS

failure condition, the UPS automatically transfers the connected loads to bypass.

1.5 Operating Mode

The UPS operation modes include: Utility (AC) mode, bypass mode, battery mode, battery recharge

mode and frequency converter mode.

For the descriptions of indicators and control buttons in this section, refer to 3.0 - Controls and

Indicators.

1.5.1 Utility (AC) Mode

During Utility (AC) Mode, utility power provides energy to the Liebert GXT3. The filters, PFC circuit

and the inverter process this power to provide computer-grade power to connected loads. Meanwhile,

the UPS maintains the batteries in a fully charged state.

1.5.2 Manual Bypass Mode

Manual Bypass Mode occurs when the Standby/Manual bypass button is pressed and held for about

2 seconds while the Liebert GXT3 is in Utility (AC) Mode. Bypass operation is indicated by an audible

alarm and illuminated amber bypass indicator (If other indicators are illuminated, refer to 7.0 -

Troubleshooting). During manual bypass mode, utility power bypasses the inverter and provides

energy to the connected load.

NOTICE

Turning Off the UPS in bypass mode will result in loss of output power and dropped loads.

NOTE

The bypass power path does not protect the connected loads from disturbances on the utility.

Product Description

10

1.5.3 Battery Mode

The Liebert® GXT3™ enters Battery Mode when utility power fails or is outside acceptable values.

The battery system supplies power through the DC-to-DC converter to the inverter to generate clean

AC power for the connected loads.

When the Liebert GXT3 enters Battery Mode, the UPS sounds a half-second beep at 10-second

intervals. When approximately 2 minutes of run time remains, the beeps sound every 5 seconds to

warn that the battery is getting low (this Low Battery Warning is user-configurable).

In Battery Mode, the AC Input indicator goes Off and the Battery Level indicators illuminate. Each

battery level indicator represents a 20% capacity level. As capacity decreases, fewer indicators remain

illuminated. Refer to 7.0 - Troubleshooting.

For approximate battery run times, refer to 9.0 - Specifications.

NOTICE

Turning Off the Liebert GXT3 when it is in Battery Mode will result in loss of output power.

If the UPS is turned Off manually, it must be manually restarted after utility power returns.

If the UPS is turned Off by a communication signal or because the batteries are depleted, it

will operate as selected in the configuration program for Auto-Restart (Refer to 5.2.1 -

Configuration Program).

1.5.4 Battery Recharge Mode

Once utility power is applied to the Liebert GXT3, the Battery Charger begins charging the batteries.

1.5.5 Frequency Converter Mode

All models of the Liebert GXT3 are capable of frequency conversion. Frequency Conversion Mode can

be selected using the configuration program. Allowable frequency operating modes include:

• Auto Sensing - 50Hz or 60Hz – Bypass Enabled

• Auto Sensing - 50Hz or 60Hz – Bypass Disabled

• Frequency Converter - 50Hz – Bypass Disabled

• Frequency Converter - 60Hz – Bypass Disabled

The default for all models of the Liebert GXT3 is “Auto Sensing - 50Hz or 60Hz – Bypass Enabled.”

Installation

11

2.0 INSTALLATION

2.1 Unpacking and Inspection

Unpack the UPS and conduct the following checks:

• Inspect the UPS for shipping damage. If any shipping damage is found, report it to the carrier and

your local dealer or your Emerson representative immediately.

• Check the accessories included in packaging list. If there is any discrepancy, contact your local

dealer or your Emerson representative immediately.

2.2 What’s Included

With GXT3 UPS

• Compact Disk with:

• Liebert MultiLink®

• Configuration Program

• User Manual

• Terminal Block Communication terminals

• USB Cable: one, 6-1/2 ft. (2m) long

• Mounting hardware, including screws and handles

• Plastic tower stand sets: 2 (four pieces)

• Warnings, Safety Instructions booklet and WEEE recycling sheet (ISO 14001 compliance)

2.3 Preparation for Installation

2.3.1 Installation Environment

• Install the UPS indoors in a controlled environment, where it cannot be accidentally turned Off.

The installation environment should meet the specifications listed in 9.0 - Specifications).

• Place it in an area of unrestricted airflow around the unit, away from water, flammable liquids,

gases, corrosives, and conductive contaminants. Avoid direct sunlight.

Installation Clearances

Maintain at least 4 inches (100mm) clearance in the front and rear of the Liebert GXT3. Do not

obstruct the air inlets on the front panel and rear panel of the UPS; blocking the air inlets reduces

ventilation and heat dissipation, shortening the service life of the Liebert GXT3.

NOTE

The GXT3 External Battery Cabinet shipping package includes one battery cabinet, two

spacers for tower configuration and one DC power cable.

NOTE

Operating the Liebert GXT3™ in temperatures above 77°F (25°C) reduces battery life.

Installation

12

2.4 Mechanical Installation

The Liebert® GXT3™ may be installed as a tower or in a rack, depending on space and use

considerations. The Liebert GXT3 may be used alone, as a single UPS, or with up to four battery

cabinets.

2.4.1 Tower Installation

To install the Liebert GXT3 as a tower:

1. Take out support bases from the accessories (see Figure 7).

Figure 7 Support bases

2. If optional Liebert external battery cabinets will be connected to the Liebert GXT3, take out the

spacers shipped with the battery cabinet.

3. Connect the spacers and the support bases as shown in Figure 7. Each Liebert GXT3 needs two

assembled support bases, one in the front and one in the rear.

4. Adjust the direction of the operation and display panel and logo on the Liebert GXT3.

a. Remove the front plastic bezel cover as shown in Figure 8.

Figure 8 Remove the front plastic bezel cover

b. Pull the operation and display panel gently, rotate it 90 degrees clockwise and snap it back

into position, as shown in Figure 9.

NOTE

When installing the UPS or making input and output connections, comply with all relevant

safety codes and standards

Support Bases

Spacers

Connectors

Front Plastic

Bezel Cover

Installation

13

Figure 9 Rotate the operation and display panel

c. Pull the logo on the front plastic bezel cover gently, rotate it 90 degrees clockwise and snap it

back into position. The rotated front plastic bezel cover is shown in Figure 10.

d. Replace the front plastic bezel cover on the Liebert® GXT3™. At this point, the UPS operation

and display panel and logo have been rotated 90 degrees clockwise, which provides upright

viewing for users.

5. Place the Liebert GXT3 and any battery cabinets on the support bases. Each Liebert GXT3 needs

two support assemblies, as shown in Figure 10.

Figure 10 Tower installation

Operation and Display Panel

Rotated Clockwise 90 Degrees

Operation and

Display Panel

Rotated for

Tower Operation

Support Bases

Liebert

GXT3 UPS

Liebert GXT3

UPS and

External

Battery

Cabinet

Installation

14

2.4.2 Rack Installation

To install a Liebert GXT3 rack/tower UPS in a rack:

1. Unpack the two slide rails assemblies and mounting hardware from the rack-mounting kit

(P/N: RMKIT18-32).

Slide rail assembly includes inner member and front and rear members. They are interchange-

able between left-hand or right-hand. Mounting hardware includes M4 screws and M5 screws.

2. Remove inner member of each slide rail assembly by extending it to its outermost position,

depressing the retaining latch and then pulling inner member from slide rail assembly (see

Figure 11).

Figure 11 Pulling inner member from each slide rail assembly

3. Determine the Liebert GXT3’s mounting position inside the racks vertical rails.

4. Attach the rear member of each slide rail assembly to the rack’s rails with two factory-supplied

M5 screws (see Figure 12).

Figure 12 Installing rear member of each slide rail assembly

NOTE

• When the Liebert® GXT3™ is installed in a rack, it must be supported by a shelf, fixed

rails or slide rails on each side. The factory-supplied rack mount handles cannot sup-

port the weight of the UPS. They are used to move the UPS into and out of the rack and

attach the UPS to the rack.

• Mounting hardware and slide rails are sold separately. Contact your local Emerson

representative for these options and any assistance.

• GXT3-1000MT120 cannot be installed in a rack. The unit is a minitower only.

!

CAUTION

Reduce the risk of tipping the rack by installing the Liebert GXT3 as low as possible in the

rack.

Slide rail assembly

Retaining latch

Inner member

Pull out

M5 screw (4 pcs)

Vertical pole

Rear member

Front member

Installation

15

5. Extend the slide rail assembly by sliding the front member forward until it touches the rack’s

front vertical rails (adjustable length: 18 to 32 inches [457-813mm]). Use two M5 screws to fix

each front member onto the front vertical rails through the installation holes. Make sure that

slide rail assemblies are at the same mounting height on all four rack rails, as shown in

Figure 13.

Figure 13 Installing front member of each slide rail assembly

6. Fasten rear member and front member together using four M4 screws and four M4 nuts (M4 nuts

have been factory-installed on the rear member) per slide rail assembly, as shown in Figure 14.

Figure 14 Fastening rear member and front member together

7. Fasten inner members pulled from the slide rail assemblies in Step 2 to the UPS on both sides

with eight M4 screws provided in this kit. Make sure that the retaining latch is near the rear of

the UPS, as shown in Figure 15.

Figure 15 Installing inner members

8. Use M4 screws to install ears of accessories on both sides of the UPS, as shown in Figure 16.

Rear

Member

Front

Vertical

Pole

Front

Member

M5 Screw

4 pieces

Slide

M4 Screw, 8 pieces

Rear Member

Front member M4 Nut, 8 pieces

M4 screw

, 8 pieces

Retaining Latch

Liebert GXT3 UPS

Inner Member

Installation

16

Figure 16 Installing rack-mount handles

9. Insert the UPS, with inner members attached, into slide rail assemblies by inserting top and

bottom edges of inner members into the top and bottom, curved tracks of front members and

sliding the UPS into rack, as shown in Figure 17.

Figure 17 Insert the UPS

10. Through the rack mount handles, use M5 screws provided in this kit to secure front of the UPS to

rack EIA rails to prevent the UPS from sliding out of position.

11. If optional Liebert® external battery cabinets are connected to the UPS, they can be placed all on

one side of the UPS or stacked beneath the UPS. The installation procedures are the same as

those of the UPS.

NOTE

Ends of inner members are tapered to allow rear of the UPS to be angled upward before

insertion, if space allows.

The UPS should move smoothly into slide rail assemblies. If not, recheck alignment of front

and rear members from Steps 4 through 6.

Factory-supplied rack handles are not intended to be used to lift the UPS. These are intended

to be used to slide the UPS into and out of the rack.

M4 Screw

, 8 pieces

Rack-Mount Handles,

2 pieces

Liebert GXT3 UPS

Inner Member

Front Member

Insert

Installation

17

2.5 Cable Connection

The Liebert® GXT3™ rear panel has an input cable and plug, output receptacles and output cable(s)

(Output cables are on GXT3-3000 models only). Refer to 1.3.2 - Rear Panel Features for details.

The battery cables are supplied with the battery cabinet.

2.5.1 Connecting Input Plug and Loads

The specification of input circuit breaker on the rear panel of UPS is given in Table 2.

1. Plug all loads into the output receptacles on the rear panel of the Liebert GXT3.

3. Insert the input plug of Liebert GXT3 into the input power connection.

2.5.2 Connecting Battery Cables

1. Switch Off the input breaker of the battery cabinet.

2. Take out the battery cable included with the battery cabinet.

3. Connect one end of the battery cable to the external battery connector on the rear panel of the

UPS, and connect the other end to any battery port on the rear panel of the battery cabinet.

4. Switch On the battery breaker on the rear of the external battery cabinet.

5. Use the Configuration Program included with the UPS to specify the number of external battery

cabinets connected to the Liebert GXT3. See Table 15 for approximate battery run times.

NOTE

Ensure that all the loads are turned Off.

Prepare an input power supply that is properly protected by a circuit breaker in accordance

with national and local electrical codes. The wall receptacle must be grounded.

The plug on the power supply cord is intended to serve as the disconnect device. The

socket-outlet must be installed near the equipment and must be easily accessible.

Emerson recommends installing an upstream circuit breaker of the same series as the Liebert

GXT3’s input circuit breaker.

Table 2 Input circuit breaker specification

Model

Rated Circuit

Breaker

GXT3-500RT120 8A

GXT3-700RT120 10A

GXT3-1000RT120 15A

GXT3-1000MT120 15A

GXT3-1500RT120 15A

GXT3-2000RT120 20A

GXT3-3000RT120 30A

GXT3-3000RT208 20A

NOTE

1. Distribute loads evenly across all receptacles to prevent overloading individual receptacles.

2. Output cable length should not exceed 32.8 ft (10m).

Installation

18

2.6 Connecting Communication Cables

Communication cable connection includes: USB and cables for option cards.

2.6.1 Connecting USB Communication Cables

1. Take the USB communication cables out of the accessories box.

2. Insert one end of the USB communication cable to the USB port on the rear panel of the Liebert®

GXT3™ (see Figures 3 and 5).

3. Insert the other end of the USB communication cable to the USB port of the computer.

2.6.2 Installing the Optional Liebert IntelliSlot® Card and Communication Cables

1. Remove the protective cover of the Liebert IntelliSlot port on the Liebert GXT3 and set it aside.

2. Insert the Liebert IntelliSlot card into the Liebert IntelliSlot port and secure it with screws.

3. To connect any cable associated with a Liebert IntelliSlot card, refer to the user manual provided

with the card.

To configure and use the Liebert IntelliSlot communication card, refer to the card’s user manual.

Manuals for the various Liebert IntelliSlot cards are available at Liebert’s Web site:

www.liebert.com

Controls and Indicators

19

3.0 CONTROLS AND INDICATORS

The operation and display panel, shown in Figure 18, is on the front panel of the Liebert® GXT3™

(see Figures 1 and 2).

Figure 18 Operation and display panel

3.1 Control Buttons

The operation and display panel has two control buttons: On/Alarm Silence/Manual Battery Test and

Standby/Manual bypass.

3.1.1 On/Alarm Silence/Manual Battery Test Button

The On/Alarm Silence/Manual Battery Test button controls output power to connected load(s) and

has three functions (see Table 3).

3.1.2 Standby/Manual Bypass Button

The Standby/Manual Bypass button controls output power to connected load(s) and has two functions

(see Table 4).

Table 3 Functions of On/Alarm Silence/Manual battery test button

Function Operation Description

ON Press the button once for 3 seconds To start the UPS

Alarm Silence 1Press the button for at least half a second To silence alarms 2

Manual Battery Test Press the button for at least half a second while

operating in Utility (AC) Mode with no alarms present. To initiate a manual battery test

1. The low battery and bypass reminder alarms cannot be silenced.

2. After the alarm is silenced, UPS will reactivate the alarm system to alert of additional problems

Table 4 Functions of Standby/Manual Bypass button

Function Operation Description

Manual Bypass Press the button once and hold it for about

2 seconds 1To initiate a manual transfer of the connected

loads to the internal bypass, if available

Standby Press the button twice within four seconds while

the UPS is in Manual Bypass or Battery Mode 2To shut down the UPS and shut Off all power

to the connected loads

1. If the bypass is not available due to voltage or frequency, pressing this button once will be ignored.

2. Perform all necessary shutdown procedures on connected loads before turning Off the Liebert GXT3.

Liebert

®

GXT3

AC Power System

3000VA

Battery Level Indicators

Load Level Indicators

Bypass Indicator

Inverter Indicator

Battery Indicator

Standby/Manual Bypass Button

On/Alarm Silence/Manual

Battery Test Button

AC Input Indicator

Fault Indicator

Controls and Indicators

20

3.2 Indicators

The operation and display panel has seven indicators (see Figure 18). The indicators can be divided

into two groups according to the applications: level indicators and UPS status indicators.

3.2.1 Level Indicators

Battery Level Indicators

The battery level indicator is composed of five sets of LED bars that illuminate and flash to indicate

the battery capacity level. The Liebert® GXT3™ battery capacity level is shown in 20% increments

(±5%). The battery level indicators will illuminate as shown in Figure 19.

Figure 19 Battery level indicators

Load Level Indicators

The load level indicator is composed of five LED bars that illuminate to indicate the relative load on

the UPS output in 25% increments (± 5%). The load level indicator will illuminate as shown in

Figure 20.

Figure 20 Load level indicators

0 - 20%

Fully

Charged

81 - 100%

61 - 80%

41 - 60%

21 - 40%

ON ON ON ON ON

ONONONONON

OFFON ON ON ON

ON ON OFF OFF OFF

ON OFF OFF OFF OFF

ONON ON OFF OFF

Discharging

Flash OFF OFF OFF OFF

OFFON ON ON Flash

ONON Flash OFF OFF

ON Flash OFF OFF OFF

FlashONONONON

ON ON ON ON ON

Charging

ON OFF OFF OFF OFF

ON ON OFF OFF OFF

ON ON ON OFF OFF

ON ON ON ON OFF

ON ON ON ON ON

0 - 25%

Overload

76 - 100%

51 - 75%

26 - 50%

Controls and Indicators

21

3.2.2 UPS Status Indicators

UPS status is indicated by five symbols: fault indicator, AC input indicator, battery indicator,

inverter indicator and bypass indicator. Table 5 shows the symbols and their meaning.

Table 5 UPS status indicators

UPS Status

Indicator Icon Color Description

Fault Indicator Red On if the UPS has detected a fault; Off if there is no fault

AC Input Indicator Green On when the utility input power is normal; Off during utility failure; flashing

when utility power is outside specifications

Battery Indicator Amber On when the battery is supplying power; Off when the battery is not

supplying power

Inverter Indicator Green On when the inverter is supplying power; Off when the inverter is not

supplying power

Bypass Indicator Amber On when the bypass is supplying power; Off when the inverter is not

supplying power; and flashing when utility power is outside specifications

Operation

22

4.0 OPERATION

This section describes checks to be made before starting the UPS, how to start the UPS, manual

battery test, manual bypass, shutting down the UPS and disconnecting the utility power from the

UPS.

4.1 Startup Checklist for the Liebert GXT3

Before starting the UPS, perform these checks:

___ 1. Check that the input plugs and loads are connected properly and reliably.

___ 2. Check that all of the battery cables are connected properly.

___ 3. Check that the communication cables are connected properly.

4.2 Starting the UPS

1. Turn On the input circuit breaker—see Figures 3 and 5 for its location.

2. Turn On the UPS by pressing the On/Alarm Silence/Manual Battery Test button for three

seconds.

After the button is pressed, the LEDs on the display will signal that the unit has initiated the

startup process.

3. Once the inverter LED has been illuminated, turn On the connected loads.

4. Check the status indicators to determine whether the Liebert GXT3 is operating normally.

5. Check the load level indicators to verify that the connected load does not exceed the UPS’ rated

capacity.

The UPS is now providing conditioned power to the load.

4.3 Manual Battery Test

To initiate a manual battery test, press the On/Alarm Silence/Manual Battery Test button for at least

half a second while operating from utility power with no alarm conditions present.

• If only first two of the five LED segments illuminate, allow the UPS to recharge the batteries for

24 hours.

• Retest the batteries after 24 hours of charging the batteries.

• After the batteries have been retested, if only two of the five Battery LEDs illuminate, contact

your local Emerson representative or Emerson Channel Support.

• If none of the five Battery LEDs illuminate during a manual battery test, check the battery con-

nection and allow the UPS to recharge the batteries for 1 hour and initiate a manual battery test

again.

• If none of the five Battery LEDs illuminate during the manual battery test a second time, replace

the batteries, and contact your local Emerson representative or Emerson Channel Support.

4.4 Manual Bypass

Press the Standby/Manual Bypass button once while the UPS is in utility (AC) mode and hold it for

about 2 seconds. The UPS will transfer the connected loads to the internal bypass. If the internal

bypass is not available due to utility power problems, pressing this button once will be ignored.

Bypass operation is indicated by an audible alarm and illuminated amber Bypass indicator. If other

indicators are illuminated, refer to 7.0 - Troubleshooting.

NOTE

The Liebert® GXT3™’s battery has been fully charged before delivery, but some charge will be

lost during storage and shipping. To ensure that the battery has adequate reserve power to

protect the connected load, charge the battery for three hours before putting the UPS into

service.

Operation

23

4.5 Shut Down the Liebert® GXT3™

1. Transfer the UPS to manual bypass by pressing the Standby/Manual Bypass button and holding

it for about 2 seconds.

If manual bypass is not available, disregard the first step.

2. Press the Standby/Manual Bypass button twice within four seconds to shut down the UPS. The

UPS will shut down about 30 seconds after the button is pressed.

Power to the connected loads is now Off.

4.6 Disconnecting Input Power from the Liebert GXT3

1. Once the UPS has been shut down as detailed in 4.5 - Shut Down the Liebert® GXT3™,

disconnect the input cable plug.

2. Wait 30 seconds and verify that all indicators have turned Off and the fan has stopped; this

indicates that the power-off is complete.

3. Turn the external battery cabinet breaker switch to the Off position if the UPS has an external

battery cabinet.

After powering Off the UPS, the UPS ceases output and the load is powered Off.

Communication

24

5.0 COMMUNICATION

This section describes UPS communication over the three types of communication connections on the

rear of the Liebert® GXT3™:

• Liebert IntelliSlot® port

• USB port (standard B-type)

• Terminal Block Communication

5.1 Liebert IntelliSlot Communication Cards

The Liebert IntelliSlot port accepts three optional cards:

• Liebert IntelliSlot SNMP Card

• Liebert IntelliSlot Relay Card

• Liebert IntelliSlot 485 Card.

The Liebert IntelliSlot SNMP Card provides SNMP monitoring and control of the UPS across the

network.

The Liebert IntelliSlot Relay Card provides dry contact relay outputs for custom-wired applications

and delivers support for built-in shutdown for AS/400 systems.

The Liebert IntelliSlot 485 Card is used to connect the UPS and computer system.

Follow instructions provided with the Liebert IntelliSlot card to configure Liebert MultiLink®, the

UPS or any additional ancillary product for the Liebert GXT3. These instructions are available at

multilink.liebert.com

5.1.1 Liebert MultiLink

Liebert MultiLink monitors the UPS continuously and can shut down your computer or server in the

event of an extended power failure. Liebert MultiLink can also be configured to shut down the UPS.

Liebert’s MultiLink can also be configured for use without the USB cable when the Liebert IntelliSlot

SNMP Card or Liebert IntelliSlot Web Card is installed in the UPS. An optional Liebert MultiLink

License Kit permits shutting down the UPS over a network.

For more information about the Liebert IntelliSlot SNMP Card, Liebert IntelliSlot Web Card and

Liebert MultiLink license kits, visit the Liebert Web site (www.liebert.com) or contact your local

Emerson representative.

!

CAUTION

To maintain safety (SELV) barriers and for electromagnetic compatibility, signal cables

should be segregated and run separate from all other power cables.

Communication

25

5.2 USB Port Communication

The standard B-type USB port is used to connect the UPS and network server or other computer

system using Liebert® MultiLink®. Configuration program can be accessed through the

communication port.

5.2.1 Configuration Program

Accessing the Configuration Program via USB is a new feature of the Liebert GXT3™. For most users,

the factory default settings will be adequate. This section illustrates the features available for

modification, as well as the factory default setting.

The USB configuration program allows these features of the Liebert GXT3 to be changed:

• Enable/Disable Auto-Restart

• Select frequency converter operation with a fixed output frequency of 50Hz or 60Hz, bypass dis-

abled

• Set the Low Battery Warning alarm time from 2 to 30 minutes

• Enable/Disable the Auto-Battery test

• Enable/Disable Auto-Restart after removing Remote Shutdown

• Set the wiring mode of Remote Shutdown

• Set the Auto-Enable output

• Set the Auto-Battery test to 7, 14, 21 or 28 days

• Select the number of external battery cabinets connected to the UPS to adjust the remaining run

time calculated by Liebert software products

• Select one of multiple output voltages to match various voltages, see Table 6.

NOTICE

The output voltage settings cannot be changed while the UPS is On and powering connected

loads.

Table 6 Output voltage option

UPS Model

Factory

Default, VAC Output Voltage Option, VAC

GXT3-500RT120 - GXT3-3000RT120

GXT3-1000MT120 120 110, 115, 120 and 127

GXT3-3000RT208 208 208 / 220 / 230 / 240

NOTE

For all 120V models, when the output voltage is programmed for 110VAC, the UPS will be

automatically derated as follows (refer to 9.0 - Specifications for VA and watt ratings):

• 500VA - 1000VA: derated to 95% of both the VA and Watt ratings

• 1500VA - 3000VA: derated to 90% of both the VA and Watt ratings

NOTE

• This program is compatible with UPS models beginning with ‘GXT3’, as in ‘GXT3-

3000RT120.’ It is not compatible with earlier versions of the Liebert GXT UPS.

• A computer running Windows 2000®, XP® or Vista® is required to set up and run the

configuration program.

Communication

26

5.3 Terminal Block Communication

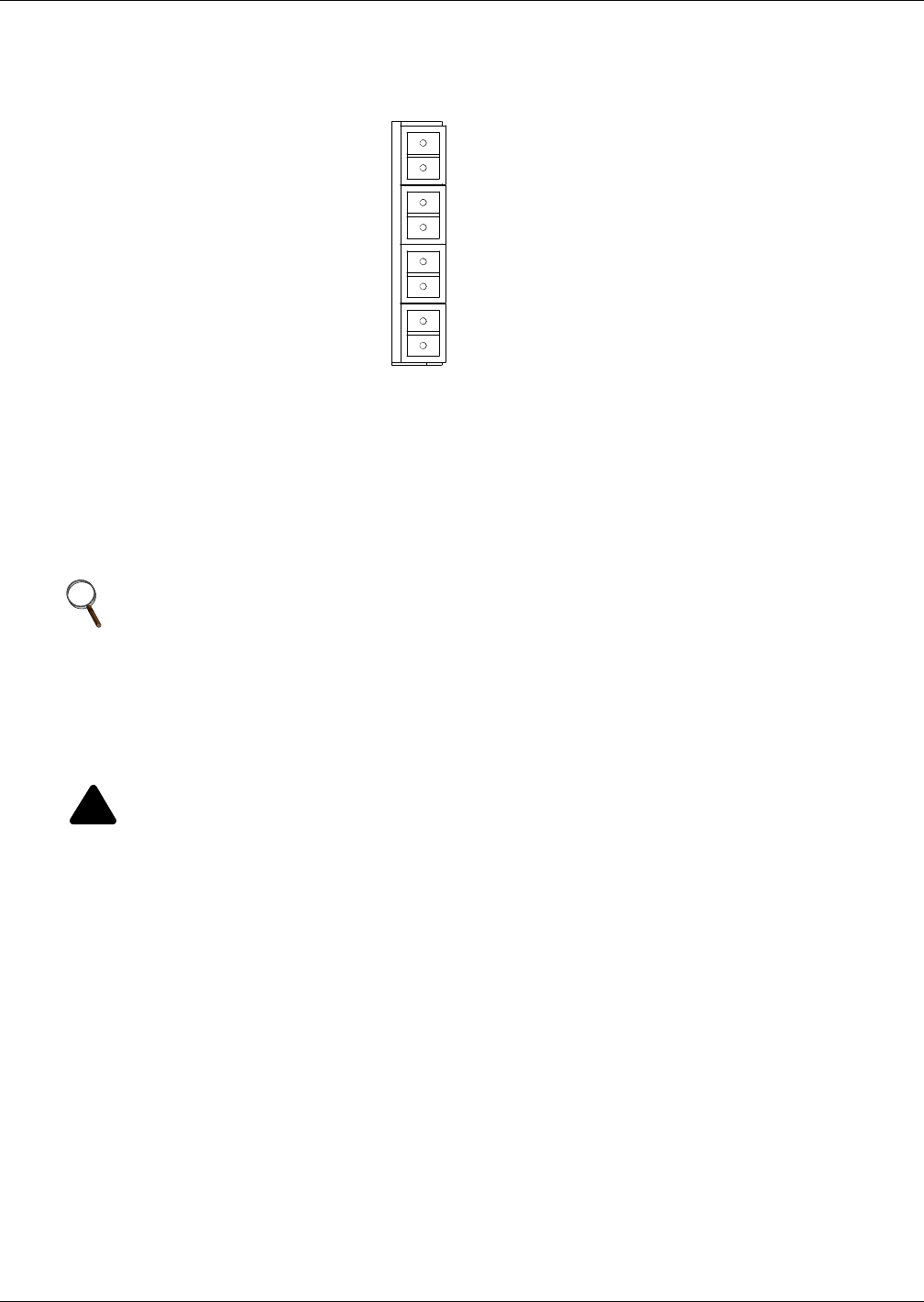

The Terminal Block includes eight pins, as shown in Figure 21.

Figure 21 Terminal block communication pin layout

5.3.1 Any-Mode Shutdown

The purpose of Any Mode Shutdown is to shut down the UPS output by turning Off the rectifier,

inverter and bypass so that there is no power to the loads.

Any Mode Shutdown can be operated locally and remotely, as described as follows:

• Local Any Mode Shutdown can be performed by shorting Pin1 and Pin2,

• Remote Any Mode Shutdown can be performed by a switch connected to Pin1 and Pin2 and

mounted at a remote location.

NOTE

Remote Power Off will be performed either by NO or NC contact of Any Mode Shutdown,

depending on the settings in the configuration program.

A current-limited source for this optocoupler (+12VDC, 50mA) will be available from the UPS.

The connection to the UPS for remote connection will be via terminal block connector.

Any Mode Shutdown wiring must conform to all national, regional and local wiring

regulations.

!

WARNING

When the Auto-Enable output option is selected and the UPS output is disabled using Pin 1

and Pin 2, the Liebert® GXT3™’s output can turn On automatically and without warning if

the Pin 1 and Pin 2 connection is changed.

1

2

3

4

5

6

7

8

Any Mode

Shut Down

Battery Mode

Shut Down

Battery Mode

Low Battery

Communication

27

5.3.2 Battery Mode Shutdown

Battery Mode Shutdown permits shutting down the UPS by turning Off the rectifier, inverter and

bypass so that there is no power to the load when the UPS is On Battery.

Battery Mode Shutdown can be performed locally or remotely:

• Local Any Mode Shutdown can be performed by shorting Pin 3 and Pin 4

• Remote Any Mode Shutdown can be achieved by a switch connected to Pin 3 and Pin 4 and

mounted at a remote location.

5.3.3 On Battery

On Battery signal is a Normally Open (NO) dry contact. When the UPS is supplying output power

from the battery this dry contact will be closed.

5.3.4 Low Battery

Low Battery signal is a Normally Open (NO) dry contact. When the UPS is supplying output power

from the battery and has reached the Low Battery Warning time selected in the configuration

program, this dry contact will be closed.

NOTE

Remote Power Off will be performed by NO contact.

A current-limited source for this optocoupler (+12VDC, 50mA) will be available from UPS.

The connection to the Liebert® GXT3™ for remote connection will be via terminal block

connector.

Battery mode shutdown wiring must conform to all national, regional and local wiring

regulations.

This signal must last for 1.5 seconds or longer.

A battery shutdown signal will not cause an immediate shutdown. It will start a 2 minute shut

down timer. This timer cannot be stopped once triggered. If utility power returns during this

countdown, the Liebert GXT3 will still shut down and must remain shut down for 10 seconds.

Whether the UPS turns back On when the power is restored depends on the auto-restart setting.

NOTE

The rated values for the dry contacts for the On Battery and Low Battery signals are:

• Rated Voltage: 30V (AC or DC)

• Rated Current: 300mA

Maintenance

28

6.0 MAINTENANCE

This section describes replacing the internal battery pack, precautions, checking the Liebert® GXT3’s

status and checking UPS functions.

6.1 Replacing the Internal Battery Pack

The Liebert® GXT3™ is designed to allow the user to replace the internal battery pack safely. Refer to

Table 7 for internal battery pack part numbers for Liebert GXT3™ UPS:

Read all safety cautions before proceeding. Contact your local dealer or Emerson representative to

obtain the part number and pricing of the appropriate replacement battery pack.

6.1.1 Battery Replacement Procedures

1. Remove the front plastic bezel cover from the UPS.

2. Loosen and remove the six screws on the battery door, as shown in Figure 22.

3. Lay the battery door and screws aside for reassembly.

!

WARNING

The battery can present a risk of electrical shock and high short circuit current. The following

precautions should be observed before replacing the battery pack:

• Remove rings, watches and other metal objects.

• Use tools with insulated handles.

• Do not lay tools or other metal objects on the batteries.

• If the battery kit is damaged in any way or shows signs of leakage, contact your local Emer-

son representative immediately.

• Do not dispose of batteries in a fire. The batteries may explode.

• Handle, transport and recycle batteries in accordance with local regulations.

Table 7 Replacement internal battery pack model number

UPS Model Number

Replacement Internal Battery

Pack Model Number

Quantity

Required

Liebert GXT3-500RT120 GXT3-5A48BATKIT 1

Liebert GXT3-700RT120 GXT3-5A48BATKIT 1

Liebert GXT3-1000RT120 GXT3-5A48BATKIT 1

Liebert GXT3-1000MT120 GXT3-1MTBATKIT 1

Liebert GXT3-1500RT120 GXT3-7A48BATKIT 1

Liebert GXT3-2000RT120 GXT3-9A48BATKIT 1

Liebert GXT3-3000RT120 GXT3-9A72BATKIT 1

Liebert GXT3-3000RT208 GXT3-9A72BATKIT 1

!

CAUTION

Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries

according to the instructions.

Maintenance

29

Figure 22 Removing the front bezel cover and battery door

4. Gently pull the battery wire out and disconnect the battery plug and battery receptacle, as shown

in Figure 23.

Figure 23 Disconnecting the battery plug and battery receptacle (front view)

5. Grasp the battery handle, and pull the internal battery pack out of the UPS, as shown in

Figure 24.

Figure 24 Pull out the battery

6. Unpack the new internal battery pack. Take care not to destroy the packing.

Compare the new and old internal battery pack to make sure they are the same type and model. If

so, proceed with Step 7; if they are different, stop and contact your local Emerson representative,

or Emerson Channel Support.

7. Line up and slide in the new internal battery pack.

8. Reconnect the battery plug and battery receptacle

9. Push the battery wire and internal battery pack back into the UPS.

10. Reattach the front battery door with the six screws.

11. Reattach the front plastic bezel cover to the UPS.

NOTE

The internal battery pack is hot-swappable. However, caution should be exercised because

during this procedure the load is unprotected from disturbances and power outages. Do not

replace the battery while the UPS is operating in Battery Mode. This will result in a loss of

output power and will drop the connected load.

Front Bezel

Battery Door

Screws, 6

Battery Connector Battery Receptacle

Internal Battery Pack

Battery

Handle

Pull Out with Battery Handle

Maintenance

30

6.2 Battery Charging

The batteries are valve-regulated, nonspillable, lead acid and should be kept charged to attain their

design life. The Liebert® GXT3™ charges the batteries continuously when it is connected to the utility

input power.

If the Liebert GXT3 will be stored for a long time, Emerson recommends connecting the UPS to input

power for at least 24 hours every four to six months to ensure full recharge of the batteries.

6.3 Precautions

Although the Liebert GXT3 has been designed and manufactured to ensure personal safety, improper

use can result in electrical shock or fire. To ensure safety, observe the following precautions:

• Turn Off and unplug the Liebert GXT3 before cleaning it.

• Clean the UPS with a dry cloth. Do not use liquid or aerosol cleaners.

• Never block or insert any objects into the ventilation holes or other openings of the Liebert GXT3.

• Do not place the Liebert GXT3 power cord where it might be damaged.

6.4 Checking UPS Status

Emerson recommends checking the UPS operation status every six months.

• Check if the UPS is faulty: Is the Fault Indicator On? Is the UPS sounding an alarm?

• Check if the UPS is operating in Bypass mode: Normally, the UPS operates in Normal Mode; if it

is operating in Bypass Mode, stop and contact your local Emerson representative or Emerson

Channel Support.

• Check if the battery is discharging: When the utility input is normal, the battery should not dis-

charge. If the UPS is operating in Battery Mode, stop and contact your local Emerson representa-

tive or Emerson Channel Support.

6.5 Checking UPS Functions

Emerson recommends checking the UPS functions once every six months.

Back up the load data before conducting the UPS functions check. Procedures are as follows:

1. Press the Standby/Manual Bypass button to check whether the alarm and indicators are normal.

2. Press the On/Alarm Silence/Manual Battery Test button to check again whether the indicators

are On and the UPS is operating normally.

3. Press the On/Alarm Silence/Manual Battery Test button for three seconds after Inverter Mode;

the UPS should initiate battery self-test. Check to determine whether the battery is operating

normally. If not, stop and contact your local Emerson representative or Emerson Channel

Support.

NOTE

UPS function check procedures may interrupt power supply to the connected load.

Troubleshooting

31

7.0 TROUBLESHOOTING

This section indicates various UPS symptoms a user may encounter and troubleshooting steps in the

event the UPS develops a problem. Use the following information to determine whether external

factors caused the problem and how to remedy the situation.

7.1 UPS Symptoms

The following symptoms indicate the Liebert® GXT3™ has malfunctions.

• The related indicators will illuminate, indicating the UPS detected a problem.

• An alarm will sound, indicating that the UPS requires attention.

7.1.1 Indicators

In addition to the fault indicator being illuminated, one or more of LED segments of battery level

indicator will also be illuminated to provide a diagnostic aid to the user, as shown in Figure 25. The

descriptions are listed in Table 8.

Figure 25 Battery level indicator

Table 8 Indicator descriptions

Indicator Diagnosis/Audible alarm

A - E On bypass from output overload (half-second beep every half-second)

A On bypass due to overtemperature condition (1-second beep every 4 seconds)

B On bypass due to DC bus overvoltage (1-second beep every 4 seconds)

C On bypass due to DC/DC power supply failure (1-second beep every 4 seconds)

D On bypass due to PFC failure (1-second beep every 4 seconds)

E On bypass due to inverter failure (1-second beep every 4 seconds)

A&B UPS Failure (includes dual-fan failure, single-fan failure under certain conditions and battery

charger failure) and continuous alarm

A&C UPS failed battery test (2-second beep every60 seconds)

A&E Bypass feedback (1-second beep every 4 seconds)

B&E Short circuit on the output

C&E UPS shutdown by command from communication (USB port or Liebert IntelliSlot™ port) (no

audible)

Utility LED flash L-N reverse

Battery Indicator

Flashing

Battery not connected (continuous horn); check battery connection, power down and restart

UPS

Bypass Indicator

Flashing Utility power voltage or frequency is out of tolerance; bypass is unavailable

Indicators A - E are shown in Figure 25.

If the UPS experiences an overload, the UPS will transfer from bypass back to inverter approximately 5 minutes after the overload

ends.

ABCDE

Troubleshooting

32

7.1.2 Audible Alarm

An audible alarm will be used in conjunction with the visual indicators to indicate to the user a

change in UPS operating status. The audible alarm will enunciate as given in Table 9.

7.2 Troubleshooting

In the event of an issue with the UPS, refer to Table 10 to determine the cause and solution. If the

issue persists, contact Emerson Channel Support.

Table 9 Audible alarm description

Condition Alarm

Battery discharge half-second beep every 10 seconds

Low battery Two half-second beeps every 5 seconds

UPS fault, load on bypass 1-second beep every 4 seconds

UPS fault, no power to load Continuous

Overload half-second beep every half second

Battery replacement 2-second beep every 60 seconds

Battery loss Continuous

Wiring problem (including line-to-neutral reversal

or a loss of proper grounding for UPS) Continuous

Bypass reminder 1-second beep every 2 minutes

Table 10 Troubleshooting

Problem Cause Solution

UPS fails to start when the

On/Alarm Silence/Manual

Battery Test button is pressed

UPS is short-circuited or overloaded

Ensure UPS is Off. Disconnect all loads and

ensure nothing is lodged in output receptacles.

Ensure loads are not defective or shorted

internally.

Battery indicator is illuminated

UPS not plugged in

UPS is operating from battery mode, ensure

UPS is securely plugged into the wall

receptacle.

UPS input protection circuit breaker

has opened

UPS is operating from battery mode. Save data

and close applications. Reset UPS input

breaker, then restart UPS.

Utility power is out of tolerance

UPS is operating from battery mode. Save data

and close applications. Ensure utility supply

voltage is within acceptable limits for UPS.

UPS has reduced battery

backup time

Batteries are not fully charged Keep UPS plugged in continuously at least 24

hours to recharge batteries.

UPS is overloaded Check load level indicator and reduce the load

on the UPS.

Batteries may not be able to hold a

full charge due to age

Replace batteries. Contact your local dealer,

Emerson representative or Emerson Channel

Support for replacement battery kit.

Fault and Bypass indicators and

all LED segments of battery

level indicator are illuminated

UPS overloaded or load is faulty

Check load level indicator and remove non-

essential loads. Recalculate the load and reduce

number of loads connected to UPS. Check load

for faults.

Fault and Bypass indicators and

diagnostic A indicator are

illuminated

UPS shutdown due to

overtemperature condition. Load is

on bypass power

Ensure UPS is not overloaded, ventilation holes

not blocked, or room ambient temperature is not

excessive. Wait 30 minutes to allow UPS to cool,

then restart UPS. If UPS will not restart, contact

your local dealer, Emerson representative or

Emerson Channel Support.

Troubleshooting

33

When reporting a UPS issue to Emerson, include the UPS model and serial number. These are on the

top panel of the Liebert® GXT3™.

Fault and Bypass indicators and

diagnostic B indicator are

illuminated

UPS internal DC bus overvoltage UPS requires service. Contact Emerson

Channel Support.

Fault and Bypass indicators and

diagnostic C indicator are

illuminated

UPS DC/DC fault UPS requires service. Contact Emerson

Channel Support

Fault indicator and diagnostic D

indicator are illuminated

UPS PFC (Power Factor Correction

Circuit) fault

UPS requires service. Contact Emerson

Channel Support

Fault and Bypass indicators and

diagnostic E indicator are

illuminated

UPS inverter fault UPS requires service. Contact Emerson

Channel Support

Fault indicator and diagnostic A

and C indicators are illuminated UPS failed the battery test

Replace batteries. Contact your local dealer,

Emerson representative or Emerson Channel

Support

Fault and Bypass indicators and

diagnostic C and E indicators

are illuminated

UPS shut down by a command from

the communications port(s)

Your UPS has received a signal or command

from the attached computer. If this was

inadvertent, ensure the communication cable

used is correct for your system. For assistance,

contact your local dealer, Emerson

representative or Emerson Channel Support

Fault indicator and diagnostic A

and B indicators are illuminated

UPS Failure (Includes Dual Fan

failure, single fan failure under certain

condition and Battery Charger

Failure) and continuous alarm

Ensure fan is not blocked. If the fault is not

removed, contact your local dealer, Emerson

representative or Emerson Channel Support

AC input indicator is flashing

UPS detected a line-to-neutral

reversal or a loss of proper grounding

for UPS; continuous alarm and UPS

will not start in standby status. This is

active only when power is first

applied to the input. Once the UPS is

running, the AC input indictor will

flash, unless the input wiring is

correctly changed

Contact a qualified electrician to verify site wiring

Battery indicator is flashing Battery source is not available;

continuous alarm

Check battery connections, completely power

down and restart UPS.

NOTE: If the battery circuit opens while the UPS

is running, it will be detected when the next

battery test is performed

Bypass indicator is flashing

Because the voltage or frequency is

outside acceptable limits, the bypass

is disabled

The AC input powers the PFC input and serves

as the bypass source. If the AC is present but

the voltage or frequency exceeds the acceptable

range for safe operation with a load, the bypass

will be disabled and this indicator will flash,

indicating that the bypass is unavailable

Table 10 Troubleshooting (continued)

Problem Cause Solution

Battery Cabinet

34

8.0 BATTERY CABINET

Optional battery cabinets are available for the Liebert® GXT3™. The battery connectors and input

breaker are on the battery cabinet’s rear panel, as shown in Figure 26. For battery cabinet

specifications, refer to Table 13. The Liebert GXT3 may be equipped with a maximum of four

extension battery packs.

For battery run times, refer to Table 15.

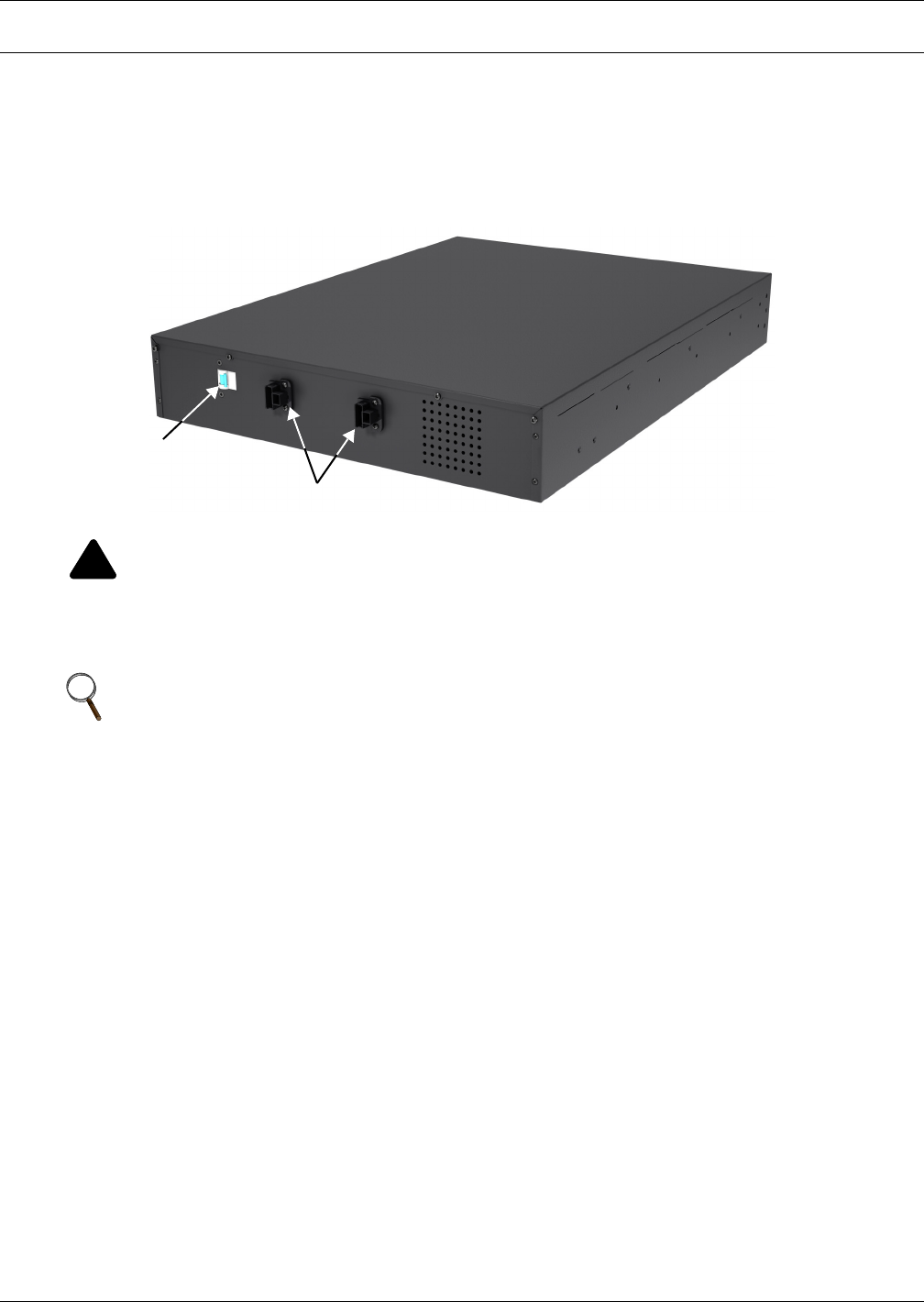

Figure 26 Battery cabinet

!

WARNING

Do not contact the battery connectors and ground without wearing protective gloves and

clothing and taking other precautions against electrical shock. The battery loop and AC input

are not insulated, which may cause a dangerous voltage between the battery connectors and

ground.

NOTE

External Battery Connectors are wired in parallel. Either connector can be connected to the

UPS or to another battery cabinet.

Battery Connectors

Input Breaker

Specifications

35

9.0 SPECIFICATIONS

Table 11 Specifications of GXT3-500RT120 - GXT3-1000RT120 and GXT3-1000MT120 UPS

Parameters

Product Model

GXT3-500RT120

(500VA/450W)

GXT3-700RT120

(700VA/630W)

GXT3-1000RT120

(1000VA/900W)

GXT3-1000MT120

(1000VA/900W)

Dimensions, D × W × H, in. (mm)

Unit 19.7 x 16.9 x 3.4

(497 × 430 × 85)

15.4 x 6.9 x 8.9

(390 × 175 × 225)

Shipping 25.5 x 23.9 x 10.6

(647 x 607 x 270)

22.1 x 12.9 x 14

(562 × 327 × 355)

Weight, lb (kg)

Unit 37 (16.8) 37.5 (17)

Shipping 44.1 (20) 36 (16.5)

Input AC

Voltage Range (typical) 120VAC nominal; variable based on output load

90% ~ 100% loading 90VAC/140VAC

70% ~ 90% loading 86VAC/140VAC

30% ~ 70% loading 77VAC/140VAC

0 ~ 30% loading 60VAC/140VAC

Frequency 40Hz ~ 70Hz; Auto Sensing

Input Power Cord 10 ft. attached w/ NEMA 5-15P plug

Output AC

Output Receptacles 5-15R × 6

Voltage 110/115/120VAC (user-configurable); ±3%

Waveform Sine wave

Utility (AC) Mode Overload 200% for 2 seconds; 150% for 50 seconds with transfer to bypass

Battery

Type Valve-regulated, nonspillable, lead acid

Qty × V× Rating 4 × 12V × 5.0Ah

Battery Mfr./Part # YUASA/NPH5-12; CSB/ HR 1221W; CSB/GP1245

Backup Time See Table 15

Recharge Time 3 Hours to 90% capacity after full discharge with 100% load till UPS auto-shutdown

(Internal Batteries Only)

Environmental Requirements

Operating Temperature, °F (°C) 32 to 104 (0 to 40); see Table 14 - Operating temperature parameters

Storage Temperature, °F (°C) 5ºF to 122ºF (-15ºC to 50ºC)

Relative Humidity 0% to 95%, non-condensing

Operating Elevation Up to 10,000 ft. (3000m) at 77ºF (25ºC) without derating

Storage Elevation 50,000 ft. (15000m) maximum

Audible Noise <43dBA max @ 3ft. (1m) front and sides

<46dBA max @ 3ft. (1m) rear

< 50 dBA, at 3ft. (1m) rear

< 45 dBA, at 3ft. (1m) front and sides

Agency

Safety UL 1778, cUL Listed

RFI/EMI FCC Part 15, Class A=CISPR22 Class B

Surge Immunity IEC 62040-2 2nd Ed

Transportation ISTA Procedure 1A

Specifications

36

Table 12 Specifications of GXT3-1500RT120 - GXT3-3000RT120 and GXT3-3000RT208 UPS

Parameters

Product Model

GXT3-1500RT120

(1500VA/1350W)

GXT3-2000RT120

(2000VA/1800W)

GXT3-3000RT120

(3000VA/2700W)

GXT3-3000RT208

(3000VA/2700W)

Dimensions, D × W × H, in. (mm)

Unit 19.7 x 16.9 x 3.4

(497 × 430 × 85)

23.7 x 16.9 x 3.4

(602 × 430 × 85)

Shipping 25.5 x 23.9 x 10.6

(647 x 607 x 270)

29.4 x 23.4 x 10.6

(747 x 607 x 270)

Weight, lb. (kg)

Unit 51.1 (23.2) 56.1 (25.5) 71.4 (32.4)

Shipping 57.3 (26) 61.7 (28) 77 (35)

Input AC

Voltage Range (typical) 120VAC nominal; variable based on output load

208VAC nominal;

variable

based on output load

90 - 100% loading 102VAC/140VAC 177VAC/280VAC

70 - 90% loading 96VAC/140VAC 168VAC/280VAC

30 - 70% loading 84VAC/140VAC 150VAC/280VAC

0 - 30% loading 60VAC/140VAC 115VAC/280VAC

Frequency 40 - 70Hz; Auto Sensing

Input Power Cord 10 ft. attached w/

NEMA 5-15P plug

10 ft. attached w/

NEMA 5-20P plug

10 ft. attached w/

NEMA L5-30P plug

10 ft. attached w/

NEMA L6-20P plug

Output AC

Output Receptacles 5-15R × 6 5-20R × 6 L5-30R×1+5-20R×6 L6-20R×1+L6-15R×2

Voltage 110/115/120VAC (user-configurable); ±3% 208/220/230/240 VAC

(user-configurable); ±3%

Waveform Sine wave

Utility (AC) Mode Overload 200% for 2 seconds

150% for 50 seconds

200% for 2 seconds

150% for 10 seconds

Battery

Type Valve-regulated, nonspillable, lead acid

Qty×V×Rating 4 × 12V × 7.2Ah 4 × 12V × 9.0Ah 6 × 12V × 9.0Ah 6 × 12V × 9.0Ah

Battery Mfr./Part # Panasonic/UP-RW1236

CSB/GP 1272 Panasonic/UP- RW1245; CSB/HR 1234W F2

Backup Time See Table 15

Recharge Time 3 Hours to 90% capacity after full discharge with 100% load till UPS auto-shutdown

(Internal Batteries Only)

Environmental

Operating Temperature, °F (°C) +32 to +104 (0 to 40); see Table 14 - Operating temperature parameters

Storage Temperature, °F (°C) 5 to +122 (-15 to 50)

Relative Humidity 0% to 95%, non-condensing

Operating Elevation Up to 10,000 ft. (3000m) at 77ºF (25ºC) without derating

Storage Elevation 50,000 ft. (15000m) maximum

Audible Noise

< 45dBA at 3ft (1m) rear

< 46 dBA at 3ft. (1m)

front and side

<48dBA max @ 3ft (1m) front and side

<48dBA max @ 3ft. (1m) rear

Agency

Safety UL 1778, c-UL Listed

RFI/EMI FCC Part 15, Class A=CISPR22 Class B

Surge Immunity IEC 62040-2 2nd Ed

Transportation ISTA Procedure 1A

Specifications

37

Table 13 Battery cabinet specifications

Parameter

Model Number

GXT3-48VBATT GXT3-72VBATT

Used w/UPS Model

GXT3-500RT120,GXT3-700RT120

GXT3-1000RT120,GXT3-1500RT120,

GXT3-2000RT120

GXT3-3000RT120

GXT3-3000RT208

Dimensions, D × W × H, in (mm)

Unit 19.7 x 16.9 x 3.3

(497 × 430 × 85)

23.7 x 16.9 x 3.3

(602 × 430 × 85)

Shipping 24.3 x 22.4 x 10.3

(617 x 570 x 262)

28.2 x 22.4 x 10.3

(717 x 570 x 262)

Weight, lb (kg)

Unit 57.3 (26) 83.8 (38)

Shipping 61.7 (28) 92.6 (42)

Battery parameters

Type Valve-regulated, nonspillable, lead acid

Qty × V× Rating 2 × 4 × 12V × 9.0Ah 2 × 6 × 12V × 9.0Ah

Battery Mfr./Part # Panasonic/UP-RW1245; CSB/HR 1234W F2

Backup Time See Table 15

Environmental

Operating Temperature, °F (°C) 32 to 104 (0 to 40)

Storage Temperature, °F (°C) 19 to 122 (-15 to 50)

High ambient temperatures will reduce battery life.

Relative Humidity 0% to 95%, non-condensing

Operating Elevation Up to 10,000 ft. (3000m) at 104ºF (40ºC) without derating

Storage Elevation 50,000 ft. (15000m) maximum

Agency

Safety UL 1778, c-UL Listed

RFI/EMI FCC Part 15, Class A=CISPR22 Class B

Surge Immunity IEC 62040-2 2nd Ed

Transportation ISTA Procedure 1A

Table 14 Operating temperature parameters

Ambient Temperature, °C (°F) 25-30 (77-86) 30-35 (86-95) 35 - 40 (95-104)

Maximum Output

Power Factor Derating

@ Maximum Load

100%-93% 93%-86% 86%-79%

Specifications

38

Table 15 Battery run times

Number of

Batteries/Cabinets

Load Percent

of Capacity

120VAC RT Models

208 VAC RT

Model

500VA 700VA 1000VA 1500VA 2000VA 3000VA 3000VA

Internal Battery

10% 128 105 90 77 77 74 77

20% 826137353336 37

30% 413730232121 21

40% 383223161515 15

50% 342717111111 11

60% 31 22 14 10 8 8 8

70% 271811666 6

80% 23159555 5

90% 20138444 4

100% 17 11 7 4 3 3 3

Internal Battery

+ 1 External

Battery Cabinet

10% 328 306 212 199 183 166 183

20% 209 182 151 133 124 121 123

30% 166 149 123 97 80 79 79

40% 152 130 100 72 41 53 53

50% 139 109 80 41 38 46 45

60% 125 98 68 38 34 39 38

70% 109 81 41 35 30 31 31

80% 100 72 39 32 25 26 26

90% 926337272121 22

100% 79 41 35 23 17 18 18

Internal Battery

+ 2 External

Battery Cabinets

10% 480 373 336 314 311 307 311

20% 334 313 214 188 161 159 160

30% 309 211 166 148 134 133 133

40% 216 185 151 126 105 105 104

50% 197 159 137 103 80 81 80

60% 167 149 122 82 67 68 67

70% 159 139 105 72 40 52 52

80% 152 128 95 62 38 47 47

90% 144 112 80 40 36 43 43

100% 137 104 73 38 33 38 38

Internal Battery

+ 3 External

Battery Cabinets

10% 480 480 480 341 335 332 335

20% 401 341 321 227 206 203 205

30% 338 318 218 185 157 157 157

40% 322 224 191 154 139 139 138

50% 306 205 162 139 120 120 113

60% 219 186 152 123 99 100 100

70% 205 163 141 105 80 81 81

80% 191 155 131 93 70 71 71

90% 167 148 120 79 60 62 62

100% 162 140 106 71 40 51 51

Specifications

39

9.1 Product Warranty Registration

To register for warranty protection, visit the Quick Links section of the Liebert® Web site at:

http://www.liebert.com

Click on Product Warranty Registration and fill in the form.

If you have any questions, contact Emerson Channel Support at:

North America: 800-222-5877

Outside North America: 00-800-1155-4499

liebert.upstech@emerson.com

Internal Battery

+ 4 External

Battery Cabinets

10% 480 480 480 480 480 346 480

20% 480 480 339 317 304 301 303

30% 398 337 315 216 188 187 187

40% 340 321 220 183 156 156 155

50% 328 304 199 157 141 142 141

60% 316 217 167 145 126 127 126

70% 304 202 159 133 107 108 108

80% 221 186 151 120 95 97 97

90% 210 164 143 105 79 81 81

100% 199 158 134 96 71 73 73

Times in this table are approximate. They are based on new, fully charged batteries with 100% resistive loads and an ambient temperature

of 77°F (25°C). To increase this time, turn Off non-essential loads (such as idle computers and monitors) or add optional external battery

cabinets.

Table 15 Battery run times (continued)

Number of

Batteries/Cabinets

Load Percent

of Capacity

120VAC RT Models

208 VAC RT

Model

500VA 700VA 1000VA 1500VA 2000VA 3000VA 3000VA

Specifications

40

Ensuring The High Availability

Of Mission-Critical Data And Applications.

Emerson Network Power, a business of Emerson (NYSE:EMR),

is the global leader in enabling Business-Critical Continuity

™

from grid to chip for telecommunication networks, data centers,

health care and industrial facilities. Emerson Network Power

provides innovative solutions and expertise in areas including

AC and DC power and precision cooling systems, embedded

computing and power, integrated racks and enclosures,

power switching and controls, infrastructure management,

and connectivity. All solutions are supported globally by local

Emerson Network Power service technicians. Liebert AC power,

precision cooling and monitoring products and services

from Emerson Network Power deliver Efficiency Without

Compromise

™

by helping customers optimize their data center

infrastructure to reduce costs and deliver high availability.

While every precaution has been taken to ensure the accuracy

and completeness of this literature, Liebert Corporation assumes no

responsibility and disclaims all liability for damages resulting from use of

this information or for any errors or omissions.

© 2010 Liebert Corporation

All rights reserved throughout the world. Specifications subject to change

without notice.

® Liebert is a registered trademark of Liebert Corporation.

All names referred to are trademarks

or registered trademarks of their respective owners.

Technical Support / Service

Web Site

www.liebert.com

Monitoring

liebert.monitoring@emerson.com

800-222-5877

Outside North America: +00800 1155 4499

Single-Phase UPS & Server Cabinets

liebert.upstech@emerson.com

800-222-5877

Outside North America: +00800 1155 4499

Three-Phase UPS & Power Systems

800-543-2378

Outside North America: 614-841-6598

Environmental Systems

800-543-2778

Outside the United States: 614-888-0246

Locations

United States

1050 Dearborn Drive

P.O. Box 29186

Columbus, OH 43229

Europe

Via Leonardo Da Vinci 8

Zona Industriale Tognana

35028 Piove Di Sacco (PD) Italy

+39 049 9719 111

Fax: +39 049 5841 257

Asia

29/F, The Orient Square Building

F. Ortigas Jr. Road, Ortigas Center

Pasig City 1605

Philippines

+63 2 687 6615

Fax: +63 2 730 9572

Emerson Network Power.

The global leader in enabling Business-Critical Continuity™

EmersonNetworkPower.com

Emerson, Business-Critical Continuity, Emerson Network Power and the Emerson Network Power logo are trademarks of Emerson Electric Co. or one of its affiliated companies.

©2010 Emerson Electric Co.

AC Power

Connectivity

DC Power

Embedded Computing

Embedded Power

Infrastructure Management & Monitoring

Outside Plant

Power Switching & Controls

Precision Cooling

Racks & Integrated Cabinets

Services

Surge Protection

SL-23180_REV3_04-12
