User Manual
Business Solutions
Dual Band N1750 Indoor Access Point
Ceiling Mount Design
EAP1750H
version 1.0
2
IMPORTANT
To install this Access Point please refer to the
Quick Installation Guide included in the product packaging.
3
Chapter 1 Product Overview................................................... 4
Key Features/Introduction........................................................... 5
System Requirements / Package Contents .............................. 6
Applications...................................................................................... 7
 TechnicalSpecications...............................................................8
Physical Interface........................................................................... 9
Chapter 2 Before You Begin .................................................. 10
Considerations for Wireless Installation............................. 11
Computer Settings..................................................................... 12
Hardware Installation................................................................. 15
Mounting the EAP1750H............................................................. 16
Chapter 3 Conguring Your Access Point.......................... 18
Default Settings............................................................................ 19
Chapter 4 Building a Wireless Network............................. 20
Access Point Mode....................................................................... 21
WDS AP Mode............................................................................... 22
WDS Bridge Mode........................................................................ 23
Chapter 5 Overview............................................................... 24
Overview........................................................................................... 25
Connections.................................................................................... 26
Chapter 6 Network ................................................................. 27
 OperationMode/Basic...................................................................28
IP Settings/SpanningTree Settings...................................... 29
Chapter 7 Wireless ............................................................... 31
Wireless Network........................................................................ 31
Wireless Security......................................................................... 34
Wireless MAC Filtering............................................................ 40
Wireless Advanced ..................................................................... 41
WPS (Wi-Fi Protected Setup)................................................. 42
WDS Link Settings....................................................................... 43
Chapter 8 Management........................................................ 44
Administration.............................................................................. 45
Management VLAN Settings................................................. 46
Wireless Trafc Shaping......................................................... 47
 SNMPSettings...............................................................................48
Backup/Restore.......................................................................... 50
Auto Reboot Settings................................................................ 51
Firmware Upgrade/Time Settings............................................ 52
System Log/Tools.......................................................................... 54
Ping Test Parameters/Traceroute Parameters.................. 55
Speed Test Parameters/LED Control.........................................56
Device Display/Reset...................................................................57
Appendix ................................................................................. 58
FCC Interference Statement.................................................. 59
IC Interference Statement.................................................... 60
CE Interference Statement...................................................... 62
Table of Contents
4
Chapter 1
Product Overview
5
Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on many factors including environmental conditions, distance between
devices, radio interference in the operating environment, and mix of devices in the network. Features and specications subject to change without notice. Trademarks and registered
trademarks are the property of their respective owners. For United States of America: Copyright © 2013 EnGenius Technologies, Inc. All rights reserved.
Key Features
• High transmit power, enabling long range connectivity
• SupportsIEEE802.11ac/b/g/nwirelessstandardswithupto450
Mbps data rate on 2.4GHz and 1300Mbps data rate on 5GHz
• Six internal 5dBi Omni-Directional MIMO antennas
• Can be monitored after deployment with EnGenius EZ
Controller™ software for Windows
(Free online download)
• Can be used with included power adapter or via PoE with PoE
 802.3at-capableSwitchesorInjectors
• Dual Band/Three Stream
• Band Steering shifts dual band clients to 5 GHz for better
throughput performance
• Secured Guest Network

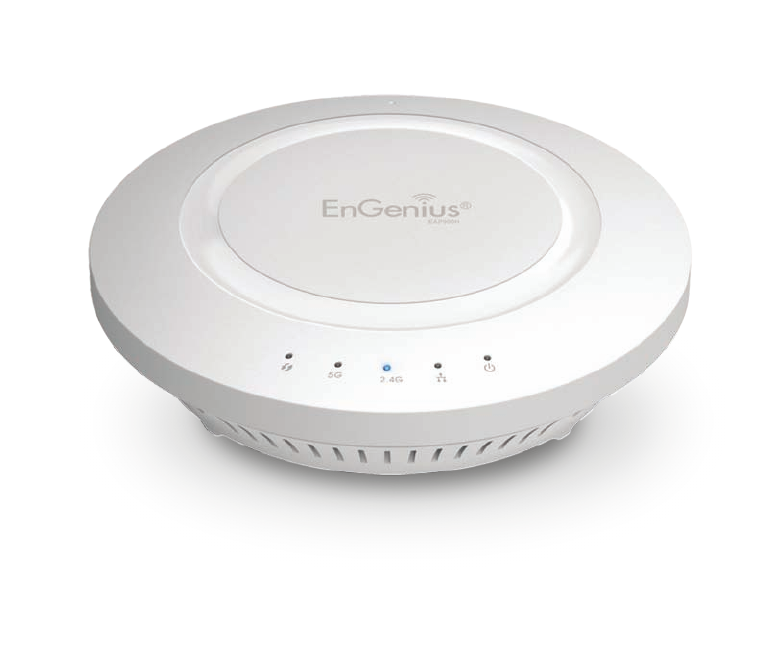

Introduction

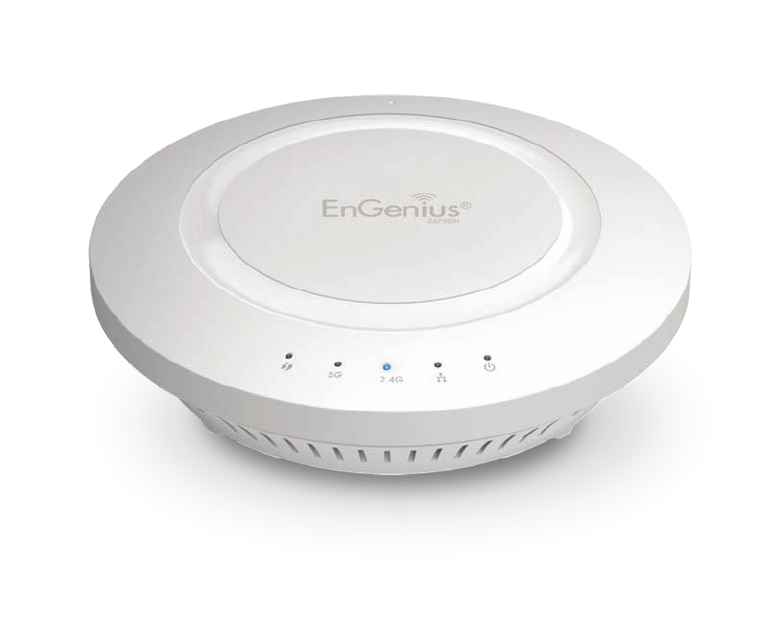

The EAP1750H is a high-powered, long-range, Dual-band
concurrent Wireless 802.11ac/b/g/n Access Point with
three major functional modes. It is designed to operate
in numerous environments; from large homes, small and
medium-sized businesses, multiple-oor ofces, hotels,
and other venues, to larger enterprise deployments. Its
high-powered, long-range characteristics make it a cost-
Introduction
can be used with
802.3at
capable switches or injectors
effective alternative to ordinary Access Points that don’t
have the range and reach to connect to a growing number
of wireless users who wish to connect to a large home or
business network.
6
The EAP1750H supports the 2.4 GHz frequency band under
the802.11b/g/nmodewhileatthesametimeprovidinga
5GHzbandforcommunicatingortransferringlesinaless
congested network frequency band.
The EAP1750H also delivers up to 15x faster wireless speeds
compared to legacy 802.11a/b/g wireless devices. Even
though the EAP1750H has been designed and engineered
for heavy trafc and demanding business environments,
inlargerhousingenvironmentsasitcanefcientlyextend
the wireless range of an existing home router. This makes
it especially ideal in architecturally-challenging structures,
providing whole home connectivity.
To protect sensitive data during wireless transmissions,
the EAP1750H offers different encryption settings for
wireless transmissions, including industry standard WPA
and WPA2 encryption. The EAP1750H also includes MAC
addresslteringtoallownetworkadministratorstooffer
network access only to known computers and other devices
based on their MAC addresses.
System Requirements
The following are the Minimum System Requirements in
ordercongurethedevice:
• Computer with an Ethernet interface or wireless network
capability
 • WindowsOS(XP,Vista,7,8),MacOS,orLinux-basedoperating
systems
• Web-BrowsingApplication(i.e.:InternetExplorer,Firefox, 
Chrome, Safari, or another similar browser application)
Package Contents
The EAP1750H package contains the following items (all
itemsmustbeinpackagetoissuearefund):
• EAP1750H Access Point
• Power Adapter
• RJ-45 Ethernet Cable
• Quick Installation Guide
• Ceiling and Wall Mount Screw kit
7
Applications
Wireless LAN (WLAN) products are easy to install and
highlyefcient.Thefollowinglistdescribessomeofthe
many applications made possible through the power and
exibilityofWLANs:
• Difcult-to-Wire Environments: There are many situations where
wires cannot be installed, deployed easily, or cannot be hidden from
view. Older buildings, sites with multiple buildings, and/or areas
that make the installation of a Ethernet-based LAN impossible,
impractical or expensive are sites where WLAN can be a network
solution.
• Temporary Workgroups: Create temporary workgroups/networks
in more open areas within a building; auditoriums, amphitheaters
classrooms, ballrooms, arenas, exhibition centers, or temporary
ofceswhereonewantseitherapermanentortemporaryWireless
LAN established.
• The Ability to Access Real-Time Information: Doctors/Nurses,
Point-of-Sale Employees, and/or Warehouse Workers can access
real-time information while dealing with patients, serving
customers, and/or processing information.
• Frequently Changing Environments: Set up networks in
environments that change frequently (i.e.: Show Rooms,
Exhibits, etc.).
• Small Ofce and Home Ofce (SOHO) Networks: SOHO users
require a cost-effective, easy, and quick installation of a small
network.
• Wireless Extensions to Existing Ethernet-based Networks:
Devices like the EAP1750H enable network administrators,
installers, and end-users to extend the range and reach of an
existing Ethernet-based network.
• Training/Educational Facilities: Training sites at corporations or
students at universities use wireless connectivity to exchange
information between peers and easily access information for
learning purposes.
8
Security
WEP(64/128bit)
WPA/WPA2 (TKIP/AES)
Hidden ESSID
MACaddressltering,upto50elds
L2 Isolation
802.1XAuthenticator(MD5/TLS/TTLS/PEAP)
Guest Network
QoS (Quality of Service)
WMM (Wireless Multimedia)
Physical/Environment Conditions
Operating:
 Temperature:32°Fto104°F(0°Cto40°C)
 Humidity(Non-condensing):90%orless
Storage:
 Temperature:-4°Fto140°F(-20°Cto60°C)
 Humidity(Non-condensing):90%orless
Standard:
IEEE802.11b/g/non2.4GHz
IEEE802.11ac/a/non5GHz
IEEE802.3at
Antenna
Six Internal 5 dBi Omni-Directional Antennas
Physical Interface
1 x 10/100/1000 Gigabit Ethernet Port
1 x Reset Button
1 x Power Connector
LED Indicator
Power
WPS
WLAN (Wireless Connection)
LAN
Power Requirements
External Power Adapter
DC IN, 12V/2A
Operation Modes
Access Point
WDS AP
WDS Bridge
Technical Specications
9
Physical Interface
Dimensions and Weights
Diameter:6.36”
Height:2.17”

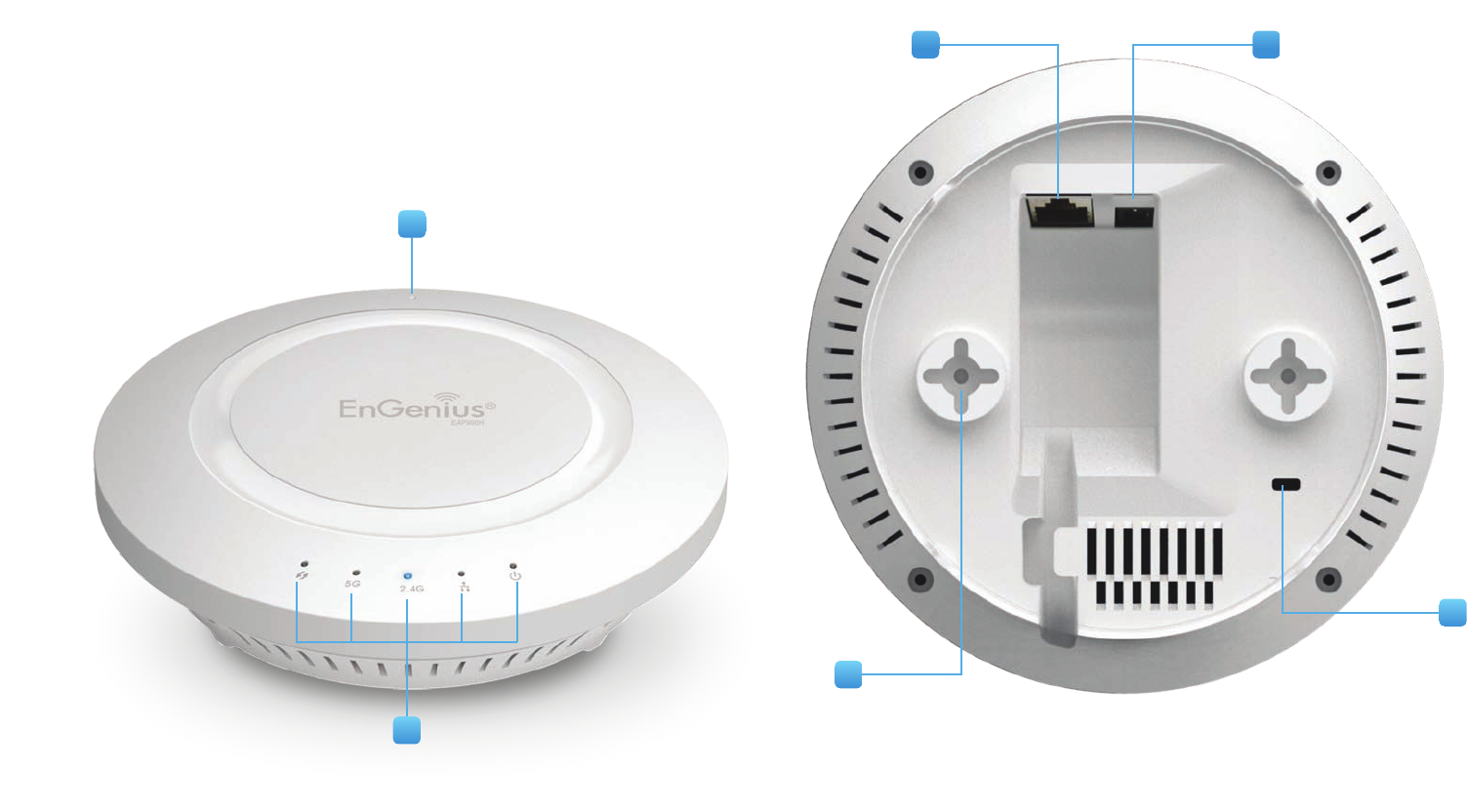

1 Reset Button: Press and hold for over 10 seconds to reset to
factory default settings.
2 LED Indicators: LED lights for WPS, WLAN 5G, WLAN 2.4G,
Ethernet port, and Power
3 LAN Port (802.3at PoE): Ethernet port for RJ-45 cable.
4 Power Connector: 12V DC IN for Power.
5 Ceiling (Wall) Mount Hole: Using the provided hardware, the
EAP1750H can be attached to a ceiling or wall.
6 Kensington Security Slot: To protect your EAP1750H, use the
Kensington Security Slot to attach a cable lock.
3 4
1
2
5
6
10
Chapter 2
Before You Begin
11
This section will guide you through the installation process.
Placement of the EnGenius EAP1750H is essential to
maximize the Access Point’s performance. Avoid placing
the EAP1750H in an enclosed space such as a closet,
cabinet, or stairwell.
Considerations for Wireless Installation
The operating distance of all wireless devices can often
not be pre-determined due to a number of unknown
obstacles in the environment in which the device is
deployed. Obstacles such as the number, thickness,
andlocationofwalls,ceilings,orotherobjectsthatthe
EAP1750H’s wireless signals must pass through can
weaken the signal. Here are some key guidelines for
allowing the EAP1750H to have an optimal wireless
range during setup.
• Keep the number of walls and/or ceilings between the EAP1750H
and other network devices to a minimum. Each wall and/or ceiling
can reduce the signal strength, resulting in a lower overall signal
strength.
• Building materials make a difference. A solid metal door and/or
aluminum stubs may have a signicant negative effect on the
signal strength of the EAP1750H. Locate your wireless devices
carefully so the signal can pass through drywall and/or open
doorways. Materials such as glass, steel, metal, concrete, water
(example:shtanks),mirrors,lecabinets,and/orbrickcanalso
diminish wireless signal strength.
• Interference from your other electrical devices and/or appliances
that generate RF noise can also diminish the EAP1750H’s signal
strength. The most common types of devices are microwaves or
cordless phones.
Before You Begin
12
Windows XP/Windows 7
InordertousetheEAP1750H,youmustrstcongurethe
TCP/IPv4 connection of your Windows OS computer system.

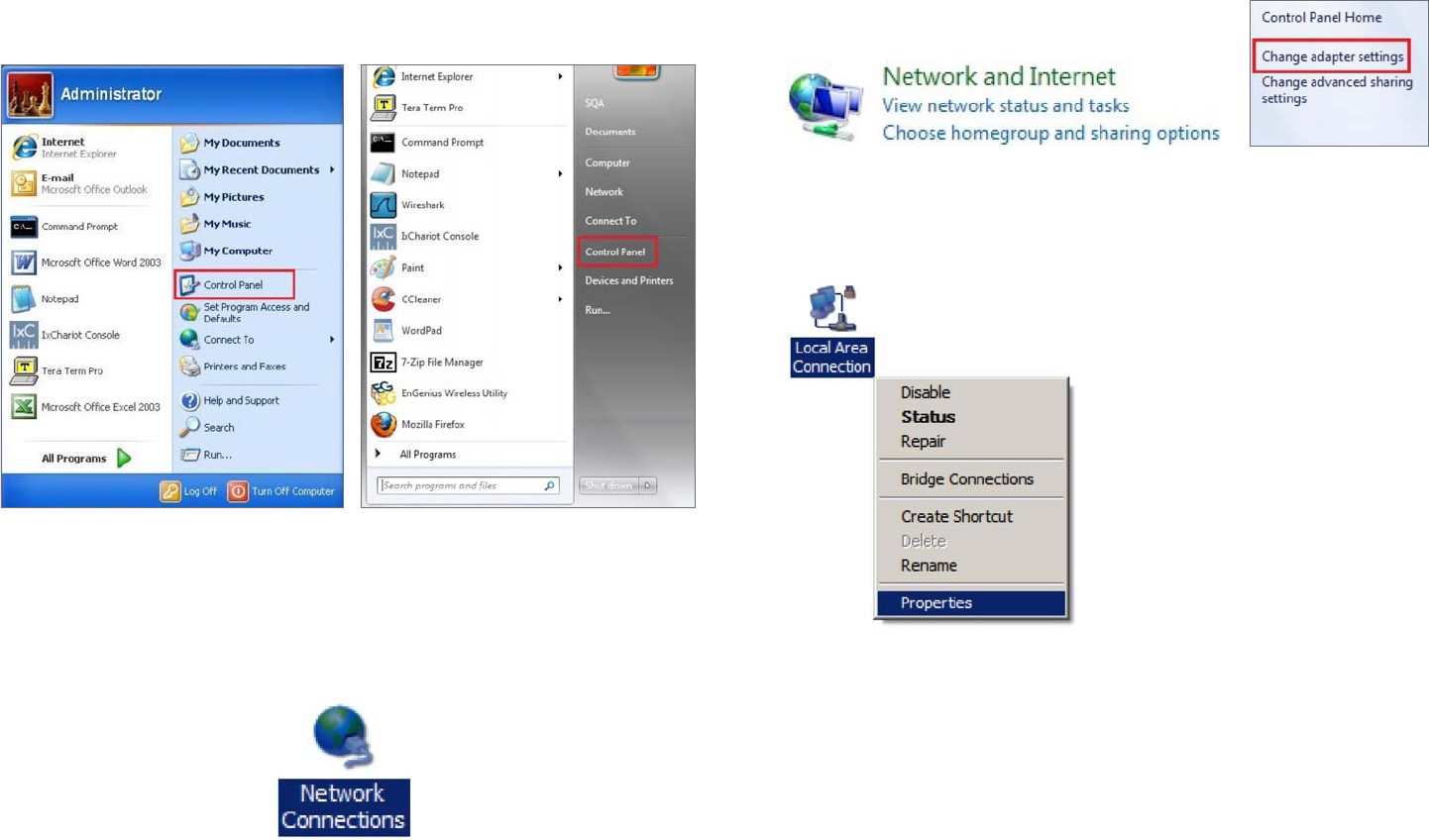

1. Click the Start button and open the Control Panel.
2a. In Windows XP, click on Network Connections.
2b. In Windows 7, click View Network Status and Tasks in
the Network and Internet section, then select Change
Adapter Settings.
3. Right click on Local Area Connection and select Properties.
Computer Settings
Windows XP Windows 7
13

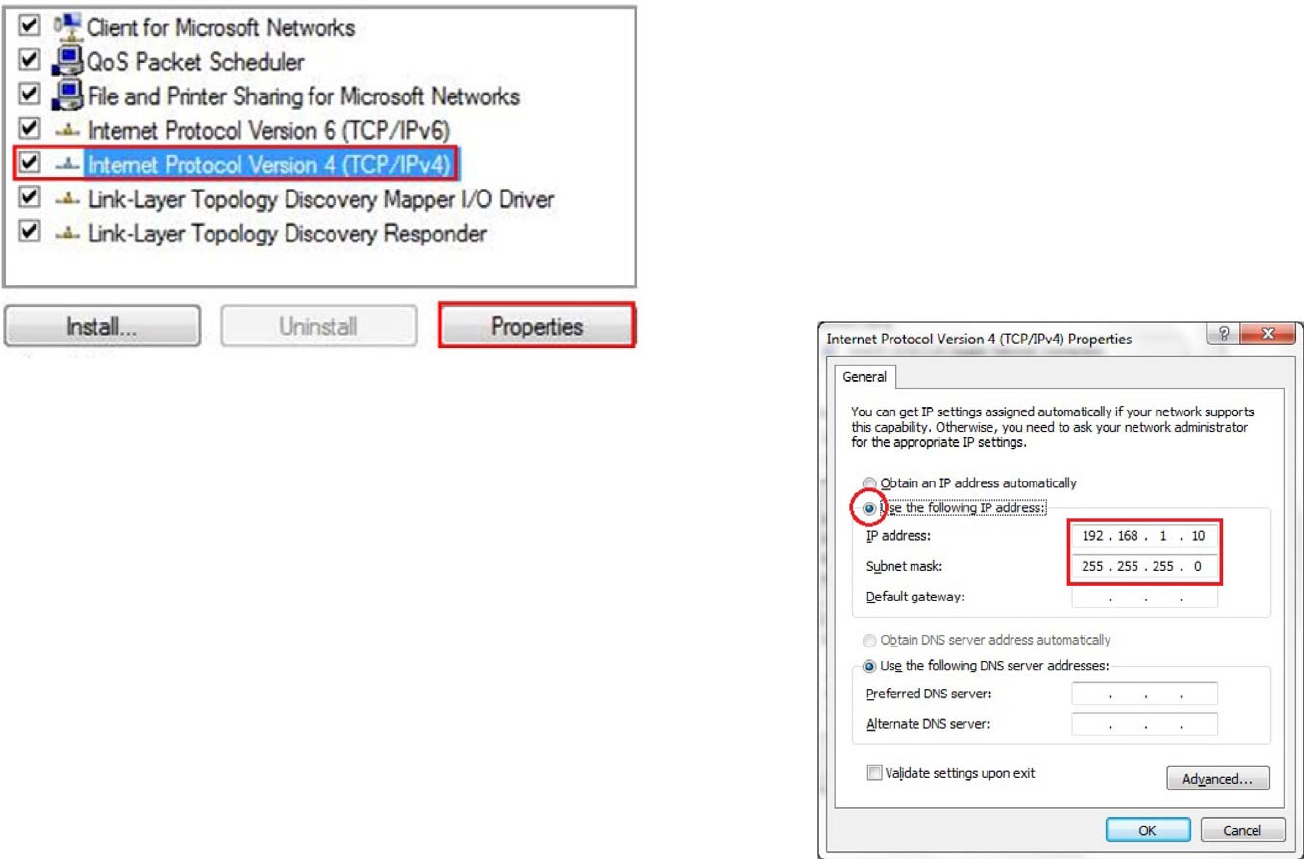

4. Select Internet Protocol Version 4 (TCP/IPv4) and then
select Properties.
5. Select Use the following IP address and enter an IP
address that is different from the EAP1750H and Subnet
mask, then click OK.
Note: Ensure that the IP address and Subnet mask are
on the same subnet as the device.
Forexample:EAP1750HIPaddress:192.168.1.1
 PCIPaddress:192.168.1.2–192.168.1.255
 PCSubnetmask:255.255.255.0
14
Apple Mac OS X

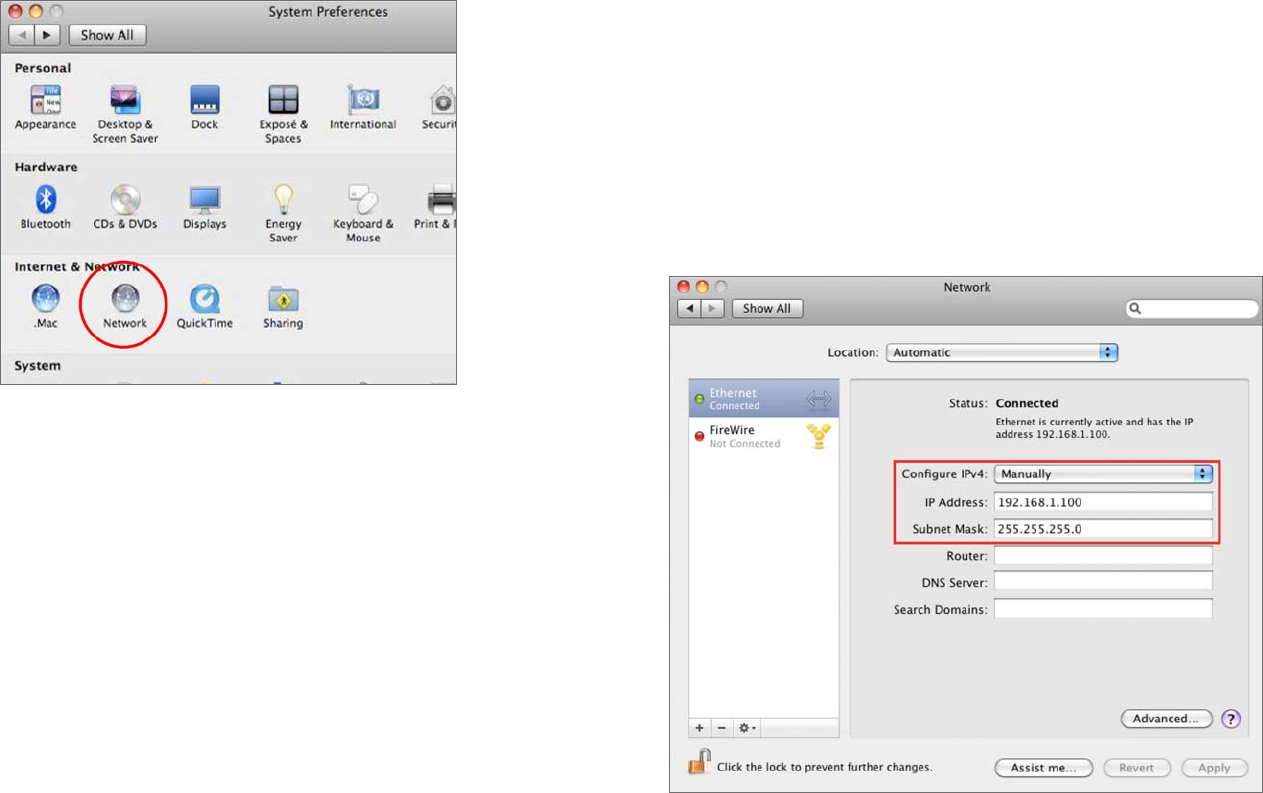

1. Go to System Preferences (it can be opened in the
Applications folder or by electing it in the Apple Menu).
2. Select Network in the Internet & Network section.
3. Highlight Ethernet.
4. In Congure IPv4, select Manually.
5. Enter an IP address that is different from the EAP1750H
and Subnet mask, then click OK.
Note: Ensure that the IP address and Subnet mask are
on the same subnet as the device.
Forexample:EAP1750HIPaddress:192.168.1.1
 PCIPaddress:192.168.1.2–192.168.1.255
 PCSubnetmask:255.255.255.0
6. Click Applywhennished.
15
1. Ensure that the computer in use has an Ethernet
Controller port (RJ-45 Ethernet Port). For more
information, verify with your computer’s user manual.
2. Connect one end of the Category 5e Ethernet cable into
the RJ-45 port of the EAP1750H and the other end to
the RJ-45 port of the computer. Ensure that the cable
is securely connected to both the EAP1750H and the
computer.
3. Connect the Power Adapter DC connector to the DC-IN
port of the EAP1750H and the Power Adapter to an
available electrical outlet. Once both connections are
secure,verifythefollowing:
a) Ensure that the POWER light is on (it will be orange).
b) Ensure that the 2.4 GHz/5 GHz WLAN light is on (it will
be blue for 2.4G, and green for 5G).
c) Ensure that the LAN (Computer/
EAP1750H Connection)
light is on (it will be blue).
d) Once all three lights are on, proceed to set up the
Access Point using the computer.

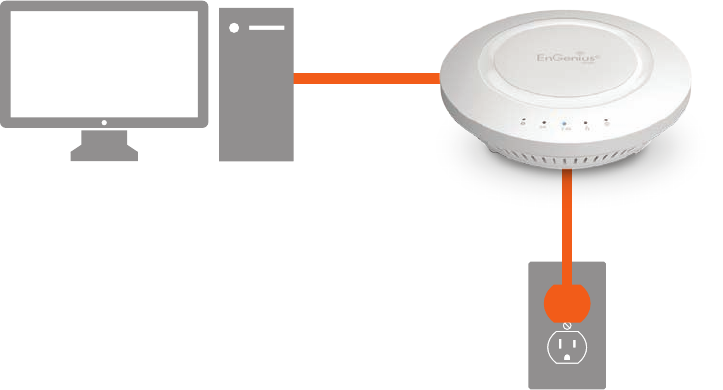

Thisdiagramdepictsthehardwareconguration.
Hardware Installation
Ethernet
PC
Power
Outlet
AC/DC
Cable
16
Using the provided hardware, the EAP1750H can be
attached to a ceiling or wall.

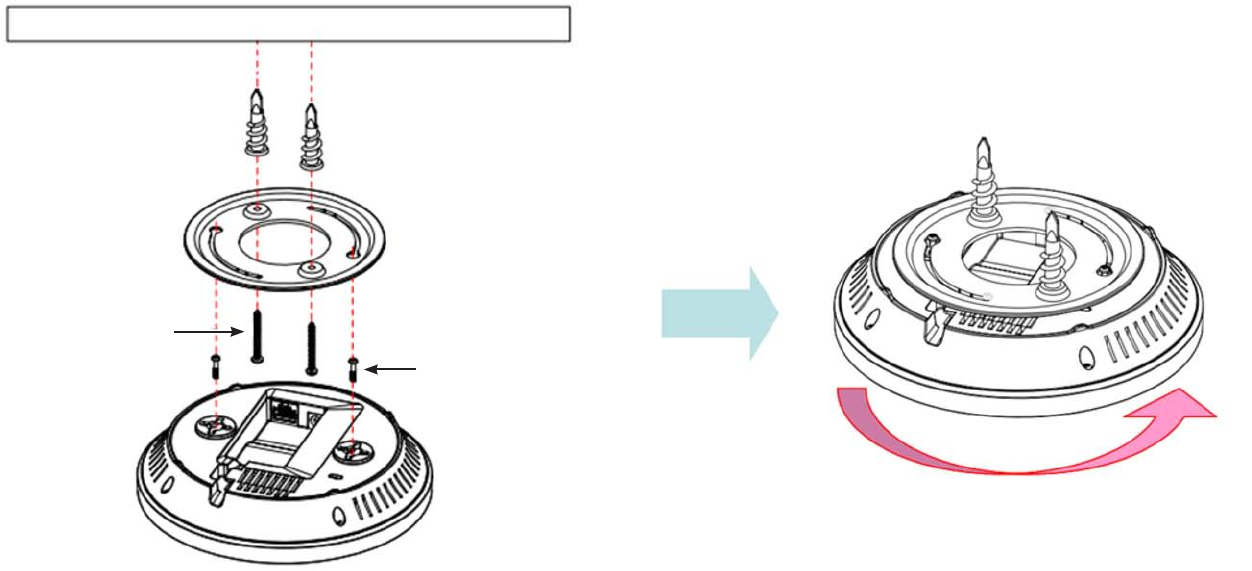

To attach the EAP1750H to a ceiling or wall
using the mounting bracket:
1. Attach the mounting bracket to the wall or ceiling using
the provided wall/ceiling mounting hardware kit.
2. Insert the provided short screws into the bottom cover
of the EAP1750H.
Leave enough of the screws exposed to ensure that the
unit can be attached to the mounting bracket.
If extra space is required, use the provided spacers and long
screws from the T-Rail mounting hardware kit to increase
the space between the unit and the mounting bracket.
3. Mount the EAP1750H on the mounting bracket by
rotating the unit clockwise about 90 degrees to secure it
in place.
Mounting the EAP1750H
Wall
Mounting Screw
Lock the EAP1750H by revolving
Mounting Bracket
P2.6*12 Screw
P3.5*32 Screw
17

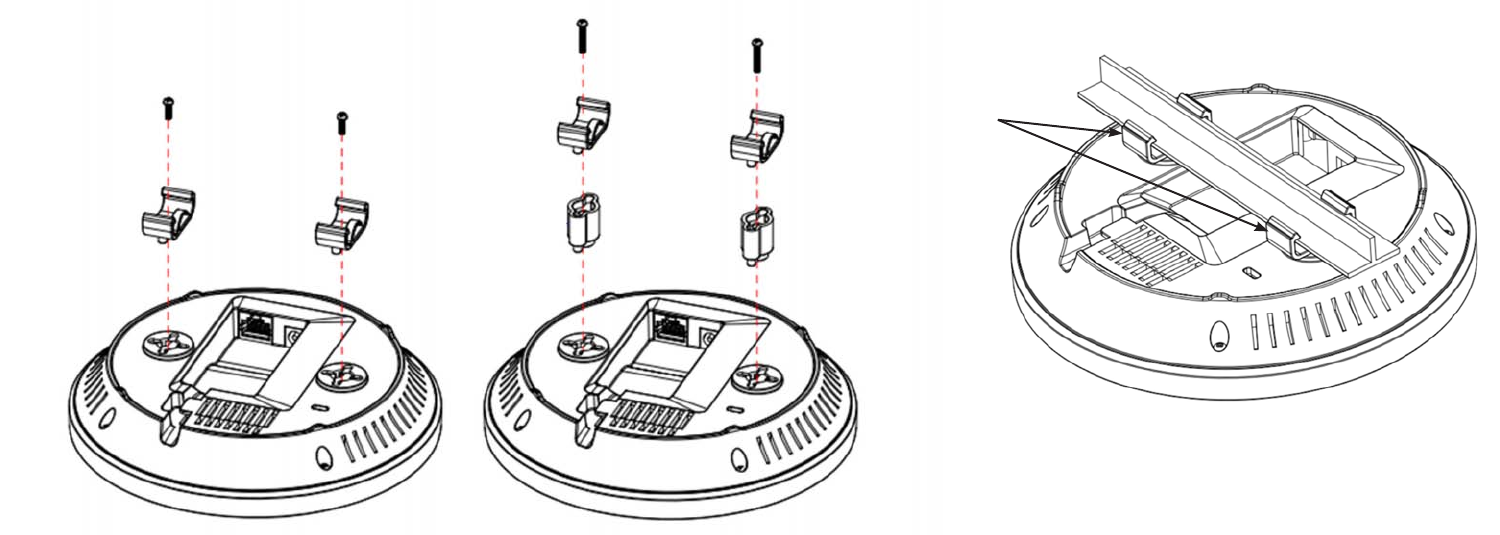

Attaching the EAP1750H to a ceiling using the
provided T-Rail connectors:
1. Attach the T-Rail connectors to the bottom cover of the
EAP1750H using the provided short screws.
Note: Two sizes of T-Rail connectors are included in the
mounting hardware kit: 15/16in (2.38cm) and 9/16in
(1.43cm). If extra space is required to accommodate drop
ceiling tiles, use the provided spacers and long screws.
2. Line up the connected T-Rail connectors with an
appropriately sized rail and press the unit onto the rail
until it snaps into place.
Note: To protect your EAP1750H, use the Kensington
Security Slot to attach a cable lock (cable lock is not
included).
P2.6*10 Screw
Clip
T-Rail
Clip Clips
Spacer
P2.6*25 Screw
18
Chapter 3
Conguring Your Access Point
19
This section will show you how to congure the device
usingtheweb-basedcongurationinterface.
Default Settings
Please use your Ethernet port or wireless network adapter to
connect the Access Point.
IP Address 192.168.1.1
Username/Password admin/admin
Web Conguration

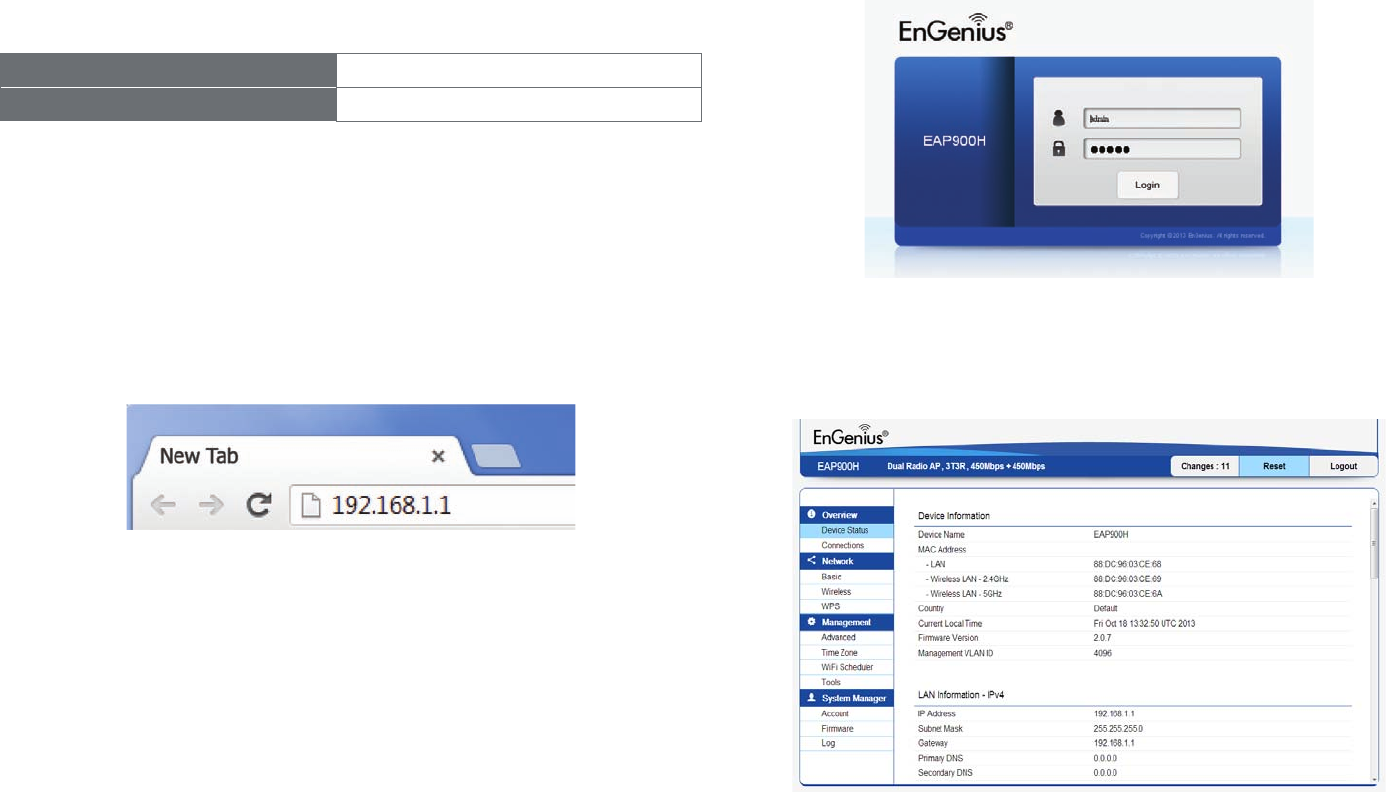

1. Open a web browser (Internet Explorer/Firefox/Safari)
and enter the IP Address http://192.168.1.1.
Note: If you have changed the default LAN IP Address of
the Access Point, ensure you enter the correct IP Address.
2. Thedefaultusernameandpasswordare:admin. Once
you have entered the correct username and password,
click the Login button to open the web-based
congurationpage.
3. If successful, you will be logged in and see the
EAP1750H User Menu.
Conguring Your Access Point
20
Chapter 4
Building a Wireless Network
21
The EAP1750H has the ability to operate in various modes. This chapter describes the operating modes of the EAP1750H.

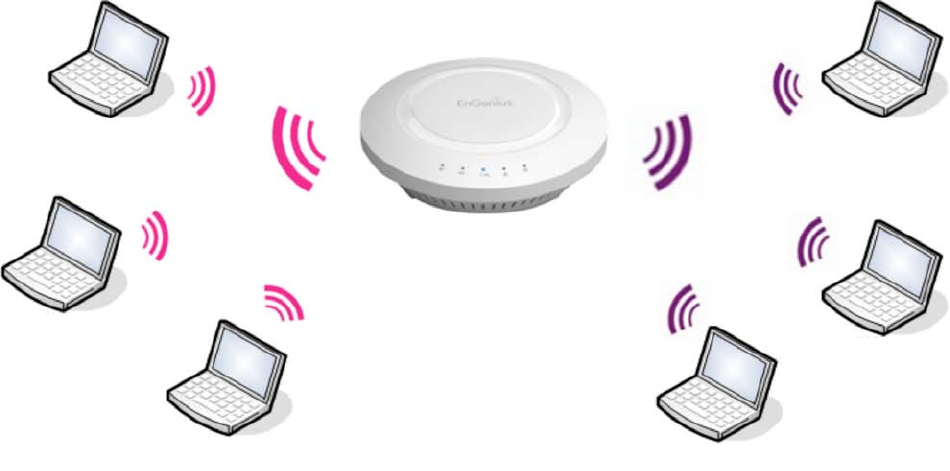

Access Point Mode
InAccessPointMode,theEAP1750HbehaveslikeacentralconnectionforstationsorclientsthatsupportIEEE802.11a/b/g/n
networks.ThestationsandclientsmustbeconguredtousethesameSSID(ServiceSetIdentier)andsecuritypasswordto
associatewiththeEAP1750H.TheEAP1750Hsupportsuptoeight(8)SSIDsperband(16total)atthesametimeforsecure
access.
EAP 900H
AP/AP
Client
Client
Client Client
Client
Client
2.4 GHz 5 GHz
22

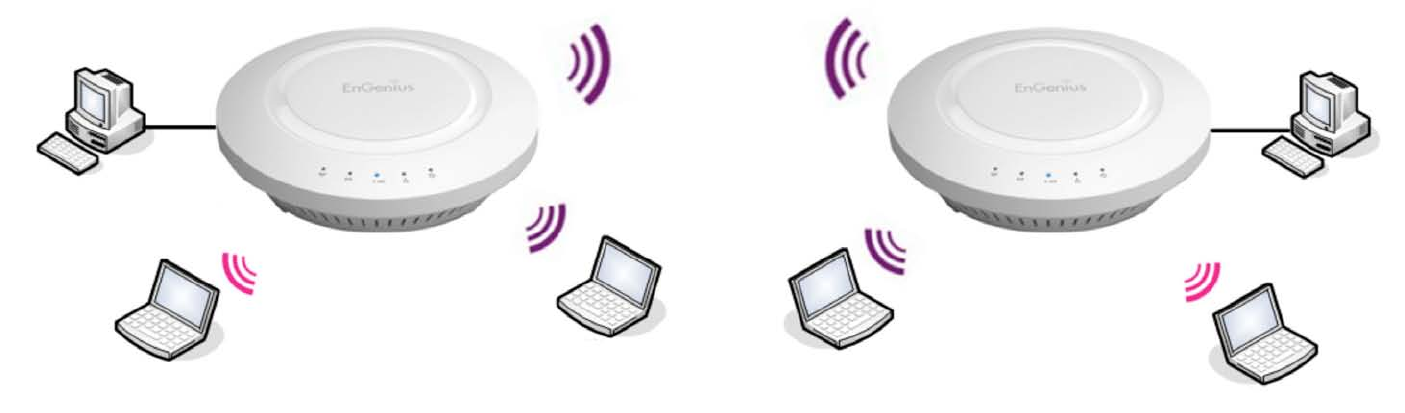

WDS AP Mode

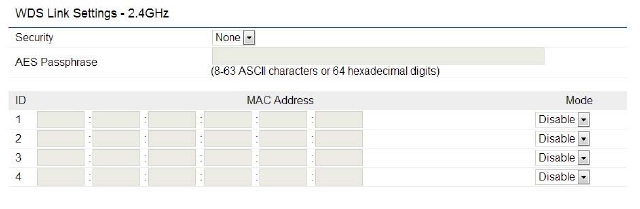

The EAP1750H also supports WDS AP mode. This operating mode allows wireless connections to the EAP1750H using
WDStechnology.Inthismode,conguretheMACaddressesinbothAccessPointstoenlargethewirelessareabyenabling
WDS Link settings. WDS supports up to four (4) AP MAC addresses.
EAP1750H
WDS AP
EAP1750H
WDS AP
2.4 GHz 2.4 GHz
5 GHz 5 GHz
Client
Client Client
Client
Client
Computer
Client
Computer
23

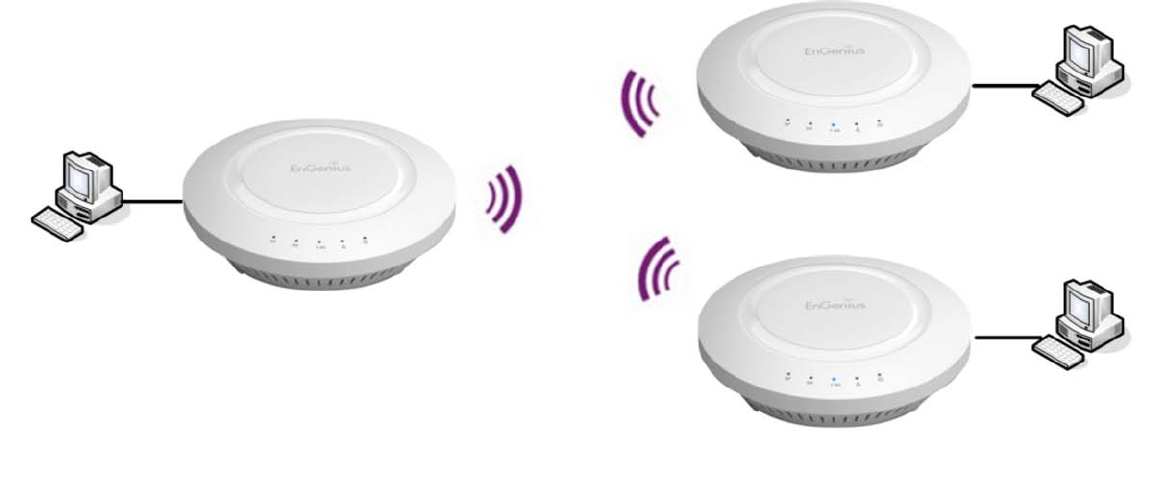

WDS Bridge Mode
InWDSBridgeMode,theEAP1750HcanwirelesslyconnectdifferentLANsbyconguringtheMACaddressandsecurity
settings of each EAP1750H device. Use this mode when two wired LANs located a small distance apart want to communicate
with each other. The best solution is to use the EAP1750H to wirelessly connect two wired LANs, as shown in the following
gure.
WDS Bridge Mode can establish up to four (4) WDS links, creating a star-like network.
Note: WDS Bridge Mode does not act as an Access Point because Access Points linked by WDS use the same frequency
channel.MoreAccessPointsconnectedtogethermaylowerthroughput.Thiscongurationcanalsobesusceptible
to generate endless network loops in your network, so it is recommended to enable the Spanning Tree function to
preventthisfromhappening.YoucanndinformationabouttheSpanningTreeFunctiononpage31.
EAP1750H
WDS Bridge
EAP1750H
WDS Bridge
EAP1750H
WDS Bridge
Client
Computer
Client
Computer
Client
Computer
24
Chapter 5
Overview
25
Overview
The Overviewsectioncontainsthefollowingoptions:
• Device Status
• Connections
Thefollowingsectionsdescribetheseoptions:
Device Status

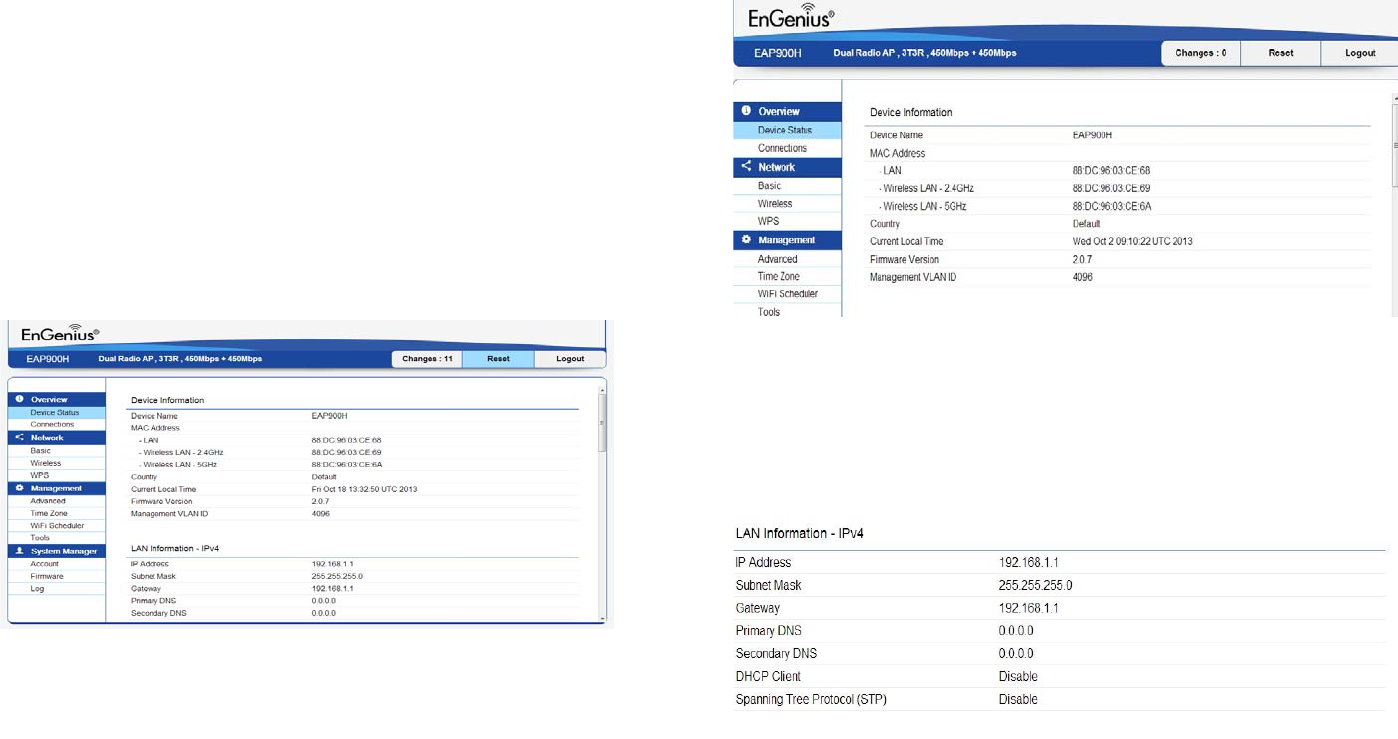

Clicking the Device Status link under the Overview menu
shows the status information about the current operating
mode.
• The Device Status section shows general system
information such as Device Name, MAC address, Current
Time, Firmware Version, and Management VLAN ID

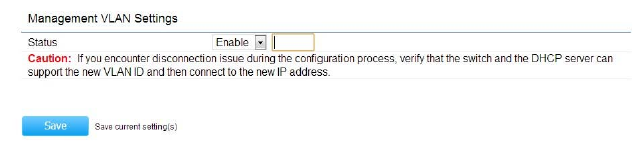

Note: VLAN ID is only applicable in Access Point or WDS
AP mode.
• The LAN Information section under the Connections
link shows the Local Area Network settings such as the
LAN IP Address, Subnet mask, Gateway, DNS Address,
DHCP Client, and STP status.
• The Current 2.4 GHz/5 GHz Wireless Settings section
under the Basic link shows wireless information such
as Operation Modes, Frequency, and Channel. Since the
EAP1750H supports multiple-SSIDs, information about
each SSID and security settings are displayed.
Note: ProleSettingsisonlyapplicableinAccessPoint
or WDS AP mode.
26

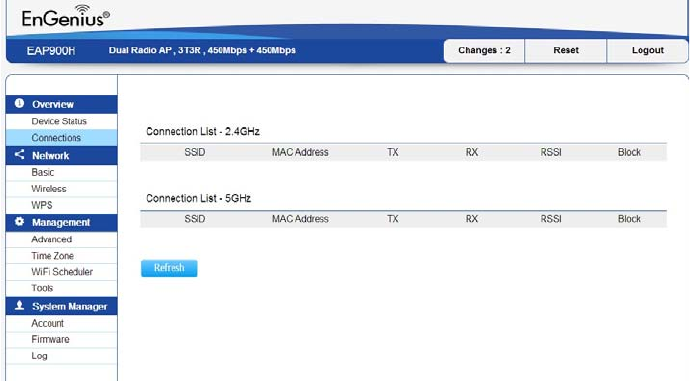

Connections
The EAP1750H automatically logs (records) events of
possible interest in its internal memory. To view the
logged information, click the Connections link under
the Device Status menu. If there is not enough internal
memory to log all events, older events are deleted from
the log. When powered down or rebooted, the log will be
cleared.
Click Refresh to refresh the Connections List page.
27
Chapter 6
Network
28
Operation Modes
TheEAP1750Hsupportsthreeoperationmodes:
Access Point, WDS AP, and WDS Bridge.
Device Settings

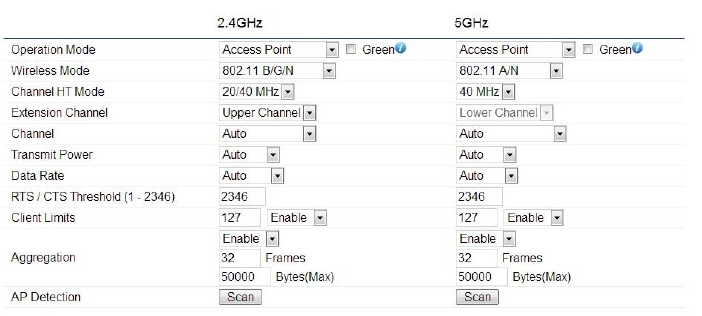

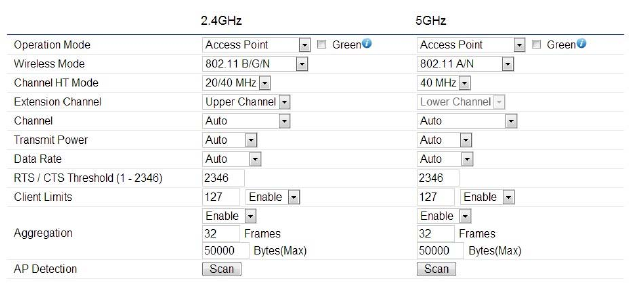

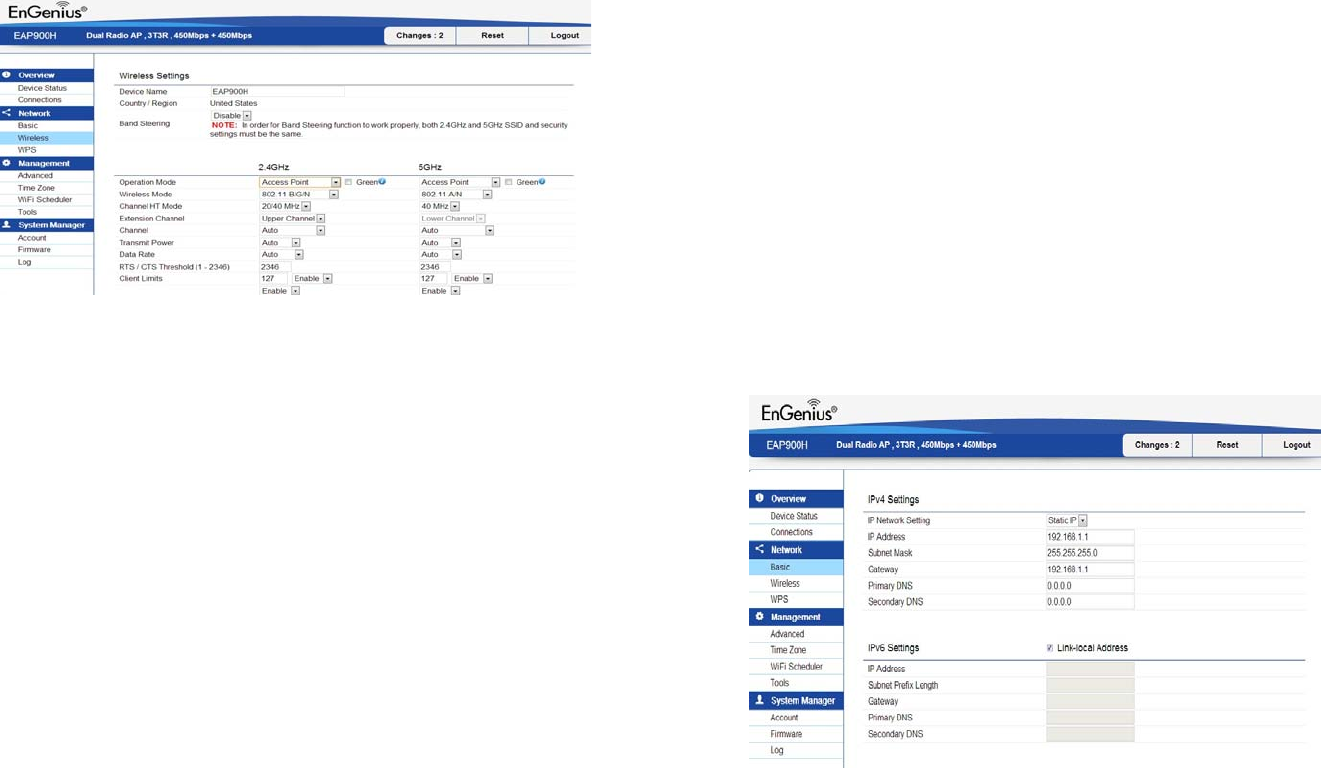

To access operation mode, click the Wireless section under
Network in the sidebar. You will see wireless settings
customizable options for both the 2.4 GHz and 5 GHz
modes.UnderWirelesssettings,youwillsee:
Device Name: Enter a name for the device. The name you
type will appear in SNMP management. This name is not
the SSID and is not broadcast to other devices.
Region: Select a Region to conform to local regulations.
Operation Mode: Unfold the dropped list to select an
operating mode.
Band Steering:EnableBandSteeringtosends802.11n
clients to the 5 GHz band, where 802.11b/g clients
cannotgo,andleavesthe802.11b/gclientsin2.4GHzto
operate at their slower rates. Band Steering works within
the Access Point by directing 5 GHz-capable clients to
that band.
 *Note:InorderfortheBandSteeringfunctiontowork
properly, both the 2.4 Ghz and the 5 GHz SSID and security
settings must be under the same selection settings.
Basic
This page allows you to modify the device’s IP settings.
29
IP Network Settings
Select whether the device IP address will use the static
IPaddressspeciedintheIPAddresseldorbeobtained
automatically when the device connects to a DHCP server.
IP Address: The IP Address of this device.
IP Subnet Mask: The IP Subnet mask of this device.
Gateway: The Default Gateway of this device. Leave it
blank if you are unsure of this setting.
Primary/Secondary DNS: The primary/secondary DNS
address for this device.
Click Save toconrmthechanges.

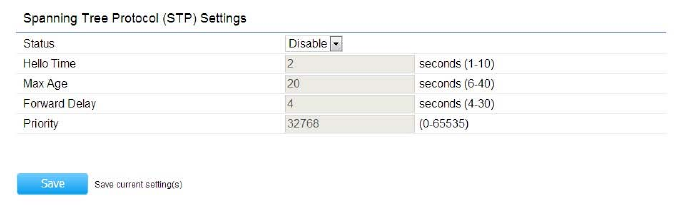

Spanning Tree Settings
This page allows you to modify the Spanning Tree settings.
Enabling Spanning Tree protocol will prevent network loops
in your LAN network.
Spanning Tree Status:EnablesordisablestheSpanning
Tree function.
Hello Time: Specify Bridge Hello Time, in seconds. This
value determines how often the device sends handshake
packets to communicate information about the topology
throughout the entire Bridged Local Area Network.
Max Age: Specify Bridge Max Age, in seconds. If another
bridge in the spanning tree does not send a hello packet for
a long period of time, it is assumed to be inactive.
30
Forward Delay: Specifes Bridge Forward Delay, in seconds.
Forwarding Delay Time is the time spent in each of the
Listening and Learning states before the Forwarding state
is entered. This delay is provided so that when a new bridge
comesontoabusynetwork,itanalyzesdatatrafcbefore
participating.
Priority: Specify the Priority Number. A smaller number has
greater priority.
Save: Click Savetoconrmthechanges.
31
Chapter 7
2.4GHz & 5GHz Wireless
32
This page displays the current status of the Wireless
settings of the EAP1750H.
Access Point/WDS AP mode:
Wireless Mode: Supports 802.11b/g/n mixed mode in
2.4GHzand802.11ac/a/nmixedmodein5GHz.
Channel HT Mode: The default channel bandwidth is 20/
40MHzin2.4GHz and 20/40/80MHz in 5GHz. The larger
the channel, the better the transmission quality and speed.
Extension Channel: Select Upper or Lower channel. Your
selection may affect the Auto Channel function.
Channel/Frequency: Select the channel and frequency
appropriate for your country’s regulation.
Auto: Check the option to enable the Auto-Channel feature.
RTS/CTS Threshold:Speciesthethresholdpackagesize
for RTC/CTS. A small number causes RTS/CTS packets to be
sent more often and consumes more bandwidth.
Client Limits: Limits the total number of clients.
Aggregation: Merges data packets into one packet. This
option reduces the number of packets, but also increases
packet sizes.
AP Detection: AP Detection can select the optimal channel
to use by scanning nearby areas for Access Points.
Current Prole: You can congure up to eight different
SSIDs (4 in WDS AP mode). If multiple client devices will be
accessing the network, you can arrange the devices into
SSID groups. Click Edittoconguretheproleandcheck
whether you wish to enable extra SSIDs.
Save: Click Savetoconrmthechanges.
2.4GHz/5 GHz SSID Prole
Wireless Network
33

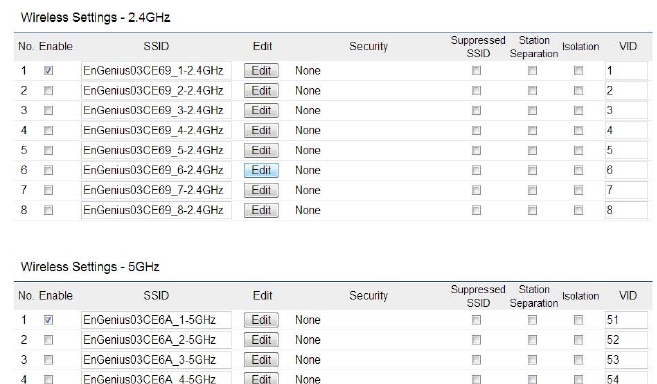

Under Wireless Settings,youcanedittheSSIDproleto
tyourneeds.ClickEdit under the SSID you would like to
make changes to.
SSID:SpeciestheSSIDforthecurrentprole.
Suppressed SSID: Check this option to hide the SSID from
clients. If checked, the SSID will not appear in the site survey.
Station Separation: Click the appropriate button to allow
or prevent communication between client devices.
Wireless Security: See the Wireless Security section on
page 36.
Isolation:ChecktheboxtoEnable or Disable the Isolation
feature.
Save: Click Save to accept the changes.
34
The Wireless Security section lets you congure the
securitymodesforEAP1750H:
WEP
WPA-PSK
WPA2-PSK
WPA-PSK Mixed
WPA-Enterprise
WPA2-Enterprise
WPA Mixed Enterprise.
It is strongly recommended that you use WPA2-PSK. Click
on the Edit button under Wireless Settings next to the SSID
to change the security settings.

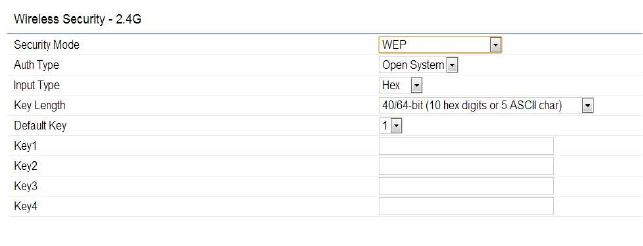

WEP Encryption:
Auth Type: Select Open System or Shared Key.
Input Type:ASCII:RegularText(Recommended)
HEX: Hexadecimal Numbers (For advanced users)
Key Length: Select the desired option and ensure the
wirelessclientsusethesamesetting.Yourchoicesare:64,
128,and152-bitpasswordlengths.
Default Key: Select the key you wish to be default.
Transmitted data is ALWAYS encrypted using the Default
Key; the other Keys are for decryption only. You must enter
a Key Value for the Default Key.
Wireless Security
35
Encryption Key: Enter the Key Value or values you wish to
use. The default is none.

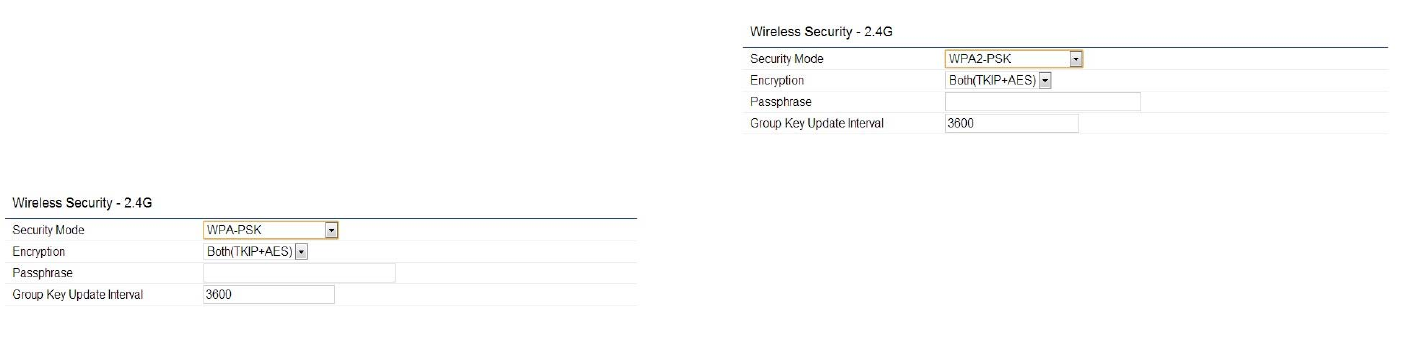

WPA-PSK (WPA Pre-Shared Key) Encryption:
Encryption:SelecttheWPAencryptiontypeyouwouldlike
to use. Please ensure that your wireless clients use the
same settings.
Passphrase: Wireless clients must use the same Key to
associate the device. If using ASCII format, the Key must
befrom8to63charactersinlength.IfusingHEXformat,
the Key must be 64 HEX characters in length.
Group Key Update Interval: Specify how often, in seconds,
the Group Key changes.
WPA2-PSK Encryption:
Encryption:SelecttheWPAencryptiontypeyouwould
like to use. Please ensure that your wireless clients use
the same settings.
Passphrase: Wireless clients must use the same Key to
associate the device. If using ASCII format, the Key must
befrom8to63charactersinlength.IfusingHEXformat,
the Key must be 64 HEX characters in length.
Group Key Update Interval: Specify how often, in
seconds, the Group Key changes.
36

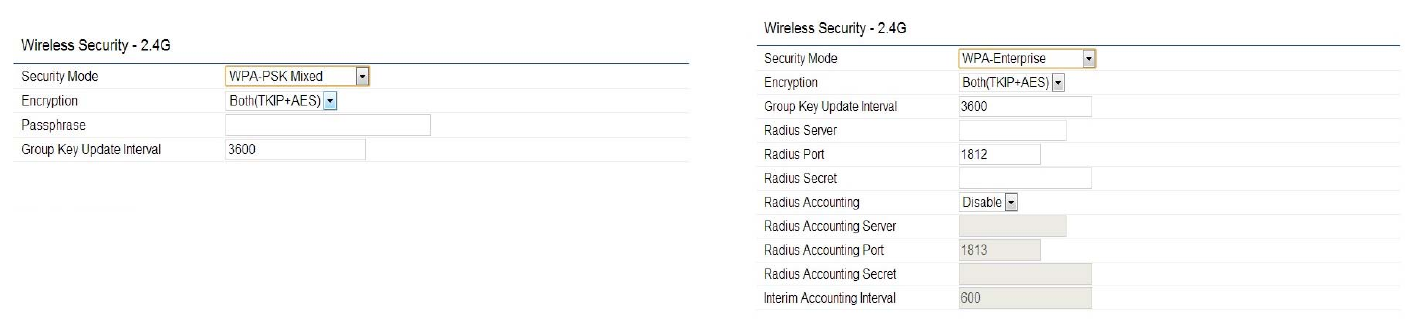

WPA-PSK Mixed Encryption:
Encryption:SelecttheWPAencryptiontypeyouwouldlike
to use. Please ensure that your wireless clients use the
same settings.
Passphrase: Wireless clients must use the same Key to
associate the device. If using ASCII format, the Key must
befrom8to63charactersinlength.IfusingHEXformat,
the Key must be 64 HEX characters in length.
Group Key Update Interval: Specify how often, in seconds,
the group key changes.
WPA-Enterprise Encryption:
Encryption: Select the WPA encryption type you would like.
Please ensure that your wireless clients use the same settings.
Group Key Update Interval: Specify how often, in seconds,
the group key changes.
Radius Server: Enter the IP address of the Radius server.
Radius Port: Enter the port number used for connections
to the Radius server.
Radius Secret: Enter the secret required to connect to the
Radius server.
Radius Accounting: Enables or disables the accounting
feature.
37
Radius Accounting Server: Enter the IP address of the
Radius accounting server.
Radius Accounting Port: Enter the port number used for
connections to the Radius accounting server.
Radius Accounting Secret: Enter the secret required to
connect to the Radius accounting server.
Interim Accounting Interval: Specify how often, in
seconds, the accounting data sends.
Note: 802.11n does not allow WEP/WPA-PSK TKIP/
WPA2-PSK TKIP security mode. The connection mode will
automaticallychangefrom802.11nto802.11g.

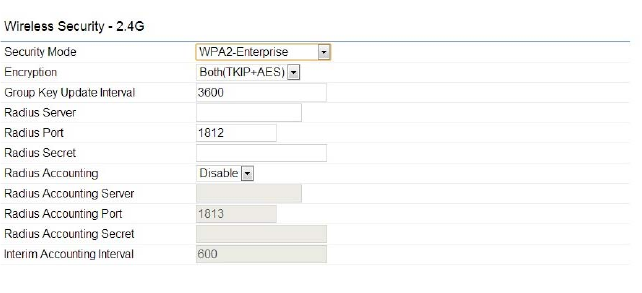

WPA2Enterprise Encryption:
Encryption: Select the WPA encryption type you would like.
Please ensure that your wireless clients use the same settings.
Group Key Update Interval: Specify how often, in seconds,
the group key changes.
Radius Server: Enter the IP address of the Radius server.
Radius Port: Enter the port number used for connections
to the Radius server.
Radius Secret: Enter the secret required to connect to the
Radius server.
Radius Accounting: Enables or disables the Radius
accounting feature.
38
Radius Accounting Server: Enter the IP address of
the Radius accounting server.
Radius Accounting Port: Enter the port number used
for connections to the Radius accounting server.
Radius Accounting Secret: Enter the secret required
to connect to the Radius accounting server.
Interim Accounting Interval: Specify how often, in
seconds, the accounting data sends.
Note: 802.11n does not allow WEP/WPA-PSK TKIP/
WPA2-PSK TKIP security mode. The connection mode
willautomaticallychangefrom802.11nto802.11g.

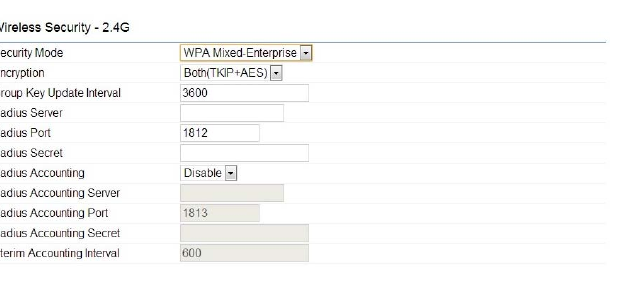

WPA Mixed Enterprise Encryption:
Encryption: Select the WPA encryption type you would
like. Please ensure that your wireless clients use the
same settings.
Group Key Update Interval: Specify how often, in
seconds, the group key changes.
Radius Server: Enter the IP address of the Radius
server.
Radius Port: Enter the port number used for
connections to the Radius server.
Radius Secret: Enter the secret required to connect
to the Radius server.
Radius Accounting: Enables or disables the Radius
accounting feature.
39
Radius Accounting Server: Enter the IP address of
the Radius accounting server.
Radius Accounting Port: Enter the port number used
for connections to the Radius accounting server.
Radius Accounting Secret: Enter the secret required
to connect to the Radius accounting server.
Interim Accounting Interval: Specify how often, in
seconds, the accounting data sends.
Note: 802.11ndoesnotallowWEP/WPA-PSKTKIP/
WPA2-PSK TKIP security mode. The connection
mode will automatically change from 802.11n to
802.11g.
40

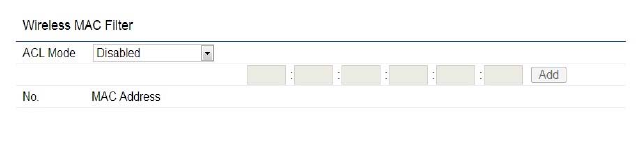

Wireless MAC Filtering is used to allow or deny network
access to wireless clients (computers, tablet PCs, NAS,
smartphones, etc.) according to their MAC addresses. You
can manually add a MAC address to restrict permission to
accessEAP1750H.Thedefaultsettingis:Disable Wireless
MAC Filter.
Note: Only applicable in Access Point and WDS AP mode.
ACL (Access Control List) Mode: Determines whether
network access is granted or denied to clients whose MAC
addresses appear in the MAC address table on this page.
Choicesgivenare:Disabled,DenyMACinthelist,orAllow
MAC in the list.
MAC Address: Enter the MAC address of the wireless client.
Add: Click Add to add the MAC address to the MAC Address
table.
Delete: Deletes the selected entries.
Save: Click Save to apply the changes.
Wireless MAC Filtering
41
This page allows you to congure wireless advanced
settings. It is recommended that the default settings are
used unless the user has experience with more advanced
networking features.
2.4 GHz/5 GHz Wireless Advanced
Data Rate: Select a data rate from the drop-down list. The
data rate affects throughput of data in the EAP1750H.
The lower the data rate, the lower the throughput, though
transmission distance will be lowered as well.
Transmit Power: Set the power output of the wireless
signal.
RTS/CTS Threshold: Specify the threshold package size
for RTC/CTS. A smaller number causes RTS/CTS packets to
be sent more often and in turn consumes more bandwidth.
Distance: Specify the distance between Access Points and
clients. Longer distances may drop high-speed connections.
Aggregation: Merges data packets into one packet. This
option reduces the number of packets, but increases packet
sizes.
Save: Click Savetoconrmthechanges.
Wireless Advanced
42

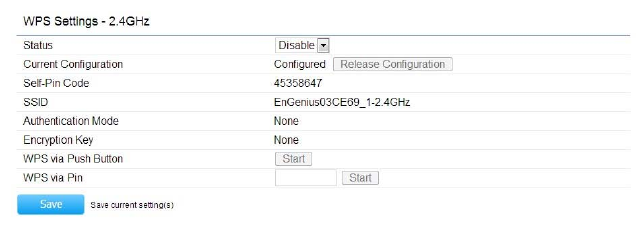

The Wi-Fi Protected Setup (WPS) feature complies with the
Wi-Fi Alliance WPS standard and makes it easier to quickly
add client devices to an established, security-enabled Wi-Fi
network.
WPSreducestheuserstepsrequiredtocongureanetwork
and supports two methods that are familiar to most
consumerstocongureanetworkandenablesecurity.
Note: Only applicable in Access Point and WDS AP
mode.
WPS (Wi-Fi Protected Setup)
WPS: Select to Enable or Disable the WPS feature.
WPS Current Status: Shows whether the WPS function is
Congured or Uncongured. When it is congured, the
WPS has been used to authorize a connection between the
device and wireless clients.
Self Pin Code: The PIN code of this device.
SSID: The SSID (wireless network name) used when
connecting using WPS.
Authentication Mode: Shows the encryption method used
by the WPS process.
Passphrase Key: This is the passphrase key that is randomly
generated during the WPS process. It is required if wireless
clients that do not support WPS attempt to connect to the
wireless network.
WPS via Push Button: Click this button to initialize the
WPS feature using the Push Button method.
WPS via PIN: Enter the PIN code of the wireless device
and click this button to initialize WPS feature using the PIN
method.
Save:ClickSavetoconrmthechanges.
WPS (Wi-Fi Protected Setup)
43
Using WDS (Wireless Distribution System) will allow
a network administrator or installer to connect to
Access Points wirelessly. Doing so will extend the wired
infrastructure to locations where cabling is not possible or
inefcienttoimplement.
Note: Compatibility between different brands and
models of Access Points is not guaranteed. It is
recommended that the WDS network be created using
the same models for maximum compatibility.
Also Note: All Access Points in the WDS network must
use the same Channel and Security settings.
To create a WDS network, please enter the MAC addresses
of the Access Points that you want included in the WDS.
There can be a maximum of four Access Points.
Note: Only applicable in WDS AP and WDS Bridge modes.
2.4 GHz/5 GHz WDS Link Settings
Security: Select None or AES from the drop-down list.
AES Passphrase: Enter the Key Values you wish to use.
Other AP(s) must use the same key to establish WDS link.
MAC Address: Enter the Access Point’s MAC address to
which you want to extend the wireless area.
Mode:SelectDisable or Enable from the drop-down list.
Save: Click Savetoconrmthechanges.
WDS Link Settings
44
Chapter8
Management
45
This page allows you to change the EAP1750H username
and password. By default, the username is admin and the
password is admin. The password can contain from 0 to 12
alphanumeric characters and is case sensitive.

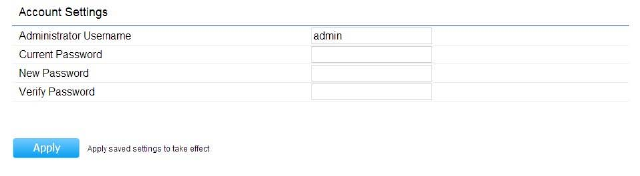

 Username:admin
 Password:admin
Account Setting
New Name: Enter a new username for logging in to the
New Name entry box.
Current Password: Enter the current password for logging
in to the Current Password entry box.
New Password: Enter the new password for logging in to
the New Password entry box.
Conrm Password: Re-enter the new password in the
ConrmPasswordentryboxforconrmation.
Apply: Click Apply to save the changes.
Note: it is highly reccomended that you change you
password to something more unique regukarly for greater
security.
Administration
46
Management VLAN Settings
This page allows you to assign a VLAN tag to the packets. A
VLAN is a group of computers on a network whose software
hasbeenconguredsothattheybehaveasiftheywereon
a separate Local Area Network (LAN). Computers on VLAN
do not have to be physically located next to one another
on the LAN.
TocongureVLANtags,youmustrstIsolateandenter
a VID before enabling VLAN under Management VLAN ID.
Note: Only applicable in Access Point and WDS AP mode.
Prole Isolation:Restrictclientsfromcommunicatingwith
different VIDs by checking the Isolation box for the SSID
you wish to select under the Wireless Settings funtion.
VLAN ID (VID): SpeciestheVLANtagforeachprole.
Management VLAN ID: If your network includes VLANs,
you can specify a VLAN ID for packets pass through the
Access Point with a tag. Otherwise, select no VLAN tag.
Save: Click Savetoconrmthechanges.
Note:
1.IfyoureconguretheManagementVLANID,youmay
lose your connection to the EAP1750H. Verify that the
DHCPserversupports thereconguredVLANID,then
reconnect to the EAP1750H using the new IP address.

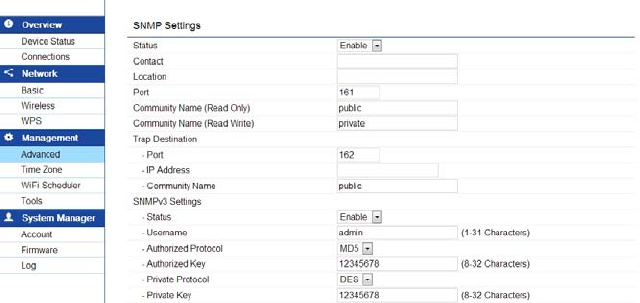

SNMP Settings
This page allows you to assign the Contact Details, Location,
Community Name, and Trap Settings for Simple Network
Management Protocol (SNMP). This is a networking
47

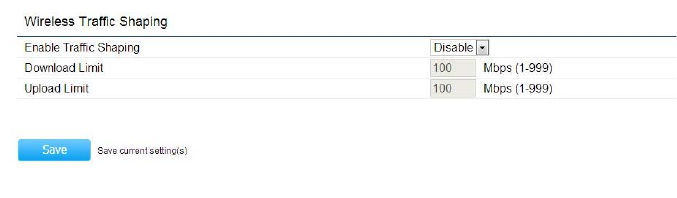

Wireless Trafc Shaping
Trafc Shaping regulates the ow of packets leaving an
interface to deliver improved Quality of Service. To edit
WirelessTrafcShaping,clickEdit for the SSID you would
liketocongureunderWirelessSettings.
Enable Trafc Shaping:selectthisoptionfromthedrop-
downboxtoenableWirelessTrafcShaping.
Download Limit: Speciesthewirelesstransmissionspeed
used for downloading.
Upload Limit: Species the wireless transmission speed
used for uploading.
Save: Click Savetoconrmthechanges.
48
management protocol used to monitor network attached
devices. SNMP allows messages (called protocol data units) to
be sent to various parts of the network. Upon receiving these
messages, SNMP compatible devices (called agents) returns
the data stored in their Management Information Bases. To
congureSNMPSettings,clickundertheAdvanced tab on
the side bar under Management.
Status:EnablesorDisablestheSNMPfeature.
Contact: Speciesthecontactdetailsofthedevice.
Location: Speciesthelocationofthedevice.
Port:Displaystheportnumber.
Community Name (Read Only): Species the password
for the SNMP community for read only access.
Community Name (Read/Write):Species the password
for the SNMP community with read/write access.
Trap Destination Address: Species the port and IP
address of the computer that will receive the SNMP traps.
Trap Destination Community Name: Species the
password for the SNMP trap community.
SNMPv3 Status: Enables or Disables the SNMPv3 feature.
User Name: Species the username for the SNMPv3.
feature
Auth Protocol: Select the Authentication Protocol type:
MDS or SHA.
Auth Key: Specify the Authentication Key for authentication.
Backup/Restore
This page allows you to save the current device
configurations. When you save the configurations,
you can also reload the saved configurations into the
device through the Restore Saved Settings from a file
49
Priv Protocol:SelectthePrivacyProtocoltype:DES.
Priv Key: Speciestheprivacykeyforprivacy.
Engine ID: SpeciestheEngineIDforSNMPv3.
Save: Click Save to apply the changes.
50
folder. If extreme problems occur, or if you have set the
EAP1750H incorrectly, you can use the Factory Default
button in the Revert to Factory Default Settings section
to restore all the configurations of the EAP1750H to
the original default settings. To Configure the Backup/
Restore Settings, click Firmware under the Systems
Manager tab.

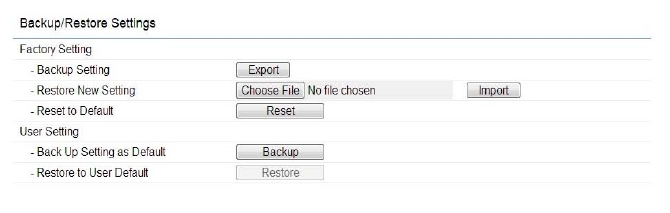

Factory Settings
Backup Settings: To restore settings that have been
previously backed up, click Export, select the file, and
click Restore.
Restore New Setting:Choosethefileyouwishrestore
for settings and click Import.
Reset to Default: Click the Reset button to restore the
EAP1750H to its factory default settings.
User Settings
Back Up Setting as Default: Click Backup to backup the
user settings you would like to the device’s memory for the
default settings.
Restore to User Default: Click Restore to restore user
settings to the factory standard settings.

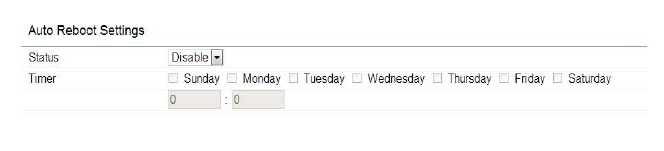

Auto Reboot Settings
You can specify how often you would like to reboot
the EAP1750H. To configure the Auto Reboot settings,
51
click the Wi-Fi Scheduler tab on the side bar under
Management.
Auto Reboot Setting: Enables or disables the Auto
Reboot function.
Frequency of Auto Reboot: Specifies the time and
frequency in rebooting the EAP1750H by Min, Hour,
Day and/or Week.
Click Save to apply the changes.
Firmware Upgrade
This page allows you to upgrade the Firmware of the
EAP1750H.
52

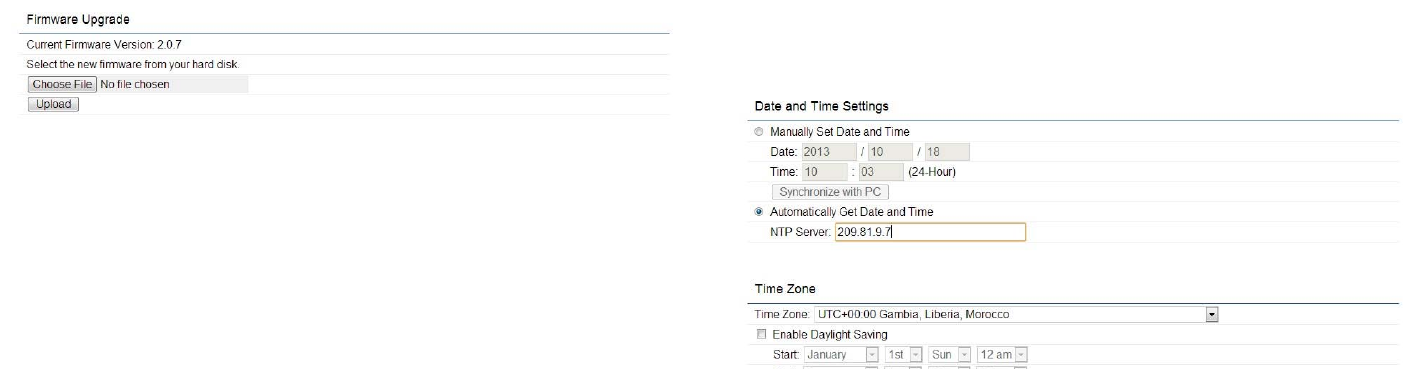

To Perform the Firmware Upgrade:
1. Click the Choose File button and navigate the OS File
SystemtothelocationoftheFirmwareupgradele.
2. Selecttheupgradele.Thenameofthelewillappear
intheUpgradeFileeld.
3. Click the Upload button to commence the Firmware
upgrade.
Note: The device is unavailable during the upgrade
process and must restart when the upgrade is completed.
Any connections to or through the device will be lost.
Date and Time Settings
This page allows you to set the internal clock of the
EAP1750H. To access the Date and Time settings, click
Time Zone under the Management tab on the side bar.
Manually Set Date and Time: Manually specify the
date and time.
Synchronize with PC: Click to Synchronize the
EAP1750H with the computer’s internal clock.
Automatically Get Date and Time: Enter the IP address
of an NTP server or use the default NTP server to have
the internal clock set automatically.
Time Zone: Choose the time zone you would like to use
from the drop-down list.
Enable Daylight Savings:Checktheboxtoenableor
disable daylight savings time for ther EAP1750H. Next,
enter the dates that correspond to the present year’s
daylight savings time.
53
Click Apply to save the changes.
would like to remote to.
Log Server IP Address: Enter the IP address of the log
server.
Apply: Click Apply to save the changes.
54

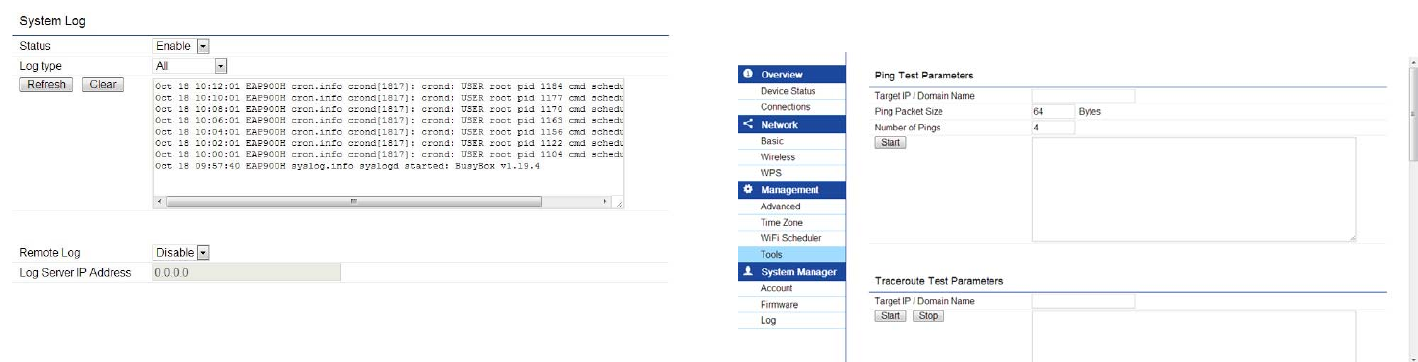

System Log
This page allows you to setup the System Log and local
log functions of the EAP1750H. Click Log under the
Systems Manager tab to open up the System Log page.
Status: Enables or disables the System Log function.
Log Type: Select the Log Type mode you would like to
use.
Remote Log: Enables or disables the Remote Log
feature. If enabled, enter the IP address of the Log you
Tools
This page allows you to analyze the connection quality
of the EAP1750H and trace the routing table to a target
in the network.
55

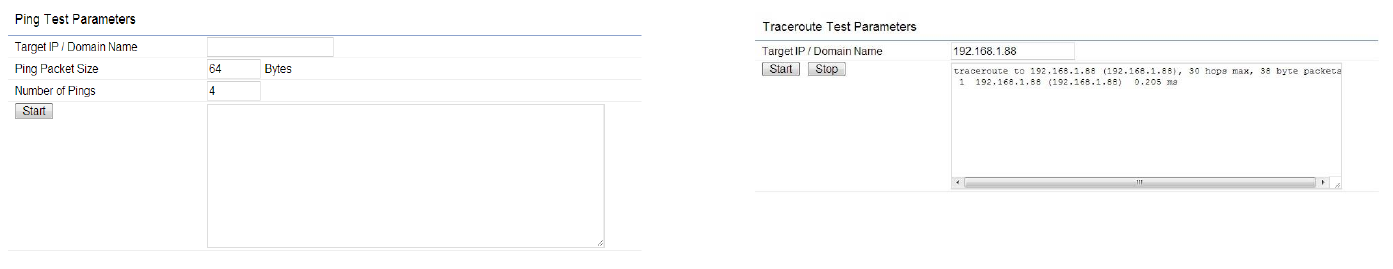

Ping Test Parameters
Target IP/Domain Name: Enter the IP address you
would like to search.
Ping Packet Size: Enter the packet size of each ping.
Number of Pings: Enter the number of times you wish
to ping.
Start Ping: Click Start Ping to begin pinging target
device (via IP).
Traceroute Parameters
Target IP/Domain Name: Enter an IP address or domain
name you wish to trace.
Start: Click Start to begin the trace route operation.
Stop: Halts the traceroute test.
56

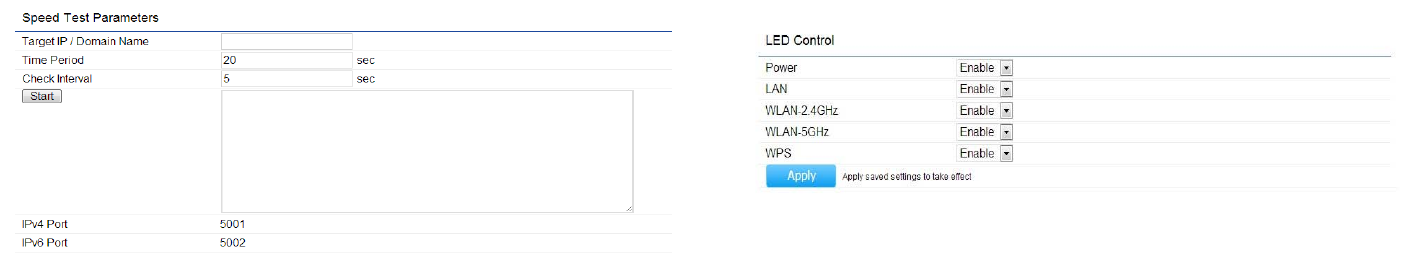

Speed Test Parameters
Target IP/Domain Name: Enter an IP address or
domain name you wish to run a Speed Test for.
Time Period/Check Interval: Enter the time in
seconds that you would like the test to run for and in
how many intervals.
Start:StartstheSpeedTest.
LED Control
ThispageallowsyoutocontroltheLEDcontrolfunctions:
Power status, LAN interface, 2.4G/5G WLAN interface
and WPS.
Click Apply to save the settings after selecting your
choices from the drop-down boxes.
57

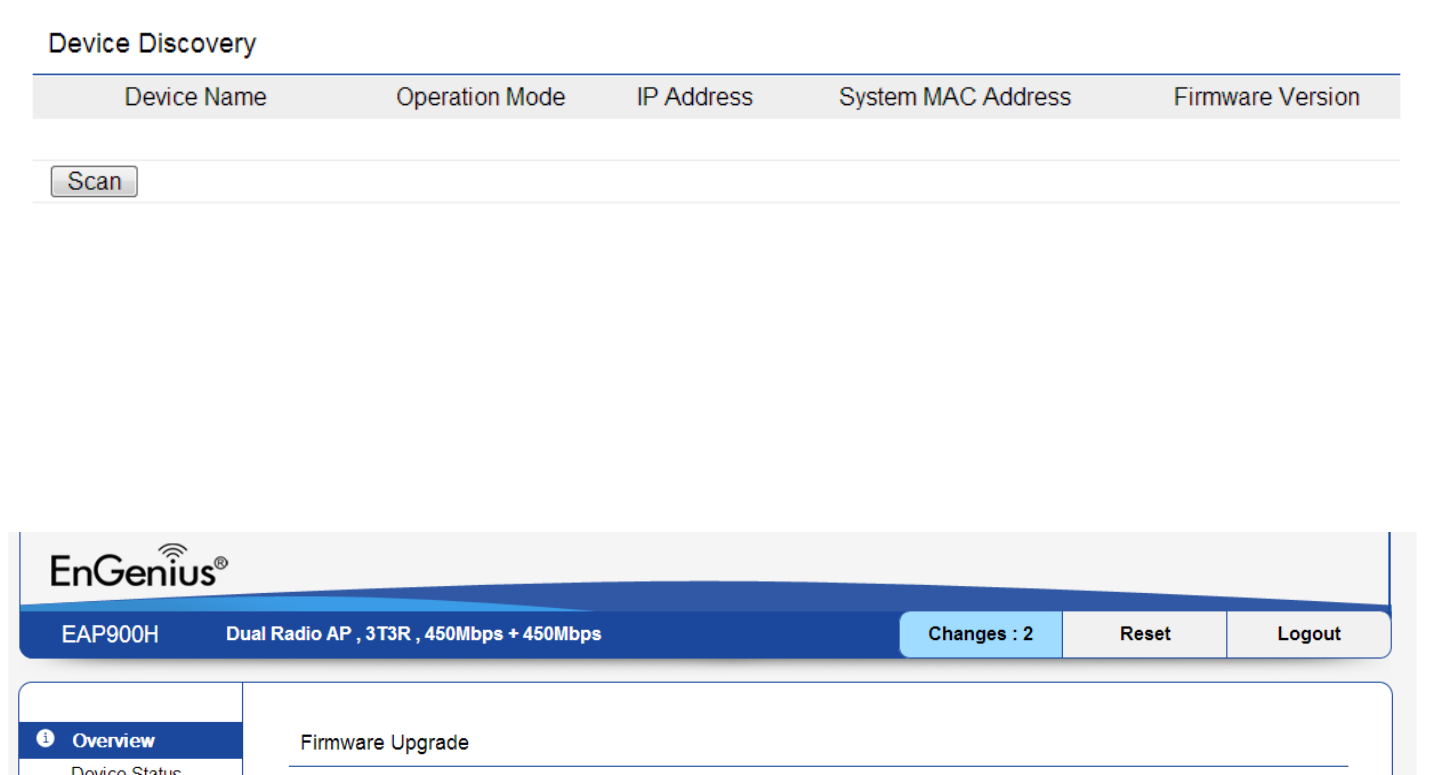

Device Discovery
Under Device Discovery, you can choose for the EAP1750H
to Automatically scan for local devices to connect to. Click
Scan to begin the process.
Reset
In some circumstances, you may be required to force the
device to reboot. Click on Reboot the Device to reboot
the EAP1750H.
58
Appendix
59
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate
this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operations in the 5.15-5.25 GHz band
are restricted to indoor usage only.
IMPORTANT NOTE:
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with a minimum distance of 30 cm between the radiator & your body.
Appendix A
60
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Ce dispositif est conforme à la norme CNR-210 d’Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement
est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter
tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable.
Caution:
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-
channel mobile satellite systems;
(ii) high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these
radars could cause interference and/or damage to LE-LAN devices.
Avertissement:
(i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur an de réduire
les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
(ii) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés utilisateurs
principaux (c.-à-d., qu’ils ont la priorité) pour les bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer du
brouillage et/ou des dommages aux dispositifs LAN-EL.
Appendix B - IC Interference Statement
61
FOR MOBILE DEVICE USAGE
Radiation Exposure Statement
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated
with a minimum distance of 30cm between the radiator & your body.
Pour l’utilisation de dispositifs mobiles)
Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit
être installé et utilisé avec un minimum de 30cm de distance entre la source de rayonnement et votre corps.
62
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order
to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC:
• EN60950-1
Safety of Information Technology Equipment
• EN50385
Generic standard to demonstrate the compliance of electronic and electrical apparatus with the basic restrictions related to human exposure
to electromagnetic elds (0 Hz - 300 GHz)
• EN 300 328
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating
in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article
3.2 of the R&TTE Directive
• EN 301 893
Broadband Radio Access Networks (BRAN); 5 GHz high performance RLAN; Harmonized EN covering essential requirements of article 3.2 of
the R&TTE Directive
• EN 301 489-1
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 1: Common technical requirements
• EN 301 489-17
Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 17: Specic conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment
Appendix C - CE Interference Statement
63
This device is a 5GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France
and Italy where restrictive use applies.
Česky [Czech] [Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními požadavky a dalšími příslušnými
ustanoveními směrnice 1999/5/ES.
Dansk [Danish] Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets typebetegnelse] overholder de
væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch [German] Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in Übereinstimmung mit den grundlegenden
Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG bendet.
Eesti [Estonian] Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type of equipment] vastavust
direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
English Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC.
Español [Spanish] Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con los requisitos esenciales
y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of equipment] ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ
ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
64
Français [French] Par la présente [nom du fabricant] déclare que l’appareil [type d’appareil] est conforme aux exigences essentielles et aux
autres dispositions pertinentes de la directive 1999/5/CE.
Italiano [Italian] Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio] è conforme ai requisiti essenziali ed alle
altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski [Latvian] Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of equipment / iekārtas tips] atbilst Direktīvas
1999/ 5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
Lietuvių [Lithuanian] Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka esminius reikalavimus ir kitas 1999/5/EB
Direktyvos nuostatas.
Nederlands [Dutch] Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in overeenstemming is met de essentiële eisen
en de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti [Maltese] Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti
oħrajn relevanti li hemm d-Dirrettiva 1999/5/EC.
Magyar [Hungarian] Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus] megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC
irányelv egyéb elõírásainak.
Polski [Polish] Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z zasadniczymi wymogami oraz pozostałymi
stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português [Portuguese] [Nome do fabricante] declara que este [tipo de equipamento] está conforme com os requisitos essenciais e outras
disposições da Directiva 1999/5/CE.
Slovensko [Slovenian] [Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive
1999/5/ES.
Slovensky [Slovak] [Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice
1999/5/ES.
Suomi [Finnish] [Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen tyyppimerkintä] tyyppinen laite on
direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
Svenska [Swedish] Härmed intygar [företag] att denna [utrustningstyp] står I överensstämmelse med de väsentliga egenskapskrav och
övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.

Navigation menu
