AC866 5GHz Ultra Long-Range Wireless Outdoor Customer
Premises Equipment
EnStationAC
version 1.0
2
IMPORTANT
To install this Access Point please refer to the
Quick Installation Guide included in the product packaging.
3
Chapter 1 Product Overview............................................... 4
Key Features/Introduction........................................................ 5
System Requirements............................................................... 6
Package Contents......................................................................... 7
 TechnicalSpecications..............................................................8
Physical Interface.......................................................................... 10
Chapter 2 Before You Begin................................................. 11
Computer Settings....................................................................... 12
Hardware Installation................................................................. 15
Mounting the EnStationAC...................................................... 16
Chapter 3 Conguring Your Access Point......................... 19
Default Settings./Web Conguration................................ 20
Chapter 4 Status.................................................................... 21
Main Status..................................................................................... 22
Connection...................................................................................... 24
Chapter 5 Network .............................................................. 26
Basic IP Settings............................................................................ 27
 SpanningTreeProtocolSetting.............................................28
Chapter 6 2.4 GHz/5 GHz Wireless....................................... 29
Wireless Settings.......................................................................... 30
Wireless Network.......................................................................... 31
 SSIDProle......................................................................................33
Wireless Security.......................................................................... 34
Wireless MAC Filtering............................................................... 35
Wireless Advanced..................................................................... 36
WPS Mixed-Enterprise: AP/WDS AP Mode........................... 37
 WDSLinkSettings.......................................................................38
Client Bridge Settings.............................................................. 39
Guest Network Settings............................................................ 40
Chapter 7 Management ........................................................ 41
Management VLAN Settings.................................................. 42
Advanced Settings....................................................................... 43
CLI Settings/Email Alert............................................................. 44
Time Zone........................................................................................ 46
Auto Reboot Settings................................................................ 47
 Wi-FiScheduler...............................................................................48
Tools.................................................................................................. 49
Account/Firmware........................................................................ 51
Backup/Restore ............................................................................. 52
Log...................................................................................................... 54
Logout/Reset................................................................................. 55
Appendix................................................................................. 56
FCC Interference Statement................................................... 57
 CEInterferenceStatement......................................................58
Table of Contents
4
Chapter 1
Product Overview
5
Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on many factors including environmental conditions, distance between
devices, radio interference in the operating environment, and mix of devices in the network. Features and specications subject to change without notice. Trademarks and registered
trademarks are the property of their respective owners. For United States of America: Copyright © 2015 EnGenius Technologies, Inc. All rights reserved.
Key Features
• Upto26dBmtransmitpowerenablinglongrangeconnectivity
• SupportsIEEE802.11ac/a/nwirelessstandardswithupto866
Mbps data rate.
• Internal19dBihighgaindirectionalantenna
• CanbeusedwithincludedPoEadapterorvia802.3atPoE
 802.3at-capableswitches.
• Canbesupply802.3afpowersourceusedwithincludedPoE
 adapterpoweradapterorvia802.3atPoE-capableswitches
• SecuredGuestNetworkoptionavailable
• Advanced256-QAMtechnologytoachieveoptimalperformance
throughout ultra-long distance
Introduction
The EnStationAC is a high-powered, ultra long-range 2x2
Wireless802.11ac/a/nOutdoorAccessPointwithspeeds
upto866Mbpsonbothitshigh-powered5GHzradios.Itcan
beconguredasan:AccessPoint,ClientBridgeorWDS(AP,
Station & Bridge). The EnStationAC is designed to operate in
a variety of outdoor environments. Its high-powered, long-
range characteristics make it a cost effective alternative to
ordinary Access Points that don’t have the range and reach
to connect to a growing number of wireless CPEs who
Introduction
wish to connect to a business network. The EnStationAC
supportsthe5GHzfrequencybandforcommunicatingto
other 5GHz frequency bands Access Points concurrently.
Several EnStationACs can be networked in a campus
setting using the 5 GHz band between countries. The
EnStationAC is easy to install in virtually any location with
6
itsincludedPoE(Power overEthernet)Adapterfor quick
outdoor installation. The EnStationAC enables network
administrators to control its transmit power and features
settings for selecting VHT80 bandwidth to perform ture
AC transmission. The EnStationAC also supports wireless
encryption including Wi-Fi Protected Access (WPA-PSK/
WPA2-PSK)EncryptionandIEEE802.1XwithRADIUS.)
System Requirements
The following are the Minimum System Requirements in
ordertocongurethedevice.
• ComputerwithanEthernetinterfaceorwirelessnetworkcapability
• WindowsOS(XP,Vista,7,8),MacOS,orLinux-basedoperatingsystems
• Web-Browsing Application (i.e.: Internet Explorer, Firefox, Safari, or
another similar browser application)
7
Package Contents

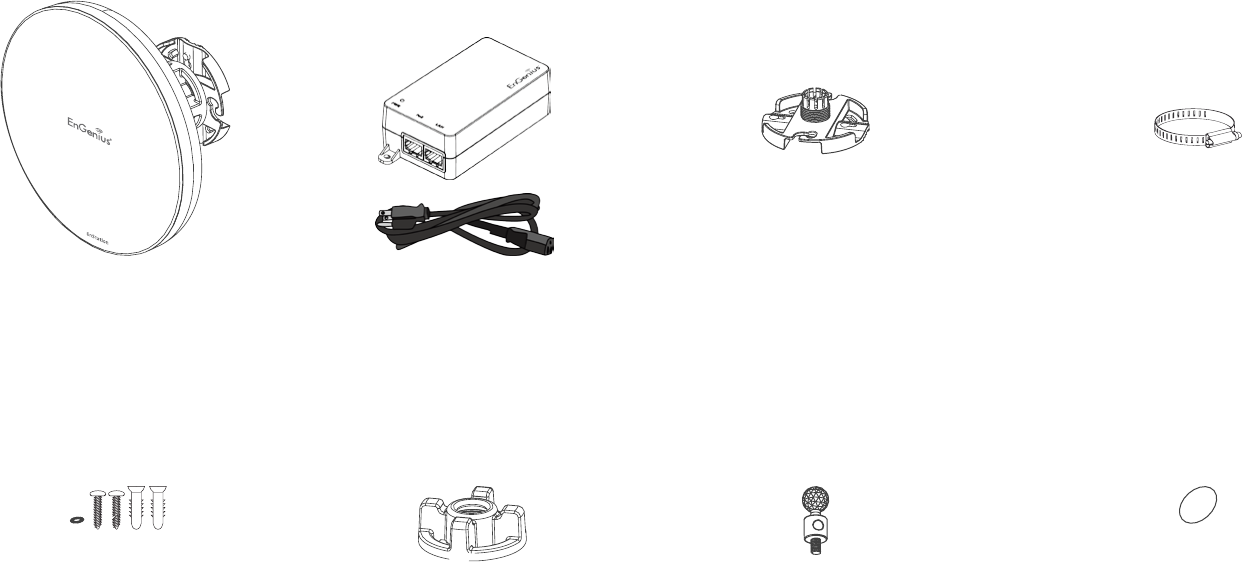

The EnStationAC package contains the following items:*
•EnStationACCustomerPremisesEquipment
•PoEAdapter(EPA5006GP)
•PoleMountStrap
•WallMountBracketBase
•ScrewSetsKit
•Rubber
•SealingNut
•DynamicStick
•QuickInstallationGuide
*(allitemsmustbeinpackagetoissuearefund):
8
Optimal Performance
DistanceControl(AckTimeout)
Multicast Supported
Data Rate Selection
Auto Channel Selection
BSSID Support
Easily Management
VLAN Tag / VLAN Pass-through
Guest Network
QoS:ComplaintwithIEEE802.11e/WMM
RADIUSAccounting
WirelessSTA(Client)connectionlist
TrafcShaping(PerSSID)
Intuitive Tools
SNMP v1/v2c/v3 support
MIB I/II, Private MIB
SaveCongurationasDefault
CLI Support
WiFi-Scheduler/Auto Reboot
E-mail Alert
Reinforcement Security

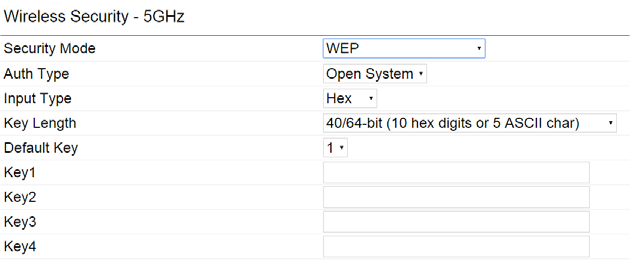

WEPEncryption-64/128/152bit
WPA/WPA2Enterprise(WPA-EAPusingTKIPorAES)
Hide SSID in beacons
MACaddresslteringupto32MACsperSSID
Standard:
IEEE802.11ac/a/non5GHz
IEEE802.3at
IEEE802.3af
Antenna
Internal 19dBi high gain directional antenna
Physical Interface
2 x 10/100/1000 Gigabit Ethernet Port with PoE support
 LAN(PoE)PortsupportsIEEE802.3atPoEInput
 LANPortsupportsIEEE802.3afPoEOutput
LED Indicator
Power
LAN 1
LAN 2
WLANLED(Weak,Medium,Strong)
Power Requirements
Include PoE Adapter, 54V/0.6A
IEEE802.3atsupport
Operation Modes
Access Point
Client Bridge
WDS
WDS Detail
WDS AP
WDS Bridge
WDS Station
Technical Specications
9
Https Support
SSH
QoS (Quality of Service)
ComplaintwithIEEE802.11estandard
Physical/Environment Conditions
Operating:
 Temperature:-4°Fto158°F(-20°Cto70°C)
 Humidity(non-condensing):90%orless
Storage:
 Temperature:-22°Fto176°F(-30°Cto80°C)
 Humidity(non-condensing):90%orless
10
Physical Interface
Dimensions and Weights
Dimension:190mm(7.48”)
Height:38mm(1.9”)
Weight:527g(1.16lbs)

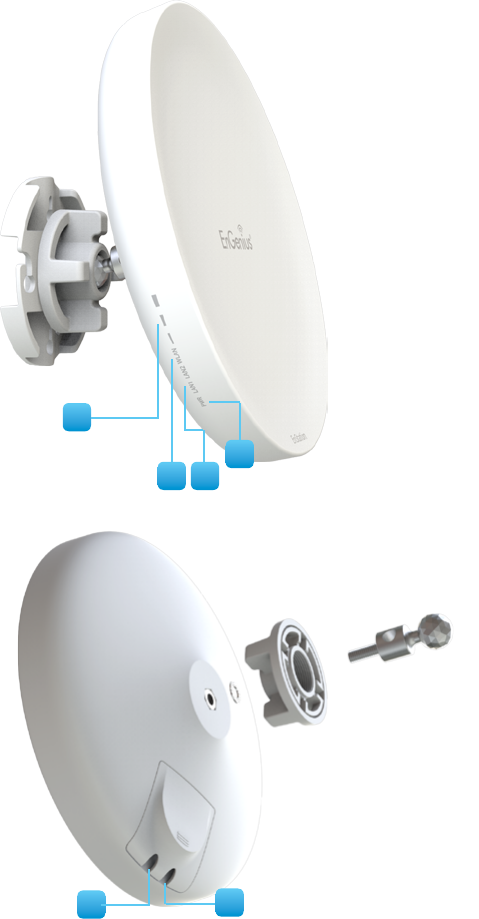

1 WLAN Signal LED: Applied on Client Bridge/WDS
(1)Red:WeakSignal:Connectingqualityisbad.
(2)Yellow:ConnectingqualityisNormal.
(3)Green:ConnectionqualityisGood.
2 LAN(PoE) Signal LED
3 LAN Signal LED of the 2nd Port
4 Power Signal:
5 LAN Port 1 (802.3at PoE Input): Gigabit Ethernet port for RJ-45 cable.
6 LAN Port 2(802.3af PSE Output): Gigabit Ethernet port for RJ-45 cable. 5
4
1
6
2 3
11
Chapter 2
Before You Begin
12
Windows XP/Windows 7/Windows 8
InordertousetheEnStationAC,youmustrstcongurethe
TCP/IPv4connectionofyourWindowsOScomputersystem.

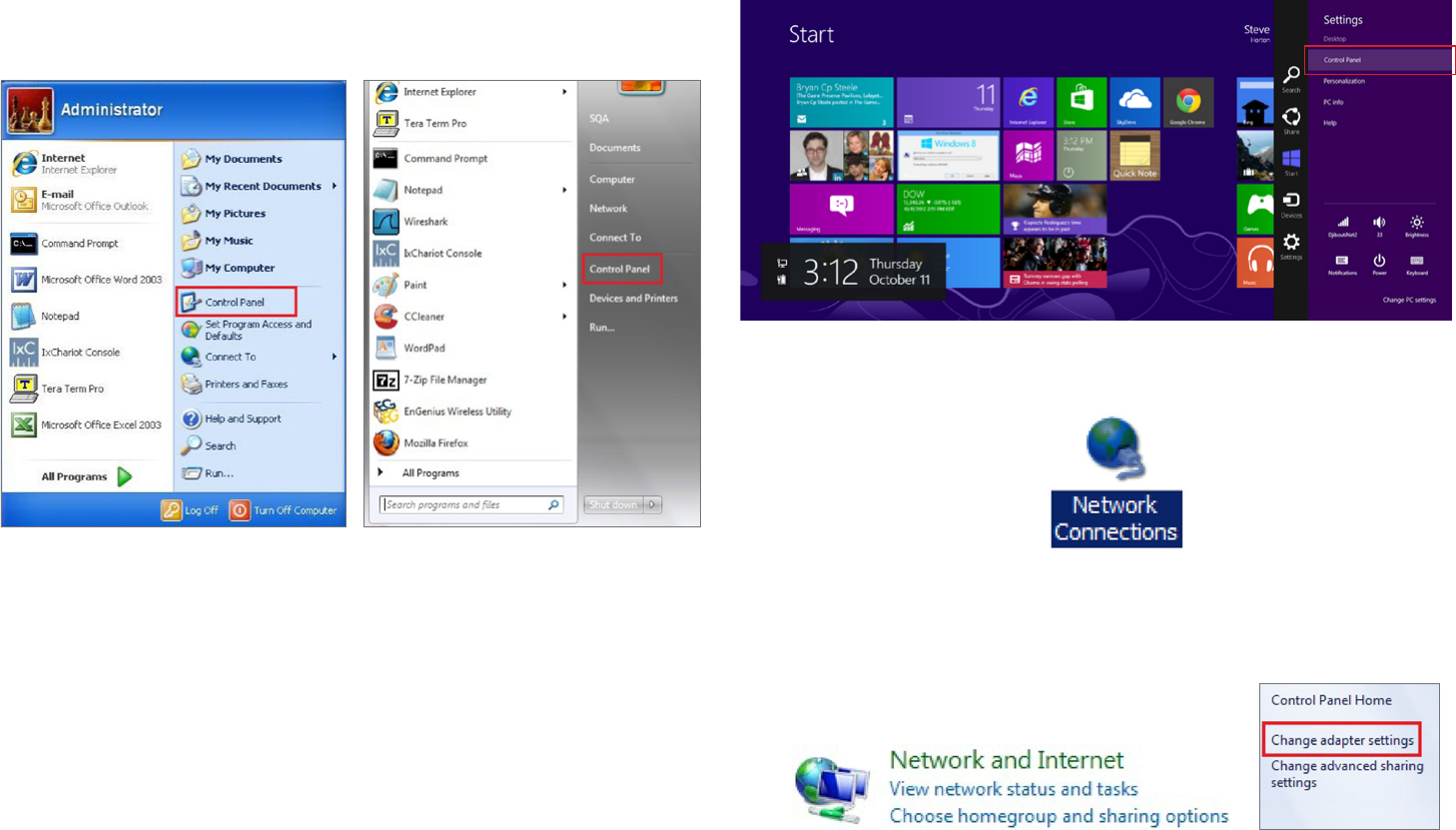

1a. Click the Start button and open the Control Panel
1b. Move your mouse to the lower right hot corner to
display the Charms Bar and select the Control Panel in
Windows8OS.
2a. In Windows XP, click Network Connections.
2b. In Windows 7/Windows 8, click View Network Status
and Tasks in the Network and Internet section, then
select Change adapter settings.
Computer Settings
Windows XP Windows 7
13

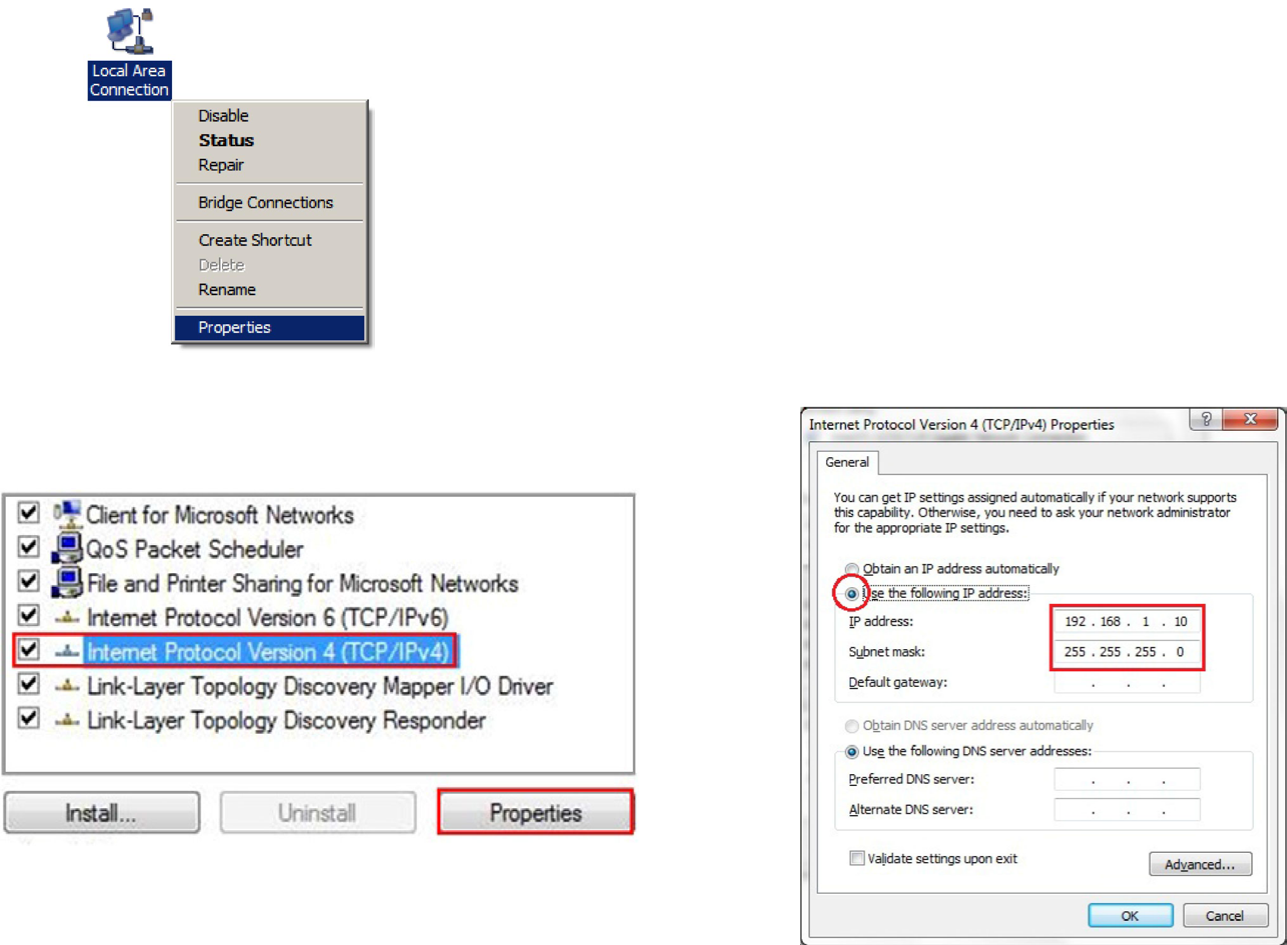

3. Right click on Local Area Connection and select Properties.
4. Select Internet Protocol Version 4 (TCP/IPv4) and then
select Properties.
5. Select Use the following IP address and enter an IP
address that is different from the EnStationACand Subnet
mask, then click OK.
Note: Ensure that the IP address and Subnet mask are
on the same subnet as the device.
Forexample:EnStationACIPaddress:192.168.1.1
 PCIPaddress:192.168.1.2–192.168.1.255
PC Subnet mask: 255.255.255.0
14

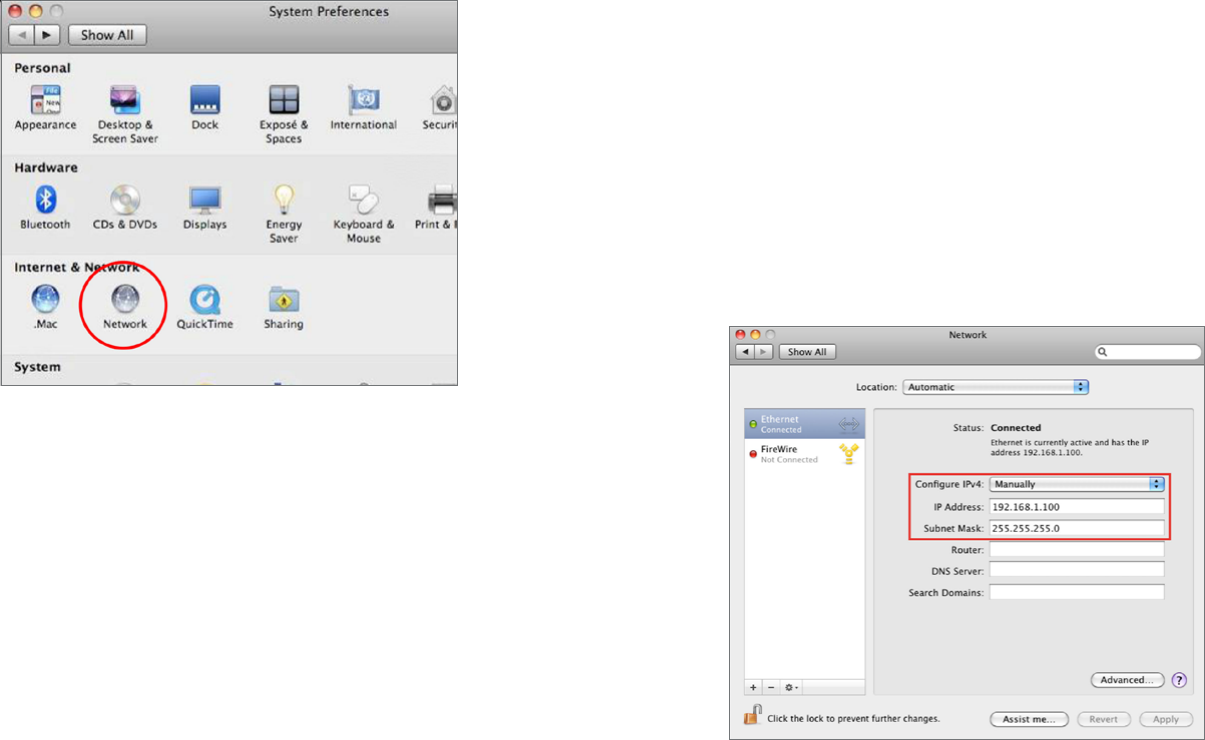

Apple Mac OS X
1. Go to System Preferences(Whichcanbeopenedinthe
Applications folder or selecting it in the Apple Menu).
2. Select Network in the Internet & Network section.
3. Highlight Ethernet.
4. In Congure IPv4, select Manually.
5. Enter an IP address that is different from the EnStationAC
and Subnet mask then press OK.
Note: Ensure that the IP address and Subnet mask are
on the same subnet as the device.
Forexample:EnStationACIPaddress:192.168.1.1
 PCIPaddress:192.168.1.2–192.168.1.255
PC Subnet mask: 255.255.255.0
6. Click Apply when done.
15
1. Remove the rear bottom panel.
2. Connect one end of the Ethernet cable into the main
LANport(PoE)oftheAccessPointandtheotherendto
the AP Ethernet port on the PoE Adapter.
3. Connect the Power cord to the PoE Adapter and plug
the other end in to an electrical outlet.
4. Connect the second Ethernet cable into the LAN port of
the PoE Adapter and the other end to the Ethernet port
on the computer.
5. Place the panel back into device
Note: The EnStationAC should ONLY be powered via
Ethernet cable connected to included supports both IEEE
802.3atPoE(PoweroverEthernet)ortheincludedPoE
Adapter.Youmayuseeitheroneasthepowersource.
Do NOT use both at the same time.
Note: TheEnStationACcansupplythe802.3afpower
source when used with included PoE Adapter.

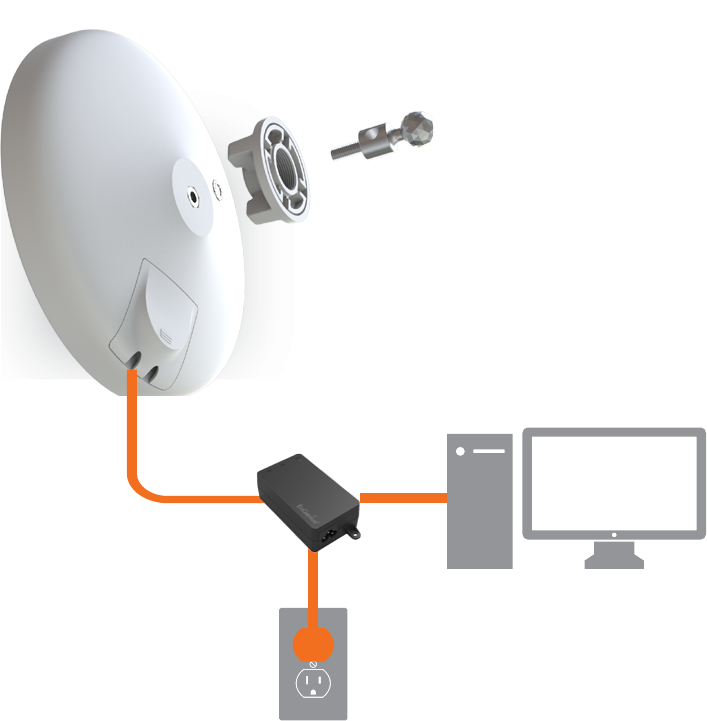

.Thisdiagramdepictsthehardwareconguration.

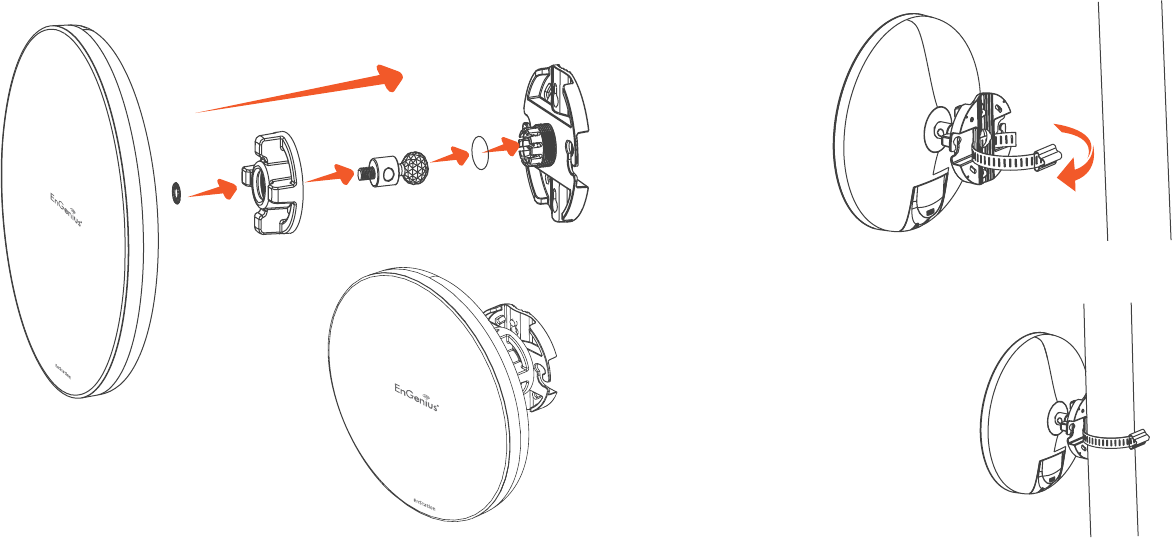

To attach the EnStationAC to a pole using the
provided pole mounting kit:
Hardware Installation
Ethernet
PC
Power
Outlet
PoE Adapter
16

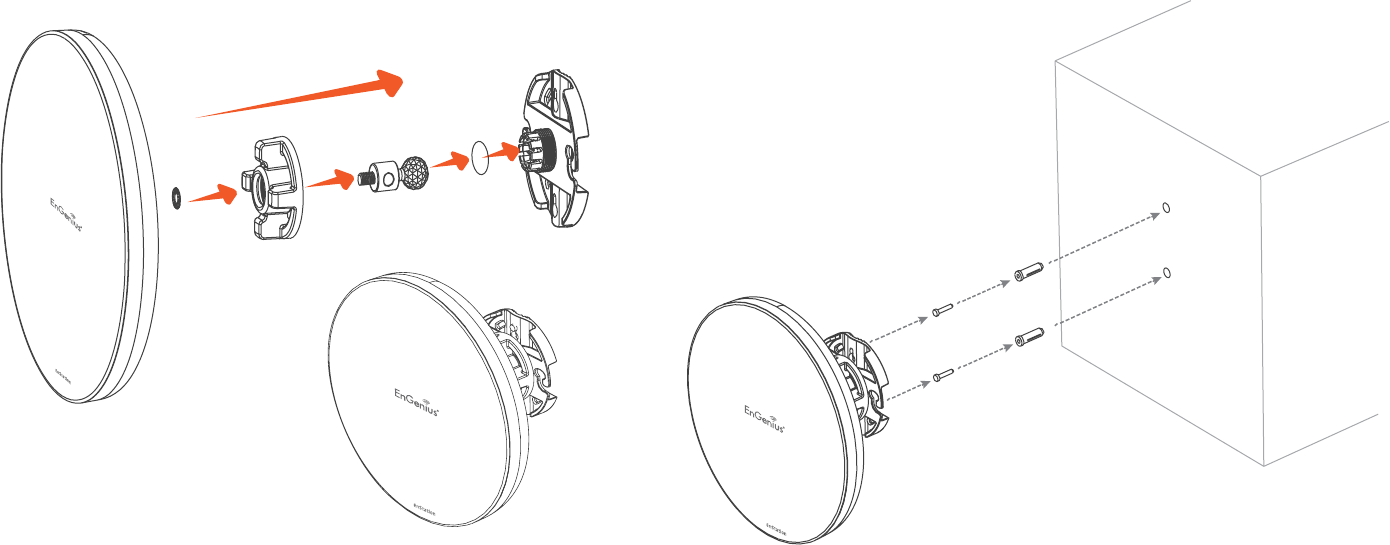

Mounting the EnStationAC
Usingtheprovidedhardware,theEnStationACcanbeattachedtoawallorapole.
1. EnStation 3. Bracket
5. Screw Set Kit 6. Sealing Nut
4. Pole Mounting Strap
7. Dynamic Stick 8. Rubber
2. PoE Adapter&
Power Cord
17
Wall mounting the EnStation
1. Put the included rubber into the bracket.
2. Plug the dynamic stick into the bracket.
3. Screw the sealing nut and assembled parts, as well as
tighten it.
4. Put the nock washer on the dynamic stick.
5. Assemble t he mounting parts to the EnStation. .
6. Determine the mounting location. Mark and drill two
pilot holes aligning to the screw holes of the bracket
7. Put wall anchors into the holes and insert screw into the
wall anchor.
8. Screw and secrue the bracket in the place.
1
2
3
4
5
6
7
8
Dimension:
A:Ø5.5*18mm
B:Ø8*25mm
B
A
18
Pole mounting the EnStation
1. Put the included rubber into the bracket.
2. Plug the dynamic stick into the bracket.
3. Screw the sealing nut and assembled parts, as well as
tighten it.
4. Put the nock washer on the dynamic stick.
5. Assemble t he mounting parts to the EnStation. .
6. Thread the open end of the pole strap through the two
tabs on the bracket.
7. Lock and tighten pole strap to secure bracket to the pole.
1
2
3
4
5
6
7
19
Chapter 3
Conguring Your
Access Point
20
This section will show you how to congure the device
usingtheweb-basedcongurationinterface.
Default Settings
Please use your Ethernet port or wireless network adapter
to connect the Access Point.
IP Address 192.168.1.1
Username / Password admin / admin
Web Conguration

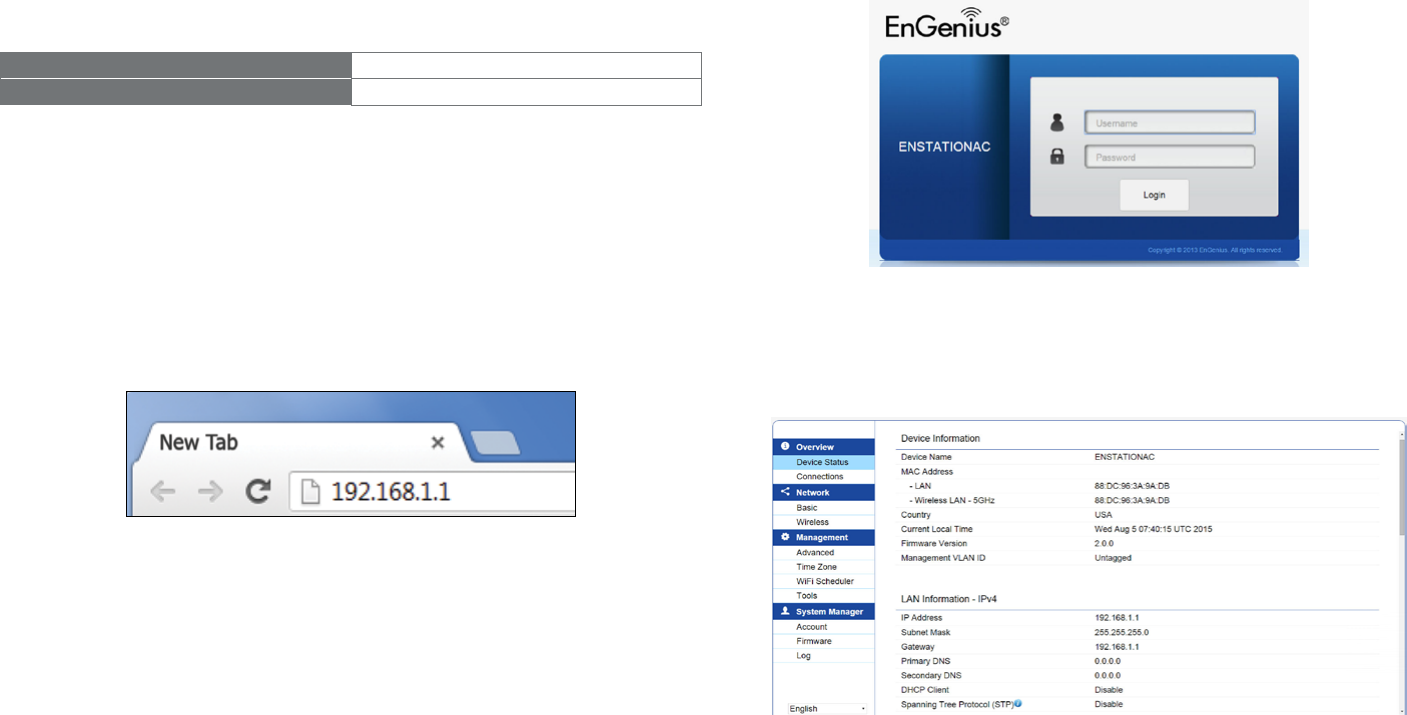

1. Openawebbrowser(InternetExplorer/Firefox/Safari/
Chrome) and enter the IP Address http://192.168.1.1
Note: If you have changed the default LAN IP Address of
the Access Point, ensure you enter the correct IP Address.
2. The default username and password are admin.
Once you have entered the correct username and
password, click the Login button to open the web-base
congurationpage.
3. If successful, you will be logged in and see the
EnStationACUserInterface.
Conguring Your Access Point
21
Chapter 4
Status
22

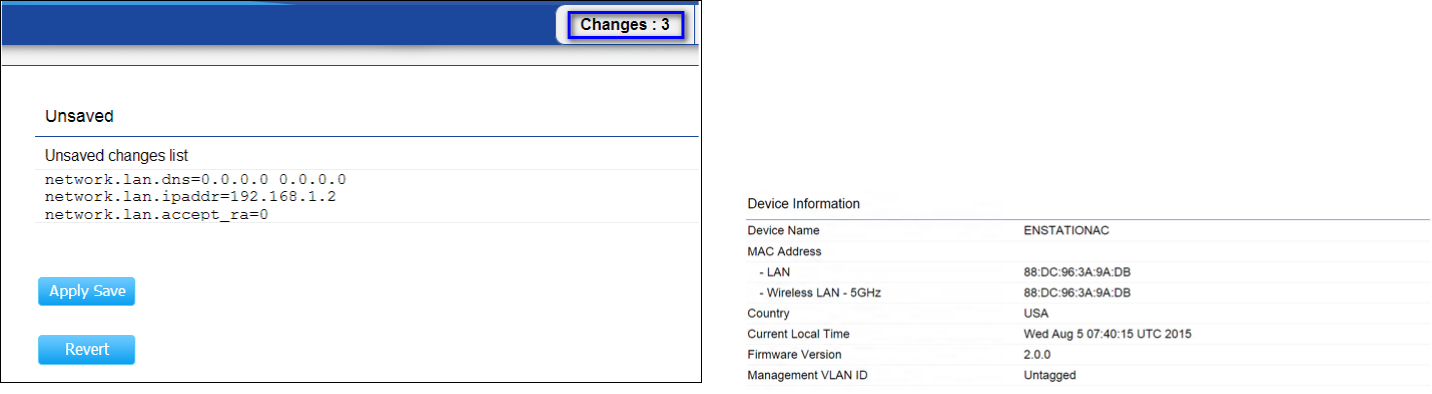

Save Changes
This page lets you save and apply the settings shown under
Unsaved changes list, or cancel the unsaved changes and
revert to the previous settings that were in effect.
Device Status
Clicking the Device Status link under the Overview menu
shows the status information about the current operating
mode.
• The Device Information section shows general system
information such as Device Name, MAC Address, Current
Time, Firmware Version, and Management VLAN ID
Note: VLAN ID information is only applicable in Access
Point or WDS AP mode.
Main Status
23

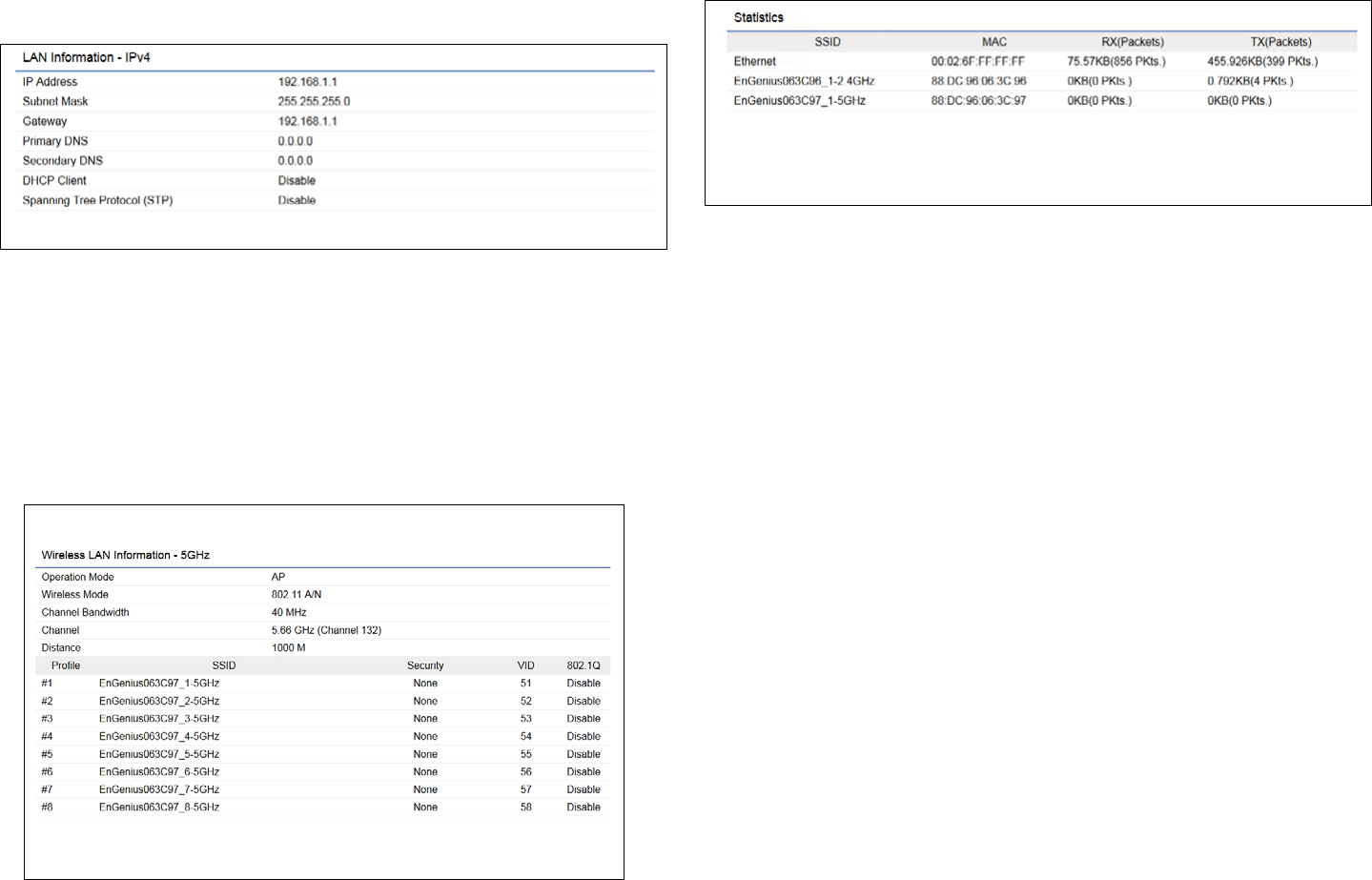

•  The LAN Information section shows the Local Area
Network settings such as the LAN IP Address, Subnet
mask, and DNS Address.
•  The Wireless LAN Information 5 GHz section shows
wirelessinformationsuchasOperatingMode,Frequency,
and Channel. Since the EnStationAC supports multiple-
SSIDs, information about each SSID, the ESSID, and
security settings, are displayed
Note: ProleSettingsareonlyapplicableinAccessPoint
and WDS AP modes.
•  TheStatistics section shows Mac information such as
SSID,MACaddress,RXandTX.
24

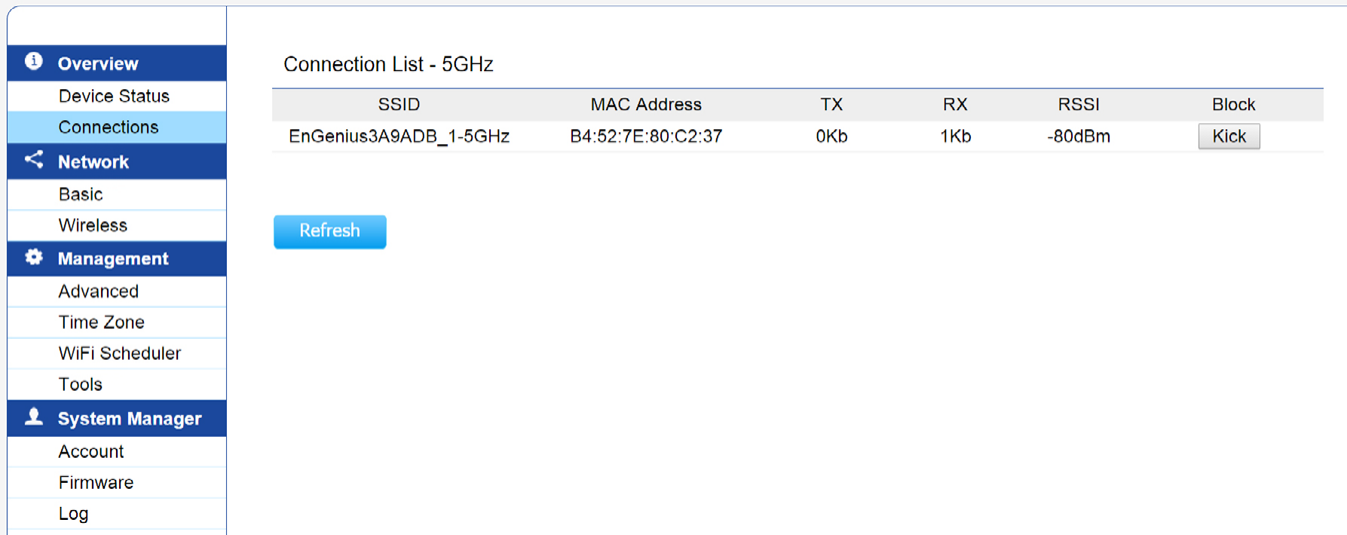

5 GHz Connection List
ClicktheconnectionlinkundertheOverviewmenudisplays
the connection list of clients associated to the EnStationAC’s
5GHz,alongwiththeMACaddressesandsignalstrength
for each client. Clicking Refresh updates the client list.
Note: Only applicable in Access Point and WDS AP
modes.
WDS Link List
Click the connection link under the Overview menu. This
page displays the current status of the WDS link, including
WDS Link ID, MAC Address, Link Status and RSSI.
Note: OnlyapplicableinWDSAPandWDSBridgemodes.
Connection
25
Client Bridge Connection Status
Click the connection link under the Overview menu. This
page displays the connection status between Access Point,
including associated SSID, BSSID, connection status, wireless
mode,currentchannel,security,TxDataRate(Mbps),Current
noise level and signal strength.
26
Chapter 5
Network
27

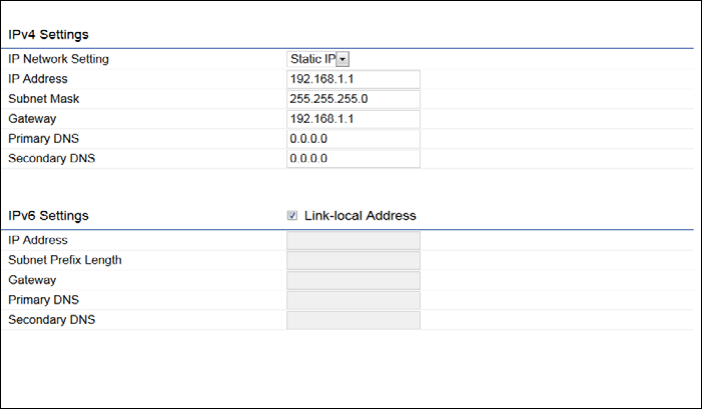

IPv4/IPv6 Settings
This page allows you to modify the device’s IP settings. IP Network Settings: Select whether the device IP address
willuseastaticIPaddressspeciedintheIPaddresseld
or be obtained automatically when the device connects to
a DHCP server.
IP Address: The IP address of this device.
Subnet Mask: The IP Subnet mask of this device.
Gateway: The Default Gateway of this device. Leave it
blank if you are unsure of this setting.
Primary/Secondary DNS: The primary/secondary DNS
address for this device.
Save: Click Savetoconrmthechanges.
Basic IP Settings
28
Spanning Tree Protocol (STP) Settings
This page allows you to modify the Spanning Tree settings.
Enabling the Spanning Tree protocol will prevent network
loops in your LAN network.
Spanning Tree Status: Enables or disables the Spanning
Tree function.
Hello Time: Species Bridge Hello Time in seconds. This
value determines how often the device sends handshake
packets to communicate information about the topology
throughout the entire Bridged Local Area Network.
Max Age: SpeciesBridgeMaxAgeinseconds.Ifanother
bridge in the spanning tree does not send a hello packet for
a long period of time, it is assumed to be inactive.
Forward Delay:SpeciesBridgeForwardDelayinseconds.
Forwarding delay time is the time spent in each of the
Listening and Learning states before the Forwarding state
is entered. This delay is provided so that when a new bridge
comesontoabusynetwork,itanalyzesdatatrafcbefore
participating in the network.
Priority: SpeciesthePriorityNumber.Asmallernumber
has a greater priority than a larger number.
Save: Click Savetoconrmthechanges.
29
Chapter 6
Wireless
30
Wireless Settings

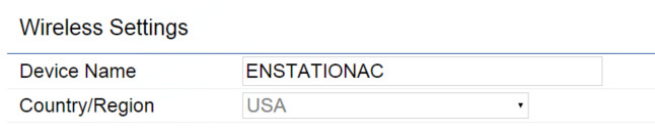

Device Name: Enter a name for the device. The name you
type appears in SNMP management. This name is not the
SSID and is not broadcast to other devices.
Save: Click Savetoconrmthechanges.
Wireless
31
This page displays the current status of the Wireless
settings of the EnStationAC.
Wireless Network

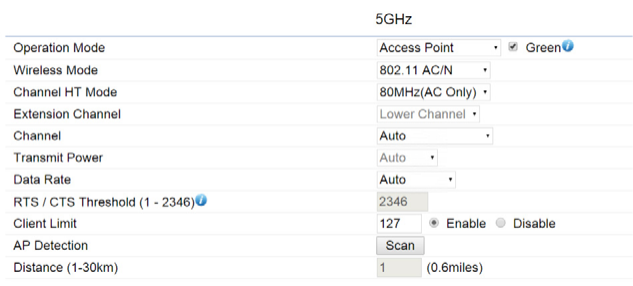

Operation Mode: Select Operation Mode.TheENH220EXT
supports multi-operation modes: Access Point, Client
Bridge,orWDS(WDSAP,WDSBridge,andWDSStation).
Wireless Mode: Supports802.11ac/a/nmixedmodein5
GHz.
Channel HT Mode: The default channel bandwidth is 20
MHz/40/80MHz.Thelargerthechannel,thegreaterthe
transmission quality and speed.
Extension Channel: Select the upper or lower channel.
YourselectionmayaffecttheAutochannelfunction.
Channel: Select the approriate channel and frequency.
Select Auto to enable auto-channel selection.
Transmit Power: Sets the power output of the wireless
signal.
Data Rate: Select a data rate from the drop-down list. The
data rate affects throughput of data in the EnStationAC.
Select the best balance for you and your network but note
that the lower the data rate, the lower the throughput,
though transmission distance is also lowered.
RTS/CTS Threshold:Speciesthethresholdpackagesize
for RTC/CTS. A small number causes RTS/CTS packets to be
sent more often and consumes more bandwidth.
Client Limits: Limits the total number of clients.
Aggregation: Merges data packets into one packet. This
option reduces the number of packets, but also increases
packetsizes.
32

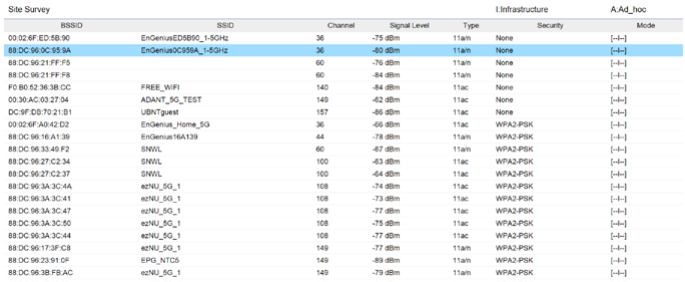

AP Detection: AP Detection can select the best channel to
use by scanning nearby areas for Access Points.
Distance: Species the distance between Access Points
and clients. Note that longer distances may drop higher-
speed connections.
Save: Click SavetoconrmthechangesorCancel to cancel
and return to previous settings.
33

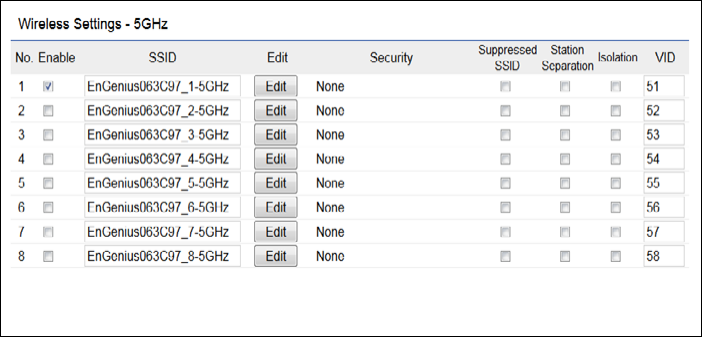

SSID Prole
Current Prole: You can congure up to sixteen (16)
different SSIDs (eight (8) per band). If multiple client
devices will be accessing the network, you can arrange the
devices into SSID groups. Click Edittoconguretheprole
and check whether you want to enable extra SSID.
SSID:SpeciestheSSIDforthecurrentprole.
Suppressed SSID: Check this option to hide the SSID from
clients. If checked, the SSID will not appear in the site survey.
Station Separation: Click the appropriate radio button to
allow or prevent communication between client devices.
VID:SpeciestheVLANtagforeachprole.Ifyournetowrk
includes VLANs, you can specify a VLAN ID for packets pass
through the Access Point with a tag.
Wireless Security: See the Wireless Security section.
Isolation: Restrict clients communicating with different
VIDs by selecting the radio button.
Save: Click Save to accept the changes.
34
Wireless Security
The Wireless Security section lets you congure the
EnStationAC’s security modes: WEP, WPA-PSK, WPA2-PSK,
WPA-PSK Mixed, WPA, WPA2, and WPA Mixed. It is strongly
recommend that you use WPA2-PSK.
Auth Type: Select Open System or Shared Key.
Input Type:
 ASCII:RegularText(recommended)
 HexadecimalNumbers(Foradvancedusers)
Key Length: Select the desired option and ensure that
wirelessclientsusethesamesetting.Yourchoicesare64,
128,and152-bitpasswordlengths.
Default Key: Select the Key you wish to be the default.
Transmitted data is ALWAYS encrypted using the Default
Key;theotherKeysarefordecryptiononly.Youmustenter
a Key Value for the Default Key.
Encryption Key Number: Enter the Key Value or values you
wishtouse.OnlytheKeyselectedasDefaultisrequired.
The others are optional.

Navigation menu
