Entone Technologies 50-0010-CL-WF Dual-band Wi-Fi User Manual

Entone Technologies (HK) Limited Dual-band Wi-Fi

user manual

Product Specification
50-0010-CL-WF
IEEE802.11 a/b/g/n 3T3R USB
Module
Version:
1.0
Date: Aug, 01, 2013
Release History
DATE REV Description of
Change
2013/08/01 1.0 Initial
release
50-0010-CL-WF
IEEE802.11a/b/g/n 3T3R USB Module
1. Introduction
50-0010-CL-WF is an integrated the Celeno CLR250 single-chip 2.4GHz / 5GHz IEEE802.11a/b/g/n
3T3R
MAC/Baseband/Radio
with USB2.0 interface. 50-0010-CL-WF fully complies with
IEEE802.11n
and IEEE802.11a/b/g/n feature rich wireless connectivity at high standards, delivers
reliable,
cost-effective, throughput from an extended
distance.
2. Features
Interoperable with IEEE802.11a/b/g/n
W
L
A
N
.
Reverse direction grant data flow and frame
aggregation.
Support 195Mbps for 20MHz and 450Mbps for 40MHz channel
operations.
Wireless multimedia enhancements quality of service support
(QoS).
Legacy and high throughput
modes.
Multiple BSSID
support.
WEP 64/128, WPA, WPA2, TKIP, and AES software
encryption.
USB2.0
compliant.
Low power with advanced power
management.
Operating systems Windows XP 32/64,Vista 32/64, Linux,
Macintosh.
3. General Specifications
Product Specification
Model Name 50-0010-CL-WF
WLAN Standard IEEE 802.11a/b/g/n, 3T3
R
Host interface USB2.0 compatible Major Chipset Celeno CLR250
Dimensions
Minimum Typical Maximum
Unit
Leng
t
h
81
mm
Width 20
mm
Antenna Connector 3 Path ipex connector
Ope
r
ating
Condition
Minimum T
y
p
ical Maximum
Unit
Voltage DC 3.15 3.3 3.45
V
Tempe
r
ature -10 70
°C
Sto
r
age tempe
r
ature -20 70
°C
Humidit
y
Non-Ope
r
ating 580
%
Electrical
Specification
Frequency Range 2412
2462MHz / 5180 - 5825
Modulation
BPSK, QPSK, 16QAM, 64QAM, DBPSK, DQPSK, and
CCK
Data
Ra
te
802.11b CCK Mode 11, 5.5, 2, 1
Mbps
802.11g OFDM Mode 54, 48, 36, 24, 18, 12, 9, 6
Mbps
802.11n HT20 Mode GI 800ns 6.5 ~195
Mbps MCS 0 ~ MCS 23
802.11n HT20 Mode GI 400ns 7.2 ~216
Mbps
MCS 0 ~ MCS 23
802.11n HT40 Mode GI 800ns 13.5 ~ 405
Mbps
MCS 0 ~ MCS 23
802.11n HT40 Mode GI 400ns 15 ~ 450
Mbps MCS 0 ~ MCS 23
Output Tx power
2.4GHz 11b 17dbm +/-1.5dbm
2.4GHz 11g/n 14dbm +/-1.5dbm
5 GHz LOW Band 11dbm +/-1.5dbm
5 GHz Mid Band 10dbm +/-1.5dbm
5 GHz Hi Band 8dbm +/-1.5dbm
Rx Sensitivity
2.4GHz 11b < -85dbm
2.4GHz 11g < -73dbm
2.4GHz 11n mcs7 < -70dbm
5 GHz a/n mcs7 < -70dbm
Security
WEP 64/128, WPA, WPA2, TKIP, and AES software encryption
Operating System
Compatibility
Windows XP
32/64
Windows Vista
32/64
Windows 7
32/64
Linux Ubuntu

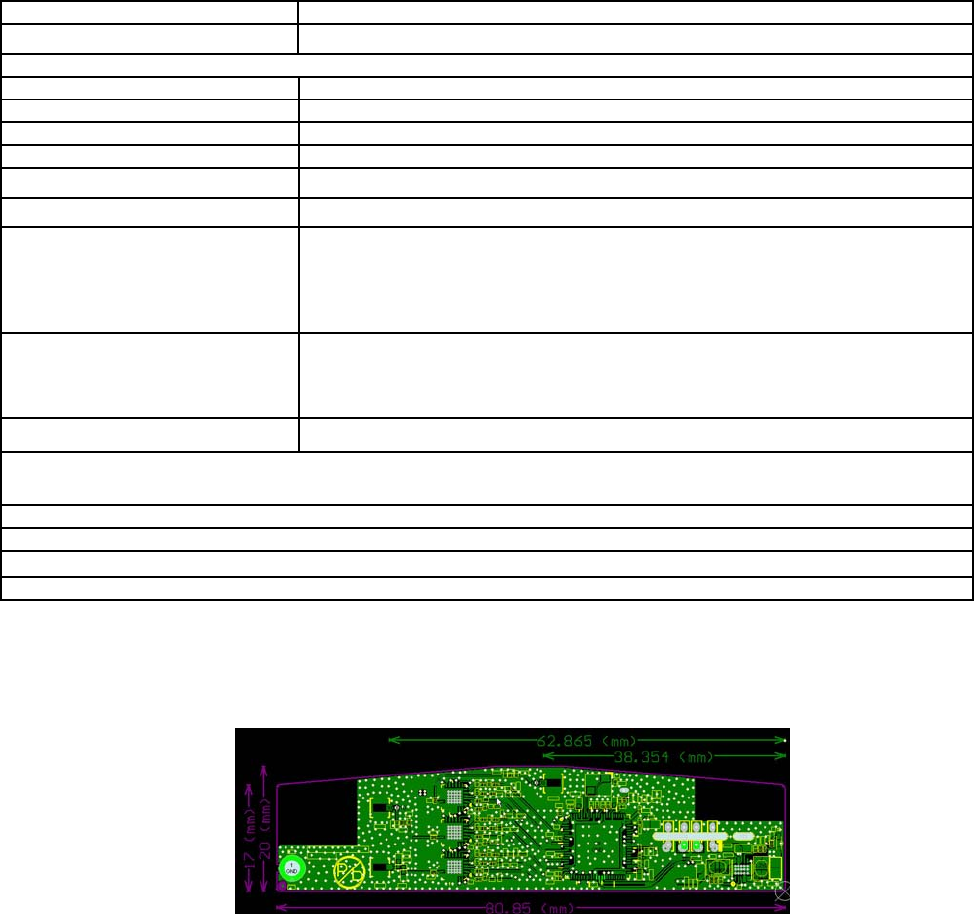

4. Mechanical
Dimensions
The I-PEX connecter is on the top side of the
PCB.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna
or transmitter.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other
channels is not possible.
This device is restricted to indoor use when operated in the 5.15 to 5.25 GHz frequency range.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your
body.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX FCC ID: S4A50-0010-CL-WF
". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be
available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference
received, including interference that may cause undesired operation.
The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this
module. Appropriate measurements (e.g. 15 B compliance) and if applicable additional equipment authorizations
(e.g. Verification, Doc) of the host device to be addressed by the integrator/manufacturer.
This module must be installed by Entone Technologies (HK) Limited. and XAVi Technologies Corporation, who will retains full
control over the final installation of the device into its products, and therefore can assure the compliance of the end product to
the tested results.
List of approved antennas
No. Ant. Cat. Ant. Type Gain
(
dBi
)
5GHz External PIFA
4.2
4.9
3.6
2.4G External PIFA
4.2
4.2
4.2
