Etekcity ESWL01 Etekcity Smart Wi-Fi Light Switch User Manual

Etekcity Corporation Etekcity Smart Wi-Fi Light Switch

User manual

1
QUESTIONS OR CONCERNS? support@etekcity.com • (855) 686-3835
Smart WiFi
Light Switch
Model No.: ESWL01
2
Thank you for purchasing the
Smart WiFi Light Switch by
Etekcity.
The smart light switch is a standard single-pole
wall light switch that can be controlled with
your iOS or Android devices. With the Etekcity
VeSync app, you can follow intuitive wiring
instructions to replace your standard in-wall
switch, connect the smart switch to your home
network, then control your lights and create
custom lighting automations from anywhere, at
anytime with an Internet connection.
If you have any questions or concerns, please
reach out to our helpful Customer Support
Team at SUPPORT@ETEKCITY.COM. We hope
you enjoy your new smart light switch!
BECOME AN ETEKCITIZEN
Exclusive deals, giveaways, and product
registration. Better products for better living.
Find us at ETEKCITY.COM
3
1 x Smart WiFi Light Switch (Wall Plate Included)
4 x Terminal Caps
1 x Quick Start Guide
Package Contents
Specications
Safety Information
Product Requirements
Function Diagram
Installation
Setup
Conguration
•Smart Conguration Mode
•APN Conguration Mode
App Operation
• Turning Light Off and On
• Schedules
• Sunrise / Sunset Schedules
• Timers
• Away Mode
• Device Settings

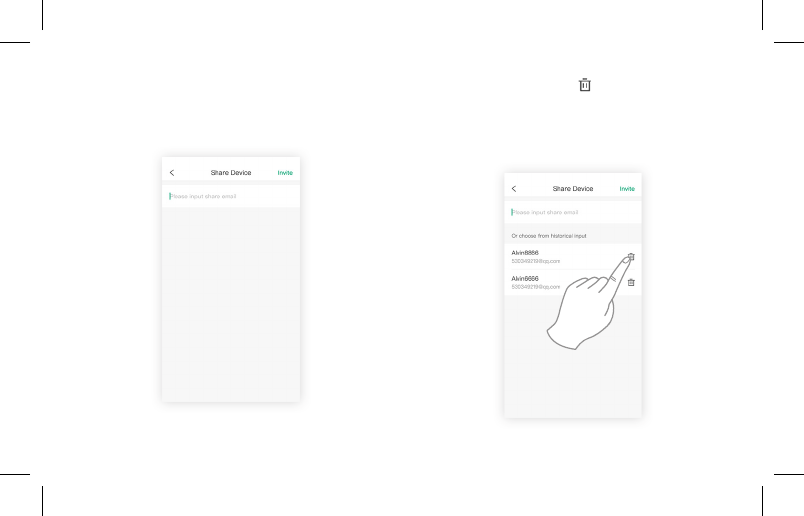

• Share Device
• Delete a Device
• Log Out
Package Contents
Table of Contents
• Connecting with Alexa
• Connecting Google Home
Maintaining Your Smart Switch
• Firmware Updates
• Resetting
Troubleshooting
Warranty Information
Customer Support
3
4
5
7
8
9
10
11
11
16
20
20
22
25
28
30
33
34
36
37
38
39
40
40
41
42
45
48
44
Specications
DIMENSIONS (HXWXD) 4.13 x 1.75 x 1.75 in (10.5 x 4.40 x 4.40 cm)
COMMUNICATION MODE IEEE802.11 b/g/n (WiFi)
COMMUNICATION FREQUENCY 2400–2483.5 MHz
WIRELESS DISTANCE (SWITCH TO
ROUTER) 164 ft / 50 m (max visible range)
MAXIMUM SWITCH CURRENT 15A
POWER 120~60Hz
MAXIMUM LOADS 1800W
OPERATING TEMPERATURE 32º-104ºF (0º-40ºC)
55
Safety Information
To reduce the risk of injury and/or damage to this device, please read and follow all instructions
and safety guidelines in this manual.
Installation
•WARNING: RISK OF ELECTRIC SHOCK
OR FIRE.
• Before installing and wiring, TURN OFF
POWER by locking the appropriate circuit
breaker in the OFF position or removing the
appropriate fuse. Use a non-contact voltage
tester to ensure all electrical power is off.
Installing and wiring with active electrical
power may result in serious injury or death.
•ONLY install the smart switch if you are
comfortable with electrical work. If not,
contact a qualied electrician. Improper
installation signicantly increases risk of re,
electric shock, and other injuries.
• The smart switch must be installed and used
in accordance with the National Electric Code
(NEC) or your local electrical code.
• The smart switch is an indoor single-pole
switch that requires a neutral connection.
•DO NOT install the smart switch with wet
hands or when standing on wet or damp
surfaces.
Note: Etekcity cannot guarantee the quality of
installation, and cannot cover associated costs.
6
• DO NOT install the smart switch with wet
hands or when standing on wet or damp
surfaces.
Note: This smart switch complies with Part 15
of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may
not cause harmful interference, and (2) this
device must accept any interference received,
including interference that may cause undesired
operation.
Safety Information (cont.)
General Safety
• ONLY use your smart switch to control
incandescent, LED, Halogen, and compact
uorescent light bulbs. Using your smart
switch for other purposes may result in
serious injury, property damage, or death.
• ONLY use indoors, in a dry location with
ambient temperature controls (avoiding
extreme heat and freezing temperatures).
• DO NOT modify the smart switch hardware or
software. This may cause injury or property
damage, and will void the warranty.
• The smart switch must be installed and used
in accordance with the National Electric Code
(NEC) or your local electrical code.
• The smart switch is an indoor single-pole
switch that requires a neutral connection.
SAVE THESE
INSTRUCTIONS
7
Product Requirements
• In-wall installation with hardwired connections
• Neutral wire required
• Single-pole light switch. The electrical box
should be more than 2 inches deep.
• A smartphone or tablet running iOS 8.0 or
higher, or running Android 4.3 or higher
• A 2.4GHz WiFi connection (supports
802.11b/g/n standard)
Note: The smart switch is not suitable for a
single-wire switch box.
Note: DO NOT use 2 or more smart switches
to control 1 light xture. The smart switch is
designed for single-pole (1 location) wiring only.
The smart switch is compatible with incandescent, LED, Halogen, and compact uorescent light bulbs.
8

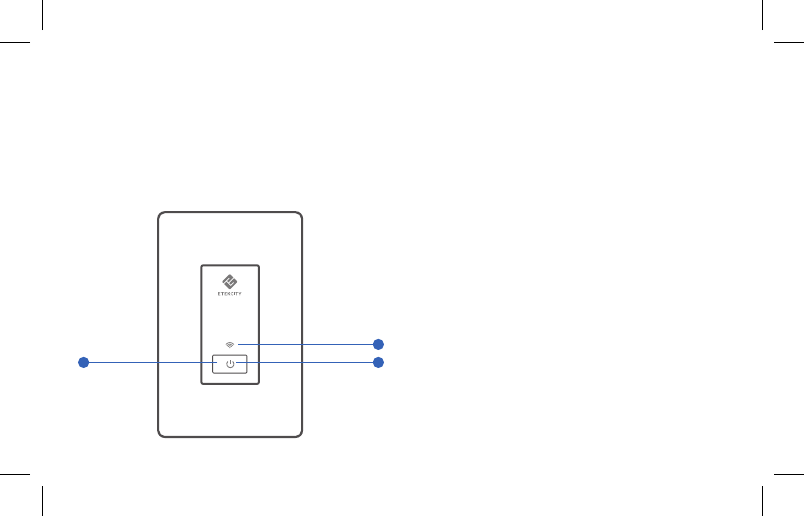

Function Diagram
1. Power Button
2. Wi Indicator
3. Power Indicator
Power Indicator
• After installation, the switch is OFF and the power
indicator is OFF.
• Press the power button, and the power indicator and
light switch will turn on.
• Press the power button again, and the power
indicator and light switch will turn off.
WiFi Indicator
• Indicator blinks white 1 time per second: The smart
switch is in Smart Conguration Mode (see page 11).
• Indicator blinks white 2 times per second: The
smart switch is in APN Conguration Mode
(see page 16).
• Indicator blinks white 4 times per second: The
smart switch has been reset (see page 41). The smart
switch should turn off after blinking 10 times.
• Indicator is solid white: The smart switch is
connected to a WiFi network.
• Indicator is off: The smart switch is ofine or not
connected to a WiFi network. You can also turn off
the WiFi indicator in the VeSync app.
2
31
9
Installation
Remove the faceplate from the smart switch
[Figure 1.1], then install the smart switch into a
switch box in the wall [See Figure 1.2 and
Figure 1.3].
Note: A neutral wire is required to install the
smart switch.
Figure 1.1
Figure 1.2 Figure 1.3
Ground
L-In
120V – Input
N
L-Out
L-In
Neutral
Green
Lamp
Black
Black
White
10
Setup
1. Connect your mobile device to a 2.4GHz
WiFi network.
Note: The smart switch will only work on a
2.4GHz network.
2. Scan the QR code, or download the VeSync
app from the App Store or Google Play
Store.
3. Open the VeSync app. Tap Sign Up to create
a new account.
4. After you’ve signed up, enter your email
and password, then tap Log In.
Note: You must create your own VeSync
account to use third-party services and
products, such as the Amazon Echo and
Google Home. The Guest account will not
work for this. With a VeSync account, you
can also allow your family or friends to
control your smart switch.
11
Conguration
Smart Conguration Mode
1. Tap the + button on the screen to add your
device.
12
2. Tap WiFi Outlets. 3. Tap WiFi Light Switch.
13
4. Tap Start Setup. 5. Press and hold the power button for 5
seconds, until the WiFi indicator slowly
blinks white. Then tap Next.
Note: Smart Conguration Mode will turn
off after 5 minutes.
14
6. Type in the name of your home WiFi
network and password, then tap Join
Network.
7. Wait for the smart switch to connect to
your WiFi network. This may take up to 90
seconds.
If connection fails, continue to APN
Conguration Mode (page 16).
15
8. Give your smart switch a unique name, or
simply use the default name. Tap OK.
9. You’ve successfully completed setup. Tap
Done to nish.
16
Conguration (cont.)
APN Conguration Mode
If Smart Conguration Mode fails to connect
your smart switch to your WiFi, you can use
APN (Access Point Name) Mode. You can also
choose this mode at the beginning of setup
instead of Smart Conguration Mode.

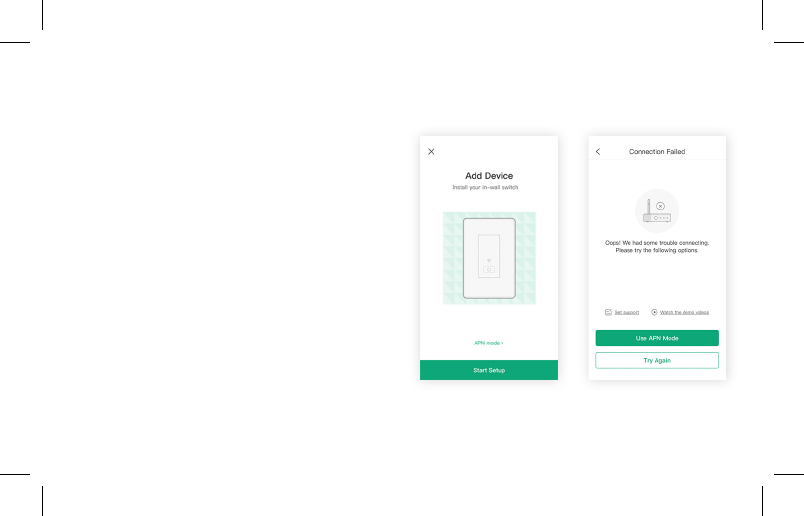

1. If you’re starting from the initial “Add
Device” screen, tap APN Mode.
If you’re starting from the “Connection
Failed” screen after Smart Conguration
Mode has failed, tap Use APN Mode.
17
2. Type in the name of your home WiFi
network and password, then tap Join
Network.
3. Press and hold the power button for 10
seconds, until the WiFi indicator quickly
blinks white. Then tap Next.
Note: APN Conguration Mode will turn off
after 5 minutes.
18
4. Go to “Settings” on your mobile device,
and select the WiFi network that starts with
“ESP”.
5. Wait for the connection to nish. This may
take up to 90 seconds.
19
6. Give your smart switch a unique name, or
simply use the default name. Tap OK.
7. You’ve successfully completed setup. Tap
Done to nish.
20
App Operation
Turning Light Off and On
Method 1:
On the “My Home” screen, you can tap the
power button to turn the light on/off.
21
Method 2:
Tap on the smart switch’s name on the “My
Home” screen to view device options and
details. Tap the power button to turn the light
on/off.
Note: If the smart switch is ofine, please follow
the instructions on the app to x the problem.
22
Schedules
You can schedule your smart switch to turn on
and off based on a schedule.
Note: The smart switch supports up to 26
schedules, timers, or away modes (in any
combination).
1. Tap Create Schedule.
23
2. Tap the > icon to the right of “Start”. 3. Set a time for the smart switch to turn on/
off. Tap √ when you are done.
24
4. You can also set a time under “End”, or
leave it blank.
Tap √ on the top right of the screen when
you are done creating the schedule.
5. You can turn the schedule on/off at any
time by tapping the toggle button to the
right of the schedule.
25
Sunrise / Sunset Schedules
You can schedule your smart switch to turn on/
off at sunrise or sunset.
1. Make sure Location Services is turned on
for VeSync.
26
2. Tap Create Schedule. 3. Tap the > icon to the right of “Start”.
27
4. To switch to Sunrise or Sunset options, tap
on the left or right arrows.
5. To conrm your choice, tap √.
28
Timers
You can create a timer to turn on and off your
smart switch.
1. Tap Timer, then Create Timer.
29
2. Set your timer, and choose whether you
want the light to turn on/off. Tap √ when
you are done.
3. Tap to start the timer. When the timer
ends, it will turn the light on/off.
Note: To delete the timer, tap on the timer
entry, then tap Delete.
30
Away Mode
You can create an Away Mode timer for your
smart switch, which will turn your smart switch
on and off to give the appearance that someone
is home.
1. Tap Away, then Set Away Mode.
31
2. Tap the arrows to the right of “Start” and
“End” to set the times.
3. To conrm the Away Mode timer, tap √.
32
4. You can turn the Away Mode timer on/off
at any time by tapping the toggle button to
the right of the schedule.
Note: To delete the Away Mode timer, tap on
the timer entry on the “Away” screen, then tap
Delete.
33
Device Settings
The Device Settings menu allows you to:
• Edit your smart switch name by tapping on
the current name next to “Device”
• Edit your smart switch picture by tapping on
the current image next to “Icon”
• Turn smart switch notications on/off by
tapping the toggle button
• Turn the WiFi indicator on/off by tapping the
toggle button
• Delete your smart switch (see page 36)
• Share your smart switch (see page 34)
34
Share Device
You can use Share Device to allow someone else
to control your smart switch (such as family,
friends, roommates, or anyone you choose).
Note: People who you share your smart switch
with cannot edit or delete any of your device
settings.
1. Tap Share Device.
35
3. Tap the Trash Icon ( ) to remove people
who you have shared your device with.
These people will no longer be able to
control your smart switch.
2. Type in the email belonging to the person
you want to share your smart switch with.
Tap Invite in the upper right corner.
36
Delete a Device
You can delete your smart switch from the
VeSync app from the “Device Settings” screen.
This option is located at the bottom of the
screen.
You can also delete your smart switch from the
“My Home” screen in the VeSync app.
• iOS: Swipe left on the smart switch’s name
to delete.
• Android: Press and hold for 2 seconds on the
smart switch’s name to delete.
37
Log Out
Note: You do not need to log out if you are not using a VeSync account.
1. On the “My Home” screen, tap More.. 2. Tap your prole, then tap Log out.
38
Connecting with Alexa
To view instructions on the VeSync app, tap
More on the “Devices” screen, then tap Connect
with Alexa.
Note: You must create your own VeSync
account to connect with Alexa.
39
Connecting with Google Home
To view instructions on the VeSync app, tap
More on the “Devices” screen, then tap Connect
with Google Home.
Note: You must create your own VeSync
account to connect with Google Home.
40
Maintaining Your
Smart Switch
Firmware Updates
To keep the smart switch up to date with the
latest improvements and xes, you should
always update the rmware when updates are
available.
On the Device Settings screen, tap Upgrade
Firmware.
41
Resetting
Resetting the smart switch can help you
troubleshoot any issues you may have. Please
keep in mind that factory resetting a device will
erase all of your custom settings and restore
them to factory default settings.
Press and hold the power button for about
15 seconds until the WiFi indicator light blinks
white rapidly (4 times a second). The WiFi
indicator light will blink rapidly 10 times, and
the smart switch will turn off. This will reset the
smart switch to factory defaults.
42
Troubleshooting
:Q Why haven’t I received a registration verication
email?
• Check to make sure that your email address is
correct.
• Try checking your spam or trash folders for the
verication email.
• If you still haven’t received the email, please
contact Customer Support (page 48).
:Q Why can’t I connect my smart switch to my WiFi
network during Setup?
• Make sure your phone is connected to a 2.4GHz
WiFi network. If you need to change your
network, refer to “How do I change my WiFi
network to a 2.4GHz WiFi network?”
Note: Smart switches currently only support
2.4GHz WiFi networks, but you can use any
available network—even cellular data networks—to
control the smart switch from your phone once
you’ve nished conguration.
• Make sure your wireless network router is close
enough to your smart switch. The smart switch
must be within a 164 ft (50 m) visible range from
the router.
• Check your WiFi network to make sure MAC
address ltering is turned off.
• Make sure you don’t have too many devices
connected to your router (10 or fewer is best).
• Clear your VeSync app cache.
• Factory reset your smart switch (see Resetting,
page 41). If resetting does not x the problem,
contact Customer Support (page 48).
:Q How do I change my WiFi network to a 2.4GHz
WiFi network?
1. Make sure your router is a dual band router
(most dual band routers support both 5GHz and
2.4GHz networks).
2. On your phone settings, set your WiFi network to
2.4GHz. Most 5GHz WiFi are sufxed by “_5G.”
Select the network that does NOT have “5G” in
its name.
3. Some routers hide the 2.4GHz WiFi network.
If you have trouble nding or setting up your
2.4GHz network, please contact your router
43
manufacturer to get support.
4. Open your VeSync app, and it should
automatically sync with your network.
:Q Why won’t the VeSync app let me add my smart
switch?
• If someone else already set up the smart switch,
ask them to share the smart switch with you (see
Share Device, page 34) so that you can control it
with your VeSync account.
• Check to make sure that your WiFi password was
entered correctly.
• Try using APN Conguration Mode (page 16).
• Make sure your smart switch rmware is up to
date (see Firmware Updates, page 40).
• Factory reset your smart switch (see Resetting,
page 41). If resetting does not x the problem,
contact Customer Support (page 48).
:Q After adding my smart switch to VeSync, why
won’t the smart switch icon appear on the “My
Home” screen of the VeSync app?
• After adding your smart switch to the VeSync
app (see Setup, page 10), refresh the main menu
screen (by switching between screens, or closing
and reopening the app), and the smart switch
should appear on the “My Home” screen.
:Q Why won’t my smart switch respond to my app
commands?
• Make sure your WiFi network is working properly.
• Make sure your smart switch is properly installed.
• Make sure your wireless network router is close
enough to your smart switch. The smart switch
must be within a 164 ft (50 m) visible range from
the router.
• Do not use a metal faceplate with your smart
switch. This may cause WiFi signal interference.
• Factory reset your smart switch (see Resetting,
page 41). If resetting does not x the problem,
contact Customer Support (page 48).
:Q Alexa/Google Home can’t nd my app or can’t
discover my smart switch.
• Make sure your wireless network router is close
enough to your smart switch. The smart switch
must be within a 164 ft (50 m) visible range from
the router.
44
• Check that your Alexa/Google Home is working
properly.
• Make sure your smart switch name is simple
to speak. Different accents or unusual
pronunciations can make it difcult for Alexa and
Google Home to recognize device names.
• Try reconnecting your Alexa/Google Home.
• Factory reset your smart switch (see Resetting,
page 41). If resetting does not x the problem,
contact Customer Support (page 48).
:Q Why isn’t my smart switch turning on/off as
scheduled?
• Check to make sure that the schedule is still
turned on (the toggle button should be green,
not gray).
• Check to make sure that your phone’s Location
Services are turned on.
• Make sure the smart switch is connected to a
working network and is not ofine.
:Q I’m unable to control my smart switch, and the
WiFi indicator light on the smart switch is blinking
continuously.
• Check to make sure that your WiFi network is
online.
• Make sure your wireless network router is close
enough to your smart switch. The smart switch
must be within a 164 ft (50 m) visible range from
the router.
• Factory reset your smart switch (see Resetting,
page 41). If resetting does not x the problem,
contact Customer Support (page 48).
:Q I believe my smart switch is defective. What
should I do?
• Contact Customer Support (page 48).
45
Warranty
PRODUCT SMART WIFI LIGHT SWITCH
DEFAULT WARRANTY
PERIOD 1 YEAR
For your own reference, we strongly recommend that you record
your order number and date of purchase.
ORDER NUMBER:
DATE OF PURCHASE:
TERMS & POLICY
Etekcity warrants all products to be of the highest quality in
material, craftsmanship, and service, effective from the date
of purchase to the end of the warranty period.
Etekcity will replace any product found to be defective due
to manufacturer aws based on eligibility. Refunds are
available within the rst 30 days of purchase. Refunds are
only available to the original purchaser of the product. This
warranty extends only to personal use and does not extend
to any product that has been used for commercial, rental, or
any other use in which the product is not intended for. There
are no warranties other than the warranties expressly set
forth with each product.
This warranty is non-transferrable. Etekcity is not responsible
in any way for any damages, losses, or inconveniences
caused by equipment failure by user negligence, abuse, or
use noncompliant with the user manual or any additional
safety, use, or warnings included in the product packaging
and manual.
This warranty does not apply to the following:
• Damage due to abuse, accident, alteration, misuse,
tampering, or vandalism.
• Improper or inadequate maintenance.
• Damage in return transit.
• Unsupervised use by children under 18 years of age.
Etekcity and its subsidiaries assume no liability for damage
caused by the use of the product other than for its intended
use or as instructed in the user manual. Some states
do not allow this exclusion or limitation of incidental or
consequential losses so the foregoing disclaimer may not
apply to you. This warranty gives you specic legal rights
and you may also have other rights which may vary from
state to state.
46
ALL EXPRESSED AND IMPLIED WARRANTIES, INCLUDING
THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO
THE PERIOD OF THE LIMITED WARRANTY.
Additional 1-Year Warranty
You can extend your 1-year warranty by an additional year.
Log onto www.etekcity.com/warranty and enter your order
number (for example, from Amazon or Houzz) to register
your new product for the extended warranty.
If you are unable to provide the order number for your
product, please type a short note in the order number eld
along with the date you received your product.
Defective Products & Returns
If your product proves defective within the specied warranty
period, please contact Customer Support via support@
etekcity.com with your order number. DO NOT dispose of
your product before contacting us. Once Customer Support
has approved your request, please return the unit with a copy
of the invoice or your order number.
47
48
Customer Support
If you encounter any issues or have any questions regarding your new product, feel free to contact
our helpful Customer Support Team. Your satisfaction is our goal!
Customer Support
Etekcity Corporation
1202 N Miller St. Suite A
Anaheim, CA 92806
Toll-Free: (855) 686-3835
Fax: (657) 202-1693
Local: (657) 500-1872
Email: support@etekcity.com
Support Hours
Monday - Friday:
9:00 am - 5:00 pm PST
*PLEASE HAVE YOUR ORDER CONFIRMATION
NUMBER READY BEFORE CONTACTING
CUSTOMER SUPPORT.
48
FCC Caution:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation..
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception,which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
To maintain compliance with FCC’s RF Exposure guidelines, This equipment should
be installed and operated with minimum distance between 20cm the radiator your
body: Use only the supplied antenna.
FCC ID: 2AB22-ESWL01
49
Connect with us @
Etekcity.
50
Scan here to join the community!
Visit us at WWW.ETEKCITY.COM
BUILDING ON BETTER LIVING.

Navigation menu
