Etross telecom ETS8848 FIXED WIRELESS TERMINAL(FWT) User Manual Characteristic
Shenzhen Etross telecom Co., ltd. FIXED WIRELESS TERMINAL(FWT) Characteristic
User Manual
3G WCDMA FWT-8848 User's Manual Version 1.0
1
3G WCDMA FWT-8848
User's Manual
3G WCDMA FWT-8848 Version 1.0 -2014
3G WCDMA FWT-8848 User's Manual Version 1.0
2
1, General Description
3G WCDMA FWT-8848 is a WCDMA to Analog Converter(single port, insert 1
sim card only), the device can produce a FXS line to allow a regular phone to
be connected and u sed just like a local landline(PSTN) except your calls will
go out the GSM network. This device can both receive and make calls.
The main application is: Connecting the RJ-11 FXS line to connect Ordinary
telephone set for voice call; to connect PBX for call extensions; to connect
billing systems for public phone use; to connect VoIP FXO gateway to realize
VoIP call termination; to connect alarm system for security purpose, etc. It is not
a VOIP gateway, nor a GSM+VOIP gateway, It is a GSM Fixed Wireless
Terminal that produces an analog FXS phone line .
Module employed:
Longsung U6100
3G Tri-Band UMTS/HSDPA/HSUPA（WCDMA/FDD）：850/1900/2100 MHz
2G Quad-Band GSM850/900/1800/1900Mhz

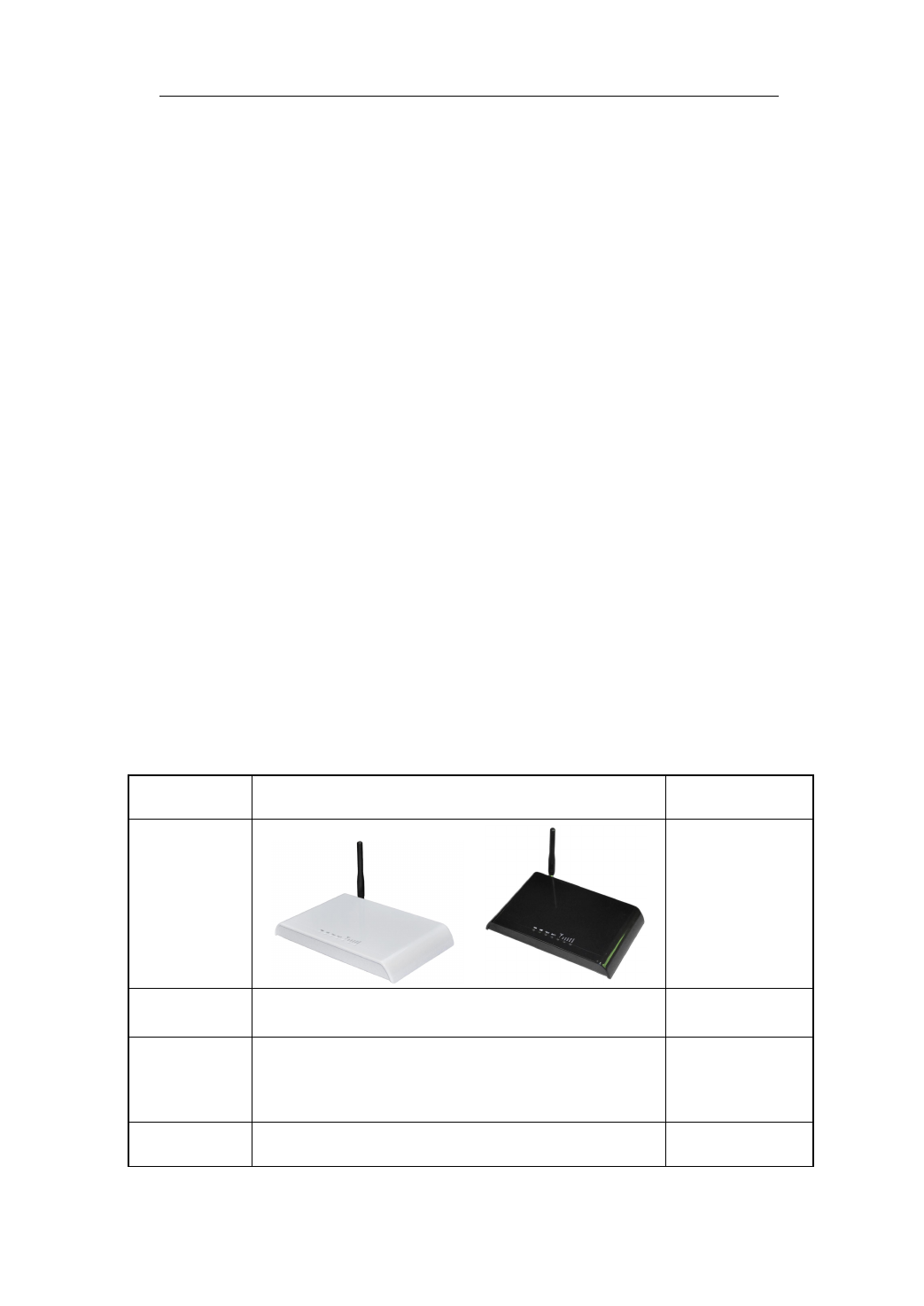

Appearance and Structure
Item 3G WCDMA FWT-8848 Remark
Appearance White/black
Material ABS (Acrylonitrile Butadiene Styrene)
Dimension 170mm×118mm×30mm
Excluding
antenna
Weight 250g Weight of Main
3G WCDMA FWT-8848 User's Manual Version 1.0
3
unit
Power Switch Rocker switch
Power Socket 12V DC input
Phone
interface
RJ11
2 RJ-11 ports
Antenna
interface
SMA-female
LED display
No.1: Power, No.2.in use, No.3, in talk, No.4,
Battery, if have, No. 5-7, Signal strength
From left to
right(front side
view)
Front side LEDs display for Signal strength, Power, Working
Status,Talking and Battery indicator;
Rear side
1pcs SMA antenna connectors, 2 RJ-11 output,
Power port and switch;
Bottom side
1pcs Sim card holder slots, you can insert Sim card
into the slot .
2, Features:
1) It is a 1 port WCDMA FWT which has 2 RJ-11 outputs for extensions;
2) It can connect with ordinary telephone set, PBX , VOIP Gateway, Billing meter
etc.
3) Employ industrial module to make
4) Simple to install and easy to maintain
5) Steady module and reliable design ensures good performance
6) Provides optimized circuit directly connecting the exchange device for
extensions
3G WCDMA FWT-8848 User's Manual Version 1.0
4
7) Compatible to most telephones, PBX device.
8) Strong signals with high gain antenna
9) Attractive plastic casing
10) SIM card supported (1.8V, 3V)
11) Caller ID display
12) Provides reversal polarity signal for metering
13) No noise and clear voice
14) Suitable for wide voltage range and low power consumption
15) Suitable for all kinds of weather and environment
16) Locking PIN / network (optional)
3,Technical Specifications:
Air interface standard:
Longsung U6100 is a wireless module which is designed for the global
market. It is a consumptive product; it can be designed in many kinds of
applications which can work on HSPA/UMTS/EDGE/GPRS/GSM network.
U6100 support the Bands as the following:
3G Tri-Band UMTS/HSDPA/HSUPA (WCDMA/FDD): 850/1900/2100 MHz;
2G Quad-Band GSM: 850/900/DCS1800/PCS1900 MHz
Phone interface: supply RJ-11 Phone Interface
Hanging voltage: 45V
Picking off voltage: 30mA / 41mA
Dialing tone Frequency: 450Hz
Antenna interface: Antenna amplifying>2.5db
Sensitivity:<-104DBM
Transmitting power<3W
Color: White /Black (optional)
AC-Adapter interface: Input: AC 110~240VAC 50~60Hz
Output: 12DC 1A.
AC-Adapter type: EU, US, AU, British can be optional
4, Operation Circumstance:
Operation temperature: -10c~60C
3G WCDMA FWT-8848 User's Manual Version 1.0
5
Storage temperature:-20C~70C
Operation humidity:45%-95%
Atmosphere pressure:86-106Kpa
Environment noise: <60DB
Transmitting Power:2W
Sensitivity: <-104dbm
Antenna Amplifying: >2.5db
Dialing frequency: 450Hz
Hanging voltage: 45V
Picking current: 30mA/41mA
5, Packing List
Name Quantity Remark
3G WCDMA FWT-8848 1pcs 3G/2G
Ac- adapter 1pcs AC-110-240V, DC12V/1A
Antenna 1pcs Magnetic Antenna with 3m
cable
User's Manual 1pcs English
G.W: 0.75kg per unit. 20pcs/Carton, 16kg /Carton
Corton Box Size: 55cmX34.5cmX32.5cm
6,Installation And Connection
The Condition for Installation
The terminal asks for 110- 220V AV power supply. It must be installed in the
area where the GSM network can cover. The strength of the signal can affect
the quality of voice.
1. Insert SIM card into the SIM card holder at the back of the terminal.
2. Install antenna. In order to ensure the quality of voice, antenna must be put
beyond 1.5 from the telephone and terminal.
3. On end of the telephone line connects to the “Phone” port of the terminal,
the other end connects to telephone.
4. “Power” port connects to power adapter that is connected to 110-220V AC
power supply.
1) The Installation for Connecting to Ordinary Telephone
3G WCDMA FWT-8848 User's Manual Version 1.0
6

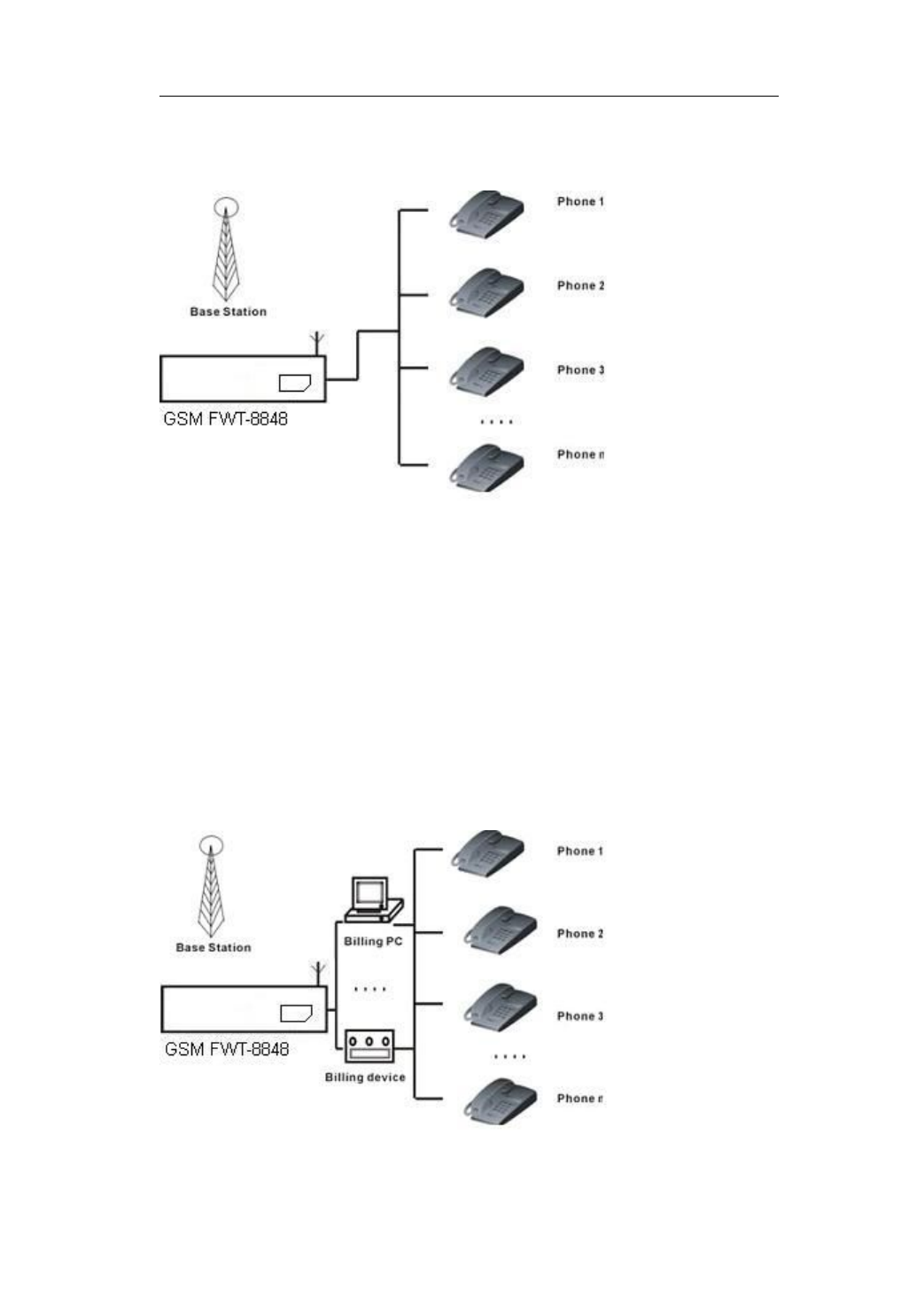

The Sketch for connecting ordinary Telephone
Draw your attention: Because there are many types of ordinary telephone and
their electric parameters are different. In order to avoid mutual disturbance
between telephone and terminal and affect voice quality. The distance between
telephone and terminal is 1.5m at least.
2) The installation for connecting to billing device for metering
If the users demand to register cost during calls, billing device can be
connected between terminal and ordinary telephone. Billing device register cost
according to the anti-polarity signal that is provided by terminal.
The sketch for connecting to Billing device or Computer charging system
3G WCDMA FWT-8848 User's Manual Version 1.0
7
3) The installation for connecting to PBX for call extentions
If users want to connect small PBX to this terminal, connect terminal’s “Phone
port” to the PBX.

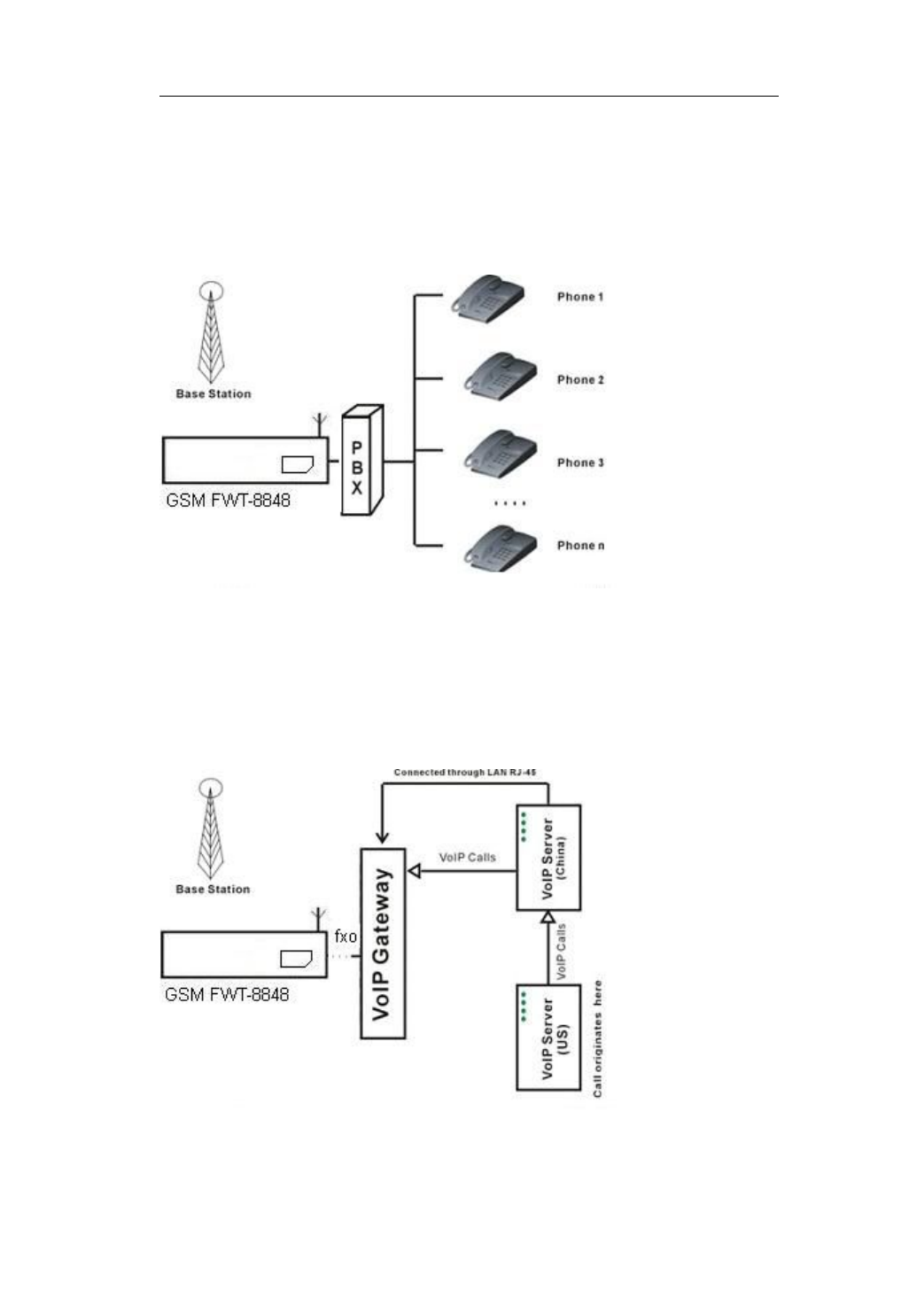

The sketch for connecting to PBX device.
4) The installation for connecting VoIP gateway for Call Termination
Suppose a VoIP call originates from US, which was transferred from US Server
to China Server on VoIP, finally the call will be terminated from internet to GSM
network and to be sent out to the destination answer side.
The sketch for connecting to VoIP gateway
5) The installation for connecting to alarm system for Security
The GSM FWT can substitute the PSTN for connecting to alarm system for
3G WCDMA FWT-8848 User's Manual Version 1.0
8
security purpose when PSTN failure or not available.

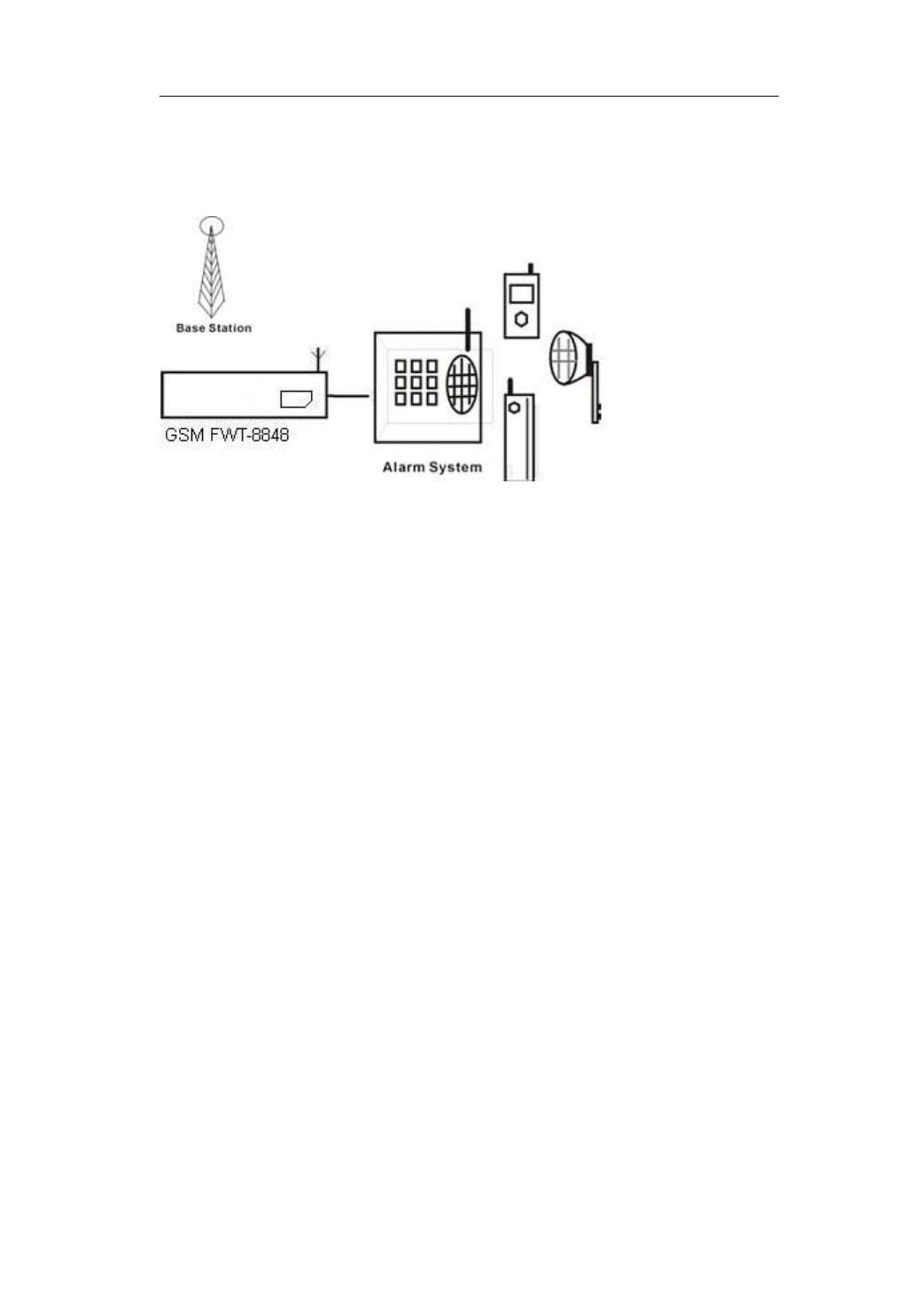

The sketch for connecting to alarm system
7, Function Setting
Before you do the following function settings, Lift handset or press hands free
key of telephone set, then you can press the buttons according to the following
instructions to finish setting, you will hear 2 beeps when you finish, this testify
setting successfully.
1) Restore to factory default setting
*#99#99# restore to factory default setting.
2) Adjust dial interval
*#01#30# , 01--command，30--time，Max 9.9 seconds，Min 0.5 seconds, default
setting is 3 seconds.
*If you use GSM FWT-8818 for connecting to VoIP gateway, you can set dial
interval as 0.5 second, it can make PDD<5 sec (Method: *#01#05#);
*If you use GSM FWT-8818 for connecting telephone, PBX, billing device, you
can set dial interval as 3 seconds or 5 seconds as you like (Method: *#01#30#,
set the dial interval as 3 seconds).
3) Adjust Earphone Volume
*#02#15# 02--command，15--volume，Max 16，Min 1, default setting is 15.
4) Adjust Mic. Volume (sensitivity)
3G WCDMA FWT-8848 User's Manual Version 1.0
9
*#03#10# 03--command，10--amount，Max 16，Min 1, default setting is 10.
5) Setting local area code
*#04#*0755# 10--command，*0755—area code，Max 5 numbers, use "*"
instead if area code is less than 5 digits.
6) Setting IP numbers
*#05#17911# 05--command，17911—IP numbers，Max 5 numbers, use "*"
instead if IP number is less than 5 digit.
7）Hide Caller ID (been sent out)Setting
*#13#01# 13--command，01--value，Max-02，Min-00 Default setting
is 00
00-- presentation indicator is used according to the subscription of the
CLIR service
01 – CLIR allowed
02 – CLIR prohibited
Notice: This Setting need GSM carrier support.
8) Bar incoming call Setting
*#14#00# 14--command，00--value，00--no barring, 01--set barring default
setting --00
9)FSK setting (optional) (should confirm before order)
*#17#00# setting caller ID
17-order, 00-value, 00-DTMF, 01-FSK, default setting is 00
This setting need terminal has FSK Chip set support
10) Billing Mode setting
*#15#00#
15--command, 00-value, 01-reversal polarity, 02-12 KHz, 03-16 KHz, default
setting-- 01
11）IMEI change Setting ( for Quad Band M35 Module only)
1. Write IMEI to RAM
*#18#IMEI no.#, 18--command, IMEI No. --15-digit IMEI no.
2. Check IMEI, if it is right, and then write it to module.
*#19#IMEI no.#, 19--command, IMEI No. --15-digits IMEI No.
3G WCDMA FWT-8848 User's Manual Version 1.0
10
Notice: Step 1 and Step 2, IMEI no. must be same.
12) Pin Lock &Network Lock Setting (optional)(Should confirm before
order)
2)PIN Lock
1, Set to open PIN code check and automatic PIN lock function
*#07#*1234# 07-command, 1234- the current SIM card PIN code
If set sucessfully, the device will open PIN code check, and automatically
change the current SIM Card into "PIN on" from "PIN off"
2, Set to close PIN code check and auomatic PIN lock function
*#08#*1234# 08-command, 1234- the current SIM card PIN code
If set sucessfully, the device will close PIN code check and automatic PIN lock
function.
3, Set to change PIN code, open automatic PIN lock function
*#09#1234*56785678# 09-command, 1234- the current sim card PIN code,
5678-new PIN code. (5678 can be any other 4 digits number, suppose you can
use 2009).
If set successfully, the device will change the current sim card PIN code as you
want.5678, or the any other 4 digit PIN codes, and open automatic PIN lock
function.
2)Network Lock
1,Set to open Network lock function
*#10#01234# 10-command, 01234-password
2,Set to close Network lock function
*#11#01234# 11-command,01234-password
3,Set the Network codes
*#12#1*46003*46003# 12-command,1--No. Of IMSI, 46003--the IMSI code for
China Telecom
*#12#2*46000*46000# 12-command, 2--No. Of IMSI, 46000--the IMSI code for
China Mobile
8,Making Calls and Answer Incoming Calls
3G WCDMA FWT-8848 User's Manual Version 1.0
11
Making Calls
1. Lift the handset or press “hand-free” key, you will hear dialing tone, then
you can dial the telephone numbers you want to call.
2. Dialing: dialing the telephone numbers you want to call
3. On completion of dialed digits, you can press “#” to transmit the called
telephone numbers. If you don’t dial any key for continual 3 seconds
during the dialing, terminal transmits called telephone numbers
automatically.
4. During calls, if the telephone numbers is not free ones, the terminal
sends out anti-polarity signal.
5. If the calling party or called party hangs up, the terminal stops sending
out anti-polarity signal.
Answering Incoming Calls
When some calls are coming in, if the connected telephone has the function
of displaying incoming calls, the telephone rings and displays the incoming
telephone numbers. Now users can lift the handset or press “hand-free” to
answer it.
3G WCDMA FWT-8848 User's Manual Version 1.0
12
Warranty Card
Please fill in the blanks carefully, and keep it properly as the voucher
for warranty.
Type of Equipment 3G WCDMA FWT-8848
User’s name Contact with:
Contact Tel.no.
Address
Date of Ex-works
Date of Maintenance Damage Management Maintainer
Sales Agent
(Stamp)
Purchasing Date
FCC Statement Warning
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions,
may cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on. The user is encouraged
to try to correct the interference by one or more of the following measures.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into and outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
You are cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment. The
distance between user and products should be no less than 20cm.
