EuroCB BTF8 Interphone Edge User Manual MSEDGE EN for sgs 20180425

EuroCB (Phils.), Inc. Interphone Edge MSEDGE EN for sgs 20180425

Users Manual

13245678MIC5213641 - MFB2 - Menu UP button3 - Menu DOWN button4 - + volume button5 - – volume button6 - Multifunction LED* see the user manualfor complete instructions.WARNING ON THE BATTERY OF THE PRODUCTFully charge the battery before using the product for the first time.Do not store the product without charging it. Failure to do so may cause irreversible da-mage to the battery capacity. Charge the battery every TWO months.WARNING ON THE WATER RESISTANCE OF THE PRODUCTFOLLOW ALL SUGGESTIONS CAREFULLY TO AVOID DAMAGING THE DEVICE:Do not immerse the product in fresh water which is more than a metre deep for more than 30 minutes.Do not store the product when still wet: dry it with a clean, soft cloth. Do not expose the product to salt water or ionised water, drinks or other liquids.If the device is exposed to liquids other than fresh water, wash the device with cold fresh water and dry it carefully with a clean, soft cloth.Do not expose the product to high pressure water jets.CHAPTER 1 – COMPOSITION OF THE KIT CHAPTER 2 – INSTALLATION INSTRUCTIONSQUICK GUIDECHECK FOR SOFTWARE UPDATES ON WEBSITEwww.interphone.comLocate the area in correspondencewith the earIf possible, remove the two cushions or paddingPosition the strips of Velcrofor the speakersFilp-up/jet helmet Full face helmetChoose the microphone to use: Place the speakers(!) Warnings on installation:1. The centre of the speakers must be placed in correspondence with the ears, as close as possible.2.  The  marking  “MIC”  on  the  microphone must be directed towards the mouth.StickerRe-install the cushionsBracketInstall the control unitThe external unit (control unit), connected to the audio kit, can be immersed in a meter offresh water for a maximum of 30 (thirty) minutes.Despite this, the device is not immune to greater stress, such as prolonged immersions orhigh pressure water jets.Using the product during intense meteorological phenomena, at high speeds, may beequivalent to subjecting the product to a high pressure jet.

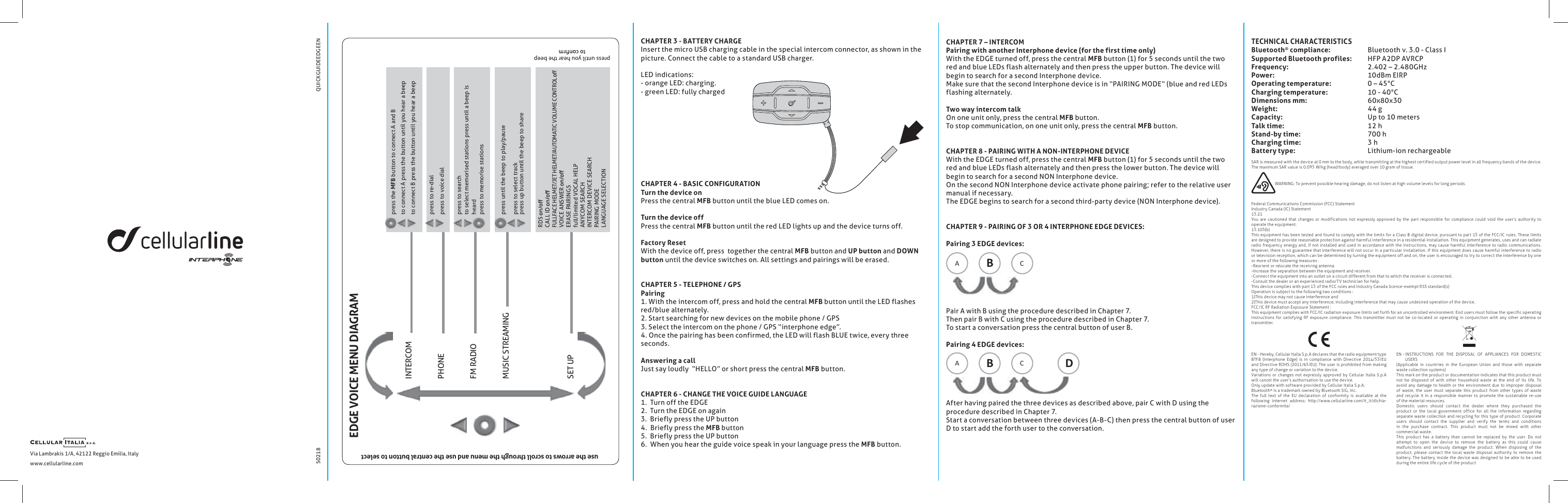

S0218Via Lambrakis 1/A, 42122 Reggio Emilia, Italywww.cellularline.com  QUICKGUIDEEDGEENEDGE VOICE MENU DIAGRAMpress the MFB button to connect A and Bto connect A press the button until you hear a beepto connect B press the button until you hear a beeppress until you hear the beep use the arrows to scroll through the menu and use the central button to selectpress until the beep to play/pausepress to select trackpress up button until the beep to sharepress to searchto select memorised stations press until a beep is heardpress to memorise stationspress to re-dialpress to voice dialINTERCOMPHONEFM RADIOMUSIC STREAMING SET UPRDS CALL ID FULLFACE HELMET/JET HELMET/AUTOMATIC VOLUME CONTROL VOICE ANSWER ERASE PAIRINGSfull/limited VOCAL HELPANYCOM SEARCHINTERCOM DEVICE SEARCHPAIRING MODELANGUAGE SELECTIONCHAPTER 7 – INTERCOM Pairing with another Interphone device (for the first time only)With the EDGE turned off, press the central MFB button (1) for 5 seconds until the two red and blue LEDs flash alternately and then press the upper button. The device will begin to search for a second Interphone device. Make sure that the second Interphone device is in “PAIRING MODE“ (blue and red LEDs flashing alternately.Two way intercom talkOn one unit only, press the central MFB button.To stop communication, on one unit only, press the central MFB button.CHAPTER 8 - PAIRING WITH A NON-INTERPHONE DEVICEWith the EDGE turned off, press the central MFB button (1) for 5 seconds until the two red and blue LEDs flash alternately and then press the lower button. The device will begin to search for a second NON Interphone device.On the second NON Interphone device activate phone pairing; refer to the relative user manual if necessary.  The EDGE begins to search for a second third-party device (NON Interphone device). CHAPTER 9 - PAIRING OF 3 OR 4 INTERPHONE EDGE DEVICES:Pairing 3 EDGE devices:A   BC   Pair A with B using the procedure described in Chapter 7.Then pair B with C using the procedure described in Chapter 7.To start a conversation press the central button of user B.Pairing 4 EDGE devices:A   BC   DAfter having paired the three devices as described above, pair C with D using the procedure described in Chapter 7.Start a conversation between three devices (A-B-C) then press the central button of user D to start add the forth user to the conversation.CHAPTER 3 - BATTERY CHARGEInsert the micro USB charging cable in the special intercom connector, as shown in thepicture. Connect the cable to a standard USB charger.LED indications:- orange LED: charging.- green LED: fully charged CHAPTER 4 - BASIC CONFIGURATIONTurn the device onPress the central MFB button until the blue LED comes on.Turn the device offPress the central MFB button until the red LED lights up and the device turns off.Factory Reset With the device off, press  together the central MFB button and UP button and DOWN button until the device switches on. All settings and pairings will be erased.CHAPTER 5 - TELEPHONE / GPSPairing1. With the intercom off, press and hold the central MFB button until the LED flashes red/blue alternately.  2. Start searching for new devices on the mobile phone / GPS3. Select the intercom on the phone / GPS “interphone edge”. 4. Once the pairing has been confirmed, the LED will flash BLUE twice, every threeseconds.Answering a call Just say loudly  “HELLO” or short press the central MFB button.CHAPTER 6 - CHANGE THE VOICE GUIDE LANGUAGE1.  Turn off the EDGE 2.  Turn the EDGE on again3.  Briefly press the UP button4.  Briefly press the MFB button5.  Briefly press the UP button6.  When you hear the guide voice speak in your language press the MFB button.TECHNICAL CHARACTERISTICSBluetooth® compliance:     Bluetooth v. 3.0 - Class ISupported Bluetooth profiles:   HFP A2DP AVRCPFrequency:     2.402 – 2.480GHzPower:     10dBm EIRPOperating temperature:     0 – 45°CCharging temperature:     10 - 40°CDimensions mm:     60x80x30Weight:     44 gCapacity:     Up to 10 metersTalk time:     12 hStand-by time:     700 hCharging time:     3 hBattery type:     Lithium-ion rechargeableEN - Hereby, Cellular Italia S.p.A declares that the radio equipment type BTF8  (Interphone  Edge)  is  in  compliance  with  Directive  2014/53/EU and  Directive ROHS (2011/65/EU). The user is prohibited from making any type of change or variation to the device.Variations  or  changes not expressly  approved  by  Cellular  Italia S.p.A will cancel the user’s authorisation to use the device.Only update with software provided by Cellular Italia S.p.A. Bluetooth® is a trademark owned by Bluetooth SIG, Inc.The  full  text  of  the  EU  declaration  of  conformity  is  available  at  the following  internet  address:  http://www.cellularline.com/it_it/dichia -razione-conformita/SAR is measured with the device at 0 mm to the body, while transmitting at the highest certified output power level in all frequency bands of the device. The maximum SAR value is 0.095 W/kg (head/body) averaged over 10 gram of tissue.                     WARNING: To prevent possible hearing damage, do not listen at high volume levels for long periods.Federal Communications Commission (FCC) StatementIndustry Canada (IC) Statement15.21You  are  cautioned  that  changes  or  modifications  not  expressly  approved by  the part  responsible  for  compliance  could  void  the  user’s authority  to operate the equipment. 15.105(b)This equipment  has been tested  and found to comply  with the limits for a Class B digital  device, pursuant to part 15 of the FCC/IC  rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency  energ y  and,  if  not installed  and used in accordance with the instructions, may  cause  harmful interference to radio  communications. However, there is no guarantee that  interference will not occur in a particular installation. If this equipment does  cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures :-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC rules and Industry Canada licence-exempt RSS standard(s)Operation is subject to the following two conditions :1)This device may not cause interference and2)This device must accept any interference, including interference that may cause undesired operation of the device.FCC/IC RF Radiation Exposure Statement :This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions  for  satisfying  RF  exposure  compliance.  This  transmitter  must  not  be  co-located  or  operating  in  conjunction  with  any  other  antenna  or transmitter.EN -  INSTRUCTIONS  FOR  THE  DISPOSAL  OF  APPLIANCES  FOR  DOMESTIC USERS(Applicable  in  countries  in  the  European  Union  and  those  with  separate waste collection systems)This mark on the product or documentation indicates that this product must not  be  disposed  of  with  other  household  waste  at  the  end  of  its  life.  To avoid any  damage to  health  or the environment due  to improper disposal of  waste,  the  user  must  separate  this  product  from  other  types  of  waste and  recycle  it  in a  responsible  manner to  promote  the  sustainable  re-use of the material resources.Domestic  users  should  contact  the  dealer  where  they  purchased  the product  or  the  local  government  office  for  all  the  information  regarding separate waste  collection and recycling for this type of product. Corporate users  should  contact  the  supplier  and  verify  the  terms  and  conditions in  the  purchase  contract.  This  product  must  not  be  mixed  with  other commercial waste.This  product  has  a  battery  than  cannot  be  replaced  by  the  user.  Do  not attempt  to  open  the  device  to  remove  the  battery  as  this  could  cause malfunctions  and  seriously  damage  the  product.  When  disposing  of  the product,  please  contact  the  local  waste  disposal  authority  to  remove  the battery.  The battery inside  the device  was designed to be  able to be  used during the entire life cycle of the product
