EuroCB BTF8 Interphone Edge User Manual MSEDGE EN for sgs 20180425
EuroCB (Phils.), Inc. Interphone Edge MSEDGE EN for sgs 20180425
EuroCB >
Users Manual
1
3
2
4
5
6
78
MIC
5
2
1
3
6
4
1 - MFB
2 - Menu UP button
3 - Menu DOWN button
4 - + volume button
5 - – volume button
6 - Multifunction LED
* see the user manual
for complete instructions.
WARNING ON THE BATTERY OF THE PRODUCT
Fully charge the battery before using the product for the first time.
Do not store the product without charging it. Failure to do so may cause irreversible da-
mage to the battery capacity. Charge the battery every TWO months.
WARNING ON THE WATER RESISTANCE OF THE PRODUCT
FOLLOW ALL SUGGESTIONS CAREFULLY TO AVOID DAMAGING THE DEVICE:
Do not immerse the product in fresh water which is more than a metre deep for more than
30 minutes.
Do not store the product when still wet: dry it with a clean, soft cloth.
Do not expose the product to salt water or ionised water, drinks or other liquids.
If the device is exposed to liquids other than fresh water, wash the device with cold fresh
water and dry it carefully with a clean, soft cloth.
Do not expose the product to high pressure water jets.

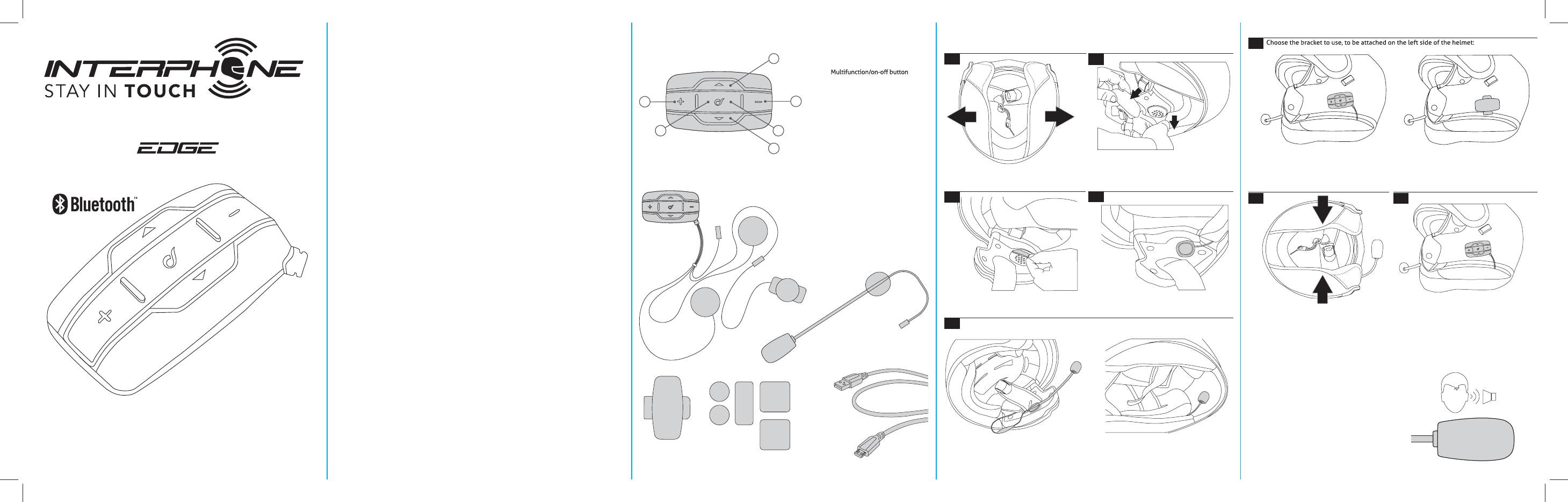

CHAPTER 1 – COMPOSITION OF THE KIT CHAPTER 2 – INSTALLATION INSTRUCTIONS
QUICK GUIDE
CHECK FOR SOFTWARE UPDATES ON WEBSITE
www.interphone.com
Locate the area in correspondence
with the ear
If possible, remove the two
cushions or padding
Position the strips of Velcro
for the speakers
Filp-up/jet helmet Full face helmet
Choose the microphone to use:
Place the speakers
(!) Warnings on installation:
1. The centre of the speakers must be placed
in correspondence with the ears, as close as
possible.
2. The marking “MIC” on the microphone
must be directed towards the mouth.
Sticker
Re-install the cushions
Bracket
Install the control unit
The external unit (control unit), connected to the audio kit, can be immersed in a meter of
fresh water for a maximum of 30 (thirty) minutes.
Despite this, the device is not immune to greater stress, such as prolonged immersions or
high pressure water jets.
Using the product during intense meteorological phenomena, at high speeds, may be
equivalent to subjecting the product to a high pressure jet.
S0218
Via Lambrakis 1/A, 42122 Reggio Emilia, Italy
www.cellularline.com
QUICKGUIDEEDGEEN

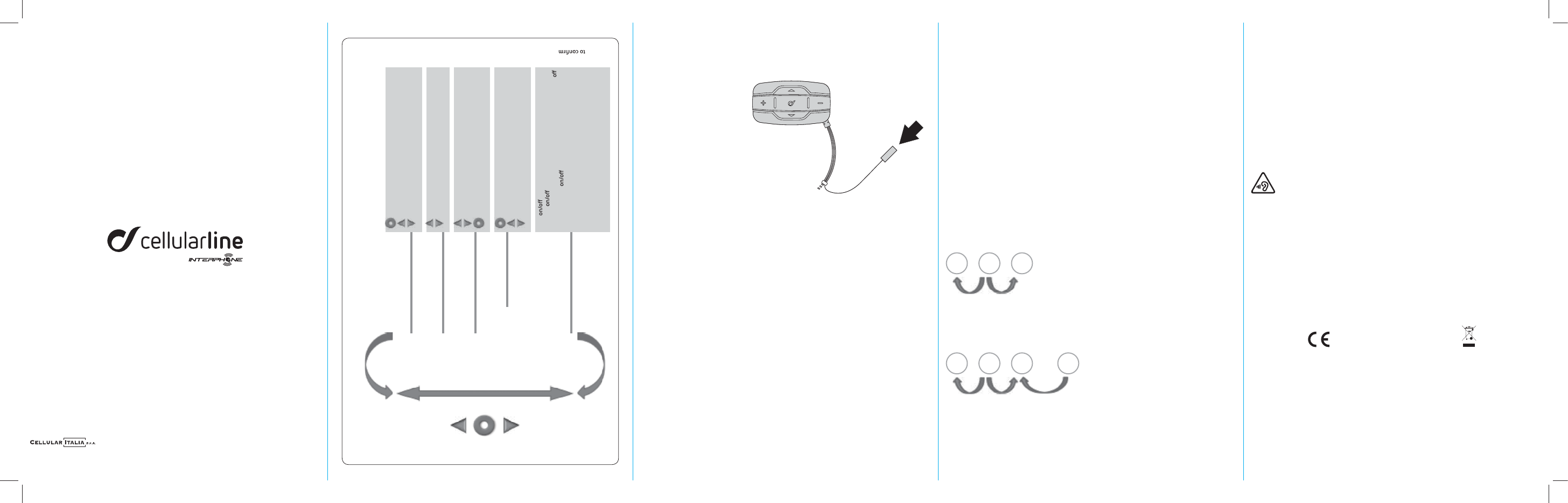

EDGE VOICE MENU DIAGRAM
press the MFB button to connect A and B
to connect A press the button until you hear a beep
to connect B press the button until you hear a beep
press until you hear the beep
use the arrows to scroll through the menu and use the central button to select
press until the beep to play/pause
press to select track
press up button until the beep to share
press to search
to select memorised stations press until a beep is
heard
press to memorise stations
press to re-dial
press to voice dial
INTERCOM
PHONE
FM RADIO
MUSIC STREAMING
SET UP
RDS
CALL ID
FULLFACE HELMET/JET HELMET/AUTOMATIC VOLUME CONTROL
VOICE ANSWER
ERASE PAIRINGS
full/limited VOCAL HELP
ANYCOM SEARCH
INTERCOM DEVICE SEARCH
PAIRING MODE
LANGUAGE SELECTION
CHAPTER 7 – INTERCOM
Pairing with another Interphone device (for the first time only)
With the EDGE turned off, press the central MFB button (1) for 5 seconds until the two
red and blue LEDs flash alternately and then press the upper button. The device will
begin to search for a second Interphone device.
Make sure that the second Interphone device is in “PAIRING MODE“ (blue and red LEDs
flashing alternately.
Two way intercom talk
On one unit only, press the central MFB button.
To stop communication, on one unit only, press the central MFB button.
CHAPTER 8 - PAIRING WITH A NON-INTERPHONE DEVICE
With the EDGE turned off, press the central MFB button (1) for 5 seconds until the two
red and blue LEDs flash alternately and then press the lower button. The device will
begin to search for a second NON Interphone device.
On the second NON Interphone device activate phone pairing; refer to the relative user
manual if necessary.
The EDGE begins to search for a second third-party device (NON Interphone device).
CHAPTER 9 - PAIRING OF 3 OR 4 INTERPHONE EDGE DEVICES:
Pairing 3 EDGE devices:
A BC
Pair A with B using the procedure described in Chapter 7.
Then pair B with C using the procedure described in Chapter 7.
To start a conversation press the central button of user B.
Pairing 4 EDGE devices:
A BC D
After having paired the three devices as described above, pair C with D using the
procedure described in Chapter 7.
Start a conversation between three devices (A-B-C) then press the central button of user
D to start add the forth user to the conversation.
CHAPTER 3 - BATTERY CHARGE
Insert the micro USB charging cable in the special intercom connector, as shown in the
picture. Connect the cable to a standard USB charger.
LED indications:
- orange LED: charging.
- green LED: fully charged
CHAPTER 4 - BASIC CONFIGURATION
Turn the device on
Press the central MFB button until the blue LED comes on.
Turn the device off
Press the central MFB button until the red LED lights up and the device turns off.
Factory Reset
With the device off, press together the central MFB button and UP button and DOWN
button until the device switches on. All settings and pairings will be erased.
CHAPTER 5 - TELEPHONE / GPS
Pairing
1. With the intercom off, press and hold the central MFB button until the LED flashes
red/blue alternately.
2. Start searching for new devices on the mobile phone / GPS
3. Select the intercom on the phone / GPS “interphone edge”.
4. Once the pairing has been confirmed, the LED will flash BLUE twice, every three
seconds.
Answering a call
Just say loudly “HELLO” or short press the central MFB button.
CHAPTER 6 - CHANGE THE VOICE GUIDE LANGUAGE
1. Turn off the EDGE
2. Turn the EDGE on again
3. Briefly press the UP button
4. Briefly press the MFB button
5. Briefly press the UP button
6. When you hear the guide voice speak in your language press the MFB button.
TECHNICAL CHARACTERISTICS
Bluetooth® compliance: Bluetooth v. 3.0 - Class I
Supported Bluetooth profiles: HFP A2DP AVRCP
Frequency: 2.402 – 2.480GHz
Power: 10dBm EIRP
Operating temperature: 0 – 45°C
Charging temperature: 10 - 40°C
Dimensions mm: 60x80x30
Weight: 44 g
Capacity: Up to 10 meters
Talk time: 12 h
Stand-by time: 700 h
Charging time: 3 h
Battery type: Lithium-ion rechargeable
EN - Hereby, Cellular Italia S.p.A declares that the radio equipment type
BTF8 (Interphone Edge) is in compliance with Directive 2014/53/EU
and Directive ROHS (2011/65/EU). The user is prohibited from making
any type of change or variation to the device.
Variations or changes not expressly approved by Cellular Italia S.p.A
will cancel the user’s authorisation to use the device.
Only update with software provided by Cellular Italia S.p.A.
Bluetooth® is a trademark owned by Bluetooth SIG, Inc.
The full text of the EU declaration of conformity is available at the
following internet address: http://www.cellularline.com/it_it/dichia -
razione-conformita/
SAR is measured with the device at 0 mm to the body, while transmitting at the highest certified output power level in all frequency bands of the device.
The maximum SAR value is 0.095 W/kg (head/body) averaged over 10 gram of tissue.
WARNING: To prevent possible hearing damage, do not listen at high volume levels for long periods.
Federal Communications Commission (FCC) Statement
Industry Canada (IC) Statement
15.21
You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to
operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC/IC rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energ y and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures :
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC rules and Industry Canada licence-exempt RSS standard(s)
Operation is subject to the following two conditions :
1)This device may not cause interference and
2)This device must accept any interference, including interference that may cause undesired operation of the device.
FCC/IC RF Radiation Exposure Statement :
This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating
instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
EN - INSTRUCTIONS FOR THE DISPOSAL OF APPLIANCES FOR DOMESTIC
USERS
(Applicable in countries in the European Union and those with separate
waste collection systems)
This mark on the product or documentation indicates that this product must
not be disposed of with other household waste at the end of its life. To
avoid any damage to health or the environment due to improper disposal
of waste, the user must separate this product from other types of waste
and recycle it in a responsible manner to promote the sustainable re-use
of the material resources.
Domestic users should contact the dealer where they purchased the
product or the local government office for all the information regarding
separate waste collection and recycling for this type of product. Corporate
users should contact the supplier and verify the terms and conditions
in the purchase contract. This product must not be mixed with other
commercial waste.
This product has a battery than cannot be replaced by the user. Do not
attempt to open the device to remove the battery as this could cause
malfunctions and seriously damage the product. When disposing of the
product, please contact the local waste disposal authority to remove the
battery. The battery inside the device was designed to be able to be used
during the entire life cycle of the product
