EverPro Technologies FH2M HDMI2.0 Active Optical Cable User Manual 1
EverPro Technologies Company Ltd. HDMI2.0 Active Optical Cable 1
FIBBR F-H2M Product Introduction
![](/img.php?id=3558755&img=bg1.png)
1
FIBBR 4K UHD HDMI Cable
PURE-Series
F-H2M
![](/img.php?id=3558755&img=bg2.png)
2
CONTENTS
1 DESCRIPTION .......................................................................................................................... 3
2 FEATURE .................................................................................................................................. 3
3 INSTRUCTIONS ........................................................................................................................ 4
4 SPECIFICATION ........................................................................................................................ 4
5 APPLICATION ........................................................................................................................... 6
6 FIBER SPECIFICATION .............................................................................................................. 7
7 FIBER PERFORMANCE ............................................................................................................. 7
![](/img.php?id=3558755&img=bg3.png)
3
1
Description
FIBBR Ultra series product is a HDMI active optical cable (AOC) with high
performance, low power consumption and low cost. Using optical fiber to
replace copper wire as the high-speed signal transmission medium, H2C can
perfectly transmit 4k UHD image up to more than 50 meters. Compared with
the traditional copper wire, H2C AOC is much longer, sof ter, more slim, with
better signal quality and perfect EMI/EMC feature. Compared with other
HDMI optical fiber transmission solution, H2C AOC is easy to use, has perfect
compatibility, and no external power supply needed.
2
Feature
1) No electro-magnetic radiation, safe for everyone in the family.
2) Slim and flexible cable for wide range of applications.
3) High resistance against surrounding electro-magnetic interference.
4) Connect-Light enables easy cable installation.
“Display” side lighting
:
When “Source” connection is ready and player is power on,
the “Display” side lighting LED is on. When “Display” connection is ready, the lighting LED
is automatically off.
![](/img.php?id=3558755&img=bg4.png)
4

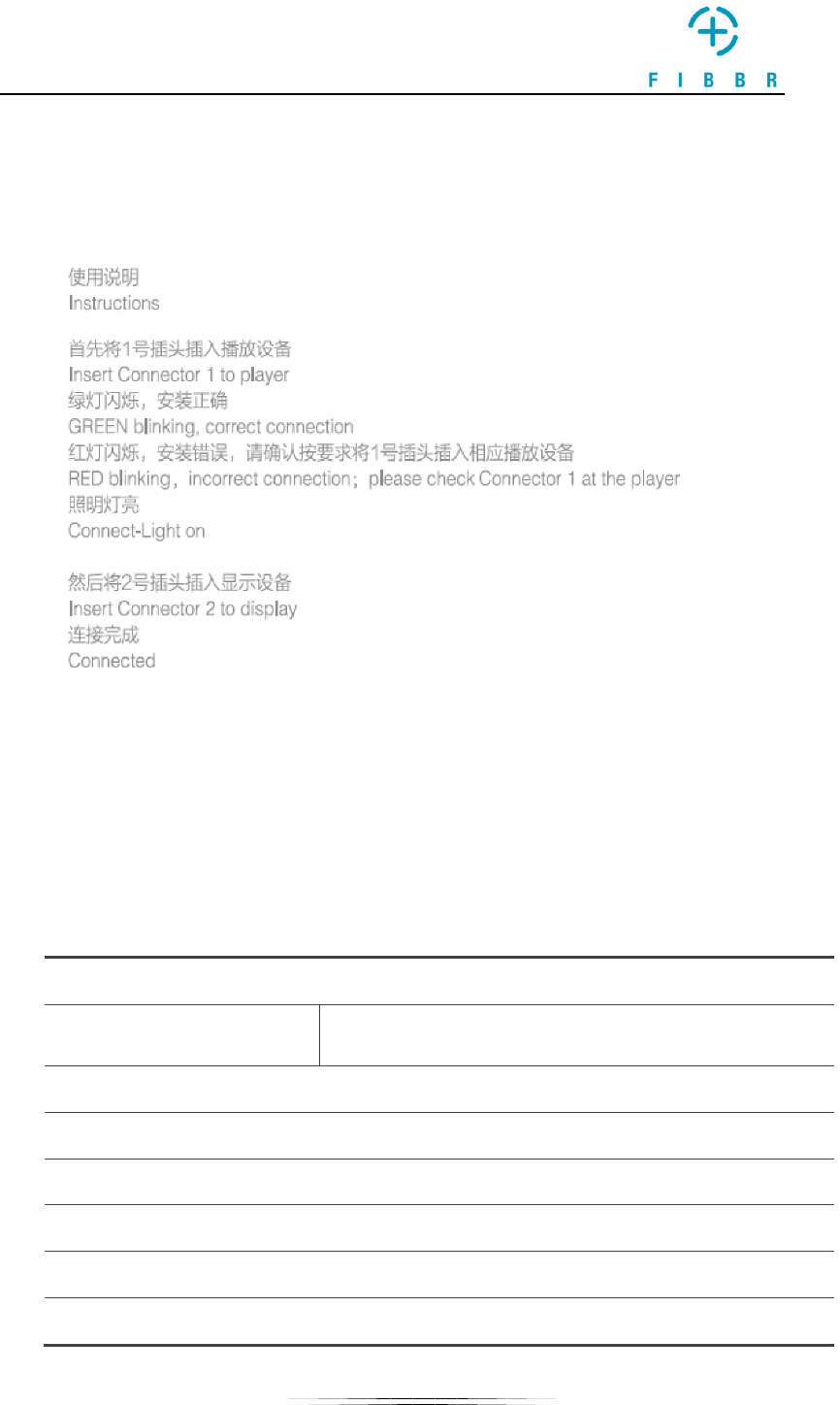

3
Instructions
4
Specification
Cable Length
Catalog 1.5M~50M
Interface
HDMI type A pluggable - HDMI type A pluggable
Speed
18Gbps Support 4k 60Hz UHD display
Power
No external power needed
![](/img.php?id=3558755&img=bg5.png)
5
Power Consumption
250mW
Mechanical / Condition
Cable diameter 4.6 mm
Bend Radius 20mm
Tensile Performance 100N
Crush 200N
Operating and Storage Temp -40 - 70°C
![](/img.php?id=3558755&img=bg6.png)
6
5
Application
1) Home Theater
2) High definition Video Meeting System
3) Medical Video System
4) High definition Video Surveillance System
5) Digital Signage and TV Wall
![](/img.php?id=3558755&img=bg7.png)
7
6
Fiber Specification
No. Item Specification Comment
1:Sub-cable
Fiber
Fiber Bandwidth≥
400MHz.km@850nm
Cladding Diameter: 124.8±0.7um
Cladding non-circularity: ≤0.8%
Core/Cladding concentricity: ≤1um
4 core fiber, blue/orange/green/brown
Coating White PVC coating Sub cable diameter: 0.95-1.0mm
2:Sub-Copper
wire
Twisted copper Twisted structure
Coating PVC coating
7 copper wires:
blue/orange/green/brown/grey/white/black
Diameter: 0.72-0.74mm
3 Kevlar 4*1610dtex
4 Out coating Black POHF-0602 or Black KPW-5890 Out diameter: 3.75±0.1mm
Thickness: 0.55±0.05mm
Fiber attenuation ≤3.5dB/km@850nm
Fiber Coating Printing EP HDMI V4 E235264 (UL) 80℃ VW-1 A1b POHF-cable No XXXXm
Braided Coating PET, out diameter:
4.6±0.10mm
7

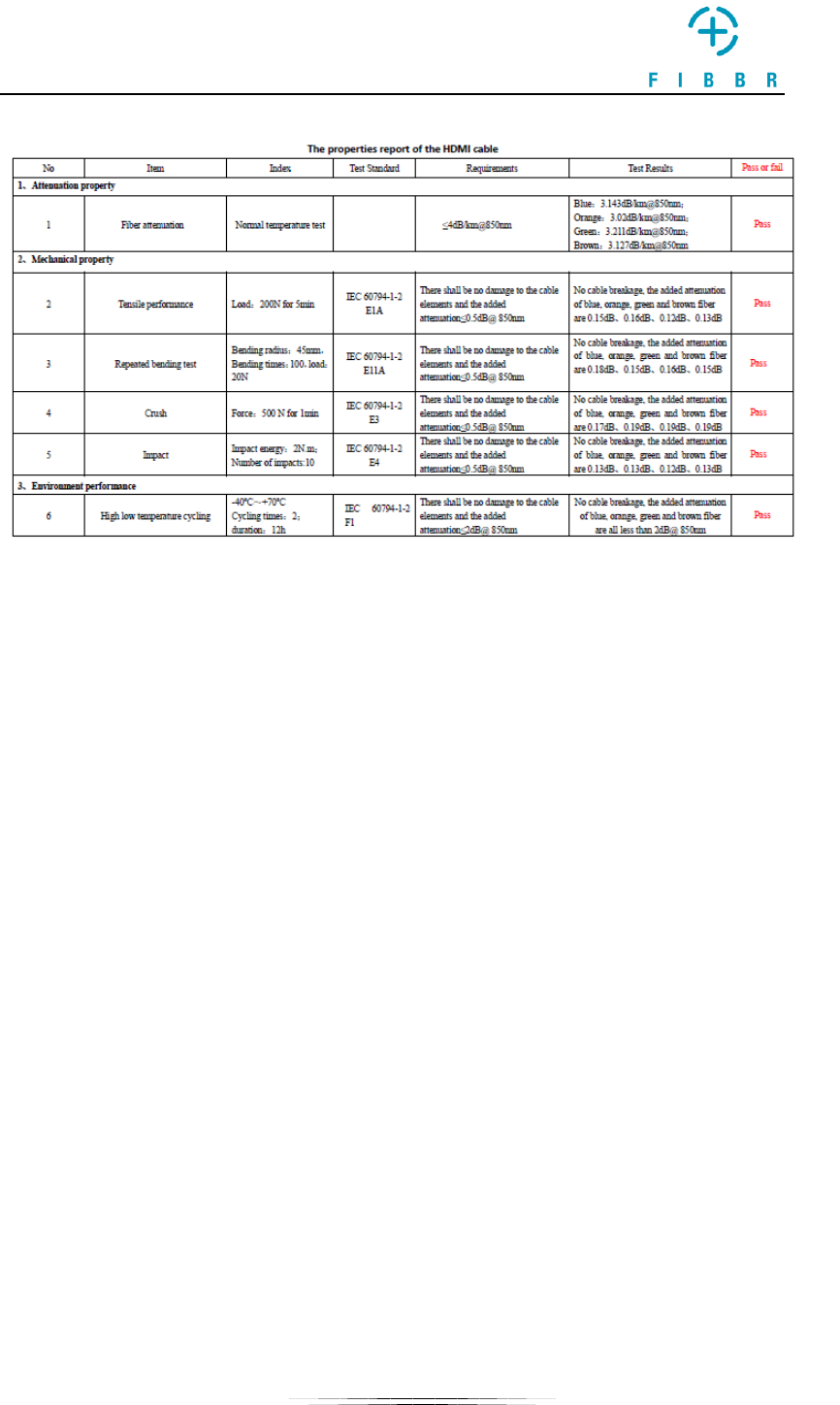

Fiber Performance
![](/img.php?id=3558755&img=bg8.png)
8
NOTE:
λ This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
