1HSP02 MOTION DETECTOR The Motion Detector is a Z-WaveTM enabled device which is fully compatible with any Z-WaveTM enabled network. Z -WaveTM enabled devices displaying the Z-WaveTM logo can also be used with the unit regardless of brand. Inclusion of this Motion Detector in a Wireless Controller system allows remote control of connected modules when the detector is triggered. The Motion Detector is designed with two sensors - Passive Infra-Red (PIR) sensor and light sensor - in order to fulfill the purpose of security and home automation. When the detector is working with se curity appliances, it is acting as a security device by detecting changes in infra-red radiation levels. If a person moves within or across the detection field, a trigger radi o signal will be transmit ted to cause full alarm condition. Alternatively, when the detector is working with home automation appliances, the detector can detect both changes in infra-red radiation levels and percentage of lux levels. At night, when a person moves within or across the field of detection, a trigger radio signal will be transmitted so as to turn on the connected lightings for better illumination. Overview and Battery Installation The PIR Detector adopts a CR2 3.0V Lithium battery which under normal conditions will have typical lifespan in excess of 1 year. To install the battery, simply undo the fixing screw and rem ove the rear co ver, and then place the battery into the compartment with polarity correctly fitted. Then refit and secure the rear cover. Include to or Exclude from Z-WaveTM Network In the rear casin g, there is a link key (t amper switch) which is used to carry out inclusion, exclusion, association or reset. When the detector is first powered up, the LED fla shes on and off alternately and repeatedly at 2-seco nd intervals. It implies that i t has not been assigned a node ID and cannot work with Z-Wave enabled devices. The detector will stay “awake” for 10 minutes when power is first applied to allow time for configuration. Please get familiar with the term s below before starting the operations. Function Description Inclusion Add a Z-Wave enabled device (e.g. Motion Detector) to Z-Wave network. Exclusion Delete a Z-Wave enabled device (e.g. Motion Detector) from the network. Association After inclusion, you have to define the re lationship between devices. Trough association, device can be assi gned as master/slave, and spec ify which slave is going to be controlled by which master. Reset Restore Detector to factory default. The table below lists an operation summary of b asic Z-Wave functions. Please refer to the instructions for your Z-WaveTM Certificated Primary Controller to access the setup function, and to include/exclude/associate devices. The detect or executes the function of auto inclusion when… Auto Inclusion The function of auto inclu sion will b e executed as long as the detector does not have node ID and in situations where… 1. The power is first applied. 2. The execution of exclusio n/reset is successful where the stored node ID is cleared. Note: Auto inclu sion timeout is 4 minute durin g which the nod e information of explorer frame will be emit ted once every 5 seconds. Unlike “inclusion” function as shown in the table below, the execution of auto inclusion is free from pressing the link key on the detector. Function Description Indication No node ID The Z-Wave Controller does not allocate a node ID to the unit. 2-second on, 2-second off Tamper Switch / Link KeyBattery Fixing Screw

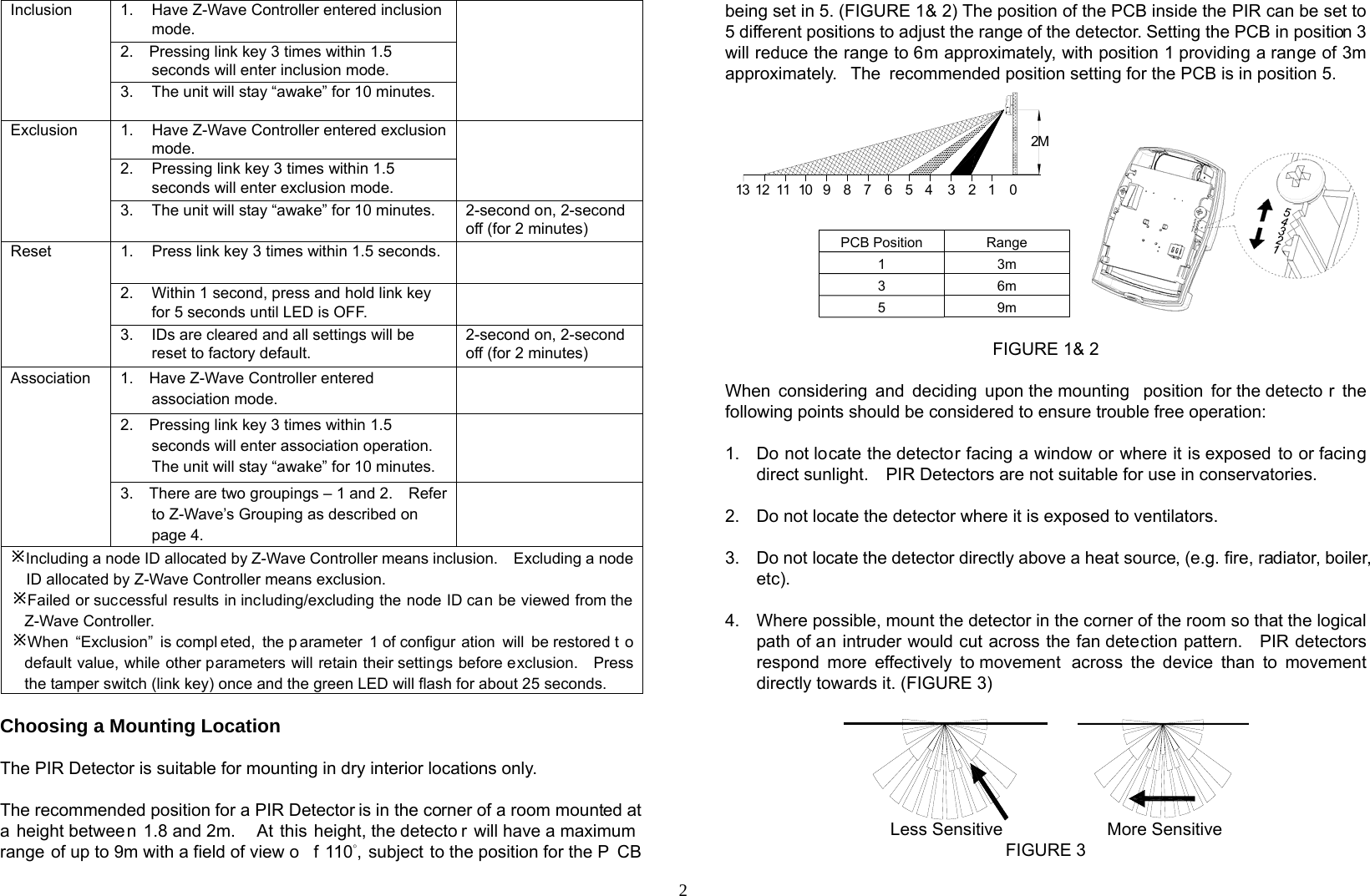

2Inclusion 1. Have Z-Wave Controller entered inclusion mode. 2. Pressing link key 3 times within 1.5 seconds will enter inclusion mode. 3. The unit will stay “awake” for 10 minutes. Exclusion 1. Have Z-Wave Controller entered exclusion mode. 2. Pressing link key 3 times within 1.5 seconds will enter exclusion mode. 3. The unit will stay “awake” for 10 minutes. 2-second on, 2-second off (for 2 minutes) Reset 1. Press link key 3 times within 1.5 seconds. 2. Within 1 second, press and hold link key for 5 seconds until LED is OFF. 3. IDs are cleared and all settings will be reset to factory default. 2-second on, 2-second off (for 2 minutes) Association 1. Have Z-Wave Controller entered association mode. 2. Pressing link key 3 times within 1.5 seconds will enter association operation. The unit will stay “awake” for 10 minutes. 3. There are two groupings – 1 and 2. Refer to Z-Wave’s Grouping as described on page 4. ÚIncluding a node ID allocated by Z-Wave Controller means inclusion. Excluding a nodeID allocated by Z-Wave Controller means exclusion. ÚFailed or successful results in including/excluding the node ID can be viewed from the Z-Wave Controller. ÚWhen “Exclusion” is compl eted, the p arameter 1 of configur ation will be restored t o default value, while other parameters will retain their settings before exclusion. Press the tamper switch (link key) once and the green LED will flash for about 25 seconds. Choosing a Mounting Location The PIR Detector is suitable for mounting in dry interior locations only. The recommended position for a PIR Detector is in the corner of a room mounted at a height between 1.8 and 2m. At this height, the detecto r will have a maximum range of up to 9m with a field of view o f 110°, subject to the position for the P CB being set in 5. (FIGURE 1& 2) The position of the PCB inside the PIR can be set to 5 different positions to adjust the range of the detector. Setting the PCB in position 3 will reduce the range to 6m approximately, with position 1 providing a range of 3m approximately. The recommended position setting for the PCB is in position 5. PCB Position Range 1 3m 3 6m 5 9m FIGURE 1& 2 When considering and deciding upon the mounting position for the detecto r the following points should be considered to ensure trouble free operation: 1. Do not locate the detector facing a window or where it is exposed to or facing direct sunlight. PIR Detectors are not suitable for use in conservatories. 2. Do not locate the detector where it is exposed to ventilators. 3. Do not locate the detector directly above a heat source, (e.g. fire, radiator, boiler, etc). 4. Where possible, mount the detector in the corner of the room so that the logical path of an intruder would cut across the fan detection pattern. PIR detectors respond more effectively to movement across the device than to movement directly towards it. (FIGURE 3) Less Sensitive More Sensitive FIGURE 3 123456789101112 0132M
3 5. Do not locate the detector in a position where it is subject to excessive vibration. 6. Ensure that the position selected for the PIR detector is within effective range of the system, (refer to System Installation and Operating Manual). Note: When the system is arme d, household pets should not be allowed to go into an area protected by a PIR detector as their movement would trigger the PIR and generate a false alarm. Installation Ensure that the system is in Test Mode. 1. Undo and re move the fixing scre w from the bottom edge of the detecto r. Carefully pull the bottom edge of the detecto r away from the rear cove r and then slide down to release the top clips. (FIGURE 2) FIGURE 2 2. Carefully drill out the required mounting holes in the rear cover using 3mm drill according to whether the unit is being mounted in a corner or against a flat wall. Note: Use 1st group of mounting holes to fulfill corner mounting installation. Use 2nd group of mounting holes for flat wall installation. (FIGURE 3a & 3b) FIGURE 3a Corner mounting FIGURE 3b 3. Using the rear cover as a template, mark the positions of the fixing holes on the wall. 4. Fix the rear cover to the wall using the two 18mm No .4 screws and 25mm wall plugs, (a 5mm hole will be required for the wall plugs). Do not over-tighten the fixing screws as this may distort or damage the cover. 5. Configure the detector as described below. Rememb er that on initia l installation that the device needs to be tested.
46. Check that the detector PCB is located and set in the correct position to provide the required detection range. To adjust the PCB position, simply slide it up or down ensuring that the l ocation legs are aligned with the required position number marked on the board. 7. To refit the detector to the rear cover and locate the clips in the top edge into the rear cover. Push the lower edge of the detector int o place and refit the fixing screw in the bottom edg e of the det ector to secure in position. Do not over-tighten the fixing screws as this may damage the casing. Settings Warm-Up It will take approximately 2 minutes to warm up after battery has been connected. When the red LED turns on steadily for 5 seconds, it implies warm-up procedure is completed and the detector is ready for detection. Test Mode and Operation 1. After power on, PIR will warm-u p for about 2 minu tes. If the unit store s no node ID then the LED will continuously flash to remi nd the user for inclusion. Distance test for PIR can only be done after inclusion. 2. Test mode: After inclusion, if Tamper switch is not pressed, the unit will enter test mode. When PIR is triggered, the red LED will light up once and retrigger time is about 5 seconds. However , if Tamper switch is pressed, t he unit will enter normal mode. When PIR is triggered, the red LED will not light up and retrigger time is based on set up value. 3. By walking into a protected area within coverage of 110 degrees, the detector will now be triggered e ach time th e detector senses move ment. The associated appliances wil l be activated. For exa mple, siren will sound or indication of movement detection will be shown on the controll er. It implies that the unit is working properly. Programming 1. Z-Wave’s Group (Association Command Class Version 2) The unit supports two association groups with one node support for Grouping 1 and five nodes support for G rouping 2. This has the effect that whe n the un it is triggered, all devices associated with the unit will receive the relevant reports. There are two kinds of reports: ALARM_REPORT and SENSOR_BINARY_REPORT. 1-1 Grouping 1 (Max. node = 1) 1-1-1 Power Applied Command The unit will send ALA RM_REPORT command to the node s of Grouping 1 to inform the device that the unit is powered up. ALARM_REPORT Command: [Command Class Alarm, Alarm Report, Alarm Level = 0x01, Alarm Type = 0x02] 1-1-2 Intrusion Event Report (Binary Sensor Report) Once the Detector detected a movement, the unit will send SENS OR _ BINARY_REPORT to the nodes of Grouping 1 to inform there is an intrusion event. Once the movement is sto pped, SENSOR_ BINARY_REPORT will be sent again to the associated devices. BINARY SENSOR REPORT Command: Event Present: [Command Class Sensor Binary, Sensor Binary Report, Value = 255 (0xFF)] Event Clear: [Command Class Sensor Binary, Sensor Binary Report, Value = 0 (0x00)] 1-1-3 Low Battery Report (Alarm Report Class) Upon Detector status being changed, the unit will check its battery status simultaneously. When the battery level of the unit drops to an unacceptable level, the unit will emit ALAR M_REPORT command to the nodes of Grouping 1. ALARM_REPORT Command: [Command Class Alarm, Alarm Type = 0x01, Alarm Level = 0x01] 1-1-4 Tamper Event Report When the tamper switch (link key) is pressed for over 10 seconds and then released, the unit will emit ALARM_REPO RT command to the
5nodes of Grouping 1. ALARM_REPORT Command: [Command Class Alarm, Alarm Type = 0x03, Alarm Level = 0x01] 1-2 Grouping 2 (Max. node = 5) 1-2-1 Control other Z-Wave Devices When the detector is triggered, the unit will send BASIC_SET command which contains a value that is adjust able, to the nodes of Groupi ng 2. For instance, the brig htness level of a lamp m odule can be fixed according to the set value. However, the BASIC_SET command will also be sent to the nodes of Grouping 2. For inst ance, a lamp module will be turned of f after receiving the BAISC_SET command. Basic Set Command: Event Present: [Command Class Basic, Basic Set, Value = 255 (0xFF)]Event Clear:[Command Class Basic, Basic Set, Value = 0 (0x00)] 2. Z-Wave’s Configuration The following information is for someone that has some experience in setting up a Z-Wave system or some one that h as computer software running a Z-Wave controller. Please get familiar with software of Z-W ave controller before gettin g started. To save po wer consumption for the ba ttery, RF po wer of HSP02 is in of f mode ordinarily. Please pre ss Tamper switch once to turn on the RF power for 30 seconds in o rder to st art function set up, and the user can see the LED st arts flashing. If set up is not finished within 30 seconds, press Tamper switch o nce more to continue the set up (or press Tamper switch 3 times within 1.5 seconds, and the unit will stay “awake” for 10 minutes). 2-1 Basic Set Level When Basic Set Command is sent where contains a value, the receive r will take it for consideration; for instance, if a lamp module receives the Basic Set command then the carried value will set the dim level of the lamp module. Example: 0 : OFF 1-99, 0xFF: ON (Binary Switch Device) Dim Level (Multilevel Switch Device) Function Parameter NumberSize Range Default Basic Set level 1 1 1 ~99, 0xFF 0xFF Configuration Command 2-2 Enabling/Disabling Sensor Detecting Function Sensor function Enable/Disable: To start or stop the sensor functions Note 1 Sensor includes PIR Sensor & Light Sensor Note 2 Default for HSP02 is Enable, when power applied, the unit is at Enable status Configuration Command Function Parameter Number Size Range Default Group1/Group2 Enable/Disable 2 1 0=Group1 DisableGroup2 Disable 1=Group1 Enable Group2 Enable 1 ( Enable) 2=Group1 Enable Group2 Disable 3=Group1 DisableGroup2 Enable 2-3 Sensitivity Level (PIR sensor only) In order to provide a best efficiency of the detector, it is recommended to test the detector with movements from a farthest end of the cove rage area at first time of use. If movements cannot be detected sensitively, simply adjust the sensitivity level with Con figuration Parameter #3. This parameter can be configured with the value of 1 through 10, where 1 means low sensitivity and 10 means highest sensitivity. Function Parameter NumberSize Range Default Sensitivity Level 3 1 1~10 6 Configuration Command
62-4 Re-trigger Interval Setting (PIR sensor only) The Configuration parameter that can b e used to adj ust the interval of being re-triggered after the detector has been triggered as Configuration Parameter #4. No response will be made during this interval if a movement is presented. The time interval can be set between 5 secs to 3600 secs. Function Parameter Number Size Range DefaultRe-trigger Interval 4 1 or 2 (if value > 127)5~3600(sec) 180 2-5 Lux Level The user can set a d etecting percentage of lux level which determines when the light se nsor will be activated. If percent age of lux level of ambient illumination falls below this percentage, and a person moves across or within the protected area, the detector will emit Z-Wave ON Command (i.e. Basic Set Command (Value = Basi c Set Level)) to controlle r and activate con nected modules and lighting. Percentage can be set from 1% to 100%. Function Parameter Number Size Range DefaultLux Level 5 1 1~100 % 10% Configuration Command 2-6 On-Off Duration The function of on-off duration setting will be useful if the detector is connected with a mo dule or lig hting. The duration determines how long th e module/lighting should stay ON. For instance, a value of 100 means the Lamp Module will turn off 100 seconds later after it turns on. This parameter can be configured from 5 to 3600, where the value means how many seconds of delay. Function Parameter NumberSize Range Default On-Off Duration 6 1 or 2 (if value > 127)5~3600 (sec.) 15 Configuration Command 3. Advanced Programming 3-1 Battery Check Command The users can also en quire the battery status of the Dete ctor by se nding BATTERY_ GET command via Z-W ave Controller. Once the unit receive s the command, it will return BA TTERY_REPORT command. If the unit i s in low battery status, a Battery_Level = 255 (0xFF) command will be sent to the Z-Wave Controller. BATTERY_REPORT Command [Command Class Battery, Battery Report, Battery Level = 20%-100%] 3-2 Wakeup Command Class The detector stays in sleep status for the majority of time in order to conserve battery life. However, it can be woken up by either triggers of movement or by setting WAKE_UP_INTERVAL_SET command via Z-W ave Controller. After the unit wakes up, it will send Wakeup Notification Command to the node ID that requires to be reported. The minimum and maximum wakeup interval is 60 seconds and 194 days respectively. Allowable interval among each wakeup interval is 1 second, such as 60, 61, 62 …. Note: The default value is 1 day, which implies that the detector awakes and sends the Wakeup Notification Command to the set node every day. Command Classes The Motion Detector supports Command Classes including… * COMMAND_CLASS_ALARM Detected a movement15 seconds Detector is triggered Light turns on Light turns off 180 seconds Detected a movementDetected a movement Detected a movement (no response) TriggereTriggered
7* COMMAND_CLASS_BATTERY * COMMAND_CLASS_VERSION * COMMAND_CLASS_WAKE_UP_V2 * COMMAND_CLASS_ASSOCIATION_V2 * COMMAND_CLASS_CONFIGURATION * COMMAND_CLASS_SENSOR_BINARY * COMMAND_CLASS_MANUFACTURER_SPECIFIC ---For Control Other Devices--- * COMMAND_CLASS_BASIC Troubleshooting Symptom Possible Cause Recommendation LED cannot be displayed Run out of battery power Replace a new battery Check if reverse battery polarity Refit the battery with correct polarity The detector not working Check if mounting location is proper Reposition its mounting location Remove the source of interference Check if the detector is out of order Do not open the detector; send it to the local retailer.Two minutes warm up is completed, The detector does not work and LED flashes on & off repeatedly at 2-second intervals Check if detector is first power up or the detector has executed exclusion or reset procedure Please carry out inclusion procedure; make sure there are ID codes stored in the detector. Specifications Battery CR2 3.0V 900mAh Lithium Battery Operating Range Minimum 30 meters (free space) Warm Up Time About 2 minutes PIR Detection Coverage Wall-Mounted: Up to 10m x 110° (at 1.8m mounting height & 25°C) Operating Frequency 908.42 MHz (US) / 869 MHz (RU) FCC ID FU5HSP02 *Specifications are subject to change without notice A501112129R 2013/09 Federal Communication Commission Interference Statement This equipment has b een tested and found to comp ly with the limits for a Cl ass B digital device, pursuant to Part 15 of the FCC Rules. These limits are design ed to pro vide reasonable protection against harmful interference in a residential installation. T his equipment generates, uses and can radiate radio frequency energy and, if not installed and used in acc ordance with the instructio ns, may cause harmful inter ference to ra dio communications. Ho wever, there is no g uarantee that interfere nce will not occur in a particular installation. If this eq uipment does cause harmful interference to r adio or television reception, which can be determined by turning the equipment off and on, the u ser is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and ( 2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. WARNING: Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local govern ment for inform ation regarding the coll ection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chai n, damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposal at least for free of charge.
