SM122 Wireless Door/Window Alarm
As a small alarm system, Wireless Door/Window Alarm
can be easily placed onto an unsecured window or door
by connecting it with the external hardwire magnetic.
The Alarm emits a piercing 130 decibel alarm when the
alarm's magnetic seal is broken. It can be used either
as an alarm or an enunciator. It provides you with three
different modes to adapt to your home security needs.
(1) (2)
(3) (4)
(5)
INSTALLATION

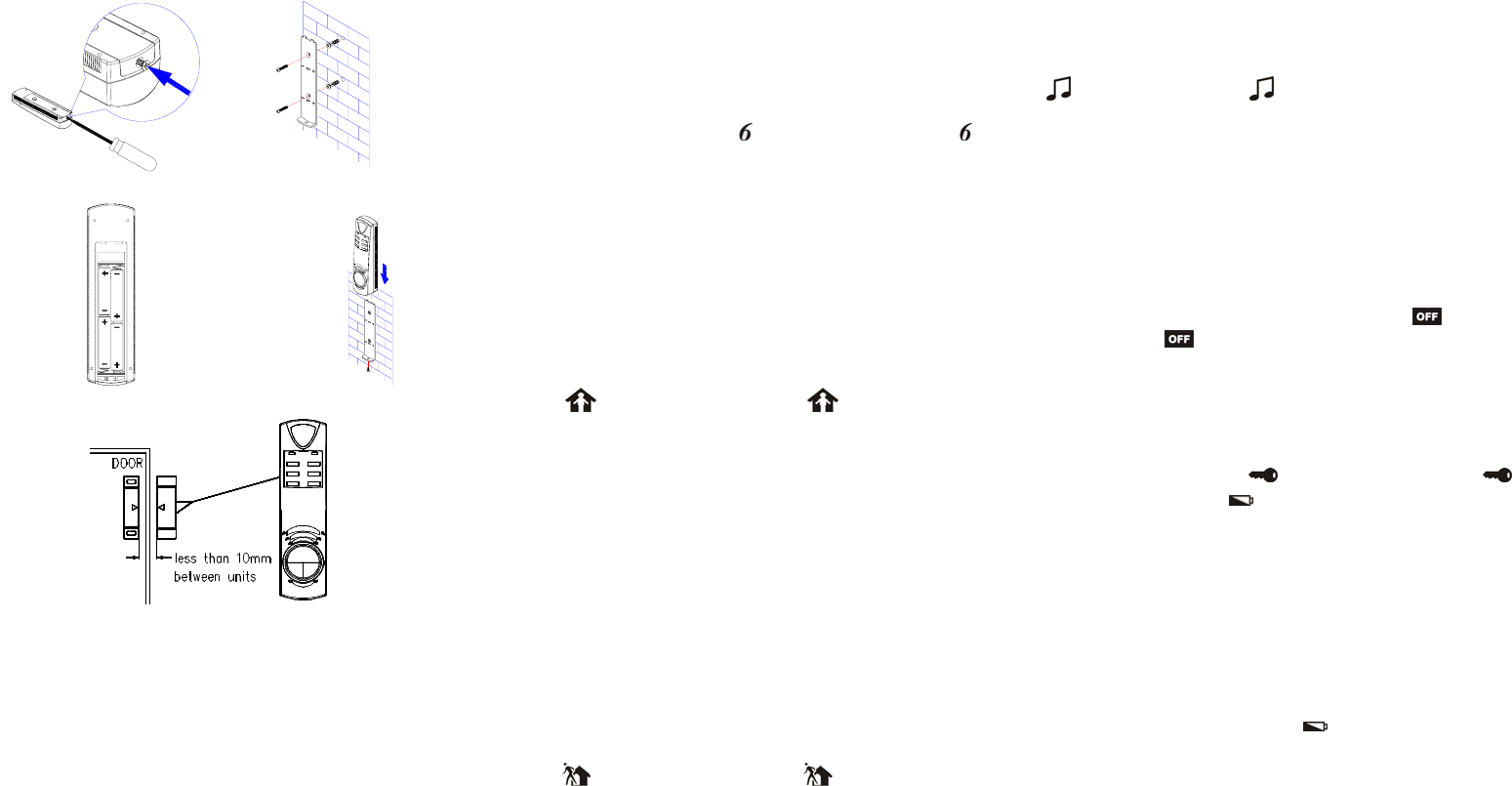

1. Remove screw at the base of compartment and slide
off cover.
2. Mount the cover on the wall.
3. Insert the battery.
4. Slide on the cover to the wall and tighten the screw
located at the base.
5. Mount magnetic sensor next to the siren on either the
left or right side of the alarm, with less than 10mm in
between. The Alarm will be triggered if the gap is
30mm or greater.
STARTING UP
Insert four (4) “AAA” size batteries. Average battery life
for typical usage is 1 year. When all batteries are
inserted, the Status LED will flash for one second to
indicate that the batteries are installed properly. The
Alarm will be started in the OFF mode. The four-digit
security code “1234” (PIN) has been set as the default
secret code. When you remove the battery, pressing
any button will clean out your previous setting. (NOTE:
After removing or replacing the batteries, the Alarm PIN
would be automatically set back as default “1234”.)
CODE LEARNING SETTING
Press the PIN code and key (e.g. [1]-[2]-[3]-[4]-[ ]) to
enter the code learning mode. The Alarm will transmit
a radio signal to the receiver instantly. Upon
completion of code learning transmission, the Alarm will
skip to off mode automatically. During code learning
mode, any input or activation will be ignored.
ARMING THE ALARM
Note: Both “Instant” and “Entry Delay” mode have a
15-second exit delay duration.
To set the Instant Mode, simply press the PIN code
and key (e.g. [1]-[2]-[3]-[4]-[ ]), this will result in
beeping sounds and the Status LED flashing, this
confirms the settings are completed. There will be a
15-second exit delay before the Alarm is armed. The
delay allows time for you to leave the protected area
without triggering the Alarm. The Alarm will transmit an
“open” radio signal to the receiver and sound for 30
seconds and then be silent for 10 seconds; with such a
40-second cycle for 10 times, when the magnetic
contact between the main unit and magnetic unit is
broken.
When the magnetic contact is closed again, the Alarm
will transmit a “close” radio signal to the receiver.
To set the Entry Delay Mode, simply press the PIN code
and key (e.g. [1]-[2]-[3]-[4]-[ ]), this will result in
beeping sounds and the Status LED flashing, this
confirms the setting has been completed. There will be
a 15-second exit delay before the Alarm is armed. The
Status LED will flash for one second and a 15-second
silent entry delay before the alarm goes off when the
magnetic contact between the main unit and magnetic
unit is broken. The Alarm will emit an “open” radio signal
to the receiver and will sound for 30 seconds and then
be silent for 10 seconds; with such a 40-second cycle
for 10 times.
When the magnetic contact is closed again, the Alarm
will transmit a “close” radio signal to the receiver.
To set the Chime Mode, simply press the PIN code and
key ([1]-[2]-[3]-[4]-[ ]); and this will cause one
chime, confirming that the setting has been completed.
Two chimes can be heard when the magnetic contact
between the main unit and magnetic unit is broken.
An “open” and “close” radio signal will be emitted
respectively when the magnetic seal is broken and
closed again.
DISARMING THE ALARM
Disarm the Alarm by pressing PIN and key (e.g.
[1]-[2]-[3]-[4]-[ ]).
When the Alarm is set in the off mode, any activation or
radio signal transmission will be ignored.
CHANGING PIN CODE
Press the PIN code and key (e.g. [1]-[2]-[3]-[4]-[ ]),
this will turn on both LED and Status LED. If you do
not change the Pin Code or incorrect codes were
entered three times consecutively within 15 seconds,
the Alarm will automatically go into Off Mode.
While setting the PIN code, no radio signal will be
transmitted to the receiver if the magnetic seal is
broken.
BATTERY LOW INDICATION
When the battery is low, the LED will flash every 3
seconds until the battery dies. Low battery indication
won’t be visible until the Alarm is at idle condition which
means alarm activation, code input, 30-seconds
disabled period, delay mode and code clearance will not
be indicated.
INSM122EVSP0E1A
PIN INPUT ERROR
If the PIN input is not correct, the LED will flash and
beep three times. Three consecutive input errors will
disable the Alarm for 30 seconds. When the siren
sounds, any input errors will activate the LED and the
Alarm will disable until the siren ends.
Mode Status PIN Mode key
Instant
Delay
Chime
Off
PIN Change
Code Learning
(Note: When testing, a cloth can be used to cover the
alarm to reduce the risk of hearing damage.)
EXTERNAL CONNECTION
If more than one door/window needs to be protected,
additional magnetic reed switch (model No. SA200) can
be purchased separately. Series connection is made
among all of the magnetic reed switch for a max. of 10
pcs and total length of connecting wiring cannot exceed
10m.

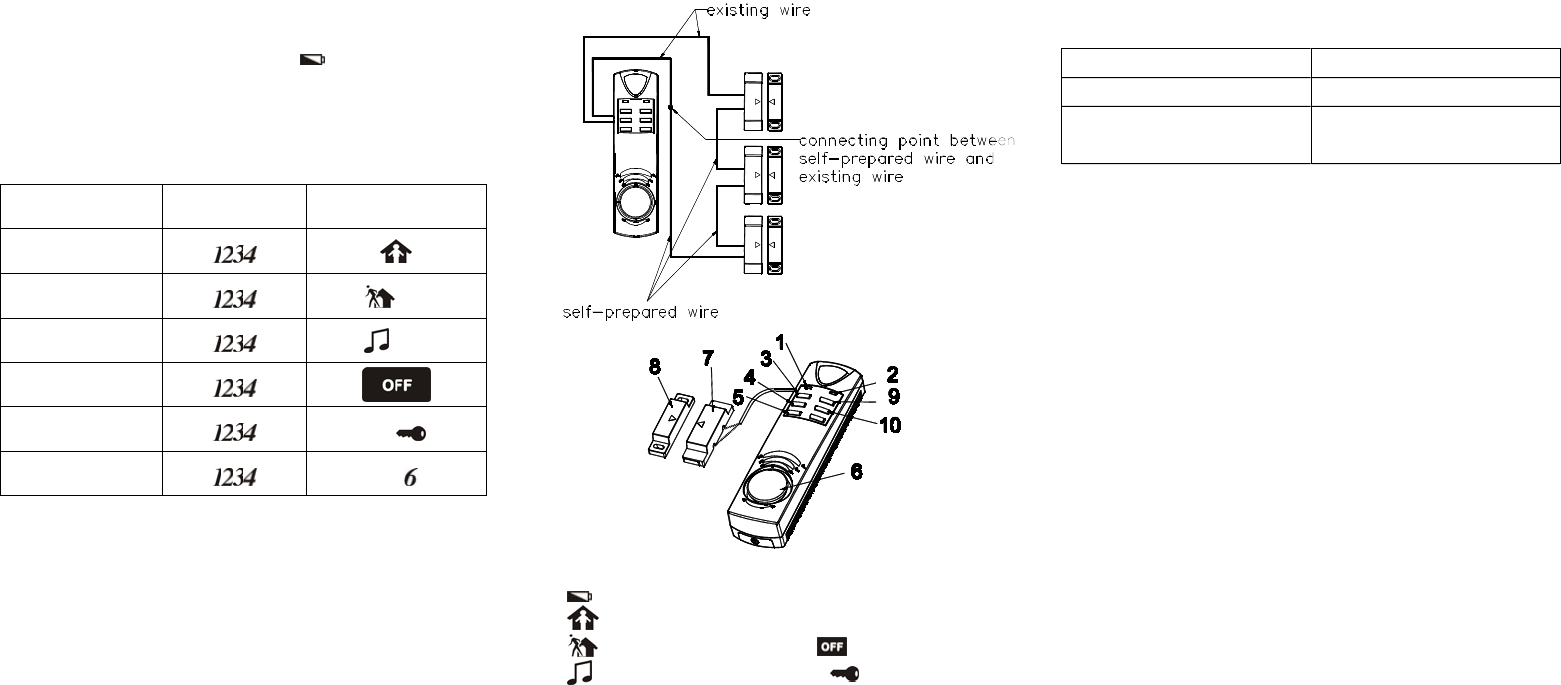

Series connection is shown as below
1) Status LED 6) Siren
2) LED 7) Magnetic Sensor
3) 8) Magnetic Unit
4) 9)
5) 10)
Note: The security code for your Alarm should be
changed from the factory default setting.
Note: If codes have not been entered entirely,
incomplete preset codes will be cleaned after 10
seconds automatically. If codes have not been entered
entirely during the siren sound, incomplete preset codes
will be cleaned until the siren sound ceases. If codes
have not been entered entirely during the change of
security code, incomplete preset codes will be cleaned
until the change of security code is finished.
SPECIFICATIONS:
Frequency range 314-316 MHz
Battery 1.5V AAA type x 4
Communication Range 70 meters min. (in an
open space)
Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and receiver.
- Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV
technician for help.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
FCC Caution: Any changes or modifications not
expressly approved by the party responsible for
compliance could void the user's authority to operate
INSM122EVSP0E1A
this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment. End
users must follow the specific operating instructions for
satisfying RF exposure compliance.
This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
