SP103 PIR DETECTOR
The PIR Detector is a Z-WaveTM enabled device and is fully compatible with any
Z-WaveTM enabled network. Z-WaveTM enabled devices displaying the Z-WaveTM
logo can also be used with it regardless of the manufacturer, and ours can also be
used in other manufacturer’s Z-WaveTM enabled networks. This PIR Detector is
controllable to our modules, such as On/Off Module AN135 and Lamp Module
AD130. Inclusion of this PIR Detector on other manufacturer’s Wireless Controller
menu allows remote turn-on of connected modules and their connected lighting
when the Detector is triggered.
The PIR Detector is designed to detect movement in a protected area by detecting
changes in infra-red radiation levels caused, for example, when a person moves
within or across the devices field of vision, a trigger radio signal will be transmitted.
Adding to Z-WaveTM Network

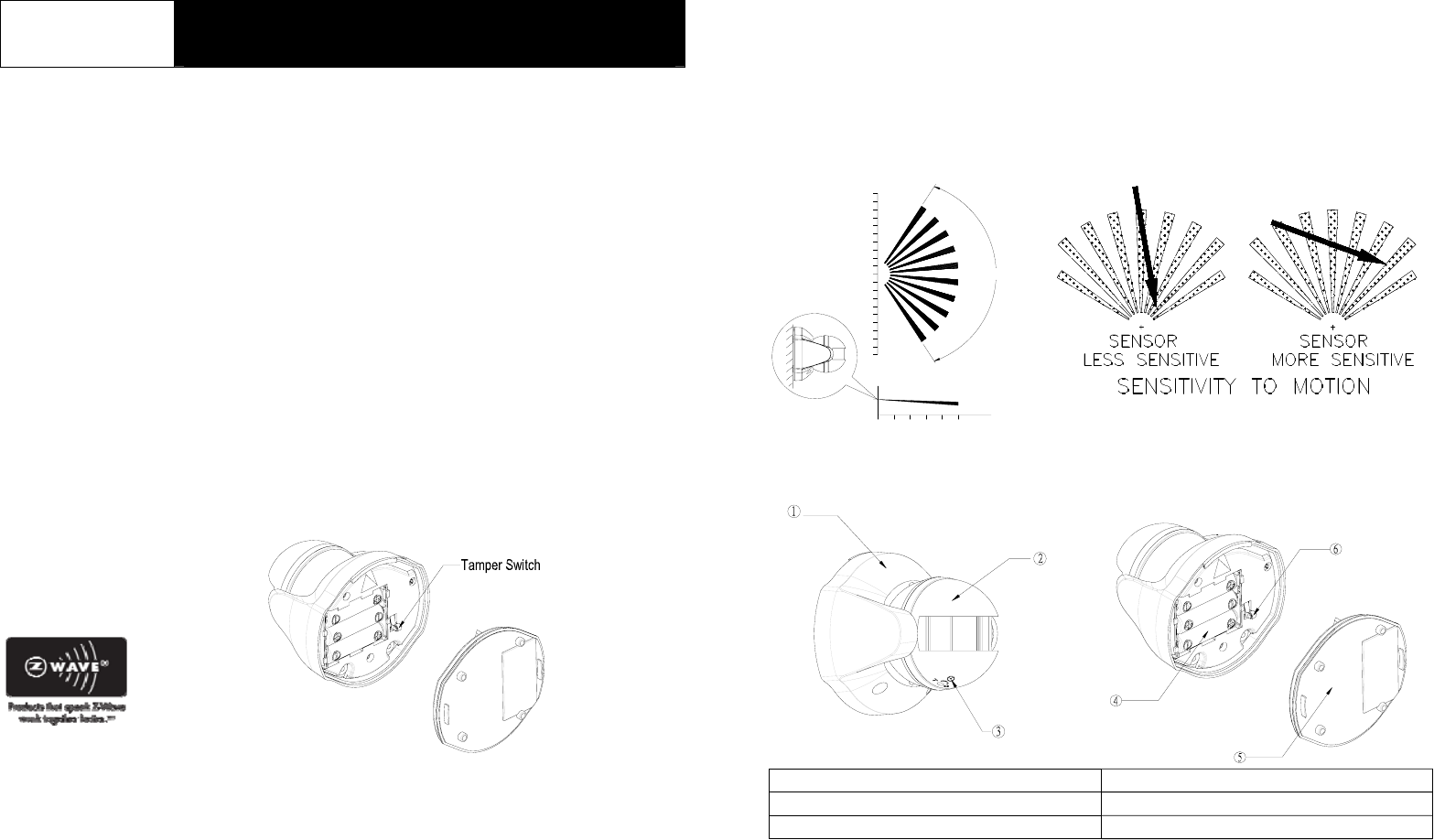

In the rear casing, there is a tamper switch which is used to carry out inclusion,
exclusion or association. Put a Z-WaveTM Wireless Controller into
inclusion/exclusion mode, press the tamper switch on the detector to complete the
inclusion/exclusion process (FIGURE 1)
Choosing A Mounting Location
The recommended position for a PIR Detector is in the corner of a room mounted
2m from the floor. At this height, the detector will detect movement up to 6-12m
depending on adjustment. (FIGURE 2a) Also, in this position, the 110 degrees
fan-shaped detection pattern can normally offer greater protection than mounting on
a flat wall. Before selecting a position for a PIR Detector the following points should
be noted:
1. Do not position the detector facing a window or direct sunlight. PIR Detectors
are not suitable for use in conservatories or draughty areas.
2. Do not position the detector directly above or facing any source of heat, eg: fires,
radiators, boiler etc.
3. Where possible, mount the detector so that the logical path of an intruder would
cut across the fan pattern rather than directly towards the detector.(FIGURE
2b)
FIGURE 2a FIGURE 2b
Installation
1 Front Cover 4 Battery
2 PIR Motion Sensor 5 Rear Cover
3 Time-off Knob 6 Tamper Switch
1. Using a Phillips screwdrivers to detach the rear cover. (FIGURE 3a)
2. Insert 2 AAA-size 1.5V batteries to the battery compartment, ensuring that
602
2.0
2
0
10
6
(M)
10 (M)
100°
4 8
4
8
2
4
6
8
10
2

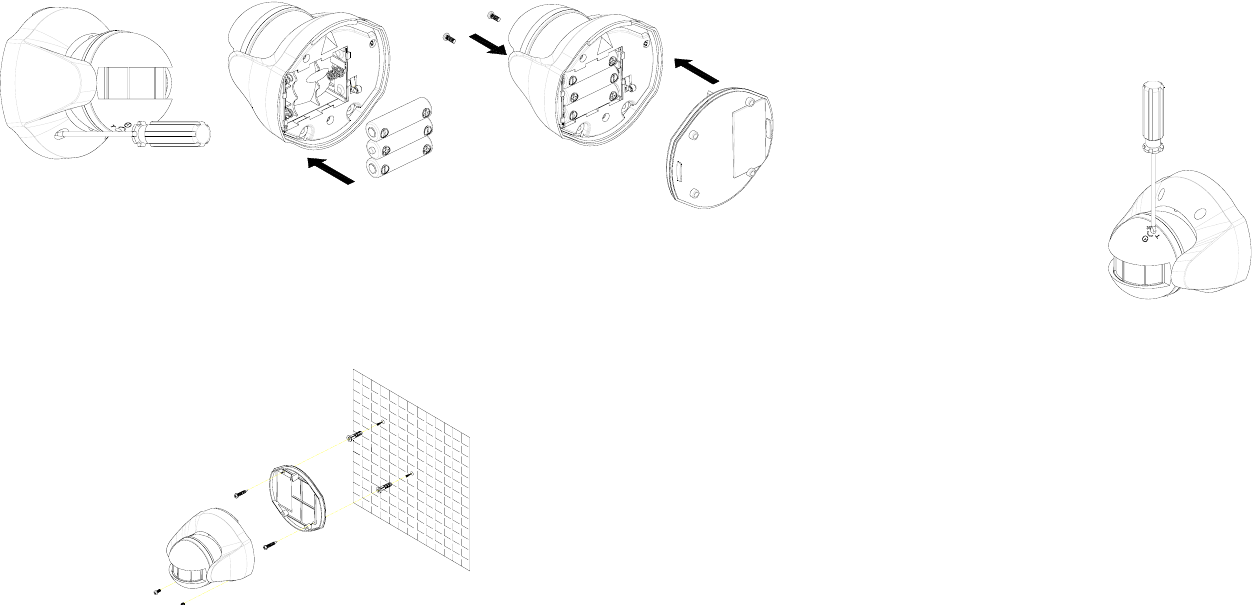

correct polarity is put. (FIGURE 3b)
3. Refit the rear cover. (FIGURE 3c)
FIGURE 3a FIGURE 3b FIGURE 3c
4. Hold the rear cover in position and mark the two mounting holes. Drill the holes,
insert the plastic wall plugs and screw the rear cover to the wall using the
screws supplied. Offer the Detector up to the rear cover using screws as
originally supplied. (FIGURE 4)
FIGURE 4
Note: After removing batteries, wait for 5 seconds to refit batteries.
Operation
1. With the tamper switch not being pressed, the unit enters test mode, which
allows the user to make a test. When the movement has been detected, the
red indicator LED on the Detector will illuminate and the load or the lamp
plugged into the On/Off Module AN135, Lamp Module AD130 will turn ON. It
implies that the unit is working properly.
Note: When the battery is connected, the LED behind the lens will be on for
about 1 minute as warming-up duration until the PIR has stabilized when the
LED turns OFF.
Time-off knob controls how long the connected load or lamp will stay on after
the motion has been detected. It is set from 5 seconds to 12 minutes. “T”
means 5 seconds, while “+” is 12 minutes. After the expiry of preset time-off, the
Detector will turn OFF the load or the lamp plugged into the On/Off Module
AN135, Lamp Module AD130. The red indicator LED on the load or the
connected lamp will be off too.
2. When the tamper switch is pressed, the unit will enter normal mode. Upon
motion being sensed, the Detector will turn ON the load or the lamp plugged
into the On/Off Module AN135, Lamp Module AD130.
After the elapse of preset time-off, the Detector will turn OFF the load or the
lamp plugged into the On/Off Module AN135, Lamp Module AD130.
In normal mode with the tamper switch being pressed, the red indicator LED on
the Detector will not illuminate to conserve battery life when the detector is
triggered, (unless the battery is low).
3. By pressing the tamper switch for more than 5 seconds, and then release it.
The Detector will send an alarm command (ALARM_REPORT, Alarm Type ==
0x01, Alarm Level == 0x11) to the Module. The load or the lamp plugged into
the On/Off Module AN135 or Lamp Module AD130 will flash for 10 seconds.
Advanced Operation
The following information is for someone that has some experience setting up a
Z-Wave system or someone that has computer software running a Z-Wave
controller.
Enabling/Disabling Power Saving Function (for testing)
When no movement has been detected for 10 seconds, the SP103 will enter the
power saving mode. It can be disabled or enabled power saving function by setting
3
Configuration Parameter # 3.
This parameter can be configured with the value of 0 through 127, where 0 means
power saving being enabled and others mean power saving being disabled.
PS : As long as the batteries have been refitted, the Detector will enable the power
saving function automatically.
Configuring the Phase Level of ON Command
The Configuration parameter that can be used to adjust the phase level of ON
command is transmitted is Configuration Parameter # 1. This parameter can be
configured with the value of 0 through 127.
Value 0: Set Device OFF(0x00)
Value 1-99: Set Device On (1-99)
Value 100-127: Set Device On to the last phase (0xFF)
Note: 0xFF means the device will be on to the last phase before the device was
turned off.
Wakeup Command Class
SP103 will send a Wakeup Notification Command if it has been included into a
Z-Wave network. The prerequisite is the connected Z-Wave controller needs to emit
a node ID and wakeup time interval to the Detector.
The SP103 will wake up every 4 hours (default) and resend the Wakeup Notification
Command unless configured for another time interval. The SP103 will stay awake
for 10 seconds and then go back to sleep to conserve battery life.
The time interval between Wakeup Notification Commands can be adjusted if you
have a device in which that is supported. Refer to that device’s instructions. The
time interval of Wakeup Notification Commands is counted on the basis of minute
and minimum criterion is one minute. For instance, please always enter 60, 120,
or 180 seconds etc. all of which are equivalent to 1, 2 and 3 minutes respectively.
The time interval of wakeup cannot be entered 59, 61, 119, 121, 179 or 181
seconds.
Troubleshooting
Symptom Possible Cause Recommendation
Cannot carry out
inclusion and association 1. Run out of battery
power
2. Check if reverse
battery polarity
3. Check if the detector
is out of order
1. Replace a new
battery
2. Refit the battery with
correct polarity
3. Ensure the detector is
working properly
Cannot control the
connected modules 1. Run out of battery
power
2. Check if the detector
is out of order
1. Replace a new
battery
2. Ensure the detector is
working properly
The detector not working 1. Run out of battery
power
2. Check if the mounting
location is proper
3. Check if the detector
is mounted above a
radiator or heater
4. Check if the detector
is out of order
1. Replace a new
battery
2. Reposition its
mounting location
3. Remove the source of
interference or
reposition its
mounting location
4. Ensure the detector is
working properly
Specifications
Battery 1.5V AAA size x 2
Range Up to 100 meters line of sight
Warm Up Time About 1 minute
PIR Detection Coverage Up to 12m x 110° (at 2m mounting height & below 20°C)
Frequency Range 908.42 MHz (US) / 868.42 MHz (EU)
*Specifications are subject to change without notice A501110874R
