Extreme Networks BLE2 Digital Broadcasting Device (iBeacon/Eddystone) User Manual
Extreme Networks, Inc. Digital Broadcasting Device (iBeacon/Eddystone)
User Manual
Extreme Networks www.extremenetworks.com
Page 1
`
Model number: BLE-2
Model Description
36501 LBS-BLE-2AU Bluetooth beacon - 2-alkaline batteries - not provisioned
36502 LBS-BLE-2AP
Bluetooth beacon - 2-alkaline batteries - fully provisioned
36503 LBS-BLE-2LU
Bluetooth beacon - 2-lithium batteries - not provisioned
36504 LBS-BLE-2LP Bluetooth beacon - 2-lithium batteries - fully provisioned
36511 LBS-BLE-2AU-8
Bluetooth beacon - 2-alkaline batteries - not provisioned (8-Pack)
36512 LBS-BLE-2AP-8 Bluetooth beacon - 2-alkaline batteries - fully provisioned (8-Pack)
36513 LBS-BLE-2LU-8 Bluetooth beacon - 2-lithium batteries - not provisioned (8-Pack)
36514 LBS-BLE-2LP-8 Bluetooth beacon - 2-lithium batteries - fully provisioned (8-Pack)
(iBeacon/Eddystone)
Digital Broadcasting Device
Extreme Networks
www.extremenetworks.com
Page 2
`
The robust MiniBeacon BLE-2 is an enterprise-level iBeacon with ARM core chipset nRF51822 and leverage
BLE
4.0 technology; it has a strong & waterproof case, accurate hardware and robust firmware. It is designed for
the commercial advertising and indoor location-based service.
Minew Beacons broadcast 2.4GHz radio signals at regular and adjustable intervals. MiniBeacon can be
heard and interpreted by iOS and Android BLE-enabled devices that are equipped with many mobile apps.
FEATURES
- Programmed MiniBeacon standard firmware
- Powered by 2pcs AA batteries, alkaline
- Omni-directional PCB antenna
- The max. 200 meters advertising distance
- Waterproof IP65
- Ultra-low power consumption chipset nRF51822 with ARM core
CERTIFICATIONS
- iBeacon MFi License (iBC-14-00582)
- FCC Regulation (FCC Part 15.)
- CE Regulations (Included EN300328/301489/60950/62479)
SPECIFICATION
i3 Robust MiniBeacon
Image 1
Compatibility
- Supported iOS 7.0+ and Android 4.3+ system;
- Compatible with Apple iBeaconTM standard;
- Compatible with all Bluetooth 4.0 (BLE) devices;
Long Battery Lifetime and Battery Level
- 5 years, with the default settings;
- LED will be flashing when battery low;
- Easy to get the real-time battery level notification;
Soft-reboot
- Reboot the device via command without any tools;
OTA and J-Link
- Supported upgrade via Over-The-Air;
- Reserved J-Link port on the board forprogramming;
Connection Mode
- Advertising mode, non-connectable;
- Configuration mode, connectable;
Configurable Parameters
- UUID, Major, Minor, Device Name, Password etc.
- Special Configuration APP;
Transmission Power Levels
- 8 adjustable levels, range from 0 to 7
- Transmission power range: -30dBm to +4dBm;
Long Range
- The max. Range 200 meters in the open space;
- The range depends on the physical environment;
Security
- 8 characters password (Lock/Unlockparameters);
- Broadcast the encrypted data if needed;
- AES HW encryption
Mounting
- 3M branded adhesive for direct mounting to wall;
- Bracket for mounting on non-metal wall by
two-screw holds;
Extreme Networks
www.extremenetworks.com
Page 3
`

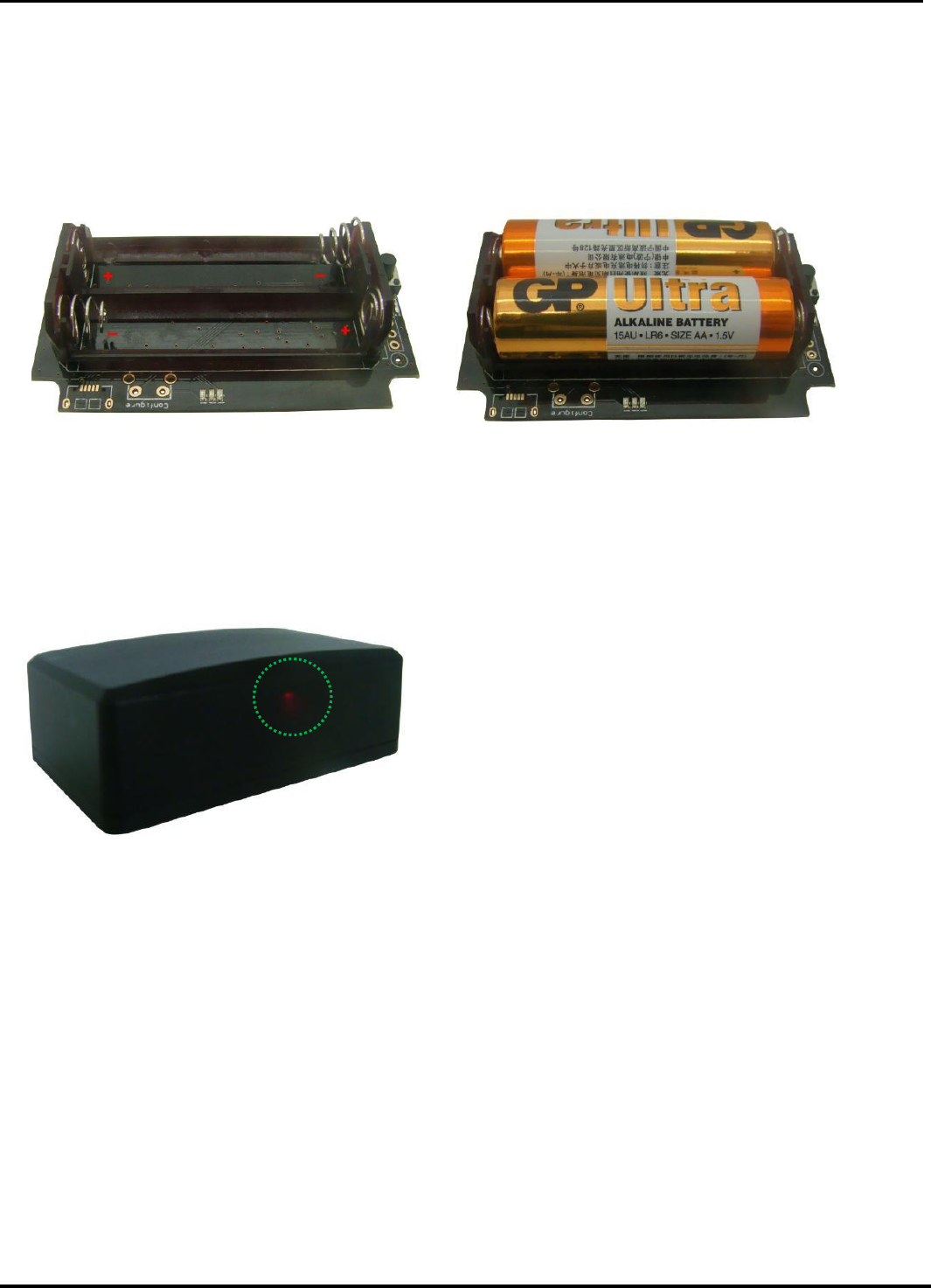

BATTERY ASSEMBLY
- Please prepare at least 2pcs AA size alkaline batteries;
- Please do check the polarity of batteries and battery-socket before assembly, see image 2;
- Please assembly the batteries as the below image 3;
- MiniBeacon will be turned on automatically if batteries were assembly correctly;
Image 2 Image 3
LOW BATTERY INDICATION
- If the battery level lower to 2.3V, the Red LED
will flash a time every 5 seconds; MiniBeacon will
stop broadcasting automatically once the battery
level lower to 2.1 volts. (Image 4)
Image 4
TECHNICAL SUPPORT
- We don’t provide any batteries for i3 samples,
because the heavy of batteries will substantially
increase the shipment.
* Minew sales team will send you these documents after the sample arrived.
Page 4
CONFIGURABLE PARAMETERS
Datasheet V2.04
Characteristic
Item
Default Settings
0xFFF1
UUID
E2C56DB5-DFFB-48D2-B060-D0F5A71096E0 (Proximity)
0xFFF2
Major
0
0xFFF3
Minor
0
0xFFF4
Measured Power
-59 (0xC5)
0xFFF5
Transmission Power
6 (0dBm)
0xFFF6
Change Password
minew123 (Must be 8 characters)
0xFFF7
Broadcasting Interval
5(500mS)
0xFFF8
Serial ID
Random (Unique serial ID for beacon)
0xFFF9
iBeacon Name
MiniBeacon_ (the maximum 14 characters)
0xFFFE
Connection Mode
0 (connectable, configuration mode)
0xFFFF
Soft Reboot
minew123 (it is same as the value of Change Password)
ELECTRONIC PARAMETERS
Item
Value
Remarks
Case Color
Black, white
Other colors can be customized
Battery Model
2 x AA (LR6)
2pcs Alkaline battery, 2500mAh, 3.0V
Operation Voltage
1.8-3.6V
DC
Transmission Circuit
10.5mA (Max.)
Tested at 0dBm transmission power
Transmission Range
200 meters
Maximum
Antenna
50ohm
On board / PCB Antenna
Accessories
Double adhesive
1pc, high-strength, 3M brand;
Screws
2pcs screws and 2pcs plastic holders
Net Weight
50.0g
Without battery and package box
Size
72 x 45 x 22MM
Null
PACKING INFORMATION
Gift package:
Image 6
Page 5
Standard package:
Image 7
Datasheet V2.04
Details
Min. Package
Carton
Gift
Standard
Gift
Standard
Quantity
2pcs / pack
8pcs /box
80pcs/carton
Net Weight
100.0g/ pack
400.0g/ box
4.2Kg/carton
Gross Weight
220.0g/ pack
420.0g/ box
9.5Kg
6.0Kg
Size
21.5 x 7.7x 3.5 CM
32 x 11 x 8 CM
32 x 23 x 40 CM
APPDENDIX
1. J-LINK Programmer Kit;
2. Over-the-Air Function;
Please contact Minew sales team to ask more related information if needed.
DECLARATION
The contents of this datasheet are subject to change without prior notice for further improvement. Minew
team reserves the right to explain all the terms of this datasheet.
<END>
FCC WARNING
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be
installed and operated with minimum 20cm distance between the radiator your body: Use
only the supplied antenna.
