Extreme Networks BLEUSB Digital Broadcasting Device (iBeacon/Eddystone) User Manual
Extreme Networks, Inc. Digital Broadcasting Device (iBeacon/Eddystone)
User Manual
www.extremenetworks.com
Extreme Networks
Page
1
Beacon
Beacon /
/iBeacon
iBeacon /
/MiniBeacon
MiniBeacon
Model Number: BLE-USB
Model
Description
36509 LBS-BLE-USBU
Bluetooth beacon - USB - not provisioned
36510 LBS-BLE-USBP
Bluetooth beacon - USB -fully provisioned
36519 LBS-BLE-USBU-100
Bluetooth beacon - USB - not provisioned (100-Pack)
36520 LBS-BLEUSBP-100
Bluetooth beacon - USB -fully provisioned (100-Pack)
www.extremenetworks.com
Extreme Networks
Page
2
The Mini USB iBeacon is a mini USB iBeacon with ARM core chipset nRF51822 and leverage BLE 4.0
technology; it is powered by USB slot, accurate hardware and robust firmware. It is designed for the
commercial advertising and indoor location-based service.
Minew Beacons broadcast 2.4GHz radio signals at regular and adjustable intervals. MiniBeacon can be
heard and interpreted by iOS and Android BLE-enabled devices that are equipped with many mobile apps.
FEATURES
- Programmed MiniBeacon standard firmware
- Mini USB iBeacon;
- The max. 60 meters advertising distance
- Ultra-low power consumption chipset nRF51822 with ARM core
- Plug and play;
CERTIFICATIONS
- iBeacon MFi License (iBC-14-00582)
- FCC Regulation (FCC Part 15.)
- CE Regulations (Included EN300328/301489/60950/62479)
SPECIFICATION

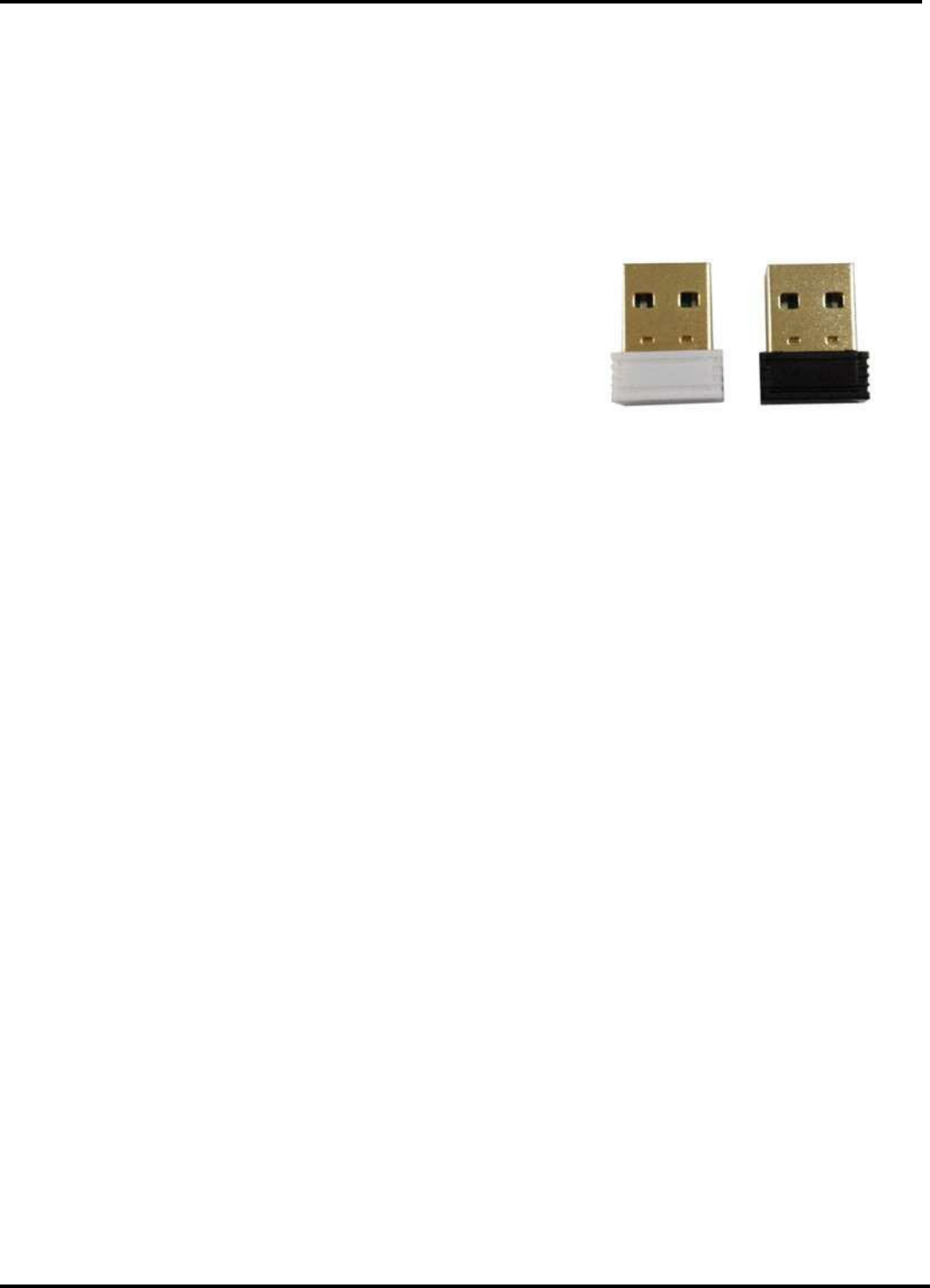

Mini USB iBeacon
Image 1
Compatibility
- Supported iOS 7.0+ and Android 4.3+ system;
- Compatible with Apple iBeaconTM standard;
- Compatible with all Bluetooth 4.0 (BLE) devices;
No Battery Needed
- No battery needed, powered by USB slot;
Soft-reboot
- Reboot the device via command without any tools;
OTA and J-Link
- Supported upgrade via Over-The-Air;
- Reserved J-Link port on the board forprogramming;
Connection Mode
- Advertising mode, non-connectable;
- Configuration mode, connectable;
Configurable Parameters
- UUID, Major, Minor, Device Name, Password etc.
- Special Configuration APP;
Transmission Power Levels
- 8 adjustable levels, range from 0 to 7
- Transmission power range: -30dBm to +4dBm;
Long Range
- The max. Range 40 meters in the open space;
- The range depends on the physical environment;
Security
- 8 characters password (Lock/Unlockparameters);
- Broadcast the encrypted data if needed;
- AES HW encryption
Easy to Deployment
- Plug and play;
www.extremenetworks.com
Extreme Networks
Page
3
CONFIGURABLE PARAMETERS
Characteristic
Item
Default Settings
0xFFF1
UUID
E2C56DB5-DFFB-48D2-B060-D0F5A71096E0 (Proximity)
0xFFF2
Major
0
0xFFF3
Minor
0
0xFFF4
Measured Power
-59 (0xC5)
0xFFF5
Transmission Power
7 (4dBm)
0xFFF6
Change Password
minew123 (Must be 8 characters)
0xFFF7
Broadcasting Interval
1(100mS)
0xFFF8
Serial ID
Random (Unique serial ID for beacon)
0xFFF9
iBeacon Name
MiniBeacon_ (the maximum 14 characters)
0xFFFE
Connection Mode
0 (connectable, configuration mode)
0xFFFF
Soft Reboot
minew123 (it is same as the value of Change Password)
ELECTRONIC PARAMETERS
Item
Value
Remarks
Case Color
White, Black
Other colors can be customized
Battery Model
Null
Powered by USB slot
Operation Voltage
4.5-5.5V
DC
Transmission Circuit
10.5mA (Max.)
Tested at 0dBm transmission power
Transmission Range
60 meters
Maximum
Antenna
50ohm
On board / PCB Antenna
Net Weight
2.0g
With battery but without package
Size
18 x 14 x 6 mm
Null
* Minew sales team will send you these documents after the sample arrived.
Page
4
PACKING INFORMATION
Details
Box
Carton
Quantity
80pcs per box
800pcs per carton
Net Weight
0.16Kg
1.6Kg
Gross Weight
0.40Kg
4.5Kg
Size
30.5 x 11 x 7.5 cm
32 x 23 x 40 cm
APPDENDIX
1. J-LINK Programmer Kit;
2. Over-the-Air Function;
Please contact Minew sales team to ask more related information if needed.
DECLARATION
The contents of this datasheet are subject to change without prior notice for further improvement.
Minew team reserves the right to explain all the terms of this datasheet.
<END>
FCC Caution：
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
IC Caution:
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the
following two conditions:
(1)This device may not cause interference; and
(2)This device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux apparei ls radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
L'appareil a été évalué pour répondre aux exigences générales
d'exposition RF. L'appareil peut être utilisé dans des
conditions d'exposition portables sans restriction.
