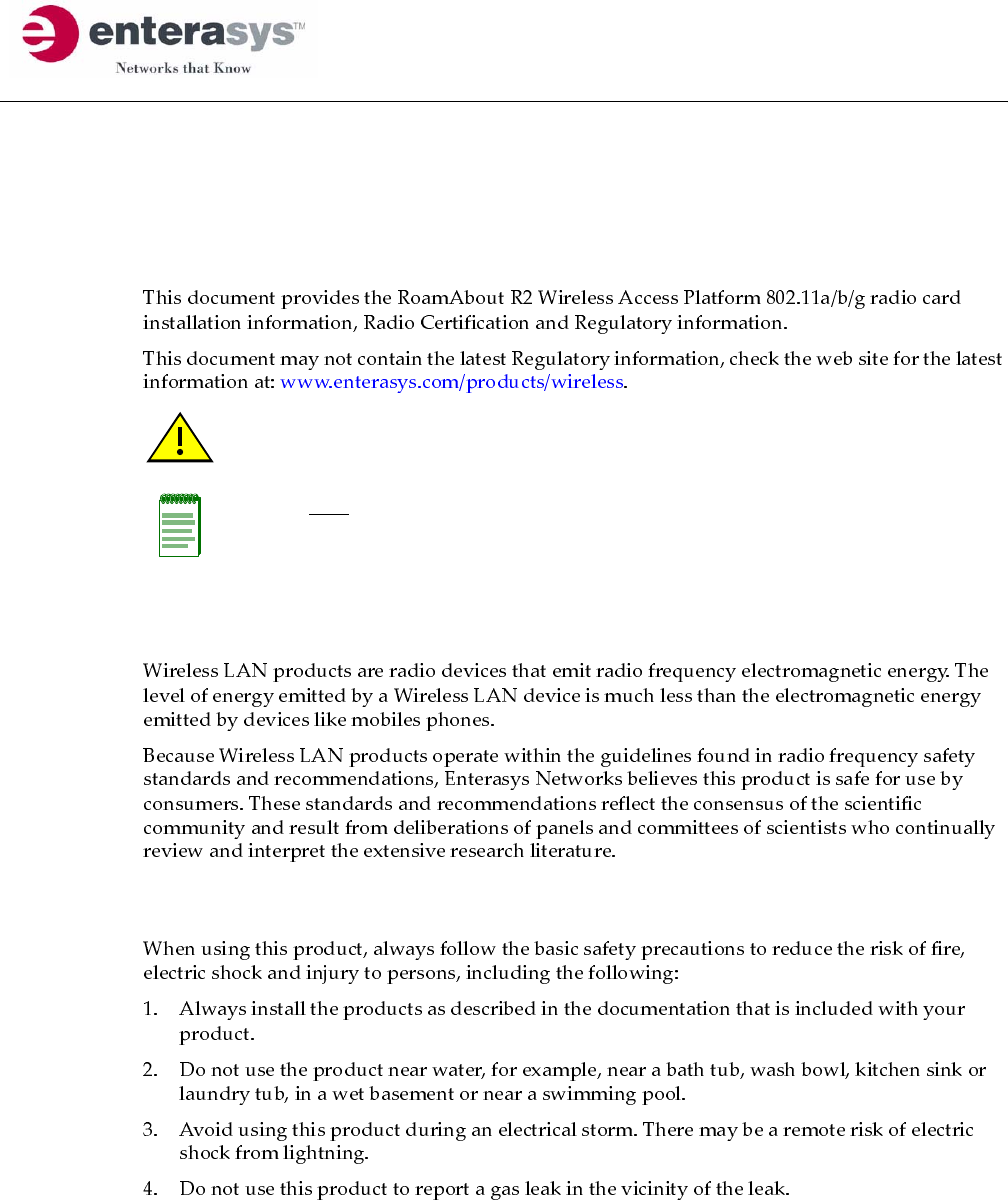

RoamAbout™ R2 Wireless Access Platform
802.11a/b/g Radio Card
Quick Installation Guide
Wireless LAN and Your Health
Important Safety Instructions
Caution: Changes or modifications made to this device which are not expressly approved by the
party responsible for compliance could void the user’s authority to operate the equipment.
Note: You must be running RoamAbout R2 Wireless Access Platform firmware Version 6.xx, or
higher, to use the 802.11 a/b/g card. The RoamAbout AP Manager Kit 11.06, or higher, contains the
latest firmware. To download the latest version of firmware, go to
www.enterasys.com/software/RoamAbout/APMAN
P/N 9034079-04
2 of 10

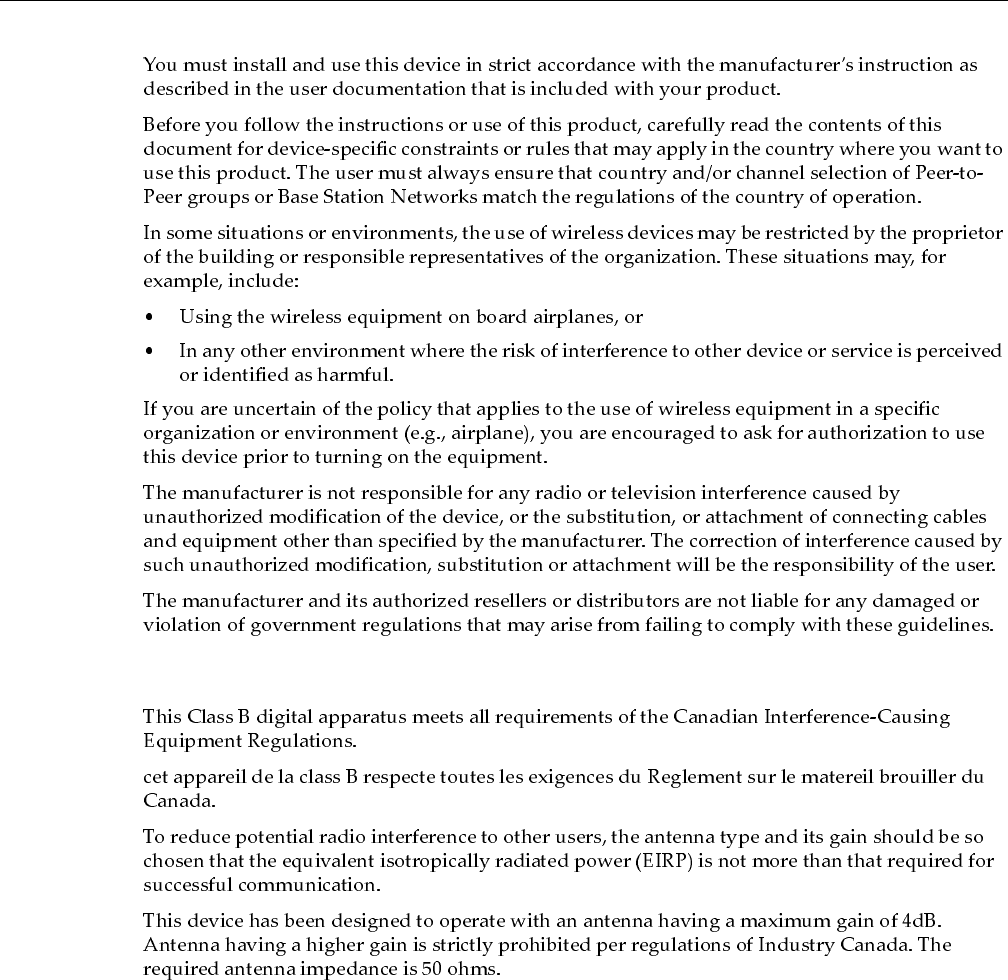

Regulatory Information
Canada - Industry Canada (IC)
3 of 10
Country Specific Power Limits and Restrictions
Integral and External Antenna Configurations
Exposure to Radio Frequency Radiation
A
F
CHE
S
ISL
B
D
NOR
UK
DK
IRL
NL
L
FIN
I
P
SR
E
Member states in EU with restrictive use for this
product are crossed out!
Les etats membres de lUnion Europeenne avec une
utilisation restrictive de ce produit sont rayes !
Mitgliedsstaaten der EU mit eingeschrankten
Nutzungsrechten fur dieses Produkt sind
herausgestrichen
Gli Stati membri nella Comunita Europea (EU) con
restrizioni sulluso di questi prodotti sono
contrassegnati di seguito!
1243 Important Notice:
Low power radio LAN product operating in 2.4 / 5GHz
band for Home and Office environments.
Please refer to flyer/manual for details on restrictions.
Notice Importante :
Produit reseau local radio basse puissance operant dans la bande de frequence 2.4 / 5 GHz pour les
environnements bureautiques et residentielles. Merci de vous referer au manuel pour les details
des restrictions
Wichtige Mitteilung
Low Power FunkLAN Produkt fur den Home- und Office-Bereich, das im 2.4 / 5GHz Band
arbeitet. Weitere Informationen bezuglich Einschrankungen finden Sie im Datenblatt/Handbuch
Nota Importante:
Apparati Radio LAN a bassa potenza, operanti a 2.4 / 5 GHz, per ambienti domestico ed ufficio.
Fare riferimento alla Guida dUtente per avere informazioni dettagliate sulle restrizioni
Caution: To comply with the FCC RF exposure compliance requirements, the following antenna
installation and device operating configurations must be satisfied for integral and external antenna
configurations:
• The operation distance between the antenna and any other person’s body (including hands,
wrists, feet and ankles) must be at least 20 cm (8 in) unless indicated.
• The RBTBH-R2W is only approved for use with the external antenna models listed in the following
table.
IMPORTANT INFORMATION:
• When an external antenna (outdoor or indoor Range Extender Antenna) is connected to the radio
card, channel 52 and below are removed from the available channel list of the AP. If the AP is
already active on one of those channels when an antenna is plugged in, the AP automatically
switched to a country approved channel. To make channel 52 active again when using an Indoor
Range Extender Antenna, select Indoor Range Extender via the console or SNMP (AP
Manager).
• To meet FCC limits, our high-gain outdoor antennas cannot be used with channel 52.
• When an external antenna is connected, channel 64 is lowered by 2 dB for outdoor antennas, but
runs at full power when the Indoor Range Extender option is selected via the console or SNMP
(AP Manager).
4 of 10

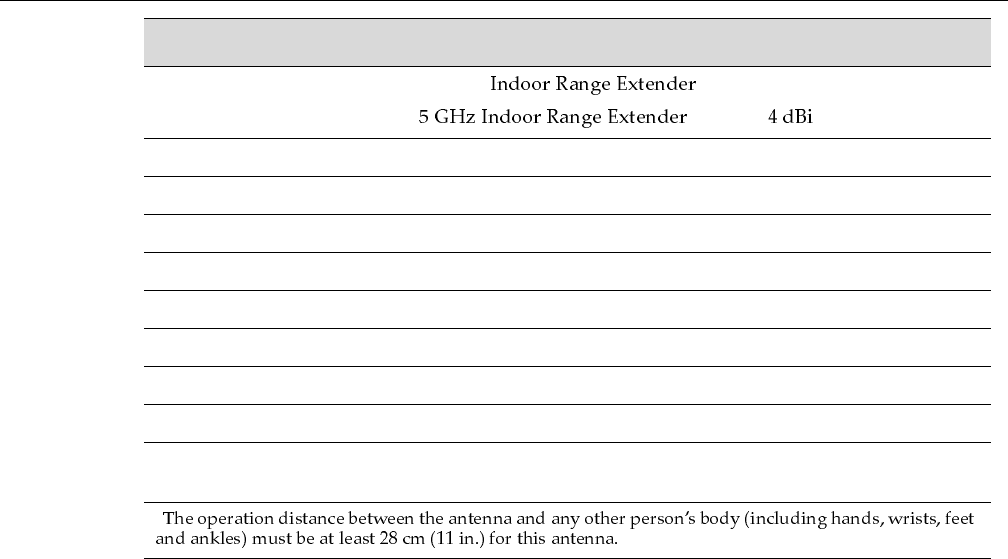

Antenna Model Antenna Type Antenna Gain
RBTBH-IA 2.4 GHz 2 dBi
RBTES-BG-M08M 2.4 GHz Omnidirectional 8 dBi
RBTES-BG-Y15M 2.4 GHz Yagi Directional 15 dBi
RBTES-BG-S1490M 2.4 GHz Sector Panel 14 dBi/90°
RBTES-BG-P18M 2.4 GHz Directional Panel 18 dBi
RBTES-BG-PAR24M 12.4 GHz Parabolic Grid 24dBi
RBTES-AM-M10M 5.25-5.35 GHz Omnidirectional 10 dBi
RBTES-AH-M10M 5.725-5.825 GHz Omnidirectional 10 dBi
RBTES-AH-P23M 5.725-5.825 GHz Directional 23 dBi
RBTES-AW-S1590M 4.9-5.8 GHz Adjustable Sector 15 dBi/90°
16 dBi/60°
1
5 of 10
Approved Countries
Country IEEE 802.11a/b/g RoamAbout PC Card
802.11a 802.11b/g Comments
Austria
(A)
5150 – 5250-MHz only
< 200 mW EIRP (Indoors)
Not allowed (Outdoors)
2400 – 2483.5 MHz
< 100 mW EIRP (Indoors &
Outdoors)
Belgium
(B)
5150 – 5250 MHz only
< 200 mW EIRP (Indoors)
Not allowed (Outdoors)
2400 – 2483.5 MHz
< 100 mW EIRP (Indoors)
2460 – 2483.5 MHz
< 100 mW EIRP (Indoors &
Outdoors)
Denmark
(DK)
5150 – 5250 MHz only
< 200 mW EIRP (Indoors)
Not allowed (Outdoors)
2400 -2483.5 MHz
< 100 mW EIRP
Finland
(FIN)
5150 – 5250 MHz only
< 200 mW EIRP (Indoors)
Not allowed (Outdoors)
2400 – 2483.5 MHz
< 100 mW EIRP (Indoors &
Outdoors)
France
(F)
5150 – 5250 MHz only
< 200 mW eirp (Indoors)
Not allowed (Outdoors)
1>2400 -2483.5 MHz
< 100 mW eirp (Indoors),
1>2400 – 2454 MHz
< 100 mW eirp (Outdoors)
1>2454 – 2483.5 MHz
< 10 mW eirp (Outdoors)
2>2400 – 2483.5 MHz
< 100 mW (Indoors)
< 100 mW (Outdoors)
3>2400 – 2483.5 MHz
< 100 mW (Indoors)
3>2400 -2420 MHz
Not allowed (Outdoors)
3>2420 – 2483.5 MHz
< 100 mW (Outdoors)
1> Metropolitan France
2> Guadeloupe, Martinique,
St Pierre et Miquelon, Mayotte
3> Réunion and Guyana
Germany
(D)
5150 – 5250 MHz only
< 200 mW EIRP (Indoors)
Not allowed (Outdoors)
2400 – 2483.5 MHz
< 100 mW EIRP
(Indoors & Outdoors)
Greece
(EL)
5150 -5250 MHz only
< 200 mW EIRP (Indoors)
Not allowed (Outdoors)
2400 – 2483.5 MHz
< 100 mW EIRP
(Indoor use only)
6 of 10
Hungary
(HU)
5150 – 5250 MHz only
< 200 mW EIRP (Indoors)
Not allowed (Outdoors)
2400 – 2483.5 MHz
< 100 mW EIRP
(Indoor use only)
Iceland
(ISL)
5150 – 5250 MHz only
< 200 mW EIRP (Indoors)
Not allowed (Outdoors)
2400 – 2483.5 MHz
< 100 mW EIRP
(Indoors & Outdoors)
Ireland
(IRL)
5150 – 5250 MHz only
< 200 mW EIRP (Indoors)
Not allowed (Outdoors)
1>2400 – 2483.5 MHz
< 100 mW EIRP
(Indoors & Outdoors)
1> provision of services to the
public is permitted. Public service
provider is required to hold an
appropriate Telecommunications
Licence (ref. ODTR 98/44R).
Italy
(I)
5150 – 5250 MHz only
< 200 mW EIRP (Indoors)
Not allowed (Outdoors)
1>2400 – 2483.5 MHz
< 100 mW EIRP
(Indoors & Outdoors)
1> If used outside of own
premises, general authorization is
required.
Lithuania
(LT)
5150 – 5250 MHz only
< 200 mW EIRP (Indoors)
Not allowed (Outdoors)
2400 – 2483.5 MHz
< 100 mW EIRP
(Indoors & Outdoors)
Luxembourg
(L)
5150 – 5250 MHz only
< 200 mW EIRP (Indoors)
Not allowed (Outdoors)
1>2400 – 2483.5 MHz
< 100 mW EIRP
(Indoors & Outdoors)
1> System provider for third party
traffic may require a
Telecommunications Act Licence.
Norway
(NOR)
5150 – 5250 MHz only
< 200 mW EIRP (Indoors)
Not allowed (Outdoors)
2400 – 2483.5 MHz
< 100 mW EIRP
(Indoors & Outdoors)
Not permitted at Ny-Ålesund.
* Norwegian Post and
Telecommunications Authority: List
of radio communications
equipment that does not have to
be notified according to Art. 6.4 in
the R&TTE Directive (1999/5/EC)
> RLAN (2.4 – 2.483.5 GHz, 5.15 –
5.35 GHz & 5.47 – 5.725 GHz)
Netherlands
(NL)
5150 – 5250 MHz only
< 200 mW EIRP (Indoors)
Not allowed (Outdoors)
2400 – 2483.5 MHz
< 100 mW EIRP (Indoors)
Portugal
(P)
5150 – 5250 MHz only
< 200 mW EIRP (Indoors)
Not allowed (Outdoors)
2400 – 2483.5 MHz
< 100 mW EIRP
(Indoors & Outdoors)
Spain
(E)
5150 – 5250 MHz only
< 200 mW EIRP (Indoors)
Not allowed (Outdoors)
2400 – 2483.5 MHz
< 100 mW EIRP (Indoors)
Sweden
(S)
5150 – 5250 MHz only
< 200 mW EIRP (Indoors)
Not allowed (Outdoors)
2400 – 2483.5 MHz
< 100 mW EIRP
(Indoors & Outdoors)
Country IEEE 802.11a/b/g RoamAbout PC Card
7 of 10

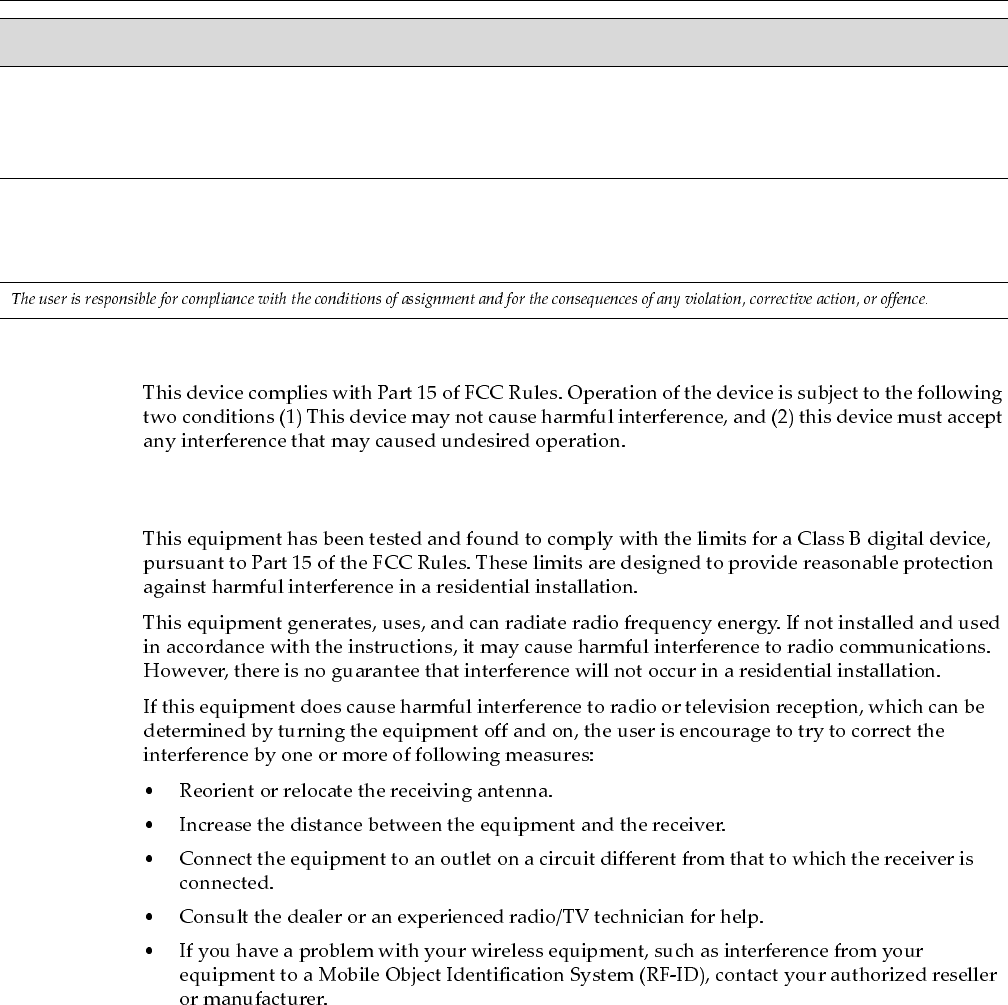

USA - Federal Communications Commission (FCC)
Federal Communications Commission Notice
Switzerland
(CHE)/
Liechtenstein
(LI)
5150 – 5250 MHz only
< 200 mW EIRP (Indoors)
Not allowed (Outdoors)
2400 – 2483.5 MHz
< 100 mW EIRP (Indoors &
Outdoors)
United
Kingdom
(UK)
5150 – 5250 MHz only
< 200 mW EIRP (Indoors)
Not allowed (Outdoors)
1>2400 – 2483.5 MHz
< 100 mW EIRP
(Indoors & Outdoors)
1> System provider for third party
traffic may require a Wireless
Telegraphy and/or
Telecommunications Act Licence.
Country IEEE 802.11a/b/g RoamAbout PC Card
8 of 10

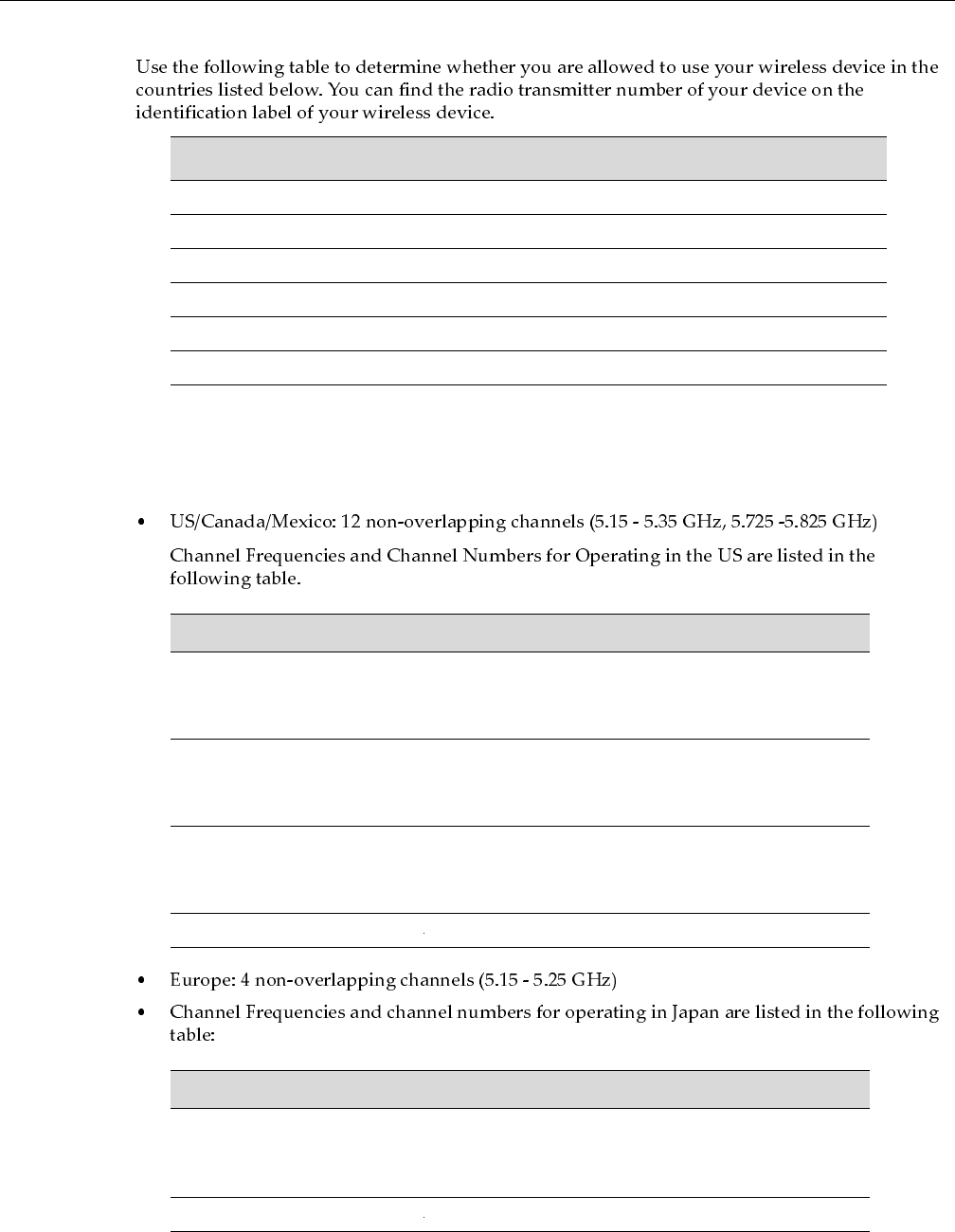

Radio Approval
Channel Information
802.11a
Country Enterasys Part Number Approval Number
USA RBTBH-R2W FCC ID: QXO-RBTBHR2W
Australia RBTBH-R2W N826
Canada RBTBH-R2W IC: 4138A-RBTBHR2W
Europe RBTBH-R2W CE1243
New Zealand RBTBH-R2W N826
Mexico RBTBH-R2W
Frequency Band Channel Number Center Frequencies
U-NII lower band
5.15 - 5.25 GHz136
40
44
48
5.180 GHz
5.200 GHz
5.220 GHz
5.240 GHz
U-NII middle band
5.25 - 5.35 GHz 52
56
60
64
5.260 GHz
5.280 GHz
5.300 GHz
5.320 GHz
U-NII upper band
5.725 - 5.825 GHz 149
153
157
161
5.745 GHz
5.765 GHz
5.785 GHz
5.805 GHz
1 5.15 - 5.25 GHz is for indoor use only
Frequency Band Channel Number Center Frequencies
U-NII lower band
5.15 - 5.25 GHz134
38
42
46
5.170 GHz
5.190 GHz
5.210 GHz
5.230 GHz
1 5.15 - 5.25 GHz is for indoor use only
9 of 10
802.11b/g

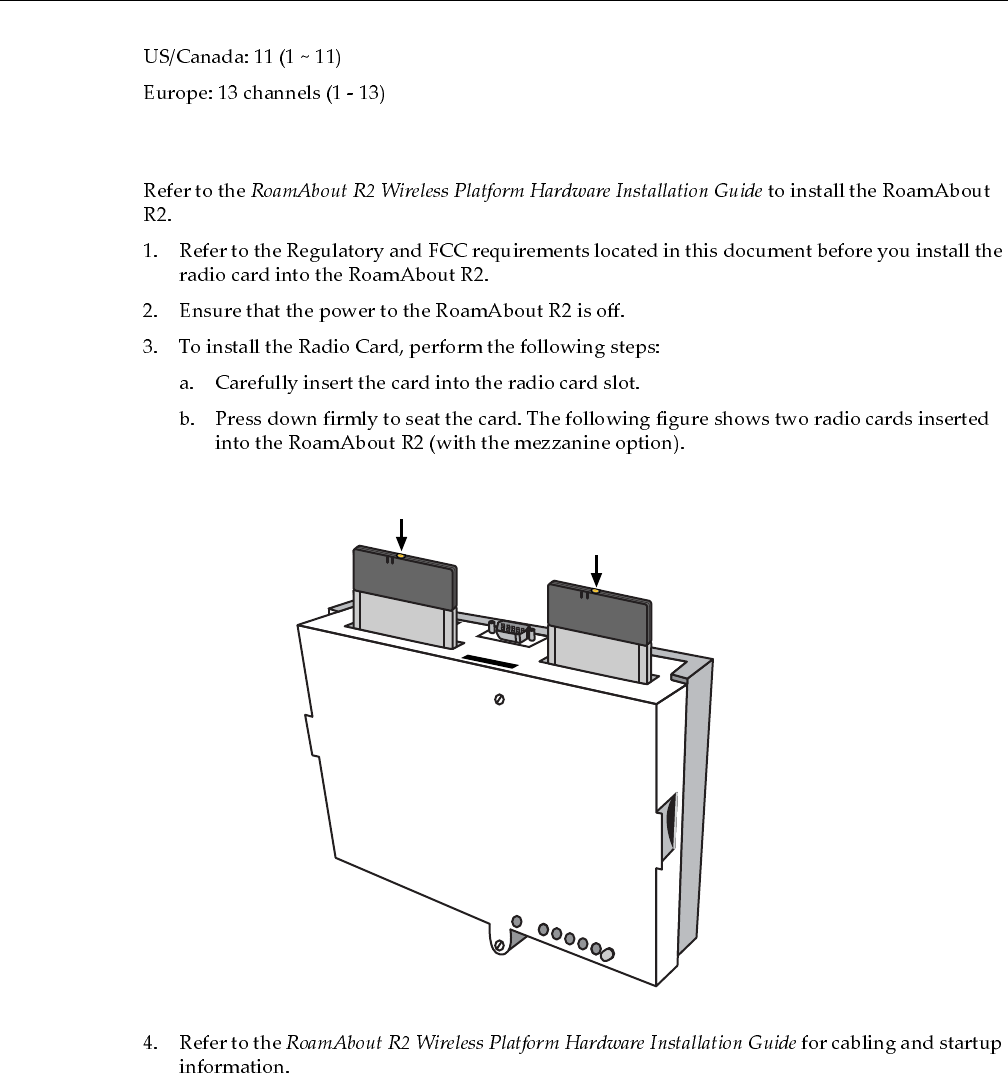

Radio Card Installation
Radio Card
Radio Card
