Installing the Extreme Networks SA201
Defender Adapter
Overview of the SA201
The SA201 is an Open Networking Adapter IoT (Internet of
Things) solution that is used to securely deploy IoT devices.
SA201 adapter can be used to provide proxy service for the
Defender Adapter Application. SA201 has a full layer 1-7
visibility and can be paired 1:1 with a medical or IoT device
in a hospital or campus environment.
The SA201 adapter has the following specifications:
• Primarily designed to support and securely manage IoT
devices by reporting any abnormal flow to the
Application and preventing the IoT devices from
launching malware attacks.
• Two RJ45 Gigabit Ethernet ports:
– One network port with Cloud icon
– One device port that reads DEVICE
• LEDs: 4 on both faces (Figure 2)
– The LEDs are located on both faces of the adapter to
allow visibility from both sides.
• Power: PoE and 12V DC Power Supply.
• Temperature
– Operating Temperature: 0°C to +35°C (32°F to 95°F)
– Non-operating Temperature: -40˚C to +70˚C (-40°F to
158°F)
• Enclosure: Plastic material with soft rubber on two
edges, for shock resistance and friction.
• Enabled for ExtremeCloudTM support.
For detailed installation information about the SA201, see
the Extreme Networks SA201 Installation Guide.
Power Connections
The SA201 uses Power over Ethernet (PoE) as follows:
Note: The SA201 requires a minimum base firmware of
Defender 3.1.
For Cloud, the minimum base firmware is ExtremeCloudTM
Appliance 4.26.02.
Table 1 Power Sources
Power Source Description
Power over Ethernet
(PoE)
Power is provided through the RJ45
Ethernet port (LAN1 port) on the Network
side of the SA201 adapter. When the
SA201 adapter is powered by 802.3AT, the
DEVICE port is capable of power sourcing
(refer Figure 1).
Optional Power Source Description
External 12V DC Power Supply
(optional; #30512 - PWR 12VDC,
2A, 2.1mm x 5.5mm connector)
The SA201 can also be powered
by an external DC power supply
plugged into an AC source. Plug
the supply’s input jack into the
DC-In port.
Note: If the SA201 adapter is plugged into the PoE switch
port and the 12V DC-In port, the unit will use the DC input
power source over the PoE port.
SA201 Side Ports

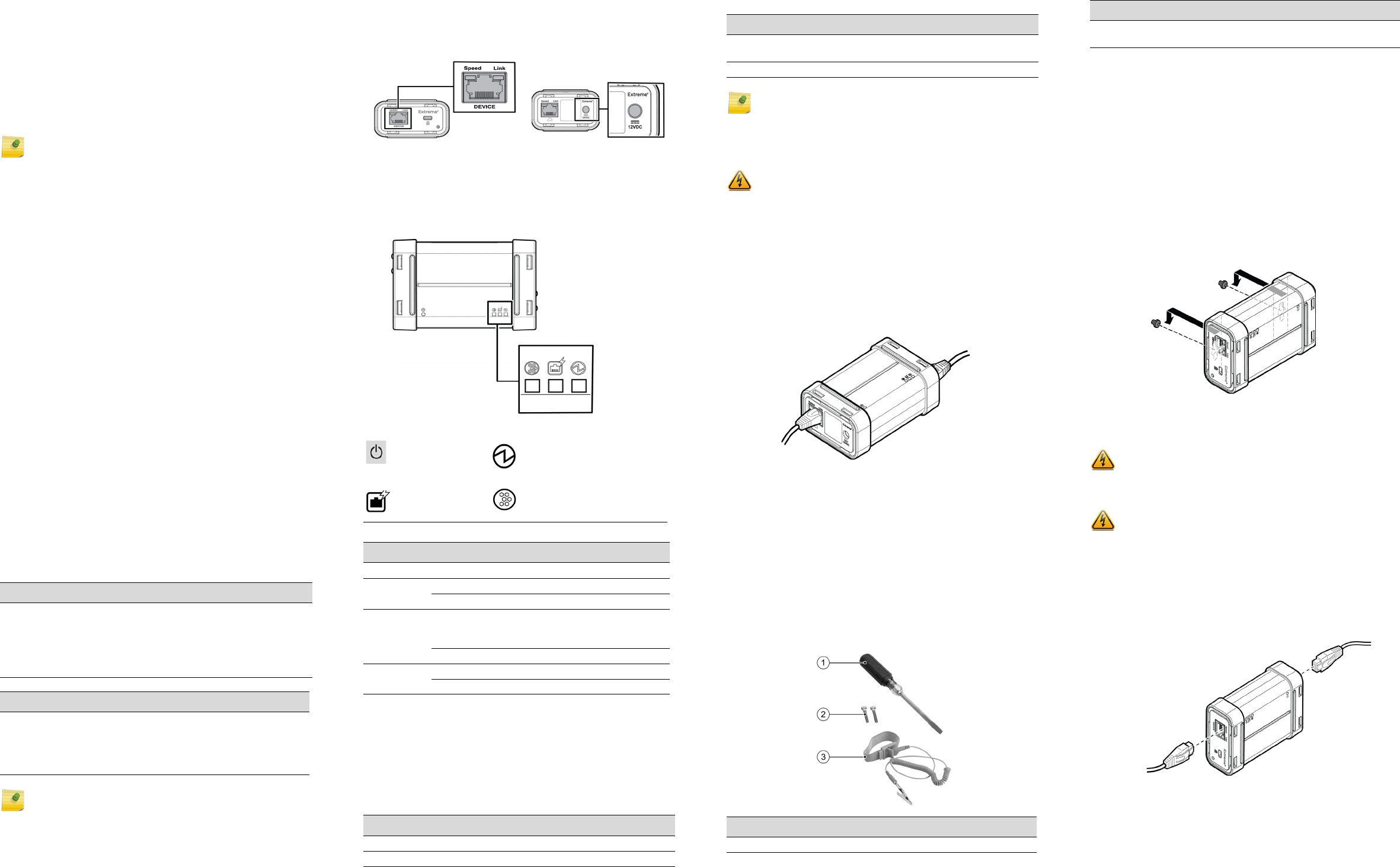

Figure 1 SA201 Ethernet port and 12V DC Power Supply
LEDs
There are LEDs on four of the six sides of the SA201 unit.
Figure 2 shows the LEDs located on the front cover of the
adapter.
Figure 2 LEDs on Front Cover
Table 2 SA201 LED Status
For detailed information about Network Speed and Link
Activity, see the Extreme Networks SA201 Installation
Guide.
Verifying the SA201 Box Contents
Verify the contents of the box as listed in the following
table:
Power
Status
PSE Client Port IoT (BLE or 802.15.4)
LED Icon LED Color Description
Power GREEN Normal power status
Status GREEN Normal operational status
AMBER Non-operational status
PSE Client
Port
GREEN Normal operational status
(DEVICE port is capable of
providing PoE)
OFF Non-operational status
IoT (BLE) BLUE Indicates BLE is enabled
OFF Non-operational status
Table 3 Contents of the SA201 Box
Quantity Item
1SA201 Quick Reference
The following hardware is included:
1SA201 Adapter
Mounting and Connecting the SA201
Use these instructions as guidelines for mounting and
connecting the SA201 easily and safely.
Mounting the SA201 on a Table
To mount the SA201 adapter on a table:
1 Place the SA201 adapter on a table close to the Device
and Network cables.
2 Connect the Device and Network LAN cables.
Figure 3 Mounting the SA201 on a Table
Mounting to a Shelf
1 Place the SA201 at a secure position close to the
corresponding equipment.
2 Secure the unit using wire ties.
3 Connect the LAN cables.
Mounting the SA201 to a Wall
You can mount the SA201 adapter using the wall mount
keyholes in the back of the unit. The keyholes are
bidirectional and let the adapter to be mounted in either
direction.
Figure 4 Tools required
2 M4 wood screws; the head may be up to 2.5 mm
thick. Screw dimension: 3.5x25.4mm.
2 Screw-in wall anchors
Note: Before mounting the SA201, read the Safety
Guidelines section.
Electrical Hazard: Use ESD (Electrostatic Discharge)
protection wrist strap when installing the SA201 adapter.
Number Description
1Flat-head screwdriver
2 M4 screws and wall anchors
Table 3 Contents of th e SA2 0 1 B ox
Quantity Item
1 Mark the two hole centers. The two screw centers should
be 3.6” apart.
2 For drywall/plasterboard walls, when using plastic
anchors, drill two holes using a drill bit of 6mm or 1/4”
diameter.
3 For wood walls, when using only wood screws, drill two
holes using a drill bit of 3mm or 1/8” diameter.
4 Screw in the respective screws into the holes.
5 Attach the SA201 adapter to the screws.
6 Rock it back and forth to ensure that the unit is secured
in place.
7 Connect the LAN cables.
Figure 5 Mounting the SA201 to a Wall
Connecting the SA201 unit to the Network
Connect the LAN 1 cable to the RJ45 Ethernet Port on the
left of the 12V DC port.
Figure 6 Connecting the SA201 to the Network
Optionally, you can use the 12V DC External power supply.
PoE sourcing is not available when the unit is powered
using the 12V DC power supply.
For more information, see the Extreme Networks SA201
Installation Guide.
3 ESD-protective wrist strap
(purchased separately)
Caution: Connect the equipment only to an outlet with
grounding for additional safety against electric shock when
using the protective earthing conductor.
Electrical Hazard: To reduce potential safety issues, only
the AC adapter provided with the product, a replacement
AC adapter provided by the agency, or an AC adapter
purchased separately as an accessory from the agency
must be used with the product.
Number Description
Extreme Networks
Defender Adapter
Quick Reference
P/N 39505 QXO-SA201-FCC
