FEIBIT ELECTRONIC TECHNOLOGY FPUGW01 USB Dongle User Manual Smart USB Dongle Manaul

SHENZHEN FEIBIT ELECTRONIC TECHNOLOGY Co., LTD USB Dongle Smart USB Dongle Manaul

15_FED87F3-TTHW UserMan r3

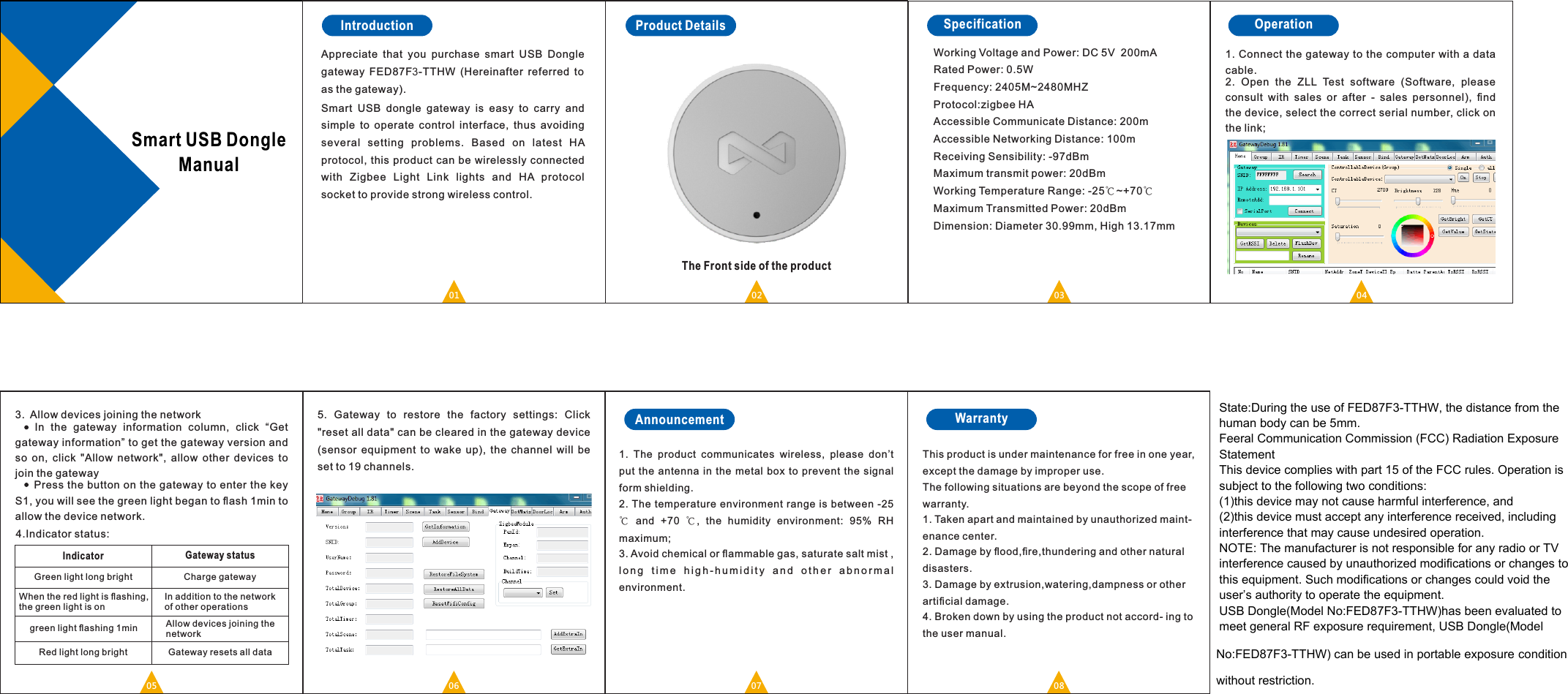

01Smart USB Dongle  Manual03Specification02Introduction SpecificationThe Front side of the productProduct DetailsWorking Voltage and Power: DC 5V  200mARated Power: 0.5WFrequency: 2405M~2480MHZProtocol:zigbee HAAccessible Communicate Distance: 200mAccessible Networking Distance: 100mReceiving Sensibility: -97dBmMaximum transmit power: 20dBmWorking Temperature Range: -25℃~+70℃Maximum Transmitted Power: 20dBmDimension: Diameter 30.99mm, High 13.17mm07061.  The  product  communicates  wireless,  please  don’t put  the  antenna in the  metal  box  to prevent  the  signal form shielding.2. The temperature environment range is between -25 ℃  and  +70  ℃,  the  humidity  environment:  95%  RH maximum;3. Avoid chemical or flammable gas, saturate salt mist , long  time  high-humidity  and  other  abnormal environment.This product is under maintenance for free in one year, except the damage by improper use.The following situations are beyond the scope of free warranty.1. Taken apart and maintained by unauthorized maint- enance center.2. Damage by flood,fire,thundering and other natural disasters.3. Damage by extrusion,watering,dampness or other artificial damage.4. Broken down by using the product not accord- ing to the user manual.08Announcement WarrantyAppreciate  that  you  purchase  smart  USB  Dongle gateway  FED87F3-TTHW (Hereinafter referred to as the gateway).Smart  USB  dongle  gateway  is  easy  to  carry  and simple  to operate  control  interface,  thus  avoiding several  setting  problems.  Based  on  latest  HA protocol, this product can be wirelessly connected with  Zigbee  Light  Link  lights  and  HA  protocol socket to provide strong wireless control.5.  Gateway  to  restore  the  factory  settings:  Click "reset all data" can be cleared in the gateway device (sensor  equipment  to wake  up), the  channel will  be set to 19 channels.04Operation1. Connect the gateway to the computer with a data cable.2.  Open  the  ZLL  Test  software  (Software,  please consult  with  sales  or  after  -  sales  personnel),  find the device, select the correct serial number, click on the link;05In addition to the network of other operationsAllow devices joining the networkIndicator  Gateway statusGreen light long brightWhen the red light is flashing, the green light is ongreen light flashing 1minRed light long brightCharge gatewayGateway resets all data3. Allow devices joining the network      In  the  gateway  information  column,  click  “Get gateway information” to get the gateway version and so  on, click "Allow  network", allow other  devices to join the gateway     Press the button on the gateway to enter the key S1, you will see the green light began to flash 1min to allow the device network.4.Indicator status:State:During the use of FED87F3-TTHW, the distance from the human body can be 5mm.Feeral Communication Commission (FCC) Radiation Exposure StatementThis device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and(2)this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or changes to this equipment. Such modifications or changes could void the user’s authority to operate the equipment.USB Dongle(Model No:FED87F3-TTHW)has been evaluated to meet general RF exposure requirement, USB Dongle(Model No:FED87F3-TTHW) can be used in portable exposure condition without restriction.
