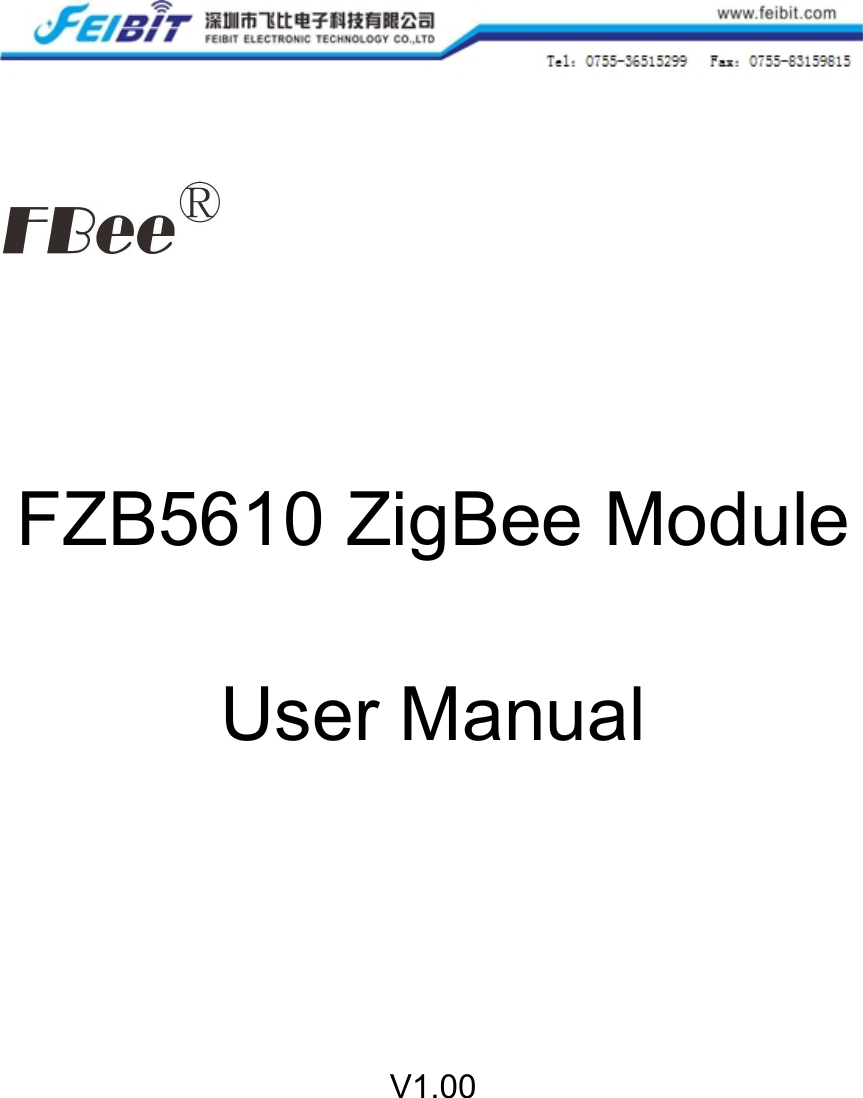

FEIBIT ELECTRONIC TECHNOLOGY FZB561011A ZigBee module User Manual

SHENZHEN FEIBIT ELECTRONIC TECHNOLOGY Co., LTD ZigBee module

Users Manual

FZB5610 ZigBee ModuleUser ManualV1.00

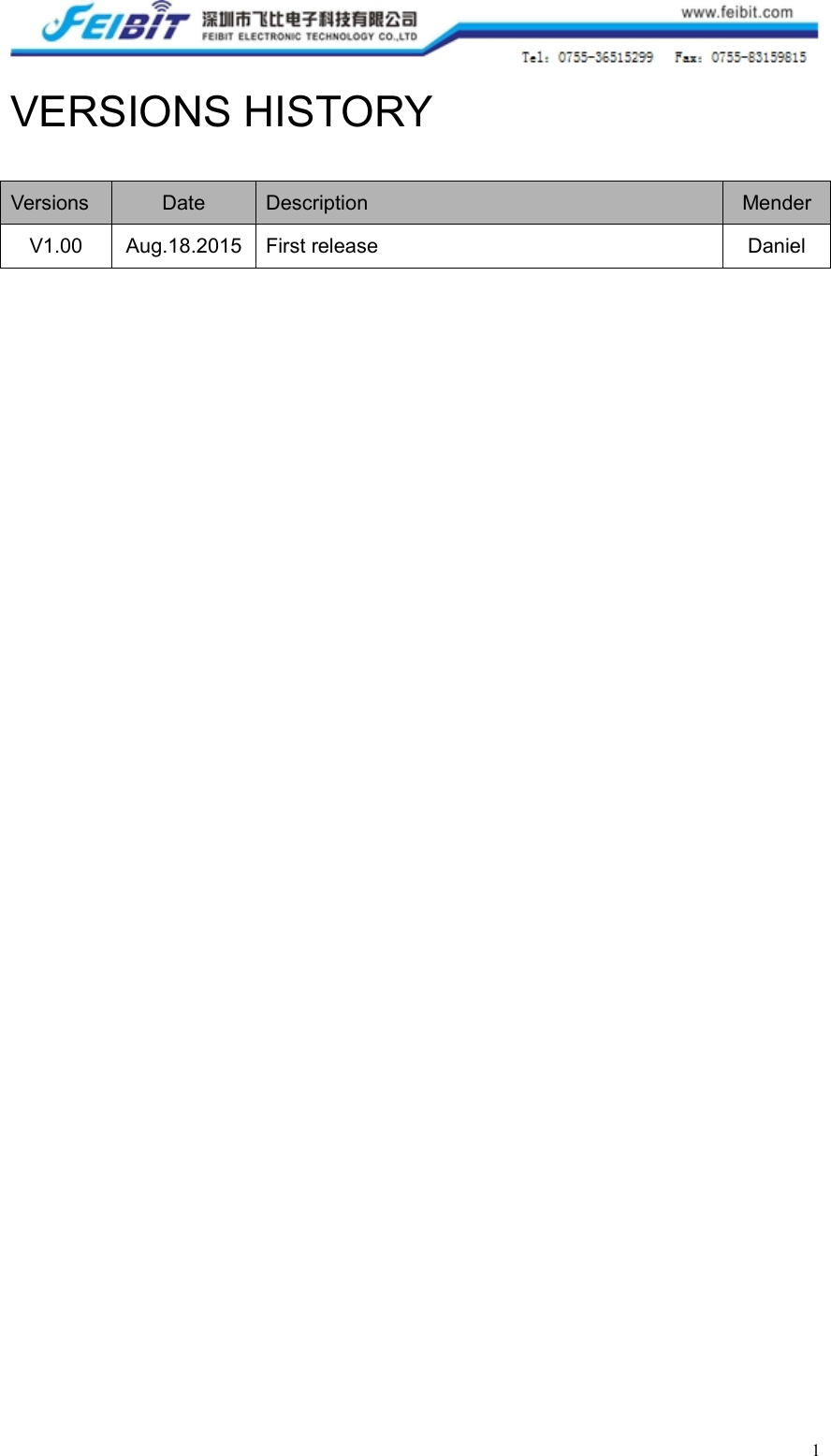

1VERSIONS HISTORYVersionsDateDescriptionMenderV1.00Aug.18.2015First releaseDaniel

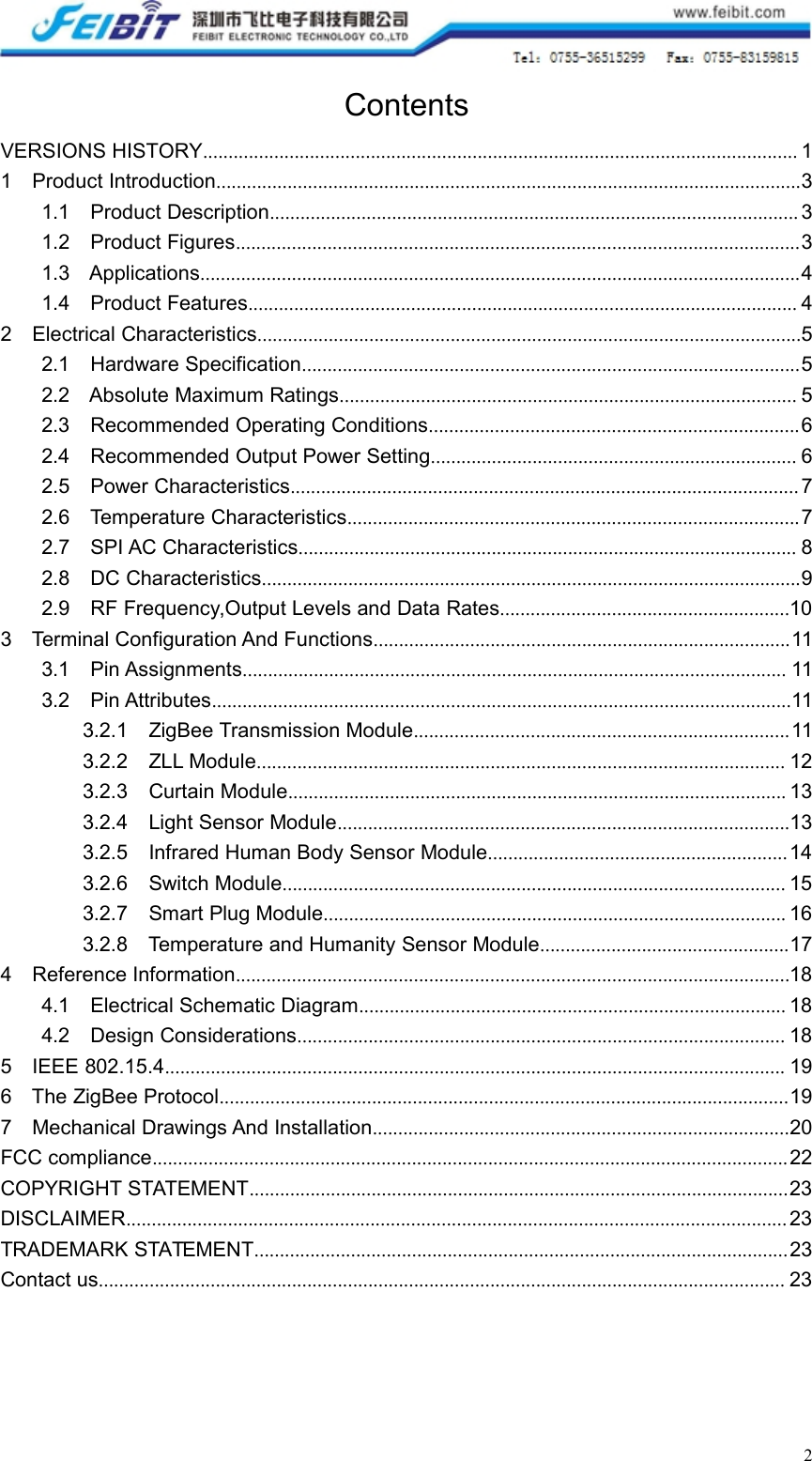

2ContentsVERSIONS HISTORY..................................................................................................................... 11 Product Introduction...................................................................................................................31.1 Product Description........................................................................................................ 31.2 Product Figures...............................................................................................................31.3 Applications......................................................................................................................41.4 Product Features............................................................................................................ 42 Electrical Characteristics...........................................................................................................52.1 Hardware Specification..................................................................................................52.2 Absolute Maximum Ratings.......................................................................................... 52.3 Recommended Operating Conditions.........................................................................62.4 Recommended Output Power Setting........................................................................ 62.5 Power Characteristics.................................................................................................... 72.6 Temperature Characteristics.........................................................................................72.7 SPI AC Characteristics.................................................................................................. 82.8 DC Characteristics..........................................................................................................92.9 RF Frequency,Output Levels and Data Rates.........................................................103 Terminal Configuration And Functions..................................................................................113.1 Pin Assignments........................................................................................................... 113.2 Pin Attributes..................................................................................................................113.2.1 ZigBee Transmission Module..........................................................................113.2.2 ZLL Module........................................................................................................ 123.2.3 Curtain Module.................................................................................................. 133.2.4 Light Sensor Module.........................................................................................133.2.5 Infrared Human Body Sensor Module........................................................... 143.2.6 Switch Module................................................................................................... 153.2.7 Smart Plug Module........................................................................................... 163.2.8 Temperature and Humanity Sensor Module.................................................174 Reference Information.............................................................................................................184.1 Electrical Schematic Diagram.................................................................................... 184.2 Design Considerations................................................................................................ 185 IEEE 802.15.4.......................................................................................................................... 196 The ZigBee Protocol................................................................................................................197 Mechanical Drawings And Installation..................................................................................20FCC compliance............................................................................................................................. 22COPYRIGHT STATEMENT..........................................................................................................23DISCLAIMER.................................................................................................................................. 23TRADEMARK STATEMENT......................................................................................................... 23Contact us....................................................................................................................................... 23

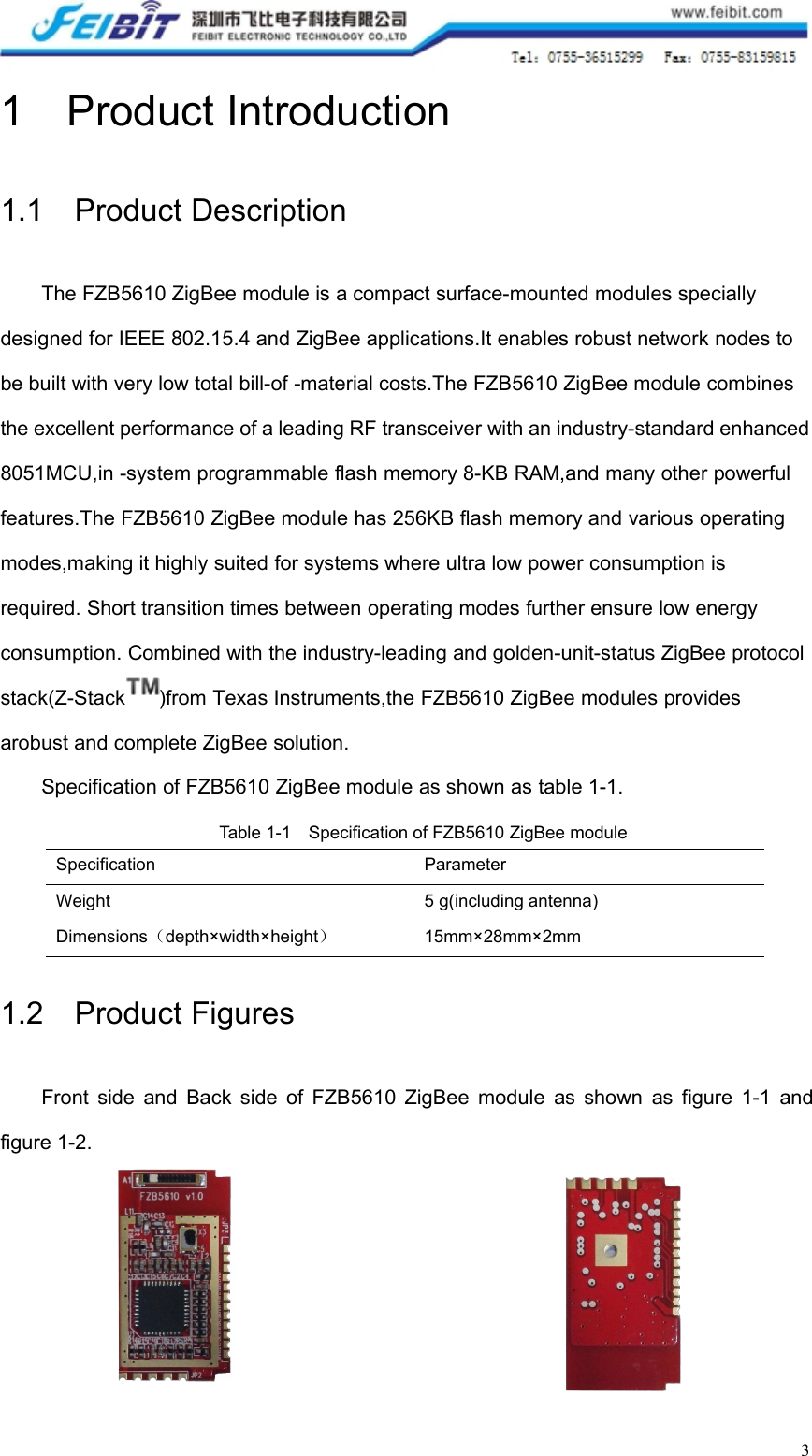

31 Product Introduction1.1 Product DescriptionThe FZB5610 ZigBee module is a compact surface-mounted modules speciallydesigned for IEEE 802.15.4 and ZigBee applications.It enables robust network nodes tobe built with very low total bill-of -material costs.The FZB5610 ZigBee module combinesthe excellent performance of a leading RF transceiver with an industry-standard enhanced8051MCU,in -system programmable flash memory 8-KB RAM,and many other powerfulfeatures.The FZB5610 ZigBee module has 256KB flash memory and various operatingmodes,making it highly suited for systems where ultra low power consumption isrequired. Short transition times between operating modes further ensure low energyconsumption. Combined with the industry-leading and golden-unit-status ZigBee protocolstack(Z-Stack )from Texas Instruments,the FZB5610 ZigBee modules providesarobust and complete ZigBee solution.Specification of FZB5610 ZigBee module as shown as table 1-1.Table 1-1 Specification of FZB5610 ZigBee moduleSpecificationParameterWeight5 g(including antenna)Dimensions（depth×width×height）15mm×28mm×2mm1.2 Product FiguresFront side and Back side of FZB5610 ZigBee module as shown as figure 1-1 andfigure 1-2.

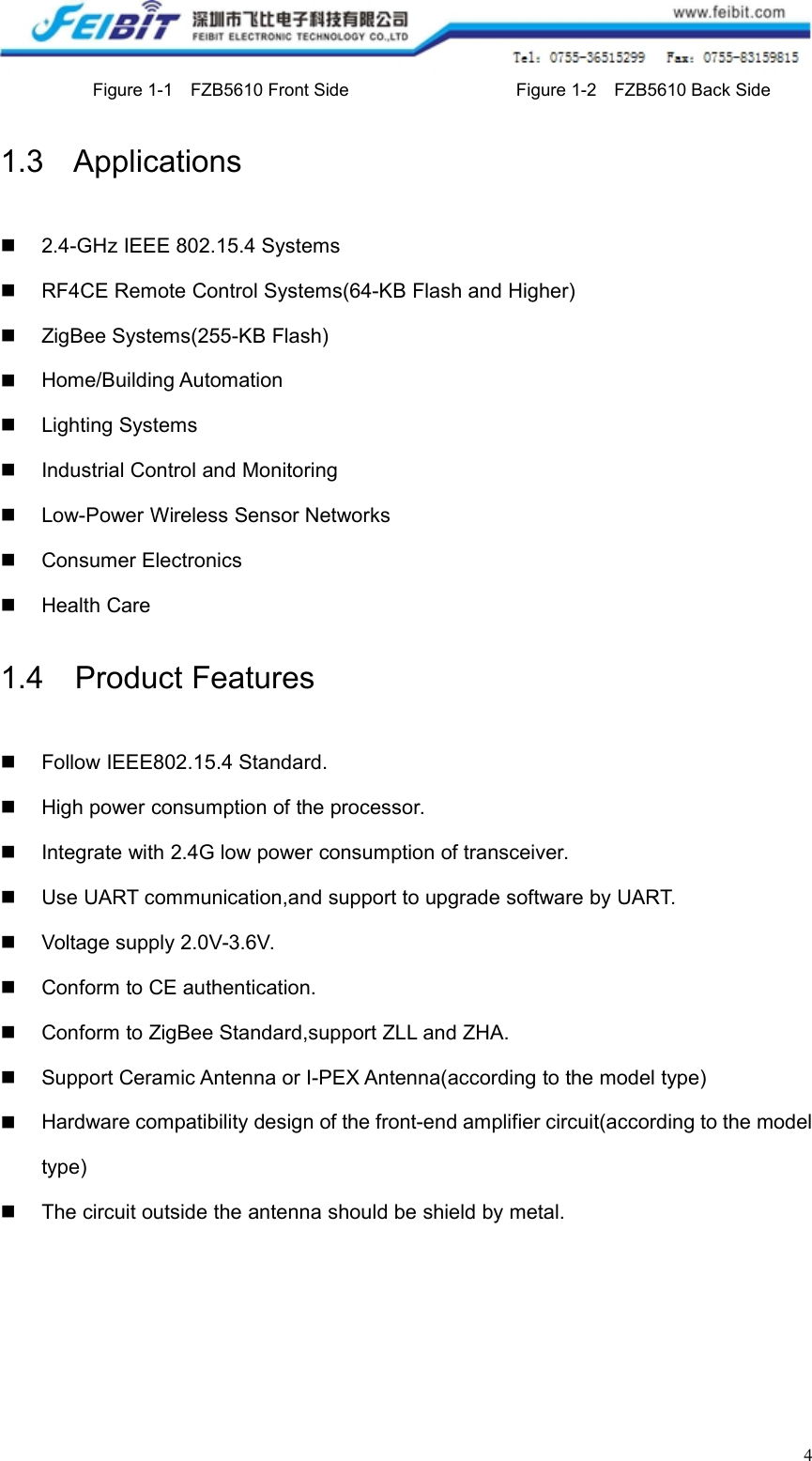

4Figure 1-1 FZB5610 Front Side Figure 1-2 FZB5610 Back Side1.3 Applications2.4-GHz IEEE 802.15.4 SystemsRF4CE Remote Control Systems(64-KB Flash and Higher)ZigBee Systems(255-KB Flash)Home/Building AutomationLighting SystemsIndustrial Control and MonitoringLow-Power Wireless Sensor NetworksConsumer ElectronicsHealth Care1.4 Product FeaturesFollow IEEE802.15.4 Standard.High power consumption of the processor.Integrate with 2.4G low power consumption of transceiver.Use UART communication,and support to upgrade software by UART.Voltage supply 2.0V-3.6V.Conform to CE authentication.Conform to ZigBee Standard,support ZLL and ZHA.Support Ceramic Antenna or I-PEX Antenna(according to the model type)Hardware compatibility design of the front-end amplifier circuit(according to the modeltype)The circuit outside the antenna should be shield by metal.

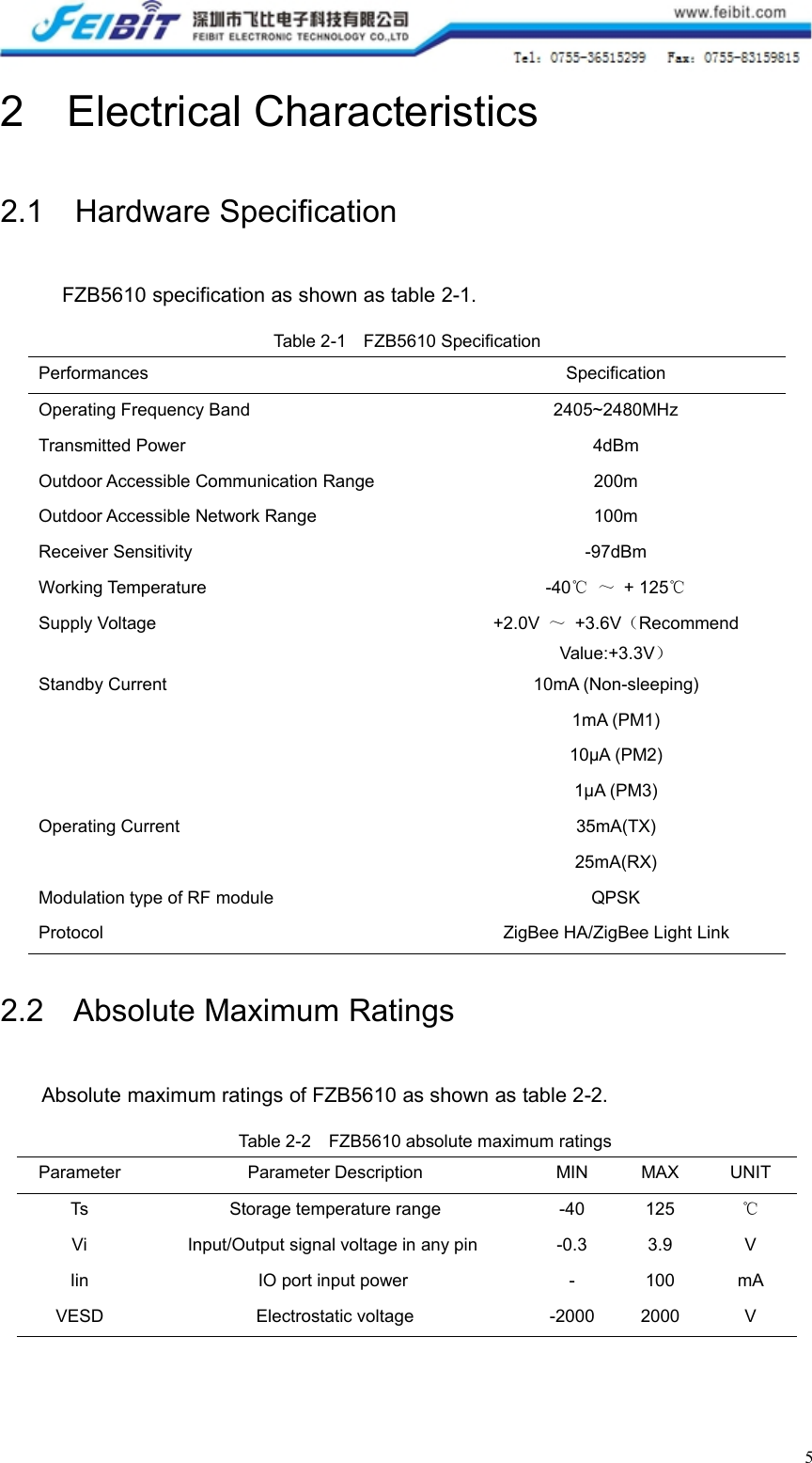

52 Electrical Characteristics2.1 Hardware SpecificationFZB5610 specification as shown as table 2-1.Table 2-1 FZB5610 SpecificationPerformancesSpecificationOperating Frequency Band2405~2480MHzTransmitted Power4dBmOutdoor Accessible Communication Range200mOutdoor Accessible Network Range100mReceiver Sensitivity-97dBmWorking Temperature-40℃ ～ + 125℃Supply Voltage+2.0V ～+3.6V（RecommendValue:+3.3V）Standby Current10mA (Non-sleeping)1mA (PM1)10µA (PM2)1µA (PM3)Operating Current35mA(TX)25mA(RX)Modulation type of RF moduleQPSKProtocolZigBee HA/ZigBee Light Link2.2 Absolute Maximum RatingsAbsolute maximum ratings of FZB5610 as shown as table 2-2.Table 2-2 FZB5610 absolute maximum ratingsParameterParameter DescriptionMINMAXUNITTsStorage temperature range-40125℃ViInput/Output signal voltage in any pin-0.33.9VIinIO port input power-100mAVESDElectrostatic voltage-20002000V
62.3 Recommended Operating ConditionsThe recommended operating conditions of FZB5610 as shown as table 2-3.Table 2-3 FZB5610 recommended operating conditionsParameterParameter DescriptionMinMaxUNITTAOperating environment temperature-40125℃VIHHigh-level input voltage1.853.14VVILLow-level input voltage-0.30.9VVOHHigh-level output voltage2.43．3VVOLLow-level output voltage00.4VIoOutput current4mA2.4 Recommended Output Power SettingThe recommended output power setting of FZB5610 as shown as table 2-4.Table 2-4 FZB5610 recommended output power settingTXPOWER Register SettingTypical Output Power(dBm)Typical Current Consumption(mA)0xF54340xE52310xD50.5290xC5-1280xB5-2270xA5-3.5270x95-4.5260x85-6.5260x75-8.5250x65-10.5250x55-12.5250x45-14.5250x35-16.5250x25-18.5240x15-20.5240x05-22.5230x05 and TXCTRL=0x09-28.523

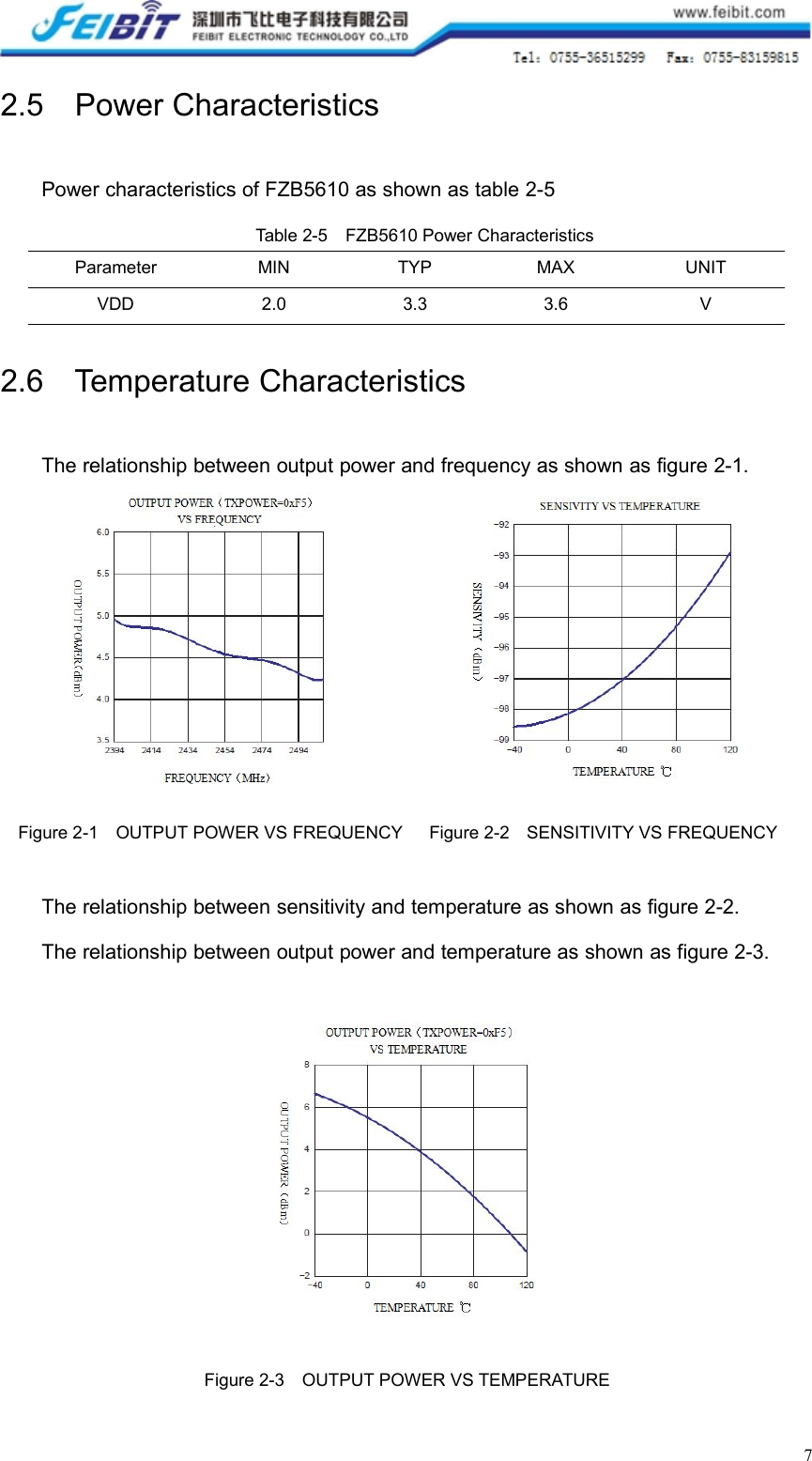

72.5 Power CharacteristicsPower characteristics of FZB5610 as shown as table 2-5Table 2-5 FZB5610 Power CharacteristicsParameterMINTYPMAXUNITVDD2.03.33.6V2.6 Temperature CharacteristicsThe relationship between output power and frequency as shown as figure 2-1.Figure 2-1 OUTPUT POWER VS FREQUENCY Figure 2-2 SENSITIVITY VS FREQUENCYThe relationship between sensitivity and temperature as shown as figure 2-2.The relationship between output power and temperature as shown as figure 2-3.Figure 2-3 OUTPUT POWER VS TEMPERATURE

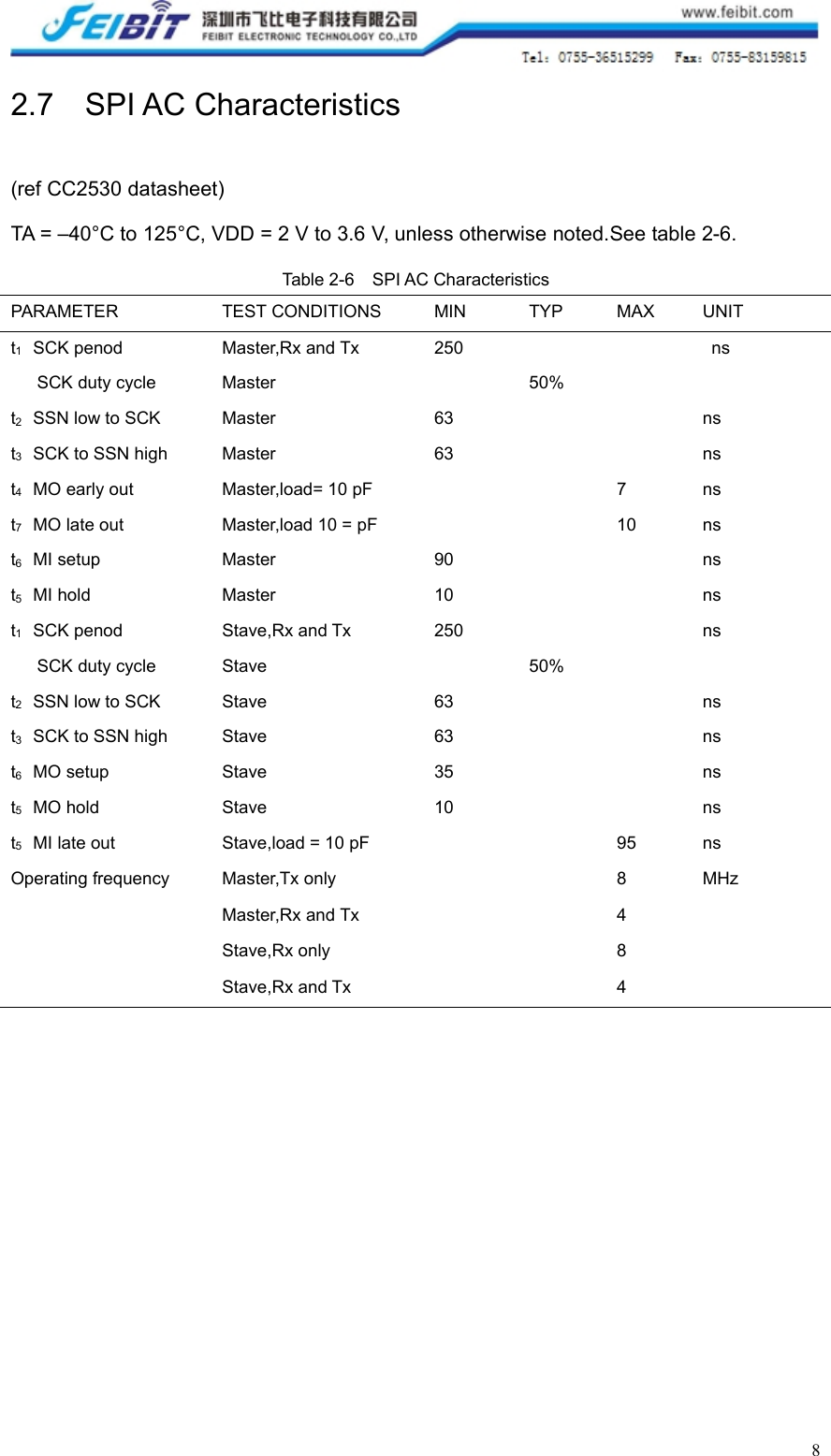

82.7 SPI AC Characteristics(ref CC2530 datasheet)TA = –40°C to 125°C, VDD = 2 V to 3.6 V, unless otherwise noted.See table 2-6.Table 2-6 SPI AC CharacteristicsPARAMETERTEST CONDITIONSMINTYPMAXUNITt1SCK penodMaster,Rx and Tx250nsSCK duty cycleMaster50%t2SSN low to SCKMaster63nst3SCK to SSN highMaster63nst4MO early outMaster,load= 10 pF7nst7MO late outMaster,load 10 = pF10nst6MI setupMaster90nst5MI holdMaster10nst1SCK penodStave,Rx and Tx250nsSCK duty cycleStave50%t2SSN low to SCKStave63nst3SCK to SSN highStave63nst6MO setupStave35nst5MO holdStave10nst5MI late outStave,load = 10 pF95nsOperating frequencyMaster,Tx only8MHzMaster,Rx and Tx4Stave,Rx only8Stave,Rx and Tx4

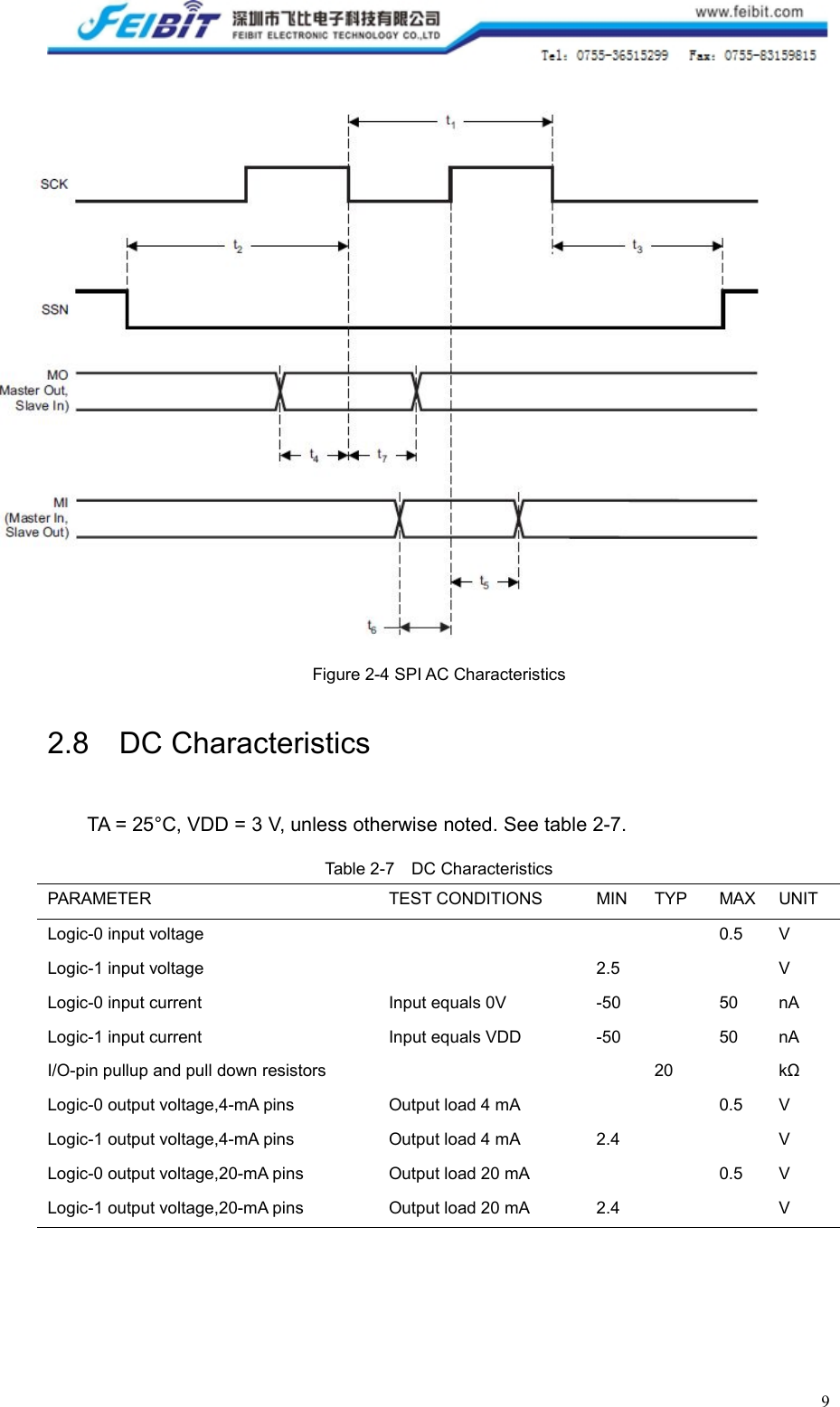

9Figure 2-4 SPI AC Characteristics2.8 DC CharacteristicsTA = 25°C, VDD = 3 V, unless otherwise noted. See table 2-7.Table 2-7 DC CharacteristicsPARAMETERTEST CONDITIONSMINTYPMAXUNITLogic-0 input voltage0.5VLogic-1 input voltage2.5VLogic-0 input currentInput equals 0V-5050nALogic-1 input currentInput equals VDD-5050nAI/O-pin pullup and pull down resistors20kΩLogic-0 output voltage,4-mA pinsOutput load 4 mA0.5VLogic-1 output voltage,4-mA pinsOutput load 4 mA2.4VLogic-0 output voltage,20-mA pinsOutput load 20 mA0.5VLogic-1 output voltage,20-mA pinsOutput load 20 mA2.4V

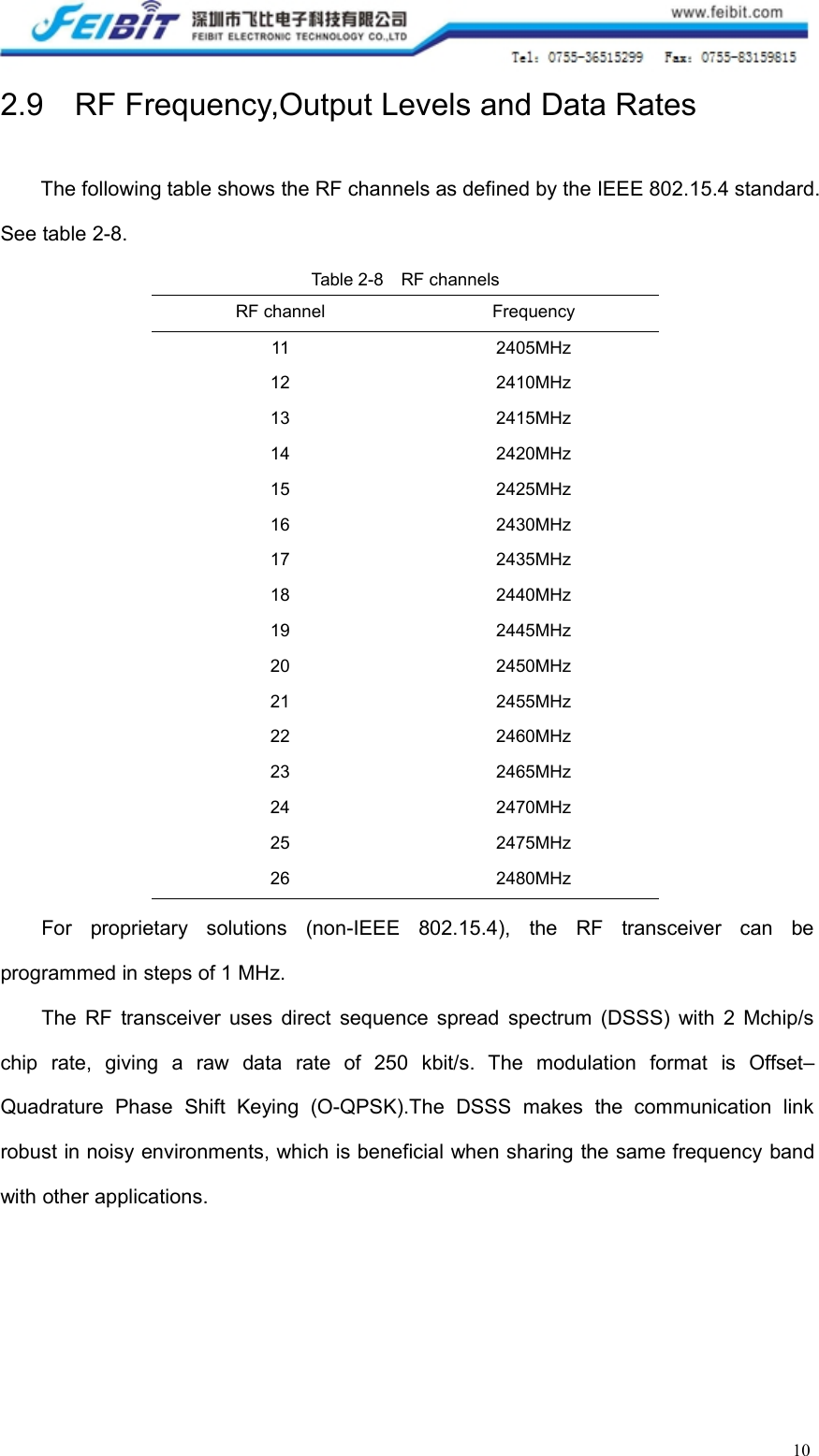

102.9 RF Frequency,Output Levels and Data RatesThe following table shows the RF channels as defined by the IEEE 802.15.4 standard.See table 2-8.Table 2-8 RF channelsRF channelFrequency112405MHz122410MHz132415MHz142420MHz152425MHz162430MHz172435MHz182440MHz192445MHz202450MHz212455MHz222460MHz232465MHz242470MHz252475MHz262480MHzFor proprietary solutions (non-IEEE 802.15.4), the RF transceiver can beprogrammed in steps of 1 MHz.The RF transceiver uses direct sequence spread spectrum (DSSS) with 2 Mchip/schip rate, giving a raw data rate of 250 kbit/s. The modulation format is Offset–Quadrature Phase Shift Keying (O-QPSK).The DSSS makes the communication linkrobust in noisy environments, which is beneficial when sharing the same frequency bandwith other applications.

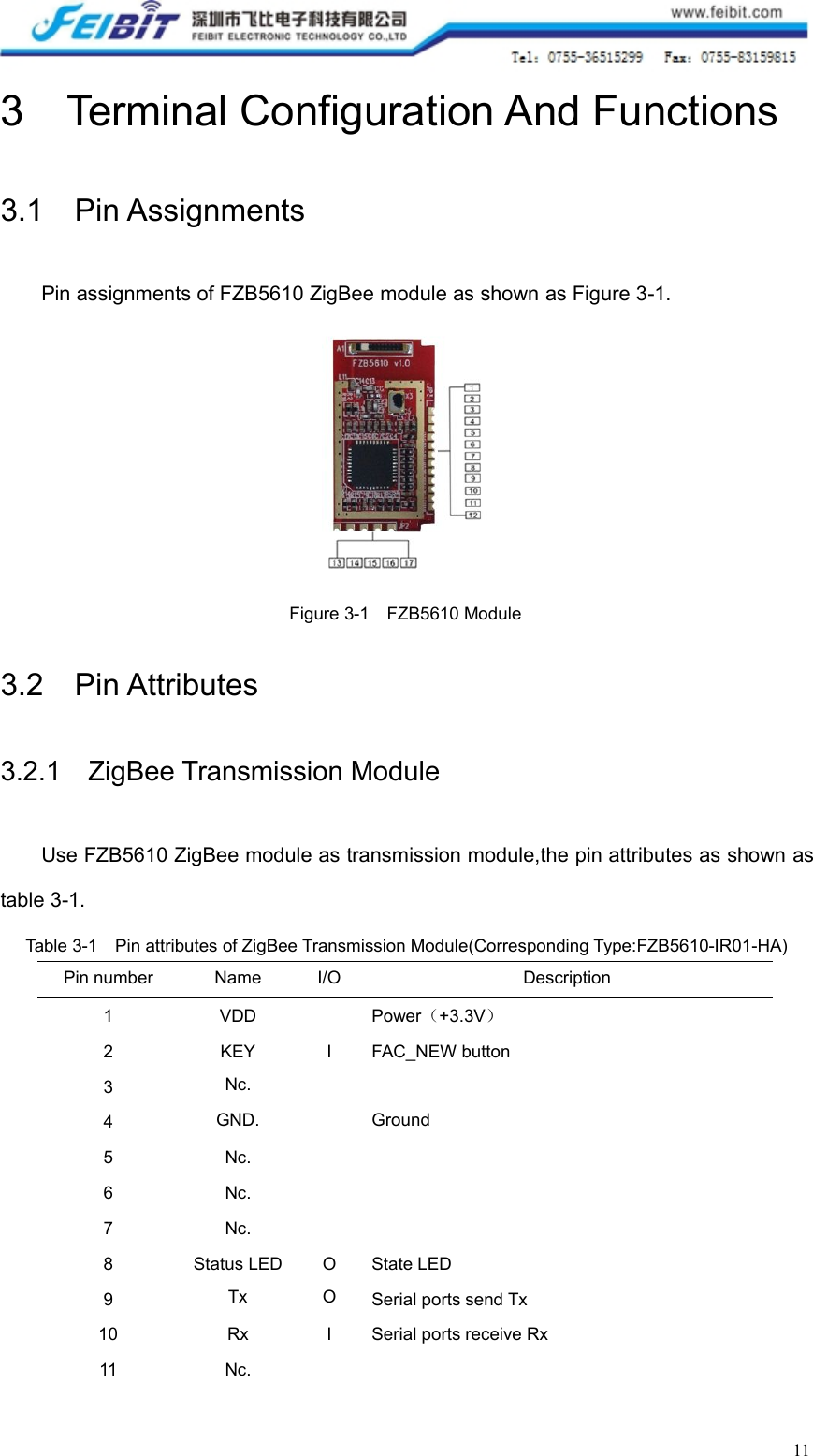

113 Terminal Configuration And Functions3.1 Pin AssignmentsPin assignments of FZB5610 ZigBee module as shown as Figure 3-1.Figure 3-1 FZB5610 Module3.2 Pin Attributes3.2.1 ZigBee Transmission ModuleUse FZB5610 ZigBee module as transmission module,the pin attributes as shown astable 3-1.Table 3-1 Pin attributes of ZigBee Transmission Module(Corresponding Type:FZB5610-IR01-HA)Pin numberNameI/ODescription1VDDPower（+3.3V）2KEYIFAC_NEW button3Nc.4GND.Ground5Nc.6Nc.7Nc.8Status LEDOState LED9TxOSerial ports send Tx10RxISerial ports receive Rx11Nc.

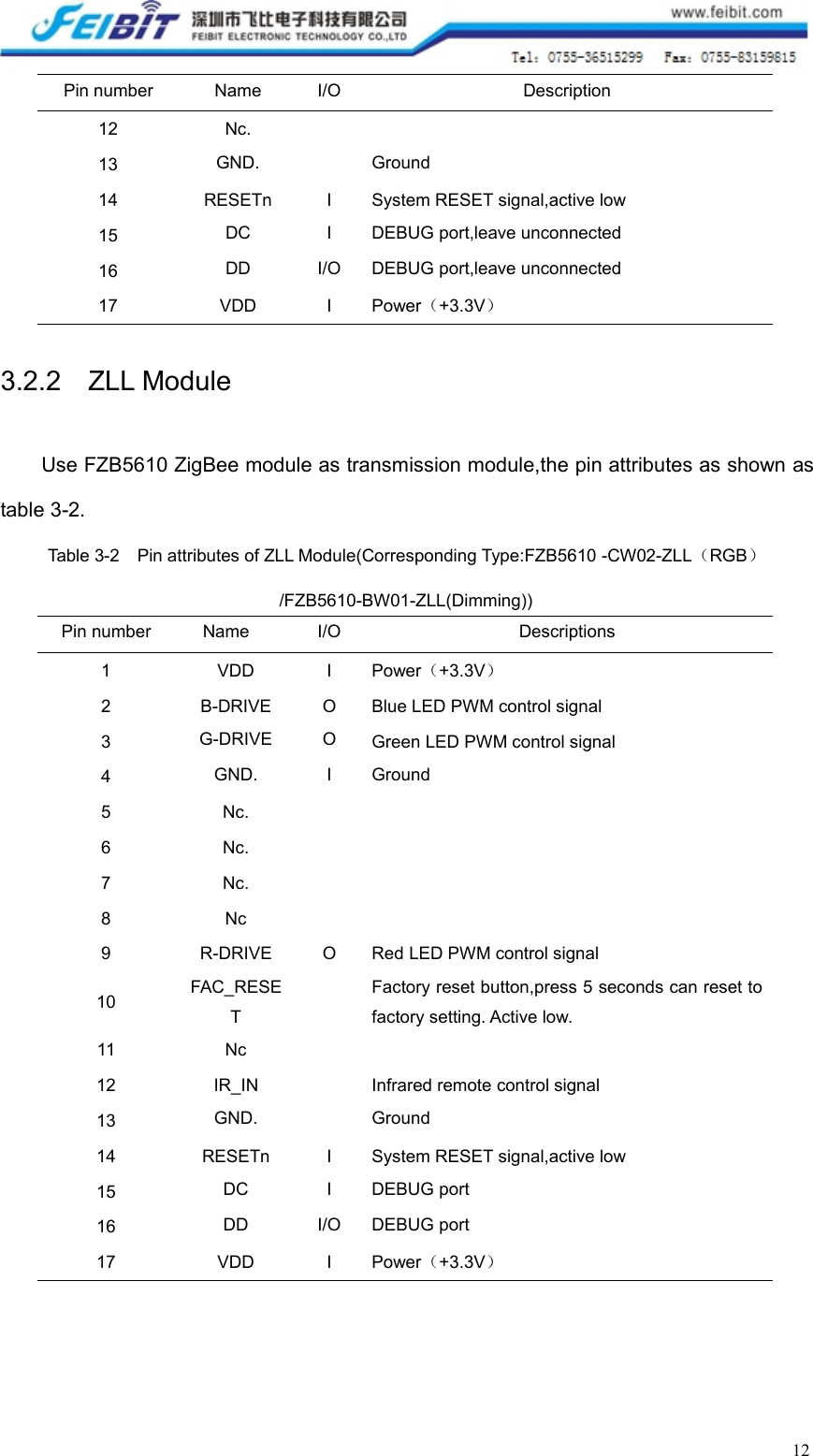

12Pin numberNameI/ODescription12Nc.13GND.Ground14RESETnISystem RESET signal,active low15DCIDEBUG port,leave unconnected16DDI/ODEBUG port,leave unconnected17VDDIPower（+3.3V）3.2.2 ZLL ModuleUse FZB5610 ZigBee module as transmission module,the pin attributes as shown astable 3-2.Table 3-2 Pin attributes of ZLL Module(Corresponding Type:FZB5610 -CW02-ZLL（RGB）/FZB5610-BW01-ZLL(Dimming))Pin numberNameI/ODescriptions1VDDIPower（+3.3V）2B-DRIVEOBlue LED PWM control signal3G-DRIVEOGreen LED PWM control signal4GND.IGround5Nc.6Nc.7Nc.8Nc9R-DRIVEORed LED PWM control signal10FAC_RESETFactory reset button,press 5 seconds can reset tofactory setting. Active low.11Nc12IR_INInfrared remote control signal13GND.Ground14RESETnISystem RESET signal,active low15DCIDEBUG port16DDI/ODEBUG port17VDDIPower（+3.3V）

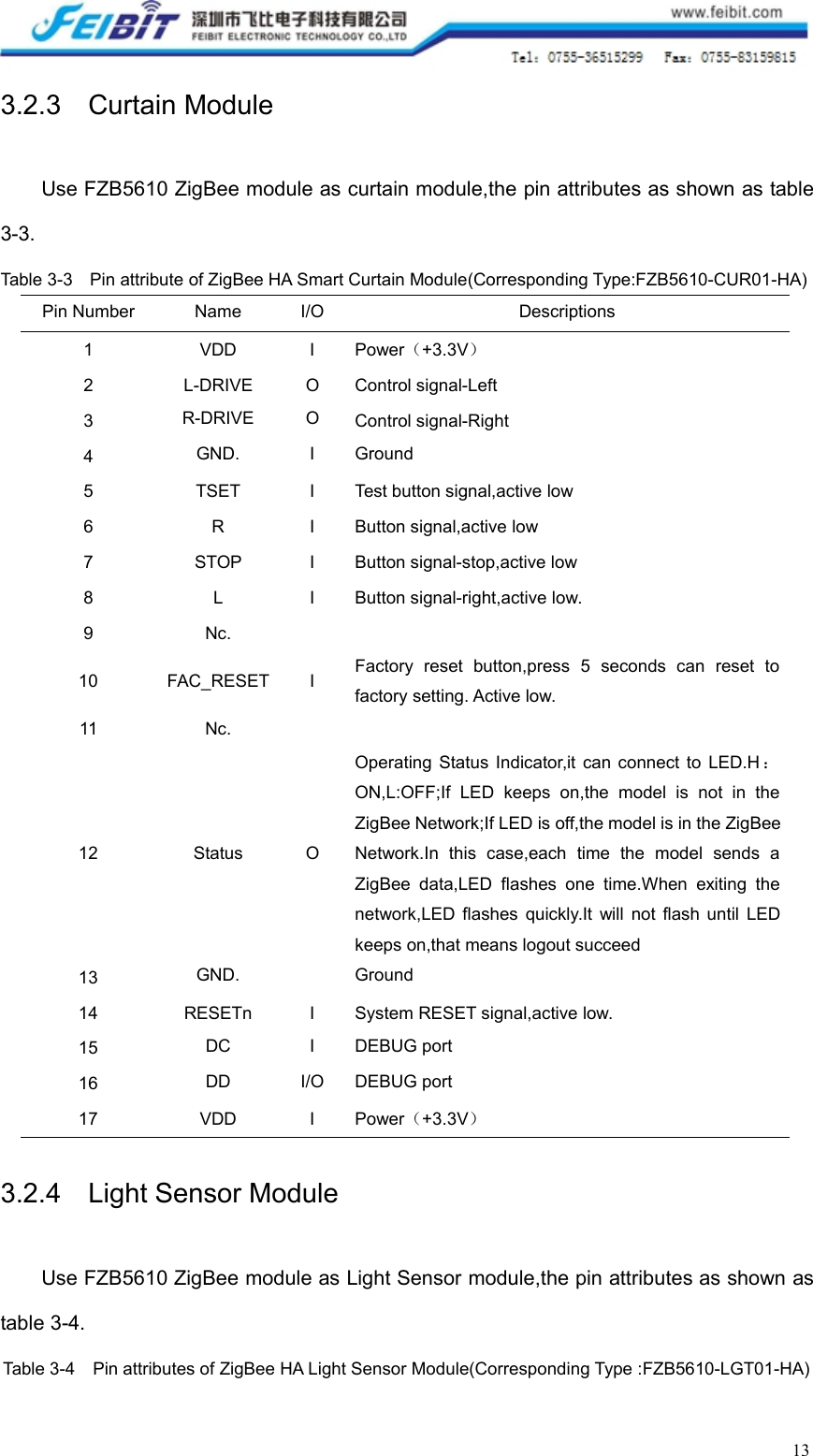

133.2.3 Curtain ModuleUse FZB5610 ZigBee module as curtain module,the pin attributes as shown as table3-3.Table 3-3 Pin attribute of ZigBee HA Smart Curtain Module(Corresponding Type:FZB5610-CUR01-HA)Pin NumberNameI/ODescriptions1VDDIPower（+3.3V）2L-DRIVEOControl signal-Left3R-DRIVEOControl signal-Right4GND.IGround5TSETITest button signal,active low6RIButton signal,active low7STOPIButton signal-stop,active low8LIButton signal-right,active low.9Nc.10FAC_RESETIFactory reset button,press 5 seconds can reset tofactory setting. Active low.11Nc.12StatusOOperating Status Indicator,it can connect to LED.H ：ON,L:OFF;If LED keeps on,the model is not in theZigBee Network;If LED is off,the model is in the ZigBeeNetwork.In this case,each time the model sends aZigBee data,LED flashes one time.When exiting thenetwork,LED flashes quickly.It will not flash until LEDkeeps on,that means logout succeed13GND.Ground14RESETnISystem RESET signal,active low.15DCIDEBUG port16DDI/ODEBUG port17VDDIPower（+3.3V）3.2.4 Light Sensor ModuleUse FZB5610 ZigBee module as Light Sensor module,the pin attributes as shown astable 3-4.Table 3-4 Pin attributes of ZigBee HA Light Sensor Module(Corresponding Type :FZB5610-LGT01-HA)

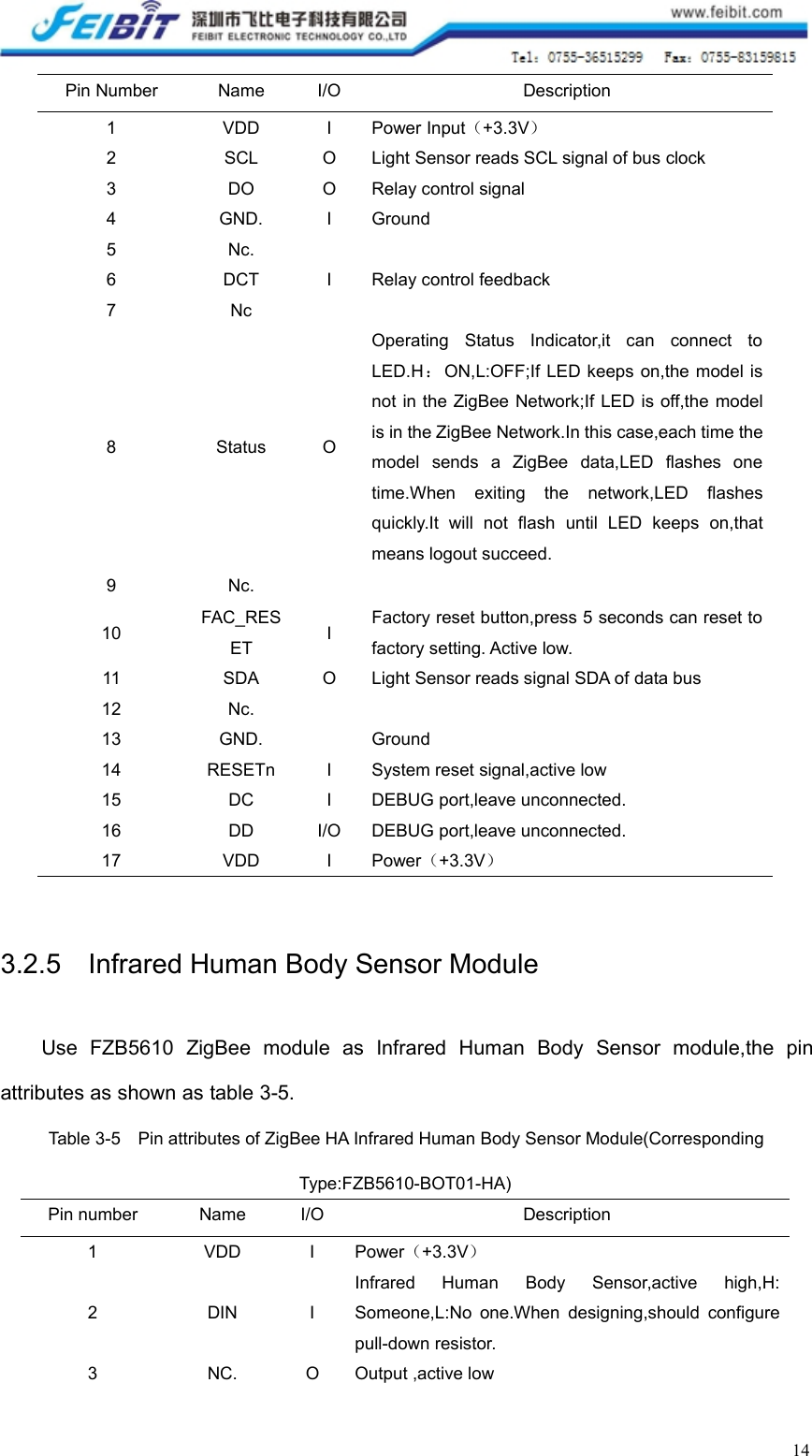

14Pin NumberNameI/ODescription1VDDIPower Input（+3.3V）2SCLOLight Sensor reads SCL signal of bus clock3DOORelay control signal4GND.IGround5Nc.6DCTIRelay control feedback7Nc8StatusOOperating Status Indicator,it can connect toLED.H：ON,L:OFF;If LED keeps on,the model isnot in the ZigBee Network;If LED is off,the modelis in the ZigBee Network.In this case,each time themodel sends a ZigBee data,LED flashes onetime.When exiting the network,LED flashesquickly.It will not flash until LED keeps on,thatmeans logout succeed.9Nc.10FAC_RESETIFactory reset button,press 5 seconds can reset tofactory setting. Active low.11SDAOLight Sensor reads signal SDA of data bus12Nc.13GND.Ground14RESETnISystem reset signal,active low15DCIDEBUG port,leave unconnected.16DDI/ODEBUG port,leave unconnected.17VDDIPower（+3.3V）3.2.5 Infrared Human Body Sensor ModuleUse FZB5610 ZigBee module as Infrared Human Body Sensor module,the pinattributes as shown as table 3-5.Table 3-5 Pin attributes of ZigBee HA Infrared Human Body Sensor Module(CorrespondingType:FZB5610-BOT01-HA)Pin numberNameI/ODescription1VDDIPower（+3.3V）2DINIInfrared Human Body Sensor,active high,H:Someone,L:No one.When designing,should configurepull-down resistor.3NC.OOutput ,active low
15Pin numberNameI/ODescription4GND.Ground5Nc.OOutput ,active low6Nc.OOutput ,active low7NcOOutput ,active low8StatusOOperating Status Indicator,it can connect to LED.H ：ON,L:OFF;If LED keeps on,the model is not in theZigBee Network;If LED is off,the model is in the ZigBeeNetwork.In this case,each time the model sends aZigBee data,LED flashes one time.When exiting thenetwork,LED flashes quickly.It will not flash until LEDkeeps on,that means logout succeed.9Nc.OOutput ,active low10FAC_RESETIFactory reset button,press 5 seconds can reset tofactory setting. Active low.When designing,shouldconfigure pull-down resistor.11Nc.Output ,active low12Nc.Output ,active low13GND.Ground14RESETnSystem RESET signal,active low15DCIDEBUG port,leave unconnected16DDI/ODEBUG port,leave unconnected17VDDPower（+3.3V）3.2.6 Switch ModuleUse FZB5610 ZigBee module as Switch module,the pin attributes as shown as table3-6.Table 3-6 Pin attributes of ZigBee HA Smart Switch Module(Corresponding Type : FZB5610-SCH01-HA)Pin NumberNameI/ODescription1VDDIPower（+3.3V）2DIN1I1# Switch input signal3DIN2I2# Switch input signal4GND.IGround5DIN1_LEDO6DIN2_LEDO7DIN3_LEDODEMO Board leave unconnected.8StatusOOperating Status Indicator,it can connect to LED.H：

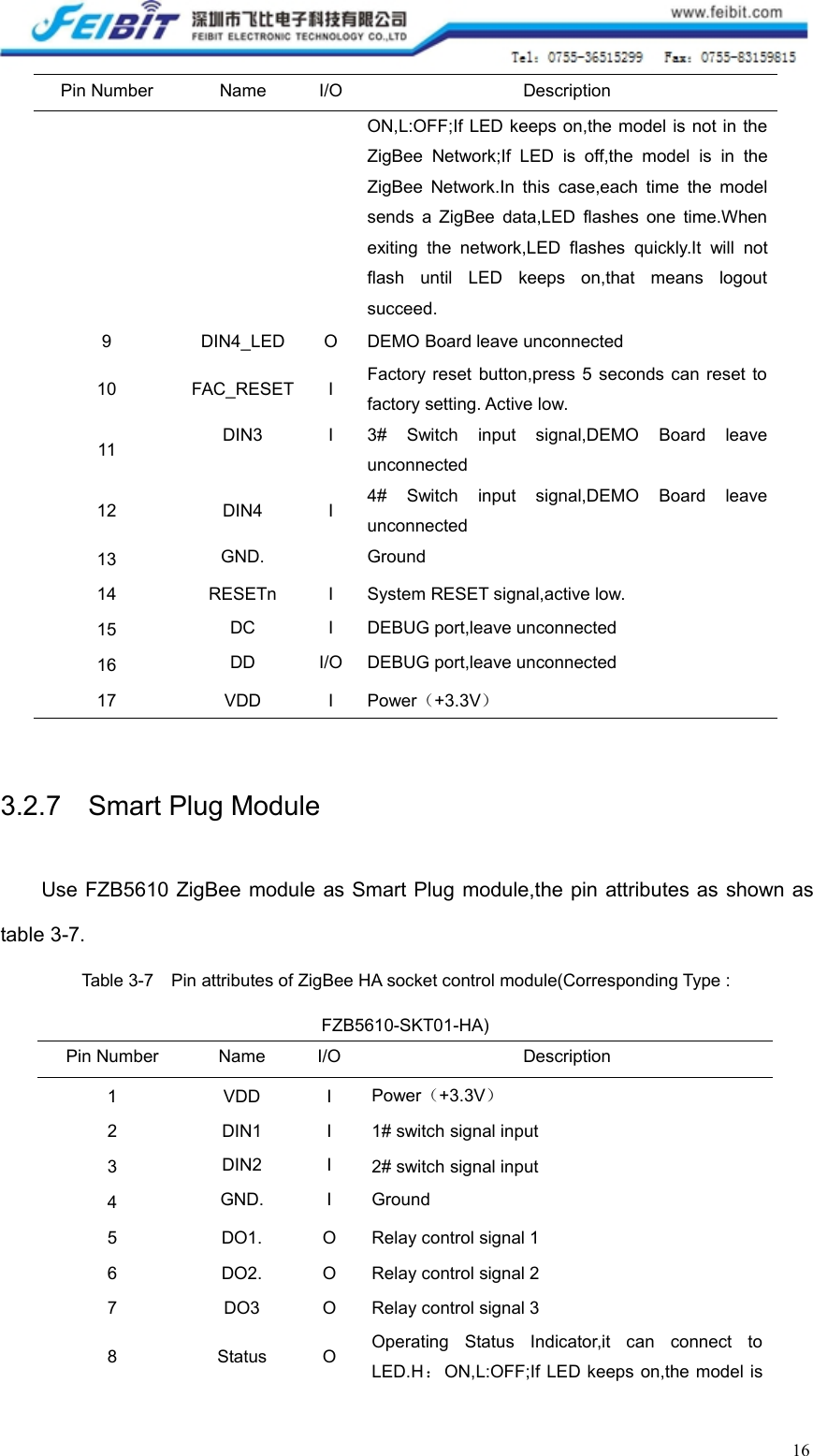

16Pin NumberNameI/ODescriptionON,L:OFF;If LED keeps on,the model is not in theZigBee Network;If LED is off,the model is in theZigBee Network.In this case,each time the modelsends a ZigBee data,LED flashes one time.Whenexiting the network,LED flashes quickly.It will notflash until LED keeps on,that means logoutsucceed.9DIN4_LEDODEMO Board leave unconnected10FAC_RESETIFactory reset button,press 5 seconds can reset tofactory setting. Active low.11DIN3I3# Switch input signal,DEMO Board leaveunconnected12DIN4I4# Switch input signal,DEMO Board leaveunconnected13GND.Ground14RESETnISystem RESET signal,active low.15DCIDEBUG port,leave unconnected16DDI/ODEBUG port,leave unconnected17VDDIPower（+3.3V）3.2.7 Smart Plug ModuleUse FZB5610 ZigBee module as Smart Plug module,the pin attributes as shown astable 3-7.Table 3-7 Pin attributes of ZigBee HA socket control module(Corresponding Type :FZB5610-SKT01-HA)Pin NumberNameI/ODescription1VDDIPower（+3.3V）2DIN1I1# switch signal input3DIN2I2# switch signal input4GND.IGround5DO1.ORelay control signal 16DO2.ORelay control signal 27DO3ORelay control signal 38StatusOOperating Status Indicator,it can connect toLED.H：ON,L:OFF;If LED keeps on,the model is
17Pin NumberNameI/ODescriptionnot in the ZigBee Network;If LED is off,the modelis in the ZigBee Network.In this case,each time themodel sends a ZigBee data,LED flashes onetime.When exiting the network,LED flashesquickly.It will not flash until LED keeps on,thatmeans logout succeed.9DO4.ORelay control signal 410FAC_RESETIFactory reset button,press 5 seconds can reset tofactory setting. Active low.11DIN3I3# Switch signal input12DIN4I4# Switch signal input13GND.Ground14RESETnISystem RESET signal,active low15DCIDEBUG port,leave unconnected16DDI/ODEBUG port,leave unconnected17VDDIPower（+3.3V）3.2.8 Temperature and Humanity Sensor ModuleUse FZB5610 ZigBee module as Temperature and Humanity Sensor module,the pinattributes as shown as table 3-8.Table 3-8 Pin attributes of ZigBee HA Temperature and Humanity Sensor Module(CorrespondingType:FZB5610-THM02-HA)Pin numberNameI/ODescription1VDDIPower（+3.3V）2FAC_RESETIFactory reset button,press 5 seconds can reset tofactory setting. Active low.3Nc.4GND.IGround.5Nc.6Nc.7Nc.8StatusOOperating Status Indicator,it can connect toLED.H：ON,L:OFF;If LED keeps on,the model isnot in the ZigBee Network;If LED is off,the modelis in the ZigBee Network.In this case,each time the

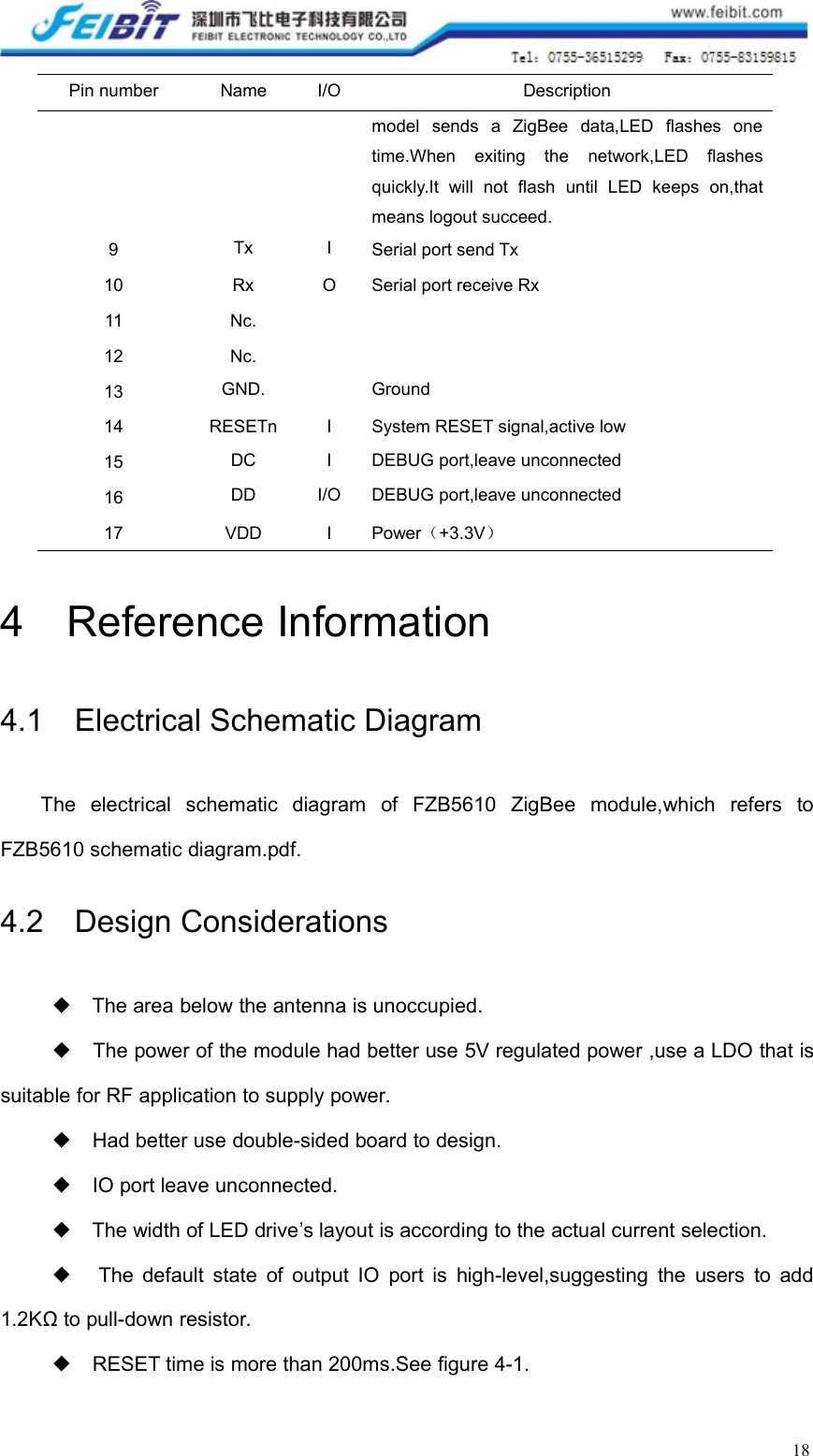

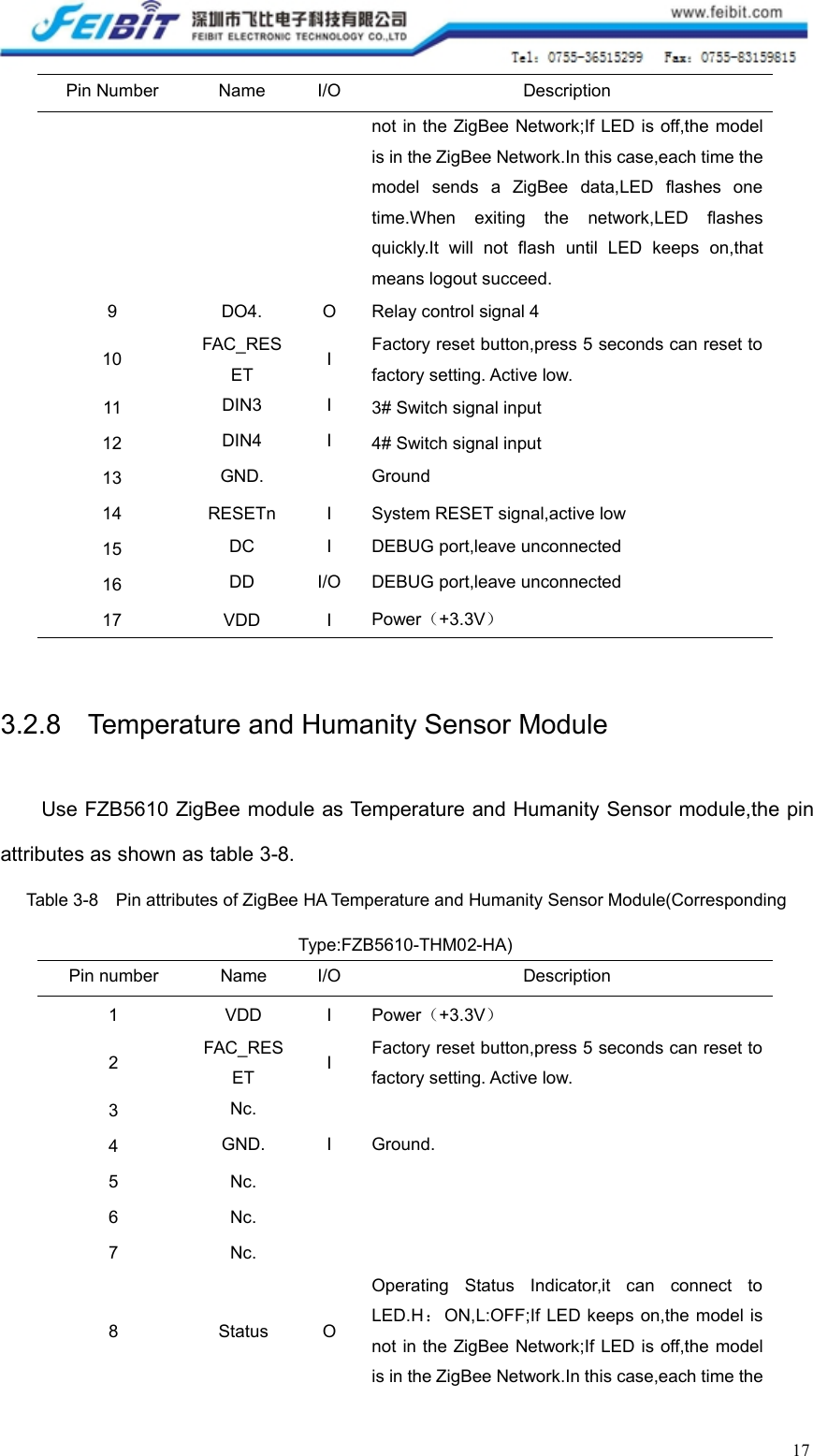

18Pin numberNameI/ODescriptionmodel sends a ZigBee data,LED flashes onetime.When exiting the network,LED flashesquickly.It will not flash until LED keeps on,thatmeans logout succeed.9TxISerial port send Tx10RxOSerial port receive Rx11Nc.12Nc.13GND.Ground14RESETnISystem RESET signal,active low15DCIDEBUG port,leave unconnected16DDI/ODEBUG port,leave unconnected17VDDIPower（+3.3V）4 Reference Information4.1 Electrical Schematic DiagramThe electrical schematic diagram of FZB5610 ZigBee module,which refers toFZB5610 schematic diagram.pdf.4.2 Design Considerations◆The area below the antenna is unoccupied.◆The power of the module had better use 5V regulated power ,use a LDO that issuitable for RF application to supply power.◆Had better use double-sided board to design.◆IO port leave unconnected.◆The width of LED drive’s layout is according to the actual current selection.◆The default state of output IO port is high-level,suggesting the users to add1.2KΩ to pull-down resistor.◆RESET time is more than 200ms.See figure 4-1.

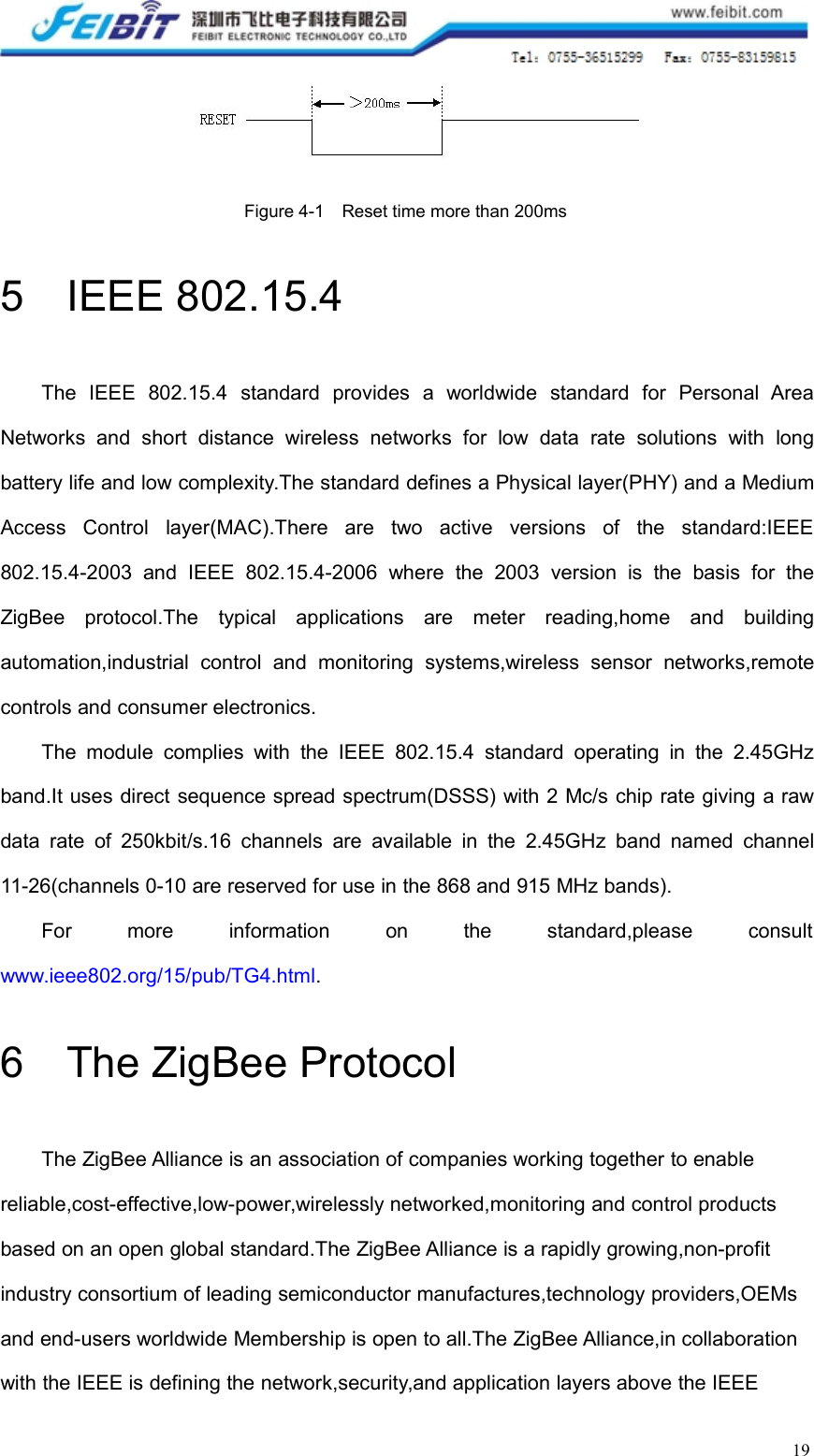

19Figure 4-1 Reset time more than 200ms5 IEEE 802.15.4The IEEE 802.15.4 standard provides a worldwide standard for Personal AreaNetworks and short distance wireless networks for low data rate solutions with longbattery life and low complexity.The standard defines a Physical layer(PHY) and a MediumAccess Control layer(MAC).There are two active versions of the standard:IEEE802.15.4-2003 and IEEE 802.15.4-2006 where the 2003 version is the basis for theZigBee protocol.The typical applications are meter reading,home and buildingautomation,industrial control and monitoring systems,wireless sensor networks,remotecontrols and consumer electronics.The module complies with the IEEE 802.15.4 standard operating in the 2.45GHzband.It uses direct sequence spread spectrum(DSSS) with 2 Mc/s chip rate giving a rawdata rate of 250kbit/s.16 channels are available in the 2.45GHz band named channel11-26(channels 0-10 are reserved for use in the 868 and 915 MHz bands).For more information on the standard,please consultwww.ieee802.org/15/pub/TG4.html.6 The ZigBee ProtocolThe ZigBee Alliance is an association of companies working together to enablereliable,cost-effective,low-power,wirelessly networked,monitoring and control productsbased on an open global standard.The ZigBee Alliance is a rapidly growing,non-profitindustry consortium of leading semiconductor manufactures,technology providers,OEMsand end-users worldwide Membership is open to all.The ZigBee Alliance,in collaborationwith the IEEE is defining the network,security,and application layers above the IEEE

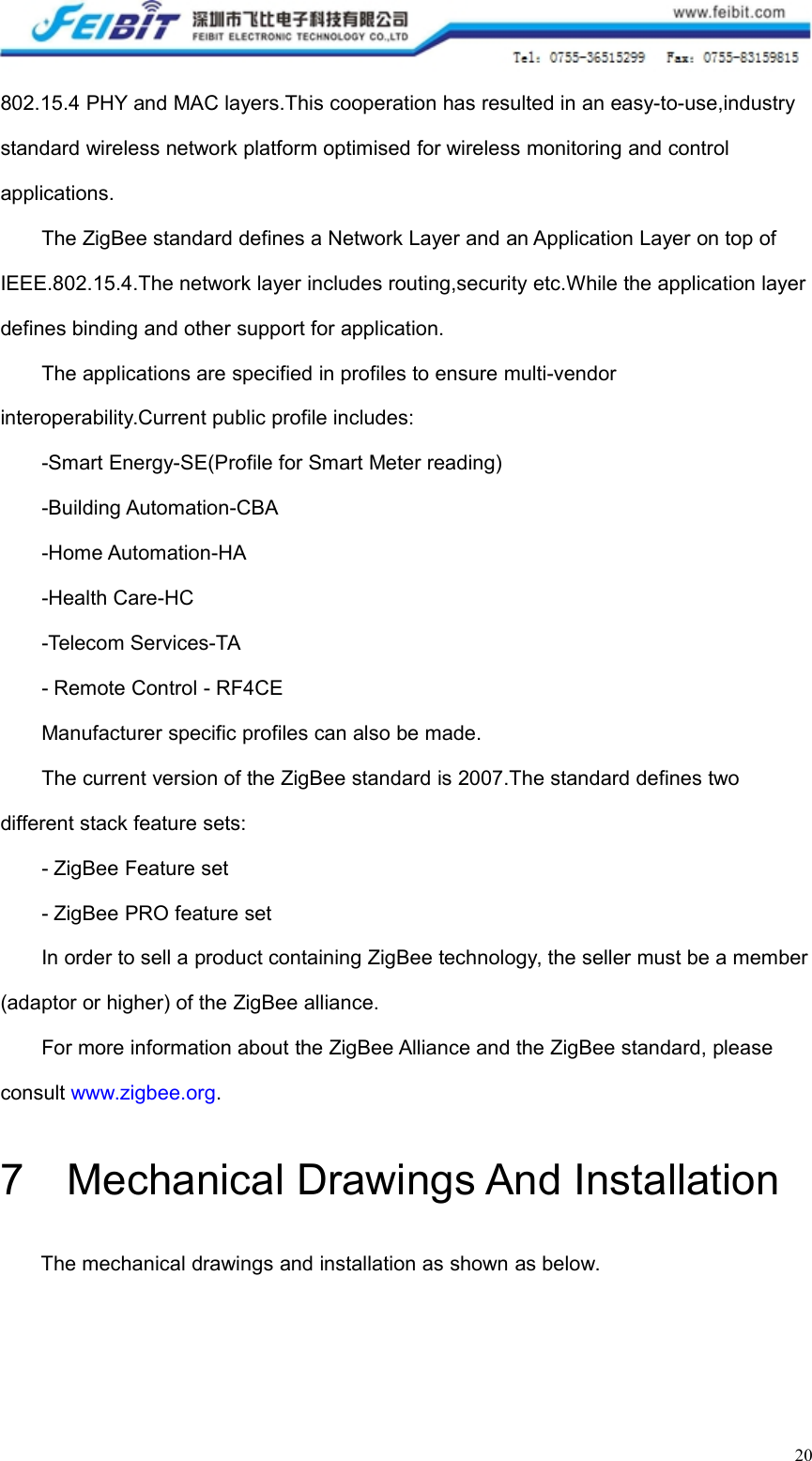

20802.15.4 PHY and MAC layers.This cooperation has resulted in an easy-to-use,industrystandard wireless network platform optimised for wireless monitoring and controlapplications.The ZigBee standard defines a Network Layer and an Application Layer on top ofIEEE.802.15.4.The network layer includes routing,security etc.While the application layerdefines binding and other support for application.The applications are specified in profiles to ensure multi-vendorinteroperability.Current public profile includes:-Smart Energy-SE(Profile for Smart Meter reading)-Building Automation-CBA-Home Automation-HA-Health Care-HC-Telecom Services-TA- Remote Control - RF4CEManufacturer specific profiles can also be made.The current version of the ZigBee standard is 2007.The standard defines twodifferent stack feature sets:- ZigBee Feature set- ZigBee PRO feature setIn order to sell a product containing ZigBee technology, the seller must be a member(adaptor or higher) of the ZigBee alliance.For more information about the ZigBee Alliance and the ZigBee standard, pleaseconsult www.zigbee.org.7 Mechanical Drawings And InstallationThe mechanical drawings and installation as shown as below.
21Figure 7-1 Mechanical drawing and installationFigure 7-2 Installation 1 Figure 7-3 Installation 2Figure 7-4 Installation 3

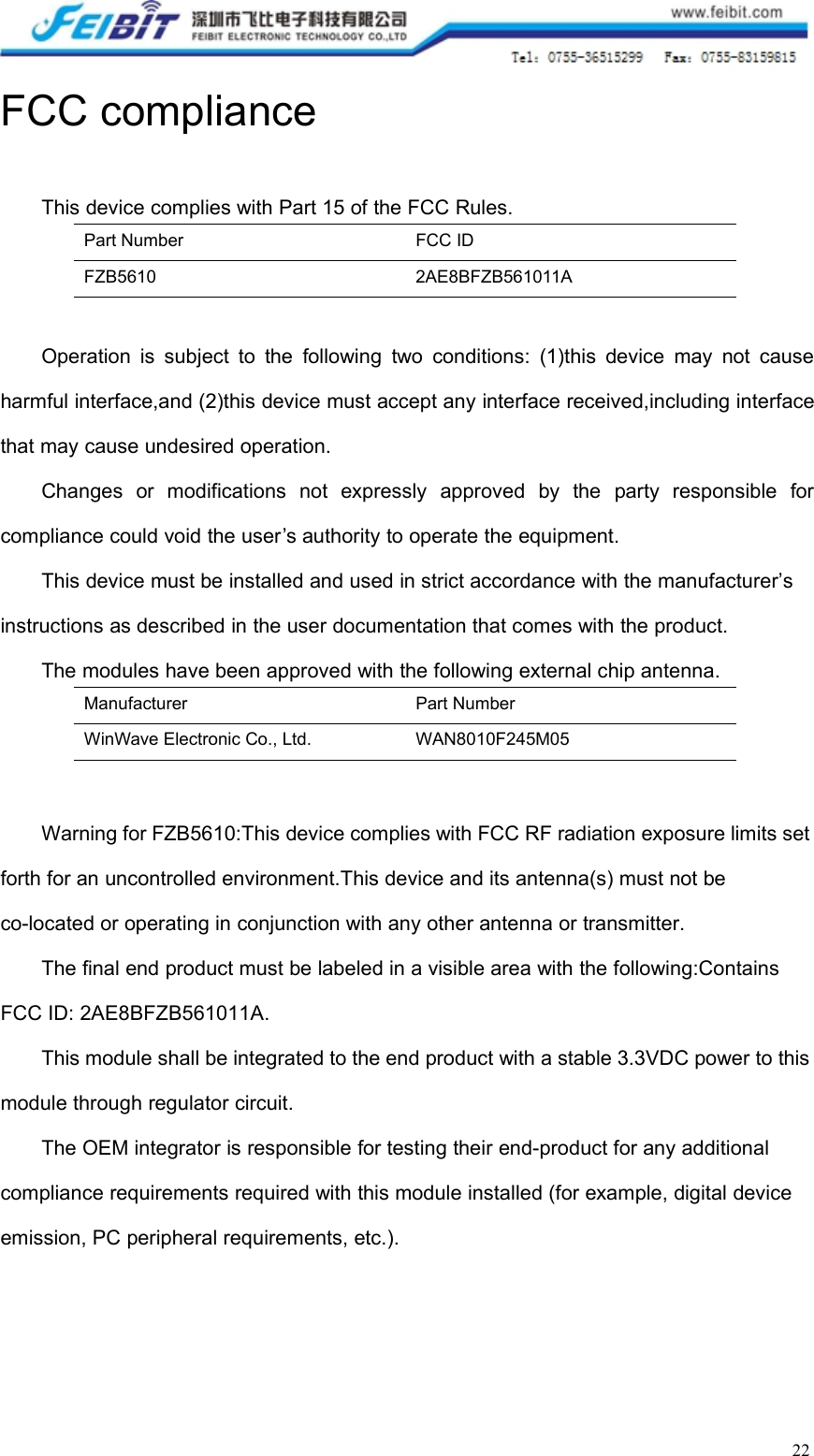

22FCC complianceThis device complies with Part 15 of the FCC Rules.Part NumberFCC IDFZB56102AE8BFZB561011AOperation is subject to the following two conditions: (1)this device may not causeharmful interface,and (2)this device must accept any interface received,including interfacethat may cause undesired operation.Changes or modifications not expressly approved by the party responsible forcompliance could void the user’s authority to operate the equipment.This device must be installed and used in strict accordance with the manufacturer’sinstructions as described in the user documentation that comes with the product.The modules have been approved with the following external chip antenna.ManufacturerPart NumberWinWave Electronic Co., Ltd.WAN8010F245M05Warning for FZB5610:This device complies with FCC RF radiation exposure limits setforth for an uncontrolled environment.This device and its antenna(s) must not beco-located or operating in conjunction with any other antenna or transmitter.The final end product must be labeled in a visible area with the following:ContainsFCC ID: 2AE8BFZB561011A.This module shall be integrated to the end product with a stable 3.3VDC power to thismodule through regulator circuit.The OEM integrator is responsible for testing their end-product for any additionalcompliance requirements required with this module installed (for example, digital deviceemission, PC peripheral requirements, etc.).

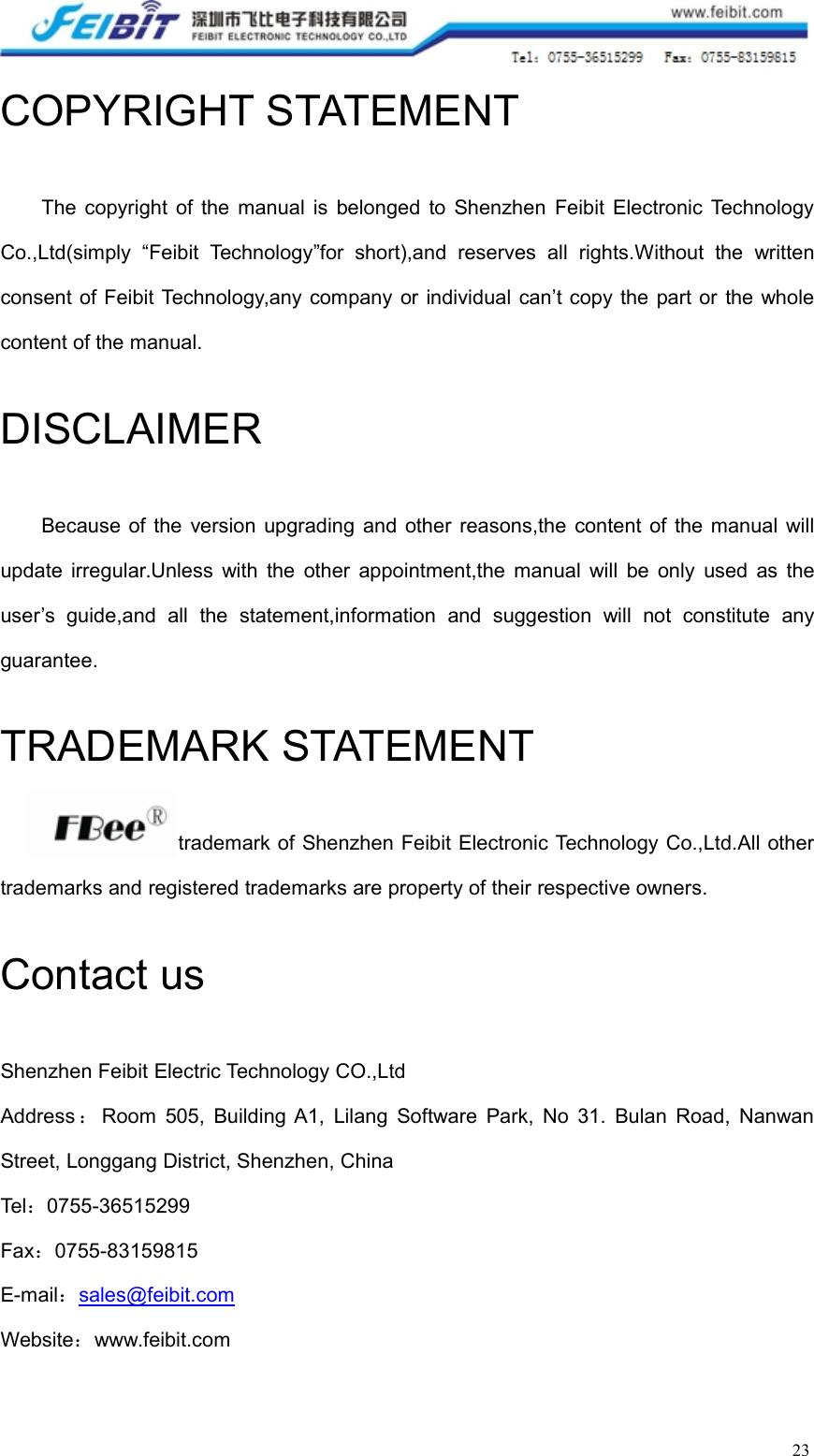

23COPYRIGHT STATEMENTThe copyright of the manual is belonged to Shenzhen Feibit Electronic TechnologyCo.,Ltd(simply “Feibit Technology”for short),and reserves all rights.Without the writtenconsent of Feibit Technology,any company or individual can’t copy the part or the wholecontent of the manual.DISCLAIMERBecause of the version upgrading and other reasons,the content of the manual willupdate irregular.Unless with the other appointment,the manual will be only used as theuser’s guide,and all the statement,information and suggestion will not constitute anyguarantee.TRADEMARK STATEMENTis used as the trademark of Shenzhen Feibit Electronic Technology Co.,Ltd.All othertrademarks and registered trademarks are property of their respective owners.Contact usShenzhen Feibit Electric Technology CO.,LtdAddress ：Room 505, Building A1, Lilang Software Park, No 31. Bulan Road, NanwanStreet, Longgang District, Shenzhen, ChinaTel：0755-36515299Fax：0755-83159815E-mail：sales@feibit.comWebsite：www.feibit.com
