FLYTECH TECHNOLOGY J222594 POS User Manual J2 225 System Manual 1 0
FLYTECH TECHNOLOGY CO., LTD POS J2 225 System Manual 1 0
Users Manual
J2 225 Integrated Touch Screen Computer
System Manual
April 2012
J2 225 System Manual
Version 1.0 May 29, 2012
2
Copyright © 2012 J2 Retail Systems Ltd
All rights reserved
Change history
Version 1.0 Release May 29, 2012
J2 225 System Manual
Version 1.0 May 29, 2012
3
Contents
Overview ............................................................................................................................ 6
Design Concept J2 225 ...................................................................................................... 8
Specifications J2 225 ......................................................................................................... 9

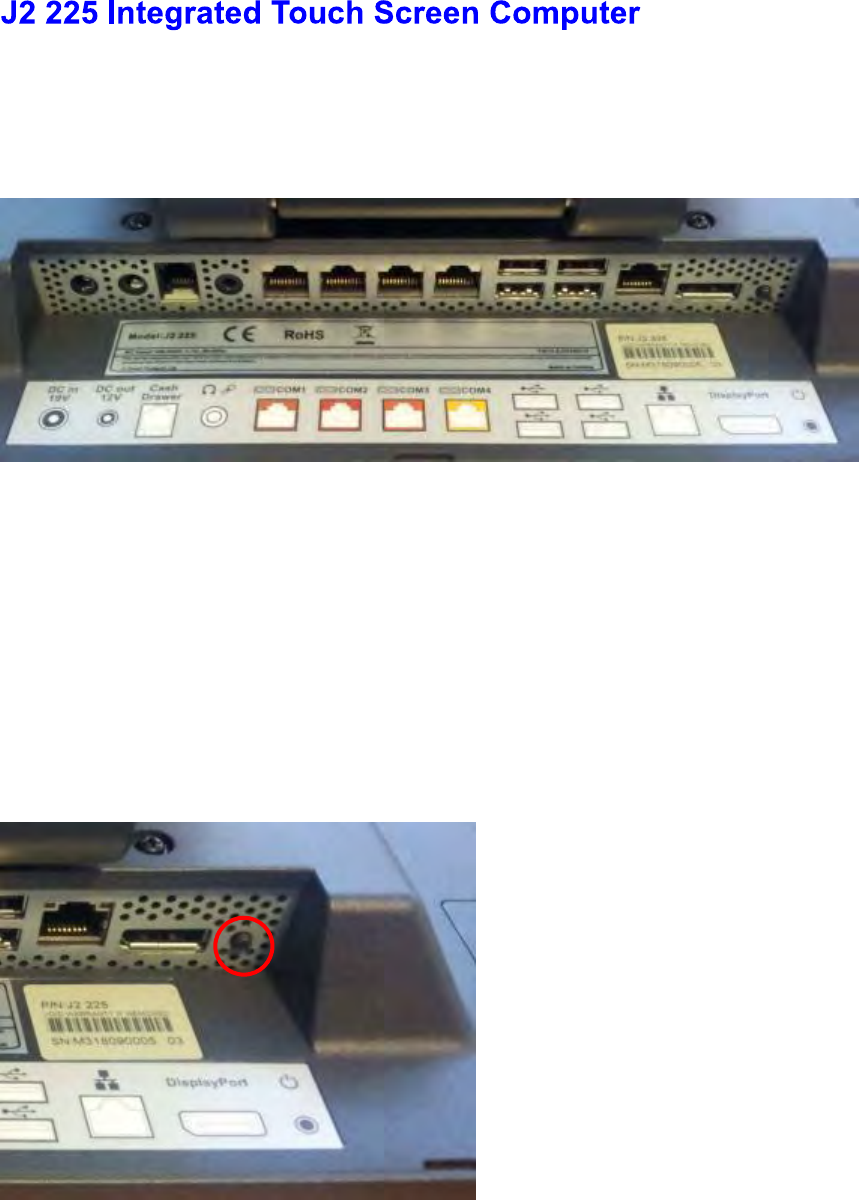

J2 225 Integrated Touch Screen Computer .................................................................. 10
I/O Ports ........................................................................................................................ 10
Off / On Button ............................................................................................................. 10
Hard Disks .................................................................................................................... 11
Touch Screen ................................................................................................................ 11
System Board ................................................................................................................ 12
J2 225 Display ............................................................................................................... 12
Secondary Video Port ................................................................................................... 13
Serial ports .................................................................................................................... 14
USB Ports ...................................................................................................................... 16
Ethernet Connection ...................................................................................................... 16
Audio ............................................................................................................................. 17

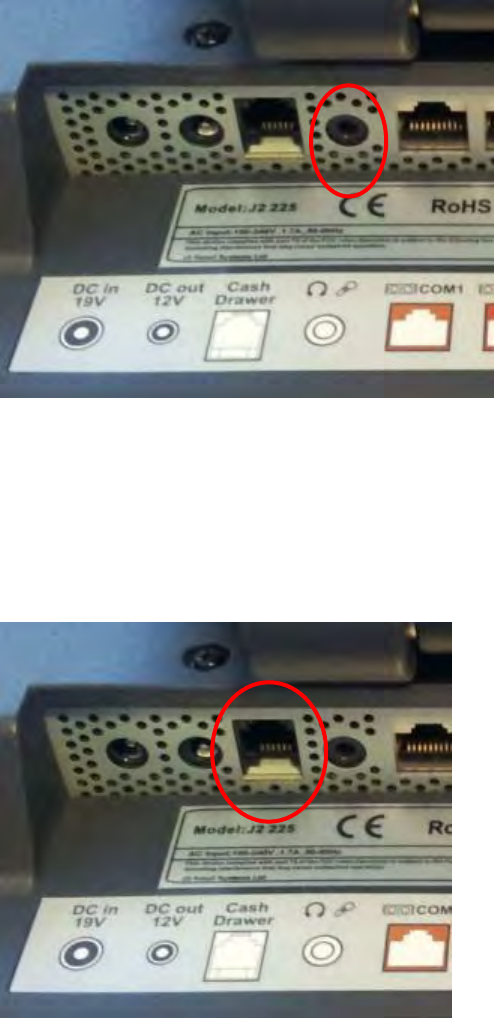

Cash Drawer Ports ........................................................................................................ 17
CMOS Clear .................................................................................................................. 19
Mini PCI-E .................................................................................................................... 19
Memory SODIMM(s) ................................................................................................... 20
Power Supply ................................................................................................................ 20
+12VDV Power Out ..................................................................................................... 21
Typical Power Consumption J2 225 ............................................................................. 21
Service .............................................................................................................................. 22

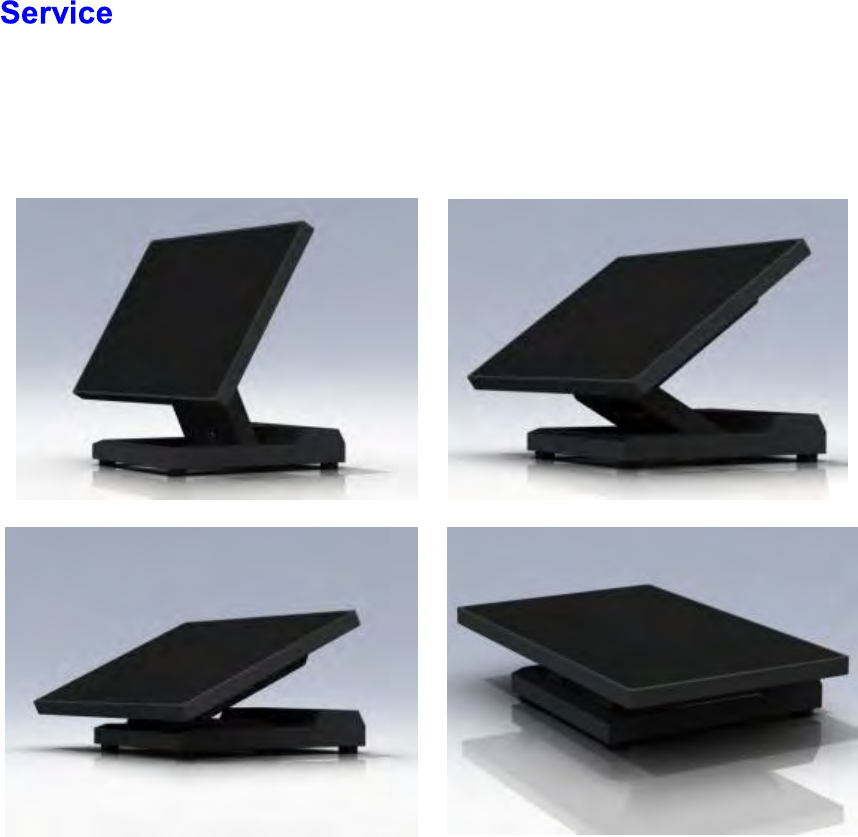

Swing Arm Base ........................................................................................................... 22
Removing the Power Supply ........................................................................................ 23
Cable Routing ............................................................................................................... 24
VESA Mounting ........................................................................................................... 26

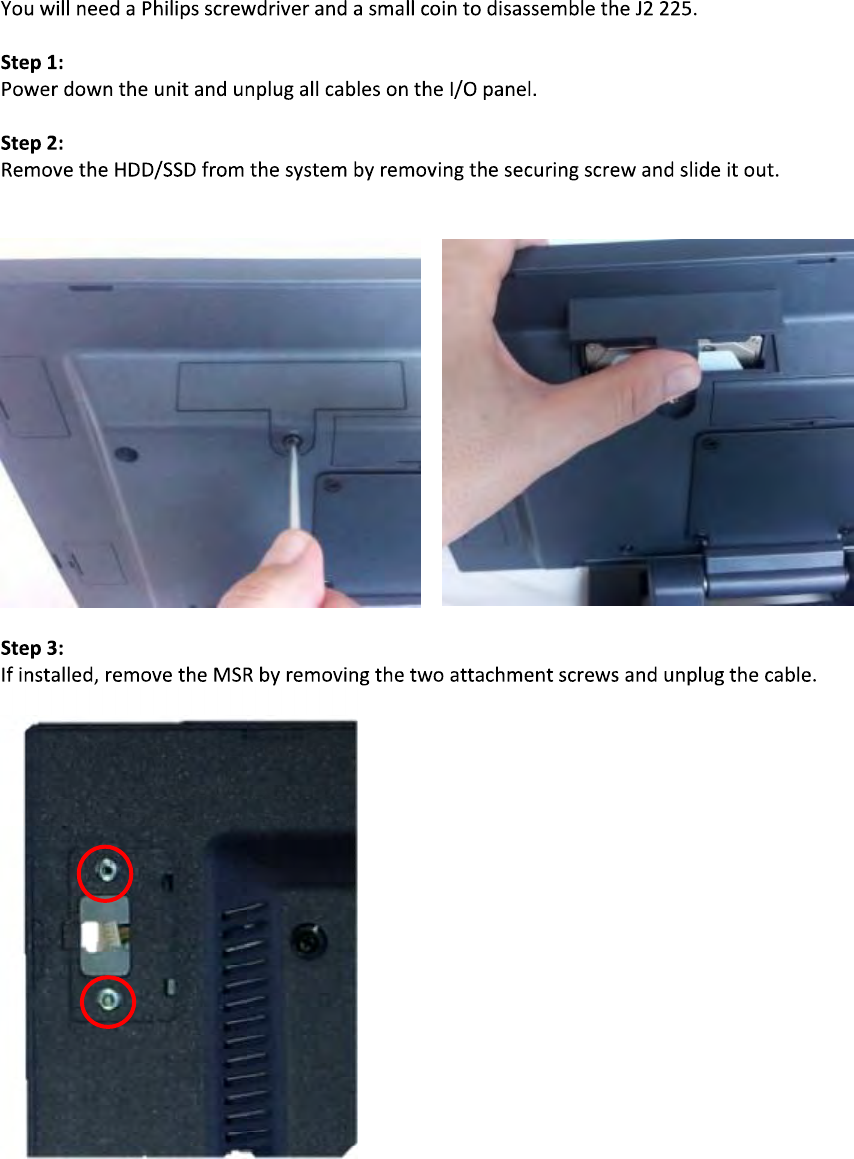

J2 225 Disassembly Instructions ................................................................................... 27
BIOS Setting .................................................................................................................... 33
Main Screen .................................................................................................................. 33
System Information ....................................................................................................... 33
Advanced Screen .......................................................................................................... 34

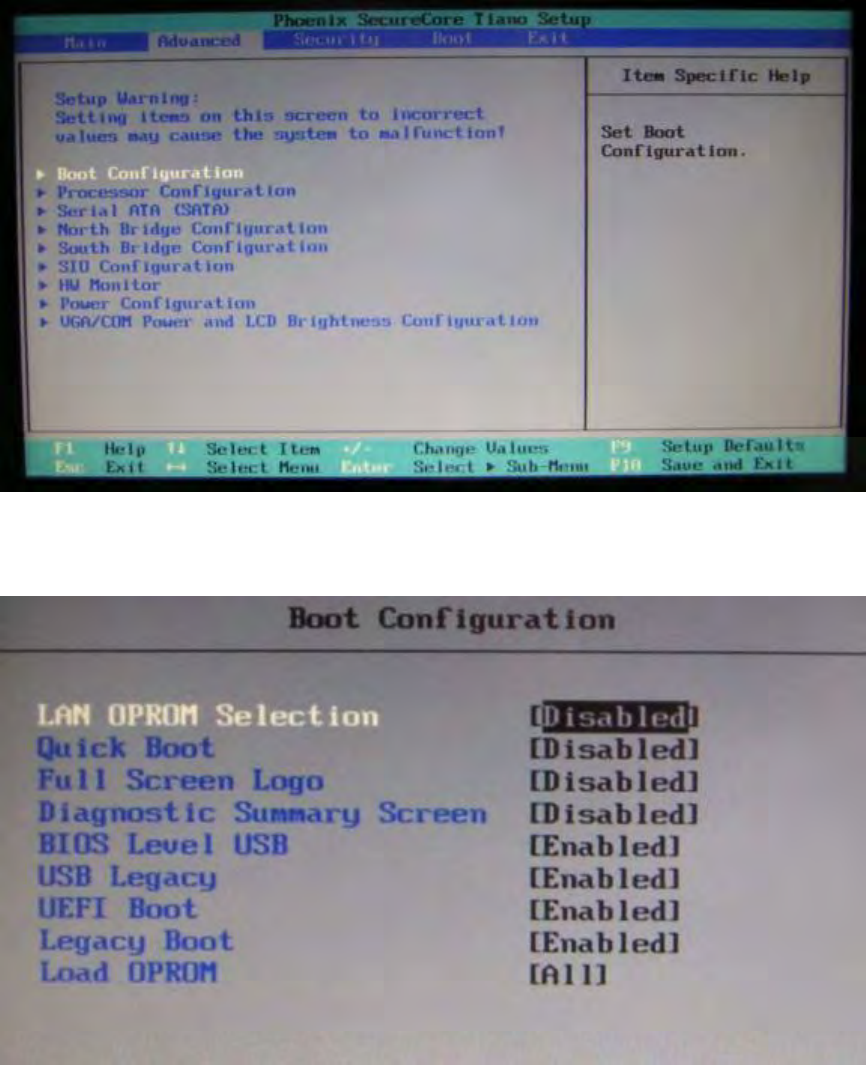

Boot Configuration ....................................................................................................... 34
Power Configuration ..................................................................................................... 35

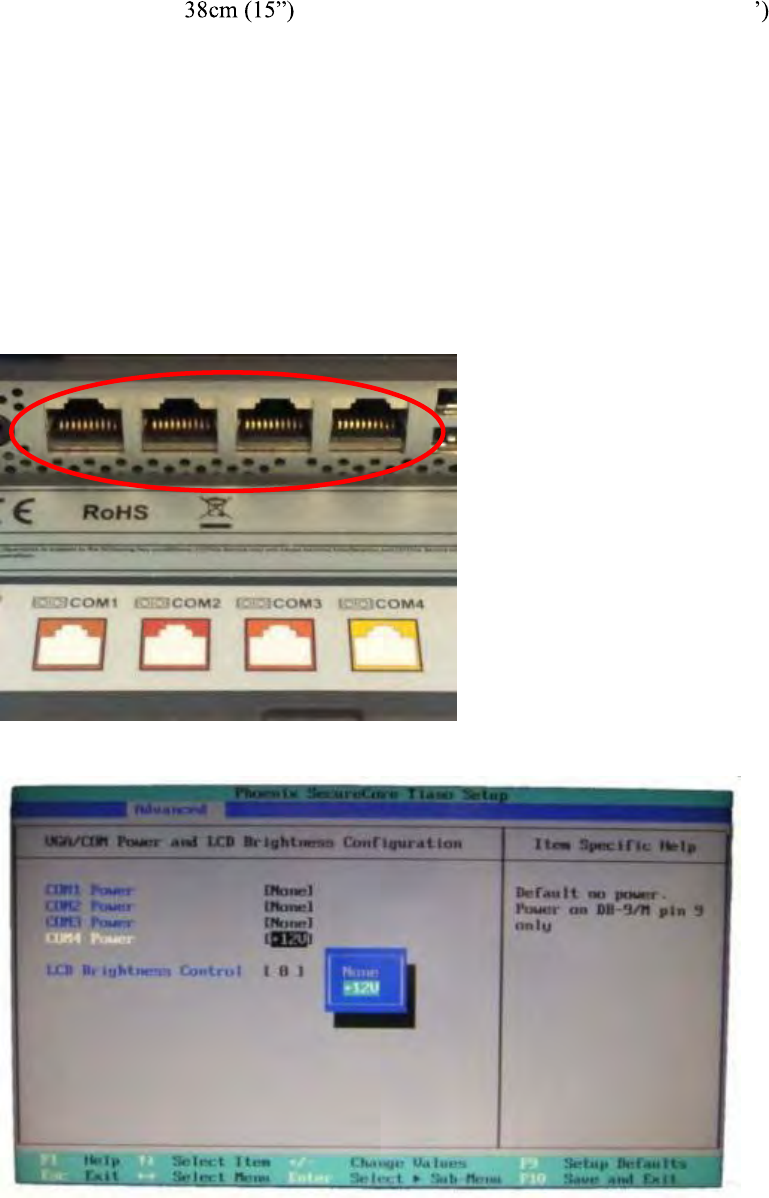

COM Power and LCD Brightness Configuration ......................................................... 35
Security Screen ............................................................................................................. 36
Boot Screen ................................................................................................................... 36
Exit Screen .................................................................................................................... 37
Phoenix Secure Core Tiano BIOS ................................................................................ 37
J2 225 System Manual
Version 1.0 May 29, 2012
4
Device Drivers ................................................................................................................. 37
OPOS Drivers .................................................................................................................. 37

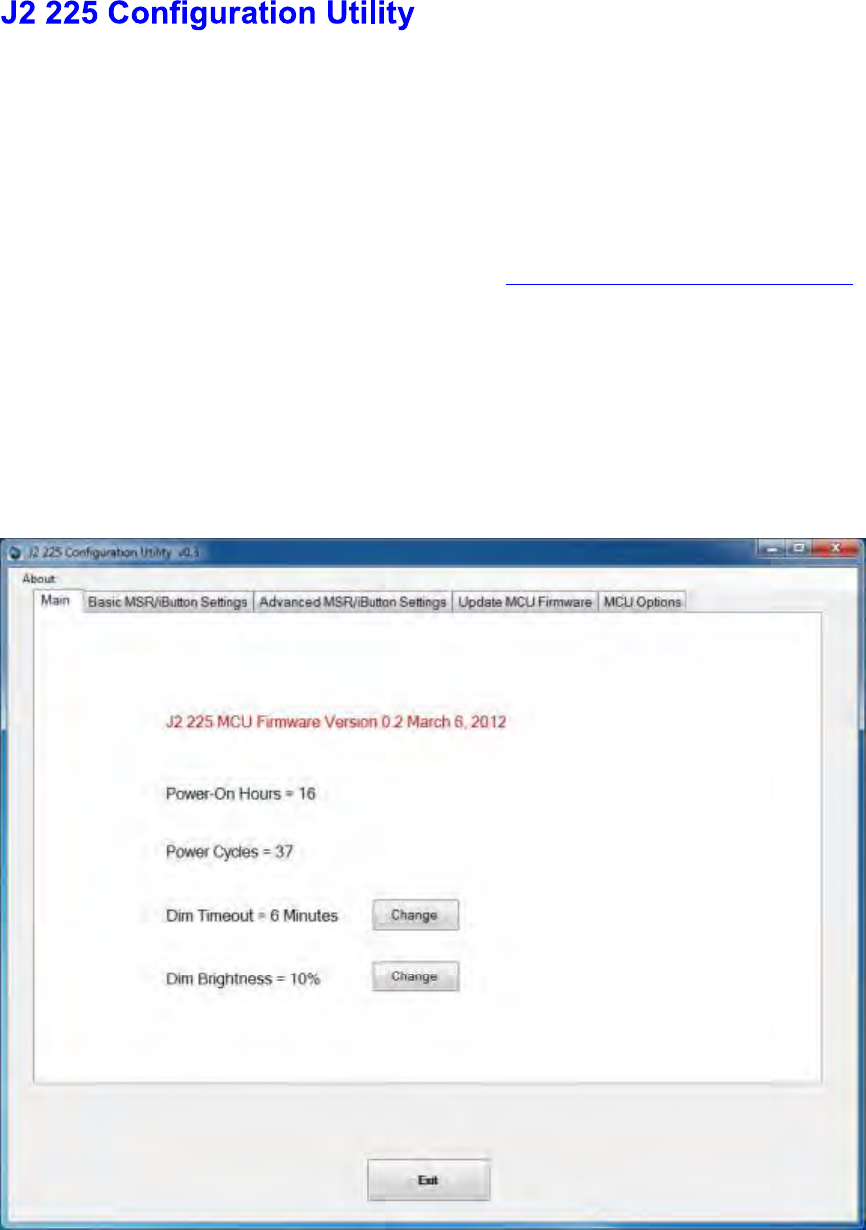

J2 225 Configuration Utility .......................................................................................... 38
Installation ..................................................................................................................... 38
Main .............................................................................................................................. 38
Power-On Hours ........................................................................................................... 39
Power Cycles ................................................................................................................ 39

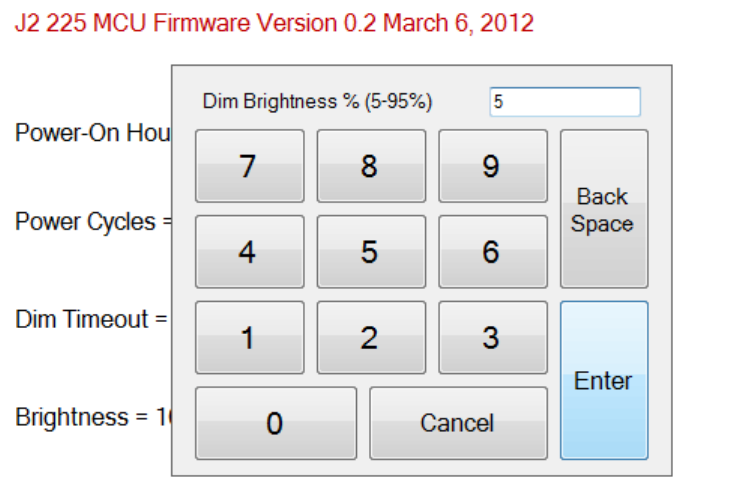

Dim Timeout ................................................................................................................. 39
Dim Brightness ............................................................................................................. 40
Basic MSR Settings ...................................................................................................... 41
Advanced MSR/iButton Settings .................................................................................. 42
Update MCU Firmware ................................................................................................ 44
MCU Option ................................................................................................................. 45
DimWake ......................................................................................................................... 46
Installation ..................................................................................................................... 46
J2 Health .......................................................................................................................... 47
Installation ..................................................................................................................... 47
Tray Icon ....................................................................................................................... 47
Logging to File .............................................................................................................. 48
Registry Entries ............................................................................................................. 49
J2 Remote Monitoring Software ................................................................................... 49
SMI BIOS Info Utility .................................................................................................... 50
Installation ..................................................................................................................... 50
Operations ..................................................................................................................... 50

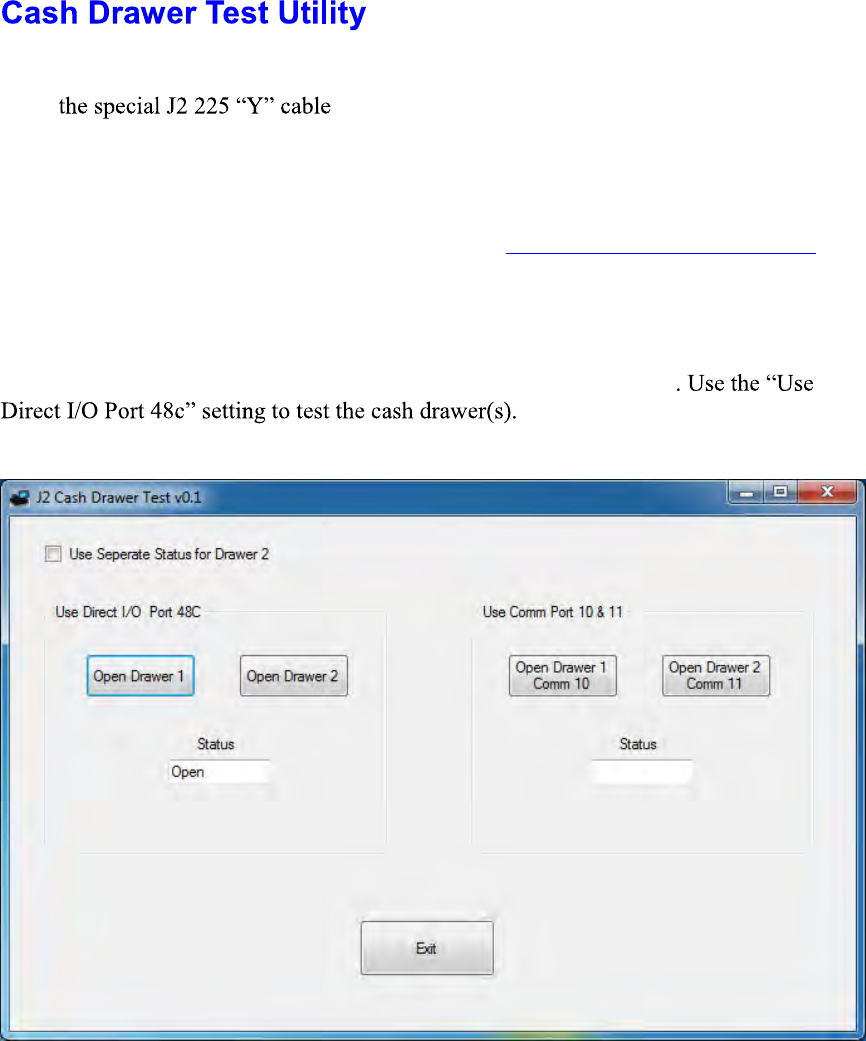

Cash Drawer Test Utility ................................................................................................ 51
Installation ..................................................................................................................... 51
Operation ....................................................................................................................... 51
J2 Virtual Serial Ports Drivers ...................................................................................... 53
J2 225 Options ................................................................................................................. 54

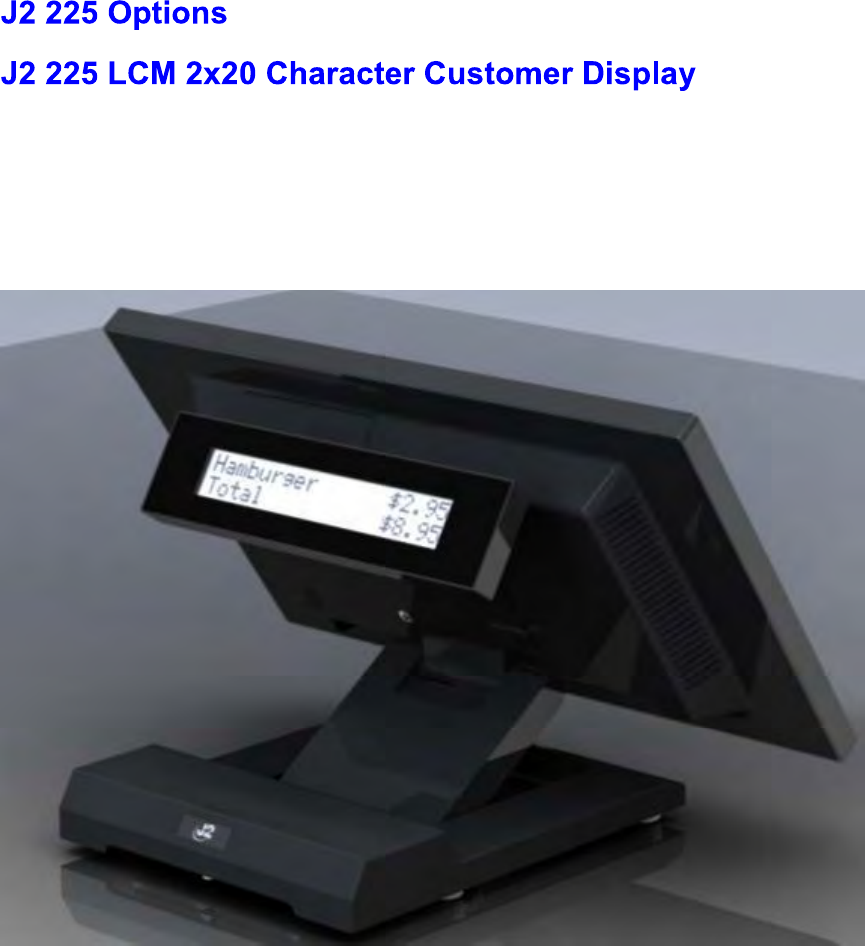

J2 225 LCM 2x20 Character Customer Display .......................................................... 54
Installation ..................................................................................................................... 55
J2 225 LCM Configuration Utility ............................................................................... 57
Installation ..................................................................................................................... 57

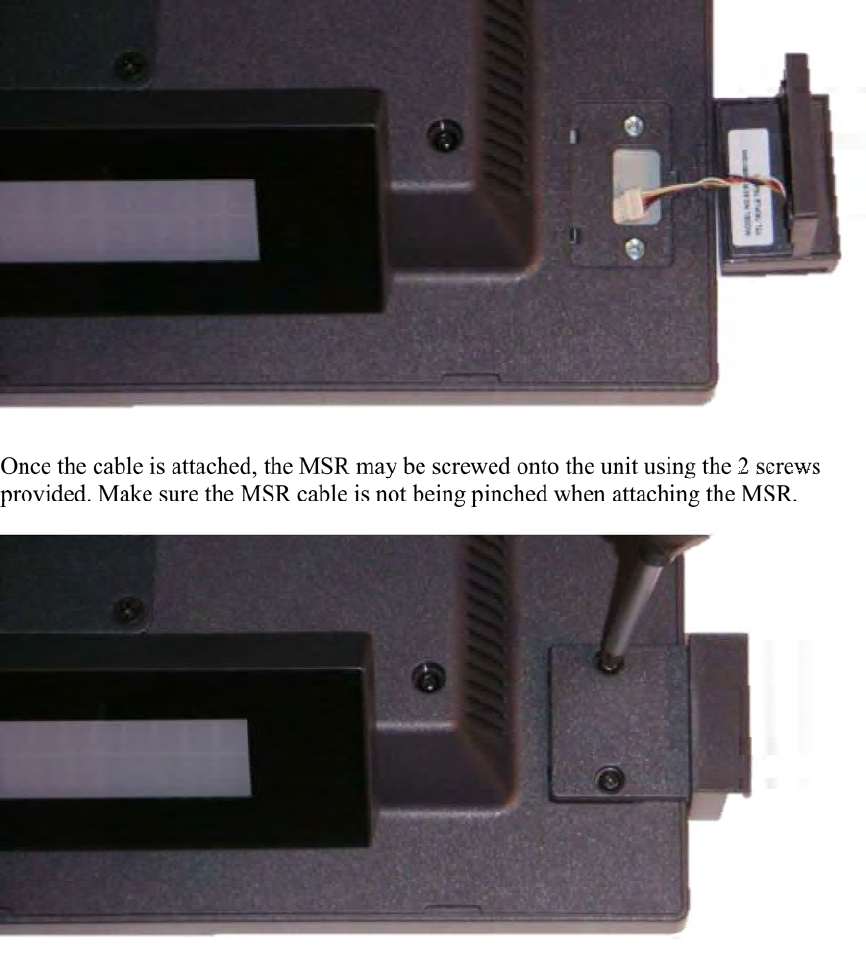

J2 225 MSR ...................................................................................................................... 60
Installation ..................................................................................................................... 61
J2 225 System Manual
Version 1.0 May 29, 2012
5
J2 225 iButton Reader .................................................................................................... 63
Installation ..................................................................................................................... 64

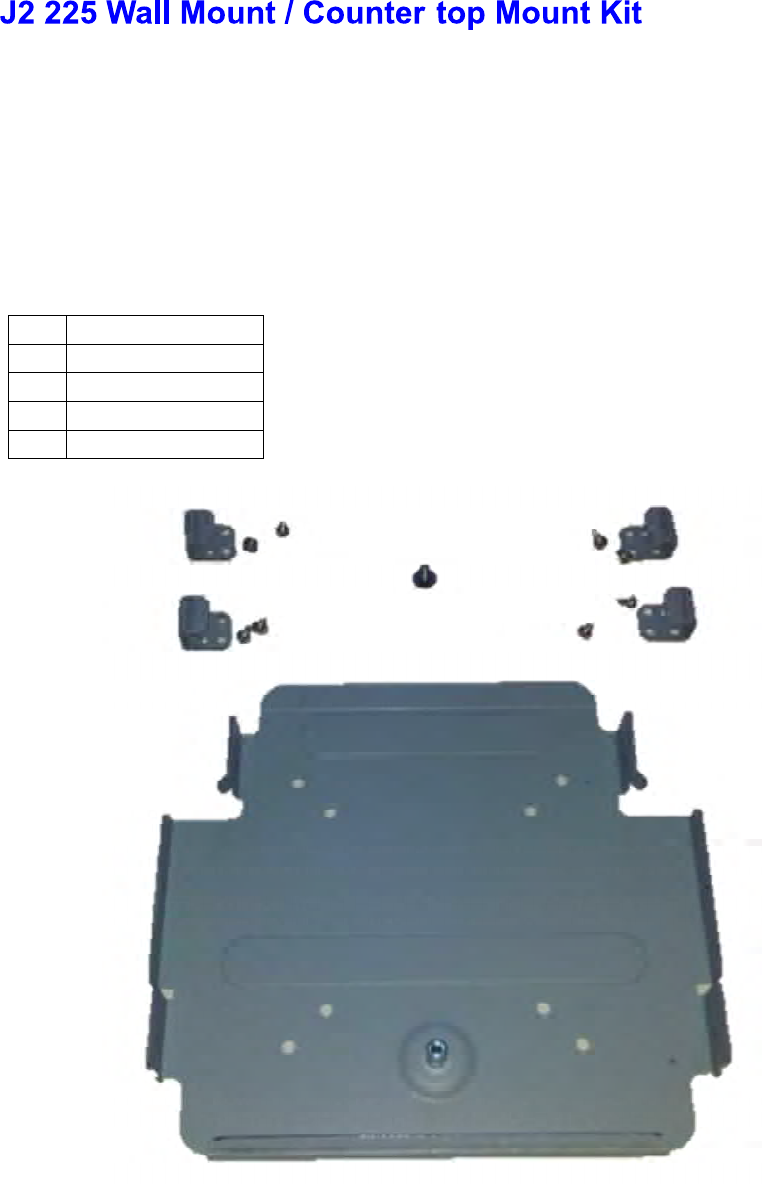

J2 225 Wall Mount / Counter-top Mount Kit .............................................................. 66
Packing list .................................................................................................................... 66
Assembly ....................................................................................................................... 67
J2 225 10.1 inch 1024 x 600 LCD Customer Display ................................................... 71
Installation ..................................................................................................................... 72
Contact Information ....................................................................................................... 75
European Office ............................................................................................................ 75
USA Office ................................................................................................................... 75
Australian Office ........................................................................................................... 75
Website ......................................................................................................................... 75
J2 225 System Manual
Version 1.0 May 29, 2012
6
The J2 225 is a new generation of integrated touch screen Point of Sale computer,
brilliantly designed to be more compact and cost effective, yet rich in features and
versatility. The J2 225 moves away from the traditional POS 4:3 screen form factor and
uses the newer LED backlit 16:9 screen. This allows for a smaller overall physical
footprint yet allows for the display of more onscreen data. Retaining the core features and
capabilities of J2 other tradition POS products, like the J2 615 and J2 630 units, the J2
225 takes advantage of the newer technologies currently available.
This integrated touch screen computer, like other J2 designs, features an -in-the-
design, and it also offers the versatility to be used as a counter top unit; or as a wall-
mount or pole-mounted terminal. The new smaller foot print and its unique swing arm,
die cast aluminum base allows for even more flexibility, leaving more counter space for
other uses. With an extremely wide range of adjustable heights and viewing angles, the
versatile J2 225 can be made to work in almost any POS environment. It weighs only
3.7kg and conveniently folds flat for shipping, therefore saving customers tremendously
on shipping and storing costs.
The J2 225 uses the latest Intel Atom dual core Cedarview processors, the 1.86GHz
D2550. Combining this with the Intel NM10 chipset provides excellent performance
capable of running most POS applications with a very low carbon foot print, all at a
competitive and attractive low price.
Even with its small foot print the J2 225 is incredibly feature rich. It comes standard with
2GB of memory, and offers a choice of either a 160GB hard drive or 16GB solid state
drive. Built standard with four serial ports, four USB ports, video output, audio in/out,
gigabit Ethernet, +12V output, as well as other built in peripherals (like MSR, customer
display and more) the J2 225 will perfectly satisfy most POS application requirements,
while looking sleek and elegant in any setting.
The J2 225 is available with your choice of either a zero bezel resistive touch screen or a
multi-touch projected capacitive touch screen. The new zero bezel five-wire resistive
touch screen provides the same quick response and feel of a resistive touch screen
traditionally used in the POS market. The new projective capacitive touch screen option
can be used in environments where multi-touch and gesturing are required, for example,
such as when using the new Windows 8 operating system.
The J2 225 is brilliantly designed to require little or no maintenance. The convection
cooled fan-less design means it can be used in very harsh environments. High dust,
grease or sea air will not affect its operation. High temperatures are also not a problem.
With a quick access HDD/SDD slot, a drive can be changed in just seconds if needed! A
snap-apart design allows the unit to be fully disassembled and assembled in just a few
minutes by just removing a few screws. Also available are optional Snap-on color kits, so
that the J2 225 can be customized to your customer needs.
J2 225 System Manual
Version 1.0 May 29, 2012
7
The J2 225 supports the standard Microsoft operating systems: Windows 7, POSReady 7,
Windows 7 Embedded, XP, POSReady 2009 and XP embedded, as well as the soon-to-
be-released Windows 8. The J2 225 is equally proficient with the many flavors of Linux.
J2 225 System Manual
Version 1.0 May 29, 2012
8

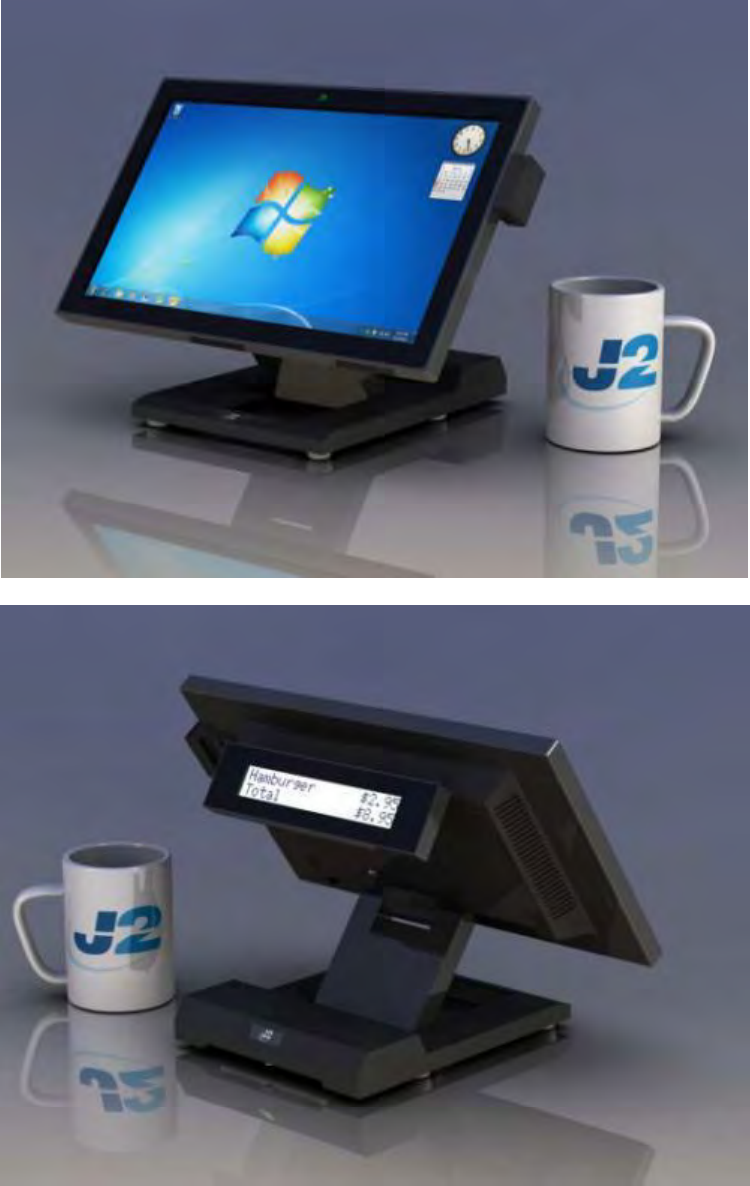

The J2 225, with its smooth modern appearance and capabilities, is perfectly suited for
most low cost commodity POS touch screen computer markets. The economical price and
outmatched performance will provide a great ROI for the end user, as they find it
extremely dependable as well as very easy to use. MSR and Secondary Display options
make it a perfect fit for companies in the POS markets, as well as for other industries,
including medical and healthcare applications, among many others.
To provide the highest performance at low cost with a long product life the J2 225 unit
design is based on the new Intel Atom Cedarview processor. This new 32nm part has
higher speed and runs on lower power than the current offering of Atom processors for
Intel.
The unit was built using as few screws as possible, providing ease of assembly and
disassembly, a major design achievement. This means that the touch screen, J2 225 panel,
or systems board can quickly be replaced in less than two minutes if needed (however
with the solid reliability of this creative unit, this should not even be necessary.)
A major goal in the enclosure design is to keep the total size of the unit as thin and as
small as possible. The thickness to the head is not much thicker that a standard notebook,
except for a slight bulge in the back where the electronics are located. The aluminum die
cast swing arm and fully adjustable base of the unit not only provide superb flexibility but
can also easily fold flat for shipping. The shipping box for the J2 225 is no bigger than
the size of an average notebook shipping box, which is also about 1/3 to 1/4 the size and
weight of other POS products.
As with all J2 products our ultimate goal is always reliability. Reliability is never
compromised because to reduce any cost at the expense of a dependable product would
be a false economy, and we firmly stand by our outstanding engineering and designs. We
market today.
J2 225 System Manual
Version 1.0 May 29, 2012
9
Specifications J2 225
CPU and Chipset
Processor Dual Core Intel Atom D2550 1.86GHz with 1MB Cache, 4 threads
with Integrated GMA 3650 Graphics controller
Chipset I/O NM10
Memory 2 X DDR3 SO-DIMM, 4GB max, 2GB standard, 1067MHz
External Ports
Serial Ports 4 RS-232 RJ45 with power +12V BIOS controlled
USB Ports 4 USB 2.0
Ethernet 10/100/1000 MHz Ethernet port with status LEDs on connector
Cash Drawer Ports 1 RJ11 support 2 cash drawers +24V and +12V, Dual status lines
Secondary Video Display Port with DVI, HDMI and VGA support
+12 Power +12 Volt power out for secondary video display or other device
Audio Combo Audio Jack for headset or headset with microphone
Internal I/O
Storage One 3Gb/s SATA Port onboard, slide in/out HDD or SSD
J2 225 Display 14.0 inch 16:9 LVDS 1366x768 panel
LED backlight LED backlight power with auto dimming control
Touch Screen Resistive True Flat or Projective Capacitive with Multi-touch and gesturing
USB 4 onboard USB ports for optional devices, MSR, Wi-Fi, PCT
MSR Onboard microcontroller of MSR on PS2
Serial Serial port header for optional customer display or other option
Mini PCI-Express Mini PCI Express slot for 802.11 b/g/n WiFi card and other functions
Optional Peripherals
MSR Slim line MSR, Keyboard Wedge or virtual serial
iButton iButton module, Keyboard Wedge or virtual serial
Fingerprint Reader Digital Persona module, attached to front bottom of display head

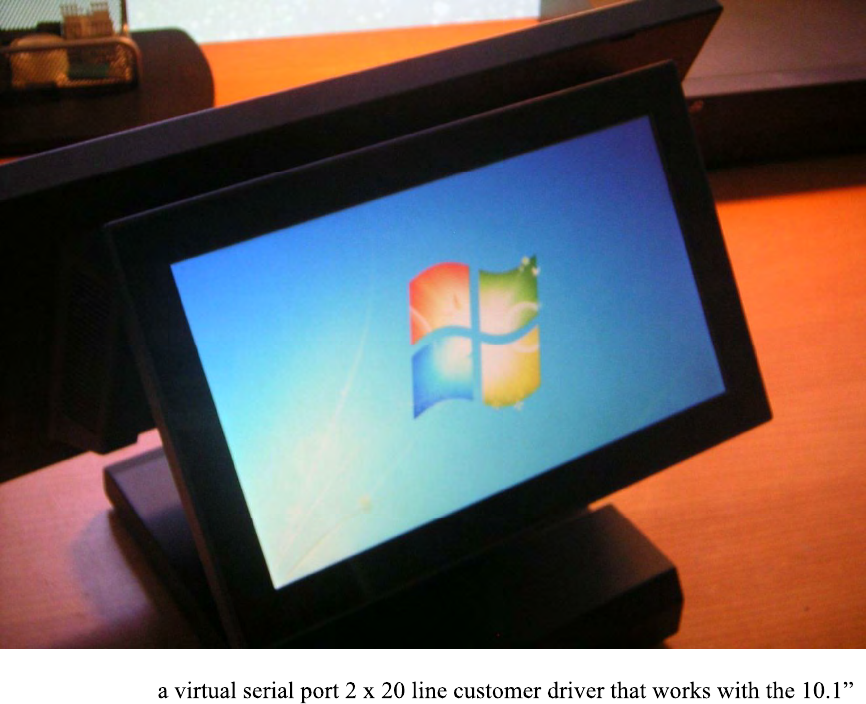

Customer Display J2 225 2x20 customer display, Serial
Secondary Video 10 inch 1024x600 16:9 J2 225 Secondary Display internal connection
Wireless 802.11 b/g/n Mini PCI Express card with internal antennaes
Environmental
Operating Temp. 0-40c
EMI CE / FCC Class A
Safety LVD external adaptor UL c/us, CE, TUV, others
Dust & Water IP 64 front of unit, IP 54 whole unit
Power 100-240V 50-60Hz 19VDC 65 watts power supply
Weight Head 2.5kg, Base 1.4kg, gross shipping weight 6kg

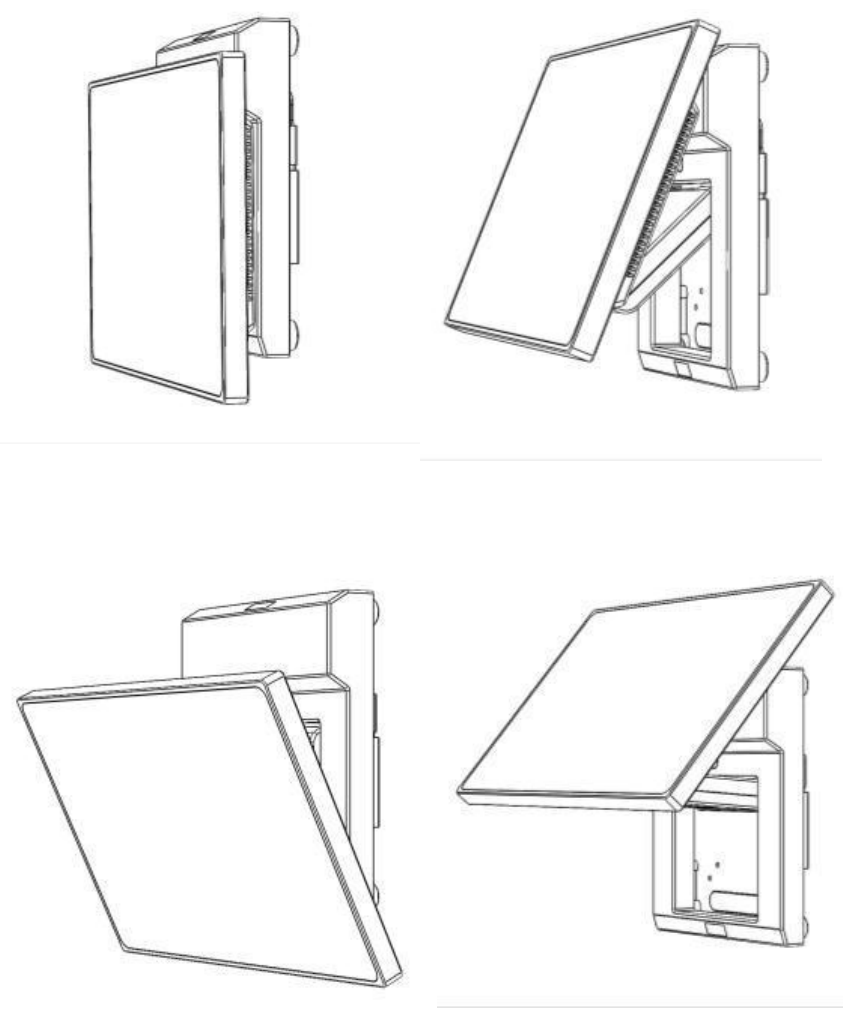

Dimensions With base attached and folded: 3.14
System max height unfolded: 280mm, 11
J2 225 System Manual
Version 1.0 May 29, 2012
10
I/O Ports

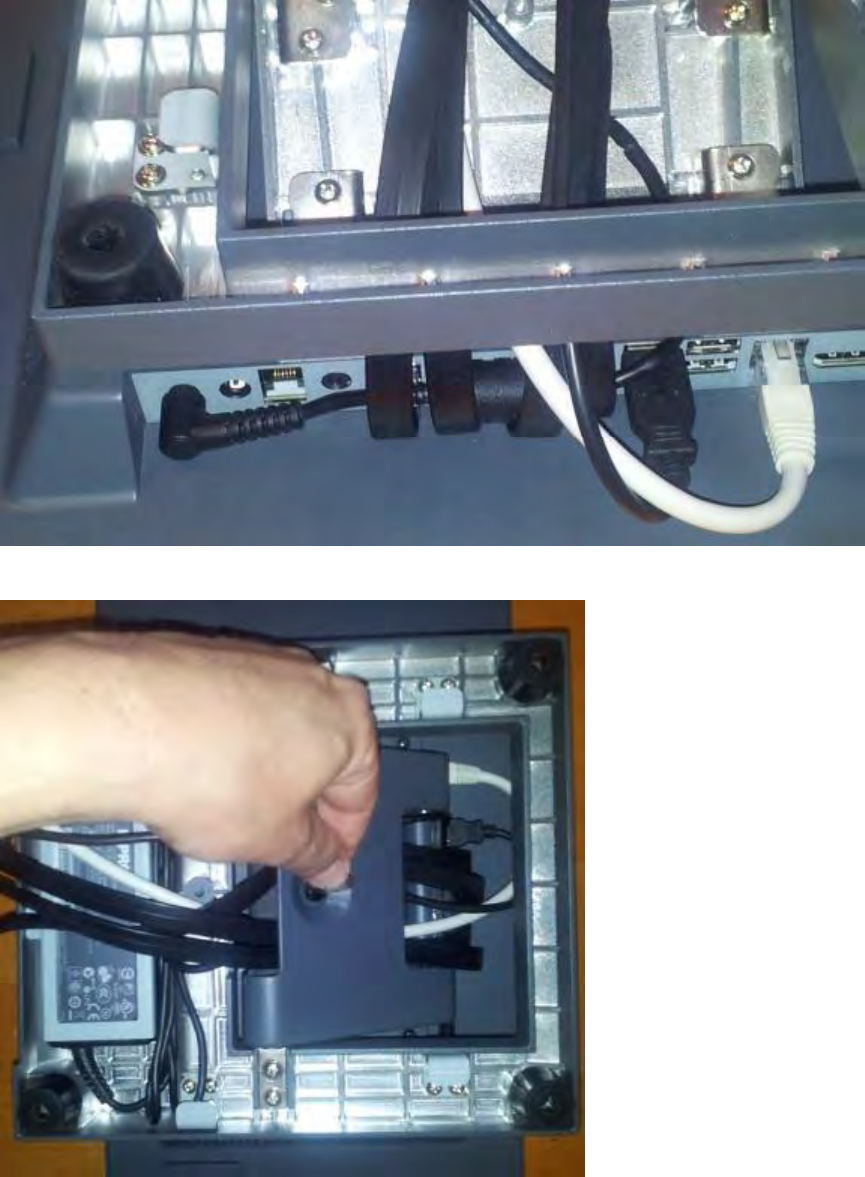

Most I/O ports are accessible in the cable well at the bottom of the unit. Cables are routed
though the cable channel in the swing arm base. (See Cable Routing)
I/O Panel
Off / On Button

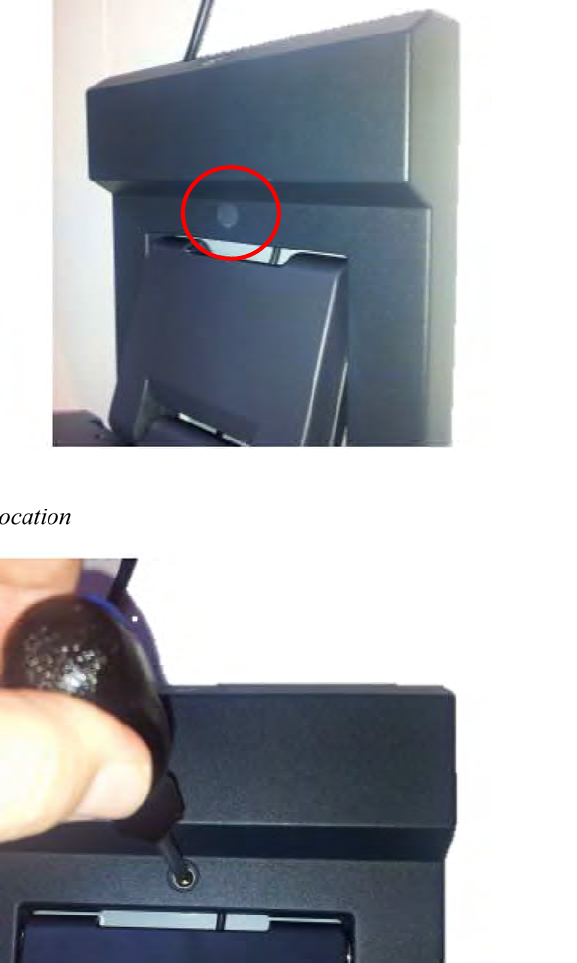

The Off /On button is located in the cable well, as shown below. This button is located
near the side to prevent accidental powering down by the user. The function of the button
can be controlled by the OS. If the J2 225 hangs for some reason it can always be
powered off by holding the Off /On button in for six seconds.
The J2 225 also supports the following: Restore on AC on power loss, Wake On LAN,
and Wake On RTC alarm features to control the system power up. The setting for these
features is controlled from the BIOS.
Off / On Button Location
J2 225 System Manual
Version 1.0 May 29, 2012
11
Hard Disks
One 2.5 inch SATA hard drive (HDD) or a solid state drive (SSD) are standard with the
J2 225. The SATA interface can support data transfer rates up to 3.0 GB/s. The J2 225
offers standard either a 160GB HDD or 16GB SSD, but can be ordered with other size
HDD or SSD as well. See J2 for details.

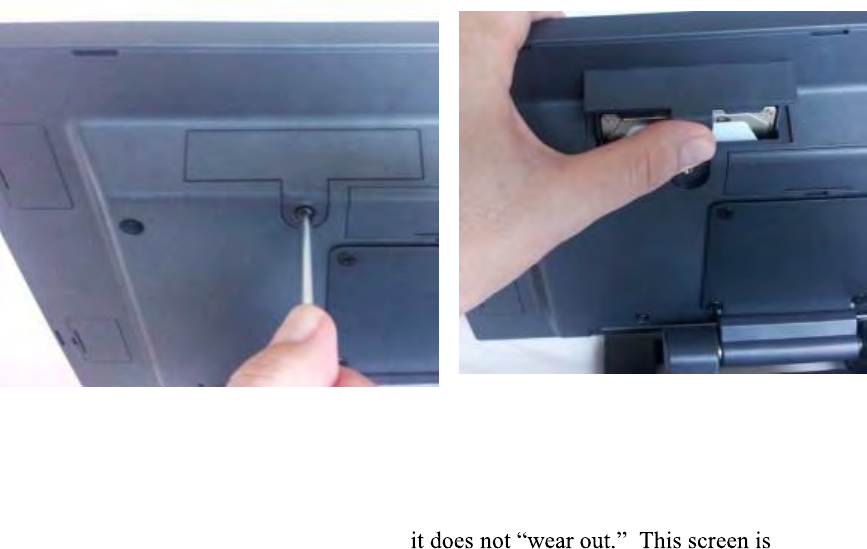

The HDD/SSD can be installed or removed in seconds by removing one screw. It is
easily accessed by removing the HDD cover retaining screw and sliding the drive out, the
HDD cover can then be unclipped from the drive.
HDD access panel
HDD slide in
-
slide out drive bay
Touch Screen
The J2 225 can be ordered with two different touch screen technologies, PCT or TFR.
The PCT unit uses a multi-touch Projected Capacitive Technology touch screen. The PCT
touch screen has no known failure mode--
tempered glass and does not reduce the brightness of the J2 225 panel. When operating
in a very high use environment, the PCT is the recommended touch screen technology.
The PCT touch screen will work with most gloves and stylus that are designed to work
with tablet computers, and the screen has a smooth glass surface that is reflective.
The TFR uses a five-wire true flat (zero bezel) resistive touch screen rated at 35 million
touches per point. The resistive technology is very responsive and is the traditional choice
for a hospitality POS system. The screen has an anti-reflective plastic film surface.
Both screens are fully spill proof, dust proof, and can be cleaned with a standard glass
cleaner. The J2 225 touch screen was designed to easily be changed, normally in less than
two minutes. Depending on operating environment and usage, both the Resistive and
PCT touch screens have strengths and weaknesses; therefore J2 offers both touch screen
technologies on the J2 225 unit, providing our customers with a choice for any
application requirement.
J2 225 System Manual
Version 1.0 May 29, 2012
12
System Board
POS computers typically have a lifespan of 10 years or longer, therefore product quality
is of the utmost importance. J2 225 electronics are built with high-end components to
ensure reliability and long lasting product performance.
The system board is designed for quick replacement, with just a few screws and cables to
unplug. The board can be swapped out in less than three minutes.

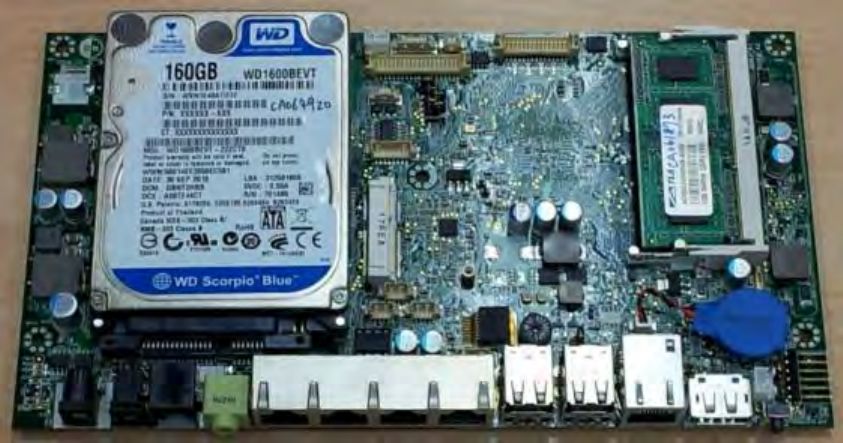

J2 225 System board
J2 225 Display
The J2 225 offers a 1366 x 768 resolution display with 16.2 Million colors, and a 14 inch
LED backlight with 16:9 aspect ratio screen. The brightness is rated at 220cd/m2. The
Intel controller allows for the display to be rotated to 0, 90, 180 or 270 degrees without
loss of performance. The driver can also scale the display resolution so that it can work
properly with applications written for 1024x768 or 800x600 resolutions.
The J2 225 electronics also supports dimming, and can be controlled directly by
Windows 7 or 8, or with J2 supplied utilities for Windows XP. Dimming levels between
5-100% are supported. A hardware auto dimming feature is built-in to ensure the longest
LED backlight life and to also provide the lowest power usage.
J2 225 System Manual
Version 1.0 May 29, 2012
13
Secondary Video Port
The J2 225 supports the newer digital video standard Display Port connector. This
connector supports a Display Port monitor, HDMI display, DVI or VGA monitor. When
used with HMDI or DVI displays, a passive adaptor cable must be used. When using a
VGA display, an active adaptor is to be used. With HDMI display Audio, support is
provided via the same HMDI cable.
The secondary video displays can be configured as Twin, Intel Dual Display Clone, or
Extended Desktop. Most all monitor resolutions from 640 x 480, up to 2560 x 1600 are
supported.
When the internal secondary J2 225 video display is used the secondary video port is not
available.

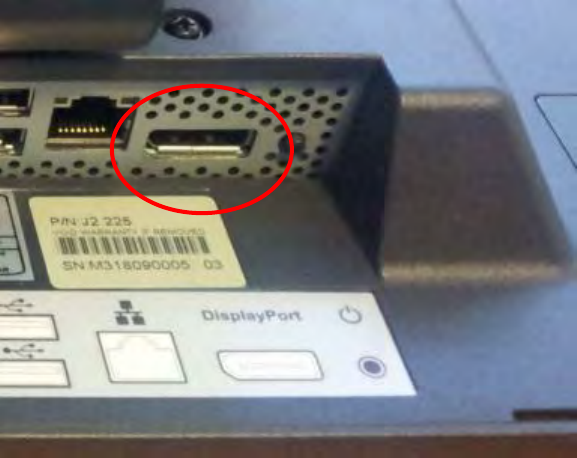

DisplayPort Video Port
J2 225 System Manual
Version 1.0 May 29, 2012
14
Serial ports
The J2 225 unit has four external RS232 serial ports, all of which can supply +12V
power. The serial ports use a ten pin RJ45 connector. The unit comes standard with four
serial cables, three RJ45 to DB9 adapter cables, and one 152cm (5 RJ45 to
DB25 serial printer cable that works with EPSON and EPSON compatible printers.
All serial (COM) ports can be BIOS-enabled to provide +12Vpower to external devices.
This power is supplied via pin 10 of the RJ45 which corresponds to pin 9 on the DB9
adaptor. The maximum current per port is 1 amp, with a total maximum external loading
on the +12V of 3 amps.
A set of stick-on color coded labels are supplied with the cable adaptors, so that the
cables can be marked. This makes it easy to plug the cable back into the correct port,
should you need to service the unit.
Serial Ports

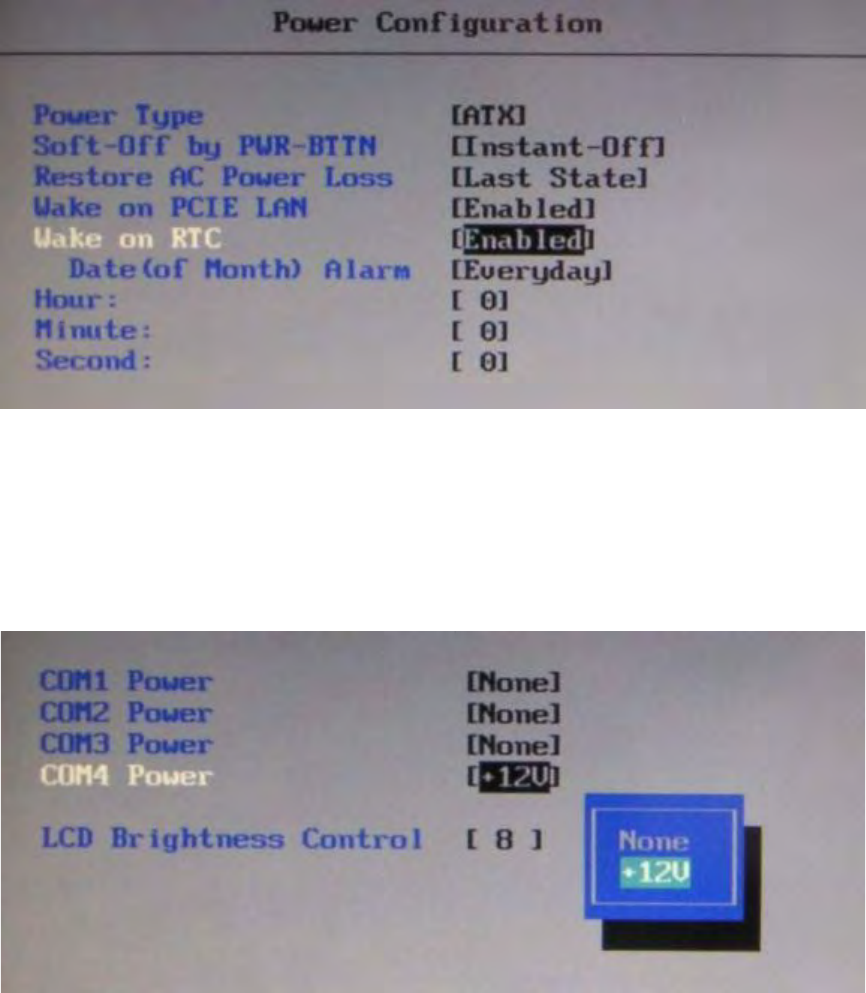

BIOS Setting Serial Port(s) Power Enable
J2 225 System Manual
Version 1.0 May 29, 2012
15

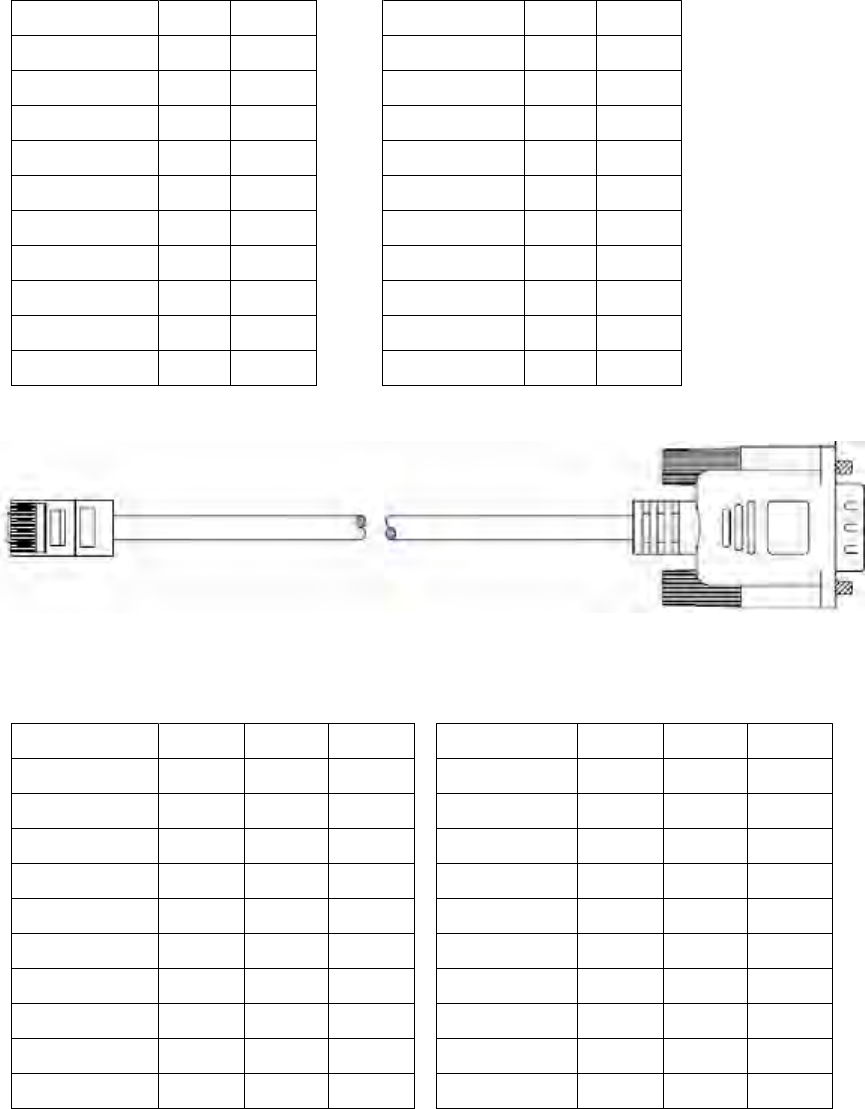

RJ45 to DB9 J2 Adaptor Cable Pin-Out when using CAT5/6 Cable
The J2 Cable Adaptor (supplied)
RJ45 to DB25 J2 Serial Pinter Cable Pin-out when using 8 wire CAT5/6 cable
Epson or Epson compatible serial printer cable
RJ45-10 Pin DB9 Signal RJ45- 8 Pin DB9 Signal
Pin 1 --- --- --- --- ---
Pin 2 Pin 1 DCD Pin 1 Pin 1 DCD
Pin 3 Pin 6 DSR Pin 2 Pin 6 DSR
Pin 4 Pin 2 RD Pin 3 Pin 2 RD
Pin 5 Pin 7 RTS Pin 4 Pin 7 RTS
Pin 6 Pin 3 SD Pin 5 Pin 3 SD
Pin 7 Pin 8 CTS Pin 6 Pin 8 CTS
Pin 8 Pin 4 DTR Pin 7 Pin 4 DTR
Pin 9 Pin 5 GND Pin 8 Pin 5 GND
Pin 10 Pin 9 RI --- --- ---
RJ45-10 Pin Signal DB25 Signal RJ45- 8 Pin Signal DB25 Signal
Pin 1 --- --- --- --- --- --- ---
Pin 2 DCD --- --- Pin 1 DCD --- ---
Pin 3 DSR Pin 20 DTR Pin 2 DSR Pin 20 DTR
Pin 4 RD Pin 2 SD Pin 3 RD Pin 2 SD
Pin 5 RTS Pin 5 CTS Pin 4 RTS Pin 5 CTS
Pin 6 SD Pin 3 RD Pin 5 SD Pin 3 RD
Pin 7 CTS Pin 4 RTS Pin 6 CTS Pin 4 RTS
Pin 8 DTR Pin 6 DSR Pin 7 DTR Pin 6 DSR
Pin 9 GND Pin 7 GND Pin 8 GND Pin 7 GND
Pin 10 --- --- --- --- --- --- ---
J2 225 System Manual
Version 1.0 May 29, 2012
16
USB Ports

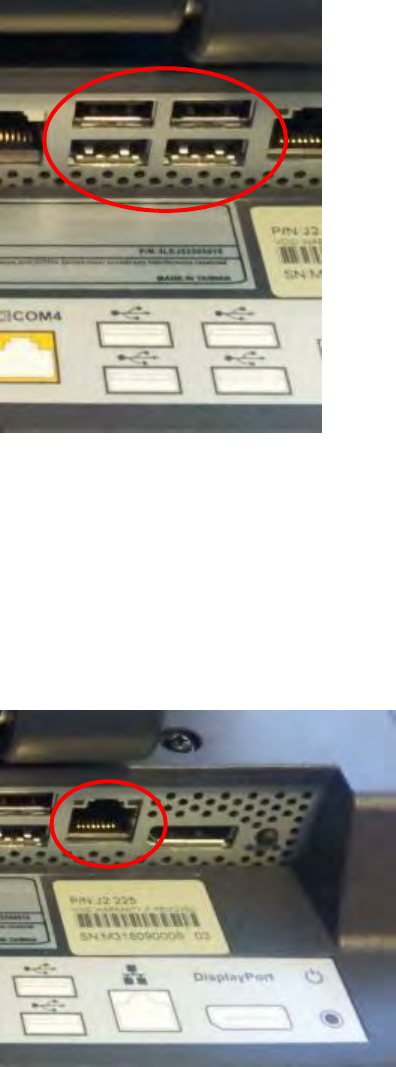

The J2 225 has 4 external and 4 internal USB 2.0 ports. The 4 external ports (see below)
are located in the cable well. The 4 internal ports are used for different functions, such as
using a PCT touch screen, RFID reader and/or other peripherals.
USB Ports
Ethernet Connection
The J2 225 uses the Realtek RTL8111 Gigabit Ethernet controller. The Ethernet
connector is located in the cable well, as shown below. The Ethernet controller supports
Wake on LAN, and the BIOS supports a PXE boot ROM as well. There is a LED on the
LAN connector, this Green LED light turns on when there is LAN activity.
Ethernet Connector
J2 225 System Manual
Version 1.0 May 29, 2012
17
Audio
The J2 225 uses the VIA1708B HD audio controller. There is one internal speaker.
A combo microphone jack and headset jack are located in the cable well of the J2 225, as
seen below, which allows for the connection of a microphone and headset, or audio out to
other devices.
Audio out is also supported on the DisplayPort when used with a HDMI monitor.
Audio Jack Location
Cash Drawer Ports
The J2 225 is equipped with one Cash Drawer port that can support one or two drawers.
This port is located in the cable well, and uses the industry standard RJ-11 connector and
pin-out (illustrated below).
Cash Drawer Ports
J2 225 System Manual
Version 1.0 May 29, 2012
18
6
1
Cash Drawer 1 Pin Assignment
Pin
Signal
1
GND
2
CD1 SOLENOID
3
STATUS / STATUS CD1
4
24
V
5
CD2 SOLENOID
6
GND
/ STATUS CD2
The application may address the Cash Drawer port in two ways:
1) Using the J2-supplied OPOS drivers for Windows.
2) Direct access to the I/O ports
Cash Drawer Controller Register
The Cash Drawer Controller use one I/O address to control the Cash Drawer.
Register Location: 48Ch
Attribute: Read / Write
Size: 8bit
BIT BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0
Attribute Read Reserved Write Reserved
7 6 5 4 3 2 1 0
X X X X
Reserved
Cash Drawer 1 fire
Cash Drawer 2 fire
Reserved
Cash Drawer 1 status
Cash Drawer 2 status
s on the one RJ-11 is the same as is used
on Epson printers.
J2 225 System Manual
Version 1.0 May 29, 2012
19
CMOS Clear

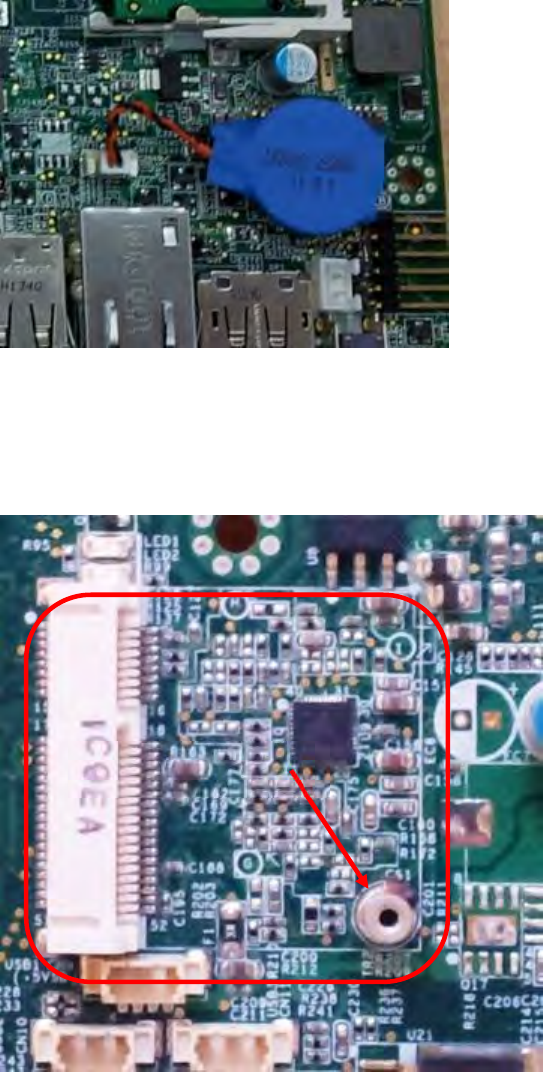

The J2 225 CMOS can be cleared by unplugging the system board CMOS battery for 30
seconds before plugging it back in.
CMOS Battery
Mini PCI-E
The onboard Mini PCI Express connector is normally used for the optional internal
802.11b/g/n wireless LAN card.
Mounting Screw
J2 225 System Manual
Version 1.0 May 29, 2012
20

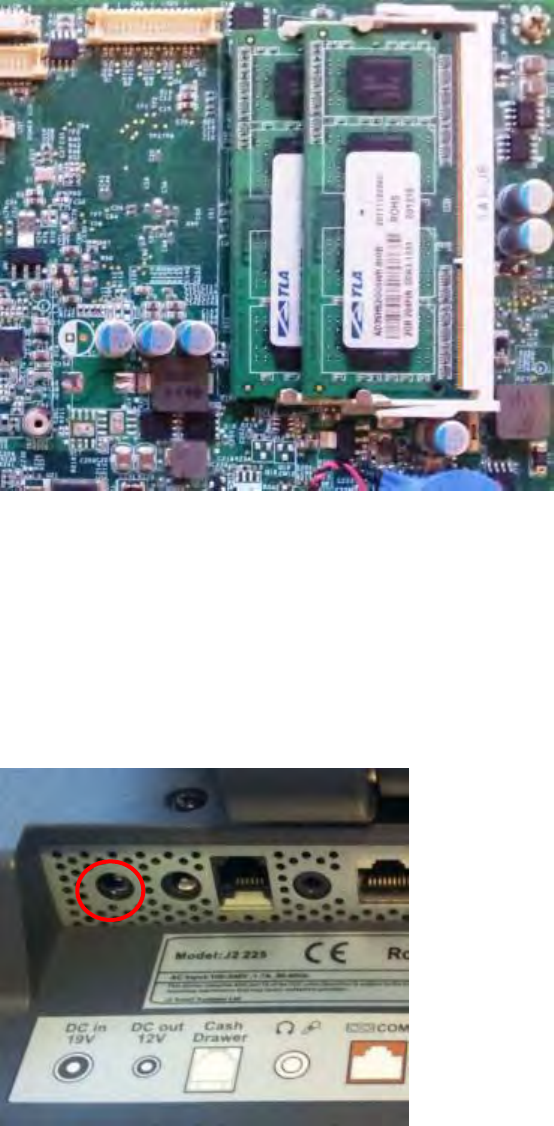

Memory SODIMM(s)
The J2 225 supports two SODIMM DDR3 memory sockets. The unit comes standard
with 2GB of main memory and can support up to a maximum of 4GB. The memory type
is DDR3 800/1066.
Power Supply

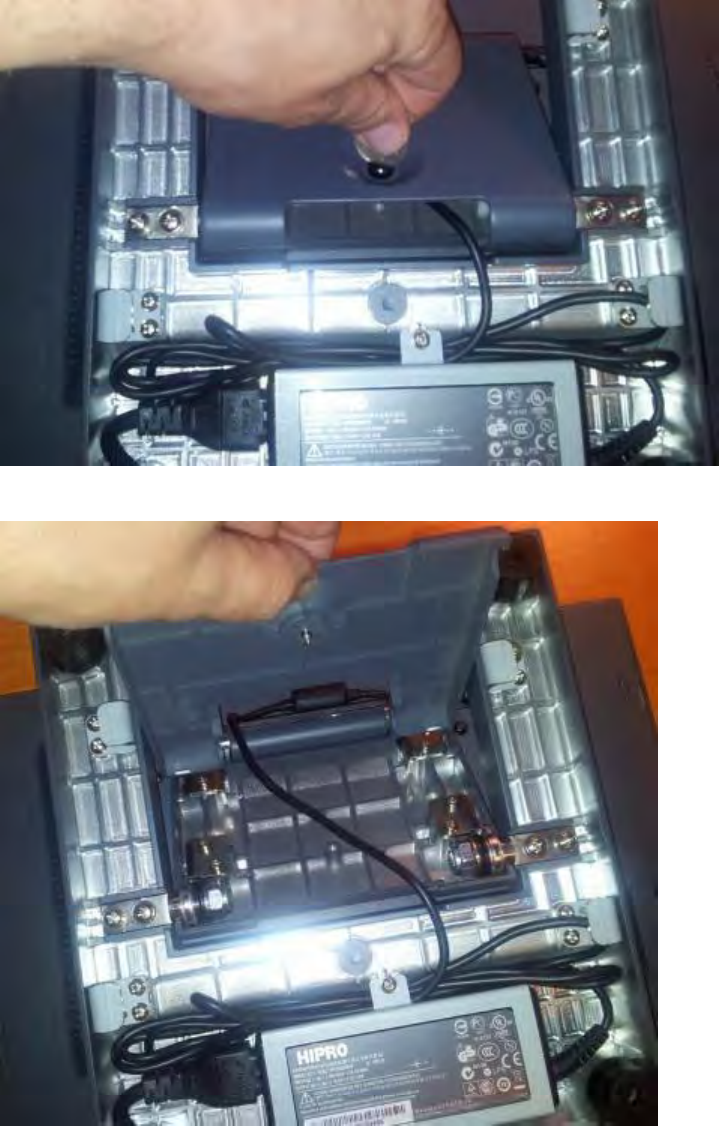

The J2 225 uses a notebook-type power supply that is mounted in the base of the unit.
The power supply is rated with an output of 65 watts 18.5 VDC 3.5 Amps, and has an
input rating of 100-240VAC at 50~60Hz 1.7Amps maximum. The power supply has an
efficiency rating V. The power supply connector is a standard notebook locking type that
plugs into the system power input connector, located in the cable well.
Power Input connector
J2 225 System Manual
Version 1.0 May 29, 2012
21
+12VDV Power Out
The J2 225 has a fused power out connector that supplies a total of 12VDC, up to 2amp.
The power supply connector is a standard notebook locking type that plugs into the
system power input connector, located in the cable well, seen below
Power Input connector

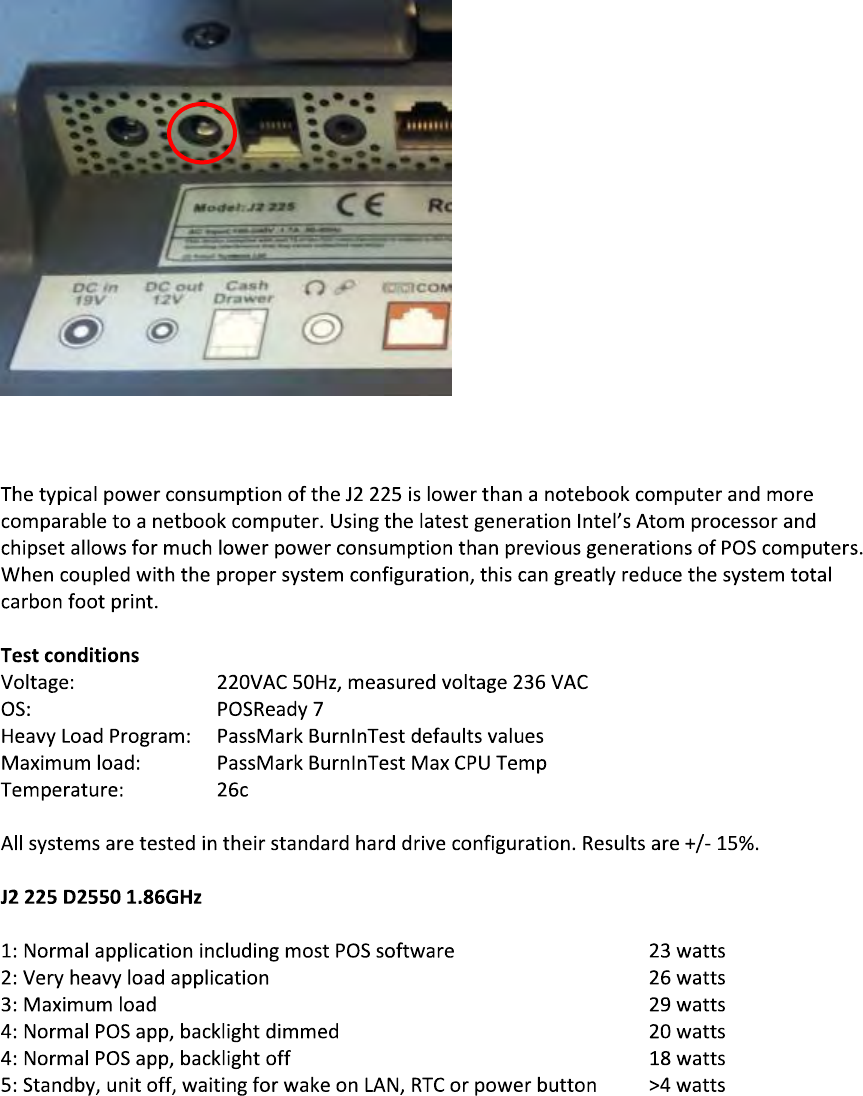

Typical Power Consumption J2 225
J2 225 System Manual
Version 1.0 May 29, 2012
22
Swing Arm Base
The J2 225 is shipped standard with a counter top base which allows for the head to be
adjusted from 0-100°, and the height can be from 8cm to 28. This allows for great
versatility in height and viewing angles.
The J2 225 swing arm base can be folded down flat for shipping, or it can also be used
with the wall mounting option. Being able to fold flat greatly reduces the size of the
shipping box, thereby reducing its shipping cost and storage space. When using the
optional wall mount bracket, the base can be attached and allow for an adjustable viewing
angle.
J2 225 System Manual
Version 1.0 May 29, 2012
23

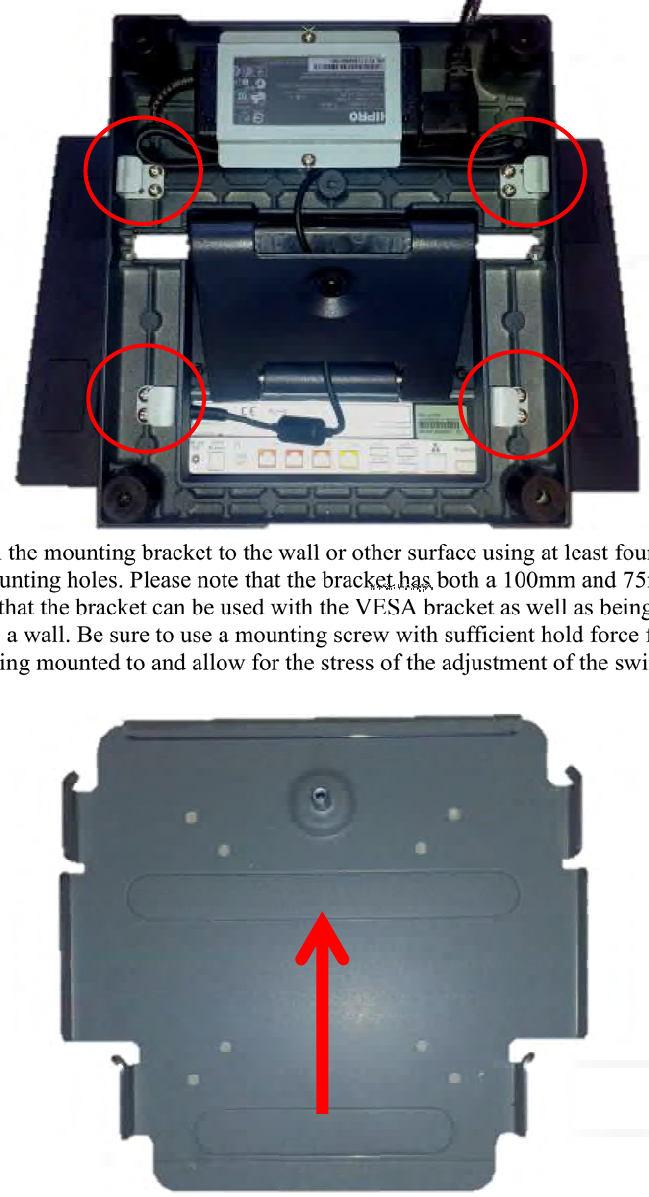

The base has a lock-down screw hole to secure the base to the counter top with just a
screw, or it can be attached using the wall mount bracket.
The swing arm base is only a base for the unit and is not needed for the operation of the
unit. It does act as a holder for the power supply, which can be removed if the base is not
needed. When not using the base, the VESA 75mm mounting points may be used to
mount the J2 225.

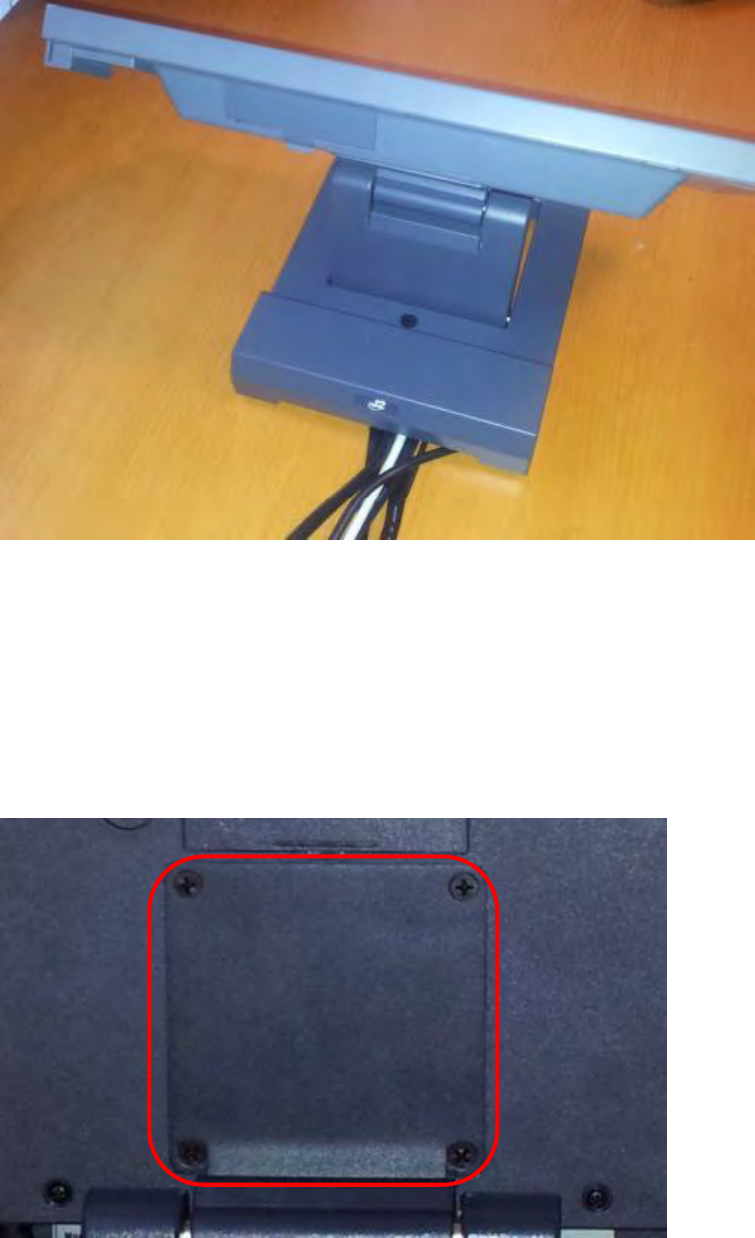

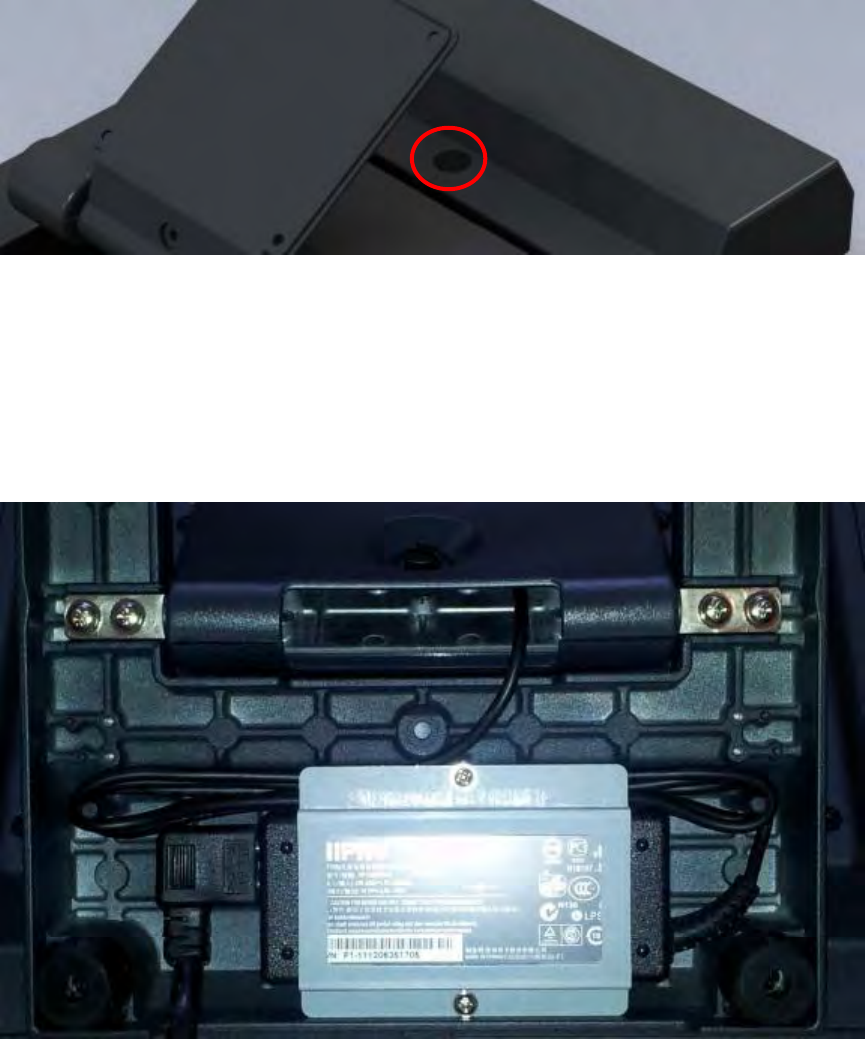

The power supply is mounted in the base, and there are two posts to store the extra DC
power cord, shown below.
Removing the Power Supply
The power supply is normally located in the base but it can be removed if desired.
To remove the power supply, two screws need to be removed which hold the power
supply bracket, as can be seen in the above picture.
J2 225 System Manual
Version 1.0 May 29, 2012
24
Cable Routing
The swing arm base is designed to allow for clean cable management. There is a cable
channel through the base swing arm, which has a quick access cover.

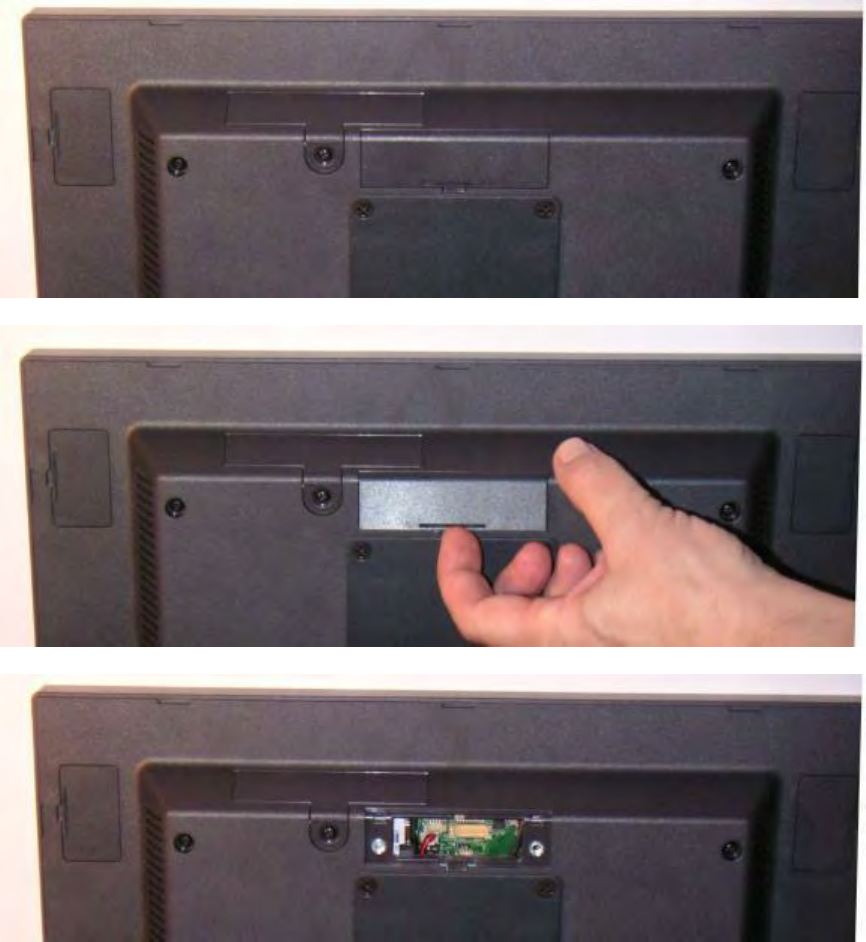

Use a coin, finger or screw driver to remove cable cover
Remove cable cover so cable can be routed
J2 225 System Manual
Version 1.0 May 29, 2012
25
Route cables
Replace cover
J2 225 System Manual
Version 1.0 May 29, 2012
26
Cables can route out via the rear of unit or through a hole in the counter top
VESA Mounting
The J2 225 unit also supports the industry standard 75mm VESA mounting. The same
mounting hard point used for the swing arm base is used for VESA mounting. The four
points have holes threaded for the 4mm screws.
75mm VESA Pattern
J2 225 System Manual
Version 1.0 May 29, 2012
27

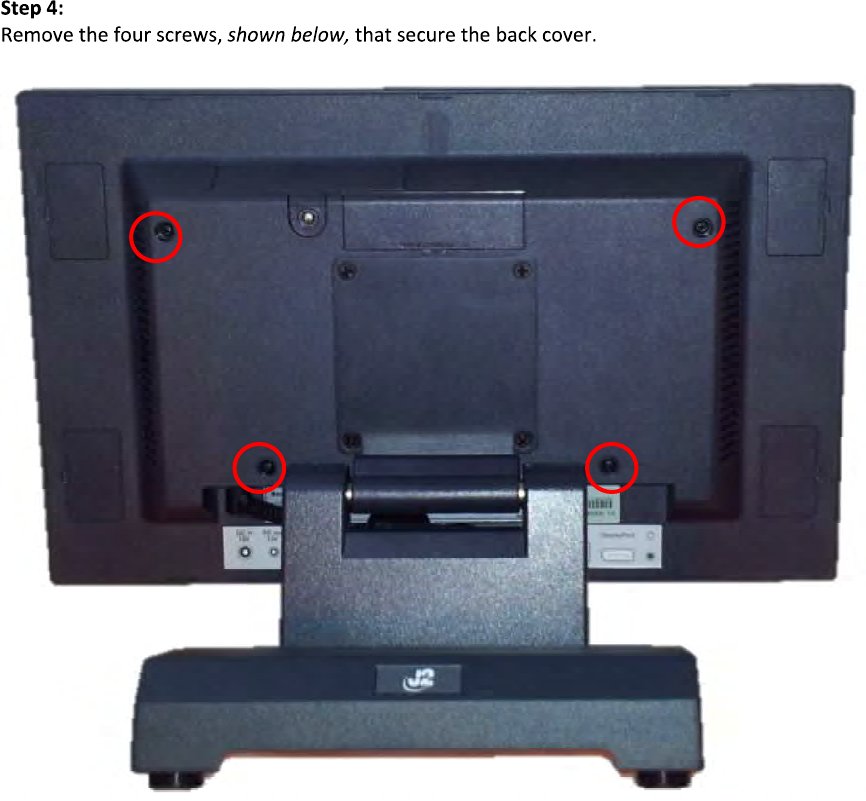

J2 225 Disassembly Instructions
HDD access panel
HDD slide in
-
slide out drive bay
J2 225 System Manual
Version 1.0 May 29, 2012
28
J2 225 System Manual
Version 1.0 May 29, 2012
29

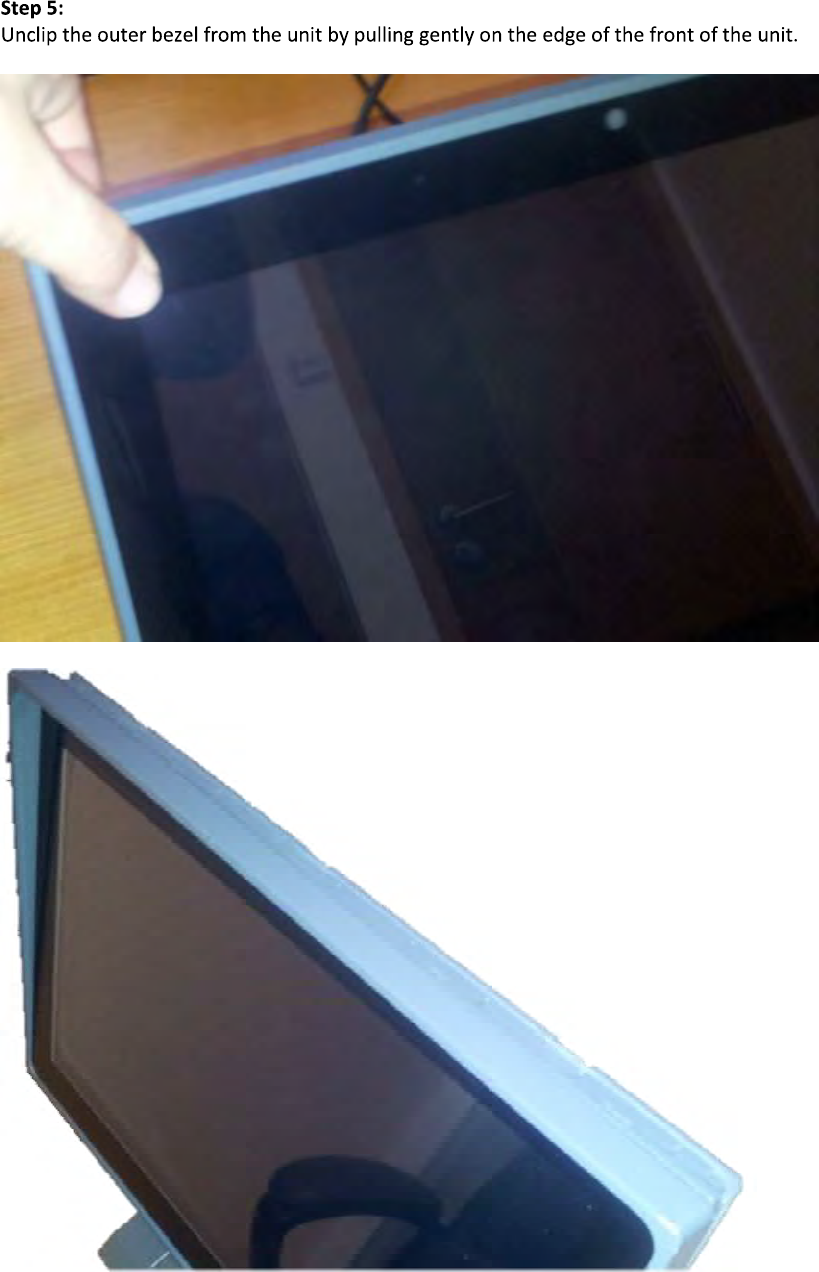

J2 225 System Manual
Version 1.0 May 29, 2012
30

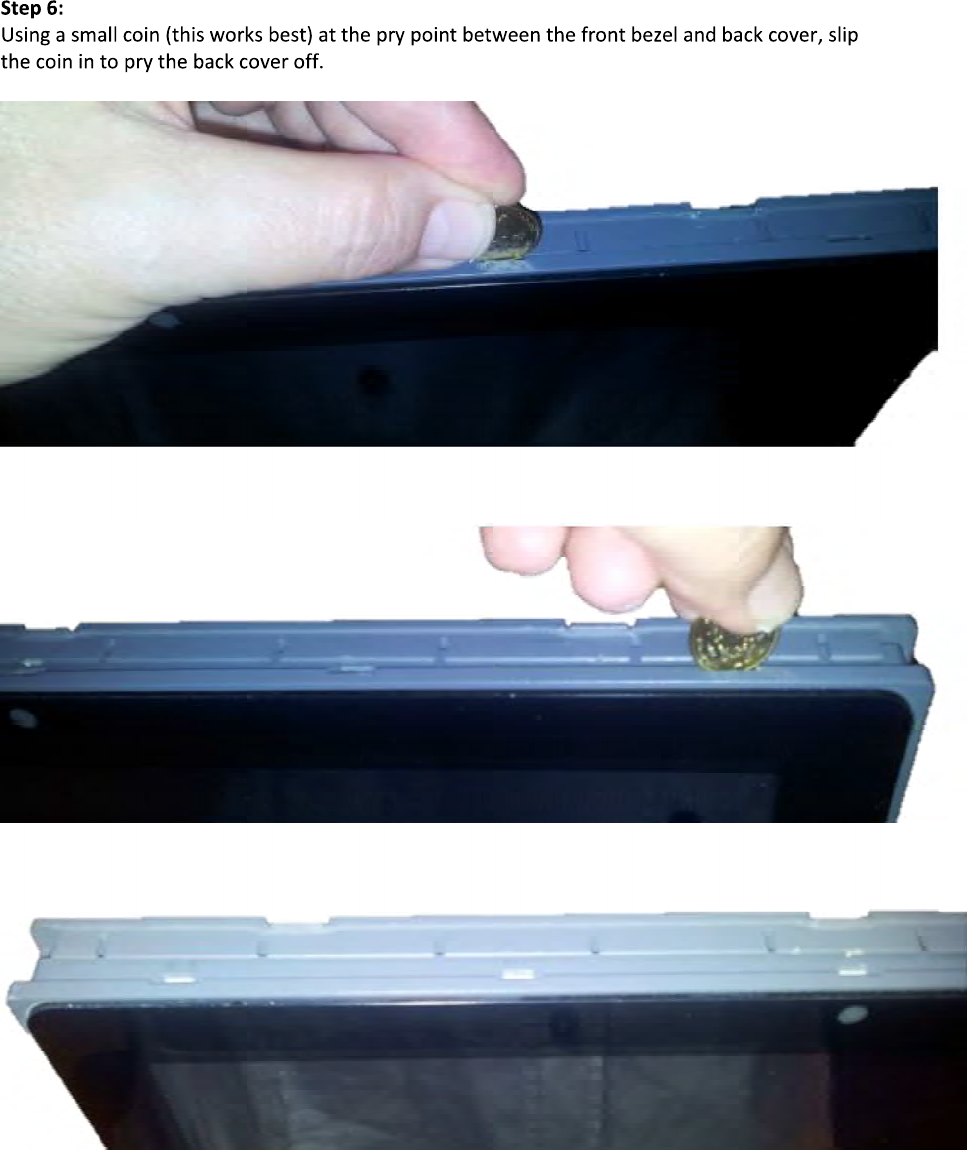

J2 225 System Manual
Version 1.0 May 29, 2012
31

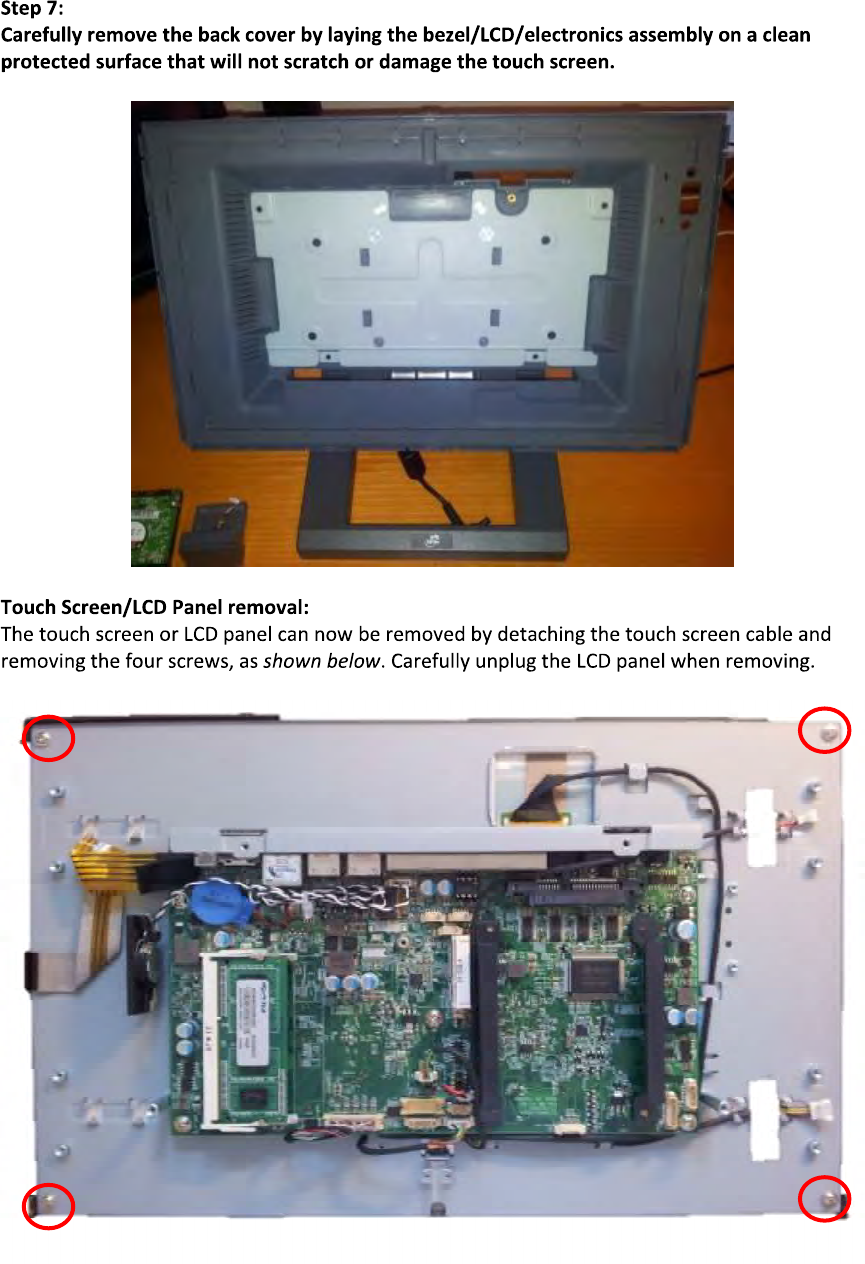

J2 225 System Manual
Version 1.0 May 29, 2012
32

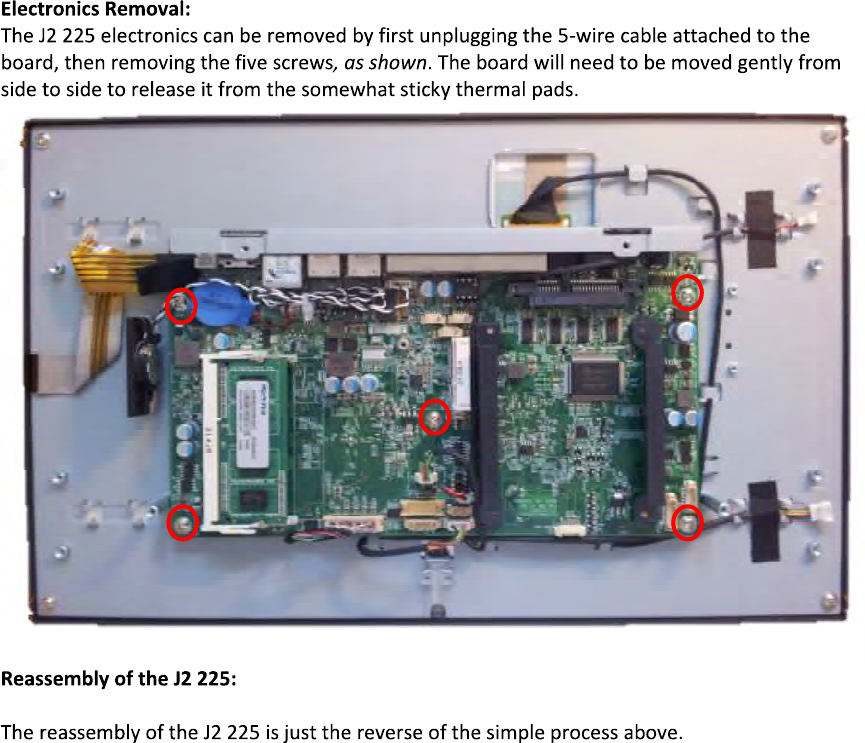

J2 225 System Manual
Version 1.0 May 29, 2012
33
Main Screen
The main BIOS allows for the display of system information, keyboard boot options, and
the setting of the time and date. The time and date may also be set via the operating
system.

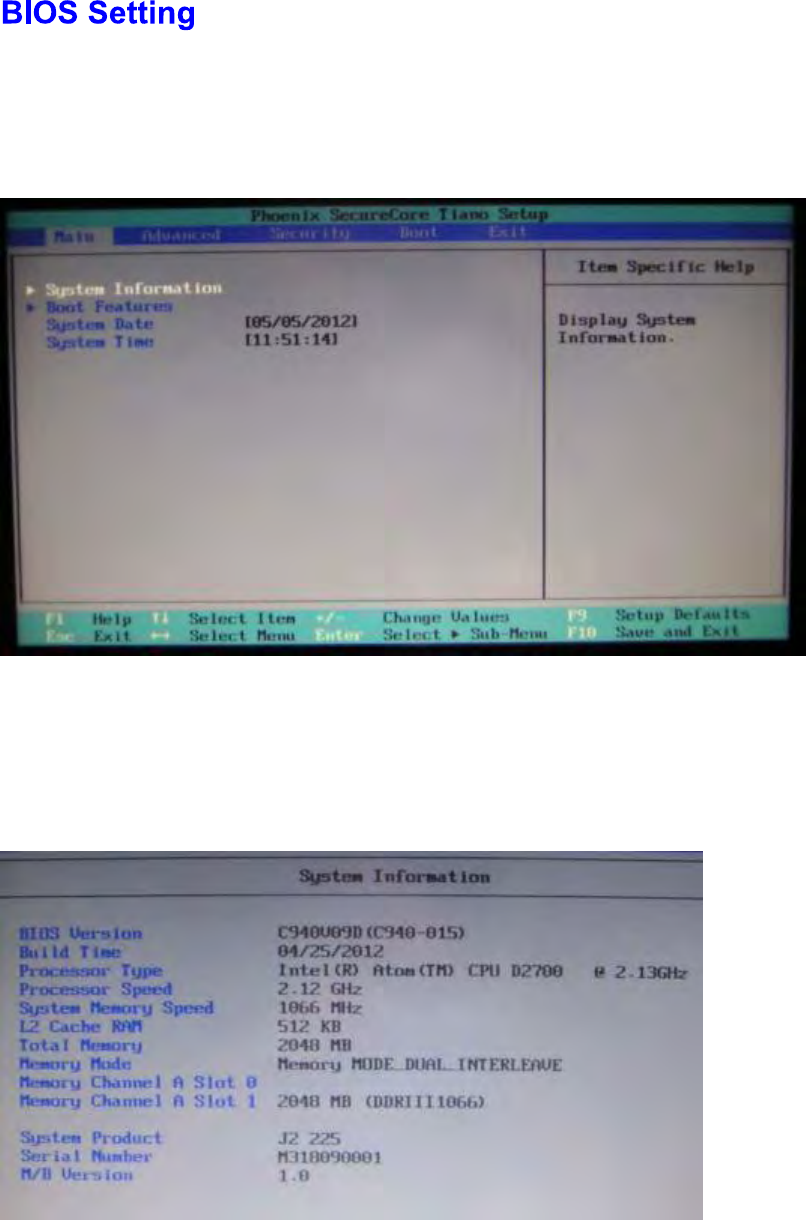

System Information
The J2 225 BIOS has a system information screen that displays useful system
information, including the serial number of the unit. This information may also be
accesed via DMI utilities.
Note: This version of the new Phoenix BIOS does not have a screen shot utility yet. Please excuse the poor quality of the screen
pictures. These will be replaced once the screen shot utility is available.
J2 225 System Manual
Version 1.0 May 29, 2012
34
Advanced Screen
The Advance Screen allows for a number of BIOS options to be accessed. Please use care
in changing these options, as some settings can cause the system to malfunction. These
options are provided to offer maximum flexibility in configuring the J2 225. The Item
Specific Help (seen on the right hand side of the screen) explains each option.
Boot Configuration
J2 225 System Manual
Version 1.0 May 29, 2012
35
Power Configuration
The power configuration option allows for changing the behavior of the unit when it is
powered up; it also enables changing the auto power-up feature.
COM Power and LCD Brightness Configuration
This BIOS screen allows the enabling of the power for the serial ports, and changing the
default brightness setting for the LCD screen. The LCD screen brightness can also be set
via the Windows OS.
J2 225 System Manual
Version 1.0 May 29, 2012
36

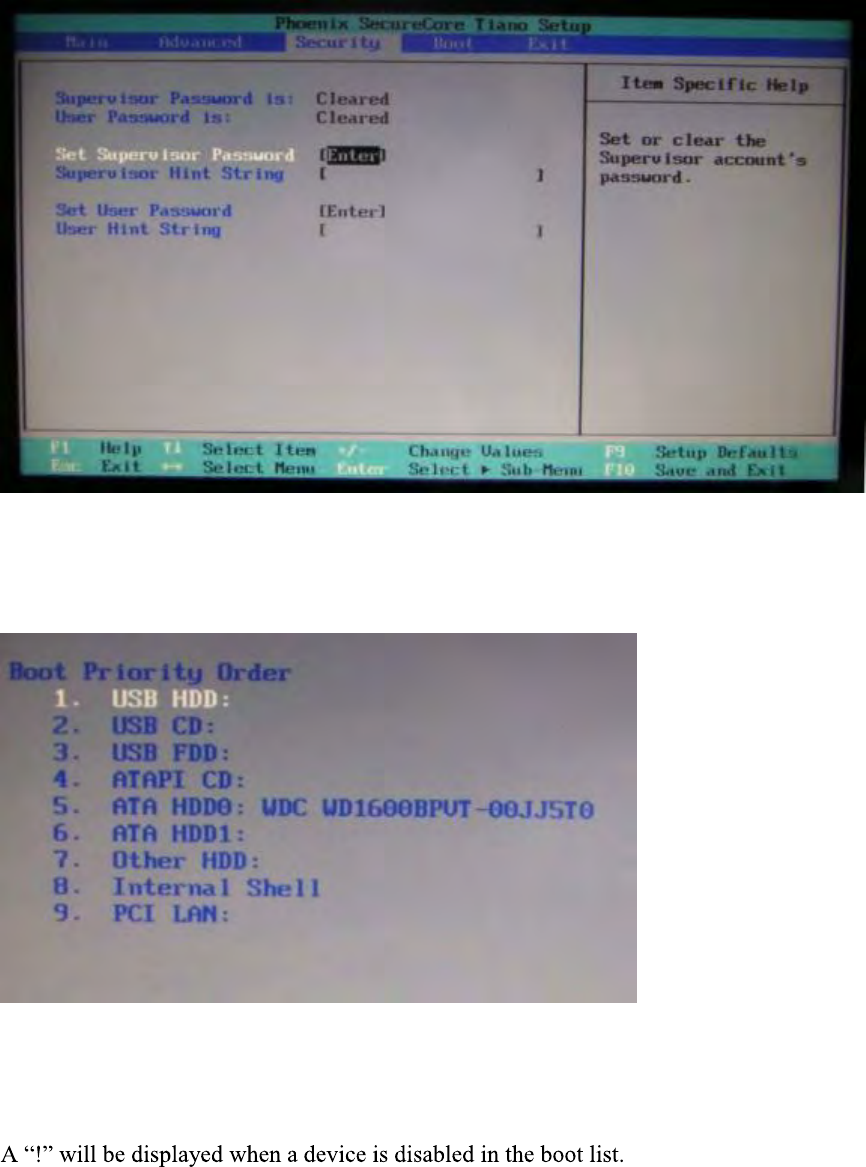

Security Screen
The Security Screen is used to set BIOS accessed passwords.
Boot Screen
The boot priority order can be set with the Boot Screen.
Keys are used to view or configure devices:
Use up and down arrows to select a device.
A plus and minus moves the device up or down in the list.
A shift plus the number 1 enables or disables the device.
J2 225 System Manual
Version 1.0 May 29, 2012
37
Exit Screen
The exit screen allows for the saving, discarding or loading of the default BIOS settings.
These functions can also be performed any time using the F9 and F10 key.
Phoenix Secure Core Tiano BIOS
The J2 225 uses the new Phoenix Secure Core Tiano BIOS. More information about this
new UEFI BIOS came be found at the following web link.
http://www.phoenix.com/pages/phoenix-securecore-tiano-tm
All device drivers for the J2 225 can be downloaded from the J2 web site at:
http://support.j2rs.com/225/
Installation instructions are included with each driver.
J2 supports OPOS drivers for the following J2 225 peripherals:
1: Cash Drawer(s)
2: LCM 2X20 character customer display
3: MSR Reader
The driver and documentation can be downloaded from:
http://support.j2rs.com/Utilities/OPOS/
J2 225 System Manual
Version 1.0 May 29, 2012
38
The J2 225 incorporates a microcontroller (MCU) that supports a number of system
functions. These include auto LCD backlight dimming, MSR encoder, iButton encoder,
power LED control, power-on timer, and power cycle counter. The J2 225 Configuration
Utility allows for the configuration of options and for reading the current values of these
various functions.
Installation
The utility can be downloaded from the J2 web site: http://support.j2rs.com/225/utilities/
To install, simply unzip anywhere and run setup. Like other J2 utilities it can be
uninstalled though the Windows control panel.
Main
The main screen displays the following: the current version of firmware, the power on
count (in hours), a list of the number of power cycles, and the dim timeout setting and
dim brightness settings. ( shown below):.
J2 225 System Manual
Version 1.0 May 29, 2012
39
Power-On Hours
The MCU uses an internal timer to keep track of how many total hours the J2 225 has
been up and running in its lifetime. This number shows powered-up hours only, not the
powered but off/standby time. The accuracy of this timer is only about +/- 5% and is to
be used as an approximate number. The value is stored in the MCU internal EEPROM.
Power Cycles
The MCU tracks the total number of times the unit has been powered off and on in the
power cycle counter. The count is stored in the MCU EEPROM and is used for
diagnostic purposes. The power-on and power cycles can only be changed at the factory.

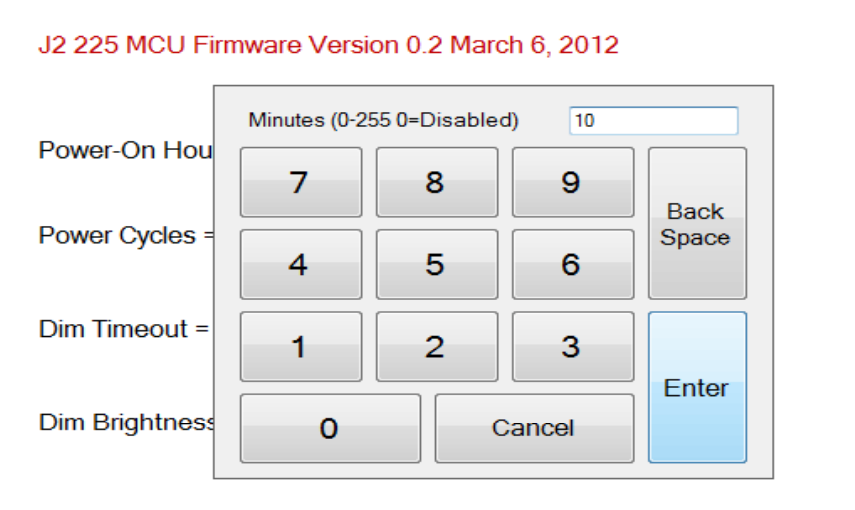

Dim Timeout
This value is the amount of time the MCU waits if there is no touch activity before
dimming the screen. This same function is built into Windows 7 and Windows 8 drivers,
and should be used rather than the J2 225 hardware dimming. But for older operating
systems (such as XP) the J2 225 hardware dimming default should be used.
The default value for the hardware dim timeout is six minutes, but can be changed with
this utility from any value from 0-255 minutes.
Note: a value of zero will disable the hardware auto dimming function.
Once the dim timeout is reached the LCD screen will dim to the value set in Dim
Brightness. Any touch of the screen, such as MSR read, iButton read or keyboard activity
that changes the keyboard LED status will take the J2 225 out of auto dim mode. This is
all done via hardware, and no software drivers need to be loaded. If it is required, the J2
Dim Wake driver should be loaded if other activity is required to take the J2 225 out of
auto dim. This driver is described in the Dim Wake section of this manual.
J2 225 System Manual
Version 1.0 May 29, 2012
40
Dim Brightness
The brightness level that the screen dims to when auto dim is active is controlled by the
Dim Brightness setting. This utility is used to change this value whose default value is
10%. The possible range is from 5-95%, in 5% increments.
Note: Dimming is important for a few reasons: one is to lower the total power
consumption of the unit; another would be to prolong the LCD screen backlight LED life.
J2 225 System Manual
Version 1.0 May 29, 2012
41

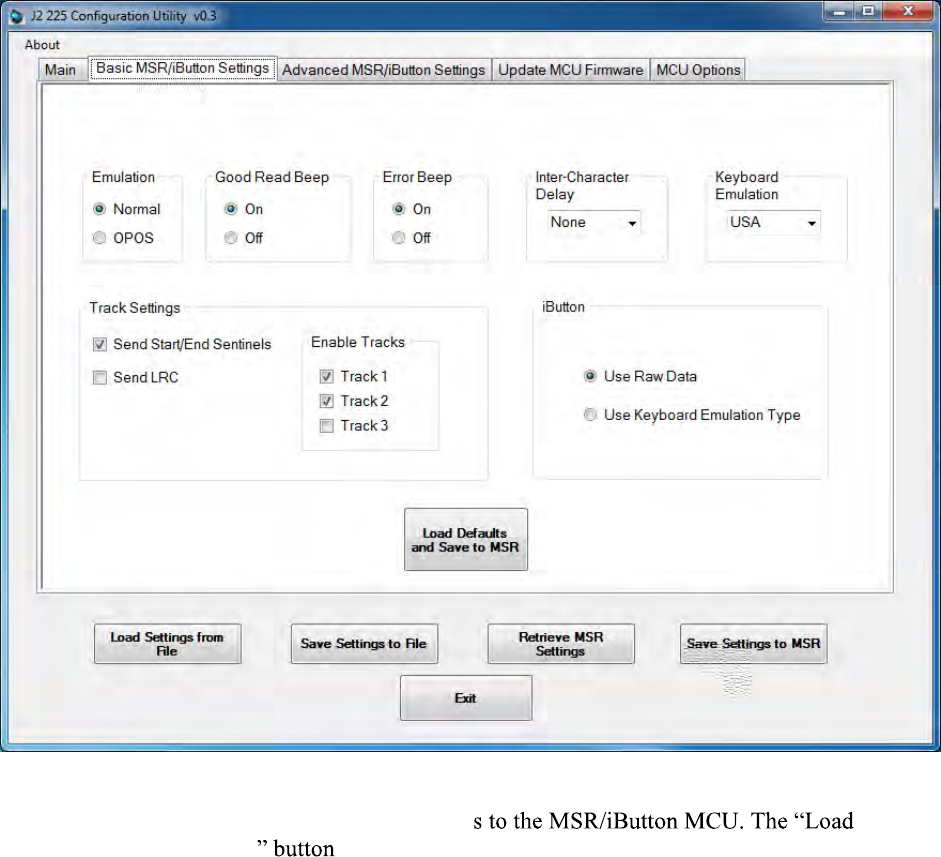

Basic MSR Settings
This tab is used to set commonly changed MSR/iButton settings. The default values have
been chosen to work with most software without change. Note that these settings can be
changed without an MSR installed. It should be noted that the MSR/iButton is a keyboard
wedge device. Most settings are self-explanatory.
The radio buttons at the bottom of the screen are used to load settings to and from a file,
to retrieve current settings, or to save new setting
Defaults and Save to MSR loads the default settings for the MSR/iButton and
auto dimming functions.
J2 225 System Manual
Version 1.0 May 29, 2012
42
Advanced MSR/iButton Settings

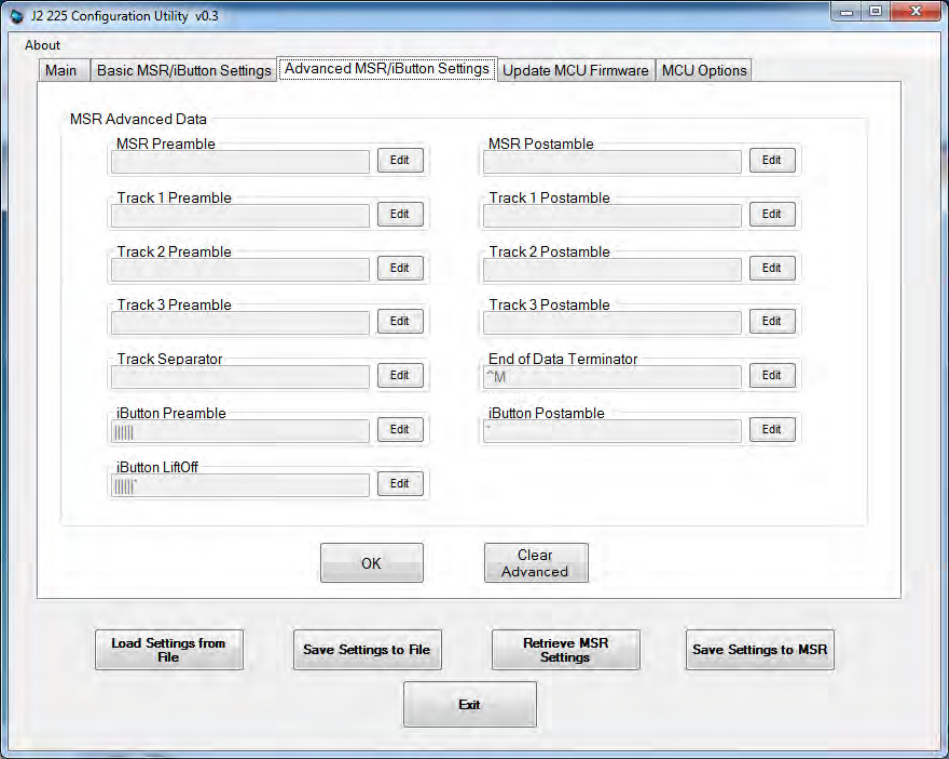

The Advanced Settings tab allows preambles and post-ambles to be added, required for
the MSR and iButton. By default for the MSR, only an ENTER key needs to be sent at
the end of all track data.

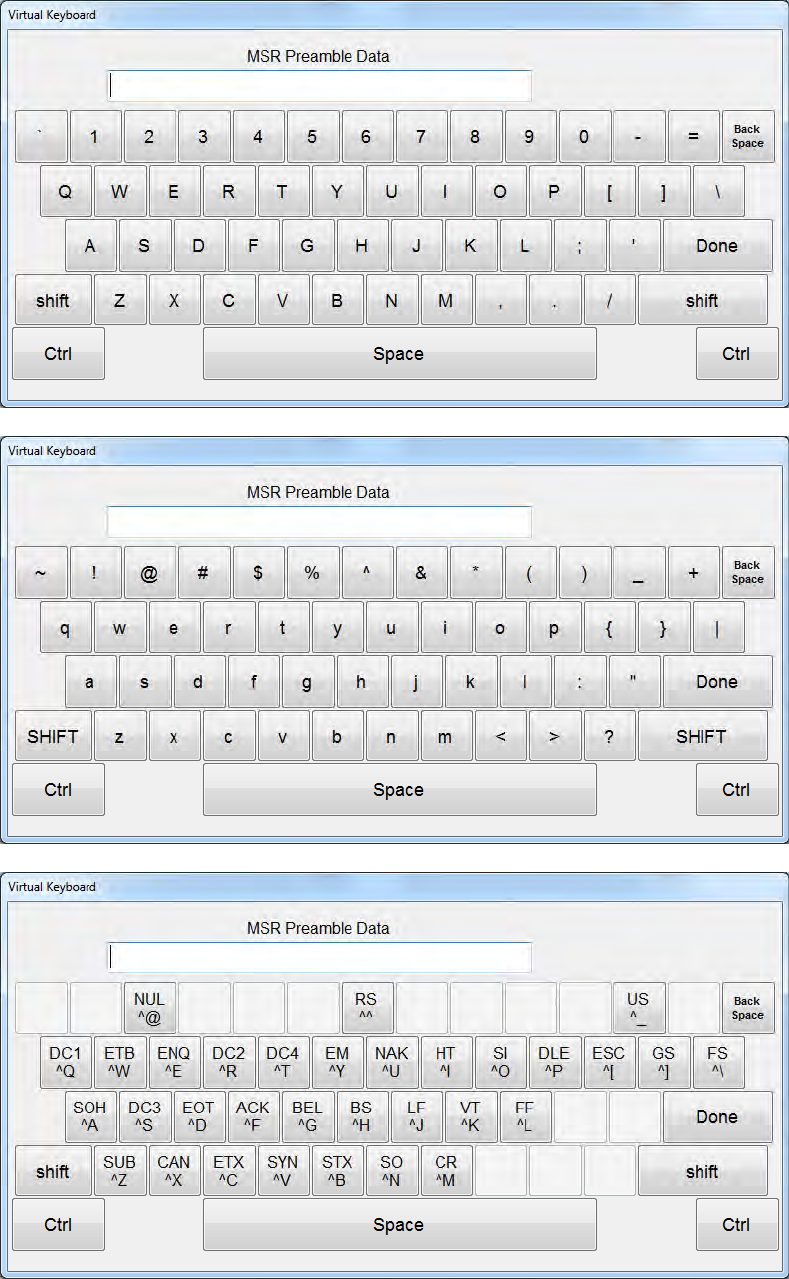

When preamble or postamble data needs to be edited, a touch-friendly onscreen keyboard
is displayed. The data may be entered by the onscreen keyboard or by an attached
keyboard. The onscreen keyboards shown below are for uppercase, lower case and
control characters.
J2 225 System Manual
Version 1.0 May 29, 2012
43
J2 225 System Manual
Version 1.0 May 29, 2012
44
Update MCU Firmware
This tab is used to update the MCU firmware when necessary. This may be to add a new
feature or function to the MSR/iButton. J2 will supply a firmware file for this when
required.

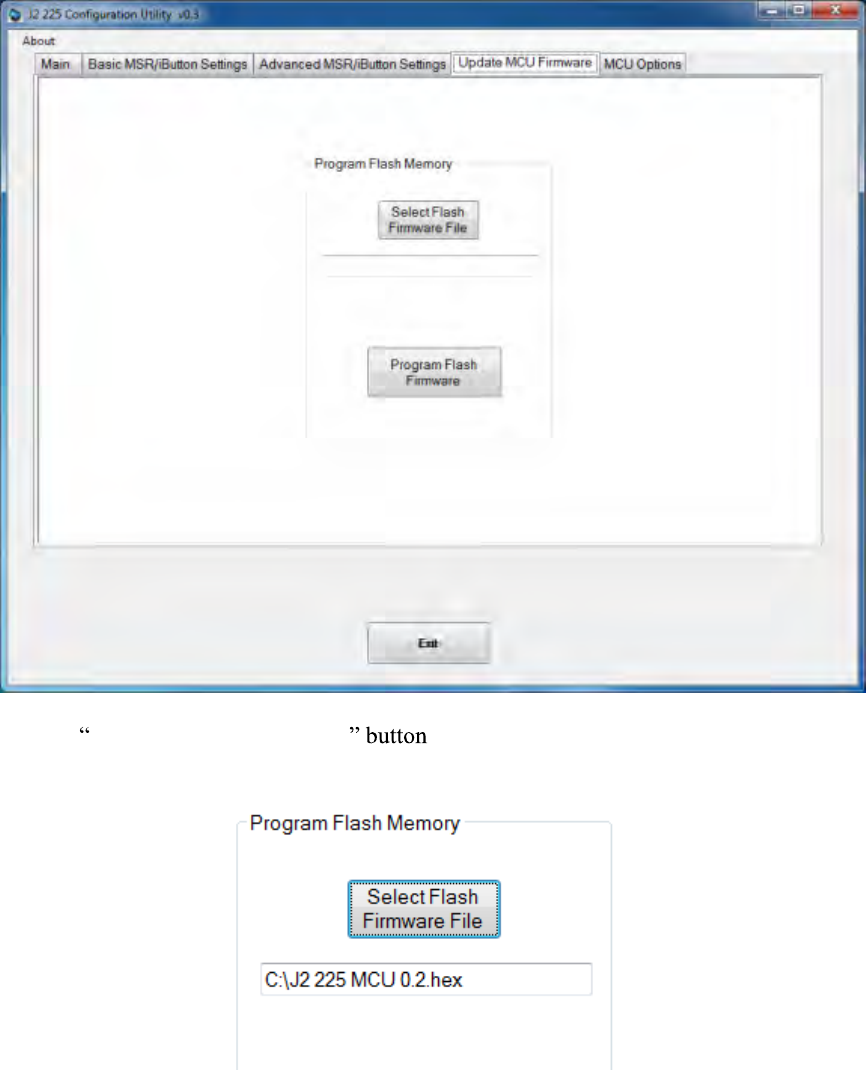

Use the Select Flash Firmware File to start the update, as shown below. This
will let you browse for the correct file.
J2 225 System Manual
Version 1.0 May 29, 2012
45

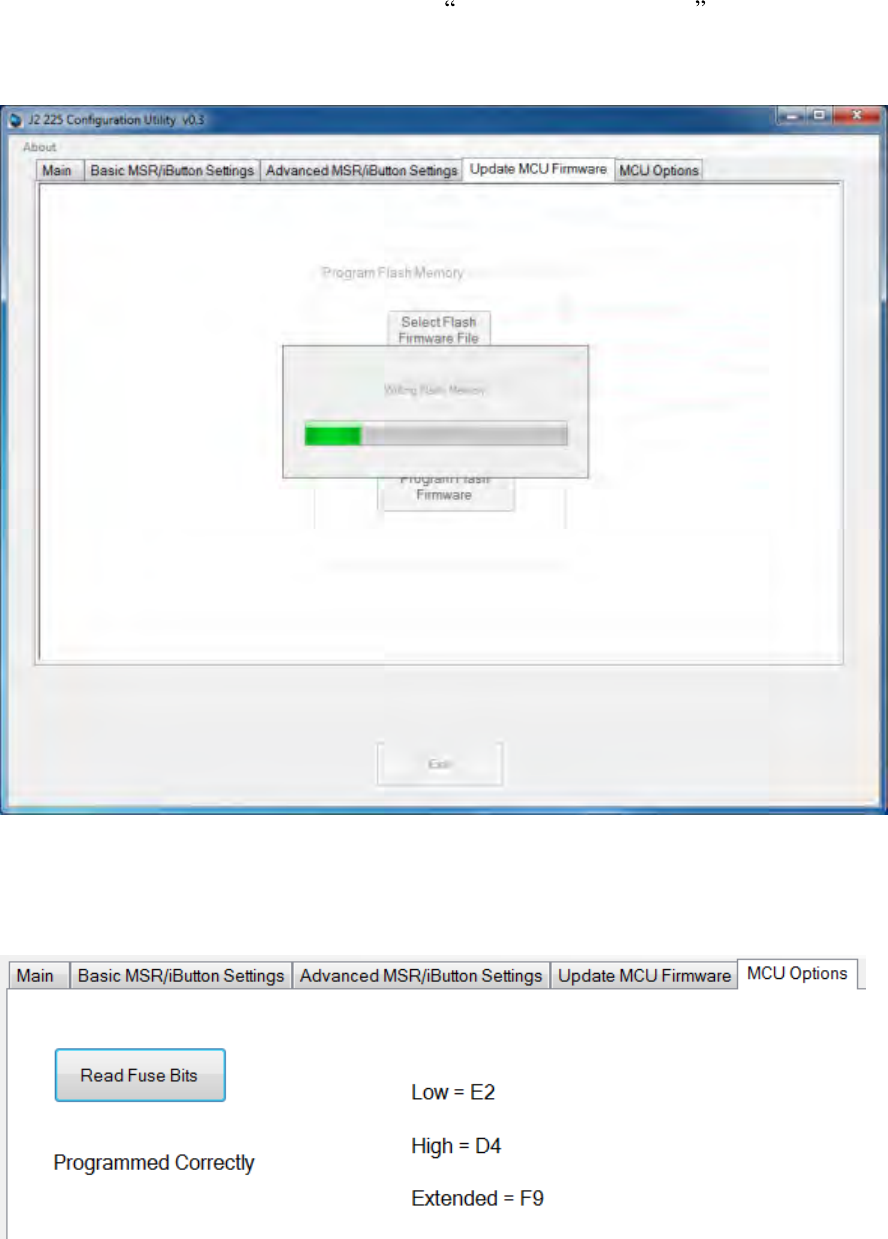

Once the hex file has been selected, touch the Program Flash Firmware button to start
firmware update. The utility will now update the MCU firmware. It will first write the
memory then verify it. Do not turn off the J2 225 power when updating.
MCU Option
This tab is only used for factory programming and verification of the MCU option fuses.
It will display the current value of the MCU option fuse (note that end-users normally
would not use this feature).
J2 225 System Manual
Version 1.0 May 29, 2012
46
DimWake is a very small and simple utility that loads on any Windows OS, but normally
is only used with variations of the XP operating system (like XP Pro, POSReady 2009,
WEPOS, or XP Embedded). The DimWake program is used to take the J2 225 out of
auto dim mode. The hardware can only take the system out of dimming by either a touch
of the touch screen, MSR read, iButton read, or keyboard activity that changes the
keyboard LED status. Sometimes it is desirable for other events to take the system out of
dim mode, like a mouse movement. The DimWake program provides this function.
Installation
The utility can be downloaded from the J2 web site: http://support.j2rs.com/225/utilities/
To install just unzip anywhere and run setup. Like other J2 utilities it can be uninstalled
through the Windows control panel.
Once having installed DimWake, you will need to reboot the system for it to take effect.
DimWake will then be running in the background.
Once installed and running - any mouse, keyboard or high CPU activity (like playing a
video) will bring hardware auto dimming out of dimming mode, or prevent it from going
in to dimming. This combination of hardware auto dimming and DimWake provides that
same function to XP, as comes standard with Windows 7 and Windows 8. When using
Windows 7 or 8 it is best to use the built-in dimming feature.
J2 225 System Manual
Version 1.0 May 29, 2012
47

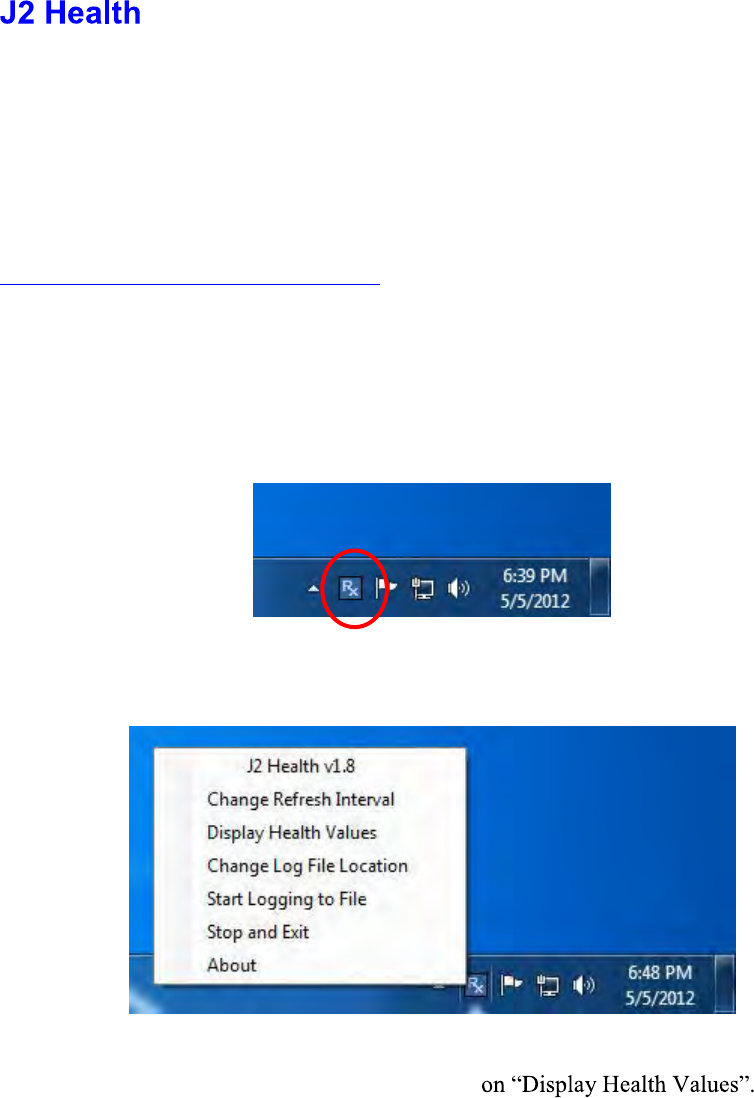

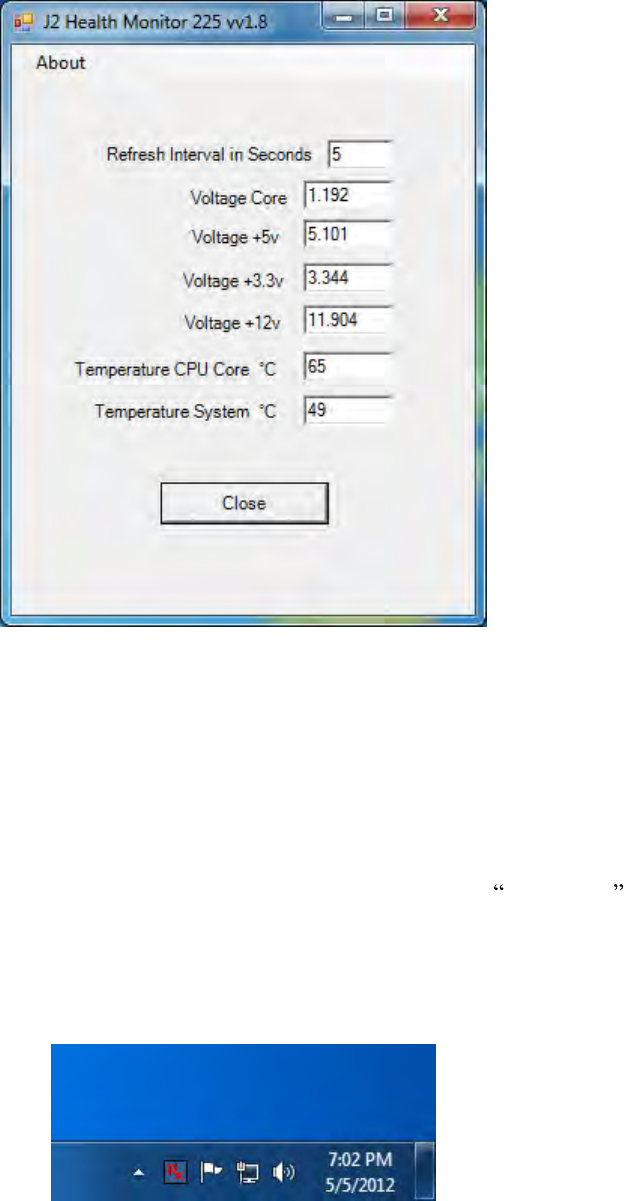

J2 has a standard program that works with all its POS products, called J2 Health. This
program is used in either a standalone mode or in conjunction with J2 remote
monitor/asset tracking software. The J2 Health program monitors different aspects of the
POS hardware to ensure the hardware is running within specification. For the J2 225 it
monitors critical system voltages, as well as system and CPU temperatures.
Installation
The utility can be downloaded from the J2 web site:
http://support.j2rs.com/Utilities/Health/ To install just unzip anywhere and run setup.
Like other J2 utilities it can be uninstalled through the Windows control panel.
Tray Icon
Once installed and the system has rebooted, J2 Health will be running in the background.
The J2 health icon will appear in the task bar tray:
Right-clicking on this icon displays different Health options, shown below:
The current health values will display by clicking
A sample screen is shown below:
J2 225 System Manual
Version 1.0 May 29, 2012
48
As can be seen above, when running on the J2 225 the J2 Health program displays critical
system voltages and system and CPU Core temperatures. For other J2 POS systems, J2
Health may display more or less information. An example would be the J2 680 unit,
which in addition to the above information would also display the fan speed of the two J2
680 fans.
Logging to File
The J2 Health program can log the health data to a file in the csv text format for
importing to other programs, like Excel. This can be handy for finding time of day
related problems.
When logging is enabled, the tray icon Rx symbol will change to red to indicate logging
in is taking place.
J2 225 System Manual
Version 1.0 May 29, 2012
49
Registry Entries

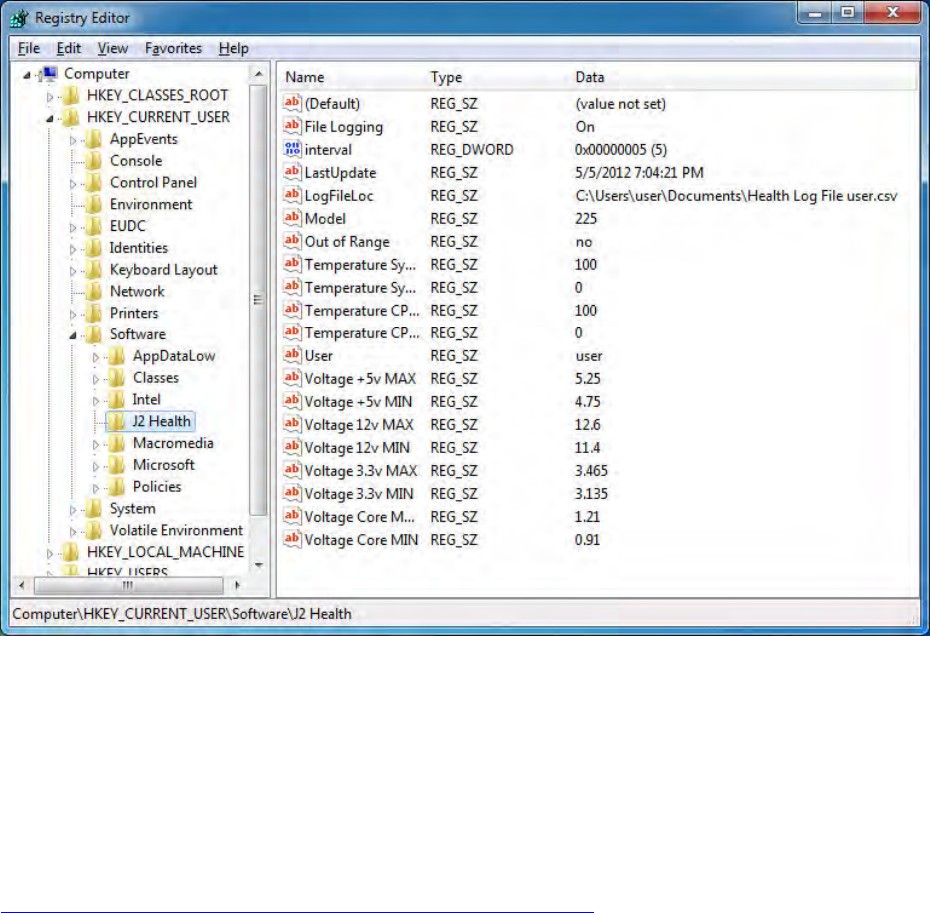

The J2 Health program creates registry entries for the different health values. Dynamic
values are updated at the user defined interval, which is by default 5 seconds. Other
software may use these registry entries to access the J2 health information.
J2 225 Health keys are shown below:
J2 Remote Monitoring Software
J2 now offers a full remote monitoring and asset tracking solution that works in
conjunction with J2 Health to ensure the highest uptime possible of your POS hardware.
Please contact J2 sales for more information on this fully customizable, remote
monitoroption.
For more information, please visit us at
http://www.j2retailsystems.com/newsarticle.php?news_id=57
J2 225 System Manual
Version 1.0 May 29, 2012
50

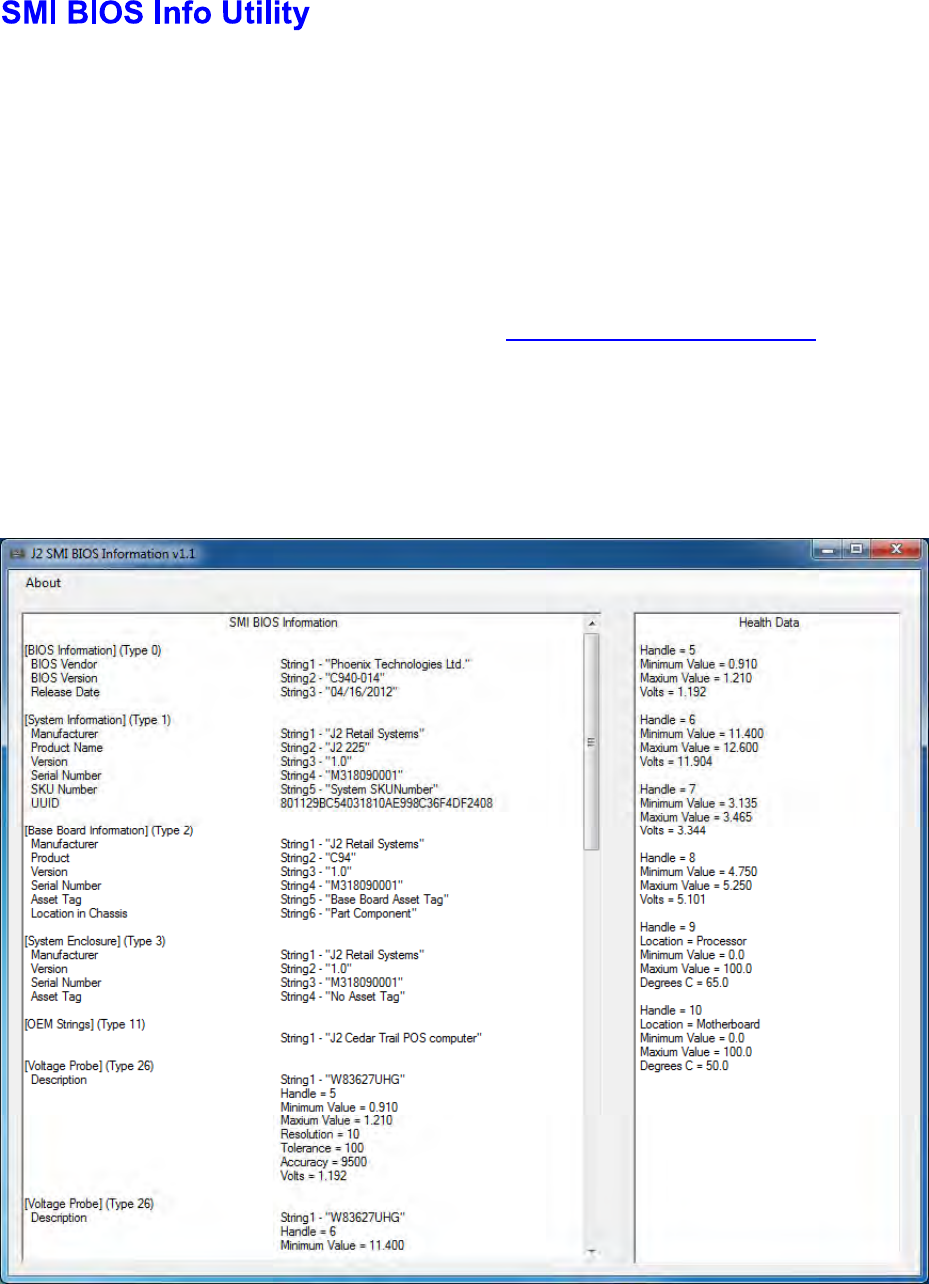

The J2 SMI BIOS Info program allows for the reading of all populated BIOS DMI/SMI
information. With some J2 products including the J2 225, this information also includes
dynamic system health information. Normally this dynamic DMI health information
BIOS is only supported on very high end servers. Now J2 brings this feature to POS
hardware.
The J2 SMI BIOS Info program will run on any J2 POS hardware or for that fact on any
PC hardware. It can display all DMI/SMI information on a formatted form.
Installation
The utility can be downloaded from the J2 web site: http://support.j2rs.com/Utilities/
To install just unzip anywhere and run as you wish to run the utility form.
Operations
Just click on the .exe file to run. The following screen will be displayed (see below).
Note that the health data will only display on newer J2 systems that support the dynamic
DMI health BIOS.
J2 225 System Manual
Version 1.0 May 29, 2012
51
J2 has a generic cash drawer test utility that works on all J2 products, including the new
J2 225 computer. This test program also supports the J2 225 separate status lines, such as
when is used, supporting two cash drawers.
Installation
The utility can be downloaded from the J2 web site: http://support.j2rs.com/Utilities/
To install just unzip anywhere and run as you wish to download the utility form.
Operation
Just run the cash drawer test from whatever folder it was installed into
(See example below)
J2 225 System Manual
Version 1.0 May 29, 2012
52
To use two cash drawers with the J2 225 you use
cable that also works with Epson printers or s
separate status lines (The standard cable supports shared status lines.). When using the
look like this:
option is to test the cash drawer you set up using the J2
virtual serial ports program. The virtual serial port program must be installed with the
cash drawer virtual serial ports set to Comm 10 & 11.
J2 225 System Manual
Version 1.0 May 29, 2012
53

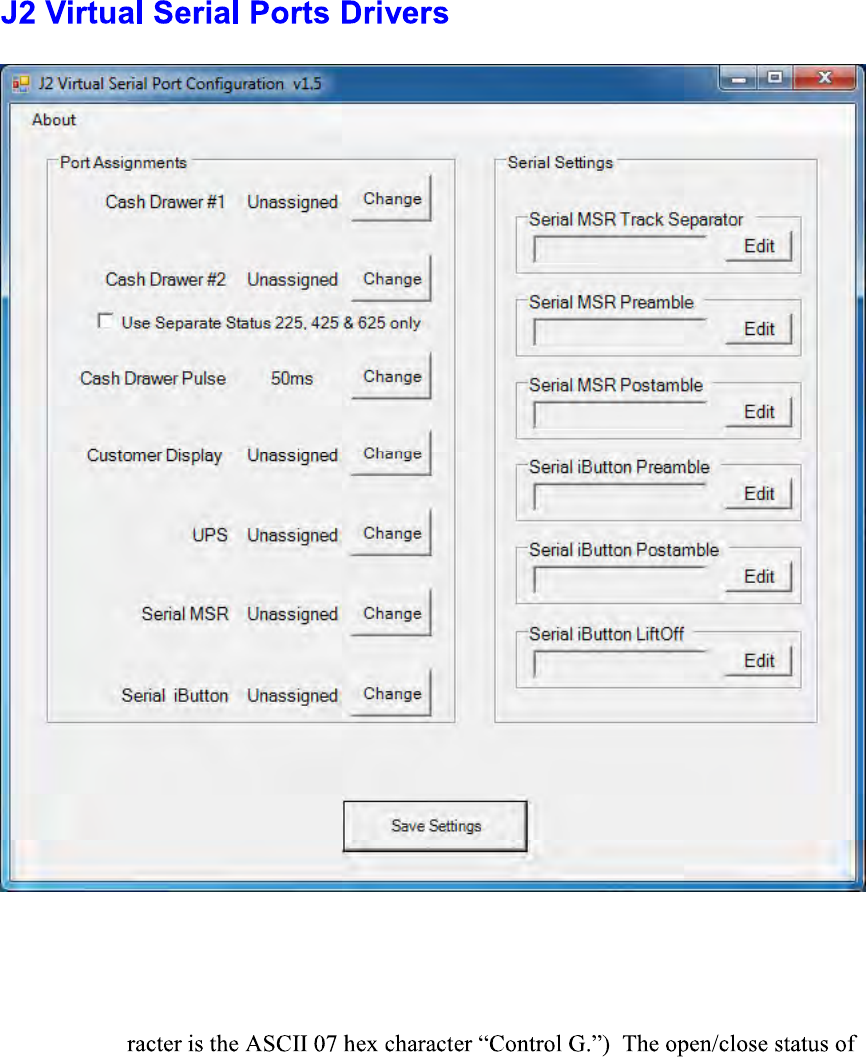

Virtual serial ports can be used for the cash drawers, virtual 2x20 line display on the
optional 10.1 LCD, Smart UPS, MSR and iButton.
To open virtual serial cash drawer send a bell character to the Com port it is assigned to.
(The bell cha
the drawer may be obtained by reading the status bits of its COM port. The drawer
open/close status will be reflected on the CTS and RI bits, either bit may be used. This
virtual COM port driver is designed to work the same as a hardware serial cash drawer
and will work with drivers for serial cash drawers.
J2 225 System Manual
Version 1.0 May 29, 2012
54
The J2 225 supports an optional two line by twenty character mono color liquid crystal
display module (LCM). This LCM display shows black characters on a white background
for maximum visibility to the customer. The LCM supports a number of firmware
emulations of popular customer displays which allows existing POS software to run
without modification.
J2 225 System Manual
Version 1.0 May 29, 2012
55
Installation
The J2 225 LCM can be installed in just a minute. To install: first power down the
system, then remove the secondary display mounting cover (as shown below):
J2 225 System Manual
Version 1.0 May 29, 2012
56

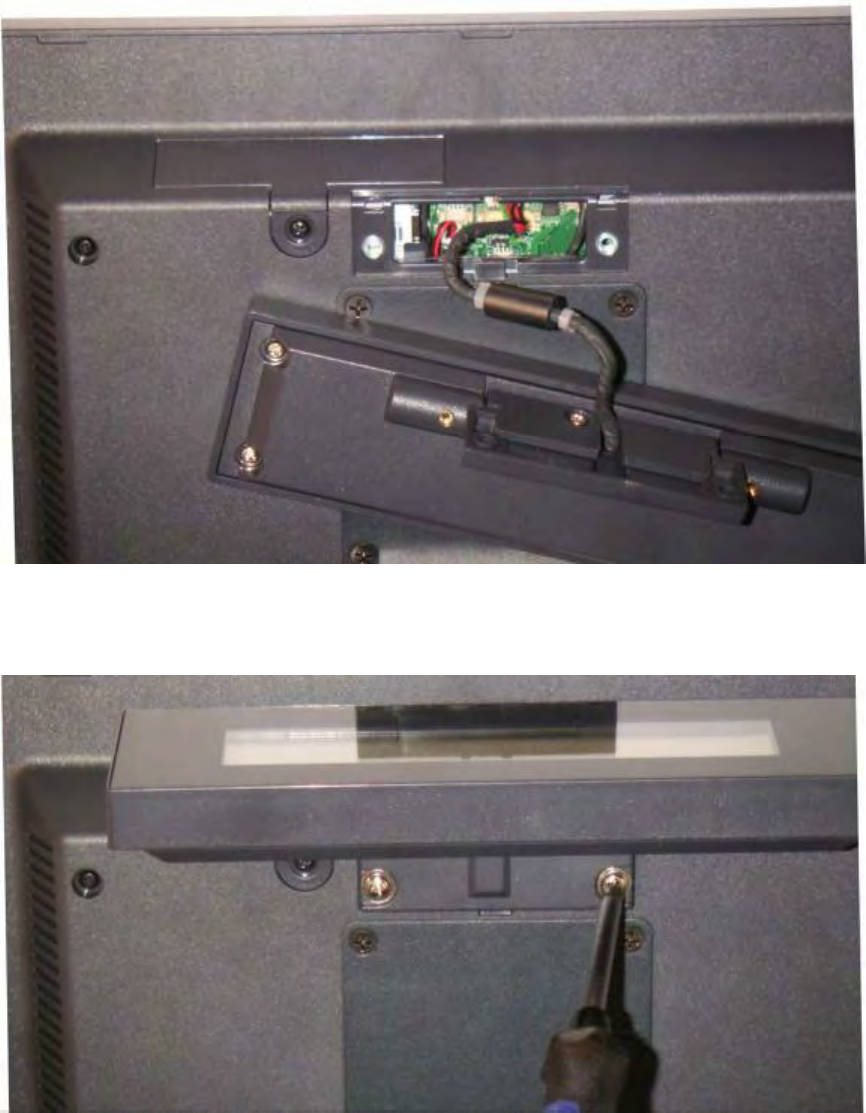

After the secondary display cover is removed, attach the LCM cable to the unit.
This 8-pin cable plugs into the CN8 / LCM connector on the system board. The connector
is keyed so that it can only plug in one way. This cable provides power and serial data to
the LCM module.
Once the cable is plugged in, feed any extra cable into the unit and attach the LCM with
the two 4mm screws provided with the display.
J2 225 System Manual
Version 1.0 May 29, 2012
57
The system can now be powered on. When power is first applied, the LCB will display its
current settings before clearing and will wait for serial data from the system.
J2 225 LCM Configuration Utility
A configuration utility is provided to change the LCM setting. This utility allows for the
setting of serial port bard rate, a data format as well as emulation type and default font. It
also allows for the LCM firmware to be updated if required.
Installation
The utility can be downloaded from the J2 web site: http://support.j2rs.com/Utilities/
To install just unzip anywhere and run setup. Like other J2 utilities it can be uninstalled
through the Windows control panel.
J2 225 System Manual
Version 1.0 May 29, 2012
58

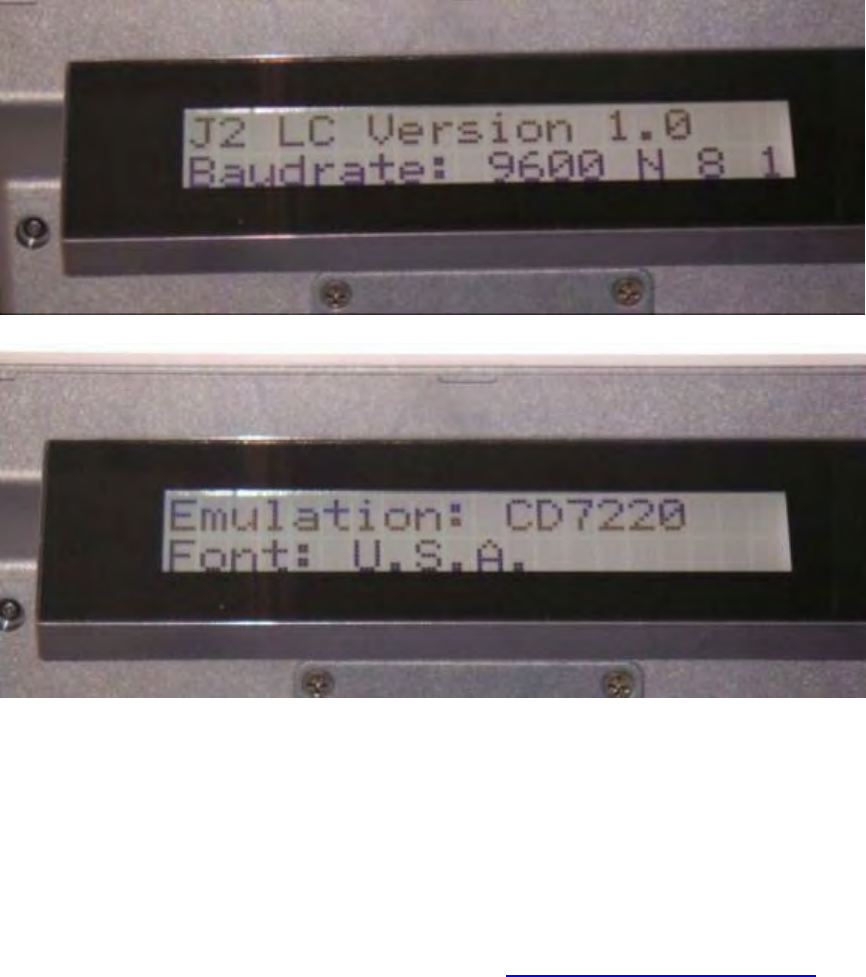

By default the LCM is mapped to ComPort 6, 9600 baud and N-8-1 parity.

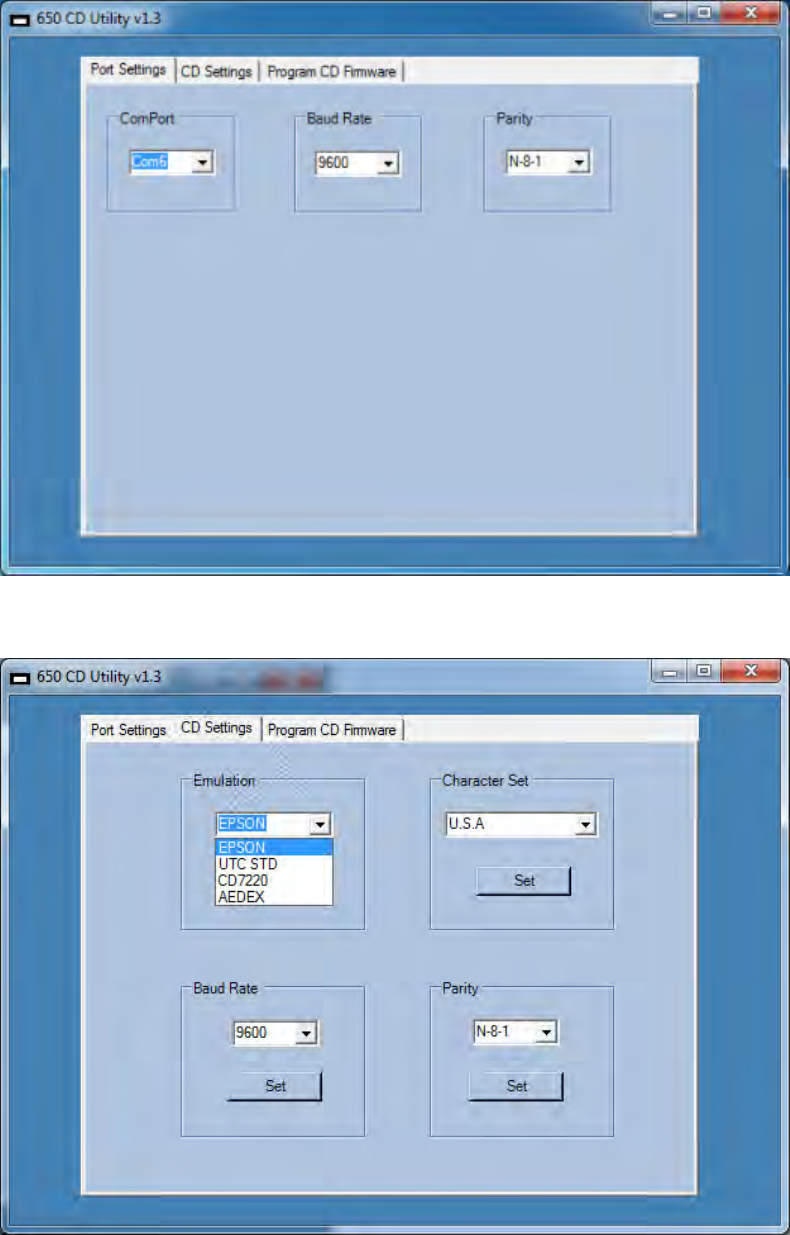

The emulation, character set, baud rate and parity can be changed under CD Settings.
J2 225 System Manual
Version 1.0 May 29, 2012
59

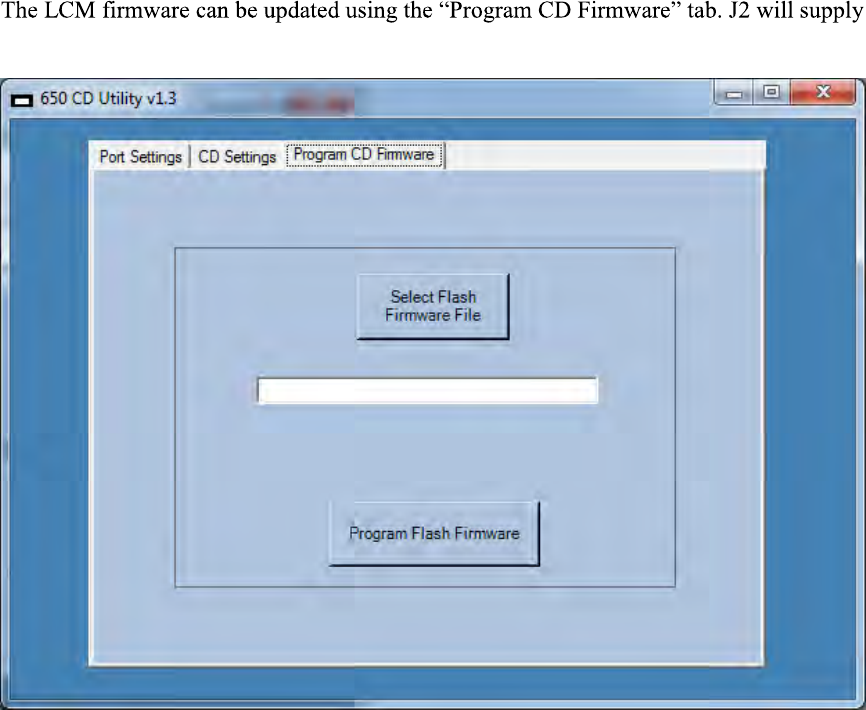

the necessary file should a firmware update be required.
J2 225 System Manual
Version 1.0 May 29, 2012
60

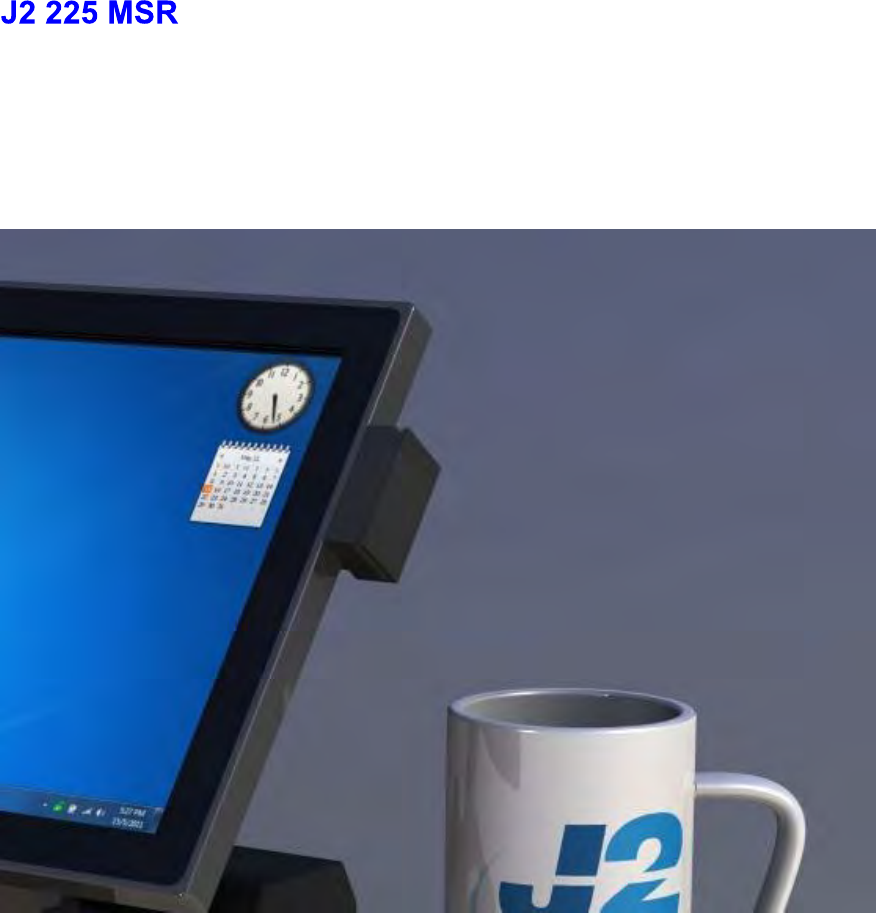

The J2 225 supports an optional magnetic card reader (MSR). This reader supports
magnetic stripe cards conforming to ISO 7811/1-6. It can read both high & low coercivity
magnetic stripes. The MSR support 3 tracks of data but defaults to having only track one
and two enabled. The MSR is a Keyboard Wedge device with all data being sent to the
keyboard port. For software that requires a serial port MSR, the J2 Virtual Serial Port
driver can be used to allow the J2 225 MSR to function as a serial port MSR.
J2 225 System Manual
Version 1.0 May 29, 2012
61
Installation
The J2 225 MSR can be installed in just a minute. To install, first power down the
system. Then remove the option mounting point cover, as shown below:
J2 225 System Manual
Version 1.0 May 29, 2012
62
Once the cover is removed, plug in the cable MSR cable.
Once the cable is attached, the MSR may be screwed onto the unit using the 2 screws
provided. Make sure the MSR cable is not being pinched when attaching the MSR.
This completes the installation of the J2 225 optional MSR.
Note that the MSR can be mounted to any one of the J2 225 option mounting points. By
default the internal MSR cable is routed to the upper right hand corner of the unit,
however this cable can be rerouted if need be to use any of the other three option
mounting points.
The software configuration of the MSR is covered under the J2 225 Configuration Utility
section of this manual.
J2 225 System Manual
Version 1.0 May 29, 2012
63

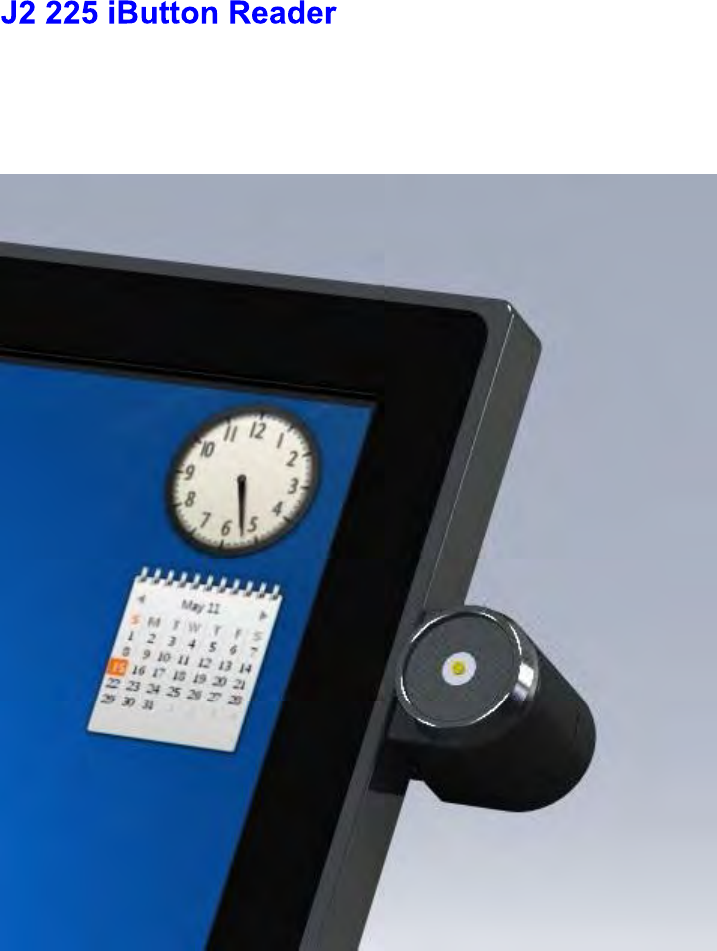

J2 225 supports an optional iButton reader, sometimes referred to as a Dallas key. The
iButton is a Keyboard Wedge device with all data being sent to the keyboard port. For
software that requires a serial port iButton reader, the J2 Virtual Serial Port driver can be
used to allow the J2 225 iButton reader to function as a serial port iButton reader.
J2 225 System Manual
Version 1.0 May 29, 2012
64
Installation
The J2 225 iButton reader can be installed in just a minute. To install, first power down
the system, then remove the option mounting point cover, as shown below:

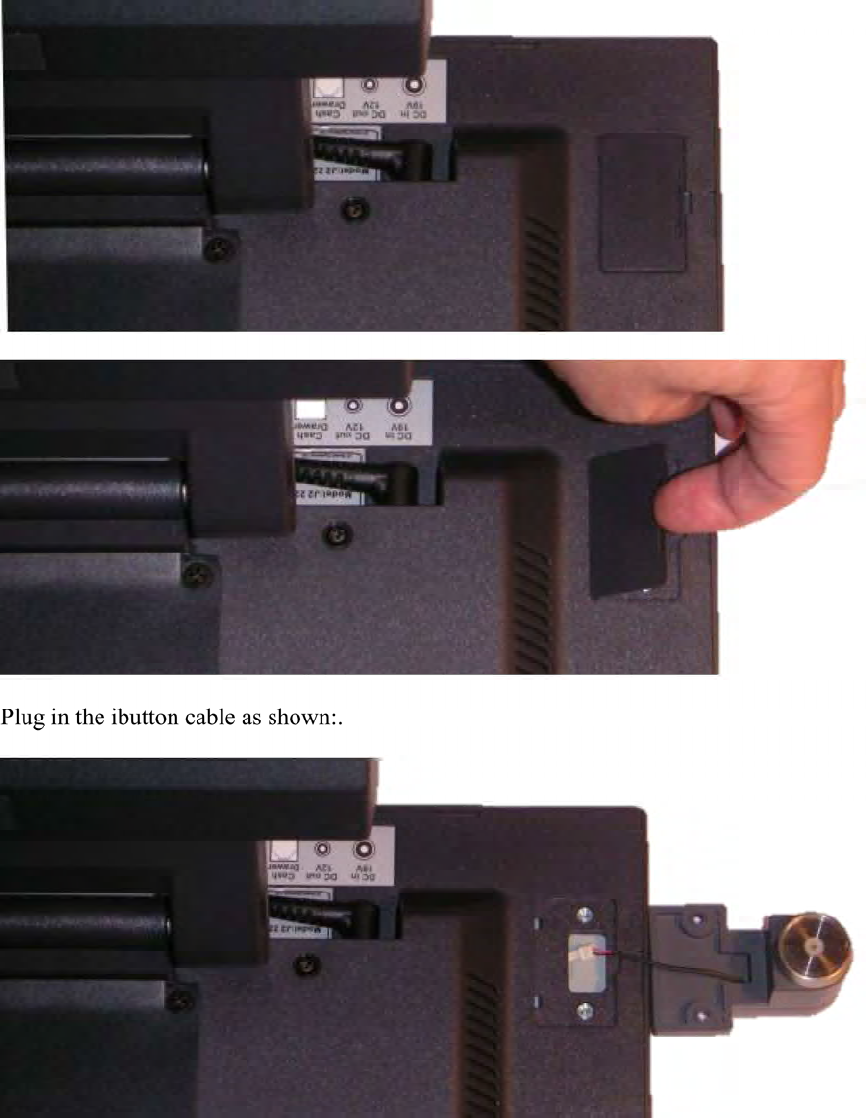

Plug in the ibutton cable as shown:.
J2 225 System Manual
Version 1.0 May 29, 2012
65
Attach the iButton reader onto the unit with the 2 screws provided.
Make sure the cable is not being pinched when attaching the iButton reader.

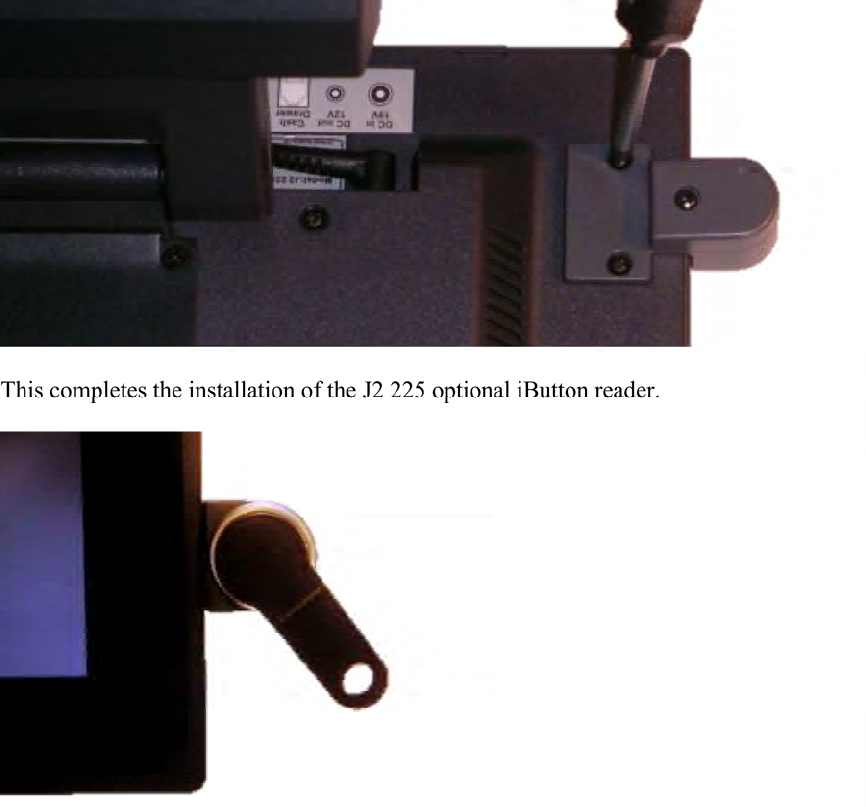

This completes the installation of the J2 225 optional iButton reader.
Note that the iButton reader can be mounted to any one of the J2 225 mounting option
points. By default the internal iButton reader cable is routed to the upper right hand
corner of the 225, but this cable can be rerouted if need be to use any of the other three
option mounting points.
The software configuration of the iButton reader is covered under the J2 225
Configuration Utility section of this manual.
J2 225 System Manual
Version 1.0 May 29, 2012
66
-
The J2 225 has available an optional kit for wall mounting the unit when not using the
VESA mounts. This kit has the advantage that it works together with the J2 225 standard
base to allow the viewing angle and distance from the wall to be adjusted. Also the power
supply is mounted in the base making for a clean install. This same kit can also be used as
a way of securely mount the unit to a counter top or other surfaces.
Packing list
The wall mount come with the following parts:
Qty
Part
8
3 mm
screws
4
Mounting Clips
1
4 mm screw
1
Mounting Bracket
J2 225 System Manual
Version 1.0 May 29, 2012
67
Assembly
First attach the four mounting clips using the 3 mm screws, as shown below:
Next attach the mounting bracket to the wall or other surface using at least four of the
bracket mounting holes. Please note that the bracket has both a 100mm and 75mm hole
pattern, so that the bracket can be used with the VESA bracket as well as being directly
mounted to a wall. Be sure to use a mounting screw with sufficient hold force for the
material being mounted to and allow for the stress of the adjustment of the swing arm
base.
UP
J2 225 System Manual
Version 1.0 May 29, 2012
68

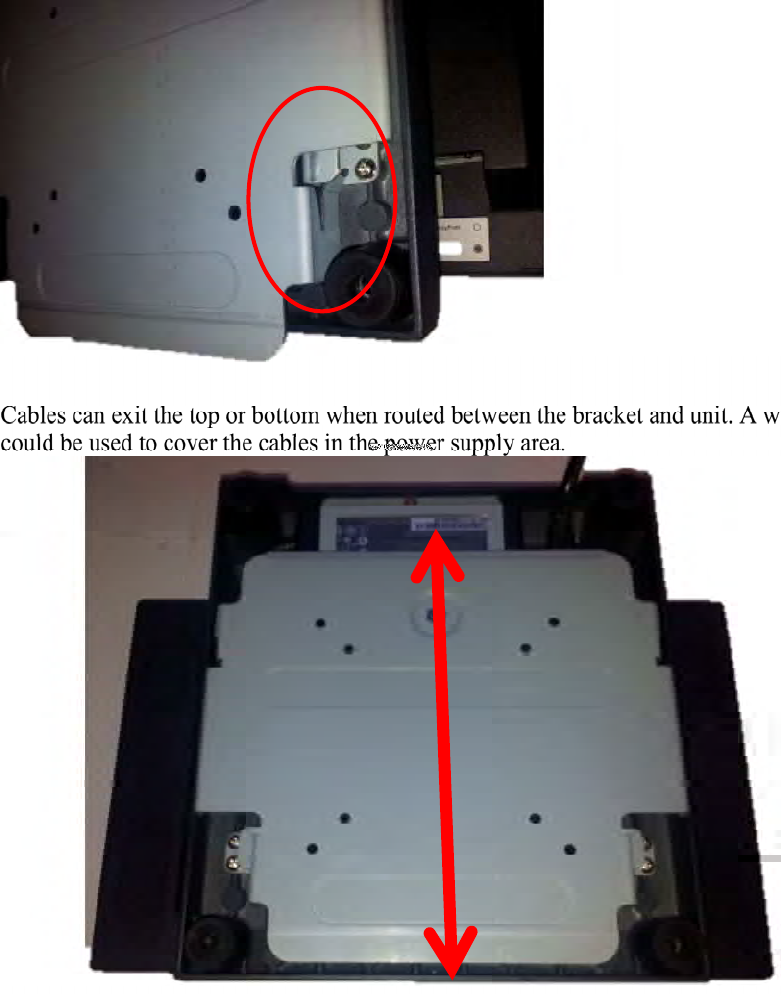

Next the J2 225 can be hung on the bracket by sliding the unit down on the bracket so it
catches on all four mounting clips, as illustrated below. This will need to be done by feel,
of course, as you will not be able to see the clips engage.
Next step is to route any cables you need to go to the unit as required. A space is
provided just by the power supply for the cable to exit cleanly, assuming they are routed
via the swing arm cable channel as in a normal install. Cables can also be routed down as
well. Be sure cables are clear or protected of any sharp surfaces. You can remove the unit
on and off the wall mount bracket as needed to route the cables.
Cables can exit the top or bottom when routed between the bracket and unit. A wall hole
could be used to cover the cables in the power supply area.
J2 225 System Manual
Version 1.0 May 29, 2012
69
The final step is to install the locking safety screw. This screw is to insure the unit is not
knocked of the wall by accident . The 4 mm screw supplied is used for this propose. First
remove the rubber hole plug from the unit, then screw in the safety screw. The unit is
now secure enough and the swing base can be adjusted to the desired viewing angle.
Rubber Screw Cover
Safety Screw Location
J2 225 System Manual
Version 1.0 May 29, 2012
70
Some possible viewing angles using the wall mount bracket.
J2 225 System Manual
Version 1.0 May 29, 2012
71

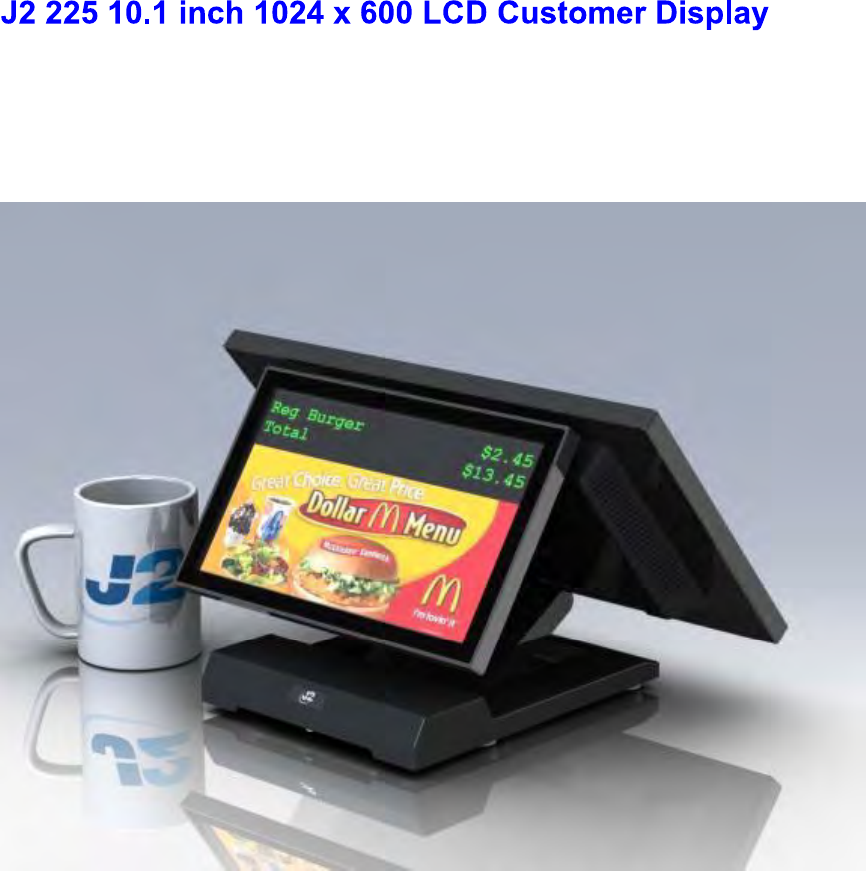

The J2 225 supports an optional customer side LCD display. This display attaches to an
internal DisplayPort via short cable that support power and data to the display. The
display resolution is 1024 x 600 16:9. This display is the same type as used as on many
Netbook computers.
10.1 inch 16:9 Customer Display
J2 225 System Manual
Version 1.0 May 29, 2012
72
Installation
The J2 225 10.1 display can be installed in just a minute. To install: first power down the

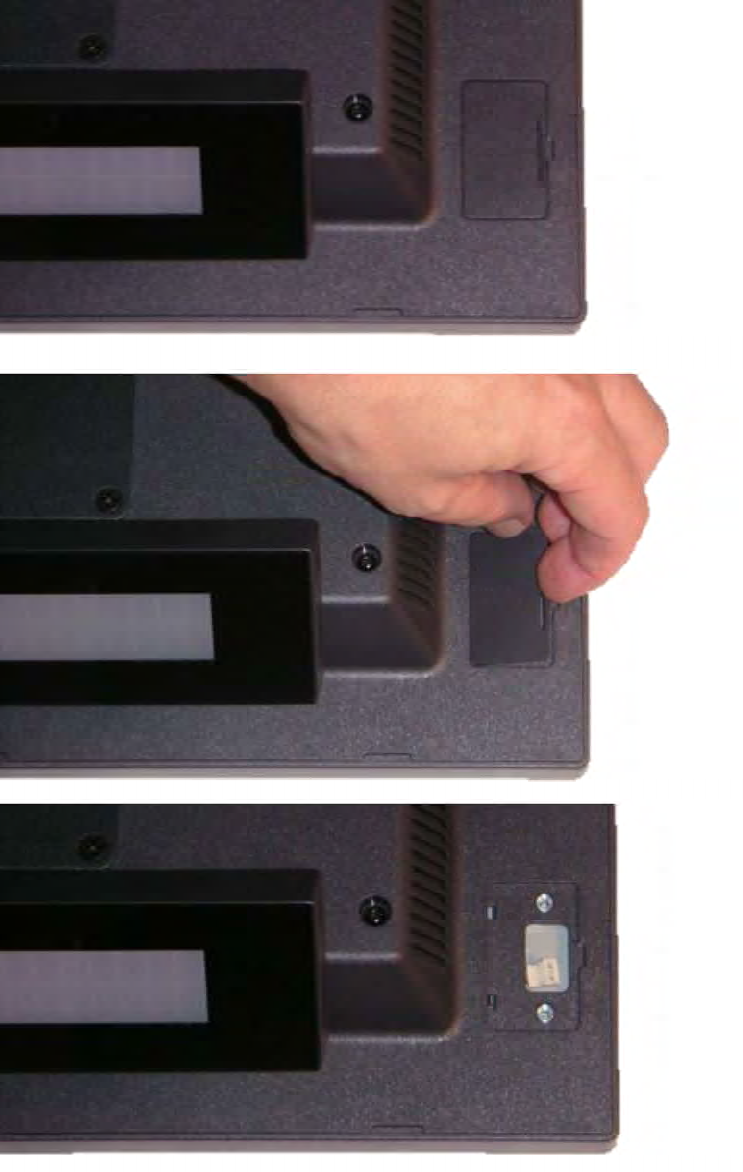

system, then remove the secondary display mounting cover (as shown below):
J2 225 System Manual
Version 1.0 May 29, 2012
73
This 20-pin cable plugs into the CN6 connector on the system board. The connector is
keyed so that it can only plug in one way. This cable provides power and video data to
Once the cable is plugged in, feed any extra cable into the unit and attach the LCM with
the two 4mm screws provided with the display.
J2 225 System Manual
Version 1.0 May 29, 2012
74
Configure the Intel video driver for extended desktop with the 1024 x 600 display as the
secondary display. The secondary display brightness will follow the main screen
brightness unless disable by a jumper on the 10.1 display electroins.
J2 also supplies
display. This allows part of the screen to display data that would normal be used on a 2 x
20 display while using the rest of the display for advertising content.
J2 225 System Manual
Version 1.0 May 29, 2012
75
European Office
J2 Retail Systems Ltd.
J2 House
Clayton Road, Birchwood
Warrington WA3 6RP
United Kingdom
44 (0) 1925 817003 Phone
44 (0) 1925 811989 Fax
USA Office
J2 Retail Systems Inc.
9251 Irvine Boulevard
Irvine, CA 92618
USA
Australian Office
J2 Retail Systems Pty Ltd
Unit 6 83/85 Boundary Road
Mortdale NSW 2223
Australia
02 9584 5222 Phone
02 9584 1500 Fax
Website
http://www.j2retailsystems.com
FCC Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Caution!
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
