FLYTECH TECHNOLOGY LS185200 MEDIVista 18.5 Bedside Terminal User Manual PA79 C43 v1 0
FLYTECH TECHNOLOGY CO., LTD MEDIVista 18.5 Bedside Terminal PA79 C43 v1 0
Users Manual
Version 1.0 October 2012
User Manual
Terminal Hardware System
ii
Copyright 2012
All Rights Reserved
Manual Version 1.0
Part Number:
The information contained in this document is subject to change
without notice.
We make no warranty of any kind with regard to this material,
including, but not limited to, the implied warranties of merchantability
and fitness for a particular purpose. We shall not be liable for errors
contained herein or for incidental or consequential damages in
connection with the furnishing, performance, or use of this material.
This document contains proprietary information that is protected by
copyright. All rights are reserved. No part of this document may be
photocopied, reproduced or translated to another language without
the prior written consent of the manufacturer.
TRADEMARK
Intel®, Pentium® and MMX are registered trademarks of Intel®
Corporation. Microsoft® and Windows® are registered trademarks of
Microsoft Corporation.
Other trademarks mentioned herein are the property of their
respective owners.
iii
Safety
IMPORTANT SAFETY INSTRUCTIONS
1. To disconnect the machine from the electrical Power Supply, turn
off the power switch and remove the power cord plug from the wall
socket. The wall socket must be easily accessible and in close
proximity to the machine.
2. Read these instructions carefully. Save these instructions for future
reference.
3. Follow all warnings and instructions marked on the product.
4. Do not use this product near water.
5. Do not place this product on an unstable cart, stand, or table. The
product may fall, causing serious damage to the product.
6. Slots and openings in the cabinet and the back or bottom are
provided for ventilation; to ensure reliable operation of the product
and to protect it from overheating. These openings must not be
blocked or covered. The openings should never be blocked by
placing the product on a bed, sofa, rug, or other similar surface.
This product should never be placed near or over a radiator or heat
register, or in a built-in installation unless proper ventilation is
provided.
7. This product should be operated from the type of power indicated
on the marking label. If you are not sure of the type of power
available, consult your dealer or local power company.
8. Do not allow anything to rest on the power cord. Do not locate this
product where persons will walk on the cord.
9. Never push objects of any kind into this product through cabinet
slots as they may touch dangerous voltage points or short out parts
that could result in a fire or electric shock. Never spill liquid of any
kind on the product.
CE MARK
This device complies with the requirements of the EEC directive
2004/108/EC with regard to “Electromagnetic compatibility” and
2006/95/EC “Low Voltage Directive”
FCC
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation
iv
CAUTION ON LITHIUM BATTERIES
There is a danger of explosion if the battery is replaced incorrectly.
Replace only with the same or equivalent type recommended by the
manufacturer. Discard used batteries according to the manufacturer’s
instructions.
Battery Caution
Risk of explosion if battery is replaced by an incorrectly type.
Dispose of used battery according to the local disposal instructions.
Safety Caution
Note: To comply with IEC60950-1 Clause 2.5 (limited power sources,
L.P.S) related legislation, peripherals shall be 4.7.3.2 "Materials for fire
enclosure" compliant.
4.7.3.2 Materials for fire enclosures
For MOVABLE EQUIPMENT having a total mass not exceeding
18kg.the material of a FIRE ENCLOSURE, in the thinnest significant
wall thickness used, shall be of V-1 CLASS MATERIAL or shall pass
the test of Clause A.2.
For MOVABLE EQUIPMENT having a total mass exceeding 18kg
and for all STATIONARY EQUIPMENT, the material of a FIRE
ENCLOSURE, in the thinnest significant wall thickness used, shall
be of 5VB CLASS MATERIAL or shall pass the test of Clause A.1
LEGISLATION AND WEEE SYMBOL
2012/19/EU Waste Electrical and Electronic Equipment Directive on the
treatment, collection, recycling and disposal of electric and electronic
devices and their components.
v
The crossed dustbin symbol on the device means that it should not be
disposed of with other household wastes at the end of its working life.
Instead, the device should be taken to the waste collection centers for
activation of the treatment, collection, recycling and disposal
procedure.
To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate this from other types of
wastes and recycle it responsibly to promote the sustainable reuse of
material resources.
Household users should contact either the retailer where they
purchased this product, or their local government office, for details of
where and how they can take this item for environmentally safe
recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract.
This product should not be mixed with other commercial wastes for
disposal.
vi
Revision History
Revision Date Description
V1.0 October, 2012
Release
i
Table Contents
1 Package Checklist .................................1
1-1 Standard Items .................................................................. 1
2 System View ............................................2
2-1 Front View........................................................................... 2
2-2 Side View............................................................................ 3
2-3 Rear View ........................................................................... 3
2-4 Bottom View....................................................................... 4
2-5 Dimension.......................................................................... 4
3 System Assembly ....................................5
3-1 SSD Card Replacement..................................................... 5
4 Peripheral Installation ...........................6
4-1 Phone module Installation................................................ 6
4-2 Arm Installation ................................................................. 7
5 Specification ...........................................8
6 Jumper Settings ................................... 10
6-1 C43 motherboard layout .................................................10
6-2 Connectors & Functions..................................................11
6-3 Jumper Setting.................................................................13
7 Drivers Installation .............................. 15
1
1 Package Checklist

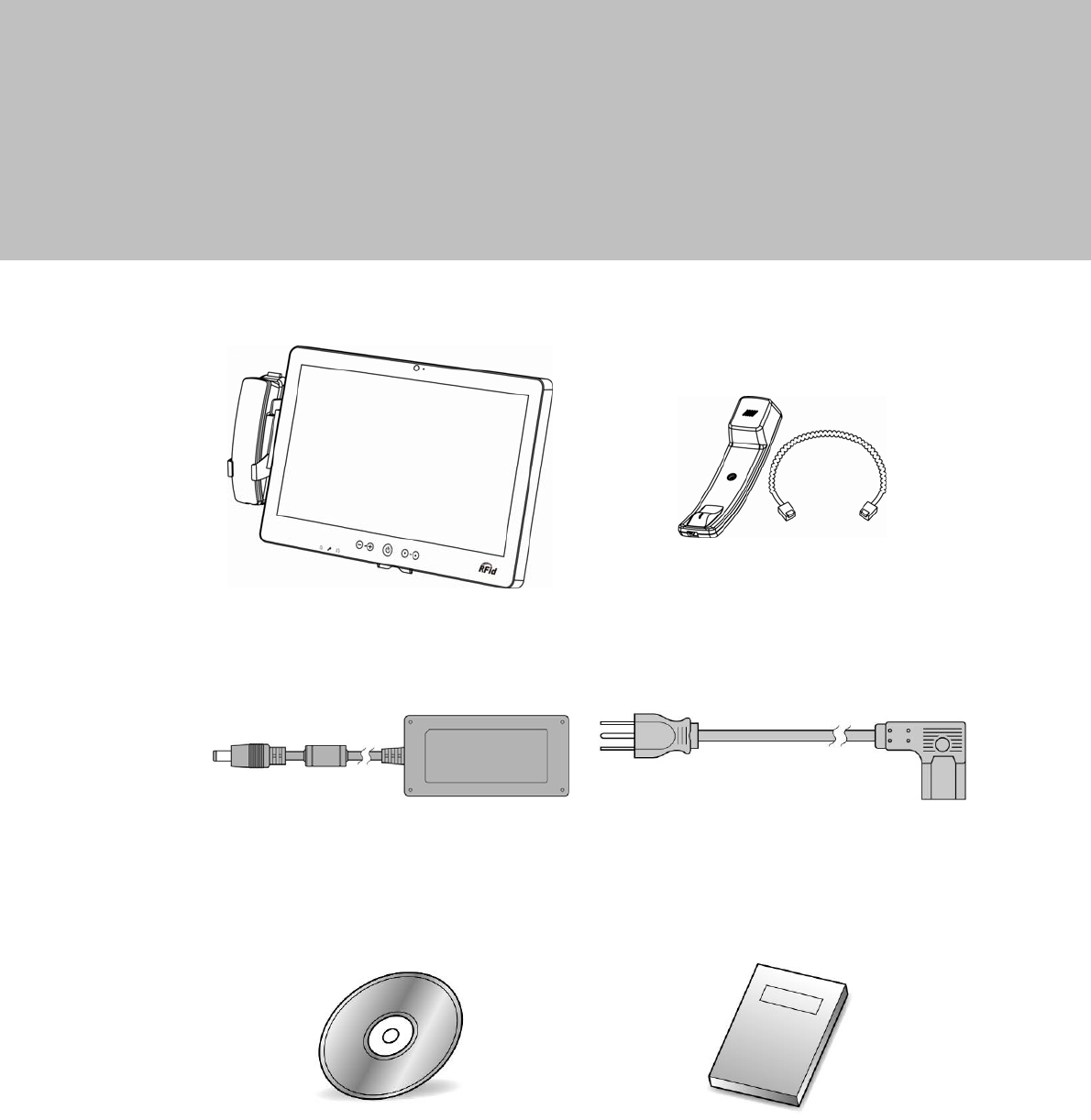

1-1 Standard Items
a. System b. Phone module
c. Power adapter d. Power cable
e. Driver CD f. Manual
2
2 System View
2-1 Front View
`

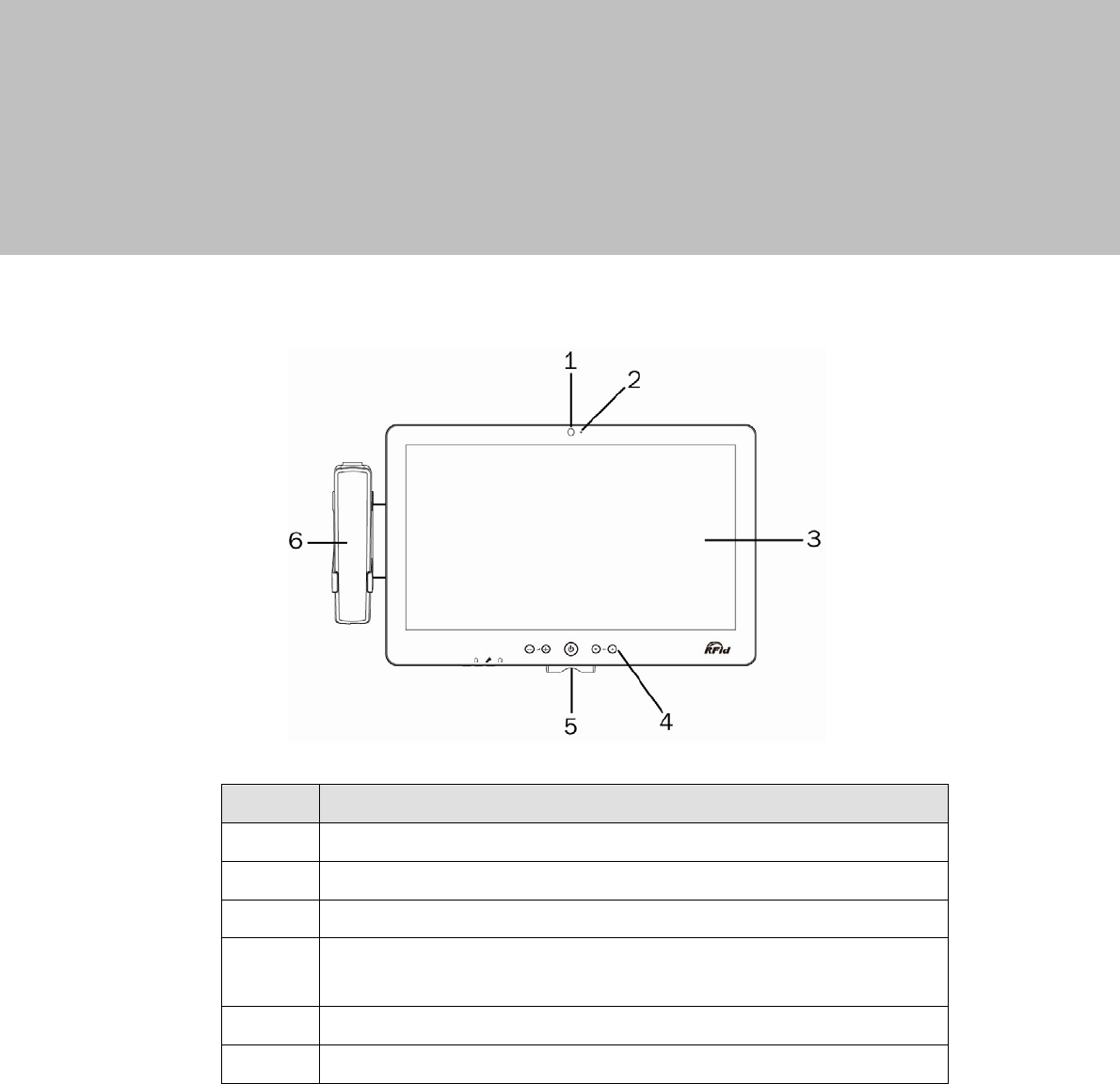

Number Description
1 Build-in camera
2 Camera LED
3 Touch screen
4 Touch keys (from left to right: volume down, volume up, power
button, channel down, channel up)
5 Smart IC card reader
6 VOIP phone (optional)
3

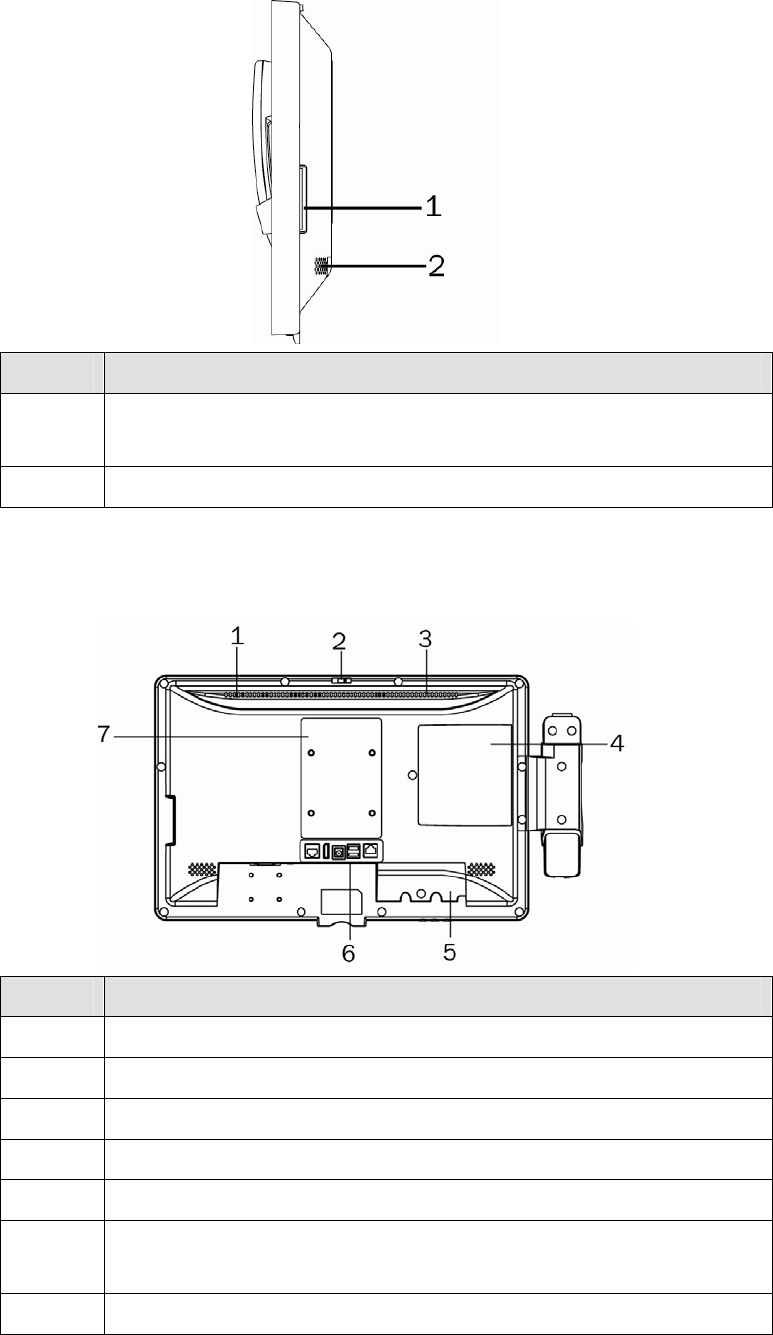

2-2 Side View
Number Description
1 Combo smart IC card reader with separate RFID antenna
(optional)
2 Speaker
2-3 Rear View
Number Description
1 Light Sensor
2 Webcam switch
3 Ventilation
4 SSD card door
5 Cable cover
6 Vertical I/O port (from left to right: Nurse call, Display port, DC
jack, USBx2, LAN )
7 VESA hole for wall-mount kit installation
4

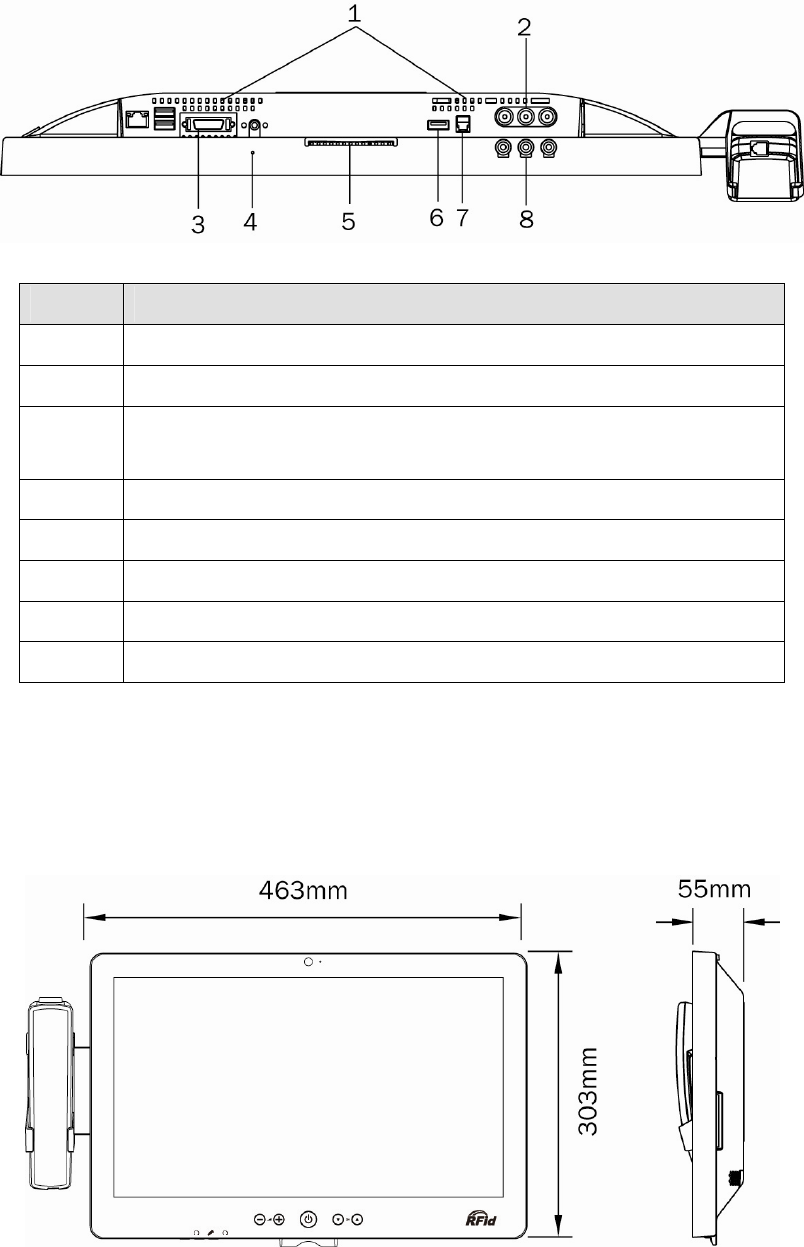

2-4 Bottom View
Number Description
1 Ventilation
2 From left to right: Video in, Audio left, Audio right (optional)
3 Bottom I/O port (from let to right: LAN, USBx2, Remote, Power
button)
4 Microphone
5 Smart IC card reader
6 USBx1
7 Phone jack (RJ11)
8 From left to right: Audio line-out, Mic-in, Audio line-out
2-5 Dimension
5
3 System Assembly

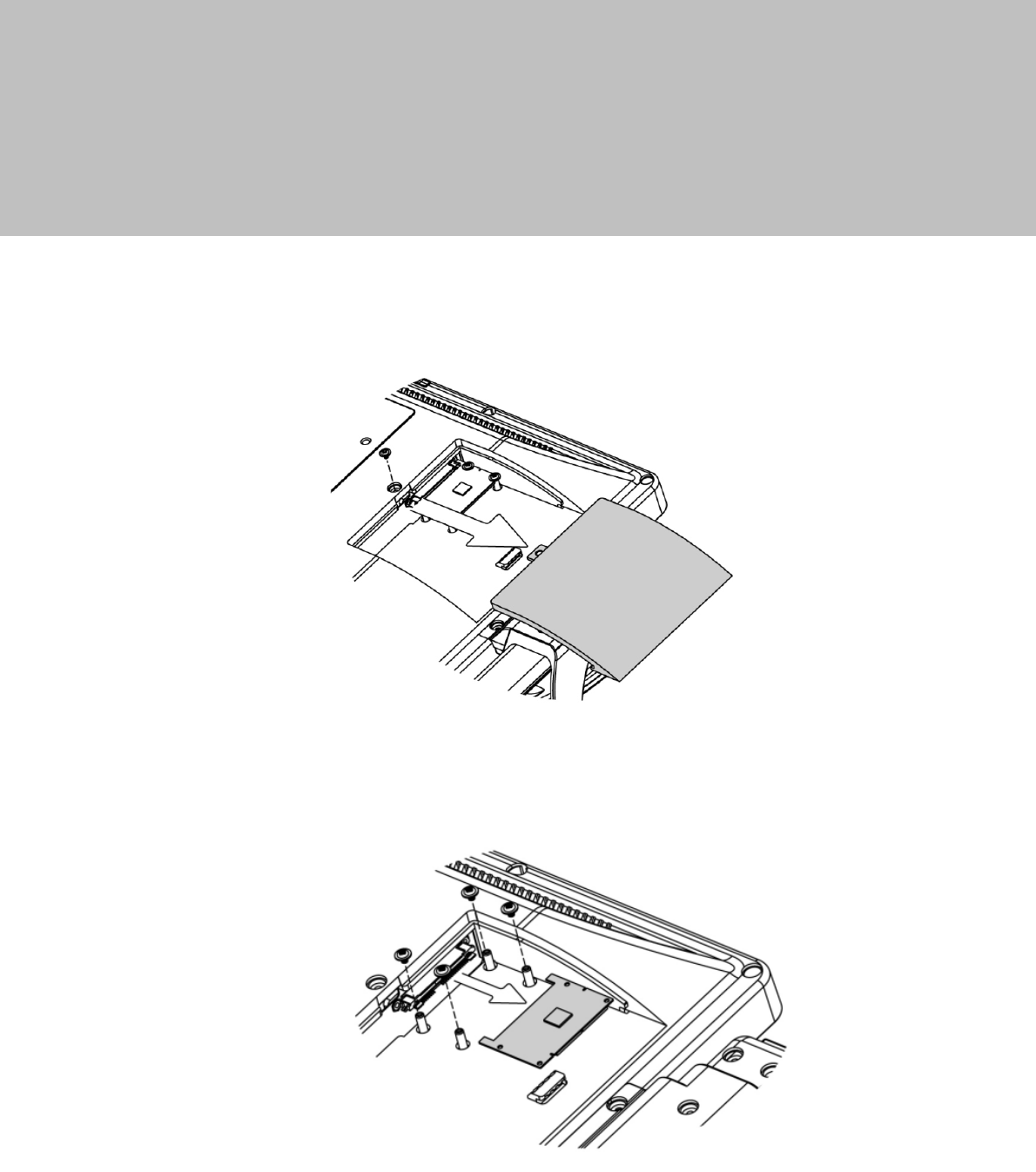

3-1 SSD Card Replacement
1. Find the SSD card door at the rear right side of the system and remove the
screws(x1)
2. To replace the SSD card, remove the screws (x4) and push the SSD card
outwards as shown in the picture.
6
4 Peripheral Installation

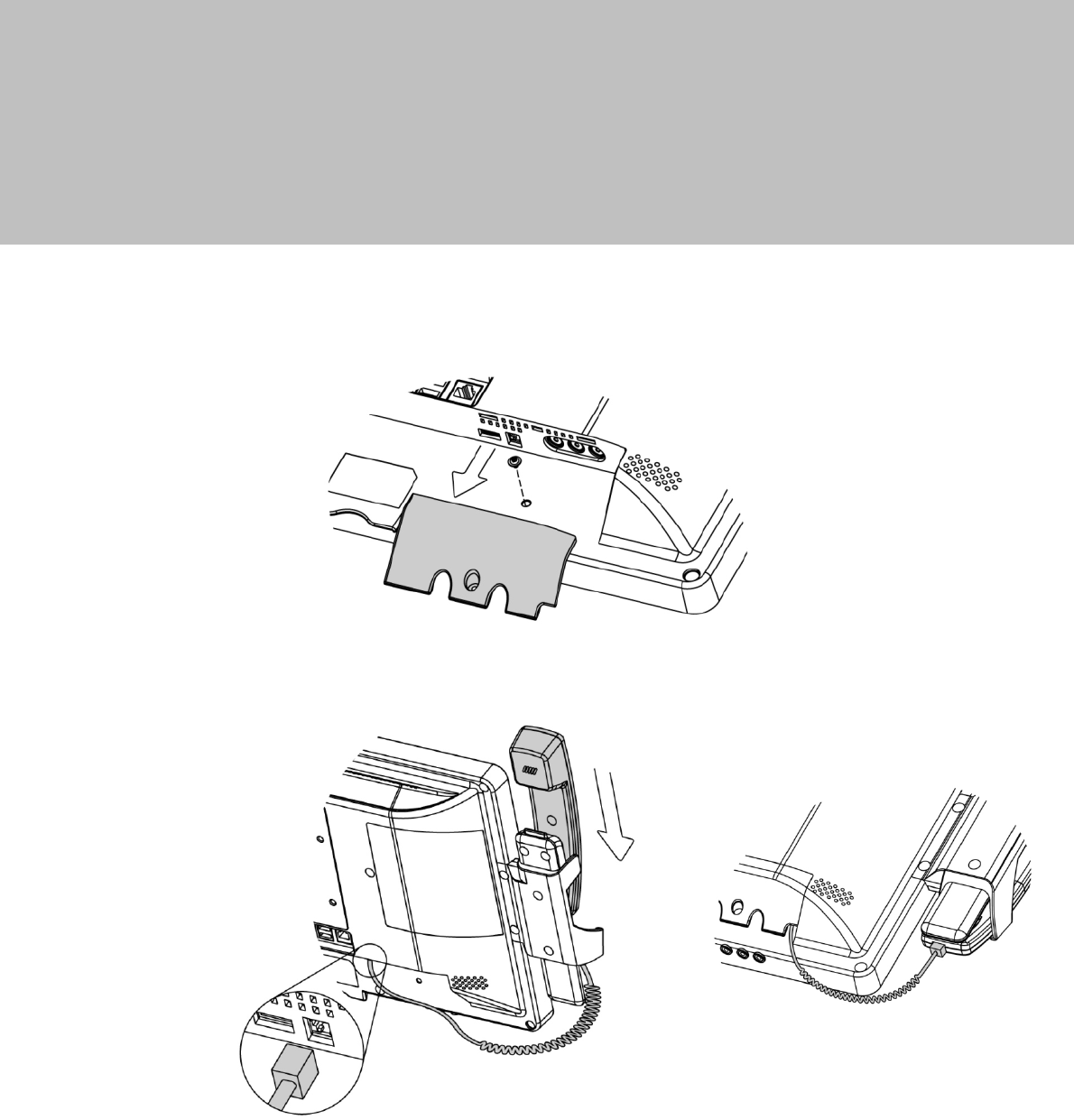

4-1 Phone module Installation
1. Loosen the screw(x1) to open the cable cover.
2. Slide the phone module into the phone holder and connect the other end of
the phone cable to the connector on the system.
7

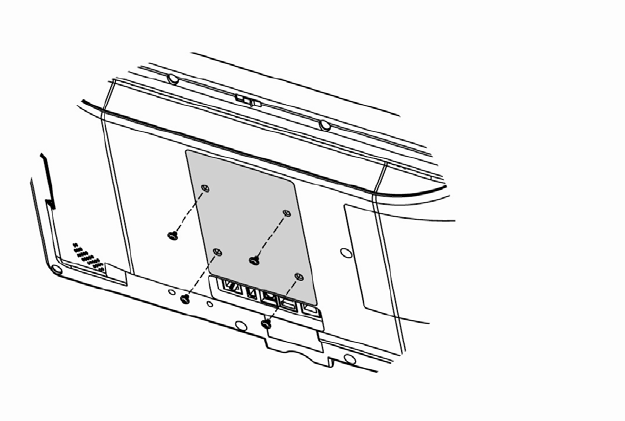

4-2 Wall Mount Installation
1. Connect the cables to the system.
2. Fasten the screws.(monitor screwx4)
Note: For use only with UL listed wall mount bracket with minimum support weight/load: 5.2kg
8
5 Specification
Model PA79
Motherboard C43
Processor Pineview D525
Core Logic CPU with Graphic built-in + ICH 8M
System Memory 2 x DDR3 SO-DIMM slot up to 4GB FSB800Mhz
Graphic Memory Intel GMA 3150 share system memory up to 256MB
LAN Controller / PHY Intel WG82583V / Intel WG82567V
Audio Controller Realtek ALC 662-GR HD codec
I/O Controller Winbond W83627UHG
Touch TF P-cap 18.5"
Camera LED Green-color (GPIO)
Microphone 1
Power LED Tri-color (GPIO)
Watch Dog Timer Hardware WDT
Display Size 18.5"
Resolution 1366x768
Brightness 250 nits
DC-In 19V
Storage
HDD 1x SSD
Expansion
Mini PCI e 2 x PCI-e full size slot
Side I/O (Back-Left)
Smart IC Card Reader (optional) 1
Rear I/O (Left)
LAN (2nd LAN) 1xRJ45 (with 10/100/1000,LED indicator)
USB 2 (USB 2.0)
Remote 1x SCSI 26pin
Reset Button 1, button can be pressed by probe
Power Button 1
Rear I/O (Right)
Composite Video Video in, Audio Left, Audio Right
Line-out 2 (Auto-detect,GPIO), in external IO
9
Model PA79
Motherboard C43
Mic-In 1 (Auto-detect,GPIO), in external IO
Vertical I / O
LAN 1 x RJ45 (with 10/100/1000)
Power DC Jack
Display Port 1
USB 2 (USB 2.0)
Nurse Call 1 x RJ48
Touch Keys
Power Button 1xPower button (GPIO)
Channel Adjustment 1xChannel up, 1xChannel down (GPIO)
Volume 1xVolume up, 1xVolume down (GPIO)
Environment
EMC & Safety FCC Class B, CE, LVD / UL60950 / EN60601
Environment
Operating Temperature 0°C ~ 35°C (32°F ~ +95°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Humidity 20% - 85% RH non condensing
Weight
Weight 5Kgs
Operating System
OS Support Windows Embedded POSReady7, Windows 7, Linux
Communication & Peripherals
Speaker 2x3W
Build In Microphone In the bottom side
Webcam 5M web cam (USB interface) with webcam door (w/ fly LED cable
to MB & control by GPIO)
VOIP Phone (Front left) Handset module (optional)
Smart IC Card Reader Comply with ISO 7816-1,2,3,T=1 and T=0 protocol
Combo Smart IC Card Reader
(optional) with separate RFID
antenna in the front bezel
Comply with ISO 7816-1,2,3,T=1 and T=0
Support MIFARE, MIFARE+ ,Desfire, PC/SC 2.0, HID
Light Sensor Yes (GPIO)
TV Tuner & DVD Maker Card Mechanical reserved
10
6 Jumper Settings

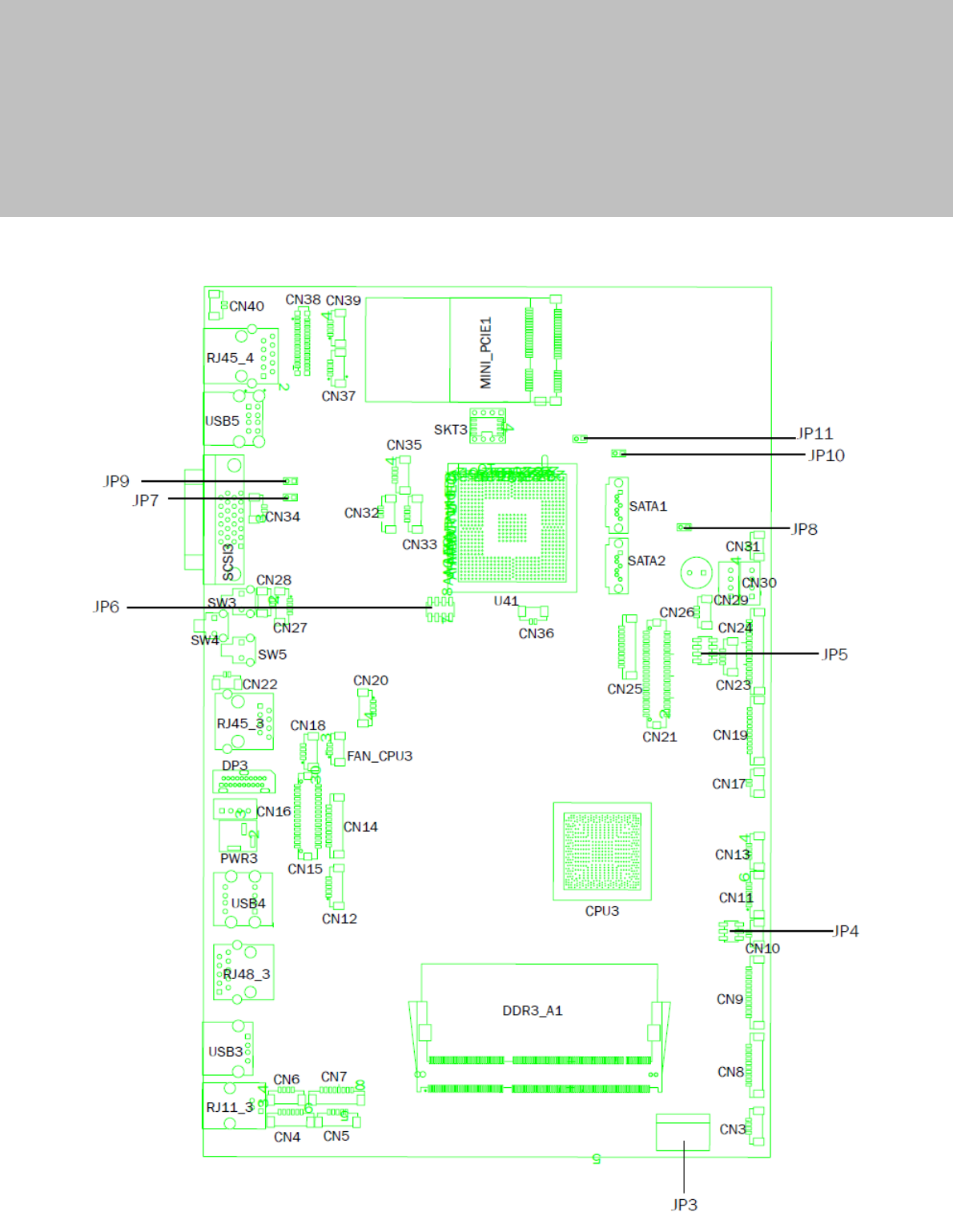

6-1 C43 motherboard layout
11
6-2 Connectors & Functions
Connector Function
CN3 USB Port For Web Cam
CN4 Speaker & MIC
CN5 Cradle
CN6 Speaker
CN7 Audio Jack (Line out & MIC)
CN9 Inverter
CN10 Build-In MIC
CN12 Nurse Call Button
CN14 Membrane
CN15 30P All-In-One (Membrane, 2D scanner, RFID, Smart
card, Audio Jack)
CN17 Nurse Call LED Power
CN18 Audio Jack (Line Out)
CN19/JP5 System Indicator
CN20 IrDA
CN21 LVDS
CN22 Power LED
CN23 PS/2 Keyboard
CN24 MSR
CN25 COM1
CN26 System FAN
CN27 MIC for AEC
CN28 Power Button
CN29/30 SATA Power
CN31 HDD LED
CN32/35 Internal USB
CN33 USB Port For DVD Dong
CN34 LAN2 LED
CN36 Battery
CN37 USB Port For RFID
CN38 2D Scanner
CN39 USB Port For Smart Card
CN40 LAN1 LED
DP3 DVI
PWR3 +19V DC Jack
RJ11_3 Handset
RJ45_3 LAN2
RJ45_4 LAN1
12
Connector Function
RJ48_3 Nurse Call
SATA1/2 SATA
SCSI_3 Remote Control
USB3 USB3
USB4 USB1, USB2 of HUB
USB5 USB1, USB2
JP3 Touch
JP4 Inverter Selection
JP6 LCD ID Setting
JP7 MCU Power Button
JP8 Power Mode Setting
JP9 MCU Mode Setting
JP10 System Reset
JP11 CMOS Operation Mode
13
6-3 Jumper Setting

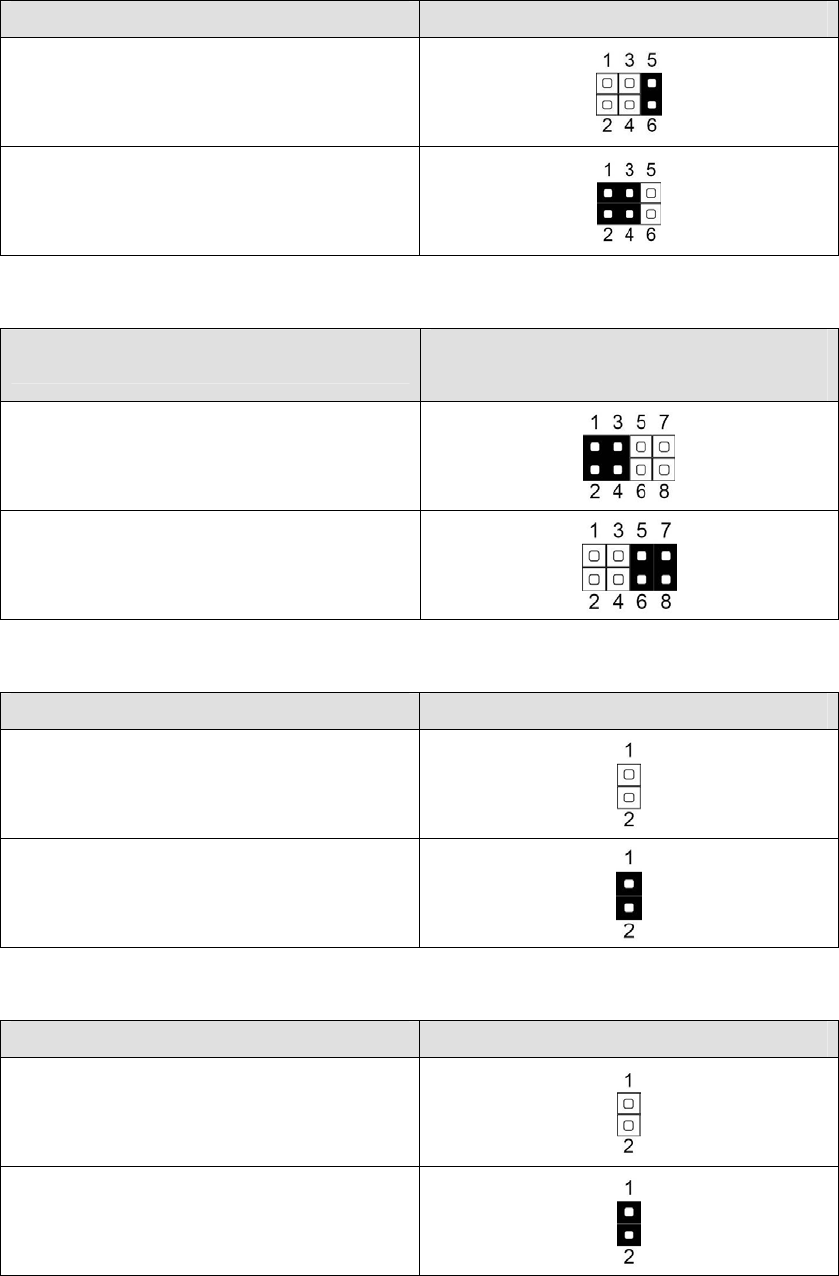

Inverter Selection
Function JP4 (1-2) (3-4) (5-6)
CCFL
▲LED
System Indicator
Function JP5
(1-2) (3-4) (5-6) (7-8)
▲Disable
Enable
MCU Power Button
Function JP7 (1-2)
Disable
▲Enable
Power Mode Setting
Function JP8 (1-2)
▲ATX Power
AT Power
14
MCU Mode Setting
Function JP9 (1-2)
▲Normal
ISP Debug
System Reset
Function JP10 (1-2)
▲System Normal
System Reset
CMOS Operation Mode
Function JP11 (1-2)
▲CMOS Normal
CMOS Reset
▲ = Manufacturer Default Setting
Note:
OPEN SHORT
15
7 Drivers Installation
The shipping package includes a Driver CD. You can find every individual driver and
utility that enables you to install the drivers in the Driver CD.
Please insert the Driver CD into the drive and double click on the “index.htm” to
pick up the models. You can refer to the drivers installation guide for each driver in
the “Driver/Manual List”.
