1

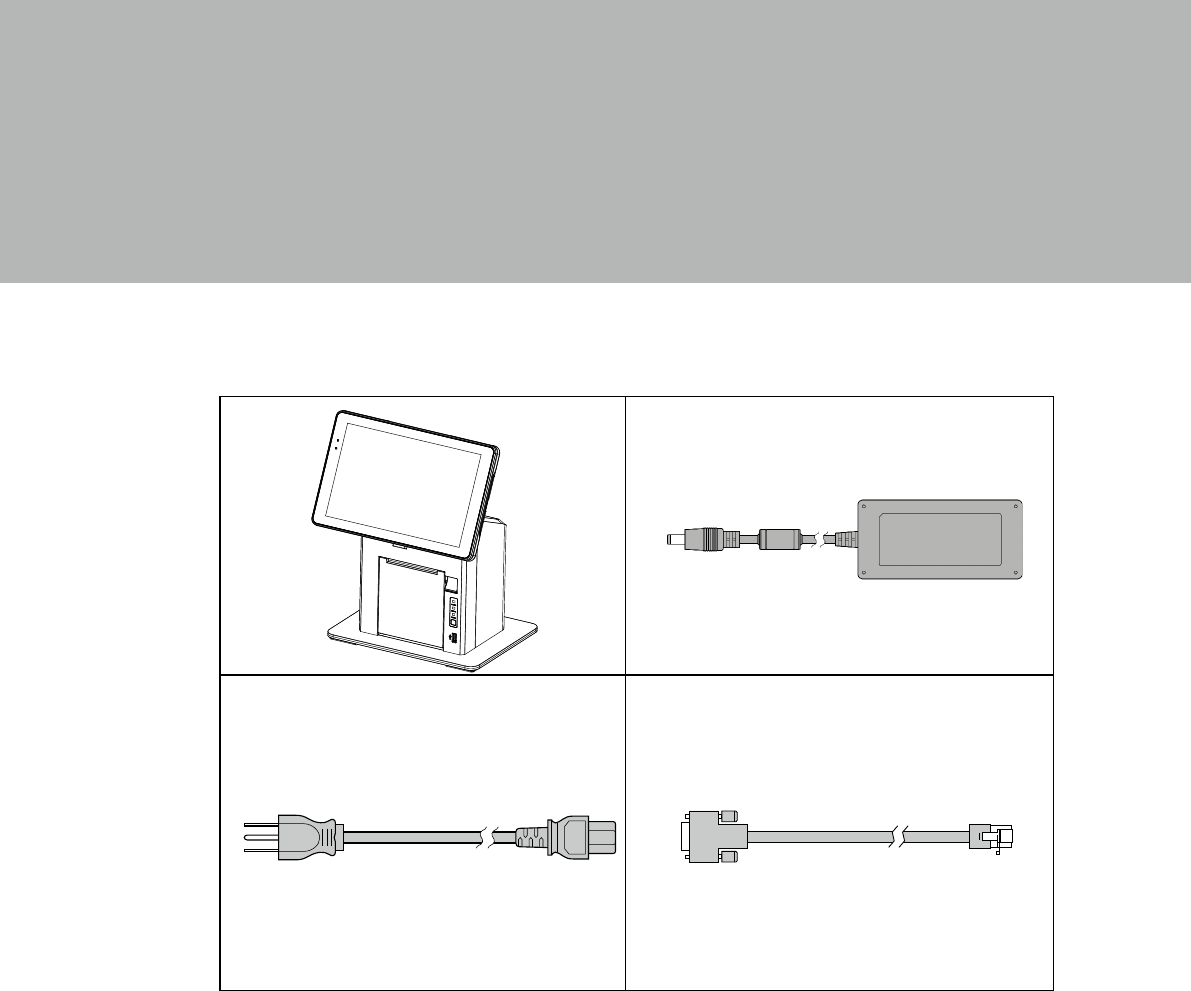

1. Packing List
1-1. Standard Accessories
a. T635M System
b. Power adapter
c. Power cord
d. RJ45-DB9 cable (x2)
2
2. System View

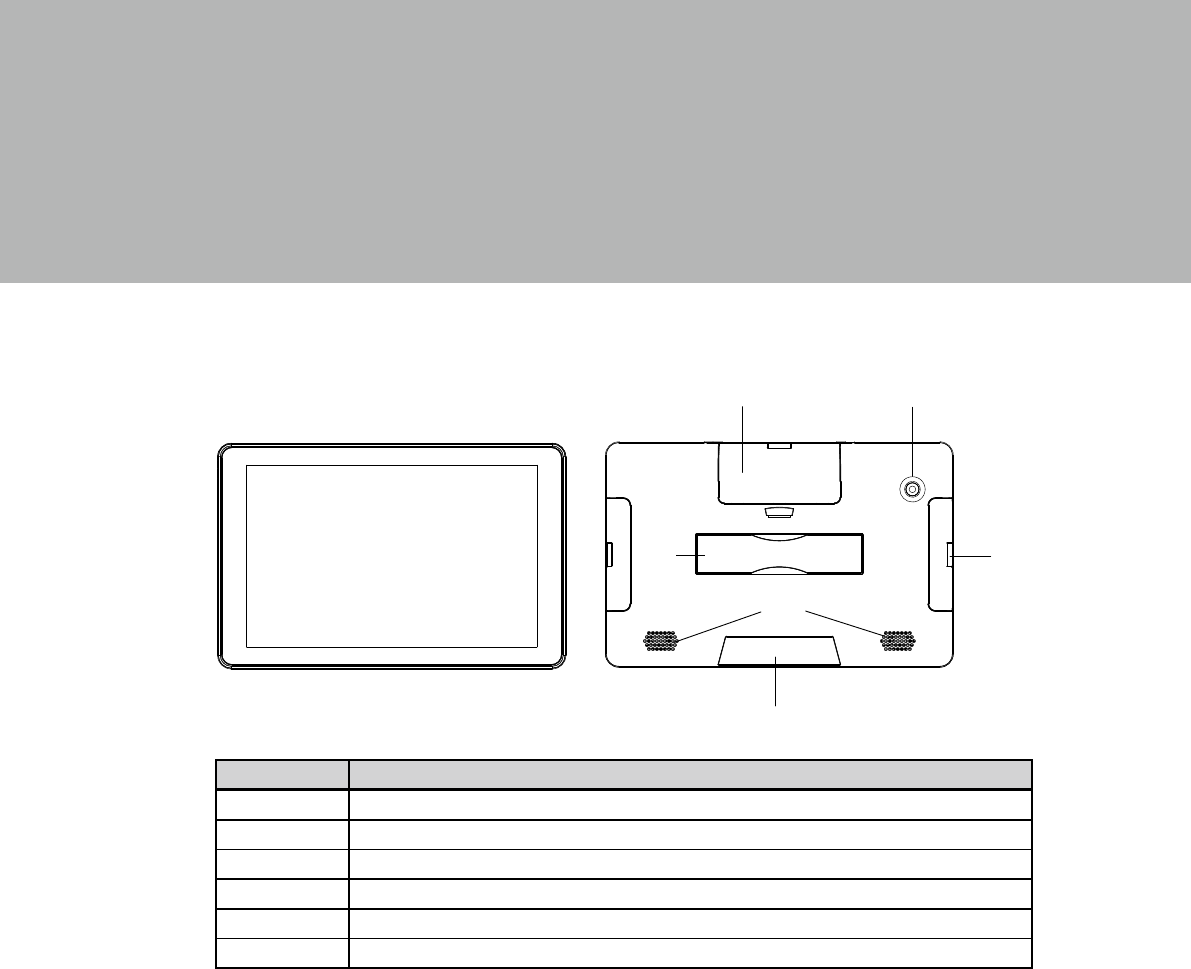

2-1. Touch Panel
Item No. Description
1 Expansion dummy cover
2 Camera hole
3 Hand strap
4 Speaker
5 Charging slot
6 Expansion dummy cover
1 2
3
4
5
6
3
2-2. Touch Pamel with Printer Stand
Item No. Description
1 Touch panel
2 Lock button of printer stand
3 Thermal printer
4 Release button
5 Printer indicator (power, error, and paper) & Paper feed button
6 USB
7System box
(IO board and thermal printer inside)
1
2
4
35
6
7
4

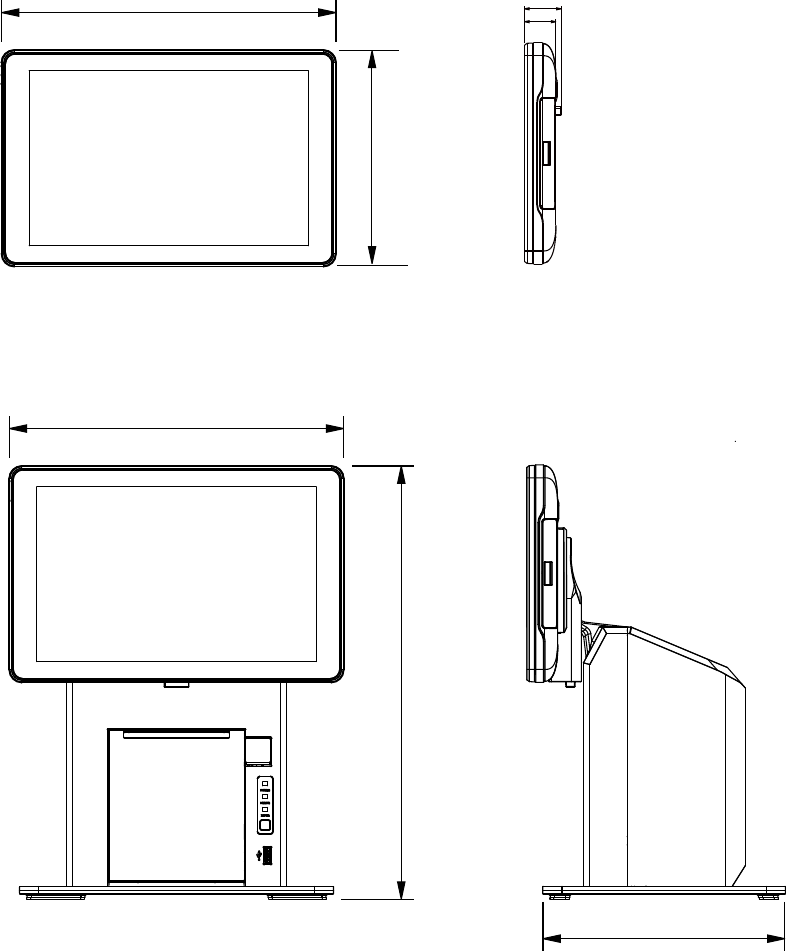

2-3. Dimensions
164 mm
28 mm
338 mm
261 mm
188.9 mm
261 mm
24 mm
5
2-4. IO Port View

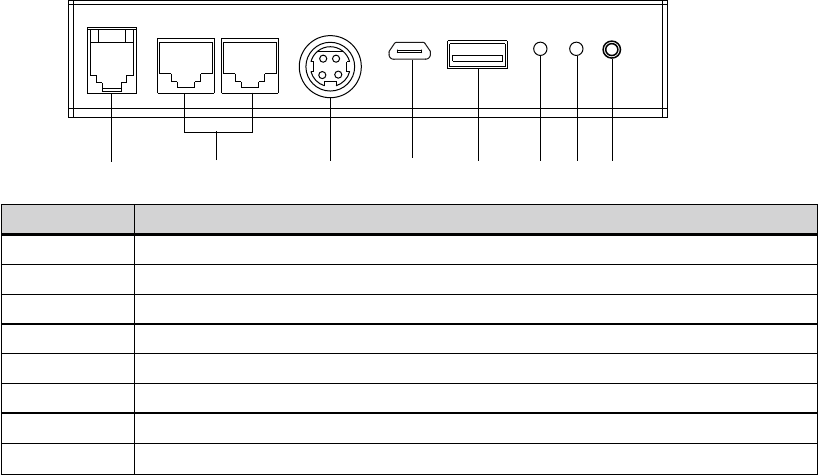

Item No. Description
a Cash drawer
b COM2/COM1
c DC 19V in
d Micro USB
e USB 2.0
f LED(power)
g LED(paring)
h Paring button
abcdefgh
6
3. System Assembly & Disassembly
3-1. Install Touch Panel to Printer Stand

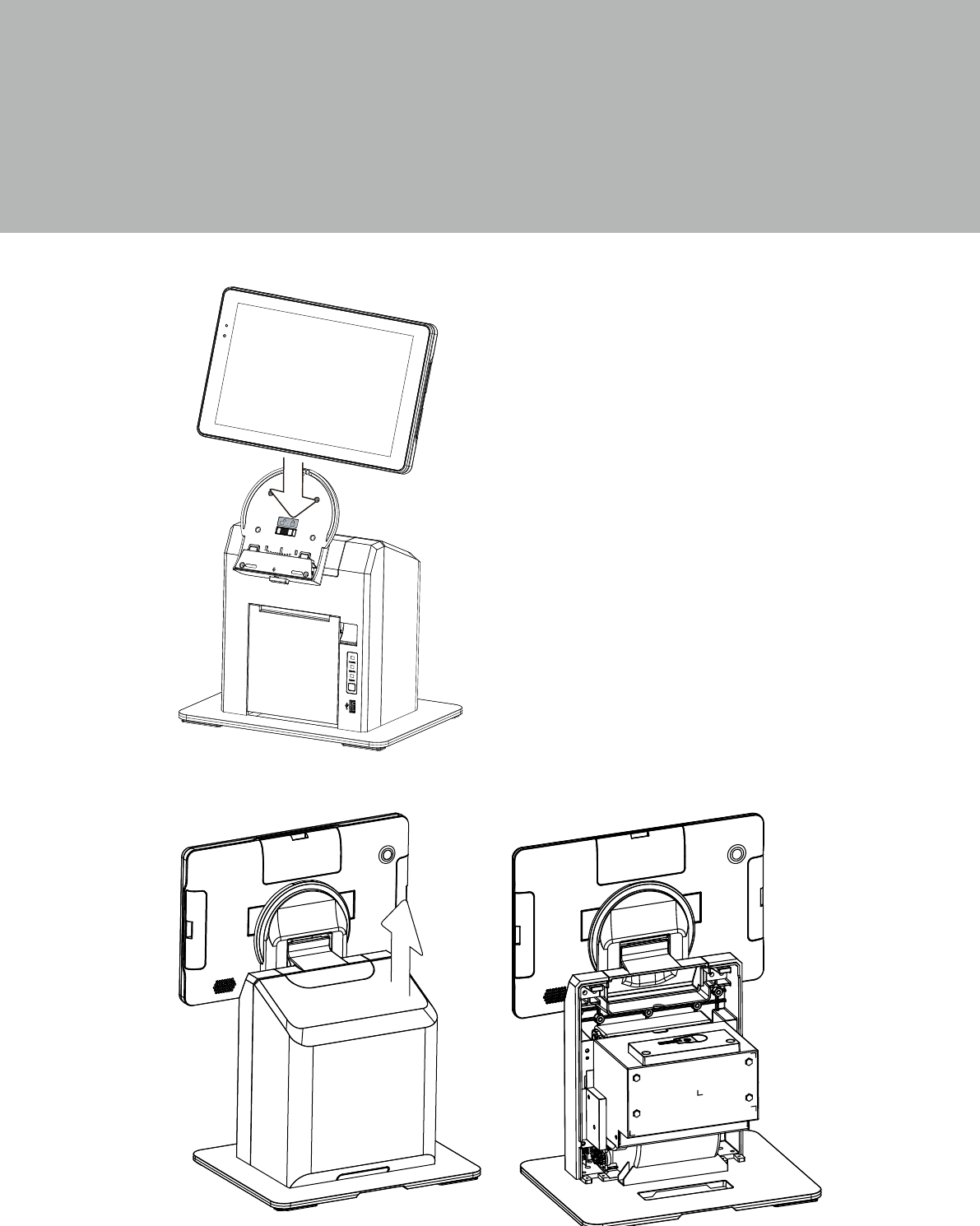

1. Directly put the touch panel into the
cradle of printer stand.
3-2. Install the Power Adapter

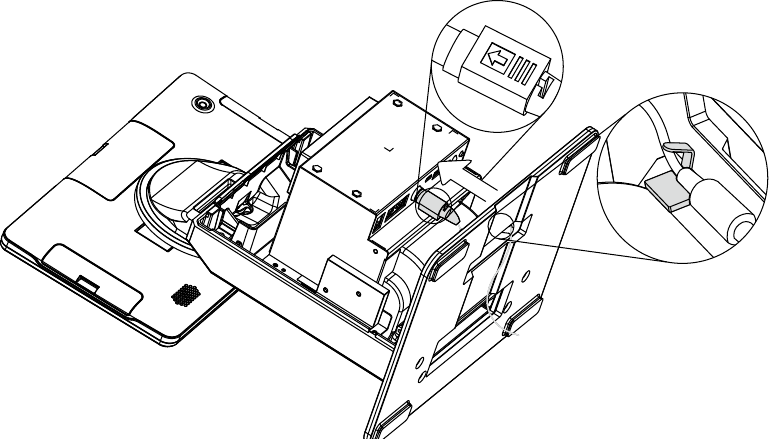

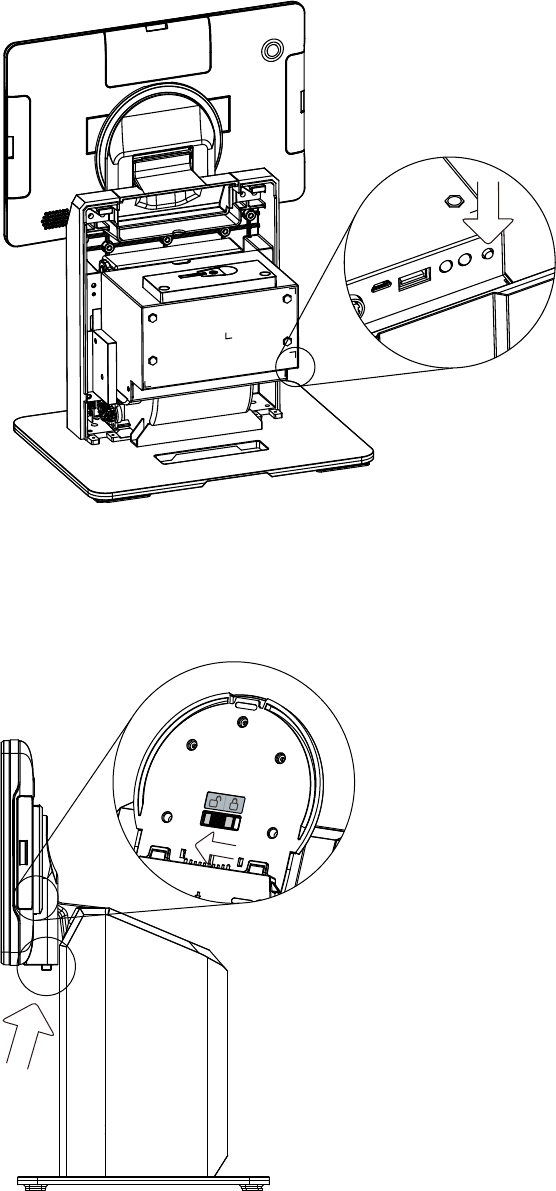

1. Use both hands to pull the cover of the system box upward to release the
cover from the system box.
7
2. Place the system face down to access the bottom of the stand.
3. Thread the power adapter cable through the hole of the stand as shown in the picture.
4. Find the power connector on the right of the I/O panel (refer to chapter 2-4 c.) and
connect the power adapter to the DC-IN connector.
5. Finally arrange and x the cable by using the hook as shown in the picture.
Warning:
• Please follow the direction to plug the adapter and make sure it is fully connected
into the I/O port.
• When attaching or detaching the cable, do so by holding the connector, not the
cable itself.
• DO NOT pull or rotate the cable which may cause damage to the tting.
8
3-3. Connect iPad Jacket to Printer Stand
1. After the power adapter is installed,
remember to push the paring button
on the IO port so that the touch panel
and the printer stand will be connected.
3-4. Remove Touch Panel from Printer Stand
1. Push the release button on the
printer stand and then pull the touch
panel upward to release it from the
printer stand.
* Please note you can remove the touch
panel from the printer stand only on the
condition that the switch panel on the
printer stand shows "unlock". See the
enlarged part in the picture.
9

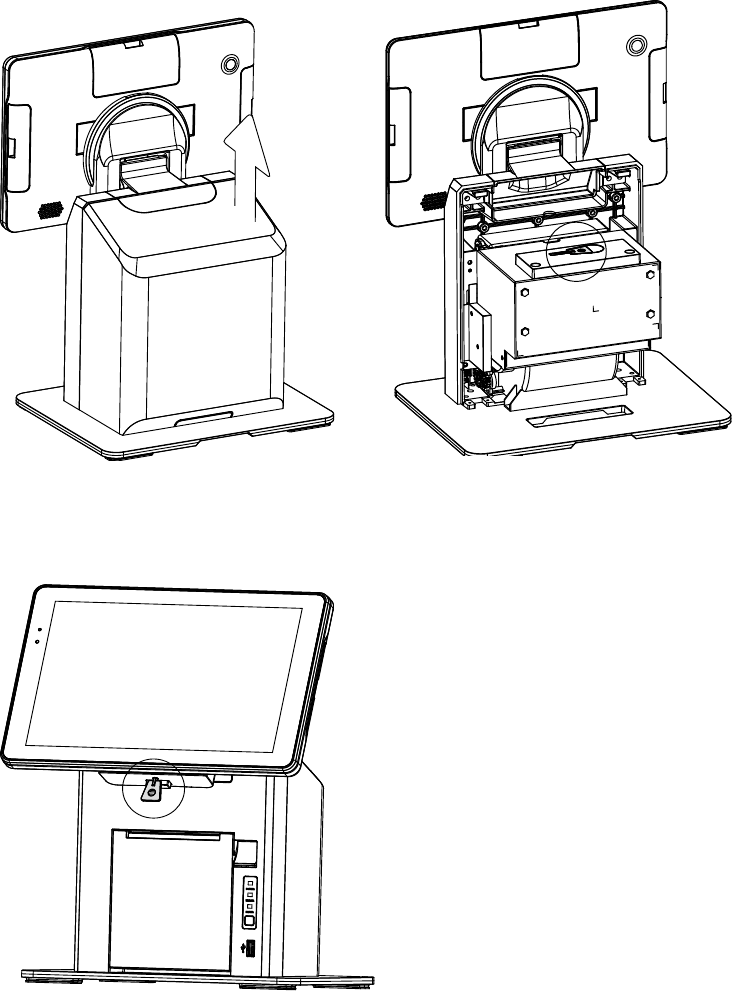

1. Open the cover of the system box.
2. You will nd the key on the top of the printer.
When the switch panel on the printer stand shows “Lock“, you can not push the
release button to remove the iPad Jacket. Use the provided key or APP to unlock
printer stand. Please follow the below steps:
3. Insert the key and then pull the touch
panel upward to release it from the
printer stand.
• Manually unlock
10

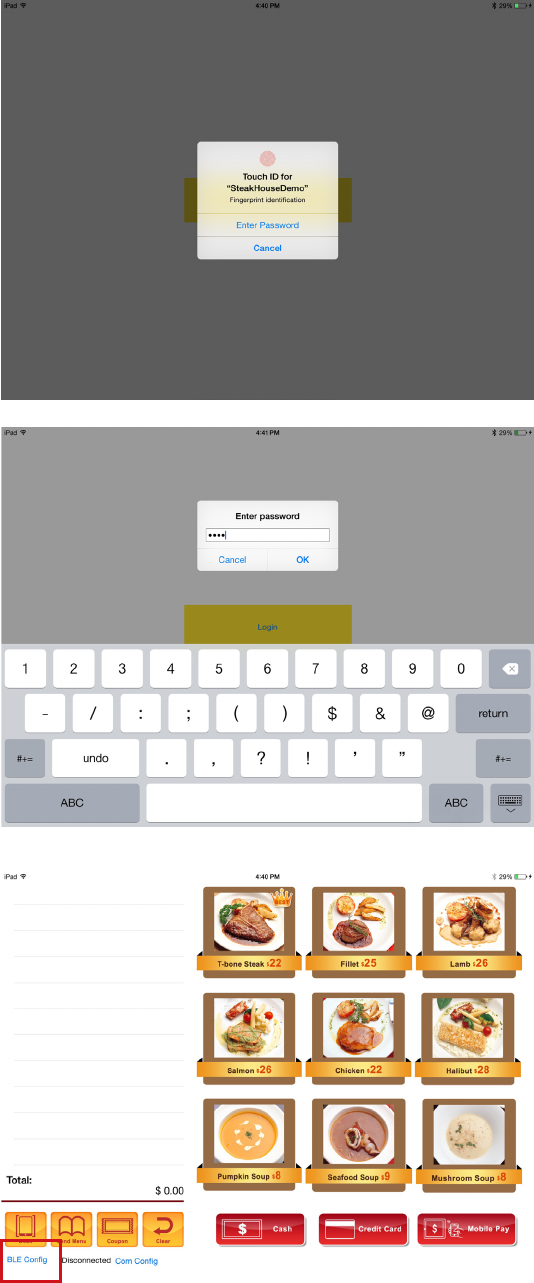

1. Use the Touch ID to login the APP
program.
2. Enter password to login the APP
program if the device is not equipped
with the fingerprint sensor. Default
password:1234.
3. Click "BLE Cong".
• APP unlock (demo APP)
11

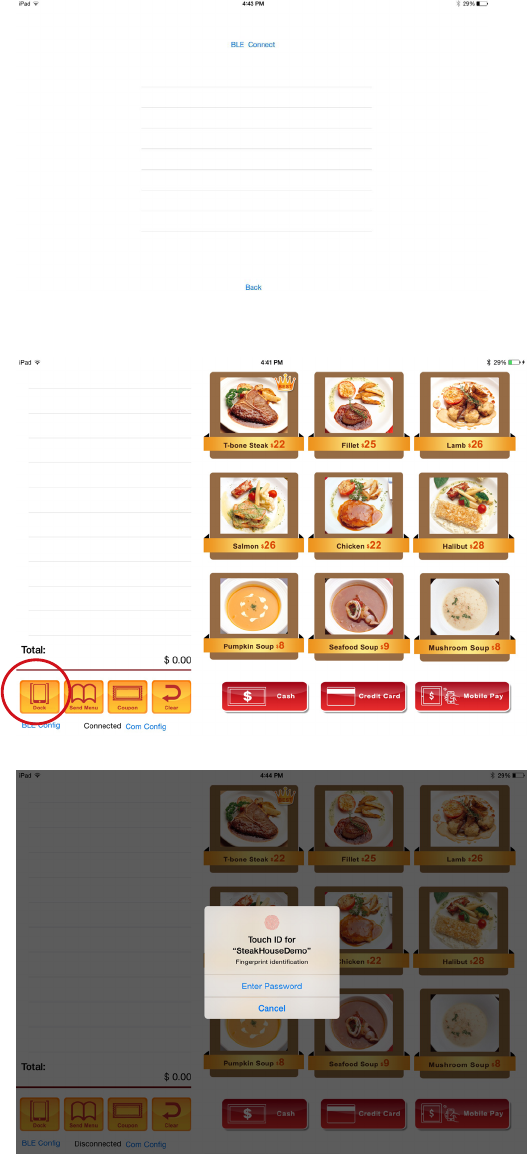

4. Click the device to connect.
5. The BLE is now connected, then click
"DOCK"
5. Use the Touch ID or enter the
password to login again.
6. Now the device is unlock, push the
lock button to release the iPad Jacket
from the printer stand.
12
3-5. Load the Thermal Printer Paper
Note: Do not switch off the system. The printer must be powered on when
replacing the printer paper.
1. Press the button at the right side to
open the thermal printer module.
*Cut away the first five (5) cm of
the paper, to obtain a straight
edge and remove the label at the
end of the roll.
2. Place the paper roll inside the
printer slot, pull out a 2 or 3 cm
length and then close the cover.
3. The paper will feed automatically
through the printer (the system
must be powered on).
13
4. Specications
Model T635M
CPU support Baytrail - T CR Z3735F
System memory 2G / 32G / Windows (TBD)
1G / 16G / Android (TBD)
LCD touch panel
LCD size 10.1
Maximal resolution 1280 x 800
Touch screen type P-CAP 5 points Multi-touch
Wireless communication
Wireless LAN 802.11 a/b/g/n , 2.4G / 5GHz
Bluetooth 4.0+LE (Class 2, 10 meters)
Cellular Network 3G/LTE (Option)
NFC NFC reader I2C MSN09 40x50 W/NXP NPC100 antenna module
(SM-MSN09-C03) smart appr
Expansion I/O ports
DC input 8 pad
Audio
Built in speaker 1W x 2
Battery & Power
Battery 4100 mAh, 3.7V, 15.1 Wh, Battery life 4hr
Power adapter 90W/19V
Control / Indicator
Power button 1
Sensor G-sensor
LED Indicator 1 (Battery status indicator)
Peripherals
Rear Camera 5MP
Built- in hand strap 1
EMV certied module MSR/ smart card reader combo module (Option)
Docking Station
I/O board USB I/O Board ,BT I/O Board , 4 COM I/O Board
Environment
Sealing IP54 (Display side)
EMC & Safety FCC Class B / CE Mark / LVD / SAR
Operating temperature 0°C ~ 35°C (32°F ~ 95°F)(charging mode)
0°C ~ 40°C (32°F ~ 104°F)(none charging mode)
Storage temperature -10°C ~ 45°C (14°F ~ 114°F)
Humidity 20% ~ 85% RH non condensing
ESD Tablet: 8kV Contact discahrge, 15kV Air dischargeDocking station: 4kV Contact
discahrge, 8kV Air discharge
Dimension (W x D x H) 261 x 169 x 24.0mm (10.3” x 6.7” x 0.94”)
Weight (N.W./G.W.)
OS support Window 8.1 with Bing / Windows 8.1 Industry Pro / Android 4.4.4
* This specication is subject to change without prior notice.
14
5. Jumper Settings
2
1 3
4
Cash Drawer Power Setting
Function JP2
+12V
▲+24V
COM Power Setting
Function JP3
▲+0V
+5V
+12V
▲ = Manufacturer Default Setting
2
1
Jumper open 2
1
Jumper short
2
1 3
4
2
1 3
4
2
1 3
4
2
1 3
4
15
Appendix: API Information
Please contact your service provider for more detailed informaiton on software
porting guide.
