FLYTECH TECHNOLOGY P263L31 Mobile PC User Manual POS260 D31L User Manual V1 0

FLYTECH TECHNOLOGY CO., LTD Mobile PC POS260 D31L User Manual V1 0

Users Manual

Version 1.0 August 2015
POS260 Series
Model:P263/P265
Mobile PC
USER MANUAL
ii
Copyright
Copyright 2015
All Rights Reserved
Manual Version 1.0
The information contained in this document is subject to change without notice.
We make no warranty of any kind with regard to this material, including, but not limited to,
the implied warranties of merchantability and fitness for a particular purpose. We shall
not be liable for errors contained herein or for incidental or consequential damages in
connection with the furnishing, performance, or use of this material.
This document contains proprietary information that is protected by copyright. All rights
are reserved. No part of this document may be photocopied, reproduced or translated to
another language without the prior written consent of the manufacturer.
TRADEMARK
The material in this manual is subject to change without notice.
Bluetooth is a registered trademark of Bluetooth SIG.
Microsoft®, Windows® and ActiveSync® are either registered trademarks or trademarks
of Microsoft Corporation.
All other product or service names are the property of their respective owners.
iii
Safety
Regulatory Information
Caution: Only use approved and UL Listed accessories, battery packs and battery
chargers. Do NOT attempt to charge damp/wet mobile computers or batteries. All
components must be dry before connecting to an external power source.
Power Supply
Use only the approved power supply 50-14000-148 output rated 5 Vdc and minimum 2 A.
The power supply is certified to EN60950-1 with SELV outputs. Use of alternative power
supply will invalidate any approval given to this device and may be dangerous.
Warning for Use of Wireless Devices
Please observe all warning notices with regard to the usage of wireless devices.
Potentially Hazardous Atmospheres
You are reminded of the need to observe restrictions on the use of radio devices in fuel
depots, chemical plants etc. and areas where the air contains chemicals or particles
(such as grain, dust, or metal powders)
and any other area where you would normally be advised to turn off your vehicle engine.
Safety in Aircraft
Switch off your wireless device whenever you are instructed to do so by airport or airline
staff.
Pacemakers
Pacemaker manufacturers recommended that a minimum of 15cm (6 inches) be
maintained between a handheld wireless device and a pacemaker to avoid potential
interference with the pacemaker. These recommendations are consistent with
independent research and recommendations by Wireless Technology Research.
Persons with Pacemakers
Persons with Pacemakers should ALWAYS keep the device more than 15cm (6 inches)
from their pacemaker when turned ON and hence they should not carry the device in a
breast pocket .
Should use the ear furthest from the pacemaker to minimize the potential for
interference.
If you have any reason to suspect that interference is taking place, turn OFF your device.
iv
Hearing Aids
The wireless device may interfere with some hearing aids. In the event of interference
you may want to consult your hearing aid supplier to discuss solutions.
Other Medical Devices
Please consult your physician or the manufacturer of the medical device, to determine if
the operation of your wireless product may interfere with the medical device.
FCC/EU RF Exposure Guidelines
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This device complies with FCC SAR exposure limits set forth for an uncontrolled
environment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Caution!
Any changes or modifications not expressly approved by the party responsible for
compliance could void t he user's authority to operate the equipment.
v
CE Marking and European Economic Area
The use of 2.4GHz RLAN's, for use through the EEA, have the following restrictions:
Maximum radiated transmit power of 100 mW EIRP in the frequency range
2.400 -2.4835 GHz
France, outside usage is restricted to 2.4 - 2.454 GHz.
Italy requires a user license for outside usage.
Bluetooth® Wireless Technology for use through the EEA has the following restrictions:
Maximum radiated transmit power of 100mW EIRP in the frequency range
2.400 -2.4835 GHz
France, outside usage is restricted to 10mW EIRP
Italy requires a user license for outside usage.
Battery Information
Our rechargeable battery packs are designed and constructed to the highest standards
within the industry.
However, there are limitations to how long a battery can operate or be stored before
needing replacement.
Many factors affect the actual life cycle of a battery pack, such as heat, cold, harsh
environmental conditions and severe drops.
When batteries are stored over six (6) months, some irreversible deterioration in overall
battery quality may occur. Store batteries discharged in a dry, cool place, removed from
the equipment to prevent loss of capacity, rusting of metallic parts and electrolyte
leakage. When storing batteries for one year or longer, they should be charged and
discharged at least once a year. If an electrolyte leakage is observed, avoid any contact
with affected area and properly dispose of the battery. Batteries must be charged within
the 32° to 95° F (0° to +35° C) ambient temperature range.
Replace the battery when a significant loss of run time is detected.
vi
Battery Caution
Risk of explosion if battery is replaced by an incorrectly type.
Dispose of used battery according to the local disposal instructions.
Waste Electrical and Electronic Equipment (WEEE)
English: For EU Customers: All products at the end of their life must be returned to the
reseller for recycling.
Notational Conventions
The following conventions are used in this document:
Italics are used to highlight specific items in the general text, and to identify
chapters and sections in this and related documents.
bullets (•) indicate:
action items
lists of alternatives
lists of required steps that are not necessarily sequential
Sequential lists (e.g., those that describe step-by-step procedures)
appear as numbered lists.
NOTE This symbol indicates something of special interest or importance to the reader.
Failure to read the note will not result in physical harm to the reader, equipment or data.
CAUTION This symbol indicates that if this information is ignored, the possibility of data
or material damage may occur.
WARNING! This symbol indicates that if this information is ignored the possibility that
serious personal injury may occur.
vii
Revision History
Version Date Description
1.0 August 2015 Initial release
viii
Table of Contents
1 Item Checklist ............................................. 1
1-1 Standard Items ................................................................................... 1
1-2 Optional Items .................................................................................... 2
2 System View ................................................ 3
2-1 Front View ........................................................................................... 3
2-2 Rear View ............................................................................................ 4
2-3 Specification ....................................................................................... 5
3 Getting Started ........................................... 7

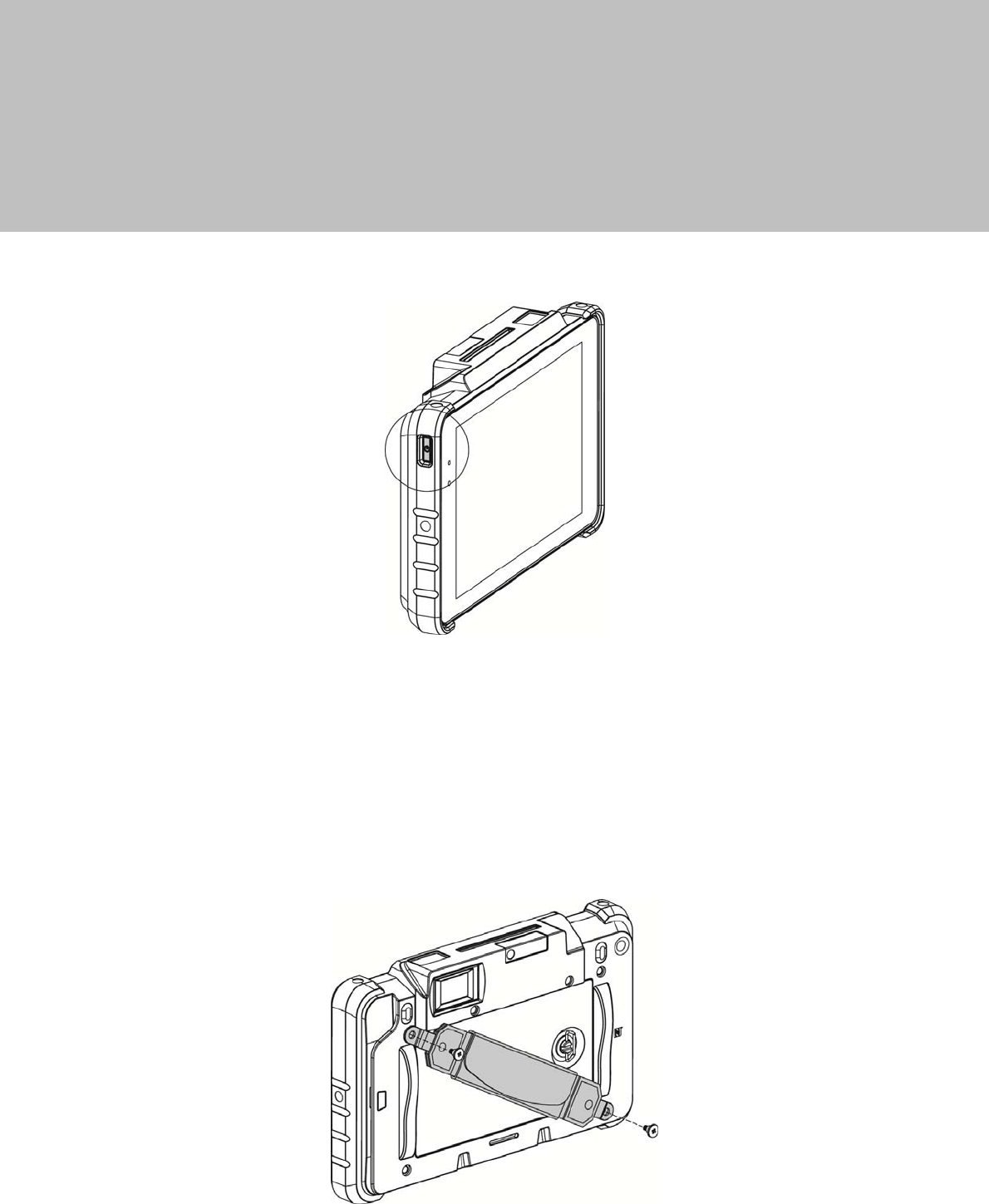

3-1 Power On/Off the System .................................................................. 7
3-2 Installing the Hand Strap ................................................................... 7

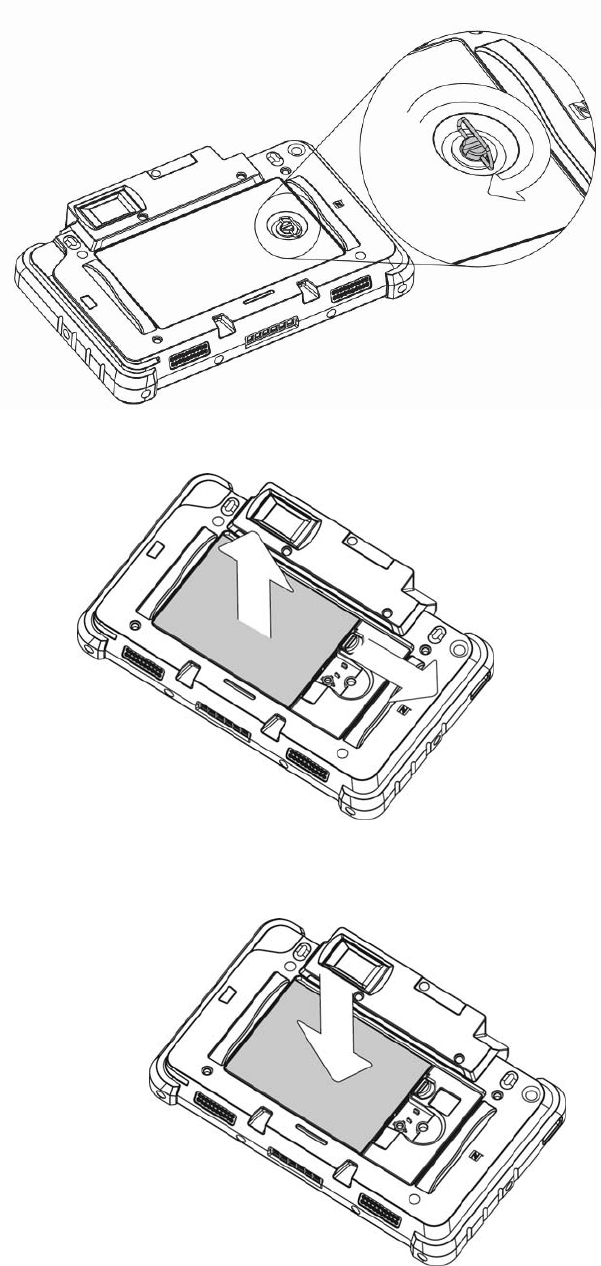

3-3 Replacing the Battery ........................................................................ 8
3-4 Using the Charging Cradle ................................................................. 9
3-5 Connect to Other Device .................................................................... 9
3-6 Replacing a Micro SD Card .............................................................. 10

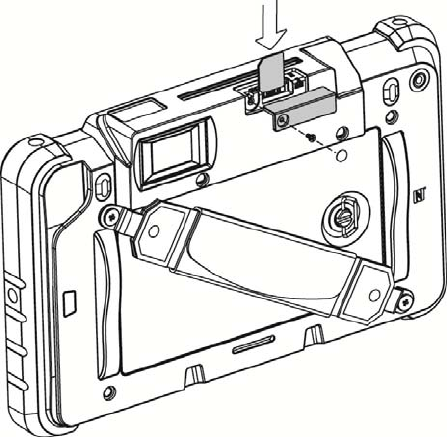

3-7 Installing the 3G Card ...................................................................... 11
4 Application Programming Interface ........ 12
4-1 OpenFunKeyLib ................................................................................ 13
4-2 SetFunKey1 ...................................................................................... 14
4-3 SetFunKey2 ...................................................................................... 15
4-4 Appendix A: KeyMap.ini ................................................................... 16
1
1 Item Checklist

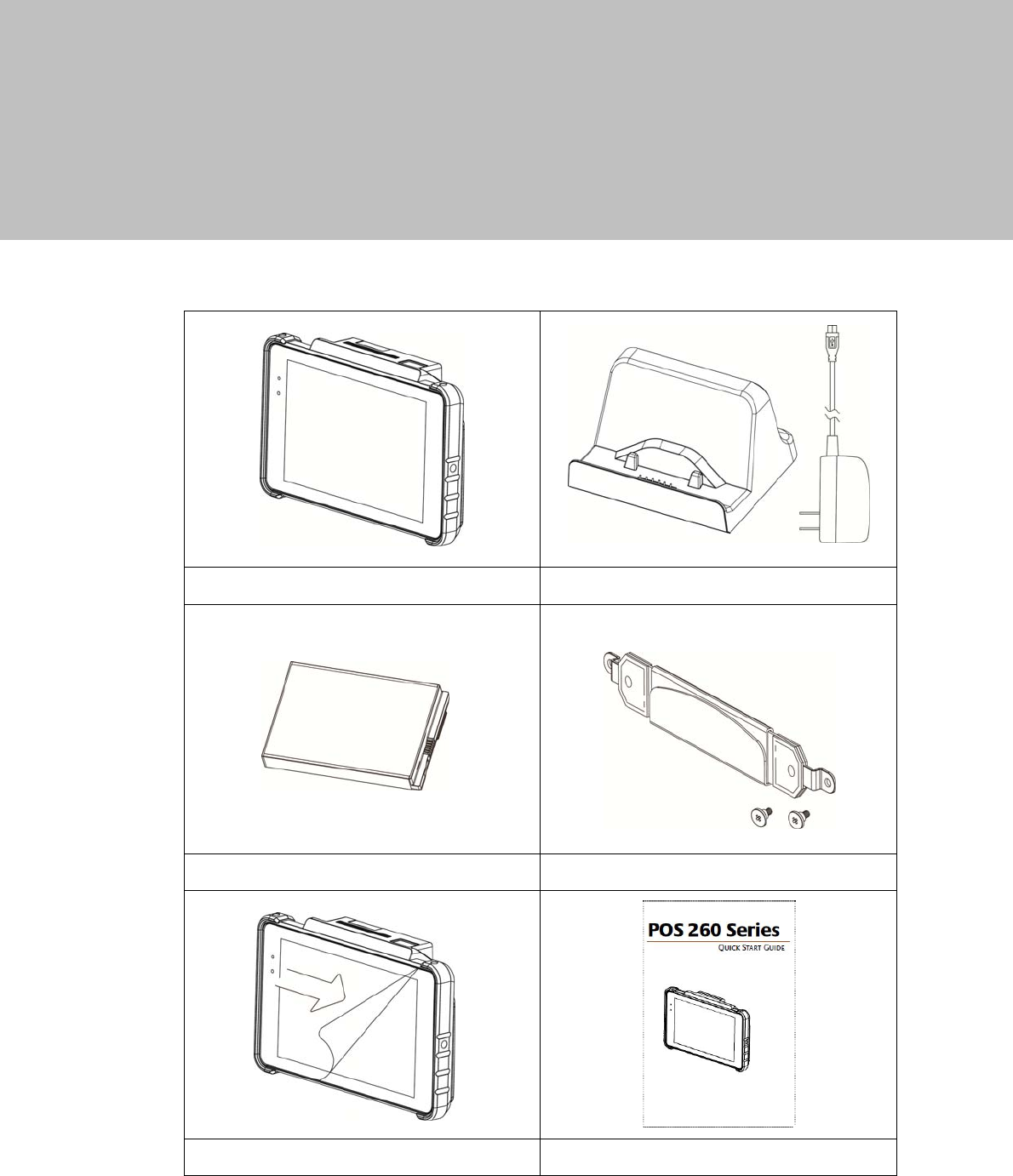

1-1 Standard Items
a. System b. Charging cradle
c. Battery d. Hand strap (with two screws)
e. Protection film f. Quick start guide
2

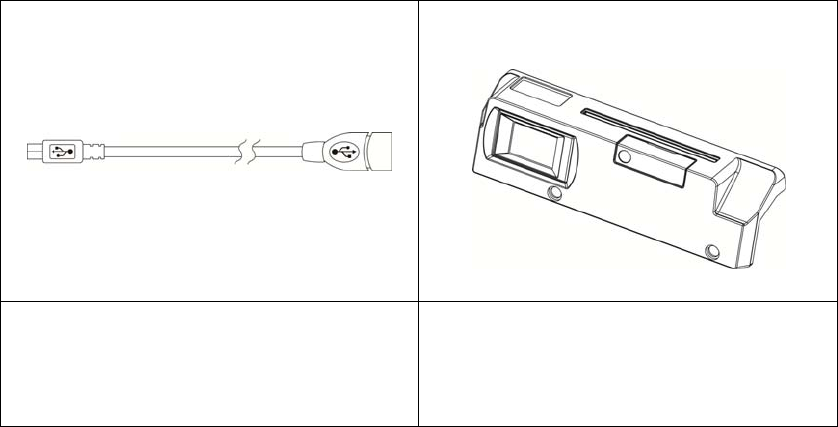

1-2 Optional Items
a. OTG cable
b. Peripheral kit
(1D/2D scanner, Fingerprint, Smart
card reader, 3G card )
3
2 System View
2-1 Front View
No. Description
1 1D/2D Scanner
(optional; will be installed to system prior to shipping)
2 Smart card reader
(optional; will be installed to system prior to shipping)
3 3G card slot
(optional; will be installed to system prior to shipping)
4 Power button
5 Power LED light indicator
6 Ambient light sensor
7 TFT LCD
4

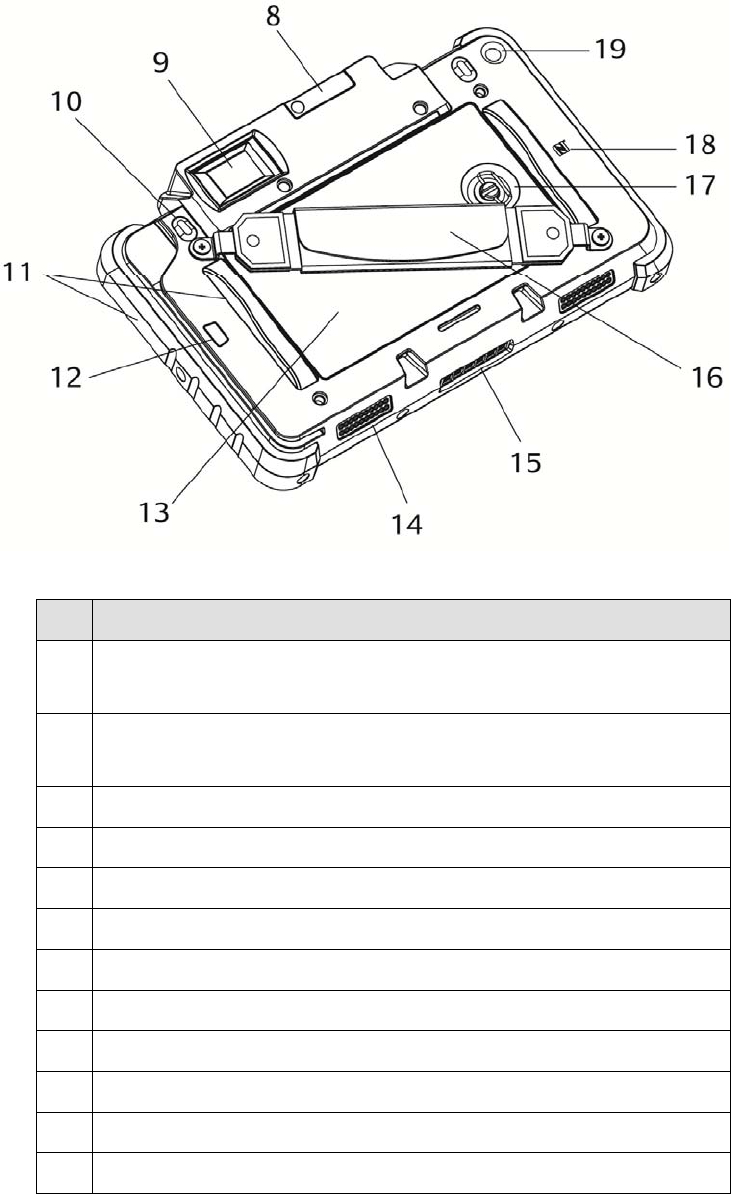

2-2 Rear View
No. Description
8 3G card slot
(optional; will be installed to system prior to shipping)
9 Fingerprint
(optional; will be installed to system prior to shipping)
10 Programmable button(default scan button)
11 Protection bumper
12 MSR
13 Battery cover
14 Speaker
15 Power charging slot
16 Hand strap
17 Pen screw
18 NFC logo
19 Camera
5
2-3 Specification
System P263 P265
Motherboard D31L
CPU Baytrail - T CR Z3735F
System Memory 2GB DDR3L
Flash Memory 32G eMMC
LCD Touch Panel
LCD Size 7" 10.1”
Interface MIPI
Resolution 1280 x 800 1920 x 1200
Touch Screen P-CAP 5 points Multi-touch
Wireless Networking
Wireless LAN 802.11 a/b/g/n, 2.4G/5GHz
Bluetooth 4.0+LE, Class 2
NFC 1
Cellular Network GSM/GPRS/EDGE: 850/900/1800/1900MHz
UMTS (WCDMA/FDD): 850/900/1900/2100MHz
Expansion I/O Ports
Micro SD Socket 1
DC input 6 pad
Audio
Speaker 1 x 1W Speaker 2 x 1W Speaker
Control / Indicator
Power Button 1
Sensor G-sensor, Ambient Light Sensor
Vibrator Built-in vibrator motor
LED Indicator 1 (Battery status indicator)
Peripherals
Camera 5MP ( Rear side)
MSR 3 Tracks MSR
Hand strap 1
IC card reader Smart IC Card Reader (Optional)
Scanner 1D/2D Barcode Scanner (Optional)
Fingerprint 1
3G Card 1
Cradle
USB Port mini-USB 2.0 x 1
Power Adapter 5V/2A , 10W
6
System P263 P265
Motherboard D31L
Battery & Power
Battery 8000 mAh, 3.7V, 29.6 Wh *2
Certificate
EMC & Safety FCC Class B / CE Mark / UL
Environment
Sealing IP54 (display side)
Fall Security 1.2 m drop, 1 drop per side at 25°C *3*4
Operating Temperature
(Not in charging mode) 0°C ~ 40°C (32°F ~104 °F)
Operating Temperature
(running charging mode) 0°C ~ 35°C (32 °F ~ +95 °F)
Storage Temperature -10°C ~ 45°C (14°F ~ 114°F)
Operating Humidity 20% - 80% RH non-condensing
Storage Humidity 20% - 80% RH non-condensing
Size
Dimension 203.9 x 127.9 x 35.3mm
(8.0'' x 5.0'' x 1.3'')
268 x 176 x 35.5mm
(10.6'' x 6.9'' x 1.4'')
Weight 665g (1.47lbs) 930g (2.08lbs)
Weight (with all peripherals) Max 690g (1.52lbs) Max 990g (2.18lbs)
OS Support Windows Embedded 8.1 with bing & Win 10 (Support 32bit only)
*1. Tablet LED indicator: Green light-Full charged / Orange light- Charging / Red flash light- Low battery / Red
light- Critical low battery.
*2. The actual operation hours wil be affected by real application environment.
*3. The drop durability height is a measured value resulting from actual testing. It does not necessarily
guarantee the product from damage.
*4. The drop durability height does not include the protruding parts.
7
3 Getting Started
3-1 Power On/Off the System
1. Push the power button to turn on the system and hold 4~5 seconds to turn off
the system.
Note: For best touch performance, remove the protective plastic overlay from the
LCD screen by peeling it away from one of the corners. Be sure to use a soft
pointing device or finger tip to avoid scratching the screen during normal use.
3-2 Installing the Hand Strap
1. Attach the hand strap to the back of the system and fasten the screws (x2) to
secure it.
8
3-3 Replacing the Battery
1. Loosen the pen screw counter-clockwise on the battery cover.
2. To remove the battery pull the plastic tab aside and gently lift the battery out of
the system.
3. To install the battery put the battery in the slot and push until the battery clicks
into place.
9

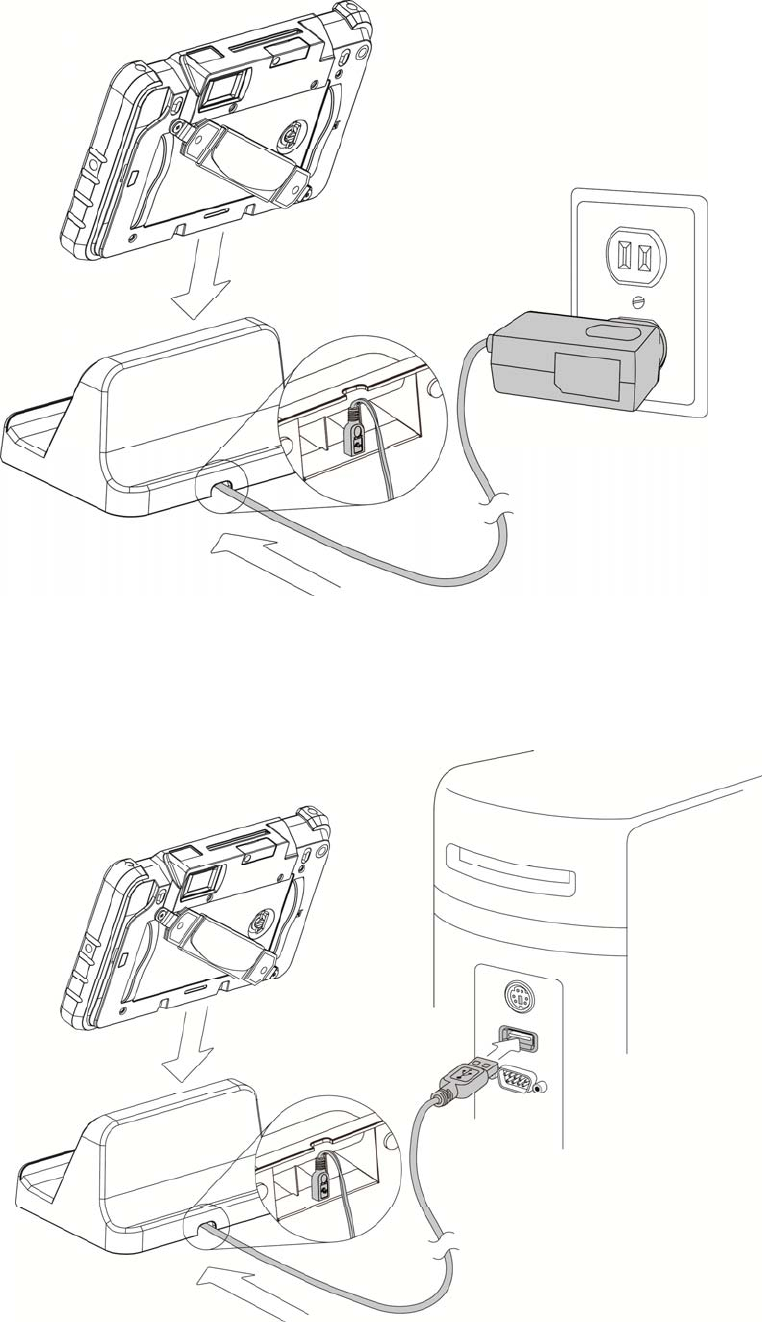

3-4 Using the Charging Cradle
1. Connect the USB-AC adapter to the connector on the bottom of the cradle
charger and the power outlet.
3-5 Connect to Other Device
1. Connect the OTG USB cable to the connector on the bottom of the cradle charger
and connect the other end to a PC to synchronize the two devices.
10
3-6 Replacing a Micro SD Card
1. Loosen the pen screw counter-clockwise on the battery cover.
2. To install a Micro SD card insert the Micro SD card into slot until it snaps in
place.
3. To remove the Micro SD card just push the card again and slide it outwards.
11
3-7 Installing the 3G Card
1. Loosen the screw(x1) to remove cover of 3G card slot.
2. Inset the 3G card until it snaps in place. Finally screw the cover back.
12
4 Application Programming Interface
Operating System
The API operation has been verified with the following operating systems:
 Microsoft Windows 7 32/64 bit
 Microsoft Windows 8 32/64 bit
EC Version
12 or later version can support
13
4-1 OpenFunKeyLib
[Function]
This opens the Function Key API service.
[Format]
int OpenFunKeyLib(char *FunKeyControlVersion)
[Argument]
uchar *FunKeyControlVersion get EC version.
[Return Value]
If opening service was successful, the return SV_ERROR_SUCCESS value, If there is can’t
found EC control, the SV_ERROR_FAILED_NO_FOUND_DEVICE are returned, if return
SV_ERROR_FAIL the service can’t form EC control get return value.
[Explanation]
Before using an API function other than this function, it is necessary that this function be
executed first.
[Example]
char HIDVer[100];
If(OpenFunKeyLib(HIDVer) == SV_ERROR_SUCCESS)
//Normal Processing
Printf(HIDVer);
else
//Error Processing
14
4-2 SetFunKey1
[Function]
Set Button 1 output key.
[Format]
int SetFunKey1(const char* SetKey, bool ButtonEnable)
[Argument]
const char* SetKey Set button1 output key.
bool ButtonEnable Enable/Disable key output.
Trur is enable, False is disable.
[Return Value]
If set value successful, the return SV_ERROR_SUCCESS value. If there is an error, the
SV_ERROR_FAIL are returned.
[Explanation]
None
[Example]
DWORD Rtn;
Rtn = SetFunKey1("A", true); //Set button 1 output ‘A’
15
4-3 SetFunKey2
[Function]
Set Button 2 output key.
[Format]
int SetFunKey2(const char* SetKey, bool ButtonEnable)
[Argument]
const char* SetKey Set button1 output key.
bool ButtonEnable Enable/Disable key output.
Trur is enable, False is disable.
[Return Value]
If set value successful, the return SV_ERROR_SUCCESS value. If there is an error, the
SV_ERROR_FAIL are returned.
[Explanation]
None
[Example]
DWORD Rtn;
//Set button 2 is barcode reader’s trigger
Rtn = SetFunKey2("<BarCode>", true);
16
4-4 Appendix A: KeyMap.ini
[ASCII]
32=2C 44=36 56=25 68=07 80=13 92=31 104=0B 116=17
33=1E 45=2D 57=26 69=08 81=14 93=30 105=0C 117=18
34=34 46=37 58=33 70=09 82=15 94=35 106=0D 118=19
35=20 47=38 59=33 71=0A 83=16 95=2D 107=0E 119=1A
36=21 48=27 60=36 72=0B 84=17 96=35 108=0F 120=1B
37=22 49=1E 61=2E 73=0C 85=18 97=04 109=10 121=1C
38=24 50=1F 62=37 74=0D 86=19 98=05 110=11 122=1D
39=36 51=20 63=38 75=0E 87=1A 99=06 111=12 123=2F
40=26 52=21 64=1F 76=0F 88=1B 100=07
112=13 124=31
41=27 53=22 65=04 77=10 89=1C 101=08
113=14 125=30
42=25 54=23 66=05 78=11 90=1D 102=09
114=15 126=35
43=2E 55=24 67=06 79=12 91=2F 103=0A
115=16
17
[FunctionKey]
{Return}=28 {F11}=44 {NumLock}=53 {KeypadPointDelete}=63
{Escape}=29 {F12}=45 {KeypadDivision}=54 {KeyboardPower}=66
{Backspace}=2A {PrintScreen}=46
{KeypadMultiplication}=55
{KeyboardVolUp}=80
{Tab}=2B {ScrollLock}=47 {KeypadSubtraction}=56 {KeyboardVolDn}=81
{Space}=2C {Break}=48 {KeypadAdd}=57 {CapsLock}=82
{CapsLock}=39 {Pause}=48 {KeypadEnter}=58 {NumLock}=83
{F1}=3A {Insert}=49 {Keypad1End}=59 {ScrollLock}=84
{F2}=3B {Home}=4A {Keypad2Down}=5A {LeftCtrl}=E0
{F3}=3C {PageUp}=4B {Keypad3PageDn}=5B {LeftShift}=E1
{F4}=3D {Delete}=4C {Keypad4Left}=5C {LeftAlt}=E2
{F5}=3E {End}=4D {Keypad5}=5D {RightCtrl}=E4
{F6}=3F {PageDown}=4E {Keypad6Right}=5E {RightShift}=E5
{F7}=40 {RightArrow}=4F {Keypad7Hoem}=5F {RightAlt}=E6
{F8}=41 {LeftArrow}=50 {Keypad8Up}=60
{F9}=42 {DownArrow}=51 {Keypad9PageUp}=61
{F10}=43 {UpArrow}=52 {Keypad0Insert}=62
18
[MediaKey]
(ScanNextTrack)=00B5 (VolumeDown)=00EA (WWWSearch)=0221
(ScanPreviousTrack)=00B6 (BassUp)=0152 (WWWHome)=0223
(Stop)=00B7 (BassDown)=0153 (WWWBack)=0224
(Play/Pause)=00CD (TrebleDown)=0155 (WWWForward)=0225
(Mute)=00E2 (MediaSelect)=0183 (WWWStop)=0226
(BassBoost)=00E5 (Mail)=018A (WWWRefresh)=0227
(Loudness)=00E7 (Calculator)=0192 (WWWFavorites)=022A
(VolumeUp)=00E9 (MyComputer)=0194
[SpecialKey]
<BarCode>=1111

Navigation menu
