3.1!LOGGING!IN!
To log in to the GUI, perform the following steps:
1. Ensure the installation described in Chapter 2 is complete. Check that the CPE has power and that
the signal strength is good.
2. Launch an Internet browser on the administrator’s PC.

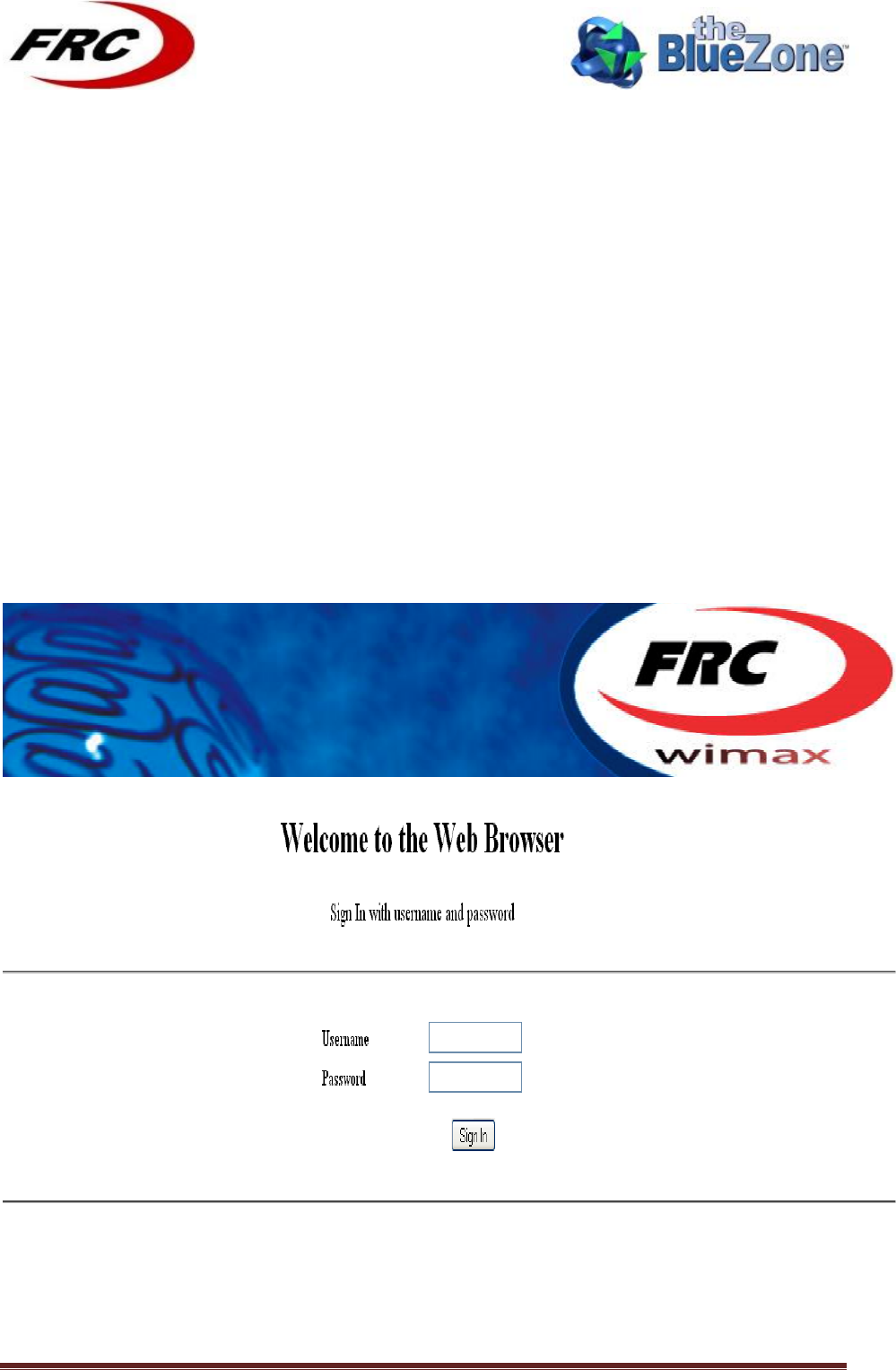

3. Enter the default IP address 192.168.0.21 in the browser address field and press Enter. The Login
screen displays:
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
26!
4.!Enter user name <frcweb> and password <frcadmin> and click OK. Then CPE configuration
homepage appears:
!
!
!
!
!

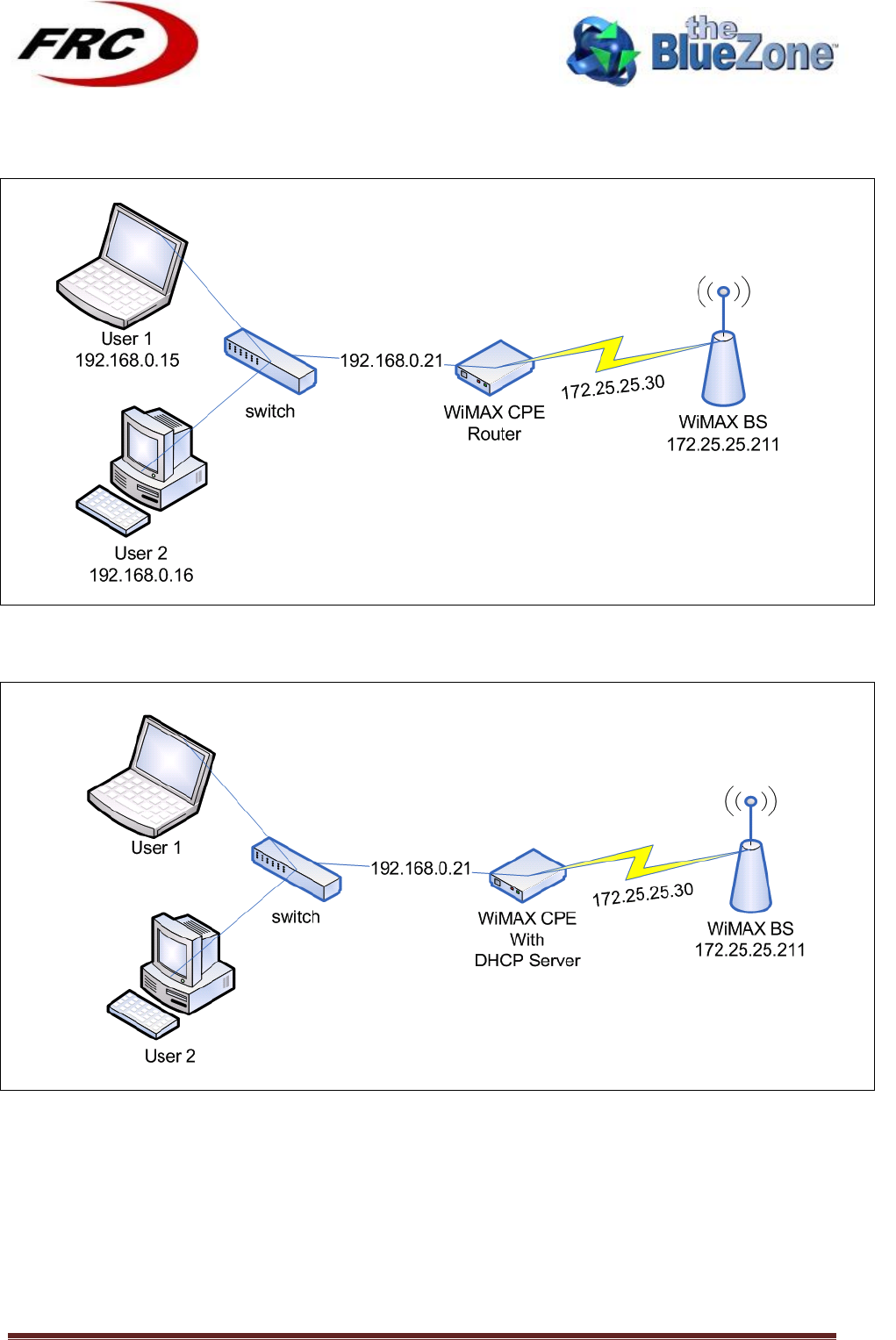

NOTE: The CPE functions in Router or Bridge mode.
!
!
!
!
!
!
!
!
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
27!
3.2!SYSTEM!SETTINGS!
The System Settings is used to review, change and save all CPE system settings. Only the
administrator can make changes to this screen.
!
!
3.2.1!CHANGING!SYSTEM!CONFIGURATION!!
!
To change the CPE system configuration setting, perform the following steps:
1. Enter into the Admin Tab field.

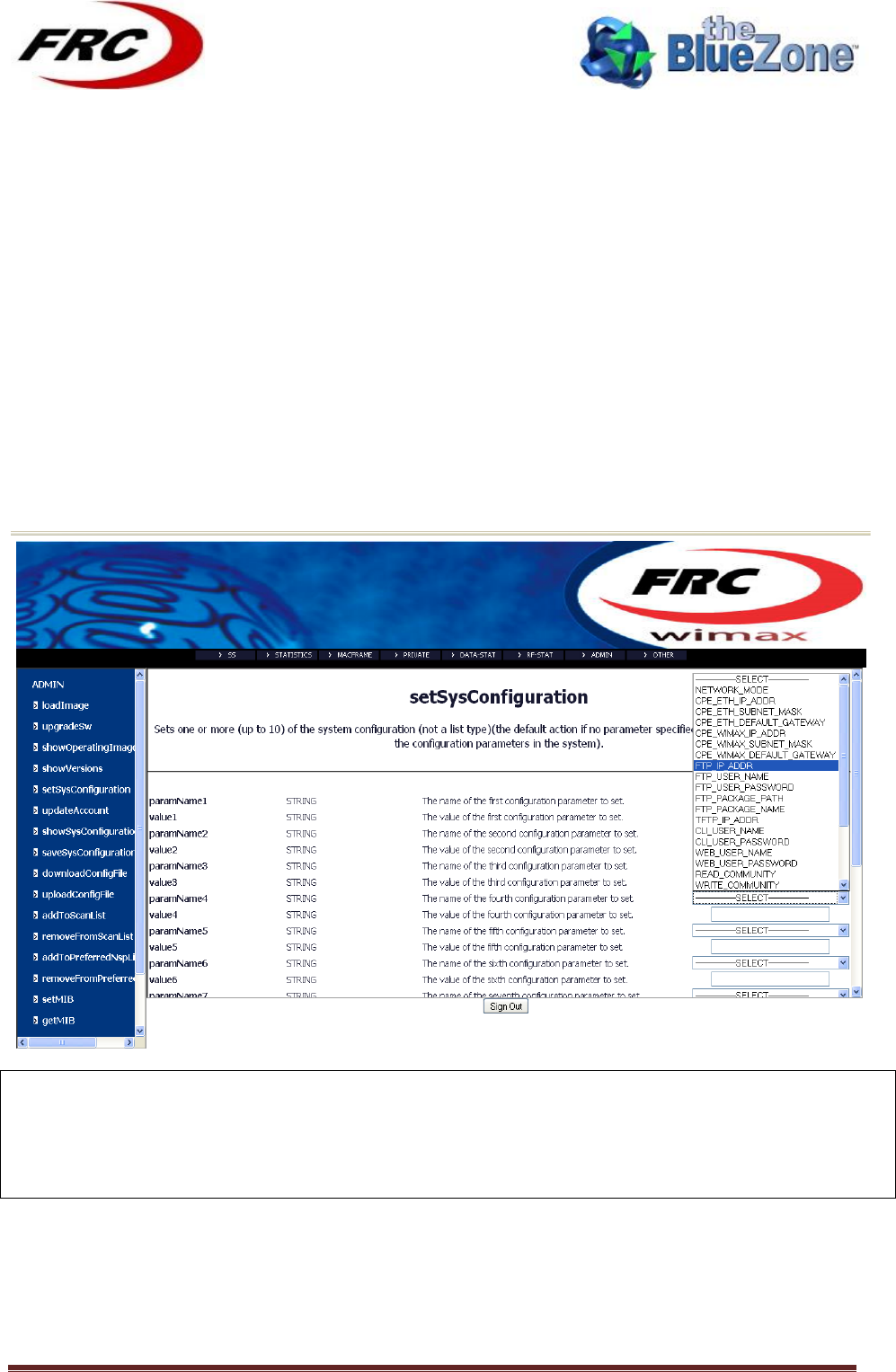

2. Enter into setSystemConfiguration* field in the left side of Browser.
3. Click Apply Changes as shown in the screen below**.
!
!
* False CPE-Wimax setting could damage the access to CPE or damage CPE itself.
** Changing system Configuration need to be saved by “SysSavedConfigutation” to keep the
updated configuration parameters permanent on flash.
3.2.2!UPGRADE!SYSTEM!FIRMWARE!!
!
To Upgrade the CPE Wimax firmware system, perform the following steps:
1. Enter into the Admin Tab field.
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
28!

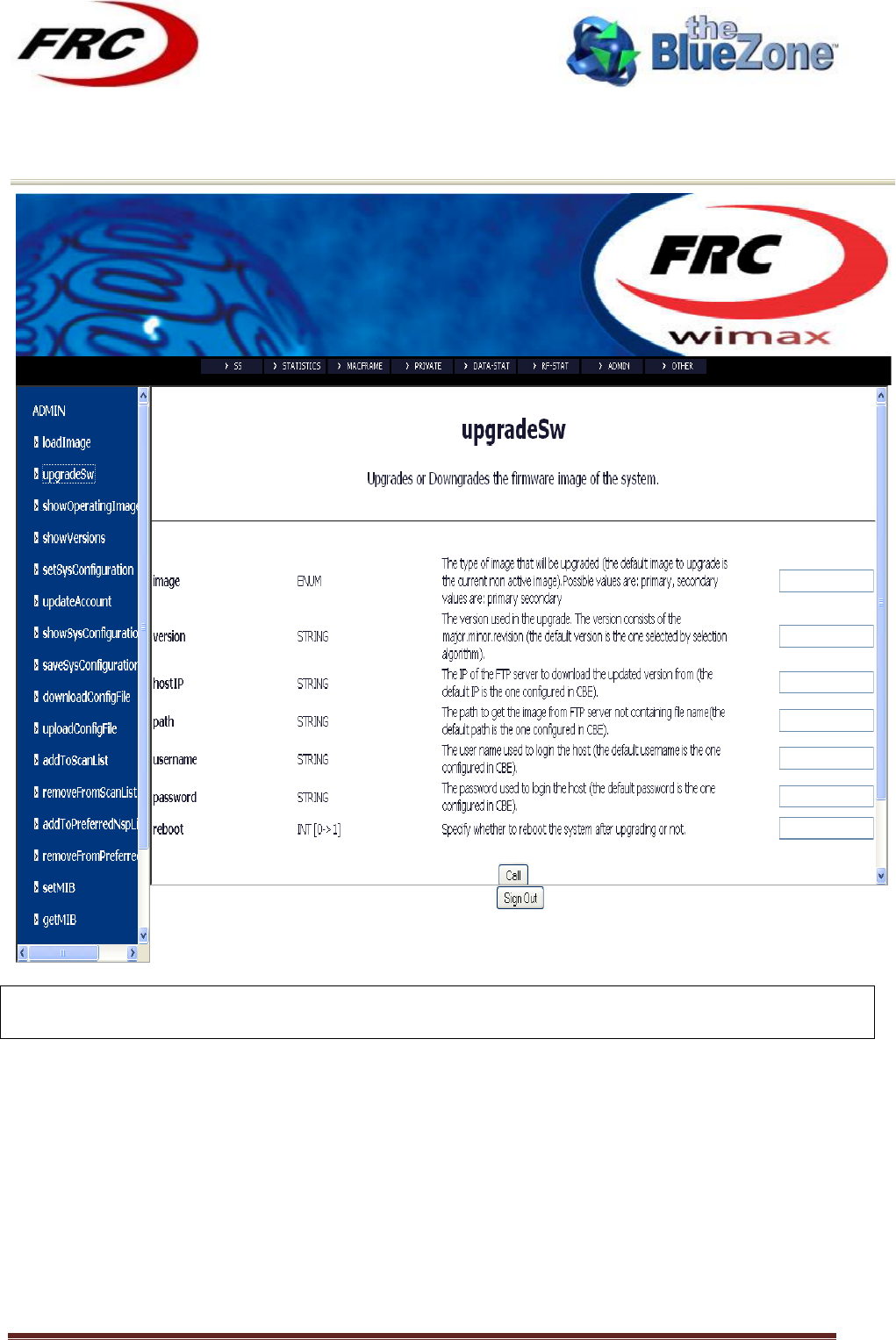

2. Enter into upgradeSw field in the left side of Browser.
3. Choose the Upgrade Changes as shown in the screen below.
!
NOTE: Upgrade firmware need permission of system administrator to have successful upgrade.
False Upgrade could damage the CPE.
!
The following parameters should be set correctly in the CPE configurations for SW Upgrade:
FTP Server IP address
FTP user name
FTP password
File path
File name
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
29!
If any of the configuration parameters are not correct, the system will use the default values for
configurations. If the system can’t find a newer version or fails to find the specified version the
system will keep running with the old SW version.
Other functionalities you can do with Admin Tab of the CPE Wimax are the following:
1. Web Configuration for Bridge.
2. Web Configuration for Router.
3. Web Configuration for Vlan.
4. Web Configuration for Operational Frequencies.
5. Web Configuration for SNMP.
6. Web Configuration security setup.
7. Web Configuration for CLI security setup.
8. security setup
9. Default settings reset.
!
!
!
NOTE: Special Tutorial session needed for the web user, moreover, fully awareness of Wimax
functionalities are required.
!
!
!
!
!
!
!
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
30!
3.2.3!CPE!CONFIGURATION!PARAMETERS!
!
!
!!
Configuration!Parameter!name!
Description!
CPE_ETH_IP_ADDR
The CPE Ethernet IP address
CPE_ETH_SUBNET_MASK
The CPE Ethernet subnet mask
CPE_ETH_DEFULT_GATEWAY
The CPE Ethernet default
gateway
CPE_WIMAX_IP_ADDR
The CPE WiMAX IP address
(used as static IP if the CPE fails
to acquire IP using DHCP)
CPE_WIMAX_SUBNET_MASK
The CPE WiMX subnet mask
CPE_WIMAX_DEFULT_GATEW
AY
The CPE WiMAX default
gateway
FTP_IP_ADDR
The IP address of the FTP server
FTP_USER_NAME
The user name of the FTP
server
FTP_USER_PASSWORD
The password of the FTP user
FTP_PACKAGE_PATH
The path of the upgrade
packages
FTP_PACKAGE_NAME
The base name of the upgrade
packages
TFTP_IP_ADDR
The IP address of the TFTP
server
CLI_USER_NAME
The user name of the CLI
CLI_USER_PASSWORD
The password of the CLI user
WEB_USER_NAME
The user name of the web
WEB_USER_PASSWORD
the web user password
Configuration Parameter name
Description
READ_COMMUNITY
The read community for the
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
31!
default SNMP manager
WRITE_COMMUNITY
The read community for the
default SNMP manager
TRAP_SERVER_ADDR
The address of the trap server
IS_AUTO_UPGRADE_ENABLE
D
If true automatic upgrade is
enabled
AUTO_UPGRADE_TIME
The interval between auto-
upgrades
CUSTOMER_NAME
The name of the customer
CONFIGURATION_FILE_NAME
The configuration file name
SYSTEM_LOCATION
The location of the CPE
IS_WRITING_LOGS_ON_FTP_E
NABLED
Enables and disables transferring
logs to the FTP server
NETWORK_DEPLOYMENT
A bitmap containing the current
enabled network protocols. The
bitmap contains the ORing of the
different values.
Configuration Parameter name
Description
EAP_TTLS_USERNAME
The full username required for
TTLS inner authentication.
EAP_TTLS_PASSWORD
The password required for TTLS
inner authentication
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
32!
EAP_MODE
Defines which EAP is used TLS
or TTLS
DEVICE_CERTIFICATE_FILE_P
ATH
The full path on the FTP server
on which to upload/download
SUPP_WORKAROUND
Enables and disables the
supplicant workaround on the
CPE
Configuration
Structure
Configuration
Parameter name
Description
Default
Value
BRIDGE_CONFIG_STRUCT
Contains the different
configuration parameters
related to the Bridge.
basicIngressFilterEnabled
Enables/Disables the Basic
Ingress Filter. When enabled
all packets coming from the
WiMAX destined to a MAC
address in the authenticated
list will not pass through the
bridge except the DHCP and
ARP.
0
egressBroadcastFilterEna
bled
Enables/Disables the Egress
Broadcast Filter. When
enabled the bridge will not
pass through any broadcast or
multicast packets coming from
the Ethernet.
0
ingressBroadcastFilterEna
bled
Enables/Disables the Egress
Broadcast Filter. When
enabled the bridge will not
pass through any broadcast or
multicast packets coming from
the WiMAX.
0
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
33!
Configuration Structure
Configuration
Parameter name
Description
Default
Value
ROUTER_CONFIG_ST
RUCT
Contains the NAT related
configurations. The structure
is formed of an argument
which enables/ disables NAT
support and a list of NAT
mapping rules.
VLAN_CONFIG_STRU
CT
natEnabled
Enables/Disables NAT
support. When disabled the
CPE is acting as a router
between the two interfaces
0
routerCmd
A NAT mapping rule. The
default NAT rule, maps all
subnets on the Ethernet
interface to the IP address of
the WiMAX interface.
map
wmxEnd1
0/0 - 0/32
Contains a list of VLANs
configuration parameters. Eac
entry contains the following
parameters
vlanInterface
The interface on which to
create the VLAN.
0->
Ethernet
1->
WiMAX
vlanName
The name of the VLAN which
must begin with the prefix
“vlan”
vlanId
The ID of the VLAN to be
placed in the VLAN tag
netAddr
The IP address of the VLAN
interface
netMask
The netmask of the VLAN
interface
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
34!
3.2.4!IP!ADDRESS!ASSIGNMENT!AND!CONFIGURATION!FILE!RETRIEVAL!
!
The system configuration parameters are maintained in the configuration file saved on flash.
The configuration file saved on flash can exist because of any of the following events:
System finds no configuration file on flash and automatically retrieves a configuration file from a
TFTP server. This depends on whether the CPE is offered a configuration file in the DHCP OFFER
message or not.
! In case no configuration file is offered by DHCP or the CPE fails to acquire an IP using
DHCP, the CPE retrieves either the MAC address configuration file or the default
configuration file.
! In case a configuration file is specified in the DHCP, the CPE retrieves either the
configuration file specified in the DHCP offer message or the MAC address configuration
file or the default configuration file.
! User manually downloads a configuration file using the downloadConfigFile command and
reboots.
! User issues a saveSysConfiguration command which saves the current runtime configurations
to flash.
As soon as the CPE connects to the BS and is in the OPERATIONAL state, the CPE will start
acquiring an IP address using DHCP.
If the CPE successfully acquires an IP address using DHCP, and the DHCP server is configured to
offer a configuration file, then the CPE will attempt to retrieve the specified configuration file
whether or not a file exists on flash.
If the system successfully retrieves the DHCP configuration file, it will compare its timestamp with
the timestamp of the configuration file saved on flash, if newer it will overwrite the file on flash, else
it will ignore the retrieved file and continue operation with the one on flash.
If the system fails to acquire an IP using DHCP (four retries performed) then the system will use the
IP address specified in the configuration file as the CPE_WIMAX_IP_ADDR.
If the system fails to retrieve the specified file or the file is corrupted and no file exists on flash, the
CPE will attempt to retrieve a configuration file from TFTP server baed on its MAC address. If it
fails to find the file or the file is corrupted (wrong CRC or mal formatted XML) the CPE will attempt
to retrieve the default configuration file. If it fails to retrieve the default configuration file or the file
is corrupted (wrong CRC or mal formatted XML), the CPE will use the default configurations saved
as macros.
For each TFTP connection, the system will attempt three times with two minutes gap between each
retry.
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
35!
3.2.5!CHANGING!CONFIGURATION!FILE!AFTER!INITIALIZATION!
!
To trigger the CPE to use a different configuration file other than the one retrieved in its initialization;
the downloadConfigFile command must be used.
Please refer to downloadConfigFile command for more information about changing the
configuration file after initialization.
!
3.2.6!SNMP!CONFIGURATION!TOOL!
!
MG-SOFT MIB Browser is one of the SNMP Browser tools. Also MG-soft is a flexible, technically
superb, powerful and user-friendly SNMP Browser. MIB Browser allows you to perform SNMP Get,
SNMP GetNext, SNMP GetBulk and SNMP Set operations. To obtain MG-SOFT MIB Browser
software you can refer to http://www.mg-soft.com/download.html.
3.2.7!FACTORY!RESET!PROCEDURE!
!
The factory reset procedure is used to restore the system configurations to their defaults. For this
purpose a configuration file containing the default factory settings should be maintained on flash.
The factory reset can be triggered by either pushing a HW push button or from the CLI/Web
interfaces.
To handle wrongful presses on the push button, it must be pressed for at least 5 seconds.
3.2.8!STATUS!LED!
!
The CPE is equipped with a green LED that indicates the status of the CPE software. The LED
flashes with different speeds thus indicating three modes:
1. Before firmware loading -> Off
1. During Firmware loading -> Rapid flashing
2. Scanning for BS -> Slow flashing
3. Connected to a BS (Operational) -> On
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
36!
!
3.2.9 AUTHENTICATION!SUPPORT!
!
The CPE supports three modes of authentication:
1. Null authentication: This can be enforced by setting the PKM version to none on the BS.
2. Supplicant workaround flag: In which case the CPE is only involved in the authentication
using dummy keys. It is not recommended to use this mode.
3. EAP Authentication using either TLS or TTLS.
In order to switch between the workaround and supplicant modes, the SUPP_WORKAROUND
configuration parameter must be set and saved.
1. If the supplicant is enabled then SUPP_WORKAROUND flag is set to True, the CPE will
work with the supplicant workaround mode with the next authentication procedure, however
it is recommended to stop and start the CPE.
2. To switch from the workaround mode to the Supplicant mode, a reboot is needed since the
supplicant needs to be initialized in the BSP.
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
37!
!
!
CHAPTER!FOUR:!CLI!COMMANDS!!
!

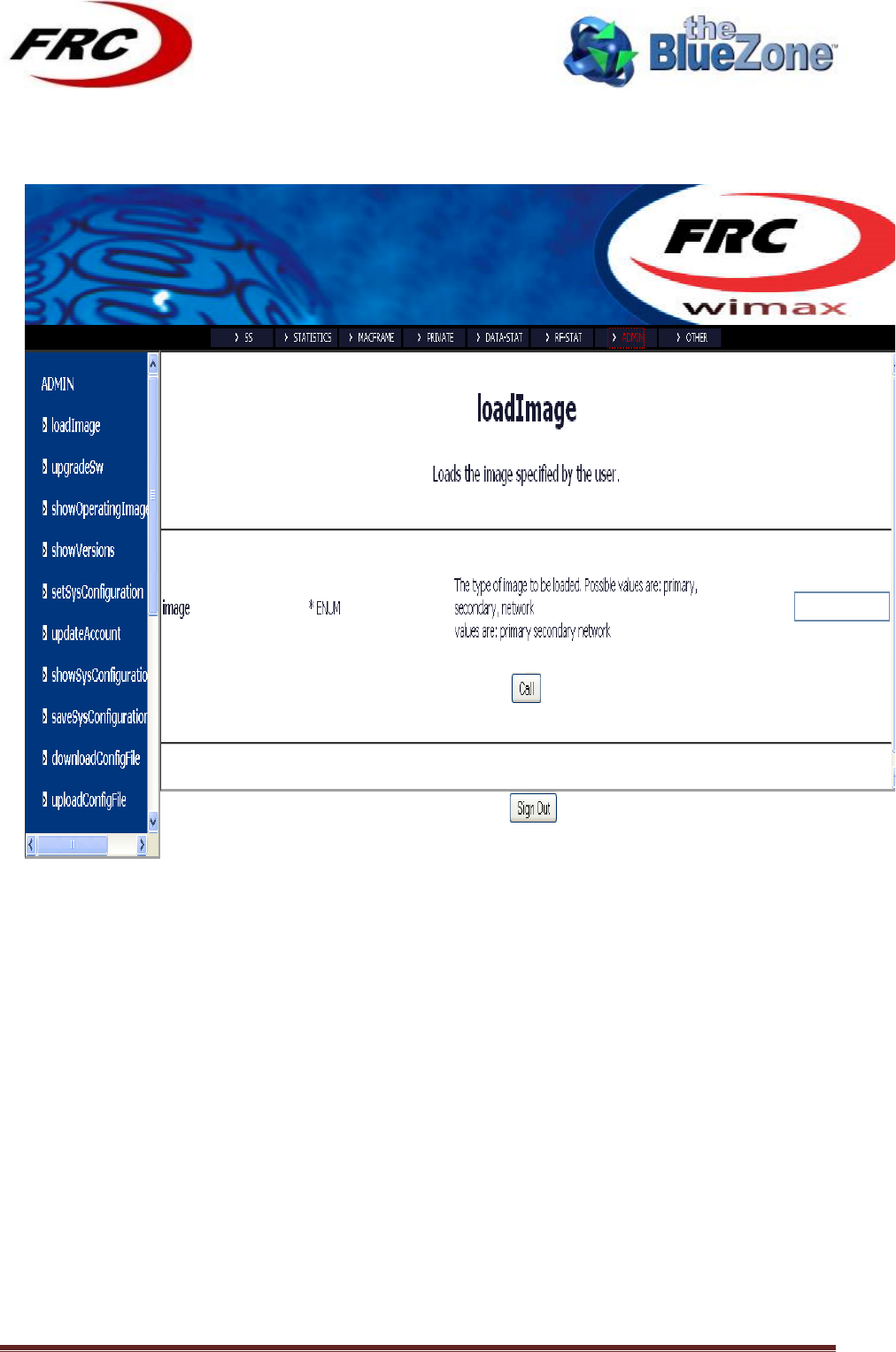

4.1!LOADIMAGE!
!
loadImage
Arguments
image (M)
Represents which image will be loaded. Possible
values are:
primary : loads the primary image
secondary: loads the secondary image
network: loads image from network
Description
Load the firmware.
Examples
loadImage primary
loadImage secondary
loadImage network
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
38!
4.2!UPGRADESW!!
!
upgradeSw
Arguments
image (O)
Represents which image will be upgraded.
Possible values are:
primary: upgrades the primary image
secondary : upgrades the secondary image
If not specified, system upgrades the non-
active image
version (O)
String representing the version which is
used in the upgrade. The version consists of
the major.minor.revision
If the version is not specified, the Version
selection algorithm is used.
hostIP (O)
The IP address of the FTP server on which
upgraded software is placed. If hostIP is not
specified, the default host IP configured in
the CPE is used.
path (O)
The full path to the software image on the
FTP server. If path is not specified, the
default path configured in the CPE is used.
Example: /upgrades
username (O)
The user name to login to the FTP server to
get the software image. If the user name is
not specified the username configured in
the CPE is used.
password (O)
The password to login to the FTP server to
get the software image. If the user name is
not specified the password configured in
the CPE is used.
reboot (O)
Specify whether to make reboot for system
after upgrade is completed.
Description
Upgrades/Downgrades the firmware on the CPE.
Examples
upgradeSw
upgradeSw primary
upgradeSw secondary reboot=1
upgradeSw secondary v0.0.1
4.3!SHOWVERSIONS!
!
showVersions
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
39!
Arguments
type (O)
Possible values are:
primary : get the version of the primary image
secondary: get the version of the secondary image
hw: get the HW version
If no argument is specified, display the version of
images as well as the HW version and the operating
image.
Description
Display the versions of the HW and SW versions in the system and state
the operating image as well.
Examples
showVersions
showVersions primary
showVersions secondary
showVersions hw
!
4.4!SHOWSYSCONFIGURATION!
!
showSystemConfiguration
Arguments
paramName(O)
The name of the configuration parameter to show. If
no name is given, it displays all the configuration
parameters
Description
Retrieves the given configuration parameter or all the system
configurations if no argument was given.
Examples
showSysConfiguration
showSysConfiguration CPE_IP_ADDR
showSysConfiguration READ_COMMUNITY
showSysConfiguration SCAN_LIST
!
!
4.5!SETSYSCONFIGURATION!
!
setSystemConfiguration
Arguments
paramName 1 (O)
The name of the first parameter to set
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
40!
value 1 (O)
The value of the first parameter to set
paramName 2 (O)
The name of the second parameter to set
value 2 (O)
The value of the second parameter to set
…………..
.
.
Names and Values of the other parameters
paramName 10
(O)
The name of the tenth parameter to set
value 10 (O)
The value of the tenth parameter to set
Description
Set one or more (up to 10) of the system configurations. If no argument
is specified the command displays a description of all the configuration
parameters in the system.
Examples
setSysConfiguration
setSysConfiguration CUSTOMER_NAME FRC
setSysConfiguration IS_AUTO_UPGRADE_ENABLED 1
READ_COMMUNITY public
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
41!
4.6!SAVESYSCONFIGURATION!
!
saveSysConfiguration
Arguments
None
Description
Save permanently on flash the current configuration parameters.
Examples
saveSysConfiguration
!
4.7!DOWNLOADCONFIGFILE!
!
downloadConfigFile
Arguments
tftpAddr (O)
The address of the TFTP server in which the
configuration file exists. If not given, the default
address is used.
filePath (O)
The path and the file name of the configuration
file. If not given, the default is used. The specified
file path should be on the TFTP root.
Example: /downloads/config.xml
reboot (O)
Reboot option to reboot after getting the file.
Description
Download a new configuration file.
Examples
downloadConfigFile
downloadConfigFile 192.168.0.10
downloadConfigFile reboot=1
downloadConfigFile 192.168.0.10 reboot=1
downloadConfigFile filePath=config.xml
downloadConfigFile 192.168.0.10 /downloads/config.xml 1
!
!
!
!
!
!
!
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
42!
4.8!UPLOADCONFIGFILE!
!
uploadConfigFile
Arguments
tftpAddr (M)
The address of the TFTP server to which the
configuration file is uploaded.
filePath (M)
The path and the file name of the configuration
file. The specified file path should be on the TFTP
root.
Example: /uploads/config.xml
Description
Upload the configuration file stored in flash to the TFTP server
Examples
uploadConfigFile 192.168.0.10 /uploads/config.xml
!
4.9!ADDTOSCANLIST!
!
addToScanList
Arguments
frequency (M)
The frequency to add.
duration (M)
The duration.
bandwidth (M)
The channel bandwidth.
Description
Add new element to the scan list.
Examples
addToScanList 3650 500 4
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
43!
4.10!REMOVEFROMSCANLIST!
!
removeFromScanList
Arguments
frequency (M)
The frequency to be removed
Description
Remove an element from the scan list.
Examples
removeFromScanList 3500
!
!
4.11!ADDTOPREFERREDNSPLIST!
!
addToPreferredNspList
Arguments
nspId (M)
The NSP ID to be added to the preferred to the
preferred NSP list
nspName (M)
The NSP name to be added to the preferred NSP list
priority (M)
The priority of NSP to be added to the preferred NSP
list (0->255). Value can't be 251,252,253,254
Description
Adds new element to the preferred Network Service Provider (NSP) list.
Examples
addToPreferredNspList AA:BB:CC NSP1 100
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
44!
4.12!REMOVEFROMPREFERREDNSPLIST!
!
removeFromPreferredNspList
Arguments
nspId (M)
The NSP ID to be removed from the preferred to
the preferred NSP list
Description
Removes an element to the preferred Network Service Provider (NSP)
list.
Examples
removeFromPreferredNspList AA:BB:CC
!
!
4.13!UPDATEACCOUNT!
!
updateAccount
Arguments
accountType (M)
The type of account to be updated. Possible values
are: cli, web
userName (M)
The new user names of CLI or WEB account to
update.
password (M)
The new passwords of CLI or WEB account to
update.
Description
Updates the CLI and WEB account user name and password.
Examples
updateAccount cli cliUser cliFrcPwd
updateAccount web webUser webFrcPwd
!
!
!
!
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
45!
4.14!GETMIB!
!
getMIB
Arguments
module (O)
The module of the MIB variable
name (O)
The Name of the MIB variable
index1 (O)
Key to get the specified MIB from a table
index2 (O)
Key to get the specified MIB from a table
index3 (O)
Key to get the specified MIB from a table
index4 (O)
Key to get the specified MIB from a table
index5 (O)
Key to get the specified MIB from a table
oid (O)
The object identifier of the MIB variable. The OID
value should contain the required indices of the table
for accessing a specific entry in a table.
Description
Get the value of the specified MIB. If the MIB module is specified, a
MIB name should also be specified; otherwise the MIB OID should be
specified. If the index is a MAC address it should be entered in a dotted
decimal format.
Example
getMIB oid = 1.0.8802.16.2.1.3.1.1.3
getMIB module = WMAN-DEV-MIB name =
wmanDevBsCurrentSwVersion index1 = 1
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
46!
4.15!SETMIB!
!
setMIB
Arguments
module (O)
The module of the MIB variable
name (O)
The Name of the MIB variable
index1 (O)
Key to get the specified MIB from a table
index2 (O)
Key to get the specified MIB from a table
index3 (O)
Key to get the specified MIB from a table
index4 (O)
Key to get the specified MIB from a table
index5 (O)
Key to get the specified MIB from a table
oid (O)
The object identifier of the MIB variable
type (M)
The type of the assigned MIB value. Possible values
are:
i : integer value
c: counter value
g: gauge value
a: IP address value
s: String value
t: Time Ticks value
h: Integer value for bits type
value (M)
The value assigned to the MIB
Description
Set the value of specific MIB. If the MIB module is specified, a MIB
name should also be specified; otherwise the MIB full OID should be
specified. If the index is a MAC address it should be entered in a dotted
decimal format.
Example
setMIB oid=1.0.8802.16.2.1.3.1.1.1 type=i value=5
setMIB oid=1.0.8802.16.2.1.3.1.1.1 type=h value=192 (Sets the value
of a bits MIB to 11000000)
setMIB module = WMAN-IF2F-BS-MIB name =
wmanIf2fBsSfDirection index1 = 1 index2 = 0.1.2.3.4.5 index3 = 2
type=i value=5
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
47!
4.16!GETNEXTMIB!
!
getNextMIB
Arguments
module (O)
The module of the MIB variable
name (O)
The Name of the MIB variable
index1 (O)
Key to get the specified MIB from a table
index2 (O)
Key to get the specified MIB from a table
index3 (O)
Key to get the specified MIB from a table
index4 (O)
Key to get the specified MIB from a table
index5 (O)
Key to get the specified MIB from a table
oid (O)
The object identifier of the MIB variable
Description
Get the value of the MIB after the specified one. If the MIB module is
specified, a MIB name should also be specified; otherwise the MIB
OID should be specified. If the index is a MAC address it should be
entered in a dotted decimal format.
Example
getNextMIB oid=1.0.8802.16.2.1.3.1.1.3
getNextMIB module = WMAN-DEV-MIB name =
wmanDevBsCurrentSwVersion index1 = 1
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
48!
4.17!GETBULK!
!
getBulk
Arguments
module (O)
The module of the MIB variable
name (O)
The Name of the MIB variable
index1 (O)
Key to get the specified MIB from a table
index2 (O)
Key to get the specified MIB from a table
index3 (O)
Key to get the specified MIB from a table
index4 (O)
Key to get the specified MIB from a table
index5 (O)
Key to get the specified MIB from a table
oid (O)
The object identifier of the MIB variable
maxRepetitions
(M)
The max repetition value in the get bulk request
Description
Gets a bulk of MIBs starting at the specified OID.
Example
getBulk oid=1.0.8802.16.2.1.3.1.1 maxRepetitions= 15
getBulk module = WMAN-DEV-MIB name =
wmanDevBsCurrentSwVersion index1 = 1 maxRepetitions = 10
Note:
The following is a list of the MIB module names that are used:
# WMAN-DEV-MIB
# WMAN-IF2-SS-MIB
# WMAN-CPE-PRIVATE-MIB
!
!
!
!
!
!
!
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
49!
4.18!!RESTOREFACTORYSETTINGS!
!
restoreFactorySettings
Arguments
None
Description
Triggers the factory reset.
Examples
restoreFactorySettings
!
4.19!DOWNLOADDEVICECERT!
!
downloadDeviceCert
Arguments
name (M)
A descriptive name of which file to download. This
name doesn’t match the name of the file on server.
It can take one of four values:
rootCert: The CA certificate from which the device
certificate is generated.
deviceCert: The device certificate.
deviceKeyFile: The key file
randomFile: The random file
filePath (O)
The path and the file name of the configuration
file. If not given, the default path is used.
ftpAddr (O)
The address of the FTP server in which the
certificate files exist. If not given, the default
address is used.
username (O)
The username used in FTP authentication. If not
given the default username is used.
password (O)
The password used in FTP authentication. If not
given the default password is used.
Description
Downloads the device certificates one by one. This command should be
issued four times in order to download the whole set of files needed for
authentication.
Examples
downloadDeviceCert rootCert
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
50!
4.20!UPLOADDEVICECERT!
!
uploadDeviceCert
Arguments
name (M)
A descriptive name of which file to upload. This
name doesn’t match the name of the file on server.
It can take one of four values:
rootCert: The CA certificate from which the device
certificate is generated.
deviceCert: The device certificate.
deviceKeyFile: The key file
randomFile: The random file
filePath (M)
The path and the file name of the configuration
file. Must be specified
ftpAddr (O)
The address of the FTP server in which to upload
the certificate files. If not given, the default address
is used.
username (O)
The username used in FTP authentication. If not
given the default username is used.
password (O)
The password used in FTP authentication. If not
given the default password is used.
Description
Uploads the device certificates one by one. This command should be
issued four times in order to upload the whole set of files needed for
authentication.
Examples
uploadDeviceCert rootCert /home/uploads/root.pem
uploadDeviceCert deviceCert /home/uploads/deviceCertificate.pem
ftpAddr=192.168.0.10
uploadDeviceCert deviceKeyFile
filePath=/home/certificates/devkey.pem
uploadDeviceCert randomFile /home/uploads/random
username=frcwimax password=frcwimax
!
!
!
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
51!
4.21!SHOWCURRENTNETWORKDEPLOYMENT!
!
showCurrentNetworkDeployment
Arguments
None
Description
Show the current network deployment topology working on CPE.
Examples
showCurrentNetworkDeployment
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
52!
4.22!SETCURRENTNETWORKDEPLOYMENT!
!
setCurrentNetworkDeployment
Arguments
enableBridge (O)
If true, activate bridge, else disable bridge. If
not specified do nothing i.e if enabled leave it
enabled.
enableRouter (O)
If true, activate router, else disable router. If
not specified do nothing.
enableDhcpClient (O)
If true, activate DHCP client, else disable
DHCP client. If not specified do nothing.
enableDhcpServer (O)
If true, activate DHCP server, else disable
DHCP server. If not specified do nothing.
enableDhcpRelay (O)
If true, activate DHCP Relay, else disable
DHCP relay. If not specified do nothing.
enablePPPoEClient (O)
If true, activate PPPoE client, else disable
PPPoE client. If not specified do nothing.
enablePPPoEProxy (O)
If true, activate PPPoE proxy, else disable
PPPoE proxy. If not specified do nothing.
enableVlan(O)
If true, activate VLAN, else disable VLAN. If
not specified do nothing.
Description
Configure the current network topology by enabling and disabling the
network protocols.
Examples
SetCurrentNetworkDeployment enableVlan=0
SetCurrentNetworkDeployment enableDhcpClient=1
SetCurrentNetworkDeployment enableBridge=0 enableRouter=1
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
53!
4.23!CONFIGUREPPPOE!
!
ConfigurePPPoE
Arguments
mode (M)
This parameter indicates whether PPP over
Ethernet will be configured in client mode or
proxy mode.
Client: configure PPPoE client
proxy: configure PPPoE proxy
maxSessionsCount (O)
Maximum total number of PPPoE sessions
allowed before incoming PPPoE packets are
ignored. (The default is 16).
authenticationMode (O)
The authentication mode to configure PPPoE
to use. It could be:
pap: enable using pap protocol
chap: enable using chap protocol
noAuth: no authentication needed
userName (O)
The user name to use to authenticate the
peer.
Password (O)
The password to use to authenticate the peer
Description
Configure PPPoE (client or proxy) on the CPE. This command not
making an action for now but it is saving the configuration of PPPoE
client in the configurations and proxy is not yet supported.
Examples
configurePPPoE client 16 pap frcuser frc2009
configurePPPoE client authenticationMode=chap username=frcuser
password=frc2009
!
!
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
54!
4.24!CONFIGUREBRIDGE!
!
configureBridge
Arguments
broadcastIngressFiltering (O)
Enable broadcast ingress filtering
broadcastEgressFiltering (O)
Enable broadcast egress filtering
basicIngressFiltering (O)
Enable basic ingress filtering
Description
Configure Bridge on the CPE.
Examples
configureBridge 1 1 1
configureBridge broadcastIngressFiltering=0
cconfigureBridge basicIngressFiltering=0 broadcastEgressFiltering=1
!
4.25!CONFIGUREROUTER!
!
configureRouter
Arguments
enableNat (O)
Enable or Disable NAT. The default value is
Enable.
Description
Configure Router on the CPE.
Examples
ConfigureRouter 0
configureRouter enableNat=1
configureRouter
!
!
!
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
55!
4.26!CONFIGUREVLAN!
!
configureVlan
Arguments
vlanName (M)
The name of the VLAN.
vlanId (M)
The VLAN ID to use in the tags. Valid range is
from 1 to 4094.
netAddr (M)
The vlan network address
netMask(M)
The vlan sub-net mask
interface (O)
The interface on which to configure VLAN support.
wired: wired interface
wireless: wirless interface
If not specified, wireless interface is use.
Description
Configure VLAN protocol on the CPE.
Examples
configureVlan vlan1 10 192.168.0.11 255.255.255.0 wired
configureVlan vlan1 11 172.25.25.30 255.255.255.0 wireless
configureVlan vlan2 12 172.25.25.30 255.255.255.0
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
56!
4.27!REMOVEVLANCONFIGURATION!
!
removeVlanConfiguration
Arguments
index(O)
This parameter indicates the required index to be
removed.
Description
Removes Vlan with specified index. If index is not specified the command
will show all name of Vlans available with corresponding index.
Examples
removeVlanConfiguration
removeVlanConfiguration 0
removeVlanConfiguration index=1
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
57!
!
CHAPTER!FIVE:!TYPICAL!USAGE!
SCENARIOS!!
!
Network Deployment Setups as follow:

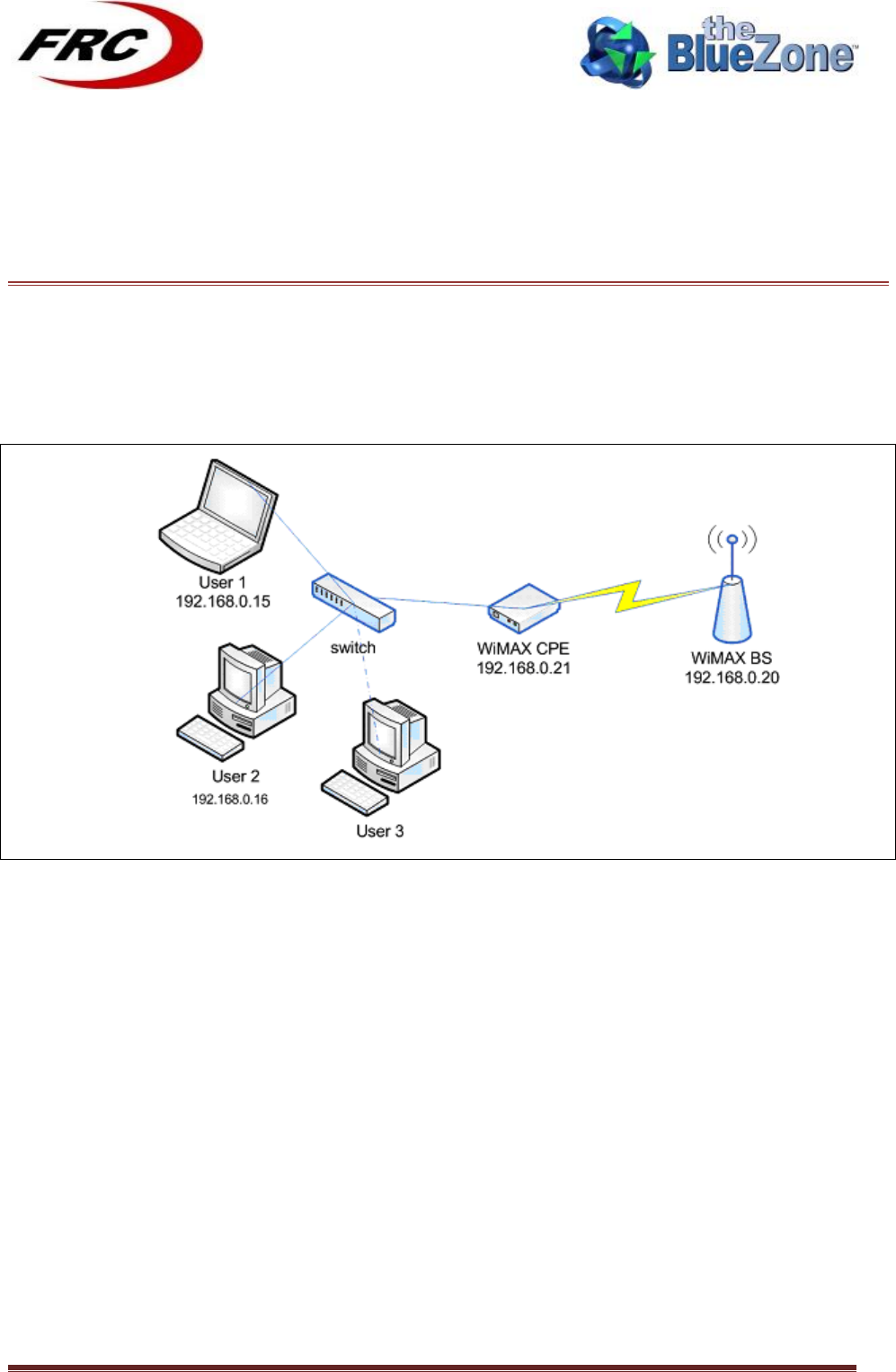

5.1!BRIDGE!SETUP!
!
Figure 7: Bridge Setup
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
58!
5.2!ROUTER!SETUP!
Figure 8: Router Setup
5.3!DHCP!SERVER!SETUP!
Figure 9: CPE with DHCP server setup
The CPE can be acting in either Bridge or Router modes and will be able to offer DHCP leases to
hosts on the Ethernet side such as User1 user 2.
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
59!
GLOSSARY!
This section defines or identifies technical terms, abbreviations, and acronyms used
throughout this document.
100BASE-TX IEEE 802.3u specification for 100 Mbps Fast Ethernet over two airs of Category 5 or
better UTP cable.
10BASE-T IEEE 802.3 specification for 10 Mbps Ethernet over two pairs of Category 3 or better
UTP cable.
Administrator An administrator performs the service of maintaining a network. In the case of this
Router, the person who sets up the Router and makes changes to the settings.
Advanced Encryption An strong encryption algorithm that implements symmetric key cryptography.
Standard (AES)
Authentication The process to verify the identity of a client requesting network access.
Auto-negotiation Signaling method allowing each node to select its optimum operational mode (speed
and duplex mode) based on the capabilities of the node to which it is connected.
Base Station A WIMAX service provider’s equipment that is installed at a fixed location to provide
network connectivity for subscriber stations within a defined service area.
Client A computer on the network that uses the services of the Router, such as the
automatic DHCP server and Firewall.
CLI Command Line Interface
Customer Premise Customer Premise Equipment: Communications equipment that resides
Equipment (CPE) on the customer's premises.
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
60!
CS Convergence Sublayer
CSN Connectivity Service Network
Demilitarized Zone A virtual zone in the router that is not protected by The Router's firewall.
(DMZ) One computer can be placed in the DMZ.
Domain Name System A system used for translating host names for network nodes into IP
(DNS) addresses. DNS allows Internet host computers to have a domain name (such as
belkin.com) and one or more IP addresses (such as 192.34.45.8). A DNS server
keeps a database of host computers and
their respective domain names and IP addresses, so that when a domain name is
requested (as in typing easyDNS.com into an Internet browser), the user is sent to
the proper IP address. The DNS server address used by the computers on the home
network is the location of the DNS server the ISP has assigned.
Dynamic Host Control Dynamic Host Configuration Protocol: Provides a framework for passing
Protocol (DHCP) configuration information to hosts on a TCP/IP network. DHCP is based on the
Bootstrap Protocol (BOOTP), adding the capability of automatic allocation of reusable
network addresses and additional configuration options.
Dynamic IP An IP address that is automatically obtained from a DHCP server.
Ethernet A popular local area data communications network, which accepts
transmission from computers and terminals. A standard for computer networks.
Ethernet networks are connected by special cables and hubs, and move data around
at up to 10 million bits per second (Mbps).
Encryption Data passing between a base station and clients can use encryption to protect from
interception and eves-dropping.
Extensible Authentication
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
61!
Protocol (EAP) An authentication protocol used to authenticate network clients. EAP is
combined with IEEE 802.1X port authentication and a RADIUS authentication server
to provide “mutual authentication” between a client, the access point, and the a
RADIUS server
File Transfer Protocol File Transfer Protocol: A TCP/IP protocol used for file transfer.
(FTP)
Firewall An electronic boundary that prevents unauthorized users from accessing
certain files or computers on a network.
Firmware Software stored in memory. Essential programs that remain even when the system is
turned off. Firmware is easier to change than hardware but more permanent than
software stored on a disk.
Hypertext Transfer Hypertext Transfer Protocol: HTTP is a standard used to transmit and
Protocol (HTTP) receive all data over the World Wide Web.
IEEE 802.16e A standard that provides mobile broadband wireless access using Scalable
Orthogonal Frequency Division Multiple Access (SOFDMA).
IP Address IP stands for Internet Protocol. An IP address consists of a series of four
numbers separated by periods, that identifies an single, unique Internet c computer
host. Example: 192.34.45.8.
ISP Internet Service Provider. An ISP is a business that provides connectivity to the
Internet for individuals and other businesses or organizations.
ISP Gateway Address (see ISP for definition). The ISP Gateway Address is an IP address for t the
Internet router located at the IPS's office. This address is required o only when using a
cable or DSL modem.
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
62!
Local Area Network A LAN is a group of computers and devices connected together in a
(LAN) relatively small area (such as a house or an office). A home network is considered a
LAN.
MAC Media Access Control: The lower of the two sub-layers of the data link layer defined
by the IEEE. The MAC sub-layer handles access to shared media, such as whether
token passing or contention will be used.
MAC Address Standardized data link layer address that is required for every port or device that
connects to a LAN. Other devices in the network use these addresses to locate
specific ports in the network and to create and update routing tables and data
structures. MAC addresses are six bytes long and are controlled by the IEEE.
MIB Management Information Base.
Orthogonal Frequency
Division Multiplexing Orthogonal Frequency Division Multiplexing: OFDM allows multiple users
(OFDM) to transmit in an allocated band by dividing the bandwidth into many
narrow bandwidth carriers.
Power Over Ethernet Power over Ethernet: A specification for providing both power and data
(PoE) to low-power network devices using a single Category 5 Ethernet cable. PoE
provides greater flexibility in locating network devices, and significantly decreased
installation costs.
MTU Maximum Transmission Unit. The largest unit of data that can be transmitted on any
particular physical medium.
NAT Network Address Translation. This process allows all of the computers on the home
network to use one IP address. Using the NAT capability of the Home-Connect home
network gateway, access is available to the Internet from any computer on the home
network without having to purchase more IP addresses from the ISP.
Port A logical channel that is identified by its unique port number. Applications listen on
specific ports for information that may be related to it.
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
63!
PPPoE Point-to-Point Protocol over Ethernet. Point-to-Point Protocol is a method of secure
data transmission originally created for dial-up connections; PPPoE is for Ethernet
connections.
PPTP Point-to-Point Tunneling Protocol. A version of PPP (Point-to-Point Protocol) that has
the ability to encapsulate packets of data formatted for one network protocol in
packets used by another protocol. This tunneling technique allows TCP/IP data to be
transmitted over a non-TCP/IP network. PPTP can be used to join different physical
networks using the Internet as an intermediary.
SNTP Simple Network Time Protocol. A communication standard that allows for
The transmission of real time information over a network or the Internet.
SPI Stateful Packet Inspection. SPI is the type of corporate-grade Internet s
security provided by a HomeConnect home network gateway. Using SPI,
the gateway acts as a firewall, protecting the network from computer hackers.
Static IP An IP address that is manually configured and never changes.
Subnet Mask A subnet mask, which may be a part of the TCP/IP information provided
by the ISP, is a set of four numbers configured like an IP address. It is
used to create IP address numbers used only within a particular network
(as opposed to valid IP address numbers recognized by the Internet, which must
assigned by Inter-NIC).
Subscriber Station A general term for a customer’s WIMAX terminal equipment that provides
connectivity with a base station.
SNMP Simple Network Management Protocol
TCP Transmission Control Protocol. The most common Internet transport
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
64!
layer protocol. TCP is connection-oriented and stream-oriented, and provides for
reliable communication over packet-switched networks.
TCP / IP Transmission Control Protocol over Internet Protocol. This is the
standard protocol for data transmission over the Internet.
Trivial File Transfer Trivial File Transfer Protocol: A TCP/IP protocol commonly used for
Protocol (TFTP) software downloads.
UDP User Datagram Protocol. Communications protocol for the Internet Network layer,
transport layer, and session layer, which makes it possible to send a datagram
message from one computer to an application running in another computer. Unlike
TCP, UDP is connectionless and does not guarantee reliable communication; the
application itself must process any errors and check for reliable delivery.
UTP Unshielded twisted-pair cable.
WAN Wide Area Network. A network that connects computers located in
Geographically separate areas, (i.e., different buildings, cities, countries).
The Internet is a wide area network.
VLAN Virtual Local Area Network.
VPN Virtual Private Network.
WAN IP Address The IP address assigned to the router by the ISP.
WLAN Wireless Local Area Network. A local area network that connects
Computers close together via radio (such as 802.11b)
! !! !!!!!!!!!!!!!!!!!!!!!!!!! !
!
!
65!
RF exposure warning
This equipment must be installed and operated in
accordance with provided instructions and the
antenna(s) used for this transmitter must be installed
to provide a separation distance of at least 20 cm from
all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter. End-
users and installers must be provided with antenna
installation instructions and transmitter operating
conditions for satisfying RF exposure compliance.

Navigation menu
