FSH LOCKING
Electromechanical Security
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING
FSH MISSION
FSH Fire & Security Hardware, is a company
who pride in and strive to maintain their leading
position in the electromechanical security
locking market.
FSH recognises and acknowledges the relationships with
their Distribution Partners to which FSH endeavours at all time
to provide competitively priced high quality solutions to most
if not all, electromechanical security locking solutions.
FSH is cognisant of the growing support of Consultants
and Advisors in the Security Industry who are now specifying
FSH devices as their product of preference.
FSH also acknowledge our End Users who demand Quality,
Service and Expert Support and who recognise this in their
growing demand for the FSH product lines.
FSH commits to continue with its leadership in innovation of
Security Locking Devices, to maintain its reputation as the
leading producer of high quality locking products, and to
maintain its aggressive price competitiveness.
Allegion’s pioneering brands are redening
security, inventing new technologies and
keeping you safe wherever you are – from
home, to work and beyond.
Allegion specialises in security around the doorway and
beyond: everything from mechanical locks to advanced
biometric scanning devices, keeping every solution simple
and integrated. Allegion, listed on the New York Stock
Exchange (NYSE:ALLE), is a US$2 billion business employing
more than 7,800 people and offering products in more
than 120 countries across the world.
Allegion’s portfolio includes strategic brands CISA®,
Interex®, LCN®, Schlage® and Von Durpin®; and other
brands including aptiQ®, Brio®, Briton™, Bricard®, Falcon®,
FSH®, Fusion Hardware Group™, Glynn-Johnson®, ITO
Kilit™, Ives®, Kryptonite®, Legge®, Normbau™,SimonVoss®,
Steelcraft®, XceedID® and Zero®.
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING

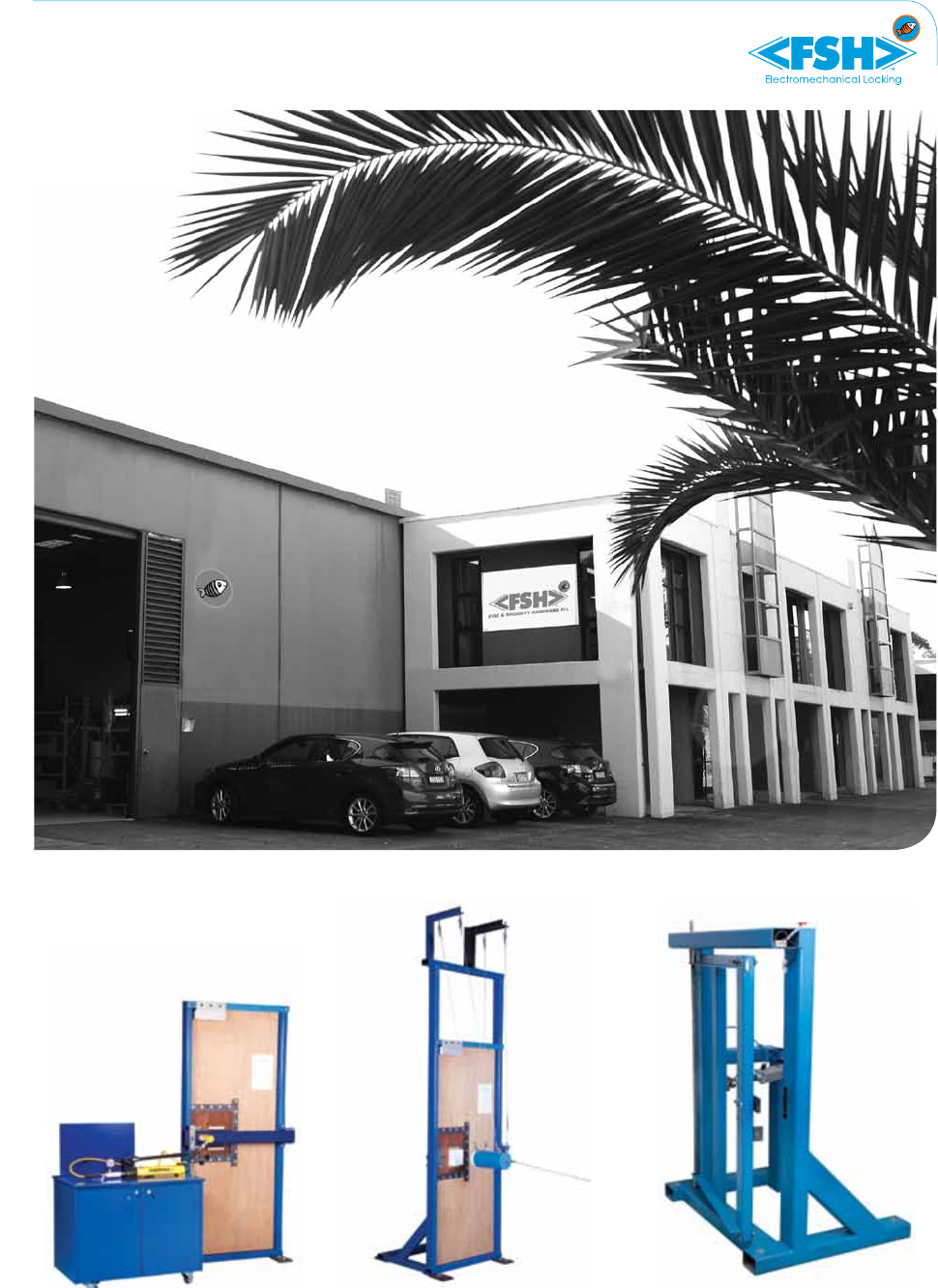

FSH HEADQUARTERS | MATRAVILLE NSW
FSH STATE-OF-THE-ART TESTING EQUIPMENT
FSH PRODUCT INDEX
Electromechanical Locking
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING

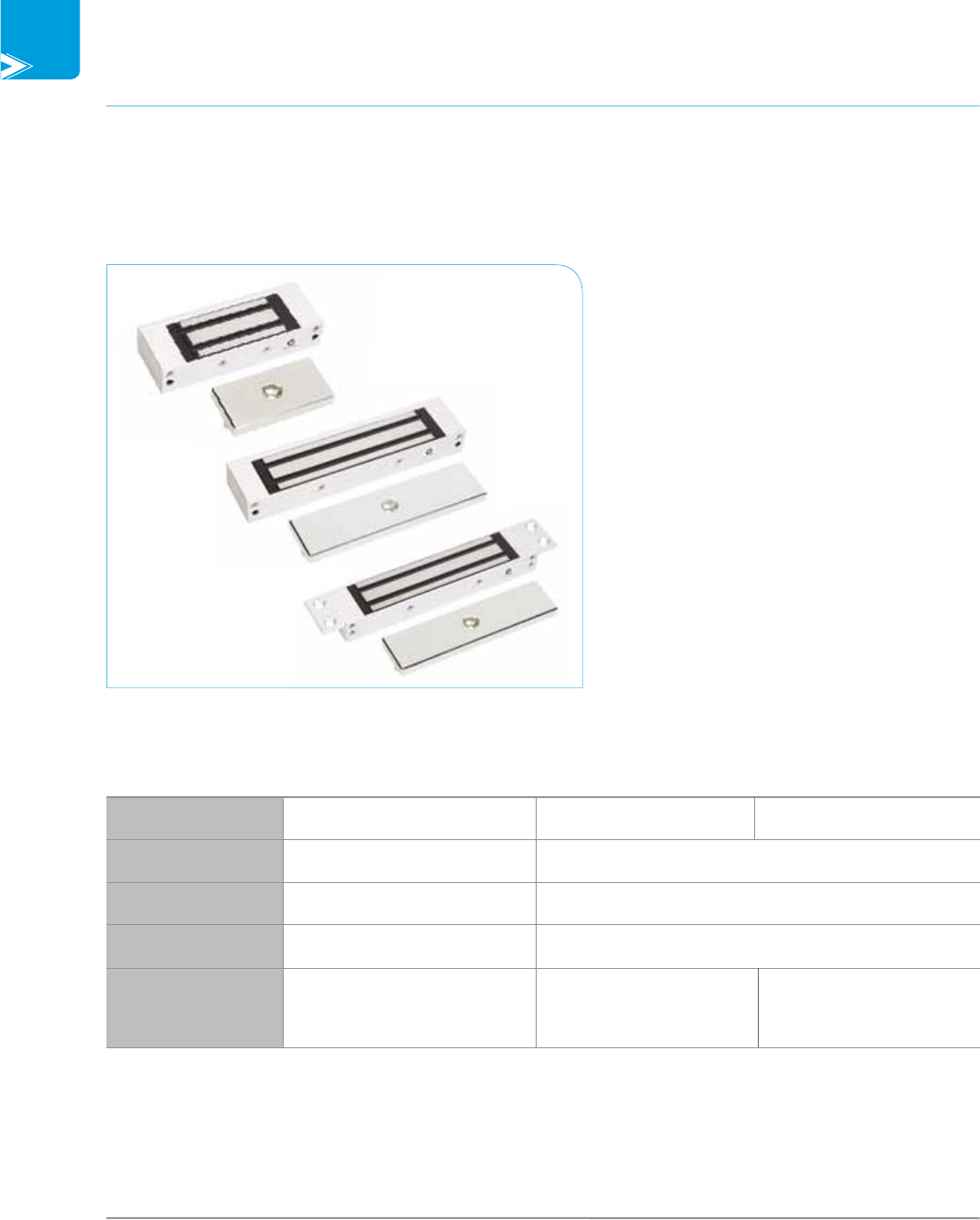

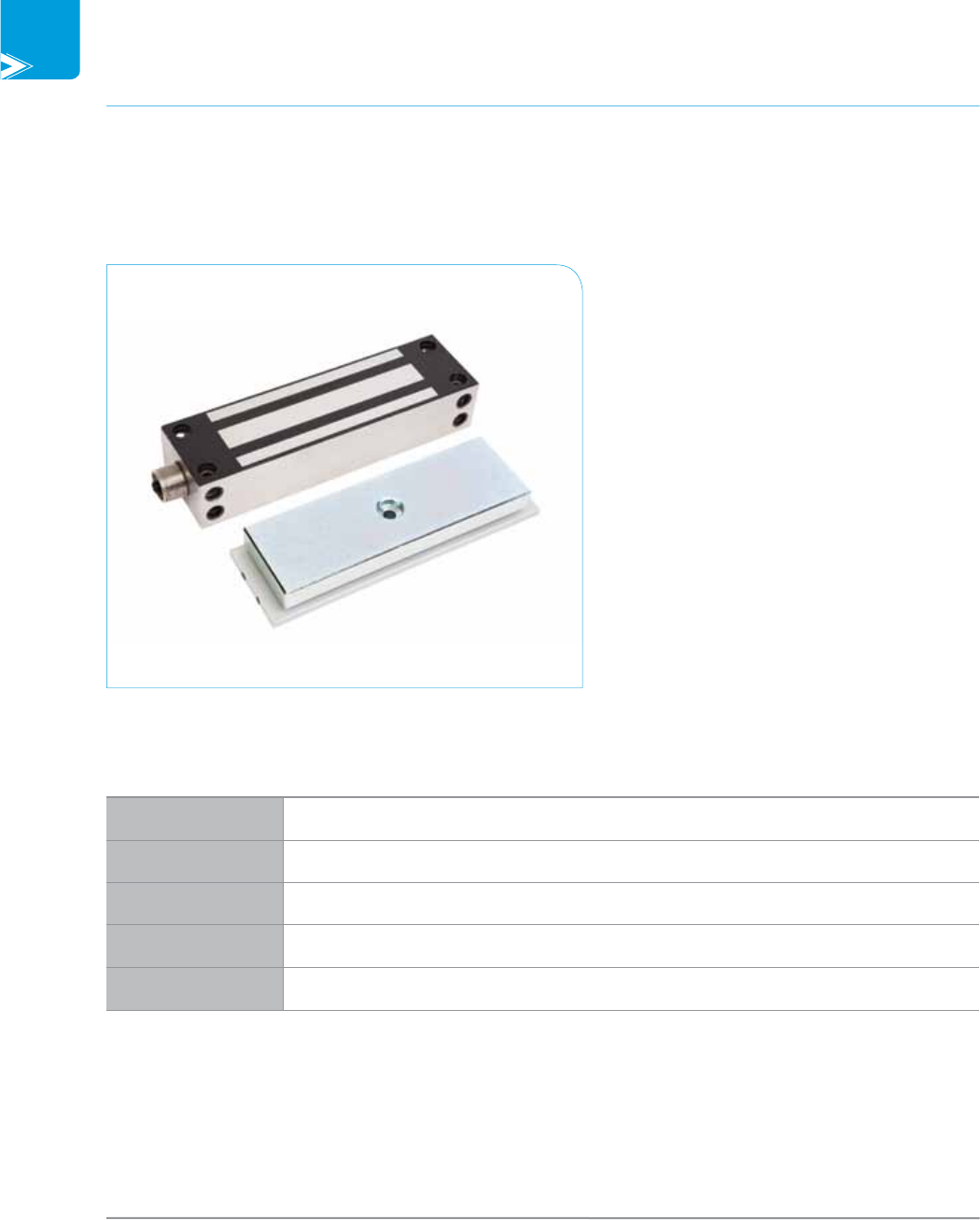

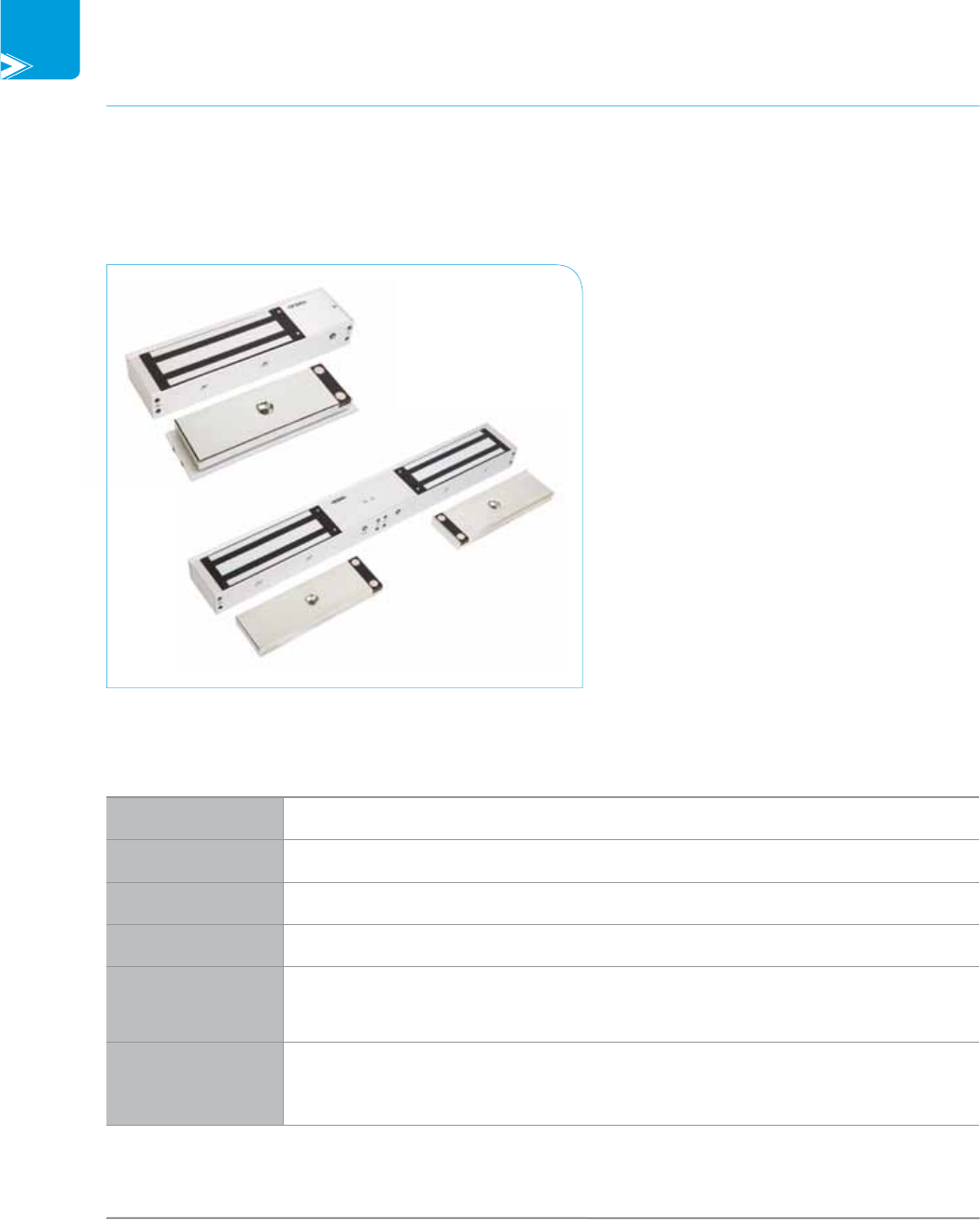

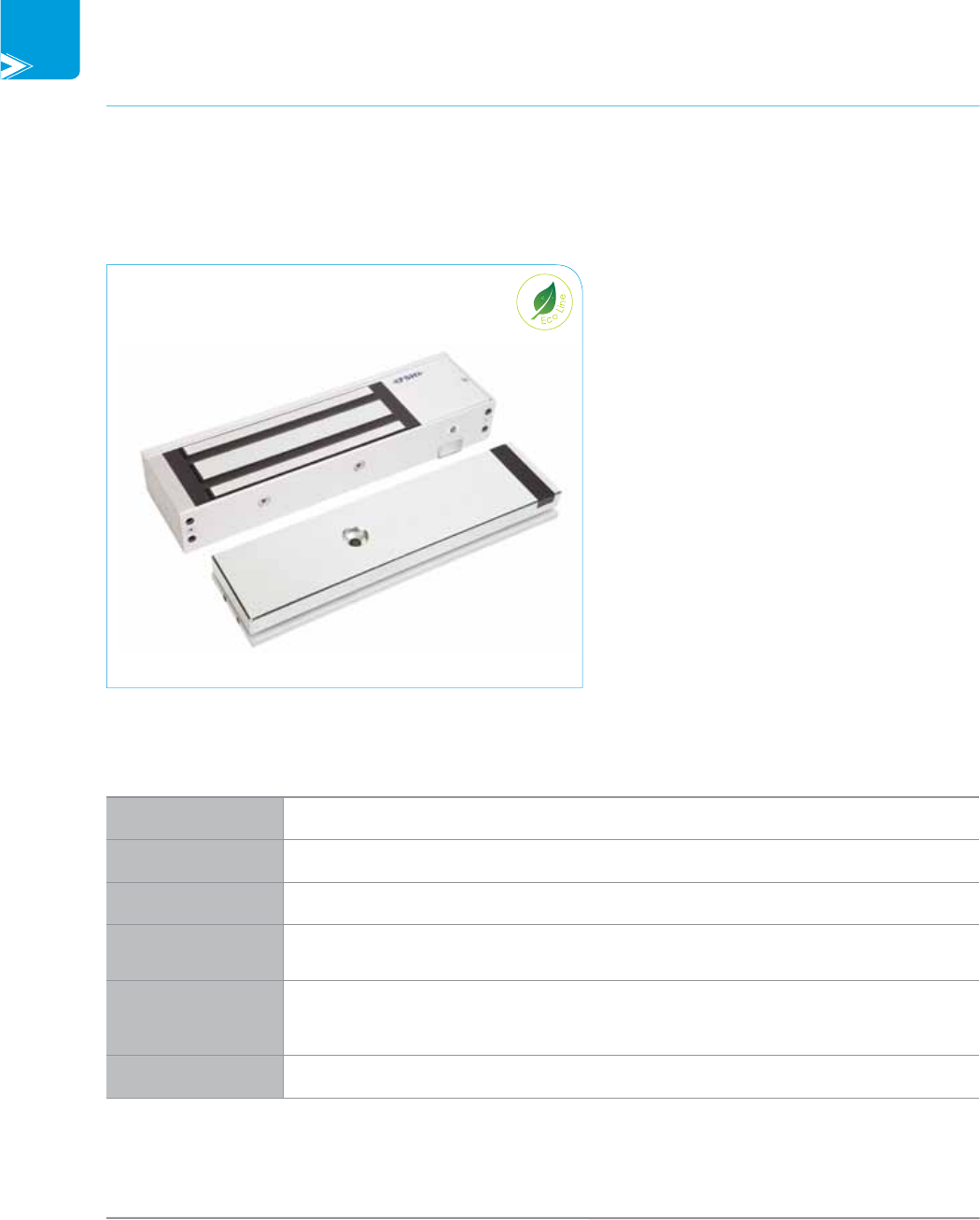

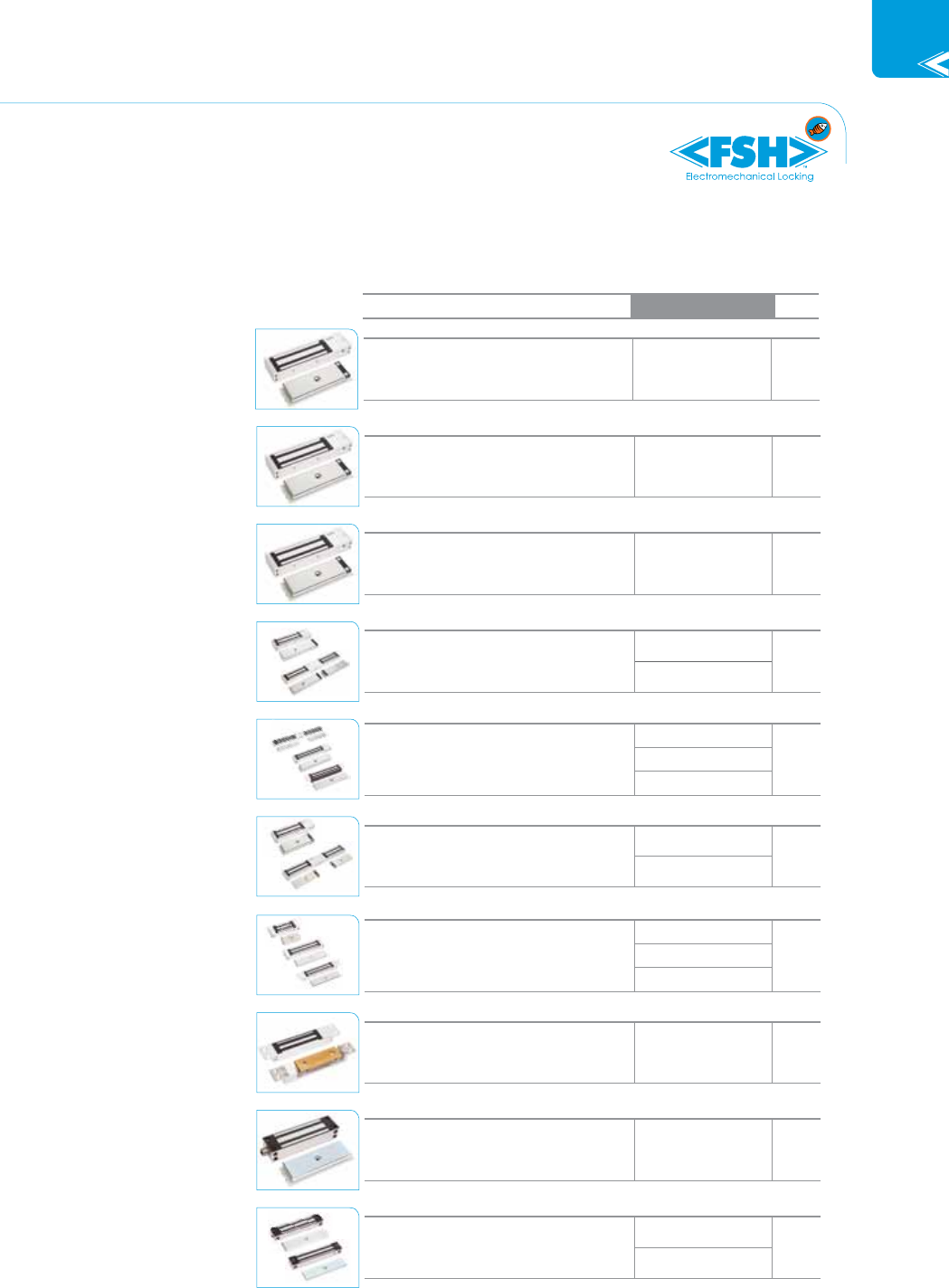

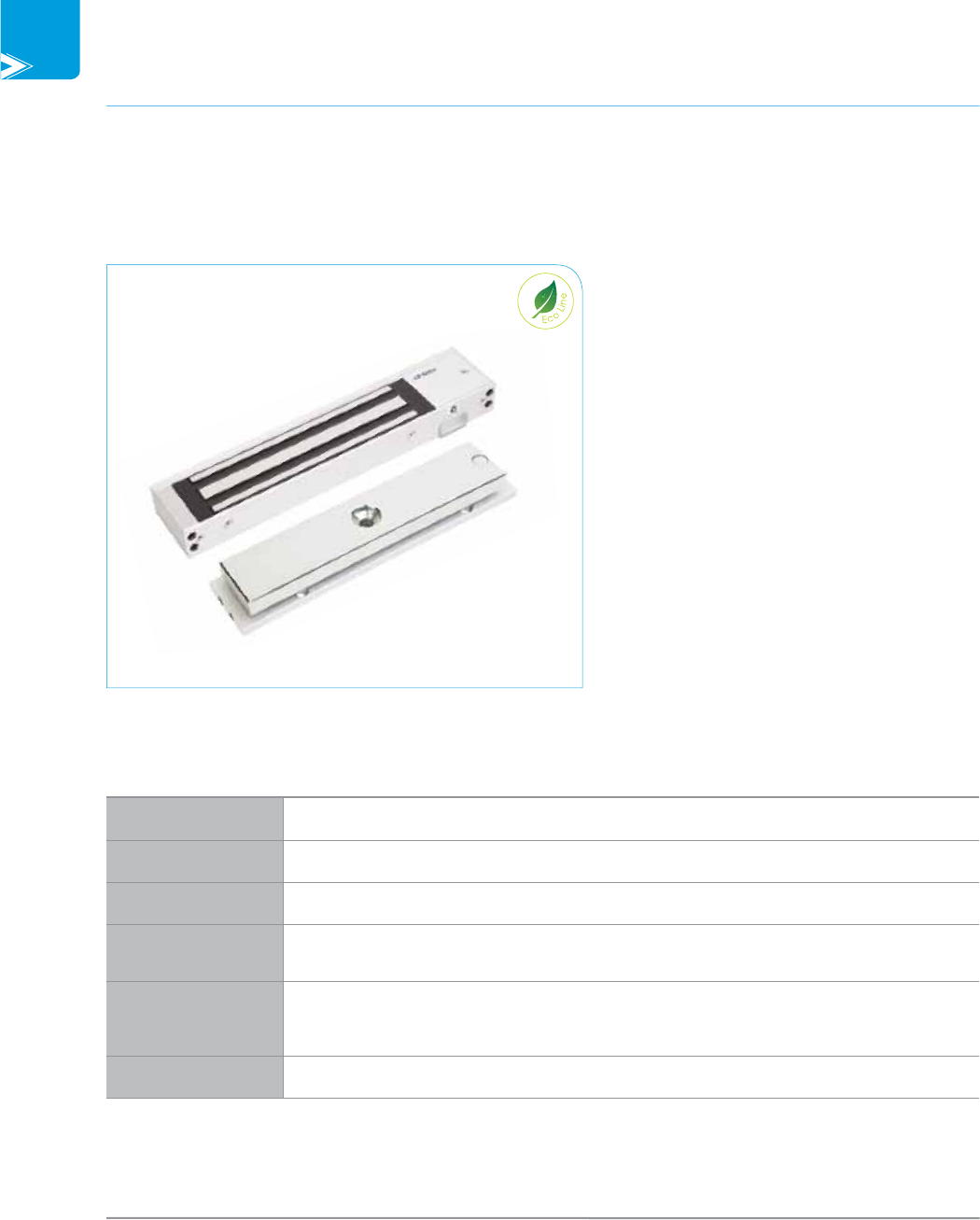

ELECTRO MAGNETIC LOCKING DEVICES
MEM MECHANICAL ELECTRO MAGNETIC LOCKS

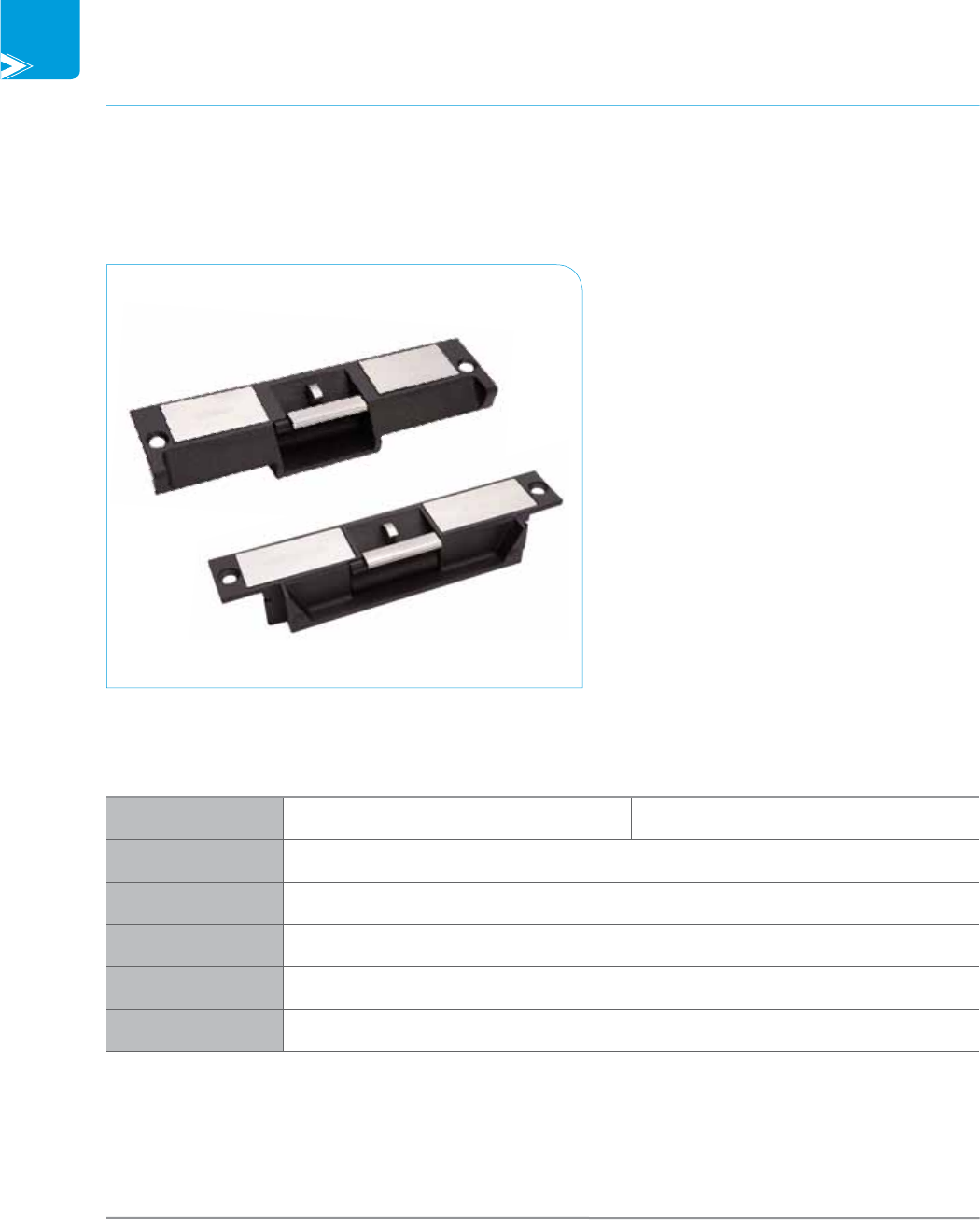

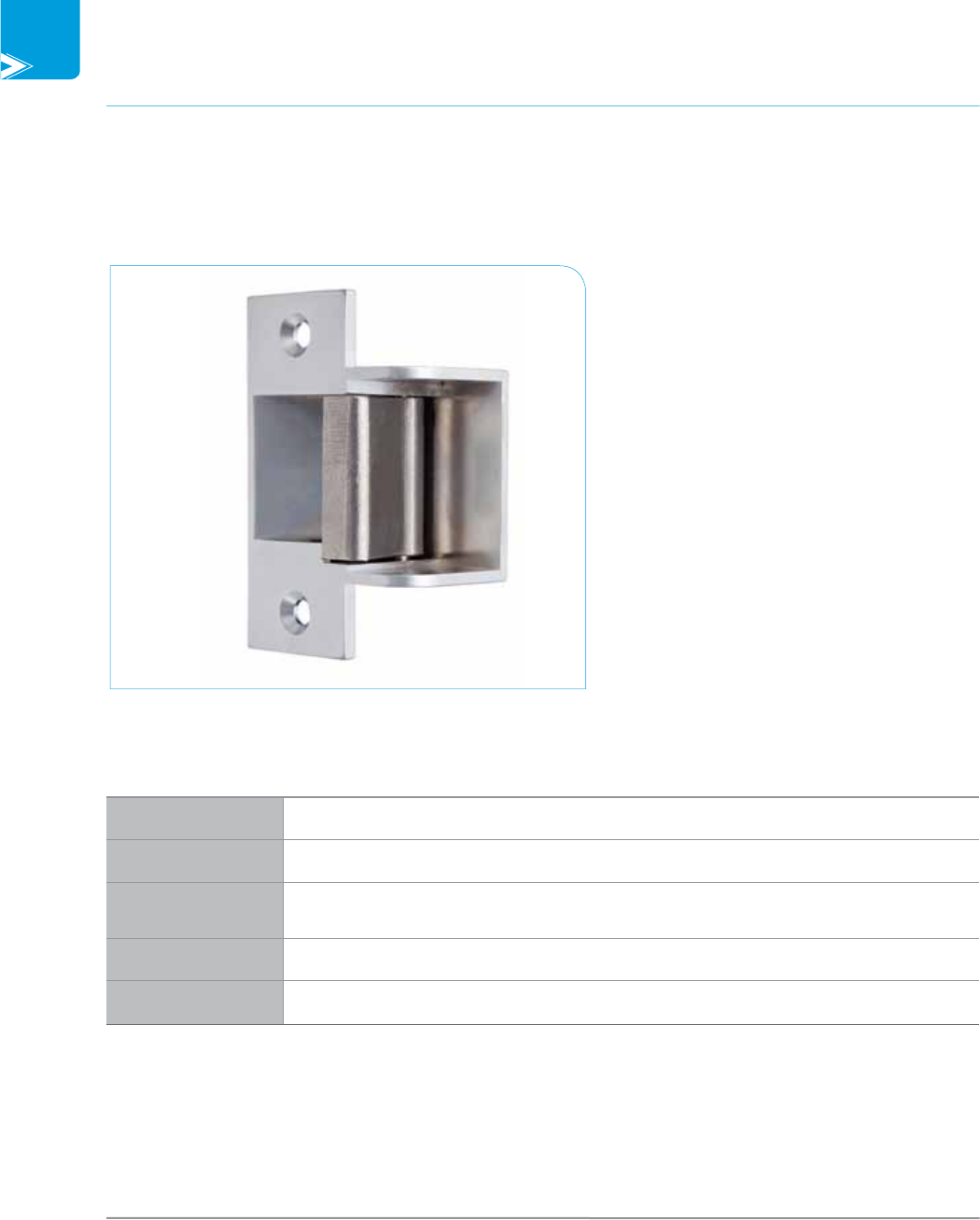

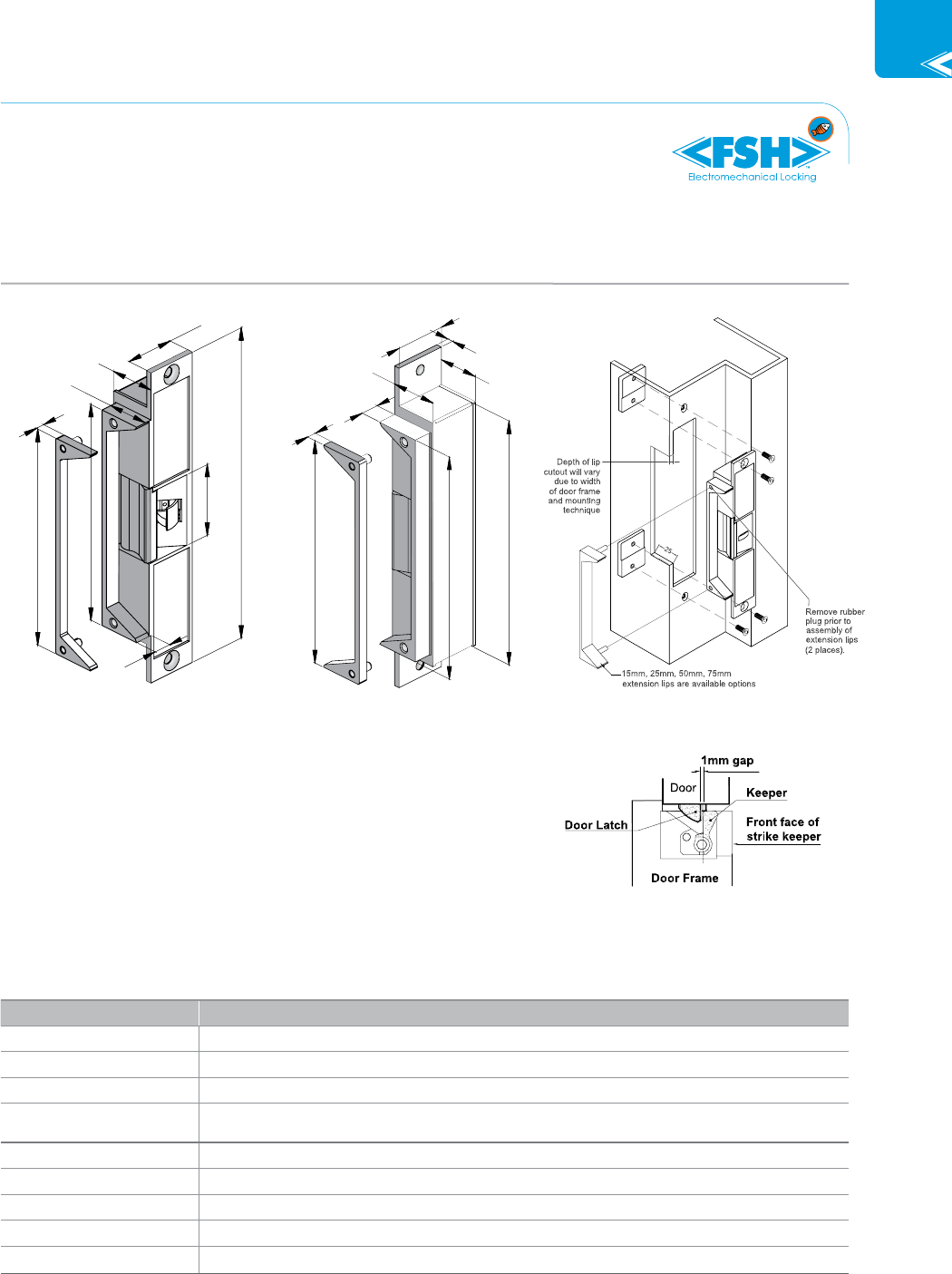

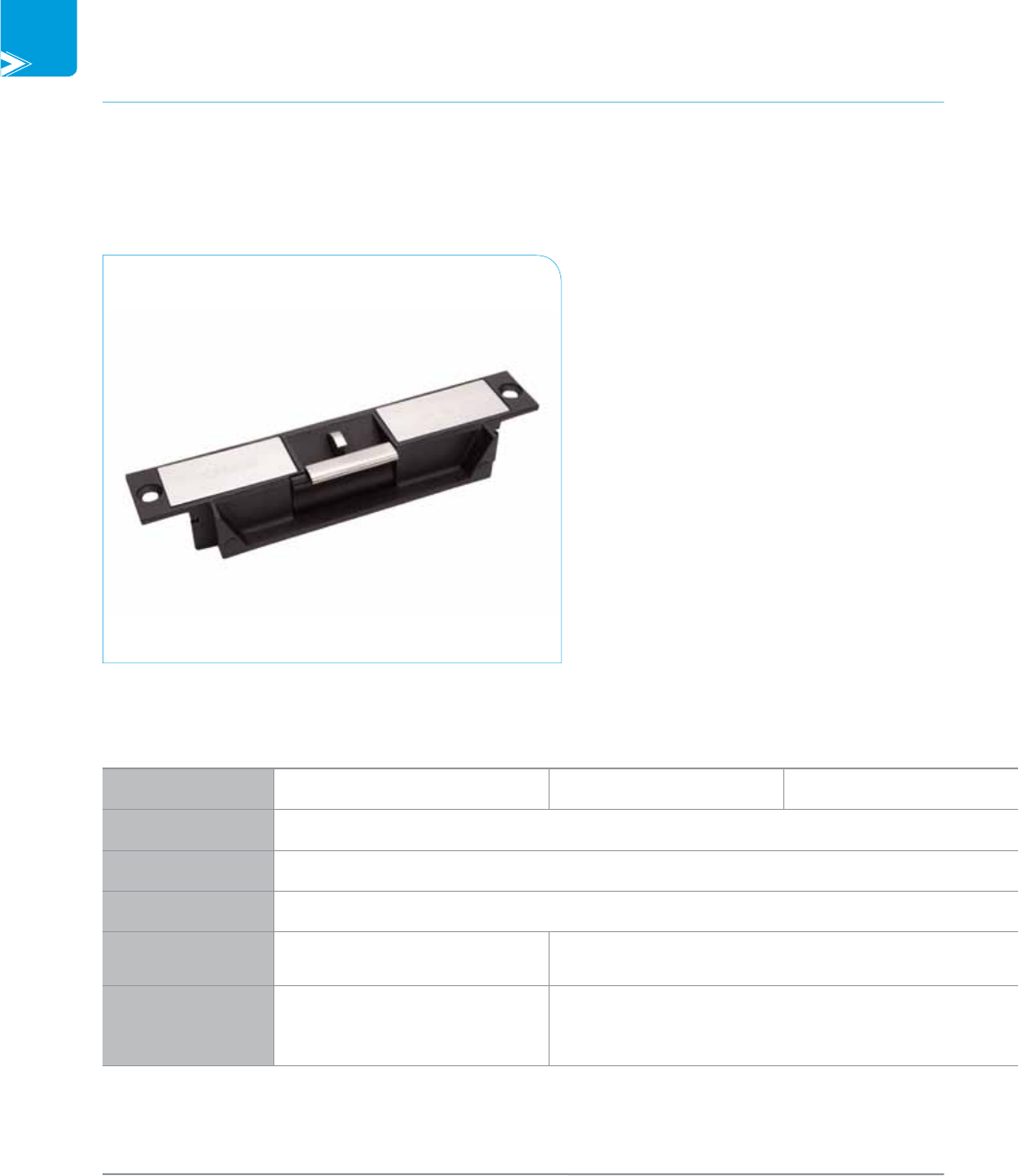

ELECTRIC STRIKES

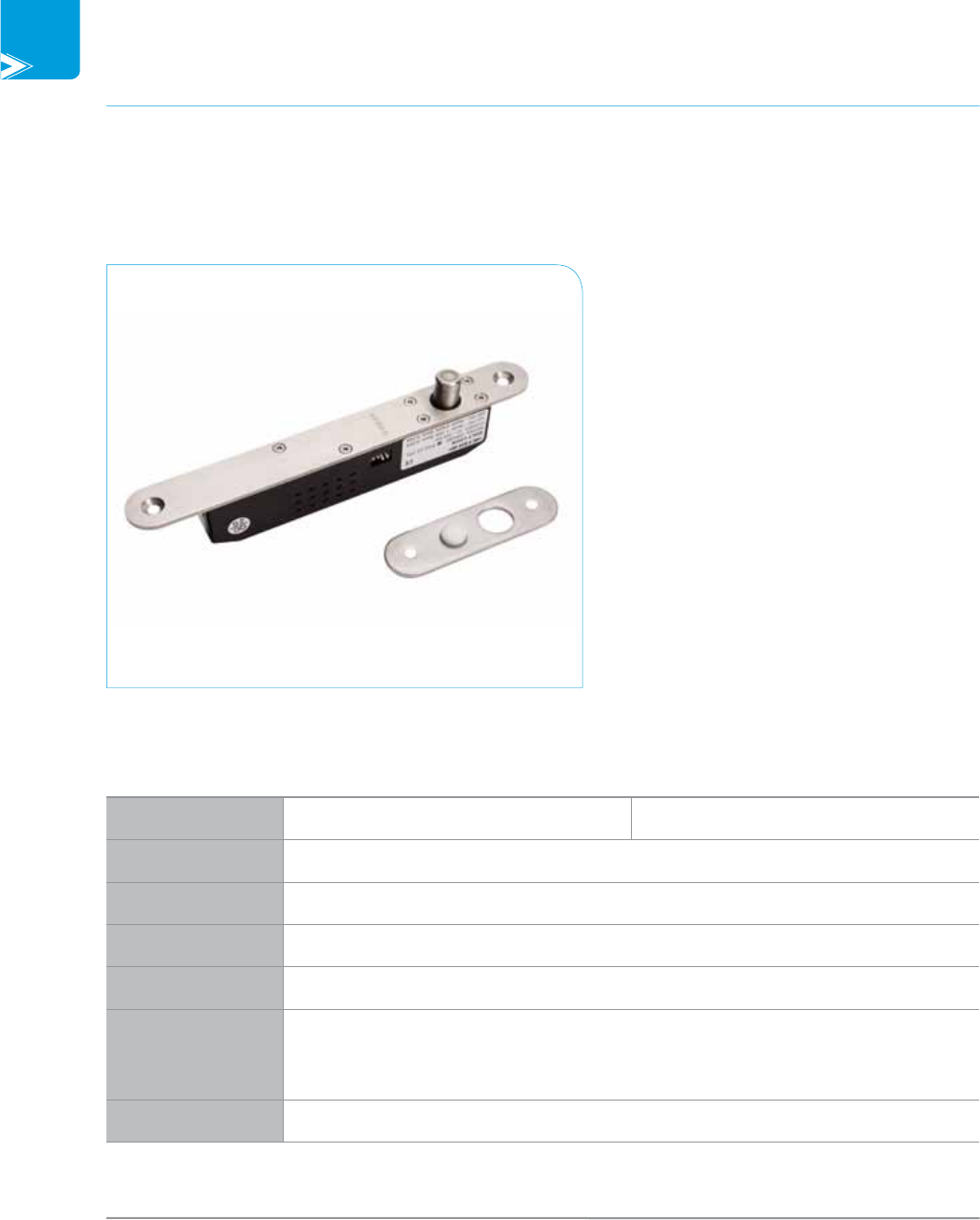

ELECTROMECHANICAL DROP BOLTS
ELECTROMECHANICAL CABINET LOCKS

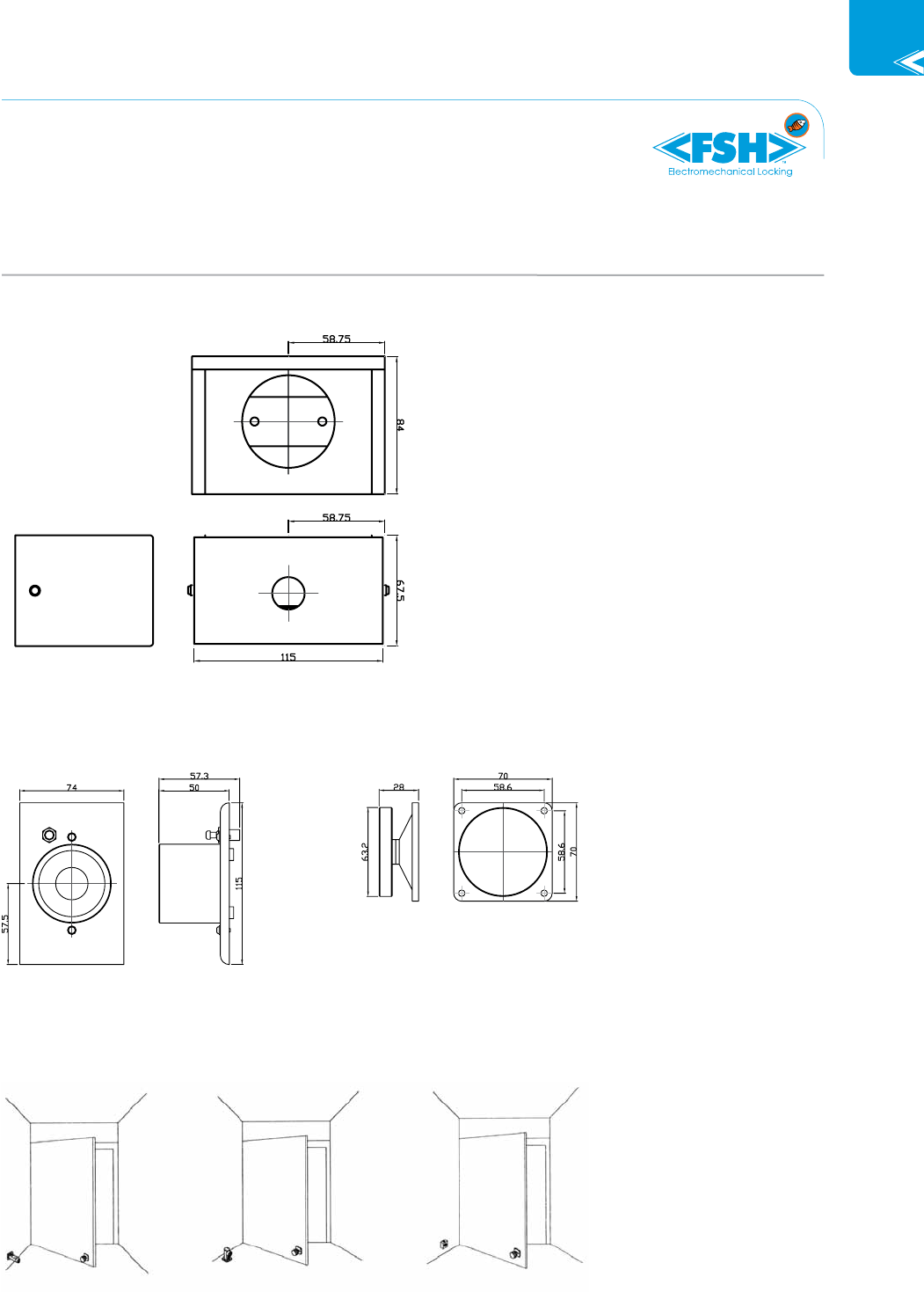

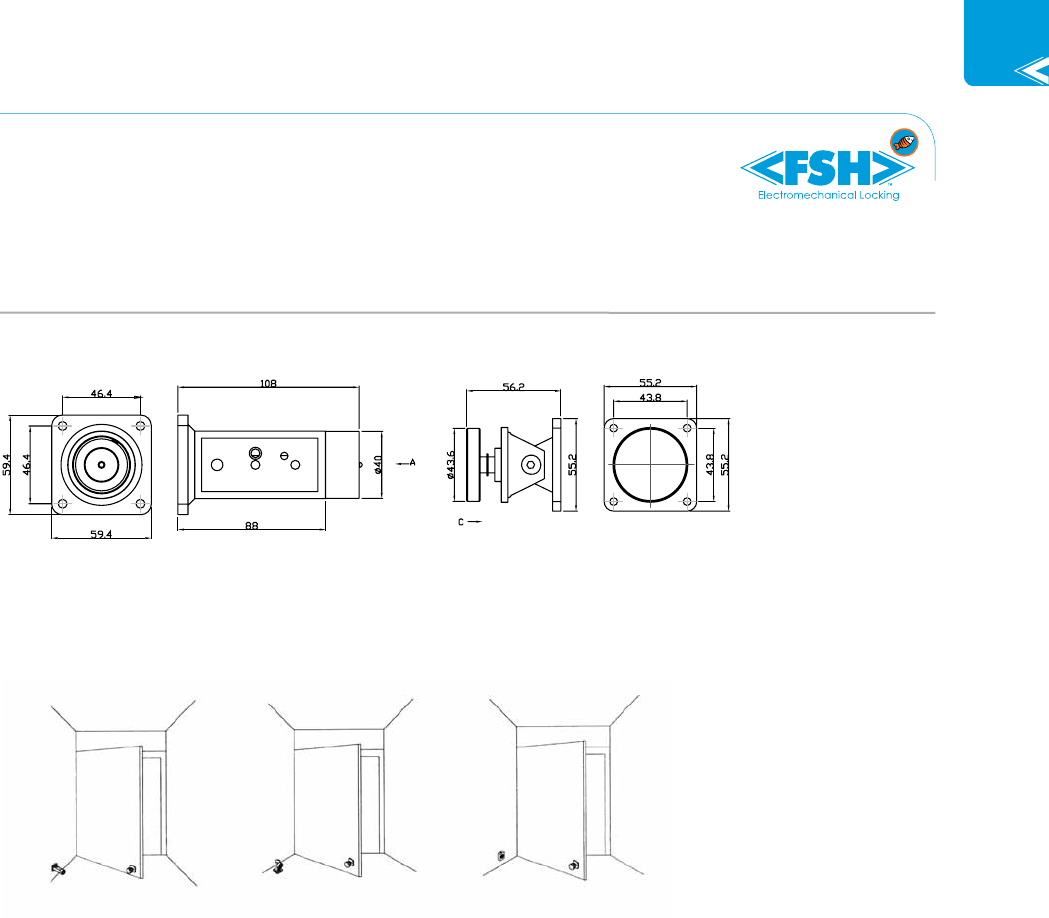

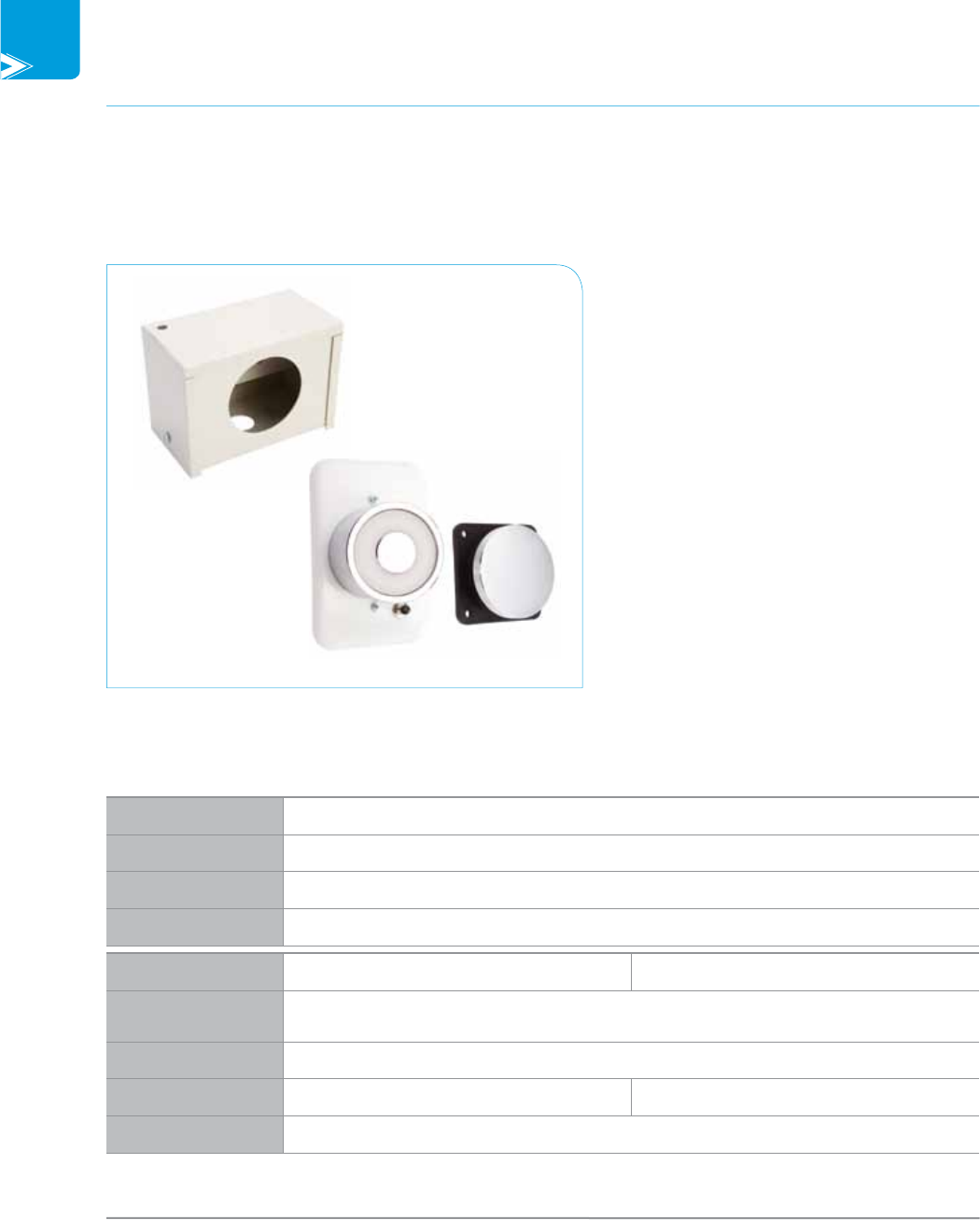

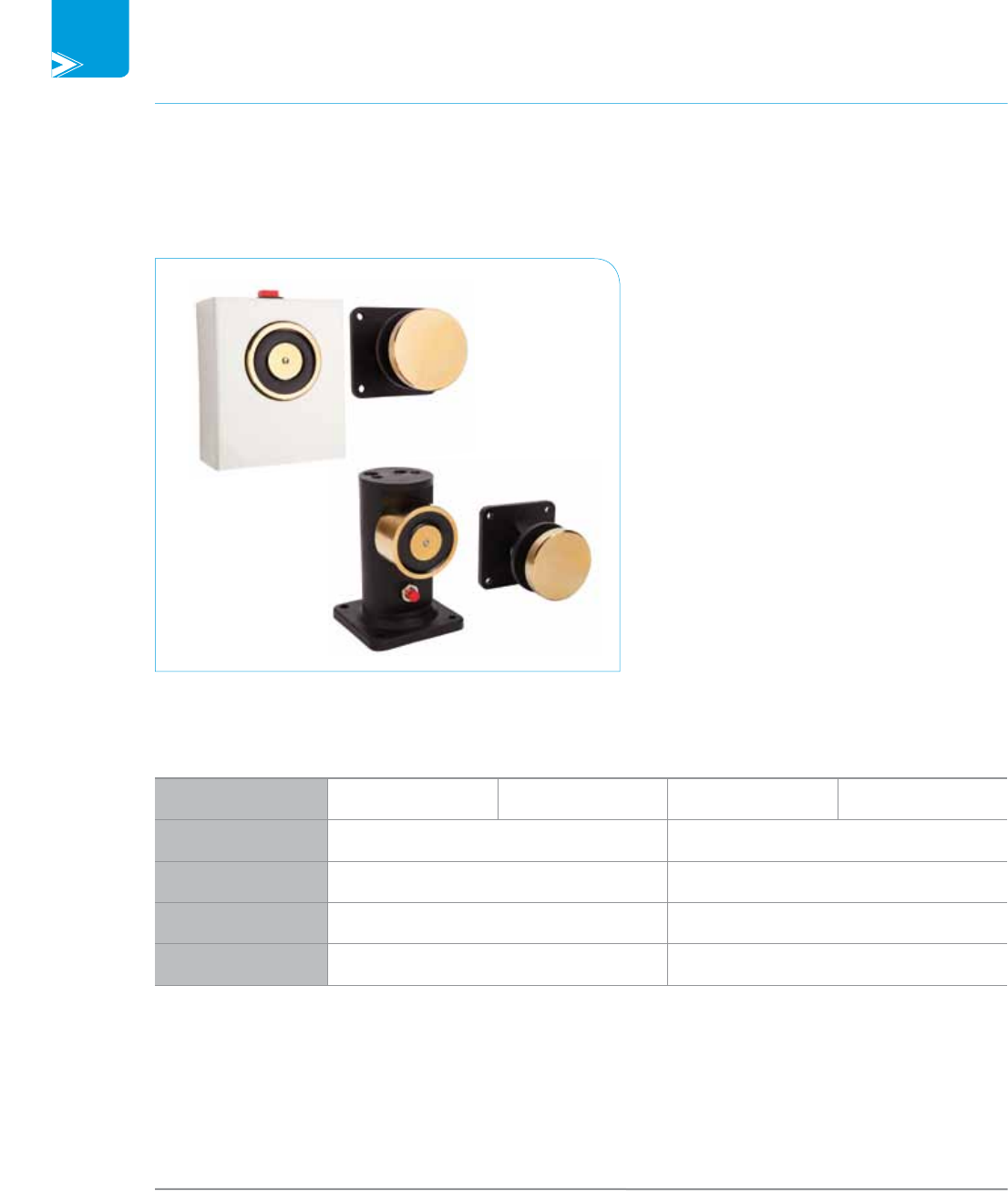

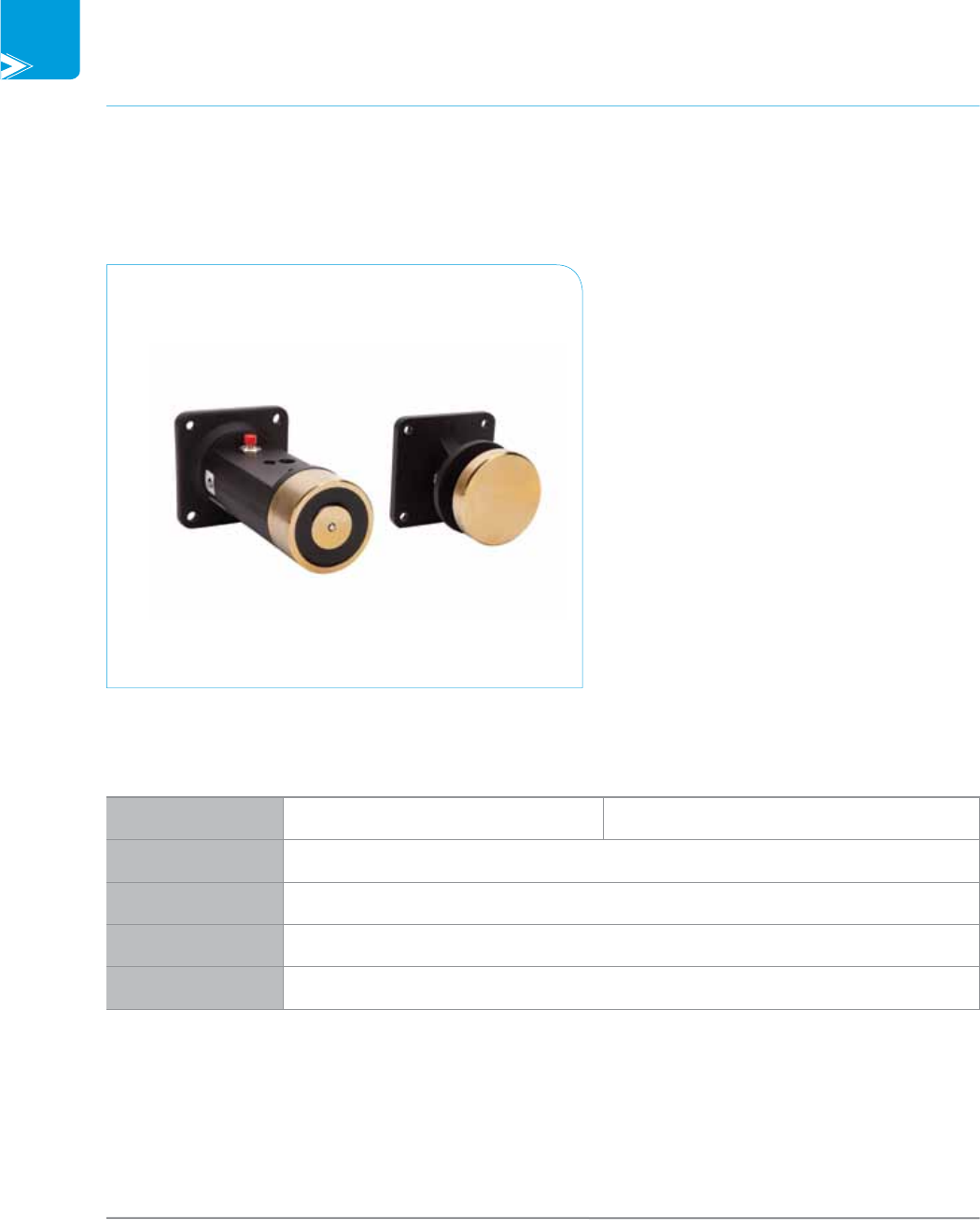

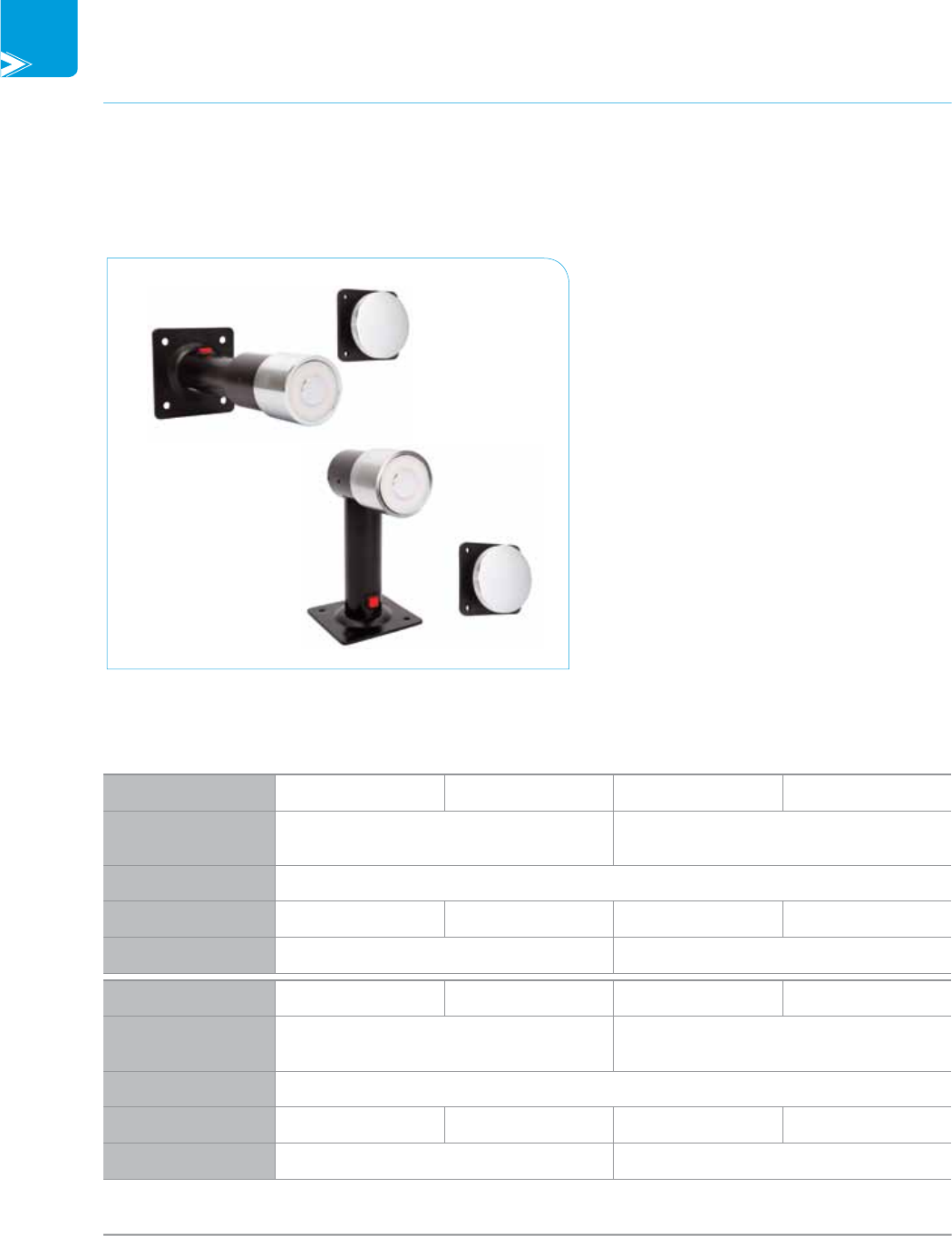

ELECTROMAGNETIC DOOR HOLDERS
ELECTRIC MORTICE LOCKS
SPECIAL LOCKING DEVICES

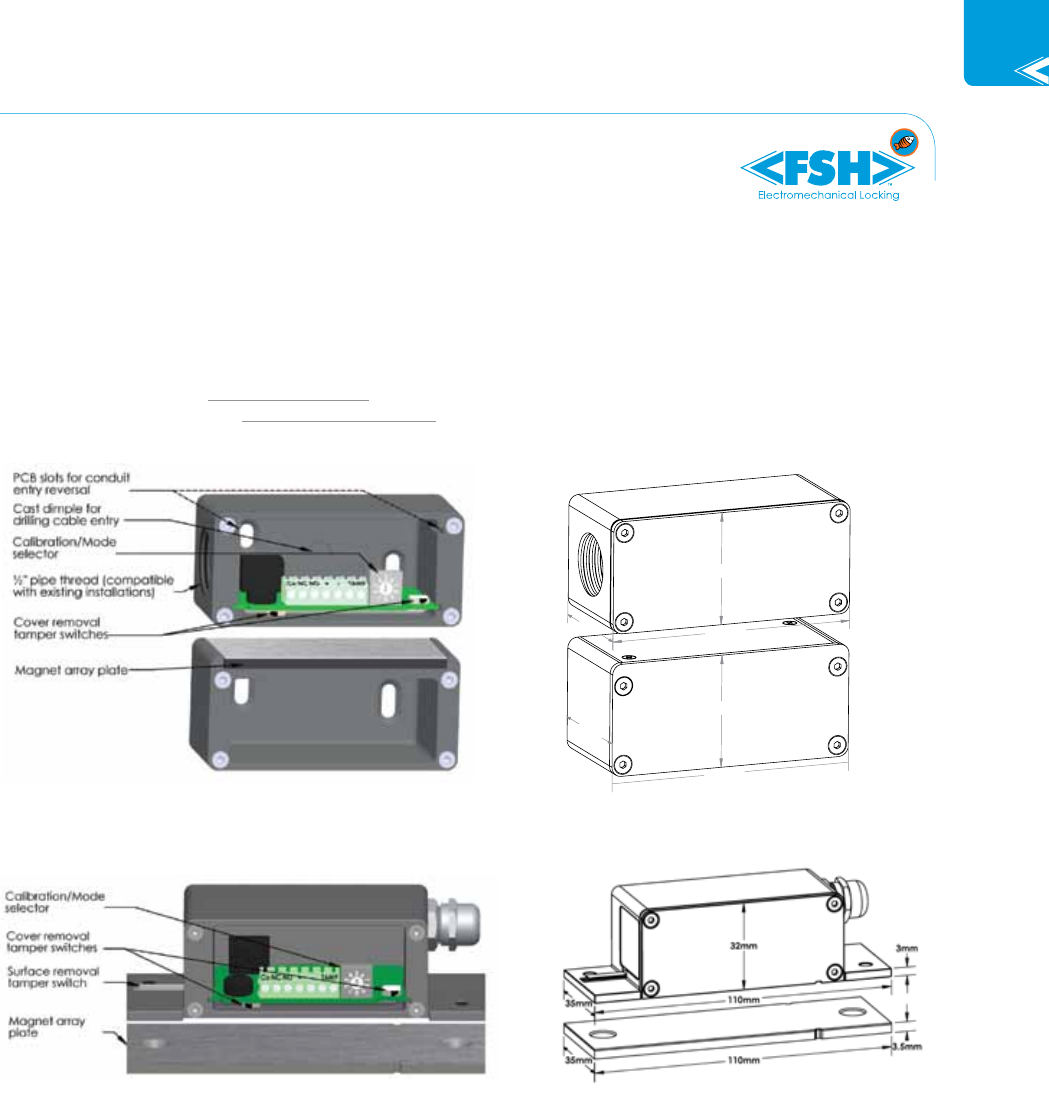

HIGH SECURITY DOOR SENSOR
FSH PRODUCT INDEX
5
PAGE
No.
6
16
38
52
62
68
78

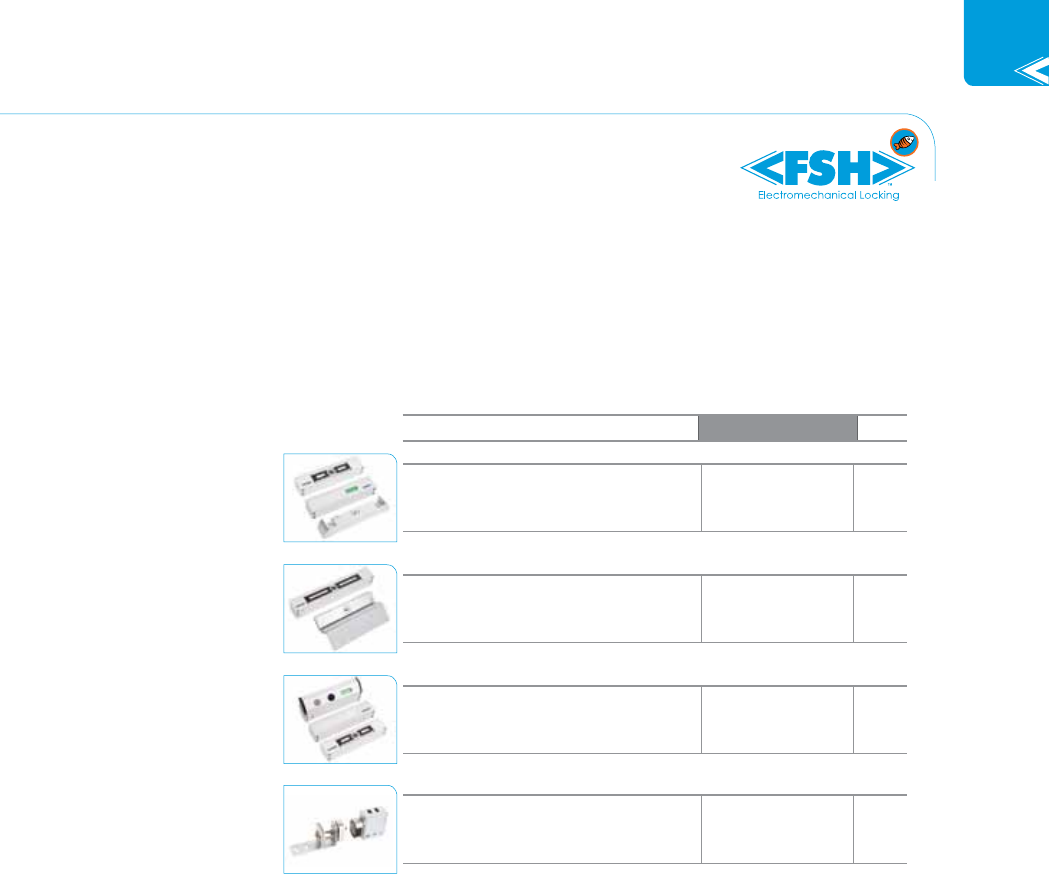

MEM MECHANICAL ELECTRO MAGNETIC LOCKS
Electromechanical Locking
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING

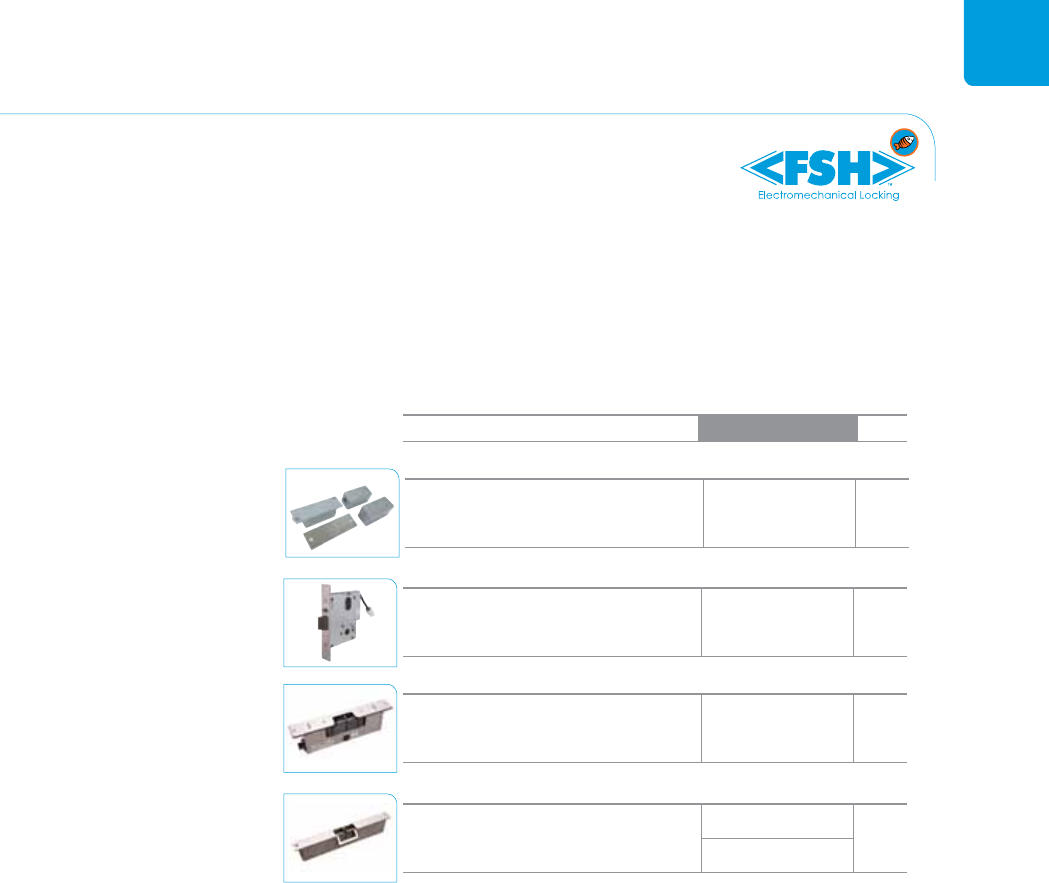

FEATURES PART NO. PP
MEM Lock™ Mechanical Electro
Magnetic Locking Device MEM2400LP 8
MEM Lock™ Delayed Egress Locking
Device MEM2400EXT-SERIES 12
MEM Lock™ Mechanical Electro
Magnetic Sliding Door Locking Device MEM4400 14
MEM Lock™ Mechanical Electro
Magnetic Locking Device MEM24000LED-LZ 10
7
8
TECHNICAL DETAILS
PRODUCT FEATURES
PART NO. MEM2400LP
LIGHT FEATURE Light Panel (LP)
FUNCTION Surface mount
Outward opening doors
HOLDING STRENGTH Up to 1000kg
VOLTAGE/CURRENT Dual Voltage 12/24VDC 12VDC/240mA 24VDC/120mA
APPROVALS 4 hour re rated to A.S. and B.S. standards
MONITORING EW / LSS / DSS
SIZE
MEM size L= 158mm H= 35mm D= 30mm
Armature Plate size L= 120mm H= 30.6mm D= 12.5mm
Anti-Tamper-Bracket size L= 194mm H= 38mm D= 30mm
• Slimline design 75% smaller than a standard 600kg magnet
• High holding force up to 1000kg and releases under side load of up to 70kg
• Dual-Voltage 12/24VDC Low power consumption 24VDC/120mA
• 5 year warranty
• Simple installation
• 4 hour re rated
• Full monitoring Lock Status Sensor (LSS) and Door Status Sensor (DSS)
• Early Warning Alarm (EW)
• Anti Tamper Bracket (to protect the armature plates xing bolt)

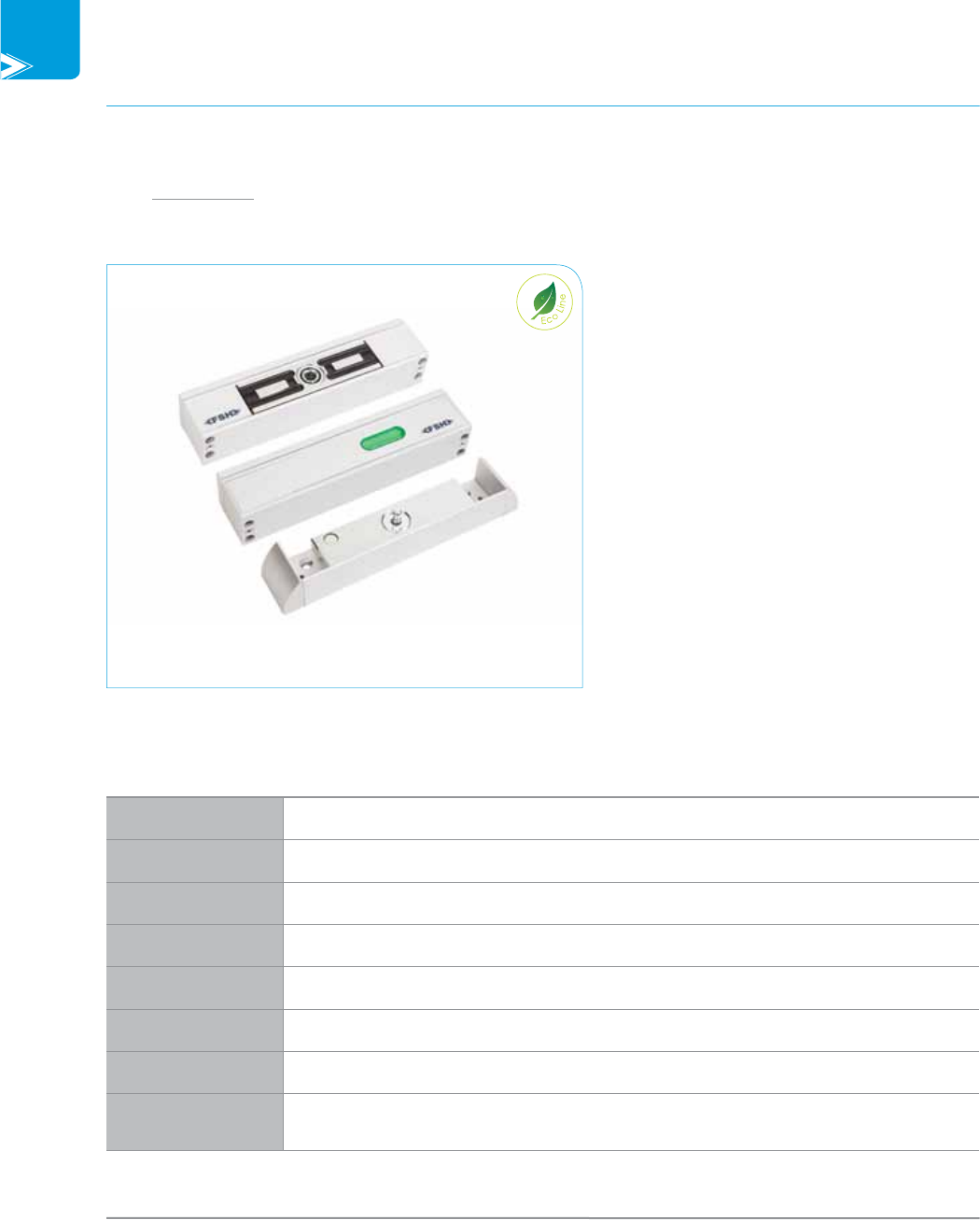

MEM2400LP
PRODUCT DESCRIPTION
The innovative slimline MEM2400LP Mechanical
Electro Magnetic Lock has been designed as an
alternative to standard magnetic locks especially
suited for situations where door height or narrow
prole door frames create installation restrictions
and appearance is of paramount importance.
The patented MEM incorporates both magnetic
and mechanical design principles to achieve a
superior holding force of up to 1000kg, whilst being
75% smaller than a standard 600kg Electro Magnet.
The MEM2400 is capable of opening with up
to 70kg side pressure on the door and has the
added security function of “Early Warning” alarm
condition. The device comes with the FSH patented
“Anti-Tamper-Bracket” as standard.
MEM Lock™ is recommended to be used on doors
< 2400mm
PRODUCT MEM2400LP
MEM LOCK™ MECHANICAL ELECTRO MAGNETIC LOCKING DEVICE
FOR OUTWARD OPENING HINGED DOORS
9
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING

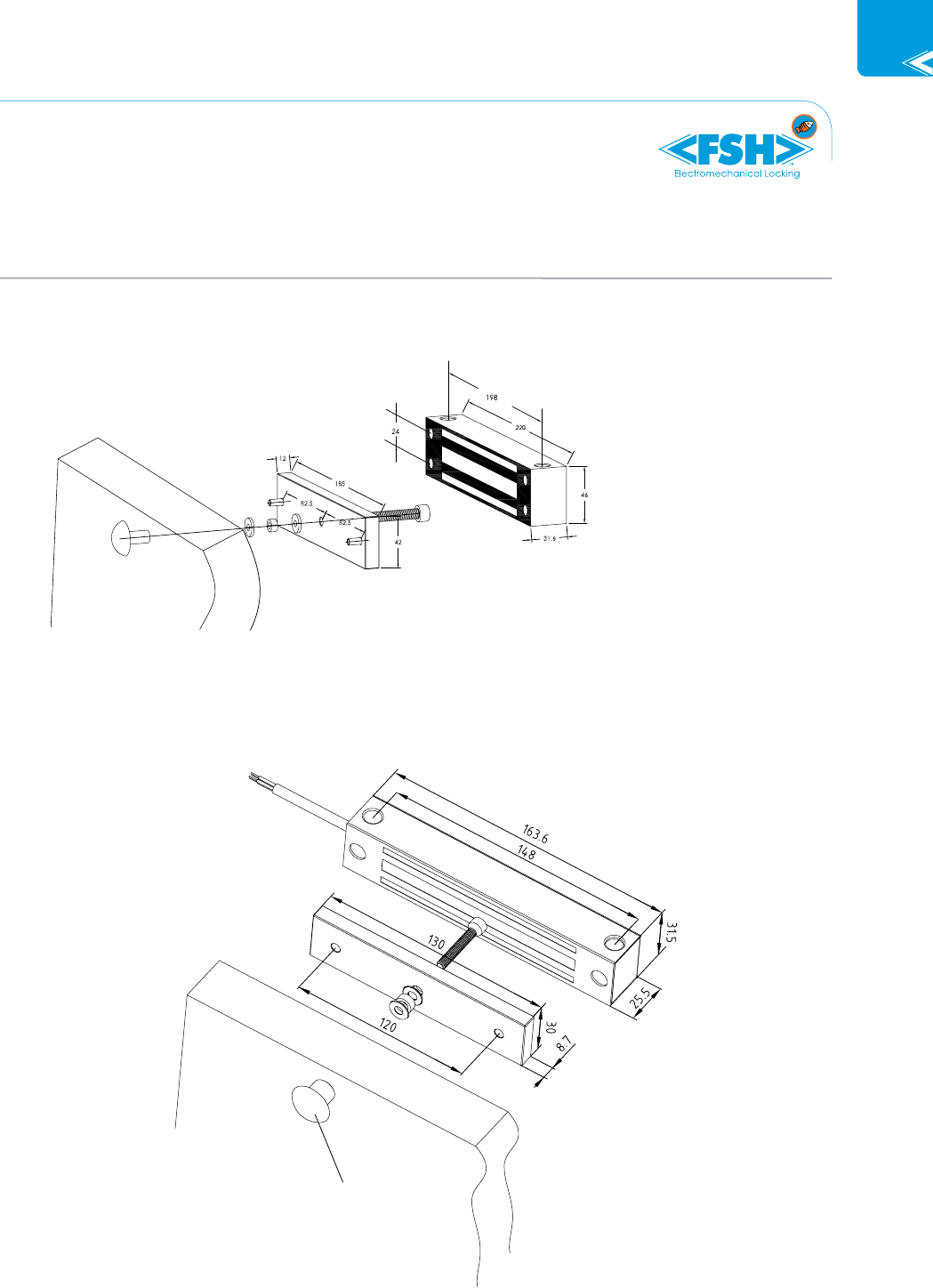

PRODUCT DIMENSIONS AND INSTALLATION
Installation diagram
12 VOLT JUMPER POSITION
24 VOLT JUMPER POSITION
SPARE
JUMPER
(D)
(B)
(C)
Door
Door Frame
Magnet
(D)
(B)&(C)
Installation dimension
35.0
120.0
164.0
194.0
12.5
18.5
Armature Plate & Anti-Tamper
30.5
30.0
5.5
158.0
120.0
38.0
PART NO. AMGB24-12

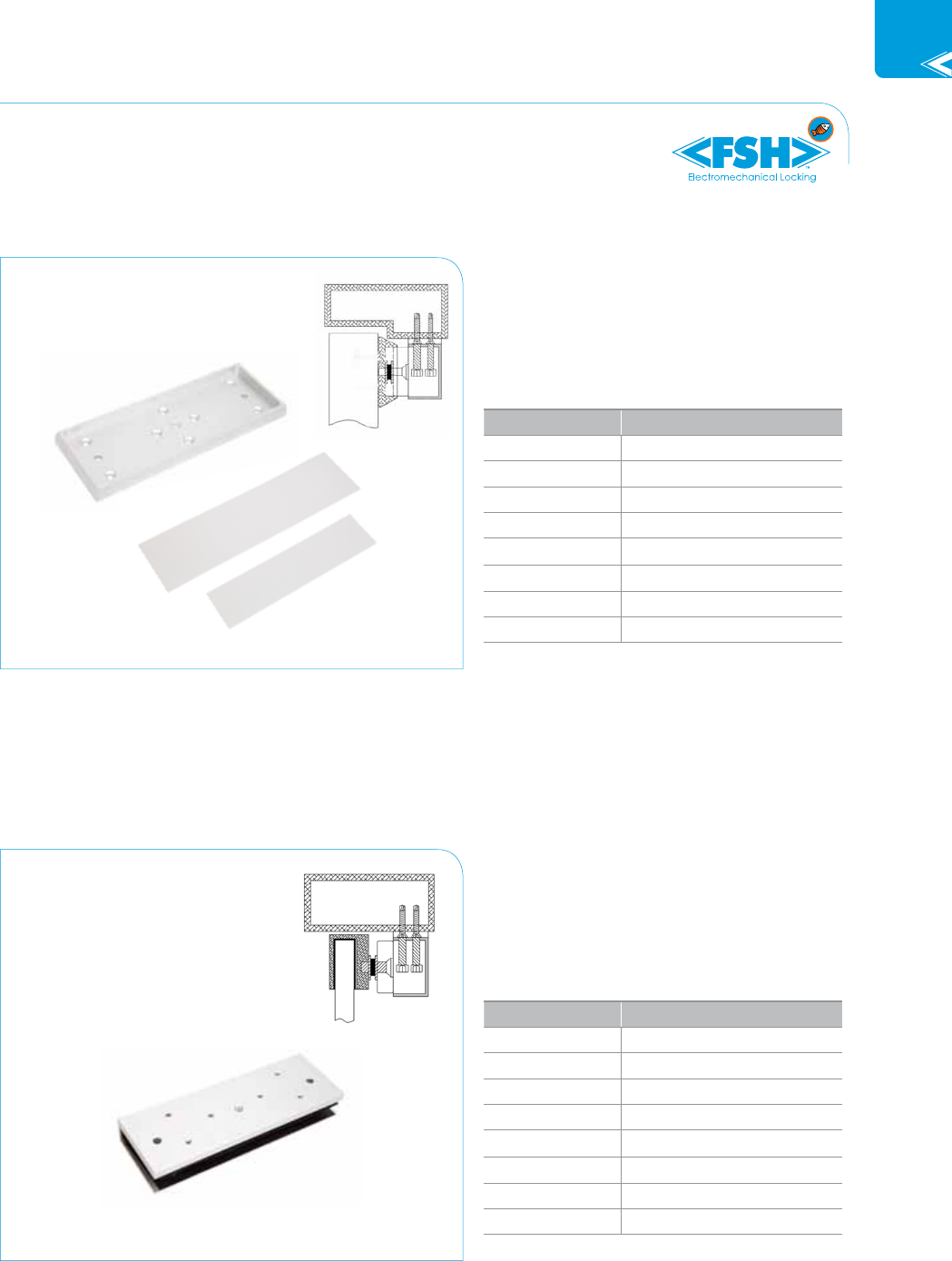

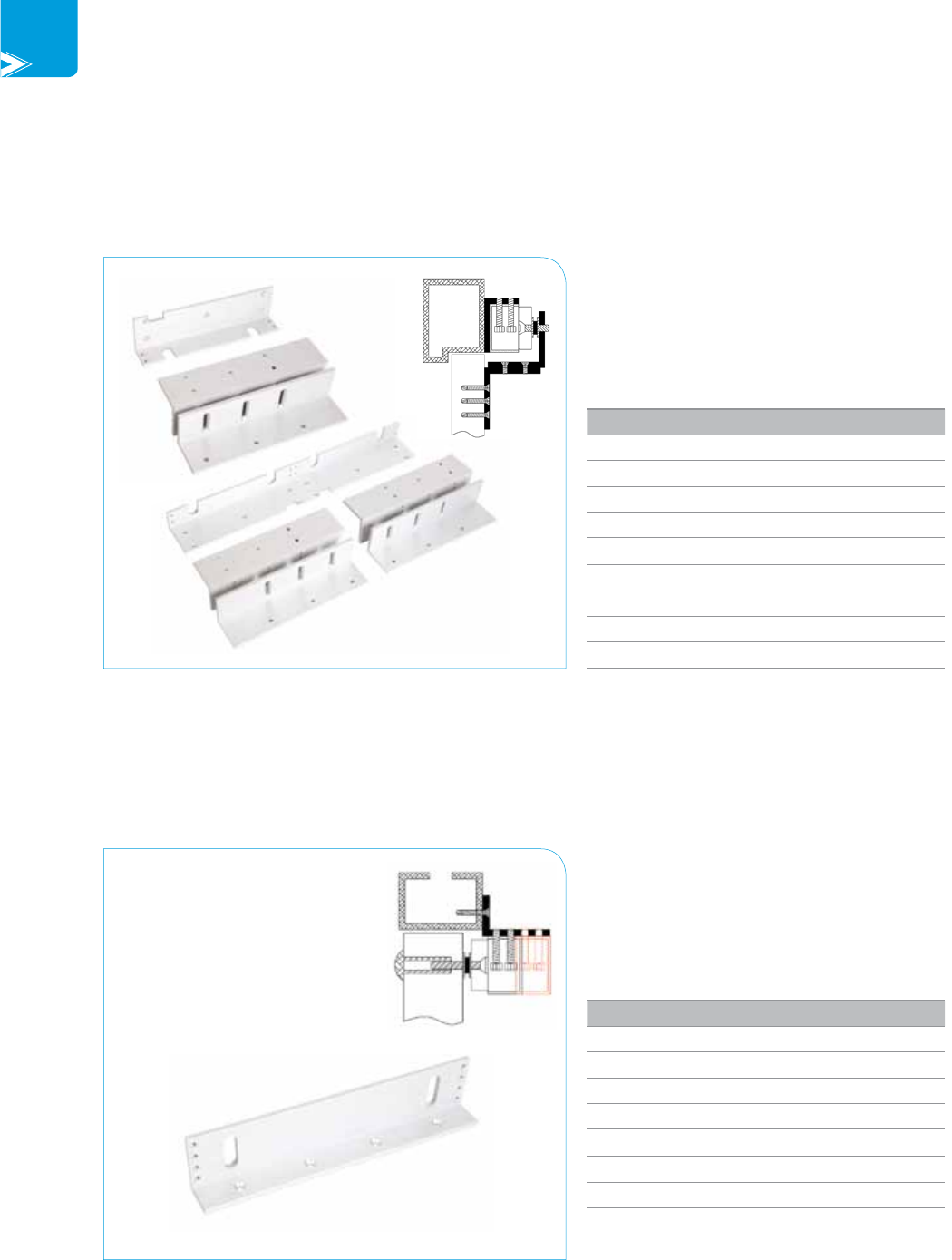

ACCESSORIES
AMGB24-12 Glass Door Bracket U-ProleMEM2400L Adjustable L-Bracket for Narrow Header Frames
Thickness of material = 1.5m/m
Minimum Door Gap 5mm
PART NO. AMGB24-12PART NO. MEM2400L
10
TECHNICAL DETAILS
PRODUCT FEATURES
• Slimline design 75% smaller than a standard 600kg magnet
• High holding force up to 1000kg and releases under side load of up to 70kg
• Dual-Voltage 12/24VDC Low power consumption 24VDC/175mA
• 5 year warranty
• Simple installation
• 4 hour re rated
• Full monitoring Lock Status Sensor (LSS) and Door Status Sensor (DSS)
• Early Warning Alarm (EW)
• Anti Tamper Bracket (to protect the armature plates xing bolt)
MEM2400LED-LZ
PRODUCT DESCRIPTION
The innovative slimline MEM2400LED-LZ Mechanical
Electro Magnetic Lock for inward opening doors
has been designed as an alternative to standard
magnetic locks. The MEM2400LED-LZ comes as a
combination with L&Z-Brackets.
The patented MEM2400LED-LZ incorporates both
magnetic and mechanical design principles to
achieve a superior holding force of up to 1000kg.
The MEM2400LED-LZ is capable of opening with
up to 70kg side pressure on the door.
MEM Lock™ is recommended to be used on doors
< 2400mm
PRODUCT MEM2400LED-LZ
MEM LOCK™ MECHANICAL ELECTRO MAGNETIC LOCKING DEVICE
FOR INWARD OPENING HINGED DOORS
PART NO. MEM2400LED-LZ
LIGHT FEATURE LED
FUNCTION Surface mount
Inward opening doors including L&Z Bracket
HOLDING STRENGTH Up to 1000kg
VOLTAGE/CURRENT Dual Voltage 12/24VDC 12VDC/350mA 24VDC/175mA
APPROVALS 4 hour re rated to A.S. and B.S. standards
MONITORING EW / LSS / DSS
SIZE MEM size L= 218mm H= 36mm D= 30mm
Armature Plate size L= 174mm H= 30.5mm D= 12.5mm
11
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING
PRODUCT DIMENSIONS AND INSTALLATION
Installation dimension
5.5
30.5
218.0
30.0
30.5
Armature plate
174.0
50.0
5.0
(D)
dome-nut
(C)
Magnet
Door
Door Frame
(B)
12 VOLT JUMPER POSITION
24 VOLT JUMPER POSITION
SPARE
JUMPER
(C)
(B)
(A)
(D)
Installation dimension
Bearing sleeve nut 5.5
30.5
218.0
30.0
30.5
Armature plate
174.0
50.0
5.0
(D)
dome-nut
(C)
Magnet
Door
Door Frame
(B)
12 VOLT JUMPER POSITION
24 VOLT JUMPER POSITION
SPARE
JUMPER
(C)
(B)
(A)
(D)
12
TECHNICAL DETAILS
PRODUCT FEATURES
PART NO. MEM2400EXTS MEM2400EXTSC
FUNCTION
Surface Mount/Retail Loss Prevention
Mechanical Electro Magnetic Locking Device with
Delayed Egress Feature & Sounder
Surface Mount/Retail Loss Prevention
Mechanical Electro Magnetic Locking
Device with Delayed Egress Feature & Sounder
& built in CCTV Camera
HOLDING STRENGTH Up to 1000kg
VOLTAGE/CURRENT Dual Voltage 12/24VDC 12VDC/350mA 24VDC/175mA
APPROVALS 4 hour re rated to A.S. and B.S. standards
MONITORING EW / LSS / DSS
• Delayed Egress function and Early Warning Alarm (EW)
• Slimline design
• High holding force up to 1000kg and releases under side load of up to 70kg
• Dual-voltage 12/24VDC with low power consumption (current@24V/175mA)
• 1 year warranty
• 4 hour re rated
• CCTV video function and 365 day security timer function (optional)
• Full monitoring Lock Status Sensor (LSS) and Door Status Sensor (DSS)
• Light Panel (LP)
• Supplied with Anti-Tamper plate

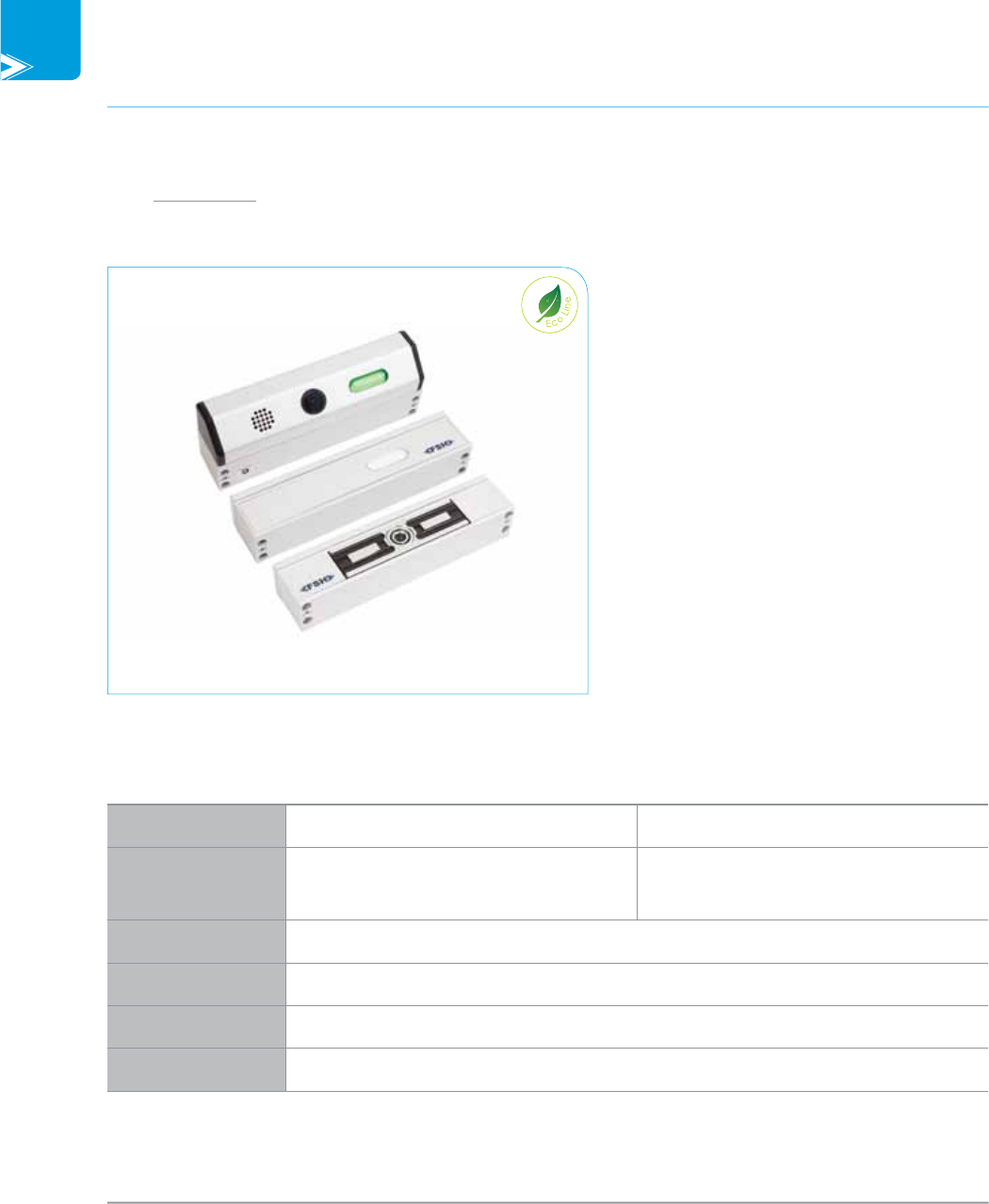

MEM2400EXT-SERIES
PRODUCT DESCRIPTION
The MEM2400EXT Series high security Delayed Egress
Locking Devices are unique products designed
for retail applications and the like, where exit
doors require Egress Delay functions as well as
comprehensive security monitoring.
The MEM2400EXT will open with up to 70kg side
pressure (Pre-Load) on the door. In addition to
Door and Lock Status Sensors, the device is also
equipped with a 2 stage Early Warning alarm
function (EW), Light Panel (LP), a local internal
sounder and optional CCTV camera.
A 12 Volt PIR movement detector is required,
but not supplied with the MEM locking device to
monitor movement on the secure side of the door
ensuring the door cannot be released from the
non-secure side (outside).
The device is equipped with the patented
Anti-Tamper plate.
MEM Lock™ is recommended to be used on doors
< 2400mm
PRODUCT MEM2400EXT-SERIES
MEM LOCK™ DELAYED EGRESS LOCKING DEVICE
FOR OUTWARD OPENING HINGED DOORS
13
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING

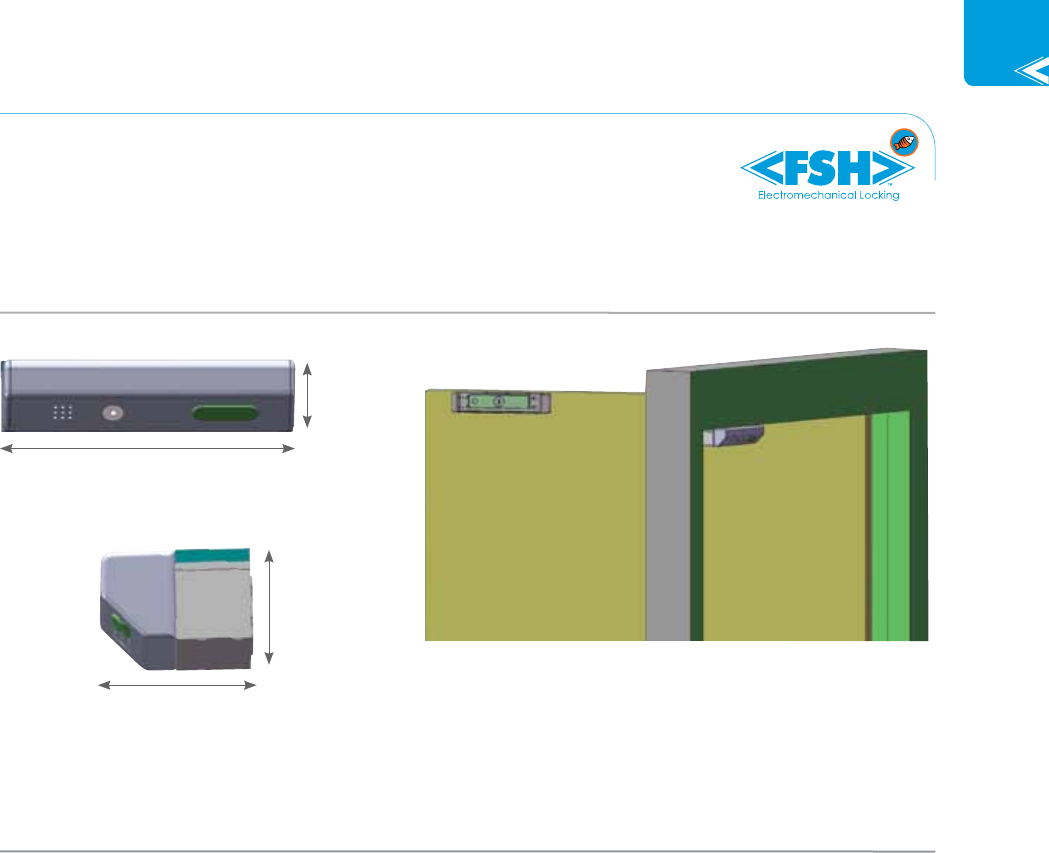

PRODUCT DIMENSIONS AND INSTALLATION
158mm
35mm
60mm
35mm
FUNCTIONAL DETAILS
Activation of the Early
Warning alarm and
Delayed Egress function
The Early Warning alarm functions
(EW) are both, local and remote
alarm indications to detect, deter
and record unauthorised exit
attempts. The Early Warning alarm
operates in two stages.
Stage 1
Triggered on initial pressure being
applied to the particular door tted
with the device in the form of a local
audible and/or remote alarm. The
initial pressure to the door is called
“Nuisance Delay Period” and can
be set from 0 to 3 seconds. After
the Nuisance Delay Period, and if
continuous pressure is applied to
the door, stage 2 is triggered.
Stage 2
Activates both, local and remote
alarm indications. At this time the
device will release the door with
an optional time delay of 0, 15 or
30 seconds. Any incident will be
captured by the local CCTV
camera, if the optional CCTV
version MEM2400EXT-SC is installed.
14
TECHNICAL DETAILS
PRODUCT FEATURES

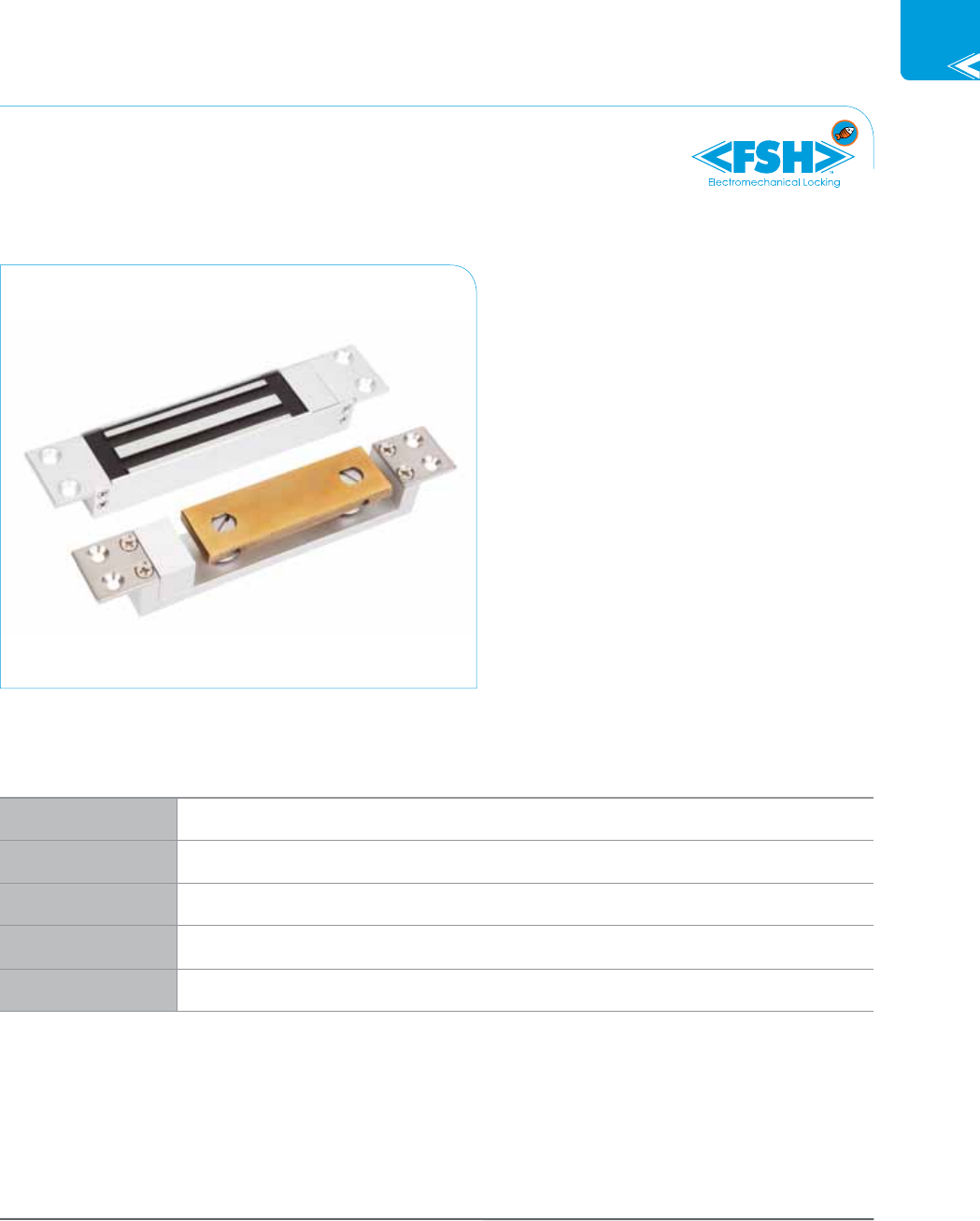

• Compact design locking device for sliding doors
• For automatic sliding doors. Lock located on or within the door track
• Early Warning Alarm (EW)
• High holding force up to 680kg
• Low power consumption 12VDC/260mA
• 5 year warranty
• 4 hour re rated
• Full monitoring Lock Status Sensor (LSS) and Door Status Sensor (DSS)
• Custom brackets by others may be required

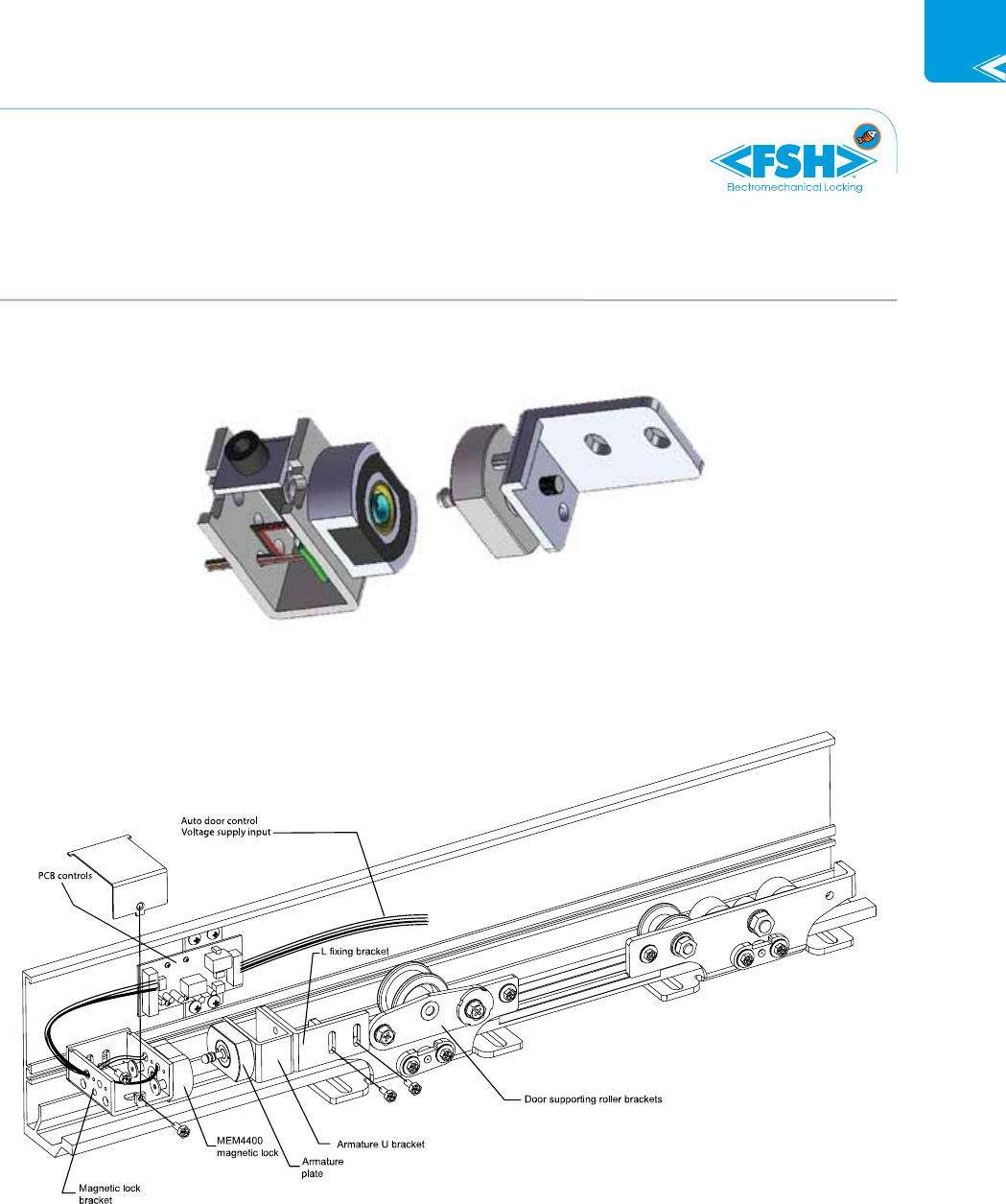

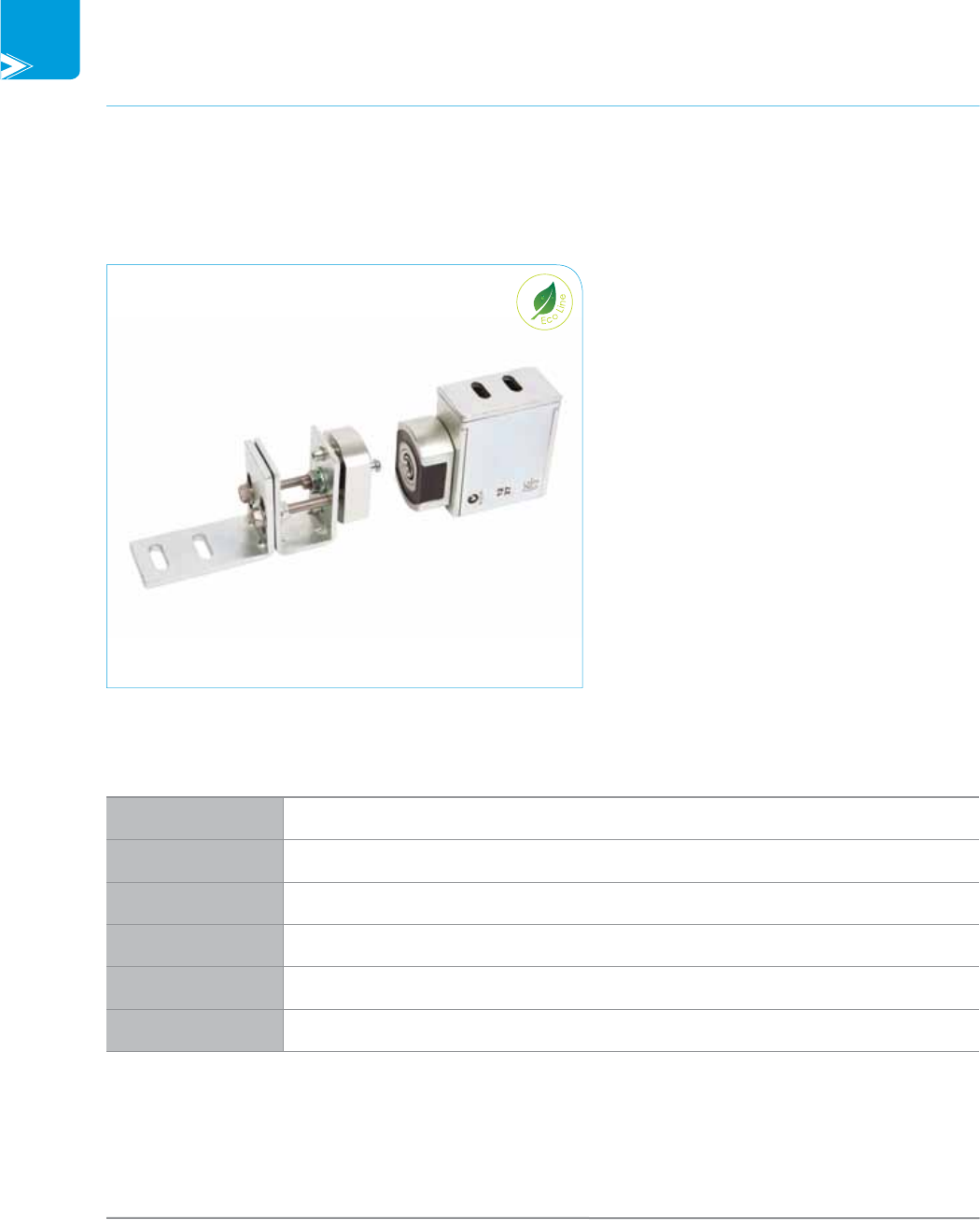

PART NO. MEM4400
FUNCTION Mechanical Electromagnetic Sliding Door Lock for automatic sliding doors
HOLDING STRENGTH 680kg
VOLTAGE/CURRENT Multi Voltage 12-24V (12VDC/260mA)
APPROVALS 4 hour re rated to A.S. and B.S. standards
MONITORING DSS / LSS / EW
MEM4400
PRODUCT DESCRIPTION
The innovative MEM4400 Series Mechanical Electro
Magnetic Lock is a small and extremely strong
sliding door locking solution. It has been specically
designed for automatic sliding door applications
where the size of common electromechanical
locking mechanisms create installation difculties.
Located on or within the sliding door track
mechanism the patented MEM incorporates both
magnetic and mechanical design principles to
achieve an exceptional holding force of up to
680kg at an extraordinary compact size.
The MEM4400 Series also provides full monitoring,
LSS, DSS and Early Warning (EW) security alarm
indication. The device accepts voltage of
12-24VDC and has low power consumption
of 260mA@12V.
PRODUCT MEM4400
MEM LOCK™ MECHANICAL ELECTRO MAGNETIC SLIDING DOOR LOCKING DEVICE
15
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING

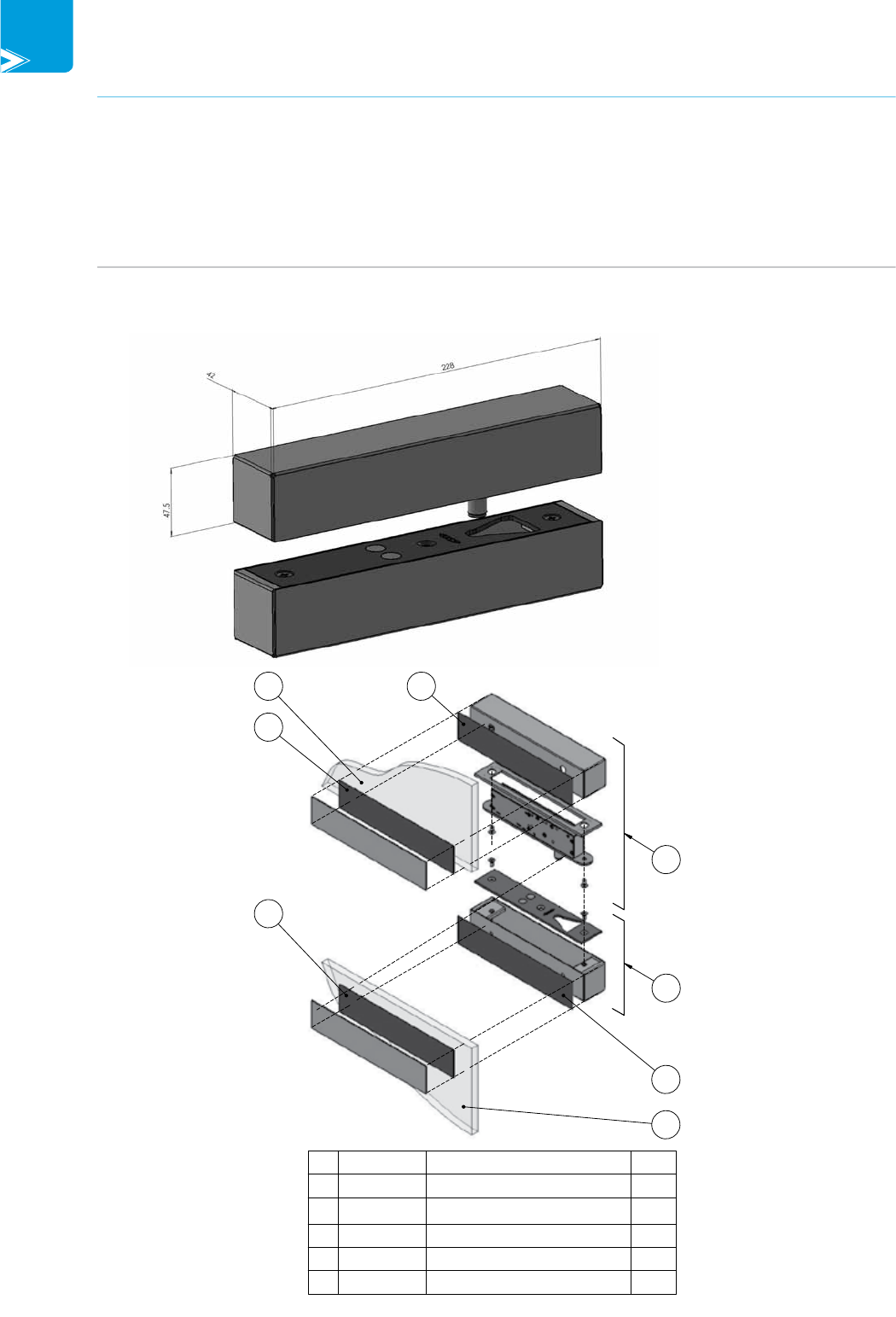

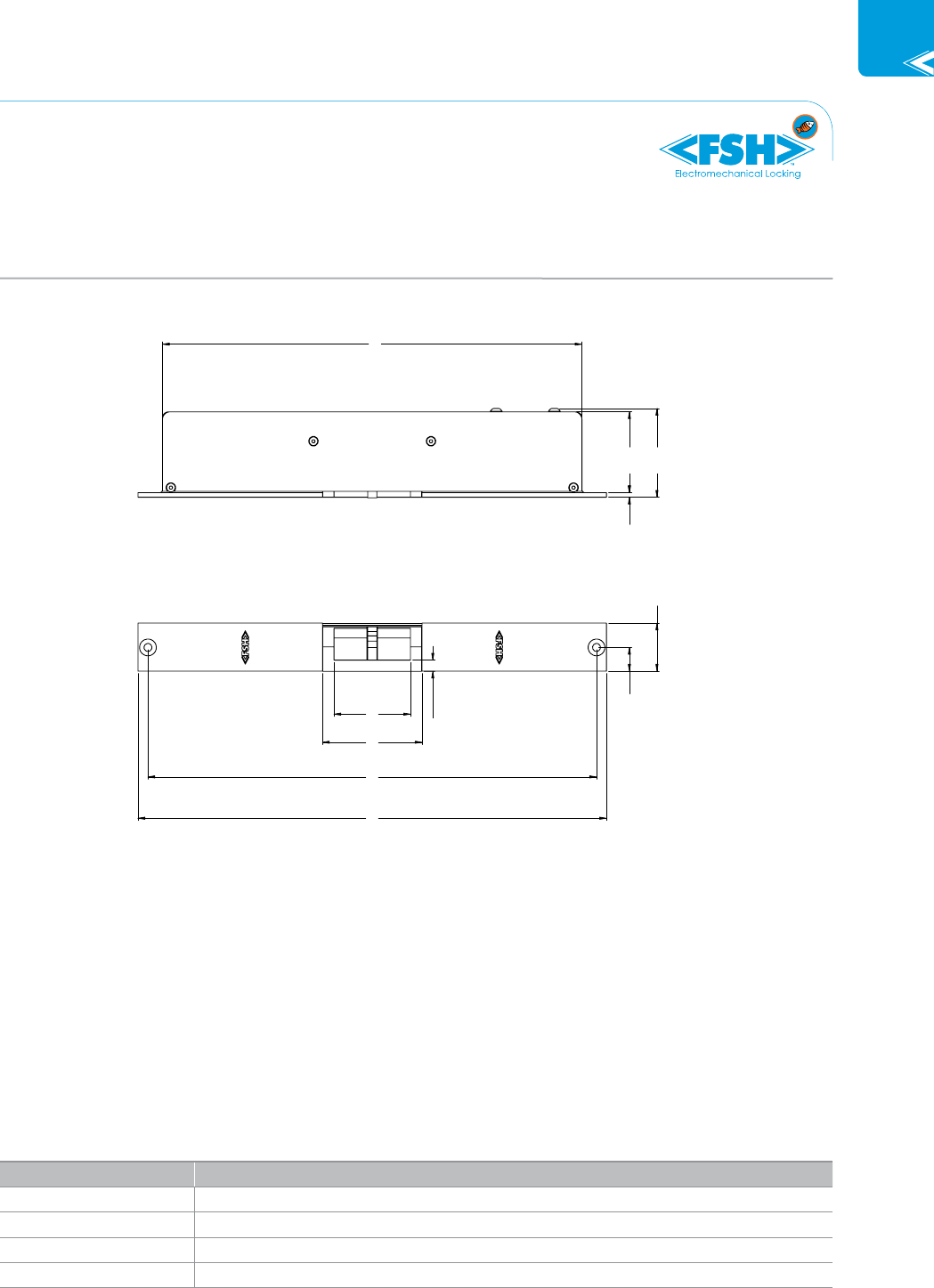

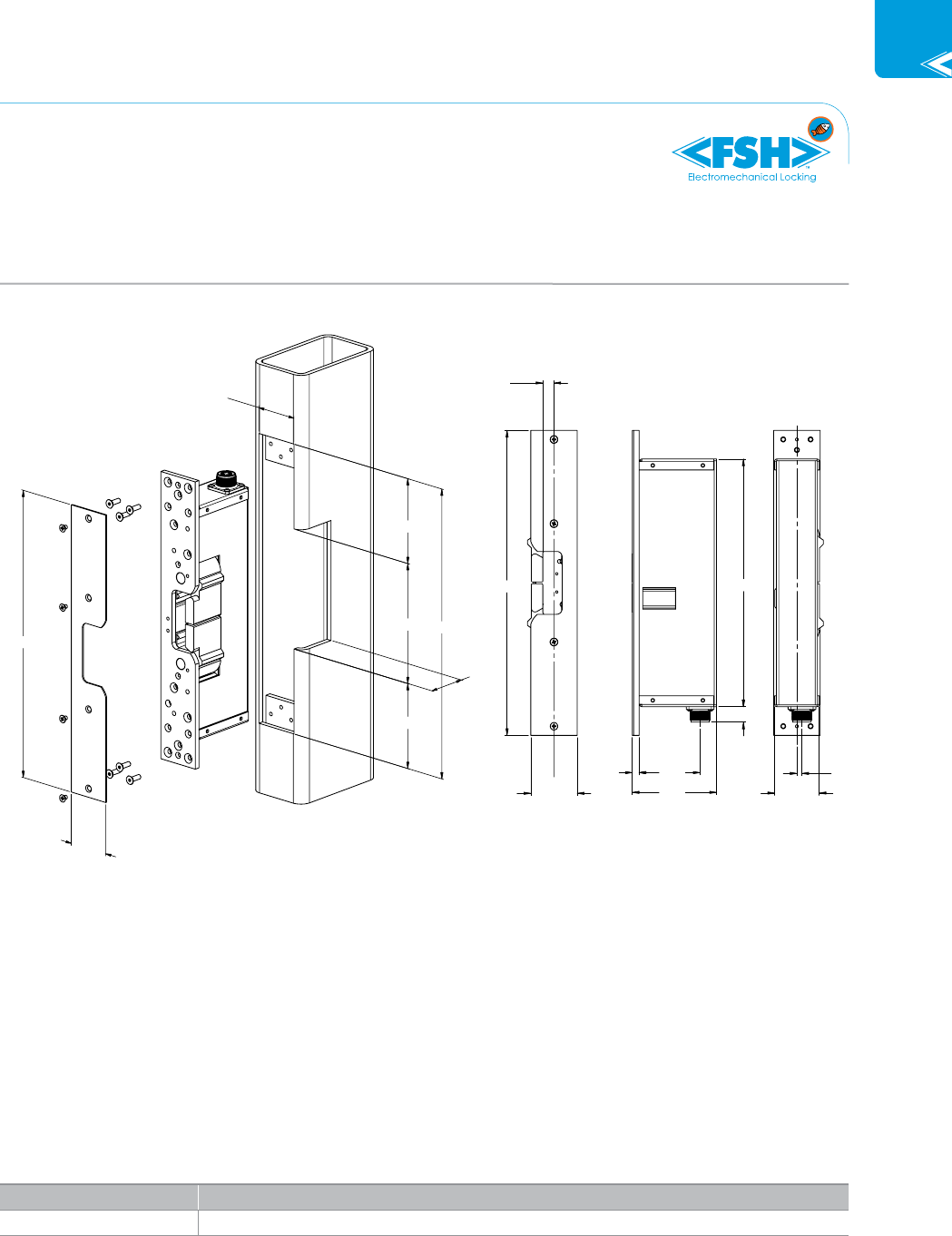

PRODUCT DIMENSIONS AND INSTALLATION
MEM4400 track mounted on automatic sliding door track
ELECTRO MAGNETIC LOCKING DEVICES
Electromechanical Locking
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING
High Security Power
Saving Electro Magnetic Locking Device
EcoMag
ECO5700HS 18
High Quality Weather Resistant Electro
Magnetic Gate Locking Devices FEM5000G 32
High Quality Weather Resistant Mini
Electro Magnetic Gate Locking Device
FEM4700FS-LSS
34
FEM4500FS-RSW
High Quality Mini Electro Magnetic
Locking Device
FCCW15S
30FCCW30S
FCCW30F
High Quality Standard
Electro Magnetic Loking Devices
FEM3500/D
26FEM3500M/DM
FEM3500FM
High Quality Standard
Electro Magnetic Locking Devices
FEM5700 SERIES
24
FEM5700D SERIES
Power Saving
Electro Magnetic Locking Device
EcoMag
ECO5700M 20
Electro Magnetic
High Security Locking Devices
FEM4000HST
28
FEM4000DHST
Electro Magnetic Shear Locking Device FSH2500 31
FEATURES PART NO. PP
17
17
Power Saving
Electro Magnetic Locking Device
EcoMag
ECO350M 22
18
TECHNICAL DETAILS
PRODUCT FEATURES

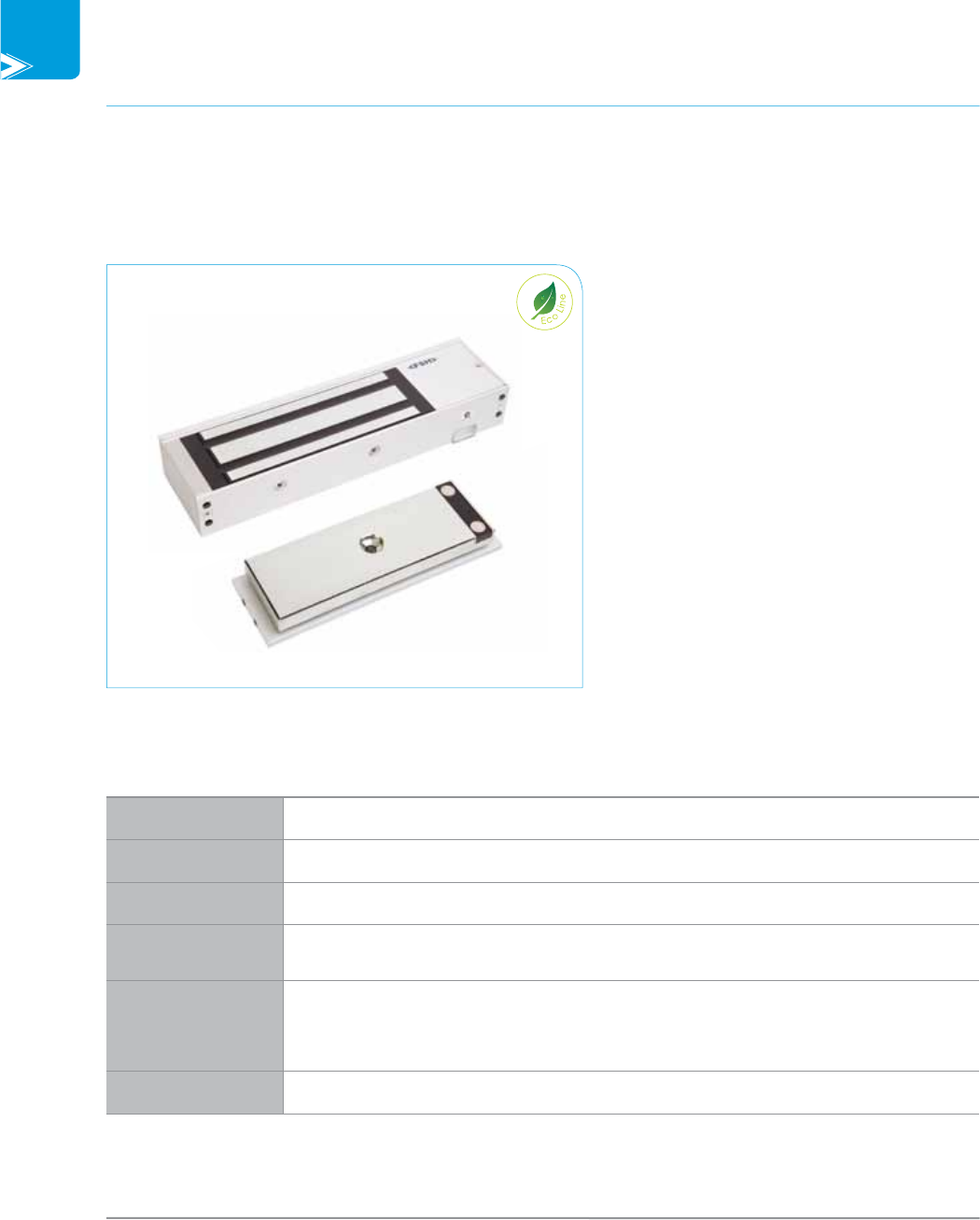

ECO5700HS
PART NO. ECO5700HS
FUNCTION Power To Lock (Fail Safe)
HOLDING STRENGTH Up to 680kg in “Alarm-Mode”
300kg in “Sleep-Mode”
VOLTAGE/CURRENT
Multi Voltage 10-26VDC
Sleep-Mode: 12VDC=110mA/24VDC=60mA
Alarm-Mode: 12VDC=680mA/24VDC=340mA
MONITORING
Addressable Armature Plate
Door Status Monitoring Sensor (DSS)
Lock Status Monitoring Sensor (LSS)
Early Warning Signial Output and Local Alarm Buzzer (EW)
Long Distance Light Panel (LP)
SIZE Magnet: L= 268 W= 40 D= 73mm
Armature Plate: L= 204 W= 16.5 D= 61mm
• Truly Green product
• Door and Lock Status Monitoring Sensor (DSS & LSS)
• Early Warning signal output and local alarm buzzer (EW)
• Multi Voltage 10-26VDC low power consumption (60mA@24VDC Sleep-Mode)
• Long distance Light Panel (LP)
• Addressable armature plate
• Zero residual magnetism
• Anti-Tamper-Plate
PRODUCT DESCRIPTION

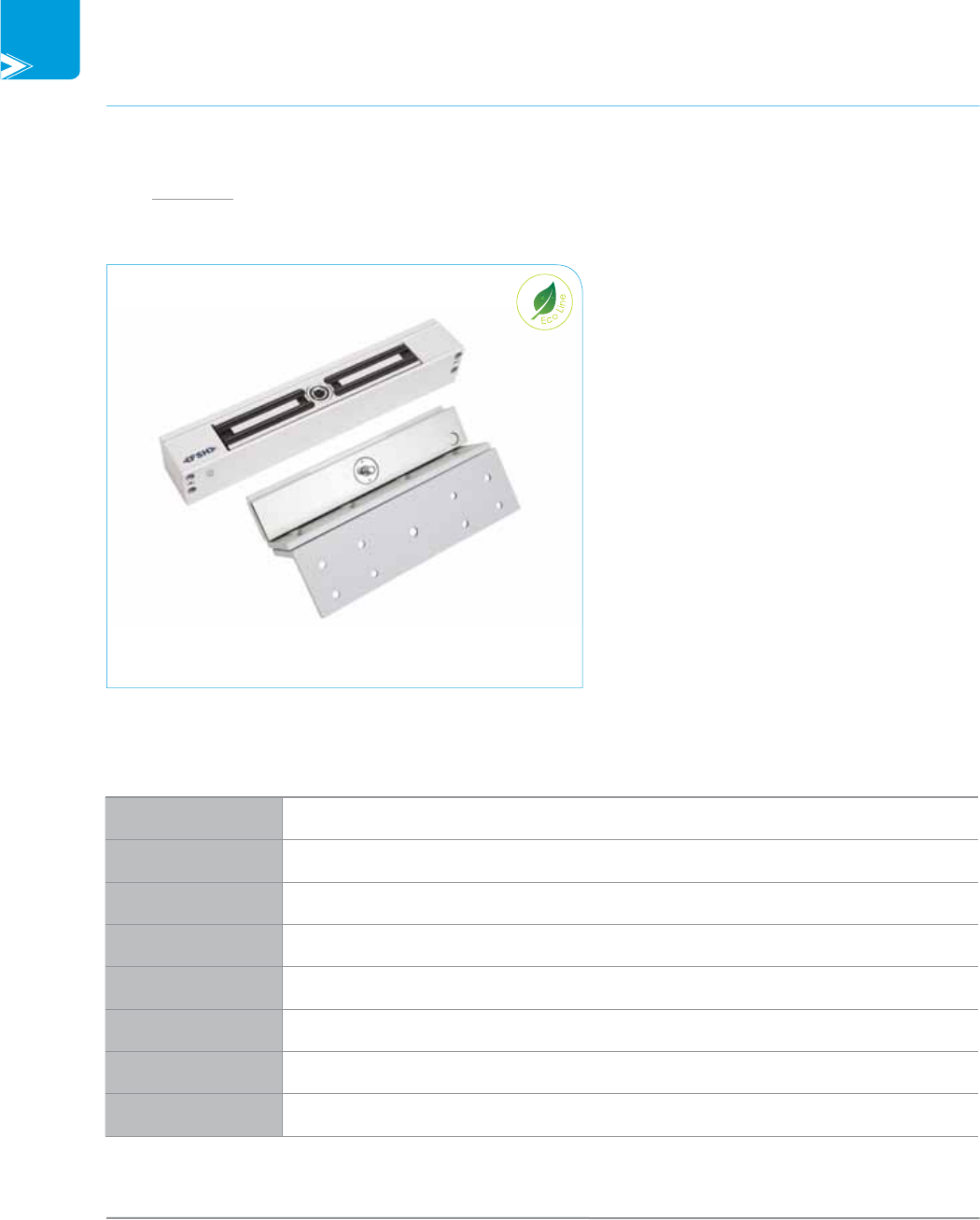

The patented ECO5700HS model is a high security
power saving Electro-Magnetic Lock with an
individually encoded addressable armature plate.
The lock will only recognize its own armature plate
to prevent the device from being compromised by
false plates.
Under normal, non-alarm conditions, the
ECO5700HS “EcoMag” operates in a low current
`Sleep-Mode’ of 60mA@24V with a holding force of
300kg. In the event of an unauthorised attempt to
open the door, the ECO5700HS “EcoMag” “wakes
up” and goes into an Alarm Mode with full current
of 340mA@24V applied to the device, instantly
increasing the holding force to up to 680kg.
The EcoMag operates on multi voltage 10-26VDC,
provides an Early Warning (EW) signal output, has
a built-in local Alarm Buzzer, with full monitoring of
Lock Status & Door Status and long distance Light
Panel indicator.
The device is provided with the FSH patented
Anti-Tamper-Plate as standard.
PRODUCT ECO5700HS
HIGH SECURITY POWER SAVING ELECTRO MAGNETIC LOCKING DEVICE EcoMag
19
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING

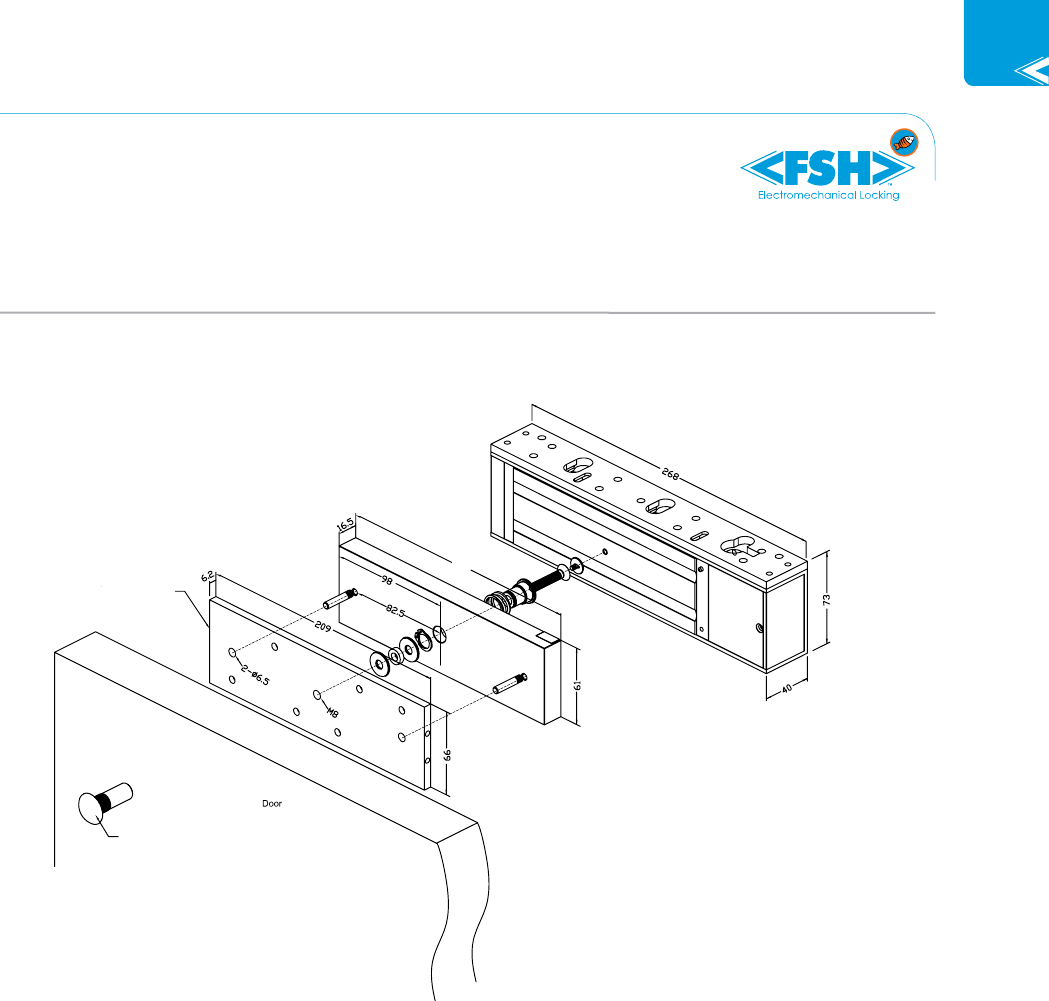

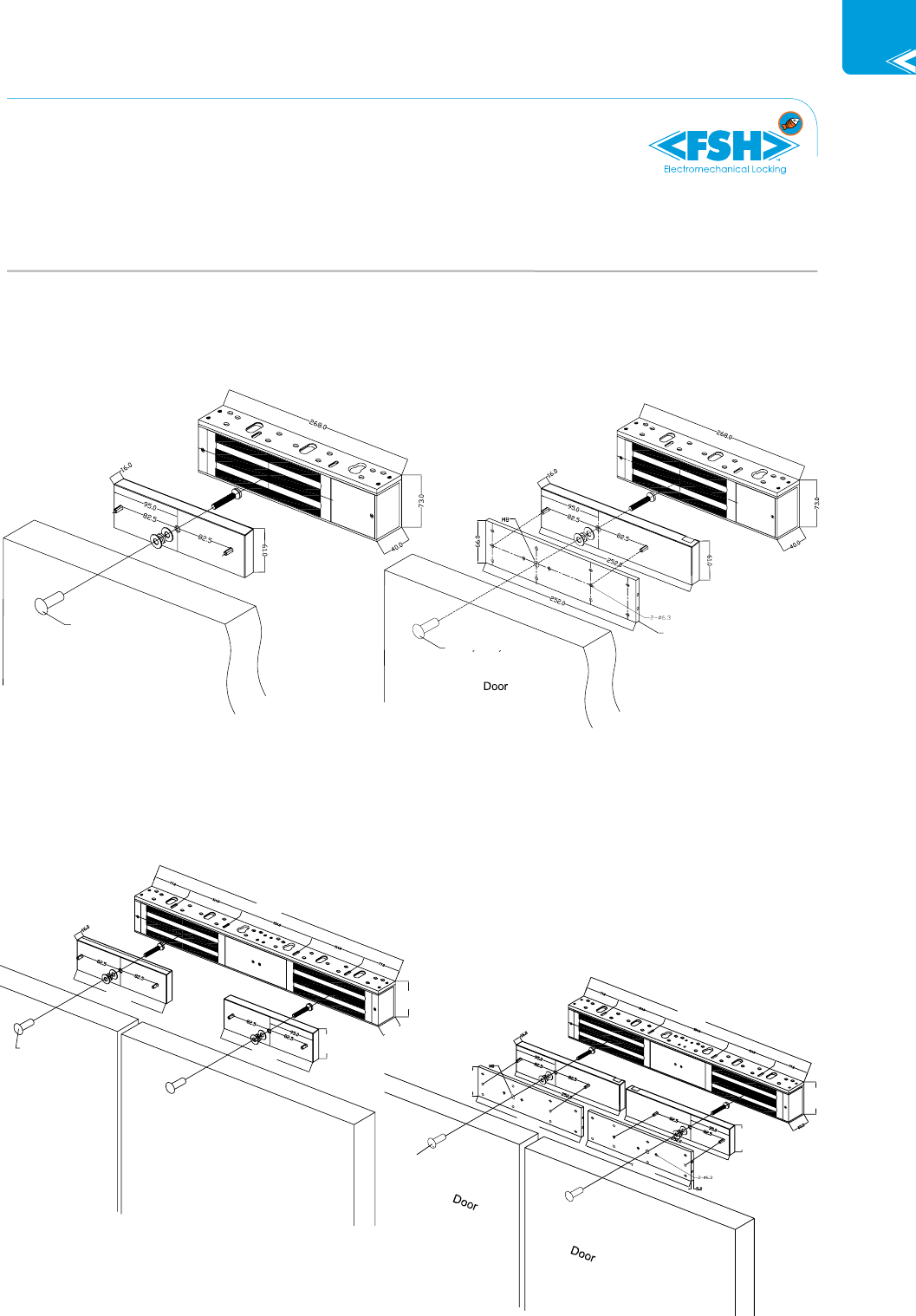

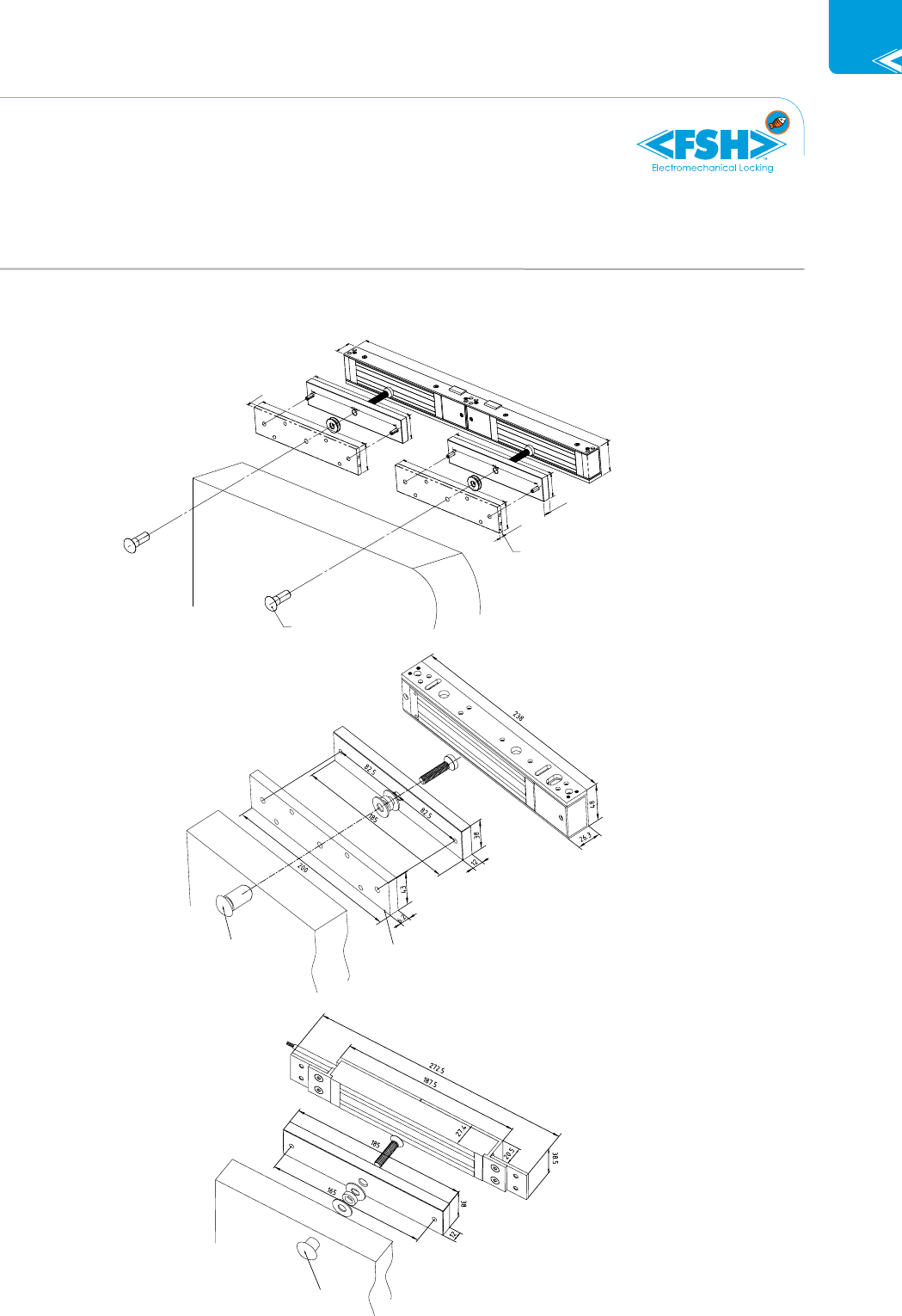

PRODUCT DIMENSIONS AND INSTALLATION
One way security dome nut
204
Anti-Tamper Plate
20
TECHNICAL DETAILS
PRODUCT FEATURES
ECO5700M
PART NO. ECO5700M
FUNCTION Power To Lock (Fail Safe)
HOLDING STRENGTH Up to 680kg in ‘Alarm-Mode’
300kg in ‘Sleep-Mode’
VOLTAGE/CURRENT
Multi Voltage 10-26VDC
Sleep-Mode: 12VDC=140mA/24VDC=70mA
Alarm-Mode: 12VDC=600mA/24VDC=300mA
MONITORING
Door Status Monitoring Sensor (DSS)
Lock Status Monitoring Sensor (LSS)
Early Warning Signial Output and Local Alarm Buzzer (EW)
Long Distance Light Panel (LP)
SIZE Magnet: L= 268 W= 40 D= 73mm
Armature Plate: L= 209 W= 6.2 D= 66mm
• Truly Green product
• Door and Lock Status Monitoring Sensor (DSS & LSS)
• Early Warning signal output and local alarm buzzer (EW)
• Multi Voltage 10-26VDC low power consumption (70mA @ 24VDC Sleep-Mode)
• Long distance Light Panel (LP)
• Zero residual magnetism
• Anti-Tamper-Plate
PRODUCT DESCRIPTION
The patented ECO5700M model is a power saving
Electro-Magnetic Lock.
Under normal, non-alarm conditions, the ECO5700M
“EcoMag” operates in a low current `Sleeping
Mode’ of 70mA@24V with a holding force of 300kg.
In the event of an unauthorised attempt to open
the door, the ECO5700M “EcoMag” “wakes up”
and goes into an Alarm Mode with full current
of 300mA@24V applied to the device, instantly
increasing the holding force to up to 680kg.
The EcoMag operates on multi voltage 10-26VDC,
provides an Early Warning (EW) signal output, has
a built-in local Alarm Buzzer, with full monitoring of
Lock Status and Door Status and long distance Light
Panel indicator.
This device is provided with the FSH patented
Anti-Tamper-Plate as standard.
PRODUCT ECO5700M
POWER SAVING ELECTRO MAGNETIC LOCKING DEVICE EcoMag
21
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING

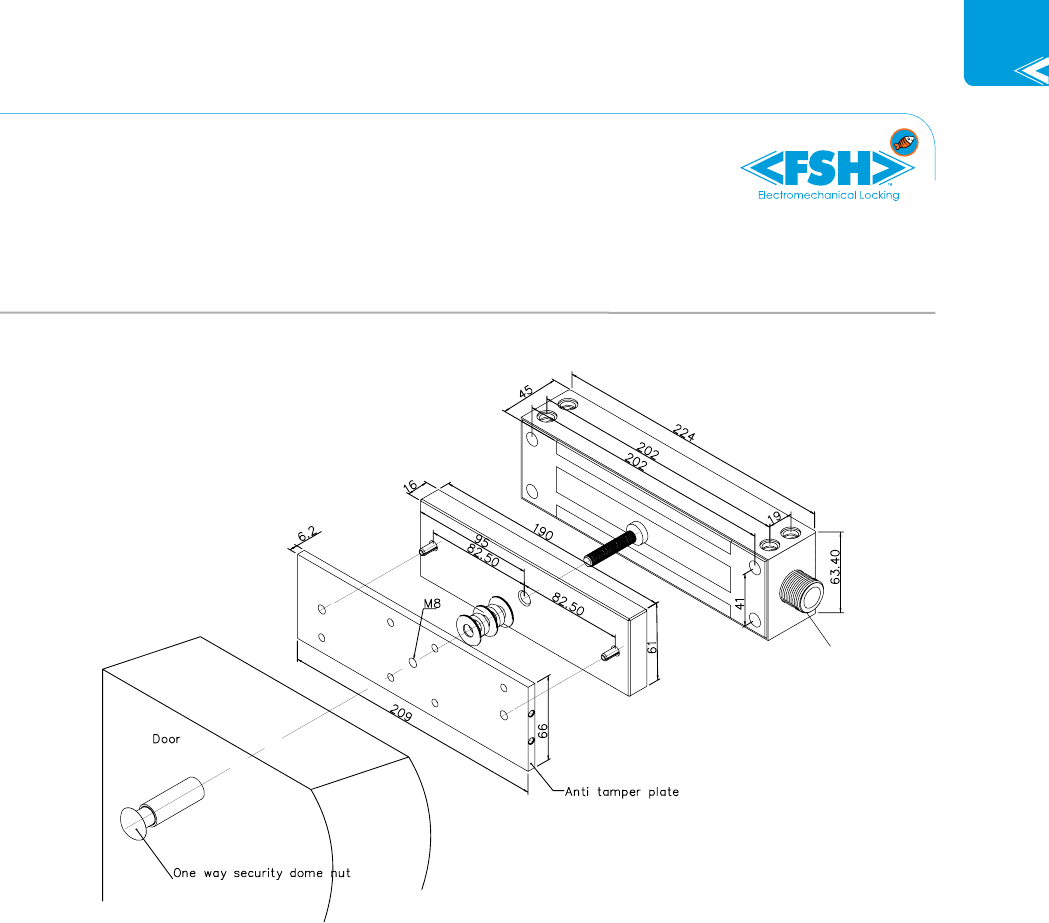

PRODUCT DIMENSIONS AND INSTALLATION
One way security dome nut
Anti-Tamper Plate
201
22
TECHNICAL DETAILS
PRODUCT FEATURES
ECO3500M
• Truly Green product
• Door and Lock Status Monitoring Sensor (DSS & LSS)
• Early Warning signal output and local alarm buzzer (EW)
• Multi Voltage 10-26VDC low power consumption (60mA@24VDC Sleep-Mode)
• Long distance Light Panel (LP)
• Anti-Tamper-Plate
PRODUCT DESCRIPTION
The patented ECO3500M model is a power saving
Electro-Magnetic Lock. Under normal, non-alarm
conditions, the ECO3500M “EcoMag” operates
in a low current `Sleeping Mode’ of 60mA@24V
with a holding force of 100kg. In the event of
an unauthorised attempt to open the door, the
ECO3500M “EcoMag” “wakes up” and goes into
an Alarm Mode with full current of 300mA@24V
applied to the device, instantly increasing the
holding force to up to 280kg.
The EcoMag operates on multi Voltage 10-26VDC,
provides an Early Warning (EW) signal output, has
a built-in local Alarm Buzzer, with full monitoring of
Lock Status and Door Status, long distance Light
Panel indicator.
The device comes with the FSH patented
Anti-Tamper-Plate as standard.
PRODUCT ECO3500M
POWER SAVING ELECTRO MAGNETIC LOCKING DEVICE EcoMag
PART NO. ECO3500M
FUNCTION Power To Lock (Fail Safe)
HOLDING STRENGTH Up to 280 kg in ‘Alarm-Mode’
100kg in ‘Sleep-Mode’
VOLTAGE/CURRENT
Multi Voltage 10-26VC
Sleep-Mode: 12VDC=120mA / 24VDC=60mA
Alarm-Mode: 12VDC=600mA / 24VDC=300mA
MONITORING
Door Status Monitoring Sensor (DSS)
Lock Status Monitoring Sensor (LSS)
Early Warning Signial Output and Local Alarm Buzzer (EW)
Long Distance Light Panel (LP)
SIZE Magnet: L=238 W=48 D=24mm
Armature Plate: L=185 W=38 D=12mm
23
One way security dome nut
Anti-Tamper Plate
24
TECHNICAL DETAILS
PRODUCT FEATURES
• Door and Lock Status Monitoring Sensor
(DSS & LSS with “M” Models)
• Built-in varistor (MOV) surge protection
• CE/C-Tick
• Anti Tamper Plate (with “M” Models)
• Long distance Light Panel (LP)
• Lifetime warranty
• 4 hour re tested
• No residual magnetism
PART NO. FEM5700 (single)
FEM5700D (double)
FEM5700M (single)
FEM5700DM (double)
HOLDING STRENGTH Up to 580kg (for single magnetic lock)
VOLTAGE/CURRENT Dual Voltage 12/24VDC 12VDC=500mA (Double x2) 24VDC=260mA (Double x2)
APPROVALS 4 hour re rated to A.S. and B.S. standards
MONITORING NIL
LP
LSS
DSS
SIZE
Single door series magnet size:
L= 268 x W= 73 x D= 40mm
Single door series armature plate size:
L= 190 x W= 61 x D= 16mm
Single door series DSS-armature plate size:
L= 252 x W= 61 x D= 16mm
Double door series surface magnet size:
L= 535 x W= 73 x D= 40mm
Double door series armature plate size:
L= 190 x W= 61 x D= 16mm x 2 pcs
Double door series DSS-armature plate size:
L= 252 x W= 61 x D= 16mm x 2 pcs
FEM5700 SERIES
PRODUCT FEM5700 SERIES
HIGH QUALITY STANDARD ELECTRO MAGNETIC LOCKING DEVICES
SINGLE/DOUBLE DOOR SURFACE MOUNT
PRODUCT DESCRIPTION

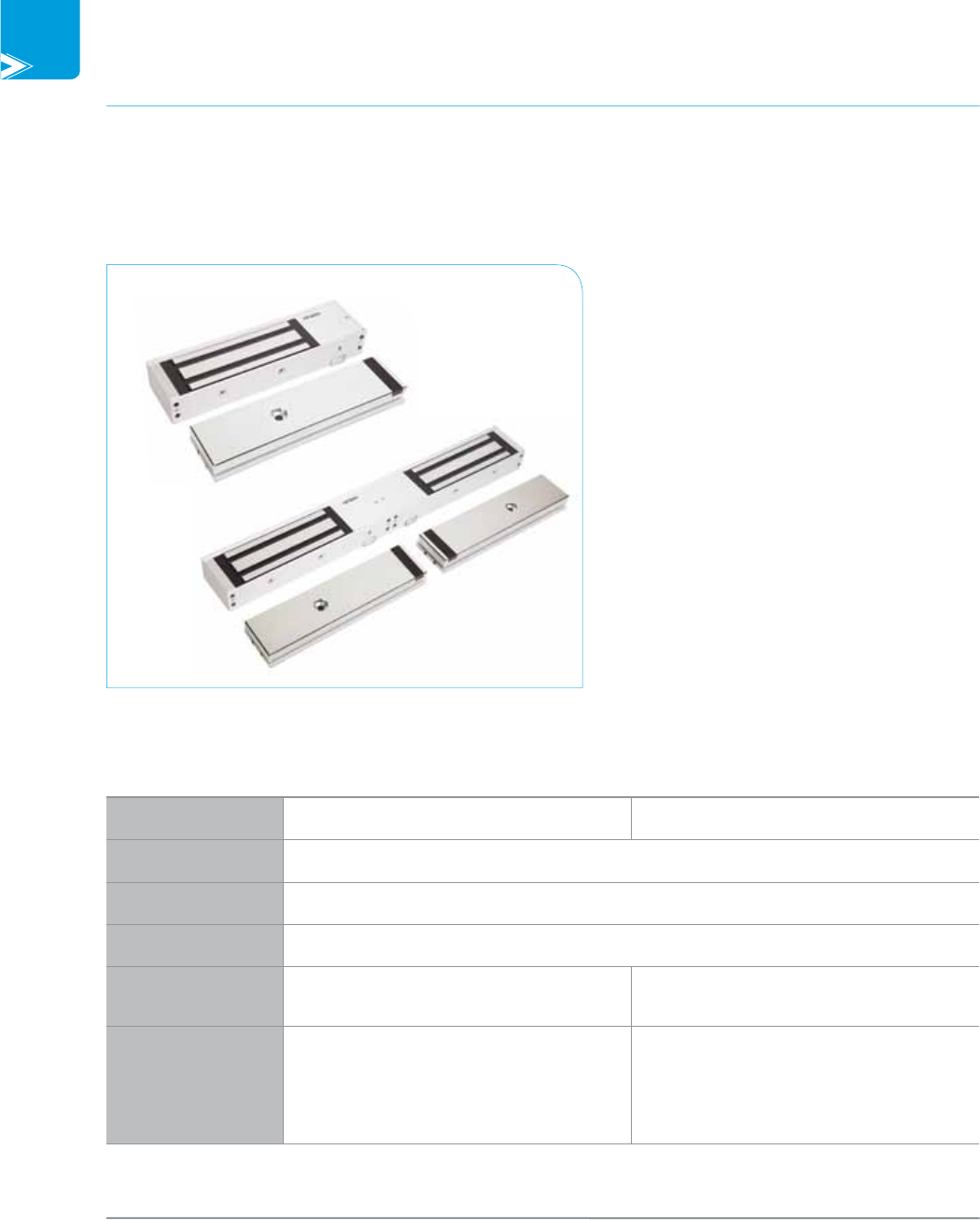

The FEM5700 is an unmonitored single magnetic
lock and the FEM5700D is an unmonitored double
magnetic lock with dual 12 or 24 Volt settings.
The FEM5700M is a monitored single magnetic
lock and the FEM5700DM is a monitored double
magnetic lock with 12 or 24 Volt settings. Each
monitored magnetic lock has a built-in Hall Effect
Sensor for remote monitoring of Lock status (LSS).
The devices have a patented highly visible high
luminosity Light Panel and Door Status Sensor (DSS)
for remote monitoring of the door status through
a reed switch contact as well as a Lock Status
Sensor (LSS). The monitored devices come with a
Patened Anti-Tamper-Security-Plate as standard to
prevent hostile attacks on the dome-nut-xing bolt
of the Armature Plate.” All FEM5700 Series Electro
Magnetic Locks come with a lifetime warranty and
have no residual magnetism.
25
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING
PRODUCT DIMENSIONS AND INSTALLATION
One way security dome nut
Door
FEM5700
FEM5700D
FEM5700M
FEM5700DM
One way security dome nut
Anti-Tamper Plate
One way security dome nut
One way security dome nut
Door Door
536.0
73.0
40.0
190.0
190.0
61.0
One way security
dome nut
536.0
73.0
252.0
61.0
252.0
66.0
One way security
dome nut
26
TECHNICAL DETAILS
PRODUCT FEATURES
• Door and Lock Status Monitoring Sensor (DSS & LSS)
• Built-in varistor (MOV) surge protection
• CE/C-Tick
• Anti Tamper Plate (with “M” Models)
• Long distance Light Panel (LP)
• Lifetime warranty
• 4 hour re tested
• Guaranteed no residual magnetism
PRODUCT DESCRIPTION
The FEM3500 is an unmonitored single magnetic
lock and FEM3500D is an unmonitored double
magnetic lock with dual 12 or 24 Volt settings.
The FEM3500M is a monitored single magnetic
lock and the FEM3500DM is a monitored double
magnetic lock both with 12 or 24 Volt settings. Each
monitored magnetic lock has a built-in Hall Effect
Sensor for remote monitoring of Lock status (LSS).
The devices have a highly visible high luminosity
Light Panel and a Door Status Sensor (DSS) for
remote monitoring of the door status as well as Lock
Status Sensor (LSS). The monitored devices come
with a patented Anti-Tamper-Security-Plate as
standard to prevent hostile attacks on the dome-
nut-xing bolt of the Armature Plate.
All FEM3500 Series Electro Magnetic Locks
come with a lifetime warranty and have no
residual magnetism.
FEM3500 SERIES
PRODUCT FEM3500 SERIES
HIGH QUALITY STANDARD ELECTRO MAGNETIC LOCKING DEVICES
SINGLE/DOUBLE DOOR SURFACE MOUNT
PART NO. FEM3500(Single)
FEM3500D(Double)
FEM3500M(Single)
FEM3500DM(Double) FEM3500FM (Flush Mounted)
HOLDING STRENGTH Up to 280kg
VOLTAGE/CURRENT Dual Voltage 12/24VDC, 12VDC= 500mA (Double x2) 24VDC= 250mA (Double x2)
APPROVALS 4 hour re rated to A.S. and B.S. standards
MONITORING NIL
LP
LSS
DSS
LSS
SIZE
Single door series magnet size:
L= 238 x W= 48 x D= 25mm
Single door series armature plate size:
L= 185 x W= 38 x D= 12mm
Single door series DSS-armature plate size:
L= 185 x W= 38 x D= 12mm
Double door series surface magnet size:
L= 477 x W= 48 x D= 25mm
Double door series armature plate size:
L= 185 x W= 38 x D= 12mm x 2 pcs
Double door series DSS-armature plate size:
L= 185 x W= 38 x D= 12mm x 2 pcs
27
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING

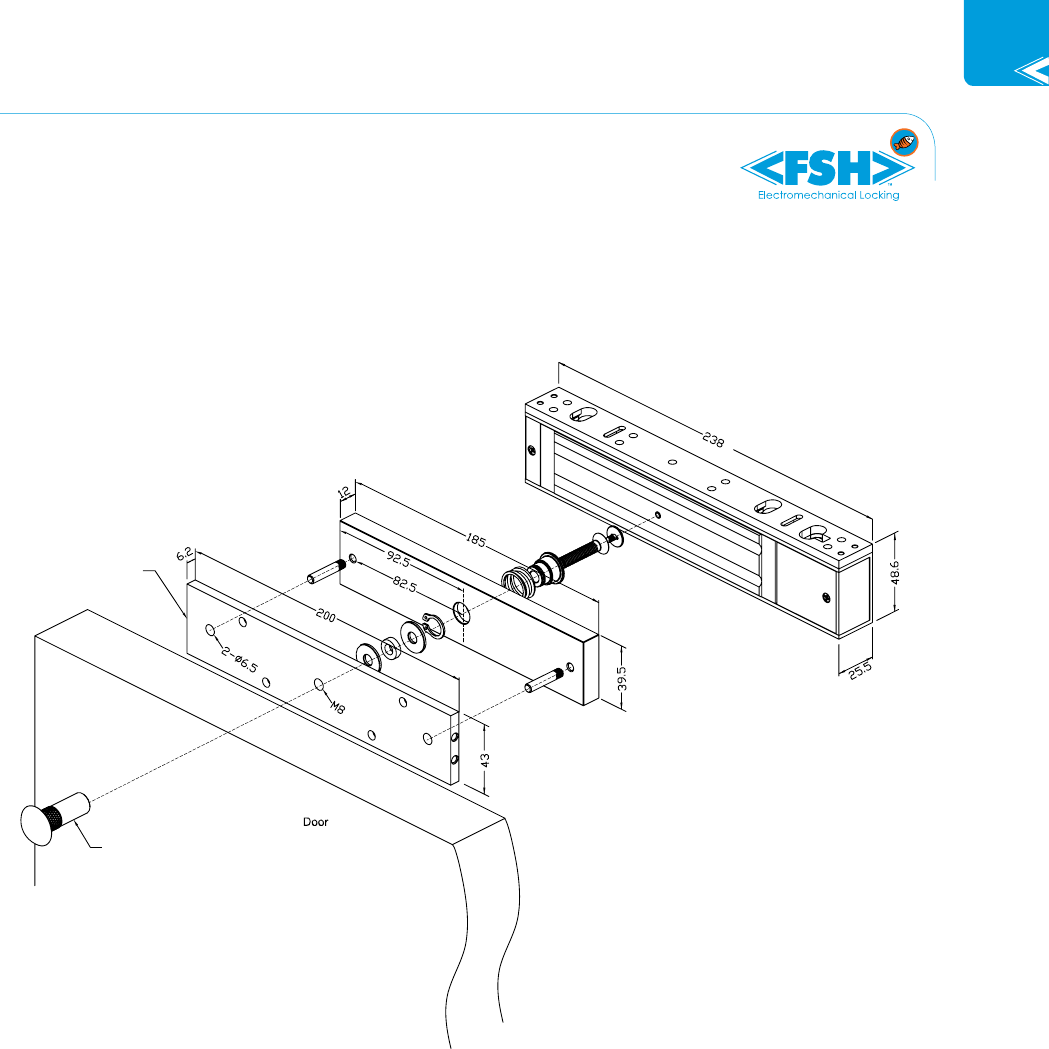

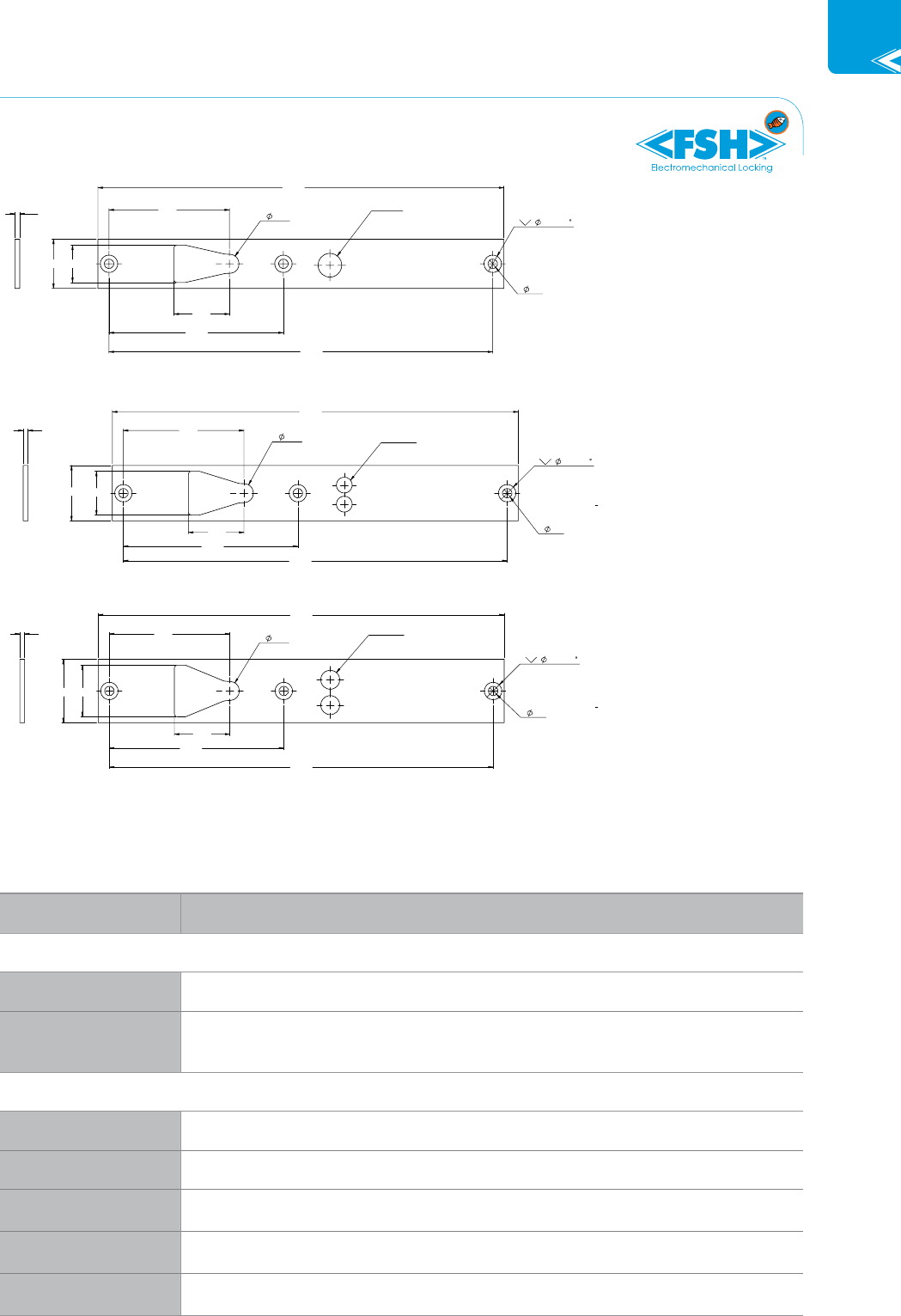

PRODUCT DIMENSIONS AND INSTALLATION
Door
48.1
25.5
82. 50
185
82.50
82. 50
82. 50
38
38
185
43
200
200
476
12
43
6. 2
6. 2
Anti temper plate
One way security dome nut
FEM3500D & FEM3500DM
FEM3500 & FEM3500M
FEM3500FM
One way security dome nut
One way security dome nut
One way security dome nut
Anti-Tamper Plate
Anti-Tamper Plate
Door
Door
Door
28
TECHNICAL DETAILS
PRODUCT FEATURES
• Electronically addressable armature plate
• Guaranteed no residual magnetism
• Lifetime warranty
• CE & C-Tick
• 4 hour re tested
PRODUCT DESCRIPTION
The Electro Magnetic Lock FEM4000HST/DHST has
an electronically addressable armature plate,
unique to each magnet and has a holding force
of up to 580kg. The device has up to 4 hour re
resistance rating tested to both Australian and
British Fire Test Standards. The device is provided
with built in surge protection and accepts both
12 and 24VDC. This Electro Magnetic Lock also
provides the following monitoring features:
1. Lock Status Sensor by Hall-Effect (LSS)
2. Internal CPU registered armature plate
The Electro Magnetic Lock FEM4000HST/DHST is
provided with a lifetime warranty and supplied
with an Anti-Tamper-Plate as standard, to prevent
hostile attacks on the dome-nut-xing bolt of the
Armature Plate.
FEM4000HST & FEM4000D-HST
PRODUCT FEM4000HST & FEM4000D-HST
ELECTRO MAGNETIC HIGH SECURITY LOCKING DEVICE
HOLDING FORCE 580KG MONITORED
PART NO. FEM4000HST (Single)
FEM4000DHST (Double)
HOLDING STRENGTH Up to 580kg
VOLTAGE/CURRENT Dual Voltage 12/24VDC 12VDC=590mA 24VDC=290mA(Double x2)
APPROVALS 4 hour re rated to A.S. and B.S. standards
MONITORING
LSS
Internal CPU register armature plate
(Registered to match the individual electromagnetic lock)
with security alarm sensor/time delay setting from 0-60 sec
SIZE
Single door series magnet size: L= 268 x W= 73 x D= 40mm
Single door series armature plate size: L= 190 x W= 61 x D= 16mm
Double door series surface magnet size: L= 535 x W= 73 x D= 40mm
Double door series armature plate size: L= 190 x W= 61 x D= 16mm x 2 pcs
29
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING
PRODUCT DIMENSIONS AND INSTALLATION
One way security dome nut
Door
536
73
61
40
82.50
190
82.50
16
190
82.50
61
16
82.50
One way security dome nut
Anti-Tamper Plate
One way security dome nut
Door
Door
30
TECHNICAL DETAILS
PRODUCT FEATURES
PRODUCT DESCRIPTION

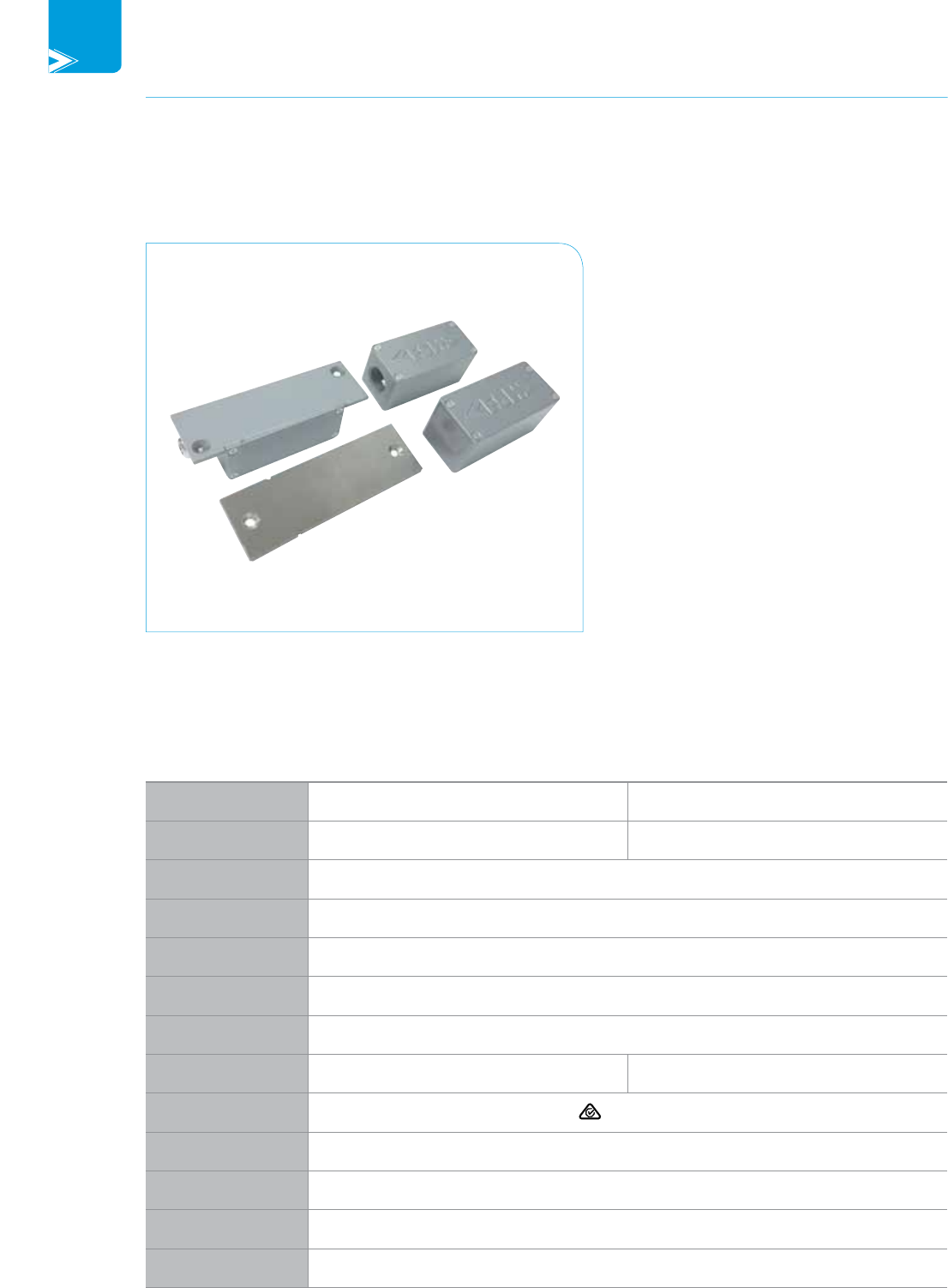

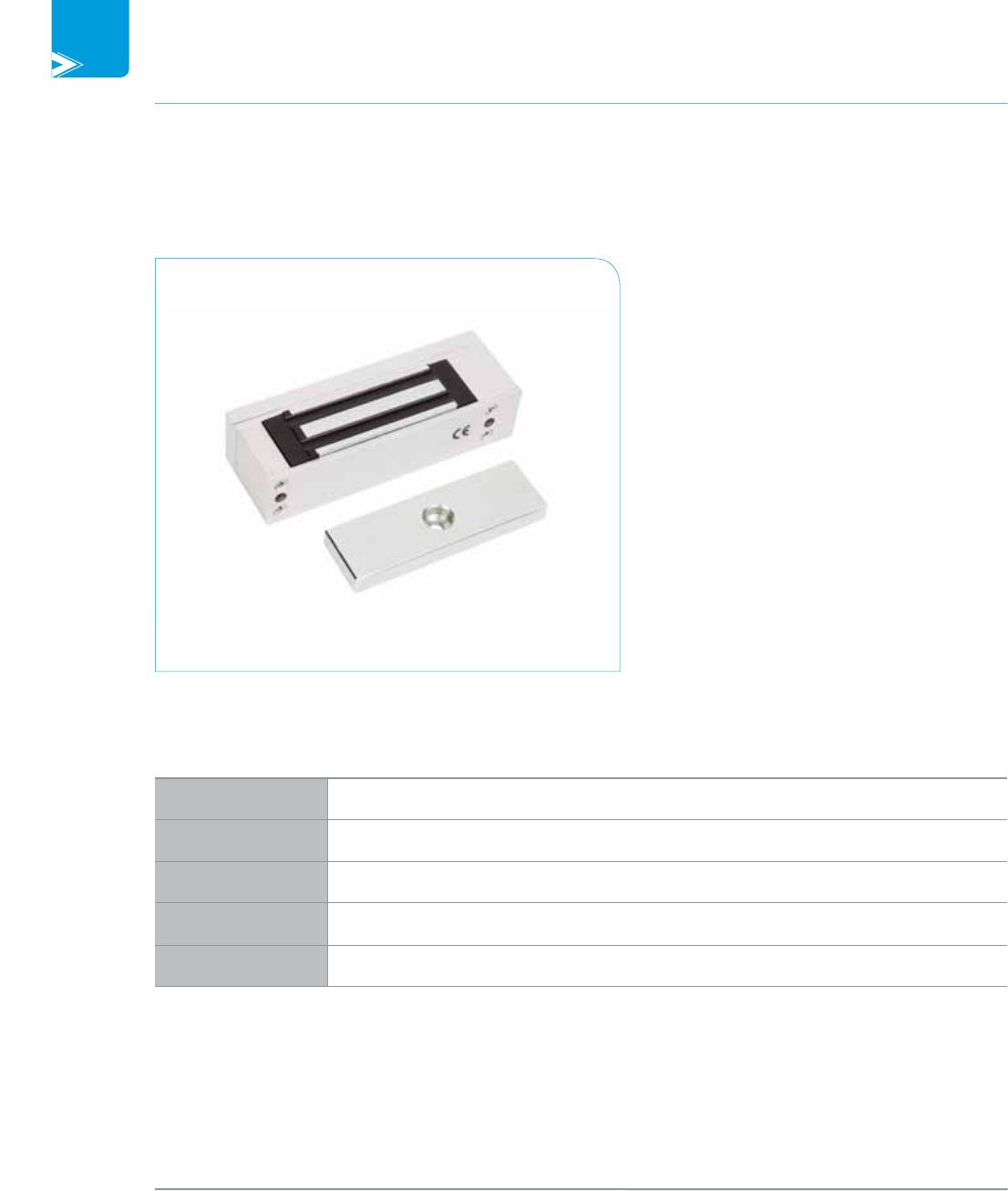

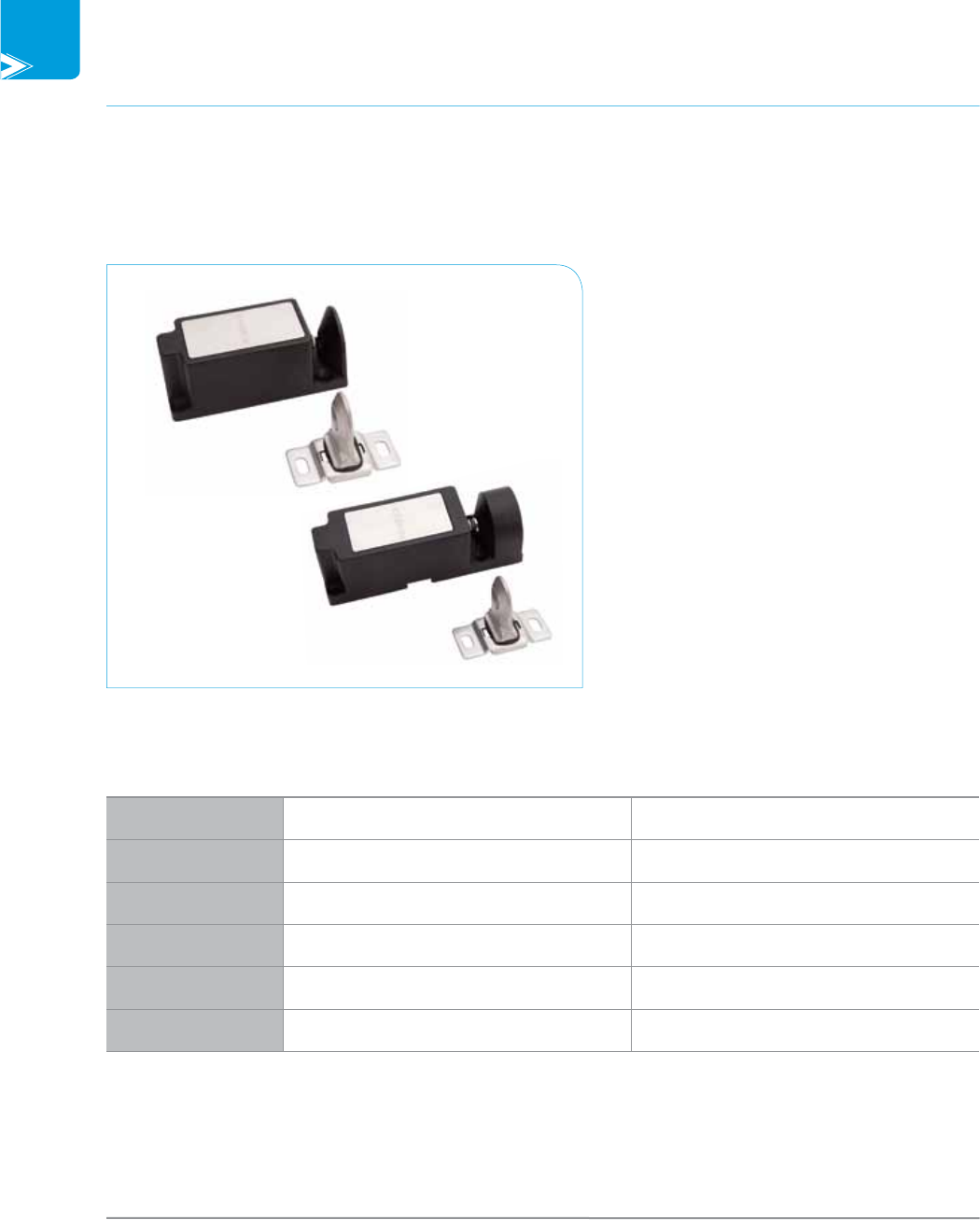

The FSH small and compact range of “Mini”
electro magnetic locks are specically designed for
securing cupboards, cabinets, lockers and the like,
where a reasonably high holding force is required.
PART NO. FCCW15S FCCW30S FCCW30F (Flush mount)
HOLDING STRENGTH Up to 75kg Up to 180kg
MONITORING NIL NIL
VOLTAGE/CURRENT Dual Voltage 12/24VDC
12VDC= 240mA 24VDC= 120mA
Dual Voltage 12/24VDC
12VDC= 350mA 24VDC= 175mA
SIZE
Single door series magnet size:
L= 107 x W= 37 x D= 20mm
Single door series armature plate size:
L= 65 x W= 32 x D= 9mm
Single door series magnet
size:L= 166 x W= 39 x D= 21mm
Single door series armature plate
size:L= 130 x W= 32 x D= 8.3mm
Flush mount magnet
size:L= 202 x W= 34 x D= 21mm
Flush mount amature plate
size:L= 130 x W= 32 x D= 8.3mm
• Built-in varistor (MOV) surge protection
• Zero residual magnetism
• CE/C-Tick
• Lifetime warranty

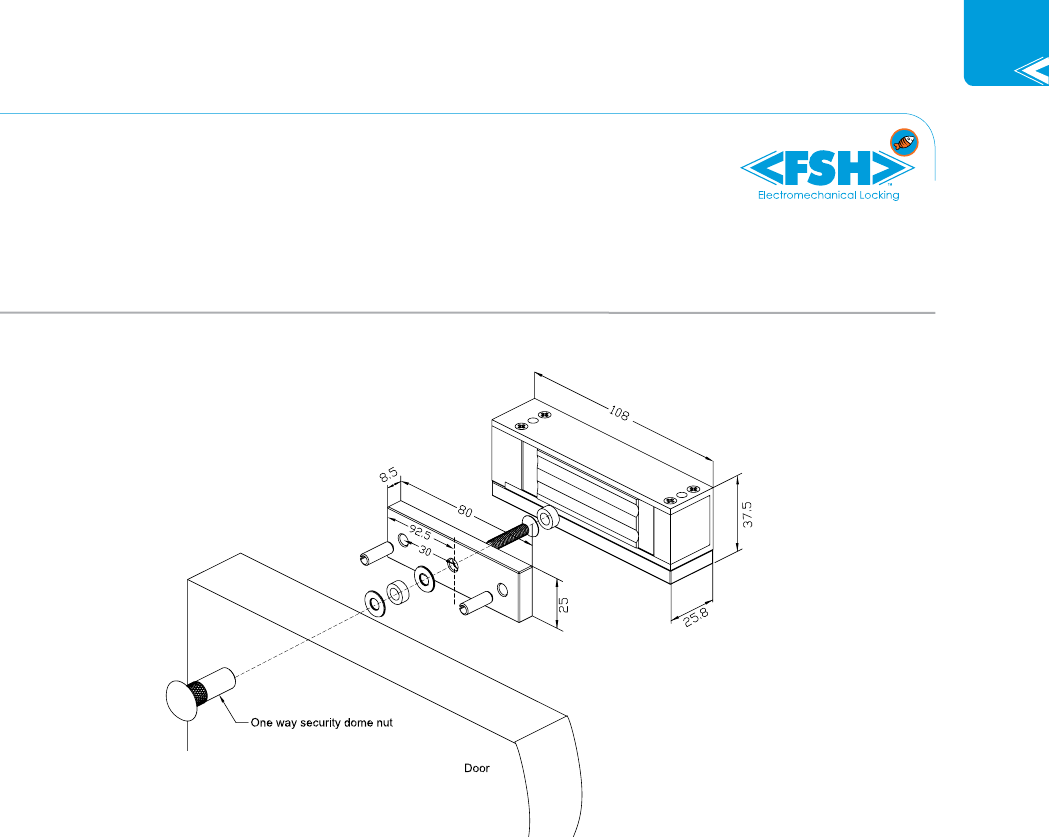

FCCW MINI SERIES
PRODUCT FCCW MINI SERIES
HIGH QUALITY MINI ELECTRO MAGNETIC LOCKING DEVICES
SINGLE DOOR NON MONITORED
31
• Up to 250kg shear holding force
• Lock status monitoring
• 2 year warranty
• Low holding current
• Multi Voltage12 to 24VDC
• 4 hour re rated
FSH2500
PRODUCT FSH2500
ELECTRO MAGNETIC SHEAR LOCKING DEVICE SINGLE
DOOR MONITORED MORTISE MOUNT
PRODUCT DESCRIPTION
FSH shear locks are an evolutionary product
based on the proven EML concept, designed for
applications where the door swings up to a180º
degree arc.
Whilst a standard EML provides a tensile force, a
shear lock differs as it resists a shear or sliding force.
When the shear lock detects the door in the closed
position, the magnet “sucks” the armature plate up
by up to 5mm and traps the armature in the lock
body frame.
Despite the small size of the FSH shear lock, it is
capable of resisting up to 250kg of shear load.
The shear lock accepts voltages from 12 to 24VDC.
Lock should not be used on doors.
• 2100mm in height
• 900mm in width
• Product designed for Aluminium doors
PART NO. FSH2500
HOLDING STRENGTH Up to 250kg holding force
VOLTAGE/CURRENT at 12VDC x 1A(in-rush) 200mA(normal)
at 24VDC x 0.5A ‘100mA’
MONITORING Lock Status Sensor
LED indicator
SIZE Shear Locks series magnet size: L= 166 x W= 31 x D= 21mm
Shear Locks series armature plate size: L= 166 x W= 26 x D= 31mm
PRODUCT FEATURES
TECHNICAL DETAILS
32
TECHNICAL DETAILS
PRODUCT FEATURES
PART NO. FEM5000G
HOLDING STRENGTH Up to 630kg
VOLTAGE/CURRENT Dual Voltage 12/24VDC,
12VDC= 480mA 24VDC= 240mA
MONITORING LSS
SIZE Magnet size: L= 220 x W= 63 x D= 45mm
Armature plate size: L= 190 x W= 61 x D= 16mm
• Lock Status Monitoring Sensor (LSS)
• Up to 630kg holding force
• Stainless 304 steel body housing
• Weather resistant IP67
• Lifetime warranty
• Anti Tamper Plate
• CE/C-Tick
• Guaranteed no residual magnetism
FEM5000G
PRODUCT DESCRIPTION
The Electro Magnetic Gate Lock FEM5000G has a
holding force of up to 630kg and is IP67 weather
resistant with a stainless steel body housing. The
device provides a dual xing arrangement, a
built-in varistor surge protection and accepts
both 12 and 24VDC.
The Electro Magnetic Gate Lock also provides the
monitoring feature “Lock Status Sensor” by Hall-
Effect (LSS). The Electro Magnetic Gate Lock comes
with a lifetime warranty and is supplied with an Anti-
Tamper-Plate as standard to prevent hostile attacks
on the dome-nut-xing bolt of the Armature Plate.
PRODUCT FEM5000G
HIGH QUALITY WEATHER RESISTANT ELECTRO MAGNETIC GATE LOCKING DEVICES
33
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING
PRODUCT DIMENSIONS AND INSTALLATION
M25
34
TECHNICAL DETAILS
PRODUCT FEATURES
• Lock Status Monitoring Sensor (LSS)
• Stainless 304 steel body housing
• Weather resistant IP67
• Lifetime warranty
• CE/C-Tick
• Guaranteed no residual magnetism
FEM4700FS-LSS | FEM4500FS-RSW
PRODUCT DESCRIPTION
The Electro Magnetic Mini Gate Lock FEM4700FS-LSS
has a holding force of up to 380kg and the Electro
Magnetic Micro Gate Lock FEM4500FS-RSW has a
holding force of up to 200kg.
Both products are IP67 weather resistant with
stainless steel body housings. The devices provide
a dual xing arrangement, a built-in varistor surge
protection and accept both 12 and 24VDC.
The FEM4700FS-LSS provides a monitoring feature
”Lock Status Sensor (LSS) which is a Hall Effect
sensor. The FEM4500FS-RW provides the monitoring
feature which is a power dependent reed switch.
The Eletro Magnetic Gate Locks come with a
lifetime warranty.
PRODUCT FEM4700FS-LSS|FEM4500FS RSW
HIGH QUALITY WEATHER RESISTANT MINI ELECTRO MAGNETIC GATE LOCKING DEVICES
PART NO. FEM4700FS-LSS FEM4500FS-RSW
HOLDING STRENGTH Up to 380kg Up to 200kg
VOLTAGE/CURRENT Dual Voltage 12/24VDC,
12VDC=400mA 24VDC=200mA
Dual Voltage 12/24VDC,
12VDC=360mA 24VDC=180mA
MONITORING LSS RSW (Power dependent Reed switch)
SIZE
Magnet size:
L= 220 x W= 47 x D= 30.5mm
Armature plate size:
L= 185 x W= 42 x D= 12mm
Magnet size:
L= 162 x W= 26 x D= 31mm
Armature plate size:
L= 130 x W= 30 x D= 8.7mm
35
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING
PRODUCT DIMENSIONS AND INSTALLATION
FEM4700FS-LSS
FEM4500FS-RSW
One way security dome nut
Door
Door
36
PRODUCT ELECTRO MAGNETIC LOCKING DEVICES ACCESSORIES
TECHNICAL DETAILS
PART NO. BRACKET TO SUIT
AMZB1-LP FEM5000G/FEM5700/FEM4000HST
AMZB1D-LP FEM5700D/FEM4000DHST
AMZB1-LP DSS FEM5700M
AMZB1D-LP DSS FEM5700DM
AMZB4-LP FEM3500/FEM4700FS
AMZB4D-LP FEM3500D
AMZB4-LP FEM3500M
AMZB4D-LP FEM3500DM
AMZB3 FCCW30S/FEM4500FS
PRODUCT DESCRIPTION
Adjustable “L” and “Z” brackets for inward
opening doors.
TECHNICAL DETAILS
PART NO. BRACKET TO SUIT
AMLB1 FEM5700
2 x AMLB1 FEM5700D
AMLB1 FEM5700M
2 x AMLB1 FEM5700DM
AMLB4 FEM3500/FEM3500M
2 x AMLB4 FEM3500D/FEM3500DM
AMFB3 FCCW30S
PRODUCT DESCRIPTION
Adjustable “L” bracket for narrow header doors.
37
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING
TECHNICAL DETAILS
PART NO. BRACKET TO SUIT
AMAB1 FEM5700
2 x AMAB1 FEM5700D
AMAB1 DSS FEM5700M
2 x AMAB1 DSS FEM5700DM
AMAB4 FEM3500
2 x AMAB4 FEM3500D
AMAB4 FEM3500M
2 x AMAB4 FEM3500DM
PRODUCT DESCRIPTION
Stick on armature plate holder for glass doors.
(recommended 3MVHB tape, not supplied)
TECHNICAL DETAILS
PART NO. BRACKET TO SUIT
AMGB1-12 FEM5700/FEM500G
2 x AMGB1-12 FEM5700D
AMGB1-12 DSS FEM5700M
2 x AMGB1-12 DSS FEM5700DM
AMGB4-12 FEM3500/FEM4700FS-LSS
2 x AMGB4-12 FEM3500D
AMGB4-12 FEM3500M/FEM47FS-LSS
2 x AMGB4-12 FEM3500DM
PRODUCT DESCRIPTION
Glass Door Bracket “U-Prole” to x armature plate
to 10-12mm glass doors.

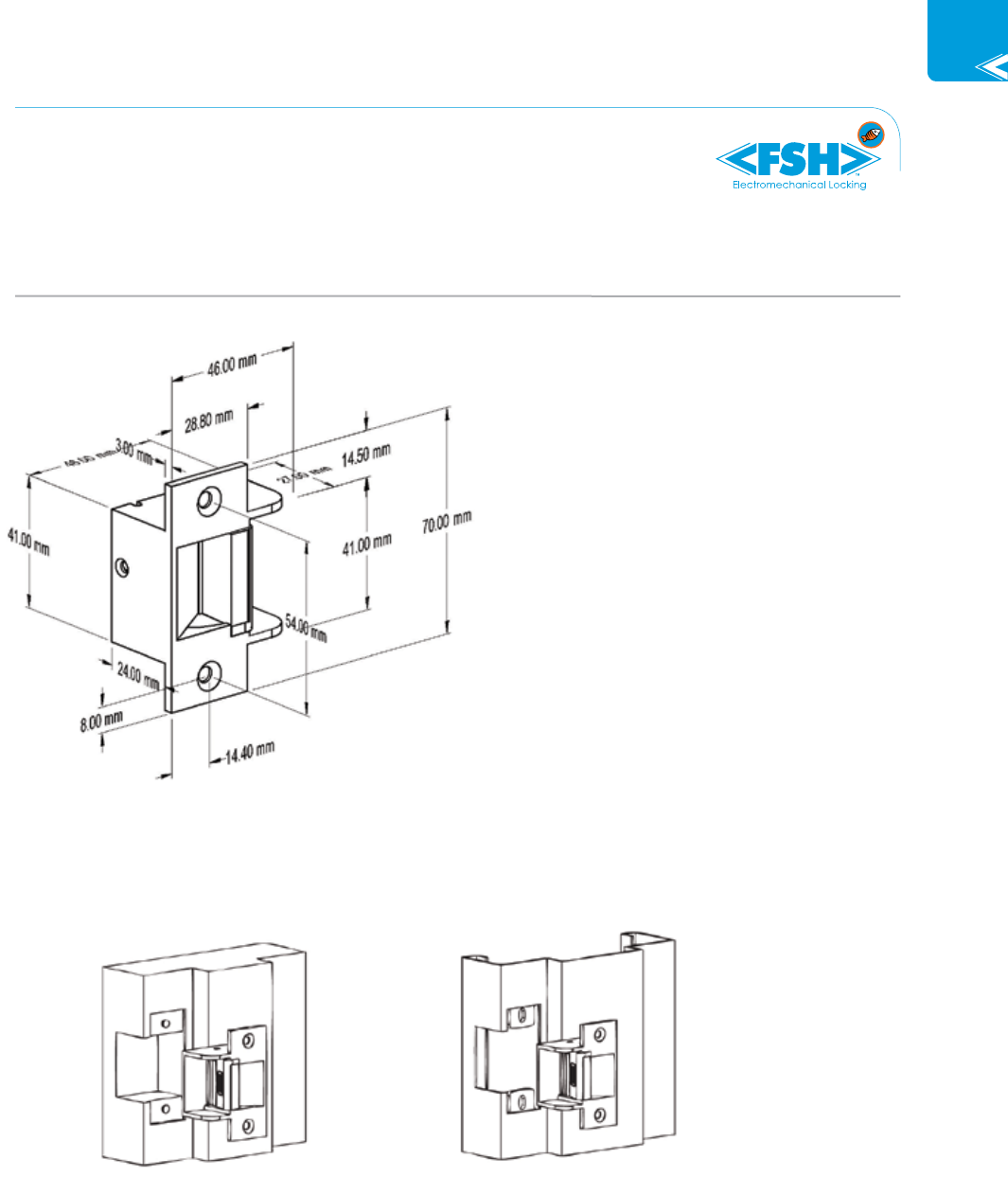

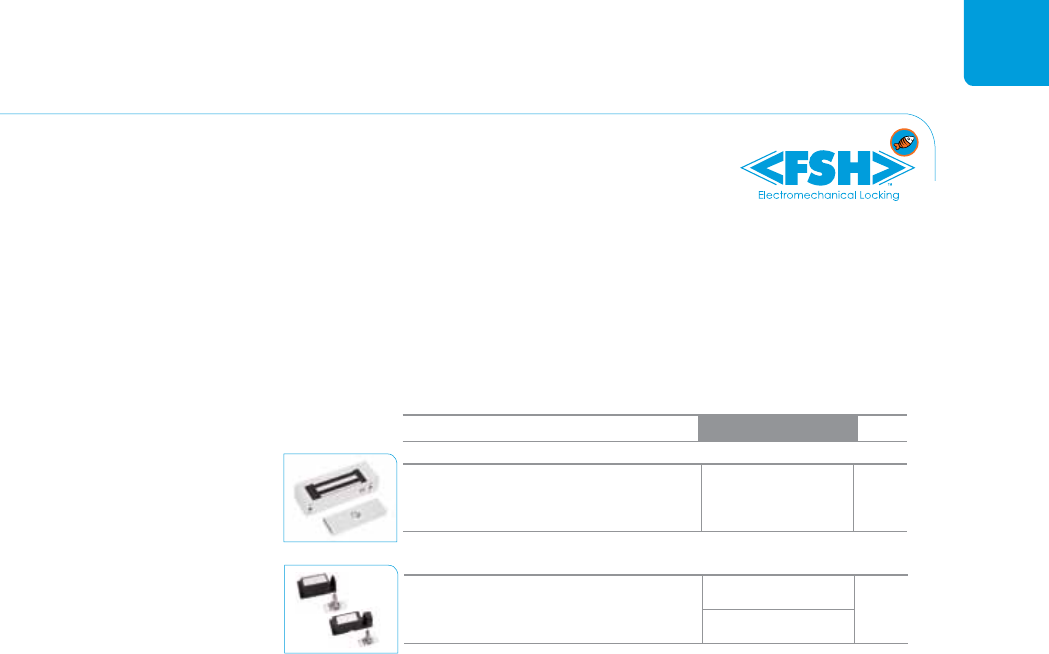

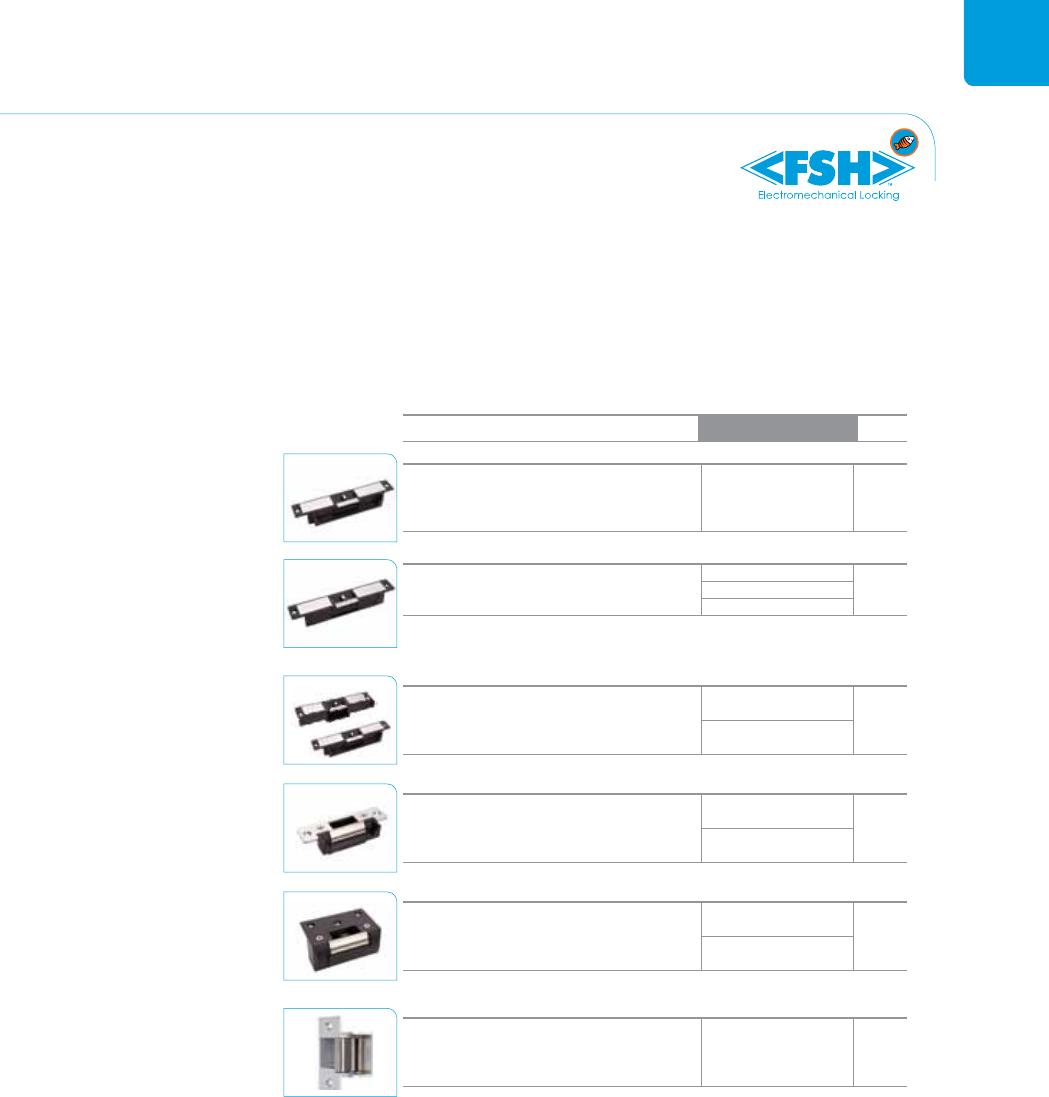

ELECTRIC STRIKES
Electromechanical Locking
FEATURES PART NO. PP
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING

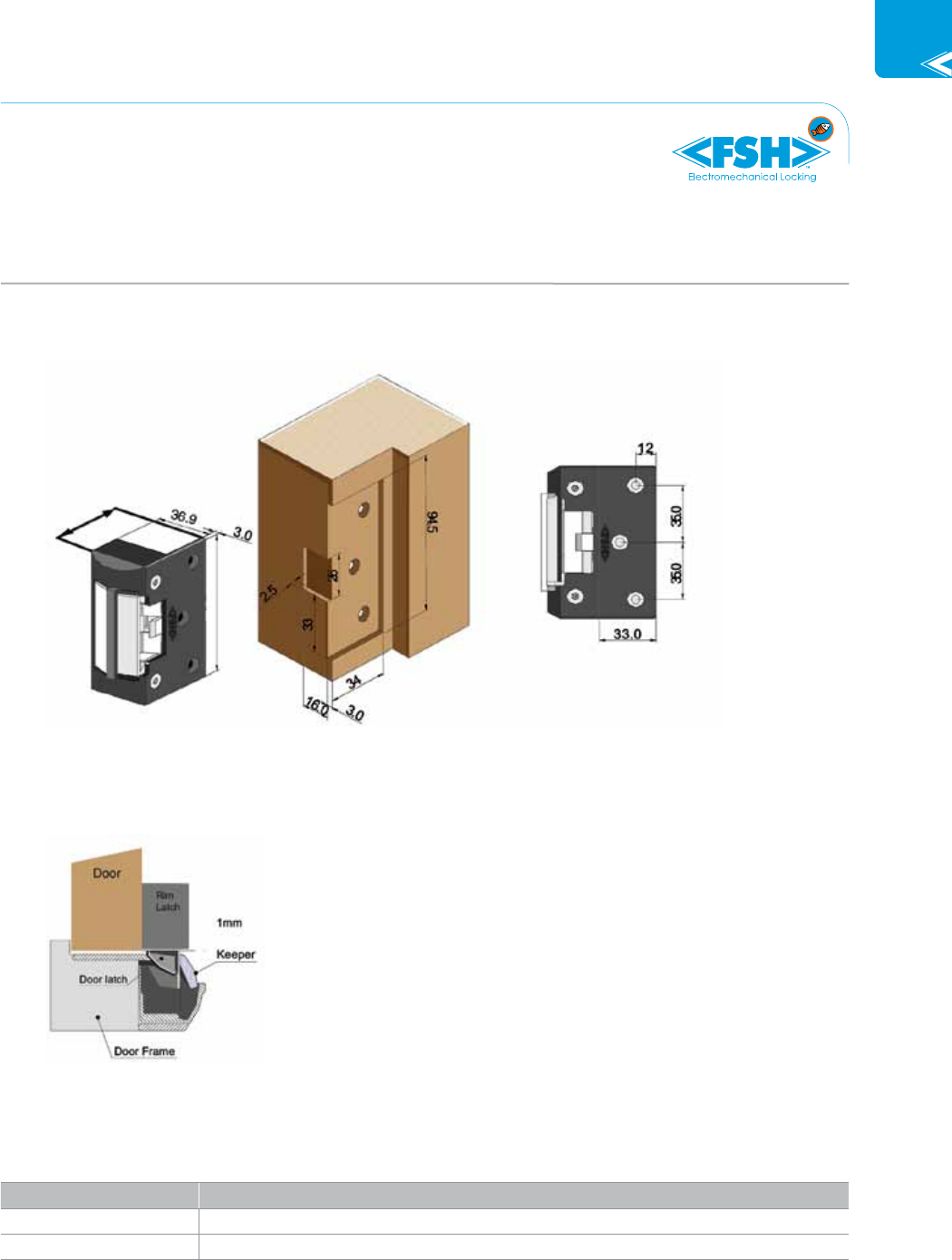

Electric Strike-RIM Mounted
FES15M
48
FES15
Electric Strike-ANSI Footprint
FEM10M
46
FES10
High Security Electric EcoStrike FES90M-P 40
Compact Electric Strike FES7 50
High Security Electic Strike
FES20
42FES20M
FES20M-M
FSH Retroline Electric Strike Replacements
FEA20M
44
FHC20M
39
40
TECHNICAL DETAILS
PRODUCT FEATURES
• Releases with up to 35kg of Pre-Load/Side Load
• Motorised locking device
• Durability tested to 1.5 Mill. full pre-load cycles
of 35kg
• Multi voltage from 10 to 30VDC
• Sleep Mode Current less than 15mA@12VDC
• Pre-drilled for extension lips
• Up to 1300 kg holding strength
• 5 year warranty
• Shock/hammer resistant
PRODUCT DESCRIPTION

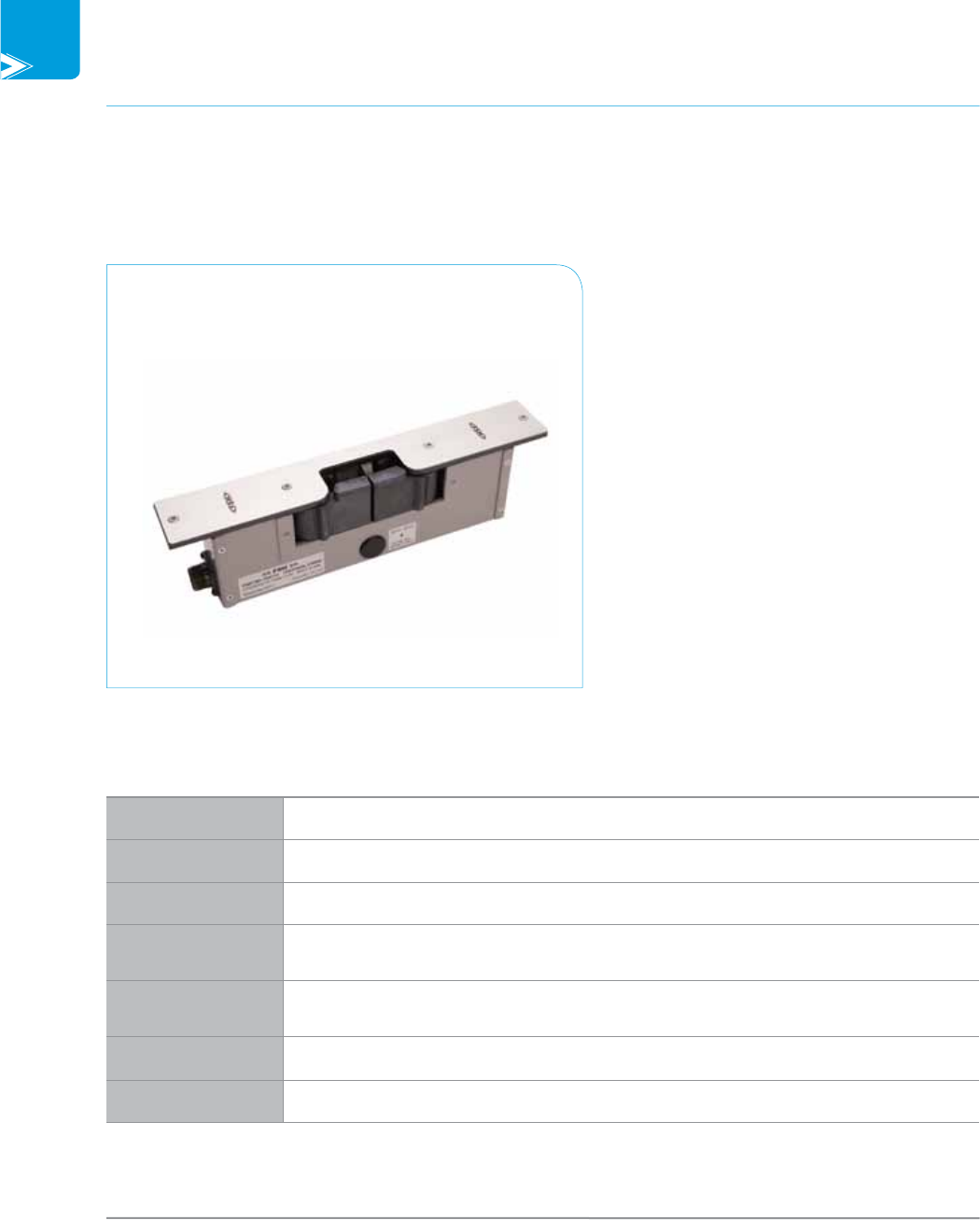

The patented FES90M-P motorised High Security
Electric EcoStrike with up to 35kg Pre-Load
capability is a revolutionary electric locking solution.
With a high Pre-Load /Side-Load tolerance and
minimal energy consumption in ‘Sleep-Mode’ it is
a truly “Green Locking Solution”.
The strike accepts voltages from 10 to 30VDC, is
pre-drilled for extension lips and has a unique and
simple fail secure (Power To Open)/ fail safe (Power
To Lock) switch-over function.
The door strike provides 2 forms of monitoring:
1. LSS (Lock Status Sensor)
2. DSS (Door Latch Sensor)
The electric strike consumes current less than 300mA
@ 12VDC at full 35kg pre-load only during locking
and unlocking action. In the locked or unlocked
state (Sleep-Mode), the electric strike consumes
current less than 15mA@12VDC.
FES90MP comes with a 10mm strike lip as standard,
to prevent possible personal injury and damage to
clothing as with 15mm lips.
FES90M-P
PRODUCT FES90M-P
HIGH SECURITY ELECTRIC EcoStrike
WITH PRE-LOAD CAPABILITY – AUSTRALIAN FOOTPRINT
PART NO. FES90M-P
FUNCTION Mortice Mount, Power-To-Lock/Power-To-Release eld interchangeable, 35kg of Pre-Load capability
HOLDING STRENGTH Up to 1300kg
Tested to 1.5Mill full 35kg pre-load cycles
VOLTAGE/CURRENT
Multi Voltage 10-30VDC
Action Mode: 300mA@12VDC at full 35kg pre-load only during locking and unlocking action
Sleep-Mode: 15mA @ 12VDC in locked or unlocked mode
APPROVALS 4 hour re rated to A.S. and B.S. Standards
CE
C-TICK
MONITORING LSS - Status Sensor of the internal locking mechanism
DSS - Door Latch Sensor, Door latch engaged within strike keeper
ENVIRONMENTAL Operational Temperature Range -20º to +60ºC
41
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING
PRODUCT DIMENSIONS AND INSTALLATION
122
122
122
10
5
24
26
28.5
175.6
39.5
122
26
10
28.5
3
23
5
138
122
122
PRODUCT DIMENSIONS
Latch front face
cut thru
outline
TEMPLATE
Position this line to
your marking.1mm
clearance has been
added.
5 sizes of extension lips are available
5mm,10mm, 25mm, 50mm and 75mm
Depth of cut-out will vary dependant on width of door frame
Depth
Lipless
10mm Lip
Standard
15mm Lip
40mm
162mm
123.1mm
NOT TO SCALE
29.0
44.8
*These dimensions have a tolerance of +0.8mm/-0
176.0
Keeper
INSTALLATION
POSITION OF DOOR LATCH
122
122
122
10
5
24
26
28.5
175.6
39.5
122
26
10
28.5
3
23
5
138
122
122
PRODUCT DIMENSIONS
Latch front face
cut thru
outline
TEMPLATE
Position this line to
your marking.1mm
clearance has been
added.
5 sizes of extension lips are available
5mm,10mm, 25mm, 50mm and 75mm
Depth of cut-out will vary dependant on width of door frame
Depth
Lipless
10mm Lip
Standard
15mm Lip
40mm
162mm
123.1mm
NOT TO SCALE
29.0
44.8
*These dimensions have a tolerance of +0.8mm/-0
176.0
Keeper
INSTALLATION
POSITION OF DOOR LATCH
122
122
122
10
5
24
26
28.5
175.6
39.5
122
26
10
28.5
3
23
5
138
122
122
PRODUCT DIMENSIONS
Latch front face
cut thru
outline
TEMPLATE
Position this line to
your marking.1mm
clearance has been
added.
5 sizes of extension lips are available
5mm,10mm, 25mm, 50mm and 75mm
Depth of cut-out will vary dependant on width of door frame
Depth
Lipless
10mm Lip
Standard
15mm Lip
40mm
162mm
123.1mm
NOT TO SCALE
29.0
44.8
*These dimensions have a tolerance of +0.8mm/-0
176.0
Keeper
INSTALLATION
POSITION OF DOOR LATCH
122
122
122
10
5
24
26
28.5
175.6
39.5
122
26
10
28.5
3
23
5
138
122
122
PRODUCT DIMENSIONS
Latch front face
cut thru
outline
TEMPLATE
Position this line to
your marking.1mm
clearance has been
added.
5 sizes of extension lips are available
5mm,10mm, 25mm, 50mm and 75mm
Depth of cut-out will vary dependant on width of door frame
Depth
Lipless
10mm Lip
Standard
15mm Lip
40mm
162mm
123.1mm
NOT TO SCALE29.0
44.8
*These dimensions have a tolerance of +0.8mm/-0
176.0
Keeper
INSTALLATION
POSITION OF DOOR LATCH
ORDER DETAILS & ACCESSORIES
PART NO. PRODUCT DESCRIPTION
FES90M-P High Security Electric Eco Strike with pre-load capabilities Australian Footprint monitored 10mm Lip
FES90M-P-L2 High Security Electric Eco Strike with pre-load capabilities Australian Footprint monitored Lipless
FES20-EL15 FES20 Extension Lip 15mm
FES20-EL25 FES20 Extension Lip 25mm
FES20-EL50 FES20 Extension Lip 50mm
FES20-EL75 FES20 Extension Lip 75mm
FES20-Rebate Rebate Kit for FES90MP & FES20 Series (Stainless Steel)
42
TECHNICAL DETAILS
PRODUCT FEATURES
PART NO. FES20 FES20M FES20M-M
FUNCTION Mortise mount, Power To Lock/Power To Release site interchangeable. Input Voltage: 12-36VDC
HOLDING STRENGTH Up to 1490kg
VOLTAGE/CURRENT 12VDC= 220mA 24VDC= 120mA 36VDC= 80mA
APPROVALS SCEC Approved for secure area
FES20 & FES20M/M)
(4 hour re rated)
4 hour re rated to A.S.
and B.S. standards
MONITORING Non monitored
FES20M Fully monitored, door latch monitoring (DSS)
Lock Status Monitoring (LSS)
Strike installed in frame (ATS)
FES20M-M as FES20M plus additional Reed Magnet
• 5 year warranty
• Simple Power To Lock/Power To Release interchange
• No loose pins and springs
• Pre-drilled for extension lips
• Mounting kit included
• SCEC Approved for secure areas
(FES20M , FES20M-M, FES20M-L2)
• Fire rated
• CE/C-Tick
• Superior holding strength
• SCEC listing
FES20 SERIES
PRODUCT DESCRIPTION
The patented FES20 Series high security electric
door strikes are manufactured from stainless steel
and have the advantage of accepting D.C
Voltages from 12 to 36Volts.
The FES20 Series Strikes are pre-drilled for extension
lips and the 20M model is provided with full
monitoring including true patented “Anti-Tamper.”
Independently tested, the FES20 Series electric
strikes are the strongest of their category.
FES20 Series Strikes now come with a 10mm strike lip
as standard, to prevent possible personal injury and
damage to clothing as with 15mm lips. The FES20M
Strike is SCEC approved for secure areas.
The FES20M + FES20M-M+FES20M-L2 are all SCEC
approved for secure areas.
PRODUCT FES20 SERIES
HIGH SECURITY ELECTRIC STRIKES –AUSTRALIAN FOOTPRINT
43
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING
PRODUCT DIMENSIONS AND INSTALLATION
ORDER DETAILS & ACCESSORIES
PART NO. PRODUCT DESCRIPTION
FES20 High Security Electric Strike Australian Footprint non-monitored 10mm Lip
FES20M High Security Electric Strike Australian Footprint monitored 10mm with extension Lip
FES20M-L2 High Security Electric Strike Australian Footprint with no extension Lip (Lipless)
FES20M-M High Security Electric Strike Australian Footprint, 10mm Lip, additional Door Position Magnet
to be used in combination with Electric Mortice Locks
122
122
122
10
5
24
26
28.5
175.6
39.5
122
26
10
28.5
3
23
5
138
122
122
PRODUCT DIMENSIONS
Latch front face
cut thru
outline
TEMPLATE
Position this line to
your marking.1mm
clearance has been
added.
5 sizes of extension lips are available
5mm,10mm, 25mm, 50mm and 75mm
Depth of cut-out will vary dependant on width of door frame
Depth
Lipless
10mm Lip
Standard
15mm Lip
40mm
162mm
123.1mm
NOT TO SCALE
29.0
44.8
*These dimensions have a tolerance of +0.8mm/-0
176.0
Keeper
INSTALLATION
POSITION OF DOOR LATCH
122
122
122
10
5
24
26
28.5
175.6
39.5
122
26
10
28.5
3
23
5
138
122
122
PRODUCT DIMENSIONS
Latch front face
cut thru
outline
TEMPLATE
Position this line to
your marking.1mm
clearance has been
added.
5 sizes of extension lips are available
5mm,10mm, 25mm, 50mm and 75mm
Depth of cut-out will vary dependant on width of door frame
Depth
Lipless
10mm Lip
Standard
15mm Lip
40mm
162mm
123.1mm
NOT TO SCALE
29.0
44.8
*These dimensions have a tolerance of +0.8mm/-0
176.0
Keeper
INSTALLATION
POSITION OF DOOR LATCH
122
122
122
10
5
24
26
28.5
175.6
39.5
122
26
10
28.5
3
23
5
138
122
122
PRODUCT DIMENSIONS
Latch front face
cut thru
outline
TEMPLATE
Position this line to
your marking.1mm
clearance has been
added.
5 sizes of extension lips are available
5mm,10mm, 25mm, 50mm and 75mm
Depth of cut-out will vary dependant on width of door frame
Depth
Lipless
10mm Lip
Standard
15mm Lip
40mm
162mm
123.1mm
NOT TO SCALE
29.0
44.8
*These dimensions have a tolerance of +0.8mm/-0
176.0
Keeper
INSTALLATION
POSITION OF DOOR LATCH
122
122
122
10
5
24
26
28.5
175.6
39.5
122
26
10
28.5
3
23
5
138
122
122
PRODUCT DIMENSIONS
Latch front face
cut thru
outline
TEMPLATE
Position this line to
your marking.1mm
clearance has been
added.
5 sizes of extension lips are available
5mm,10mm, 25mm, 50mm and 75mm
Depth of cut-out will vary dependant on width of door frame
Depth
Lipless
10mm Lip
Standard
15mm Lip
40mm
162mm
123.1mm
NOT TO SCALE29.0
44.8
*These dimensions have a tolerance of +0.8mm/-0
176.0
Keeper
INSTALLATION
POSITION OF DOOR LATCH
FES20-EL15 FES20 Extension Lip 15mm
FES20-EL25 FES20 Extension Lip 25mm
FES20-EL50 FES20 Extension Lip 50mm
FES20-EL75 FES20 Extension Lip 75mm
FES20-Rebate Rebate Kit for FES20 Series (Stainless Steel)
44
TECHNICAL DETAILS
PRODUCT FEATURES
PART NO. FEA20M FHC20M
FUNCTION Mortice mount, Power To Lock/Power To Release site interchangeable. Input Voltage: 12-36VDC
HOLDING STRENGTH Up to 1490kg
VOLTAGE/CURRENT 12VDC=220mA 24VDC=120mA 36VDC=80mA
APPROVALS Up to 4h re rated to A.S/B.S Standards
MONITORING Fully monitored, Door latch monitoring (DSS), Lock Status monitoring (LSS)
• 5 year warranty
• Simple Power To Lock/Power To Release interchange
• No loose pins and springs
• CE/C-Tick
• Superior holding strength

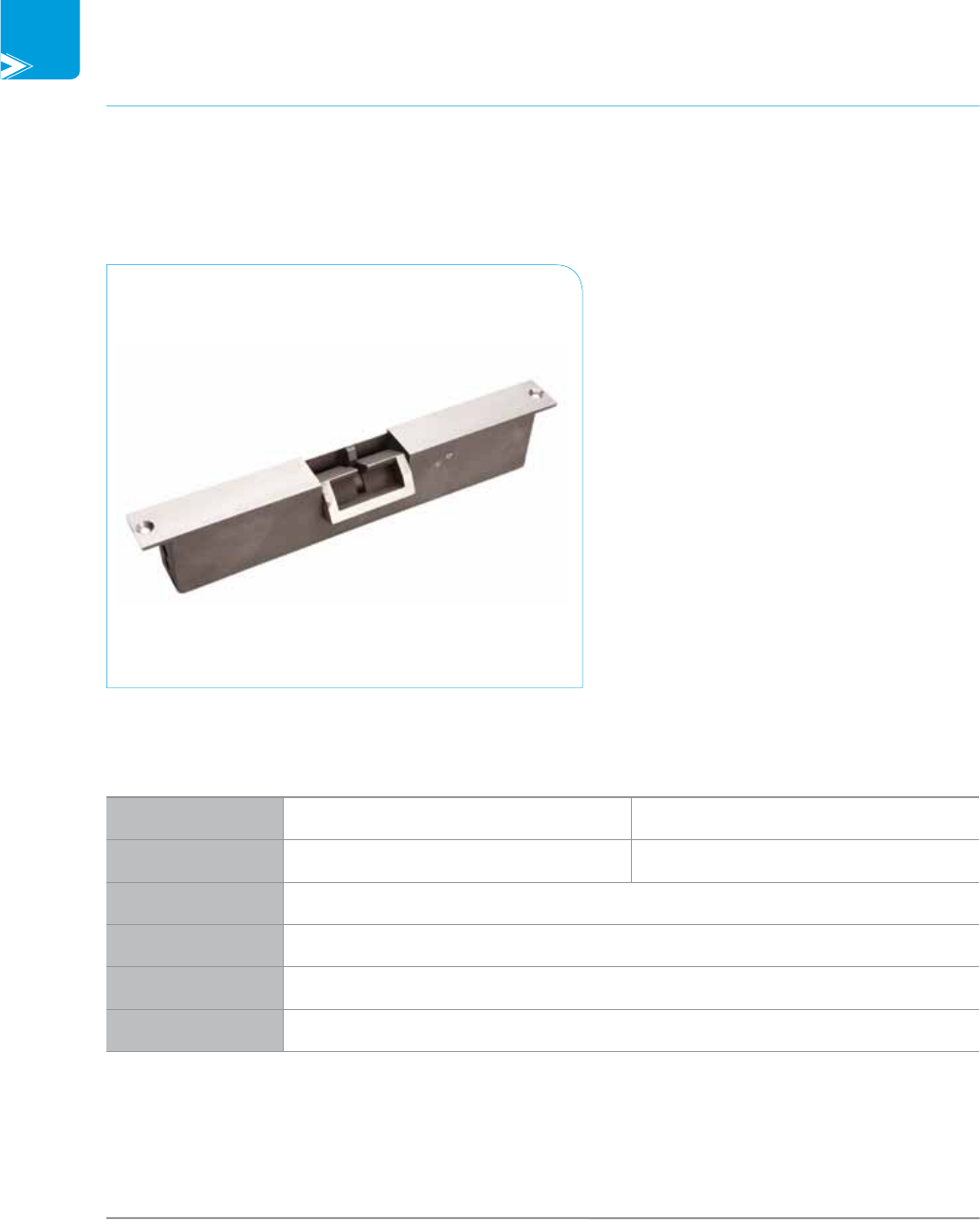

FEA20M & FHC20M SERIES
PRODUCT DESCRIPTION
The RetroLine Series Strikes are designed to replace
the redundant PADDE EA and HARCOR Electric
Strikes. The strikes are modied versions of the FSH
FES20M product. A small modication on the door
frame has to be made to replace existing PADDE
EA or HARCOR strikes.
The RetroLine FEA20M and FHC20M high security
electric door strikes have Door Status and Lock
Status monitoring (DSS &LSS), are manufactured
from stainless steel and have the advantage of
accepting D.C. voltages from 12 to 36Volts.
PRODUCT FEA20M & FHC20M SERIES
FSH RETROLINE ELECTRIC STRIKE REPLACEMENTS FOR HARCOR AND PADDE EA
45
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING

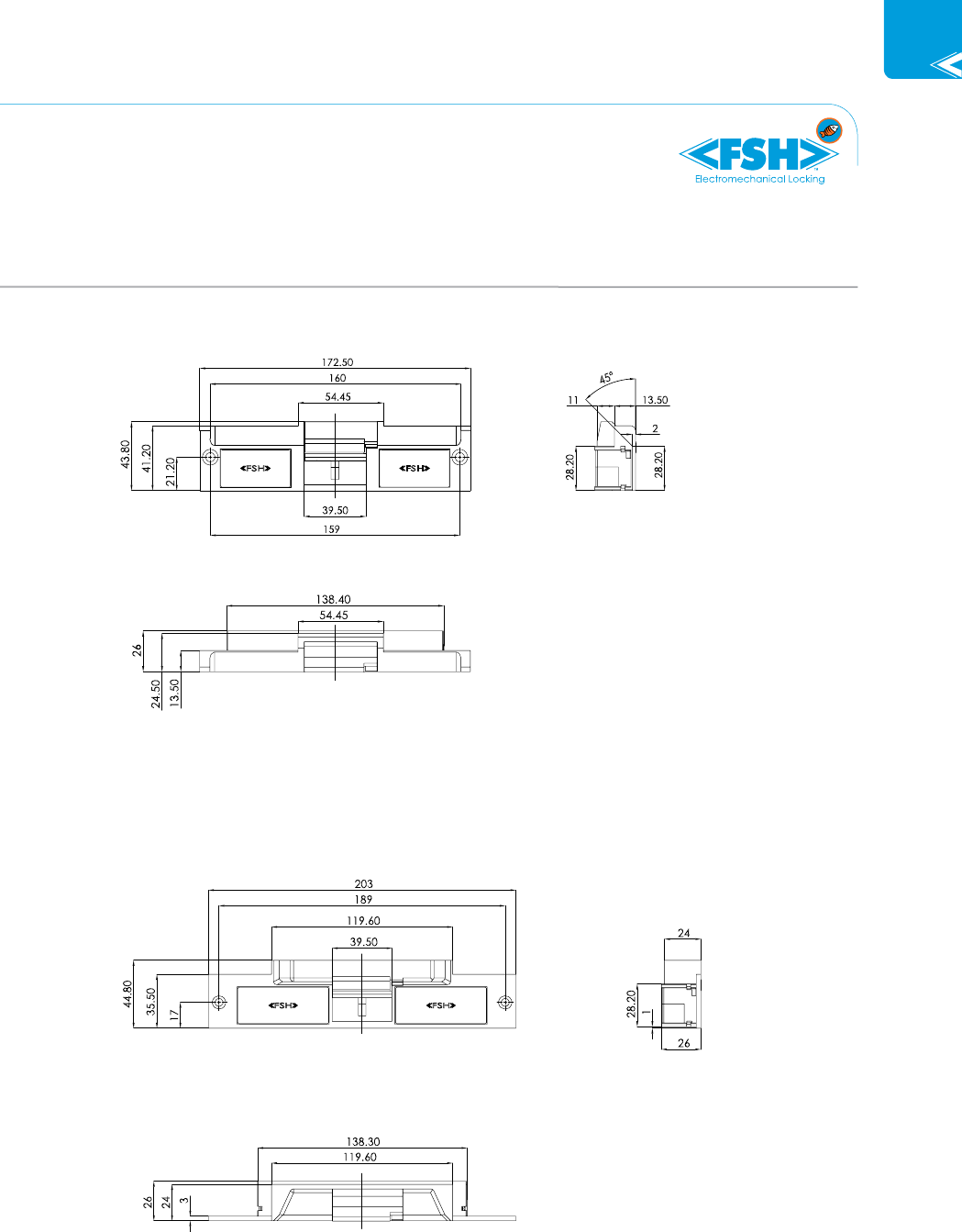

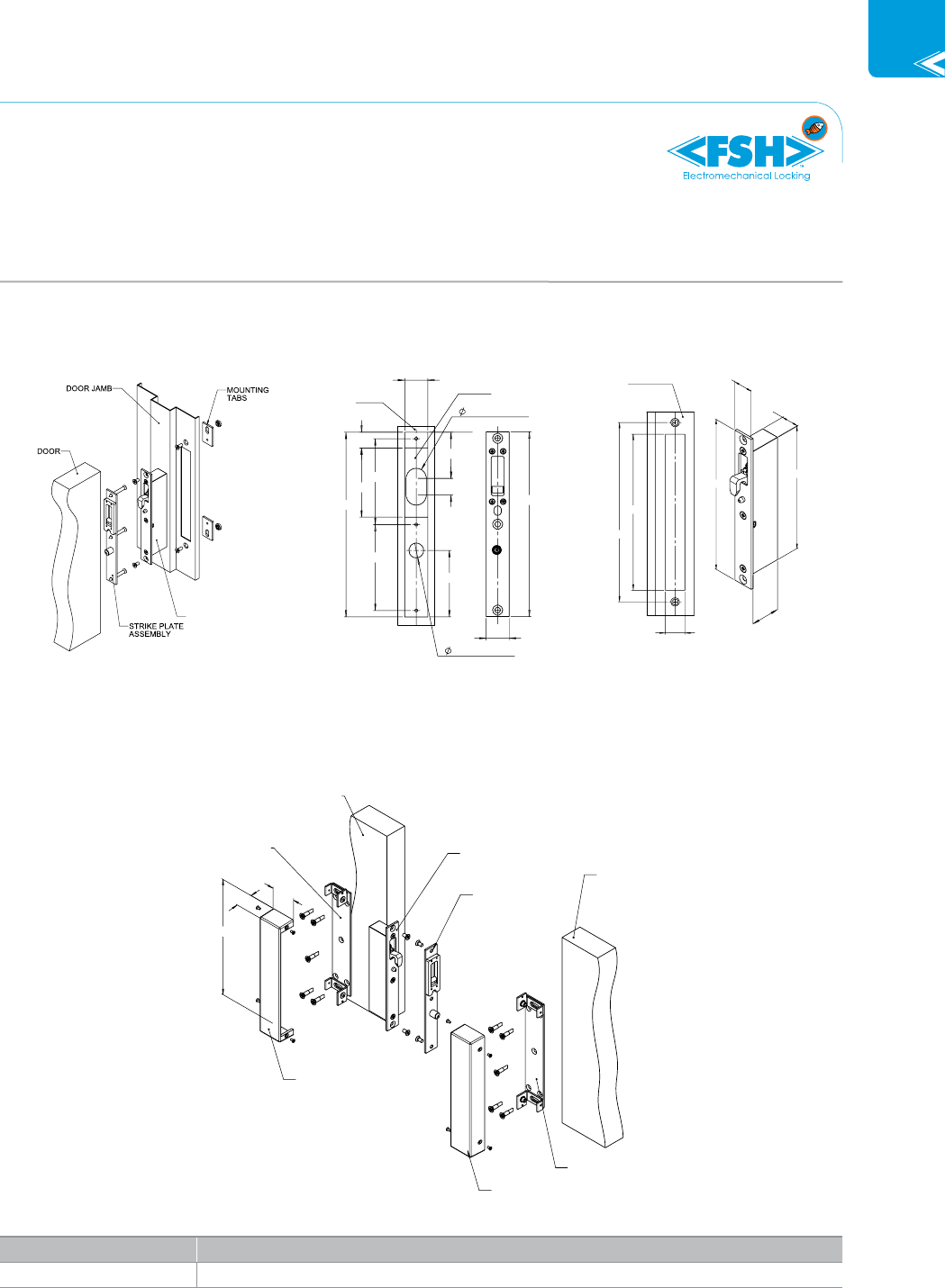

PRODUCT DIMENSIONS AND INSTALLATION
FHC20M
FEA20M
46
TECHNICAL DETAILS
PRODUCT FEATURES
• Stainless steel faceplate and keeper
• Patented Barbell mechanism for simple change of locking function
• Low power consumption
• Compatible with door latch depth of up to 15mm
• Weather resistant IP56 (FES10 non monitored only)
• Superior holding strength of up to 1300kg
• 5 year warranty
• 12 or 24VDC operation
• Pre-drilled for extension lips

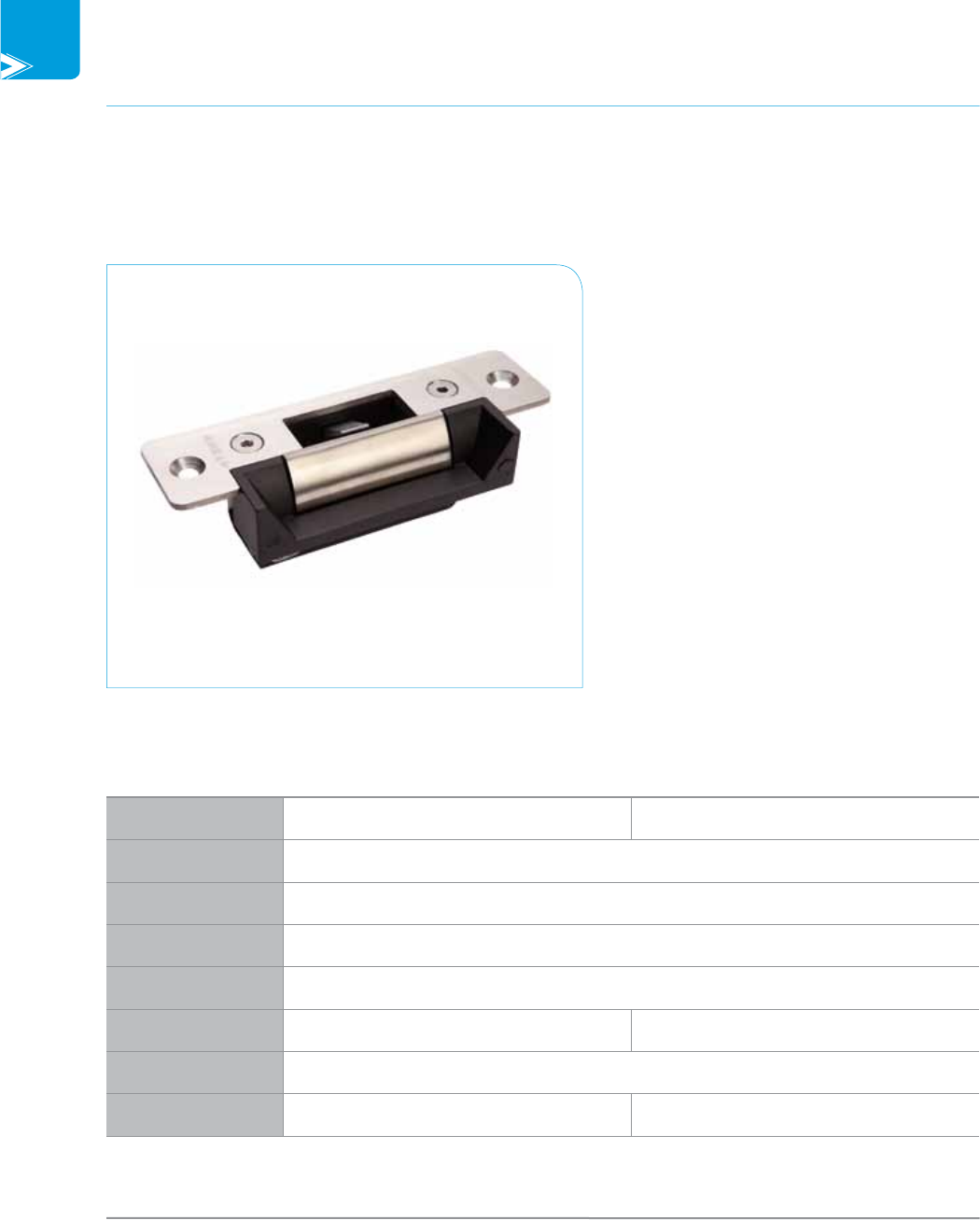

PRODUCT FES10 SERIES
ELECTRIC STRIKE –ANSI FOOTPRINT
FES10 SERIES
PART NO. FES10M FES10
FUNCTION Mortise mount, Power To Lock/Power To Release
site interchangeable. Input Voltage: 12/24VDC
HOLDING STRENGTH Over 1300kg
VOLTAGE/CURRENT Dual Voltage 12VDC/200mA 24VDC/100mA
APPROVALS 2 hour re rated to A.S. and B.S. standards
MONITORING Door Latch monitoring Non monitored
SIZE L= 125 x W= 42 x D= 35mm
IP RATING N/A Weather resistant IP56
PRODUCT DESCRIPTION
The patented small ANSI footprint, FES10 Series
Electric Strikes are designed for light commercial
and residential applications. They accept voltages
of either 12 or 24VDC, are re tested up to a 4 hour
re resistance rating to both Australian and British
Fire Test Standards.
The strikes are easily site-interchangeable Power
To Lock (PTL) or Power To Release (PTR) by simply
changing over the Barbell mechanism. The device
is pre-drilled to cater for extension lips, come with
a 5 year warranty and have a holding strength of
up to 1300kg. The FES10M version comes with Door
Status Sensor (door latch monitoring). The FES10
version is weather resistant IP56 rated.
47
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING

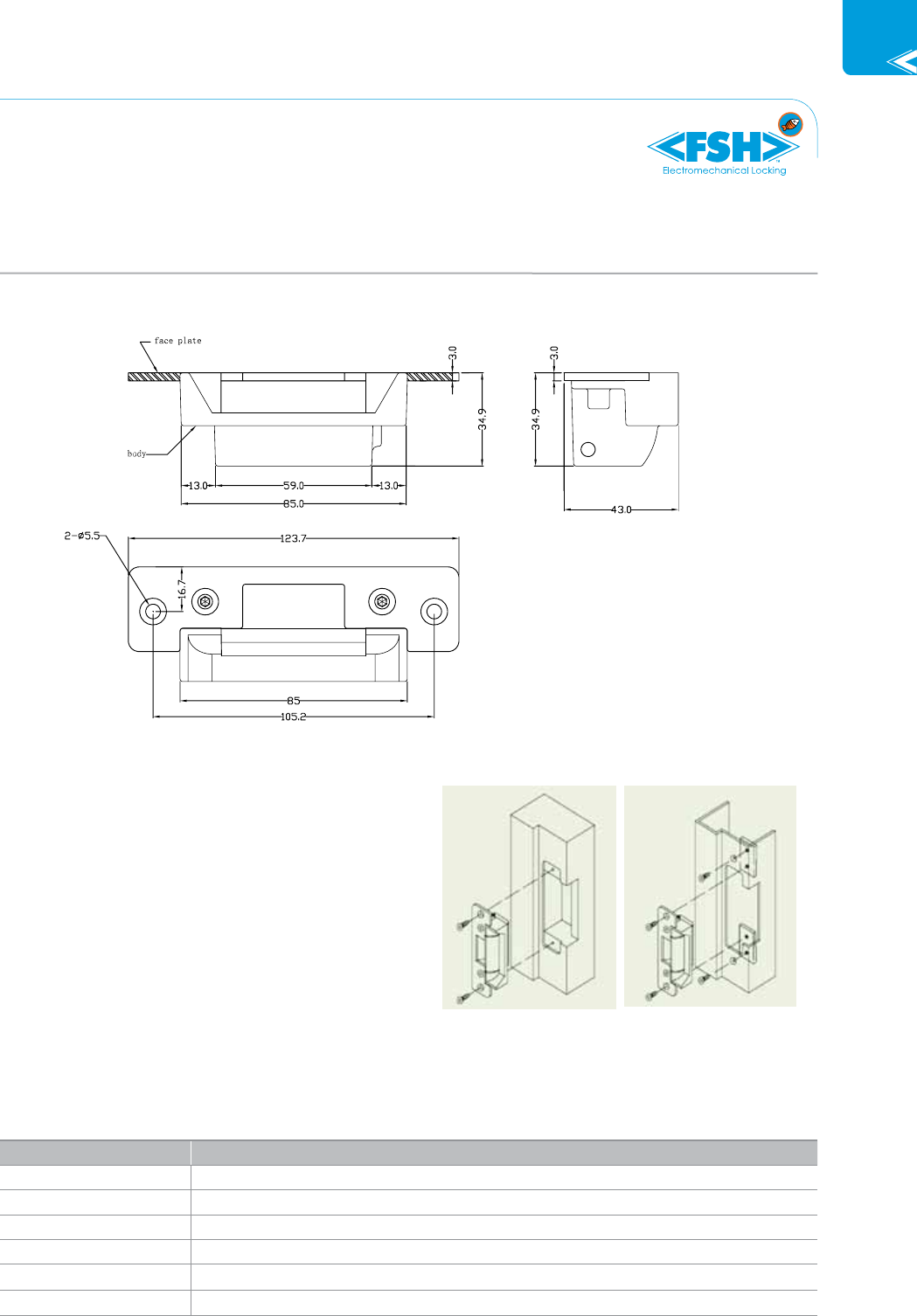

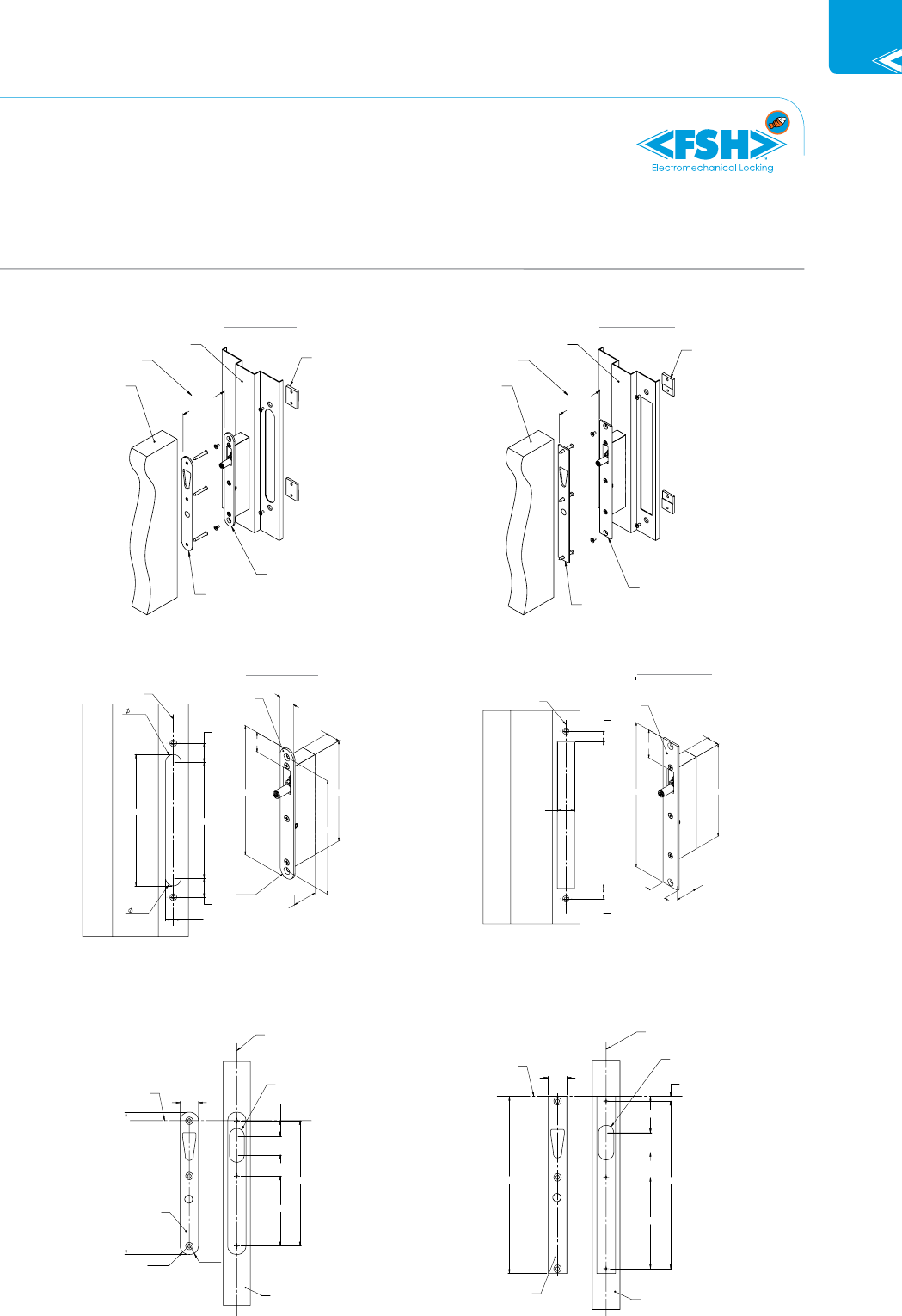

PRODUCT DIMENSIONS AND INSTALLATION
PART NO. PRODUCT DESCRIPTION
FES10M Electric Strike ANSI Footprint
FES10 Electric Strike ANSI Footprint weather resistant IP56
FES10-EL15 FES10 Extension Lip 15mm
FES10-EL25 FES10 Extension Lip 25mm
FES10-EL50 FES10 Extension Lip 50mm
FES10-EL75 FES10 Extension Lip 75mm
ORDER DETAILS & ACCESSORIES
Mounting Installation
on wooden door frame
Mounting installation
on metal, aluminium
or PVC door frame
48

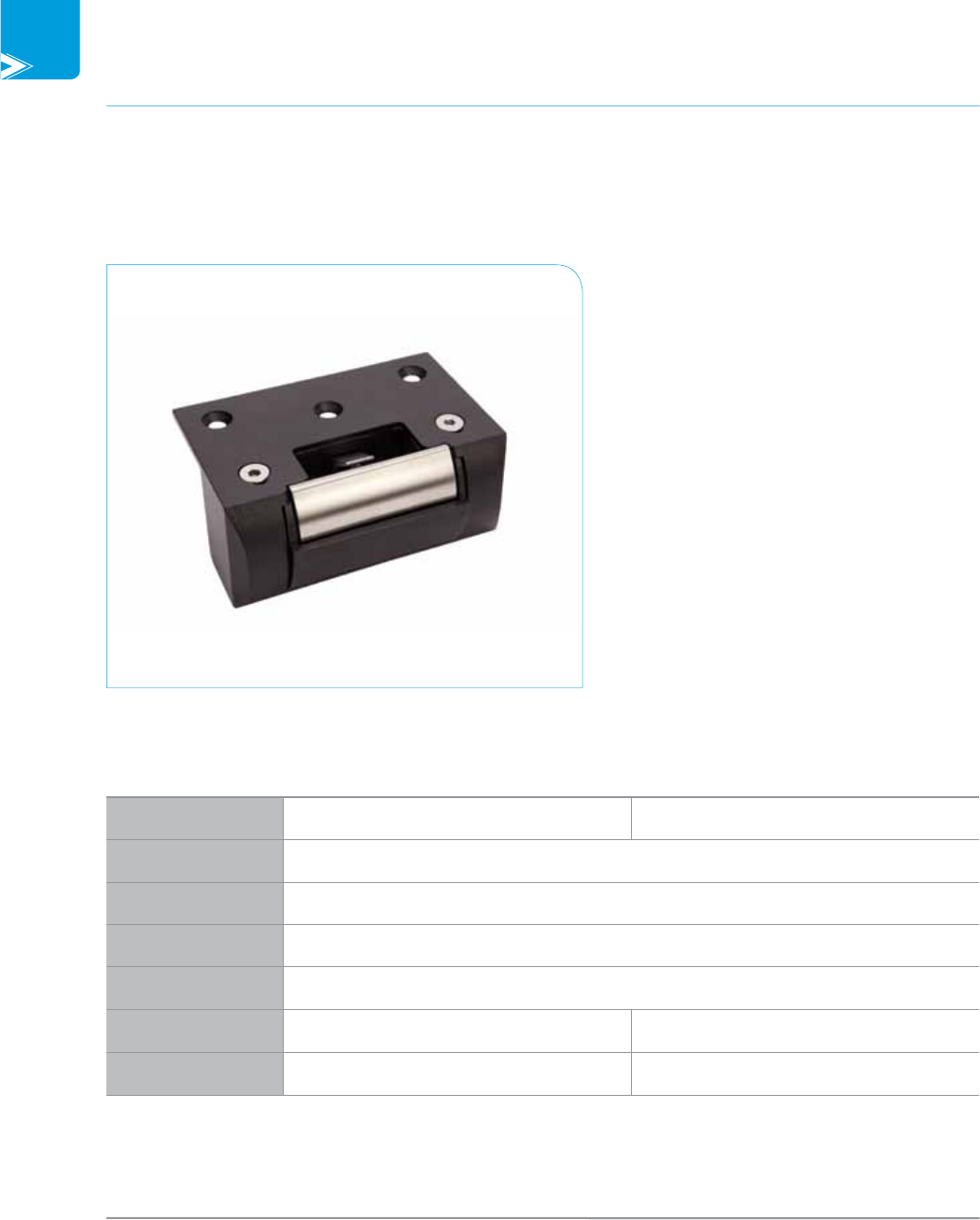

TECHNICAL DETAILS
PRODUCT FEATURES
• Barbell mechanism for easy change of locking function
• Low power consumption
• Weather resistant IP56 (FES15 non monitored only)
• Superior holding strength of up to 1250kg
• 5 year warranty
• 12 or 24VDC operation
• Surface mount for RIM-Locks
PRODUCT DESCRIPTION
The patented RIM-Mounted, FES15 Series Electric
Door Strikes are designed for pedestrian gate
application or any other light commercial/
residential application where a RIM Mounted
strike is required. They accept voltages of either
12 or 24VDC, are re tested up to a 2 hour re
resistance rating to both Australian and British
Fire Test Standards.
The strike are easily site-interchangeable Power
To Lock (PTL) or Power To Release (PTR) by simply
changing over the Barbell mechanism. The device
comes with a 5 year warranty and has a holding
strength of up to 1250kg. The FES15M version comes
with Door Status Sensor (door latch monitoring)
and the non-monitored FES15 version is weather
resistant IP56 rated.
FES15 SERIES
PRODUCT FES15 SERIES
ELECTRIC STRIKE – RIM MOUNTED (SURFACE)
PART NO. FES15M FES15
FUNCTION Surface mount electric strike for rim latch control
HOLDING STRENGTH Over 1252kg
VOLTAGE/CURRENT Dual voltage 12VDC/200mA 24VDC/100mA
APPROVALS 2 hour re rating
MONITORING Door latch monitoring
Anti Tamper monitoring Non monitored
IP RATING N/A Weather resistant IP56
49
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING
PRODUCT DIMENSIONS AND INSTALLATION
ORDER DETAILS
PART NO. PRODUCT DESCRIPTION
FES15M Electric Strike RIM-Mounted
FES15 Electric Strike RIM-Mounted weather resistant IP56
Mechanical Door Lock Conguration
Timber Door Frame Cut Out
50
TECHNICAL DETAILS
PRODUCT FEATURES
• One of the world’s smallest strikes
• Easy installation
• Ideal for wooden, steel & aluminium frames
• Size to suit standard entrance set strike plates
• 12VDC low current draw
• Continuously rated solenoid
PART NO. FES7
FUNCTION Power To Open (Fail Secure)
HOLDING STRENGTH
Static force: 500kg
Dynamic force: 60J
(S5 according to AS4745.2)
VOLTAGE/CURRENT 12VDC ~ 90mA
MONITORING NIL
FES7
PRODUCT DESCRIPTION
The Compact Electric Strike FES7 is one of the
smallest and most versatile strikes in the world today
and is suitable for all types of door frames. Designed
to be tted in place of an entrance set strike plate.
Minimal effort is required when installing the unit.
The compact size also assists with maintaining
the integrity and strength of the door frame. The
versatile strike can be mounted on the right or
left hand side of a door and is only congured to
operate in fail secure mode.
PRODUCT FES7
COMPACT ELECTRIC STRIKE
51
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING
PRODUCT DIMENSIONS AND INSTALLATION
Wooden Jamb Installation
(Flush Mount)
Metal Jamb Installation
(Flush Mount)
ELECTROMECHANICAL DROP BOLTS & HOOK LOCK
Electromechanical Locking
FEATURES PART NO. PP
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING
Standard Electric Drop Bolt
DB1260PTO
58
DB1260PTL
High Security Motorised Drop Bolt
EcoLock VE1260 54
53
High Security Motorised Hook Lock
for Sliding Doors HL1260 60
54

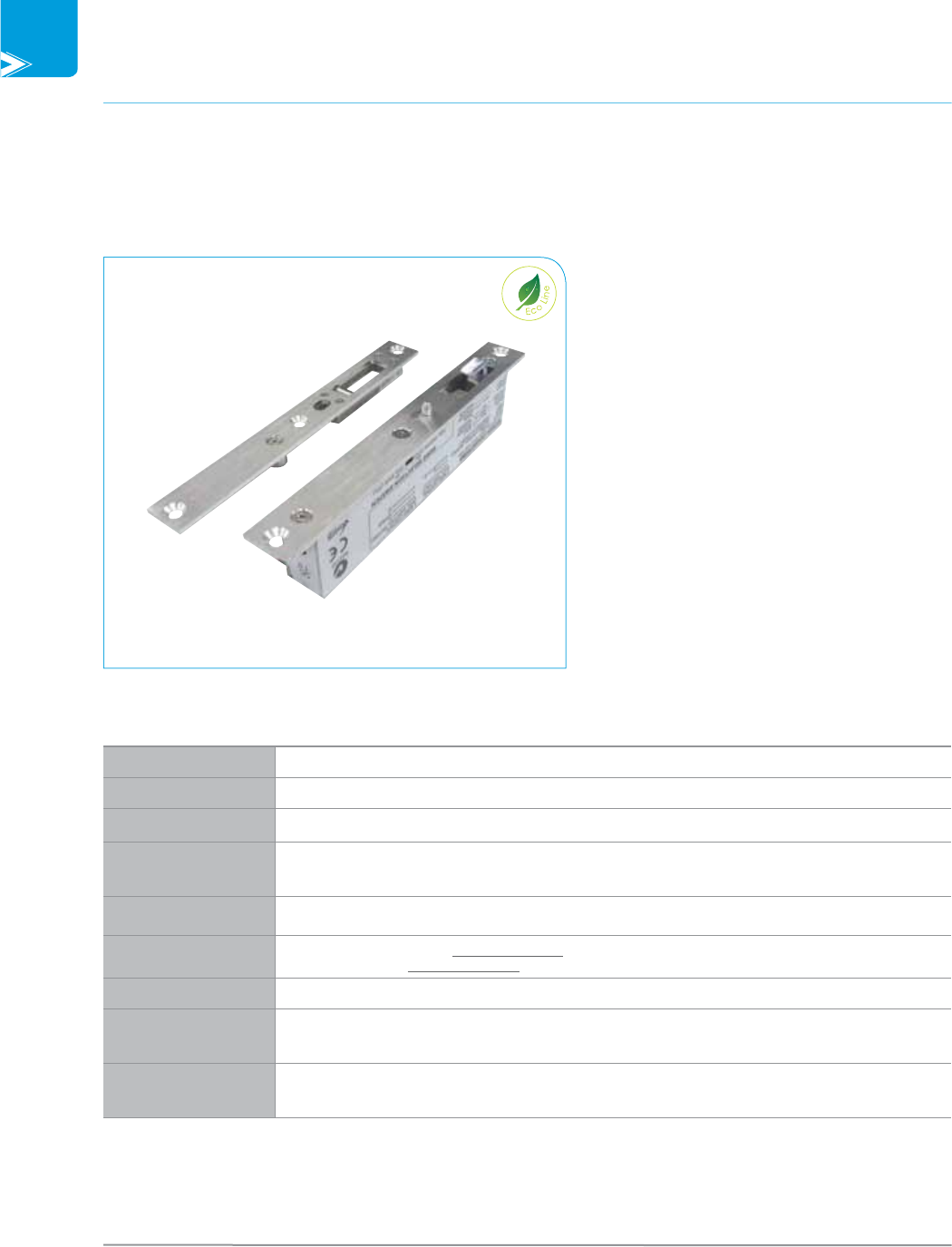

TECHNICAL DETAILS
PRODUCT FEATURES
PRODUCT VE1260
HIGH SECURITY MOTORISED DROP BOLT WITH PRE-LOAD CAPABILITY EcoLock
PRODUCT FEATURES
TECHNICAL DETAILS
• Releases with up to 35kg of Pre-Load/Side Load
(3-wire mode)
• Motorised locking device
• Durability tested to 400,000 cycles
• Multi voltage from 12 to 30VDC
• Sleep-Mode Current less than 15mA@12VDC
• Fully monitored including Reed Switch for
door position
• Up to 1000kg Holding Strength
• 5 year warranty
• Retrot version for Trimec/PADDE ES8000
(VE1260S Square Edge Version)
VE1260
PART NO. VE1260
FUNCTION Mortice Mount, power-to-lock/power-to-release eld interchangeable,
up to 35kg of Pre-Load capability, locking up to 8kg locking strength
HOLDING STRENGTH Up to 1000kg (with special bracket)
VOLTAGE/CURRENT
Multi Voltage 12-30VDC
Active Mode: Locking/Unlocking cycle current is 0.29A to 0.85A depending on the side load.
More side load = more current.
Sleep-Mode: After locking/unlocking the current drops down to ~0.015A (15mA)
APPROVALS
CE
C-Tick
Fire rated in accordance with AS1905.1.2005 Part 1 to up to 4 hours on re door assemblies
MONITORING Lock Status Sensor of the internal locking mechanism
Door Status Sensor Built-in Reed Switch, monitoring the door position
ENVIRONMENTAL Operational Temperature Range -20° to +60°C
DURABILITY
Exceeding Australian Standard AS4145.2-2008
400,000 operating cycles
• Durability D7
STRENGTH
Meeting Australian Standard AS4145.2-2008
• Static Strength S8
• Impact Strength S8
MAXIMUM DOOR GAP 8mm
DOOR MISALIGNMENT Standard Strike Plate + 4mm Special Strike Plate up to + 12mm
--
PRODUCT DESCRIPTION
The patented EcoLock VE1260 is a high torque
motor driven Drop Bolt with up to 35kg pre-load/
side load tolerance. It can be installed vertically
in the door frame (lock style) or horizontally in the
frame header and has a symmetric dead-bolt
mechanism to allow to be used on 180° degree
swing through doors.
The VE1260 is considered a “Green Product” as
it consumes an inrush current of 290mA@12VDC
only during locking and unlocking action (Active
Mode), then in the locked or unlocked state
(Sleep-Mode), the Drop Bolt consumes current
less than15mA@12VDC.
A series of additional Strike Plates allow for door
misalignment of up to +12mm and a retrot version
of the FSH Eco Lock is available to suit the PADDE/
TRIMEC ES8000 drop bolt footprint.
An optional LED red/green indicator unit
is available.
-
55
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING
PRODUCT DIMENSIONS AND INSTALLATION
DescriptionIssue
D
E
F
C
321
B
A
321 5
C
D
4 876
A
B
E
F
7654
EN Ref. DateINT.
A3
UNLESS OTHERWISE NOTED
WRITTEN AUTHORISATION
PROPERTY OF
SEE EN FOR
NO REPRODUCTION IN PART
AUTHORIZATION
DRAWN TO AS1100
ALL DIMENSIONS IN MILLIMETERS
DO NOT SCALE DRAWING
MATERIAL:
FINISH:
HEAT TREATMENT:
TITLE
DRAWN:SCALE: DATE:
DRAWING NO.:
SIZE:
OR WHOLE IS PERMITTED WITHOUT
DRAWING
SHEET
UNIT 9, 30 PERRY STREET
MIN MATRAVILLE, NSW 2036, AUSTRALIA
PROJECTION
SURFACE FINISH
FIRE & SECURITY HARDWARE P/L
8
1 OF 1
1:3
TOLERANCES ARE
3.2
0 DECIMAL 0.25
1 DECIMAL 0.10
2 DECIMAL 0.05
ANGLES 0.5
CHKD
STRIKE PLATE
FACEPLATE
MOUNTING
DOOR
DOOR JAMB
BRACKETS
MAXIMUM
DOOR GAP
8.0mm
MAX.
VE1260R Round Edge
DescriptionIssue
D
E
F
C
321
B
A
321 5
C
D
4 876
A
B
E
F
7654
EN Ref. DateINT.
A3
UNLESS OTHERWISE NOTED
WRITTEN AUTHORISATION
PROPERTY OF
SEE EN FOR
NO REPRODUCTION IN PART
AUTHORIZATION
DRAWN TO AS1100
ALL DIMENSIONS IN MILLIMETERS
DO NOT SCALE DRAWING
MATERIAL:
FINISH:
HEAT TREATMENT:
TITLE
DRAWN:SCALE: DATE:
DRAWING NO.:
SIZE:
OR WHOLE IS PERMITTED WITHOUT
DRAWING
SHEET
UNIT 9, 30 PERRY STREET
MIN MATRAVILLE, NSW 2036, AUSTRALIA
PROJECTION
SURFACE FINISH
FIRE & SECURITY HARDWARE P/L
8
1 OF 1
1:3
TOLERANCES ARE
3.2
0 DECIMAL 0.25
1 DECIMAL 0.10
2 DECIMAL 0.05
ANGLES 0.5
CHKD
BRACKETS
STRIKE PLATE
MOUNTING
FACEPLATE
DOOR
DOOR JAMB
MAXIMUM
DOOR GAP
8.0mm
MAX.
VE1260S Square Edge
25.0
25.0
30.5
210.0
25.0
30.5
185.0
DOOR JAMB
LINE 2
Description DKHCeussI
EA
D
E
F
C
321
B
A
321 5
C
D
4 876
A
B
E
F
54
EN Ref. DateINT.
FDB80MP - VE LOCK
DRAWING
MATRAVILLE, NSW 2036, AUSTRALIA
7
WRITTEN AUTHORISATION
PROJECTION
SEE EN FOR
NO REPRODUCTION IN PART
AUTHORIZATION
DRAWN TO AS1100
ALL DIMENSIONS IN MILLIMETERS
DO NOT SCALE DRAWING
MATERIAL:
FINISH:
HEAT TREATMENT:
TITLE
DRAWN:SCALE: DATE:
8
PROPERTY OF
DRAWING NO.:
SIZE:
3.2
OR WHOLE IS PERMITTED WITHOUT
UNLESS OTHERWISE NOTED
MIN
FIRE & SECURITY HARDWARE P/L
6
SURFACE FINISH
A3
1 OF 1
1:2
TOLERANCES ARE
SHEET
UNIT 9, 30 PERRY STREET
0 DECIMAL 0.25
1 DECIMAL 0.10
2 DECIMAL 0.05
ANGLES 0.5
18/10/2012
LOCK
FACEPLATE
41.5
25.0
22.5
210.0
R12.5
31.6
163.0
185.0
Locking Device VE1260R Round Edge
30.0
18.0
18.0
256.0
DOOR JAMB
LINE 2LOCK
FACEPLATE
22.5
49.5
163.0
256.0
30.0
41.5
EA
D
E
F
C
321
B
A
321 5
C
D
4 876
A
B
E
F
87654
CHKDIssueDescription EN Ref.
WRITTEN AUTHORISATION
PROJECTION
OR WHOLE IS PERMITTED WITHOUT
NO REPRODUCTION IN PART
AUTHORIZATION
DRAWN TO AS1100
ALL DIMENSIONS IN MILLIMETERS
DO NOT SCALE DRAWING
MATERIAL:
FINISH:
HEAT TREATMENT:
TITLE
DRAWN: SCALE: DATE:
DRAWING NO.:
SIZE:
SHEET
DRAWING
MATRAVILLE, NSW 2036, AUSTRALIA
UNIT 9, 30 PERRY STREET
TOLERANCES ARE
A3
UNLESS OTHERWISE NOTED
SEE EN FOR
1 OF 1
FIRE & SECURITY HARDWARE P/L
PROPERTY OF
1:2
DateINT.
3.2
FDB80MP - VE LOCK
MIN
SURFACE FINISH
0 DECIMAL 0.25
1 DECIMAL 0.10
2 DECIMAL 0.05
ANGLES 0.5
18/10/2012
Locking Device VE1260S Square Edge
22.5
DateEN Ref.Description
1 OF 1
D
E
F
C
321
B
A
321 5
C
D
4 876
A
B
E
F
54
INT.
A3
1:3
3.2
DRAWING
MATRAVILLE, NSW 2036, AUSTRALIA
7
WRITTEN AUTHORISATION
PROJECTION
SEE EN FOR
NO REPRODUCTION IN PART
AUTHORIZATION
DRAWN TO AS1100
ALL DIMENSIONS IN MILLIMETERS
DO NOT SCALE DRAWING
MATERIAL:
FINISH:
HEAT TREATMENT:
TITLE
DRAWN:SCALE: DATE:
8
PROPERTY OF
DRAWING NO.:
SIZE:
OR WHOLE IS PERMITTED WITHOUT
UNLESS OTHERWISE NOTED
TOLERANCES AREFIRE & SECURITY HARDWARE P/L
6
UNIT 9, 30 PERRY STREET
Issue
MIN
SHEET
SURFACE FINISH
0 DECIMAL 0.25
1 DECIMAL 0.10
2 DECIMAL 0.05
ANGLES 0.5
CHKD
Ø22.0 x 20 DEEP
LINE 3
DOOR
LINE 1
(HALF THICKNESS OF DOOR)
185.0
28.0
103.5
STRIKE PLATE
3mm THICK
27.0
R12.5 R12.5
210.0
Strike Plate VE1260R Round Edge
53.0
7.0
1:3
1 OF 1
A3
INT. DateEN Ref.DescriptionIssue
D
E
F
C
321
B
A
321 5
C
D
4 876
A
B
3.2 MIN
SURFACE FINISH
87
F
OR WHOLE IS PERMITTED WITHOUT
DRAWING
MATRAVILLE, NSW 2036, AUSTRALIA
UNLESS OTHERWISE NOTED
WRITTEN AUTHORISATION
PROJECTION
SEE EN FOR
NO REPRODUCTION IN PART
AUTHORIZATION
DRAWN TO AS1100
ALL DIMENSIONS IN MILLIMETERS
DO NOT SCALE DRAWING
MATERIAL:
FINISH:
HEAT TREATMENT:
54
TITLE
DRAWN:
SIZE:
6
PROPERTY OF
DRAWING NO.:
FIRE & SECURITY HARDWARE P/L
E
DATE:
TOLERANCES ARE
UNIT 9, 30 PERRY STREET
SCALE:
SHEET
0 DECIMAL 0.25
1 DECIMAL 0.10
2 DECIMAL 0.05
ANGLES 0.5
CHKD
STRIKE PLATE
3mm THICK
27.0
256.0
Ø22.0 x 20 DEEP
DOOR
LINE 3
LINE 1
(HALF THICKNESS OF DOOR)
28.0
242.0
132.0
Strike Plate VE1260S Square Edge
56
2
32
5
2
2
1
4
ITEM
NO..YTQNOITPIRCSEDoNtraP
1ROOD SSALG1
2SUPPLIED BY
OTHERS3M VHB ADHESIVE TAPE No. 4910 4
1REDAEH SSALG3
4VE1260GL-DO12VE1260R GLASS DOOR MOUNT - DOOR KIT1
5VE1260GL-FR VE1260R GLASS DOOR MOUNT - FRAME KIT1
PRODUCT DIMENSIONS AND INSTALLATION
VE1260-GL Glass Door Mounting Boxes
VE1260-FR (frame)
VE1260GL-DO12 (door)
2
32
5
2
2
1
4
ITEM
NO..YTQNOITPIRCSEDoNtraP
1ROOD SSALG1
2SUPPLIED BY
OTHERS3M VHB ADHESIVE TAPE No. 4910 4
1REDAEH SSALG3
4VE1260GL-DO12VE1260R GLASS DOOR MOUNT - DOOR KIT1
5VE1260GL-FR VE1260R GLASS DOOR MOUNT - FRAME KIT1
57
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING
1 OF 1
1:1
31mm VE Lock Strike Plate
PL0017-1
D
E
F
C
321
B
A
321 5
C
D
4 876
A
B
E
F
54
EN Ref. DateINT.
3mm THICK 304 SS SHEET N4 FINISH
DRAWING
MATRAVILLE, NSW 2036, AUSTRALIA
7
WRITTEN AUTHORISATION
PROJECTION
SEE EN FOR
NO REPRODUCTION IN PART
AUTHORIZATION
DRAWN TO AS1100
ALL DIMENSIONS IN MILLIMETERS
DO NOT SCALE DRAWING
MATERIAL:
FINISH:
HEAT TREATMENT:
TITLE
DRAWN:SCALE: DATE:
8
PROPERTY OF
DRAWING NO.:
SIZE:
3.2
OR WHOLE IS PERMITTED WITHOUT
UNLESS OTHERWISE NOTED
EA
FIRE & SECURITY HARDWARE P/L
6
MIN
CHKD
A3
SURFACE FINISH
DescriptionIssue
SHEET
UNIT 9, 30 PERRY STREET
TOLERANCES ARE
0 DECIMAL 0.25
1 DECIMAL 0.10
2 DECIMAL 0.05
ANGLES 0.5
11/6/2013
Y1 RELEASED FOR PROTOTYPING 11/6/13
6.0
242.0
23.6
12.0 11.0x90
256.0
110.0
76.0
31.0
35.0
MAGNET
3.0
Accessory Strike Plate VE1260S-ST6
MAGNETS
11.0x90
27.6
76.0
12.0
35.0
110.0
242.0
256.0
35.0 6.0
CHKD
35mm VE LOCK STRIKE PLATE
D
E
F
C
321
B
A
321 5
C
D
4 876
A
B
E
F
7654
IssueDescription EN Ref. Date
UNLESS OTHERWISE NOTED
WRITTEN AUTHORISATION
PROPERTY OF
SEE EN FOR
NO REPRODUCTION IN PART
AUTHORIZATION
DRAWN TO AS1100
ALL DIMENSIONS IN MILLIMETERS
DO NOT SCALE DRAWING
MATERIAL:
FINISH:
HEAT TREATMENT:
TITLE
DRAWN:SCALE: DATE:
DRAWING NO.:
SIZE:
OR WHOLE IS PERMITTED WITHOUT
DRAWING
SHEET
UNIT 9, 30 PERRY STREET
A3
MATRAVILLE, NSW 2036, AUSTRALIA
PROJECTION
1 OF 1
FIRE & SECURITY HARDWARE P/L
8
1:1
INT.
3mm THICK 304 SS SHEET N4 FINISH
3.2
PL0018-1
EA
TOLERANCES ARE
SURFACE FINISH MIN
0 DECIMAL 0.25
1 DECIMAL 0.10
2 DECIMAL 0.05
ANGLES 0.5
11/6/2013
Y1 RELEASED FOR PROTOTYPING 22/1/13
3.0
Accessory Strike Plate VE1260S-ST9
MAGNETS
11.0x90
40.0
256.0
242.0
110.0
76.0
32.6
35.0
12.0
6.0
3.0
DateEN Ref.Description DKHCeussI
EA
D
E
F
C
321
B
A
321 5
C
D
4 876
A
B
E
F
INT.
3mm THICK 304 SS SHEET N4 FINISH
40mm VE LOCK STRIKE PLATE
PL0019-1
PROPERTY OF
OR WHOLE IS PERMITTED WITHOUT
5
MATRAVILLE, NSW 2036, AUSTRALIA
UNLESS OTHERWISE NOTED
WRITTEN AUTHORISATION
PROJECTION
SEE EN FOR
NO REPRODUCTION IN PART
AUTHORIZATION
DRAWN TO AS1100
ALL DIMENSIONS IN MILLIMETERS
DO NOT SCALE DRAWING
MATERIAL:
FINISH:
HEAT TREATMENT:
TITLE
DRAWN:
76
SCALE: DATE:
3.2
8
DRAWING
MIN
FIRE & SECURITY HARDWARE P/L
4
SURFACE FINISH
A3
1 OF 1
1:1
TOLERANCES ARE
DRAWING NO.:
SIZE:
SHEET
UNIT 9, 30 PERRY STREET
0 DECIMAL 0.25
1 DECIMAL 0.10
2 DECIMAL 0.05
ANGLES 0.5
11/6/2013
Y1 RELEASED FOR PROTOTYPING 11/6/13
Accessory Strike Plate VE1260S-ST12
ORDER DETAILS
PART NO. PRODUCT DESCRIPTION
ECOLOCK VE1260 SERIES
VE1260R EcoLock Pre-Load Drop Bolt 25mm Face Plate
including 27mm Strike Plate ROUND EDGE to cater for +4mm door misalignment
VE1260S
EcoLock Pre-Load Drop Bolt 30mm Face Plate
including 27mm Strike Plate SQUARE EDGE to cater for +4mm door misalignment
(PADDE ES8000 Replacement)
ACCESSORIES VE1260 SERIES
VE1260-FR Glass Door Box for VE1260R Lock (includes adaptor)
VE1260GL-DO12 Glass Door Box to cater for +12mm door misalignment (includes ST12 faceplate)
VE1260S-ST6 Strike Plate 31mm for VE1260 Series to cater for +6mm door misalignment minimum
Door Thickness 35mm SQUARE EDGE
VE1260S-ST9 Strike Plate 35mm for VE1260 Series to cater for +9mm door misalignment minimum
Door Thickness 40mm SQUARE EDGE
VE1260S-ST12 Strike Plate 40mm for VE1260 Series to cater for +12mm door misalignment minimum
Door Thickness 50mm SQUARE EDGE
-
-
-
-
-
58
TECHNICAL DETAILS
PRODUCT FEATURES
• Internal control circuits protect drop bolt pin from damage
• Power To Lock or Power To Release (to be specied)
• Auto lock function
• Built-in varistor (MOV) for surge protection
• Time delay setting at 0/3/6/10 secs
• 1 year warranty
PART NO. DB1260PTO (Power To Release) DB1260PTL (Power To Lock)
FUNCTION Slimline mortise mount drop bolt
HOLDING STRENGTH Up to 300kg
VOLTAGE/CURRENT 12-24VDC, 12VDC 1.15A(in-rush) 250mA holding
APPROVALS 4 hour re rated to A.S. and B.S. standards
MONITORING
Door sensor
Remote release
Bi-coloured LED
Audible tone
ENVIRONMENTAL L= 210 x W= 25 x D= 35mm
DB1260
PRODUCT DESCRIPTION
The DB1260 is designed for installation on narrow
frame swing doors, and/or glass door mounting.
The drop bolt body depth of 35mm will t into
a 44mm depth door frame. The drop bolt is
available in either “Power To Lock” or “Power
To Release” format.
PRODUCT DB1260
STANDARD ELECTRIC DROP BOLT MORTICE MOUNT
59
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING
PRODUCT DIMENSIONS AND INSTALLATION
PART NO. PRODUCT DESCRIPTION
DB1260
DB1260PTO Slimline Drop Bolt Faceplate 25mm round style Power To Release/Open
DB1260PTL Slimline Drop Bolt Faceplate 25mm round style Power To Lock
DROP BOLT ACCESSORIES
DB1260BOX Surface Mount Box for DB1260 Slimline Drop Bolt
DB1260LPLATE Long Strike Plate for DB1260 Slimline Drop Bolt
DB1260LMAG L-Glass-Fixing-Bracket for DB1260 with Magnets
ORDER DETAILS & ACCESSORIES

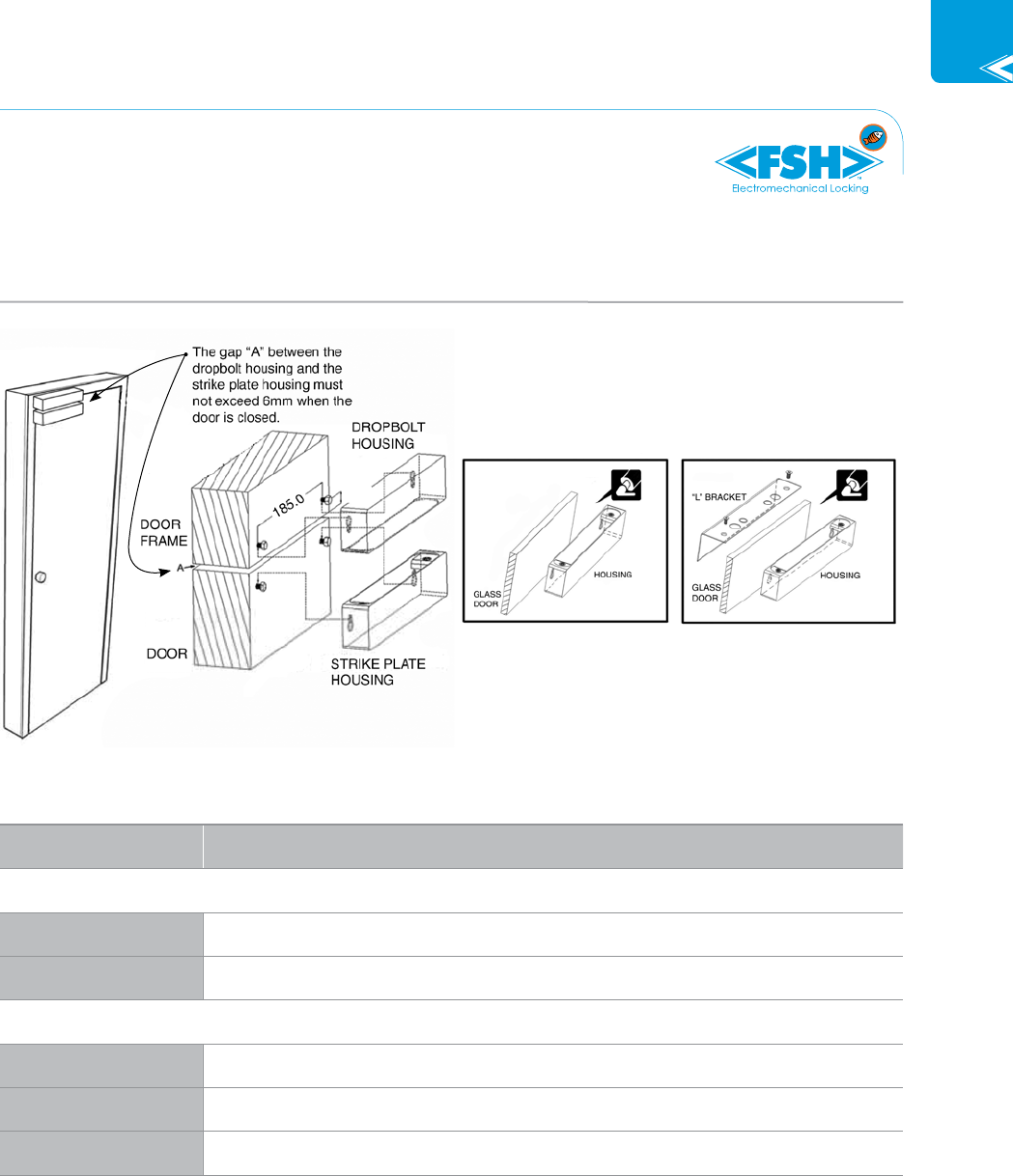

GLASS DOOR MOUNT APPLICATION
1. All surfaces must be clean, free of dirt,oil or grease
2. Apply 3M VHB adhesive (not supplied) in
accordance with the manufactures
instructions and t to glass door/head
panel as detailed below
60
TECHNICAL DETAILS
PRODUCT HL1260
HIGH SECURITY MOTORISED HOOK LOCK for Sliding Doors
PRODUCT FEATURES
TECHNICAL DETAILS
• Motorised locking device
• Durability tested to 400,000 cycles
• Multi voltage from 12 to 30VDC
• Sleep-Mode Current less than 15mA@12VDC
• Fully monitored including Reed Switch for
door position
• Up to 650 kg Holding Strength
• 5 year warranty
HL1260
PART NO. HL1260
FUNCTION Mortice Mount, power-to-lock/power-to-release eld interchangeable
HOLDING STRENGTH Up to 650kg
VOLTAGE/CURRENT
Multi Voltage 12-30VDC
Active Mode: Locking/Unlocking cycle current is 0.29A to 0.85A depending on the load
Sleep-Mode: After locking/unlocking the current drops down to ~0.015A (15mA)
APPROVALS
CE
C-Tick
MONITORING Lock Status Sensor of the internal locking mechanism
Door Status Sensor Built-in Reed Switch, monitoring the door position
ENVIRONMENTAL Operational Temperature Range -20 to +60C
DURABILITY
Exceeding Australian Standard AS4145.2-2008
400,000 operating cycles
• Durability D7
STRENGTH
Meeting Australian Standard AS4145.2-2008
• Static Strength S8
• Impact Strength S8
PRODUCT DESCRIPTION
The patented HL1260 is a high torque motor driven
hook lock for a sliding door. It can be installed
vertically in the door frame (lock style) with the
strike plate mounted on the edge of the door.
Alternatively there is a surface mount box for the
strike plate and/or lock for a sliding door.
The HL1260 is considered a “Green Product” as
it consumes an in-rush current of 290mA@12VDC
only during locking and unlocking action
(active Mode), then in the locked or unlocked
state (Sleep-Mode), it consumes current less
than15mA@12VDC.
The Hook Lock HL1260 should not be installed to
doors exposed to wind and weather.
61
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING
PRODUCT DIMENSIONS AND INSTALLATION
HL1260 Hook Lock Mortise Mount Locking Device HL1260
HL1260-SMK Surface Mount Box
200.0
25.0
LOCKING DEVICE HL1260
DOOR JAMB
200.0
25.0
230.0
13 DEEP
DOOR
16.0 X 18 DEEP
50.0
17.0
93.0
200.0
75.0
93.0
72.0
25.0
18.0
22.0 X 21 DEEP
200.0
22.5
163.0
25.0
STRIKE PLATE
Date
SURFACE FINISH
Description
3.2
D
E
F
C
321
B
A
321 5
C
D
4 876
A
B
E
F
54
INT.
A3
Issue
1:5
DRAWING
MATRAVILLE, NSW 2036, AUSTRALIA
7
WRITTEN AUTHORISATION
PROJECTION
SEE EN FOR
NO REPRODUCTION IN PART
AUTHORIZATION
DRAWN TO AS1100
ALL DIMENSIONS IN MILLIMETERS
DO NOT SCALE DRAWING
MATERIAL:
FINISH:
HEAT TREATMENT:
TITLE
DRAWN: SCALE: DATE:
8
PROPERTY OF
DRAWING NO.:
SIZE:
OR WHOLE IS PERMITTED WITHOUT
UNLESS OTHERWISE NOTED
TOLERANCES AREFIRE & SECURITY HARDWARE P/L
6
UNIT 9, 30 PERRY STREET
EN Ref.
1 OF 1
SHEET
MIN
0 DECIMAL 0.25
1 DECIMAL 0.10
2 DECIMAL 0.05
ANGLES 0.5
CHKD
FLUSH MOUNT VERSION
41.5
200.0
25.0
LOCKING DEVICE HL1260
DOOR JAMB
200.0
25.0
230.0
13 DEEP
DOOR
16.0 X 18 DEEP
50.0
17.0
93.0
200.0
75.0
93.0
72.0
25.0
18.0
22.0 X 21 DEEP
200.0
22.5
163.0
25.0
STRIKE PLATE
Date
SURFACE FINISH
Description
3.2
D
E
F
C
321
B
A
321 5
C
D
4 876
A
B
E
F
54
INT.
A3
Issue
1:5
DRAWING
MATRAVILLE, NSW 2036, AUSTRALIA
7
WRITTEN AUTHORISATION
PROJECTION
SEE EN FOR
NO REPRODUCTION IN PART
AUTHORIZATION
DRAWN TO AS1100
ALL DIMENSIONS IN MILLIMETERS
DO NOT SCALE DRAWING
MATERIAL:
FINISH:
HEAT TREATMENT:
TITLE
DRAWN: SCALE: DATE:
8
PROPERTY OF
DRAWING NO.:
SIZE:
OR WHOLE IS PERMITTED WITHOUT
UNLESS OTHERWISE NOTED
TOLERANCES AREFIRE & SECURITY HARDWARE P/L
6
UNIT 9, 30 PERRY STREET
EN Ref.
1 OF 1
SHEET
MIN
0 DECIMAL 0.25
1 DECIMAL 0.10
2 DECIMAL 0.05
ANGLES 0.5
CHKD
FLUSH MOUNT VERSION
41.5
DOOR OR DOOR JAMB
STRIKE PLATE
ASSEMBLY
SURFACE MOUNT
BRACKET
HL1260
LOCKING DEVICE
COVER
COVER
BRACKET
SURFACE MOUNT
DOOR OR DOOR JAMB
SURFACE MOUNT VERSION
46
31
224
1 OF 1
D
E
F
C
321
B
A
321 5
C
D
4 876
A
B
E
F
87654
A3
IssueDescription EN Ref.
WRITTEN AUTHORISATION
PROJECTION
OR WHOLE IS PERMITTED WITHOUT
NO REPRODUCTION IN PART
AUTHORIZATION
DRAWN TO AS1100
ALL DIMENSIONS IN MILLIMETERS
DO NOT SCALE DRAWING
MATERIAL:
FINISH:
HEAT TREATMENT:
TITLE
DRAWN:SCALE: DATE:
DRAWING NO.:
SIZE:
SHEET
DRAWING
MATRAVILLE, NSW 2036, AUSTRALIA
UNIT 9, 30 PERRY STREET
TOLERANCES ARE
1:5
UNLESS OTHERWISE NOTED
SEE EN FOR
3.2
FIRE & SECURITY HARDWARE P/L
PROPERTY OF
EA
DateINT.
0.5
LOCK
CHKD
SURFACE FINISH MIN
0 DECIMAL 0.25
1 DECIMAL 0.10
2 DECIMAL 0.05
ANGLES
VE1260HL - SURFACE MOUNT HOOK
22/7/14
200.0
25.0
LOCKING DEVICE HL1260
DOOR JAMB
200.0
25.0
230.0
13 DEEP
DOOR
16.0 X 18 DEEP
50.0
17.0
93.0
200.0
75.0
93.0
72.0
25.0
18.0
22.0 X 21 DEEP
200.0
22.5
163.0
25.0
STRIKE PLATE
Date
SURFACE FINISH
Description
3.2
D
E
F
C
321
B
A
321 5
C
D
4 876
A
B
E
F
54
INT.
A3
Issue
1:5
DRAWING
MATRAVILLE, NSW 2036, AUSTRALIA
7
WRITTEN AUTHORISATION
PROJECTION
SEE EN FOR
NO REPRODUCTION IN PART
AUTHORIZATION
DRAWN TO AS1100
ALL DIMENSIONS IN MILLIMETERS
DO NOT SCALE DRAWING
MATERIAL:
FINISH:
HEAT TREATMENT:
TITLE
DRAWN: SCALE: DATE:
8
PROPERTY OF
DRAWING NO.:
SIZE:
OR WHOLE IS PERMITTED WITHOUT
UNLESS OTHERWISE NOTED
TOLERANCES AREFIRE & SECURITY HARDWARE P/L
6
UNIT 9, 30 PERRY STREET
EN Ref.
1 OF 1
SHEET
MIN
0 DECIMAL 0.25
1 DECIMAL 0.10
2 DECIMAL 0.05
ANGLES 0.5
CHKD
FLUSH MOUNT VERSION
41.5
Strike Plate HL1260
LOCKING DEVICE HL1260
ORDER DETAILS & ACCESSORIES
PART NO. PRODUCT DESCRIPTION
HL1260-SMK Surface mount kit for motorised hook lock HL1260 or strike plate (one kit required per item)
ELECTROMECHANICAL CABINET LOCKS
Electromechanical Locking
FEATURES PART NO. PP
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING
Electric Cabinet Lock
FCL0001
66
FCL0002
Early Warning Electromagnetic
Cabinet Lock FEW3000 64
63
64
TECHNICAL DETAILS
PRODUCT FEATURES
EW3000
• Working temperature -10° to +50°C
• Full monitoring DSS/LSS
• Early warning feature
• 5 year warranty
• Low power consumption
• Power OFF to Release Door
PART NO. FEW3000
HOLDING STRENGTH &
DURABILITY Up to 40kg
VOLTAGE/CURRENT 12VDC/300mA
MONITORING DSS, Door Status, LSS, Lock Status, Early Warning
SIZE Locking Device L= 107 x W= 37 x D= 25mm
Armature Plate L= 80 x W = 25 x D = 9mm
PRODUCT DESCRIPTION
The FEW3000 early warning alarm lock is purposely
designed to provide security to all types of drug
cabinets, refrigerators, lockers, show cases,
containers and the like where not only locking but
also monitoring of both the locking device (LSS)
power on / power off, and door position (DSS),
door opened or closed, is of concern.
The FEW3000 is also provided with the unique
feature of “Early Warning”, in the event that
unauthorised attempts are made to open the
door the locking device triggers a changeover
relay signalling ‘unauthorised attempted entry’.
The lock has a holding force of up to 40kg and
accepts 12VDC with a current of 0.3amps and has
a working temperature of minus 10°C to plus 50°C.
PRODUCT FEW3000
EARLY WARNING ELECTROMAGNETIC CABINET LOCK MONITORED
65
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING
PRODUCT DIMENSIONS AND INSTALLATION
66
TECHNICAL DETAILS
PRODUCT FEATURES
• Small size
• Power To Lock/Power To Release changeover
• Full monitoring DSS/LSS (FCL0002)
• 12 or 24VDC
• Up to 150kg holding force
• 5 year warranty
PART NO. FCL0001 FCL0002
FUNCTION Surface mount cabinet/Locker electric lock Surface mount cabinet/Locker electric lock
HOLDING STRENGTH Up to 150kg Up to 150kg
VOLTAGE/CURRENT 12VDC/190mA 24VDC/90mA 12VDC/200mA 24VDC/100mA
MONITORING N/A Lock Status, LSS, Door Status (DSS)
SIZE L= 72.7 x W= 28.8 x D= 28.5mm L= 93 x W= 30x D= 32mm
FCL0001 & FCL0002
PRODUCT DESCRIPTION
The FCL0001 & FCL0002 are suitable for surface
mount installation on all types of cabinets, or
lockers. The cabinet locks are designed to t into
cabinets and lockers with hinged or sliding doors
from either the front or side of the door. The lock
function is interchangeable between Power To Lock
and Power To Release. The devices are supplied in
a dual voltage conguration, 12VDC or 24VDC.
The FCL0002 Cabinet Lock version comes with Lock
Status Sensor (LSS), monitoring the locking pin and
Door Status Sensor (DSS), monitoring if the door is
open or close.
The locking pin is spring loaded and acts as
latching mechanism in combination with the
Lock Strike Plate.
PRODUCT FCL0001 & FCL0002
ELECTRIC CABINET LOCK
67
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING

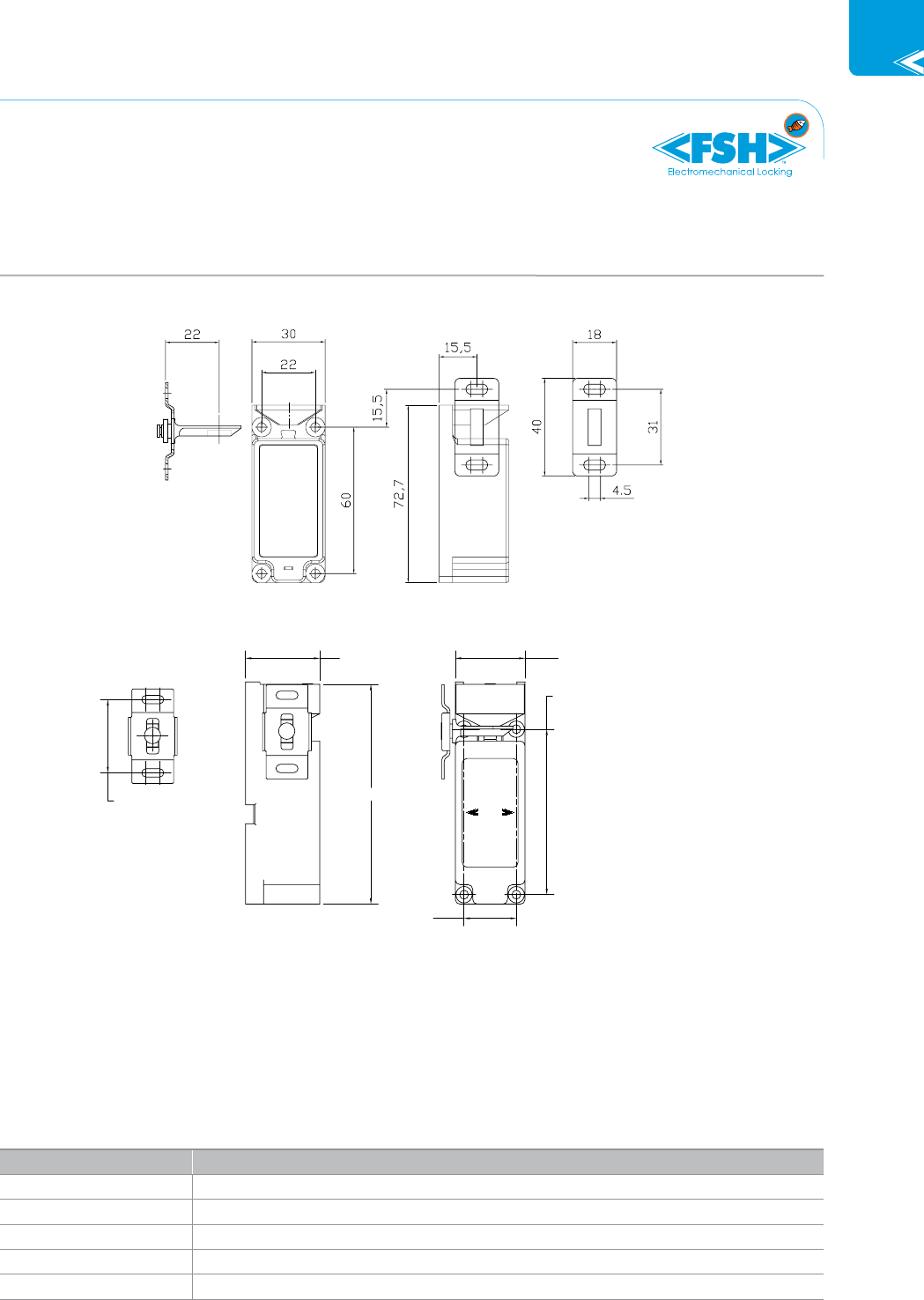

PRODUCT DIMENSIONS AND INSTALLATION
ORDER DETAILS
PART NO. PRODUCT DESCRIPTION
FCL0001 Cabinet Lock short lead
FCL0001-12-8 Cabinet Lock monitored 8m lead (12VDC only)
FCL0002 Cabinet Lock monitored short lead
FCL0002-12-8 Cabinet Lock monitored 8m lead (12VDC only)
FCL0001-AP Armature Plate for FCL0001 and FLC0002
70mm
22mm
31mm
30mm
94mm
32mm
FSH
FCL0001
FCL0002
ELECTROMAGNETIC DOOR HOLDERS
Electromechanical Locking
J
FEATURES PART NO. PP
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING
Standard Magnetic Door Holders R40 72
Standard Magnetic Door Holders R40 70
Heavy Duty Magnetic Door Holder
Fire Rated 35000 SERIES 74
Heavy Duty Magnetic Door Holder
Fire Rated with Extension 35000 SERIES 76
69
70
TECHNICAL DETAILS
PRODUCT FEATURES
• Fire rated
• Up to 25kg holding force
• 12 and 24VDC options
• Floor mount and wall mount options
• Fail safe operation
• 2 year warranty
PART NO. R40-12(12Volt) R40-24(24Volt) R40PCV12(12Volt) R40PCV24(24Volt)
FUNCTION Wall mount electro magnetic door holder
for re and smoke doors
Floor mount electro magnetic door holder
for re and smoke door
HOLDING STRENGTH Up to 25kg Up to 25kg
VOLTAGE/CURRENT 12VDC/160mA 24VDC/80mA 12VDC/160mA 24VDC/80mA
SIZE D= 41.5 x W= 71.8 x H= 85.3 D= 62 x W= 59 x H= 88mm
R40
PRODUCT DESCRIPTION
Fire and smoke door, magnetic holder, titanium
alloy surface nished, elegant appearance.
Installed on re and smoke doors in projects where
doors are required to be held in the open position
for both pedestrian and general trafc, the devices
have to be linked into a buildings re/smoke
alarm system.
When an alarm occurs, power is removed from the
devices and the doors are returned to the closed
condition, preventing the spread of re and/or
smoke to other areas. The devices are re tested
to a rating of 4 hours and are supplied either
12 or 24VDC.
PRODUCT R40 SERIES
STANDARD MAGNETIC DOOR HOLDER FIRE RATED
71
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING

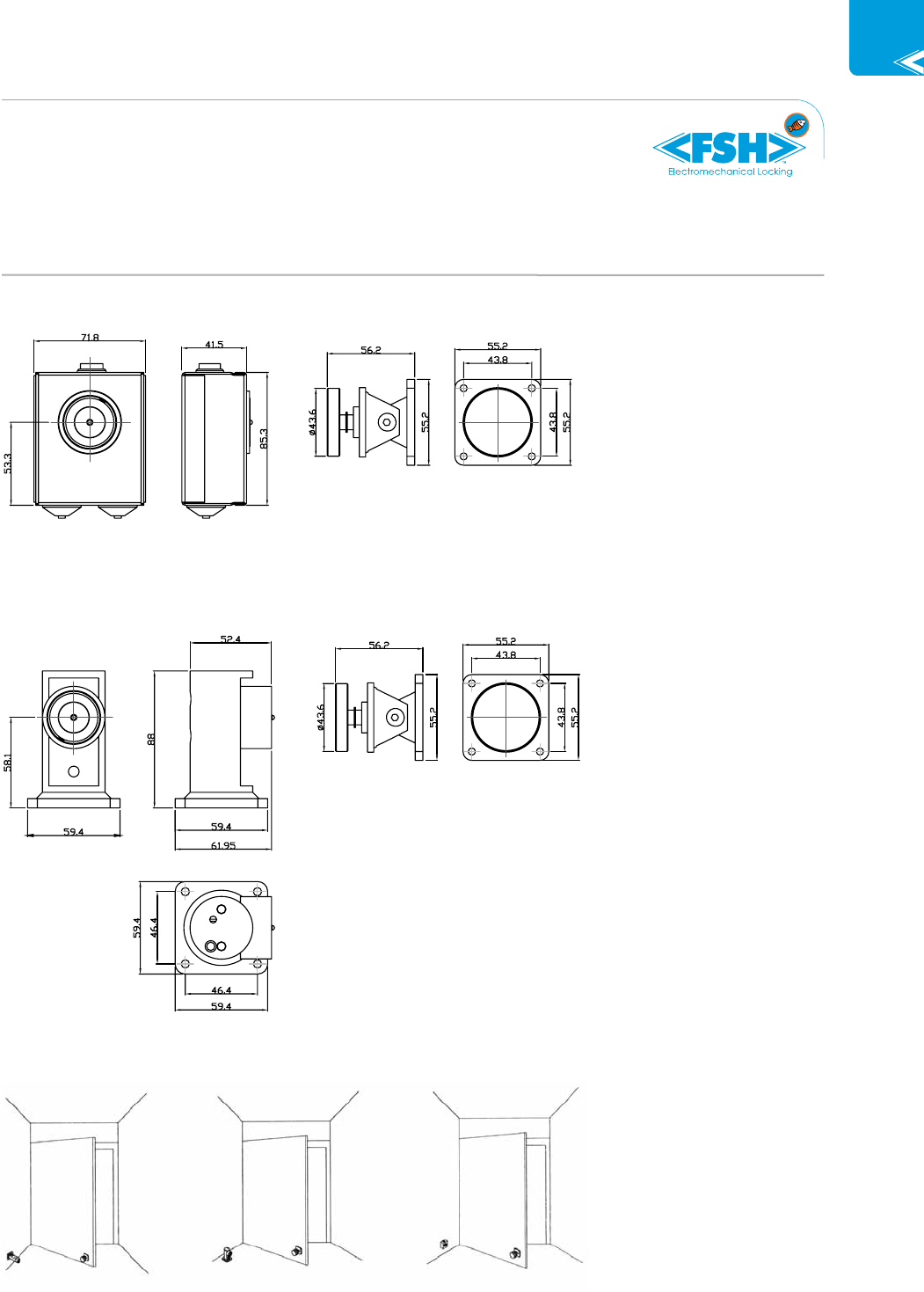

PRODUCT DIMENSIONS AND INSTALLATION
ORDER DETAILS
FLOOR MOUNT R40PCV-12/24
Extension Wall Mounting Floor Mounting
TYPE OF INSTALLATION
WALL MOUNT R40-12/24
Wall Mounting
72
TECHNICAL DETAILS
PRODUCT FEATURES
• Fire rated
• R40 up to 25kg holding force
• 12 and 24VDC options
• Floor mount and wall mount options
• 2 year warranty
PRODUCT DESCRIPTION
Fire and smoke door magnetic holder, titanium alloy
surface nished, elegant appearance. Installed on
re and smoke doors in projects where doors are
required to be held in the open position for both
pedestrian and general trafc, the devices have to
be linked into a buildings re/smoke alarm system.
When an alarm occurs, power is removed from the
devices and the doors are returned to the closed
condition, preventing the spread of re and/or
smoke to other areas. The devices are re tested
to a rating of 4 hours and are supplied either
12 or 24VDC.
R40
PRODUCT R40
STANDARD MAGNETIC DOOR HOLDER FIRE RATED WITH EXTENSION
PART NO. R40PCH12(12Volt) R40PCH24(24Volt)
FUNCTION Wall mount extension type electro magnetic door holder for re and smoke doors
HOLDING STRENGTH Up to 25kg
VOLTAGE/CURRENT 12VDC/160mA 24VDC/80mA
SIZE H= 59 x W= 59 x D= 108mm
73
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING
PRODUCT DIMENSIONS AND INSTALLATION
Extension Wall Mounting Floor Mounting
TYPE OF INSTALLATION
WALL MOUNT R40PCH-12/24
Wall Mounting
74
TECHNICAL DETAILS
PRODUCT FEATURES
• Fire rated
• Up to 40kg holding force
• 12 and 24VDC options
• Floor mount and wall mount options
• 2 year warranty
PART NO. 35772
DESCRIPTION Heavy duty oor mount door holder box, cream colour
TYPE OF MOUNT Floor mount
SIZE D= 67.5 x W= 115 x H= 84mm
35000 SERIES
PRODUCT DESCRIPTION
Heavy duty re and smoke door magnetic holder,
with 40kg holding force, titanium alloy surface
nished, elegant appearance. Installed on re and
smoke doors in projects where doors are required
to be held in the open position for both pedestrian
and general trafc, the devices have to be linked
into a buildings re/smoke alarm system.
When an alarm occurs, power is removed from
the devices and the doors are returned to the
closed condition, preventing the spread of re
and/or smoke to other areas. The devices are re
tested to a rating of 4 hours and are supplied either
12 or 24VDC.
PRODUCT 35000 SERIES
HEAVY DUTY MAGNETIC DOOR HOLDER FIRE RATED
PART NO. 35770 35771
FUNCTION Heavy duty ush mount magnetic door to suit standard electrical box.
Or Floor mount with 35772 box
HOLING FORCE Up to 40kg
VOLTAGE/CURRENT 12VDC/100mA 24VDC/50mA
SIZE D= 50 x W= 74 x H= 115mm
75
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING
PRODUCT DIMENSIONS AND INSTALLATION
FLOOR MOUNT BOX 35772
Extension Wall Mounting Floor Mounting
TYPE OF INSTALLATION
WALL MOUNT 35770 & 35771
Wall Mounting
76
TECHNICAL DETAILS
PRODUCT FEATURES
35000 SERIES
• Fire rated
• Up to 40kg holding force
• 12 and 24VDC options
• Floor mount and wall mount options
• 2 year warranty
PRODUCT DESCRIPTION
Fire and smoke door magnetic holder, 40kg
holding force, titanium alloy surface nished,
elegant appearance. Installed on re and smoke
doors in projects where doors are required to be
held in the open position for both pedestrian and
general trafc, the devices have to be linked into a
buildings re/smoke alarm system.
When an alarm occurs, power is removed from the
devices and the doors are returned to the closed
condition, preventing the spread of re and/or
smoke to other areas. The devices are re tested
to a rating of 4 hours and are supplied either
12 or 24VDC.
PRODUCT 35000 SERIES
HEAVY DUTY MAGNETIC DOOR HOLDER FIRE RATED WITH EXTENSION
PART NO. 35770/150/S 35771/150/S 35770/300/S 35771/300/S
FUNCTION Heavy duty 150mm extension
wall mount magnetic door holder
Heavy duty 300mm extension
wall mount magnetic door holder
HOLING FORCE Up to 40kg
VOLTAGE/CURRENT 12VDC/100mA 24VDC/50mA 12VDC/100mA 24VDC/50mA
SIZE D= 207 x W= 90 x H= 90mm D= 355 x W= 90 x H= 90mm
PART NO. 35770/150/90 35771/150/90 35770/300/90 35771/300/90
FUNCTION Heavy duty 150mm 90° extension, wall
& oor mount magnetic door holder
Heavy duty 300mm 90° extension, wall
& oor mount magnetic door holder
HOLING FORCE Up to 40kg
VOLTAGE/CURRENT 12VDC/100mA 24VDC/50mA 12VDC/100mA 24VDC/50mA
SIZE D= 117 x W= 90 x H= 176mm D= 117 x W= 90 x H= 324mm
77
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING
PRODUCT DIMENSIONS AND INSTALLATION
FLOOR MOUNT
WALL MOUNT
35770/300/S
35771/300/S
35770/150/S
35771/150/S
35700/300/90
35771/300/90
35770/150/90
35771/150/90
Extension Wall Mounting Floor Mounting
TYPE OF INSTALLATION
Wall Mounting
HIGH SECURITY DOOR MONITORING SENSOR
ELECTRIC MORTICE LOCKS
SPECIAL LOCKING DEVICES
Electromechanical Locking
FEATURES PART NO. PP
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING
High Security Electric Dead-Lock Strike
FES110-30
86
FES110-40
Electric Mortice Lock FEL990 82
79
High Security Electric Custodial Strike FES112 84
High Security Door Monitoring Sensor FSS1 80
80
TECHNICAL DETAILS
• X
• X
• X
PART NO. FSS1-S / FSS1-S-NC FSS1-F
FUNCTION FSS1-S - Surface mount conduit version
FSS1-S-NC -Surface mount no conduit version Flush mount version (morticed)
VOLTAGE/CURRENT 10 – 30VDC/typically 50mA
SECURITY TAMPER
PROOF LEVEL Highest (SL4)
ALARM &
TAMPER CONTACTS N.C. common N.O., 0.2A @ 30V plus changeover contacts for access control system
TOLERANCE Door Gap 1 – 7mm Door Movement 15mm
END OF LINE
COMPATIBILITY Space for type 1 & 2 modules
DIMENSIONS L=75mm H=34mm D=35mm L=110mm D=32mm W=35mm
APPROVALS Rated to IP67 | RCM Compliant | SCEC Approved, Security Level 4 (SL4) rated
ARRAY MAGNETS Up to 8 magnets for unique magnetic footprint
HALL EFFECT SENSORS 7
PATENTS Patents granted and pending worldwide based on PCT/AU2014/000210
MANUFACTURE Designed & Manufactured in Australia
FSS1 SERIES
PRODUCT FSS1
HIGH SECURITY DOOR MONITORING SENSOR
PRODUCT DESCRIPTION
The FSS1 Series of High Security Door Monitoring
Sensor are designed to provide a true high security
solution for door position monitoring.
It is a state-of-the-art monitoring solution with a ush
mount version for new construction, and surface
mount version as a superior replacement for
traditional magnetic balanced reed sensors.
Specically developed for high security applications
in government and military installations, the FSS1
Series High Security Door Monitoring Sensor consist
of seven magnetic sensors that are used to detect
a unique magnetic footprint from an array of
magnets on the magnetic face plate. One sensor
is used to detect the position of the magnetic face
plate in relation to the device, while the other six
sensors are used to determine the polarity, size,
strength and position of the magnets on the unique
magnetic face plate in relation to the memorised
pattern. The FSS1 is equipped with sophisticated
anti-tamper facilities.
The product is listed in the Security Equiptment
Evaluated Product List (SEEPL)
81
PRODUCT DIMENSIONS
FSS1-F FLUSH MOUNT VERSION
35mm
34mm
35mm
75mm
34mm
75mm
FSS1-S SURFACE MOUNT CONDUIT VERSION
FSS1-S-NC SURFACE MOUNT NO CONDUIT VERSION
The contractor shall provide a High Security Door Monitoring
Sensor “HSDMS” on each nominated door and/or location.
The HSDMS must be SCEC approved to minimum SL4.
The HSDMS must be on-site reprogrammable by the installer.
The High Security Door Monitoring Sensor shall utilise a
minimum of seven magnetic sensors, one of which will
enable magnetic positioning to marry up with a unique
magnetic array plate in relation to the installed device.
The HSDMS will be capable to operate with door to frame
gaps up to a maximum of 7mm and shall accommodate
end-of-line modules being securely situated within the
HSDMS enclosure.
The HSDMS shall have at least two tamper switches to detect
unauthorized removal of the sensor cover. In addition, the
HSDMS Flush Mount Version shall have a separate tamper
switch to detect the removal of the device from the door
frame in which it is mounted.
The HSDMS shall be available as a Flush Mount, a Surface
Mount with facility to accommodate conduit cable entry
and Surface Mount unit with provision for cable entry from
the rear.
The Flush Mount HSDMS must be tted with mounting tabs
and shall be 110mm long, 32mm deep and 35mm wide.
The Surface mount HSDMS will be inclusive of threaded entry
to accommodate the tting of conduit and shall be 75mm
long, 34mm high and 35mm deep.
The Surface mount “Non Conduit Version” HSDMS will
exclude threaded entry, allowing for installer tailored “Rear
Entry” of cabling and shall be 75mm long, 34mm high and
35mm deep.
All dimensions in this document are provisional
SPECIFICATION TEXT HIGH SECURITY DOOR MONITORING SENSOR FSS1
82
• X
• X
• X
TECHNICAL DETAILS
PART NO. FEL990M FEL990
FUNCTION Vestibule and Combination lock (eld selectable of either/or both sides locked)
Lock handed ( Left Hand/Right Hand eld selectable)
LOCK OPERATION FAIL SAFE / FAIL SECURE adjustable on site – one product for both applications
VOLTAGE/CURRENT
Multi-voltage - 12-24VDC / 350mA momentary, 100mA operating including
LED furniture if applicable
Reverse polarity protected
Lock secure status and key override microswitch max. rating 500mA@30VDC
Door status reed switch max. rating 100mA operating
APPROVALS
• C-tick
• Tested to 4 hour on re door assemblies as specied in AS/NZ 1905.1 – 1997
Part 1 Fire Resistant Doorsets
• Conforms to S3* (Security) and D3 (Durability) Australian Lock Standard (AS4145.2 : 1993)
• Conforms when used with equivalent S3 keying system
MONITORING
(990M VERSION ONLY)
1. Door position monitoring by reed switch
2. Lock status monitoring by a combination of
l
• Locking bar (hub/handle/s locked)
• Deadlatching bolt (suppressed)
• Latchbolt (out)
3. Dual key override monitoring (KOM)
4. Request to exit (REX) via hub/handle(s)
5. LED indication
ENVIROMENTAL -20 to +60 degrees C
DOOR THICKNESS 32 – 50mm
BACKSET 60mm Optional: 70mm, 89mm and 127mm
CABLING 3m cable with 12 pin plug supplied
STANDARD FINISH Satin stainless steel (other nishes on request)
FACTORY
CONFIGURATION Vestibule | 60mm backset | Fail safe | Left handed | Satin stainless steel nish

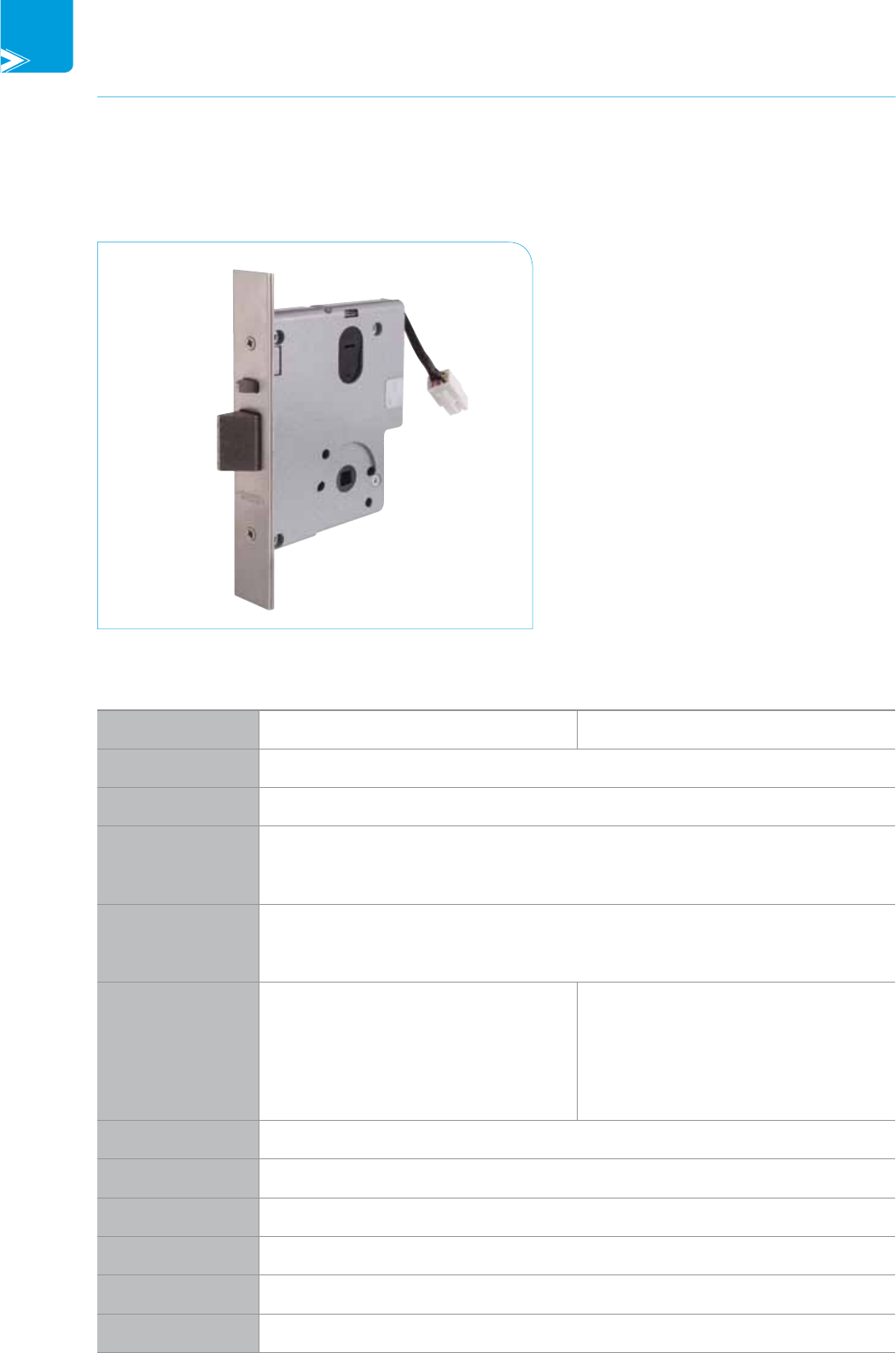

FEL990 SERIES
PRODUCT FEL990 SERIES - NEW 12-PIN PLUG DESIGN
ELECTRIC MORTICE LOCK
PRODUCT DESCRIPTION
The FEL990 Series Electric Mortice Lock is a true
multi-functional locking device. It has been
developed for simplicity - simplicity for the stockist,
the installer and the end-user. Only two options are
available – either monitored or non-monitored.
The FEL990 Series locks can be easily site congured
as follows:
• single-sided locking (Vestibule) / double-sided
locking (Combination)
• power to lock (fail safe) / power to open
(fail secure)
• left hand / right hand operation
FEL990M also includes comprehensive monitoring:
• Door position monitoring by reed switch
• Lock status monitoring by a combination of
3 locking parameters
• locking bar (Hub/Handle/s locked)
• deadlatching bolt (depressed)
• latchbolt (out)
• Dual key override monitoring (KOM)
• Request to exit (REX) via hub/handle(s)
• LED indication
locking parameters
83

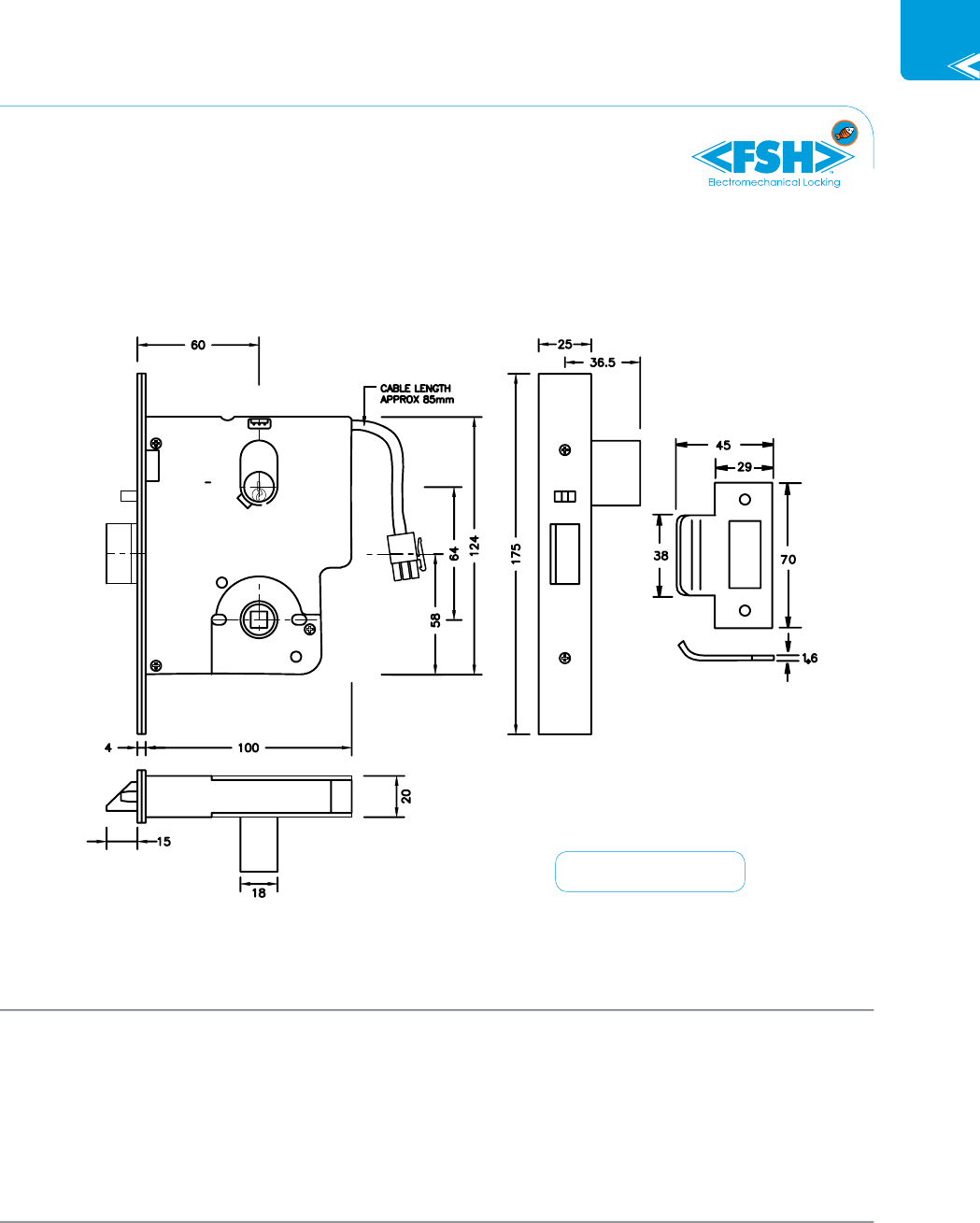

PRODUCT DIMENSIONS
.
SPECIFICATION STATEMENT
The lock should be capable of
operation on voltages between
12 -24VDC and have a current
consumption not more than
100mA (holding).
Monitored locks must be capable of
monitoring the following functions:
• Key override
• Door position reed switch
• Latch bolt, dead latching bolt
and locking bar microswitches
(compatible with other brands)
All settings, including fail safe /
fail secure, handing and hub REX
selection, must be eld congurable
ELECTRICAL SPECIFICATIONS
Solenoid Activation
12-24VDC 350mA momentary,
100mA max operating,
Including LED (if applicable)
Lock Secure Status/
Key Override Monitor
Microswitch max. rating
500mA@30VDC
Door Status Monitor
Magnetic Reed Switch
100mA operating
Plug arrangement
12 pin plug with 3m cable
Request to Exit (REX) Switches
Microswitches max. rating
1A@125VAC
Note: Oval cylinder not included Note: FEL990M-R with round
faceplate on request
84
TECHNICAL DETAILS
PRODUCT FEATURES
• Stainless steel faceplate and keeper
• Ultra high holding force in excess of 1000kg
• Full monitoring (strike jaws, lock position, door position and cover plate)
• Multi Voltage operation 12-30VDC
• Smart Electronics, one lock for several applications (Revisions)
• Fail Secure operation
• Body, high grade tooling steel hardened to 60 Rockwell
• Jaws, Molybdenum coated hardened steel
• Change over switch series 2 or 3
• 2 year warranty
PART NO. FES112
FUNCTION Power To Open (Fail Secure)
HOLDING STRENGTH More than 1000kg
VOLTAGE/CURRENT
Multi Voltage 12-30VDC
12VCD, 1.5A current draw
24VCD, 0.75A current draw
MONITORING
Strike Jaws. Door Lock Bolt Status Sensor
Door Position Reed Switch
Strike Plate Removed (Anti-Tamper)
TEMPERATURE RANGE -20°C to +60°C
LOCK DEAD BOLT
DIMENSION
Fully extended = 33-36mm
Width = 10-17mm Height = 57-59mm
FES112
PRODUCT DESCRIPTION
The FES112 is purposely designed for heavy duty
high security applications where superior holding
strength is required, such as detention centres,
correctional facilities and the like. The Strike works
in conjunction with a heavy duty double throw
deadlock. With a holding force in excess of 1000kg,
multiple monitoring functions and multi-voltage
regulation, the FES112 is the perfect locking device
for a variety of high security installations and
a viable solution for either new or retrot high
security projects. The device is supplied with a
series 2 to series 3 simple change over switch.
Series 3 conguration provides the device with
door position monitoring, in this conguration the
FES112 cannot be secured until the door is in the
closed position and the lock monitoring tongue is
depressed.
PRODUCT FES112
HIGH SECURITY ELECTRIC CUSTODIAL STRIKE
85
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING
PRODUCT DIMENSIONS AND INSTALLATION
ORDER DETAILS
PART NO. PRODUCT DESCRIPTION
FES112 High Security Dead Bolt Strike FES112 Series NEW Electronics Rev.2 &3 selectable
49.0
5.5
7.5
92.5
272.0
67.0
17.0
335.0
51.0
99.0
99.0
140.0
52.0
338.0
48.0
51.0
12.3
335.0
86
TECHNICAL DETAILS
PRODUCT FEATURES
• Stainless steel faceplate and keeper
• Holding strength of up to 500kg
• 2 years warranty
• 12 or 24VDC operation (has to be specied)
• Monitoring Lock Status (LSS) and Door Status (DSS)
• PTO and PTR version available
PART NO. FES110-30-12PTL FES110-40-12PTR
FUNCTION Power To Lock (PTL) Power To Release (PTR)
HOLDING STRENGTH Up to 500kg
VOLTAGE/CURRENT Multi voltage 12-24VCD 12VDC/900mA 24VDC/450mA
MONITORING Lock bolt and locking solenoid
SIZE L= 306 x W= 32 x H= 58mm
FES110
PRODUCT DESCRIPTION
The FES110 series deadlock electric door strike
release mechanism has been designed to provide
door access control while maximising security to a
door assembly tted with square bolt deadlocks.
The FES110 monitors both door lock tongue and
internal locking of the strike. The device is multi
12-24VDC, 2 year warranty.
PRODUCT FES110
HIGH SECURITY ELECTRIC DEADLOCK STRIKE
87
NEW GENERATION ELECTRIC AND ELECTRONIC LOCKING
PRODUCT DIMENSIONS AND INSTALLATION
ORDER DETAILS
PART NO. PRODUCT DESCRIPTION
FES110-30-12PTL FES110 Strike 12Volt Power To Lock
FES110-30-24PTL FES110 Strike 24Volt Power To Lock
FES110-40-12PTR FES110 Strike 12Volt Power To Release
FES110-40-24PTR FES110 Strike 24Volt Power To Release
274.0
58.0
52.8 3.0
7.3
50.0 65.0
31.4
306.0 293.0
15.5
Allegion (NYSE: ALLE) is a global pioneer in safety and security, with leading
brands like CISA®, Interflex®, LCN®, Schlage®, SimonsVoss® and Von Duprin ®.
Focusing on security around the door and adjacent areas, Allegion produces a
range of solutions for homes, businesses, schools and other institutions.
Allegion is a $2 billion company, with products sold in almost 130 countries.
For more, visit allegion.com
About Allegion ™
Version: ac/mob 02.17
This publication is produced on stock from well managed forest and printed using vegetable based inks
WALKING GENTLY
ON OUR PLANET

Navigation menu
