1.4 Installation Procedure
1
1.4.3 Installing the EP Cartridge

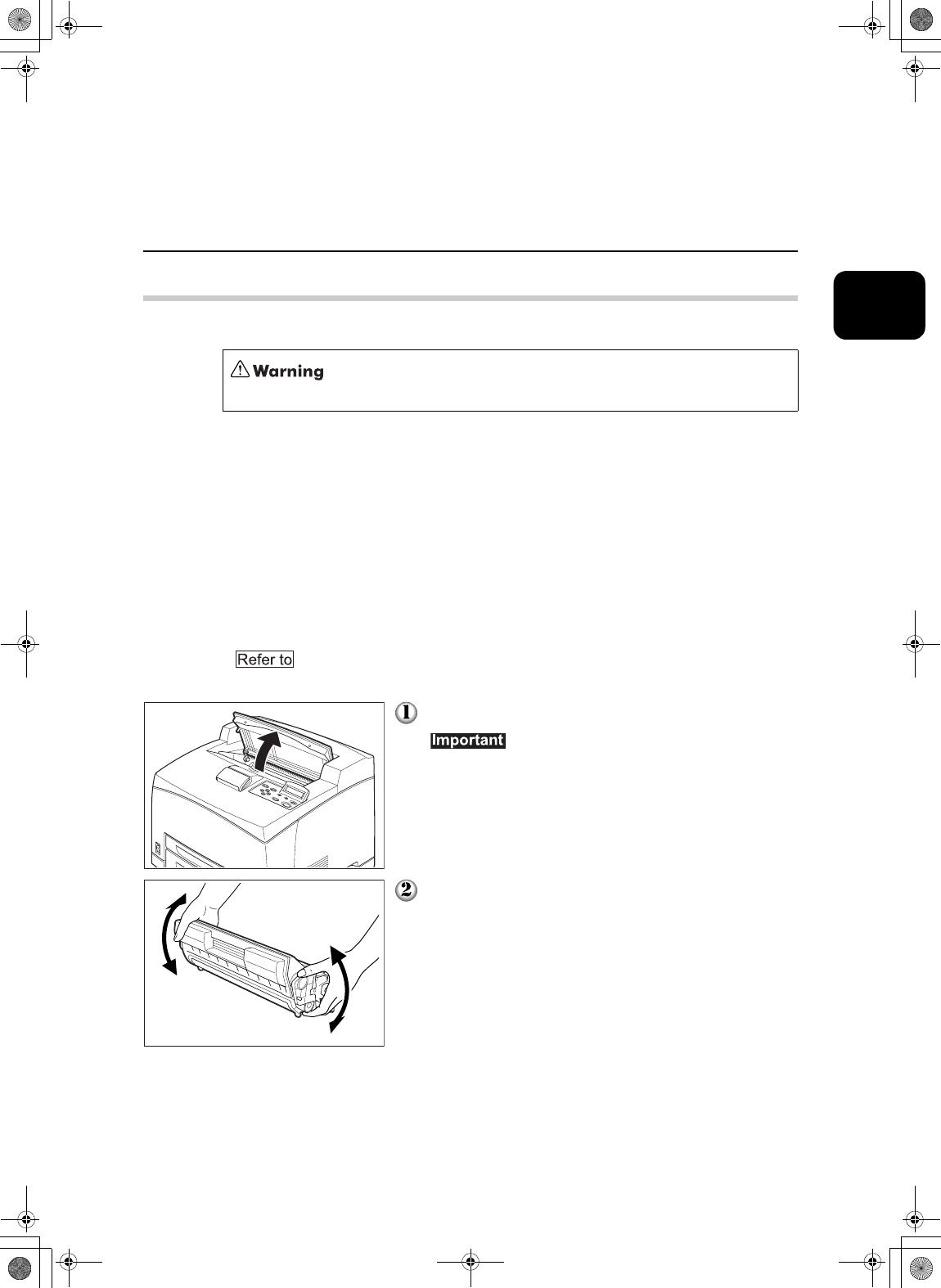

When installing the EP cartridge, take note of the following points:
• Do not subject it to direct sunlight or strong light.
• When installing the EP cartridge, select a location not subject to strong
light and try to finish the installation within 5 minutes.
• Do not touch the surface of the photosensitive drum. Do not stand or
place the EP cartridge upside down. The drum might get damaged.
• A drum shutter protects the photosensitive drum from light. Do not open
the drum shutter.
• Although the toner is not harmful to the body, wash it off immediately if
your hands or clothes are stained with it.
• It is recommended to use up the EP cartridge within 1 year after opening
it.
“5.2.2 Replacing the EP Cartridge” for details when replacing the
EP cartridge.
Open the top cover.
Do not touch any parts inside the printer.
Take the EP cartridge out of the box and shake it
7 to 8 times as shown in the diagram.
Never throw an EP cartridge into an open flame. It can cause
an explosion and you can get burnt.
Jigen_IOT.book Page 9 Thursday, February 20, 2003 9:24 AM
10
1
1.4 Installation Procedure

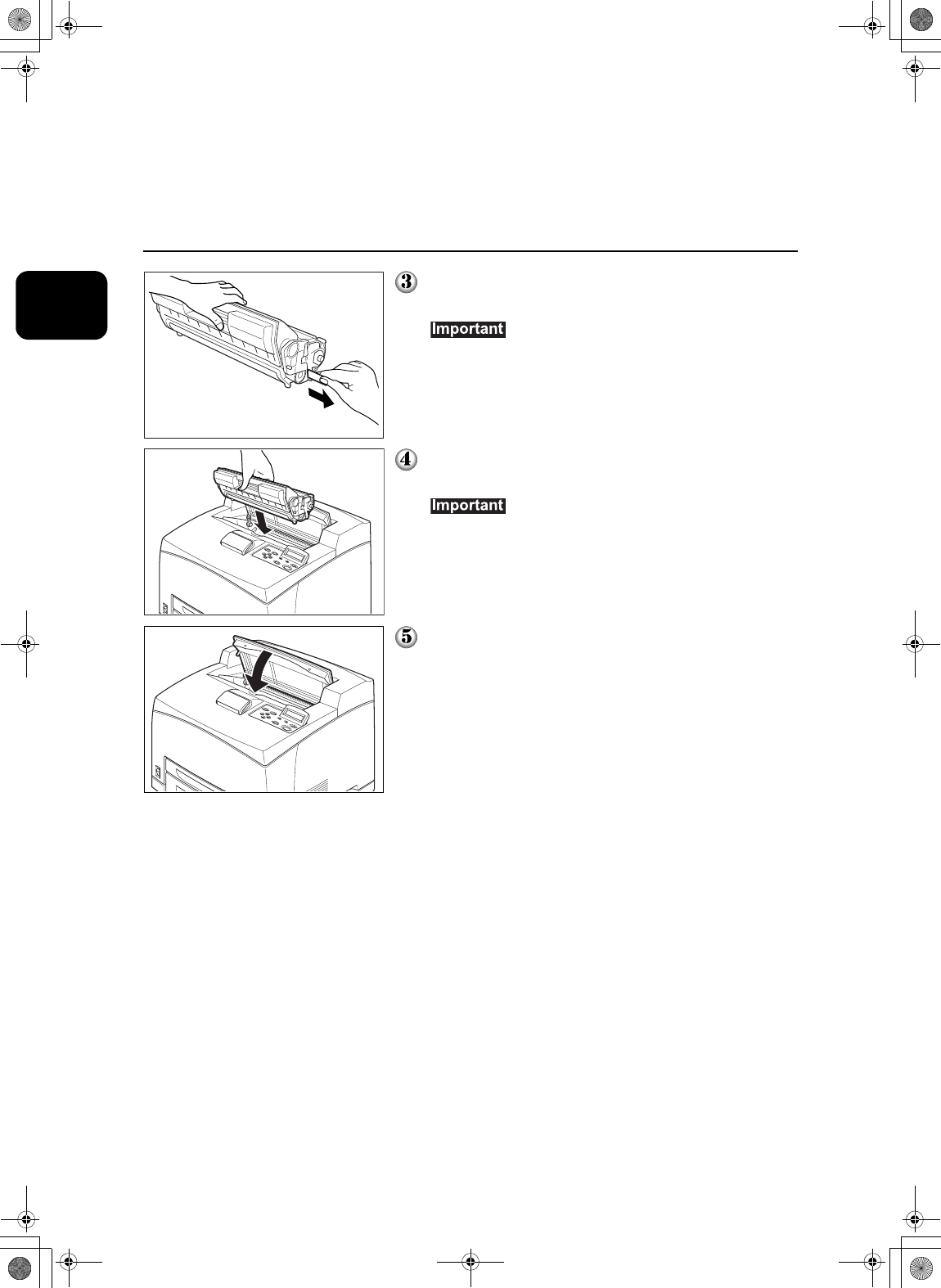

Place the EP cartridge on a flat surface and pull
the seal out horizontally.
•When pulling out the seal, pull it out
horizontally. The tape might break if it
is pulled out diagonally.
•After the seal has been pulled out, do
not shake or bump the EP cartridge.
Hold the EP cartridge by the grip and insert it into
the slot inside the printer.
•Do not touch any parts inside the
printer.
•Ensure that the EP cartridge is firmly
set.
Close the top cover securely.
Jigen_IOT.book Page 10 Thursday, February 20, 2003 9:24 AM
14
1
1.4 Installation Procedure

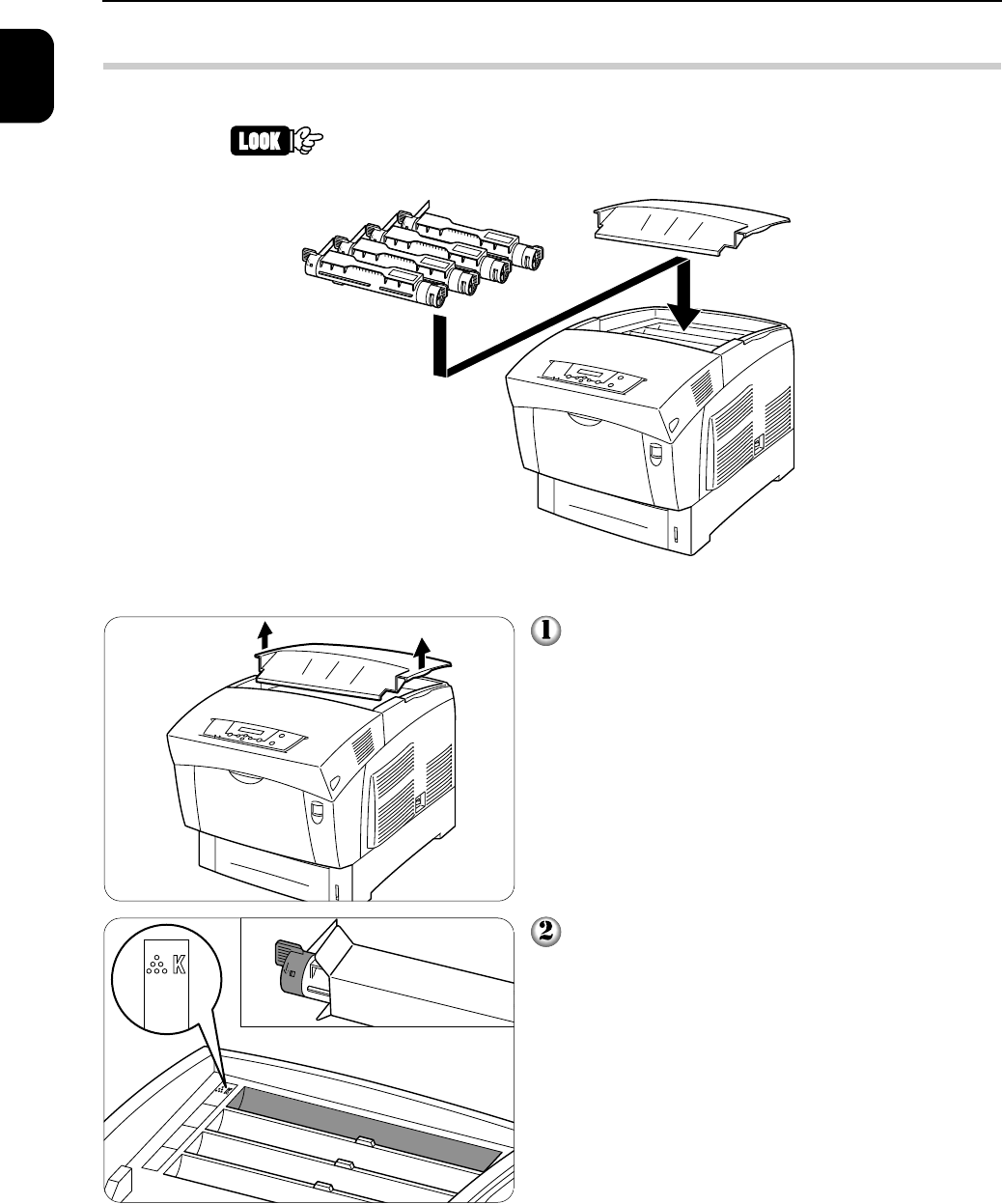

1.4.4 Installing the Toner Cartridges
Follow the procedure below to install the toner cartridges
The toner is harmless but should still be washed off immediately if
it comes into contact with hands or clothing.
Remove the top cover.
Select the new toner cartridge whose color
matches the cartridge holder and remove it
from its packaging.
15
1
1.4 Installation Procedure

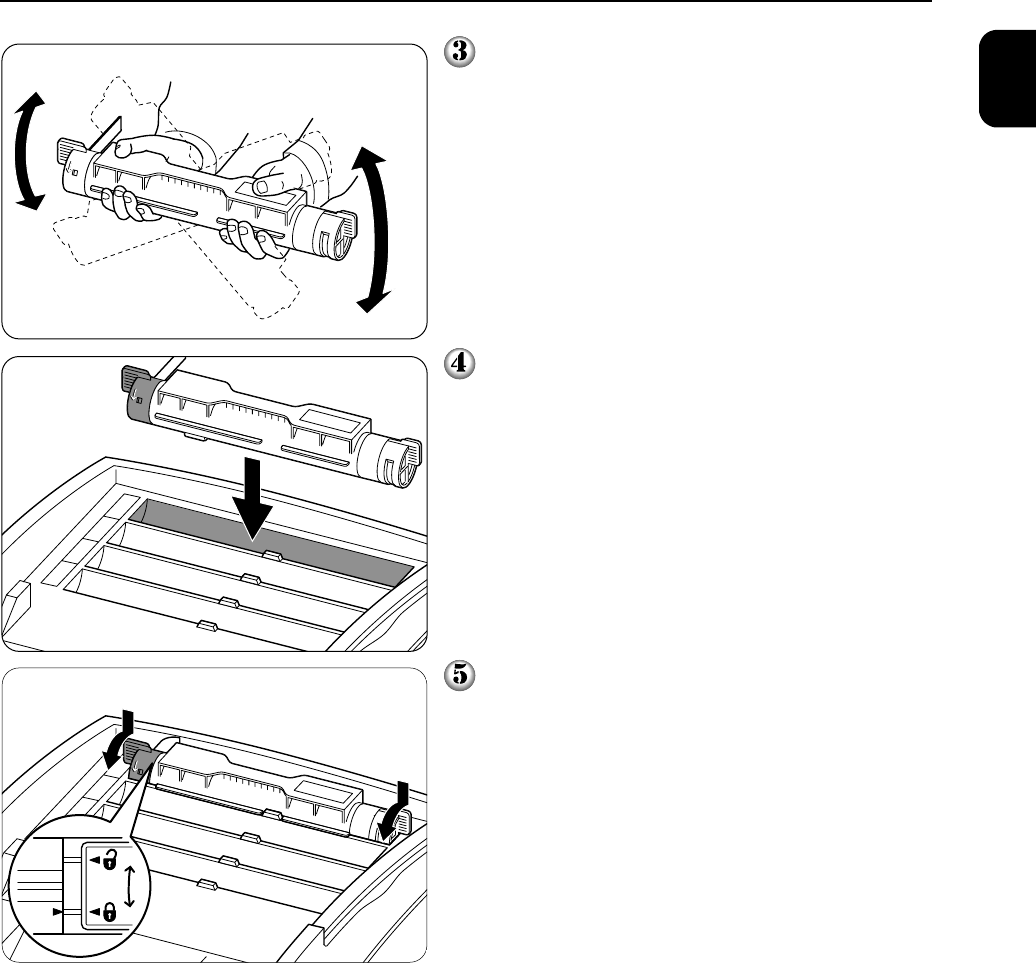

Shake the toner cartridge 7 or 8 times as
shown in the illustration to distribute the
toner evenly.
Align the toner cartridge with the corre-
sponding insertion point in the printer and
insert it as shown in the illustration.
Grip the levers at each end of the toner car-
tridge with your fingers, then push down
firmly to rotate the levers forward.
16
1
1.4 Installation Procedure

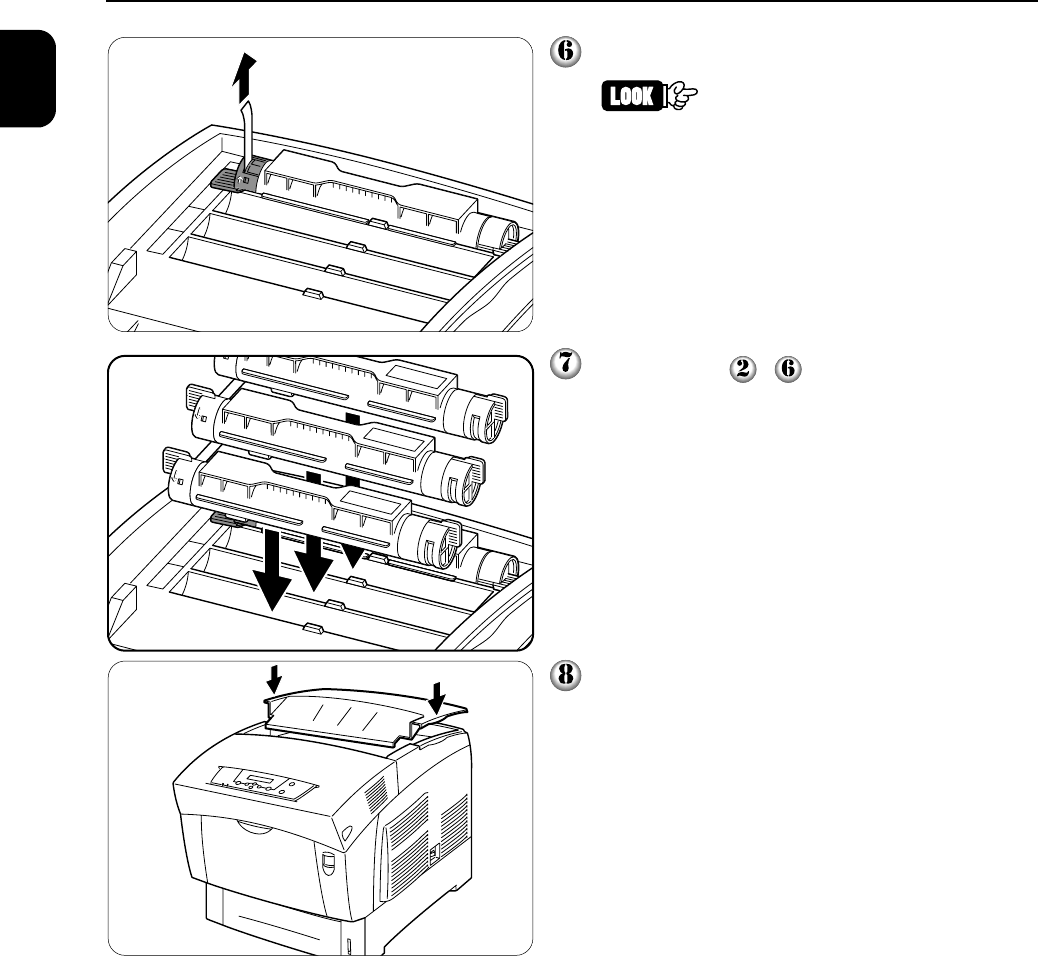

Pull the toner seal straight up to remove it.
Pull the toner seal straight up.
Pulling the toner seal diago-
nally may tear the seal.
Repeat steps - to install the remaining
toner cartridges.
Replace the top cover.
