FZONE TECHNOLOGY U3 MICROPHONE WIRELESS SYSTEM User Manual
SHENZHEN FZONE TECHNOLOGY CO.,LTD MICROPHONE WIRELESS SYSTEM
user_manual
R210-119489
China Patent Numbers ZL 2016 3 0165464.8
2nd floor, Building 12, Xicheng Industrial Area, Xixiang Town,
Baoan District, Shenzhen Guangdong China.
E-mail: nancy@xviveaudio.com
MANUAL
MICROPHONE
WIRELESS SYSTEM
R210-119489
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK: DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTSINSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THE APPLIANCE TO RAIN OR
MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CERTIFICATION
This Class B digital apparatus complies with Canadian
ICES-003.
Radio Approvals: FCC Part 15.249, FCC Part 15 B, RSS-210
(Canada), EN 300 440 (Europe), EN 301.489 (Europe), Japan
MIC Notice No.88 Appendix No.43
The CE Declaration of Conformity & California 65 Test Report
can be obtained at
http://www.xviveaudio.com/productInfo.asp?id=354
01
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE
RECEIVED, INCLUDING INTERFERENCE THAT MAY
CAUSE UNDESIRED OPERATION.
WARNING:
Changes or modifications not expressly approved in writing
by Xvive may void the users authority to operate this equipment.
RF EXPOSURE STATEMENT:
This transmitter must not be co-located or operated in
conjunction with any other antenna or transmitter.
NOTE:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the
FCC CERTIFICATION
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. There is no guarantee
that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following
MEASURES:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician
for help.
02
1. Observe all instructions carefully in the U3 manual.
2. Do not to perform service operations beyond those
described in the U3 manual. Services required when the
apparatus has been damaged in any way, such as:
• Liquid has been spilled or objects have fallen into the
apparatus
• The unit has been exposed to rain or moisture
• The unit does not operate normally or changes in
performance in a significant way
• The unit is dropped or the enclosure is damaged
WARNING: BEFORE USING YOUR XVIVE U3 MICROPHONE WIRELESS SYSTEM,
CAREFULLY READ THE OPERATING INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ THESE INSTRUCTIONS
IN A SAFE PLACE
3. Do not place near heat sources, such as radiators, heat
registers, or appliances which produce heat.
4. Guard against objects or liquids entering the device.
Do not use or place unit near water.
5. Clean only with a damp cloth.
6. Only use attachments/accessories specified by the
manufacturer.
7. Prolonged listening at high volume levels may cause
irreparable hearing loss and/or damage. Always be sure to
practice “safe listening.”
03
PRODUCT INTRODUCTION
• 2.4Ghz band is optimal for microphone wireless, approved
for use in Europe, South America, Asia and Australia.
• Less than 5ms Latency, Simultaneous broadcasts on 6
channel.
• Broad 20Hz – 20KHz frequency response
• Indoor: Up to 90 feet(actual range
depends on rf signal
absorption, reflection and interference )
• 5 Hours of battery life ( rechargeable battery for both
Transmitter & Receiver)
• Working with dynamic microphone
• High Resolution 24-bit/48kpbs Audio
• Dynamic Range is 110dB
• Signal to Noise Ratio is 110dB
• U3 wireless aims to take the complexity and frustration, out
of traditional wireless microphone systems. Creating a
flexible, all-in-one solution that makes any your favorite
microphones into wireless.
1PCS
1PCS
1PCS
1PCS
1PCS
U3 Transmitter
U3 Receiver
USB Cable
Manual
Bag
PACKAGE DETAILS
04
05
QUICK START

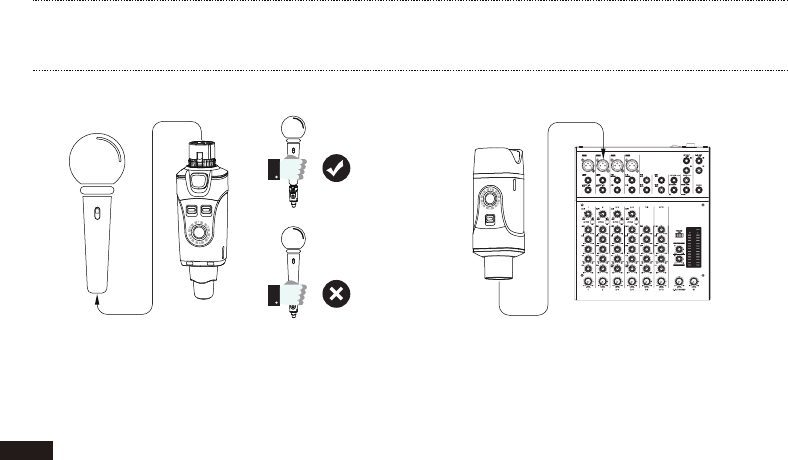

1. Plug the Transmitter into the Dynamic Microphone 2. Plug the Receiver into the Mixer.
06
QUICK START

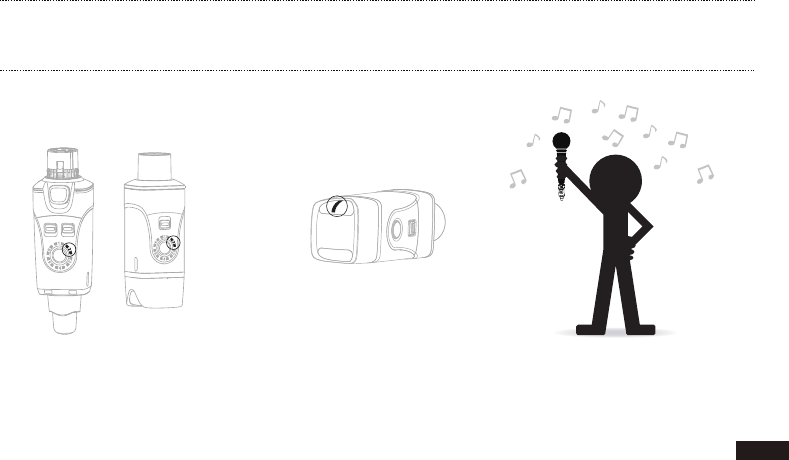

3. Turn on the Transmitter and the
receiver and check the Channel.
4. After connecting successfully,
the LED lights on receiver will
stay on.
5. Now, let’s rock together.
07

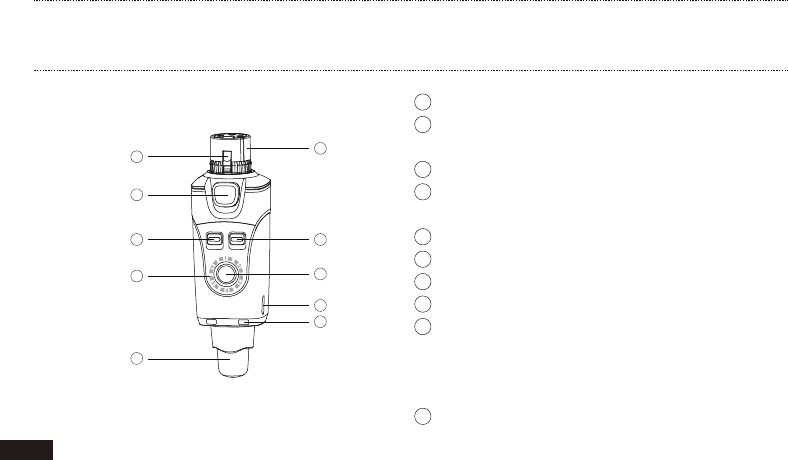

1 Mic In – XLR microphone input jack
2 Spring - Circumferential ground spring providing an
accurate connection to the mating shell
3 mic Lock – secures the microphone to the Transmitter
4 Input level switch – Mic mode is a 0dB input, Switch to
LINE mode is -10dB.
5 Power switch – powers the unit on and off
6 channel status LED
7 Channel switch
8 USB Port – For charges battery
9 Power status LED - indicate power status:
Led off= 100%~30%
Solid red = 29% ~ 11%
Red flickering = less than 10%
10 Antenna – Carries wireless signal.
BASIC OPERATION
TRANSMITTER
2
3
4 5
1
7
8
9
6
10
08

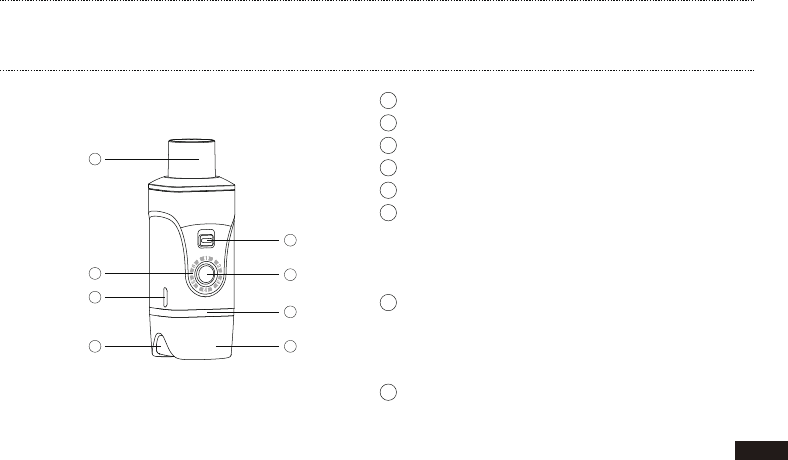

1 XLR OUT - XLR microphone input jack
2 Power switch – powers the unit on and off
3 channel status LED
4 Channel switch
5 USB Port – For charging the battery
6 RF Status LED –
ON = Transmitter is on and link is established
Flashing = Signal connection interference
OFF = Transmitter off or unlinked
7 Power status Led - indicates power status.
Led off = 100%~30%
Solid red = 29% ~ 11%
Red flickering = less than 10%
8 Antenna – picks up the signal from the transmitter.
BASIC OPERATION
RECEIVER
1
4
6
2
87
5
3
Tuning Bandwidth
Working Range
Audio Frequency Response
Dynamic Range
Battery Life
RF Sensitivity
Total Harmonic distortion
RF Output Power
Operating Temperature Range
Channel Count
2400 – 2483.5MHz
Indoors 90ft
Actual range depends on RF signal absorption, reflection and
interference.
20Hz – 20KHz. Dependent on microphone type or Input signal.
110dB
Up to 5 hours
-88dBm
0.2%
10 mW E.I.R.P. max
-18℃ to 57℃. Battery characteristics may limit this range.
up to 6 Channels
09
SPECIFICATIONS
U3 MICROPHONE WIRELESS SYSTEM
10
Dimensions
Weight
Housing
Battery
Input Impedance:
Audio Input Connector
Audio Output Connector
Maximum Input Level
Maximum Output Level
Gain Adjustment Range
Battery Life
Support microphone type
Antenna Impedance
Antenna Type
Number of antenna
TRANSMITTER RECEIVER
31 x 29 x 98 mm
Molded Plastic and cast Metal
3.7V Rechargeable Li-lon, 860mA
Balanced XLR male input
Mic mode: 2.8Vp-p Line mode: 7Vp-p
Two mode, Mic is 0dB, Line is -10dB
Up to 5 hours
Dynamic microphone
50Ω
1/4 Wave Sleeve Dipole, non-removable
1
31 x 29 x 98 mm
Molded plastic and cast metal
3.7V Rechargeable Li-lon, 860mA
Balanced XLR Female Output
2.8Vp-p
Up to 5 hours
50Ω
1/4 Wave Sleeve Dipole, non-removable
2
11

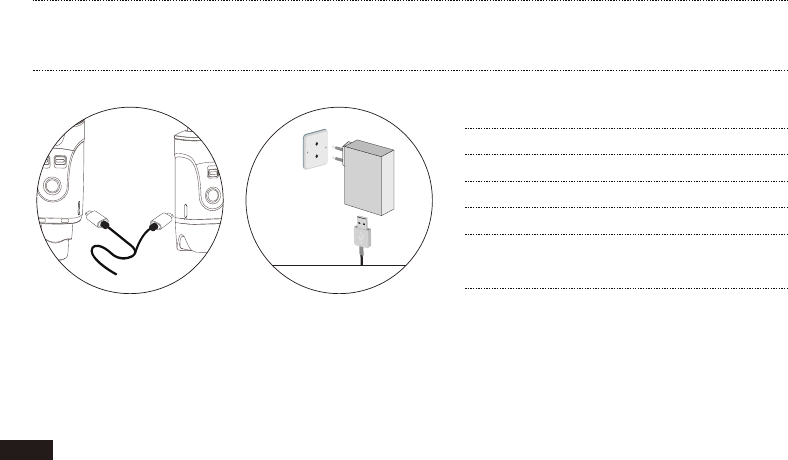

BATTERIES AND CHARGING
Note: In an emergency, power can be supplied via a USB wall
adapter however, the battery life will be reduced.
* Always store U3 at room temperature
* When storing the unit, please check the battery
state regularly and charge if necessary.
0:15
0::30
1:00
2:30
30 min
1 hours
2 hours
5 hours
CHARGING TIMES RUNTIME TIMES
Connect to the socketConnect Power
12
Tips and Methods to Improve Wireless System
Performance
1) keep Receiver away with each transmitter and more
than 3 meters from routers.
2) Change channels to avoid interference with other WiFi
products.
3) Environmental interference in multiple wireless
systems，Please shorten the distance between the
transmitter and the receiver.
2.4 GHz SPECTRUM OVERVIEW AND INTERFERENCE
2402MHz, 2480M Hz, 2482MHz
2408MHz, 2472M Hz, 2474MHz
2416MHz, 2464MHz, 2466MHz
2434MHz, 2440MHz, 2442MHz
2427MHZ. 2448MHZ. 2450MHZ.
2422MHZ. 2456MHZ. 2458MHZ
CHANNEL 1
CHANNEL 2
CHANNEL 3
CHANNEL 4
CHANNEL 5
CHANNEL 6
2.4Ghz Frequency Tables
U3 operates within the 2.4GHz ISM band which is utilized
by Wi-Fi, Bluetooth, and other wireless devices. 2.4Ghz is
an open band and, as such, does not require a license to be
used worldwide.
13
ISSUE
• Check that the receiver’s blue RF LED is lit.
• Check that the microphone is turned on and receiving signal from the U3 Transmitter
• Check that the power switch is turned on for both the Transmitter and the Receiver.
• Ensure that the transmitter and receiver are on the same channel.
• Adjust the gain mode to “Line” or “Mic”
• Adjust the output signal from the transmitting device.
• See, “Tips and Methods to Improve Wireless System Performance”
• The Channel switch locks after 30 second. Double-click the channel button to unlock and reset.
SOLUTION
No Sound
Distortion or Faint Sound
Signal instability: RF LED
flickering, or off completely
Unable to switch the channel
TROUBLESHOOTING
14

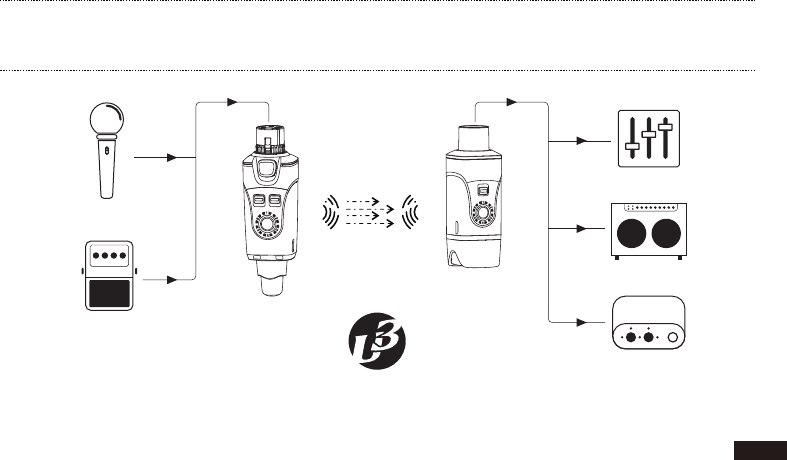

APPLICATION SCENE
DI Or XLR Output Gear
Dynamic Microphone
Live Sound Mixers
Portable PA Systems
Recorders
MICROPHONE WIRELESS SYSTEM
