User Manual

深圳朗特智能控制股份有限公司

Shenzhen Longtech Smart Control Co.,Ltd

Tel:+86-755-81731128 Fax:+86-75-81731138

1

Revision History

Rev History Issue Date Remark

100 Initial issue May, 2015 Preliminary

101 Renew Bill of Material June, 2016 Modify RF matching

component value

chan

102 Renew Bill of Material Aug, 2016 Subjoin 32K type A8105



深圳朗特智能控制股份有限公司

Shenzhen Longtech Smart Control Co.,Ltd

Tel:+86-755-81731128 Fax:+86-75-81731138

2

General Description:

This BLE module is a high performance and

2.4GHz GFSK system-on-chip (SOC)

wireless transceiver.

With on chip fraction-N synthesizer, it can

support the application of data rate from

4Kbps to 2Mbps and

frequency hopping system.

This device integrates high speed pipeline

8051 MCU, *16K/32K Bytes In-system

programmable flash memory,

2KB SRAM, various powerful functions and

excellent performance of a leading 2.4GHz

FSK/GFSK RF

transceiver.

It can be operated with wide voltage from

2.0V ~ 3.6V.

It has various operating modes, making it

highly suited for systems where ultra-low

power

consumption is required.

Remark *:

Version 16K_SMD8105-A07

Version 32K_SMD8105-A08

Features:

● Frequency Range: 2402 ~ 2480 MHz

ISM (channel spacing is 2MHz).

● Modulate mode: GFSK.

● Support the application of data rate

from 4Kbps to 2Mbps.

● Using AES-128 CCM encryption

algorithm.

● All packets are using the 24-bit CRC

checksum.

● Automatically adapt to the fast frequency

hopping.

● Bluetooth 4.0 Single mode.

● Power supply @2.0V~3.6V

● Very Low Power Operation.

● Outline: 18.3 x 15.9 mm

Applications:

● Lighting control.

● Temperature detection .

● Wearable devices.

● UART interface control.

● SPI interface control.

深圳朗特智能控制股份有限公司

Shenzhen Longtech Smart Control Co.,Ltd

Tel:+86-755-81731128 Fax:+86-75-81731138

3

Module Electrical Specifications:

Item Specification Remark

Supply voltage 2.0V~3.6V

Current consumption

0.8uA @Deep Sleep mode

3mA @Stand-by mode

9.5mA @PLL mode

18mA @Rx mode

23.5mA @Tx mode (Pout = 6dBm)

typical

Frequency 2402 – 2480 MHz ISM band

Transmit output power -4.21 dBm @ room temperature Typical

Annotation1

Rx sensitivity -92 dBm (typical) @ 1Mbps mode BER≦1E-3

Modulation GFSK

Interface 19 pin 1.27mm header

Dimension

18.3mm(L) x 15.9mm(W) mm2

with Antenna

(PCB thickness is 0.8mm)

Operating temperature -40 ~ 85 ℃



深圳朗特智能控制股份有限公司

Shenzhen Longtech Smart Control Co.,Ltd

Tel:+86-755-81731128 Fax:+86-75-81731138

4



Annotation1:

1. Tx output power =- 4.21dBm,

2. TX output power can be set by Register: [082C] Tx test.

深圳朗特智能控制股份有限公司

Shenzhen Longtech Smart Control Co.,Ltd

Tel:+86-755-81731128 Fax:+86-75-81731138

5

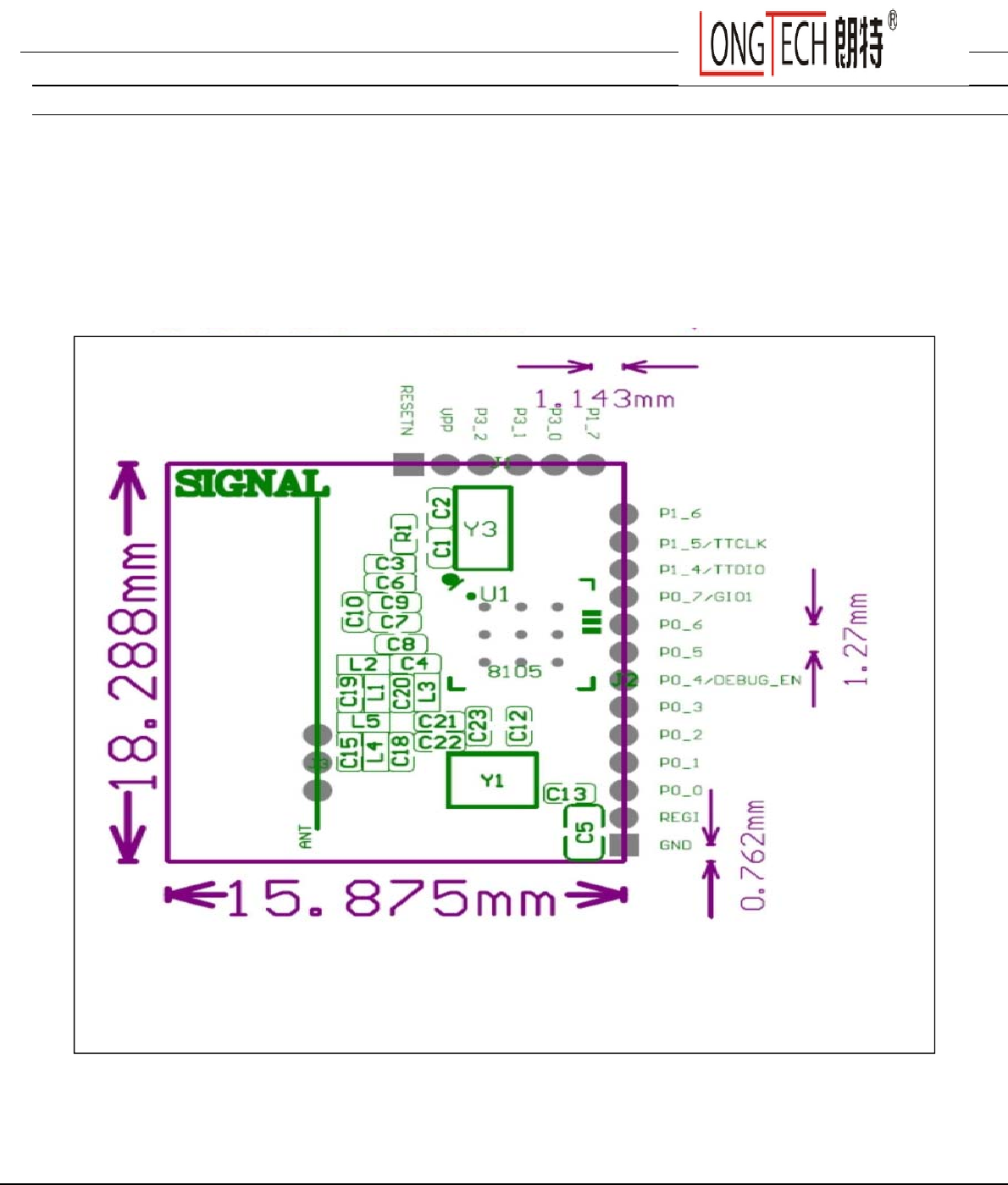

Module dimension drawing (Top view)

Module PCB size & Module Pin Assignments:



深圳朗特智能控制股份有限公司

Shenzhen Longtech Smart Control Co.,Ltd

Tel:+86-755-81731128 Fax:+86-75-81731138

6

Module Pin Functions:

J1:

Pin No. S

mbol Function Descri

tion Remark

1 RESET RESETN.

2 VPP High voltage pin used for OTP ROM program.

3 P 3_2 INT0/ADC0.

P 3_1 UARTO_TX/ADC7.

5 P 3_0 UARTO_RX/ADC6.

6 P 1_7 PWM1/ADC5.



J2:



Pin No. S

mbol Function Description Remark

1 GND Ground.

2 REGI RF Module supply voltage supply input. 2.0 ~ 3.6V

3 P 0_0 SPI_SCLK/IN0.

4 P 0_1 SPI_MOSI/CS0.

5 P 0_2 SPI_MISO/RS0.

6 P 0_3 SPI_SSEL/RT0.

7 P 0_4 GPIO/ICE mode.

8 P 0_5 I2C_SCL.

9 P 0_6 I2C_SDA.

10 P 0_7 INT2/GIO1.

11 P 1_4 TTAG_TTDIO AMICCOM CONFIDENTIAL.

12 P 1_5 TTAG_TTCLK.

13 P 1_6 PWM0/ADC4



深圳朗特智能控制股份有限公司

Shenzhen Longtech Smart Control Co.,Ltd

Tel:+86-755-81731128 Fax:+86-75-81731138

7

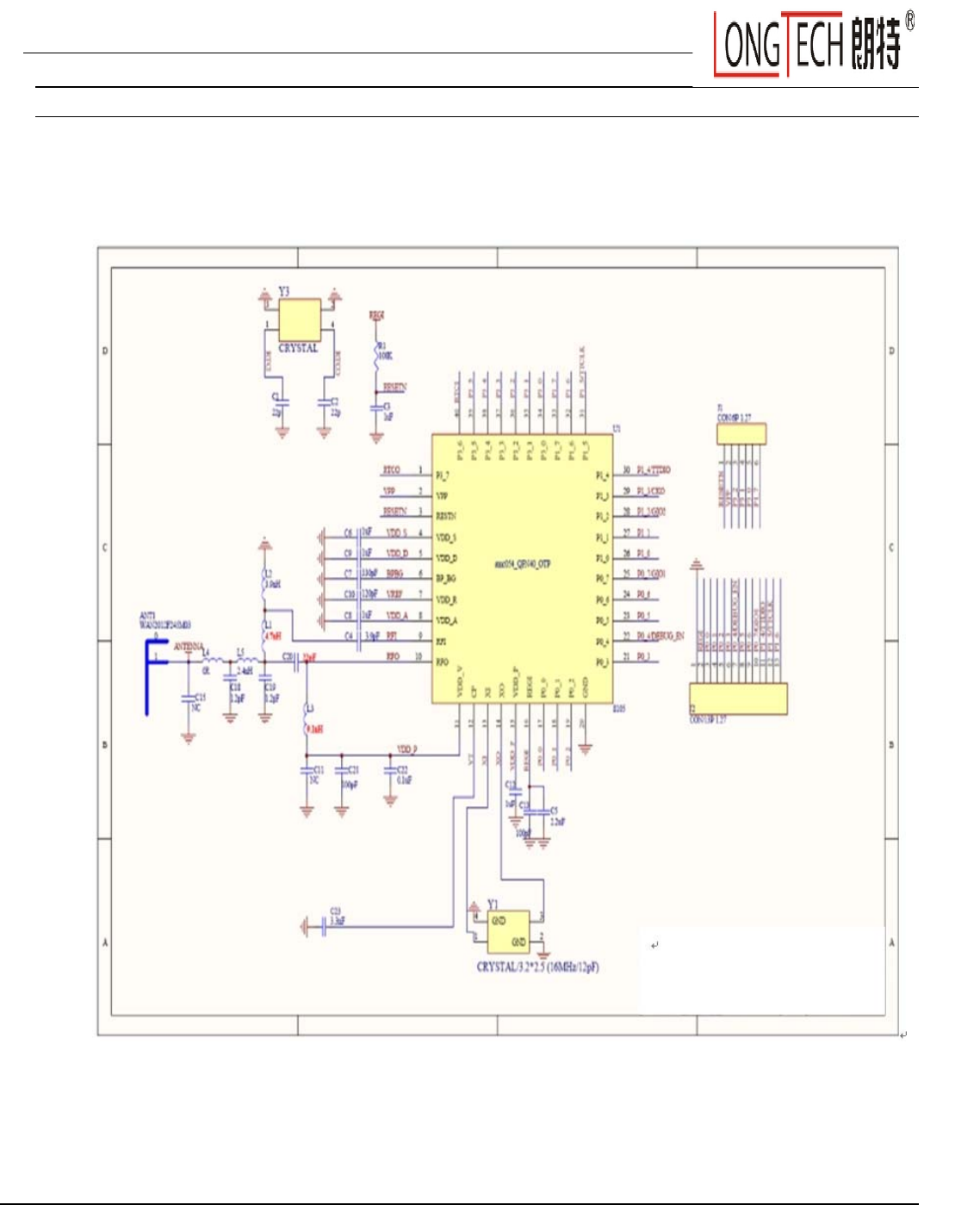

Module Application Circuit:



深圳朗特智能控制股份有限公司

Shenzhen Longtech Smart Control Co.,Ltd

Tel:+86-755-81731128 Fax:+86-75-81731138

8

Module Bill of Material:

Item

Component

Description Size Value Tol.

Manufacture

Manufacturer Number

C1, C2 C20

C0G ceramic capacitor

0402 22pF ±5% Murata

GRM1555C1H150JA01

2 C3, C6,

C8,C9, C12

0402 1uF ±10%

3 C4

C0G ceramic capacitor

0402 3.9pF ± 0.25pFMurata

GRM1555C1H3R9CA01

4 C5 0603 2.2uF ±20%

5 C7

C0G ceramic capacitor

0402 330pF ±5% Murata

GRM1555C1H331JA01

6 C10

C0G ceramic capacitor

0402 120pF ±5% Murata

GRM1555C1H121JA01

7 C13, C21

C0G ceramic capacitor

0402 100pF ±5% Murata

GRM1555C1H101JA01

8 C18 C19

C0G ceramic capacitor

0402 1.2pF ± 0.25pFMurata

GRM1555C1H1R2CA01

9 C22 0402 0.1uF ±10%

10 C23 0402 3.3nF ±10%

11 L1 Chip inductor 0402 4.7nH ±0.3nH Murata LQG15HS4N7S02

12 L2 Chip inductor 0402 3.9nH ±0.3nH Murata LQG15HS3N9S02

13 L3 Chip inductor 0402 9.1nH ±5% Murata LQG15HS9N1J02

14 L5 Chip inductor 0402 2.4nH ±0.3nH Murata LQG15HS2N4S02

15 L4 Chip resistor 0402 0 ohm

16 R1 Chip resistor 0402 100K ohm ±5%

17 U1

QFN 40(5x5)

A8105 Amiccom Annotation2

18 Y1 Crystal 3.2 x2.5mm

16MHz,CL =12pF

±20ppm

IC Annotation1

19 Y3 Crystal 7.0 x1.5mm

3.2 x1.5mm

32.768KHz

CL = 12.5pF

±20ppm

Annotation1:

1. A8105 has built-in crystal loading. User can set VCOSC[5:0] to meet crystal loading.

Requirement.

2. Recommend VCOSC = 20, if crystal load = 12pF.

Recommend VCOSC = 13, if crystal load = 9pF.

Annotation2:

1. A81X05F4001AQ5A 16K.

2. A81X05F5001AQ5A 32K.

深圳朗特智能控制股份有限公司

Shenzhen Longtech Smart Control Co.,Ltd

Tel:+86-755-81731128 Fax:+86-75-81731138

9

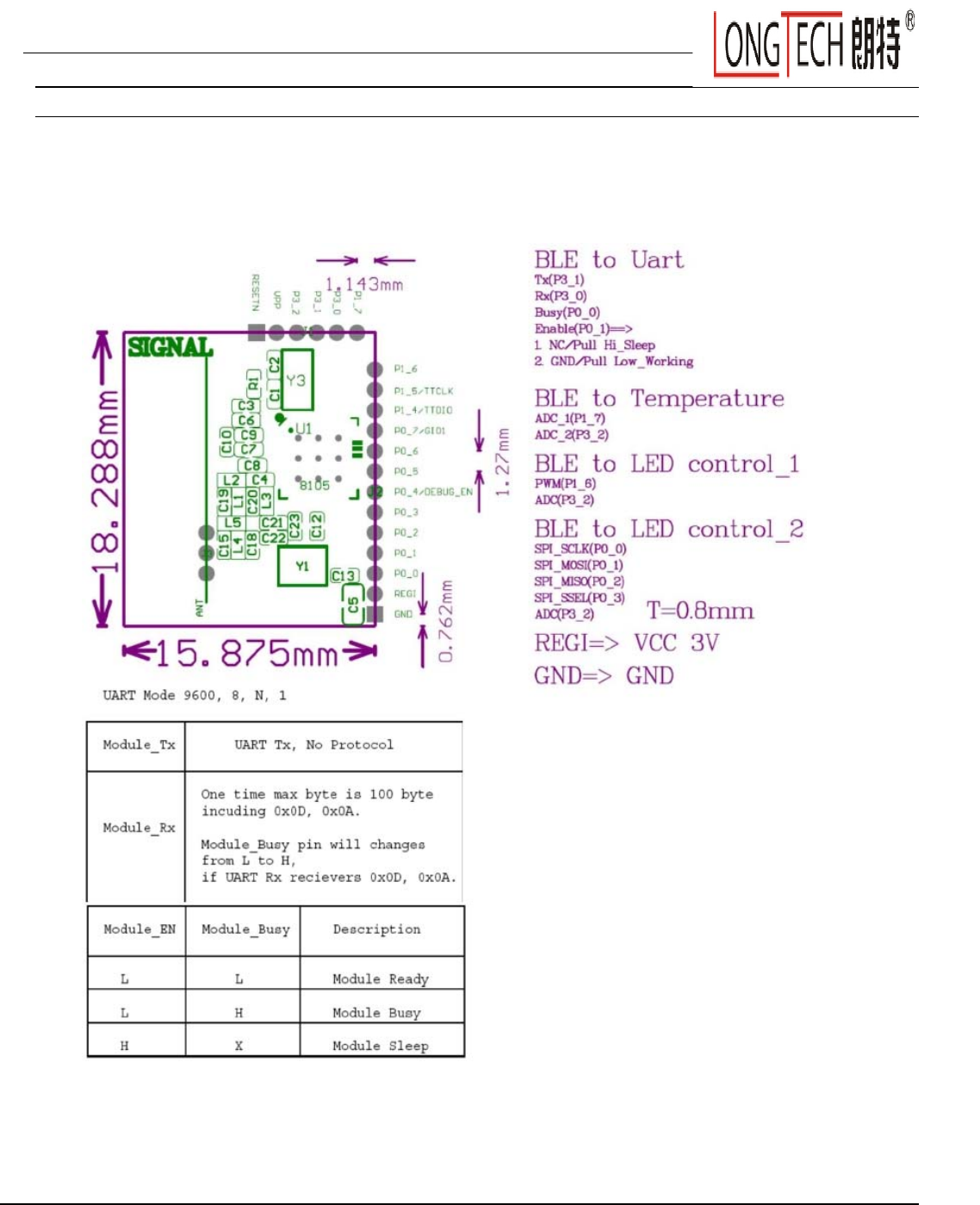

Module Application:



深圳朗特智能控制股份有限公司

Shenzhen Longtech Smart Control Co.,Ltd

Tel:+86-755-81731128 Fax:+86-75-81731138

10

FCC Part 15 Compliance Statement

ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)thisdevice

maynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethat

maycauseundesiredoperation.

changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthority

tooperatetheequipment.

PleasenoticethatiftheFCCidentificationnumberisnotvisiblewhenthemoduleisinstalledinsideanotherdevice,

thentheoutsideofthedeviceintowhichthemoduleisinstalledmustalsodisplayalabelreferringtotheenclosed

module.Thisexteriorlabelcanusewordingsuchasthefollowing:“ContainsFCCID:2AA7CBUZCONMD”.

Note:TheOEMintegratorisresponsibleforensuringthatthehostproductwhichisinstalledandoperatingwiththe

moduleisincompliantwithPart15BunintentionalRadiatorrequirements,pleasenotethatForaClassBdigitaldeviceor

peripheral,theinstructionsfurnishedtheusermanualoftheend‐userproductshallincludethefollowingorsimilar

statement,placedinaprominentlocationinthetextofthehostproductmanual:

Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuantto

part15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterference

inaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnot

installedandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.

However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoes

causeharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoff

andon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:

—Reorientorrelocatethereceivingantenna.

—Increasetheseparationbetweentheequipmentandreceiver.

—Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.

—Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolledenvironment.Thisequipment

shouldbeinstalledandoperatedwithaminimumdistanceof20cmbetweentheradiatorandyourbody.Thistransmitter

mustnotbeco‐locatedoroperatinginconjunctionwithanyotherantennaortransmitter.

Themoduleislimitedtoinstallationinmobileapplication;Aseparateapprovalisrequiredforallotheroperating

configurations,includingportableconfigurationswithrespecttoPart2.1093anddifferenceantennaconfigurations.

深圳朗特智能控制股份有限公司

Shenzhen Longtech Smart Control Co.,Ltd

Tel:+86-755-81731128 Fax:+86-75-81731138

11

Industry Canada Compliance Statement



ThisdevicecomplieswithIndustryCanadalicense‐exemptRSSstandard(s).Operationissubjecttothefollowingtwo

conditions:(1)thisdevicemaynotcauseinterference,and(2)thisdevicemustacceptanyinterference,including

interferencethatmaycauseundesiredoperationofthedevice.

LeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicablesauxappareilsradioexemptsdelicence.

L'exploitationestautoriséeauxdeuxconditionssuivantes:(1)l'appareilnedoitpasproduiredebrouillage,

et(2)l'utilisateurdel'appareildoitacceptertoutbrouillageradioélectriquesubi,mêmesilebrouillageestsusceptible

d'encompromettrelefonctionnement.



PleasenoticethatiftheICidentificationnumberisnotvisiblewhenthemoduleisinstalledinsideanotherdevice,then

theoutsideofthedeviceintowhichthemoduleisinstalledmustalsodisplayalabelreferringtotheenclosedmodule.

Thisexteriorlabelcanusewordingsuchasthefollowing:“ContainsIC:11838A‐BUZCONMD.



L’étiquetted’homologationd’unmoduled’Innovation,SciencesetDéveloppementéconomiqueCanadadevraêtreposée

surleproduithôteàunendroitbienenvue,entouttemps.Enl’absenced’étiquette,leproduithôtedoitporterune

étiquettesurlaquellefigurelenumérod’homologationdumoduled’Innovation,SciencesetDéveloppementéconomique

Canada,précédédumot«contient»,oud’uneformulationsimilaireallantdanslemêmesensetquivacommesuit:

ContientIC:11838A‐BUZCONMDestlenumérod’homologationdumodule.



ThisequipmentcomplieswithICRSS‐102radiationexposurelimitssetforthforanuncontrolledenvironment.This

equipmentshouldbeinstalledandoperatedwithminimumdistance20cmbetweentheradiatorandyourbody.



Cetéquipementestconformeauxlimitesd'expositionauxradiationsICCNR‐102établiespourunenvironnementnon

contrôlé.Cetéquipementdoitêtreinstalléetutiliséavecunedistanceminimalede20cmentreleradiateuretvotre

corps.


