CD/USB/MP3/WMA RECEIVER
CZ50
2
![](/img.php?id=1602125&img=bg2.png)
English
1
FZ502
1. FEATURES ....................................................................................................................... 2
Expanding Systems ....................................................................................................... 2
2. PRECAUTIONS ................................................................................................................ 2
Front Panel / Generalities .............................................................................................. 3
USB Port ........................................................................................................................ 3
3. CONTROLS ...................................................................................................................... 3
Operational Panel .......................................................................................................... 3
Names of Button ............................................................................................................ 3
Remote Control (RCX003) ............................................................................................. 4
Notes of remote control using ........................................................................................ 4
4. OPERATIONS ................................................................................................................... 4
Basic Operations ............................................................................................................ 4
System Setup ................................................................................................................. 5
Radio Operations ........................................................................................................... 5
Satellite Radio Mode ...................................................................................................... 6
HD Radio Operations ..................................................................................................... 7
iTunes® Tagging ............................................................................................................. 7
SiriusXM Satallite Radio Operations .............................................................................. 8
USB Operations ............................................................................................................. 9
iPod & iPhone Operations ............................................................................................ 10
AUX Operations ........................................................................................................... 10
Bluetooth Operations ................................................................................................... 11
5. TROUBLE SHOOTING ................................................................................................... 12
6. ERROR DISPLAYS......................................................................................................... 12
7. SPECIFICATIONS .......................................................................................................... 13

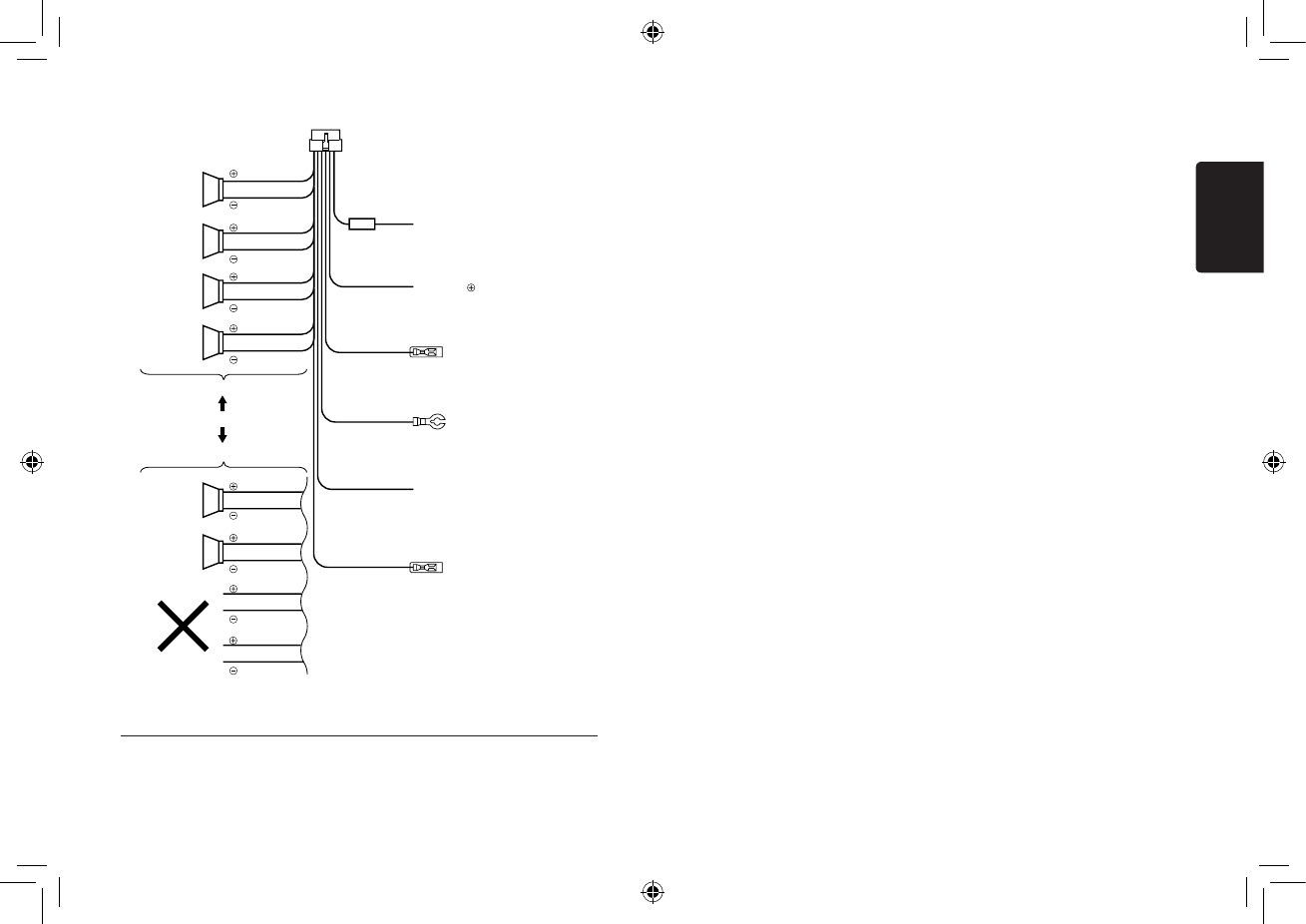

8. INSTALLATION / WIRE CONNECTION GUIDE ............................................................ 13
Thank you for purchasing this Clarion product.
• Please fully read this owner’s manual before operating this equipment.
• Check the contents of the enclosed warranty card and store it in a safe place with this manual.
Contents
![](/img.php?id=1602125&img=bg3.png)
English
2
FZ502

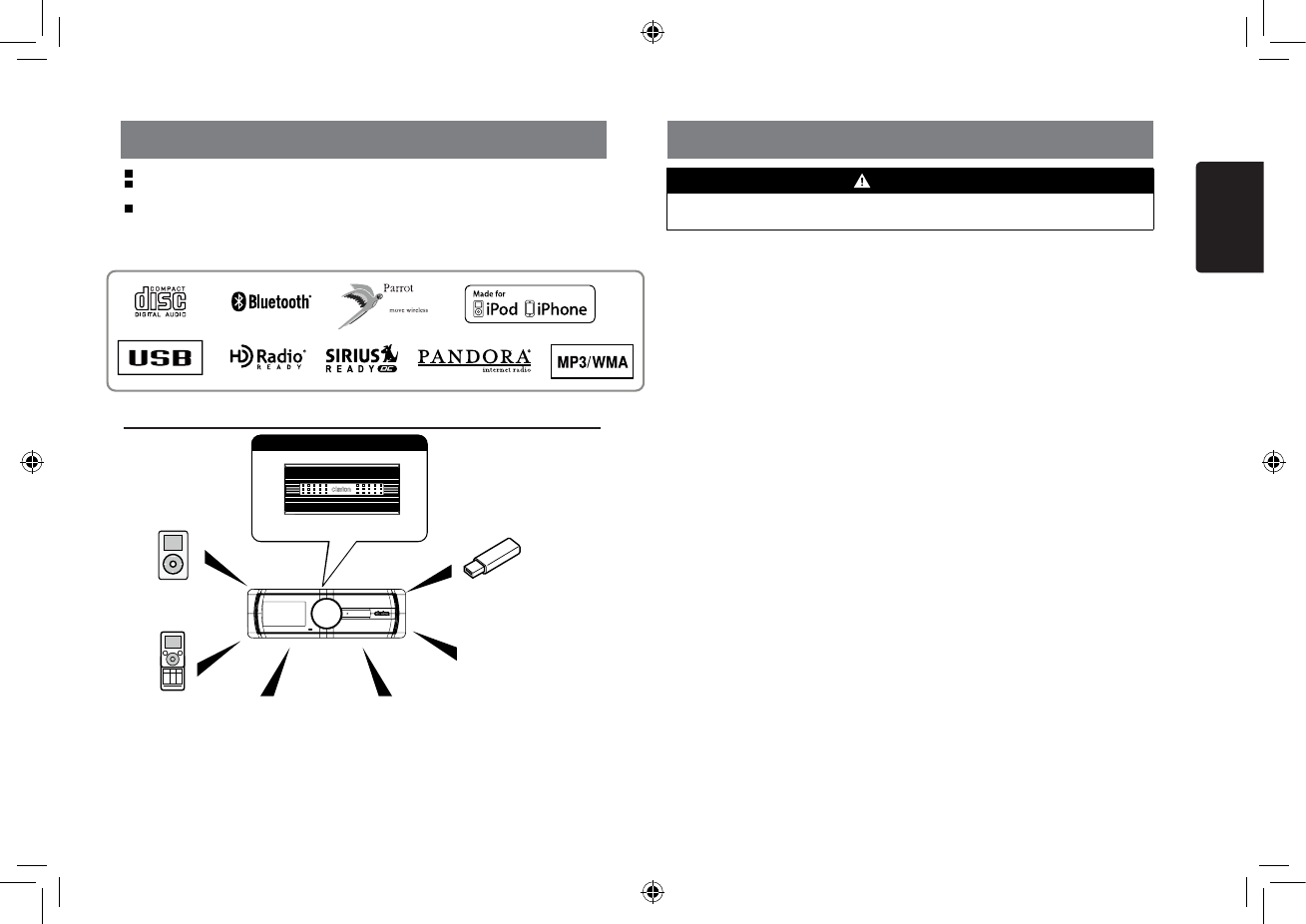

1. FEATURES
Expanding Systems
4 Channel Amplier
Portable Player
(Connect via AUX IN Jack)
USB Memory
(Connect via CCA-755)
iPod/iPhone
(Connect via CCA-748)
Bluetooth®
cellular phone
Expanding audio features
Note:
• The items listed outside of the frames are the commercial products generally sold.
• CCA-748 and CCA-755: Sold by separately.
Built-in Bluetooth® Hands free(HFP) and Audio Streaming(A2DP & AVRCP)
4ch RCA Output with HPF/LPF and BEAT-EQ with 3 Band Parametric
Equalizer
HD Radio Ready™ and SIRIUS Radio Direct Connect Ready
HD Radio tuner
(THD301) to be
connected
SIRIUS Connect™
Vehicle Tuner (SC-C1)
to be connected
2. PRECAUTIONS
For your safety, the driver should not operate the controls while driving.
Also, while driving, keep the volume to a level at which external sounds can be heard.
1. If you have parked the car for a long
time in hot or cold weather, wait until the
temperature in the car becomes normal
before operating the unit.
2. Do not open the case, disassemble the
unit, or lubricate the rotating parts.
3. SIRIUS, the SIRIUS Dog logo and related
marks are trademarks of SIRIUS XM
Radio,Inc.
4. HD Radio™, HD Radio Ready™, and
the HD Radio Ready logo are proprietary
trademarks of iBiquity Digital Corporation.
5. FCC STATEMENT
1. This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference.
(2) This device must accept any
interference received, including
interference that may cause undesired
operation.
2. Changes or modications not expressly
approved by the party responsible
for compliance could void the user’s
authority to operate the equipment.
NOTE: This equipment has been tested and
found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the
user is encouraged to try to correct the
WARNING
interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
FCC Radiation Exposure Statement
Th i s e q u ipment c o m p l i es with FC C
radiation exposure limits set forth for an
uncontrolled environment. This equipment
should be installed and operated with
minimum distance 20cm between the
radiator & your bod.
6. “Made for iPod,” and “Made for iPhone”
mean that an electronic accessory has
been designed to connect specifically to
iPod, or iPhone, respectively, and has
been certified by the developer to meet
Apple performance standards.
Apple is not responsible for the operation
of this device or its compliance with safety
and regulatory standards. Please note
that the use of this accessory with iPod or
iPhone may affect wireless performance.
iPhone and iPod are trademarks of Apple
Inc., registered in the U.S. and other
countries.
7. Pandora, the Pandora logo and other
Pandora marks are trademarks or
registered trademarks of Pandora Media,
Inc. or its subsidiaries worldwide.
“If you have any issues with the Pandora
application on your mobile phone, please
direct them to pandora-support@pandora.
com.”
![](/img.php?id=1602125&img=bg4.png)
English
3
FZ502
Front Panel / Generalities
For a longer service life, be sure to read the
following cautions.
• Do not allow any liquids on the set from
drinks, umbrellas, etc. Doing so may
damage the internal circuitry.
• Do not disassemble or modify the set in
any way. Doing so may result in damage.
• Do not let cigarettes burn the display.
Doing so may damage or deform the body.
• If a problem should occur, have the set
inspected at your store of purchase.
[CONTROL] Knob
• Power on (press)
• Power off (long press -> rotate it select “POWER OFF“ ->press)
• Adjust volume level (rotate)
• Toggle the audio source (press)
• Previous/Next search (press - left/right )
• Select tuner band (press - up)(long press)
• BT mode – Terminate call
• RADIO mode – No function.
• HD RADIO mode – SUB channels select.
• SIRIUS mode – Direct search
• AUX mode – No function.
• USB mode – Search function
• iPod mode – iPod menu
[ MIC ] Hole
• Internal microphone

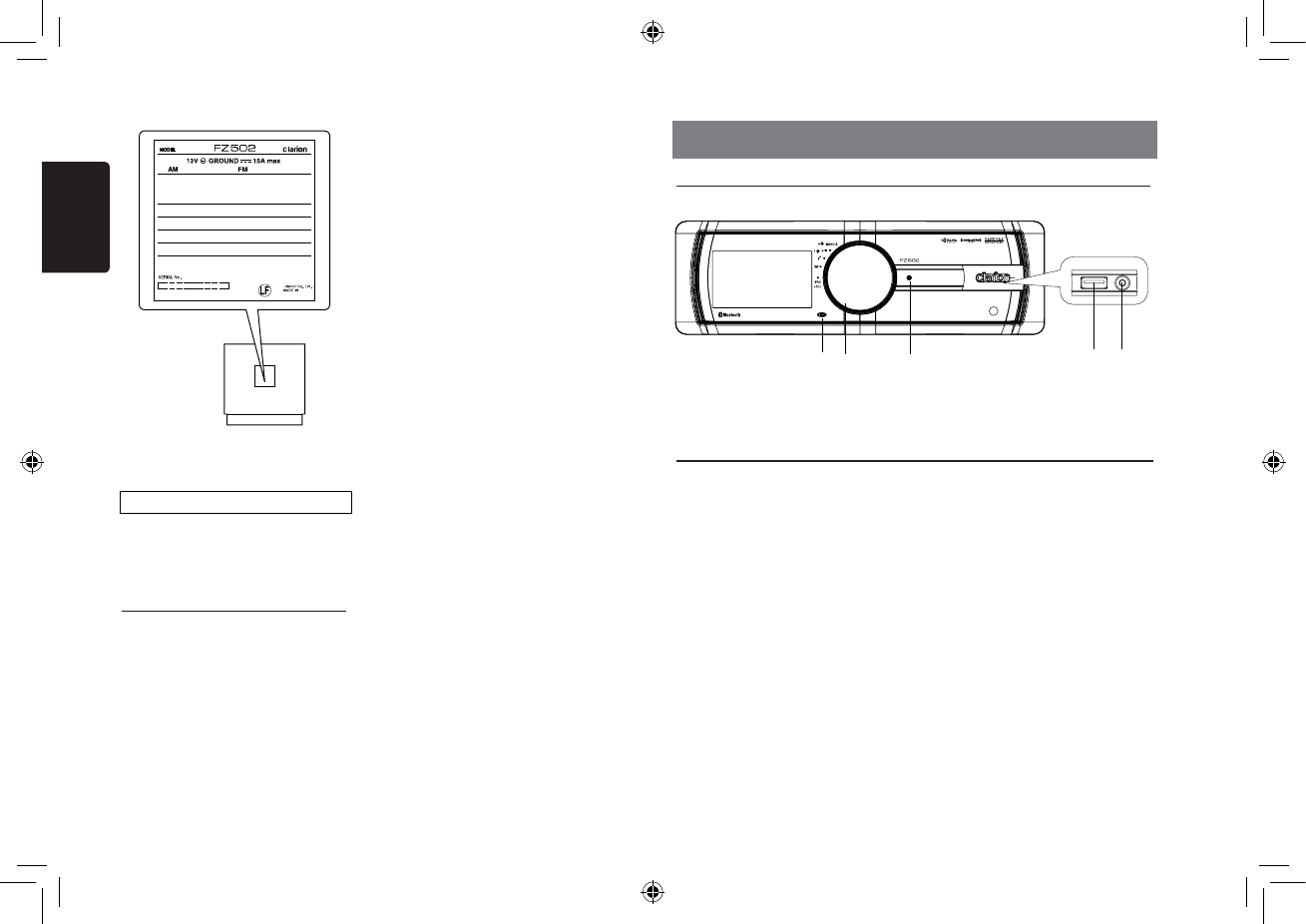

3. CONTROLS
Operational Panel
Names of Button
[CONTROL] [RESET] USB Slot
[MIC] AUX IN
INFORMATION FOR USERS:
Changes or modifications to this product
unapproved by the manufacturer will void the
warranty and will violate FCC approval.
Cleaning the body
• Use a soft, dry cloth and gently wipe off
the dirt.
• For tough dirt, apply some neutral
detergent diluted in water to a soft cloth,
wipe off the dirt gently, then wipe again
with a dry cloth.
• Do not use benzene, thinner, car cleaner,
etc., as these substances may damage
the body or cause the paint to peel. Also,
leaving rubber or plastic products in
contact with the body for long periods of
time may cause stains.
USB Port
• The USB memory stick may stick out
when inserted,so it may cause danger
during driving. When connect USB
memory stick to the main unit, please use
a USB extension cable (CCA-755).
• The USB memory sticks must be
recognized as “USB mass storage class“
to work properly. Some models may not
operate correctly.
When the memorized data is lost or
damaged by any chance, Clarion shall
not be liable for any damage.
When using an USB memory stick, we
recommend that you backup your data
stored on it before using a personal
computer etc.
• Data les may be broken when using USB
memory sticks in the following situation:
When disconnecting the USB memory
stick or turning the power off during
reading data.
When affected static electricity or electric
noise.
Connect/disconnect the USB memory
stick when it is not accessed.
• Connecting with the computer is not
covered.
FCC ID: AX2FZ502
CHINA
530-1710kHz 87.9-107.9MHz
Bluetooth QD ID No.: B017439
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
THIS DEVICE COMPLIES WITH DHHS RULES 21 CFR CHAPTER I
SUBCHAPTER J APPLICABLE AT DATE OF MANUFACTURE.
CLARION CO.,LTD.
7-2,SHINTOSHIN,CHUO-KU,SAITAMA-SHI,SAITAMA-KEN,JAPAN
This product includes technology owned by Microsoft Corporation and
cannot be used or distributed without a license from MSLGP.
MANUFACTURED:
URF
HD Radio™, HD Radio Ready™, and the HD Radio Ready logo are proprietary
trademarks of iBiquity Digital Corporation.
PN:12707000XXXXTX-10XXX-X
![](/img.php?id=1602125&img=bg5.png)
English
4
FZ502
Remote Control (RCX003)
Notes of remote control using
Replacing the lithium battery of remote control unit.
When the range of the operation of the card remote control becomes short or no functions
while operating. Replace the battery with a new lithium battery. Make sure the battery polarity
replacement is correct.
1. Pull out the battery holder while pressing the stopper.
2. Insert the button-type battery with the stamped(+) mark facing upward.
Insert the battery holder into the remote control.
[SRC/ ] Button
• Toggle the audio source
•
Power on ( short press) / off (long press)
[ , ] Buttons
• Preset station up / down
• Previous / next track
• Search (long press)
[SCN/PS/AS] Button
• Scan play / Preset scan
• Auto memory store (long press)
[BAND/TOP] Button
• MP3/WMA mode – Top play (long press)
• HD RADIO mode – Select tuner band
• SIRIUS mode – Select tuner band/Select
category (long press)
[ , ] Buttons
• Volume up / down
[ ] Button
• Play / Pause
[ISR] Button
• Recall ISR station stored in memory
• Store current station in ISR memory (long
press)
• iTunes Tagging (When connected with
HD Radio tuner and displayed ”DIGITAL”
indicator and ”TAG” indicator on display at
HD Radio-mode.)
[DISP] Button
• Display switch
[RDM] Button
• Random play
[RPT] Button
• Repeat play
[MUTE] Button
• Mute the volume
[1~6] Buttons
• [1] Button: Preset station 1.
• [2] Button: Preset station 2.
• [3] Button: Preset station 3.
• [4] Button: Preset station 4.
• [5] Button: Preset station 5.
• [6] Button: Preset station 6.
[SOUND] Button
• Sound effect setting
(CR 2025)
CR 2025
[ , ]
[ISR]
[RPT]
[SOUND]
[RDM]
[ , ]
[DISP]
[1~6]
[MUTE]
[SCN/
PS/AS]
[ ]
[BAND/TOP]
[SRC/ ]
4. OPERATIONS
Basic Operations
Note:
• Refer to the diagrams in “3. CONTROLS”
when reading this chapter.
CAUTION
When the unit is turned on, starting and
stopping the engine with its volume
raised to the maximum level may harm
your hearings.
Be careful about adjusting the volume.
Power on / off
Notes:
• Start the engine before using this unit.
• Be careful about using this unit for a long
time without running the engine. If you
drain the car’s battery too far, you may not
be able to start the engine and this can
reduce the service life of the battery.
1. Start the engine. The power button / knob
illumination on the unit will light up.
Engine ON
position
2. Press the [CONTROL] knob on the front
panel or [SRC / ] button on the remote
control to turn on the power under standby
mode. The unit goes back to the last
status after power on.
3. Press and hold the [CONTROL] knob
(center long press) on the front panel,
and rotate the [CONTROL] knob choose
POWER OFF, then press the [CONTROL]
knob on the front panel to turn off the
power.
Or press and hold [SRC / ] button on
remote control to turn off the power.
Mute
Press the [MUTE] button on the remote
control to mute the volume from the unit.
Note:
Doing the operation above again or adjusting
volume will release muting.
RESET
Volume adjustment
Turn the [CONTROL] knob on the front
panel.
The adjustable range of volume is 0 to 40.
CAUTION
While driving, keep the volume level at
which external sounds can be heard.
Playing source selection
Press [CONTROL] knob on the front panel
repeatedly to choose desired playing source.
Notes:
• Playing source selection means selecting
work mode, such as RADIO mode and
AUX mode, etc.
Display system time
Press the [DISP] button on the remote
control to switch the display information,
system time and playing source.
RESET
Note:
* When the [RESET] button is pressed,
frequencies of radio stations, titles, etc.
stored in memory are cleared.
![](/img.php?id=1602125&img=bg6.png)
English
5
FZ502
At all mode, press and hold [CONTROL] knob
(center long press), and rotate the [CONTROL]
knob choose ADJUST, then press the [CONTROL]
knob to enter system setup. Press [CONTROL]
knob (left / right) to select options, rotate the
[CONTROL] knob to adjust.
CLOCK
Press the [CONTROL] knob (right) to
choose minute, and rotate the [CONTROL]
knob to set minute.
Press the [CONTROL] knob (left) to choose
hour, and rotate the [CONTROL] knob to set
hour.
Then long press [CONTROL] knob (center)
to conrm the time setting.
PASSWORD (SIRIUS mode)
Press the [CONTROL] knob to enter old
password, rotate the [CONTROL] knob to
select a digit, press the [CONTROL] knob
(left / right) to move the cursor. Press the
[CONTROL] knob to confirm after input all
4 digit. Then input a new 4-digit number as
above. (Original password: 0000)
LOCK (SIRIUS mode)
Press the [CONTROL] knob to lock current
station, rotate the [CONTROL] the knob to
select a digit, press the [CONTROL] knob
(left / right) to move the cursor. Long press
the knob to confirm after input all 4 digit
password.
UNLOCK (SIRIUS mode)
Press the [CONTROL] knob to unlock all
locked stations, rotate the [CONTROL] knob
to select a digit, press the [CONTROL] knob
(left / right) to move the cursor. Press the
[CONTROL] knob to conrm after input all 4
digit password.
UNSKIP (SIRIUS mode)
Press and hold the [CONTROL] knob to
unskip all channels.
DX/LO (RADIO mode)
Rotate the [CONTROL] knob to choose radio
local or distant at RADIO mode.
• LO: Only stations with strong signal can
be received.
System Setup
• DX: Stations with strong and weak signals
can be received.
PCH MEMO (RADIO/HD RADIO/SIRIUS
mode)
Rotate the [CONTROL] knob to choose PCH
1 / PCH 2 / PCH 3 / PCH 4 / PCH 5 or PCH 6,
press and hold [CONTROL] knob (center long
press) to store it in the memory.
AUX SENS (AUX mode)
Rotate the [CONTROL] knob to choose AUX
input sensitivity LOW, MID or HIGH at AUX
mode.
AUTO CON (BT mode): ON/OFF
Rotate the [CONTROL] knob to choose
AUTO CON ON or OFF.
PIN CODE
Press the [CONTROL] knob, rotate the
[CONTROL] knob to select a digit, press
the [CONTROL] knob (left / right) to move
the cursor. Press the [CONTROL] knob to
conrm.
The PIN CODE default setting is “ 0000 “.
MIC SEL (BT mode)
Rotate the [CONTROL] knob to choose
microphone EXTERNAL or INTERNAL.
MIC GAIN (BT mode)
Rotate the [CONTROL] knob to choose Mic
gain: 1, 2, 3, 4, 5.
You can change the gain of MIC when a
telephone partner cannot hear your voice.
SCRN SVR: ON/OFF
Rotate the [CONTROL] knob to choose
SCRN SVR (screen saver) ON or OFF.
SCROLL: ON/OFF
For track information that is longer than the
display panel:
When SCROLL is ON, the LCD will display
ID3 TAG information cyclely, e.g.: TRACK-
>FOLDER->FILE->ALBUM->TITLE-
>ARTIST->TRACK->...
When SCROLL is OFF, the LCD will display
one of the ID3 TAG information, the default
is TRACK, but user can adjust it to other ID3
System Setup
TAG information by pressing [DISP] button
on the remote control.
S-CTRL (iPod mode) : ON/OFF
Rotate the [CONTROL] knob to choose
S-CTRL (Simple control) ON or OFF.
* Refer to P18.
DIMMER: ON/OFF
Rotate the [CONTROL] knob to choose
DIMMER ON or OFF.
• ON: LCD dimmer is active when small light
of vehicle is turned ON.
• OFF: LCD always maximum brightness
regardless of the vehicle small light.
REAR/S-W
Rotate the [CONTROL] knob to choose
REAR or S-WOOFER(SUB-WOOFER).
SW PHASE
Rotate the [CONTROL] knob to choose
REVERSE or NORMAL.
BEEP: ON/OFF
Rotate the [CONTROL] knob to choose
button beep sound ON or OFF.
SOUND
Press the [CONTROL] knob to enter sound
effect setting mode. First press shows
current EQ. Rotate the [CONTROL] knob to
chooseBEAT EQ in this order:
OFF -> B-BOOST -> IMPACT -> EXCITE ->
CUSTOM
To change CUSTOM setting, and press
the [CONTROL] knob (center), then press
[CONTROL] knob (right/left) to select EQ
effects including: BASS-G -> BASS-F ->
BASS-Q -> MID-G -> MID-F -> MID-Q
-> TREBLE-G -> TREBLE-F, rotate the
[CONTROL] knob to select a value.
BASS-G / MID-G / TREBLE-G: (-7)- (+7)
BASS-F: 50 / 100 / 200
BASS-Q : 0.7 / 1.0 / 1.4 / 2.0
MID-F: 500 / 1K / 2K
MID-Q: 0.7 / 1.0 / 1.4 / 2.0
TREBLE-F: 5K / 10K / 15K
TREBLE-Q: 0.7 / 1.0 / 1.4 / 2.0
Then press the [CONTROL] knob (left / right)
to select USER preset including:
BALANCE -> FADER -> M-B EX ->HPF(high
pass filter) -> LPF(low pass filter) -> S-W
VO L (S u b wo o f er Vo l um e ) , r otate the
[CONTROL] knob to select a value.
BALANCE:LEFT 1-7->CENTER->RIGHT 1-7
FADER:FRONT 1-7->CENTER->REAR 1-7
M-B EX: ON/OFF
HPF: THROUGH/60/90/120
LPF: THROUGH/60/90/120
SUBW VOL: (-6)-(+6)
12/24H
Rotate the [CONTROL] knob to choose time
format: 12 or 24 hour.
Radio Operations
Select tuner as playing source
Press the [CONTROL] knob or [SRC / ]
button on the remote control to switch to the
RADIO source.
Select one radio band
Press the the [CONTROL] knob (up long
press ) on the panel or [BAND/TOP] button
on the remote control to select one radio
band among FM1, FM2, FM3 and AM.
Manual tuning
During manual tuning, the frequency will be
changed in steps.
Press the [CONTROL] knob (left/right) on the
panel or [ , ] buttons on the remote
control to tune in a higher / lower station.
Auto tuning
Press and hold [CONTROL] knob (left/
right) on the panel or [ , ] buttons
![](/img.php?id=1602125&img=bg7.png)
English
6
FZ502
Radio Operations
Satellite Radio Mode
Satellite Radio Mode
Listeners can subscribe to SIRIUS
®
Radio on the
Web by visiting www.sirius.com, or by calling (888)
539-SIRIUS. Customers should have their SIRIUS
ID ready (SIRIUS ID is located on the SC-C1
SIRIUS Connect Vehicle Tuner, solid separately).
Customers can listen to music samples by tuning
to channel 184.
Accessing satellite radio mode
Press the [CONTROL] knob or [SRC / ]
button on the remote control to switch to the
SAT source.
Displaying the Identication (ID) Code
Before you listen to satellite radio, you must
subscribe to the service using your radio’s
identification number. To display the radio
ID, use the [CONTROL] knob (left) or [ ]
tuning button on the remote control to tune to
channel “0”. The screen displays the radio ID
where the channel name is usually displayed.
Check SC-C1 SIRIUS Connect
Vehicle Tuner
the remote control to seek a higher / lower
station.
To stop searching, repeat the operation
above or press other buttons having radio
functions.
Note:
When a station is received, searching stops
and the station is played.
Preset scan
Preset scan receives the stations stored
in preset memory in order. This function is
useful when searching for a desired station
in memory.
1. Press the [SCN/PS/AS] button on the
remote control.
2. When a desired station is tuned in, press
the [SCN/PS/AS] button on the remote
controlagain to continue receiving that
station.
Note:
Be careful not to press and hold the [SCN/
PS/AS] button, otherwise the auto store
function is engaged and the unit starts
storing stations.
Auto store
Only stations with sufcient signal strength
will be detected and stored in the memory.
Press and hold the [SCN/PS/AS] button on
the remote control to start automatic station
search.
To stop auto store, press other buttons
having radio functions.
Notes:
1. After auto store, the previous stored
stations will be overwritten.
2. The unit has 4 bands, such as FM1, FM2,
FM3 and AM. FM3 and AM can store
by AS function. Each bands can store 6
stations, FZ501 can store 24 stations in
total.
Manual store
When one expected radio station has been
detected, press and hold number button
on the remote control 1-6 to store it in the
memory.
Recall the stored stations
Press one numeric button among 1 to 6 on
the remote control or on the panel to select
the corresponding stored station.
Local seeking
When LOCAL seeking is on, only those
radio stations with strong radio signal could
be received.
Refer to System Setup page 9.
Note:
The number of radio stations that can be
received will decrease after the local seeking
mode is on.
If SIRIUS tuner is not connected, “NO
TUNER” will appear on the LCD.
Select a band
Press the the [CONTROL] knob (up long
press) on the panel or [BAND/TOP] button
on the remote control to change between
three SAT bands (SR1, SR2 and SR3). Each
band stores up to six preset stations.
Select a station
Press the [CONTROL] knob (left / right) on
the panel or [ , ] buttons on the remote
control to tune to another station.
Preset mode
Six numbered preset buttons on the remote
control store and recall stations for each
band.
Preset scan
Short press the [SCN/PS/AS] button on the
remote control to start category scanning.
Long press the [SCN/PS/AS] button on
the remote control to start preset station
scanning for 10 seconds each.
Storing a station
1. Select a band (if needed), then select a
station.
2. Press and hold a preset button (numbers
1-6) on the remote control.
3. The preset number and station is
displayed and highlighted.
Recalling a station
1. Select a band (if needed).
2. Press a remote control preset button
(numbers 1-6) to select the corresponding
stored station.
Category and Channel search
To access Category and Channel Search
mode, press the [CONTROL] knob (up long
press) on the panel or [BAND/TOP] button
on the remote control long press.
1. Rotate the rotary knob on the panel to
select the desired category.
2. Press the [CONTROL] knob (left / right)
on the panel or [ , ] buttons on
the remote control to select the channel
name.
Direct search
To access Direct Search mode, press the
[CONTROL] knob button on the front panel.
1. Rotate the [CONTROL] knob on the
panel to select the desired direct, and
press the [CONTROL] knob to confirm
the selection.
2. Rotate the [CONTROL] knob on the
panel or press the [ ] or [ ] button
on the remote control to select the direct
name, and press the knob to conrm the
selection.
PASSWORD
Refer to System Setup page 9.
LOCK
Refer to System Setup page 9.
UNLOCK
Refer to System Setup page 9.
UNSKIP
Refer to System Setup page 9.
![](/img.php?id=1602125&img=bg8.png)
English
7
FZ502
HD Radio Operations
About HD Radio™ Technology
HD Radio Technology allows CD-quality
digital broadcasting of your local AM and
FM radio stations. HD Radio broadcasts
can include multiple channels on the same
frequency, which is called multicasting. With
multicasting, you can receive up to eight
additional multicast channels: HD1~HD8.
With an HD Radio tuner connected, you
will receive HD Radio digital broadcasts
automatically when tuned to a station that
offers HD Radio Technology.
NOTE: Not all FM or AM stations offer
HD Radio (digital) broadcasting. You can
receive both analog and digital stations
with the unit.
Accessing radio mode
Press the [CONTROL] knob or [SRC / ]
button
on the remote control to switch to the HD
RADIO source, and HD icon will illuminate.
Select a band
Press and hold the [CONTROL] knob (up long
press) on the panel or [BAND/TOP] button on
the remote control to change between three
FM and one AM bands. Each band stores up
to six preset stations.
Tuning
- Seek Tuning
Press and hold the [CONTROL] knob (left /
right) on the panel or [ , ] buttons on
the remote control to seek the next/previous
station automatically.
- Manual Tuning
Press the [CONTROL] knob (left / right) on
the panel or [ , ] buttons on the remote
control to move the radio frequency number
up or down one step.
HD Radio multicast channels
To tune to an HD Radio multicast channel,
tune to the main signal and then press the
[CONTROL] knob on the panel. PTY and SUB
CH are displayed. Select PTY or SUB CH by
rotate [CONTROL] knob and push to conrm.
• Select PTY type from the category list by
rotate [CONTROL] knob and push.
• Select SUB CH by rotate [CONTROL] knob
and push.
• Multi channel is available when a digital
signal is detected, the DIGITAL icon will
illuminate. If the digital signal becomes
unavailable, the unit will revert to Analog
reception.
Preset stations
Up to six stations on each band can be
stored as presets, which can then be instantly
recalled by pressing the associated preset
button. To store a station, turn the radio on
and select the desired band and station.
Press and hold the desired preset button
(numbered one through six on the remote
control). When stored, the preset number
will appear in the display. The station is now
stored and can be recalled by pressing the
corresponding preset button. Repeat for the
remaining five presets on the current band
and for presets on the other four bands.
NOTE: Multicast stations can be stored as
presets, but the unit must be in Digital or
Auto reception mode to receive them.
Preset scan
Press [SCN/PS/AS] button on the remote
control to scan and play all preset stations for
10 seconds each. Press [SCN/PS/AS] button
on the remote control again to stop scanning
and play the current station.
Note:
Be careful not to press and hold the [SCN/
PS/AS] button on the remote control,
otherwise the auto store function is engaged
and the unit starts storing stations.
Automatic store (AS)
Press the [SCN/PS/AS] button on the remote
control to select six strong stations and store
them in the FM3 or AM band using the auto
store function. After entering the stations into
memory, the unit will automatically stop at
each station for ve seconds, allowing you to
preview each selection. When using the auto
store function, the new stations replace any
stations already stored in preset memory.
Note:
You can stop the auto store function at any
time by pressing the [SCN/PS/AS] button on
the remote control again.
iTunes® Tagging
The unit offers iTunes® Tagging, which
allows the user to "Tag" songs playing on
HD Radio™ stations for purchase later
through iTunes. When press [ISR] button on
the remote contorl, the unit stores the title
and artist song information that can then be
transferred to your iPod when connected to
the unit. A list titled "Tagged" will appear in
iTunes, allowing you the option to purchase
your tagged songs.
Note:
“iTunes® Tagging” function works by
connecting THD301 (sold separately).
iPod compatibility
For detailed information on the playable iPod
models, see our home page: www.clarion.
com
Note:
• iPhones can also be connected to this
system and “iP od ” appearing in this
manual should be referred to as “iPod/
iPhone”.
• This system will not operate or may operate
improperly with unsupported versions.
Tagging music
To begin tagging music, tune to an HD Radio
station. The DIGITAL icon at the display must
be illuminated, indicating a digital station
is being received. TAG icon lights up when
Tagging function is ready. Press the [ISR]
button on the remote control. The tagging
function is highly depends on the receptions
of the radio station. If the channel reception
is insufcient, it will effect the operation of the
tagging function.
“Stored Tag ## of 64” will appear in the
display. The song information is saved to the
unit memory until your iPod is connected.
You can tag up to 64 songs before the tags
must be transferred to your iPod or deleted.
When the Tag memory reaches capacity
(64 tags) the bottom of the screen displays
“Memory Full”.
Table 5: TAG Messages
Tag Message Reason
ST O R E D TA G ##
OF 64
If the Tag data is ready, and
[ISR] button on the remote
control is pressed
SENDING TAG ## Tag data is sending to iPod
MEMORY FULL Tag storage is full
TAG DATA IS NOT
AVAILABLE
Tag data is not available
IPOD FULL iPod memory is full
TAG NOT SUPPORT When connect and press
[ISR] button on the remote
control, the iPod without
Tagging function
Note:
Tags saved to your iPod can be managed
using the iTunes software, available at www.
apple.com/itunes.
Downloading tags to your iPod
To download tags to your iPod, plug your
iPod into the unit. All existing tags are
automatically transferred to the iPod and
deleted from the head unit’s memory. If your
iPod is connected when a song is tagged,
the Tag will be immediately transferred to the
iPod.
Note:
When transferring Tags to your iPod, the
unit must remain in HD RADIO mode. To
purchase tagged songs, you must sync your
iPod to iTunes and then click the “Tagged”
list on the left side of the iTunes software
screen. Click the “view” button for purchasing
information.
Note:
1. How to enter the iTunes tagging function?
“TAG” and “DIGITAL” light up wh en
Tagging function is ready, press [ISR]
button on the remote control to start
iTunes Tagging.
2. What is seen on the radio’s display to let
me know I have tagged the tune?
Press [ISR] button on the remote control
to show “STORED TAG ## OF 64”. After
connect to your iPod, the display shows
“SENDING TAG ##”.
If no connection, the display will show
“STORED TAG ## OF 64”. You could
save 64 Tag into E2PROM in total. When
you connect to your iPod, Tag information
will be saved in the iPod, and the data in
E2PROM will be cleared.
3. Then how do I get the tagged tune from
my iPod to the computer?
If you have install iTunes, connect your
iPod to your computer and buy songs
online.
![](/img.php?id=1602125&img=bg9.png)
English
8
FZ502
SiriusXM Satallite Radio Operations SiriusXM Satallite Radio Operations
SiriusXM Tuner operation:
When a SiriusXM Tuner is connected to this
unit, the following operations may performed.
Receiving Channels with the
SiriusXM Tuner
About SiriusXM Satellite Radio
Everything worth listening to is on SiriusXM.
get over 130 channels, including the
most commercial-free music,plus the best
sports,news,talk and entertainment. A SiriusXM
Tuner and Subscription are required. For more
information,visit www.siriusxm.com.
Notes:
• The SiriusXM Tuner Satellite Radio controls
on this unit are available only when a
SiriusXM Tuner is connected.
1. Press [SRC / ] button to activate the
Satellite Radio(SIRIUSXM) mode.
2. Press[ ] or [ ] to select the desires
channel.
Holding down [ ] or [ ] will rapidly
browse through the channels.
alternatively,you can enter the number of the
desired channel using the numeric keypad
on an optional remote control.
Checking the SiriusXM Radio ID Number
To subscribe to the SiriusXM Satellite Radio
service,it is necessary to locate and identify the
Radio ID of your SiriusXM Tunner. The Radio
ID contains 8 characters and can be found on
the bottom of your SiriusXM Tunner or can
be displayed on when selecting Channel 0 by
following the steps below:
1. While in the Satellite Radio Mode,press [
] or [ ] to select channel “0”.
The unit displays “RADIO ID” and ID number
alternately.
Notes:
• The Radio ID does not include the letters
I,O,S or F.
2. To canel the ID number display,select a
channel other than “0”.
Storing Channel Presets
1. Press [BAND] to select the desired band you
want to store the preset in.
There are 3 Satellite Radio Preset bands.
Each press of [BAND] changes the band:
SXM1 -> SXM2 -> SXM3 -> SXM1
2. Tune to the desired channel and
then press and hold one of the preset
buttons (1 through 6),for at least 2
seconds, to store the channel.
The display then shows the stored
Band and p r e s e t
number (for example, SXM1-3 is
shown when preset 3 of band 1 is
selected).
3. Repeat the procedure to store up to 5
other channels on to the same band.
Notes:
• A total of 18 channels can be stored in
the preset memory, 6 channels for each
band (SXM1,SXM2 and SXM3).
• If you store a new channel into a preset
which the new one.
Tuning Channels using Presets
1. Press [BAND] to select the desired
band of Presets you wish to access.
2. Press the preset buttons (1 through 6)
that has your desired Satellite Radio
channel stored in memory.
Category Browsing
1. Pre ss [ ] or [ ] in the select the
SiriusXM mode to activate the Category
Browsing mode.
2. Press [ ] or [ ] to select desi red
category.
3. Rotate the [VOLUME] knob to select
to desired channel within the selected
Category, and then press [VOLUME]
enter.
Notes:
• If no operation is perfprmed for 10
seconds, the Category Browsing mode
is canceled.
Tuning Channels using Presets
While listening to SiriusXM Satellite Radio,
you can be alerted when your favorite
songs or artists are playing on other
channels. An interruption ALERT will be
dispalyed when a matching artist or song
is found on another channels.
1. Press and hold FUNC./VIEW for at least
2 seconds when a Song or the song of
an Artist you want to store is playing.
The [F] indicator lights up.
2. Press the 1 (preset) button to store the
Artist/Song.
A note to memorize the ART(artist
name) or the SNG(song title) is displayed.
Notes:
• If either the artist or song title is not
available to save,UNAVAILABL will be
displayed.
3. Rotate the [VOLUME] knob to choose
SAVE ART or SAVE SNG(when available)
and then press [VOLUME] knob enter.
4. The new alert was stored in memory.
An “ART/SONG SAVED” pop-up screen is
following by an “XU(sed)/YE(mpty)”.
X is the total number of song titles or artist
names stored in memory, and Y is the total
number of memory locations still available
for storage.
Notes:
• If you try to store when memory is full,“MEM
FULL” is displayed followed by “REPLACE/
CANCE L”. If you wan t to re place an
existing alert item, select “REPLACE” by
rotating the [VOLUME] knob, and then
press [VOLUME] enter,the existing alert list
stored in memory is displayed. Select one
of the stored alerts using the [VOLUME]
knob.To replace the selected alert,press
[VOLUME] knob and an “ART/SONG
SAVED” pop-up screen is followed by an “X
U(sed)/Y E(mpty)”.
• You can manage the stored Alert momory
setting on steup mode.
• If no operation is perform for 10 seconds,
the setting mode is canceled.
Receiving and Tuning to an Alert
Whenever a stored sports team,artist,or song
is playing on another channel,an interruption
ALERT appears on the unit display.To
tune to game,aitist or song identified by the
alert,follow the steps below:
1. Rotate the [VOLUME] knob to select the
desired game,artist or song from the list of
active alerts.
2. Press [VOLUME] knob enter.
Notes:
• If no operationg is performed for 5
seconds,the unit returns to normal mode.
• Sports teams/Artist name and Song title
which you have stored and which are
currently playing will be displayed in s
category called “MY GAMES”/“MY MUSIC”
in search mode.
Search Function
You can search for SiriusXM programming
content by Category or by Channel.
1. Press [VOLUME] knob in the SiriusXM
mode.
2. Rotate the [VOLUME] knob to select
the desired Category/Channel, and then
press [VOLUME] knob enter.
Notes:
• During channel search,pressing [ ] or
[ ] to select another Category.
Receiving and Tuning to an Alert
1. When SiriusXM mode,select your favorite
SiriusXM Channel.
2. Press and hold [ ] for at leadt 2 seconds.
The channel you selected is stored as the
jump Source.
3. Press and hold [ ] for at least 2 seconds
to recall and tune to the saved jump
Source channel.
Notes:
• Pressing and holding [ ] again for at 2
seconds will jump back to the revious
mode or SiriusXM channel.
Instant Replay Function
When SiriusXM mode,you can pause,rewind
anf replay up to 30 minutes of live SiriusXM
Satellite Radio.
1. While listening to a SiriusXM channel
,press [ ] to enter the Replay
mode,which mutes the audio.
The display will show“PAUSE” while in
this mode.
2. Press [ ] again to resume playback of
the stored audio from the point at which it
was paused.
During playback,the SiriusXM Tuner will
continue to store the channel audio until
you exit thr Instanr Replay mode(up to 30
minutes).
During REPLAY playback:
• Fast rewind: Press and hold [ ].
• Fast forward: Press and hold [ ].
• Returning to the beginning of the current
song:
Press [ ].(If you press [ ] in the
rst 2 seconds of a song,you return to the
beginning of the previous song.)
• Advancing to the beginning of the next
song: press [].
![](/img.php?id=1602125&img=bga.png)
English
9
FZ502
Notes:
• If you continue to press Fast forward until the
end,the Instand Replay mode is canceled,
and the unit will change to live SiriusXM radio
mode.
• If you change channels while in Replay
mode,the unit will exit Replay mode to live
Satellite Radio mode and clear the Replay
memory.
Using iTunes tagging
iTunes Tagging lets you tag songs you hear on
SiriusXM channels with your new CZ702 and
then preview, buy, and download then later from
your iTunes Tagged playlist the next time you
sync your iPod/iPhone.
Notes:
• For details on the iPod/iPhone modes usable
with this unit,refer to “Connecting an iPod/
iPhone” on page 9.
1. A song may be tagged while listening to a
SiriusXM channel if the display shows the
“Tag” icon.
2. Press and hold Tag for at least 2 seconds
while the desired song is playing.
The “Tag” blinks at the same time the
“TAGGING” is displayed.
3. When completed, “TAG STORED” is
displayed and the “Tag” indicator lights up.
Notes:
• During tagging, the iPod/iPhone takes
priority to save the tag information.If no iPod/
iPhone is connected, the tag information is
saved to this unit.
• When the memory of iPod/iPhone is full,“iPod
FULL” is displayed. The tag informationg will
be stored to the unit.
• If the tagging operation is interrupted by
a source or channel change, the tagging
operation will be canceled and the unit may
not display “CANNOT TAG”.
• This unit can store up to 50 pieces of tag
information. When the memory of the unit is
full, “MEMO FULL” may be displayed.
• When iPod/iPhone that doesn’t support
the tagging function is connected, “NON-
TAGGING IPOD” may be displayed.
• When the iPod/iPhone is disconnected from
the unit during tagging, its tag information will
be stored in the unit.
• If there is stored tag information on the
unit, when an iPod/iPhone supporting
the tag function is connected, the stored
tag information will be transferred to
be iPod/iPhone automatically. When
the iPod/iPhone memery becomes full,
“iPod FULL” will be displayed, and any
remaining tag information on the unit will
not be transferred to the iPod/iPhone.
• If tag information already exists,
“ALREAGY TAGGED” will be displayed
when you try to tag information again.
• Tagging may be canceled by changing
th e fre q uency or st ation , and t he
message “CANNOT TAG” ,etc, may not
be displayed.
• If a song is tagged and the remaining
storage volume of the connected iPod/
iPhone is sufficient to hold the song’s
tag information, it will be saved on the
iPod/iPhone.
• If there is stored tag information on
CZ702, when iPod/iPhone models
supporting the tag function are
connected, the Tag information will be
transferred to be the iPod/iPhone with
which the USB terminal is activated
automatically. When the iPod/iPhone
memery becomes full, “iPod FULL”
will be displayed,and any remaining
tag information on the unit will not be
transferred to be iPod/iPhone.
Changing the Display
Text information, such as the channel
name, artist name/feature and song/
program title, is available with each
SiriusXM channel. The unit can display this
text information as explained below.
1. In SiriusXM mode, press VIEW.
Each time you press this button, the
display changes as shown below.
Band/channel Number -> Clock ->
Channel Name* -> Artist Name* ->
Song Title* -> Content info.* -> Category
Name* -> Band/Channel Number
* If there is no text information,nothing will
be displayed.
SiriusXM Satallite Radio Operations
1. Move the cover of the USB slot to the left.
Insert a USB cable (CCA-755) into the
USB slot. Insert a USB device into the USB
cable.
When connecting a USB device, the unit
will read the les automatically.
2. To remove the USB device, you should rst
select another source or turn off the power,
in order to avoid damaging the USB device.
Then take off the USB device. Move the
cover to the right.
USB Operations
CCA-755
Folder Select
This function allows you to select a folder
containing MP3/WMA les and start playing
from the rst track in the folder.
1. Press and hold [CONTROL] knob (up) on
the panel.
Press and hold [CONTROL] knob (up) on
the panel to move the next folder.
2. To select a track, press the [CONTROL]
knob (right / left) on the panel or [ , ]
button on the remote control.
Search Function
1. Press the [CONTROL] knob (up) to enter
FOLD SCH mode, and press [CONTROL]
knob (center) to comfirm, then rotate
[CONTROL] knob to select the folder list
search mode.
2. Rotate the [CONTROL] knob to select a
folder.
3. Press the [CONTROL] button (center) to
enter the file list search mode. And then
the track list appears in the display.
4. Turn the [CONTROL] knob to select a
track.
5. Press the [CONTROL] knob (center) to
play.
* When play back MP3 / WMA file, this
function is performed in the current folder.
Top function
The top function resets the USB player to the
rst track of the USB device. Press and hold the
[ CONTROL ] knob (down) to play the first
track (track No. 1) on the USB device.
* In case of MP3/WMA, the rst track of the
current folder will be played.
Pausing play
1. Press the [ ] button on the remote control
to pause play.
“PAUSE” appears in the display.
2.
To resume MP3/WMA play, press the [ ]
button on the remote control again.
Selecting a track
Track-up
1. Press the [CONTROL] knob (right) on the
panel or [ ] button on the remote control
to move to the beginning of the next track.
2. Each time you press the [CONTROL] knob
(right) on the panel or [ ] button on the
remote control, the track advances to the
beginning of the next track.
Track-down
1. Press the [CONTROL] knob (left) on the
panel or [ ] button on the remote control
to move back to the beginning of the current
track.
2. Press the [CONTROL] knob (left) on the
panel or [ ] button on the remote control
twice to move back to the beginning of the
previous track.
Fast-forward/Fast-reverse
Fast-forward
Press and hold the [CONTROL] knob (right) on
the panel or [ ] button on the remote control.
Fast-reverse
Press and hold the [CONTROL] knob (left) on
the panel or [ ] button on the remote control.
* For MP3/WMA USB device, it takes
some time until the start of searching and
between tracks. In addition, some errors
may occur in the play time.
![](/img.php?id=1602125&img=bgb.png)
English
10
FZ502
USB Operations
Other various play functions
Scan play
This function allows you to locate and play
the rst 10 seconds of all the tracks recorded
on a USB.
Press the [ SCN/PS/AS ] button on the
remote control to perform scan play.
Repeat play
This function allows you to play the current
track repeatedly or play a track currently
being played in the MP3/WMA folder
repeatedly.
1. Press the [ RPT ] button on the remote
control once or more until “TRK RPT”
appears on the display to perform repeat
play, and “RPT” segment lights on.
2. For MP3/WMAles,press[ RPT ] button
on the remote control repeatedly until “FOLD
RPT” appears on the display for folder
repeat play.
3. Press [ RPT ] button on the remote control
repeatedly until “RPT OFF” appears on
the display to cancel repeat playback, and
“RPT”segmentgoeso.
Random play
This function allows you to play all tracks
recorded on a USB device in a random order.
Press the [ RDM ] button on the remote control
to perform random play.
iPod & iPhone Operations
Connect
Connect your iPod or iPhone to the USB slot
via CCA-748 cable.
When connecting a device, the unit will read
the files automatically. The track information
display on the screen once playback start.
MENU
In the S-CTRL OFF mode, press the
[CONTROL] knob (up), rotate the knob select
“MUSIC” or “VIDEO”.
Select “MUSIC”, press the [CONTROL] knob,
then rotate the [CONTROL] knob to show
PLAY LISTS / ARTISTS / ALBUMS / GENRES
/ SONGS / COMPOSERS, then press the
[CONTROL] knob to conrm.
Select “VIDEO”, press the [CONTROL] knob,
then rotate the [CONTROL] knob to show
MOVIES / MUSIC VIDEO / TV SHOWS /
VIDEO PODCASTS / RENTALS, then press
the [CONTROL] knob to conrm.
NOTE:
• In case of VIDEO Playback, CCA-748 cable
and monitor (sold separately) are required.
• VIDEO MENU item is different by the model
of connected iPod and language setting.
Repeat play
This function allows you to play the current
track repeatedly or play all tracks in your
iPod/iPhone repeatedly.
1. Press the [RPT] button on the remote
control once or more until “RPT ON”
appears on the LCD to perform repeat
play.
2. Press [RPT] button on the remote control
repeatedly until “RPT OFF” appears on
the LCD to cancel repeat playback.

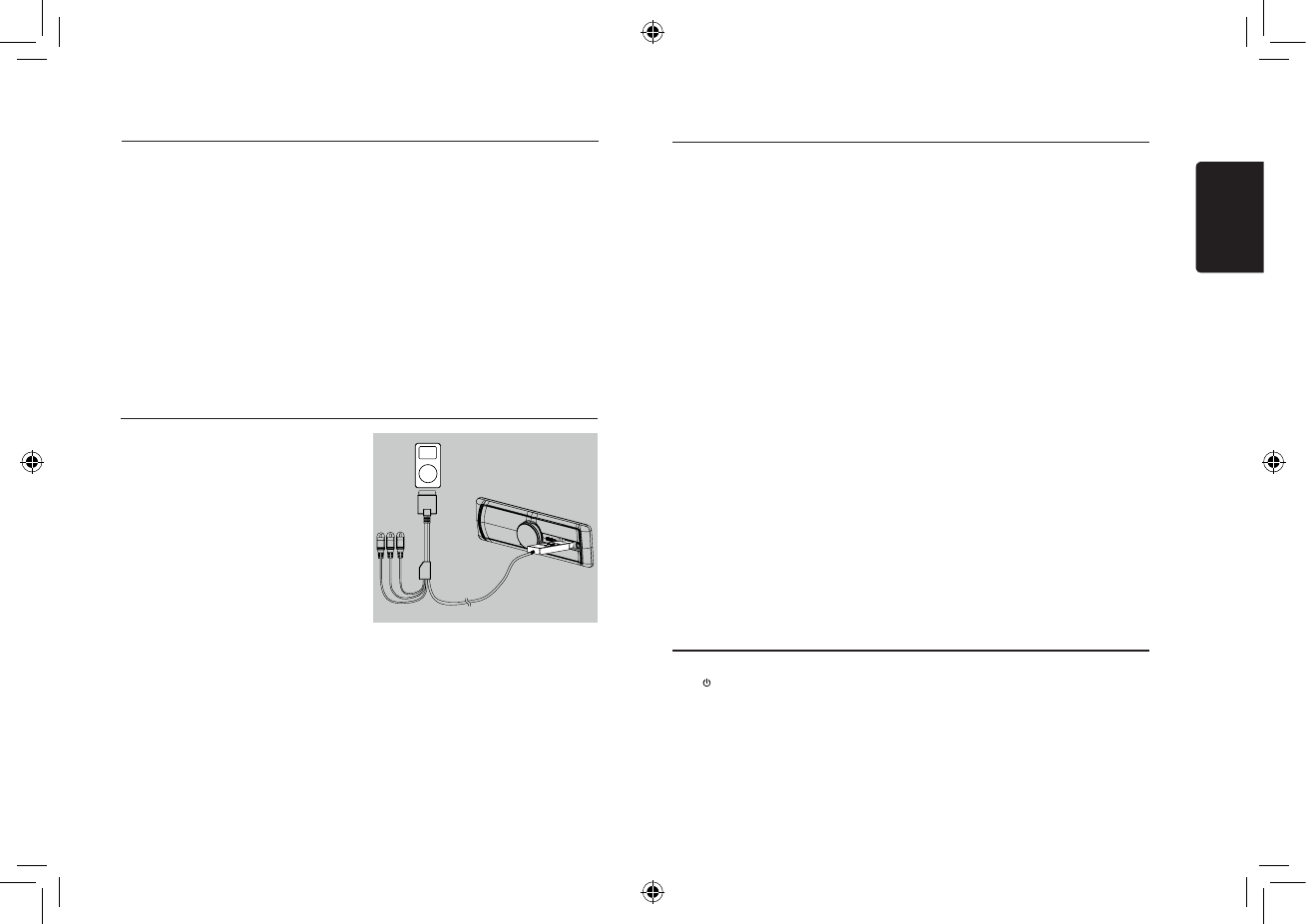

Monitor
CCA-748
iPod & iPhone Operations
Random play
This function allows you to play all tracks in a
random order.
1. Press the [RDM] button on the remote
control once or more until “RDM ALBUM”
appears on the LCD for album random play.
2. Press the [RDM] button on the remote
control once or more until “RDM SONG”
appears on the LCD to perform random
play.
3. Press the [RDM] button on the remote
control once or more until “RDM OFF”
appears on the LCD to cancel random
playback.
Setting iPod simple control mode
Use this function if you wish to operate
through your iPod connected to this unit via
the USB cable.
* The factory default setting is “ OFF “.
1. Press and hold [CONTROL] knob (center),
and rotate the [CONTROL] knob choose
ADJUST, then press the [CONTROL] knob
(center) to enter system setup.
2 Press the [CONTROL] knob (left / right) to
select “ S-CTRL“.
3. Rotate the [CONTROL] knob to select “
ON “ or “ OFF “ .
• ON: Operations are made through your
iPod.
• OFF: Operations cannot be made
through your iPod.
Notes:
• When performing iPod operations using
simple control mode, make the operations
slowly. If repetitive operations are
performed too quickly, unforeseen errors
may occur.
• When performing iPod operations using
simple control mode, please do not
operate the iPod and the unit at the same
time, otherwise there may be unexpected
event happened.
• Some iPod models do not support this
function. Consult your nearest Clarion
dealer or website to conrm which models
do not support this function.
iPod menu alphabet search
This function searches the subfolders for
desired alphabetical letters.
1. Press the [CONTROL] knob (up), and
rotate [CONTROL] knob to select the iPod
menu mode.
2. Rotate the [CONTROL] knob to switch
between categories.
MUSIC: PLAYLISTS, ARTISTS, ALBUMS,
GENRES, SONGS, COMPOSERS
VIDEO: MOVIES, MUSIC VIDEOS, TV
SHOWS VIDEO PODCASTS, RENTALS
3. Press the [CONTROL] knob. (The contents
of the category are displayed.)
4. Press and hold the [CONTROL] knob
(down).
5. Rotate the [CONTROL] knob to select the
desired letter to search.
6. Press the [CONTROL] knob to perform
search.
Press the [CONTROL] knob on the panel or
[SRC/ ] button on the remote control once or
more to select “AUX”.
AUX is just for audio content with 3.5mm
Jack connector plugged into audio-in socket
on the front panel on the right of USB slot.
AUX Input sensitivity setting
1. Press and hold the [CONTROL] knob .
2. Turn the [CONTROL] knob to select “AUX
SENS”.
AUX Operations
3. If the output level of connected external
audio player is “HIGH”, rotate the
[CONTROL] knob and choose “LOW”.
And if the output level is “LOW”, choose
“HIGH”.
![](/img.php?id=1602125&img=bgc.png)
English
11
FZ502
audio data such that it can be processed as
a steady and continuous stream. Users can
stream music from their external audio player
to their car stereo wirelessly and listen to the
tracks through the car’s speakers. Please
consult your nearest Clarion dealer for more
information on the product of wireless audio
streaming transmitter offered.
CAUTION
Please avoid operating your connected
mobile phone while audio streaming as
this may cause noise or sound choppy on
the song playback.
Audio streaming may or may not resume
after tele p h o n e i n t e r r u p t as this i s
dependent on mobile phone.
System will always return to Radio mode
if audio streaming is disconnected.
Note:
Be sure to read the chapter “Pairing” before
proceeding.
Play / Pause a track
1. Push the [CONTROL] knob (down) to
pause audio playback.
2. To resume audio playback, push the
[CONTROL] knob (down) again.
Selecting a track
Track-up
1. Press the [CONTROL] knob (right) to
move to the beginning of the next track.
2. Each time the [CONTROL] knob (right)
is pressed, playback proceeds to another
track in the advancing direction.
Track-down
1. Press the [CONTROL] knob (left) to move
to the beginning of the previous track.
2. Each time the [CONTROL] knob (left) is
pressed, playback proceeds to previous
track in the reverse direction.
Note:
Playing order will depend on Bluetooth audio
Bluetooth Operations
player. When [CONTROL] knob (left) is
pressed, some A2DP devices will restart
the current track depends on the duration of
playback.
During music streaming playback, “A2DP”
will be shown on the display. Information
about tracks (e.g. the elapsed playtime, song
title, etc.) cannot be displayed on this unit.
When A2DP device is disconnected, “BT
DISCONNECT” will be shown on the display
and return to previously selected audio
source. Some Bluetooth audio players may
not have play / pause synchronized with this
unit. Please make sure both device and main
unit are in the same play / pause status in BT
MUSIC mode.
Bluetooth Operations
The Bluetooth allows you to utilize your car’s
built-in audio system for wireless mobile
phone or music handsfree communication.
Some Bluetooth mobile phones have the
audio features, and some portable audio
players support Bluetooth feature. This
system can play audio data stored in a
Bluetooth audio device. The car stereo with
Bluetooth will be able to retrieve phonebook
contacts, received call, dialed call, missed
call, incoming calls, outgoing call and listen
to music.
Note:
• Leaving it exposed to high temperatures
or direct sunlight can cause distortion
or discoloration which may result in a
malfunction.
• This system will not operate or may
operate improperly with some Bluetooth
audio players.
• Clarion cannot guarantee the compatibility
of all mobile phones together with unit.
• Audio playback will be set to the same
volume level as set during telephone call.
This might cause problems, if extreme
volume level is set during telephone call.
Handsfree Operations
Pairing
1. Turn on Bluetooth function of your mobile
phone.
2. Enter mobile phone’s Bluetooth setup
menu.
3. Search for new Bluetooth devices.
4. Select FZ502 from the pairing list on the
mobile phone.
5. Ente r “0000” as the password (The
password default setting is “ 0000 ”).
6. After pairing successfully, the unit will
enter Bluetooth mode automatically, and
“BLUETOOTH CONNECTED” will appear
on the LCD.
Making a call
Operation from Bluetooth menu
Press the [CONTROL] knob to switch the
source to “BLUETOOTH”.
• Dial Number
Press and hold the [CONTROL] knob (center)
choose
ADJUST
, then rotate the [CONTROL]
knob select CALL LST.
1. Press the [CONTROL] knob.
2. Rotate the [CONTROL] knob on the front
panel to switch: DIAL NUMBER / DIALLED
CALL / MISSED CALL / RECEIVED
CALL / MEMORY PHONEBOOK / SIM
PHONEBOOK
3. Press the [CONTROL] knob to conrm the
selection, “WAITING” will appear on the
LCD.
4. Press the [CONTROL] knob to dial.
5. Press the [CONTROL] knob (right) to
terminate call.
• Dialled/Missed/ Received Call History
You can search any Dialled/Missed/Received
Call History.
1. Rotate the knob to select “DIALED CALL”,
“MISSED CALL” or “RECEIVED CALL”.
2. Press the knob to enter the selected call
history.
3. Rotate the [CONTROL] knob to scroll the
contacts.
4. When the contact name or mobile phone
No. is displayed, press the [CONTROL]
knob (center) to call the mobile phone No.
of that contact.
* Press the [CONTROL] knob (right) to
end the call.
• Call from Phonebook
User can search the contact name in the
phonebook and make call.
1. Rotate the [CONTROL] knob to select “SIM
PHONE BOOK” or “MEMORY PHONE
BOOK“ .
2. Press the [CONTROL] knob (center) to
enter the selected phonebook.
3. Rotate the [CONTROL] knob to scroll the
contacts.
4. When the contact name is displayed, press
the [CONTROL] knob (center) to call the
mobile phone No. of that contact.
* Press the [CONTROL] knob (right) to
end the call.
• Answering a call
You can answer an incoming call by pressing
the [CONTROL] knob.
* Press the [CONTROL] knob (right) to reject
an incoming call.
Audio Streaming Operations
What is audio streaming?
Audio streaming is a technique for transferring
![](/img.php?id=1602125&img=bgd.png)
English
12
FZ502
5. TROUBLE SHOOTING
GENERAL
Problem Cause Measure
Unit can not
power on.
Unit fuse blown. Replace with new fuse of correct rating.
Car battery fuse blown. Replace with new fuse of correct rating.
Unit can not
power on.
Nothing happens
when buttons are
pressed.
Display is not
accurate.
The microprocessor has
malfunctioned due to noise, etc.
Turnothepower.
Press the [RESET] button with a thin rod.
Note:
When the [RESET] buttonispressed,turno
the ACC power.*
* When the [RESET] button is pressed,
frequencies of radio stations, titles, etc. stored
in memory are cleared.
No/low audio
output.
Improper audio output connection. Check wiring and correct.
Volume set too low. Increase volume level.
Speakers damaged. Replace speakers.
Heavily biased volume balance. Adjust the channel balance to center position.
Speaker wiring is in contact with
metal part of car. Insulate all speaker wiring connections.
Poor sound quality
or distortion.
Speaker power rating does not
match unit. Replace speakers.
Wrong connections. Check wiring and correct.
Speaker is shorted. Check wiring and correct.
Unit resets itself
whenengineiso.
Incorrect connection between
ACC and Battery. Check wiring and correct.
6. ERROR DISPLAYS
Display Cause Measure
ERROR 2 Do not support iPod & iPhone. Change another device.
* The head unit will return to RADIO mode.
If an error occurs, one of the following displays is displayed.
Take the measures described below to solve the problem.
If an error display other than the ones described above appears, press the [RESET] button. If
the problem persists, turn off the power and consult your store of purchase.
* When the [RESET] button is pressed, frequencies of radio stations, titles, etc. stored in
memory are cleared.
USB Devices
Problem Cause Measure
USB device cannot
be inserted.
The USB device has been
inserted with wrong direction.
Reversing the connection direction of the USB
device, try it again.
The USB connector is broken. Replace with a new USB device.
USB device is not
recognized.
The USB device is damaged. Disconnect the USB device and reconnect. If
the device is still not recognized, try replacing
with a different USB device.
Connectors are loose.
No sound heard
with the display “No
File” shown.
No MP3/WMA le is stored in
the USB device. Store these les properly in the USB device.
Sound skips or is
noisy.
MP3/WMA les are not encoded
properly. Use MP3/WMA les encoded properly.
Bluetooth
Problem Cause Measure
Cannot pair the
Bluetooth enabled
device with the car
audio system.
The device does not support the
proles required for the system. Use another device to connect.
The Bluetooth function of the
device is not enabled.
Refer to the user manual of the device for how
to enable the function.
The audio quality
is poor after
connection with a
Bluetooth-enabled
device.
The internal microphone gain is
not set correctly.
Adjust the gain of the internal microphone in
System Setup.
The external microphone is
not set correctly nor properly
positioned.
Adjust the gain and position of the external
microphone.
For example, stick the microphone onto the
dashboard so it is close to the driver.
![](/img.php?id=1602125&img=bge.png)
English
13
FZ502

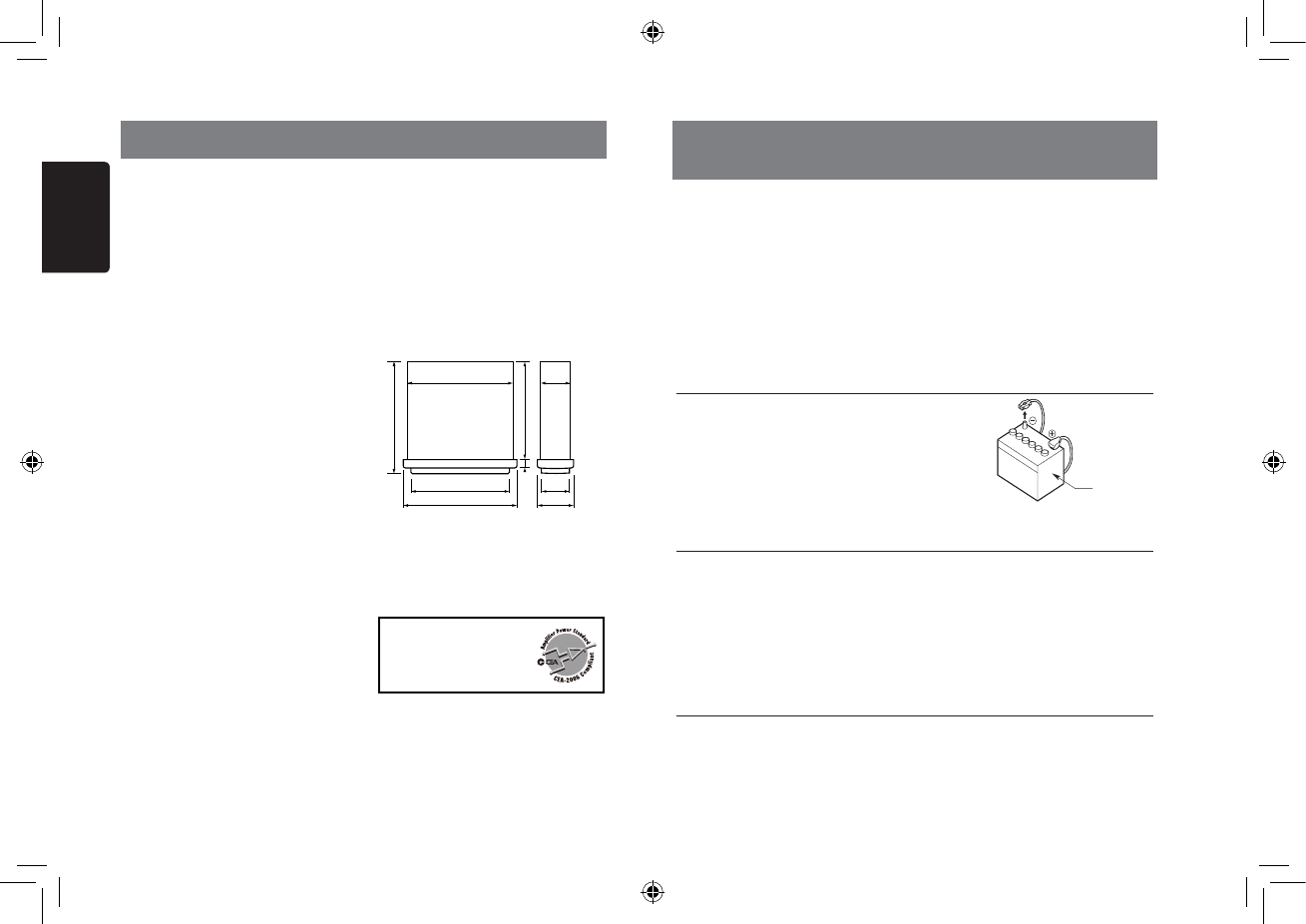

8. INSTALLATION / WIRE
CONNECTION GUIDE
1) Before Starting
1. This set is exclusively for use in cars with a
negative ground 12 V power supply.
2. Read these instructions carefully.
3. Be sure to disconnect the battery “terminal” before
starting. This is to prevent short circuits during
installation. (Figure 1)
2) Package Contents
3) General Cautions
1. Do not open the case. There are no
user serviceable parts inside. If you
drop anything into the unit during
installation, consult your dealer or an
authorized Clarion service center.
2. Use a soft, dry cloth to clean the case.
Never use a rough cloth, thinner,
benzine, or alcohol etc. For tough dirt,
apply a little cold or warm water to a
soft cloth and wipe off the dirt gently.
CONTENTS
1) Before Starting ...................................................................... 25
2) Package Contents ................................................................. 25
3) General Cautions .................................................................. 25
4) Cautions on Installation ......................................................... 26
5) Installing the Source Unit ...................................................... 26
6) Removing the Source Unit .................................................... 28
7) Wiring and Connections ........................................................ 29
8) Connecting the accessories .................................................. 30
Source unit .......................................... 1
Trim ring .............................................. 1
Mounting bracket ................................. 1
Screws M5x6 mm ................................ 4
L-key .................................................... 2
Wire connector .................................... 1
Owner’s manual................................... 1
Warranty card ...................................... 1
Remote control (with battery) .............. 1
Car battery
Figure 1
FM Tuner
Frequency range: 87.9-107.9MHz
Usable sensitivity: 8dBμ
Frequency response: 30Hz-15kHz
Stereo separation: 30dB(1kHz)
Signal/noise ratio: >55dB
AM Tuner
Frequency range: 530-1710kHz
Usable sensitivity (S/N=20dB): 30dBμ
MP3/WMA mode
MP3 sampling rate: 8 kHz to 48 kHz
MP3 bit rate: 8 kbps to 320 kbps / VBR
WMA bit rate: 8 kbps to 320 kbps
Logical format: ISO9660 level 1,2
Joliet or Romeo le system
USB
Specication: USB 1.0/2.0
Playable audio format:
MP3(.mp3): MPEG 1/2/Audio Layer-3
WMA(.wma): Ver 7/8/9.1/9.2
Bluetooth
Specication: Bluetooth Ver. 2.0+EDR
Prole: HFP (Hands-free Prole)
PBAP(Phone Book Access Prole)
A2DP (Advanced Audio Distribution Prole)
AVRCP (AV Remote Control Prole)
Send/Receive Sensitivity: Class 2
Audio Amplier
Maximum power output:
200W (50W x 4)
Speaker impedance: 4Ω (4 to 8Ω allowable)
Input
Audio input sensitivity:
High: 320mV (at 1V output)
Mid: 650mV (at 1V output)
Low: 1.3V (at 1V output)
(input impedance 10 kΩ or greater)
Aux-in level: ≤2V
General
7. SPECIFICATIONS
Power supply voltage:
14.4VDC (10.8 to 15.6V allowable),
negative ground
Fuse: 15A
Dimensions of the Main Unit:
188mm Width × 58mm Height × 190mm Depth
7-2/5(width) × 2-7/25(Height) × 7-12/25(Depth)
Weight of the Main Unit: 1.94lb. (0.88kg)
Dimensions of the Remote Control unit:
52mm Width × 7.5mm Height × 85.5mm Depth
2-3/64(Width) × 19/64(Height) × 3-11/32(Depth)
Weight of the Remote Control Unit:
0.77oz. (24g) (including battery)
Notes:
• Specifications and design are subject
to change without notice for further
improvement.
Power Output:
18W x 4 Channels RMS
(4Ω@14.4V≤1% THD+N)
Signal to Noise Ratio:
79 dBA (reference: 1 W into 4 Ω)
6-2/3” 170mm
7-2/5”
188mm
2-7/25” 58mm
6-2/5” 163mm
1/2” 14 m
1-4/5” 46mm
2” 50mm
7” 178mm
7-12/25” 190mm
m
![](/img.php?id=1602125&img=bgf.png)
English
14
FZ502
4) Cautions on Installation
1. Prepare all articles necessary for
installing the source unit before
starting.
2. Install the unit within 30° of the
horizontal plane. (Figure 2)
3. If you have to do any work on the car
body, such as drilling holes, consult
your car dealer beforehand.
4. Use the enclosed screws for
installation.
Using other screws can cause
damage. (Figure 3)
5) Installing the Source Unit
1. Place the mounting bracket into the instrument panel, use a screwdriver to bend
each stopper of the mounting bracket inward, then secure the stopper.
2. Wire as shown in Section 7) .
3. Insert the source unit into the mounting bracket until it locks.
4. Take care of the top and bottom of the trim ring and mount it so that all the hooks
are locked.
Notes:
1. Some car models require special mounting kits for proper installation. Consult your
Clarion dealer for details.
2. Fasten the front stopper securely to prevent the source unit from coming loose.
• Console opening dimensions
Max 30˚
Chassis Chassis
Damage
Max. 6 mm (M5 screw)
Figure 2 Figure 3
(182 mm)
7-3/16"
2-1/8"
53 mm
Hole
Notes of installation
1. Before installation, please make sure
proper connections are conducted and
the unit operates normally. Improper
connection may result in damage to the
unit.
2. Use only accessories designed and
manufactured for this unit and other
unauthorized accessories may result in
damage to the unit.
3. Before installation, please fasten all power
cables.
4. DO NOT install the unit in the place where
close to hot area to prevent damage to
electrical components such as the laser
head.
5. Install the unit horizontally. Installing the
unit more than 30 degree vertically may
result in worse performance.
6. To prevent electric spark, connect the
positive pole rst and then the negative
pole.
7. DO NOT block the cooling fan exit to
ensure sufcient heating dissipation of this
unit, or it may result in damage to this unit.
Unit installation
Method A
1. Insert mounting bracket into dash board,
choose appropriate mounting tab according
to the gap width, bending the mounting
tab outwards with a screwdriver to x the
mounting bracket in place.
2. Slide the unit into the bracket until you hear
a click sound.
Dashboard
Mounting Bracket
Screwdriver
![](/img.php?id=1602125&img=bg10.png)
English
15
FZ502
7) Wiring and Connections
Front audio output terminal
Black
Gray White
White
Left
Right
Red
Red
External microphone
(RCB-199:Sold by
separately)
Rear audio output (Left) /Subwoofer output1
Rear audio output (Right) /Subwoofer output2
SWC
Refer to next page
4 Channel Amplier
Antenna
HD BUS
Black
Black
(Black)
(Black)
(Black)
Steering wheel
control terminal
SIRIUS
HD RADIO
THD301
(Sold by separately.)
SIRIUS Connect™
Vehicle Tuner (SC-C1)
(Sold by separately)
MIC
This HD Radio Ready receiver
is ready to receive HD Radio
broadcasts when connected to the
THD301, sold separetely.
Method B 6) Removing the Source Unit
Mounting Frame
Dashboard
M5x6
1. Insert this unit directly to the opening of
the dashboard.
2. Place M5×6 cylindrical screw through the
holes of the mounting frame located inside
the opening to holes of the unit and fasten
the screws to left & right.
Trim ring installation
Attach the trim ring around the front panel.
Disassemble trim ring
1. Push the trim ring to right and pull out the
right part.
2. Push the trim ring to left and pull out the
left part.
Disassemble the unit
1. Switch off the power.
2. Remove the trim ring.
3. Insert the removal keys straight back until
they lock,then pull the unit out.
4. Disconnect all the wires.
![](/img.php?id=1602125&img=bg11.png)
English
16
FZ502
• Connecting to the external amplier
External ampliers can be connected to the 4 channel RCA output connections.
Ensure that the connectors are not grounded or shorted to prevent damage to the
unit.
8) Connecting the accessories
16-Pin Connector Extension Lead
(attached to the source unit)
Yellow wire (Memory back-up lead)
Red wire (Power lead)
Blue/White wire (Amplier turn-on lead)
Black wire (Ground lead)
Orange/White wire (Illumination lead)
Blue wire (Auto antenna lead)
Connect to remote turn-on lead of amplier
Connect to vehicle chassis ground
Connect it to the car power supply terminal
for illumination
Connect it to the car power supply terminal
for antenna
Connect directly to battery
Accessory 12V
Not used.
Insulate each wire
Front Right
Gray
White
Purple
Green
Gray/Black
White/Black
Purple/Black
Green/Black
Front Left
15A
Front Right
Gray
White
Purple
Green
Gray/Black
White/Black
Purple/Black
Green/Black
4-Speaker system
2-Speaker system
or
Rear Right
Rear Left
Front Left
