English
3 CZ509
Thank you for purchasing this Clarion product.
Please read this owner’s manual in its entirety before operating this equipment.
Check the contents of the enclosed warranty card and keep it carefully with this manual.
Contents
1. FEATURES...................................................................................................................................... 3
2. PRECAUTIONS ............................................................................................................................... 4
3. CONTROLS ..................................................................................................................................... 6
Names of the Buttons and Their Main Functions ............................................................................. 6
4. DCP.................................................................................................................................................. 8
5. REMOTE CONTROL ....................................................................................................................... 9
Functions of Remote Control Unit Buttons ....................................................................................... 9
Inserting the Battery ....................................................................................................................... 10
6. OPERATIONS................................................................................................................................ 11
Basic Operations............................................................................................................................ 11
Radio Operations ........................................................................................................................... 14
CD/MP3/WMA/AAC Operations ..................................................................................................... 15
Bluetooth Operations...................................................................................................................... 19
Operations Common to Each Mode ............................................................................................... 23
7. ACCESSORIES ............................................................................................................................. 26
USB/MTP Operations..................................................................................................................... 26
iPod Operations.............................................................................................................................. 28
Satellite Radio Operations.............................................................................................................. 31
CD Changer Operations................................................................................................................. 33
8. TROUBLESHOOTING................................................................................................................... 34
9. ERROR DISPLAYS ....................................................................................................................... 36
10. SPECIFICATIONS ......................................................................................................................... 37
11. OTHERS ........................................................................................................................................ 38
•Built in Bluetooth® Hnadsfree (HFP) and Audio Streaming (A2DP & AVRCP)
BBE MP for compressed audio improvement
BEAT EQ for Sound Adjustment
1. FEATURES
CZ509_ENG.book Page 3 Monday, December 29, 2008 4:42 PM
English
4CZ509
2. PRECAUTIONS
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation.
This equipment generates, uses, and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful
interference to radio reception, which can be
determined by turning the equipment off and on,
the user is encouraged to consult the dealer or
an experienced radio technician for help.
CAUTION
USE OF CONTROLS, ADJUSTMENTS, OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN, MAY
RESULT IN HAZARDOUS RADIATION
EXPOSURE.
THE COMPACT DISC PLAYER SHOULD NOT
BE ADJUSTED OR REPAIRED BY ANYONE
EXCEPT PROPERLY QUALIFIED SERVICE
PERSONNEL.
CHANGES OR MODIFICATIONS NOT
EXPRESSLY APPROVED BY THE
MANUFACTURER FOR COMPLIANCE
COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
CHANGES OR MODIFICATIONS TO THIS
PRODUCT NOT APPROVED BY THE
MANUFACTURER WILL VOID THE
WARRANTY AND WILL VIOLATE FCC
APPROVAL.

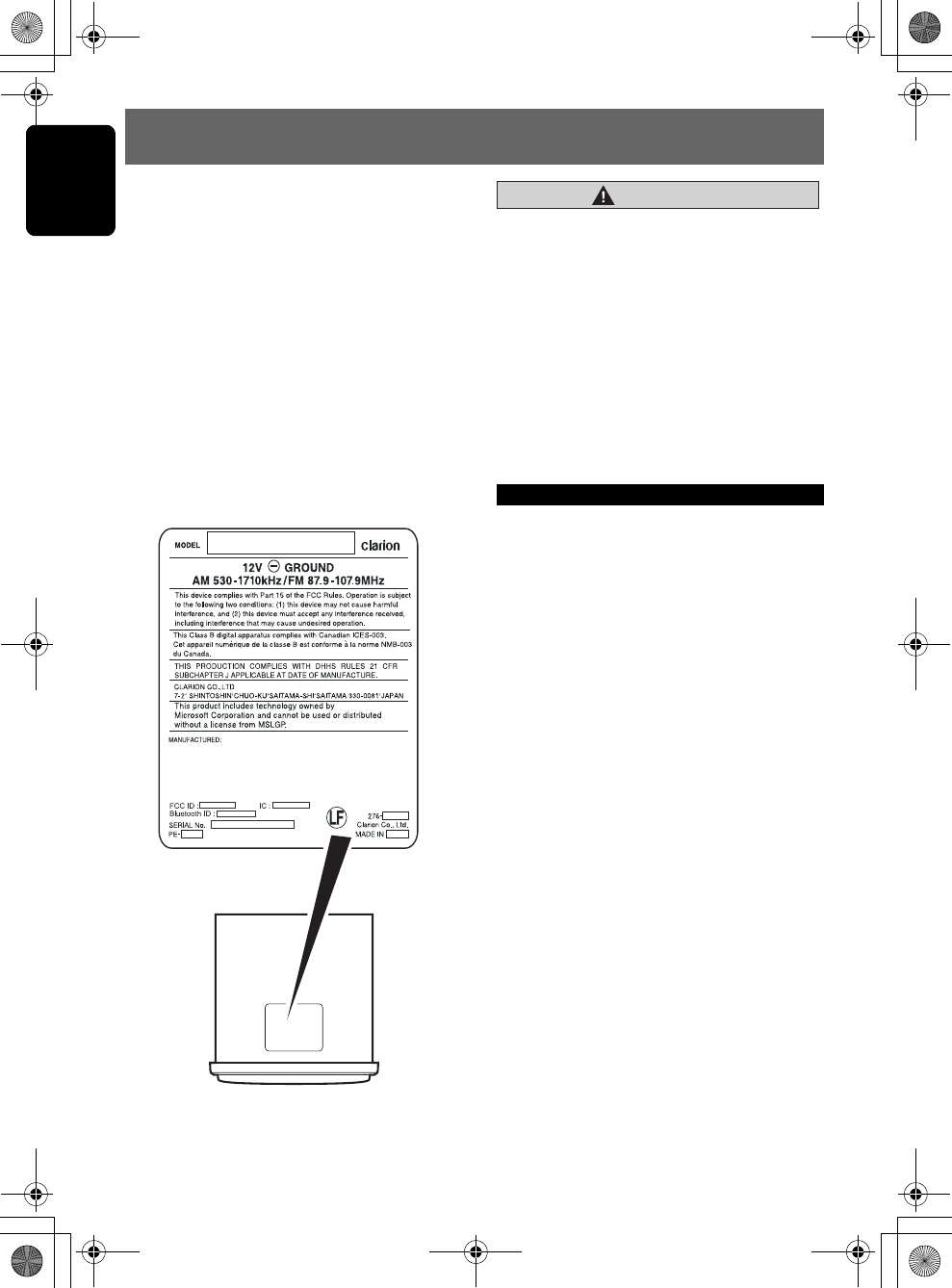

Bottom View of Source Unit
INFORMATION FOR USERS:
CZ509_ENG.book Page 4 Monday, December 29, 2008 4:42 PM
English
5 CZ509

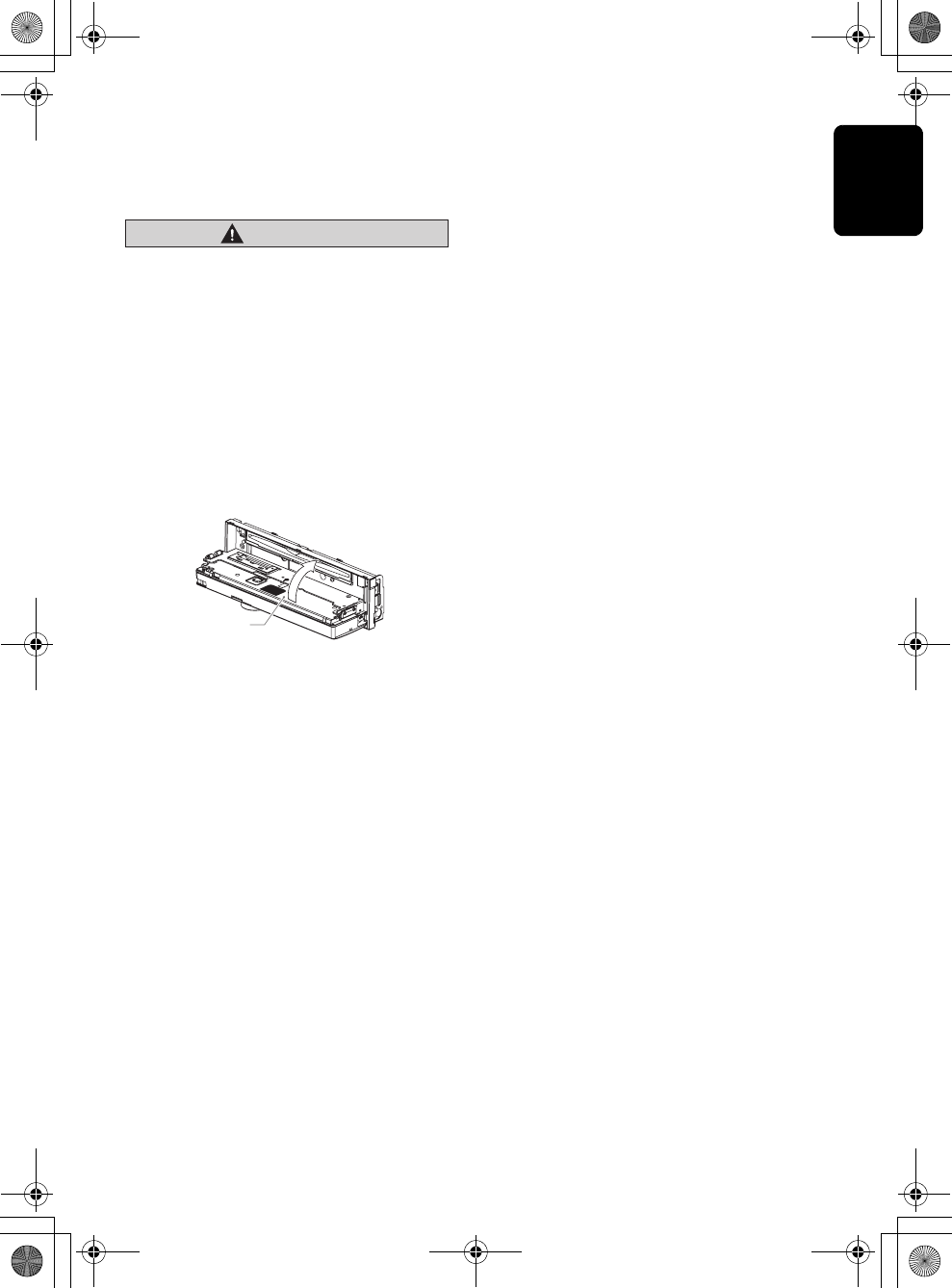

Flip Down Panel
This unit uses a flip-down structure that makes
possible large-size displays.
CAUTION
When opening and closing the FLIP DOWN
PANEL, be careful not to catch your fingers.
They could be injured.
1. Always use this unit with the FLIP DOWN
PANEL closed.
2. Do not force operations or use this device
abnormally when opening or closing the FLIP
DOWN PANEL.
3. Do not use the FLIP DOWN PANEL as a tray
to place objects on when it is open.
4. When closing the FLIP DOWN PANEL, do
not press the [OPEN] button.
Press the center of the DCP to close.
5. Strong impacts to the operating or display
section can cause damage or deformation.
6. If the FLIP DOWN PANEL does not open
fully, gently open it with your hand.
Handling Compact Discs
Compared to ordinary music CDs, CD-R and
CD-RW discs are both easily affected by high
temperature and humidity and some of CD-R
and CD-RW discs may not be played.
Therefore, do not leave them for a long time
in the car.
Never stick labels on the surface of the
compact disc or mark the surface with a
pencil or pen.
Display Screen
In extreme cold, the screen movement may slow
down and the screen may darken, but this is
normal.
The screen will recover when it returns to
normal temperature.
DCP
CZ509_ENG.book Page 5 Monday, December 29, 2008 4:42 PM
English
6CZ509
3. CONTROLS

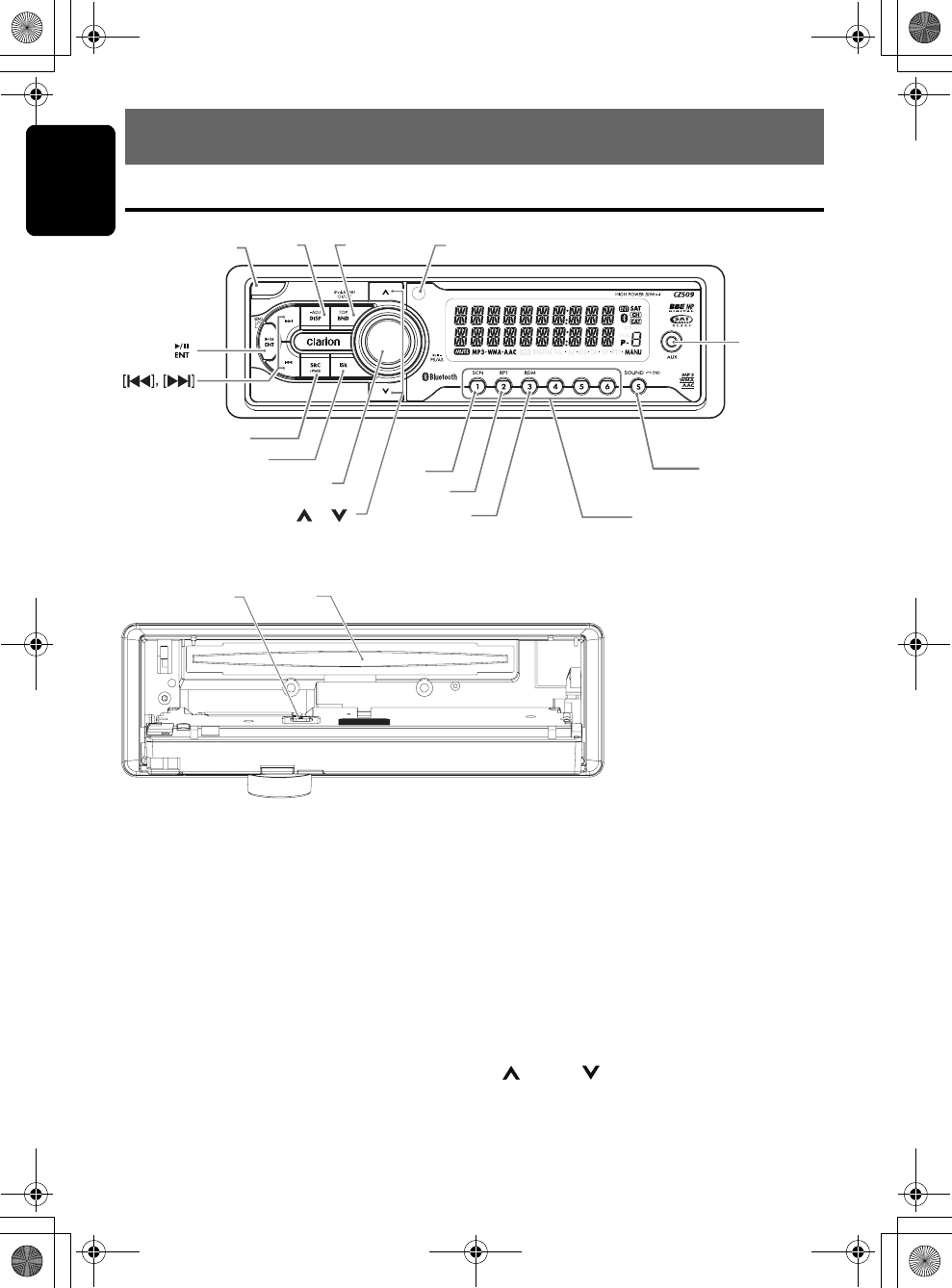

Names of the Buttons and Their Main Functions
With the FLIP DOWN PANEL opened
[OPEN] button
Deeply push in [
OPEN
] button to unlock the flip
down panel.
[DISP] button
Switch the display indication.
[BND] button
Change bands, or select seek tuning or
manual tuning while in the radio mode.
[IR RECEIVER]
• Receiver for remote control unit.
(Operating range: 30° in all directions)
[AUX] input jack
•Input jack for connecting external device.
[SOUND] button
Press to switch to the sound adjust mode.
[DIRECT] buttons
Store radio stations in memory or recall it
directly while in radio mode.
[RDM] button
Perform random play while in CD/MP3/WMA/
AAC/USB/iPod mode.
[RPT] button
Perform repeat play while in CD/MP3/WMA/
AAC/USB/iPod mode.
[SCN] button
Perform scan play for 10 seconds of each
track while in CD/MP3/WMA/AAC/USB mode.
[]
(UP), [] (DN) buttons
Select folders while in MP3/WMA/AAC/USB
mode.
[OPEN]
[ ]
[BND]
[DISP][IR RECEIVER]
[AUX]
[SCN]
[RPT]
[SOUND]
[DIRECT]
[RDM]
[ISR]
[ROTARY]
[SRC]
[ ], [ ]
[Q] (EJECT)
[CD SLOT]
CZ509_ENG.book Page 6 Monday, December 29, 2008 4:42 PM
Names of the Buttons and Their Main Functions
English
7 CZ509
[ROTARY] knob
Rotate to adjust the volume.
[ISR] button
Recall ISR radio station in memory.
Press and hold the button (2 sec.) to store
current station into ISR memory (radio mode
only).
[SRC] button
•Turn the power on/off.
[x], [v] buttons
Commence fast-forward or fast-reverse
mode.
[ ] button
Perform preset scan while in the radio mode.
Play or pause a track while in CD/MP3/WMA/
AAC/USB/iPod mode.
[Q] (EJECT) button
Press to eject disc.
[CD SLOT]
Insert CDs here.
CZ509_ENG.book Page 7 Monday, December 29, 2008 4:42 PM
English
8CZ509
4. DCP
The control panel can be detached to prevent
theft. When detaching the control panel, store it in
the DCP (DETACHABLE CONTROL PANEL)
case to prevent scratches.
We recommend taking the DCP with you when
leaving the car.

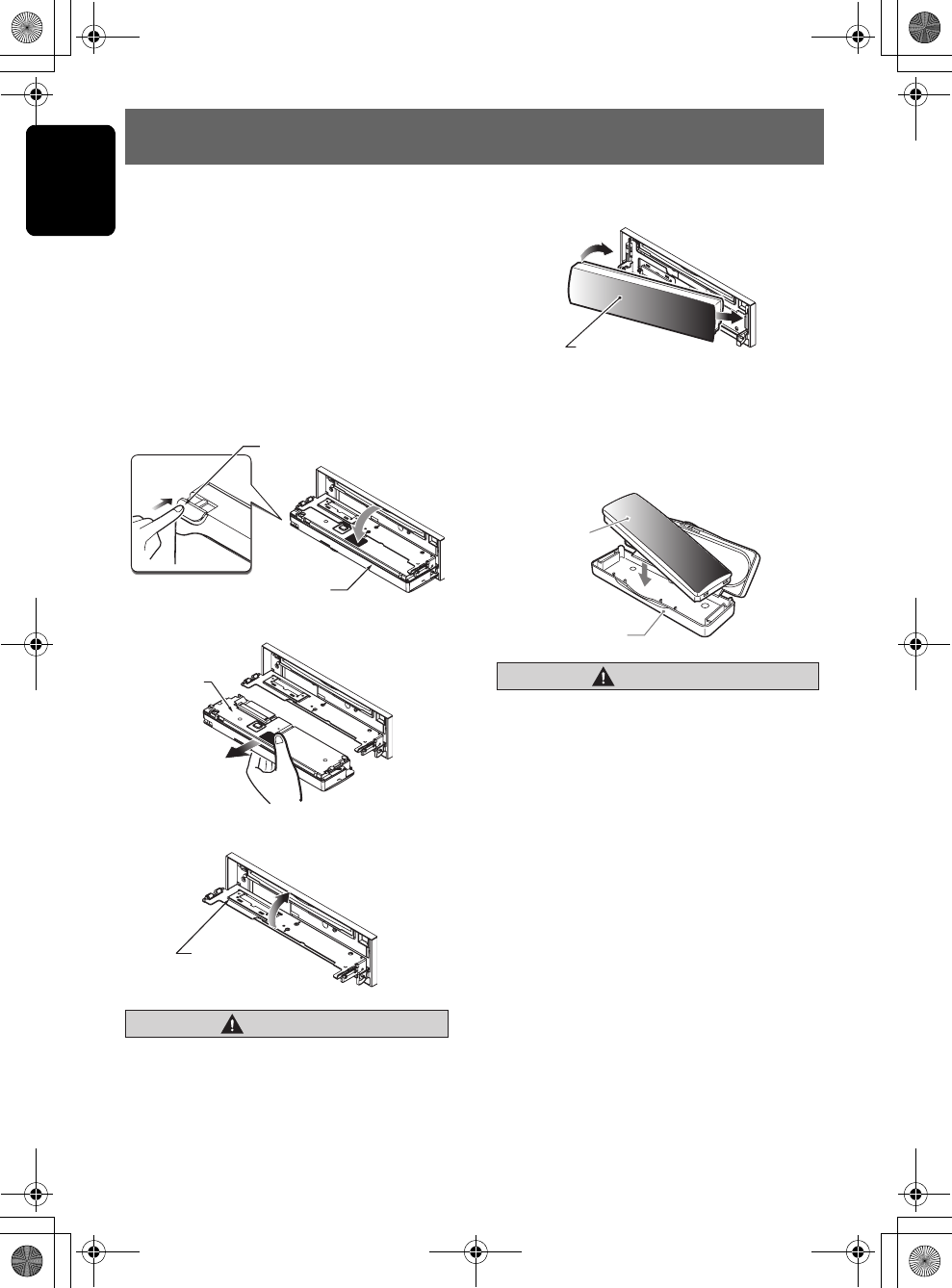

Removing the DCP
1. Press the [SRC] button (1 sec.) to turn off the
power.
2. Deeply push in [OPEN] button to unlock the
flip down panel.
If the flip down panel does not open fully,
gently open it with your hand.
3. Pull the DCP toward you and remove it.
4. Close the HOLD FLAP.
CAUTION
Be sure to close the HOLD FLAP for safety
when removing the DCP.
Attaching the DCP
1. Insert the right side of the DCP into the main
unit.
2. Insert the left side of the DCP into the main
unit.
Storing the DCP in the DCP Case
Hold the DCP, in the orientation as shown in the
figure below, and put it into the supplied DCP
case. (Ensure the DCP is in the correct
orientation.)
CAUTION
The DCP can easily be damaged by
shocks. After removing it, be careful not to
drop it or subject it to strong shocks.
If the FLIP DOWN PANEL is kept open, the
DCP may drop due to vibration of the car.
This results in damage to the DCP. So
close the FLIP DOWN PANEL or remove
the DCP to store into the case.
The connector connecting the source unit
and the DCP is an extremely important
part. Be careful not to damage it by
pressing on it with fingernails,
screwdrivers, etc.
Note:
• If the DCP is dirty, wipe off the dirt with a soft, dry
cloth only.
DCP
[OPEN] button
DCP
HOLD FLAP
1.
2.
DCP
DCP
DCP case
CZ509_ENG.book Page 8 Monday, December 29, 2008 4:42 PM
English
9 CZ509

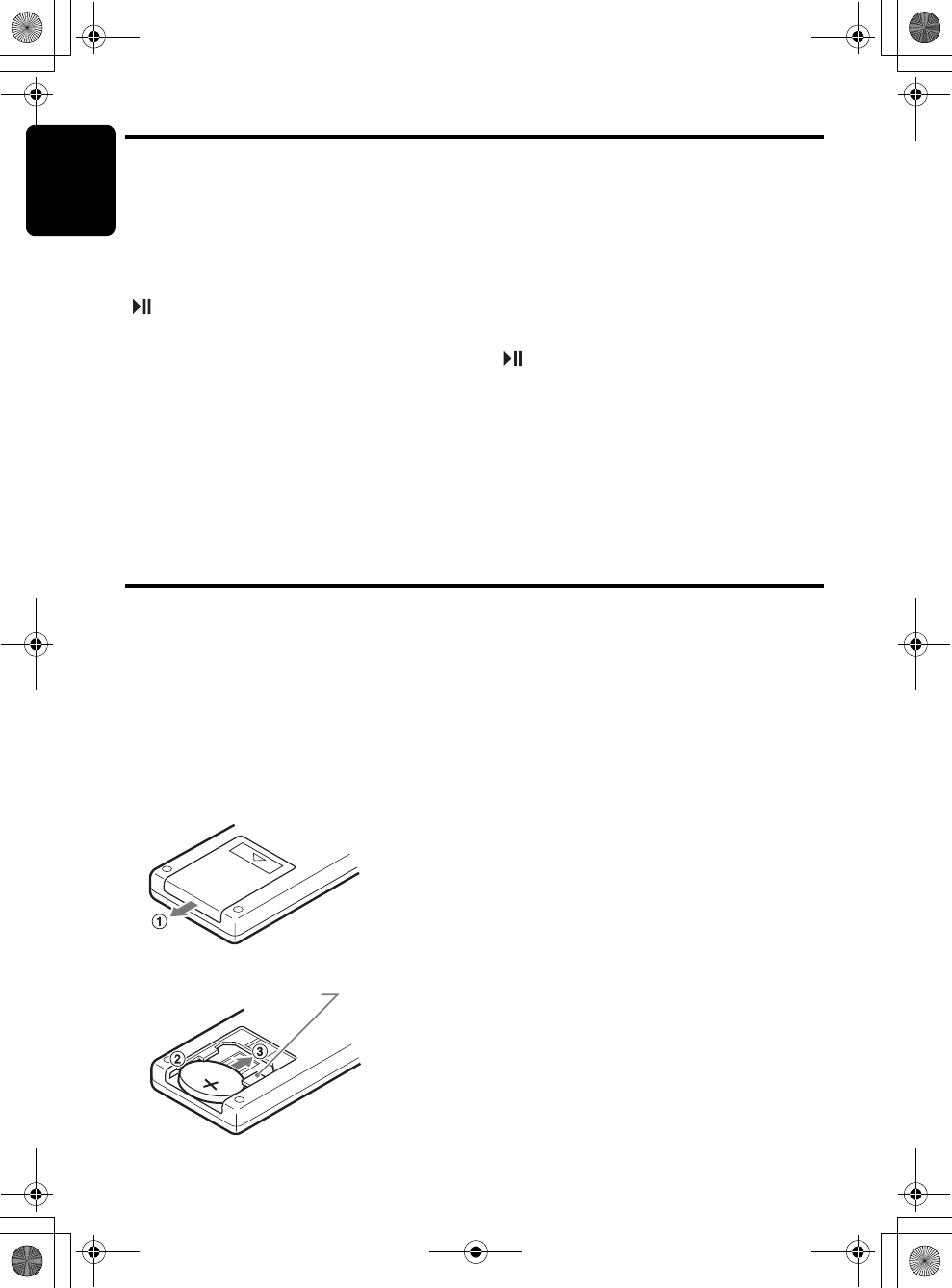

5. REMOTE CONTROL

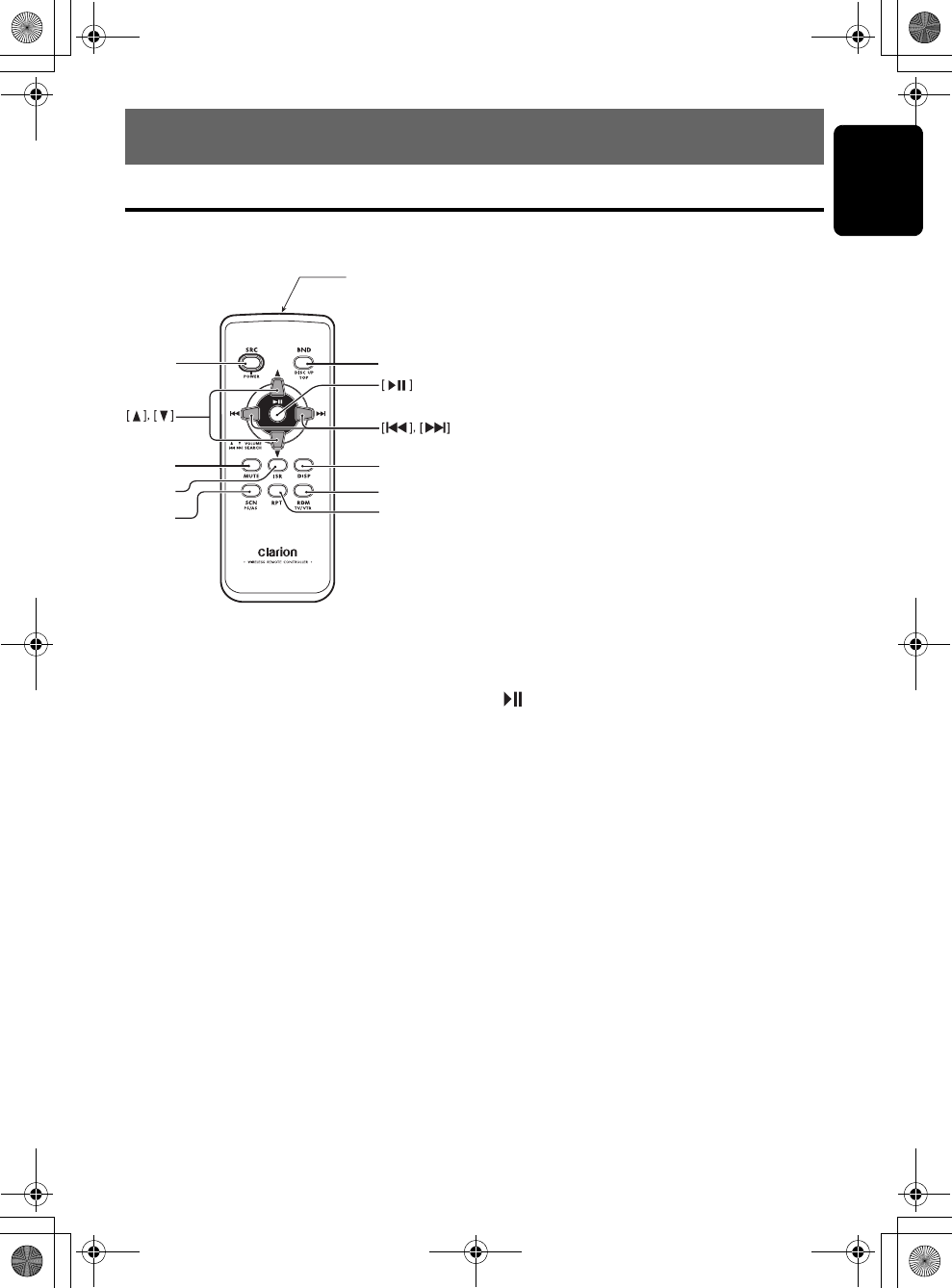

Functions of Remote Control Unit Buttons
Some buttons on the remote control unit have different functions from the corresponding buttons on the main
unit.
Shared modes
[SRC] button
Press the button to turn on the power.
Press and hold the button (1 sec.) to turn off
the power.
Use to alternate operation mode among the
various modes.
[w], [z] buttons
Increases and decreases volume.
[MUTE] button
•Turns mute function on and off.
[ISR] button
Recalls ISR radio station stored in memory.
Press and hold the button (2 sec.) to store
current station in ISR memory (radio mode
only).
[DISP] button
Press to select the desired display.
Radio/Satellite Radio modes
[BND] button
Switches reception band.
[x], [v] buttons
•Moves preset channels up and down.
[SCN] button
Press to perform preset scan.
Press and hold the button (2 sec.) to perform
auto store.
In the Satellite Radio mode, press once to
perform category scan; hold depressed
(1 sec.) to perform preset scan.
CD/MP3/WMA/AAC and USB/MTP
modes
[BND] button
Press to play the first track.
[x], [v] buttons
Press to select tracks.
Press and hold the button (1 sec.) to perform
fast-forward/fast-reverse (Except DRM file).
[ ] button
Switches between playback and pause.
[SCN] button
Press to perform scan play.
When in MP3/WMA/AAC and USB/MTP
modes, press and hold the button (1 sec.) to
perform folder scan play.
[RPT] button
Press to perform repeat play.
When in MP3/WMA/AAC and USB/MTP
modes, press and hold the button (1 sec.) to
perform folder repeat play.
[RDM] button
Press to perform random play.
When in MP3/WMA/AAC and USB/MTP
modes, press and hold the button (1 sec.) to
perform folder random play.
[SRC][BND]
[MUTE]
[ISR]
[SCN]
[DISP]
[RDM]
[RPT]
Signal transmitter
CZ509_ENG.book Page 9 Monday, December 29, 2008 4:42 PM
English
10 CZ509
CD changer mode
[BND] button
Press to switch to next disc in ascending order
.
[x], [v] buttons
Press to move the tracks up and down.
Press and hold the button (1 sec.) to perform
fast-forward/fast-backward.
[] button
•Switches between playback and pause.
[SCN] button
Press to perform scan play.
Press and hold the button (1 sec.) to perform
disc scan play.
[RPT] button
Press to perform repeat play.
Press and hold the button (1 sec.) to perform
disc repeat play.
[RDM] button
Press to perform random play.
Press and hold the button (1 sec.) to perform
disc random play.
iPod mode
[x], [v] buttons
Press to move the tracks up and down.
Press and hold the button (1 sec.) to perform
fast-forward/fast-reverse.
[ ] button
Switches between playback and pause.
[RPT] button
Press to perform repeat play.
[RDM] button
Press to perform random play.
Press and hold the button (1 sec.) to perform
all random play.
Inserting the Battery
1Turn over the remote control unit and slide
the cover in the direction indicated by the
arrow in the illustration.
2Insert the battery (CR2025) into the insertion
guides, with the printed side (+) facing
upwards.
3Press the battery in the direction indicated by
the arrow so that it slides into the
compartment.
4Replace the cover and slide in until it clicks
into place.
Notes:
Misuse may result in rupture of the battery,
producing leakage of fluid and resulting in
personal injury or damage to surrounding
materials. Always follow these safety precautions:
• Use only the designated battery.
• When replacing the battery, insert properly, with
+/– polarities oriented correctly.
• Do not subject battery to heat, or dispose of in
fire or water. Do not attempt to disassemble the
battery.
• Dispose of used batteries properly.
C
R
2
0
2
5
Insertion guide
Functions of Remote Control Unit Buttons
CZ509_ENG.book Page 10 Monday, December 29, 2008 4:42 PM
English
11 CZ509
6. OPERATIONS
Note:
• Be sure to read this chapter referring to the front diagrams of chapter “3. CONTROLS” on page 6.
Basic Operations
CAUTION
Be sure to lower the volume before
switching off the unit power or the ignition
key. The unit remembers its last volume
setting.
Turning on/off the power
Note:
1. Press the [SRC] button to turn on the power.
2. Press and hold the [SRC] button (1 sec.) to
turn off the power for the unit.
Note:
• System check
The first time this unit is turned on after the wire
connections are completed, it must be checked
what equipment is connected. When the power
is turned on, the “SYSTEM CHECK” appears in
the display, then the unit returns to the clock
display mode. The system check starts within the
unit. Then press the [SRC] button again, the unit
turn to the radio mode.
Selecting a mode
1. Press the [SRC] button to change the
operation mode.
2. Each time you press the [SRC] button, the
operation mode changes in the following
order:
Radio (Satellite radio) CD/MP3/WMA/
AAC USB/MTP/iPod BLUETOOTH
(CD changer) AUX Radio...
External equipment not connected with
CeNET is not displayed.
iPod/MTP can connect to this unit via USB
cable.
Adjusting the volume
1. Turning the [ROTARY] knob clockwise
increases the volume; turning it
counterclockwise decreases the volume.
The volume level is from 0 (minimum) to 33
(maximum).
Switching the display
Press the [DISP] button to select the desired
display.
Sound Adjustment
You can adjust a sound effect or tone quality to
your preference.
Setting the BEAT EQ
This unit is provided with 4 types of sound tone
effects stored in memory.
Select the one you prefer.
The factory default setting is “OFF”.
2-1. Select BEAT EQ.
To change sound setting
1. Press the [SOUND] button to switch to the
sound adjustment selection display.
The factory default sound setting is “BEAT
EQ”.
2. Then press the [x] or [v] button to
select the sound adjustment mode.
Each time you press the [x] or [v]
button, the sound adjustment mode
changes as following order:
BEAT EQ M-B EXBALANCE
FADERLPF S-W VOLHPF
In the case of display blinking “ENT”, you
can press the [ ] button to adjust the
setting value.
3. Press the [ ] or [ ] button to adjust the
selected audio mode.
4. After completing settings, press the
[SOUND] button to return to the previous
mode.
CZ509_ENG.book Page 11 Monday, December 29, 2008 4:42 PM
Basic Operations
English
12 CZ509
3-1. Each time you press the [ ] or [ ]
button, the tone effect changes in the
following order:
CUSTOMEXCITEIMPACT
B-BOOSTOFF
CUSTOM :user custom
EXCITE :bass and treble emphasized
mid emphasized
IMPACT :bass and treble emphasized
B-BOOST :bass emphasized
OFF : no sound effect
When “CUSTOM” is set:
3-1. Press the [ ] button.
3-2. Press the [x] or [v] button to select the
BASS, MID” or “TREBLE” mode to adjust.
3-3. If you want to set the flat, press the [ ]
button to return to the “CUSTOM” mode,
then press and hold the [ ] button for
1second or longer, bass/mid/treble
characteristics become flat.
When “EXCITE/IMPACT/B-BOOST” is set:
3-1. Press the [ ] button.
3-2. Press the [ ] or [ ] button to adjust the
setting in the range of 3 to +3.
The factory default setting is “0”.
3-3. Press the [ ] button to return to the
previous mode.
Adjusting the BASS/MID/TREBLE
This adjustment can be performed only when
the BEAT EQ is set to “CUSTOM”.
Note:
• While connected with the external amplifers,
please do not set the “BASS/MID/TREBLE” in
the maximum level. Otherwise the speakers may
be damaged.
3-1. Press the [ ] button.
3-2. Press the [x] or [v] button to select as
following order.
BASS<G>BASS<F>
BASS<Q>MID<G>MID<F>
MID<Q>TREBLE<G>
TREBLE<F>TREBLE<Q>
The factory default setting is “BASS G”.
3-3. Press the [ ] or [ ] button to select the
setting.
BASS<G>:The factory default setting is “0”.
(Adjustment range: +7 to 7)
BASS<F>:
The factory default setting is “
50
”.
(Adjustment range: 50/100/200)
BASS<Q>:The factory default setting is “1”.
(Adjustment range: 0.7/1/1.4/2)
MID<G> : The factory default setting is0”.
(Adjustment range: +7 to -7)
MID<F> :
The factory default setting is “
500
”.
(Adjustment range: 500/1K/2K)
MID<Q> :
The factory default setting is
1
.
(Adjustment range: 0.7/1/1.4/2)
TREBLE<G>
:
The factory default setting is
0
.
(Adjustment range: +7 to -7)
TREBLE<F>:
The factory default setting is
10K
”.
(Adjustment range: 5K/10K/15K)
TREBLE<Q>
:
The factory default setting is
1
.
(Adjustment range: 0.7/1/1.4/2)
3-4. Press the [ ] button to return to the
previous mode.
Setting the MAGNA BASS EXTEND
The MAGNA BASS EXTEND does not adjust
the low frequencies like the normal sound
adjustment function, but emphasizes the deep
bass frequencies to provide you with a dynamic
sound.
The factory default setting is “OFF” (off).
2-1. Select “M-B EX”.
3-1. Press [ ] or [ ] button to select “ON” or
OFF”.
Adjusting the balance
2-1. Select “BALANCE”.
3-1. Press the [ ] or [ ] button to adjust the
balance of the right and left speakers.
The factory default setting is “CENTER
(center). (Adjustment range: RIGHT12 to
LEFT12 (right 12 to left 12))
Adjusting the fader
2-1. Select “FADER”.
3-1. Press the [ ] or [ ] button to adjust the
balance of the rear and front speakers.
The factory default setting is “CENTER
(center). (Adjustment range: FRONT12 to
REAR12 (front 12 to rear 12))
Setting the subwoofer
You can set the low pass filter of subwoofer.
2-1. Select “LPF”.
3-1. Each time press the [ ] or [ ] button to
select the setting, the setting changes in
the following order:
THROUGH6090120
CZ509_ENG.book Page 12 Monday, December 29, 2008 4:42 PM
Basic Operations
English
13 CZ509
The factory default setting is THROUGH”.
Adjusting the subwoofer output
volume
You can adjust the volume output from the unit’s
subwoofer output terminal.
2-1. Select “S-W VOL”.
3-1. Press the [ ] or [ ] button to increases
or decreases the subwoofer volume.
The factory default setting is 0”.
(Adjustment range: +6 to –6)
Adjusting the high pass filter
2-1. Select “HPF”.
3-1. Each time you press the [ ] or [ ]
button to select the setting.
The setting changes in the following order:
THROUGH6090120
The factory default setting is “THROUGH
(through).
Setting the BBE MP
(Sound Enhancement and
Restoration for compressed audio
files)
BBE MP (Minimized Polynomial Non-Linear
Saturation) Process improves digitally
compressed sound, such as MP3, by restoring
and enhancing the harmonics lost through
compression. BBE MP works by regenerating
harmonics from the source material, effectively
recovering warmth, detail and nuance.
This fuction is effective for the audio files in the
CD/MP3/WMA/AAC or USB/iPod mode, but it is
ineffective for the video in the USB/iPod mode.
1. Press the [SOUND] button to switch to the
sound adjustment selection display.
2. Press the [x] or [v] button to select
BBE MP”.
3. Press the [ ] or [ ] button to select “ON
or “OFF”.
The factory default setting is “OFF”.
4. When you select “ON”, press the [ ] button,
then press the [ ] or [ ] button to select
as following order.
LOW MID HIGH
Notes:
• Manufactured under license from BBE Sound,
Inc.
• Licensed by BBE Sound, Inc. under one or more
of the following US patents: 5510752, 5736897.
BBE and BBE symbol are registered trademarks
of BBE Sound, Inc.
• During SOUND adjustment mode, if no operation
is performed for more than 10 seconds, this
mode can be cancelled and return to previous
mode.
CZ509_ENG.book Page 13 Monday, December 29, 2008 4:42 PM
English
14 CZ509
Radio Operations
Listening to the radio
1. Press the [SRC] button and select the radio
mode.
2. Press the [BND] button and select the radio
band. Each time the button is pressed, the
radio reception band changes in the
following order:
FM1 FM2 FM3 AM FM1...
Tuning
There are 3 types of tuning mode available,
seek tuning, manual tuning and preset tuning.
Seek tuning
1. Press the [BND] button and select the
desired band (FM or AM).
If “MANU” is lit in the display, press and hold
the [BND] button (1 sec.). “MANU” in the
display goes off and seek tuning is now
available.
2. Press the [x] or [v] button to
automatically seek a station.
Manual tuning
There are 2 ways available: Quick tuning and
step tuning.
Quick tuning
Press and hold the [x] or [v] button (1 sec.)
to tune in a station.
Step tuning
Press the [x] or [v] button to manually tune
in a station.
Recalling a preset station
A total of 24 preset positions (6-FM1, 6-FM2, 6-
FM3, 6-AM) exists to store individual radio
stations in memory. Press the corresponding
[DIRECT] button or the [ ] / [ ] button to
recall the stored radio frequency automatically.
Manual memory
1. Select the desired station with seek tuning or
manual tuning.
2. Press and hold one of the [DIRECT] buttons
(2 sec.) to store the current station into
preset memory.
Auto store
Auto store is a function for storing up to 6
stations that are automatically tuned in
sequentially. If 6 receivable stations cannot be
received, a previously stored station remains
unoverwritten at the memory position.
1. Press the [BND] button and select the
desired band (FM or AM).
2. Press and hold the [ ] button for 2 seconds
or longer. The stations with good reception
are stored automatically to the preset
channels.
If auto store is performed in the FM bands, the
stations are stored in FM3 even if FM1 or FM2
was chosen for storing stations.
Preset scan
Preset scan receives the stations stored in
preset memory in order. This function is useful
when searching for a desired station in memory.
1. Press the [ ] button.
2. When a desired station is tuned in, press the
[ ] button again to continue receiving that
station.
Note:
• Be careful not to press and hold the [ ] button
(2 sec.), otherwise the auto store function is
engaged and the unit starts storing stations.
Instant station recall (ISR)
Instant station recall is a special radio preset
that instantly accesses a favorite radio station at
a touch of a button. The ISR function even
operates with the unit in other modes.
ISR memory
1. Select the station that you wish to store in
ISR memory.
2. Press and hold the [ISR] button (2 sec.).
Recalling a station with ISR
In any mode, press the [ISR] button to turn on
the radio function and tune the selected radio
station. “ISR” appears in the display. Press the
[ISR] button again to return to the previous
mode.
CZ509_ENG.book Page 14 Monday, December 29, 2008 4:42 PM
English
15 CZ509
CD/MP3/WMA/AAC Operations
MP3/WMA/AAC
This unit can play back MP3/WMA/AAC files.
Notes:
• If you play a file with DRM (Digital Rights
Management) for WMA remaining ON, no audio
is output (The WMA indicator blinks).
• Windows Media™, and the Windows® logo are
trademarks, or registered trademarks of
Microsoft Corporation in the United States and/or
other countries.
To disable DRM (Digital Rights
Management)
1. When using Windows Media Player 9/10/11,
click on TOOL OPTIONS MUSIC
RECORD tab, then under Recording
settings, unclick the Check box for RECORD
PROTECTED MUSIC. Then, reconstruct
files.
Personally constructed WMA files are used
at your own responsibility.
Precautions when creating MP3/
WMA/AAC file
Usable sampling rates and bit rates
1. MP3: Sampling rate 8 kHz-48 kHz,
Bit rate 8 kbps-320 kbps / VBR
2. WMA: Bit rate 8 kbps-320 kbps
3. AAC: Sampling rate 8 kHz-48 kHz,
Bit rate 8 kbps-320 kbps / VBR
File extensions
1. Always add a file extension “.MP3”, “.WMA
or “.M4A” to MP3, WMA or AAC file by using
single byte letters. If you add a file extension
other than specified or forget to add the file
extension, the file cannot be played.
2. Files without MP3/WMA/AAC data will not
play. The files will be played soundlessly if
you attempt to play files without MP3/WMA/
AAC data.
When VBR files are played, the play time
display may differ the play location.
When MP3/WMA/AAC files are played, a little
no sound part is caused between tunes.
Logical format (File system)
1. When writing MP3/WMA/AAC file on a CD-R
disc or CD-RW disc, please select “ISO9660
level 1, 2 or JOLIET or Romeo” or APPLE
ISO as the writing software format. Normal
play may not be possible if the disc is
recorded on another format.
2. The folder name and file name can be
displayed as the title during MP3/WMA/AAC
play but the title must be within 64 single
byte alphabetical letters and numerals
(including an extension).
3. Do not affix a name to a file inside a folder
having the same name.
Folder structure
1. A disc with a folder having more than 8
hierarchical levels will be impossible.
Number of files or folders
1. Up to 255 files can be recognized per folder.
Up to 510 files can be played.
2. Tracks are played in the order that they were
recorded onto a disc. (Tracks might not
always be played in the order displayed on
the PC.)
3. Some noise may occur depending on the
type of encoder software used while
recording.
Set the type of file to be played
(multi-session function)
When a single disc holds both normal CD type
tracks and MP3/WMA/AAC type tracks, use this
command to select which type of track to play.
Default setting is “CD”.
When only one type of track (either music CD
or MP3/WMA/AAC) is recorded on a disc,
selecting either type will allow playback of the
disc.
When playing CCCD (copy-control CDs), set
to CD type.
1. Press and hold the [DISP] button for 1
second or longer.
2. Press the [x] or [v] button to select
M-SESS”.
3. Press the [ ] or [ ] button to select the
CD” or “MP3”.
CD
When playing music CD only.
MP3
When playing music MP3/WMA/AAC only.
4. When setting is completed, remove the disc
and reinsert it.
CZ509_ENG.book Page 15 Monday, December 29, 2008 4:42 PM
CD/MP3/WMA/AAC Operations
English
16 CZ509
Disc-In-Play function
As long as the ignition key is turned to the ON or
ACC position, this function allows you to turn the
power to the unit and start playing the disc
automatically when the disc is inserted even if
the power is not turned on.
CAUTION
Do not try to put your hand or fingers in
the disc insertion slot. Also never insert
foreign objects into the slot.
Do not insert discs where adhesive comes
out from cellophane tape or a rental CD
label, or discs with marks where
cellophane tape or rental CD labels were
removed. It may be impossible to extract
these discs from the unit and they may
cause the unit to break down.
Backup Eject function
Just pressing the [Q] button, ejects the disc
even if the power to the unit was not turned on.
1. Press the [OPEN] button to open the FLIP
DOWN PANEL.
Note:
If the FLIP DOWN PANEL will not open far
enough, open it gently with your hand.
2. Press the [EJECT] button. Remove the disc
after it is ejected.
3. Close the FLIP DOWN PANEL.
Press the center of the DCP to close.
Notes:
• Always close the FLIP DOWN PANEL once you
take out the disc.
• If a CD (12 cm) is left in the ejected position for
15 seconds, the CD is automatically reloaded
(Auto reload).
• If you force a CD into before auto reloading, this
can damage the CD.
Listening to a disc already loaded in
the unit
Press the [SRC] button to select the CD/MP3/
WMA/AAC mode.
When the unit enters the CD/MP3/WMA/AAC
mode, play starts automatically.
If there is no disc loaded, the indication “NO
DISC” appears in the title display.
Loading a CD
1. Press the [OPEN] button to access the CD
SLOT behind the FLIP DOWN PANEL.
2. Insert a CD into the center of the CD SLOT
with the labeled side facing up. “LOADING
appears in the display, the CD enters into the
slot, and the play starts.
Notes:
• Never insert foreign objects into the CD SLOT.
• If the CD is not inserted easily, there may be
another CD in the mechanism or the unit may
require service.
• Discs not bearing the or mark and
CD-ROMs cannot be played by this unit.
• Some CDs recorded in CD-R/CD-RW mode may
not be usable.
3. Close the FLIP DOWN PANEL.
Press the center of the DCP to close.
CAUTION
Be careful not to catch your hand or fingers
while closing the FLIP DOWN PANEL.
Notes:
If the FLIP DOWN PANEL does not open fully,
gently open with your hand.
After loading a CD, always close the FLIP DOWN
PANEL.
Pausing play
1. Press the [ ] button to pause play.
PAUSE” appears in the display.
2. To resume CD play, press the [ ] button
again.
Displaying CD titles
This unit can display title data for CD-text/MP3/
WMA/AAC disc and user titles input with this
unit.
1. Each time you press the [DISP] button to
change the title display.
CD-TEXT disc
User Track Disc/Artist User ...
MP3/WMA/AAC disc
Track Folder Title/Album Artist
Track ...
CZ509_ENG.book Page 16 Monday, December 29, 2008 4:42 PM
English
17 CZ509
Notes:
• If the CD playing is not a CD-text CD or no user
title has been input, “NO TITLE” appears in the
display.
• If MP3/WMA/AAC disc is not input TAG, “NO
TITLE” appears in the display.
• For MP3, supports ID3 Tags V2.3 / 2.2 / 1.1 / 1.0.
• Tag displays give priority to V2.3 / 2.2.
• In the case of album Tags for WMA, the
information written into the extension header is
displayed.
• Only ASCII characters can be displayed in Tags.
Selecting a track
Track-up
1. Press the [v] button to move ahead to the
beginning of the next track.
2. Each time you press the [v] button, the
track advances ahead to the beginning of the
next track.
Track-down
1. Press the [x] button to move back to the
beginning of the current track.
2. Press the [x] button twice to move back to
the beginning of the previous track.
Fast-forward/fast-reverse
Fast-forward
1. Press and hold the [v] button (1 sec.).
Fast-reverse
1. Press and hold the [x] button (1 sec.).
For MP3/WMA/AAC discs, it takes some time
until the start of searching and between tracks. In
addition, the playing time may have a margin of
error.
Folder Select
This function allows you to select a folder
containing MP3/WMA/AAC files and start
playing from the first track in the folder.
1. Press the [ ] or [ ] button.
Press the [ ] button to move the next
folder. Press the [ ] button to move the
previous folder.
2. To select a track, press the [x] or [v]
button.
Top function
The top function resets the CD player to the first
track of the disc. Press the [BND] button to play
the first track (track No. 1) on the disc.
In case of MP3/WMA/AAC, the first track of a
folder being played will be returned.
List search function
1. Press and hold the [BND] button (1 sec.) to
enter the list search mode. And then the
track list appears in the display.
2. Prsee the [ ] or [ ] button to select a
track.
If you press the [x] or [v] button, the
track list scroll 5 lines at a time.
3. Press the [ ] button to play.
In case of MP3/WMA/AAC, this function is
performed in the current folder.
Note:
• If no operation is performed for more than 10
seconds, this mode can be cancel and return to
the usual mode.
Other various play functions
Scan play
This function allows you to locate and play the
first 10 seconds of all the tracks recorded on a
disc.
1. Press the [SCN] button to perform scan play.
Folder scan play
This function allows you to locate and play the
first 10 seconds of the first track of all the folders
on an MP3/WMA/AAC disc.
1. Press and hold the [SCN] button (1 sec.) to
perform folder scan play.
Repeat play
This function allows you to play the current track
repeatedly.
1. Press the [RPT] button to perform repeat
play.
Folder repeat play
This function allows you to play a track currently
being played in the MP3/WMA/AAC folder
repeatedly.
1. Press and hold the [RPT] button (1 sec.) to
perform folder repeat play.
CD/MP3/WMA/AAC Operations
CZ509_ENG.book Page 17 Monday, December 29, 2008 4:42 PM
CD/MP3/WMA/AAC Operations
English
18 CZ509
Random play
This function allows you to play all tracks
recorded on a disc in a random order.
1. Press the [RDM] button to perform random
play.
Folder random play
This function allows you to play all the tracks of
all the folders recorded on an MP3/WMA/AAC
disc in a random order.
1. Press and hold the [RDM] button (1 sec.) to
perform folder random play.
To cancel play
1. Press the operating button previously
selected.
The various play mode is canceled and the
various play off mode appears in the display
for 2 seconds.
CZ509_ENG.book Page 18 Monday, December 29, 2008 4:42 PM
English
19 CZ509
Bluetooth Operations
The Bluetooth allows you to utilize your car’s
built-in audio system for wireless mobile phone
or music handsfree communication.
Some Bluetooth mobile phones have the audio
features, and some portable audio players
support Bluetooth feature.
This system can play audio data stored in a
Bluetooth audio device.
The car stereo with Bluetooth will be able to
retrieve phonebook contacts, received call,
dialed call, missed call, incoming calls, outgoing
call, redial call and listen to music.
Notes:
• Do not leave the microphone of Bluetooth
handsfree in the places with wind passing such
as air outlet of the air conditioner, etc. This may
cause a malfunction. In addition, if leave it in the
places subjected to direct sun, high temperature
can cause distortion, discoloration which may
result in a malfunction.
• This system will not operate or may operate
improperly with some Bluetooth audio players.
• For detailed information on the playable
Bluetooth audio players, see our home page:
www.clarion.com
• When a audio device is paired, the following
operations are the same as for CD mode:
Pause
Track selection
Fast-foward
Fast-reverse
The titles and the play time can not appear in
the display.
See “CD/MP3/WMA/AAC Operations
(page 15) for details.
Basic Operations
Select Bluetooth
1. Press the [SRC] button to switch the source.
2. You can press and hold the [SOUND] button
to disconnect the currently connected
device.
Switch the display
Press the [DISP] button to select the display in
the following order:
BT TELBT AUDIO
The connected device name will appear in the
display.
Making a call
There are 4 ways to make outgoing call.
Direct Number Call
Outgoing call can be made by entering
telephone numbers directly via the car stereo.
Telephone number uses 0, 1, 2, 3, 4, 5, 6, 7, 8,
9, *, #, and +.
1. Press the [BND] button to select “DIAL
NUMBER”.
2. Press the [ ] button.
3. Press the [ ] or [ ] button to select the
numbers.
4. Press the [x] or [v] button to input or
delete the number.
5. Press and hold the [ ] button (1 sec.) to call
the mobile phone No.
Press the [SOUND] button to end the call.
Call from Phonebook
User can search the contact name in the
phonebook and make call.
Alternatively, user can call from mobile phone.
1. Press the [BND] button to select “PHONE
BOOK”.
2. Press the [v] button to enter the contact
name mode (In this case, use the [ ], [ ]
button to select the desired contact name).
3. When the contact name is displayed, press
the [v] or [x] button to select the contact
name’s phone number.
4. Press the [ ] button to call the mobile
phone No.
Press the [SOUND] button to end the call.
Answering a call
1. You can answer an incoming call by pressing
any button.
Press the [SOUND] button to reject an
incoming call.
Received/Dialled/Missed Call History
You can search any Received/Dialled/Missed
Call History.
1. Press the [BND] button to select “HISTORY”.
2. Press the [v] button to enter the contact
name mode (In this case, use the [ ], [ ]
button to select the desired contact name).
3. When the contact name is displayed, press
the [x] or [v] button to select the contact
name’s phone number.
4. Press the [ ] button to call the mobile
phone No.
CZ509_ENG.book Page 19 Monday, December 29, 2008 4:42 PM
Bluetooth Operations
English
20 CZ509
Redial a call
You can call a redial phone No.
1. Press the [BND] button to select “REDIAL”.
2. Press and hold the [ ] button (1 sec.) to call
the redial phone No.
Press the [SOUND] button to end the call.
PAIRING
This option is used to perform Bluetooth pairing
with the mobile phone and audio.
Up to a maximum of 5 mobile phones and a
audio device can be paired.
2-1. Select “PAIRING”.
3-1. Press the [ ] button.
3-2. Press the [ ] or [ ] button to select
TELEPHONE” or “AUDIO”, then press the
[ ] button.
For a no paired device after reset or at the same
time, when you select “TELEPHONE”, please
press the [ ] or [ ] button to select the phone
book type.
(For details, see the chaperter “PHONE BOOK
TYPE” (page 21))
3-3. After select the “TELEPHONE”, press the
[] or [] button to select “MEMORY 1
to “MEMORY 5”, then press and hold the
[ ] button (1 sec.) to memory.
4-1. Press the [ ] or [ ] button to select
SEARCH” or “WAIT”.
5-1. Press and hold the [ ] button (1 sec.).
When the “SEARCHING” appears in the
display, you can press the [ ] button to
stop search, then the list search appear.
SEARCH” mode: User can search the
Bluetooth mobile phone or audio device.
WAIT” mode: User can search this uint via
the mobile phone or audio device.
6-1. After the search, press the [ ] or [ ]
button to select the desired Bluetooth
mobile phone.
7-1. Press and hold the [ ] button (1 sec.) to
pair.
SELECT
This is a setting for user to select one of the
paired mobile phones or audio.
2-1. Select “SELECT”.
3-1. Press the [ ] button, then the paired
mobile phones appears in the display.
4-1. Press the [ ] or [ ] button to choose one
of the 5 mobile phones.
5-1. Press and hold the [ ] button (1 sec.) to
connect.
Connected device will be able to use all the
functionalities provided.
DELETE
This is a setting for user to delete one of the
paired device from the list.
2-1. Select “DELETE”.
3-1. Press the [ ] button, then the paired
mobile phones appears in the display.
4-1. Press the [ ] or [ ] button to choose one
of the 5 phones and a audio devices.
5-1. Press and hold the [ ] button (1 sec.) to
delete the paired device.
Notes:
• After deleting the device, the phone book and
the call history records will be deleted too.
• Deleted paired device will not automatically
rearrange in the paired device list.
DISCONNECT
This option is used to disconnect the currently
connected device.
2-1. Select “DISCONNECT”.
3-1. Press and hold the [ ] button (1 sec.) to
disconnect.
Press and hold the [SOUND] button (2 sec.)
to disconnect.
To change Bluetooth adjustment setting
1. Press and hold the [DISP] button (1 sec.)
to switch to the Bluetooth adjustment
selection display.
2. Press the [x] or [v] button to select
the “item name”.
PAIRINGSELECTDELETE
DISCONNECTADD PHONE BOOK
DEL NO. PHONE BOOK
HISTORY DELETE ALLPHONE
BOOK TYPEMIC GAINRING
VOLTONE SELNOISE
AUTO ANSAUTO CONPASS
KEYADDRESSBT NAME
BT FW
3. Press the [ ] or [ ] button to select the
“desired setting value”.
In the case of display blinking “ENT”, you
can press the [] button to adjust the
setting value.
After completing settings, press the [DISP]
button to return to the previous mode.
CZ509_ENG.book Page 20 Monday, December 29, 2008 4:42 PM
Bluetooth Operations
English
21 CZ509
ADD PHONE BOOK
This option is used to add one of the phone No.
2-1. Select “ADD PHONE BOOK”.
3-1. Press the [ ] button (1 sec.), then the
RECEIVING” appears in the display.
At the same time the phone No. from the
paired phone book list is sent out, then there
is a prompt on the mobile phone if it is
successful.
Some mobile phones cannot transfer the
phone book to this unit because of the less
word and the language type. In this time,
please edit your phone book in other
language, and transer it once again.
DEL NO. PHONE BOOK
This option is used to delete one of or all phone
No. of the added phone book.
2-1. Select “DEL NO. PHONE BOOK”.
3-1. Press the [ ] button.
4-1. Press the [ ] or [ ] button to select
1 DEL” or “ALL DEL”.
5-1. When you select “1 DEL”, press the [ ]
button, then press the [ ] or [ ] button to
select one of the desired phone No.
6-1. Press the [ ] button, then the “DELETE?
appears in the display.
7-1. Press the [ ] button (1 sec.) to delete.
Note:
• If you want to transfer or handl this unit, please
perform “DELETE”,“ADD PHONE BOOK” and
“DEL NO. PHONE BOOK” function to delete all
of your personal information.
HISTORY DELETE ALL
This option is used to delete all of the call records.
2-1. Select “HISTORY DELETE ALL”.
3-1. Press the [ ] button, then the
CONFIRM?” appears in the display.
4-1. Press the [ ] button (1 sec.), then the
DELETING” appears in the display, detele
all of the call records successfully.
PHONE BOOK TYPE
The unit provide 3 types of phone book which
are stored in memory.
2-1. Select “PHONE BOOK TYPE”.
3-1. Press the [ ] button.
3-2. Press the [ ] or [ ] button to select “1”,
“2” or “3”, then press the [ ] button to
store in memory.
Notes:
• If you change the phone book type, all of the
paired mobile phones’s book data will be
deleted.
The piece number of the phone book’s record
can be stored in the different memory of the
phone book type are as follow:
MIC GAIN
MIC gain can be set by each paired mobile
phone device. Each registered device has
unique MIC gain setting.
2-1. Select “MIC GAIN”.
3-1. Press the [ ] or [ ] button to change the
MIC gain setting.
The factory default setting is “3”.
(Adjustment range: 1 to 5)
RING VOL
This option is used to change the ringing volume
by each paired mobile phone device.
2-1. Select “RING VOL”.
3-1. Press the [ ] or [ ] button to change the
ringing volume.
The factory default setting is “5”.
(Adjustment range: 1 to 10)
TONE SEL
The system can ring if the mobile phone cannot
ring when the Bluetooth connection has been
established.
2-1. Press “TONE SEL”.
3-1. Press the [ ] or [ ] button to select
INTERNAL” or “AUTO”.
The unit setting is “AUTO”.
INTERNAL”: Adjust tone in the car
bluetooth system.
AUTO”: Automatic adjustment is enabled
in the paired mobile phone.
NOISE
This option is used to set noise volume in the
car bluetooth system.
2-1. Press “NOISE”.
3-1. Press the [ ] or [ ] button to select
LOW” or “HIGH”.
The factory default setting is “LOW”.
PHONE
TYPE
MEMORY
1MEMORY
2MEMORY
3MEMORY
4 MEMORY
5
1250
piece 250
piece 0 piece 0 piece 0 piece
2200
piece 100
piece 100
piece 50
piece 50
piece
3100
piece 100
piece 100
piece 100
piece 100
piece
CZ509_ENG.book Page 21 Monday, December 29, 2008 4:42 PM
Bluetooth Operations
English
22 CZ509
AUTO ANS
This is a setting to determine whether any
incoming call will be automatically or manually
answered.
The factory default setting is “OFF”.
2-1. Select “AUTO ANS”.
3-1. Press the [ ] or [ ] button to select “ON
or “OFF”.
ON: Any incoming call is automatically
answered in 5 seconds.
OFF: User needs to manually answer the
call.
AUTO CONNECT
This function allows the Bluetooth to be
connected automatically with previously
connected device. Connection can be
established at any source mode.
The factory default setting is “OFF”.
2-1. Select “AUTO CON”.
3-1. Press the [ ] or [ ] button to select “ON
or “OFF”.
ON: Automatic connection is enabled.
OFF: Automatic connection is disabled.
PASS KEY
This PASS KEY is used during pairing mode. A
maximum of 10 digits can be changed through
the car stereo.
The factory default PASS KEY is “1234”.
2-1. Select “PASS KEY”.
3-1. Press the [ ] button.
4-1. Press the [x] or [v] button to remove
the cursor.
5-1. Press the [ ] or [ ] button to select the
desired digits.
6-1. Press and hold the [ ] button (2 sec.) to
store in memory.
If press the [BND] button, the pass key
returns to the factory default setting.
ADDRESS
This will hold the unique Bluetooth address. The
address is 12 figures.
2-1. Select “ADDRESS”.
The Bluetooth address 6 figures appears in
the display.
3-1. Press the [ ] or [ ] button to display.
Bluetooth Name
This will display the name of the Bluetooth.
2-1. Select “BT NAME”.
The Bluetooth name appears in the display.
Bluetooth Firmware version
This will display the Firmware version of the
Bluetooth.
2-1. Select “BT FW”.
The Bluetooth Firmware version appears in
the display.
CZ509_ENG.book Page 22 Monday, December 29, 2008 4:42 PM
English
23 CZ509

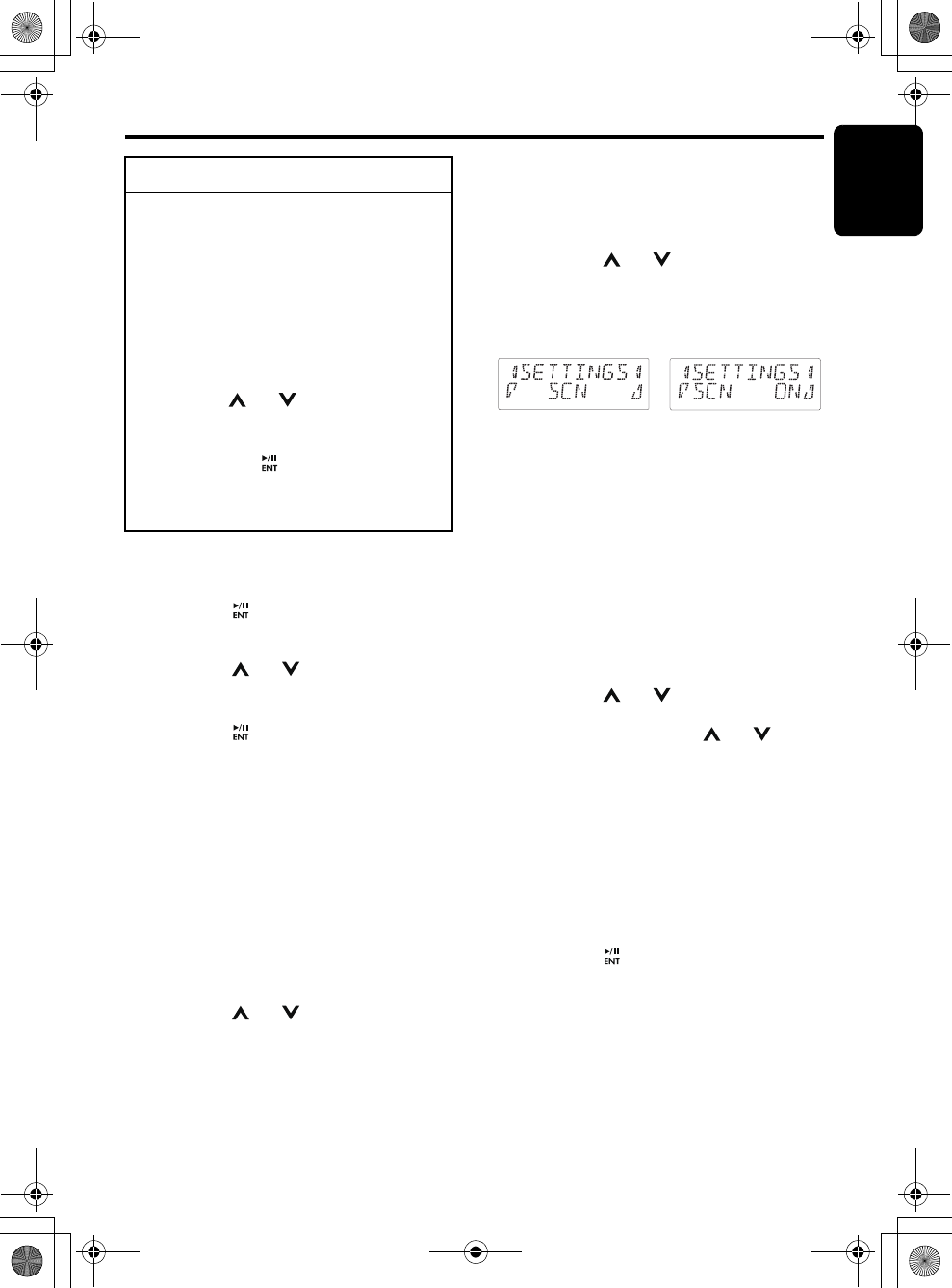

Operations Common to Each Mode
Setting the clock
2-1. Select “CLOCK”.
3-1. Press the [ ] button.
3-2. Press the [x] or [v] button to select the
hour or the minute.
3-3. Press the [ ] or [ ] button to set the
correct time.
The clock is displayed in 12-hour format.
3-4. Press the [ ] button to store the time into
memory.
Note:
• You cannot set the clock when it is displayed
with only the ignition on. If you drain or remove
the car’s battery or take out this unit, the clock is
reset. While setting the clock, if another button or
operation is selected, the clock set mode is
canceled.
Setting the contrast
You can adjust the display contrast to match the
angle of installation of the unit.
The factory default setting is “10”.
(Adjustment level: 1 to 16)
2-1. Select “CONTRAST”.
3-1. Press the [ ] or [ ] button to adjust the
contrast.
Displaying the settings
The number of indicator of this unit decreases,
you can see the state of current settings at any
operation mode.
2-1. Select “SETTINGS”.
3-1. Press the [ ] or [ ] button to display the
state of current settings.
When the setting is selected, after 1 second
the current state will be displayed.
Turning the screen saver function on
or off
This unit is provided with the screen saver
function which allows you to show various kinds
of patterns and characters in the operation
status indication area of the display in a random
order. You can turn on or off this function. If the
button operation is performed with the screen
saver function on, the operation display
corresponding to the button operation is shown
for about 30 seconds and the display returns to
the screen saver display.
The factory default setting is “ON”.
2-1. Select “SCRN SVR”.
3-1. Press the [ ] or [ ] button to select the
setting.
Each time you press the [ ] or [ ]
button, the setting changes in the following
order:
MESSAGEOFFON
Entering message information
Message up to 30 characters long can be stored
in memory and displayed as a type of screen
saver setting.
The factory default setting is “WELCOME TO
CLARION”.
2-1. Select “MESSAGE INPUT”.
3-1. Press the [ ] button.
3-2. Press and hold the [BND] button (1 sec.) to
clear the old message.
3-3. Press the [x] or [v] button to move the
cursor.
To change adjustment setting
1. Press and hold the [DISP] button (1 sec.)
to switch to the adjustment selection
display.
2. Press the [x] or [v] button to select
the “item name”.
CLOCKCONTRAST
SETTINGSSCRN SVR
MESSAGE INPUTSCROLL
DIMMERBLINKLED
A-CANCELSYSTEM CHECK
3. Press the [ ] or [ ] button to select the
desired setting value”.
In the case of display blinking “ENT”, you
can press the [ ] button to adjust the
setting value.
After completing settings, press the [DISP]
button to return to the previous mode.
For example: after 1 second,
CZ509_ENG.book Page 23 Monday, December 29, 2008 4:42 PM
Operations Common to Each Mode
English
24 CZ509
3-4. Press the [BND] button to select a
character type. Each time you press the
[BND] button, the character type changes
in the following order:
Capital letters Numbers Symbols
Capital letters…
3-5. Press the [ ] or [ ] button to select the
desired character.
3-6. Repeat step 3-3 to 3-5 to enter up to 30
characters for message.
3-7. Press and hold the [ ] button (2 sec.) to
store the message in memory.
Press and hold the [BND] button (1 sec.) to
cancel the input message. Then press and
hold the the [ ] button (2 sec.) to store the
message and the message return to default
setting.
Setting the method for title scroll
Set how to scroll in CD-TEXT, MP3/WMA/AAC
title.
The factory default setting is “ON”.
2-1. Select “SCROLL”.
3-1. Press the [ ] or [ ] button to select “ON
or “OFF”.
•ON:
To scroll automatically.
•OFF:
To scroll just 1 time.
When you want to see the title again, in the
title mode, press and hold the [DISP] button
for 3 seconds or longer to scroll the title.
Setting the dimmer control
You can set the dimmer control “ON” or “OFF”.
The factory default setting is “ON”.
2-1. Select “DIMMER”.
3-1. Press the [ ] or [ ] button to select “ON
or “OFF”.
Anti-theft indicator
The red Anti-theft indicator is a function for
preventing theft. When the ACC is off, this
indicator blinks.
The factory default setting is “OFF”.
2-1. Select “BLINKLED”.
3-1. Press the [ ] or [ ] button to select “ON
or “OFF”.
Setting the external amplifier
The factory default setting is “OFF”.
2-1. Select “A-CANCEL”.
3-1. Press the [ ] or [ ] button to select “ON
or “OFF”.
•ON:
Use with connected AMP.
• OFF:
Use with inside AMP.
Performing a system check
This function allows you to perform a system
check from the adjust mode when required.
2-1. Select “SYSTEM CHECK”.
3-1. Press and hold the [ ] button (1 sec.).
SYSTEM CHECK” appears in the display,
then the unit returns to the previous
operation mode.
Entering titles
Titles up to 10 characters long can be stored in
memory and displayed for CD, CD changer,
Radio stations. The number of titles that can be
entered for each mode are as follows.
1. Press the [SRC] button to select the mode
you want to enter a title (Radio, CD, CD
changer).
2. Select and play a CD in the CD changer or
Radio for which you want to enter the title.
3. Press and hold the [DISP] button (1 sec.).
4. Press the [x] or [v] button to select
TITLE INPUT”.
5. Press the [ ] button.
The display switches to the title input display.
6. Press the [x] or [v] button to move the
cursor.
7. Press the [BND] button to select a character
type. Each time you press the [BND] button,
the character type changes in the following
order:
Capital letters Numbers Symbols
Capital letters…
Mode Number of titles
CD mode 50 titles
Radio mode 30 titles
CD changer mode Number of titles
DCZ625 connected 100 titles
CZ509_ENG.book Page 24 Monday, December 29, 2008 4:42 PM
Operations Common to Each Mode
English
25 CZ509
8. Press the [ ] or [ ] button to select the
desired character.
9. Repeat steps 6 to 8 to enter up to 10
characters for the title.
10.Press and hold the [ ] button (2 sec.) to
store the title into memory.
Clearing titles
1. Select and play a CD in the CD changer or
tune in to a TV station or Radio for which you
want to clear the title.
2. Press and hold the [DISP] button (1 sec.).
3. Press the [x] or [v] button to select
TITLE INPUT”.
4. Press the [ ] button.
The display switches to the title input display.
5. Press and hold the [BND] button (1 sec.).
All characters in the title disappear.
6. Press and hold the [ ] button (2 sec.) to
store the setting.
AUX function
This system has an external input jack on the
front panel so you can listen to sounds and
music from external devices connected to this
unit.
Selecting AUX IN sensitivity
Make the following settings to select the
sensitivity when sounds from external devices
connected to this unit are difficult to hear even
after adjusting the volume.
The factory default setting is “MID”.
1. Press and hold the [DISP] button (1 sec.).
2. Select “AUX SENS”.
3. Press the [ ] or [ ] button to select
HIGH”, “MID” or “LOW”.
Note:
• When AUX mode is selected, AUX IN sensitivity
can be set.
CZ509_ENG.book Page 25 Monday, December 29, 2008 4:42 PM
English
26 CZ509
7. ACCESSORIES
USB/MTP Operations
USB memory/MTP device operation
Note:
• The following operations are the same as for CD
mode:
Pause
Track selection
Fast-forward/fast-backward (Except DRM file)
Top function
List search
Scan play
Repeat play
Random play
Folder selection
See “CD/MP3/WMA/AAC Operations” (page 15-
17) for details.
About USB memory
USB is an acronym for Universal Serial Bus,
and refers to an external bus standard
supporting data transfer rates of 12 Mbps.
•This unit is compatible with USB 1.1/2.0 with
maximum data transfer rates of 12 Mbps.
USB memory devices that can be played by
connecting to the unit’s USB cable are limited
to those recognized as “USB mass storage
class devices”; operation is not guaranteed
with all USB memory devices.
Devices compatible with “USB Mass Storage
Class” can be used merely by connecting to
the host device, without need for special
drivers or application software.
• Consult the manufacturer of your USB
memory device for information regarding
whether it is supported by “USB Mass
Storage Class” standards.
•Audio files playable on this unit are limited to
MP3/WMA/AAC files. For details, see the
section “MP3/WMA/AAC” (page 15).
Copy-protected WMA/AAC files cannot be
played on this unit.
The Podcast files of iTunes Store that stored
in the USB memory device can not be played.
Besides, the data that edit through some softs
such as the Tag edit soft may not be played.
•To prevent the accidental loss of data, always
back up important data on your computer.
•This unit does not support connections to a
computer. In addition, connections made
through a USB hub device are also not
supported.
When a USB memory device is composed of
two or more drives, only one of the drives will
be detected.
USB memory devices with security functions
cannot be played.
The order in which tracks are recorded may
differ depending on the USB memory device
connected (the actual playback order may not
be the same as that indicated on your
computer’s display).
If you continuously operate folder up/down,
the play time keeps as “00:00”, and the sound
is not emitted.
About USB Digital Media Streaming
This unit supports USB Digital Media Streaming.
USB Digital Media Streaming is a function used
to play music files transmitted using Media
Transfer Protocol (MTP). This function also
supports the playback of WMDRM 10 files.
During USB Digital Media Streaming, the unit
displays the “MTP” mode.
Use of USB Digital Media Streaming requires
the purchase of a supported portable audio
player. For information regarding supported
portable audio players, consult your nearest
Clarion dealer, or visit Clarion’s website.
CAUTION
Insert and remove a USB memory/MTP
device only when the device is not being
accessed. Connecting or disconnecting
the device at the following times may
result in the loss of data:
- If the USB memory/MTP device is
removed or power is disconnected
during writing to the device.
- When the device is subjected to static
electricity or electric noise.
Do not leave a USB memory/MTP device
unattended in an automobile. Exposure to
direct sunlight or high temperatures may
cause deformation or other malfunction of
the USB memory/MTP device.
CZ509_ENG.book Page 26 Monday, December 29, 2008 4:42 PM
USB/MTP Operations
English
27 CZ509
Do not turn on vehicle ignition when the
MTP device is connected, since it may
result in loss or damage to data on the
MTP device. Connect the MTP device to
the USB cable after vehicle ignition is
turned on.
Connecting a USB memory/MTP
device
1. Connect the USB memory/MTP device to the
USB cable.
Playback will begin from the first file
recorded on the device.
If the device is not recognized, press the
[SRC] button to switch the source to the
device.
Always insert the device fully into the
connector. Incomplete connections may
cause the device not to be recognized.
Depending on the number of tracks recorded,
some amount of time may be required until all
tracks are read into the unit.
The order in which tracks are recorded may
differ depending on the device connected (the
actual playback order may not be the same as
that indicated on your computer’s display).
To listen to tracks on a connected
USB memory/MTP device
1. Press the [SRC] button to switch the source.
When USB memory/MTP device is selected,
playback (except DRM files) will begin from
the location at which playback was
previously stopped.
When a USB memory/MTP device is
connected the USB/MTP mode will be
displayed.
When a USB memory/MTP device is
disconnected and then reconnected, playback
will begin from the beginning of the USB
memory/MTP device.
When “MTP” mode is selected, AAC files on
the MTP device cannot be played.
To stop play
1. Press the [SRC] button and switch the
function to a source other than the USB
memory.
CAUTION
Do not remove the USB memory/MTP device
when the USB/MTP mode is selected, since it
may result in loss or damage to data on the
USB memory/MTP device.
Always backup and save important data on
your computer.
2. Remove the USB memory/MTP device from
the USB cable.
CZ509_ENG.book Page 27 Monday, December 29, 2008 4:42 PM
English
28 CZ509
iPod Operations
This section describes operations when
connected to an Apple iPod via the USB cable.
Notes:
• See the iPod Owner’s Manual for details
regarding operation conditions.
• The unit will not operate, or may operate
improperly with unsupported versions.
• For a list of compatible Apple iPod unit with the
this model, please contact your Clarion dealer or
www.clarion.com.
• “Made for iPod” means that an electronic
accessory has been designed to connect
specifically to iPod and has been certified by the
developer to meet Apple performance
standards.
Apple is not responsible for the operation of this
device or its compliance with safety and
regulatory standards.
iPod and iTunes are trademarks of Apple Inc.,
registered in the U.S. and other countries.
Connecting an iPod
When an iPod is connected to the USB slot,
“Shuffle” set on the iPod will become as follows:
•“Shuffle (Albums)” play Random play
•“Shuffle (Songs)” play All random play
The iPod has two modes, the “Play mode” and
the “iPod menu mode” for selecting tracks.
Switch between these modes by pressing the
[BND] button (1 sec.).
Note:
• To connect iPod, please use the USB cable
attached in iPod.
Select iPod mode
1. Press the [SRC] button.
Playback will begin from the last file that was
played on the iPod.
Notes:
• The following operations in Play mode operate
the same as in CD mode:
Track selection: [x], [v]
Fast-forward/fast-reverse: [x], [v]
Pause: []
See “CD/MP3/WMA/AAC Operations” (page 15-
17) for details.
• After a Podcast file has completed playback, the
pause display, or the track-end position Play-
Time display will appear. At that time, select a
music file once again.
Setting iPod simple mode
Use this function if you wish to operate through
your iPod connected to this unit via the USB
cable.
The factory default setting is “OFF”.
1. Press and hold the [DISP] button (1 sec.).
2. Press [x] or [v] to select “S-CTRL”.
3. Press the [ ] button.
4. Press the [ ] or [ ] button to select “ON
or “OFF”.
ON: Operations can be made through your
iPod.
OFF: Operations cannot be made through
your iPod.
5. Press and hold the [ ] button (1 sec.) to
store the setting and return to the previous
mode.
Notes:
• When performing iPod operations using simple
control mode, make the operations slowly. If
repetitive operations are performed too quickly,
unforseen errors may occur.
• When performing iPod operations using simple
control mode, please do not operate the iPod
and the unit at the same time, otherwise there
may be unexpeted event happened.
• Some iPod models do not support this function.
Consult your nearest Clarion dealer or website to
confirm which models do not support this
function.
Other various play functions
(in Play mode)
Notes:
• These functions are not supported when in the
iPod menu mode.
The Random function set on the iPod remains the
same after attachment/detachment of the iPod.
• The Repeat function on the iPod will be changed
when you connect/disconnect the iPod to the
unit.
Repeat play
Play back one track repeatedly.
1. Press the [RPT] button.
Random play
Play all albums within a selected category, in
random order. (Corresponds to “Shuffle
(Albums)” command on iPod.)
1. Press the [RDM] button.
CZ509_ENG.book Page 28 Monday, December 29, 2008 4:42 PM
iPod Operations
English
29 CZ509
All random play
Play all tracks within a selected category, in
random order. (Corresponds to “Shuffle
(Songs)” command on iPod.)
1. Press and hold the [RDM] button (1 sec.).
To cancel play
1. Press the same play button once again.
Notes:
• When the repeat play mode is canceled, after
play all tracks within a selected category,
playback will begin from the first track in the
selected category.
• When playing the last track within a selected
category in Random mode, if ACC is switched off
then on again, playback will begin from a
different track.
• Though the default setting of an iPod is “All
Repeat”, the indication on the mode status is not
displayed.
When performing operations using simple control
mode, do not set the repeat off on the iPod.
Selecting category from the iPod
menu
1. Press the [BND] button (1 sec.) to select the
iPod menu mode.
The iPod menu categories will be displayed.
Notes:
• Repeat and Random mode operations are not
supported when in the iPod menu mode.
• In iPod menu mode, if you press the [x]/[v]
or [ ] / [ ] button fast, playback may not be
performed.
2. Press the [ ] or [ ] button to switch
between categories.
The iPod menu categories alternate in the
following order:
PLAYLISTSARTISTSALBUMS
SONGSGENRES
COMPOSERS”...
Note:
The iPod menu mode can be canceled by
performing one of the following operations:
• Press the [BND] button.
• When the category select screen is displayed,
press the [v] button.
3. Press the [v] button to select the category.
4. When the track name display is showing,
press the [v] button.
Playback will begin from the first track in the
selected category, and the iPod menu mode
will be canceled.
Subfolders may be displayed, depending on
the category.
In this case, use the [ ] and [ ] buttons to
switch between subfolders, then use the [v]
button to select the desired subfolder.
When the track name display is showing,
pressing the [x] button will return to the
currently playing folder name display.
5. Use the [ ] and [ ] buttons to select a
track within a category.
iPod menu alphabet search
This function searches the subfolders for
desired alphabetical letters.
1. Press the [BND] button to select the iPod
menu mode.
2. Press the [ ] or [ ] button to switch
between categories.
3. Press the [v] button.
Subfolders may be displayed, depending on
the category. In this case, you can use the
[] or [] button to switch between
subfolders and use the [v] button to enter
the next subfolder layer.
4. Press and hold the [DISP] button (1 sec.).
5. Press the [ ] or [ ] button to select the
desired letter to search.
6. Press the [DISP] button to perform search.
During search, press the [DISP] button to
cancel search.
Selecting category using preset
memory
1. Press and hold the [BND] button (1 sec.) to
select the iPod menu mode.
The category can be set as follows in the
[DIRECT] (1-6) buttons.
[1] : PLAYLISTS
[2] : ARTISTS
[3] : ALBUMS
[4] : SONGS
[5] : GENRES
[6] : COMPOSERS
2. Press the desired [DIRECT] (1-6) button to
select the category.
Subfolders may be displayed, depending on
the category.
CZ509_ENG.book Page 29 Monday, December 29, 2008 4:42 PM
iPod Operations
English
30 CZ509
In this case, use the [ ] and [ ] buttons to
switch between subfolders, then use the [v]
button to select the desired subfolder.
3. When the track name display is showing,
press the [v] button.
Playback will begin from the first track in the
selected category, and the iPod menu mode
will be canceled.
Use the [ ] and [ ] buttons to select a
track within a category.
iPod menu list back
In the iPod menu operation mode:
If press the [BND] button, it will return to the
previous subfolder list mode.
If press and hold the [BND] button (1 sec.), it will
return to the category list mode.
About title display
This unit supports the display of title information
transmitted from a connected iPod.
Character code information is UTF-8;
displayable characters include English
alphanumerics, some symbols, and some
umlaut characters.
•Unsupported characters will be replaced by
asterisks (*).
CZ509_ENG.book Page 30 Monday, December 29, 2008 4:42 PM
English
31 CZ509
Satellite Radio Operations
This function is available when a Satellite Radio
Receiver is connected through the CeNET
cable.
This unit can control the following satellite radio
receivers:
XM Satellite Interface Adapter (Mini-Tuner
Included) : CNP2000UC
Clarion cable for CNP2000UC : CNPCLA1
SIRIUS Satellite Radio Receiver : SIRCL3
SIRIUS Satellite Translator Adapter :
CLA-SC1 (which needs Sirius universal Tuner
sold separately.)
Notes:
• When the function is differ depending to the
connected receiver, they are distinguished by
the following notations:
“XM”: for an XM Satellite Radio Receiver
“SIRIUS”: for a SIRIUS Satellite Radio Receiver
• XM and the XM logos are trademarks of XM
Satellite Radio Inc.
Selecting a Satellite Radio mode
1. Press the [SRC] button.
The system changes to the specified
Satellite Radio mode.
Selecting a band
1. Press the [BND] button to select a band.
This changes the reception band as follows:
XM: XM1 XM2 XM3 XM1 ...
SIRIUS: SR1 SR2 SR3 SR1 ...
Information displayed during reception
The following information is displayed when the
satellite radio cannot be received normally.
When the receiver is turned on the first time
or after a reset: “UPDATING
When a channel is being tuned in (no signal is
yet received):
XM: “LOADING”, SIRIUS: “LINKING
A channel without a broadcast has been
selected:
XM: “– – – CH”, SIRIUS: “INVALID CH
A channel not covered by your contract:
XM: “UPDATING”, SIRIUS: “CALL 888
539-SIRI” (alternated)
Confirming your SIRIUS ID
1. Press the [x] or [v] button to switch to
channel 0.
2. Press the [DISP] button until the SIRIUS ID
appears in the diaplay.
Displaying channel labels
1. Press the [DISP] button to select the desired
channel label.
Channel Category Title (Artist) Radio
text Channel...
Channel selection
1. Channels are selected with the [x] or
[v] button.
For details, see the following operation
descriptions.
Note:
• The audio output is muted and other button
operations are not accepted during channel
selection.
Tuning mode
There are two channel selection modes: quick
tuning mode and step tuning mode.
Quick tuning
1. Press and hold the [x] or [v] button
(1 sec.).
Step tuning
1. Press the [x] or [v] button.
Recalling a preset station
A total of 18 satellite radio stations can be
stored.
XM: 6-XM1, 6-XM2 and 6-XM3
SIRIUS: 6-SR1, 6-SR2 and 6-SR3
This allows you to store your favorite satellite
radio stations in memory for later recall.
1. Press the [BND] button to select the desired
band.
2. Press the [ ] / [ ] button or [DIRECT]
button to select the desired preset station.
CZ509_ENG.book Page 31 Monday, December 29, 2008 4:42 PM
Satellite Radio Operations
English
32 CZ509
Preset memory
1. Press the [BND] button to select the desired
band.
2. Select the desired channel with quick tuning
or step tuning.
3. Press and hold the [DIRECT] button (2 sec.)
to store the current channel into preset
memory.
Receiving stations selected by
category
Satellite Radio allows you to select broadcast
channel category (contents).
1. Press and hold the [BND] button (1 sec.) to
select the category selection mode.
It press once again, return to the channel
selection mode.
2. Press the [ ] or [ ] button to change the
category item.
3. Press the [x] or [v] button to tune in a
station.
Notes:
• When the category selection mode is entered,
the category of the last received channel is
displayed first.
• The category selection mode is canceled when
no channel with the selected category can be
found.
•The [x] or [v] button are not pressed within
7 seconds, the category selection mode is
canceled, and resumes to the channel mode.
Presetting a category
A category can be preset by registering specific
categories in [DIRECT] buttons 1 to 6 while in
the SIRIUS mode. Then the desired category
can be recalled by pressing the corresponding
[DIRECT] button.
1. Press and hold the [BND] button (1 sec.) to
enter the category mode.
2. Press the [ ] or [ ] button to select a
category.
3. Press and hold one of the [DIRECT] buttons
for 2 seconds or longer to store the current
category into preset memory.
Notes:
• When the name of a channel stored in memory is
changed by a broadcasting channel, the display
may show a channel name that differs from the
stored name.
• A channel stored in memory may be
discontinued at the option of the broadcasting
channel.
• If no operation is performed for more than 1
second, category seek tuning can automatically
tune in a receivable broadcast channel category.
Scan function
There are two scan modes: the category scan
mode and the preset scan mode.
During scanning channels are displayed in
abbreviated form, the display mode cannot be
switched.
Preset scan (PRESET SCN)
A preset scan scans the channels (up to 18
channels) stored in the preset memory about
every 10 seconds.
Press and hold the [ ] button (1 sec.) to
select the preset scan mode. And start the
preset scanning.
Category scan (CAT SCN)
In a category scan, broadcast channels in the
same category as the current channel are
selected about every 10 seconds.
Press the [ ] button to select the category
scan mode. And start the category scanning.
Note:
• Category scanning is not available when no
category is defined for the current channel.
CZ509_ENG.book Page 32 Monday, December 29, 2008 4:42 PM
English
33 CZ509
CD Changer Operations
Note:
• The following operations are the same as for CD
mode:
Pause
Track selection
Fast-forward/fast-reverse
Scan play
Repeat play
Random play
See “CD/MP3/WMA/AAC Operations” (page 15-
17) for details.
CD changer functions
When an optional CD changer is connected
through the CeNET cable, this unit controls all
CD changer functions. This unit can control a
total of 2 changers.
Press the [SRC] button and select the CD
changer mode to start play. If 2 CD changers
are connected, press the [SRC] button to select
the CD changer for play.
If “NO MAG” appears in the display, insert the
magazine into the CD changer.D-CHECK
appears in the display while the player loads
(checks) the magazine.
If “NO DISC” appears in the display, eject the
magazine and insert discs into each slot. Then,
reinsert the magazine back into the CD changer.
Note:
• Some CDs recorded in CD-R/CD-RW mode may
not be usable.
CAUTION
CD-ROM discs cannot be played from every
CD changer, it’s depended on the model.
Displaying CD titles
This unit can display title data for CD-text CDs
and user titles input with this unit.
Title data for CD-text CDs can be displayed with
this unit only when it is connected to DCZ625.
1. Press the [DISP] button to change the title
display.
Notes:
• If the CD playing is not a CD-text CD or no user
title has been input, “NO TITLE” appears in the
display.
• If a CD-text CD is not input its disc title or a track
title, “NO TITLE” appears in the display.
Procedure to scroll a title
Set “SCROLL” to “ON” or “OFF”.
(The factory default setting is “
ON
”. Refer to the
subsection “
Setting the method for title scroll
” in
section “
Operations Common to Each Mode
”.)
When set to “ON”
The title is automatically kept scrolling.
When set to “OFF”
To scroll just 1 time.
When you want to see the title again, in the title
mode, press and hold the [DISP] button (3 sec.)
to scroll the title.
Selecting a CD
1. Press the [ ] or [ ] button to select the
desired disc.
If a CD is not loaded in a slot of magazine,
pressing the [] or [] button can not work.
Other various play functions
Disc scan play
Disc scan play locates and plays the first 10
seconds of the first track on each disc in the
currently selected CD changer. This function
continues automatically until it is cancelled.
Disc scan play is useful when you want to select a
desired CD.
1. Press and hold the [SCN] button (1 sec.).
Disc repeat play
After all the tracks on the current disc have been
played, disc repeat play automatically replays
the current disc over from the first track. This
function continues automatically until it is
cancelled.
1. Press and hold the [RPT] button (1 sec.).
Disc random play
The disc random play selects and plays
individual tracks or discs automatically in no
particular order. This function continues
automatically until it is cancelled.
1. Press and hold the [RDM] button (1 sec.).
To cancel play
1. Press the operating button previously
selected.
CZ509_ENG.book Page 33 Monday, December 29, 2008 4:42 PM
English
34 CZ509

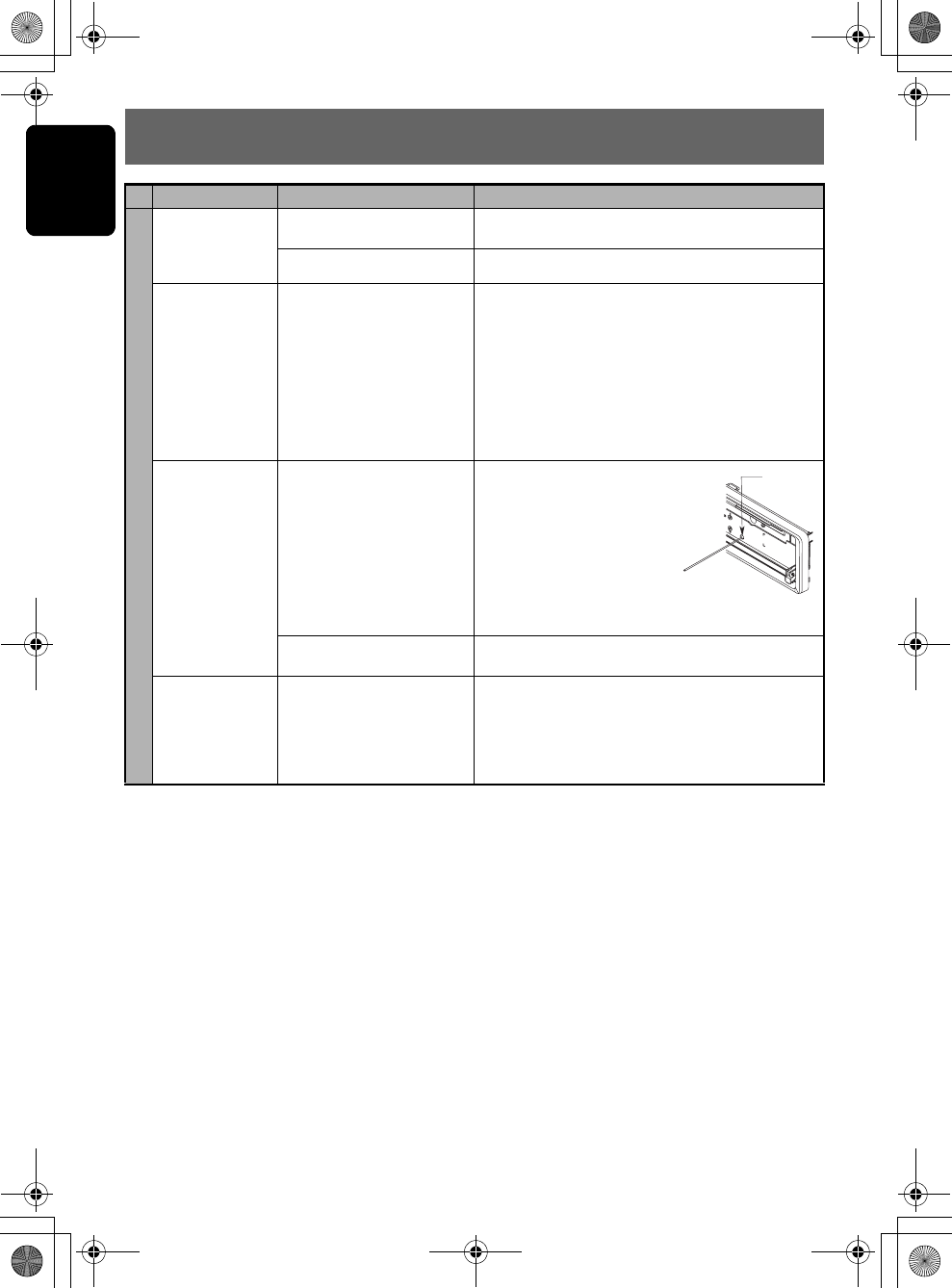

8. TROUBLESHOOTING
Problem Cause Measure
General
Power does not
turn on.
(No sound is
produced.)
Fuse is blown. Replace with a fuse of the same amperage. If the fuse
blows again, consult your store of purchase.
Incorrect wiring. Consult your store of purchase.
No sound output
when operating
the unit with
amplifiers or
power antenna
attached.
Power antenna lead is
shorted to ground or
excessive current is required
for remote-on the amplifiers
or power antenna.
1. Turn the unit off.
2. Remove all wires attached to the power antenna
lead. Check each wire for a possible short to
ground using an ohm meter.
3. Turn the unit back on.
4. Reconnect each amplifier remote wire to the power
antenna lead one by one. If the amplifiers turn off
before all wires are attached, use an external relay
to provide remote-on voltage (excessive current
required).
Nothing happens
when buttons are
pressed.
Display is not
accurate.
The microprocessor has
malfunctioned due to noise,
etc.
Turn off the power, then
press the [OPEN] button and
remove the DCP.
Press the reset button for about
2 seconds with a thin rod.
If the RESET button is
pressed when a disc is
loaded, please eject the disc
and load it once again before
attempting to play it.
DCP or main unit connectors
are dirty. Wipe the dirt off with a soft cloth moistened with
cleaning alcohol.
No sound heard The speaker protection circuit
is operating. 1. Turn down sound volume. Function can also be
restored by turning the power off and on again.
(Speaker volume is reduced automatically when
the speaker protection circuit operates).
2. If the sound is muted again, consult our service
department.
Reset
button
CZ509_ENG.book Page 34 Monday, December 29, 2008 4:42 PM
English
35 CZ509
CD/MP3/WMA/AAC
No sound heard MP3/WMA/AAC files are
absent in a disc. Write MP3/WMA/AAC files onto the disc properly.
Files are not recognized as
an MP3/WMA/AAC file. Use MP3/WMA/AAC files encoded properly.
File system is not correct. Use ISO9660 level 1, 2 or JOLIET or Romeo or
APPLE ISO file system.
Sound skips or is
noisy. Compact disc is dirty. Clean the compact disc with a soft cloth.
Compact disc is heavily
scratched or warped. Replace with a compact disc with no scratches.
Sound is cut or
skipped.
Noise is
generated or
noise is mixed
with sound.
MP3/WMA/AAC files are not
encoded properly. Use MP3/WMA/AAC files encoded properly.
Sound is bad
directly after
power is turned
on.
Water droplets may form on
the internal lens when the car
is parked in a humid place.
Let dry for about 1 hour with the power on.
Wrong filename File system is not correct. Use ISO9660 level 1, 2 or JOLIET or Romeo or
APPLE ISO file system.
USB/MTP/iPod
No sound heard The device contains no MP3/
WMA/AAC files. Record MP3/WMA/AAC files properly to the device.
The files are not proper MP3/
WMA/AAC format. Use only properly encoded MP3/WMA/AAC files.
Connectors are loose. Disconnect the device and reconnect securely.
Some USB portable music
players may consume current
that exceeds the USB rating.
In this case, this unit’s
overcurrent protection circuit
operates to stop the music
playback.
Check operation of portable music player.
Sound is
interrupted or has
noise.
The MP3/WMA/AAC files are
improperly encoded. Use only properly encoded MP3/WMA/AAC files.
The device isn’t
recognized. The device is damaged. Disconnect the device and reconnect. If the device is
still not recognized, try replacing with a different
device.
Connectors are loose.
According to the state of
operation on the device, the
communication fault is
caused.
Disconnect the device and reconnect.
Can’t insert the
device. The device has been inserted
improperly. Try reversing the connection direction of the device
(usually the brand name surface should be facing
left).
The connector is broken. Replace with a new device.
Problem Cause Measure
CZ509_ENG.book Page 35 Monday, December 29, 2008 4:42 PM
English
36 CZ509
9. ERROR DISPLAYS
If an error occurs, one of the following displays is displayed.
Take the measures described below to eliminate the problem.
If an error display other than the ones described above appears, press the reset button. If the problem
persists, turn off the power and consult your store of purchase.
Error Display Cause Measure
CD/MP3/WMA/AAC
ERROR 2 A CD is caught inside the CD
deck and is not ejected. This is a failure of CD deck’s mechanism and consult
your store of purchase.
ERROR 3 A CD cannot be played due
to scratches, etc. Replace with a non-scratched, non-warped-disc.
ERROR 6 A CD is loaded upside-down
inside the CD deck and does
not play.
Eject the disc then reload it properly.
CD changer
ERROR 2 A CD inside the CD changer
is not loaded. This is a failure of CD changer’s mechanism and
consult your store of purchase.
ERROR 3 A CD inside the CD changer
cannot be played due to
scratches, etc.
Replace with a non-scratched, non-warped disc.
ERROR 6 A CD inside the CD changer
cannot be played because it
is loaded upside-down.
Eject the disc then reload it properly.
USB/MTP/iPod
ERROR 2 The files are not proper MP3/
WMA/AAC format. Use only properly encoded MP3/WMA/AAC files.
ERROR 3
(USB/MTP mode) The MP3/WMA/AAC files are
improperly encoded. Use only properly encoded MP3/WMA/AAC files.
CUR ERR Overcurrent detection. Disconnect the devices and reconnect. If the devices
are still not recognized, try replacing with a different
devices.
HUB ERR Do not support the HUB
devices. Do not use the HUB devices.
CZ509_ENG.book Page 36 Monday, December 29, 2008 4:42 PM
English
37 CZ 5 0 9
10. SPECIFICATIONS
FM Tuner
Frequency Range: 87.9 MHz to 107.9 MHz
Usable Sensitivity: 11 dBµV
50dB Quieting Sensitivity: 17 dBµV
Alternate Channel Selectivity: 60 dB
Stereo Separation (1 kHz): 30 dB
Frequency Response (±3 dB): 30 Hz to 15 kHz
AM Tuner
Frequency Range: 530 kHz to 1710 kHz
Usable Sensitivity: 28 dBµV
CD Player
System: Compact disc digital audio system
Usable Discs: Compact disc
Frequency Response (±1 dB): 20 Hz to 20 kHz
Dynamic Range (1 kHz): 80 dB
Harmonic Distortion: 0.03%
Audio
Maximum Power Output: 200 W (50 W X 4 ch)
Bass Control Action (100 Hz): +14 dB, –14 dB
Treble Control Action (10 kHz): +14 dB, –14 dB
Line Output Level (CD 1 kHz): 2 V
General
Power Supply Voltage:
14.4 V DC (10.8 to 15.6 V allowable), negative
ground
Current Consumption: Less than 15 A
Speaker Impedance: 4 (4 to 8 allowable)
Auto Antenna Rated Current: 500 mA or less
Weight / Source unit: 2.53 lb. (1.14 kg)
Weight / Remote control unit:
1.41 oz. (40 g) (including battery)
Dimensions / Source unit:
7" (Width) X 2" (Height) X 6-1/8" (Depth)
[178 (W) X 50 (H) X 155 (D) mm]
Dimensions / Remote control unit:
1-3/4" (Width) X 4-5/16" (Height) X 7/16"
(Depth)
[44 (W) X 113 (H) X 11 (D) mm]
Note:
CSpecifications and design are subject to change without notice for further improvement.
Power Output :
22 W RMS x 4 Channels at 4
and 1 % THD+N
Signal to Noise Ratio:
92 dBA (reference: 1 W into 4 )
CZ509_ENG.book Page 37 Monday, December 29, 2008 4:42 PM
Bluetooth
Specification:Bluethooth Ver. 2.0
Profile:
HFP(Hands-Free Profile)
OPP(Object Push Profile) Phone Book
A2DP(Advanced Audio Distribution Profile)
AVRCP(Audio/Video Remote Control Profile)
Send/Receive Sensitivity: Class 2
English
38 CZ509
11.OTHERS
WMDRM 10 for devices
This product is protected by certain
intellectual property rights of Microsoft. Use or
distribution of such technology outside of this
product is prohibited without a license from
Microsoft.
Content owners use Windows Media digital
rights management technology (WMDRM) to
protect their intellectual property, including
copyrights. This device uses WMDRM
software to access WMDRM-protected
content. If the WMDRM software fails to
protect the content, content owners may ask
Microsoft to revoke the software’s ability to
use WMDRM to play or copy protected
content. Revocation does not affect
unprotected content. When you download
licenses for protected content, you agree that
Microsoft may include a revocation list with
the licenses. Content owners may require you
to upgrade WMDRM to access their content.
If you decline an upgrade, you will not be able
to access content that requires the upgrade.
CZ509_ENG.book Page 38 Monday, December 29, 2008 4:42 PM
Clarion Co., Ltd.
All Rights Reserved. Copyright © 2008: Clarion Co., Ltd.
Printed in China / Imprimé en Chine / Impreso en China
2008/12
PE-3155B
280-8704-00
CZ509_SP.book Page 120 Monday, December 29, 2008 5:01 PM

Navigation menu
