Users Manual
radio wind/sun sensor
remote control

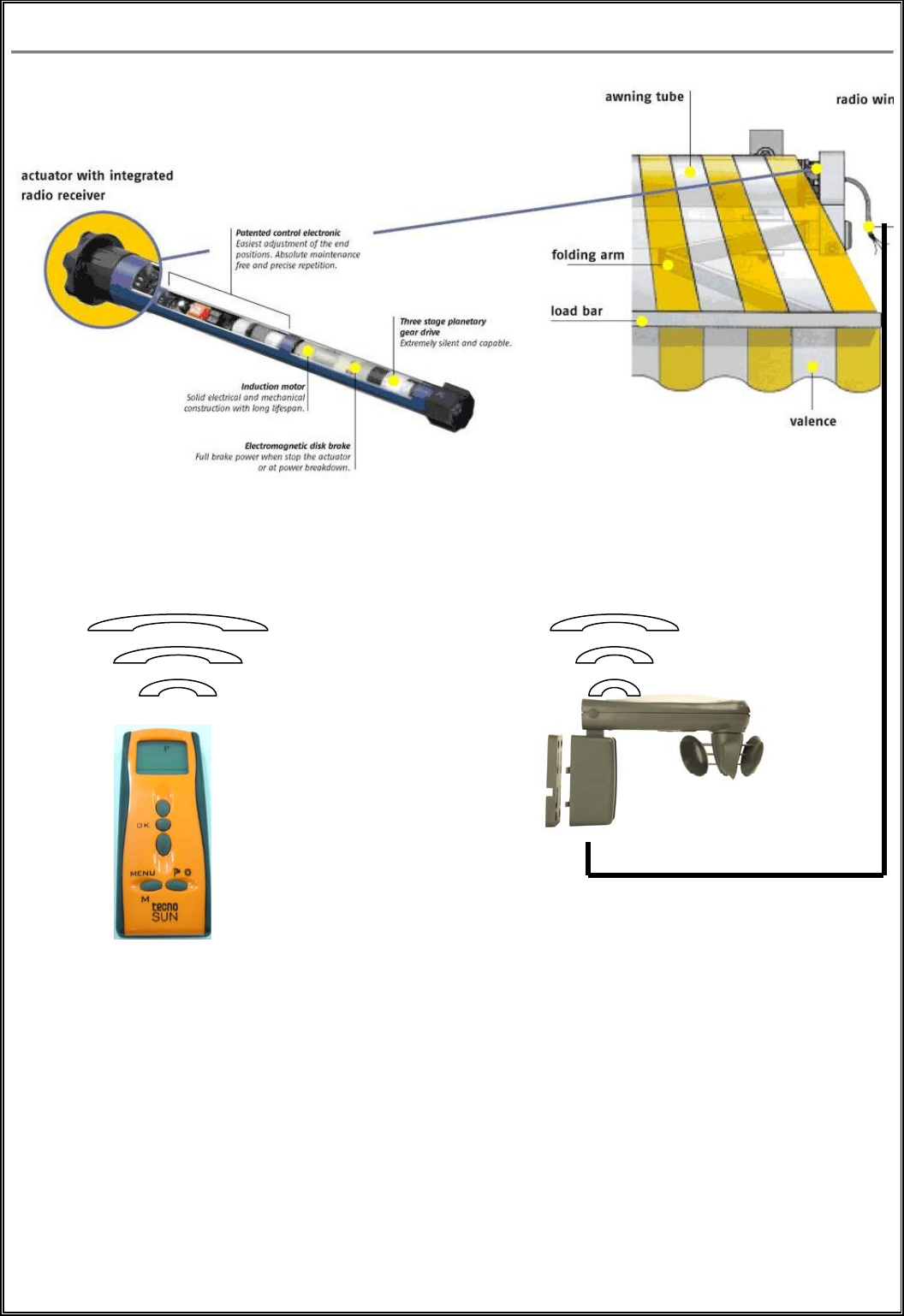

System Assembly

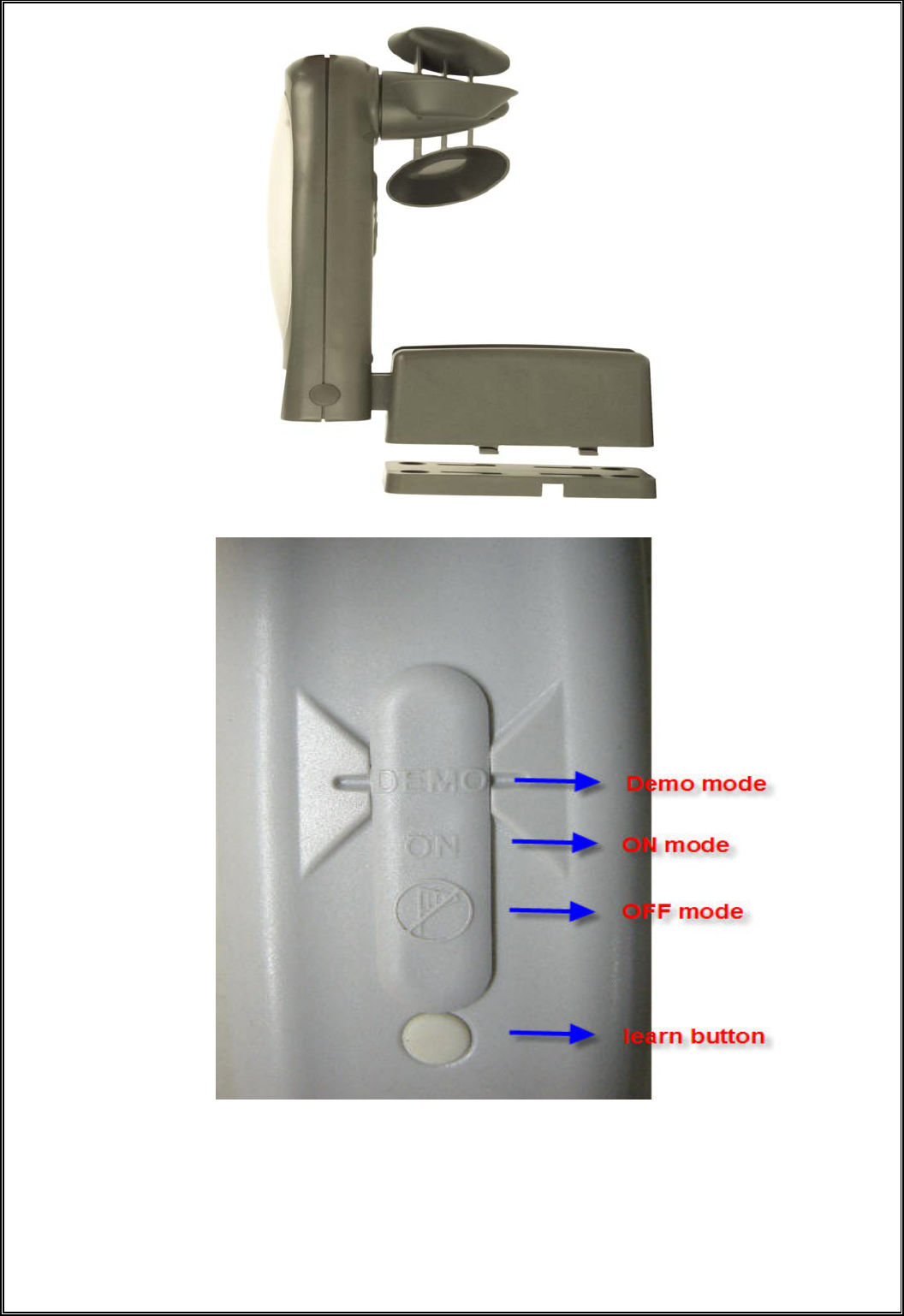

Product Appearance
Electrical connection
1、Electrical Specifications
Transmission Frequency: 868.35MHZ(SAW)
Transmitting Distance: >20M (field)
Receiving Distance: >30M (field)
Operating Voltage: 200V~250V/50,60 HZ
Operating Temperature: 0-50℃
2、Exterior Color
Silver
Grey
Black
3、Function Description
AAT173 Transmitter，controls receiver
AA1152 Receiver, controls motor rotating direction
Receiver can learn up to 15 transmitters
4、Button Function
Leran Button: press and hold for 7 seconds to activate learn mode, receiver will
beep 3 times and continues with 1 beep/second up to 20 seconds. Module will beep
three times per second if receive signal from transmitter indicate successfully
learned.
Pressing learn button again during learn mode will beep three times per second and erase
transmission memory.
When motor module is in learn mode, press learn button on the wind/light module, wind/light
module will emit a short beep and send a signal to the motor module to complete learning
process.
5、Slide switch function
DEMO: DEMO Mode
ON: Normal Mode
OFF: Wind speed sensor OFF
6、Wind Speed Function
Demo MODE:
¾ If wind speed is faster than the set speed for 2 seconds consecutively, the wind speed
detector will send signal for yarn retract.
¾ If wind speed is slower than the set speed for 2 seconds consecutively, the wind speed
detector will wend signal for yarn extraction.
¾ DEMO mode, minor signal will be determined as wind speed over set speed.
On Mode:
¾ When wind speed is greater than set value for 2 seconds consecutively, send command to
activate yarn retraction.
¾ When wind speed continues to be greater than set value for 3 minutes continuously, send
command to activate yarn retraction.
¾ When fan speed is greater than set speed for 2 seconds consecutively, send signal for yarn
retraction, after retraction, if wind speed is lower than set value then speed up to be greater
than set speed, send over set speed command to retract yarn..
¾ When wind speed is lower than set value for 8 minutes consecutively, send “wind lower
than set speed command
¾ After “wind lower than set speed command” is sent, yarn will not extract unless lux
greater than set value has continued for 8 minutes. If true, send command to extract yarn.
OFF Mode:
¾ Turn off wind speed function.
7、Lux Mode
Demo MODE:
¾ When lux is greater than set value for 2 seconds consecutively, send command to extract
yarn.
¾ When lux is lower than set value for 2 seconds consecutively, send command to retract
yarn.
¾ DEMO mode, any minor signal is determined to be over set value.
On Mode:
¾ When lux is greater than set value for 8 minutes consecutively, send command to activate
yarn extraction.
¾ When lux is lower than set value for 8 minutes consecutively, send command to retract
yarn.
OFF Mode:
¾ Same as On jmode。
8、Status and activation time
Status Normal DEMO OFF
Lux over set value 8MIN 2 SEC 8MIN
Lux below set value 8MIN 2 SEC 8MIN
Wind speed over set value 2SEC 2 SEC
Wind speed below set value 8MIN 2 SEC
