5.Users manual-2

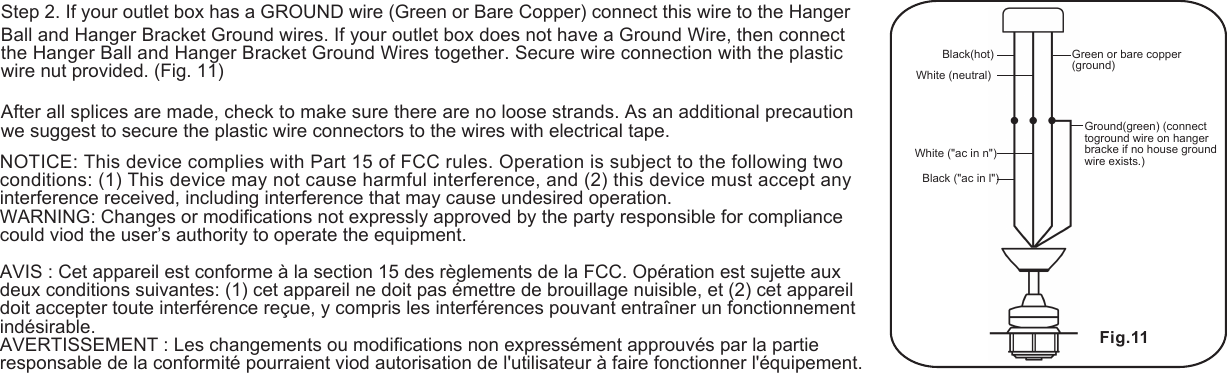

Black(hot) Green or bare copper (ground)Black ("ac in l")Ground(green) (connect toground wire on hanger bracke if no house ground wire exists.)White (neutral)White ("ac in n")Fig.11 Step 2. If your outlet box has a GROUND wire (Green or Bare Copper) connect this wire to the Hanger Ball and Hanger Bracket Ground wires. If your outlet box does not have a Ground Wire, then connect the Hanger Ball and Hanger Bracket Ground Wires together. Secure wire connection with the plastic wire nut provided. (Fig. 11)After all splices are made, check to make sure there are no loose strands. As an additional precaution we suggest to secure the plastic wire connectors to the wires with electrical tape.NOTICE: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.WARNING: Changes or modifications not expressly approved by the party responsible for compliance could viod the user’s authority to operate the equipment.AVIS : Cet appareil est conforme à la section 15 des règlements de la FCC. Opération est sujette aux deux conditions suivantes: (1) cet appareil ne doit pas émettre de brouillage nuisible, et (2) cet appareildoit accepter toute interférence reçue, y compris les interférences pouvant entraîner un fonctionnement indésirable.AVERTISSEMENT : Les changements ou modifications non expressément approuvés par la partieresponsable de la conformité pourraient viod autorisation de l'utilisateur à faire fonctionner l'équipement.

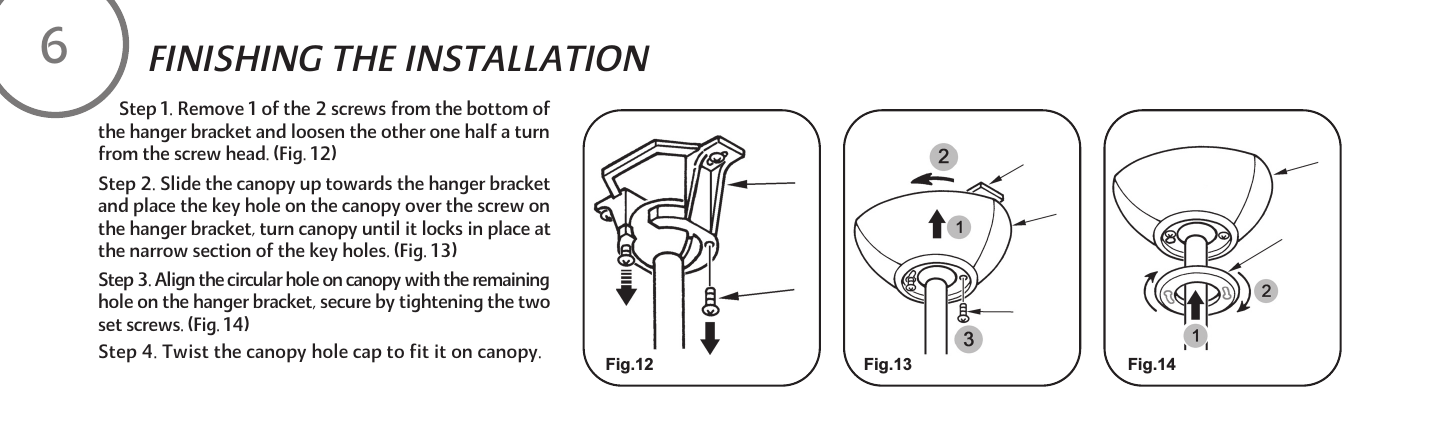

Step 1. Remove 1 of the 2 screws from the bottom of the hanger bracket and loosen the other one half a turn from the screw head. (Fig. 12)Step 2. Slide the canopy up towards the hanger bracket and place the key hole on the canopy over the screw on the hanger bracket, turn canopy until it locks in place at the narrow section of the key holes. (Fig. 13)Step 3. Align the circular hole on canopy with the remaining hole on the hanger bracket, secure by tightening the two set screws. (Fig. 14)Step 4. Twist the canopy hole cap to fit it on canopy.FINISHING THE INSTALLATIONFig.12 Fig.13 Fig.146

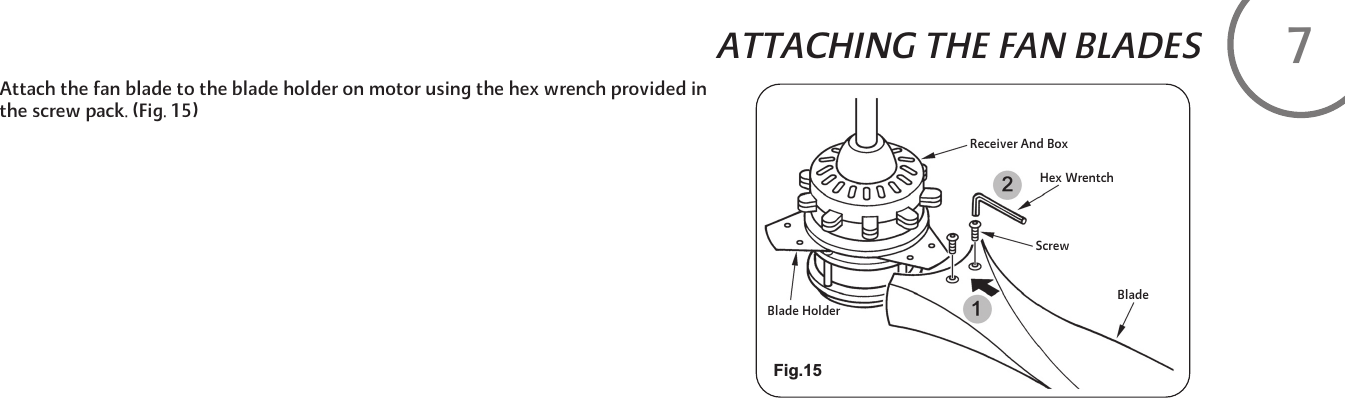

Attach the fan blade to the blade holder on motor using the hex wrench provided in the screw pack. (Fig. 15)ATTACHING THE FAN BLADESFig.15Blade HolderReceiver And BoxHex WrentchScrewBlade7

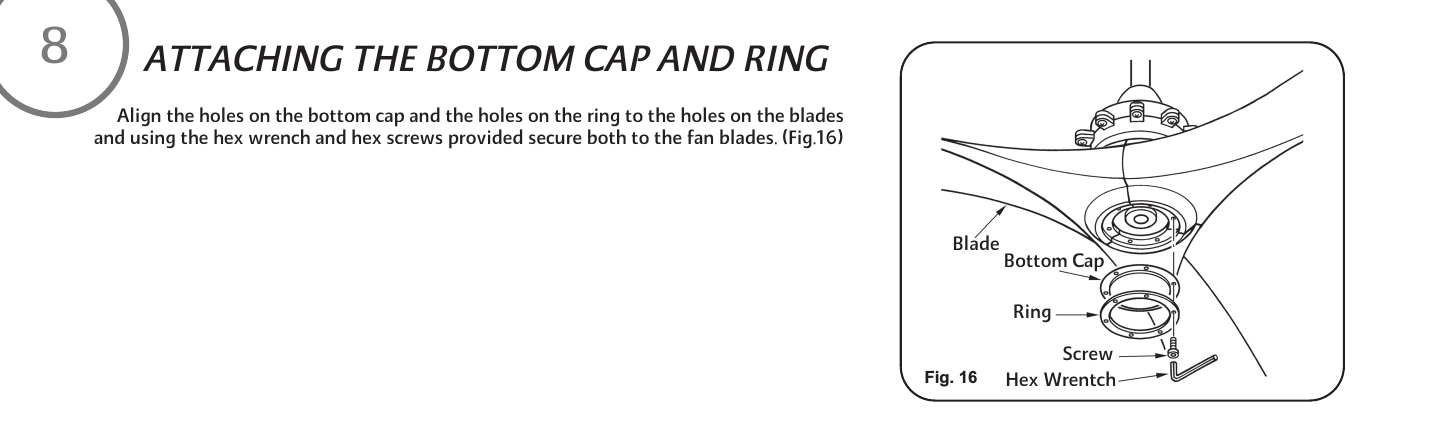

Align the holes on the bottom cap and the holes on the ring to the holes on the blades and using the hex wrench and hex screws provided secure both to the fan blades. (Fig.16)ATTACHING THE BOTTOM CAP AND RINGFig. 16BladeScrewRingHex WrentchBottom Cap8

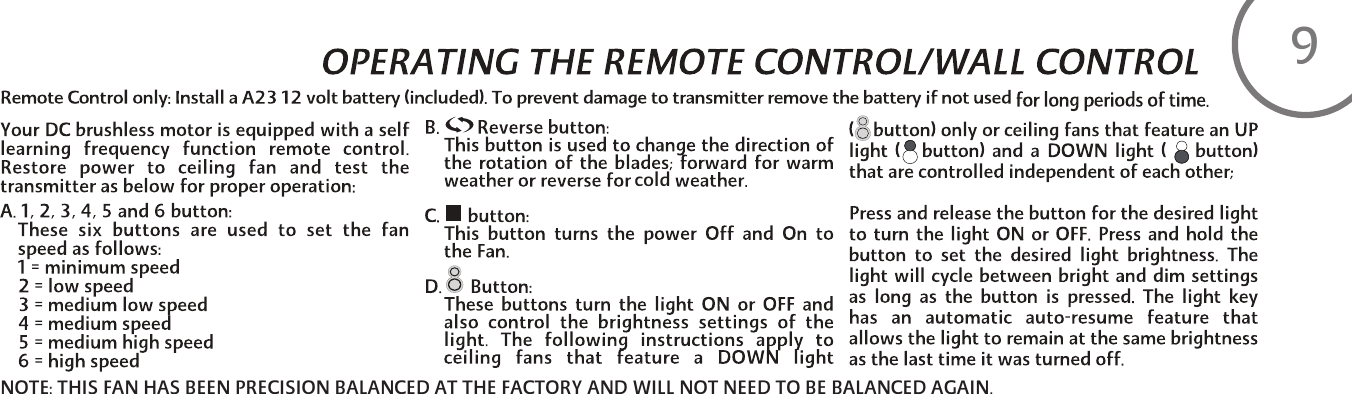

9NOTE: THIS FAN HAS BEEN PRECISION BALANCED AT THE FACTORY AND WILL NOT NEED TO BE BALANCED AGAIN.cold

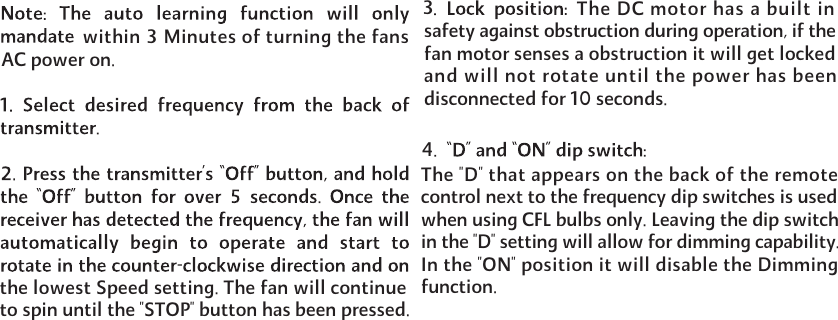

34within 3 Minutes of turning the fans AC power on.the lowest Speed setting. The fan will continue to spin until the "STOP" button has been pressed. The DC motor has a built insafety against obstruction during operation, if the fan motor senses a obstruction it will get locked and will not rotate until the power has been disconnected for 10 seconds.The "D" that appears on the back of the remote control next to the frequency dip switches is used when using CFL bulbs only. Leaving the dip switch in the "D" setting will allow for dimming capability. In the "ON" position it will disable the Dimming function.

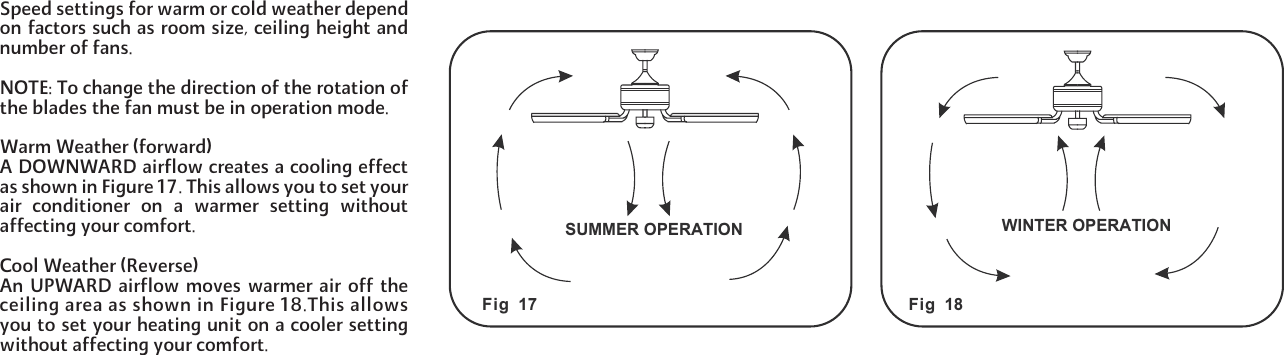

Fig 17 Fig 18SUMMER OPERATION WINTER OPERATIONSpeed settings for warm or cold weather depend on factors such as room size, ceiling height and number of fans.NOTE: To change the direction of the rotation of the blades the fan must be in operation mode.Warm Weather (forward)A DOWNWARD airflow creates a cooling effect as shown in Figure 17. This allows you to set your air conditioner on a warmer setting without affecting your comfort.Cool Weather (Reverse)An UPWARD airflow moves warmer air off the ceiling area as shown in Figure 18.This allows you to set your heating unit on a cooler setting without affecting your comfort.

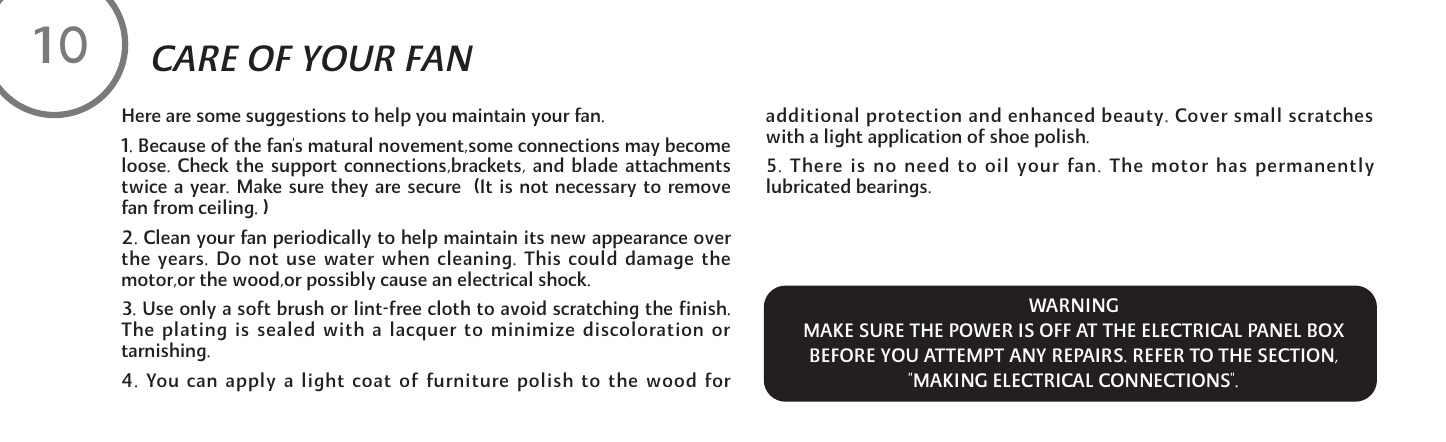

Here are some suggestions to help you maintain your fan.1. Because of the fan's matural novement,some connections may becomeloose. Check the support connections,brackets, and blade attachmentstwice a year. Make sure they are secure (It is not necessary to removefan from ceiling. )2. Clean your fan periodically to help maintain its new appearance overthe years. Do not use water when cleaning. This could damage themotor,or the wood,or possibly cause an electrical shock. 3. Use only a soft brush or lint-free cloth to avoid scratching the finish.The plating is sealed with a lacquer to minimize discoloration ortarnishing.4. You can apply a light coat of furniture polish to the wood foradditional protection and enhanced beauty. Cover small scratcheswith a light application of shoe polish.5. There is no need to oil your fan. The motor has permanentlylubricated bearings.10CARE OF YOUR FAN WARNINGMAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOXBEFORE YOU ATTEMPT ANY REPAIRS. REFER TO THE SECTION,"MAKING ELECTRICAL CONNECTIONS".

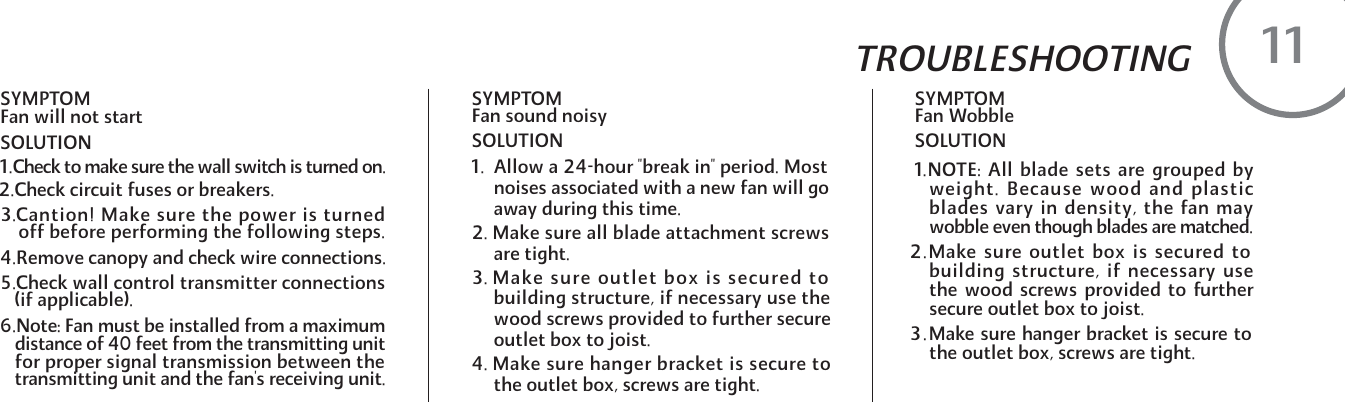

SYMPTOM Fan Wobble SOLUTION1.NOTE: All blade sets are grouped byweight. Because wood and plasticblades vary in density, the fan maywobble even though blades are matched.2.Make sure outlet box is secured tobuilding structure, if necessary usethe wood screws provided to furthersecure outlet box to joist.3.Make sure hanger bracket is secure tothe outlet box, screws are tight.SYMPTOM Fan will not start SOLUTIONSYMPTOM Fan sound noisySOLUTION1. Allow a 24-hour "break in" period. Most noises associated with a new fan will go away during this time.2. Make sure all blade attachment screws are tight.3. Make sure outlet box is secured to building structure, if necessary use the wood screws provided to further secure outlet box to joist.4. Make sure hanger bracket is secure to the outlet box, screws are tight.TROUBLESHOOTING111.Check to make sure the wall switch is turned on.2.Check circuit fuses or breakers.3.Cantion! Make sure the power is turned off before performing the following steps.4.Remove canopy and check wire connections.5.Check wall control transmitter connections(if applicable).6.Note: Fan must be installed from a maximumdistance of 40 feet from the transmitting unitfor proper signal transmission between thetransmitting unit and the fan's receiving unit.

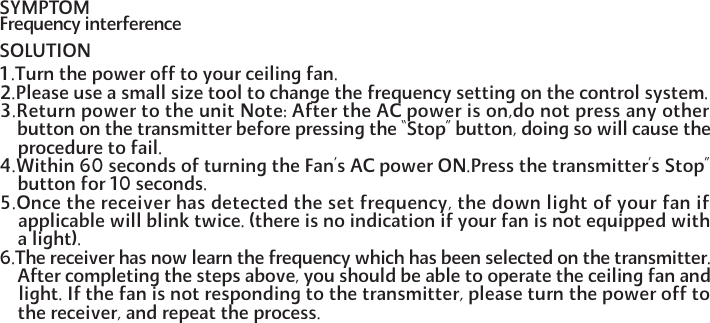

SYMPTOM Frequency interferenceSOLUTION1.Turn the power off to your ceiling fan.2.Please use a small size tool to change the frequency setting on the control system.3.Return power to the unit Note: After the AC power is on,do not press any other button on the transmitter before pressing the “Stop” button, doing so will cause the procedure to fail.4.Within 60 seconds of turning the Fan’s AC power ON.Press the transmitter’s Stop” button for 10 seconds.5.Once the receiver has detected the set frequency, the down light of your fan if applicable will blink twice. (there is no indication if your fan is not equipped with a light).6.The receiver has now learn the frequency which has been selected on the transmitter. After completing the steps above, you should be able to operate the ceiling fan and light. If the fan is not responding to the transmitter, please turn the power off to the receiver, and repeat the process.

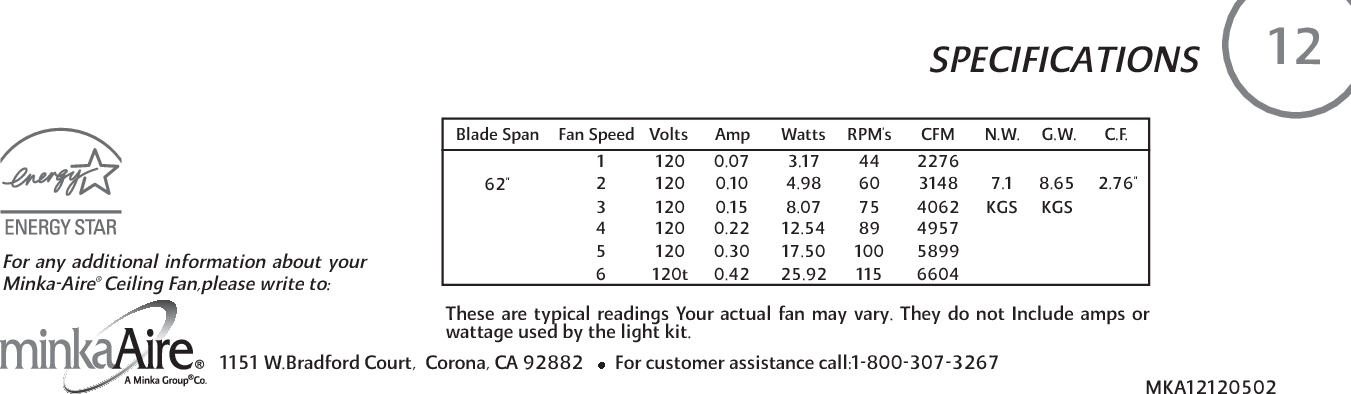

SPECIFICATIONS12These are typical readings Your actual fan may vary. They do not Include amps orwattage used by the light kit.1151 W.Bradford Court, Corona, CA 92882 For customer assistance call:1-800-307-3267For any additional information about yourMinka-Aire®Ceiling Fan,please write to:MKA12120502Blade Span Fan Speed Volts Amp Watts RPM's CFM N.W. G.W. C.F.1201201200.070.100.153.174.988.074460752276314840627.1KGS8.65 2.76"KGS120120120t1234560.220.300.4212.5417.5025.928910011549575899660462"
