Feig Electronic PRH101 Inductive Tag Reader User Manual Installation ID ISC PRH101
Feig Electronic GmbH Inductive Tag Reader Installation ID ISC PRH101
Users Manual
INSTALLATION
final
public (B)
2005-11-01
M50800-0e-ID-B.doc
OBI
D
i-scan
®
ID ISC.PRH101-A
ID ISC.PRH101-B
ID ISC.PRH101-USB
OBID i-scan ® Installation ID ISC.PRH101
FEIG ELECTRONIC GmbH Page 2 of 18 M50800-0e-ID-B.doc
Note
Copyright 2005 by
FEIG ELECTRONIC GmbH
Lange Strasse 4
D-35781 Weilburg-Waldhausen
Tel.: +49 6471 3109-0
http://www.feig.de
With the edition of this document, all previous editions become void. Indications made in this manual may be
changed without previous notice.
Copying of this document, and giving it to others and the use or communication of the contents thereof are
forbidden without express authority. Offenders are liable to the payment of damages. All rights are reserved
in the event of the grant of a patent or the registration of a utility model or design.
Composition of the information in this document has been done to the best of our knowledge. FEIG
ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this
manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since,
despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips.
The instructions given in this manual are based on advantageous boundary conditions. FEIG ELECTRONIC
GmbH does not give any guarantee promise for perfect function in cross environments.
FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contained in this
document and makes no representation that they free of patent infringement. FEIG ELECTRONIC GmbH
does not convey any license under its patent rights nor the rights of others.
OBID® and OBID i-scan® are registered trademarks of FEIG ELECTRONIC GmbH.
I-CODE® is a registered trademark of Philips Electronics N.V.
Bluetooth® is a registered trademark of Bluetooth SIG Inc.
OBID i-scan ® Installation ID ISC.PRH101
FEIG ELECTRONIC GmbH Page 3 of 18 M50800-0e-ID-B.doc
Contents
1. Safety Instructions / Warning - Read before start-up ! 4
2. Performance Features of the ID ISC.PRH101 5
2.1. Performance features .........................................................................................................5
2.2. Available Reader-Types......................................................................................................5
3. Control and Display Elements 6
3.1. Signal buzzer .......................................................................................................................6
3.2. Scan - button .......................................................................................................................6
3.3. LED .......................................................................................................................................7
4. Assembly and Wiring 8
4.1. Reader with asynchronous interface ID ISC.PRH101-A ..................................................8
4.1.1. Asynchronous interface RS232 .....................................................................................8
4.1.2. Supply voltage ...............................................................................................................9
4.2. Reader with Bluetooth™ interface ID ISC.PRH101-B.....................................................10
4.2.1. Bluetooth™(BT) interface ............................................................................................10
4.2.2. Supply voltage .............................................................................................................11
4.2.3. Charging the batteries .................................................................................................12
4.2.4. Reset - button (ID ISC.PRH101-B only) ......................................................................13
4.3. Reader with USB-interface ID ISC.PRH101-U .................................................................13
5. Technical Data 14
6. Approvals 16
6.1. USA (FCC) .........................................................................................................................16
6.2. Europe (CE).......................................................................................................................16
7. Appendix 18
7.1. Accessories .......................................................................................................................18
7.2. Scope of delivery...............................................................................................................18
OBID i-scan ® Installation ID ISC.PRH101
FEIG ELECTRONIC GmbH Page 4 of 18 M50800-0e-ID-B.doc
1. Safety Instructions / Warning - Read before start-up !
• The device may only be used for the intended purpose designed by for the manufacturer.
• The operation manual should be conveniently kept available at all times for each user.
• Unauthorized changes and the use of spare parts and additional devices which have not been
sold or recommended by the manufacturer may cause fire, electric shocks or injuries. Such
unauthorized measures shall exclude any liability by the manufacturer.
• The liability-prescriptions of the manufacturer in the issue valid at the time of purchase are valid
for the device. The manufacturer shall not be held legally responsible for inaccuracies, errors,
or omissions in the manual or automatically set parameters for a device or for an incorrect
application of a device.
• Repairs may only be executed by the manufacturer.
• Installation, operation, and maintenance procedures should only be carried out by qualified
personnel.
• Use of the device and its installation must be in accordance with national legal requirements
and local electrical codes .
• When working on devices the valid safety regulations must be observed.
• Special advice for carriers of cardiac pacemakers:
Although this device doesn't exceed the valid limits for electromagnetic fields you should keep
a minimum distance of 25 cm between the device and your cardiac pacemaker.
OBID i-scan ® Installation ID ISC.PRH101
FEIG ELECTRONIC GmbH Page 5 of 18 M50800-0e-ID-B.doc
2. Performance Features of the ID ISC.PRH101
2.1. Performance features
The ID ISC.PRH101 are devices for contactless data exchange with common Transponder ac-
cording ISO 15693. The readers have an internal antenna and will be delivered ready for connec-
tion. The device is designed as a handheld.
An anti-collision function enables simultaneous reading of several transponders per second.
The Reader electronic is fitted in a plastic housing with a protection class IP30.
The Reader ID ISC.PRH101-A has an asynchronous RS232 interface, the ID ISC.PRH101-B has
an Bluetooth interface and the ID ISC.PRH101-USB has an USB interface.
2.2. Available Reader-Types
Following Reader-Types are available at present:
Reader-Types Description
ID ISC.PRH101-A asynchronous RS232 interface with internal antenna and
voltage supply by means of external 5 VDC power supply.
ID ISC.PRH101-B Bluetooth interface with internal antenna and
voltage supply by means of 4 rechargeable Mignon AA batteries
ID ISC.PRH100-USB USB interface with internal antenna and
voltage supply by means of USB-High Powered Interface
Tabelle 1: Reader-Types
OBID i-scan ® Installation ID ISC.PRH101
FEIG ELECTRONIC GmbH Page 6 of 18 M50800-0e-ID-B.doc
3. Control and Display Elements
LED
Scan-button
Fig. 1: Control and Display Elements
3.1. Signal buzzer
The signal buzzer can be configured by the software.
In the standard configuration the signal buzzer will be active if a Transponder is recognised.
3.2. Scan - button
The switch of the reader can be configured by the software.
In the standard configuration the serial number of the Transponder is read and is sent to the host
after pressing the scan - button.
OBID i-scan ® Installation ID ISC.PRH101
FEIG ELECTRONIC GmbH Page 7 of 18 M50800-0e-ID-B.doc
3.3. LED
The Reader’s LED can be configured through software.
Abbreviation Description
LED green "RUN "
- Turns on when the Reader is ready.
- Flashes during Bluetooth initialization.
(only ID ISC.PRH101-B)
LED blue „TRANSPONDER“
- Turns on when a Transponder is detected.
LED red „WARNING“
- Signals a warning
- flashes if battery voltage is too low
(rechargeable battery must be charged –
only ID ISC.PRH101-B)
- Turns on if battery voltage is flat
(no more scanning possible - only ID ISC.PRH101-B)
LED orange „INITIALIZING “
- Flashes during Reader initialization after power-up.
Table 2: Standard configuration of the LEDs
OBID i-scan ® Installation ID ISC.PRH101
FEIG ELECTRONIC GmbH Page 8 of 18 M50800-0e-ID-B.doc
4. Assembly and Wiring
4.1. Reader with asynchronous interface ID ISC.PRH101-A
4.1.1. Asynchronous interface RS232
D-Sub 9pol. female
2 - RxD
3 - TxD
5 - GND
DC Jack
2,5 x 5,5mm
GND
(outside)
5V DC
(inside)

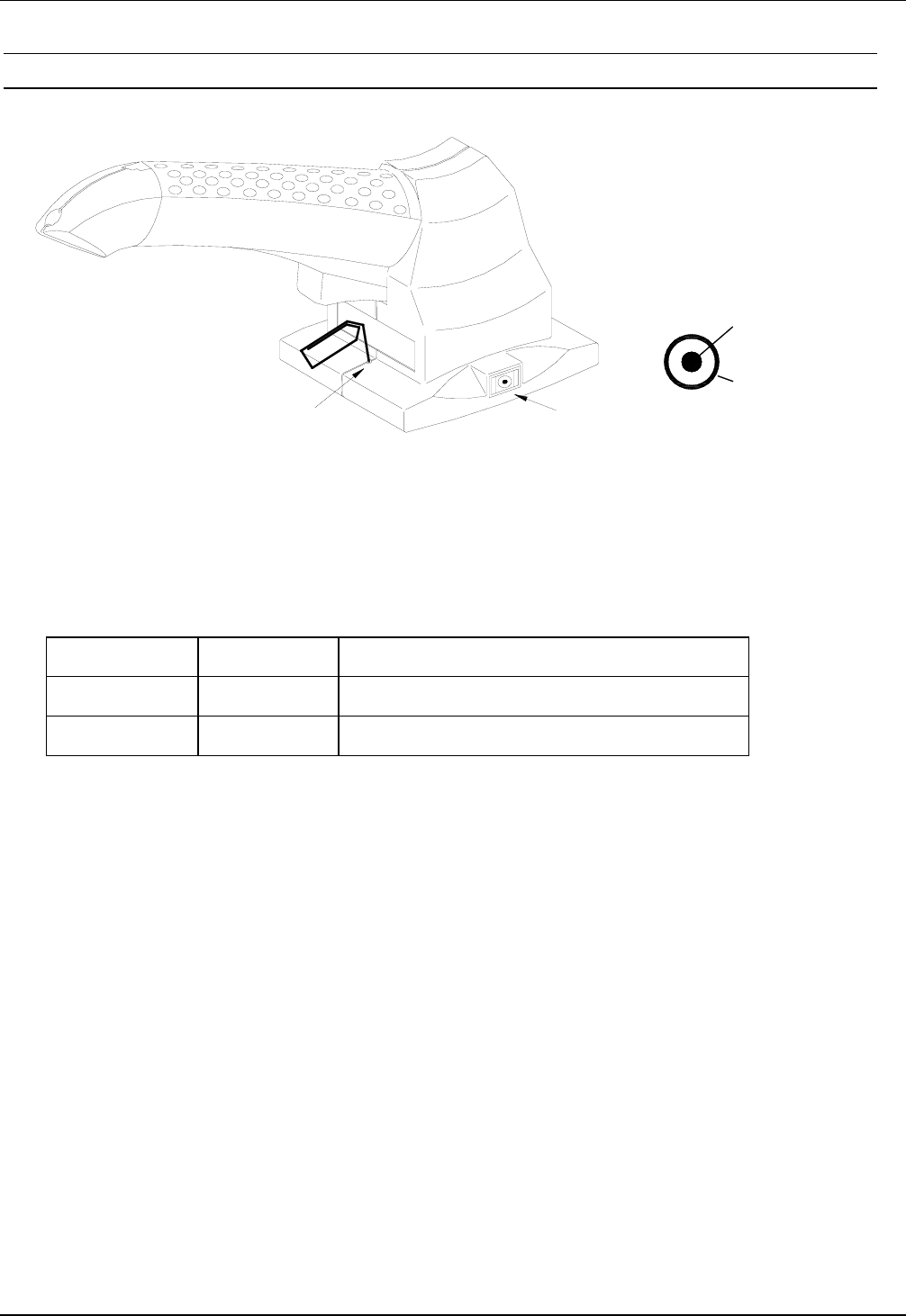

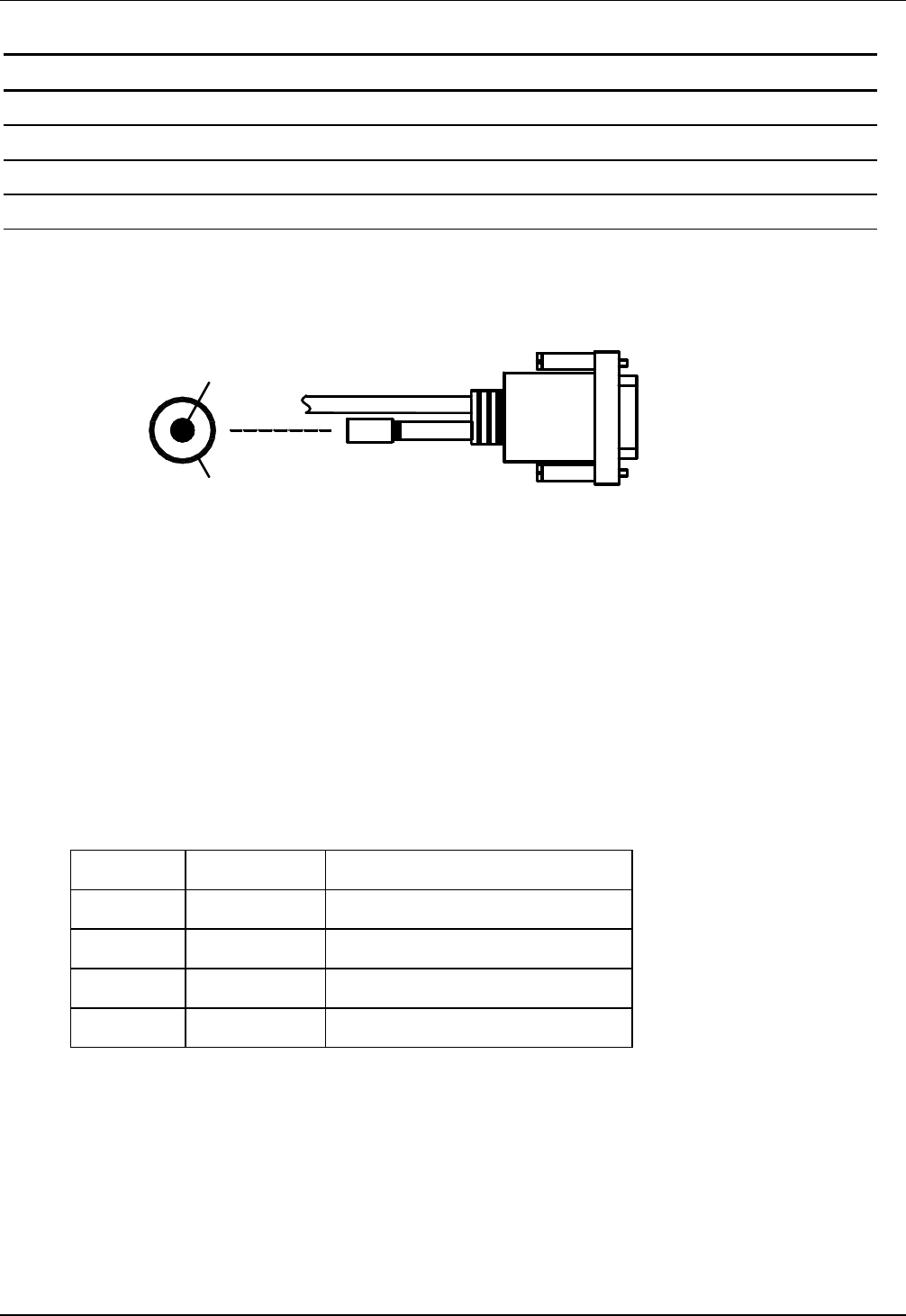

Fig. 2: Connection plug of the readers
The reader has a fixed connected interface cable with a connection for the power supply. The con-
nection of the RS232 interface follows over the 9-pin D-Sub socked.
The COM-port settings can be configured by the software
Pin configuration of the 9-pin D-Sub socked (RS232-Interface):
Pin Symbol Description
2TxD RS232 – TxD
3RxD RS232 – RxD
5GND RS232 – GND
1; 4; 6-9 --- n.c.
Tabelle 3: Pin configuration of the RS232 interface
OBID i-scan ® Installation ID ISC.PRH101
FEIG ELECTRONIC GmbH Page 9 of 18 M50800-0e-ID-B.doc
4.1.2. Supply voltage
Voltage supply will be connected via the DC Jack at the end of the interface cable. Connect a re-
gulated 5 V DC supply voltage.
The reader must be supplied with a “Limited power source”. This power-supply is allowed to supply
a maximum current of 8 ampere.
DC-Coupler
Plug Symbol Description
Inside +5V + 5,0 V DC ± 0,2 V – Power Supply
Outside GND Ground – Power Supply
Table 4: Connecting of the Power Supply
Note:
• Reversing the polarity of the supply voltage may destroy the device.
• Voltages of more than 5.5 VDC may destroy the device
Power supply recommendations :
To take full advantage of the Reader module performance, you must use a sufficiently regulated
and low-noise power supply. Preferred is a linear power supply with 5V DC / 1300 mA. When using
a switching power supply, be sure that its internal switching frequency is less than 300 kHz.
(see:7.1. Accessories).
Feig Article No. Part No.
1689.000.00.00 ID NET.5VDC
Table 5: Recommended power supply
OBID i-scan ® Installation ID ISC.PRH101
FEIG ELECTRONIC GmbH Page 10 of 18 M50800-0e-ID-B.doc
4.2. Reader with Bluetooth™ interface ID ISC.PRH101-B
The Reader has a Bluetooth port. The supply voltage is provided only by rechargeable batteries.
The Reader is activated using the Scan button. This opens a Bluetooth connection automatically
within approx. 3 seconds. The Reader is now ready to use. After releasing the button, the Reader
remains active for several minutes. During this time the Bluetooth connection remains open.
Pressing the button again immediately starts a Scan.
4.2.1. Bluetooth™(BT) interface
Communication to the Reader is through a Bluetooth connection. Bluetooth is a short-distance
wireless RF connection which enables permanent wireless communications connections between
portable and desktop or peripheral devices. Each Bluetooth device has a unique address and can
be optionally identified with a self-explanatory name. Password protection is used for security of a
Bluetooth connection, with the Bluetooth partner being added to a confidential list. SSP (Serial Port
Profile) is used.
Initial setup of a „paired connection“ to the Reader is done by the host. After initial setup this
happens automatically by pressing the button.
All Readers have a factory set name and a preset password. The name "OBID_PRH101B"
consists of a fixed (OBID_PRH) and a user modifiable (101B) part.
Description Default setting
Name variable 101B
Password 1234
Table 6: Standard configuration of the Bluetooth Interface
OBID i-scan ® Installation ID ISC.PRH101
FEIG ELECTRONIC GmbH Page 11 of 18 M50800-0e-ID-B.doc
4.2.2. Supply voltage
The Reader is powerd by rechargeable batteries. Four AA type rechargeable batteries are used.
These are inserted into the handle of the Reader. To change the batteries, remove the battery
cover. After unlatching the springs the cover can be removed. The rechargeable batteries are
placed in the compartment according to the + and – symbols indicated (note polarity). Then
replace the cover and listen for the spring to audibly latch.
General type Europe USA Size (D*l)
Mignon R6 / UM-3 AA 15mm * 51mm
Table 7: Designations for rechargeable Mignon-type batteries
Notes:
• Use only Nickel/Cadmium (NiCd) or Nickel/Metal Hydride (NiMH) batteries.
• Do not use single-use batteries (e.g. zinc-carbon / alkaline) batteries.
• Reversed polarity may destroy the device.
• Rechargeable batteries should never be discarded with normal trash; please return them
to a proper collection location !

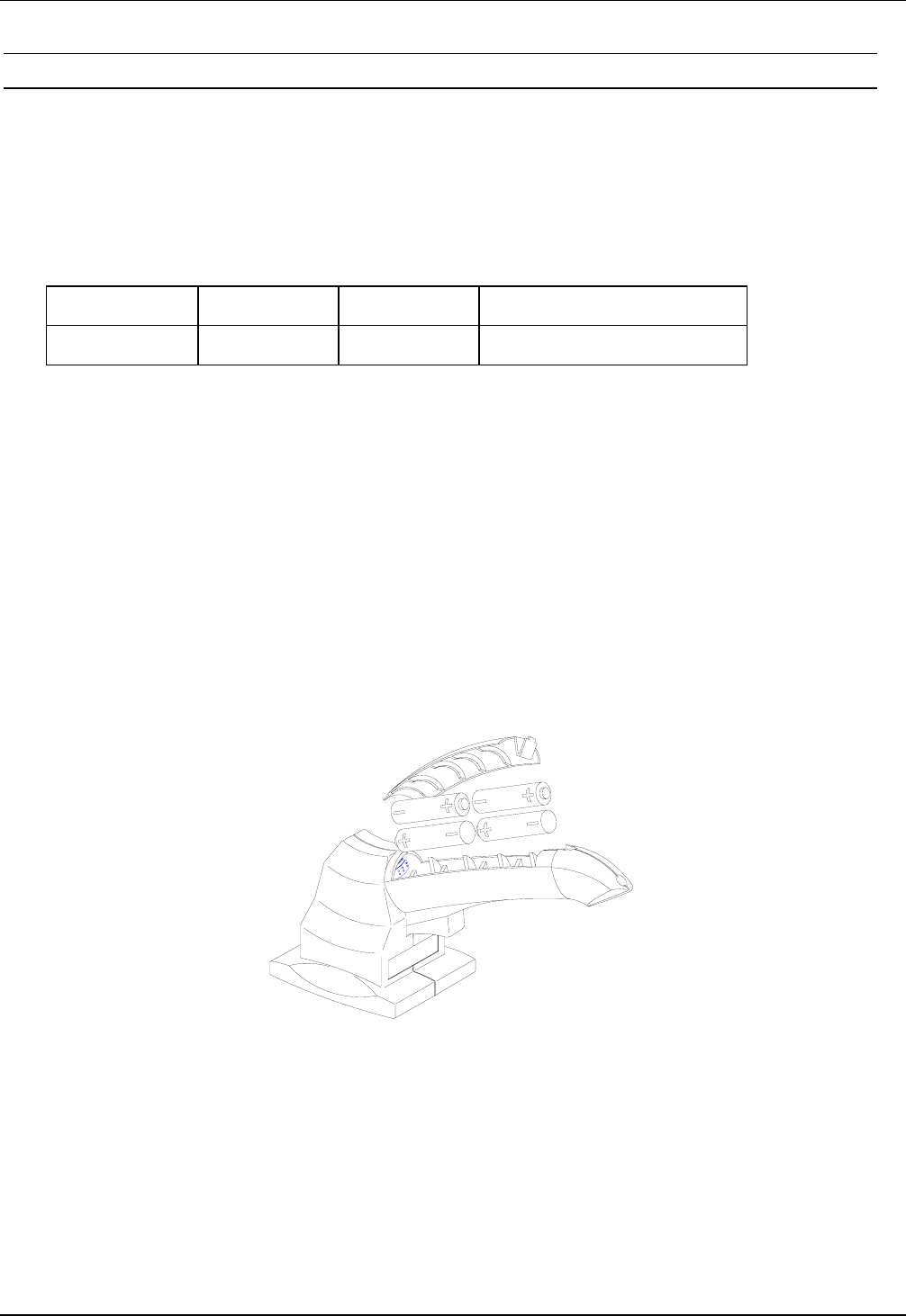

Fig. 3: Inserting the rechargeable batteries
OBID i-scan ® Installation ID ISC.PRH101
FEIG ELECTRONIC GmbH Page 12 of 18 M50800-0e-ID-B.doc
4.2.3. Charging the batteries
DC-Plug
Reset -
button
Minus (outside)
Plus (inside)
Fig. 4+ 5: ID ISC.PRH101-B: Reset button and DC plug 2.1mm*5.5mm
The rechargeable batteries may remain in the Reader for charging. You will need an external
charger connected to the DC jack.
DC jack Abbreviation Description
Inside +Plus – charge voltage
Outside -Minus – charge voltage
Table 8: Charger connection
Note:
• Reversing the polarity of the charger can destroy the batteries.
• The Reader is not functional while the batteries are charging.
OBID i-scan ® Installation ID ISC.PRH101
FEIG ELECTRONIC GmbH Page 13 of 18 M50800-0e-ID-B.doc
Charger :
Use a charger suitable for the battery type specified (4-cell pack).
Feig Article No. Name
2650.000.00 ID CHA.NiMH-A
Table 9: Recommended charger
The recommended charger is designed for nickel/cadmium (NiCd) type rechargeable batteries and
nickel/metal hydride (NiMH) with a capacity range of 800mAh to 7200 mAh.
Alternately the batteries can be removed from the Reader and charged in a separate battery
charger.
4.2.4. Reset - button (ID ISC.PRH101-B only)
The Reader has a reset button. This restores the Bluetooth settings to their original configuration.
Below the yellow Scan button is a small hole in the housing. Below this is the Reset button. After
activating the Reader with the Scan button the Reader is reset to its factory settings by holding the
Reset button down for longer than 3 seconds.
4.3. Reader with USB-interface ID ISC.PRH101-U
The Powersupply follows though the USB-interface (Bus-powered)
The USB-interface must support a current of 500mA (High Powered Interface)
The data rate of the reader is reduced to 12 Mbit (USB high speed).
The reader dispose of a fixed connected interfaces cable with standardized USB-connector. The
Reader must only be connected to the USB-port of the PC.
If the reader is used for the first time, it must be registered in the operating system of the computer.
For this the instruction "M30100-xde-ID-B: Installation of the OBID USB driver" can be used
OBID i-scan ® Installation ID ISC.PRH101
FEIG ELECTRONIC GmbH Page 14 of 18 M50800-0e-ID-B.doc
5. Technical Data
Mechanical Data
• Housing ABS plastic (enclosed)
• Dimensions ( W x H x D ) 230 x 100 x 80 mm
• Weight 320 g
• Degree of Protection IP 30
• Cable length
– ID ISC.PRH101-A
– ID ISC.PRH101-B
– ID ISC.PRH101-USB
approx. 8,2´/2,5 m
no cable
approx. 8,2´/2,5 m
• Color similar RAL 9002
Electrical Data
• Supply voltage
– ID ISC.PRH100-A
– ID ISC.PRH101-B
– ID ISC.PRH100-USB
5,0 V DC ± 0,2 V regulated
4 Mignon AA recharchable batteries
USB - High Powered Interface
• Power consumption max. 2,5 VA
• Operating frequency 13,56 MHz
• Transmitting Power 0,5 W ± 2 dB
• Antenna internal antenna
• Interface
– ID ISC.PRH100-A
– ID ISC.PRH101-B
– ID ISC.PRH100-USB
RS232
Bluetooth (Serial port profile)
USB (12 Mbit)
OBID i-scan ® Installation ID ISC.PRH101
FEIG ELECTRONIC GmbH Page 15 of 18 M50800-0e-ID-B.doc
Functional Properties
• Supported Transponders - ISO 15693 compatible
- I•Code 1
- optional I•Code EPC und I•Code UID
• Address setting for interface
– ID ISC.PRH101-B
– ID ISC.PRH100-USB
Bluetooth MAC address
Device ID of the Readers
• Indicators
– optical
– acoustical
1 LED ( multicolor – red / green / blue)
buzzer
Ambient Conditions
• Temperature range
– Operation
– Storage
0°C to +50°C
-20°C to +70°C
• Humidity 5 – 95% non condensing
Applicable Norms
• Radio approval
– Europe
– USA
EN 300 330
FCC 47 CFR Part 15
• EMC ETSI EN 301 489
• Safety
- low voltage
- Human Exposure
EN 60950
EN 50364
• Fall Withstands multiple 5´/1,5 m drops to concrete
OBID i-scan ® Installation ID ISC.PRH101
FEIG ELECTRONIC GmbH Page 16 of 18 M50800-0e-ID-B.doc
6. Approvals
6.1. USA (FCC)
FCC ID PJMPRH101
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user´s authority to operate the equipment.
6.2. Europe (CE)
When properly used this radio equipment conforms to the essential requirements of Article 3 and
the other relevant provisions of the R&TTE Directive 1999/5/EC of March 99.
Equipment Classification according to ETSI EN 300 330 and ETSI EN 301 489: Class 2
OBID i-scan ® Installation ID ISC.PRH101
FEIG ELECTRONIC GmbH Page 17 of 18 M50800-0e-ID-B.doc
OBID i-scan ® Installation ID ISC.PRH101
FEIG ELECTRONIC GmbH Page 18 of 18 M50800-0e-ID-B.doc
7. Appendix
7.1. Accessories
The following accessories are available for the Reader.
Artikel Nr. Bezeichnung Beschreibung
1689.000.00 ID NET.5VDC 5 V DC power supply with suitable con-
nector for ID ISC.PRH101-A.
2650.000.00 ID CHA.NiMH-A Batterie charger with suitable connector
for ID ISC.PRH101-B
Table 10: Accessories
7.2. Scope of delivery
Reader Scope of delivery
ID ISC.PRH101-A
- Reader ID ISC.PRH101-A
- Quick user guide
- CD
ID ISC.PRH101-B
- Reader ID ISC.PRH101-B
- Quick user guide
- CD incl. driver
ID ISC.PRH101-USB
- Reader ID ISC.PRH101-USB
- Quick user guide
- CD
Table 11: Scope of delivery
Note:
Power supply, rechargeable batteries and battery charger are not included in delivery
