GB Instructions for Li-ion battery packs
22
Instructions for Li-ion battery
packs
1Symbols
Symbol Significance
Warning of general danger
Read operating instructions
and safety notices!
Do not dispose of as domestic
waste.
Recycling symbol – recycla-
ble material
Only use and store the battery
at temperatures of between -
10 °C and +50 °C.
Keep away from heat and
open flames – never throw
into a fire –
risk of explosion.
Keep away from water – do
not immerse in liquids.
Symbol Significance
max. 50°C
23
Instructions for Li-ion battery packs GB
2 Safety information for Li-ion
battery packs
Warning! Read and observe all
information and safety instruc-
tions.
Failure to observe the
safety guidelines and instructions may
lead to electric shocks, fires and/or seri-
ous injuries.
Keep all safety information and other in-
structions in a safe place for future ref-
erence.
Cells in lithium-ion battery packs are
sealed so as to be gas-tight and are non-
hazardous provided they are used and
handled in accordance with the manufac-
turer's instructions.
–
Handle discharged batteries with
care. Battery packs represent a safe-
ty hazard as they can cause a very
high short circuit current.
Even if Li-
ion battery packs appear to be dis-
charged, they are in fact never fully
discharged.
–
Make sure that the battery pack is not
subjected to physical blows or im-
pacts. Impacts and penetrating ob-
jects may damage the batteries.
This
may lead to leakages, the generation
of heat or smoke, or cause the battery
RBRC Seal - LiIon
Symbol Significance
GB Instructions for Li-ion battery packs
24
pack to ignite or explode.
–
Keep the unused battery pack away
from paper clips, coins, keys, nails,
screws and other small metal objects
which could bridge the contacts.
A
short circuit between the battery con-
tacts poses a risk of burns or fire
–
Protect the battery pack from exces-
sive heat or constant heat sources
such as sunlight or naked flames.
Fire and temperatures over 130 °C
may cause explosions.
–
Do not open the battery pack. Open-
ing or modifying the battery pack may
damage the protective devices.
This
may lead to the generation of heat or
smoke, or cause the battery pack to
ignite or explode.
–
Do not immerse the battery pack in
liquids such as (salt) water or drinks.
Contact with liquids may damage the
battery pack.
This may lead to the
generation of heat or smoke, or cause
the battery pack to ignite or explode.
Do not continue using the battery
pack. Consult an authorised Festool
customer service agent.
–
Only charge the battery packs in
chargers recommended by the man-
ufacturer (see image).
There is a risk
of fire when using a charger which is
meant for a specific type of battery
pack with a different battery pack.
–
Never use water to extinguish burn-
ing Li-ion battery packs; always use
25
Instructions for Li-ion battery packs GB
sand
or a fire blanket.
–
There is a risk of vapours being re-
leased if the battery pack is damaged
or not used correctly.
The vapours
could irritate your airways. Seek fresh
air and consult a doctor if you feel un-
well.
–
Only use the battery pack in conjunc-
tion with your Festool power tool.
This is the only way to ensure that the
battery pack is protected against a
dangerous overload. Using a different
tool poses a fire hazard and may cause
personal injury.
–
Fluid may leak out of the battery pack
if it is used incorrectly. Avoid contact
with the fluid. Rinse with water any
areas which accidentally come into
contact with the fluid. If fluid gets into
the eyes, also consult a doctor.
Leak-
ing battery fluid can cause skin irrita-
tion or burns.
–
Fluid may leak out of a faulty battery
pack and contaminate neighbouring
objects.
Check the parts affected.
Clean them by soaking up the fluid us-
ing dry kitchen towel and then rinsing
with plenty of water. Wear protective
gloves to avoid contact with the fluid.
Replace the parts if necessary.
–
Do not use damaged or modified bat-
tery packs.
Battery packs which are
damaged or which have been modified
may exhibit unpredictable behaviour
which could lead to fire, explosion or
GB Instructions for Li-ion battery packs
26
injury.
–
Do not open, compress, overheat
(above 80 °C) or burn the battery
pack.
Failure to observe these precau-
tions is a fire hazard and may result in
burns. Observe the manufacturer's in-
structions.
–
Do not use damaged battery packs.
Stop using a battery pack immediate-
ly if you notice anything unusual such
as odour formation, the generation of
heat, discolouration or deformation.
If you continue to use the battery pack,
it may get hot, emit smoke, ignite or
explode.
3Technical data
For further technical specifications see
the rating plate on the battery pack.
4 Intended use
Battery packs are suitable for use with
Festool cordless power tools and the
specified Festool chargers (see image).
Battery pack BP 18 Li
Frequency 2402–2480 Mhz
Equivalent Iso-
tropically Radi-
ated Power
(EIRP)
< 10 dBm
27
Instructions for Li-ion battery packs GB
The battery pack is suitable for automati-
cally switching the mobile dust extractor
on and off.
5 Machine features
The specified illustrations* appear at the
beginning of the operating instructions.
* Illustrations may deviate from the origi-
nal.
6Operation
6.1 Information for making optimal
use of the battery pack
The battery pack is delivered partial-
ly charged. To guarantee that the
battery pack provides full power,
[1-1]
Capacity indicator button
[1-2]
Capacity display
[1-3]
Bluetooth indicator
[1-4]
Vent holes (only BP 18 Li ... ASI)
[1-5]
Buttons for releasing the battery
pack
CAUTION
Risk of injury from the mobile dust ex-
tractor starting up unexpectedly
Before performing any work with the
mobile dust extractor, check which
battery pack is connected to the mobi-
le dust extractor.
GB Instructions for Li-ion battery packs
28
charge it completely in the charger
before using it for the first time.
The battery pack can be charged at any
time without reducing the battery life. In-
terrupting the charging process does not
damage the battery pack.
After the power tool has
switched off automatically, do
not press the on/off button.
This could damage the battery
pack.
The battery pack is fitted with a
temperature sensor, which only permits
charging at temperatures of between 0 °C
and 50 °C. This ensures a longer battery
life.
– The battery pack should ideally be
stored in a cool (5 °C to 25 °C) and dry
location (air humidity < 80%).
– Do not, for instance, leave the battery
pack in the car in the summer.
– Significantly shorter operating times
after each charge indicate that the
battery pack is worn and should be re-
placed with a new one.
– Observe the information regarding
disposal.
6.2 Capacity display

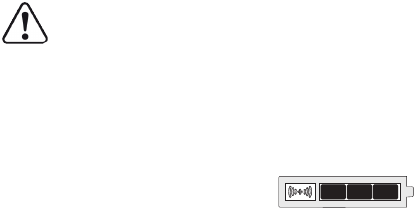

When the capacity indicator button
[1-1]
is pressed, the capacity indicator
[1-2]
displays the charge status of the battery
pack:

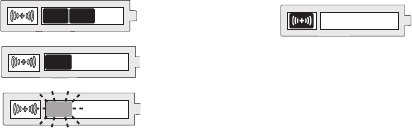

70 - 100%
29
Instructions for Li-ion battery packs GB
6.3 Bluetooth functions
The Bluetooth indicator
[1-3]
, which indi-
cates the connection status of the battery
pack, is located next to the capacity indi-
cator:
40 - 70%
15 - 40%
< 15%
Recommenda-
tion:
Charge bat-
tery pack before
further use.
Continuous blue
light
Cordless power
tool starts up and
the mobile dust
extractor is con-
nected via Blue-
tooth or the
battery pack is
connected to a
mobile terminal
GB Instructions for Li-ion battery packs
30
The battery pack uses Bluetooth to
automatically switch correspond-
ingly equipped mobile dust ex-
tractors when used with a cordless
power tool.
Connecting the battery pack to the mo-
bile dust extractor
The mobile dust extractor can only
be connected to one cordless power
tool at any time.
If a mobile dust extractor which was
initially switched on using the bat-
tery pack is switched off using the
remote control, the temporary con-
nection between the connected bat-
tery pack and the mobile dust ex-
tractor will be lost. The battery pack
can then be connected again.
Activate the mobile dust extractor's au-
tomatic mode (see the operating in-
structions for the mobile dust ex-
tractor).
Pulsating blue
light
The battery pack
is ready for con-
nection to the
mobile terminal
(e.g. for a soft-
ware update)
31
Instructions for Li-ion battery packs GB
Should you have used the cordless pow-
er tool already, ensure that the battery
pack's capacity indicator has gone out
so that you can connect it (in certain
cases this can take a few seconds).
Press the connection button on the mo-
bile dust extractor or on the remote
control once. <PosNumber/>
The LED on the retrofit receiver
module slowly flashes blue and the
mobile dust extractor is ready for
connection for 60 seconds.
Switch on the cordless power tool.
The mobile dust extractor starts up
and the battery pack is connected
until the mobile dust extractor is
manually switched off.
If a second battery pack is connected
to the mobile dust extractor, the con-
nection to the first battery pack is
lost.
Switching the mobile dust extractor on
and off
Once you have connected the battery pack
with the mobile dust extractor, the mobile
dust extractor will start up automatically
when the cordless power tool is in use.
After the mobile dust extractor has
been switched off via the battery
pack, it will continue to run for up to
fifteen seconds.
Press the on/off switch of the cordless
power tool to switch on the mobile dust
extractor.
GB Instructions for Li-ion battery packs
32
Release the on/off switch of the cord-
less power tool to turn off the mobile
dust extractor.
Disconnecting the battery pack from the
mobile dust extractor
To disconnect the battery pack from the
mobile dust extractor, take one of the fol-
lowing steps:
– Disconnect the mobile dust extractor
– Put the battery pack on the charger
– Connect another battery pack to the
mobile dust extractor
Connecting a mobile terminal
The battery pack can be used in connec-
tion with a mobile terminal (e.g. for a soft-
ware update with the Festool app).
Press the capacity indicator button
[1-
1]
until the Bluetooth indicator
[1-3]
flashes blue.
The battery pack is ready for con-
nection for 60 seconds.
Follow the instructions provided in the
Festool app.
7 Service and maintenance
Keep the connecting contacts on the
battery pack clean.
Do not cover the vents
[1-4]
on the bat-
tery pack as this could impair its func-
tion.
If the battery pack stops working, con-
sult an authorised Festool customer
service agent.
(
www.festool.com/service
)
33
Instructions for Li-ion battery packs GB
8Transport
The Li-ion battery packs included are sub-
ject to the requirements of the legislation
on the transport of hazardous goods. The
Festool Li-ion battery packs satisfy the re-
quirements specified in the UN manual
ST/SG/AC.10/11/Rev.5 Part III, sub-sec-
tion 38.3. The user can transport Festool
battery packs by road to the equipment
operating site without any additional re-
quirements, provided they are protected
against short-circuiting and slipping. For
shipping by third parties (e.g. air transport
or freight forwarding company) special re-
quirements with regard to packaging and
labelling must be observed. When prepar-
ing the item to be sent, you must consult
an expert in hazardous goods regulations.
Please observe any further national regu-
lations.
Only return the battery pack if the housing
is undamaged. Tape over the exposed
contacts and wrap the battery pack so that
it cannot move inside the packaging.
9 Environment
Used or defective battery packs
may only
be returned to collection points if dis-
charged and secured against short-circu-
iting (e.g. by insulating the terminals with
adhesive tape). The applicable regulations
must be observed.
Battery packs will then be recycled.
EU only:
In accordance with the European
Directive on batteries and implementation
in national law, defective or used battery
packs/batteries must be collected sepa-
GB Instructions for Li-ion battery packs
34
rately and handed in for environmentally
friendly recycling.
Information on REACh:
www.festool.com/
reach
"The Bluetooth®" word mark and logos
are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such
marks by Festool GmbH is under license.
Information on data protection
The power tool contains a chip which au-
tomatically stores machine and operating
data. The data saved cannot be traced
back directly to an individual.
The data can be read using special (con-
tactless) devices and shall only be used by
Festool for fault diagnosis, repair and
warranty processing and for quality
improvement or enhancement of the
power tool. The data shall not be used in
any other way without the express
consent of the customer.
This device complies with part 15 of the
FCC Rules and Industry Canada
license-exempt RSS standard(s).
Operation is subject to the following
two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's
authority to operate the equipment.

Navigation menu
