Fiberstars WPC04 WIRELESS CONTROLLER FOR SWIMMING POOL PERIPHERALS User Manual WPC 1
Fiberstars, Inc. WIRELESS CONTROLLER FOR SWIMMING POOL PERIPHERALS WPC 1
USERS MANUAL
http://www.fiberstars.co
79-15103-00 REV. B e 1 of 11
ETL LISTED
Conforms to UL STD 508;
Certified to CSA STD
C22.2 No. 14
Installation Instructions: Read these instructions in
their entirety before performing any installation work.
Rated for use on 110/120VAC 60Hz and 220/240VAC 60Hz applications
WPC-04R
FOR USE WITH POOL AND SPA PRODUCTS
m Pag
http://www.fiberstars.com
79-15103-00 REV. B Page 2 of 11

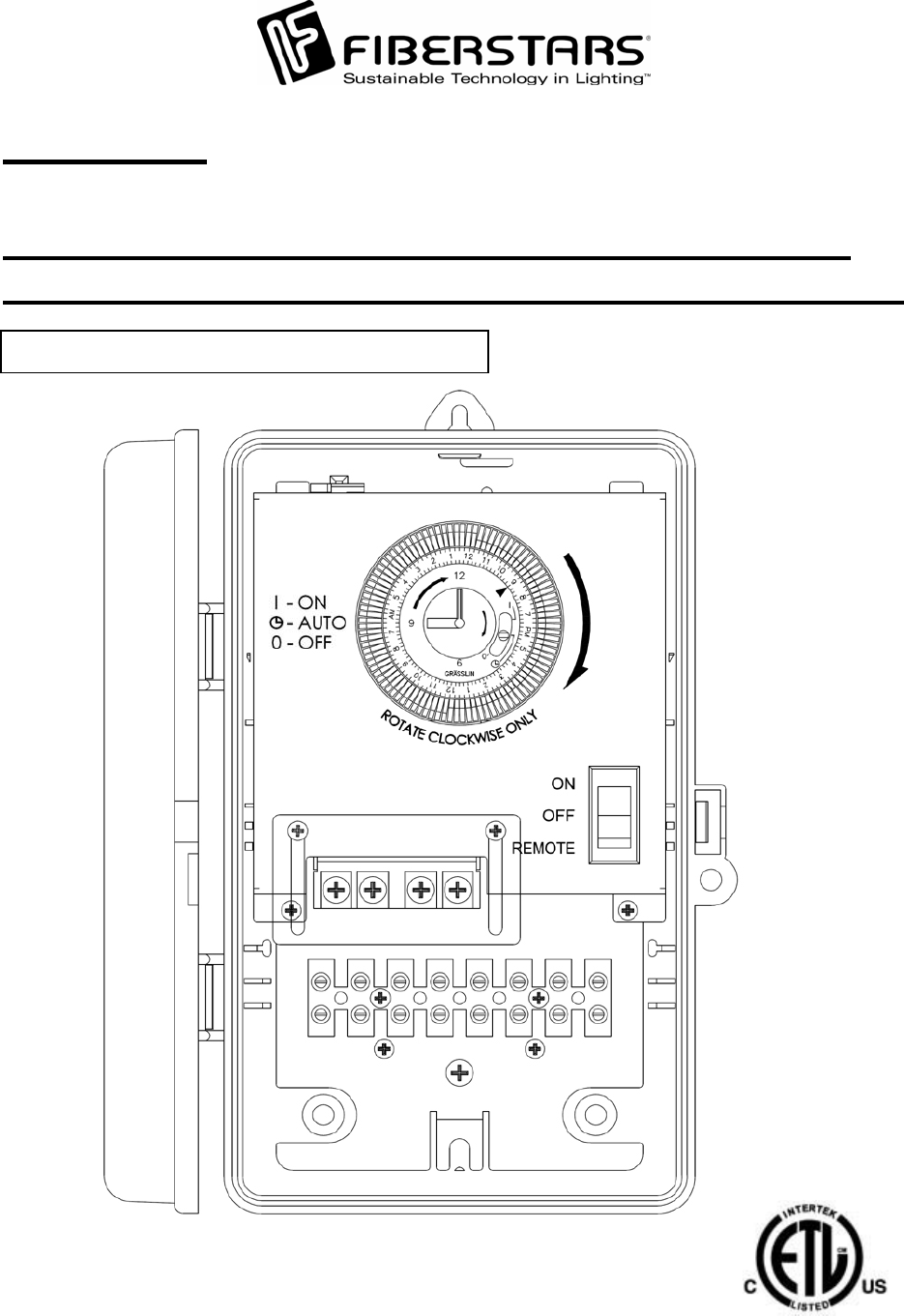

The WPC-04R consists of the following parts:
Item No. Qty. Component part No. Description
1 1 42-15032-00 Timer
2 1 41-15004-08 8 Position Terminal Block
3 12 10-15089-01 M3 Screw, 4MM Length
4 2 10-15089-07 M3 Screw, 14MM Length
5 1 37-15000-00 Relay
6 1 02-15287-00 Base Plate
7 1 02-15286-00 Timer and Switch Plate
8 1 02-15285-00 Relay Cover
9 1 38-15012-00 3 Position Rocker Switch
10 3 A10670 Screw, 8-32 x .25”
11 4 14-15032-00 PCB Standoff
12 1 94-15108-01 PCB
13 1 04-15045-00 Enclosure
14 1 94-15092-00 WPC Repeater
Accessory Items:
FP 1/2 Temperature Freeze Device
WE-65 65 ft Repeater Cord Extension Kit
DL-HUB Direct Light Hub Connection Kit
1
2
3
3
3
3
3
4
5
6
7
8 9 3
10
13
14
12
11
http://www.fiberstars.com
79-15103-00 REV. B Page 3 of 11
FCC WARNING
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by Fiberstars Inc. could void the user's
authorit
y
to o
p
erate the e
q
ui
p
ment.
SAVE THESE INSTRUCTIONS!
ELECTRICAL RATINGS
Do not exceed the maximum electrical ratings of the WPC-04R. Install a 20Amp 120VAC Circuit
Breaker in the Breaker Panel for connection to the Time Clock Input. This Circuit Breaker is also
used for Light Input. Refer to pages 4 and 5 for installation instructions. Light circuit is rated for
8Amp 120VAC Max.
Basic safety precautions should be observed when operating the WPC-04R product and other
associated equipment.
1. A qualified electrician must install the WPC-04R in accordance to the National and Local
Electrical Codes.
2. The WPC-04R must not be less then 5 feet (3 meters in Canada) from inside edge of pool.
ONLY USE COPPER CONDUCTORS.
3. Do not exceed the maximum ratings of individual components, wiring devices, and current
carrying capacity of conductors.
4. For the bonding, grounding, installing, and wiring of underwater lights to the WPC-04R, refer to
Article 680 of the National Electrical Code or Article 68 of the Canadian Electrical Code.
5. This device should never operate an equipment that could cause property damage, bodily injury,
or death should it be activated unexpectedly.
6. Never allow children to operate the WPC-04R unsupervised.
IMPORTANT SAFETY INFORMATION
http://www.fiberstars.com
79-15103-00 REV. B Page 4 of 11

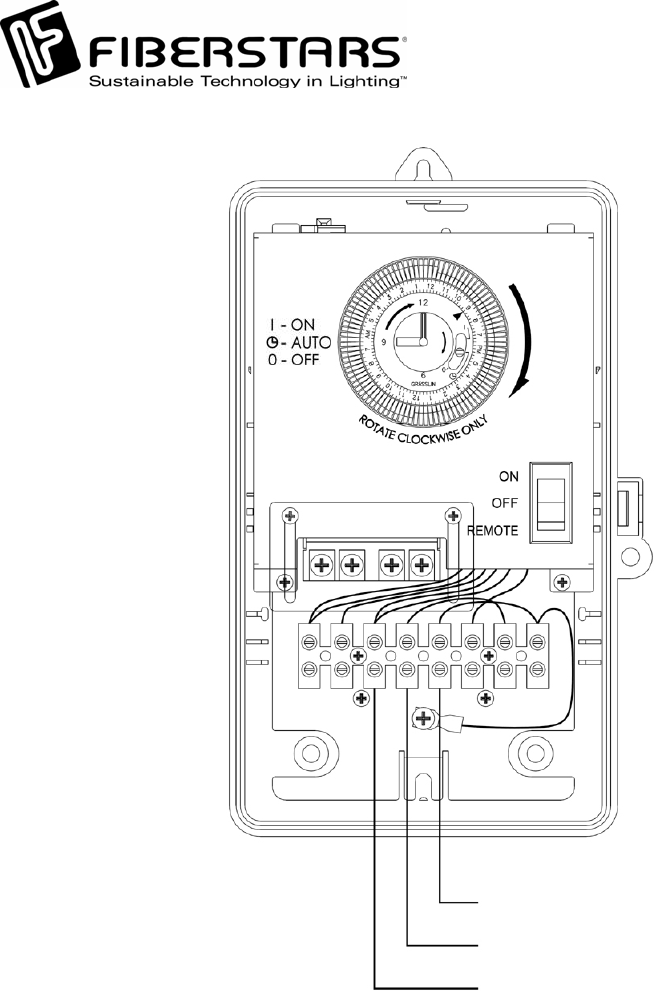

Power Connections:
To wire the WPC-04R use insulated
COPPER wire only, 12 gauge m
Run a ½” to ¾” conduit from the ma
breaker panel to the WPC-04R. Pul
appropriate wires from the main breaker
panel to the WPC-04R unit. To make
power connections remove 3/8 inch
insulation from wire ends. Insert the
bare end of wires under the pressure
plate of terminals (Power Input, HOT
Use 1/8-in. flat head screwdriver to
tighten terminal screws firmly (4.4 lb
minimum). Connect the house comm
to the Power Inputs NEUTRAL
terminal. Connect another HOT wire
the Timeclocks T/C POWER term
Connect a house common to the
Timeclocks T/C NEUTRAL. In
20 Amp circuit breaker in the main
breaker panel and connect the HOT
wires from the WPC-04R.
in
l
es of
).
-in
on
to
inal.
stall a
inimum.
GFCI
GROUND
N
EUTRAL
120V LINE INPUT
N
EUTRAL FROM
GFCI LOAD
120V POWER
FROM GFCI LOAD
TC 120V INPUT
TC NEUTRAL
LOCATION
Install the WPC-04R enclosure using the mounting plates included with each enclosure. The
WPC-04R is housed in a Type 3R rainproof enclosure and can be mounted anywhere between
the
p
ool e
q
ui
p
ment and the breaker
p
anel.
WIRING INSTRUCTIONS
FOLLOW PROPER WIRING PRACTICES IN ACCORDANCE WITH ALL LOCAL
REGULATORY REQUIREMENTS.
WARNING
• TURN OFF INCOMING POWER BEFORE SERVICING EQUIPMENT.
• ALL INSTALLATION AND MAINTENANCE WORK MUST BE PERFORMED BY
QUALIFIED ELECTRICAL PERSONELL ONLY.
• VERIFY ALL ELECTRICAL RATINGS BEFORE INSTALLATION IS COMPLETE.
http://www.fiberstars.com
79-15103-00 REV. B Page 5 of 11
to the
LIGHT GROUND
LIGHT NEUTRAL
LIGHT HOT

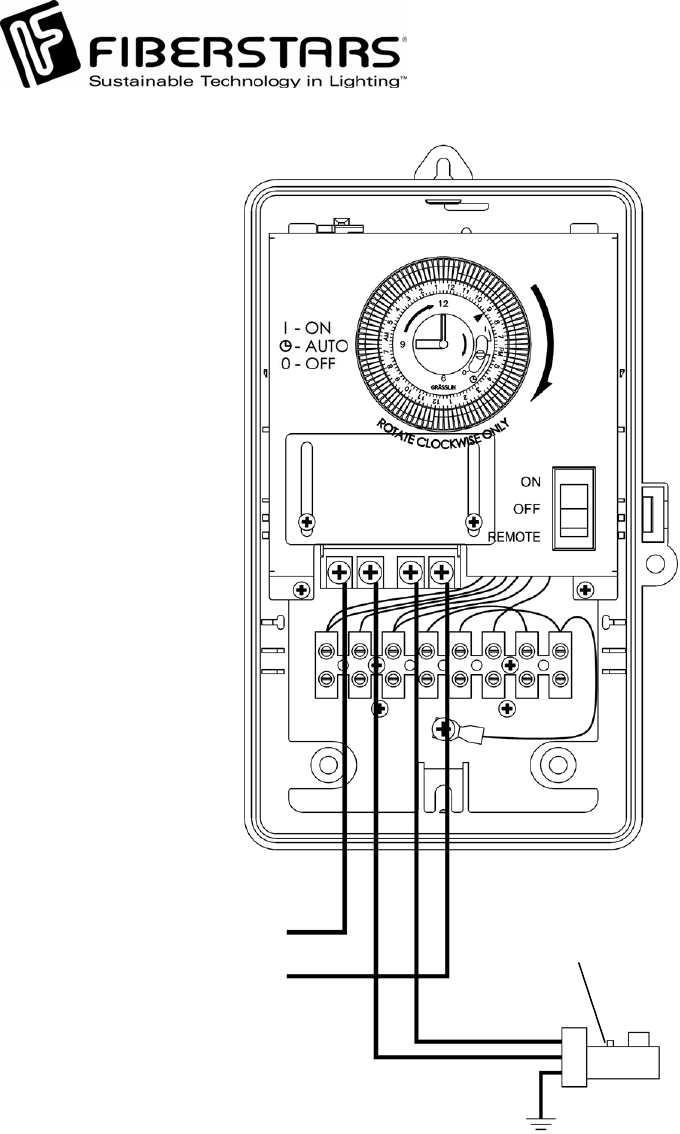

Hooking up Lights to Circuit 1
To connect a lighting product to the C
1 switch, pull wires from the product
WPC-04R through conduits connected to
the bottom of the WPC-04R. As
illustrated, connect the light that will be
operated by the Rocker Switch to the Light
Hot terminal. Connect the Neutral to the
Light Neutral terminal. Connect the
Ground to the Light Ground terminal. Do
not exceed 8Amps per circuit.
ircuit
http://www.fiberstars.com
79-15103-00 REV. B Page 6 of 11
240VAC PUMP
SECONDARY
PRIMARY
CONNECTING A 240VAC PUMP
Connect the 240VAC pump to the relay as
illustrated. Connect the Line Power to a
240VAC Circuit Breaker on the breaker
panel. Circuit Breaker should be rated to
correspond to Horsepower and Amperes
rating of Pump being used. NOT TO
EXCEED 1.5HP 120V/3HP 240V –
30Amps.
http://www.fiberstars.com
79-15103-00 REV. B Page 7 of 11
Flathead Screwdriver
Repeater Mounting

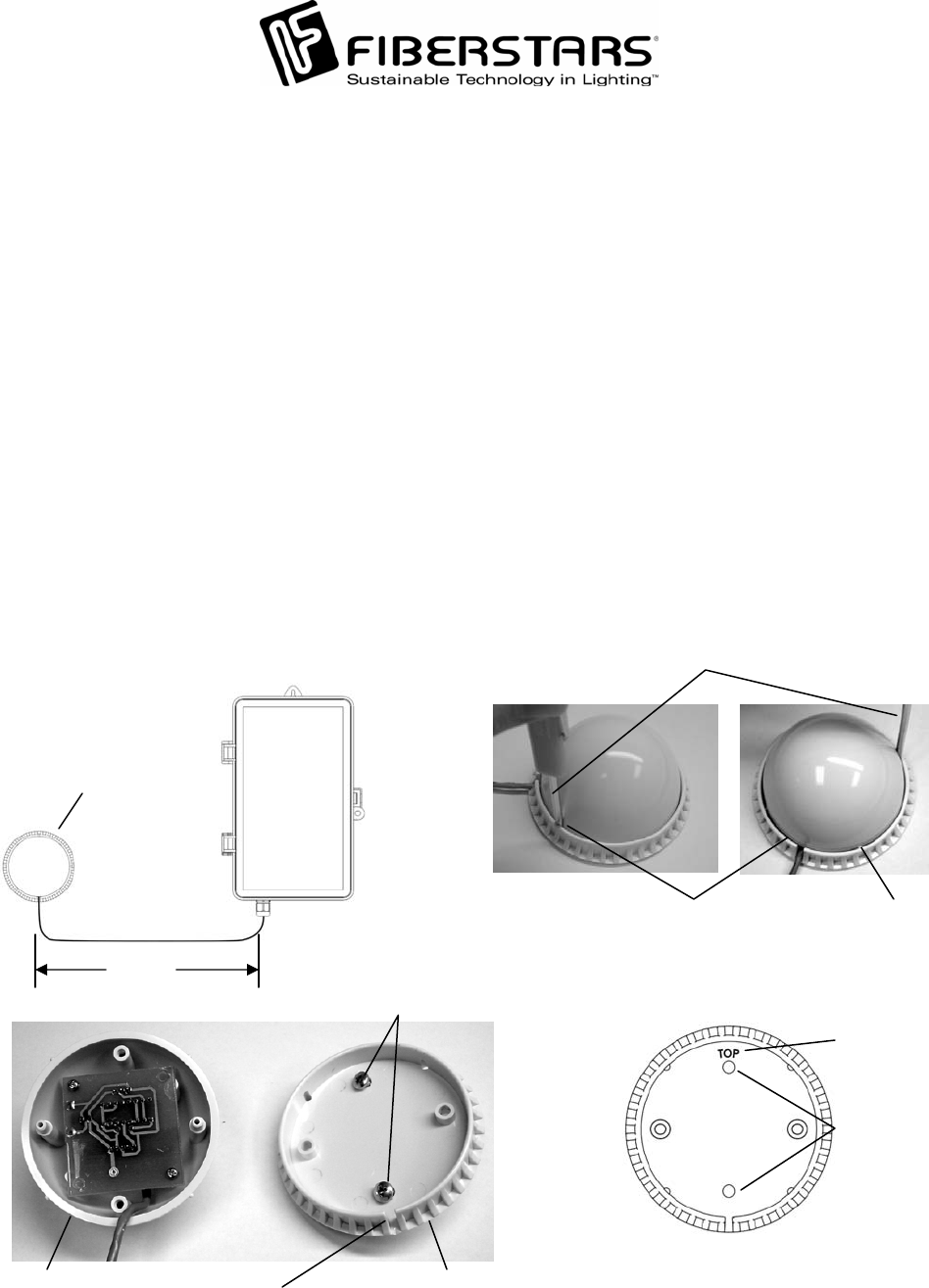

The WPC-04R is equipped with a signal repeater that can be mounted up to 10 feet from the
WPC-04R unit. This repeater receives signals from the wireless remote and sends that signal to
the WPC-04R via the 10 foot cable. Establish a location for the Repeater that is in line of sight
from where the wireless remote will be used most frequently and that is no more then 75 feet from
furthest where the remote will be used. NOTE: If extension is needed, use Fiberstars part
number 94-15098-00 and follow installation instructions supplied with the Repeater Extension.
To mount the Repeater, carefully insert a small flathead screwdriver into groove between the
Dome and Base approximately where the locking dimples are located. Pry the Dome out of on of
the locking dimples. Then carefully insert the small flathead screwdriver into the groove between
the Dome and the Base in an adjacent locking dimple and pry the Dome out. Then separate the
Dome from the Base by hand. Using the supplied self-drilling screws, locate a suitable mounting
surface and screw the base to this surface. Note that the marking “TOP” must be in the 12
o’clock position and the wire slit must be in the 6 o’clock position. Do not over tighten the
screws as it may damage the Repeater base. Realign the Repeater Dome to the Base and ensure
that the wire is exiting the base through the slit and the Locking Dimples are aligned with the
10 feet
Repeater
Dome/Base groove Locking
Dimple
Orientation
Marker
Mounting
Holes
Base Slit for
Repeater Wire
Repeater Dome Repeater Base
Mounting Screws
http://www.fiberstars.com
79-15103-00 REV. B Page 8 of 11
NOTE: Switch is shown in the ON position.
WPC-04R ROCKER SWITCH OPERATION
The WPC-04R receiver box houses one rocker
switch. For operation with the wireless transmitter,
the switch needs to be in the DOWN or REMOTE
position. To manually turn ON the device connected
to the Rocker Switch, flip the Rocker Switch UP or
to the ON position. When the Rocker Switch is in
the ON position, the Wireless Remote will not be
able to turn OFF the device connected to the Rocker
Switch terminal. To turn OFF the device manually,
flip the Rocker Switch to the MIDDLE or OFF
position. NOTE: In the OFF position, the wireless
remote operation will be bypassed. To re-enable the
wireless remote operation, flip the Rocker Switch
back to the BOTTOM or REMOTE position.
NOTE: If the unit turns ON when the switch is
returned to the REMOTE position, simply use the
wireless remote to turn OFF the unit if desired.
Circuit 1 control
WIRELESS REMOTE OPERATION
NOTE: The Rocker Switch on the WPC-04R
must be set to REMOTE for wireless operation.
The POWER ON/OFF button controls the device
connected to the Rocker Switch terminal. With
each push of the button, the WPC-04R toggles the
device ON and OFF.
OPERATING INSTRUCTIONS
http://www.fiberstars.com
79-15103-00 REV. B Page 9 of 11
PM hours
Timer dial
Timer dial rotation
direction indicator
Timer tabs set to
ON position
Timer tabs set to
OFF position
Current time and Timer
function switch set point
AM hours
Timer function
switch
TIMER OPERATION
Set time to current time. In the example below, the current time is set for 9:00pm. NOTE:
Only turn the Timer dial clockwise or the timer will be damaged. Once the time has been set to
the current time, set the hours of the Pump operation by “snapping” the timer tabs inwards
towards the center. NOTE: Each tab represents 15 minutes of operation and tabs set inwards
towards the center is for OFF operations and ON when the tabs are set outwards as illustrated.
In the example below, the Pump will be off from 12:00pm to 11:45pm.
Once the time and time of operation has been set, ensure that the Timer function switch is set to
Auto for timer control of the Pump as illustrated below. To turn off timers automatic functions,
set the Timer function switch to OFF. To manually turn on the Pump, set the Timer function
switch to the ON position. NOTE: When in the ON position, the Pump will continue to run
until the Timer function switch is set to Auto where the tabs at the Set Point is in the OFF
position or if the Timer function switch is rotated to the OFF position.
http://www.fiberstars.com

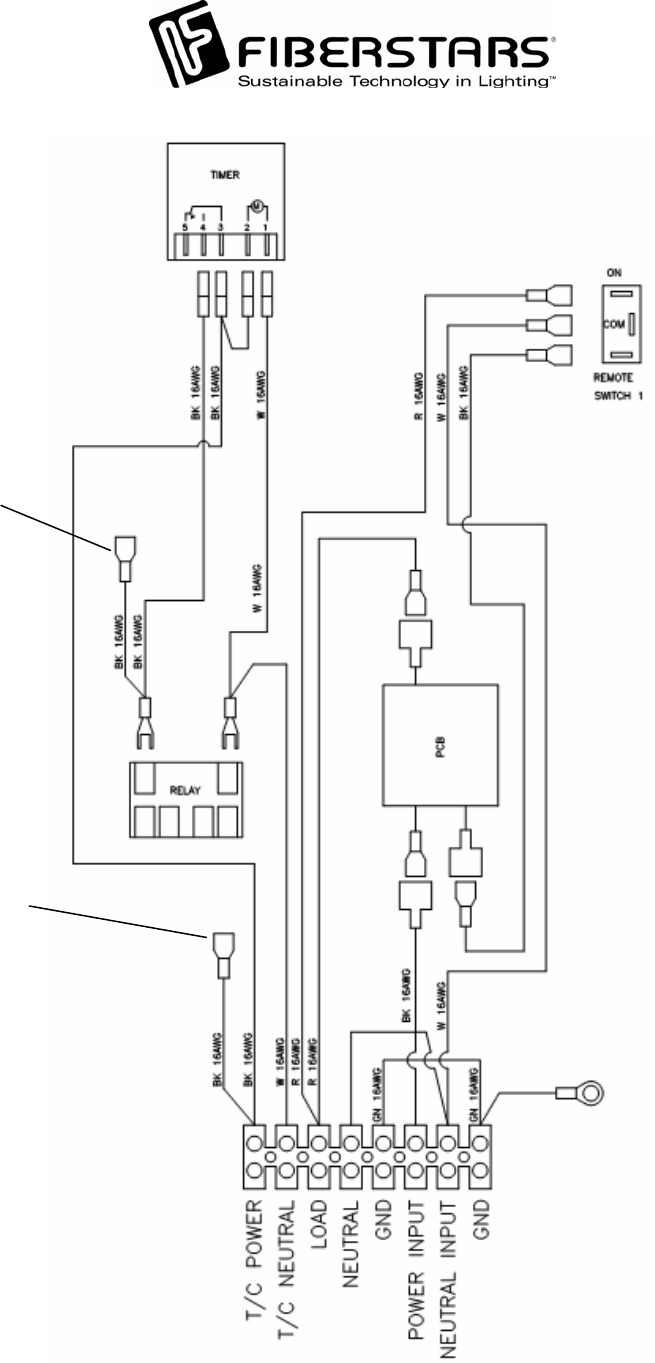

For Freeze
Protect Switch
For Freeze
Protect Switch
79-15103-00 REV. B Page 10 of 11
http://www.fiberstars.com
79-15103-00 REV. B Page 11 of 11
