Fiberstars WPC3 WIRELESS CONTROLLER FOR SWIMMING POOL PERIPHERALS User Manual WPC 1
Fiberstars, Inc. WIRELESS CONTROLLER FOR SWIMMING POOL PERIPHERALS WPC 1
USER MANUAL
http://www.fiberstars.com
79-15097-00 REV B Page 1 of 20
Installation Instructions: Read these instructions in
their entirety before performing any installation work.
Rated for use on 110/120VAC 60Hz and 220/240VAC 60Hz applications
WPC-3
ETL LISTED
Conforms to UL STD 508;
Certified to CSA STD
C22.2 No. 14
FOR USE WITH POOL AND SPA PRODUCTS
2
1
3
4a, 4b
9
7
21
14
6
8
15
18
19
10
11
10
12
13 17
20
5

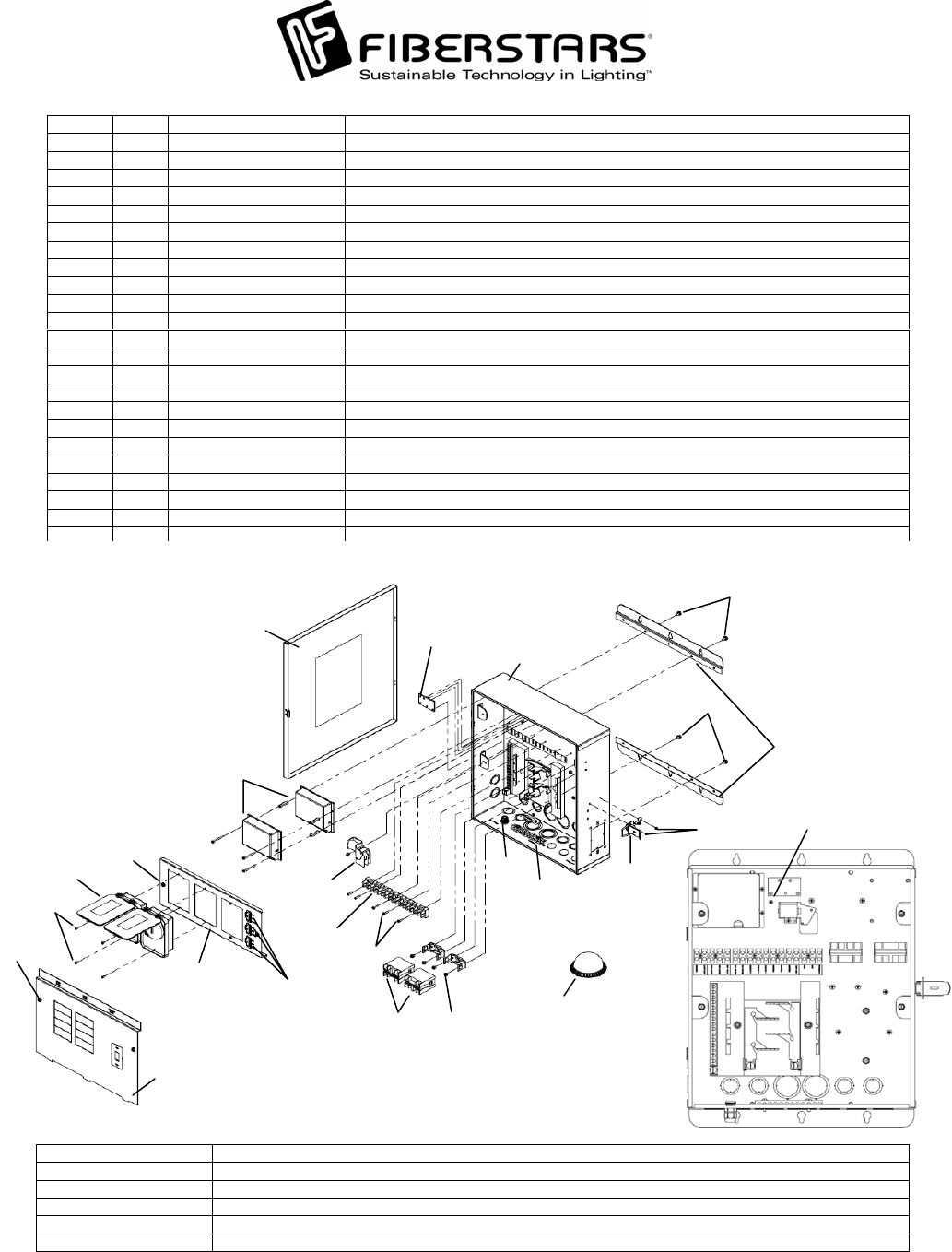

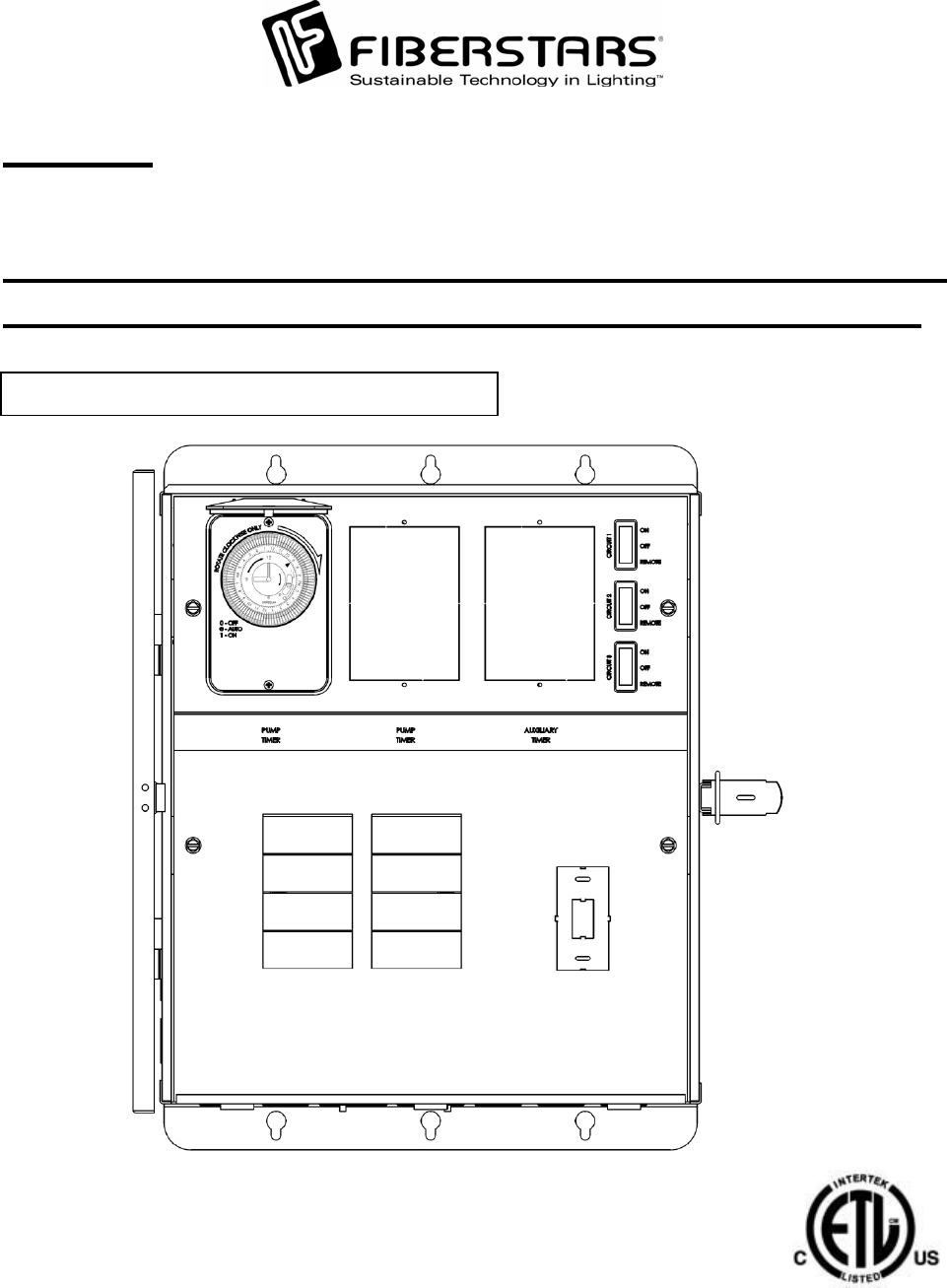

The WPC-3 single speed consists of the following parts:
Item Qty. Component part No. Description
1 1 94-15106-00 WPC-3 Enclosure
2 1 94-15089-00 WPC-3 Enclosure Door
3 2 37-15000-00 Relay
4a 1 41-15004-12 12-Position Terminal Block
4b 1 41-15004-05 5-Position Terminal Block
5 1 42-15032-00 Timer
6 1 02-15269-00 Load Center Cover Plate
7 2 02-15267-00 WPC-2 Mounting Bracket
8 1 41-15003-00 Grounding Bar
9 2 94-15090-00 WPC Receiver
10 6 10-15086-04 Load Center Cover Plate, Switch Bracket, and Mounting Bracket Screws
11 5 10-15089-06 Terminal Block Mounting Screw
12 4 10-15060-01 Relay Mounting Screw
13 2 10-15089-03 Timer Mounting Screws
14 3 38-15012-00 3-Position Rocker Switch
15 1 94-15092-00 WPC Repeater
16 1 10-15089-02 Freeze Device Mounting Screw (Optional equipment)
17 1 20-15013-00 Strain Relief
18 1 02-15283-00 WPC-3 Timer and Switch Bracket
19 1 17-15005-00 Latch
20 2 10-15089-01 Latch Mounting Screws
21 1 43-15021-00 WPC-3 Antenna S
p
litte
r
10
16
http://www.fiberstars.com
79-15097-00 REV B Page 2 of 20
http://www.fiberstars.com
79-15097-00 REV B Page 3 of 20
2
1
3
9
18
14
6
4a, 4b
7
21
8
5 19
22
15
10
10
11
12
13
17
20
10
10
Accessory Items:
FP 1/2 Temperature Freeze Device
WE-65 65 ft Repeater Cord Extension Kit
WPC-2/3 ST GFCI Mounting Kit
DL-HUB Direct Light Hub Connection Kit
TC-2 Additional Timeclock/Dust Cover
WPC-TRANS 24V Transformer for Fiberstars Light Streams LED Products or JVA Control

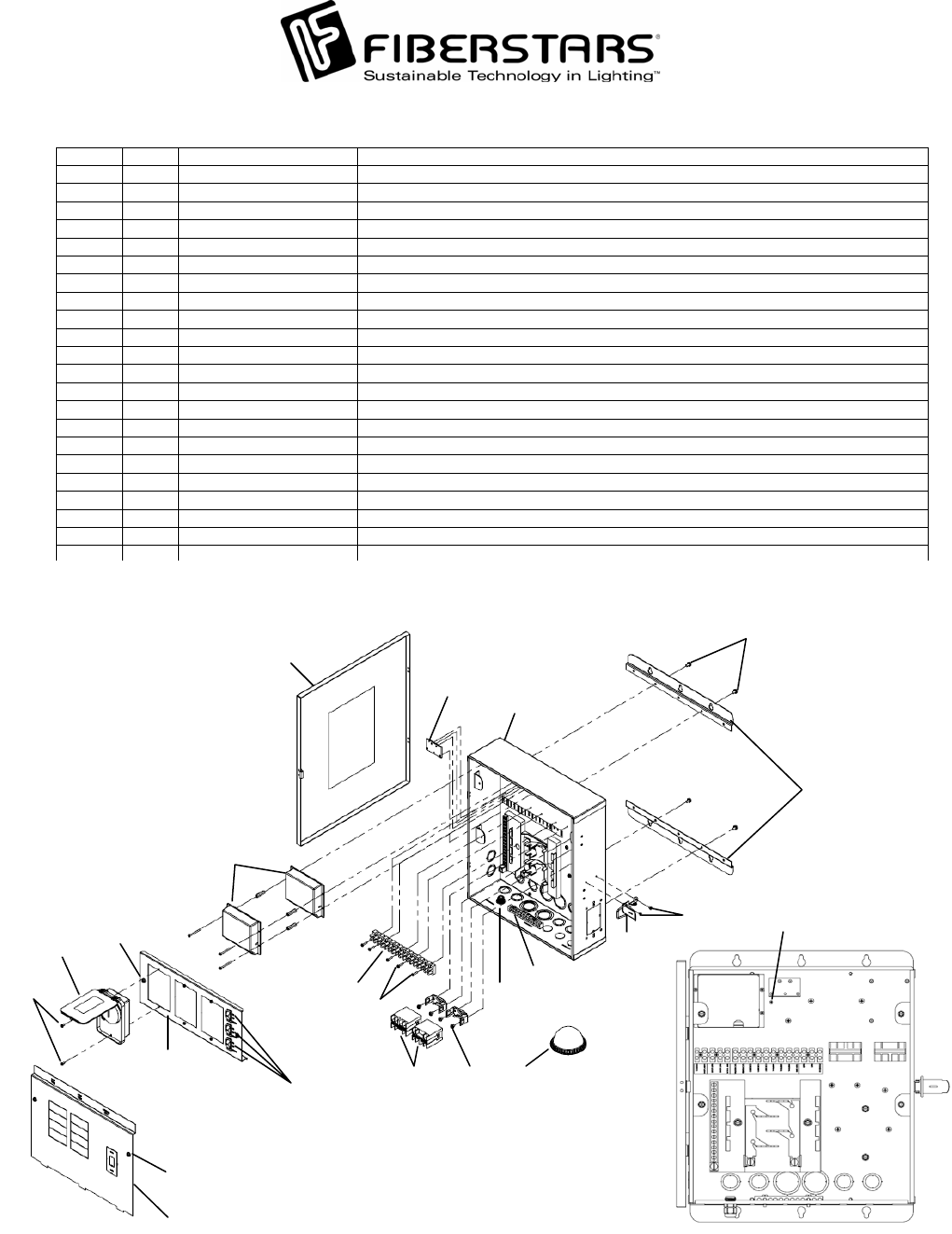

The WPC-3 dual speed consists of the following parts:
Item Qty. Component part No. Description
1 1 94-15106-00 WPC-3 Enclosure
2 1 94-15089-00 WPC-3 Enclosure Door
3 2 37-15000-00 Relay
4a 1 41-15004-12 12-Position Terminal Block
4b 1 41-15004-05 5-Position Terminal Block
5 2 42-15032-00 Timer
6 1 02-15269-00 Load Center Cover Plate
7 2 02-15267-00 WPC-2 Mounting Bracket
8 1 41-15003-00 Grounding Bar
9 2 94-15090-00 WPC Receiver
10 6 10-15086-04 Load Center Cover Plate, Switch Bracket, and Mounting Bracket Screws
11 5 10-15089-06 Terminal Block Mounting Screw
12 4 10-15060-01 Relay Mounting Screw
13 4 10-15089-03 Timer Mounting Screws
14 3 38-15012-00 3-Position Rocker Switch
15 1 94-15092-00 WPC Repeater
16 1 10-15089-02 Freeze Device Mounting Screw (Optional equipment)
17 1 20-15013-00 Strain Relief
18 1 02-15283-00 WPC-3 Timer and Switch Bracket
19 1 17-15005-00 Latch
20 2 10-15089-01 Latch Mounting Screws
21 1 43-15021-00 WPC-3 Antenna Splitter
22 1 37-15001-00 DPDT Rela
y
16
http://www.fiberstars.com
79-15097-00 REV B Page 4 of 20
FCC WARNING
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by Fiberstars Inc. could void the user's
authorit
y
to o
p
erate the e
q
ui
p
ment.
SAVE THESE INSTRUCTIONS!
Basic safety precautions should be observed when operating the WPC-3 product and other
associated equipment.
1. A qualified electrician must install the WPC-3 in accordance to the National and Local Electrical
Codes.
2. The WPC-3 must not be less then 5 feet (3 meters in Canada) from inside edge of pool. ONLY
USE COPPER CONDUCTORS.
3. Do not exceed the maximum ratings of individual components, wiring devices, and current
carrying capacity of conductors.
4. For the bonding, grounding, installing, and wiring of underwater lights to the WPC-3, refer to
Article 680 of the National Electrical Code or Section 68 of the Canadian Electrical Code.
5. This device should never operate an equipment that could cause property damage, bodily injury,
or death should it be activated unexpectedly.
6. Never allow children to operate the WPC-3 unsupervised.
IMPORTANT SAFETY INFORMATION
ELECTRICAL RATINGS
Do not exceed the maximum electrical ratings of the WPC-3. A circuit breaker rated at
20Amps at 120VAC must installed in the breaker panel to connect to the WPC-3 power input.
Circuit 1 and Circuit 2 are each rated for use of up to 8Amps @ 120VAC. The Pump Relay is
rated at a maximum of 3HP @ 240VAC.
SINGLE DOUBLE TWIN QUAD GFCB
Thomas & Betts TB TB TBBD TBBQ GFB FP-1C-TB
Cutler-Hammer BR BR BRD BRD GFCB BRFP
Square D HOM HOM HOM T HOM T HOM -GFI HOM FP
Murray MP-T MP-T MH-T MH-T MP-GT LX100FP
Siemens/ITE QPQPQTQTQPFQF-3
Challenger C - A-CT - HAGF # FC-1C
Westinghouse or Bryant BR - BQ - GFCB FP-1
Crouse Hinds M P - TRIPLEX - M P-GF -
GE Regular THOP - - - THOP-GF TQLFP-1
SUITABLE LISTED B REAKERS
CIRCUIT BREAKER
MANUFACTURER FILLER PLATE
120V 240V
AWG AMP LB-IN LB-IN HP HP AMP AMP
14 15 3 5 2 0 1/ 2 1 15 12
12 20 35 20 1 2 20 16
10 30 35 20 1 1/2 3 30 24
8 504025 2 5 4032
6654535- -6044
4854535- - - -
310050-----
2100/12550-----
General
Purpose
Branch
Circuit
Breaker
Rating
General
Purpose
Branch
Circuit
Maximum
Current
Capacity
Wiring Inf ormation - Co pper Co nduct ors Only
Terminal Torque*
Wire Size
75°C min.
Insulation
Supply
Circuit
Breaker
Rating
Line and
Neutral
Main
Lugs
Neutral
and
Ground
Max Motor Load
(Continuous Duty)
http://www.fiberstars.com
79-15097-00 REV B Page 5 of 20
WARNING
• TURN OFF INCOMING POWER BEFORE SERVICING EQUIPMENT.
• ALL INSTALLATION AND MAINTENANCE WORK MUST BE PERFORMED BY
QUALIFIED ELECTRICAL PERSONELL ONLY.
• VERIFY ALL ELECTRICAL RATINGS BEFORE INSTALLATION IS COMPLETE.

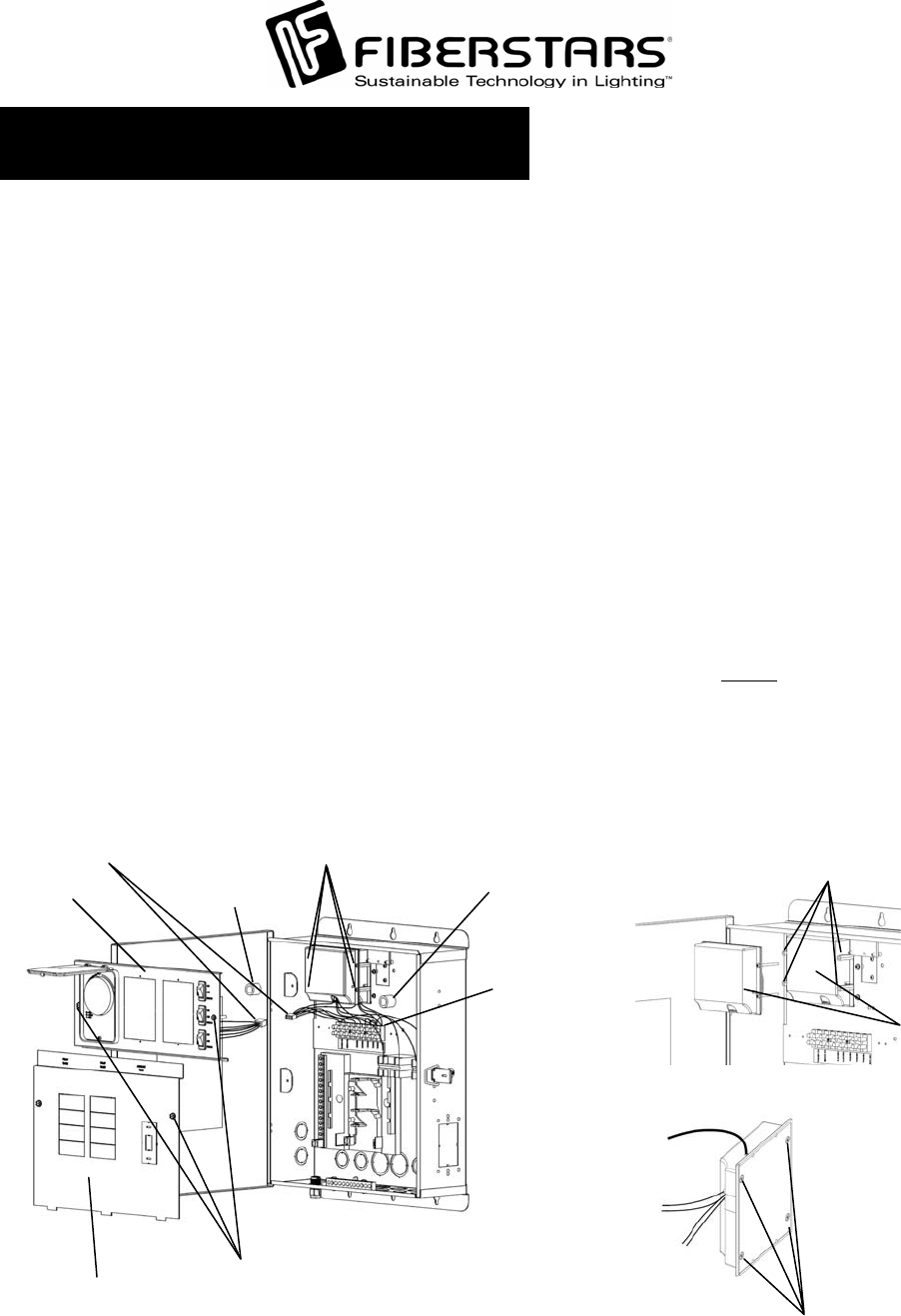

LOCATION
Install the WPC-3 enclosure using the mounting plates included with each enclosure. The WPC-
3 is housed in a Type 3R rainproof enclosure and can be mounted anywhere between the pool
equipment and the breaker panel.
NOTE: If a freeze protect device is required, please see Fiberstars part no. FP 1/2.
WIRING INSTRUCTIONS
FOLLOW PROPER WIRING PRACTICES IN ACCORDANCE WITH ALL LOCAL
REGULATORY REQUIREMENTS.
NEUTRAL LINE - SECONDARY GROUND
LINE - PRIMARY
Power Connections:
To wire the WPC-3 use insulate
d
COPPER wire only, 12 gauge minimum.
Run a ½” to ¾” conduit from the main
breaker panel to the WPC-3. Pull
appropriate wires from the main breake
r
panel to the WPC-3 unit. To make
power connections remove 3/8 inches o
f
insulation from wire ends. Connect bare
wires to the Load Center as illustrated.
Tighten terminal screws firmly (20 lb-in
minimum). Connect the common to the
Neutral bar (tighten to 20 lb-i
n
minimum).
http://www.fiberstars.com
79-15097-00 REV B Page 6 of 20
http://www.fiberstars.com
79-15097-00 REV B Page 7 of 20
TO
N
EUTRAL BAR
HOT
LINE SIDE
GROUND
T/C
N
EUTRAL
T/C POWER
HOT
LOAD SIDE
N
EUTRAL
LOAD SIDE
GFCI
120VAC 20AMP
CIRCUIT BREAKER
NOTE: DO NOT connect the T/C
POWER and T/C NEUTRAL to the
CI’s LOAD side. GF
Power Connection with a GFCI
To wire the WPC-3 with the use of
a
GFCI, punch out the GFCI knockou
t
on the side of the WPC-3 enclosure.
Install an outdoor rated GFCI. Using
COPPER wire only, 12 gauge
minimum, connect the GFCI from the
LOAD side to the 120V LINE
terminal. Connect the NEUTRAL
from the LOAD side of the GFCI to
the NEUTRAL terminal. Connect the
GROUND of the GFCI to the EQUIP.
GND. bar. Wire the HOT from the
GFCI’s LINE side to the 20 Amp
circuit breaker. Connect the
NEUTRAL from the GFCI’s LINE
side to the Neutral bar on the Loa
d
Center. Connect a wire from the 20
Amp circuit breaker to the T/C
POWER as shown on the diagram.
Connect a wire from the Neutral Ba
r
to the T/C NEUTRAL.

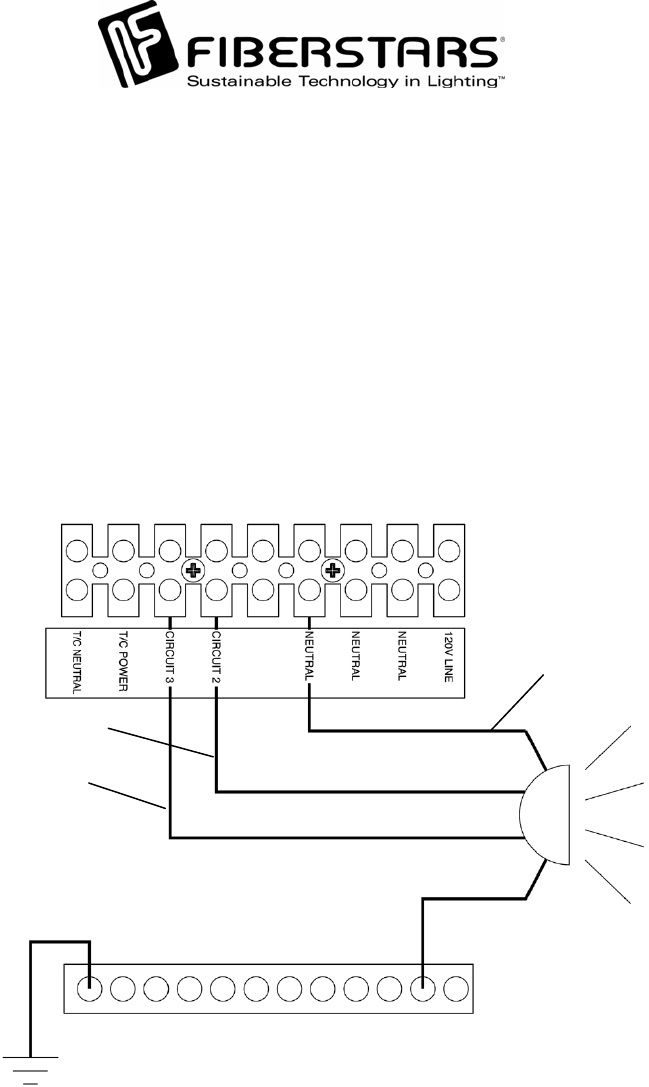

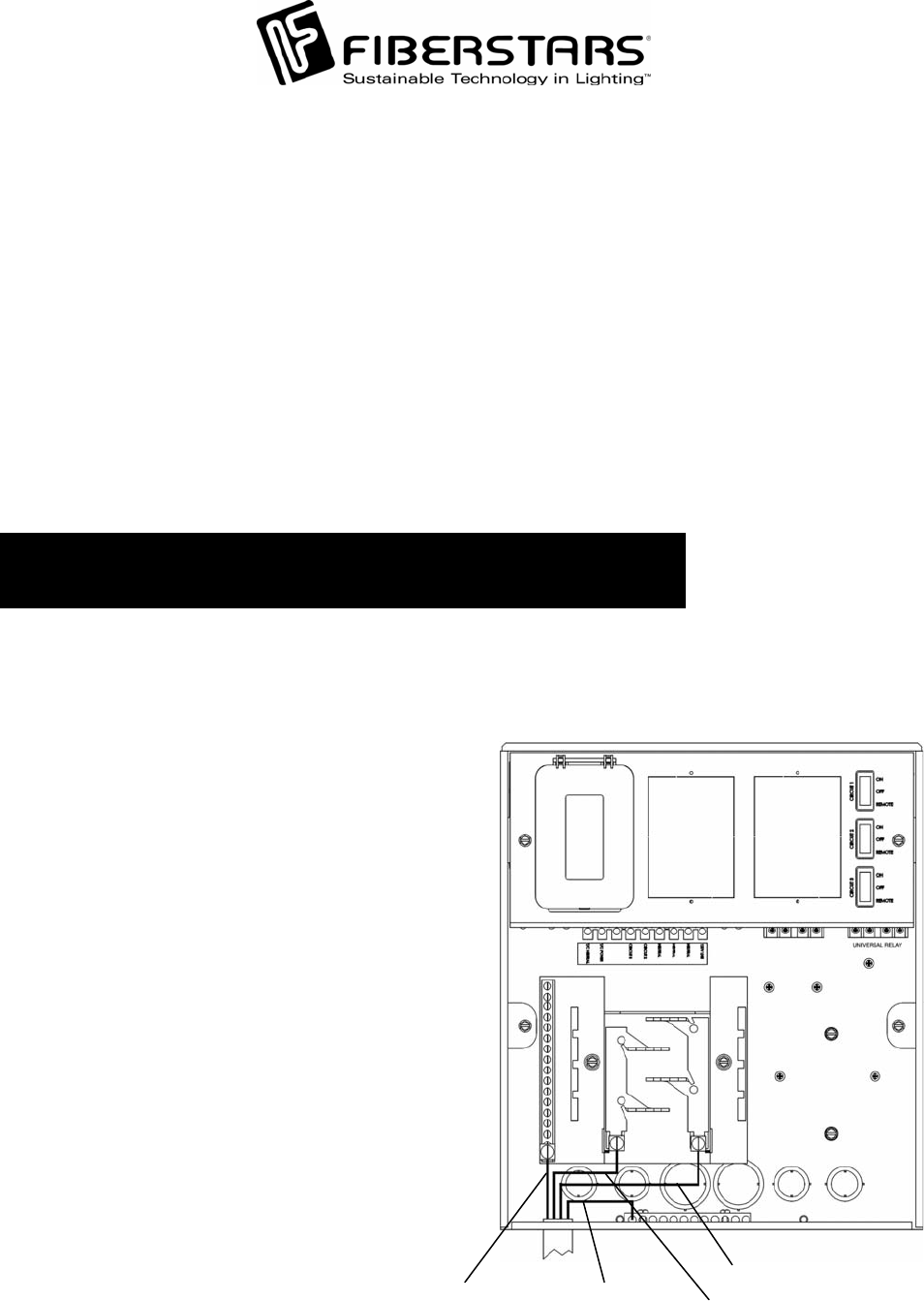

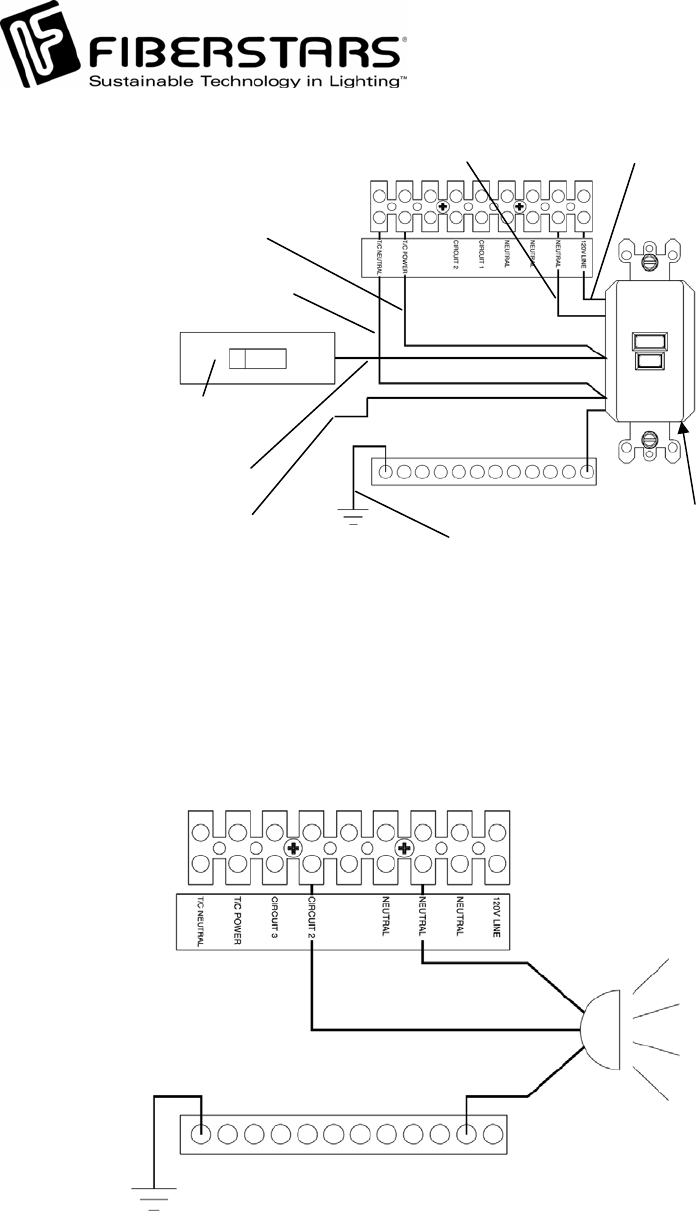

Hooking up Lights to Circuit 2 and
Circuit 3
To connect a lighting product to the
Circuit 2 and Circuit 3 switch, pull
wires from the products to the WPC-3
through conduits connected to the
bottom of the WPC-3. As illustrated,
connect lights that will be operated by
the Circuit 2 Switch to the Circuit 2
terminal. Connect the Neutral to the
Terminal Block marked Neutral.
Connect the Ground to the Equip.
GND. bar. Repeat for Circuit 2.
NOTE: Do not exceed 8 Amps pe
r
circuit.
NOTE: The WPC-3 is approved for use with the Intermatic Metallic Hub Kit
(156PA14336A) and Fiberstars DL-HUB for direct connection of underwater lights.
Refer to NFPA 70 Article 680 or C22.1 Section 68 for details.
http://www.fiberstars.com
79-15097-00 REV B Page 8 of 20
C/W CONTROL
LIGHT CONTROL
N
EUTRAL
Connecting Jazz, Jazz-Spa, System 6004, and System 6004-AS*
For proper operation of these products both Circuit 2 and Circuit 3 must be wired so that the
power is controlled through Circuit 2 and the color wheels functions are controlled through
Circuit 3. Follow each products installation manual for proper installation. Run appropriately
rated wires from the unit to the WPC-3 no less then 12 Gauge COPPER wires. Connect the
Power to the Circuit 2 terminal at one end and to the BLACK wire on the Fiberstars unit.
Connect the neutral to the NEUTRAL terminal in the WPC-3 and to the WHITE wire on the
Fiberstars unit. Connect the grounding cable to the EQUIP. GND. and on the other end to the
GREEN cable. Finally, for synchronization operation, connect the C/W CONTROL cable to
the Circuit 3 terminal and on the other end to the RED wire on the Fiberstars unit.
NOTE: Do not exceed 8 Amps on Circuit 2.
NOTE: The WPC-3 is approved for use with the Intermatic
Metallic Hub Kit (156PA14336A) and Fiberstars DL-HUB
for direct connection of underwater lights. Refer to NFPA
70 Article 680 or C22.1 Section 68 for details.
* Or other two button Power/Color system, ie. Pentair, Supervision, Fiberworks…
http://www.fiberstars.com
79-15097-00 REV B Page 9 of 20

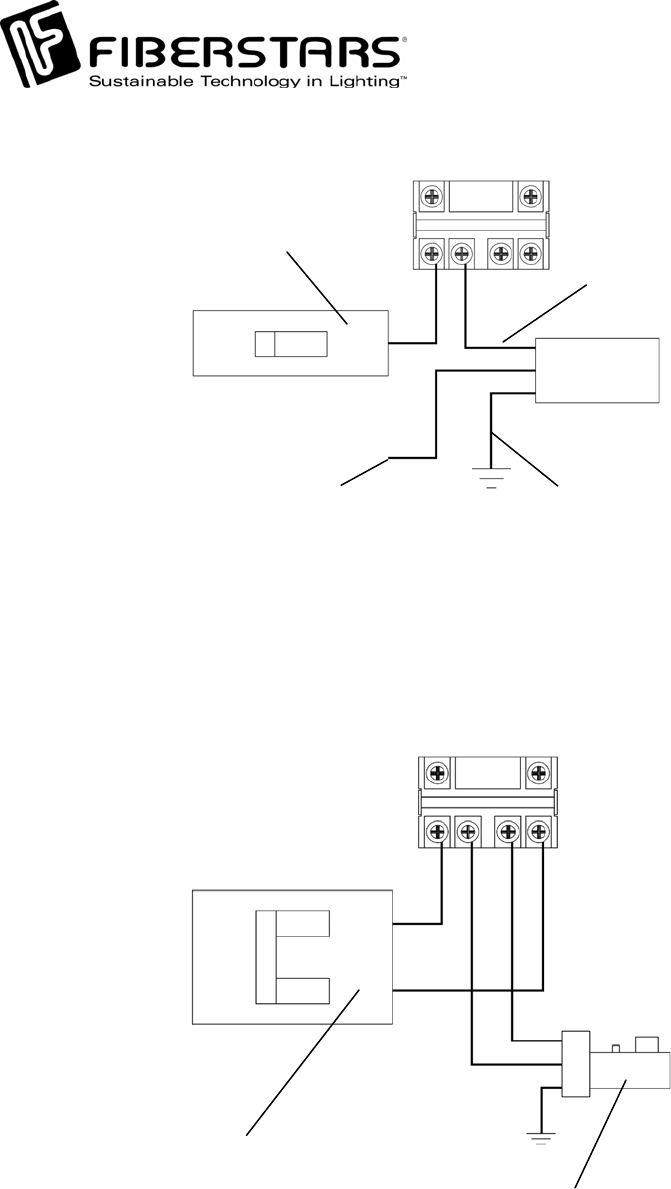

CONNECTING A 120VAC DEVICE
TO CIRCUIT 1
To wire a 120VAC device to the Relay,
connect the LOAD wire from the device
(as illustrated) to the Relay and
a
120VAC power from an appropriately
rated circuit breaker using no less then a
12 gauge COPPER wire. Connect the
NEUTRAL from the device directly to
the NEUTRAL bar at the breaker panel
(as illustrated). Alternately, you may
connect the NEUTRAL from the device
to the Relay and from the Relay to the
NEUTRAL bar.
NOTE: The 120VAC device is not to
exceed 15Amps nor 1.5HP.
120VAC
N
eutral at Subpanel Ground
120V Circuit Breaker

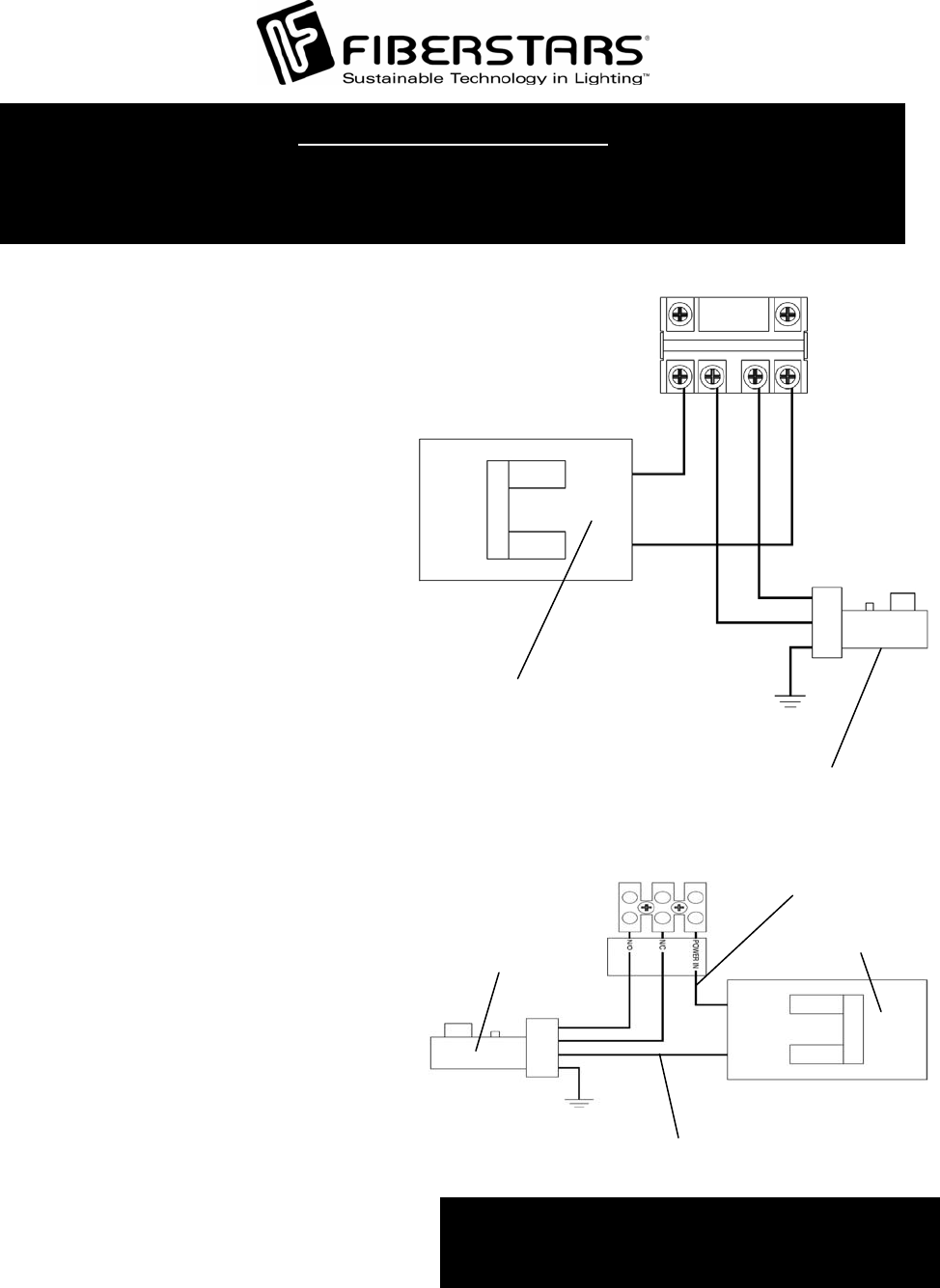

CONNECTING A 240VAC PUMP TO
CIRCUIT 1
Connect the 240VAC pump to the relay
as illustrated. Connect a 240VAC Circuit
Breaker to the Load Center. Wire the
Relay from the 240VAC Circuit Breake
r
as illustrated.
NOTE: 240V Pump not to exceed
30amps nor 3HP.
240V Circuit
Breaker 240VAC Pump
http://www.fiberstars.com
79-15097-00 REV B Page 10 of 20
HI SPEED
LO SPEED
2 SPEED PUMP
240VAC CIRCUIT
BREAKER
POWER IN
120V PRIMARY
120V SECONDARY CONNECTED
TO 2 SPEED PUMP
NOTE: Pump Breaker MUST be turned OFF
before servicing as 2nd leg of 240V
circuit is HOT at all time!
CONNECTING A 2-SPEED PUMP
As illustrated, connect the Low Spee
d
wire to the Low Speed Load terminal on
the terminal block. Connect the High
Speed wire to the High Speed Loa
d
terminal on the terminal block. Connec
t
the 120V Primary from the 240V Circuit
Breaker to the 120V PRI INPUT
terminal. Directly connect the 120V
Secondary from the Circuit Breaker to
the 2 Speed Pump.
NOTE: The Secondary 120V must be
directly connected to the
pump for 240V operation.
240V Circuit
Breaker
240VAC Pump
CONNECTING A 240VAC PUMP
Connect the 240VAC pump to the relay
as illustrated. Connect a 240VAC
Circuit Breaker to the Load Center.
Wire the Relay from the 240VAC
Circuit Breaker as illustrated.
NOTE: 240V Pump not to exceed
30amps nor 3HP.
PUMP CONNECTIONS
NOTE: Some models are ONLY equipped with Single Speed OR Dual Speed pump
connections.
http://www.fiberstars.com
79-15097-00 REV B Page 11 of 20
TO HEATER
TO HEATER

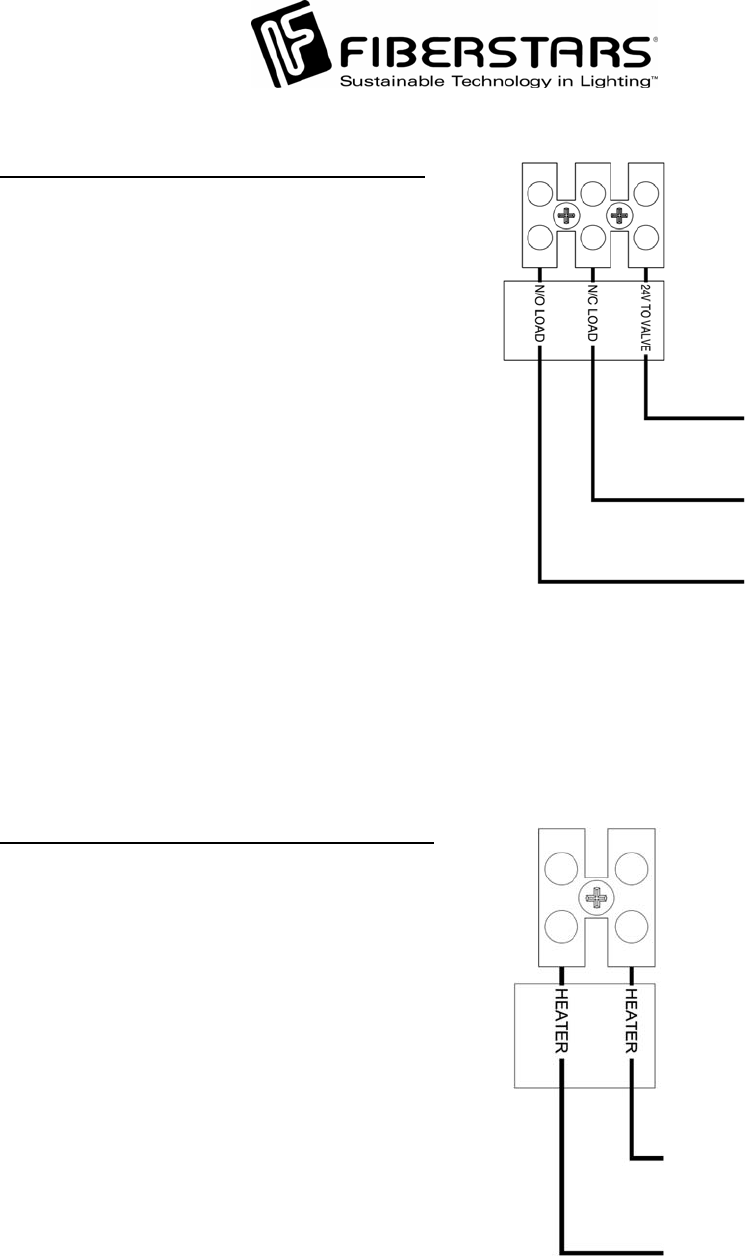

Heater Connection (Optional Equipment).
To connect a heater, run the pilot wires from
the heater to the WPC unit. Connect the wires
to the terminal block labeled Heater.
NOTE: The Heater circuit only completes
the circuit of the Heater terminals when the
24V Valve control is energized to the NO
Load circuit.
24V Valve Wiring (Optional Equipment).
To connect a 24V Valve, follow diagram as
shown. Connect one leg of the 24V common
to the 24V TO VALVE terminal. Connect
the Close wire to the NC LOAD terminal an
d
the Open wire to the NO LOAD terminal.
NOTE: In the Pool/Spa Combo units
(WPC3-??4?-?, where ? = an
y
number),
there ma
y
be two (2) JVA connections. See
JVA Installation and Operational manual
for JVA synchronization methods.
COMMON TO VALVE
OPEN WIRE FROM VALVE
CLOSE WIRE FROM VALVE
http://www.fiberstars.com
79-15097-00 REV B Page 12 of 20
FOR USE WITH
TC-2 OPTION
FOR USE WITH
TC-2 OPTION
FOR TEMPERATURE
FREEZE PROTECT
SWITCH OPTION
FOR TEMPERATURE
FREEZE PROTECT
SWITCH OPTION

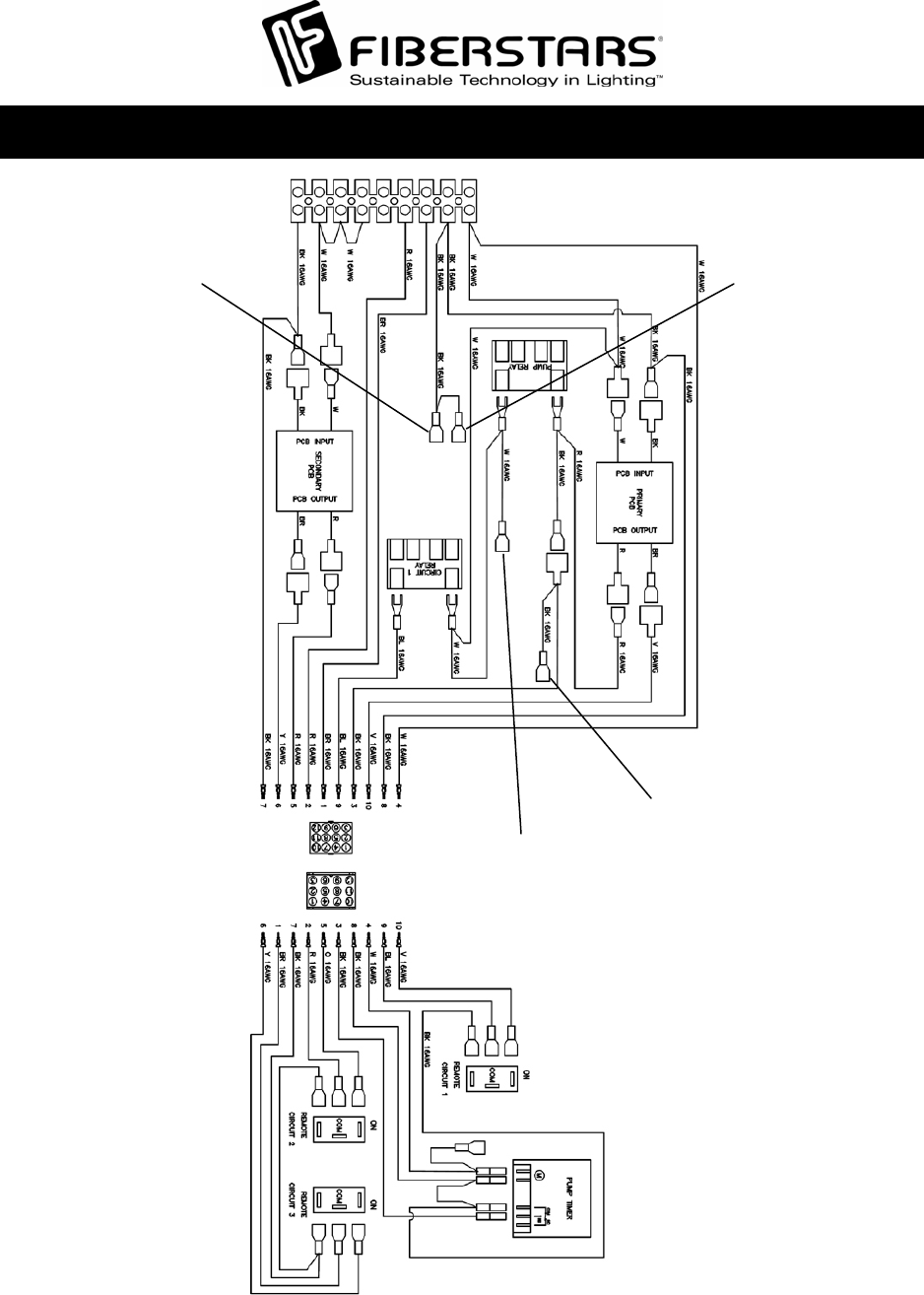

SINGLE SPEED INTERNAL WIRING SCHEMATIC
http://www.fiberstars.com
79-15097-00 REV B Page 13 of 20
FOR USE WITH
TC-2 OPTION
FOR TEMPERATURE
FREEZE PROTECT
SWITCH OPTION
FOR USE WITH
TC-2 OPTION
FOR TEMPERATURE
FREEZE PROTECT
SWITCH OPTION

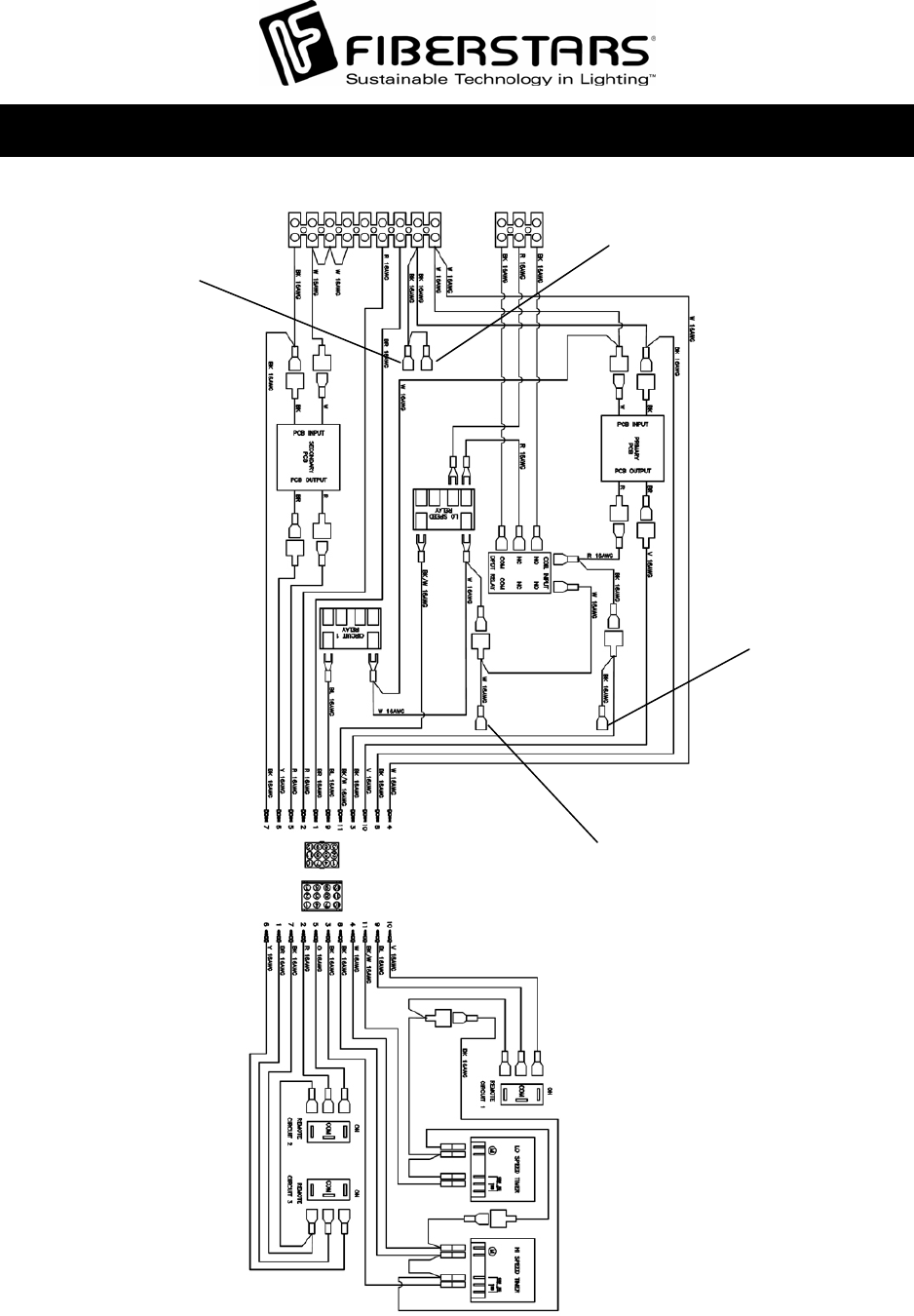

DUAL SPEED INTERNAL WIRING SCHEMATIC
http://www.fiberstars.com
79-15097-00 REV B Page 14 of 20
10 feet
Repeater
Orientation
Marker
Mounting
Holes
Base Slit for
Repeater Wire
Repeater Dome Repeater Base
Mounting Screws
Locking
Dimple
Dome/Base groove
Flathead Screwdriver

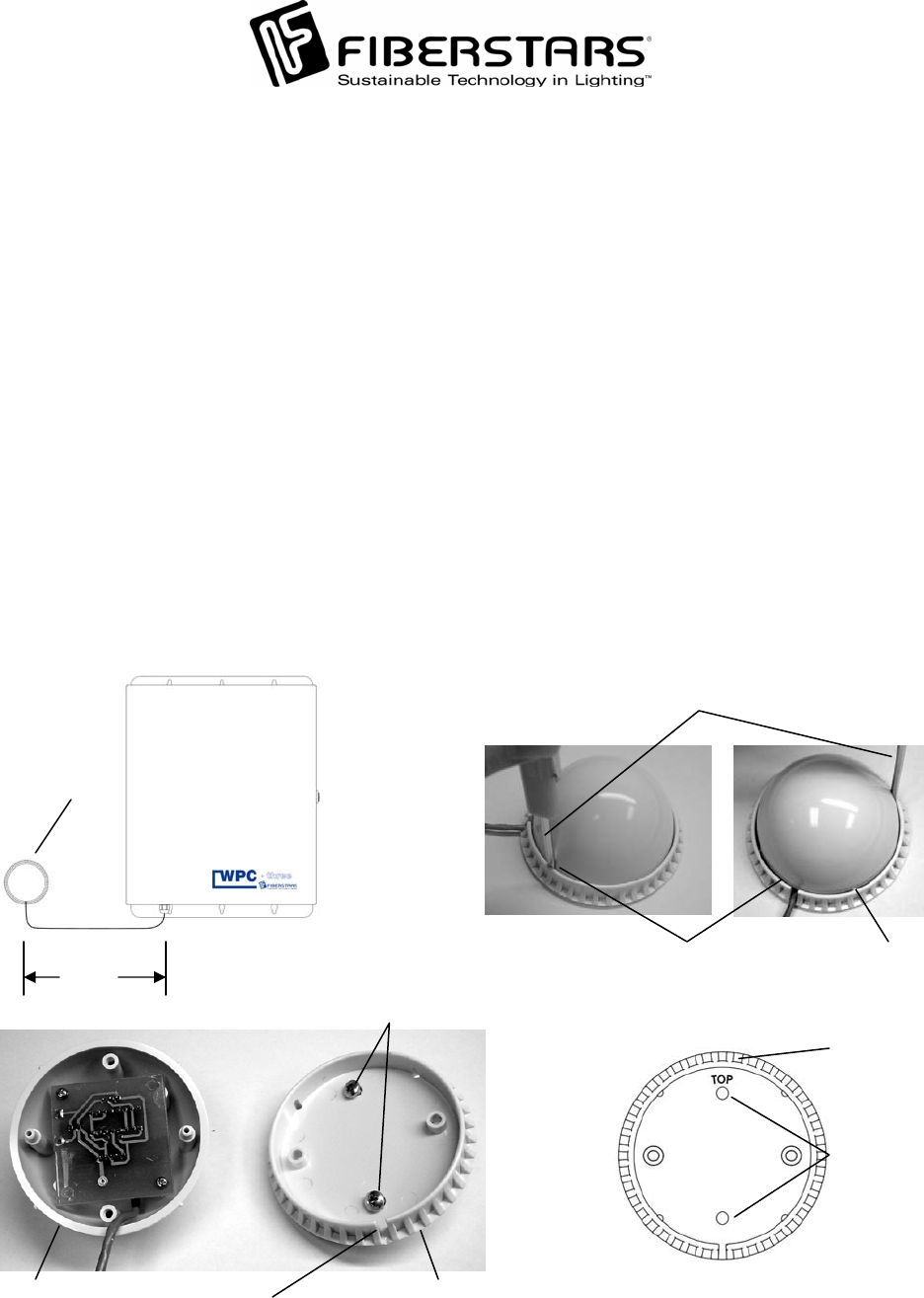

Repeater Mounting
The WPC-3 is equipped with a signal repeater that can be mounted up to 10 feet from the WPC-3
unit. This repeater receives signals from the wireless remote and sends that signal to the WPC-3
via the 10 foot cable. Establish a location for the Repeater that is in line of sight from where the
wireless remote will be used most frequently and that is no more then 75 feet from furthest where
the remote will be used. NOTE: If extension is needed, use Fiberstars part number WE-65
and follow installation instructions supplied with the Repeater Extension.
To mount the Repeater, carefully insert a small flathead screwdriver into groove between the
Dome and Base approximately where the locking dimples are located. Pry the Dome out of the
locking dimples. Then carefully insert the small flathead screwdriver into the groove between the
Dome and the Base in an adjacent locking dimple and pry the Dome out. Then separate the Dome
from the Base by hand. Using the supplied self-drilling screws, locate a suitable mounting
surface and screw the base to this surface. Note that the marking “TOP” must be in the 12
o’clock position and the wire slit must be in the 6 o’clock position. Do not over tighten the
screws as it may damage the Repeater base. Realign the Repeater Dome to the Base and ensure
that the wire is exiting the base through the slit and the Locking Dimples are aligned with the
locking holes. Apply enough pressure so that the Dome “snaps” into the base.
NOTE: Do not stuff the remainder of the Repeater wire into the WPC unit.
http://www.fiberstars.com
79-15097-00 REV B Page 15 of 20
NOTE: Switch is shown in the ON position.

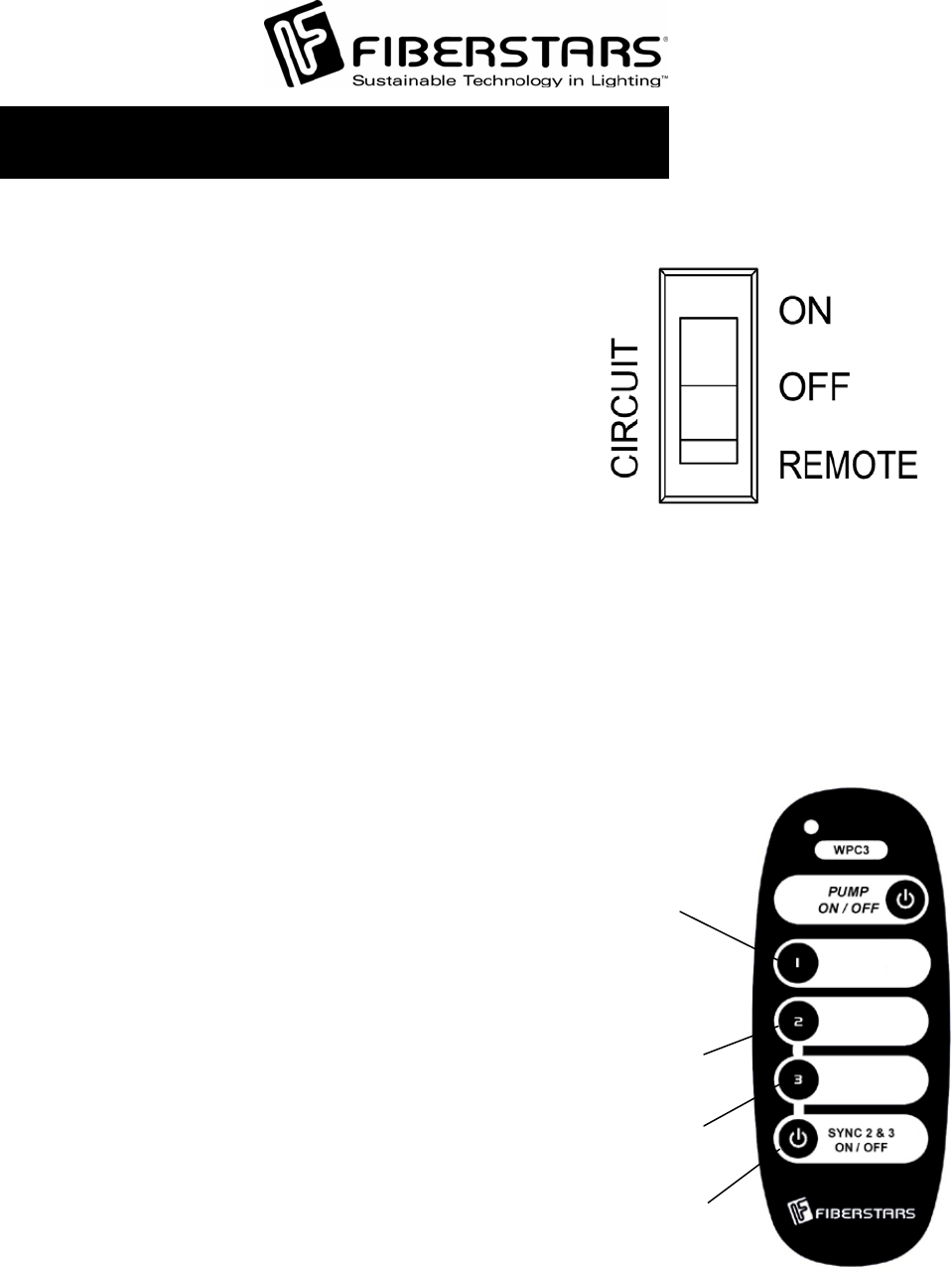

WPC-3 ROCKER SWITCH OPERATION
The WPC-3 receiver box houses three rocker switches.
For operation with the wireless transmitter, the switches
need to be in the DOWN or REMOTE position. To
manually turn ON the devices connected to Circuit 1,
Circuit 2, or Circuit 3, flip the rocker switches UP or to
the ON position. When a circuit is in the ON position,
the Wireless Remote will not be able to turn OFF the
respective circuit. To turn OFF the devices manually,
flip the respective toggle switch to the MIDDLE or OFF
position.
NOTE: In the OFF position, the wireless remote
operation will be bypassed. To re-enable the
wireless remote operation, flip the toggle switch
back to the BOTTOM or REMOTE position.
NOTE: If the units turn ON when the switch is returned
to the REMOTE position, simply use the wireless
remote to turn OFF the units if desired.
Circuit 3 control
For Synchronization of
Circuit 2 and Circuit 3
Circuit 1 control
Circuit 2 control
WIRELESS REMOTE OPERATION
NOTE: The rocker switches on the WPC-3 must be se
t
to REMOTE for wireless operation. The POWE
R
ON/OFF buttons control the individual circuits
independently. With each push of the button, the
WPC-3 toggles the individual circuits from ON to OFF
and vice versa. For Synchronization operation, simply
push the SYNC ON/OFF button.
NOTE: If all circuits are off when the SYNC ON/OFF
button is pressed, all circuits will be turned to
ON. If any one of the circuits are in the ON
state by the wireless remote, then when the
SYNC ON/OFF button is pressed all circuits will
be turned OFF and the SYNC ON/OFF must be
pressed to turn all circuits on simultaneously.
NOTE: Synchronization is for Circuits 2 and 3 only.
NOTE: For Dual Speed models, Pump switch operates
Hi Speed only.
OPERATING INSTRUCTIONS
http://www.fiberstars.com
79-15097-00 REV B Page 16 of 20
OPERATION INSTRUCTIONS

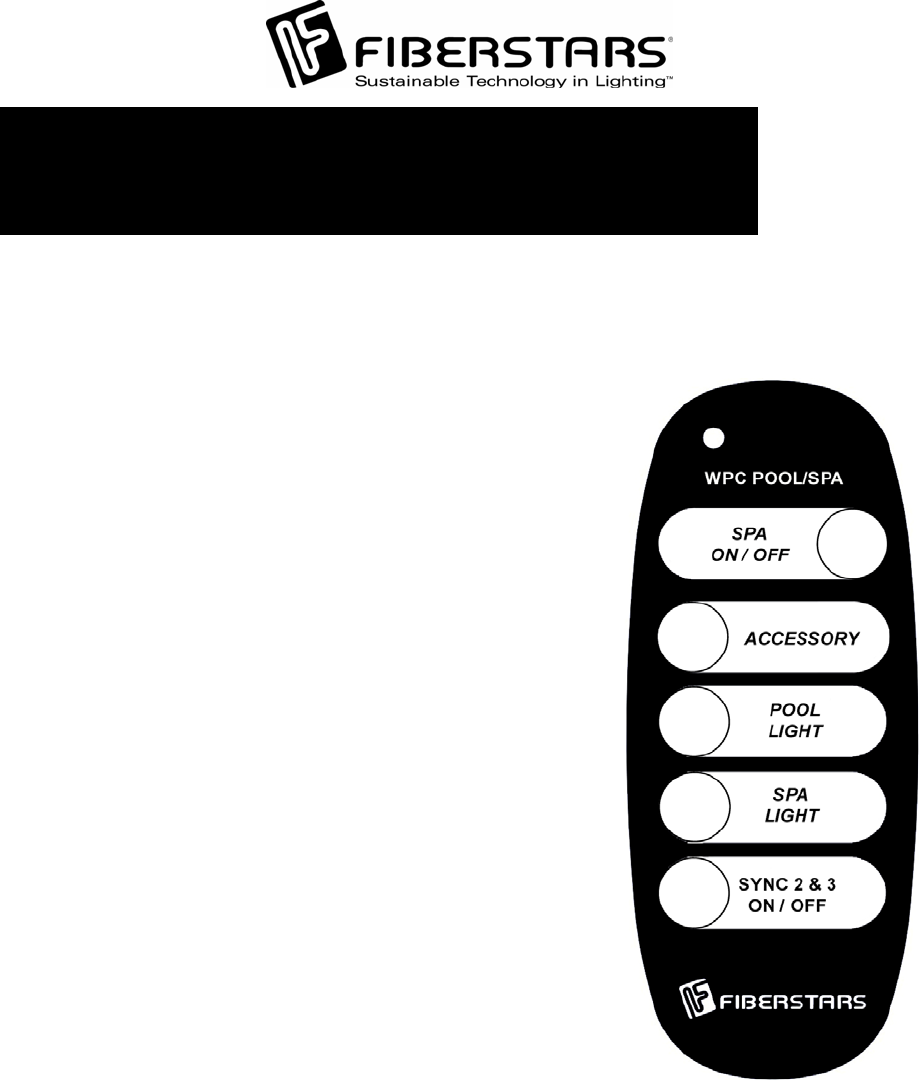

FOR POOL/SPA COMBO OPTION
WIRELESS REMOTE OPERATION
NOTE: The rocker switches on the WPC-3 must be se
t
to REMOTE for wireless operation. The SPA ON/OFF
button actuates the JVA valves and the Filter pump as
well as turn on the Heater. If the Filter pump is already
in the ON position by the time clock, then just the JVA
valves will be actuated to the SPA position and the
Heater will be turned ON.
The Pool Light button turns ON and OFF the Pool
Light with each push of the button.
The SPA Light button turns ON and OFF the SPA
Light with each push of the button.
For Synchronization operation, simply push the SYNC
ON/OFF button to turn ON and OFF the SPA Light an
d
the Pool Light simultaneously. If one of the lights is on
when the SYNC button is pressed, that light will tur
n
OFF and the SYNC button will have to be pressed once
again to turn both SPA and Pool Lights ON.
NOTE: If all circuits are off when the SYNC ON/OFF
button is pressed, all circuits will be turned to
ON. If any one of the circuits are in the ON
state by the wireless remote, then when the
SYNC ON/OFF button is pressed all circuits will
be turned OFF and the SYNC ON/OFF must be
pressed to turn all circuits on simultaneously.
NOTE: Synchronization is for Pool Light and Spa Light
only.
NOTE: For Dual Speed models, the SPA ON/OFF
button actuates the Hi Speed pump while
actuating the JVA valves.
http://www.fiberstars.com
79-15097-00 REV B Page 17 of 20
Single Speed Shown PM hours
Timer dial

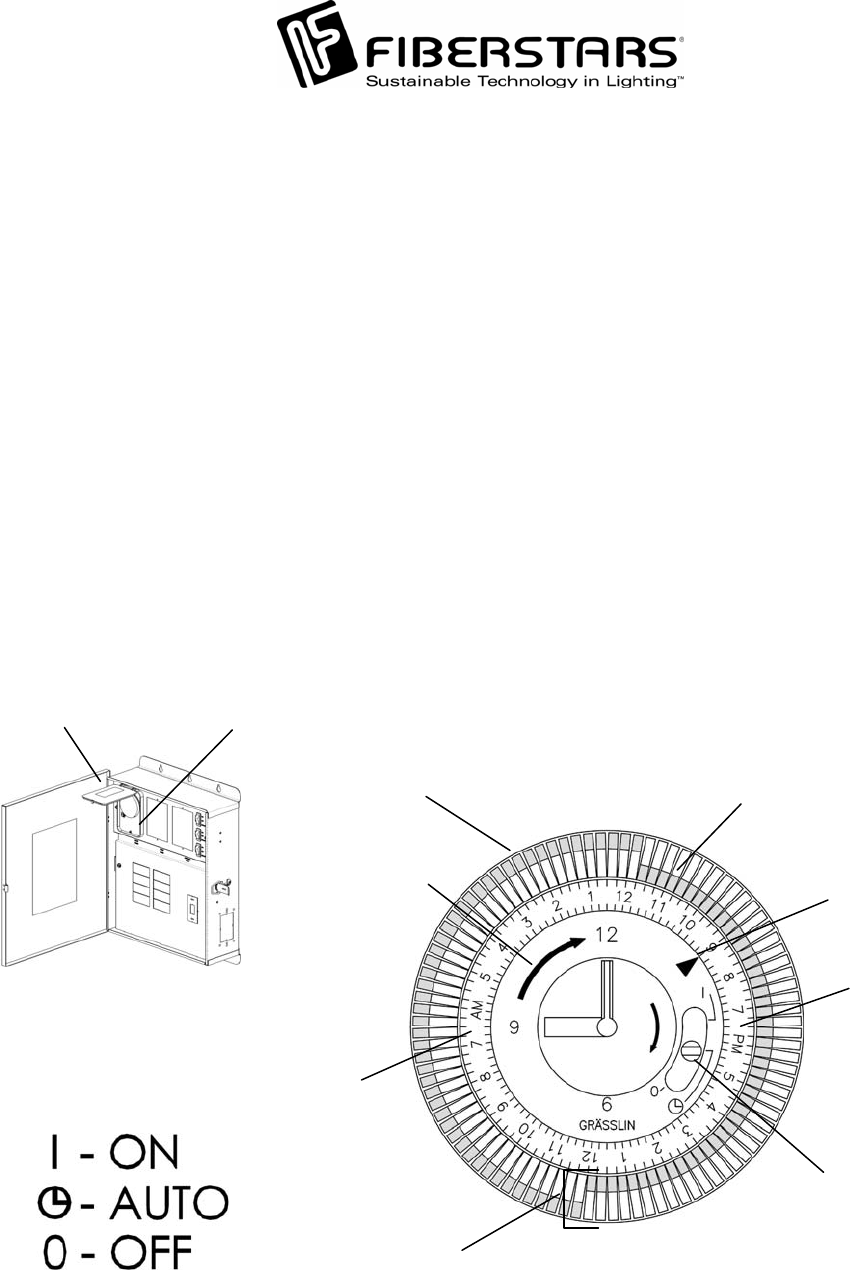

TIMER OPERATION
Set time to current time. Open timer cover by lifting from the bottom towards you. In the
example below, the current time is set for 9:00 pm. NOTE: Only turn the Timer dial
clockwise or the timer will be damaged. Once the time has been set to the current time, set
the hours of the Pump operation by “snapping” the timer tabs inwards towards the center.
NOTE: Each tab represents 15 minutes of operation and tabs set inwards towards the
center is for OFF operations and ON when the tabs are set outwards as illustrated. In
the example below, the Pump will be off from 12:00 pm to 11:45 pm.
Once the time and time of operation has been set, ensure that the Timer function switch is set to
Auto for timer control of the Pump as illustrated below. To turn off timers automatic functions,
set the Timer function switch to OFF. To manually turn on the Pump, set the Timer function
switch to the ON position. NOTE: When in the ON position, the Pump will continue to run
until the Timer function switch is set to Auto where the tabs at the Set Point is in the
OFF position or if the Timer function switch is rotated to the OFF position. Apply the
timer label to the timer cover plate. Close the timer cover firmly after timer is set.
Timer tabs set to
OFF position
Timer dial rotation
direction indicator
Timer Plate Timer Cover
Timer tabs set to
ON position
Current time and Timer
function switch set point
AM hours
Timer function
switch
http://www.fiberstars.com
79-15097-00 REV B Page 18 of 20
Spacers
Receiver
screws
Load Center
Cover Plate
Molex Connector
Switch Bracket
Mounting
Screws
Receiver Mounting
Screws Bracket Spacer
Terminal Block
Two
Receivers
Bracket Spacer
CODE ADJUSTMENTS
If it is necessary to change the transmission code on the WPC-3 an adjustment to the two receivers AND the
transmitter DIP switches must be performed.
RECEIVER DIP SWITCHES – Turn OFF power to the WPC-3 from the circuit breaker on the Load Center o
r
from Main Power. Open the enclosure door. Unscrew and remove the Load Center Cover Plate. Place the Cove
r
Bracket in a safe location. Unscrew and remover the Switch Bracket. Disconnect the Molex connector that connects
the Switch Bracket controls to the receiver unit and set the Switch Bracket in a safe location where it will not be bent,
scratched, or impact forces applied to the components or the face plate itself [Notes: There maybe more then one
Molex connector that must be disconnected]. Unscrew the four (4) screws holding the two Receivers to the base
of the WPC-3 enclosure [NOTE: Do not lose the spacers]. Unscrew the four (4) screws located on the back of each
receiver to release the cover. NOTE: Take notice of how the wires enter and exit the receiver and which receive
r
is connected to the Circuit 2 and Circuit 3 terminals on the terminal block. Remove the cover and look on the
PCB to locate the DIP switch as illustrated.
TRANSMITTER DIP SWITCHES – Remove all screws from rear of remote. Separate the bottom cover from the
top cover.
DIP SWITCH ADJUSTMENT – On each Receiver, there is a four (4) position DIP switch and on the Transmitter
there is a three (3) position DIP switch. On the receivers, the DIP switches 1 through 3 must be set identically to each
other and the Transmitter. Changing just one DIP switch will change the code. The fourth (4th) DIP switch on the
receivers determine the Primary and Secondary roles of the PCB’s. The two receivers MUST have the fourth (4th)
DIP switch set differently from one another. When the fourth (4th) DIP switch is in the ON position, then it will
receive the Pump and Circuit 1 signal and when in the OFF position, it will receive the Circuit 2, Circuit 3, and
Synchronization signals from the remote. Ensure that the Receiver with the fourth (4th) DIP switch ON is connecte
d
to the Pump and Circuit 1 Relays and that the Receiver with the fourth (4th) DIP switch OFF is connected to the
Circuit 2 and Circuit 3 terminals on the Terminal Block.
http://www.fiberstars.com
79-15097-00 REV B Page 19 of 20
DIP switch
DIP Switch
Rear screws
CHANNEL
Fourth (4th) DIP switch
15913
2 6 10 14
3 7 11 15
4 8 12 16
NOTE: ONLY CHANNELS 1 THROUGH 8
ARE AVAILABLE FOR THE WPC-3.
DIP SWITCH
Note: Sample shown is of Channel 8.
DIP SWITCH123
Channel 1 OFF OFF OFF
Channel 2 ON OFF OFF
Channel 3 OFF ON OFF
Channel 4 ON ON OFF
Channel 5 OFF OFF ON
Channel 6 ON OFF ON
Channel 7 OFF ON ON
Channel 8ONONON
DIP SWITCH SETTINGS
Optional Equipped Units
WPC3-XXXX-1 : Single Speed with Freeze Protect. No additional wiring required.
WPC3-2XXX-1 : Dual Speed with Freeze Protect. No additional wiring required.
WPC FUNCTION CHART
Below is a chart of the WPC functionality based on the model number.
Other
Options Accessories
http://www.fiberstars.com
WPC3 - -
Pump
Features Button 2
Features Pump Button
Features
X – Standard
1 – Load Center
Removed
X – Standard
2 – One JVA Valve Switching
4 – Two JVA Valve Switching for
Pool/Spa combo w/HTR control
X – Standard
3 – WFPR added for Booster
Pump
X –1 Speed Pump – Standard
3 – 2 Speed Pump w/T.C. for Lo Speed &
T.C. for Hi Speed
X – Standard
1 – Freeze Protect
2 – T/C w/Relay for Pool
Cleaner Booster Pump
5 – FP & T/C w/Relay
for Pool Cleaner
Pump
EXAMPLE:
WPC3-3X2X-1 is a 2 speed pump model with two time clocks (one to control High Speed and
one to control Low Speed). Pump Button turns ON High Speed pump regardless of timer
position and activates the JVA valve. This unit is also equipped with a Freeze Protection device
that will activate High Speed pump operation at 34°F and resume normal operation at 39°F.
79-15097-00 REV B Page 20 of 20
