1 Preface
1.1 Introduction
The document describes the electrical characteristics, RF performance, dimensions and application
environment, etc. of L830-EB (hereinafter referred to as L830). With the assistance of the document and
other instructions, the developers can quickly understand the hardware functions of L830 modules and
develop products.
1.2 Reference Standard
The design of the product complies with the following standards:
3GPP TS 34.121-1 V10.8.0: User Equipment (UE) conformance specification;Radio
transmission and reception (FDD);Part 1: Conformance specification
3GPP TS 36.521-1 V10.6.0: User Equipment (UE) conformance specification; Radio
transmission and reception; Part 1: Conformance testing
3GPP TS 21.111 V10.0.0: USIM and IC card requirements
3GPP TS 51.011 V4.15.0: Specification of the Subscriber Identity Module -Mobile Equipment
(SIM-ME) interface
3GPP TS 31.102 V10.11.0: Characteristics of the Universal Subscriber Identity Module (USIM)
application
3GPP TS 31.11 V10.16.0: Universal Subscriber Identity Module (USIM) Application
Toolkit(USAT)
3GPP TS 36.124 V10.3.0: ElectroMagnetic Compatibility (EMC) requirements for mobile
terminals and ancillary equipment
3GPP TS 27.007 V10.0.8: AT command set for User Equipment (UE)
PCI_Express_M.2_Specification_Rev1.1
1.3 Related Documents
RF Antenna Application Design Specification
L8-Family System Driver Integration and Application Guidance
L8-Family AT Commands Manual
EU Regulator Conformance
Hereby, We, Fibocom Wireless Inc. declares that the radio equipment type L830-EB-11 is in compliance
with the Directive 2014/53/EU.
In all cases assessment of the final product must be mass against the Essential requirements of the
Directive 2014/53/EU Article 3.1(a) and (b), safety and EMC respectively, as well as any relevant Article
3.2 requirements.
External antenna is used with the module during the testing process, the maximum antenna gain for
frequency < 1G is 3dBi, for frequency > 1G is 5dBi and the antenna separation distance is 20cm.
EU Declaration of Conformity (DoC)
Hereby,
Name of manufacturer: Fibocom Wireless Inc.
Address: 5/F, Tower A, Technology Building II, 1057 Nanhai Blvd,
Nanshan,
City: Shenzhen,
Country: China
declares that the DoC is issued under its sole responsibility and that this product:
Product description: LTE module
Type designation(s): L830-EB-11
Trademark: Fibocom
Product Identification
Element L830-EB-11
is in conformity with the relevant Union harmonization legislation:
Radio Equipment directive: 2014 / 53 / EU.
with reference to the following standards applied:
1. Health (Article 3.1(a) of Directive 2014/53/EU)
Applied Standard(s):
EN 62311 : 2008
2. Safety (Article 3.1(a) of Directive 2014/53/EU)
Applied Standard(s):
EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013
3. Electromagnetic compatibility (Article 3.1 (b) of Directive 2014/53/EU)
Applied Standard(s):
Draft EN 301 489-1 V2.2.0 / -52 V1.1.0
4. Radio frequency spectrum usage (Article 3.2 of Directive 2014/53/EU)
Applied Standard(s):
EN 301 908-1 V11.1.1 / -2 V11.1.1 / -13 V11.1.1
The Notified Body SIEMIC INC. with Notified Body number 2200 performed:
Modules: B+C and issued the EU-type examination certificate.
Signed for and on behalf of:
Date: September 7, 2017
City: Shenzhen,
Name: Alan Yu
Title: Test Director
Signature:
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This device is intended only for OEM integrators under the following conditions:
1)
2) The transmitter module may not be co-located with any other transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not be required. However,
the OEM integrator is still responsible for testing their end-product for any additional
compliance requirements required with this module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain
laptop configurations or co-location with another transmitter), then the FCC authorization is
no longer considered valid and the FCC ID can not be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be
installed such that 20 cm may be maintained between the antenna and users. The final end
product must be labeled in a visible area with the following: Contains FCC ID:
The grantee's FCC ID can be used only when all FCC compliance requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how
to install or remove this RF module in the user’s manual of the end product which integrates
this module. The end user manual shall include all required regulatory information/warning as
show in this manual.
ZMOL830EB11
External antenna is used with the module during the testing process, the maximum antenna gain for
frequency<1G is 3dBi, for frequency>1G is 5 dBi and the antenna separation distance is 20cm.for frequency>1G is 5 dBi and the antenna separation distance is 20cm.
External antenna is used with the module during the testing process, the maximum antenna gain
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 7 of 39
2 Overview
2.1 Introduction
The L830 is a highly integrated 4G cellular module which uses the standard PCIe M.2 interface.It supports
LTE FDD/WCDMA mode cellular communication.
2.2 Specification
Specification
Operating Band
LTE FDD: Band 1,3,7,8,20,28,32
WCDMA/HSPA+: Band I, VIII
GPS/GLONASS: Not Support
CA
LTE inter-band CA
1 +3,7,20
3 +7,8,20,28,32
7 +20,28
LTE intra-band CA 3,7
Data Transmission
LTE FDD 300Mbps DL/50Mbps UL(Cat 6)
UMTS/HSPA+
UMTS:384 kbps DL/384 kbps UL
DC-HSDPA+:42Mbps DL(Cat 24)/5.76Mbps UL(Cat6)
Power Supply DC 3.135V～4.4V, Typical 3.3V
Temperature
Normal Operating temperature：-10°C ～+55°C
Extended Operating temperature：-30°C ～+65°C
Storage temperature：-40°C ～+85°C
Physical
characteristics
Interface: M.2 Key-B
Dimension：30 x 42 x 2.3mm
Weight: About 5.8 g
Interface
Antenna Connector
WWAN Main Antenna x 1
WWAN Diversity Antenna x 1
Function Interface USIM 3V/1.8V
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 8 of 39
USB 2.0 x 1
I2S
I2C
EINT、System Indicator
Clock
Software
Protocol Stack
IPV4/IPV6
AT commands
3GPP TS 27.007 and 27.005, and proprietary FIBOCOM AT commands
Firmware update
USB
Note：
When temperature goes beyond normal operating temperature range of -10°C~+55°C, RF
performance of module may be slightly off 3GPP specifications.
2.3 Application Framework

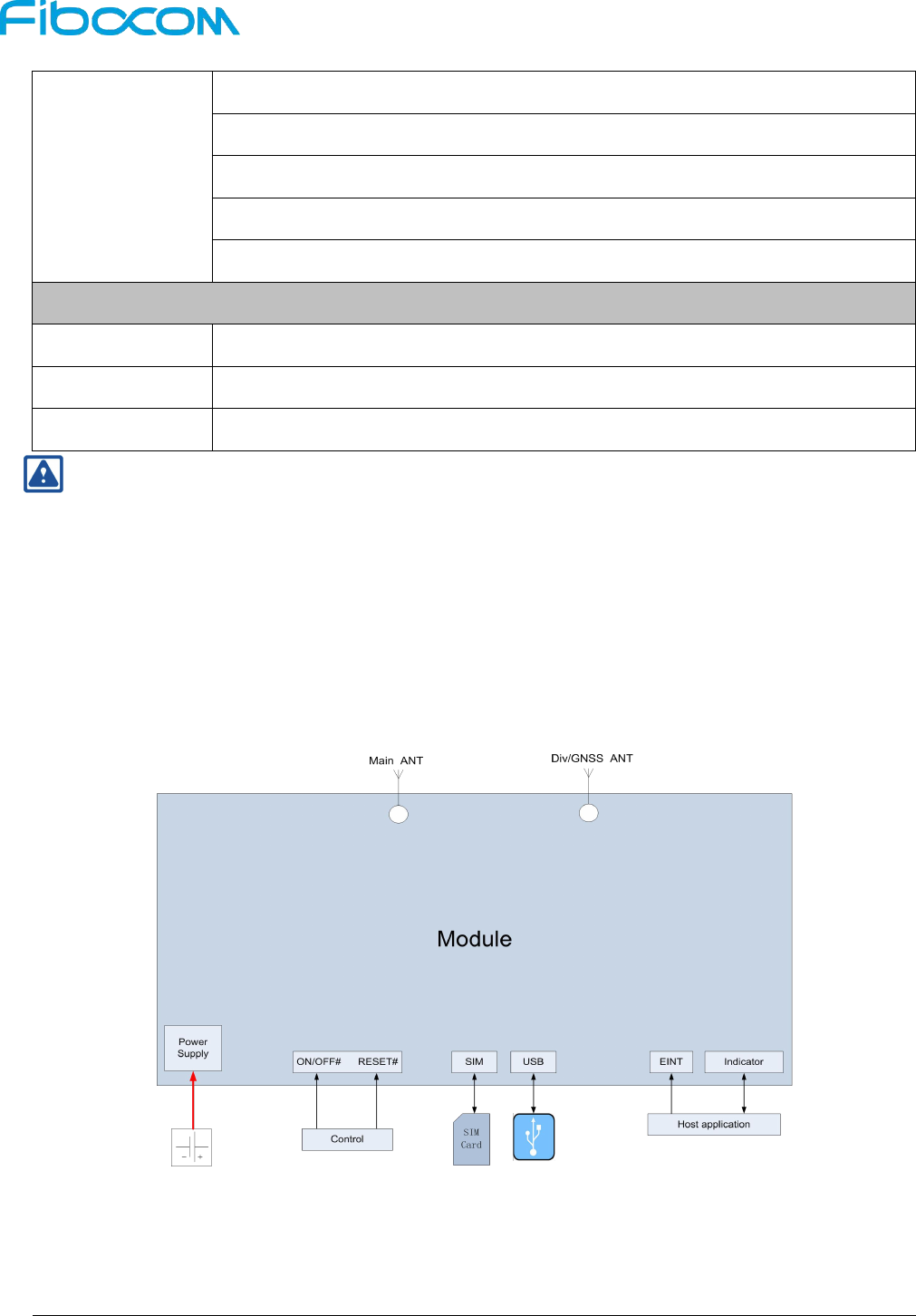

The peripheral applications for L830 module are shown in Figure 2-1:
Figure2-1 Application Framework
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 9 of 39

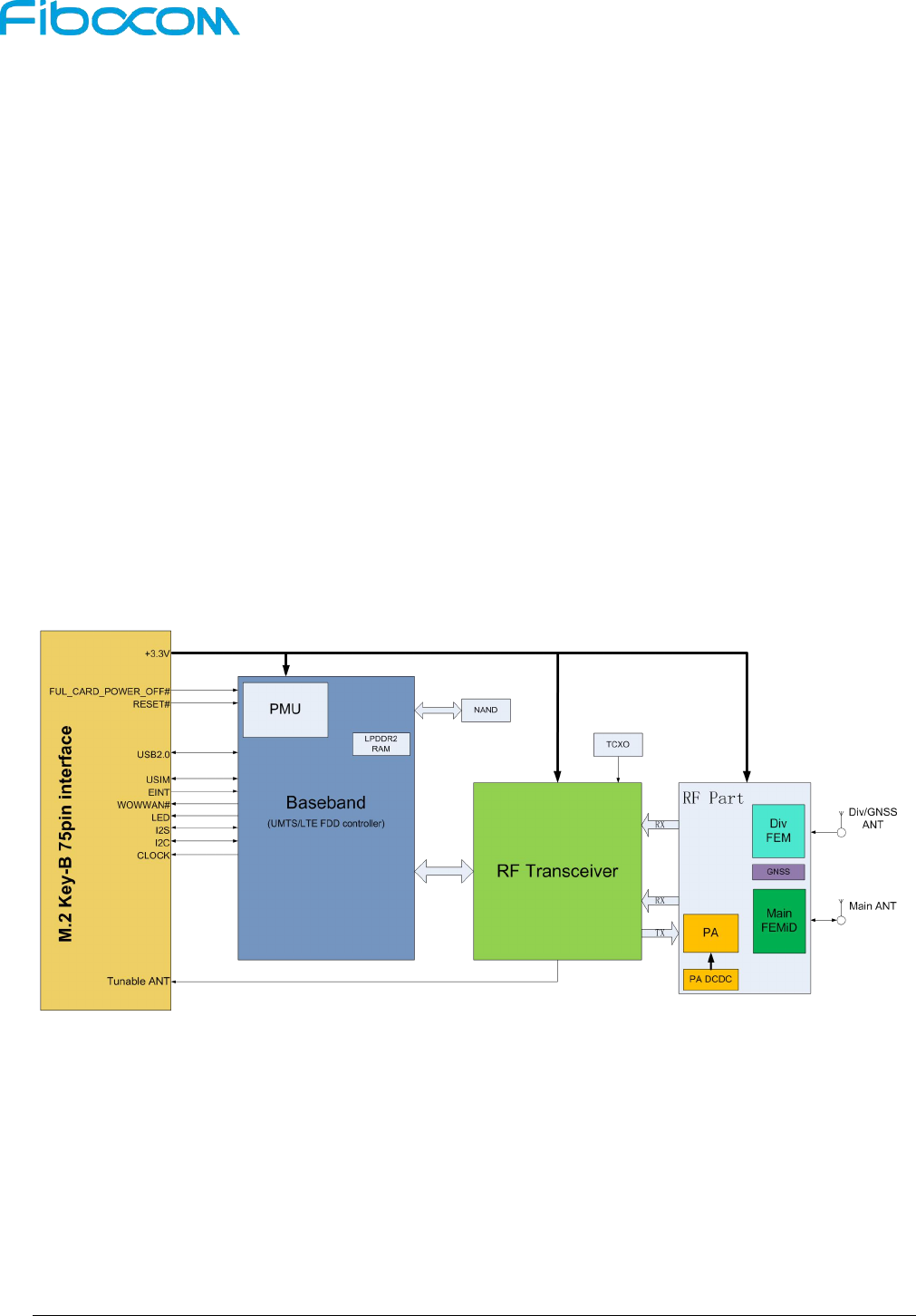

2.4 Hardware Framework
The hardware framework in Figure 2-2 shows the main hardware functions of L830 module, including
baseband and RF functions.
Baseband contains the followings:
UMTS/LTE FDD controller/Power supply
NAND/internal LPDDR2 RAM
Application interface
RF contains the followings:
RF Transceiver
RF Power/PA
RF Front end
RF Filter
Antenna Connector
Figure 2-2 Hardware Framework
3 Application Interface
3.1 M.2 Interface
The L830 module uses standard M.2 Key-B interface, with a total of 75 pins.
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 10 of 39
3.1.1 Pin Map

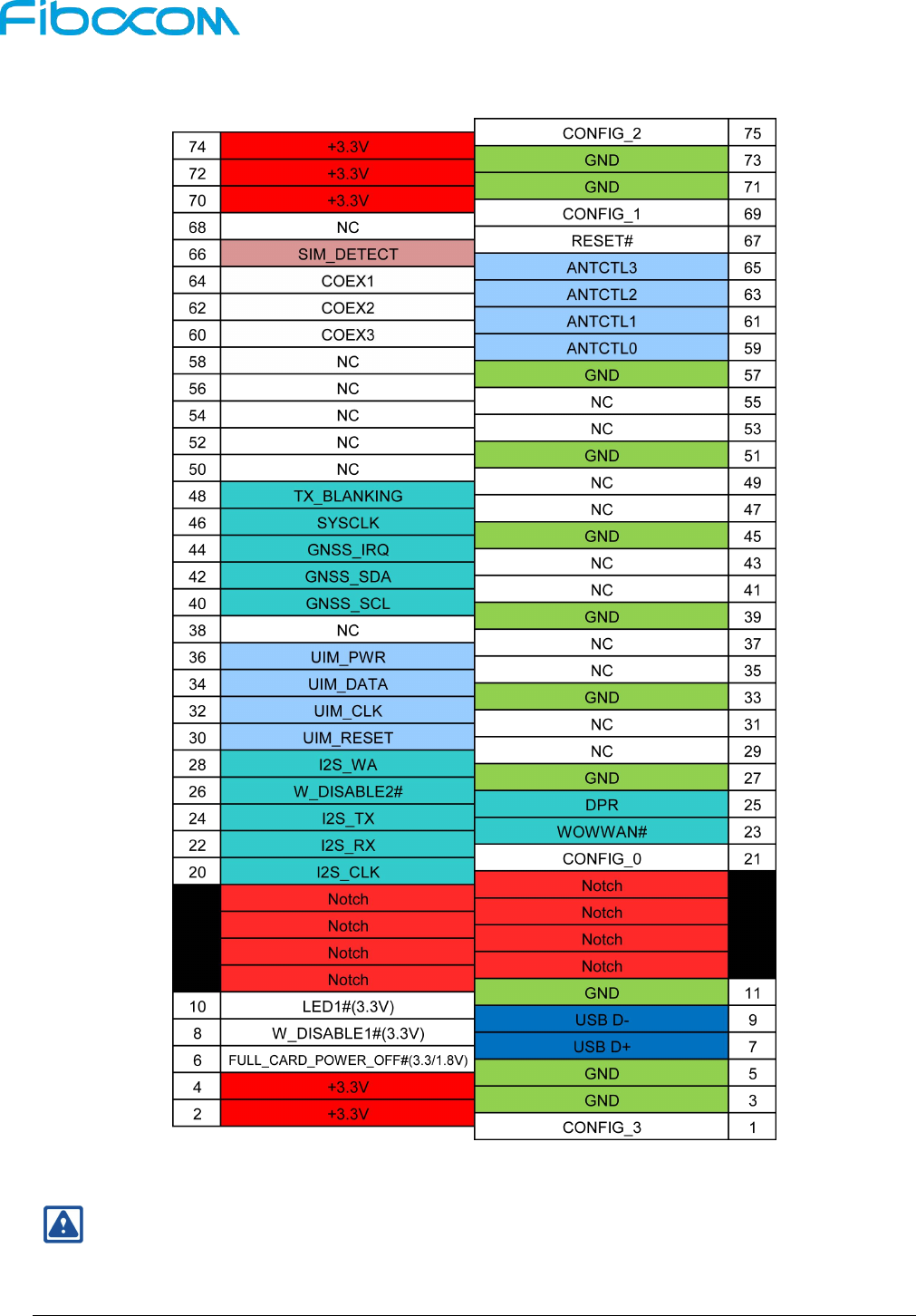

Figure 3-1 Pin Map
Note:
Pin “Notch” represents the gap of the gold fingers.
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 11 of 39
3.1.2 Pin Definition
The pin definition is as follows:
Pin
Pin Name
I/O
Reset
Value
Pin Description
Type
1
CONFIG_3
O
L
Connected to internal GND, L830
M.2 module is configured as the
WWAN-SSIC 0 interface type.
2
+3.3V
PI
Module main power input.
Power Supply
3
GND
GND
Power Supply
4
+3.3V
PI
Module main power input.
Power Supply
5
GND
GND
Power Supply
6
FULL_CARD_POWER_OFF#
I
Power on/off control signal,active
High.
CMOS
3.3/1.8V
7
USB D+
I/O
USB 2.0 D+ signal
0.3---3V
8
W_DISABLE1#
I
PU
WWAN Disable, active low.
CMOS 3.3V
9
USB D-
I/O
USB 2.0 D- signal
0.3---3V
10
LED1#
O
OD
System status LED, drain output.
CMOS 3.3V
11
GND
GND
Power Supply
12
Notch
Notch
13
Notch
Notch
14
Notch
Notch
15
Notch
Notch
16
Notch
Notch
17
Notch
Notch
18
Notch
Notch
19
Notch
Notch
20
I2S_CLK
O
PD
I2S serial clock
CMOS 1.8V
21
CONFIG_0
O
NC
Not connected, L830 M.2 module is
configured as the WWAN-SSIC 0
interface type.
22
I2S_RX
I
PD
I2S serial data input
CMOS 1.8V
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 12 of 39
Pin
Pin Name
I/O
Reset
Value
Pin Description
Type
23
WOWWAN#
O
PU
Wake up host signal
CMOS 1.8V
24
I2S_TX
O
PD
I2S serial data output
CMOS 1.8V
25
DPR
I
PU
Body SAR detection
CMOS 1.8V
26
W_DISABLE2#
I
PU
GPS Disable signal, active low. (Not
supported yet)
CMOS 1.8V
27
GND
GND
Power Supply
28
I2S_WA
O
PD
I2S clock for left and right channels
CMOS 1.8V
29
NC
NC
30
UIM_RESET
O
PP
USIM reset signal
1.8V/3V
31
NC
NC
32
UIM_CLK
O
PP
USIM clock signal
1.8V/3V
33
GND
GND
Power Supply
34
UIM_DATA
I/O
PU
USIM data signal, internal 4.7KΩ
pull-up.
1.8V/3V
35
NC
NC
36
UIM_PWR
O
USIM power supply
1.8V/3V
37
NC
NC
38
NC
NC
39
GND
GND
Power Supply
40
GNSS_SCL
O
PU
I2C serial clock signal, internal
4.7KΩ pull-up
CMOS 1.8V
41
NC
NC
42
GNSS_SDA
I/O
PU
I2C serial data signal, internal 4.7KΩ
pull-up
CMOS 1.8V
43
NC
NC
44
GNSS_IRQ
I
PU
Reserved
CMOS 1.8V
45
GND
GND
Power Supply
46
SYSCLK
O
L
26MHz clock output
1.8V
47
NC
NC
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 13 of 39
Pin
Pin Name
I/O
Reset
Value
Pin Description
Type
48
TX_BLANKING
O
L
TDMA Timer output, external GPS
control signal.(not supported)
CMOS 1.8V
49
NC
NC
50
NC
NC
51
GND
GND
Power Supply
52
NC
NC
53
NC
NC
54
NC
NC
55
NC
NC
56
NC
NC
57
GND
GND
Power Supply
58
NC
NC
59
ANTCTL0
O
L
Tunable antenna control signal, bit0
(not supported yet).
CMOS 1.8V
60
COEX3
O
Reserved
61
ANTCTL1
O
L
Tunable antenna control signal, MIPI
RFFE SDATA, bit1 (not supported
yet).
CMOS 1.8V
62
COEX2
O
Reserved
63
ANTCTL2
O
L
Tunable antenna control signal, MIPI
RFFE SCLK, bit2 (not supported
yet).
CMOS 1.8V
64
COEX1
O
Reserved
65
ANTCTL3
O
Tunable antenna control signal, MIPI
RFFE VIO, bit3 (not supported yet).
CMOS 1.8V
66
SIM_DETECT
I
SIM card detect, external 390KΩ
pull-up.
CMOS 1.8V
67
RESET#
I
External reset input signal, internal
100KΩ pull-up.
CMOS 1.8V
68
NC
NC
69
CONFIG_1
O
L
Connected to internal GND, L830
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 14 of 39
Pin
Pin Name
I/O
Reset
Value
Pin Description
Type
M.2 module is configured as the
WWAN-SSIC 0 interface type.
70
+3.3V
PI
Module main power input.
Power Supply
71
GND
GND
Power Supply
72
+3.3V
PI
Module main power input.
Power Supply
73
GND
GND
Power Supply
74
+3.3V
PI
Module main power input.
Power Supply
75
CONFIG_2
O
L
Connected to internal GND, L830
M.2 module is configured as the
WWAN-SSIC 0 interface type.
Reset Value: The initial status after module reset, not the status when working
H: High Voltage Level
L: Low Voltage Level
PD: Pull-Down
PU: Pull-Up
T: Tristate
OD: Open Drain
PP: Push-Pull
PI: Power Input
PO: Power Output
Note:
The unused pins can be left floating.
3.2 Power Supply
The power interface of L830 module as shown in the following table:
Pin
Pin Name
I/O
Pin Description
DC Parameter（V）
Minimum
Value
Typical
Value
Maximum
Value
2,4,70,72,74
+3.3V
PI
Power supply input
3.135
3.3
4.4
36
UIM_PWR
PO
USIM power supply
1.8V/3V
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 15 of 39
3.2.1 Power Supply
The L830 module should be powered through the +3.3V pins, and the power supply design is shown in
Figure 3-2:

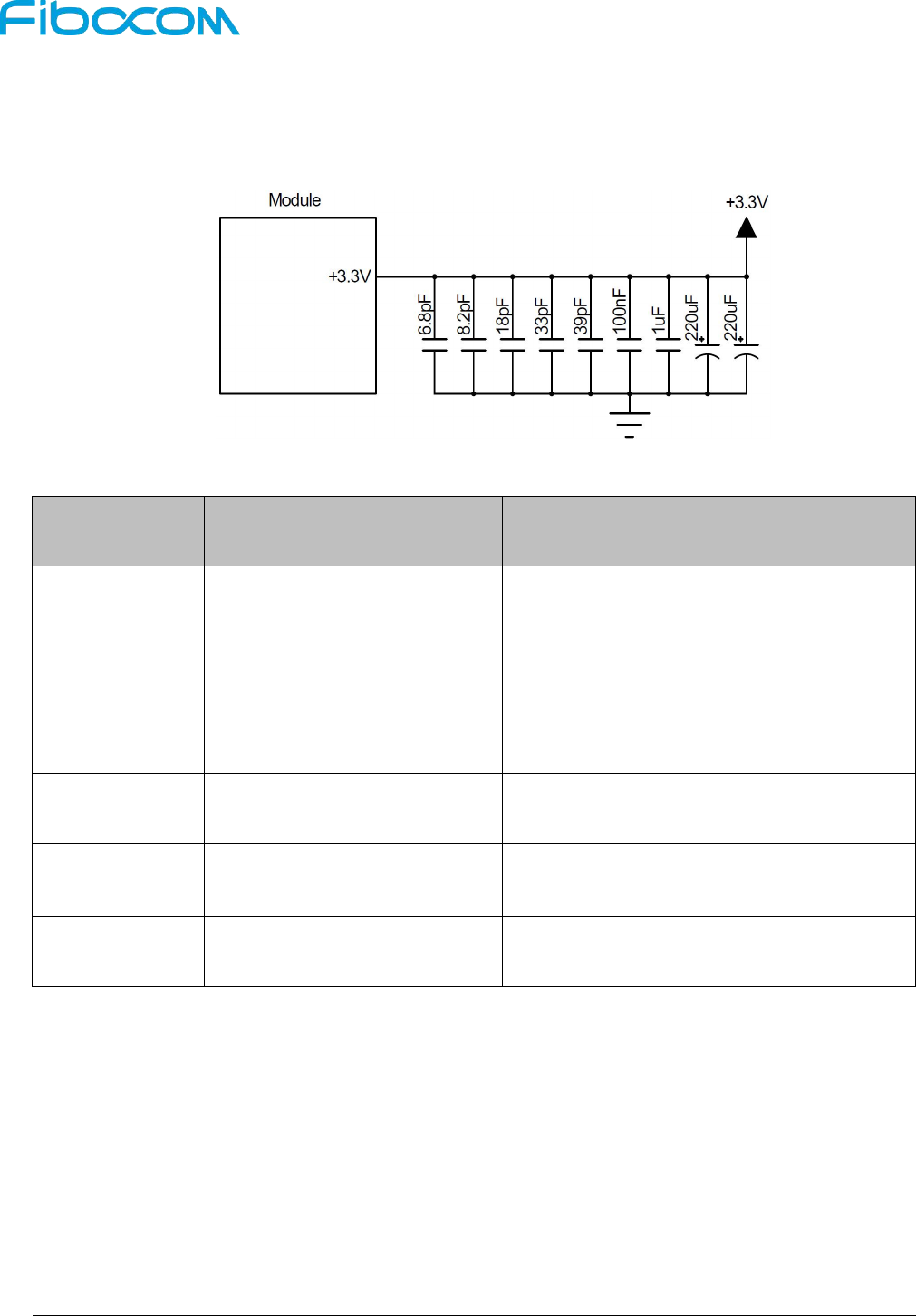

Figure 3-2 Power Supply Design
The filter capacitor design for power supply as shown in the following table:
Recommended
capacitance
Application
Description
220uF x 2
Voltage-stabilizing capacitors
Reduce power fluctuations of the module in
operation, requiring capacitors with low ESR.
LDO or DC/DC power supply requires the
capacitor of no less than 220uF
The capacitor for battery power supply
can be reduced to 100uF
1uF,100nF
Digital signal noise
Filter out the interference generated from the
clock and digital signals
39pF,33pF
700,800,900 MHz frequency
band
Filter out low frequency band RF interference
18pF,8.2pF,6.8pF
1800,2100,2600MHz frequency
band
Filter out medium/high frequency band RF
interference
The stable power supply can ensure the normal operation of L830 module; and the ripple of the power
supply should be less than 300mV in design. When the module operates with the maximum emission
power, the maximum operating current can reach 1A, so the power source should be not lower than
3.135V, or the module may shut down or reboot. The power supply limits are shown in Figure 3-3:
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 16 of 39
Figure 3-3 Power Supply Limit
3.2.2 Logic level
The L830 module 1.8V logic level definition as shown in the following table:
Parameters
Minimum
Typical
Maximum
Unit
1.8V logic level
1.71
1.8
1.89
V
VIH
1.3
1.8
1.89
V
VIL
-0.3
0
0.3
V
The L830 module 3.3V logic level definition as shown in the following table:
Parameters
Minimum
Typical
Maximum
Unit
3.3V logic level
3.135
3.3
3.465
V
VIH
2.3
3.3
3.465
V
VIL
-0.3
0
0.3
V
3.2.3 Power Consumption
In the condition of 3.3V power supply, the L830 power consumption as shown in the following table:
Parameter
Mode
Condition
Average
Current(mA)
Ioff
Power off
Power supply, module power off
0.29
ISleep
WCDMA
DRX=6
3.0
DRX=8
1.8
DRX=9
1.5
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 17 of 39
Parameter
Mode
Condition
Average
Current(mA)
LTE FDD
Paging cycle #64 frames (0.64 sec DRX cycle)
3.6
Radio Off
AT+CFUN=4,Flight mode
1.0
IWCDMA-RMS
WCDMA
WCDMA Data transfer Band I @+23.5dBm
687
WCDMA Data transfer Band VIII @+23.5dBm
597
ILTE-RMS
LTE FDD
LTE FDD Data transfer Band 1 @+23dBm
713
LTE FDD Data transfer Band 3 @+23dBm
733
LTE FDD Data transfer Band 7 @+23dBm
735
LTE FDD Data transfer Band 8 @+23dBm
675
LTE FDD Data transfer Band 20 @+23dBm
685
LTE FDD Data transfer Band 28 @+23dBm
833
Note：
The data above is an average value obtained by testing some samples.
3.3 Control Signal
The L830 module provides two control signals for power on/off and reset operations, the pin defined as
shown in the following table:
Pin
Pin Name
I/O
Reset Value
Functions
Type
6
FULL_CARD_POWER_
OFF#
I
Power on/off signal
High: Power on
Low or floating: Power off
3.3V/1.8V
67
RESET#
I
Reset signal, internal 100KΩ pull-up,
active low.
1.8V
3.3.1 Module Start-Up
3.3.1.1 Start-up Circuit
The FULL_CARD_POWER_OFF# pin needs an external 3.3V or 1.8V pull up for booting up. The
VDD(3.3V/1.8V) should be provided from the external circuit. Two methods for module starting up:
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 18 of 39
AP (Application Processor) controls the module start-up, and the circuit design is shown in Figure
3-4:
Automatically start-up when powered on, and the circuit design is shown in Figure 3-5:

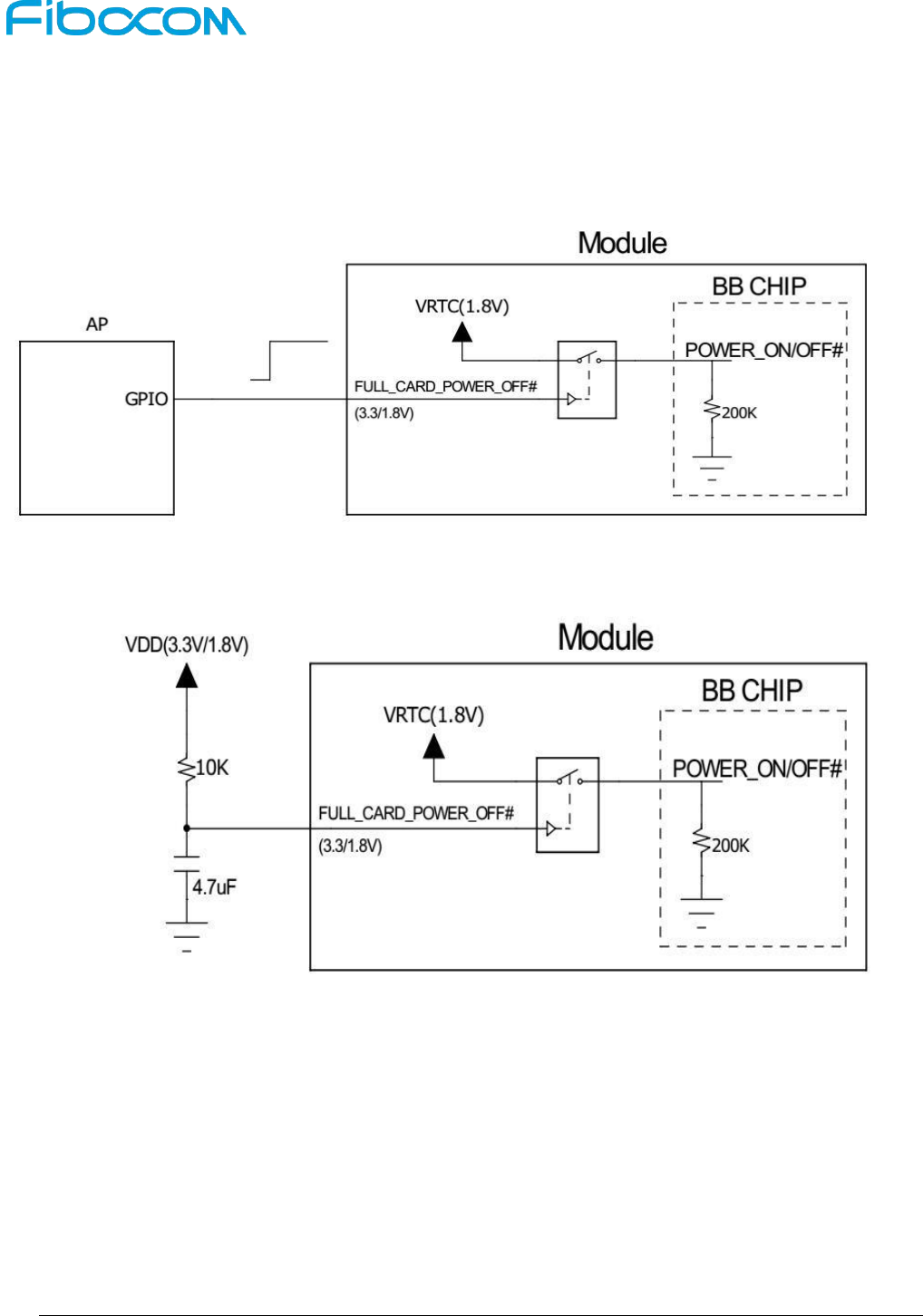

Figure 3-4 Circuit for Module Start-up Controlled by AP
Figure 3-5 Circuit for Automatic Start-up
3.3.1.2 Start-up Timing Sequence
After powering on, module will start-up by pulling up FULL_CARD_POWER_OFF# signal for more than
20ms (100ms is recommended).The internal PMU of the module will output the voltage and start the
start-up process. After about 10s time, the module completes the initialization process. The start-up
timing is shown in Figure 3-6:
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 19 of 39

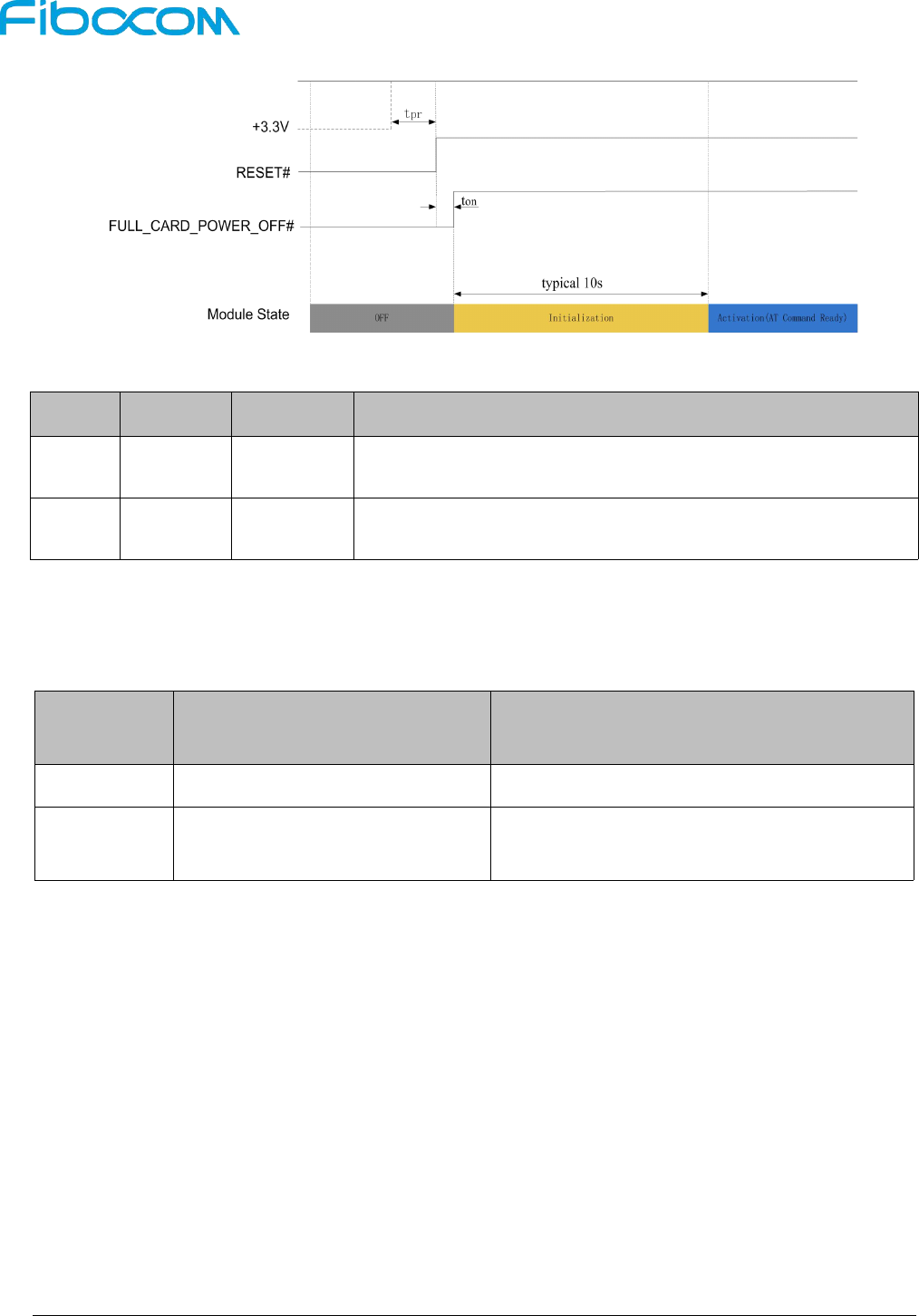

Figure 3-6 Timing Control for Start-up
Index
Minimum
Typical
Notes
tpr
The time for +3.3 V stable output.If + 3.3 V keeps constant supply,
the delay time can be ignored.
ton
20ms
100ms
The time difference between the RESET # signal and the
FULL_CARD_POWER_OFF # signal.
3.3.2 Module Shutdown
The module can be shutdown by the following controls:
Shutdown
Control
Action
Condition
Software
Sending AT+CFUN=0 command
Normal shutdown.
Hardware
Pull down
FULL_CARD_POWER_OFF# pin
Only used when a hardware exception occurs
and the software control cannot be used.
Module can be shut down by sending AT+CFUN=0 command. When module receives the software
shutdown command, it will start the finalization process (the reverse process of initialization), then it will
shut down after tsd time(AP received “OK” from “AT+CFUN=0” command, if AP can’t received “OK” the
time is 5s maxim).In the finalization process, the module will save the network, SIM card and some other
parameters from memory, then clear the memory and PMU will be powered off. The software control
timing is shown in Figure 3-7:
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 20 of 39

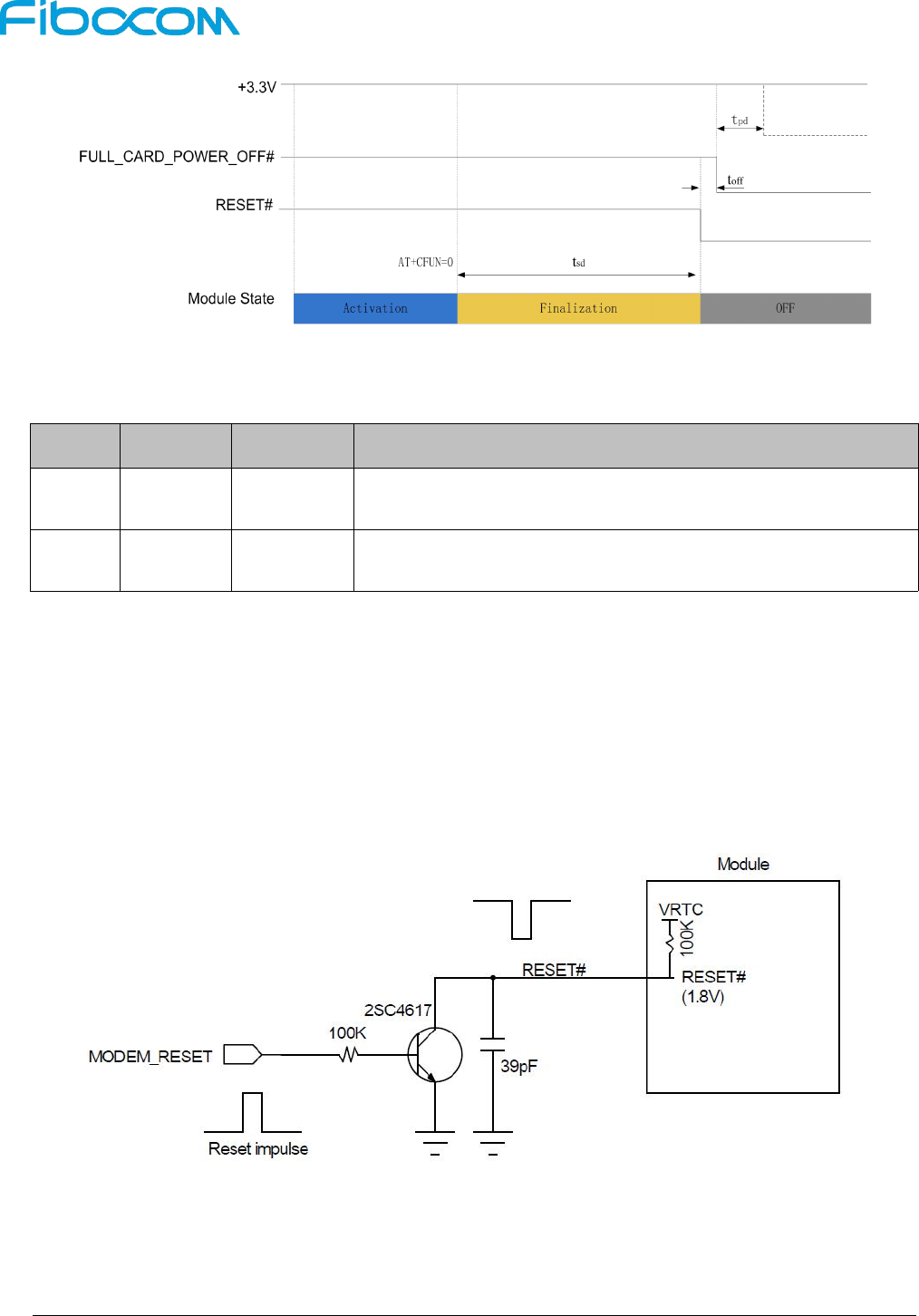

Figure 3-7 Shutdown Timing Control
Index
Minimum
Typical
Notes
tpd
10ms
100ms
The time for+3.3 V delay time of shutdown.If + 3.3 V keeps
constant supply, the delay time can be ignored.
toff
10ms
100ms
The time difference between the RESET # signal and the
FULL_CARD_POWER_OFF # signal.
3.3.3 Module Reset
The L830 module can reset to its initial status by pulling down the RESET# signal for more than 20ms
(100ms is recommended), and the module will restart after the RESET# signal is released. When the
customer executes RESET# function, the PMU remains its power inside the module. The recommended
circuit design is shown in the Figure 3-8:
Figure 3-8 Recommended Design for Reset Circuit
The reset control timing is shown in Figure 3-9:
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 21 of 39
Figure 3-9 Reset Timing Control
Index
Minimum
Typical
Notes
tres
20ms
100ms
RESET# signal to pull down time
3.4 USB Interface
The L830 module supports USB 2.0 which is compatible with USB High-Speed (480 Mbit/s) and USB
Full-Speed (12 Mbit/s). For the USB timing and electrical specification of L830 module, please refer to
“Universal Serial Bus Specification 2.0” .
3.4.1 USB Interface Definition
Pin#
Pin Name
I/O
Reset Value
Description
Type
7
USB_D+
I/O
T
USB Data Plus
0.3---3V, USB2.0
9
USB_D-
I/O
T
USB Data Minus
0.3---3V, USB2.0
3.4.2 USB Interface Application
The reference circuit is shown in Figure 3-10:
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 22 of 39

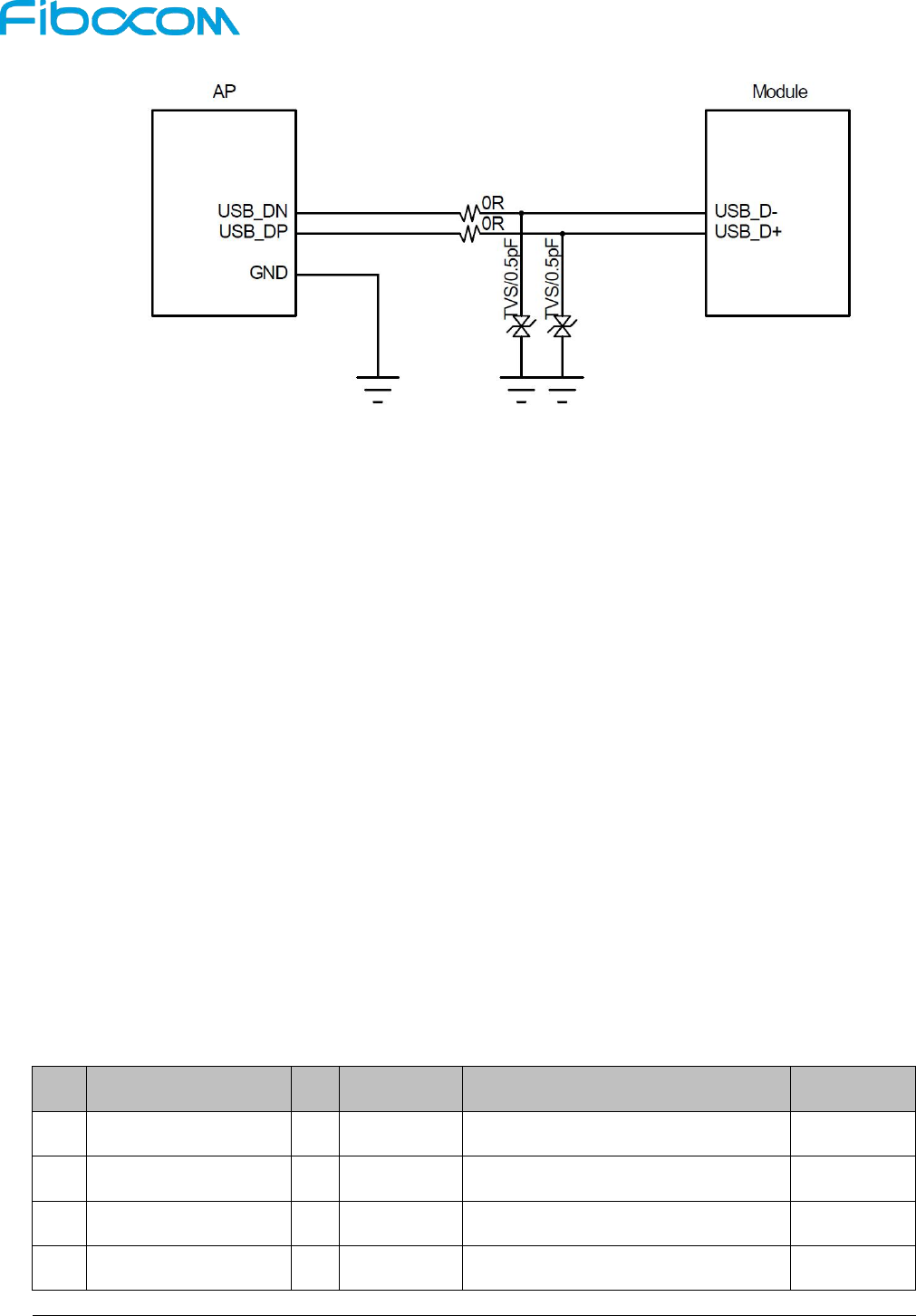

Figure 3-10 Reference Circuit for USB 2.0 Interface
Since the module supports USB 2.0 High-Speed, it is required to use TVS diodes with equivalent
capacitance of 1pF or smaller ones on the USB_D-/D+ differential signal lines, it is recommended to use
0.5pF TVS diodes.
USB_D- and USB_D+ are high speed differential signal lines with the maximum transfer rate of 480 Mbit/s,
so the following rules shall be followed carefully in the case of PCB layout:
USB_D- and USB_D+ signal lines should have the differential impedance of 90 ohms.
USB_D- and USB_D+ signal lines should be parallel and have the equal length, the right angle
routing should be avoided.
USB_D- and USB_D+ signal lines should be routed on the layer that is adjacent to the ground
layer, and wrapped with GND vertically and horizontally.
3.5 USIM Interface
The L830 module supports USIM card interface including 1.8V and 3V SIM cards.
3.5.1 USIM Pins
The USIM pins description as shown in the following table:
Pin
Pin Name
I/O
Reset Value
Description
Type
36
UIM_PWR
PO
USIM power supply
1.8V/3V
30
UIM_RESET
O
L
USIM reset
1.8V/3V
32
UIM_CLK
O
L
USIM clock
1.8V/3V
34
UIM_DATA
I/O
L
USIM data, internal 4.7K pull-up
1.8V/3V
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 23 of 39
Pin
Pin Name
I/O
Reset Value
Description
Type
66
SIM_DETECT
I
USIM card detect, internal 390K
pull-up.
Active high, and high level indicates
SIM card is inserted; and low level
indicates SIM card is detached.
1.8V
3.5.2 USIM Interface Circuit
3.5.2.1 N.C. SIM Card Slot
The reference circuit design for N.C. (Normally Closed) SIM card slot is shown in Figure 3-11:

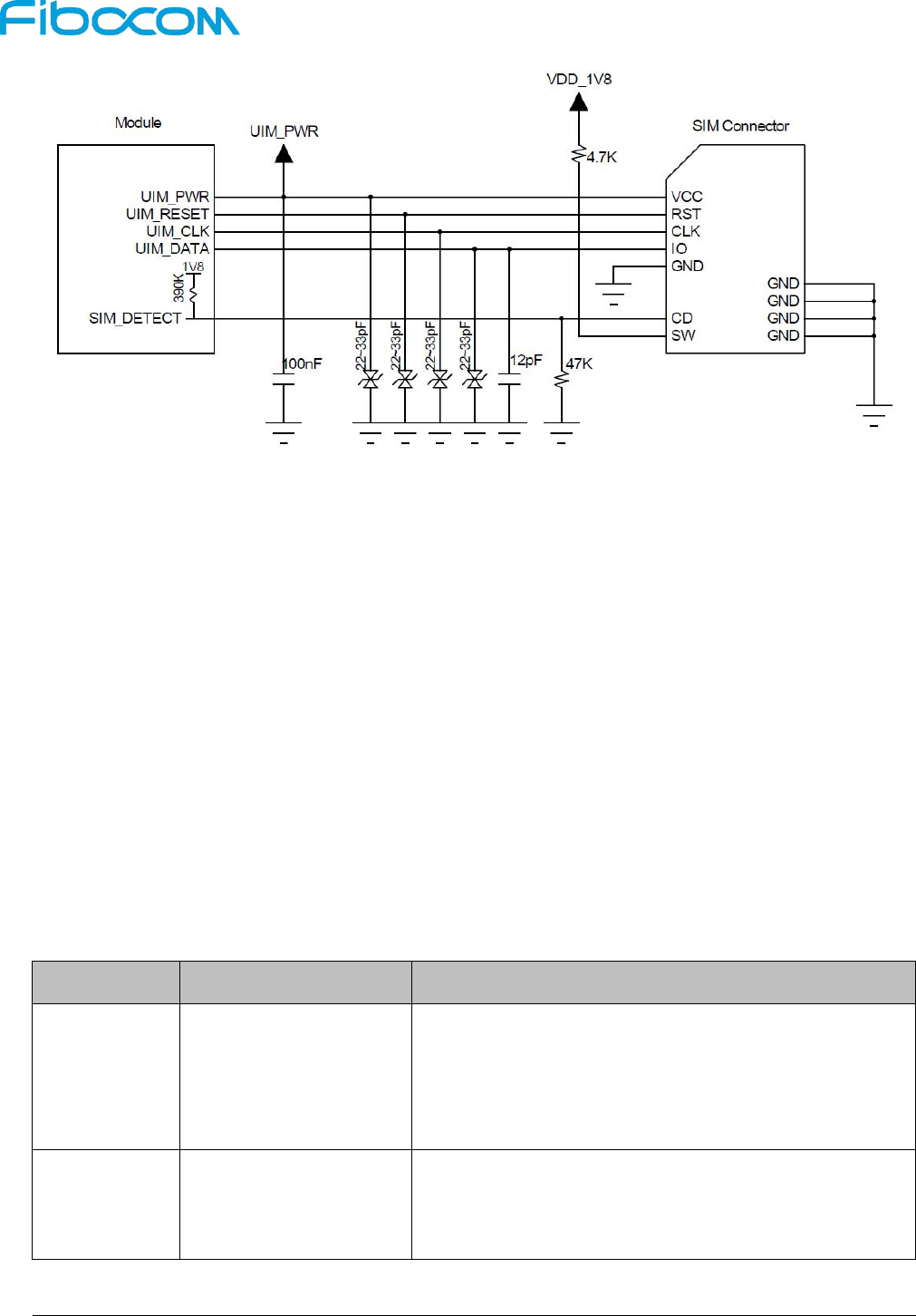

Figure 3-11 Reference Circuit for N.C. SIM Card Slot
The principles of the N.C. SIM card slot are described as follows:
When the SIM card is detached, it connects the short circuit between CD and SW pins, and drives the
SIM_DETECT pin low.
When the SIM card is inserted, it connects an open circuit between CD and SW pins, and drives the
SIM_DETECT pin high.
3.5.2.2 N.O. SIM Card Slot
The reference circuit design for N.O. (Normally Open) SIM card slot is shown in Figure 3-12:
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 24 of 39
Figure 3-12 Reference Circuit for N.O. SIM Card Slot
The principles of the N.O. SIM card slot are described as follows:
When the SIM card is detached, it connects an open circuit between CD and SW pins, and
drives the SIM_DETECT pin low.
When the SIM card is inserted, it connects the short circuit between CD and SW pins, and drives
the SIM_DETECT pin high.
3.5.3 USIM Hot-Plugging
The L830 module supports the SIM card hot-plugging function, which determines whether the SIM card is
inserted or detached by detecting the SIM_DETECT pin state of the SIM card slot.
The SIM card hot-plugging function can be configured by “AT+MSMPD” command, and the description for
AT command as shown in the following table:
AT Command
Hot-plugging Detection
Function Description
AT+MSMPD=1
Enable
Default value, the SIM card hot-plugging detection function
is enabled.
The module can detect whether the SIM card is inserted or
not through the SIM_DETECT pin state.
AT+MSMPD=0
Disable
The SIM card hot-plugging detect function is disabled.
The module reads the SIM card when starting up, and the
SIM_DETECT status will not be detected.
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 25 of 39
After the SIM card hot-plugging detection function is enabled, the module detects that the SIM card is
inserted when the SIM_DETECT pin is high, then executes the initialization program and finish the
network registration after reading the SIM card information. When the SIM_DETECT pin is low, the
module determines that the SIM card is detached and does not read the SIM card.
Note:
By default, SIM_DETECT is active-high, which can be switched to active-low by the AT
command. Please refer to the AT Commands Manual for the AT command.
The system doesn’t need SIM hot-plug function, please left SIM_DTECT floating.
3.5.4 USIM Design
The SIM card circuit design shall meet the EMC standards and ESD requirements with the improved
capability to resist interference, to ensure that the SIM card can work stably. The following guidelines
should be noted in case of design:
The SIM card slot placement should near the module as close as possible, and away from the
RF antenna, DC/DC power supply, clock signal lines, and other strong interference sources.
The SIM card slot with a metal shielding housing can improve the anti-interference ability.
The trace length between the SIM card slot and the module should not exceed 100mm, or it
could reduce the signal quality.
The UIM_CLK and UIM_DATA signal lines should be isolated by GND to avoid crosstalk
interference. If it is difficult for the layout, the whole SIM signal lines should be wrapped with
GND as a group at least.
The filter capacitors and ESD devices for SIM card signals should be placed near to the SIM
card slot, and the ESD devices with 22~33pF capacitance should be used.
3.6 Status Indicator
The L830 module provides three signals to indicate the operating status of the module, and the status
indicator pins as shown in the following table:
Pin
Pin Name
I/O
Reset Value
Pin Description
Type
10
LED1#
O
PD
System status LED, drain
output.
CMOS 3.3V
23
WOWWAN#
O
PU
Module wakes up Host (AP).
CMOS 1.8V
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 26 of 39
3.6.1 LED#1 Signal
The LED#1 signal is used to indicate the operating status of the module, and the detailed description as
shown in the following table:
Module Status
LED1# Signal
RF function ON
Low level (LED On)
RF function OFF
High level (LED Off)
The LED driving circuit is shown in figure 3-13:

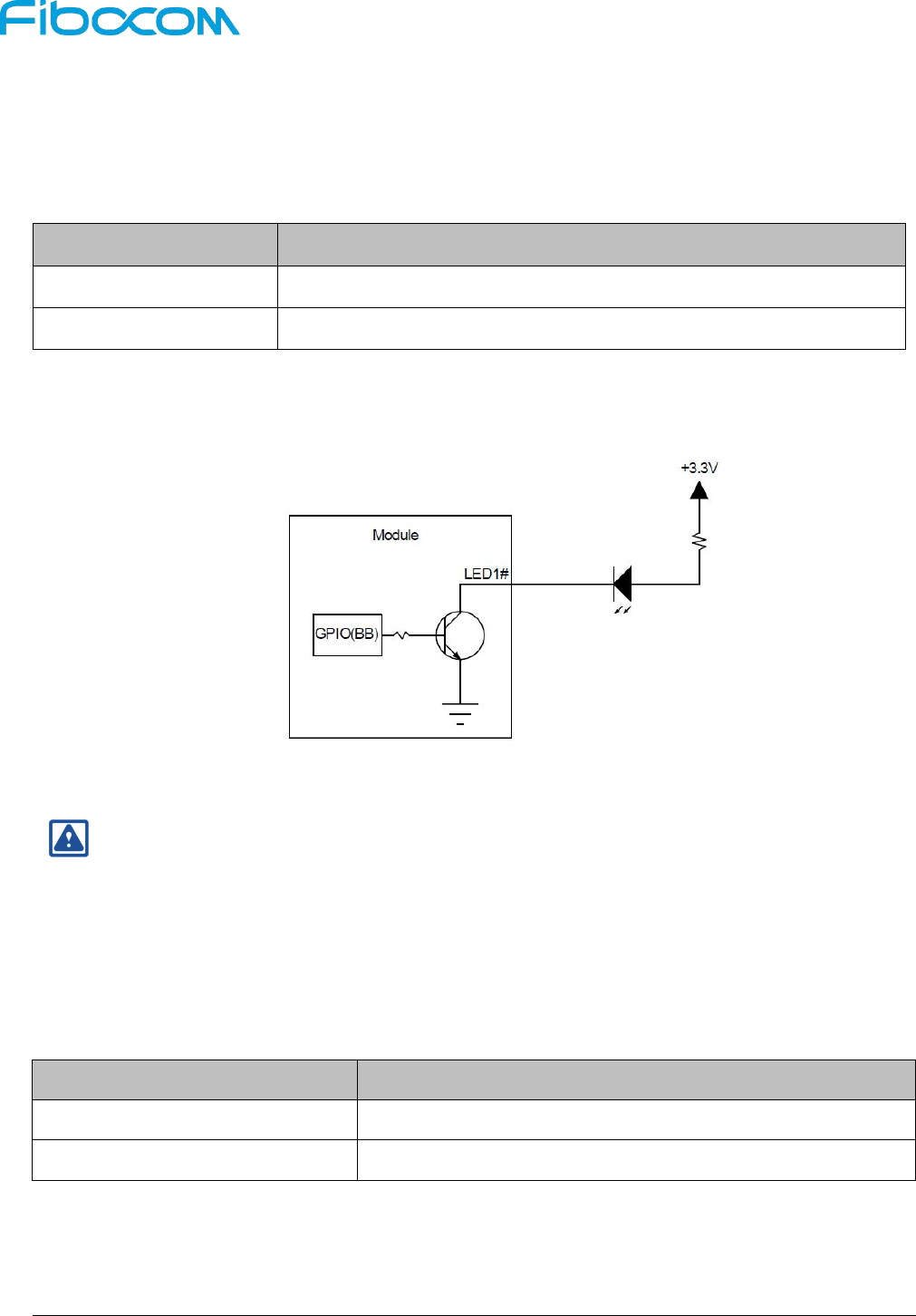

Figure 3-13 LED Driving Circuit
Note:
The resistance of LED current-limiting resistor is selected according to the driving voltage and
the driving current.
3.6.2 WOWWAN#
The WOWWAN# signal is used to wake the Host (AP) when there comes the data request. The definition
of WOWWAN# signal is as follows:
Operating Mode
WOWWAN# Signal
Ringing /SMS or data requests
Pull low 1s then pull high (pulse signal).
Idle/Sleep
High level
The WOWWAN# timing is shown in Figure 3-14:
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 27 of 39

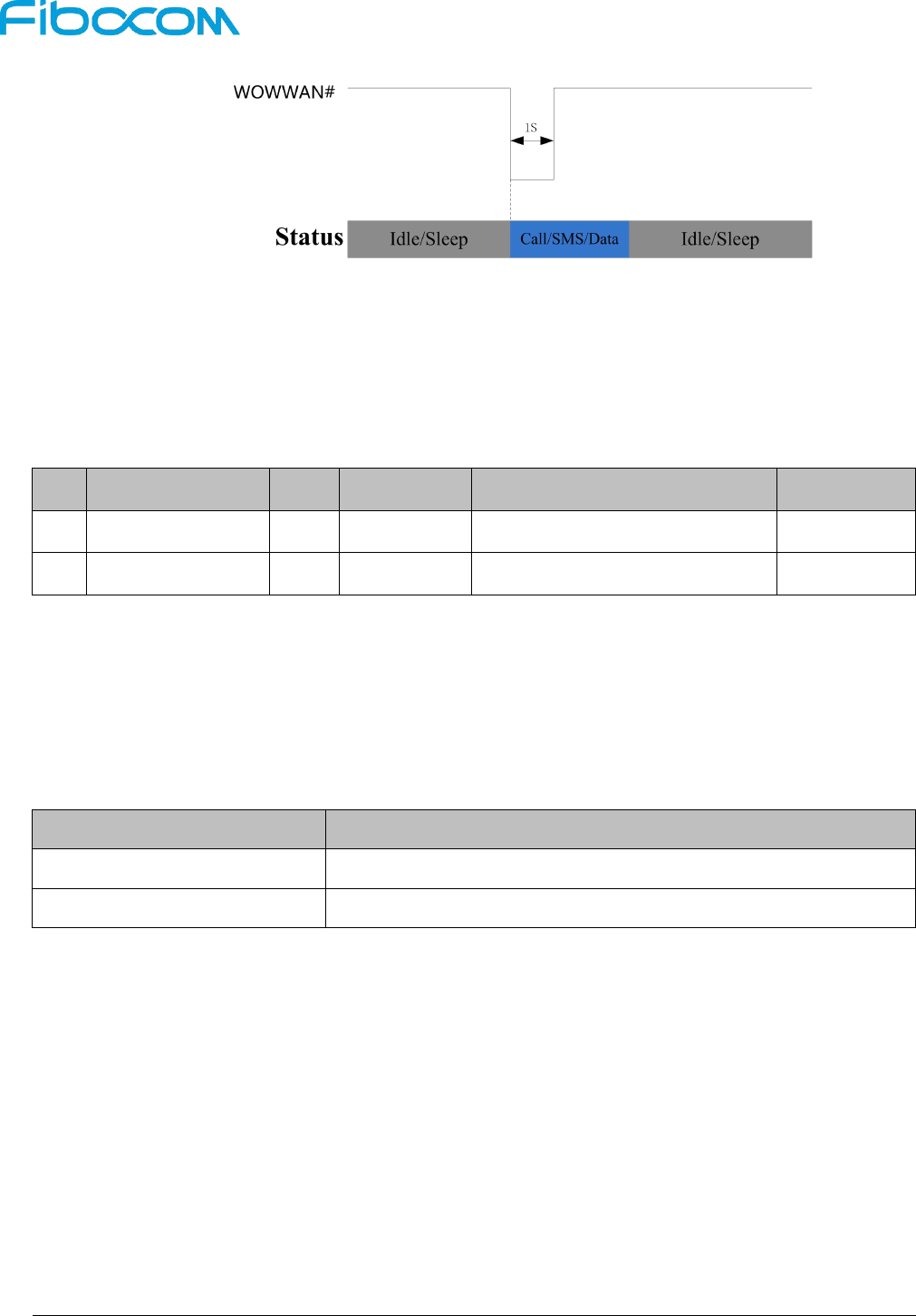

Figure 3-14 WOWWAN# Timing
3.7 Interrupt Control
The L830 module provides four interrupt signals, and the pin definition is as follows:
Pin
Pin Name
I/O
Reset Value
Pin Description
Type
8
W_DISABLE1#
I
PU
Enable/Disable RF network
CMOS 3.3V
25
DPR
I
PU
Body SAR detection
CMOS 1.8V
3.7.1 W_DISABLE1#
The module provides a hardware pin to enable/disable WWAN RF function, and the function can also be
controlled by the AT command. The module enters the Flight mode after the RF function is disabled. The
definition of W_DISABLE1# signal is as follows:
W_DISABLE1# signal
Function
High/Floating
WWAN function is enabled, the module exits the Flight mode.
Low
WWAN function is disabled, the module enters Flight mode.
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 28 of 39
3.7.2 Body SAR
The L830 module supports Body SAR function by detecting the DPR pin. The voltage level of DPR is high
by default, and when the SAR sensor detects the closing human body, the DPR signal will be pulled down.
As the result, the module then lowers down its emission power to its default threshold value, thus
reducing the RF radiation on the human body. The threshold of emission power can be set by the AT
Commands. The definition of DPR signal as shown in the following table:
DPR signal
Function
High/Floating
The module keeps the default emission power
Low
Lower the maximum emission power to the threshold value of the module.
3.8 Digital Audio
The L830 module supports I2S digital audio interface and it supports the ordinary I2S mode and PCM
mode. The signal level of the I2S interface is 1.8V. Please refer to “FIBOCOM Digital Voice” description
for detailed application design. The definition of I2S signals is as follows:
Pin
Pin Name
I/O
Reset Value
Pin Description
Type
20
I2S_CLK
O
PD
I2S clock
CMOS 1.8V
22
I2S_RX
I
PD
I2S serial data receive
CMOS 1.8V
24
I2S_TX
O
PD
I2S serial data transmit
CMOS 1.8V
26
I2S_WA
O
PD
I2S left and right channel clock (LRCK)
CMOS 1.8V
.
3.8.1 I2S Mode
The L830 module is connected to the Audio Codec via I2S interface, and the codec encodes the audio
data to implement the voice call function. For the scenario, the module works as the I2S master, and the
codec works as the I2S slave. I2S signal connection is shown in Figure 3-18:
Figure 3-18 I2S Signal Connection
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 29 of 39
Description:
I2S interface can be configured as master or slave mode.
It supports multiple audio sampling rates (44.1KHz,32KHz,24KHz,16KHz,8KHz).
It supports 16bit and 32bit mode.
3.8.2 PCM Mode
In the case of the Bluetooth (BT) call, the PCM mode is used to transmit digital voice data if the BT chip
does not support I2S. For the scenario, the module works as the PCM master, and BT works as the PCM
slave mode. The signal connection under the PCM mode is shown in Figure 3-19:

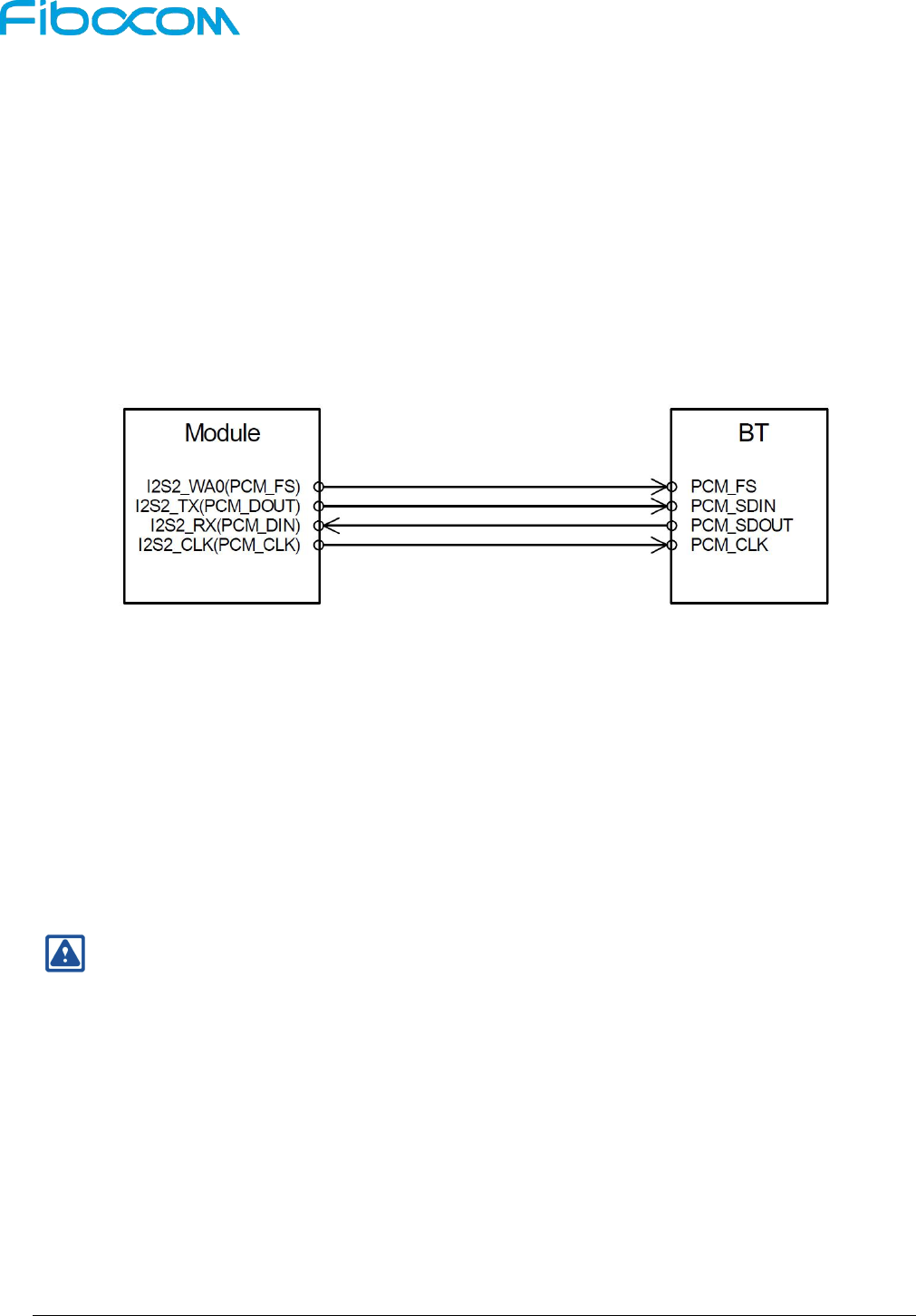

Figure 3-19 Signal Connection for PCM Mode
Description:
The PCM mode interface can be configured as master or slave mode.
It supports various audio sampling rates (444.1KHz,32KHz,24KHz,16KHz,8KHz).
It supports short frame sync for 16 and 32 bit mode.
It supports burst and continuous transmission modes.
It supports clock length trigger for frame sync signal and rising/falling edge trigger for data
transmission.
Note:
The PCM mode timing is relative complicated to adjust, and the audio quality will be reduced if it
is not fine tuned. In contrast to PCM mode, I2S mode is easier to adjust, hence it is
recommended to use I2S mode.
3.9 I2C Interface Description
The L830 module supports one I2C interface, which is configured as I2C master by default. The I2C
master is used for driving external I2C slave devices, such as the Audio Codec.
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 30 of 39
Pin
Pin Name
I/O
Reset Value
Pin Description
Type
40
GNSS_SCL
O
PU
I2C serial data, internal 4.7KΩ pull up.
CMOS 1.8V
42
GNSS_SDA
I/O
PU
I2C serial clock, internal 4.7KΩ pull up.
CMOS 1.8V
The module is connected to the external I2C slave devices (e.g. Audio Codec), which is as follows:

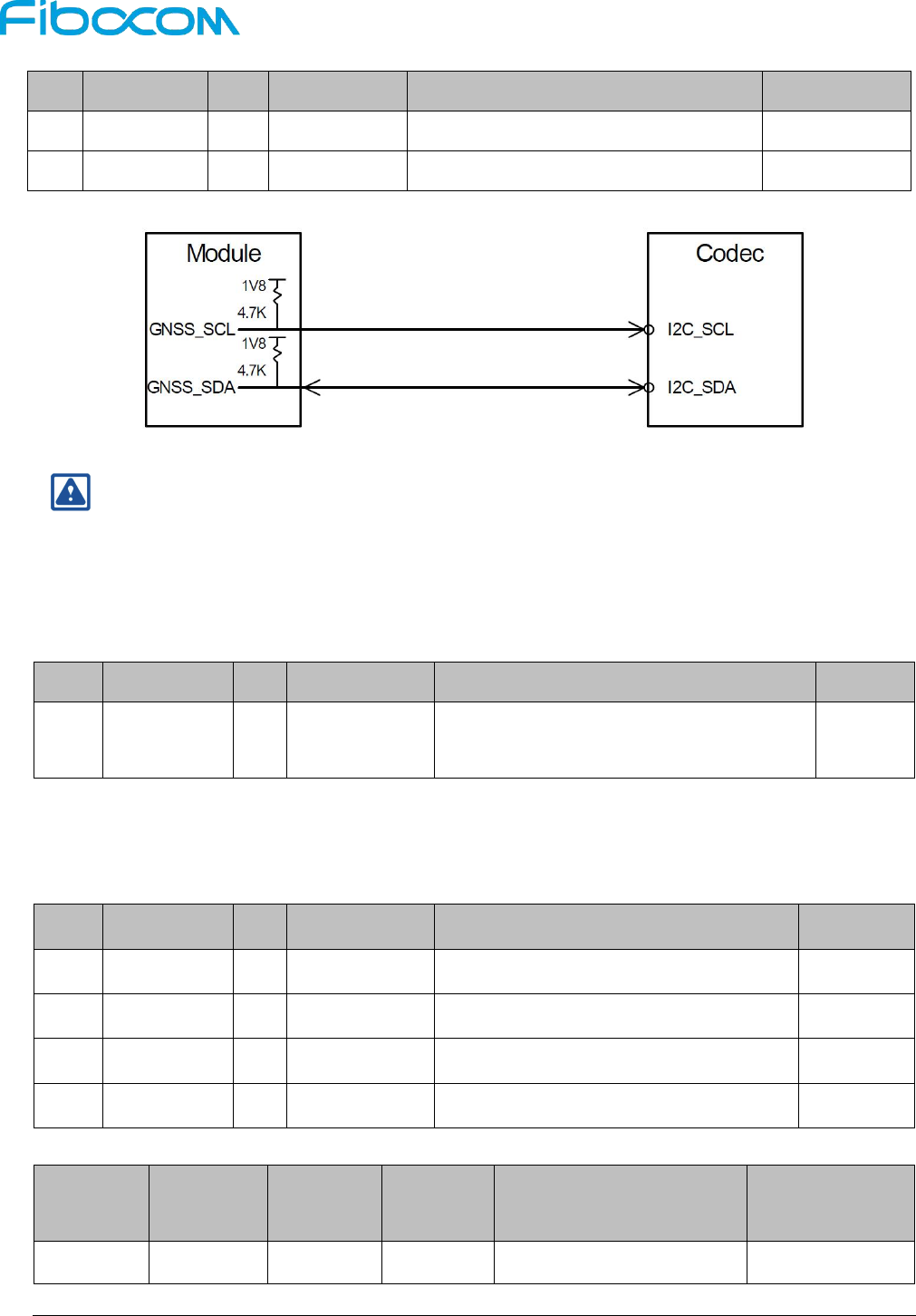

Figure 3-20 I2C Signal Connection
Note:
The I2C interface pins can be left floating if not used.
3.10 Clock Interface
The L830 module supports a clock interface, it can output 26MHz clock.
Pin
Pin Name
I/O
Reset Value
Pin Description
Type
46
SYSCLK
O
26MHz clock output, can be used for
external GPS or Audio Codec.
1.8V
3.11 Configuration Interface
The L830 module provides four config pins for the configuration as the WWAN-SSIC-0 type M.2 module:
Pin
Pin Name
I/O
Reset Value
Pin Description
Type
1
CONFIG_3
O
L
Internally connected to GND
21
CONFIG_0
O
NC
69
CONFIG_1
O
L
Internally connected to GND
75
CONFIG_2
O
L
Internally connected to GND
The M.2 module configuration as the following table:
Config_0
(pin21)
Config_1
(pin69)
Config_2
(pin75)
Config_3
(pin1)
Module Type and Main
Host Interface
Port
Configuration
NC
GND
GND
GND
WWAN-SSIC
0
Please refer to “PCI_Express_M.2_Specification_Rev1.1” for more details.
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 31 of 39
3.12 Other Interfaces
The module does not support ANT Tunable interface yet.
4 Radio Frequency
4.1 RF Interface
4.1.1 RF Interface Functionality
The L830 module supports two RF connectors used for external antenna connection. As the Figure 4-1
shows, “M” is for Main antenna, used to receive and transmit RF signals; “D/G” is for Diversity antenna,
used to receive the diversity RF signals.
Figure 4-1 RF connectors
4.1.2 RF Connector Characteristic
Rated Condition
Environment Condition
Frequency Range
DC to 6GHz
Temperature Range
Characteristic Impedance
50Ω
–40°C to +85°C
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 32 of 39
4.1.3 RF Connector Dimension
The L830 module adopts standard M.2 module RF connectors, the model name is 818004607 from ETC
company, and the connector size is 2*2*0.6m. The connector dimension is shown as following picture:

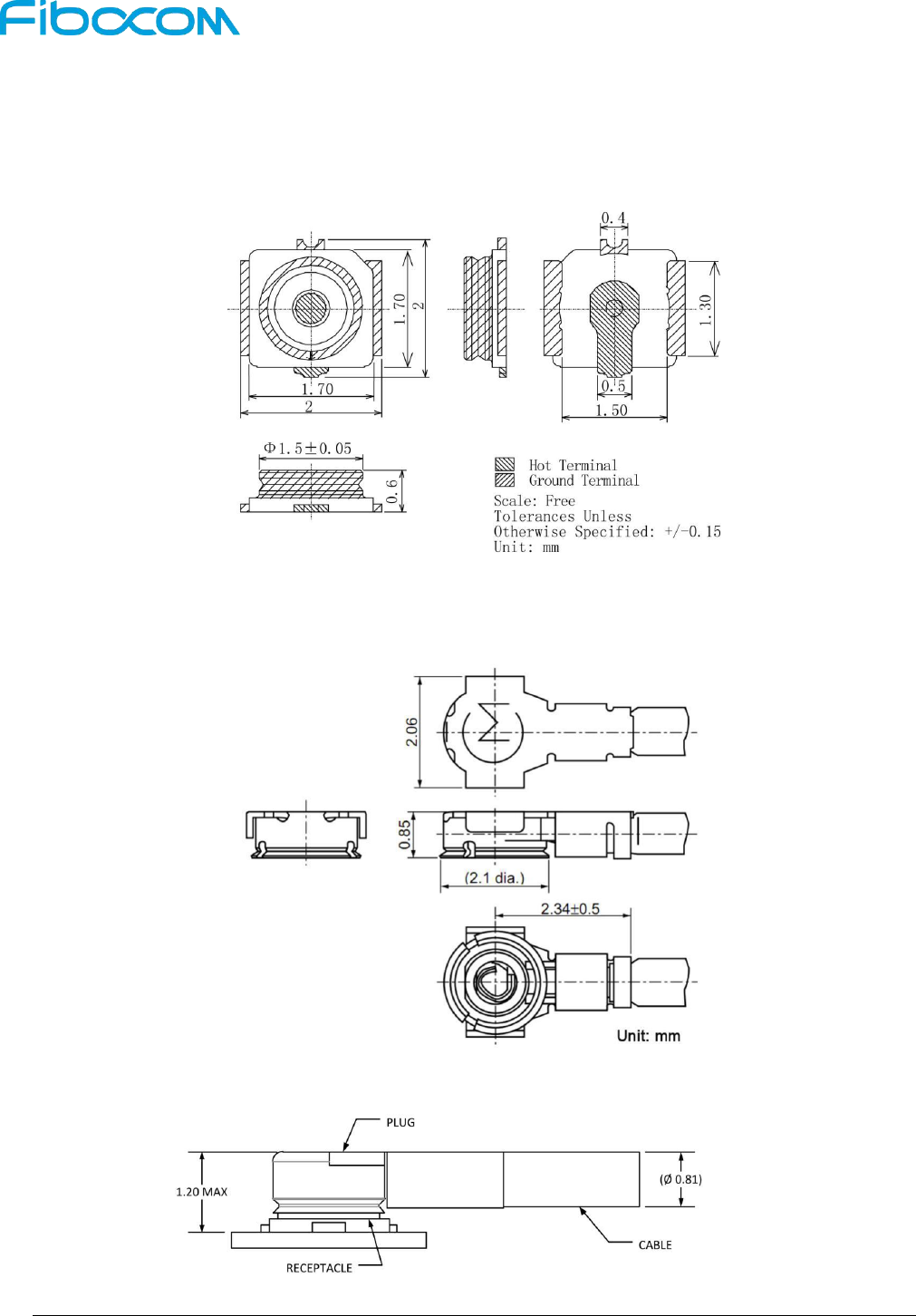

Figure 4-2 RF connector dimensions
Figure 4-3 0.81mm coaxial antenna dimensions
Figure 4-4 Schematic diagram of 0.81mm coaxial antenna connected to the RF connector
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 33 of 39
4.2 Operating Band
The L830 module operating bands of the antennas are as follows:
Operating
Band
Description
Mode
Tx (MHz)
Rx (MHz)
Band 1
IMT 2100MHz
LTE FDD/WCDMA
1920 - 1980
2110 - 2170
Band 3
DCS 1800MHz
LTE FDD
1710 - 1785
1805 - 1880
Band 7
IMT-E 2600Mhz
LTE FDD
2500 - 2570
2620 - 2690
Band 8
E-GSM 900MHz
LTE FDD/WCDMA
880 - 915
925 - 960
Band 20
EUDD 800MHz
LTE FDD
832 - 862
791 - 821
Band 28
APT700
LTE FDD
703-748
758-803
Band 32
L-Band1500
LTE FDD
N/A
1452-1496
4.3 Transmitting Power
The transmitting power for each band of the L830 module as shown in the following table:
Mode
Band
3GPP Requirement
Tx Power(dBm)
Note
WCDMA
Band I
24+1.7/-3.7
23.5±1
Band VIII
24+1.7/-3.7
23.5±1
LTE FDD
Band 1
23±2.7
23±1
10MHz Bandwidth, 1 RB
Band 3
23±2.7
23±1
10MHz Bandwidth, 1 RB
Band 7
23±2.7
23±1
10MHz Bandwidth, 1 RB
Band 8
23±2.7
23±1
10MHz Bandwidth, 1 RB
Band 20
23±2.7
23±1
10MHz Bandwidth, 1 RB
Band 28
23+2.7/-3.2
23±1
10MHz Bandwidth, 1 RB
4.4 Receiver Sensitivity
The receiver sensitivity for each band of the L830 module as shown in the following table:
Mode
Band
3GPP Requirement
Rx Sensitivity(dBm)
Typical
Note
WCDMA
Band I
-106.7
-110
BER<0.1%
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 34 of 39
Mode
Band
3GPP Requirement
Rx Sensitivity(dBm)
Typical
Note
Band VIII
-103.7
-110.5
BER<0.1%
LTE FDD
Band 1
-96.3
-101
10MHz Bandwidth
Band 3
-93.3
-101
10MHz Bandwidth
Band 7
-94.3
-101.5
10MHz Bandwidth
Band 8
-93.3
-101
10MHz Bandwidth
Band 20
-93.3
-101
10MHz Bandwidth
Band 28
-94.8
-101
10MHz Bandwidth
Band 32
-96.5
TBD
10MHz Bandwidth
Note:
The above values are measured for the dual antennas situation (Main + Diversity). For single
main antenna (without Diversity), the sensitivity will drop around 3dBm for each band of LTE.
4.5 GNSS
L830-EB-11 module not support GNSS.
4.6 Antenna Design
The L830 module provides main and diversity antenna interfaces, and the antenna design requirements
as shown in the following table:
L830 module Main antenna requirements
Frequency range
The most proper antenna to adapt the frequencies should be used.
Bandwidth(WCDMA)
WCDMA band I(2100) : 250 MHz
WCDMA band VIII(900) : 80 MHz
Bandwidth(LTE)
LTE band 1(2100): 250 MHz
LTE Band 3(1800): 170 MHz
LTE band 7(2600): 190 MHz
LTE Band 8(900): 80 MHz
LTE band 20(800): 71 MHz
LTE band 28(850): 100 MHz
LTE band 32(700): 11 MHz
Impedance
50 Ohm
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 35 of 39
L830 module Main antenna requirements
Input power
> 25dBm average power WCDMA & LTE
Recommended
standing-wave ratio (SWR)
≤ 2:1
5 Structure Specification
5.1 Product Appearance

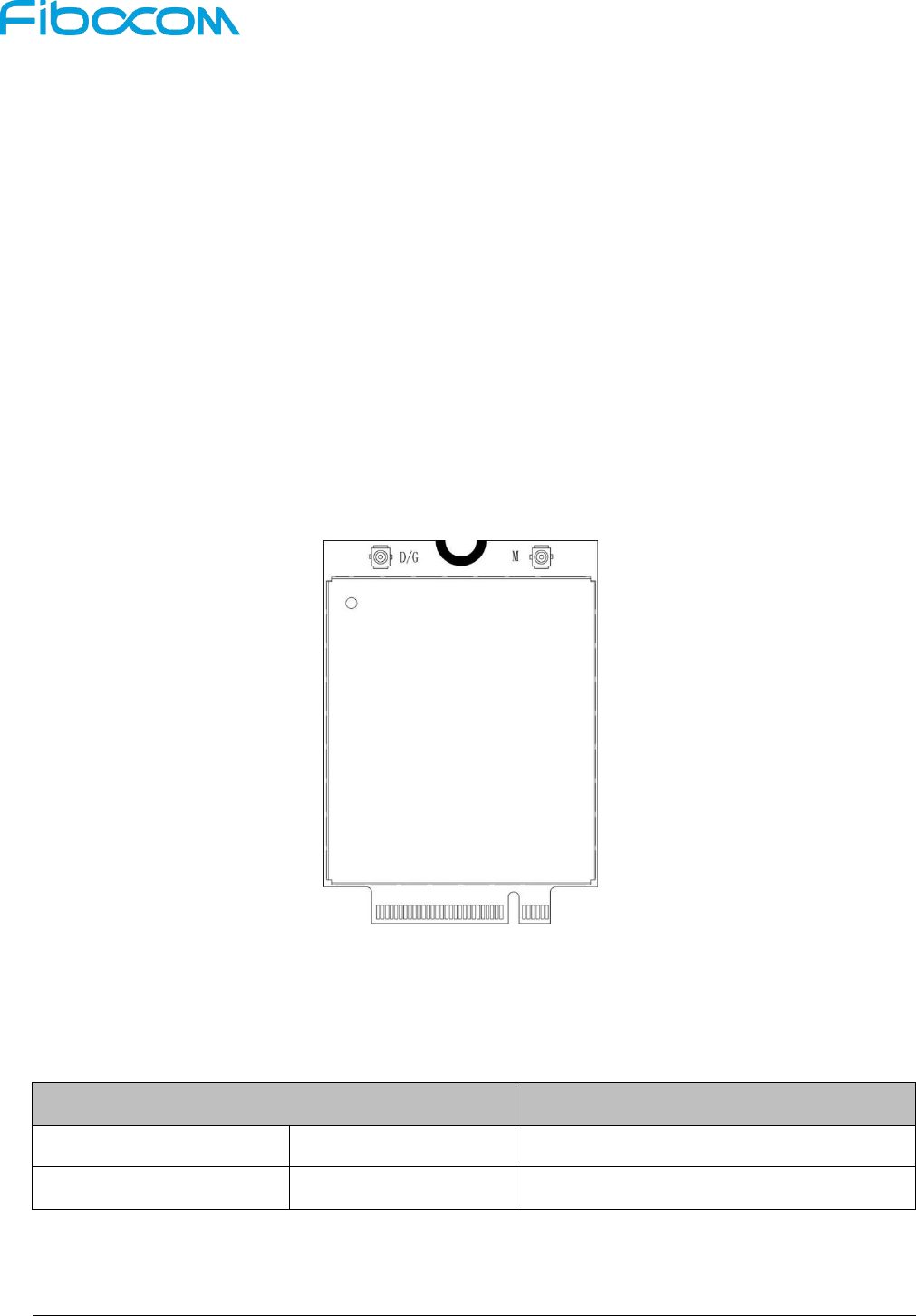

The product appearance for L830 module is shown in Figure 5-1:

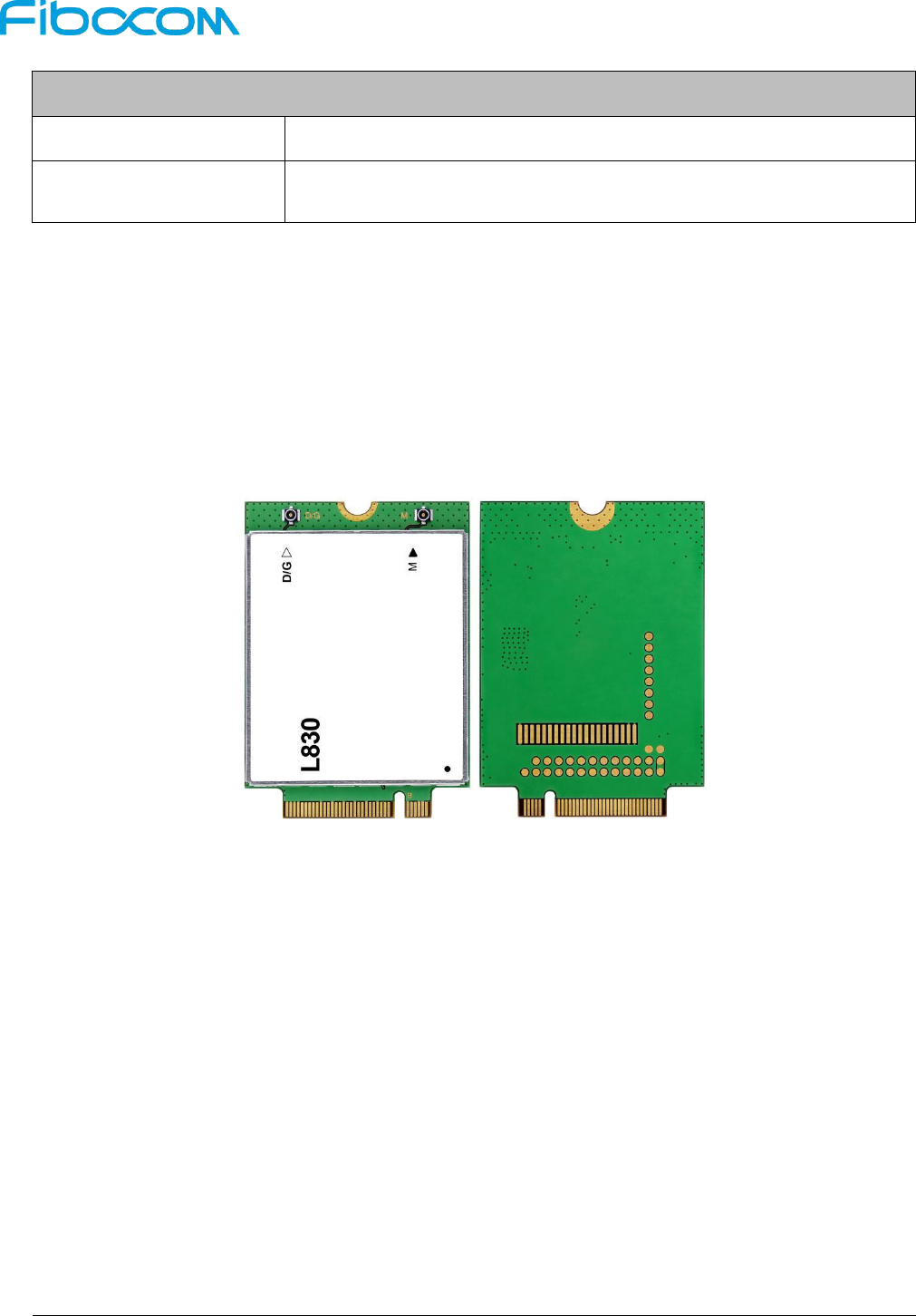

Figure 5-1 Module Appearance
5.2 Dimension of Structure
The structural dimension of the L830 module is shown in Figure 5-2:
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 36 of 39
Figure 5-2 Dimension of Structure
5.3 M.2 Interface Model
The L830 M.2 module adopts 75-pin gold finger as external interface, where 67 pins are signal pins and 8
pins are notch pins as shown in Figure 3-1. For module dimension, please refer to chapter 5.2. Based on
the M.2 interface definition, L830 module adopts Type 3042-S3-B interface (30x42mm, the component
maximum height on t top layer is 1.5mm, PCB thickness is 0.8mm, and KEY ID is B).
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 37 of 39
5.4 M.2 Connector
The L830 module connects to AP via M.2 connector, it is recommended to use M.2 connector from
LOTES company with the model APCI0026-P001A as shown in Figure 5-3. The package of connector,
please refer to the specification.

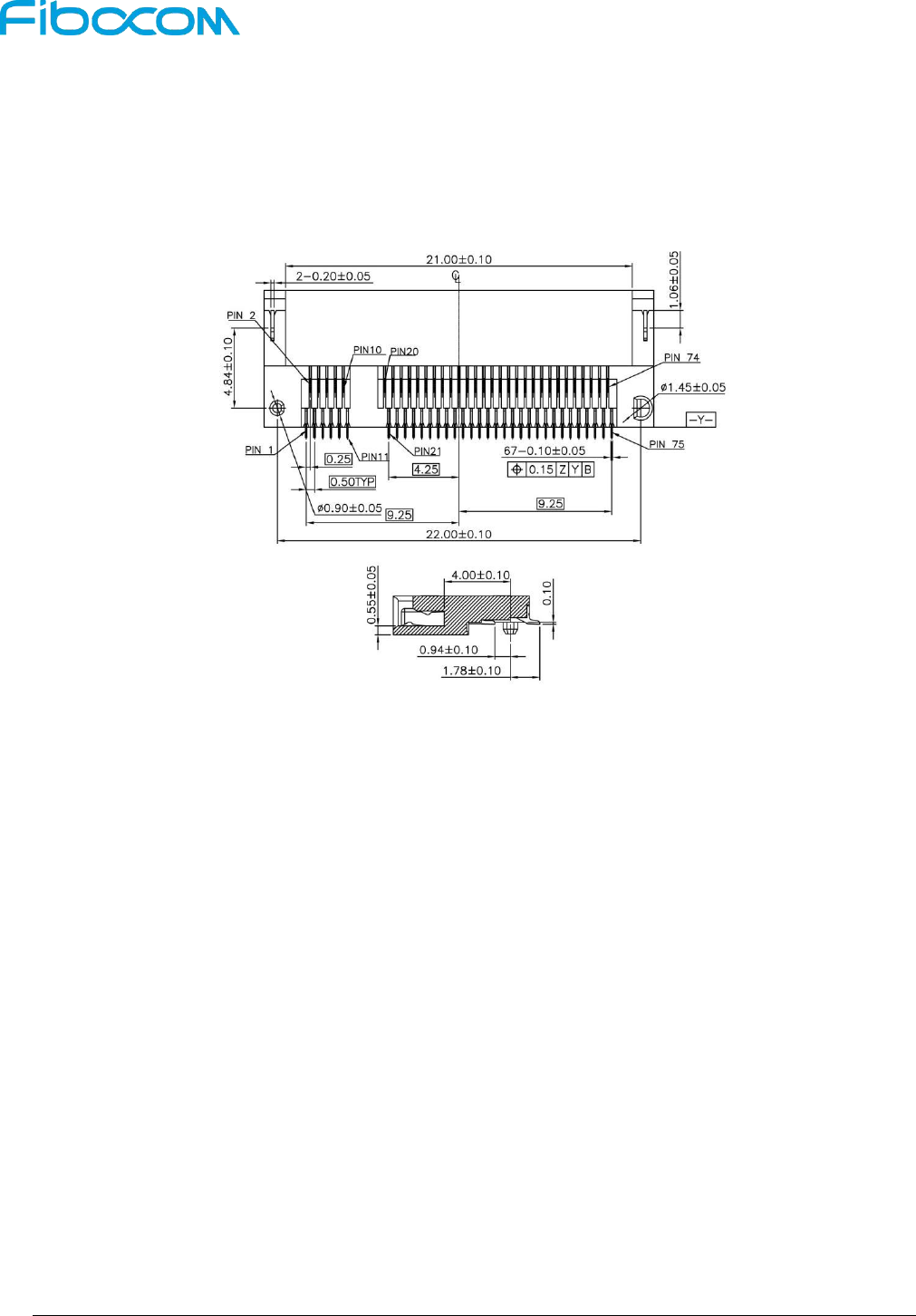

Figure 5-3 M.2 Dimension of Structure
5.5 Storage
5.5.1 Storage Life
Storage Conditions (recommended): Temperature is 23 ± 5 ℃, relative humidity is RH 35-70%.
Storage period (sealed vacuum packing): Under the recommended storage conditions, the storage life is
12 months.
5.6 Packing
The L830 module uses the tray sealed vacuum packing, combined with the outer packing method using
the hard cartoon box, so that the storage, transportation and the usage of modules can be protected to
the greatest extent.
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 38 of 39
Note:
The module is a precision electronic product, and may suffer permanent damage if no correct
electrostatic protection measures are taken.
5.6.1 Tray Package

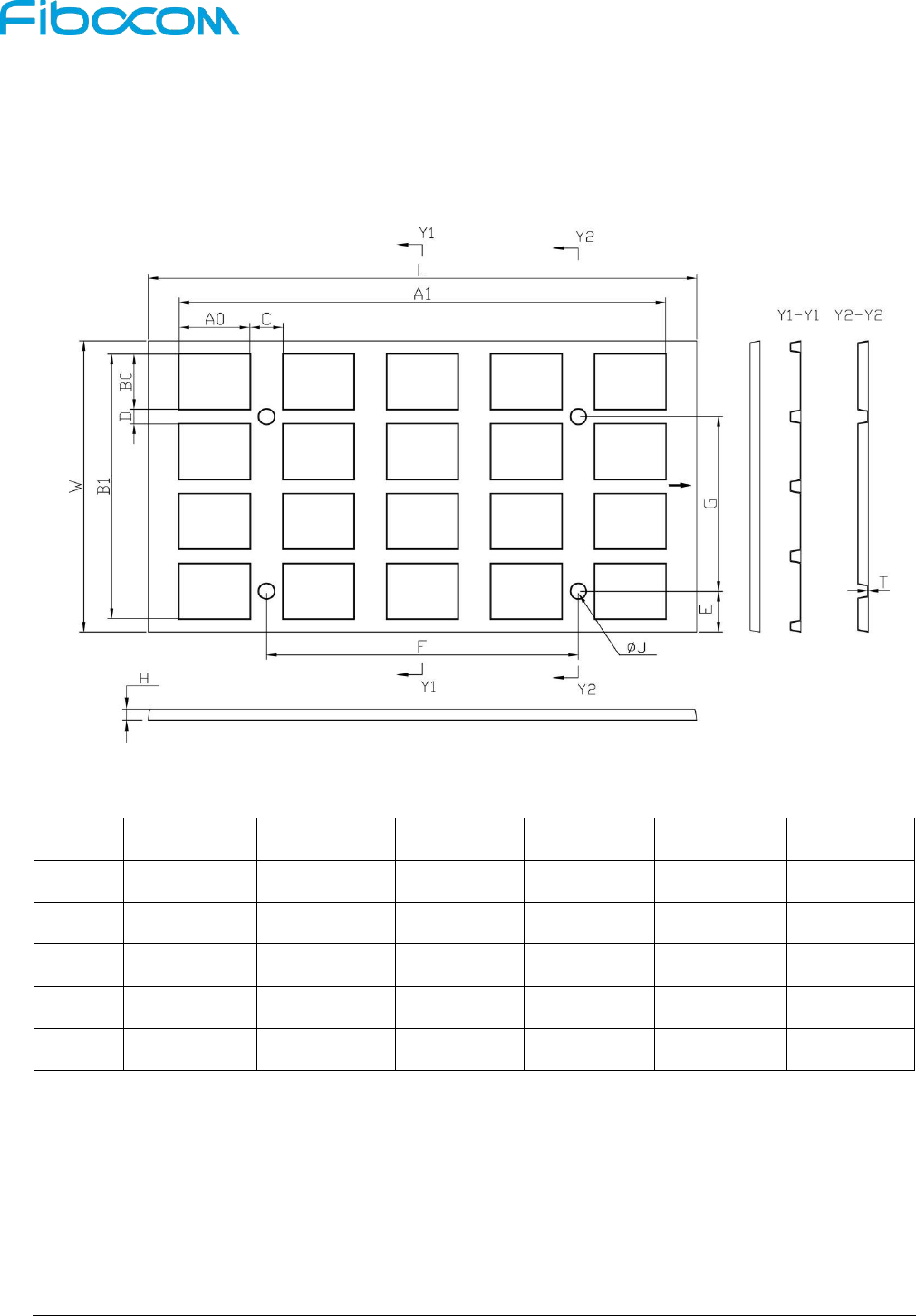

The L830 module uses tray package, 20 pcs are packed in each tray, with 5 trays in each box and 6

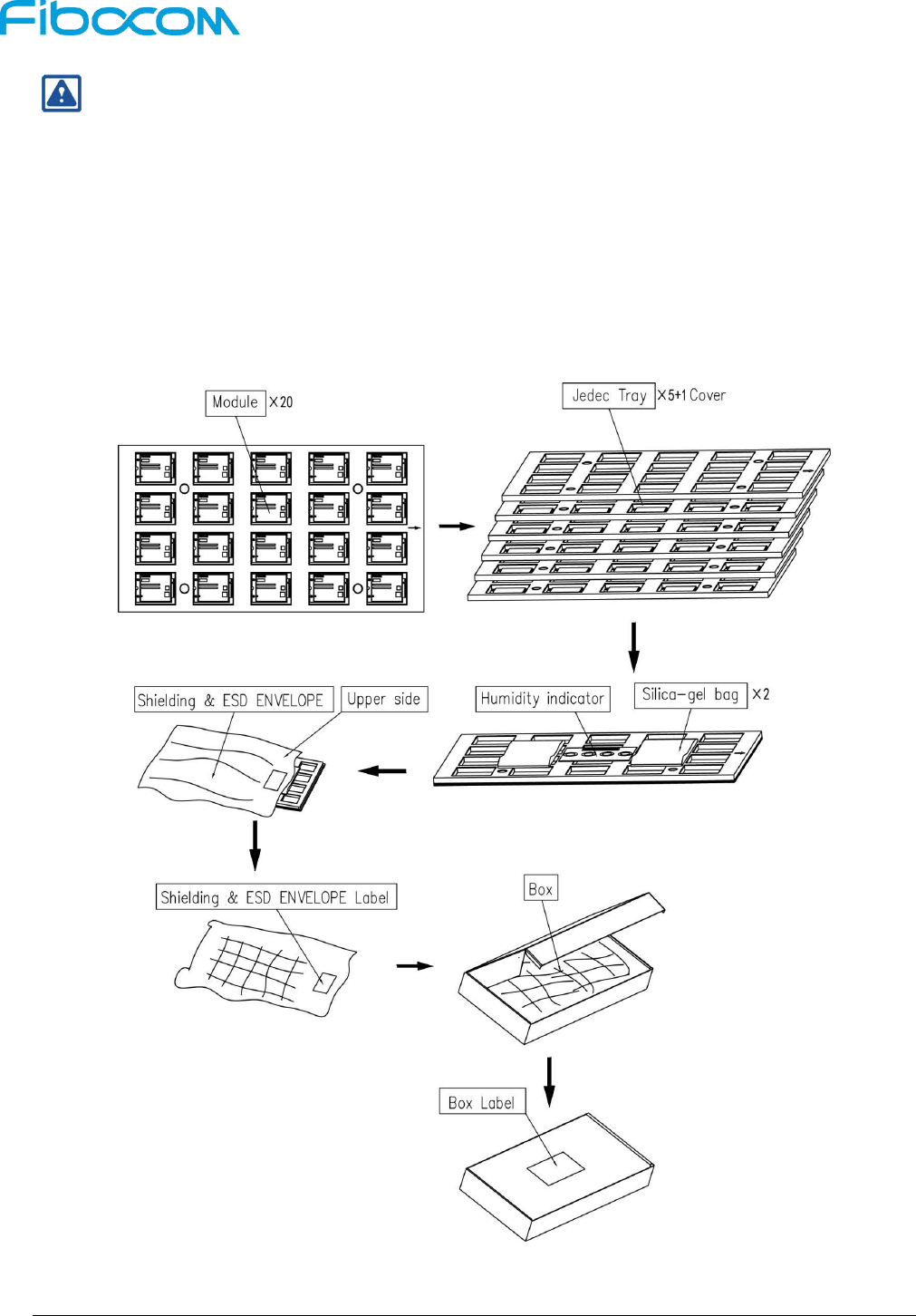

boxes in each case. Tray packaging process is shown in Figure 5-4:
Figure 5-4 Tray Packaging Process
Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
L830-EB-11 Hardware User Manual Page 39 of 39
5.6.2 Tray size
The pallet size is 330*175*6.0mm, as shown in Figure 5-5:
ITEM
L
W
H
T
A0
B0
DIM
330.0±0.5
175.0±0.5
6.0±0.3
0.5±0.1
43±0.3
33.0±0.3
ITEM
A1
B1
C
D
E
F
DIM
294.0±0.3
159.0±0.3
20.0±0.5
9.0±0.5
24.5±0.5
187.5±0.2
ITEM
G
J
DIM
105.0±0.2
9.0±0.2
Figure 5-5 Tray Size (Unit: mm)
