First Computer CE260-VOIP-1 CE260-VOIP-1 User Manual CE260 VOIP 1
First International Computer Inc CE260-VOIP-1 CE260 VOIP 1
Users Manual
CE260-VOIP-1 User Manual
Release Date:2007/07/16
Version:1.4
1
CE260-VOIP-1User Manual
CE260-VOIP-1 User Manual
Release Date:2007/07/16
Version:1.4
2
Table of Contents
1. Introduction 3
1.1. Connect to Skype 3
1.2. Basic Functions of CE260-VOIP-1 6
1.3. Key Functions 6
1.4. The Icon Status 7
1.5. Skywin Status 7
2. Registration 8
2.1. Toshiba Dongle Registration 8
3. Menu 11
3.1. Contact 11
3.2. Call History 11
3.3. Missed Call 12
3.4. Making a Call 12
3.5. Phone Set up 13
4. FAQ 14
4.1. Can not turn on the phone 14
4.2. SkyWin does not work 14
4.3. The sound can not come out from the phone 15
5. Specification
CE260-VOIP-1 User Manual
Release Date:2007/07/16
Version:1.4
3
Pictures
Pic.1-1 SkyWin request to control Skype 3
Pic.1-2 Status: No Skype 3
Pic.1-3 Status: Logout 4
Pic.1-4 Manage other programs’ access to Skype 4
Pic.1-5 Manage API Access Control 5
Pic.1-6 Status: Standby 5
Pic.2-1 Toshiba Bluetooth Software Status 8
Pic.2-2 Start Toshiba Bluetooth Software 8
Pic.2-3 Toshiba Registration (A) 9
Pic.2-4 Toshiba Registration (B) 9
Pic.2-5 Toshiba Registration (C) 10
Pic.2-6 Toshiba Registration (D) 10

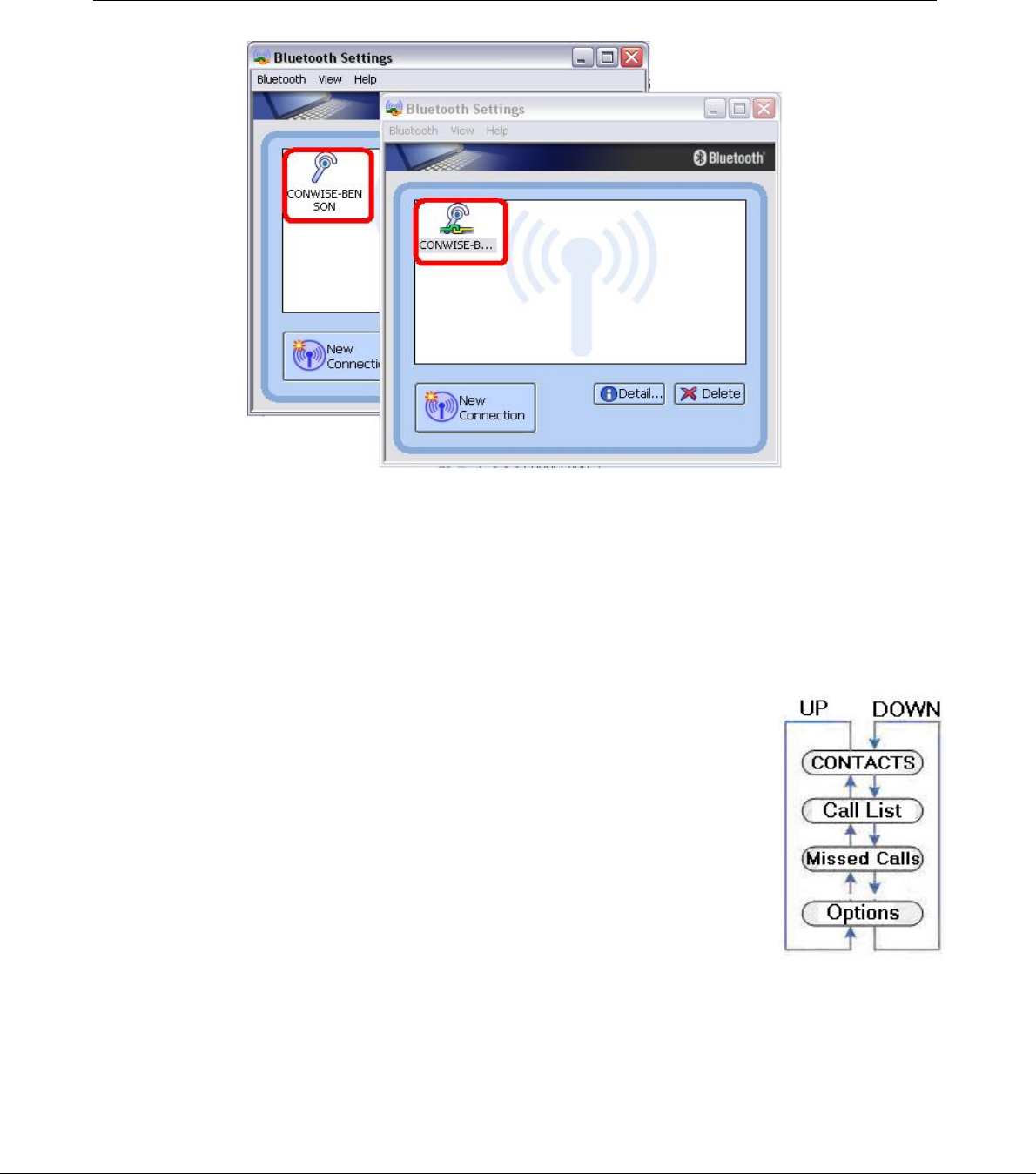

Pic.3-1 Function Selection 11

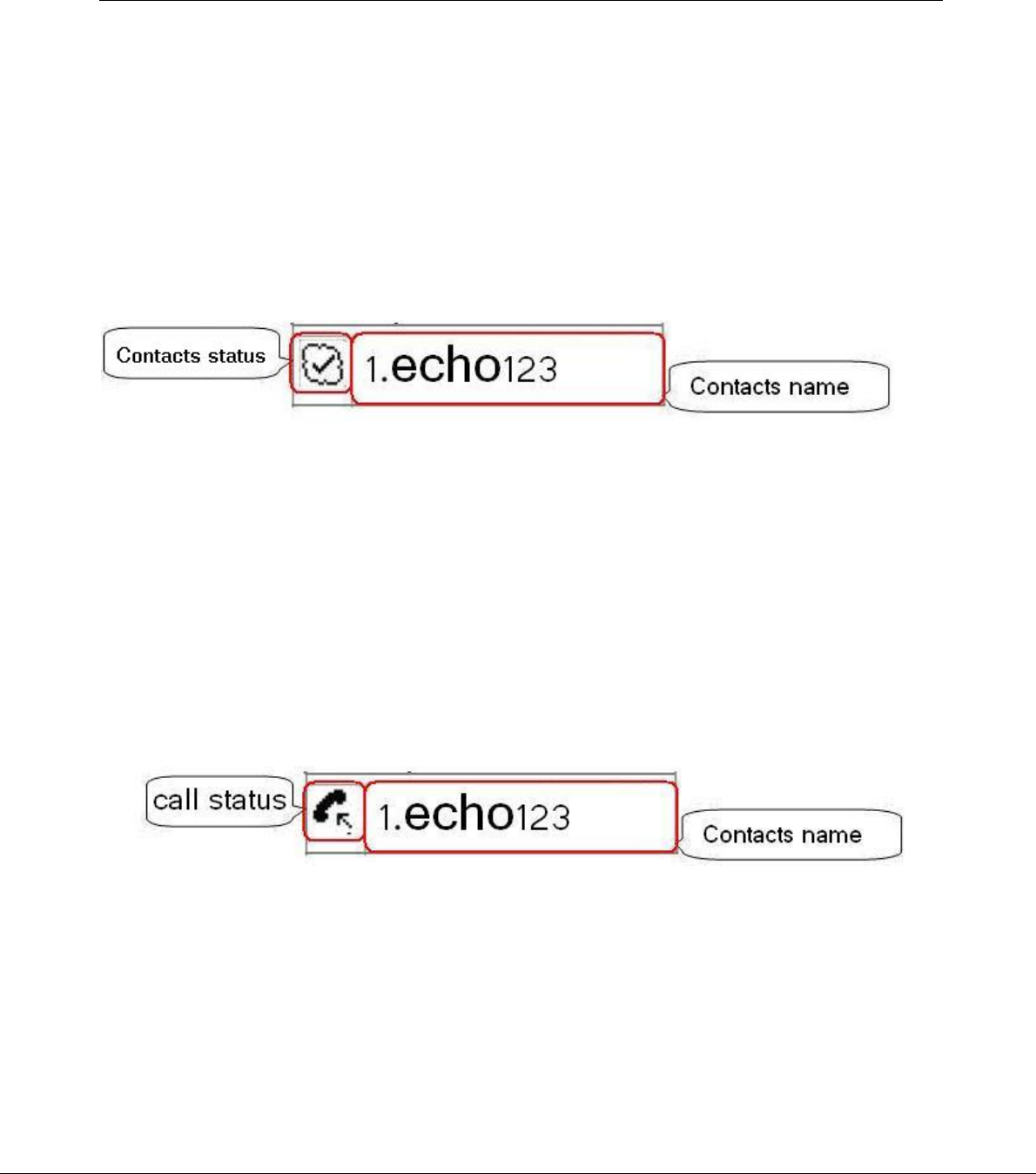

Pic.3-2 Contact List Icon Status 11
Pic.3-3 Call List Icon Status 11
Pic.3-4 Missed Call Icon Status 12

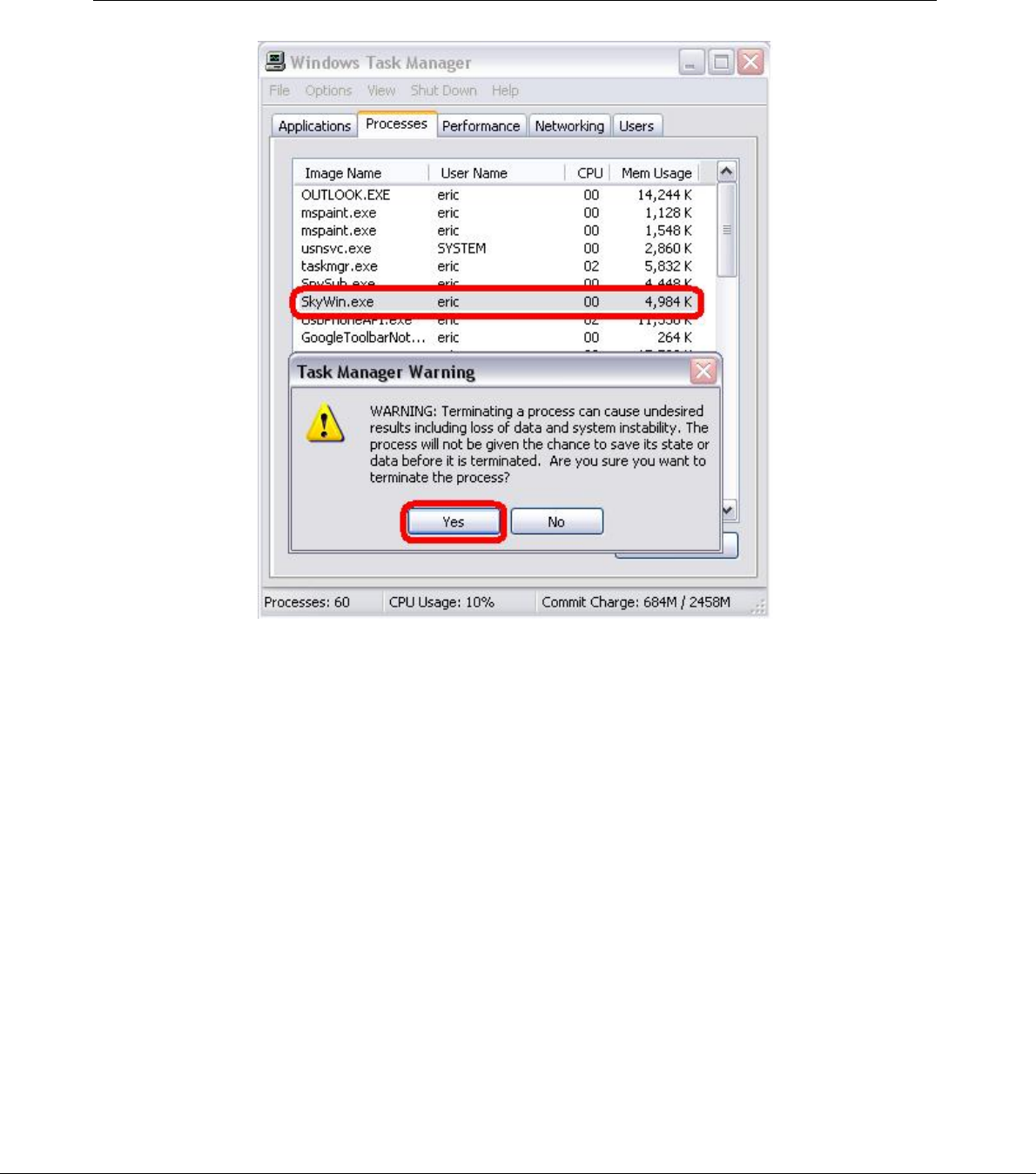

Pic.4-1 Close Progressing SkyWin 13

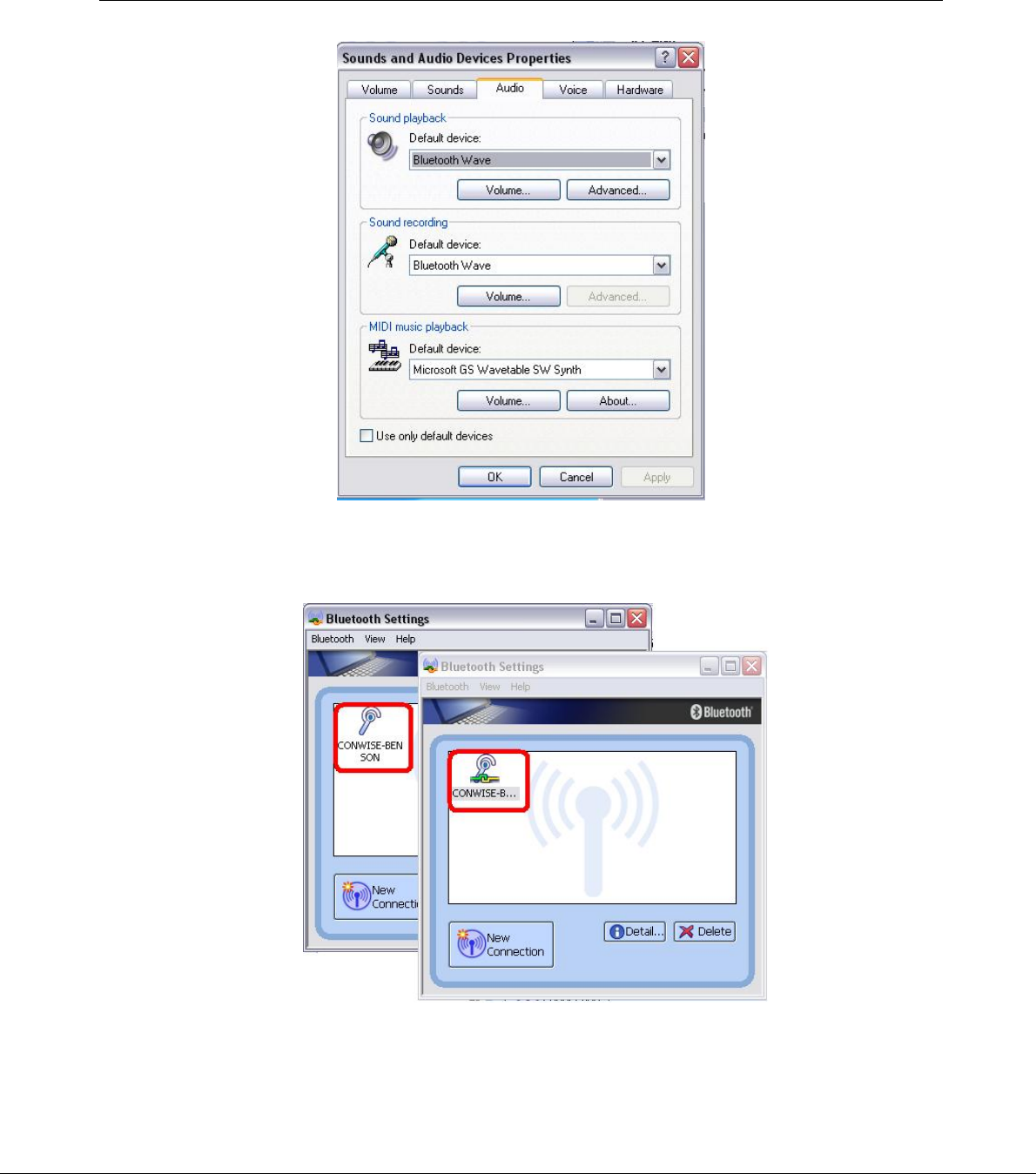

Pic.4-2 Sounds and Audio Devices Properties 15
Pic.4-3 Toshiba connect succeed 16
CE260-VOIP-1 User Manual
Release Date:2007/07/16
Version:1.4
4
FCC Information to User
Radio and television interference
Warning: Use the specified shielded power cord and shielded signal cables with this VOIP Phone, so
as not to interfere with radio and television reception. If you use other cables, it may cause interference
with radio and television reception.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does not cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is
encourage to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the device and receiver
• Connect the device into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/television technician for help.
You may find helpful the following booklet, prepared by the Federal Communications Commission:
Interference Handbook (stock number 004-000-00345-4). This booklet is available from the U.S.
Government Printing Office, Washington, DC20402
Warning: The user must not modify or change this UMPC without approval. Modification could void
authority to this equipment.
FCC RF Exposure
FCC RF Radiation Exposure Statement:
This Transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
15.247 (b)(4), the EUT meets the requirement that it be operated in a manner that ensures the public is
not exposed to radio frequency energy levels in excess of the Commission’s guidelines (1.1307,
1.1310, 2.1091 and 2.1093)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
CE260-VOIP-1 User Manual
Release Date:2007/07/16
Version:1.4
5
This device must accept any interference received, including interference that may cause undesired
operation.
Information of the responsible party for a DoC product
Product name: VOIP Phone
Model number: CE260-VOIP-1
Technical Support:
Address: 6FL., No.300 Yang Gunag St., Neihu,
Taipei, Taiwan
Telephone:+886-2-8751-8751 ext.7935
Fax: +886-2-87518822
Emaill: rex_kuo@pcg.fic.com.tw
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment
Federal Communications Commission (FCC) Requirements, Part 15
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and receiver.
---Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
---Consult the dealer or an experienced radio/TV technician for help.
Regulatory information / Disclaimers
Installation and use of this VOIP Phone must be in strict accordance with the instructions included in
the user documentation provided with the product. Any changes or modifications (including the
antennas) made to this device that are not expressly approved by the manufacturer may void the user’s
authority to operate the equipment. The manufacturer is not responsible for any radio or television
interference caused by unauthorized modification of this device, or the substitution of the connecting
cables and equipment other than manufacturer specified. It is the responsibility of the user to correct
CE260-VOIP-1 User Manual
Release Date:2007/07/16
Version:1.4
6
any interference caused by such unauthorized modification, substitution or attachment. Manufacturer
and its authorized resellers or distributors will assume no liability for any damage or violation of
government regulations arising from failing to comply with these guidelines.
IMPORTANT NOTE (CO-LOCATION)
FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure
limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or
operating in conjunction with any other antenna or transmitter.
IMPORTANT NOTE (CO-LOCATED EVALUATION PERFORMED)
This transmitter has been demonstrated co-located operation compliance requirement with
[PRODUCT DESCRIPTION/BRAND/MODEL#]. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
SAR Exposure
This device has been tested for compliance with FCC RF Exposure (SAR) limits in typical flat
configurations.
In order to comply with SAR limits established in the ANSI C95.1 standards, it is recommended when
using that the integrated antenna is positioned more than 1.5cm from your body or nearby persons
during extended periods of operation. If the antenna is positioned less than 1.5cm from the user, it is
recommended that the user limit the exposure time.
CE260-VOIP-1 User Manual
Release Date:2007/07/16
Version:1.4
7
1. Introduction
1.1. Connect to Skype

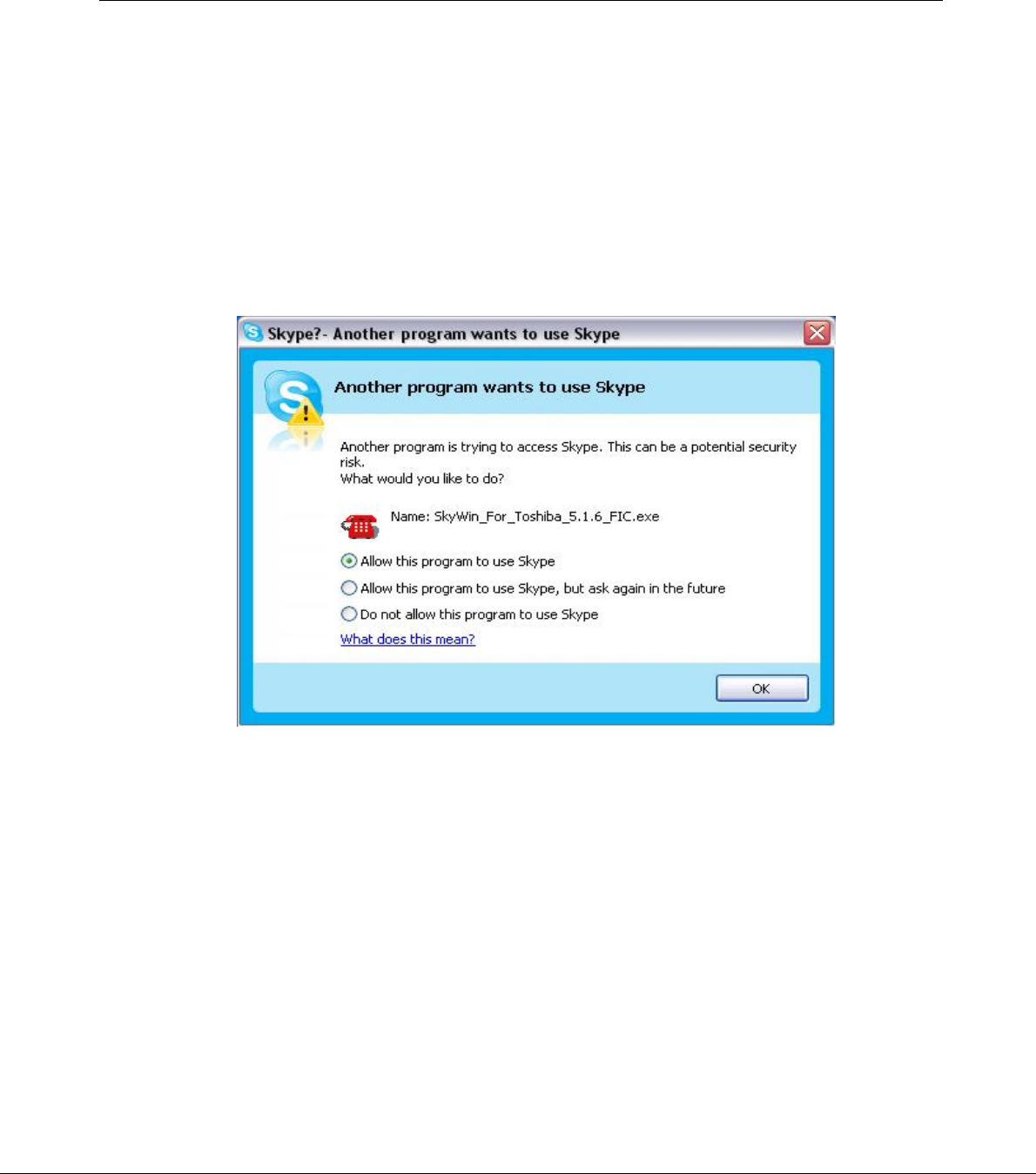

For the first time user of SkyWin, Please Select “allow this program to use Skype”, and click OK
button when the screen appears “Another program wants to use Skype?” diagram. Then W-260 can
work through SkyWin to operate Skype.
Pic.1-1 SkyWin Request to control Skype
According to Skype status, the LCD display of CE260-VOIP-1 will appear three types of message:
「No Skype」 (Pic.1-2) 、「Logout」 (Pic.1-3) 、 and 「Standby」 (Pic.1-6), after CE260-VOIP-1
connected to Toshiba Bluetooth Dongle.
CE260-VOIP-1 User Manual
Release Date:2007/07/16
Version:1.4
8

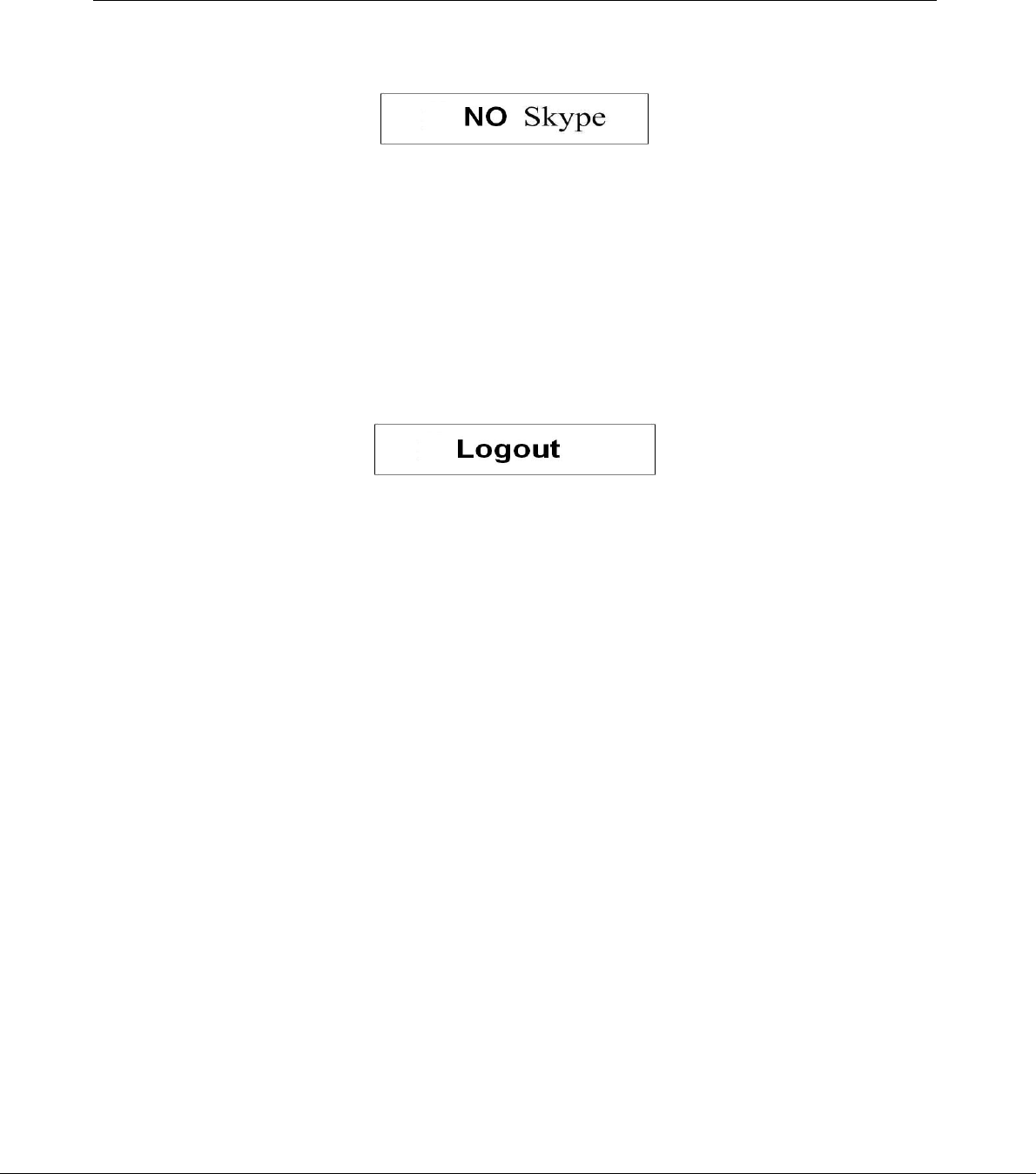

Pic.1-2 Status：No Skype
When [NoSkype] message appears then,
• Make sure if Skype software is installed.
• If Skype was installed please make sure Skype has signed in.
Pic.1-3 Status：Logout
When [Logout] message appears then,
• Please check if Skype is sign in.
• If Skype has signed in, please check if Skype allows SkyWin to access to Skype: 「Tool」=>

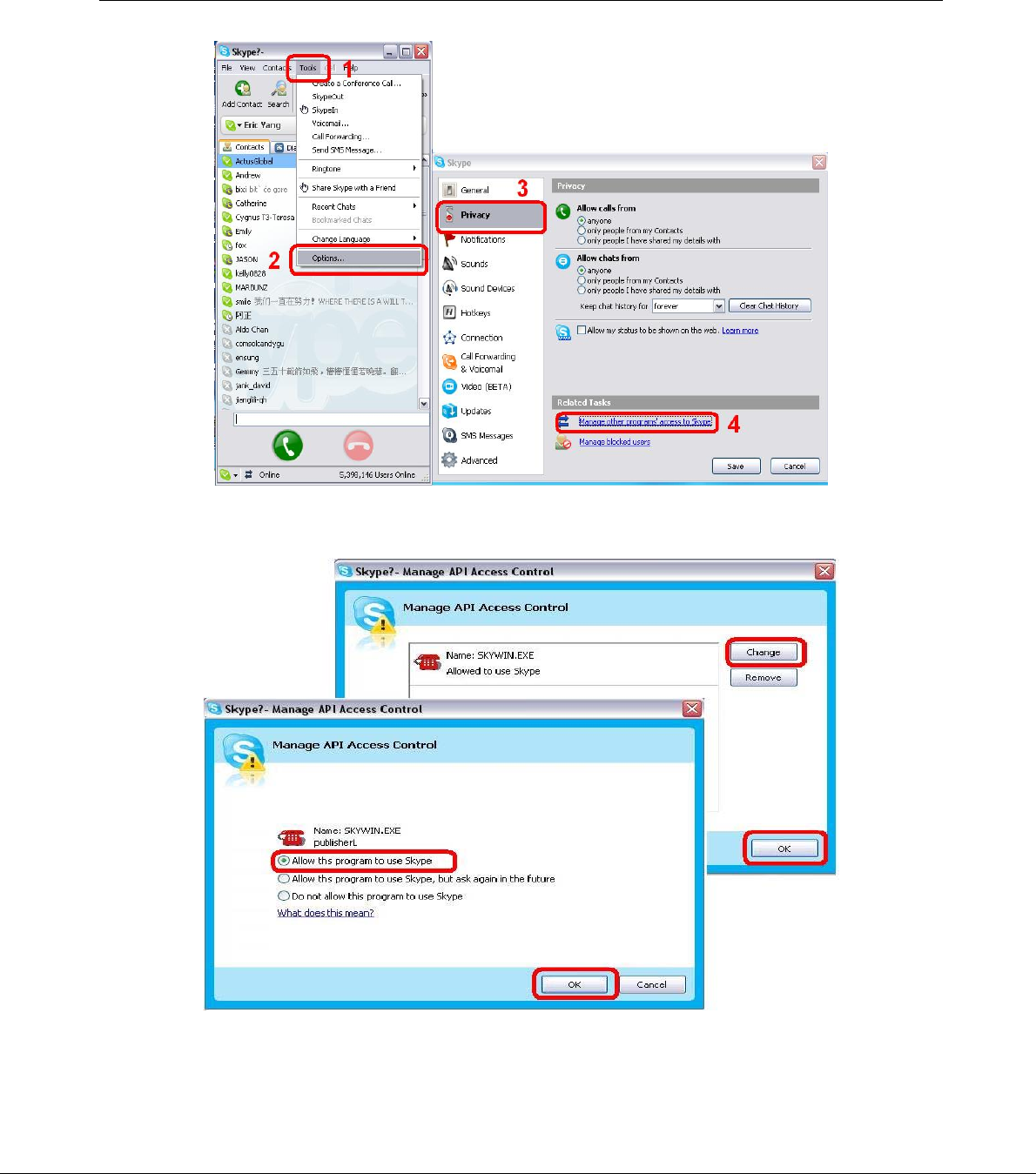

「Option」=>「Privacy」=>「Manage other programs’ access to Skype」(Pic.1-4). Please
select SkyWin, and then click [change].
CE260-VOIP-1 User Manual
Release Date:2007/07/16
Version:1.4
9
Pic.1-4 Manage other programs’ access to Skype
Pic.1-5: Manage API Access Control
CE260-VOIP-1 User Manual
Release Date:2007/07/16
Version:1.4
10

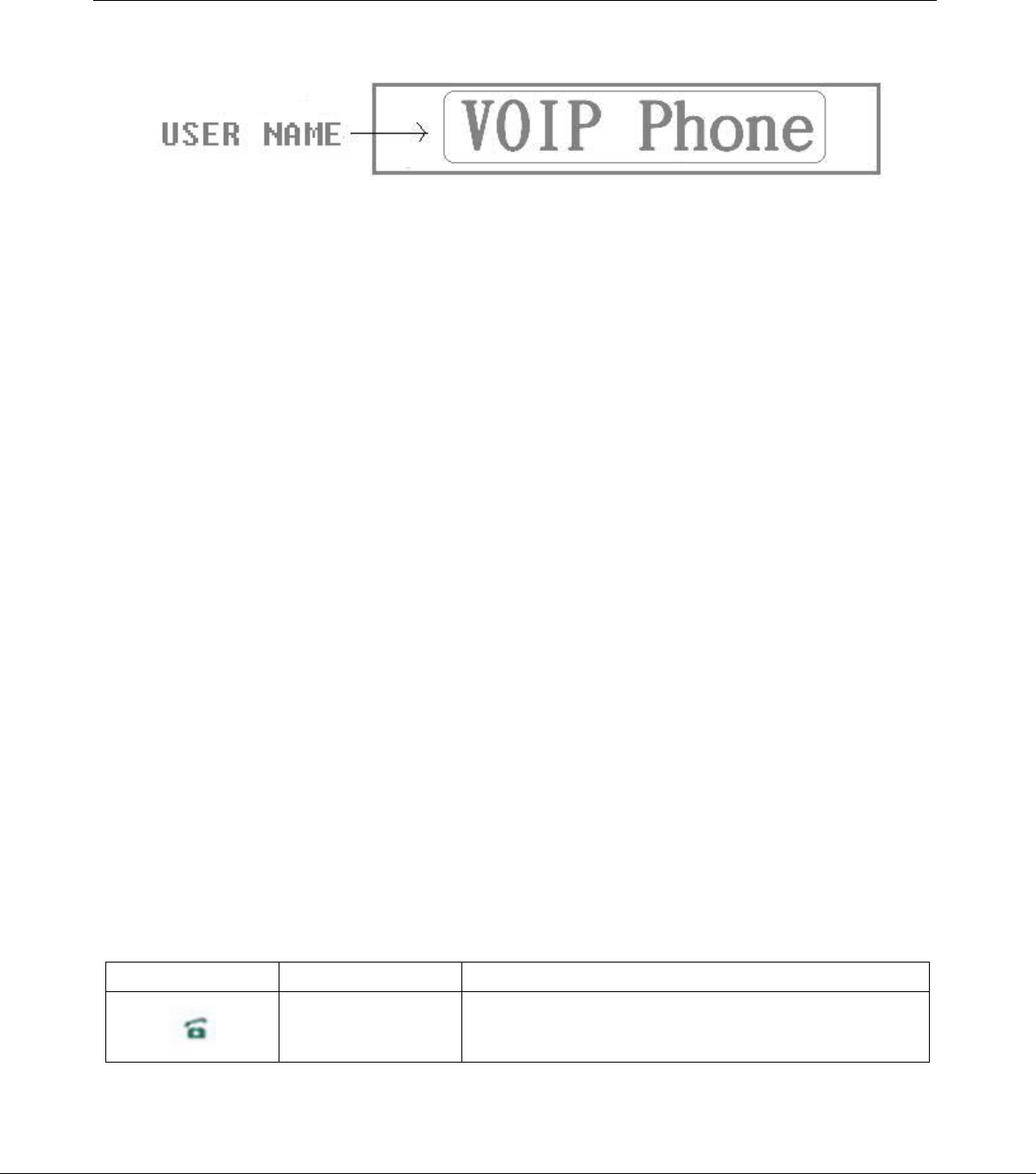

Pic.1-6: Status: Standby
W-260 is connecting to Skype and ready to make a phone call when LCD screen display user name of
Skype. If the screen of W-260 is showing 「No Skype」or「Logged out」 message, then W-260 can
not activate any function of Skype.
1.2. Basic Functions of CE260-VOIP-1
Note: Before turn on the phone please turn on the power switch first at left side of the
phone.
• On/Off：To turn on/off the phone please hold 「ON/OFF (On Hook) 」for 2-3 seconds.
• Registration：Please register to Toshiba Dongle by hold「#」key for 2 to 3 seconds.
• The phone will automatically turn to power save mode (back blue light disappear) after 5
seconds without press any key.
• The phone will turns to standby mode without press any key after 30 seconds.
• When adjusting sound volume while making a phone call, the LCD display will turn to
conversation mode (display total conversation time) after 6 seconds.

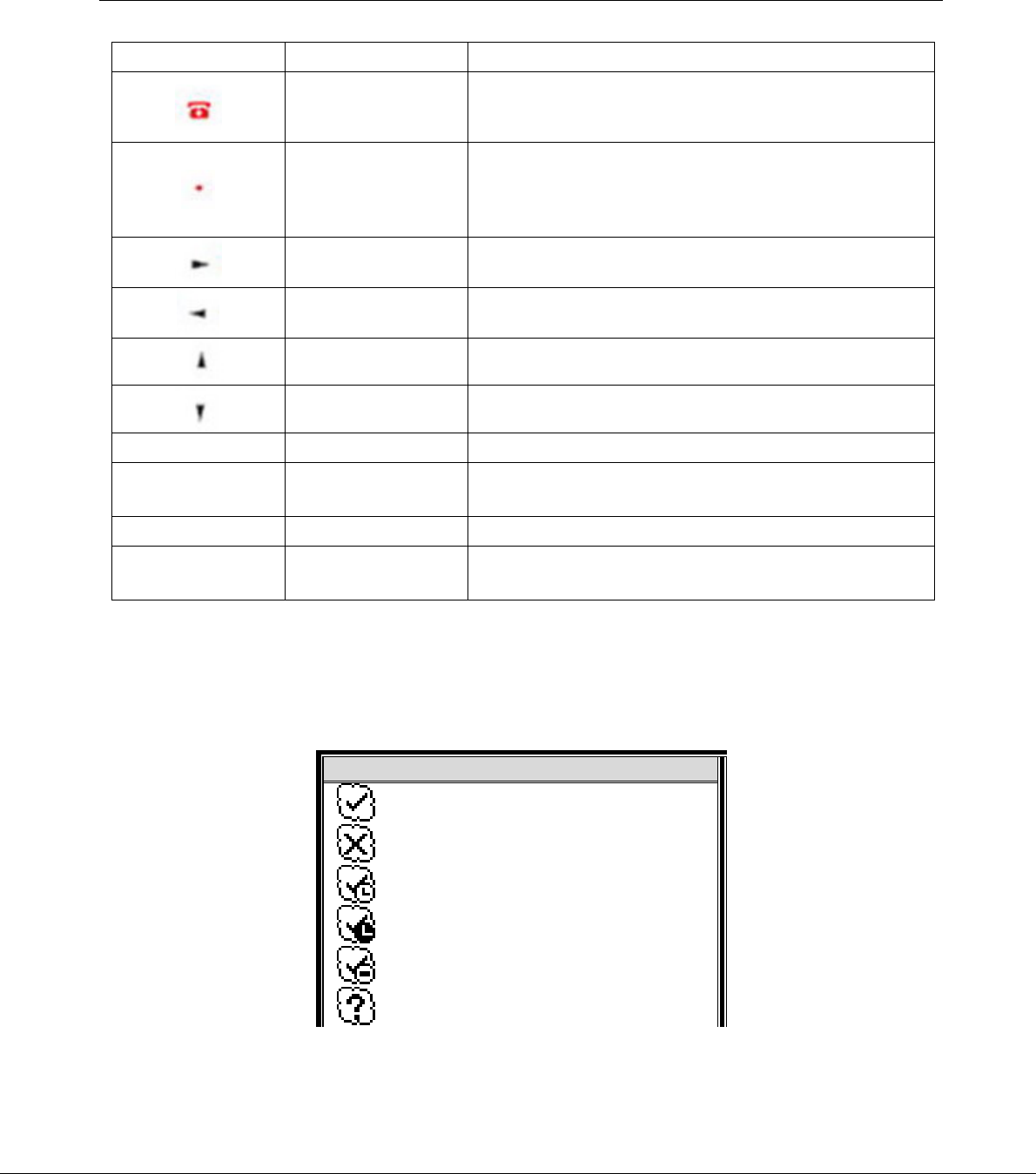

1.3. Key Functions
The functions of the Keys
Icon Key Function
Off Hook 1. make a call
2. answer a call
3. back to a call while Call Waiting
CE260-VOIP-1 User Manual
Release Date:2007/07/16
Version:1.4
11
4. Shortcut to Call List
On Hook 1. Power ON/OFF(hold for 3 seconds)
2. hang up a call
3. Back to Standby mode
Ok
1. Enter
2. Enter key to the menu
3. Call Waiting hold key
4. Call Waiting answer key
Right 1. Shortcut to「Missed Call」
2. UP key to select Menu
Left 1. Shortcut to 「Contact」
2. DOWN key to select Menu
Volume Up 1. key to adjust volume while a call
2. UP key to select Menu
Volume Down 1. key to adjust volume while a call
2. DOWN key to select Menu
1~9 1. Number Button「0~9」
0 1. Number Button「0」
2. 「+」Button(hold for 0.7seconds)
* 1. 「*」Button
# 1. 「#」Button
2. Key of Toshiba Dongle registration
1.4. The Icon Status
The status of Icons
Appear in front of Contacts
Online
offline
Away
Not available
Do not disturb
Unstable
CE260-VOIP-1 User Manual
Release Date:2007/07/16
Version:1.4
12

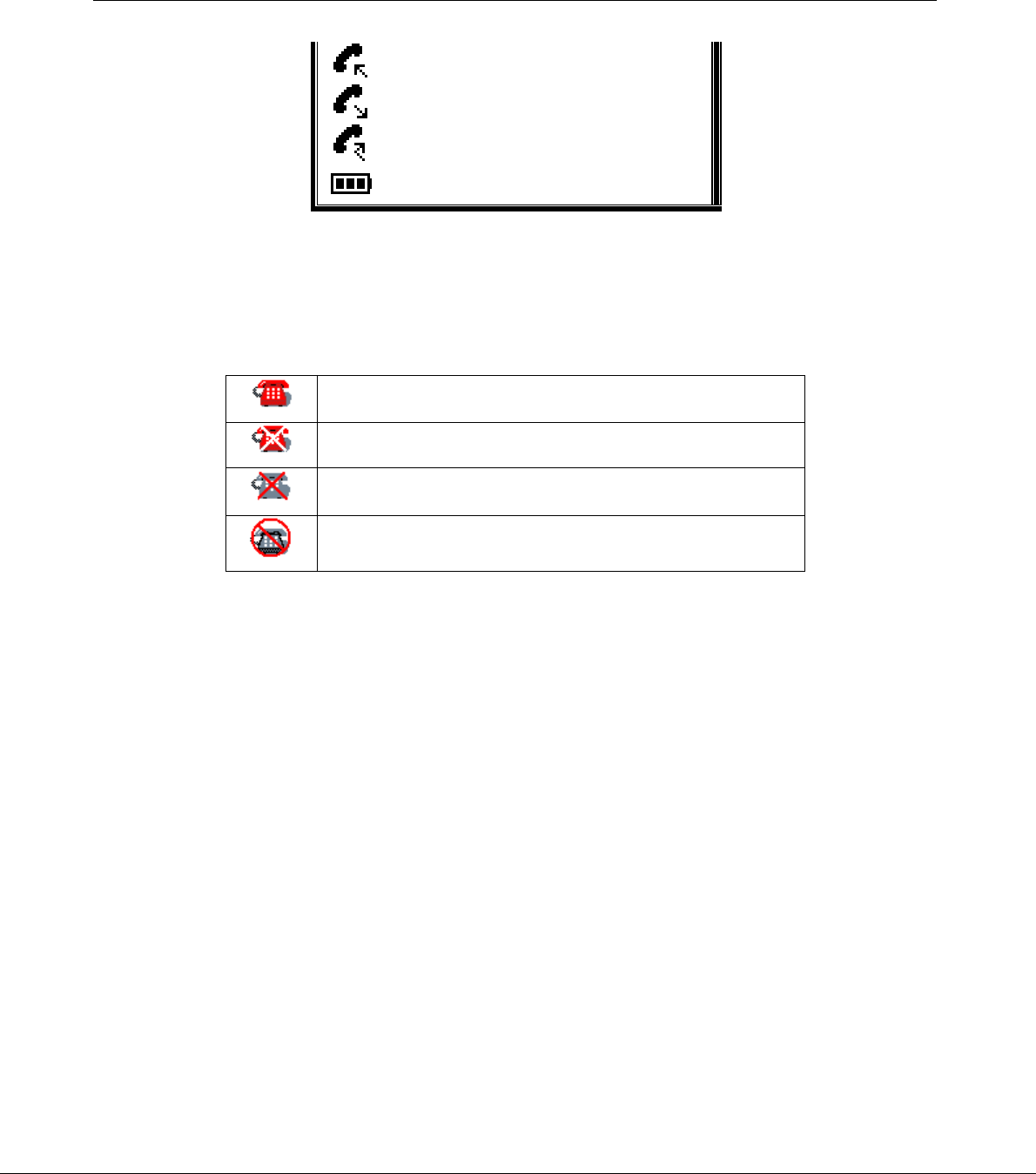

Incoming call
Out calling call
Missed call
Battery Capacity
1.5. Skywin Status
The USB device is plugged. and Skype is online
Can not find USB device
Can not find Skype (Skype uninstalled or not activate)
Skype has not been installed
2. Registration
Note: Before use CE260-VOIP-1, the phone has to be registered to Toshiba Dongle in
order to activate the Bluetooth.
2.1.
Toshiba Dongle Registration
Please read the steps of registration carefully and follow the steps to finish the registration.
Also, please use Toshiba Bluetooth software to register CE260-VOIP-1.

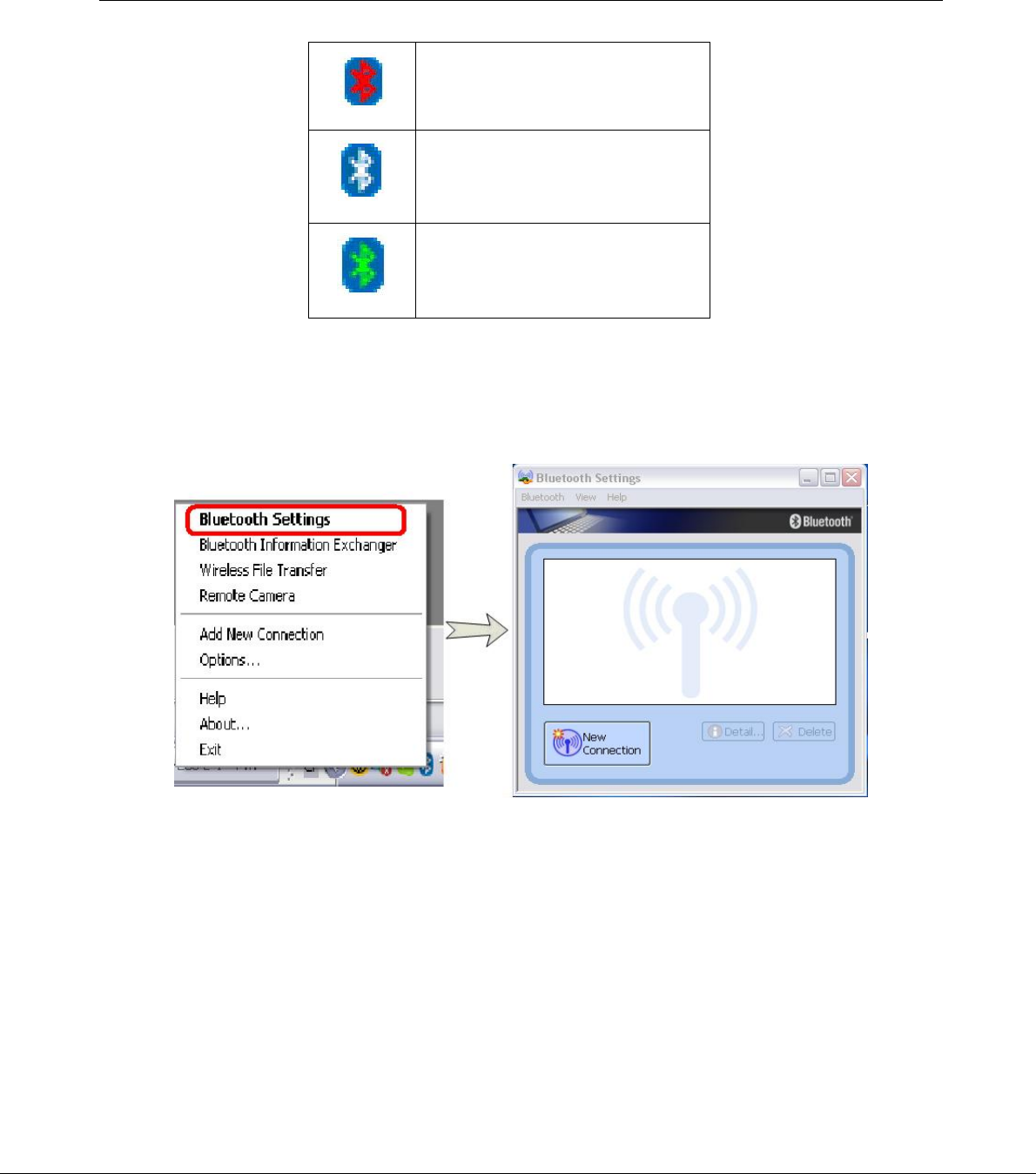

Step1: Be sure Toshiba Bluetooth software connected to the dongle. The software will show
three kinds of icons (see Pic.2-1). First, the red icon means Bluetooth is not ready. Second, the
white icon means Bluetooth is ready to use. Third, the green icon means Bluetooth is
connecting to CE260-VOIP-1.
CE260-VOIP-1 User Manual
Release Date:2007/07/16
Version:1.4
13
Toshiba Dongle not ready
Toshiba Dongle ready
Toshiba Dongle is connecting
with W-260
Pic.2-1: Toshiba Bluetooth Software status
Step2: Select Bluetooth Settings, then a new window will appear (see Pic 2-2).
Pic.2-2: Start Toshiba Bluetooth Software
Step3: Turn on CE260-VOIP-1 (hold 「ON/OFF (On Hook) 」for 2-3 seconds), and press #
button for 2 to 3 seconds to get in registration screen. The screen will appear [GP Register]
diagram.
CE260-VOIP-1 User Manual
Release Date:2007/07/16
Version:1.4
14

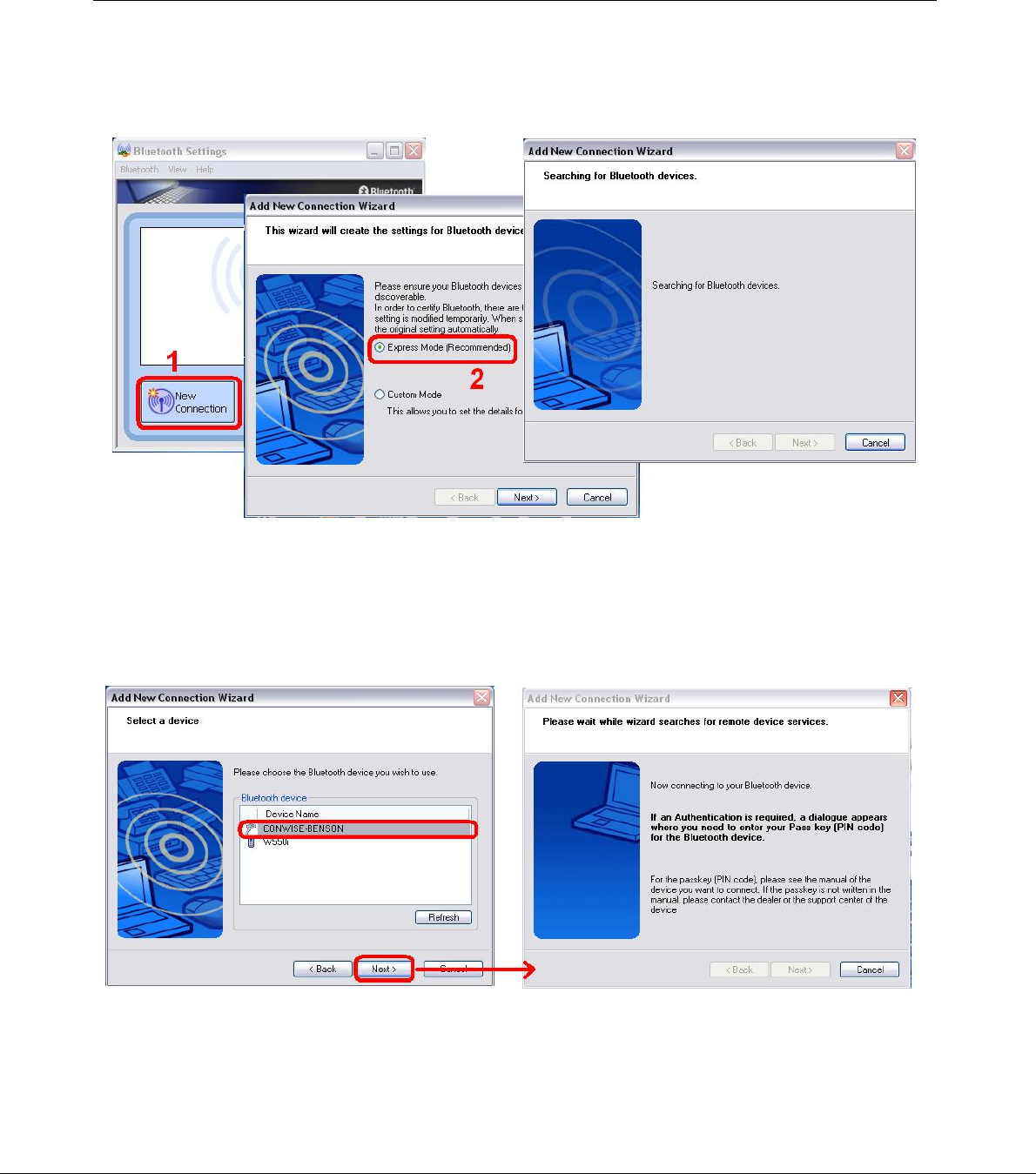

Step4: Click [New Connection] and select [Express Mode], and then click [Next]; Toshiba
Bluetooth software will start to search a device (see Pic. 2-3)
Pic.2-3: Toshiba Registration (A)
Step5: When Bluetooth software found the device, please select the right device and click
[Next]. Otherwise, please click [Refresh] to search again.
Pic.2-4: Toshiba Registration (B)
CE260-VOIP-1 User Manual
Release Date:2007/07/16
Version:1.4
15

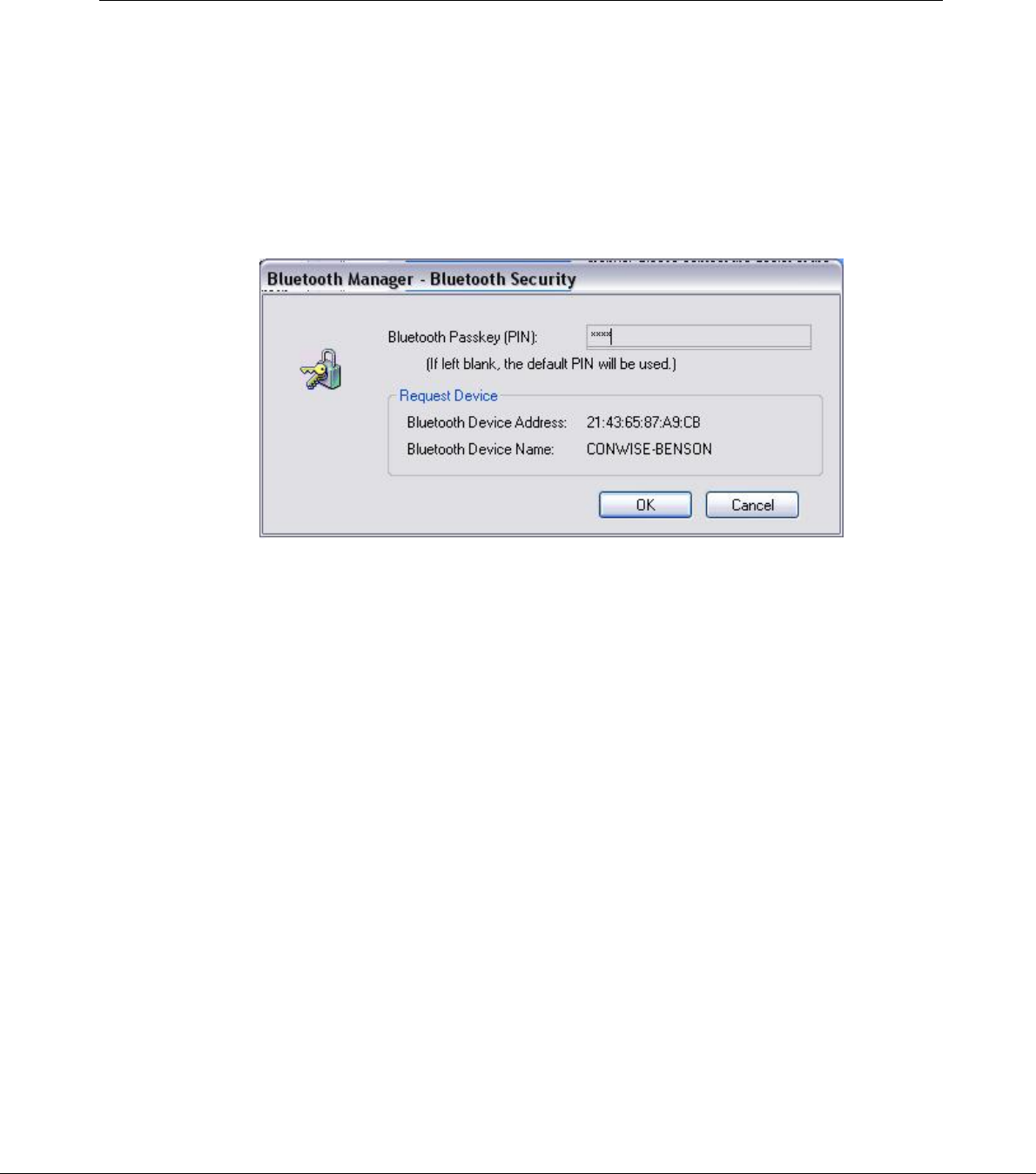

Step 6: After few seconds, [Bluetooth Manager – Bluetooth Security] screen will appear, and
please key in [0000] in [Bluetooth PIN] and click ok. Then CE260-VOIP-1 will automatically
connect to this the dongle.
Pic.2-5: Toshiba Registration (C)
Step 7: When CE260-VOIP-1 and dongle match up, the {Bluetooth Settings} diagram will
have an ear phone icon show up, and the background color of icon on the diagram will change
color from white to green (see Pic.2-6). Moreover, if CE260-VOIP-1 and dongle have set up
the Sound and Audio connection, the icon {Bluetooth Settings} will change. See Pic.2-6。
CE260-VOIP-1 User Manual
Release Date:2007/07/16
Version:1.4
16
Pic. 2-6: Toshiba Registration (D)
Step 8: After the connection is finished please make sure SkyWin is progressing, and the
phone is ready now。
3. Menu
CE260-VOIP-1 works with SkyWin support functions below. Press「OK」
to get into Menu：
1. Contact：View Contact list on CE260-VOIP-1。
2. Make a call：Phone book of Skype can be found in CE260-VOIP-1. If
you have Skype Out Credit, then you can also make a normal phone
call with CE260-VOIP-1. CE260-VOIP-1 also support Conference call.
。
3. Miss Call：View Miss Call list.
Pic. 3-1 Function Selection
CE260-VOIP-1 User Manual
Release Date:2007/07/16
Version:1.4
17
4. Option：Setup function, ring-tone, ring-tone volume
3.1. Contact
On standby mode press {OK} to get into Menu; press {OK} when you see {Contact}. Or press
{LEFT} key while silent mode for shortcut. When you are in the Contact list, operate the list with
{UP} {DOWN} {RIGHT} {LEFT} to chose a number, it appears same list as you see on the Skype
(see Pic.3-2)
Pic.3-2: Contact List Icon Status
3.2. Call History
On Standby mode press {OK} to get into Menu; then press {Down} key to chose {Call List}; or
press {Off hook} key for shortcut on silent mode. Operate the list with {UP} {DOWN} {RIGHT}
{LEFT} keys to view the history list. See Pic.3-3.
Pic.3-3: Call List Icon Status
3.3. Missed Call
CE260-VOIP-1 User Manual
Release Date:2007/07/16
Version:1.4
18

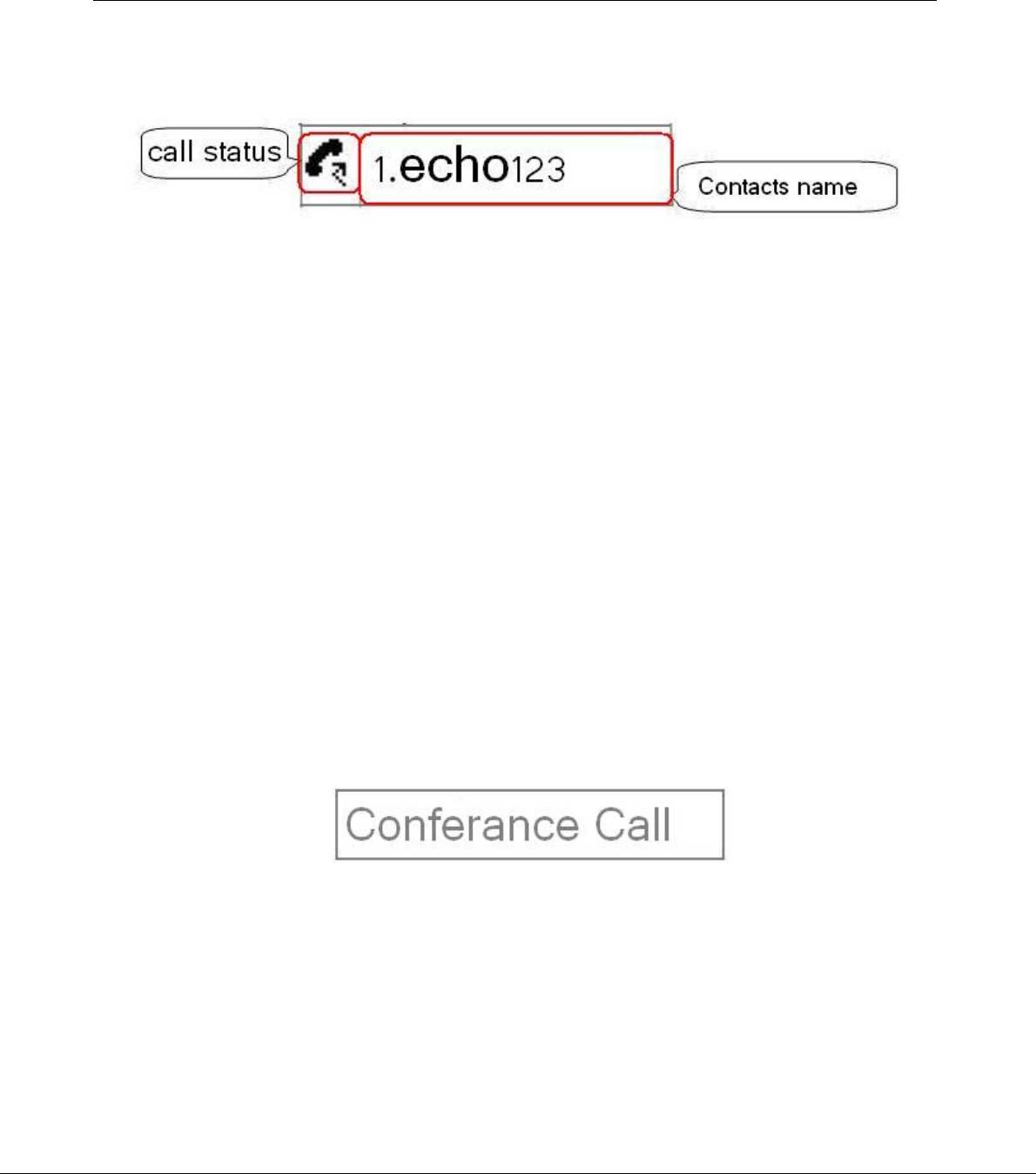

Press {OK} on the silent mode, then {DOWN} key to {Miss Call}, then operate Missed Calls
with {UP} {DOWN} {RIGHT} {LEFT} keys to view the list; See Pic.3-4.
Pic.3-4: Missed Call Icon Status
3.4. Making a Call
• Go into Contact list, Call History, or Missed Call list and find a person you want to contact
then press {off hook} key.
• Dial numbers with area code on CE260-VOIP-1 then press {off hood} key to get on a call; use
{on hook} to correct a wrong number。
• If you had been set up the memory key (hot key) on the Skype, then press a number and press
{off hook} key to make a quick call.
• Conference Call：operate on Skype to make multiple way calls. Press {Ctrl} + mouse left key
and point at contact, then use mouse to point at Skype green phone icon; then W-260 will
shows up {Conference Call}
• Answer: when a call is coming, press {OK} or {Off Hook} to answer. If another call is coming
during a conversation, also use {ok} to answer, and press {On Hook} to hand off.
• Refuse a call：if not answering a call, press {On Hook} to hand off.
CE260-VOIP-1 User Manual
Release Date:2007/07/16
Version:1.4
19
• Waiting：during a phone call, press {OK} to keep first person waiting; also {OK} key to return
call or {Off Hook}
• Adjust volume: adjust volume during a phone call, use {Volume UP/ Volume Down}.
3.5. Phone Set up
Selection Optional identification
Speaker Volume Volume 1~ 7
Mute 7 levels of the volume adjustment
Ring Volume Volume 1~ 7
Mute 7 levels of the volume adjustment
Key Tone Tone On
Tone Off Turn ON/OFF key tone
Ringer type type 1~tye 5
PC music 5 types of ringer music
4. FAQ
4.1. Can not turn on the phone
Make sure the power switch is on.
Make sure the battery is not running off.
4.2. SkyWin does not work
Effect SkyWin working properly has two reasons. If any system named SkyWin operating or file
folder, either one would cause SkyWin working error. Recommend that user do not save SkyWin
system in folder named {SkyWin} or shortcut.
Another reason is that there’s SkyWin still working in Windows Task Manager. Click right on
toolbar and chose {Windows Task Manager}, making sure there is no SkyWin.exe in progress.
CE260-VOIP-1 User Manual
Release Date:2007/07/16
Version:1.4
20
Pic.4-1: close progressing SkyWin
4.3. The sound can not come out from the phone
After Toshiba Software connect to CE260-VOIP-1 and the Dongle, and then execute Sound and
Audio Devices, set the default device of Sound playback and Sound Recording to PC’s sound card.
Then the sound will come out from the phone.
CE260-VOIP-1 User Manual
Release Date:2007/07/16
Version:1.4
21
Pic.4-2: Sounds and Audio Devices Properties
Pic.4-3: Toshiba connect succeed
CE260-VOIP-1 User Manual
Release Date:2007/07/16
Version:1.4
22
5. Specification
Support OS Windows 2000 SP4 / XP SP2
RF Operation frequence 2.4GHZ
RF Operating Channels 79 channels
Audio Frequence Speaker：300Hz ~ 3400KHz
Microphone：20Hz ~ 16KHz
Signal/Noise Distortion 85 dB
Battery capacity 120 mAH Li battery
Battery Life Continuous use for 1 hours
Battery charger USB charger DC 4.75~5.25 V
Operating temperature 0℃ to 40℃
Storage Temperature -10℃ to 60℃
Operate Humidity < 90%
Storage Humidity < 95%
Dimension 91mm(L) x41mm(W) x 10.5mm(H)
Weight 29g
