USER GUIDE
LOUDBOX MINI CHARGE
TM
1
Important Safety Instructions
To ensure your personal safety and the safety of others, operate this apparatus only after reading these instructions
and heeding the warnings listed below.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block the ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The
wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at the plugs, convenience receptacles
and the point where they exit from the apparatus.
11. Use only attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury
from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as a power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
15. Do not expose the apparatus to dripping or splashing liquids and do not place objects filled with liquids
(such as a beverage container or a vase) on the apparatus.
16. Warning” To reduce the risk of fire or electric shock, do not expose this apparatus to moisture.
17. The device is designed and evaluated under the condition of non-tropical climate; and, it can be only used
in locations in non-tropical climate areas. Using the device in tropical climate areas would result in high
safety risk.
18. Normal operating environmental temperature range: 0 °C [32 °F] to 35 °C [95 °F].
19. WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as
sunshine, fire or the like.
20. CAUTION: Danger of explosion if battery is incorrectly replaced. To replace battery use Fishman’s approved
battery kit only at Certified Service Centers
21. No naked flame sources, such as lighted candles, should be placed on the apparatus.
22. Do not install this equipment in a confined or building-in space such as a book case or similar unit, and
remain a well ventilation conditions at open site. The ventilation should not be impeded by covering the
ventilation openings with items such as newspaper, table-cloths, curtains etc.
Warning: The mains plug/appliance coupler is used as disconnect device, the disconnect device shall remain
readily operable.
Copyright © 2017 FISHMAN TRANSDUCERS, INC.
All rights reserved. No part of this document may be reproduced in any form without the written
permission of FISHMAN TRANSDUCERS, INC.
CAUTION
Risk of electric shock.
Do not open.
No user serviceable parts inside.
Refer servicing to qualified personnel.
Do not expose to rain or moisture.
Wherever this symbol appears, it alerts you to the presence
of uninsulated dangerous voltage inside the enclosure
that may be sufficient to constitute a risk of shock.
Whenever this symbol appears, it alerts you to the presence
of important operating and maintenance (servicing)
instructions in the user’s manual for this amplifier.
2
Hear This!
The Loudbox Mini Charge amplifier is capable of cleanly reproducing the sound
of your instrument at very high volume levels. Prolonged repeated exposure
to high sound pressure levels (SPLs) without protection can cause permanent
hearing loss. OSHA has set guidelines and specified permissible sound-exposure
limits for those who work in high SPL environments.
Permissible Noise Exposures
Duration per day, hours Sound level dBA slow response
8 90
6 92
4 95
3 97
2 100
1 1/2 102
1 105
1/2 110
1/4 or less 115
To ensure against permanent hearing loss, wear hearing protection when you perform with amplification.
FCC Compliance Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult
the dealer or an experienced radio/TV technician for help. Changes and modifications not expressly approved
by FISHMAN TRANSDUCERS can void your authority to operate this equipment under Federal Communications
Commissions rules.
M/N: 494-000-582
FCC ID: RMU-494000582
IC: 10812A-494000582
This symbol means the product must not be discarded as household waste, and should be delivered to an
appropriate collection facility for recycling. For more information on disposal and recycling of this product,
contact your local municipality, disposal service, or the shop where you bought this product.
3
FCC Compliance Statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
EU Declaration of Conformity CE: Hereby, Fishman declares that this Loudbox Mini Charge is in
compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU,
2014/30/EU, 2014/35/EU.
This device complies with Industry Canada license-exempt RSS standard(s): Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference that may cause undesired operation of the device.
Cet appareil est conforme aux normes Industry Canada exemptes de licence standard RSS(s):
Son fonctionnement est sujet aux deux conditions suivantes: (1) cet appareil ne peut pas provoquer
d’interférences et (2) cet appareil doit accepter toute interférence, y compris les interférences
susceptibles de provoquer un fonctionnement indésirable.
Bluetooth®
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and
any use of such marks by Fishman Transducers is under license. Other trademarks and trade names
are those of their respective owners.
WARNING!
FCC and IC Radiation Exposure Statement:
This equipment complies with FCC’s and IC’s RF radiation exposure limits set forth for an uncontrolled
environment under the following conditions:
1. This equipment should be installed and operated such that a minimum separartion distance of
20cm is maintained between the radiator (antenna) & user’s/nearby person’s body at all times.
2. This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Before using Loudbox Mini Charge, carefully read the following:
Important Safety Instructions (Page 1)
Getting Started (Page 5)
4
Welcome
Thank you for making Fishman a part of your acoustic experience. We are proud
to offer the fi nest acoustic amplifi cation products available; high-quality
professional-grade tools which empower you to sound your very best.
5
Getting Started

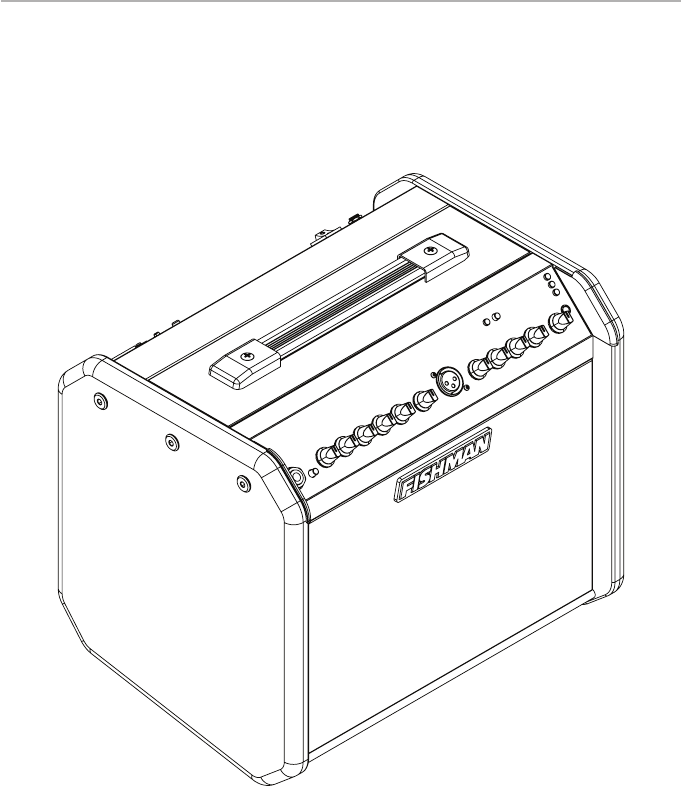

Your new Loudbox Mini Charge is a portable, battery-powered amplifi er de-
signed to faithfully reproduce the sound of acoustic instruments and a diverse
assortment of vocal or recorded accompaniments.
With the addition of Bluetooth® wireless connectivity, you can now easily and
neatly add backing tracks or other accompaniment to your performances, jams,
or wherever your Loudbox Mini Charge takes you and your music. Where Are
You Going to Take It? ™
Here are some basic setup tips to help get you going. To operate your Loud-
box Mini Charge safely, please read the entire manual, especially the Important
Safety Instructions on page 2.
1. Locate the Power switch (next to the rear panel power cord socket) and switch
it off, then connect the provided AC adapter into the back of the amplifi er and
the provided line cord into the AC adapter.
2. Plug the Loudbox Mini Charge line cord into an electrical outlet with the ap-
propriate AC voltage, 100-240VAC 50/60 Hz.
3. Turn down the Master Volume control and turn on the Power switch. The
Power Indicator should illuminate. Either the Battery Indicator will illuminate
if the battery is fully charged or the Low Battery Indicator will illuminate if the
battery needs charging.
4. Connect your instrument to the Instrument input with a shielded ¼” cable.
5. Gradually increase the Instrument channel Gain:
• For instruments featuring active (battery-powered) onboard preamps,
start with the control around 10 o’clock.
• For passive pickups, you may start with the control set much higher.
It is normal to run this control near its maximum with many passive
soundhole pickups.
6. Slowly raise the Master Volume to the desired level.

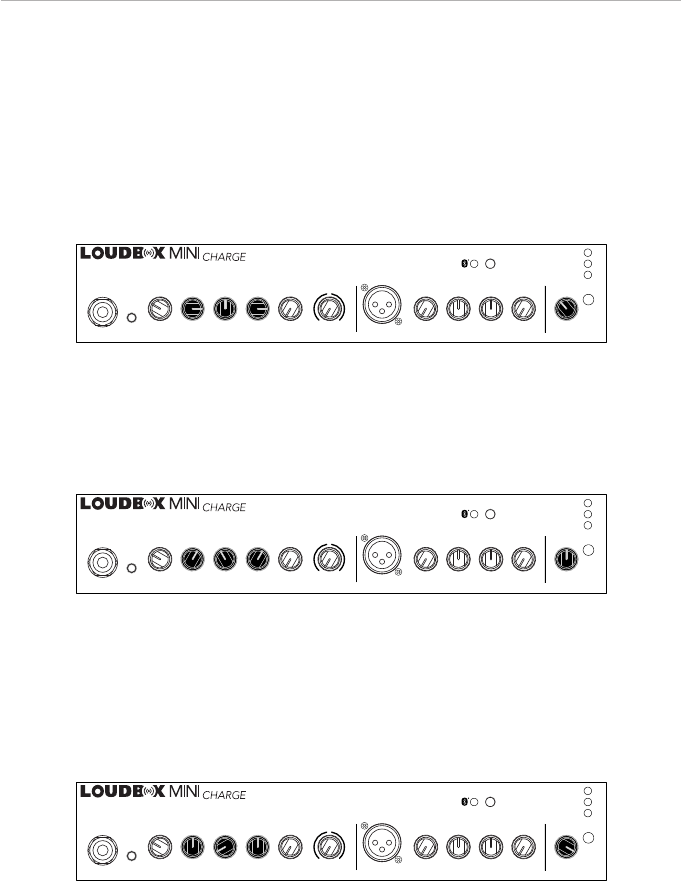

High
Low
Gain Reverb Master
power
Mic
HighMidLowGain Reverb
Phase
off
mild
Chorus
Instrument
pairing
battery
low battery
charging
heavy
6

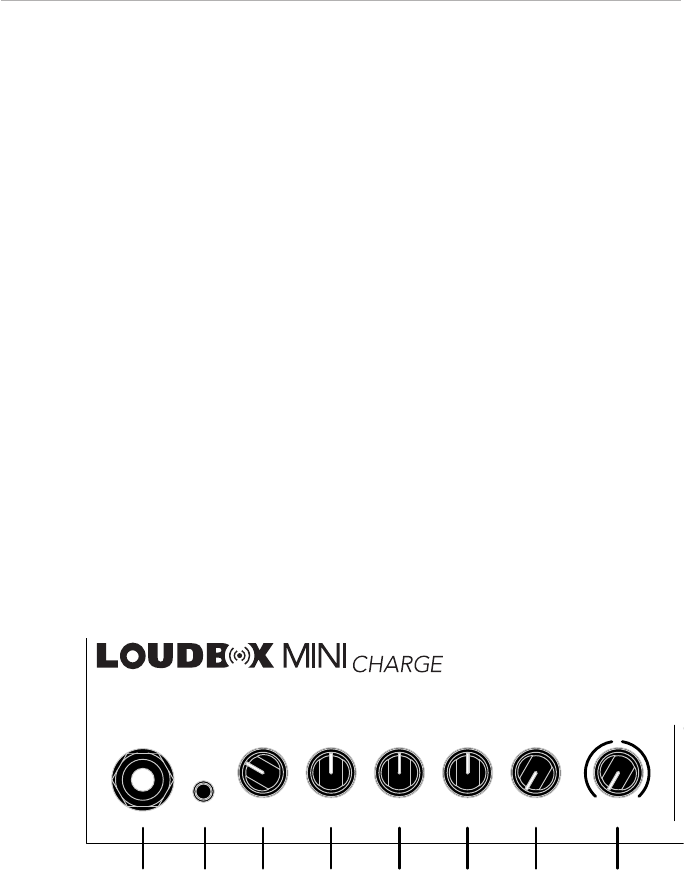

Front Panel
1. Instrument Input
This 1/4” input accepts all types of passive or active acoustic pickups.
2. Phase
Use the Phase switch to improve bass at low volume and suppress feedback at
high volumes.
3. Gain
Use the Gain knob to set the signal level for the instrument input.
4. Low
Boost here to add weight to the sound. In general, boost bass at low volumes
and cut bass at higher levels. With the dial set at 12 o’clock, the control is effec-
tively out of the circuit.
5. Mid
This control affects how well the instrument blends in or stands out in the mix. At
loud volumes, a midrange cut will achieve a more natural sound. With the dial
set at 12 o’clock, the control is effectively out of the circuit.
6. High
Boost highs to add “air” to the sound of the instrument. With the knob set at
12 o’clock, the control is effectively out of the circuit.
7. Reverb
Controls the amount of digital reverb in the Instrument channel.
8. Chorus
Controls the depth of two separate chorus presets.
High
Low
Gain Reverb Master
power
Mic
HighMidLowGain Reverb
Phase
off
mild
Chorus
Instrument
pairing
battery
low battery
charging
heavy
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15
7

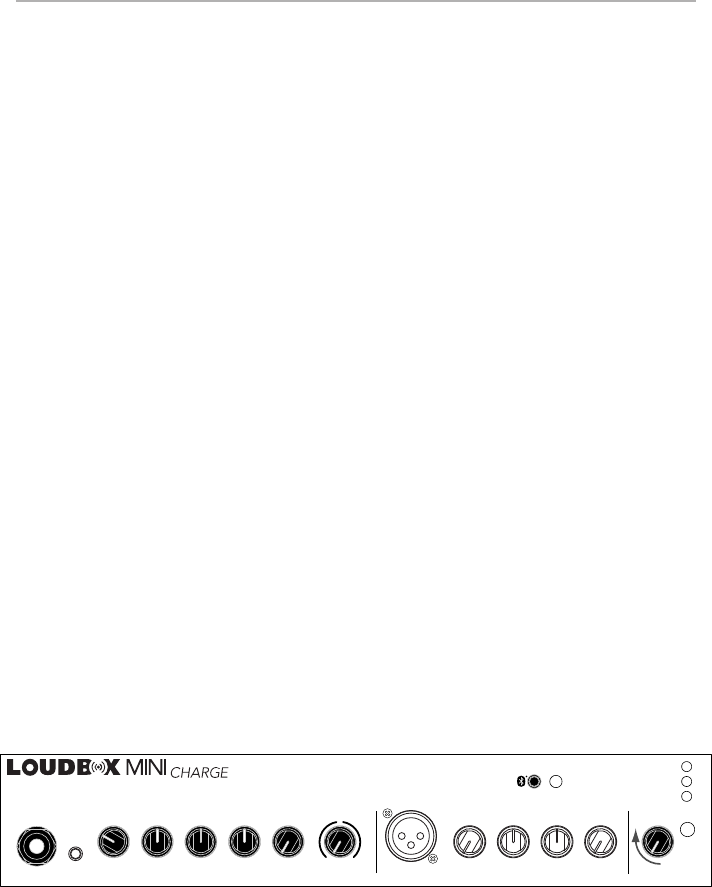

Front Panel (cont.)
9. Mic Input
Plug in a balanced microphone into this XLR input for vocal or for your instru-
ment. The Loudbox Mini Charge makes an excellent mini PA or vocal monitor.
You may also connect an outboard preamp with balanced XLR out to this input.
10. Gain
Use the Gain knob to set the signal level for the Microphone input.
11. Low
Boost here to add weight to the sound. In general, boost bass at low volumes
and cut bass at higher levels. With the dial set at 12 o’clock, the control is effec-
tively out of the circuit.
12. High
Boost highs to add “air” to the sound of the microphone. With the knob set at
12 o’clock, the control is effectively out of the circuit.
13. Reverb
Controls the amount of digital reverb in the Microphone channel.
14. Master Volume
Set the overall level of the Loudbox Mini Charge with the Master Volume. In
general, put the Master Volume as high as possible using less Gain (2 o’clock to
5 o’clock) to achieve the cleanest sound.
15. Power
Lights up when the amplifi er power is on. The Power switch is located behind
the amp next to the power cord socket.
High
Low
Gain Reverb Master
power
Mic
HighMidLowGain Reverb
Phase
off
mild
Chorus
Instrument
pairing
battery
low battery
charging
heavy
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
8

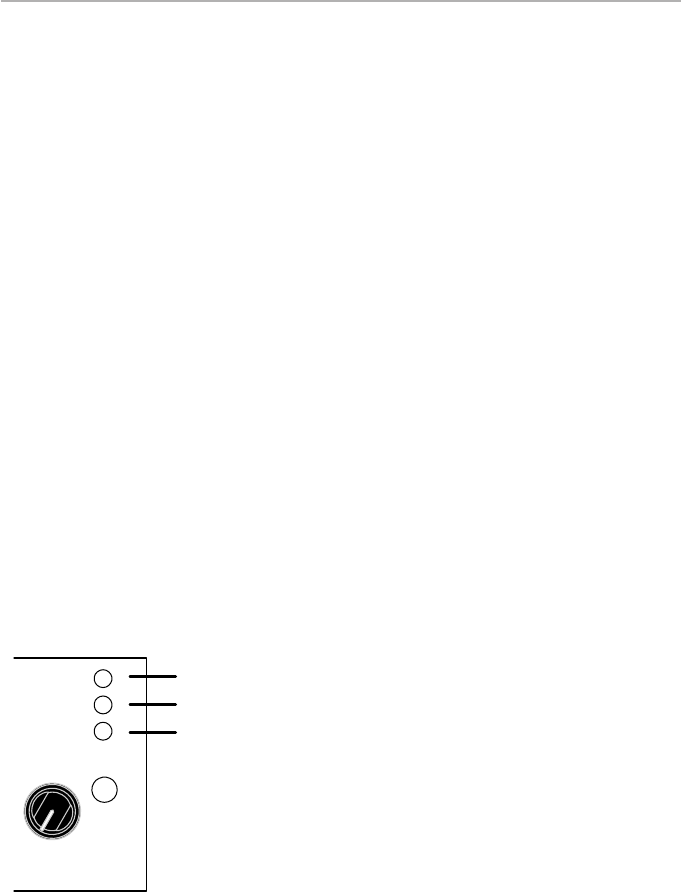

Front Panel (cont.)
16. Bluetooth® Indicator
This green indicator will display a medium fl ash indicating the Bluetooth® mod-
ule is ready for pairing. It will display a slow fl ash indicating the module is ready
for reconnection with a previously paired device. The indicator will be on when
playback is active and display a fast fl ash when playback is paused.
17. Bluetooth® Pairing
To pair a Bluetooth® enabled device for the fi rst time, hold the Pairing button
more than 5 seconds. You will hear an ascending tone and the Bluetooth®
Indicator will change from a slow fl ash to a fast fl ash indicating it is ready to pair.
Ensure your Bluetooth® enabled device is in pairing mode. Once paired the
indicator will stop fl ashing and will allow you to stream music to the amplifi er.
If the button is pressed during paired playback, the playback will be paused
and the Bluetooth® Indicator will display a fast fl ash. Press the button again to
resume playback and the Bluetooth® Indicator will return to on.
To activate Bluetooth® for a previously paired device, hold the Pairing button for
approximately 1-2 seconds (must be less than 5 seconds). An ascending tone will
play briefl y to indicate the Bluetooth® is powering on. The Bluetooth® Indicator
will slowly fl ash informing it is ready to reconnect and will pair if your device is in
pairing mode.
To turn off the Bluetooth® when already paired, hold the button for 1-2 seconds.
A descending tone will indicate that the connection is powering down and the
Bluetooth® Indicator will turn off.
High
Low
Gain Reverb
Mic
Reverb
off
mild
Chorus
pairing
heavy
9
Front Panel (cont.)
18. Green Battery Indicator
When on, this green indicator tells you that the battery is charged, functional
and power is available.
19. Red Low Battery Indicator
When on, this red indicator denotes that the battery’s available charge is low. All
indicators will turn off and the amplifi er will shut down if the battery no longer
has enough charge to power the amplifi er. At this point, the amplifi er cannot be
powered up until the AC adapter has been plugged in to recharge the battery.
The amplifi er can be used normally while charging.
20. Yellow Charging Indicator
When on, this yellow indicator denotes that the battery is charging. It only illu-
minates when the AC adapter is plugged in and the battery is receiving external
power to recharge. After the battery is fully charged, this indicator will turn off.
The Charging Indicator will also be off if the AC adapter is not connected or
receiving power.
High
Low
Gain Reverb
Master
power
Mic
HighMidLowGain Reverb
Phase
off
mild
Chorus
Instrument
pairing
battery
low battery
charging
heavy
18
19
20
16 17
10

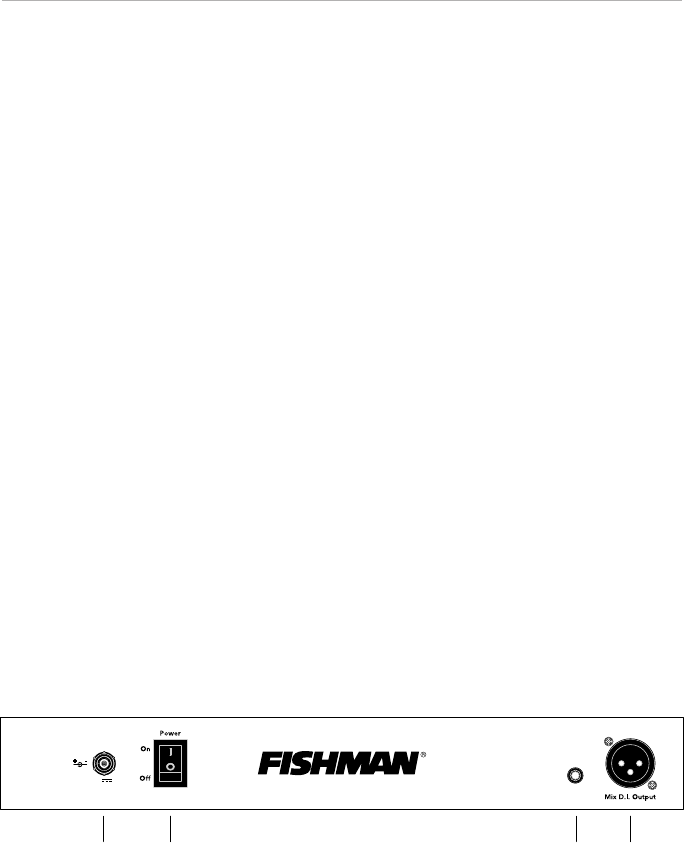

Rear Panel
1. DC In
Operate the amplifi er only at the voltage indicated on the rear panel.
Plug in the supplied DC cable into the DC In power socket on the amp. Plug the
provided AC cable with the female IEC-style 320 connector into the AC Adapter
and the male AC plug appropriate for your region into an outlet.
The DC In is the power input, and when connected appropriately as described
above, it will also simultaneously charge the battery if it is below full charge. The
amplifi er may be used while charging and may be charged when powered down.
See the battery indicators on the front panel for battery charge status.
2. Power switch
Lower the Master Volume before you turn on the amp. Flip the power switch to
the up position for On.
3. Aux Input - 1/8”
Plug in a line-level stereo audio source such as a CD or MP3 player in this input.
The input is stereo; however, the left and right signals are mixed to mono within
the amplifi er.
4. Mix D.I. (Post)
Plug in here when you wish to send signals from both Channel 1 and 2, plus 1/8”
Aux and Bluetooth signals, to a mixing console or a slave amplifi er. This post-EQ
output is always ground-isolated to prevent ground loop hum.
1 2 3 4
Aux Input
12V 5A
DC In
11
Tone Tips
Set up
For reference, start with the tone controls set straight-up, (twelve o’clock). In this
position, there is no additional boost or cut equalization applied to your sound.
Begin at a very low volume and work your way up. As you turn up, try adjusting
the Loudbox Mini Charge’s tone controls as recommended below.
1. Low volume
At a low volume (just above conversation level) our ears are not very sensitive
to bass and treble, so give the Low and High controls a good boost. Try three
o’clock on the dial.
2. Medium volume
At medium levels, when you need to raise your voice to be heard over the music,
the human ear is quite sensitive to midrange. Cut the Mid control to about ten
o’clock or to your taste. At this level, our perception of bass and treble starts to
catch up to the rest of the tonal spectrum, so you can back off the Low and High
controls slightly for good tonal balance.
3. High volume
At loud levels, when you must shout to be heard over the music, your ears (and
your audience) will benefi t from a deep midrange cut. Set the Mid dial between
nine and seven o’clock. Our perception of bass and treble “fl attens out” at high
volumes, so you won’t need much, if any, Low or High boost. Set the Low and
High knobs to between twelve and one o’clock. In many cases, you can also
improve the tone at very high volume if you cut bass. Try setting the Low knob
between ten and eleven o’clock.
High
Low
Gain Reverb Master
power
Mic
HighMidLowGain Reverb
Phase
off
mild
Chorus
Instrument
pairing
battery
low battery
charging
heavy
High
Low
Gain Reverb Master
power
Mic
HighMidLowGain Reverb
Phase
off
mild
Chorus
Instrument
pairing
battery
low battery
charging
heavy
High
Low
Gain Reverb Master
power
Mic
HighMidLowGain Reverb
Phase
off
mild
Chorus
Instrument
pairing
battery
low battery
charging
heavy
12

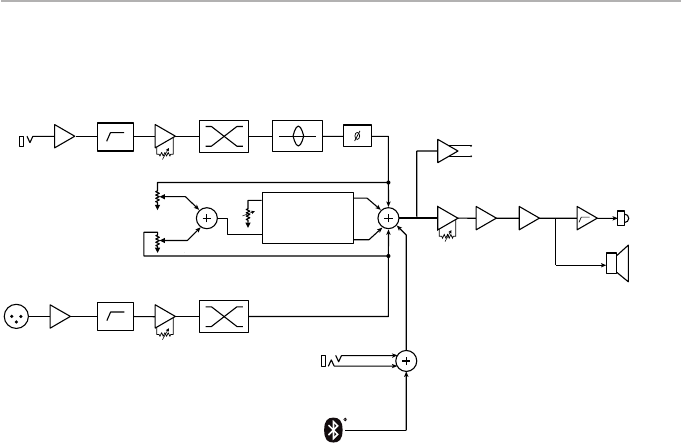

Block Diagram
Master
Volume
Mix D.I. Output
(mic level)
Digital
Effects
Chorus In
Reverb In
Mic
Reverb Level
Instrument
Reverb Level
Stereo Aux
Input
Tip = Left
Ring = Right
1/8”
Mic
Input
Mic
Preamp Gain Low, High
Hi-Pass
Filter
Phase
Class-A
Buffer
Limiter Power
Amplifier
Gain Middle
Low, High
Hi-pass
Filter
Crossover
Tweeter
Woofer
Instrument
Input
Bluetooth®
Instrument
Chorus
13
Technical Specifi cations
Ratings applicable to internal battery or external power source
Output rating:
SPL @ 1 meter 108 dB (measured)
Frequency Response 80 Hz – 20 kHz
Power rating: 60 W
Battery:
Est. Performance Times 18 hours (low volume)
12 hours (average volume)
4 hours (full volume)
Charge Time 10 hours
Input impedance:
Ch. 1 10 MΩ
Ch. 2 2 kΩ
Aux Input (stereo) 10 kΩ
Tone controls:
Low ±12 dB @ 80 Hz (resonant)
Mid ±10.5 dB @ 750 Hz (resonant)
High ±12.5 dB @ 15 kHz (shelving)
Mix D.I. out:
Output Impedance 600 Ω balanced, mic level
Phantom power tolerant
Speaker system:
Woofer 6.5” paper cone
Tweeter 1” soft dome
Baffl e Angle 10 degrees
Physical:
Dimensions 9.7” [D] x 13.7” [W] x 12” [H]
(24.7 cm x 34.9 cm x 30.5 cm)
Weight 21.2 lbs (9.6 kg)
Connectivity:
Playback Bluetooth® 4.0
We reserve the right to change any of the specifi cations and information in this manual without notice.
14
Fishman and Fishman Transducers are trademarks or tradenames of Fishman Transducers Inc. 513-300-271 r2
shman.com

Navigation menu
