CONTENTS

IMPORTANTINFORMATION3

ABOUTYOURPOUCH4

WHAT’SINCLUDED?4

GETTOKNOWYOURENERGYPOUCH5

POWERCONSOLEANDICONS5

HOWTOUSEYOURENERGYPOUCH7

FAQSANDTROUBLESHOOTING10

PRODUCTSAFETY,TIPS,ANDPRECAUTIONS11

COPYRIGHTSANDOTHERNOTICES14

EnergyPouch



OWNER’SMANUALPNXXXXXXXDRAFT3



OWN

ER’

MAN

IMPORTANT INFORMATION

Readthesesimpleguidelines.Notfollowingthemmaybedangerousorillegal.



COMPATIBILITY

ThispouchiscompatiblewiththeiPhone®6,iPhone6S,Samsung®GalaxyS6,

andSamsungGalaxyS6Edgeonly.Itwillnotworkwithotherphonesor

devices.



INTERFERENCE

Allwirelessdevicesmaybesusceptibletointerference,whichcouldaffect

performance.



QUALIFIEDSERVICE

Onlyqualifiedpersonnelmayinstallorrepairthisproduct.



BATTERIES,CHARGERS,ANDOTHERACCESSORIES

Useonlybatteries,chargers,andotheraccessoriesapprovedbyFlextronicsfor

usewiththisdevice.Donotconnectincompatibleproducts.



KEEPYOURDEVICEDRY

Yourdeviceisnotwater‐resistant.Keepitdry.

EnergyPouch



OWNER’SMANUALPNXXXXXXXDRAFT3



OWN

ER’

MAN

ABOUT YOUR POUCH

Cables,wires,andsearchingforanoutletcrampeveryone’sstyle.Withthewireless

chargingEnergyPouch,youcandiscreetlychargethebatteryofyoursmartphone

withoutconnectingtoanycablesorwalloutlets.Justslipthephoneintothecharging

pocketlocatedinthepouchandvoila!Thisiswirelesscharging!



ThewirelesschargingpowerconsoleinsidetheEnergyPouchletsyouknowifyour

phoneischargingoriftheEnergyPouchitselfneedsarechargewhenyougethome.



TheEnergyPouchiscompatiblewiththeiPhone®6,iPhone6S,andtheSamsung®

GalaxyS6andS6Edgeonly.Thisguideprovidesinstructionsforusingthewireless

chargingEnergyPouchwiththesephones.Formoreinformationaboutthesephone

models,consulttheindividualphoneuserguides.



WHAT’S INCLUDED?



WirelesschargingEnergyPouch

Phonecase(requiredforiPhone6/6S)

Let’sgetstartedguide

PoweradapterwithUSBcable



















EnergyPouch



OWNER’SMANUALPNXXXXXXXDRAFT3



OWN

ER’

MAN

GET TO KNOW YOUR ENERGY POUCH

Thesearethekeypartsofyourpouch.



Powerconsole

Wirelesschargingpocket



POWER CONSOLE and ICONS

ThepowerconsoleislocatedintheinteriorcompartmentofyourEnergyPouch.







Powerswitchtoturnonwirelesschargerinordertowirelessly

chargeyourphone.



Pouchwirelesschargerpowerstatusiconthatindicatesthewireless

chargerbatterylevelandactivityofyourpouch’swirelesscharger.



Phonewirelesschargingstatusiconindicateswhetherornotyour

phoneischargingwirelesslyinthepouch.



microUSBchargingportforthepouch,notyourphone.Tobeused

withtheprovidedmicroUSBcableandpoweradapterinorderto

chargethepouch’sbattery.









EnergyPouch



OWNER’SMANUALPNXXXXXXXDRAFT3



OWN

ER’

MAN



POUCH ICON STATES

ThePouchIconcommunicatesthepowerstatusofyourEnergyPouch.



PHONE ICON STATES

ThePhoneIconcommunicatesthestatusofyourphonechargingwirelesslyinyour

EnergyPouch.



Solid:Pouchispluggedinandischarging



Blinks:Wirelesschargerpowerislow.Chargepouch.



Blinks:Pouchisnotcharging.Thepoweradapterorcablearenotplugged

incorrectly.PleasemakesuretousethewalladapterandUSBcable

shippedwiththeenergypouch.



NoColor:Thepouchwirelesschargerbatteryisnearlydepleted.

Rechargepouch.

Solid:Pouchwirelesschargingpocketisonandreadytochargeyour

phone.

Blinks:Yourphoneischargingwirelesslyinthepouchinthecharging

pocket.



NoColor:Yourphoneisnotcharging.Thepouch’swirelesscharging

pocketis“off”.

EnergyPouch



OWNER’SMANUALPNXXXXXXXDRAFT3



OWN

ER’

MAN

HOW TO USE YOUR ENERGY POUCH

Followtheseinstructionstostartchargingyourphonewirelesslywiththe

EnergyPouch.



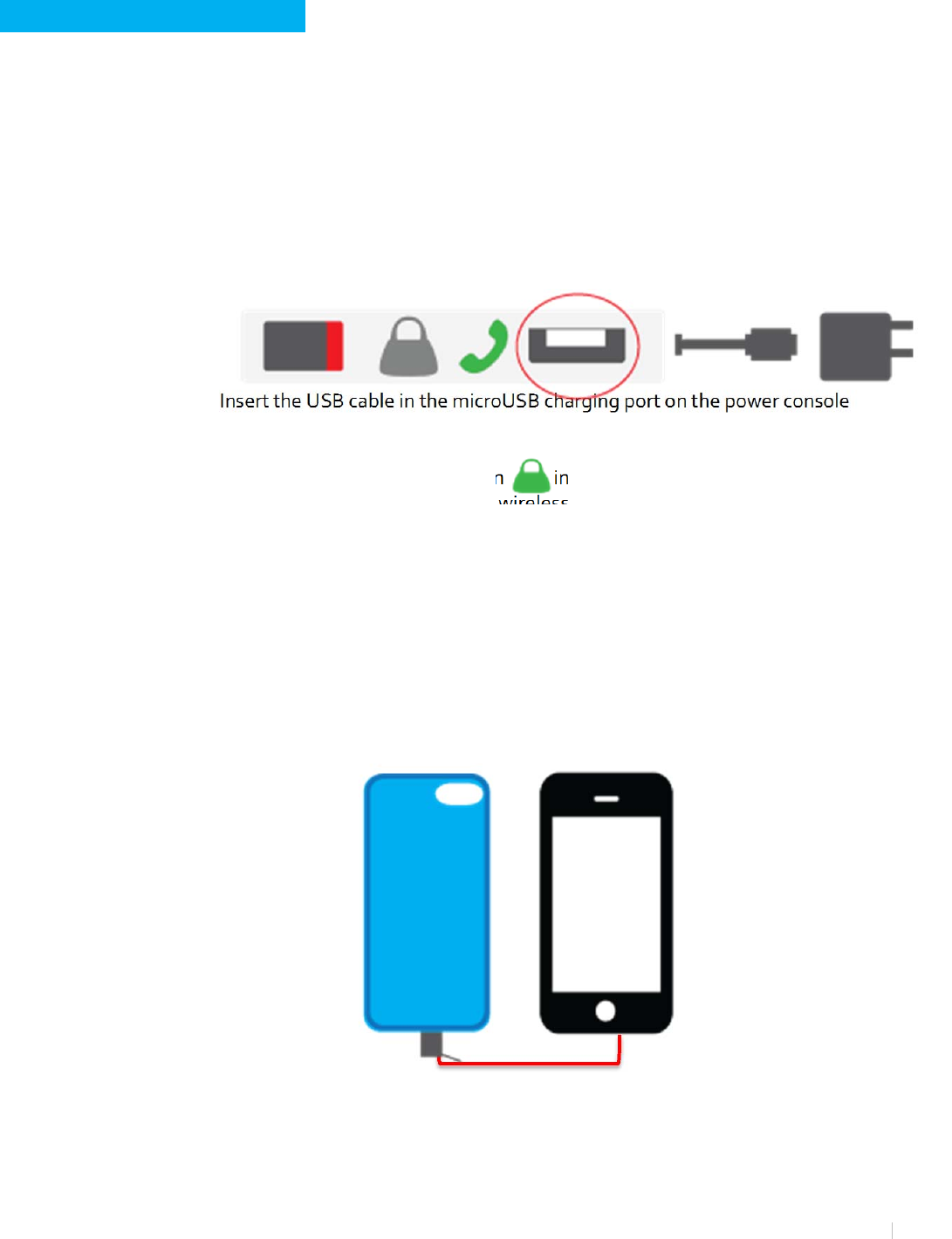

1. ChargeyourEnergyPouch.



InserttheUSBcableinthemicroUSBchargingportonthepowerconsole

ofyourpouchandplugthepoweradapterintoapoweroutlet.



Thepouchiconilluminatesgreen,,indicatingthatthepouchispluggedinto

apoweroutletandchargingthewirelesschargingbattery.



IMPORTANT:Properchargingofyourpouchrequirestheuseofthesupplied

poweradapterandcable.



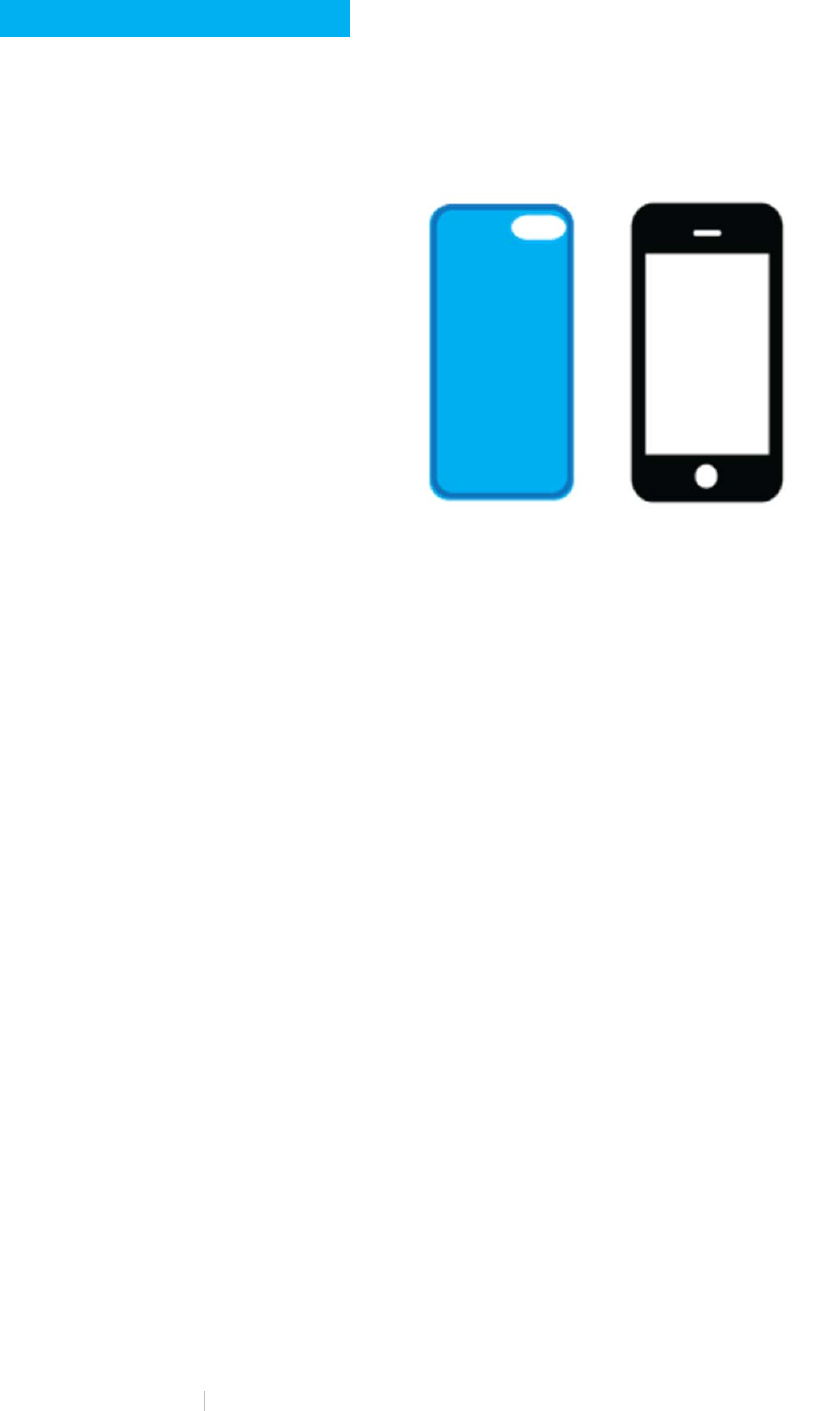

2. Attachthephonecaseontothebackofyourphone.

iPhone6/6S:

SnaptheconnectoratthebaseofthecaseintothechargingportofyouriPhone

6/6S.(Thecaseisrequiredforuse.)







SamsungGalaxyS6Edge:

Snapthecasetothebackofyourphone.(Thecaseisnotrequiredforuse.)



EnergyPouch



OWNER’SMANUALPNXXXXXXXDRAFT3



OWN

ER’

MAN





EnergyPouch



OWNER’SMANUALPNXXXXXXXDRAFT3



OWN

ER’

MAN

3. Now,chargeyourphonewirelessly!

Insertthephone,frontsidefacingoutwards,intothemeshsleeveofthe

chargingpocketinyourpouch.

 

Snapthebuttonofthepocketshuttokeepyourphonesecure.



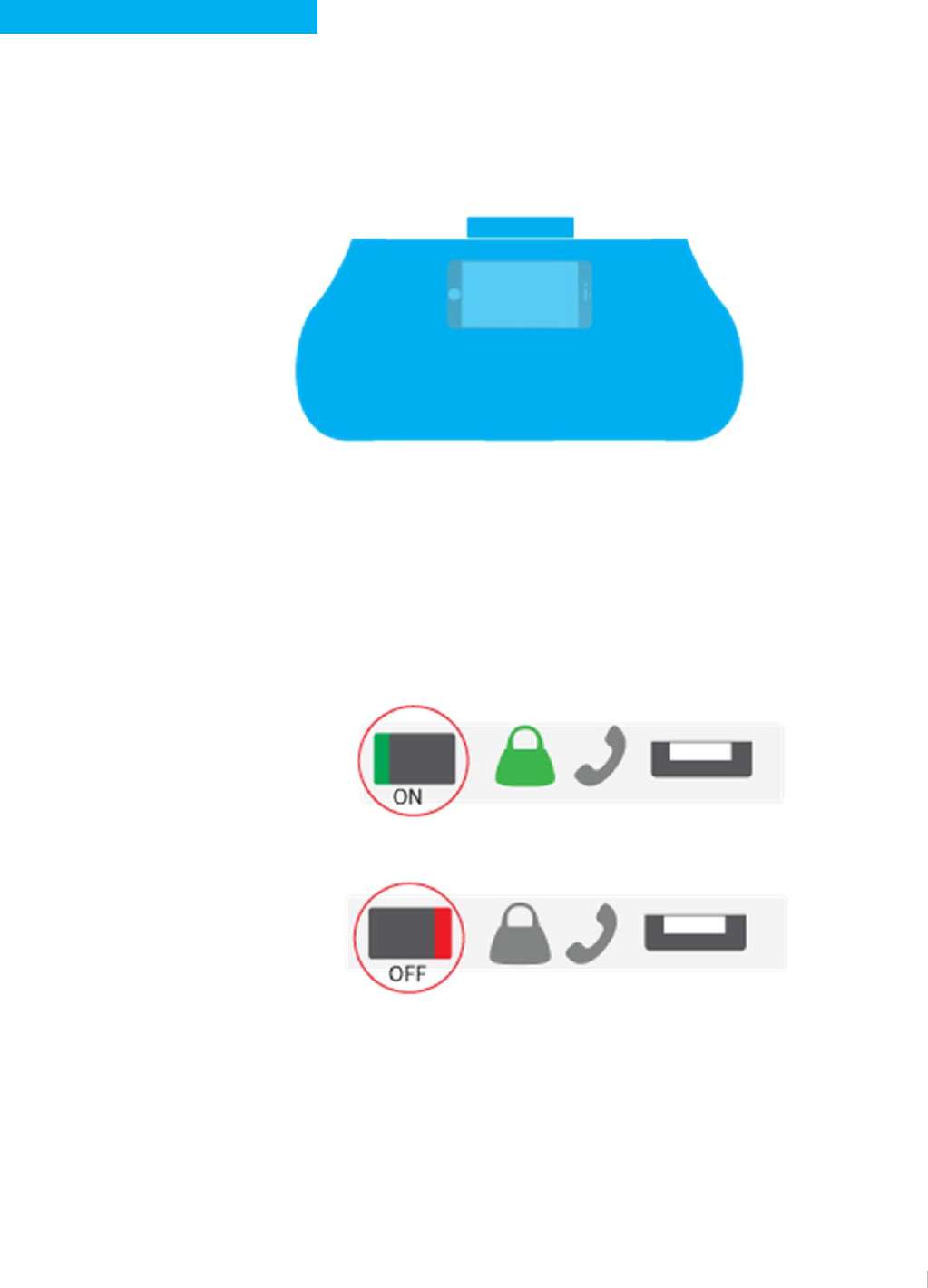

Slidethepowerswitchonthepowerconsoletorevealthegreenbackground,

(“on”position).Thephonestatusiconrevealsgreenindicatingthatyourphone

ischargingwirelessly.Toturnoffwirelesscharging,slidethepowerswitchon

thepowerconsoletorevealtheredbackground,(“off”position).



 

 



EnergyPouch



0

OWNER’SMANUALPNXXXXXXXDRAFT3



OWN

ER’

MAN

FAQs AND TROUBLESHOOTING

Q:HowdoIcleanmypouch?

A:Useawetclothandrubthepouchuntilitissaturated,butnotwet.Agoodtipisto

usetheclothonasmallportionofthepouchbeforeexpanding,inordertomakesure

theleatherisnotdamaged.



Q:HowdoIknowwhenthepouchischargedandreadytouse?

A:ThepurseLEDchargingindicatorwillturnoff.



Q:HowdoIknowwhenmyphoneisfullycharged?

A:Bylookingatthephonebatteryindicator.IfthephonechargingLEDindicatoris

green,thenthephoneisreadyforuse!



Q:Howlongdoesittaketochargemyphone?

A:Thechargingdependsonthephoneforafullydischargedphoneittakes

approximately3‐4hours.



Q:Howlongdoesittaketochargemyenergypouch?

A:Approximately4‐5hours.



Q:ThephonechargingLEDindicatorisn’tblinking.

A:Pleaserepositionthephoneinthepocketintotheoptimalchargingposition.



Q:WhatshouldIdowhenthepurseLEDalternatingblinkinggreenandred..

A:PleaseusethewalladapterandtheUSBcableshippedwiththeenergypouchfor

chargingyourpouch



Q:WheredoIcallforsupport?

A:XYZ



EnergyPouch



OWNER’SMANUALPNXXXXXXXDRAFT3



1



OWN

ER’

MAN

PRODUCT SAFETY, TIPS, AND PRECAUTIONS



Howtotakecareofyourpouch.

Handleyourpouch,chargerandaccessorieswithcare.



Thefollowingsuggestionswillhelpyoukeepyourpouchoperational.

Keepthepouchdry.Precipitation,humidity,andalltypesofliquidsormoisturecan

containmineralsthatcorrodeelectroniccircuits.Ifyourpouchgetswet,letitdry.



WARNING:Failuretofollowthesesafetyinstructionscouldresultinfire,electricshock,

injury,ordamagetophoneorotherproperty.Readallthesafetyinformationbelow

beforeusingEnergyPouch.



Batterychargingtipsandprecautions

Chargethebatterybeforeusingitforthefirsttimeorwhenithasbeenunusedfor

extendedperiods.



Ifthebatteryiscompletelydischarged,thedevicecannotbeturnedonimmediately

afterthechargerisconnected.Allowthedepletedbatterytochargeforseveralminutes

beforeturningonthedevice.



UsingapowersourceotherthantheUSBpoweradaptor,suchasacomputer,may

resultinaslowerspeedornotchargingduetoalowerelectriccurrent.



ThedevicecanbeusedtochargeyourphonewhilechargingtheEnergyPouch,butit

maytakelongertofullychargethebattery.Pleasemakesurethepowerswitchis

turnedtoONposition.



Whilecharging,thedeviceandthechargermayheatup.Thisisnormalandshouldnot

affectthedevice’slifespanorperformance.Ifthebatterygetshotterthanusual,the

chargermaystopcharging.



Battery

Don’tattempttoreplacetheEnergyPouchbatteryyourself—youmaydamagethe

battery,whichcouldcauseoverheatingandinjury.



Usingdamagedcablesorwalladapters,orchargingwhenmoistureispresent,can

causefire,electricshock,injury,ordamagetothephoneorotherproperty.Makesure

theUSBcableisfullyinsertedintothepoweradapterbeforepluggingtheadapterinto

apoweroutlet.

EnergyPouch



2

OWNER’SMANUALPNXXXXXXXDRAFT3



OWN

ER’

MAN



UsetheEnergyPouchforintendedpurposesonly.Improperuseoruseofincompatible

chargersmaypresentariskoffire,explosion,orotherhazard.Neveruseadamaged

charger.



DonotattempttowirelesslychargeaphoneotherthananiPhone6,iPhone6S,

SamsungGalaxyS6,orSamsungGalaxyS6Edge.



Donotusewithadamaged,crackedoropenbatterycaseoraphonethatisnot

compatible.



Storage

Donotuseorstorethepouchindustyordirtyareasasitwillaffectitsperformance.

Donotstorethedeviceinhightemperatures,suchasaparkedcarinthesun,orincold

temperatures.



Operatingtemperature

Itisrecommendedtouseyourenergypouchattemperaturesfrom5Cto+35C.

Donotstoreyourenergypouchinveryhotorverycoldareas.



Thephonecanbedamagedandyourbatterylifecanbeshortenedifstoredoroperated

outsideofthesetemperatureranges.AvoidexposingthephoneandEnergyPouchto

dramaticchangesintemperatureorhumidity.WhenusingtheEnergyPouch,itis

normalforthebatteriestobecomewarm.



Handling

Donotdrop,knock,orshakethepouch.Roughhandlingcanbreakit.



Onlyuseasoft,clean,dryclothtocleanthesurfaceofthepowerconsole.



Duringextendedoperation,thedevicemayfeelwarm.Inmostcases,thisisnormal.



Usingconnectors,ports,andswitches

Neverforceaconnectorintoaportorapplyexcessivepressuretoaswitch,becausethis

maycausedamage.Iftheconnectorandportdon’tjoinwithreasonableease,they

probablydon’tmatch.Checkforobstructionsandmakesurethattheconnector

matchestheportandthatyouhavepositionedtheconnectorcorrectlywithrespectto

theport.



Repairsandunauthorizedmodifications

DonotopentheEnergyPouchtorevealthecomponents.

EnergyPouch



OWNER’SMANUALPNXXXXXXXDRAFT3



3



OWN

ER’

MAN



DonotopentheEnergyPouchtoreplacethebatteries.



Unauthorizedmodificationsmaydamagethedeviceandviolateregulationsgoverning

radiodevices.



Recycle

Alwaysreturnyourusedelectronicproducts,batteries,andpackagingmaterialsto

dedicatedcollectionpoints.Thiswayyouhelppreventuncontrolledwastedisposaland

promotetherecyclingofmaterials.Allmaterialsofthedevicecanberecoveredas

materialsandenergy.Checkhowtorecycleyourproductsatwww.call2recycle.org.



Implantedmedicaldevices

Toavoidpotentialinterference,manufacturersofimplantedmedicaldevices

recommendaminimumseparationof15.3centimeters(6inches)betweenawireless

deviceandthemedicaldevice.



Personswhohavesuchdevicesshould:



AlwayskeeptheEnergyPouchmorethan15.3centimeters(6inches)fromthe

medicaldevice.



SwitchtheEnergyPouchoffifthereisanyreasontosuspectthatinterferenceis

takingplaceorifyouwouldnotliketowirelesslychargeyourphone.



Followthemanufacturerdirectionsfortheimplantedmedicaldevice.Ifyou

haveanyquestionsaboutusingyourEnergyPouchwithanimplantedmedical

device,consultyourhealthcareprovider.



EnergyPouch



4

OWNER’SMANUALPNXXXXXXXDRAFT3



OWN

ER’

MAN

COPYRIGHTS AND OTHER NOTICES

DECLARATIONOFCONFORMITY



FCC/INDUSTRYCANADANOTICEThisdevicecomplieswithpart15BoftheFCCrules

andIndustryCanadalicence‐exemptRSSstandard(s).Operationissubjecttothe

followingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)

thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay

causeundesiredoperation.Formoreinfo,goto

transition.fcc.gov/oet/rfsafety/rffaqs.html.Anychangesormodificationsnotexpressly

approvedbyFlextronicscouldvoidtheuser'sauthoritytooperatethisequipment.



Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassB

digitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovide

reasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.This

equipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalled

andusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio

communications.However,thereisnoguaranteethatinterferencewillnotoccurina

particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor

televisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,the

userisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowing

measures:



 Reorientorrelocatethereceivingantenna.

 Increasetheseparationbetweentheequipmentandreceiver.

 Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhich

thereceiverisconnected.



NOTE:FCCRadiationExposureStatement:ThisequipmentcomplieswithFCC

radiationexposurelimitssetforthforanuncontrolledenvironment.Thistransmitter

mustnotbeco‐locatedoroperatinginconjunctionwithanyotherantennaor

transmitter.



Flextronics QD10 Wireless Charger User Manual User Guide 9 18 2015x

Flextronics International Wireless Charger User Guide 9 18 2015x

Users Manual

Navigation menu

Namespaces

Views

Navigation
