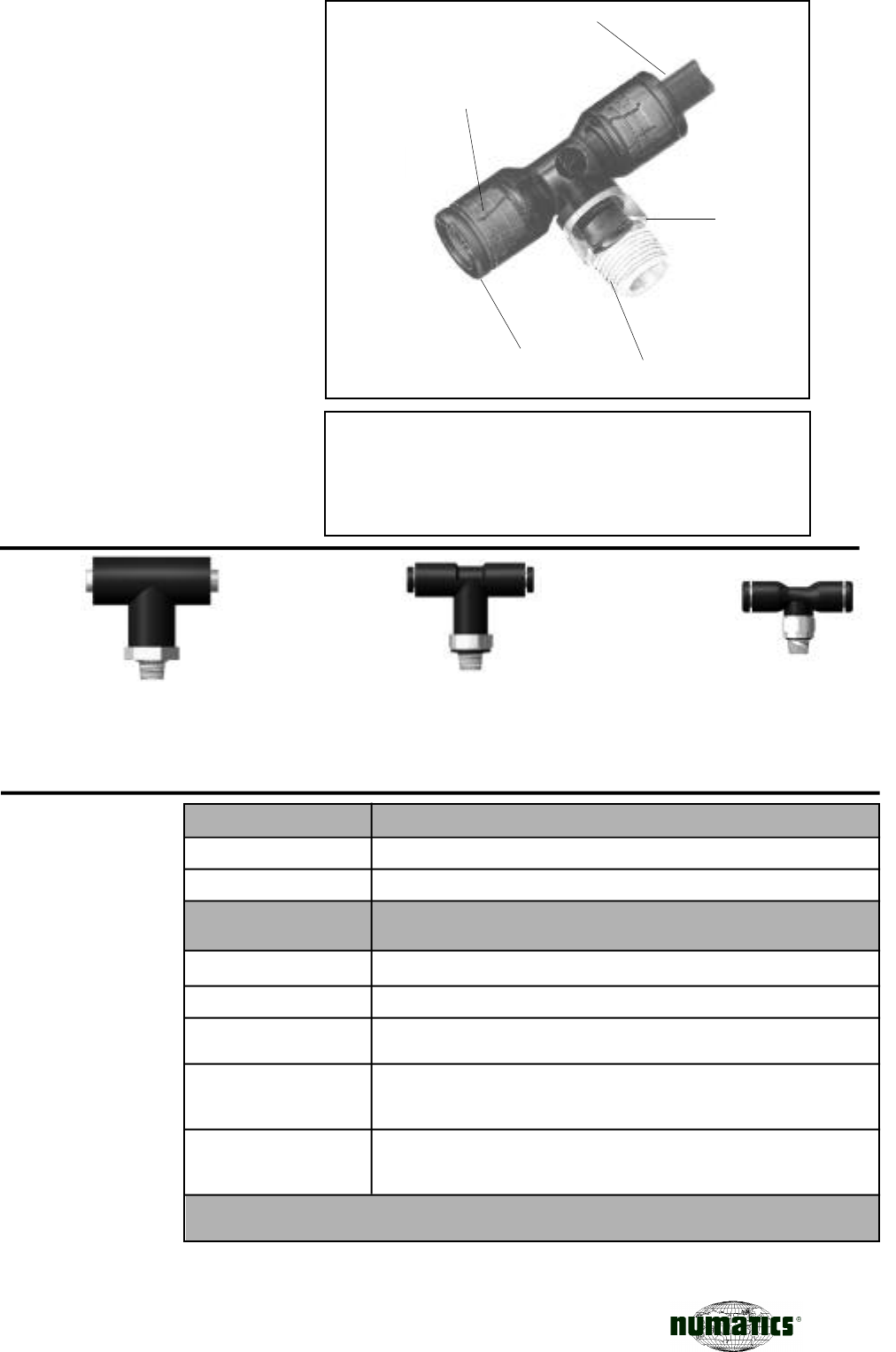

Accessories
Numatics, Inc.
seal
collet
nylon,
polyurethane
or polyethylene
tubing
pre-coated taper thread
manual release button
2nd Generation: Fractional Inch Sizes: 1/8", 3/16", 1/2" Metric Sizes: 14mm
• working Pressure:Maximum 250 psi
• working Temperature:Maximum 160°F
3rd Generation: Fractional Inch Sizes: 5/32", 1/4", 5/16",3/8", Metric Sizes: 4mm,
6mm, 8mm, 10mm, 12mm
• working Pressure:28Hg-275 PSI at ambient temperature
• working Temperature:Maximum 175°F
•suitable Fluids : Compressed air only. Lubricated or nonlubricated. For liquids or other types
of compressed gases, please consult us.
• many different
types of tubing
can be used
Nylon, Polyurethane, Polyethylene
• materials of
Construction Brass (2nd Generation) • nickel plated brass (3rd Generation) • black body
- glass filled nylon • o-ring seal - buna Nitrile • button - polypropylene •
thread sealant • sealing washers - nylon
All 3rd Generation fittings are silicone free.
For further information, please consult us.
A-2
system QR3000
principle of operation:
The Numatics QR3000 push to connect
fitting system is easy to operate. Simply
push in the tubing until it can go no further.
Holding and sealing is accomplished
instantaneously.
To disconnect, first de-press the manual
release button, then pull the tubing out of
the fitting.
features:
• more than 1 Billion fittings are in service.
• it is offered in 2 forms
- fractional inch tube to NPT and 10-32
UNF thread forms
- metric tube to BSP Tapered or Parallel
form
• in response to continuing demand and
new applications, we are constantly
expanding and improving our product
range.
The QR3000 fitting is supplied complete with green manual
release buttons and pre-applied thread sealant. 3rd
generation NPT, BSPT, BSPP, 10-32 and M5 threads are
nickel plated.
The green button may be replaced with buttons of another color.
The reliability of our
product is dependent
on the tube being used
and the component
materials of the fitting.
working
specifications
Numatics has a policy of continual product development and reserves the right to change dimensions or
specifications without prior notification.
1969
First Generation
The concept of instant fitting - instant connection
and disconnection; no tools required.
1985
Second Generation
Use of a new material: a High
Resistance polymer- increasing
mechanical performance.
TODAY
Third Generation
Optimization of all performances
and miniaturization of the entire
product range

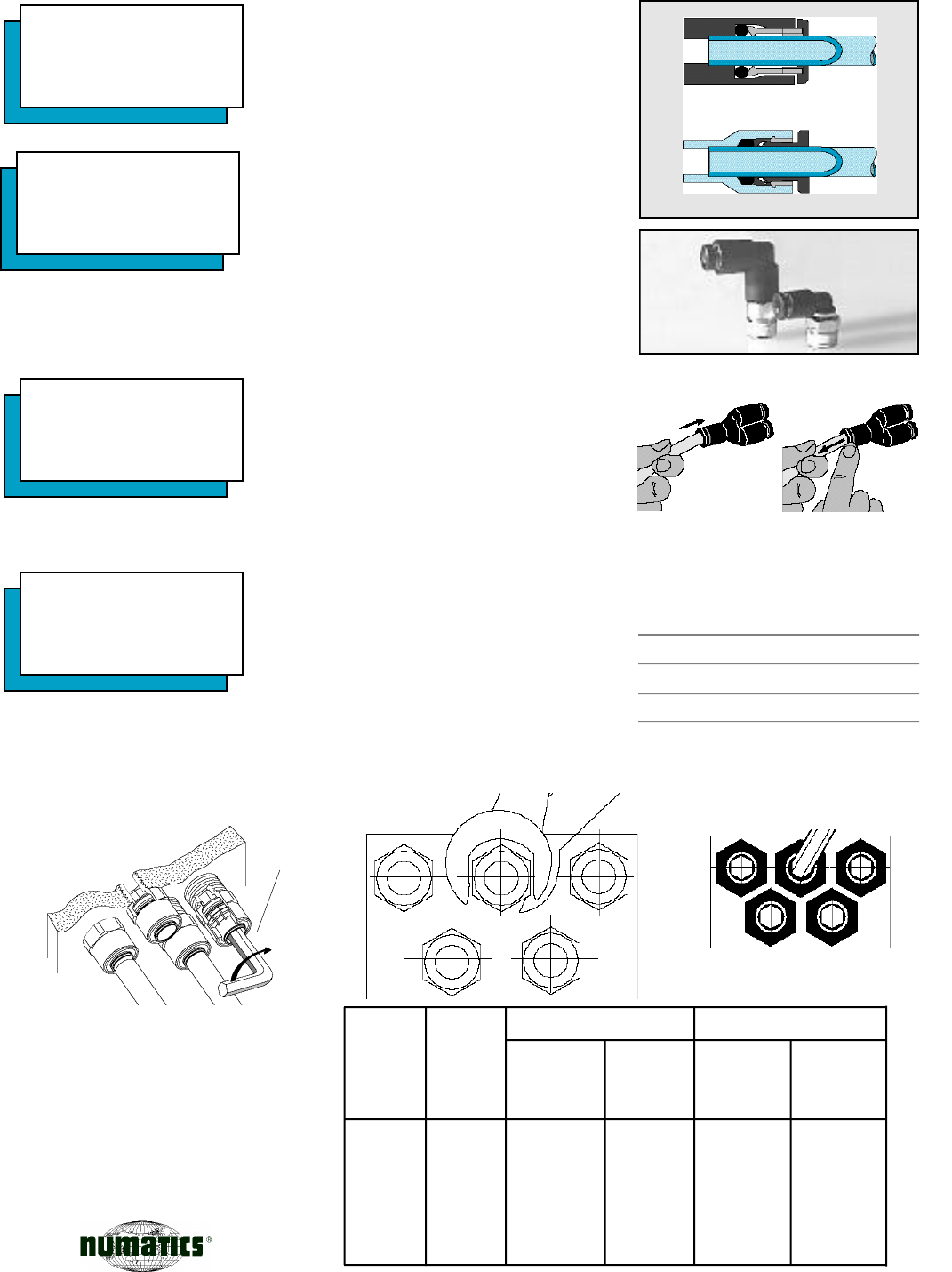

advantages
QR3000 push-to-connect fittings
A-3
• OPTIMUM FLOW
Full Flow: The gripping and
sealing of the fitting is achieved
using the outside diameter of the
tube without deformation, com-
pact yet no restriction in flow.
• IMMEDIATE SEAL
QR3000 3rd generation seals both
in static and dynamic applications
• Automatic Seal: The tube seal
provides a positive seal on the
O.D. of the tube. NPT and BSPT
threads are supplied with
preapplied thread sealant.
• 10/32 and M5 versions utilize
a nylon washer or o-ring to
seal the connection.
• INSTANTANEOUS
CONNECTION/DISCONNECTION
Tubing is connected or
disconnected without the use of
any special tools.
Fittings come standard with a
green release button. Release but-
tons are available in several colors
to enable color coding of circuits.
• semi rigid nylon tube from 1/8"
to 1/2" O.D. and 4mm to 14mm
O.D.
• polyurethane tube from 5/32" to
1/2" O.D. and 4mm to 12mm
O.D.
• polyethylene tube from 1/8" to
1/2" O.D.
optimum
flow
immediate
seal
instantaneous
connection and
disconnection
use of many
different types
of tubing
to connect to disconnect
Simply push the tubing
until it can go no further.
Holding and sealing is
accomplished
instantaneously.
First depress the manual
release button, then
pull the tubing out of
the fitting.
Possible Average time
connections
Type of fitting
each connection
per hour(in Seconds)
QR 3000 3 Sec. 1200
Typical plastic tube 12 Sec. 300
Typical compression 19 Sec. 180
Typical flare 49 Sec. 73
5/32, 1/4, 4mm, 6mm
5/16, 3/8, 8mm, 10mm, 12mm
Space Saving Characteristics
of the QR 3000
Close placement of QR 3000
hex socket male
connector fittings. Hex wrench
Tee / Elbow Spacing
The drawing on this page shows how
quick and easy it is to orient the QR
3000 Instant Fitting
- Rotation of fitting to desired
position
- Close placement of fittings
for minimum space requirements.
Comparison of typical and
QR 3000 fittings Straight Male Spacing
The drawing below shows the
close spacing of male fittings.
Pipe Typical Typical
Tube thread QR 3000 fitting QR 3000 fitting
O,D. NPT spacing spacing spacing spacing
1/8
1/8
5/32
3/16
1/4
5/16
3/8
1/2
1/16
1/8
1/8
1/8
1/4
1/4
1/4
3/8
.512
.512
.512
.512
.670
.670
.900
1.060
1.181
1.181
1.181
1.181
1.400
1.400
2.010
2.170
.540
.540
.540
.540
.690
.690
.900
1.040
.795
.795
.795
.795
1.010
1.010
1.420
1.630
TEES OR ELBOWS STRAIGHT MALE FITTINGS
Typical QR 3000
QR3103
page A-6
A-4

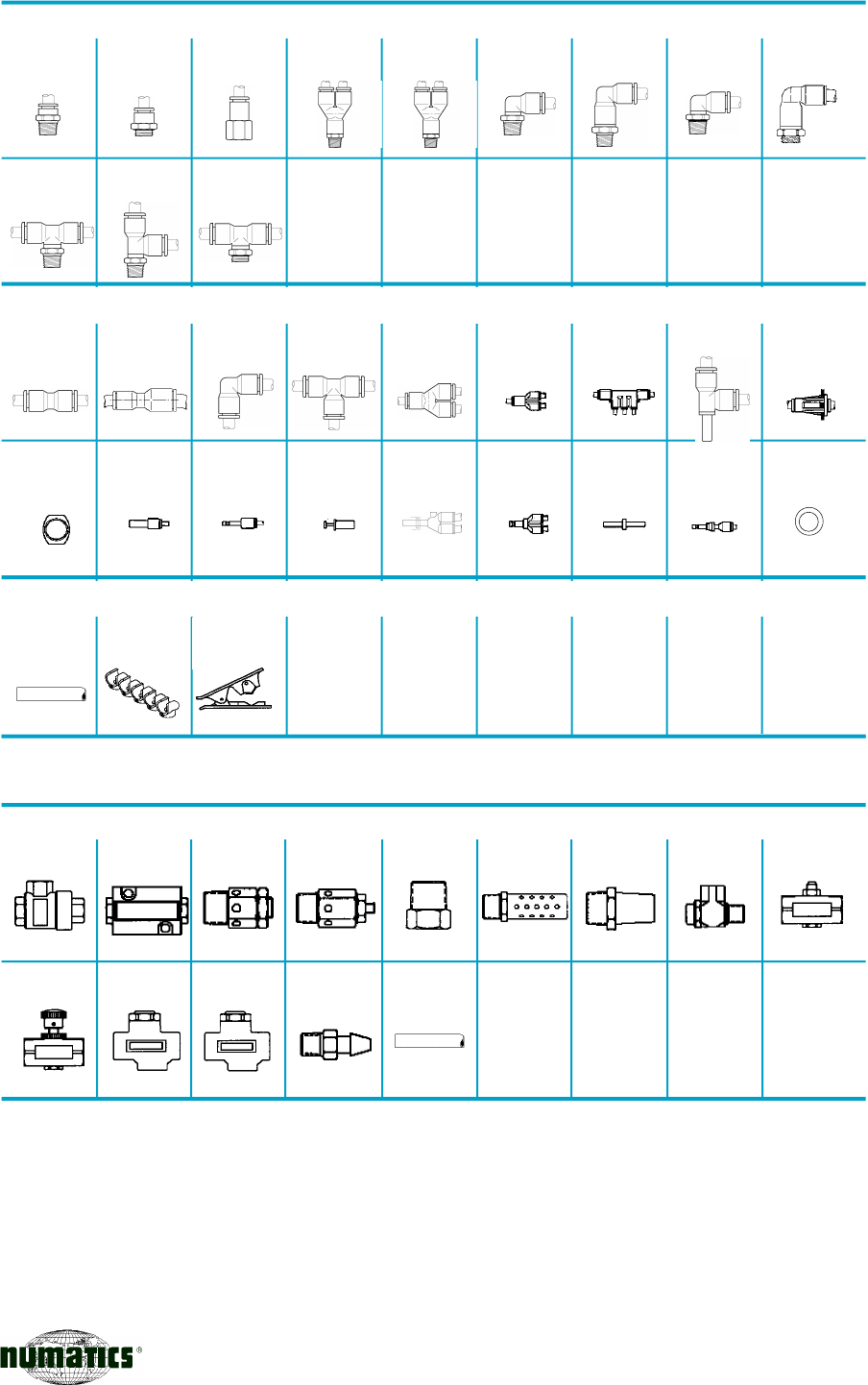

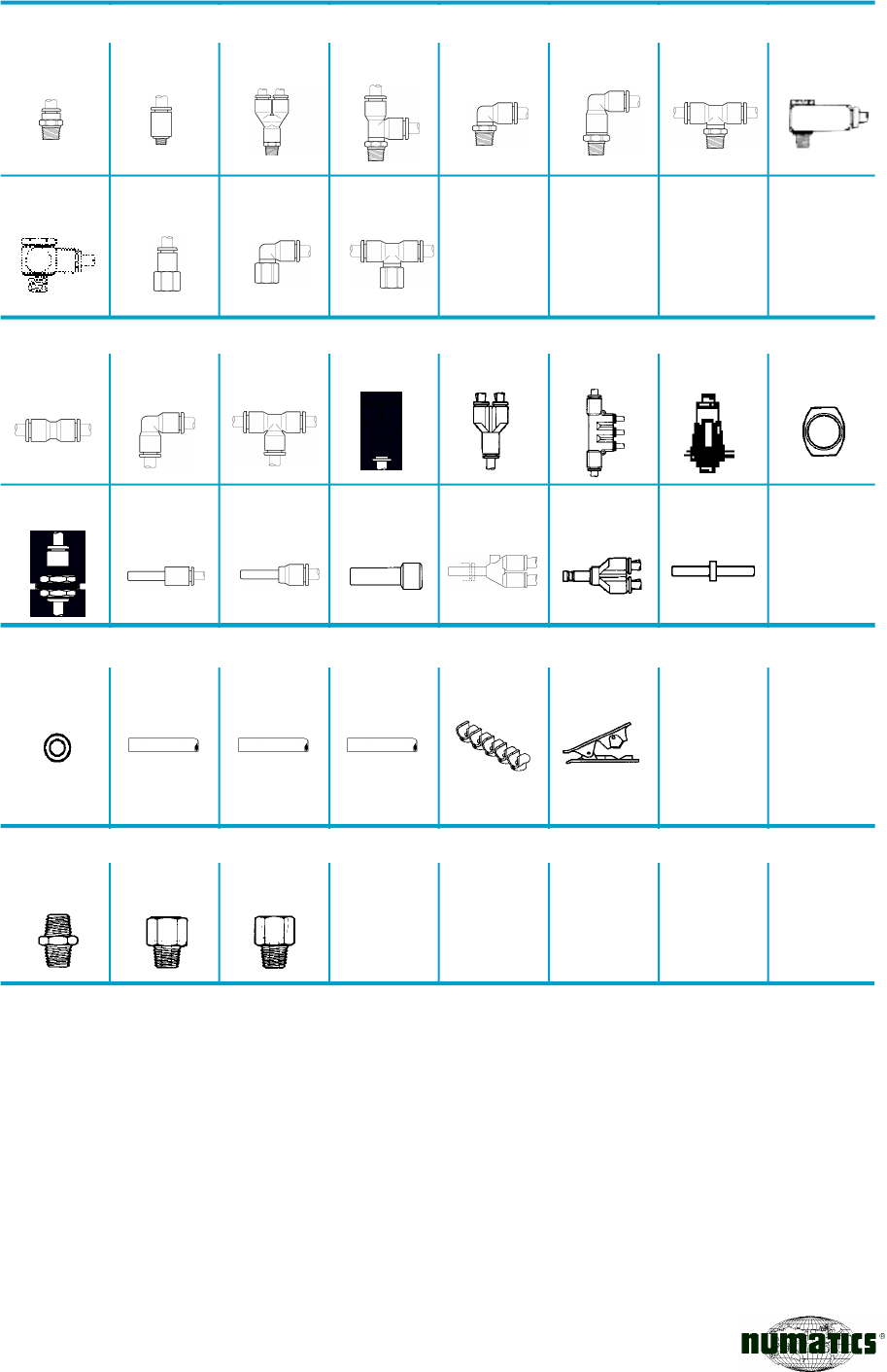

the complete range of QR3000 push to connect fittings
fractional inch tubing to N.P.T. and 10-32 U.N.F.
tubing and accessories
QR3175/
3115
page A-6
QR3171
page A-6 QR3148
page A-6
QR3018
page A-8 QR3014/
3114
page A-9
QR3009
page A-9 QR3008
page A-9
QR3106
page A-10 QR3102
page A-10 QR3104
page A-10 QR3140
page A-10 QR3144
page A-11 QR3156
page A-12 QR3332
page A-12
QR3186
page A-13
QR3304
page A-11
QR3166
page A-14 QR3168
page A-14 QR3126
page A-14 QR3142
page A-15 QR3143
page A-15 QR3120
page A-15
QR3330
page A-16
QR0121
page A-21 QR0164
page A-21 QR0167
page A-21

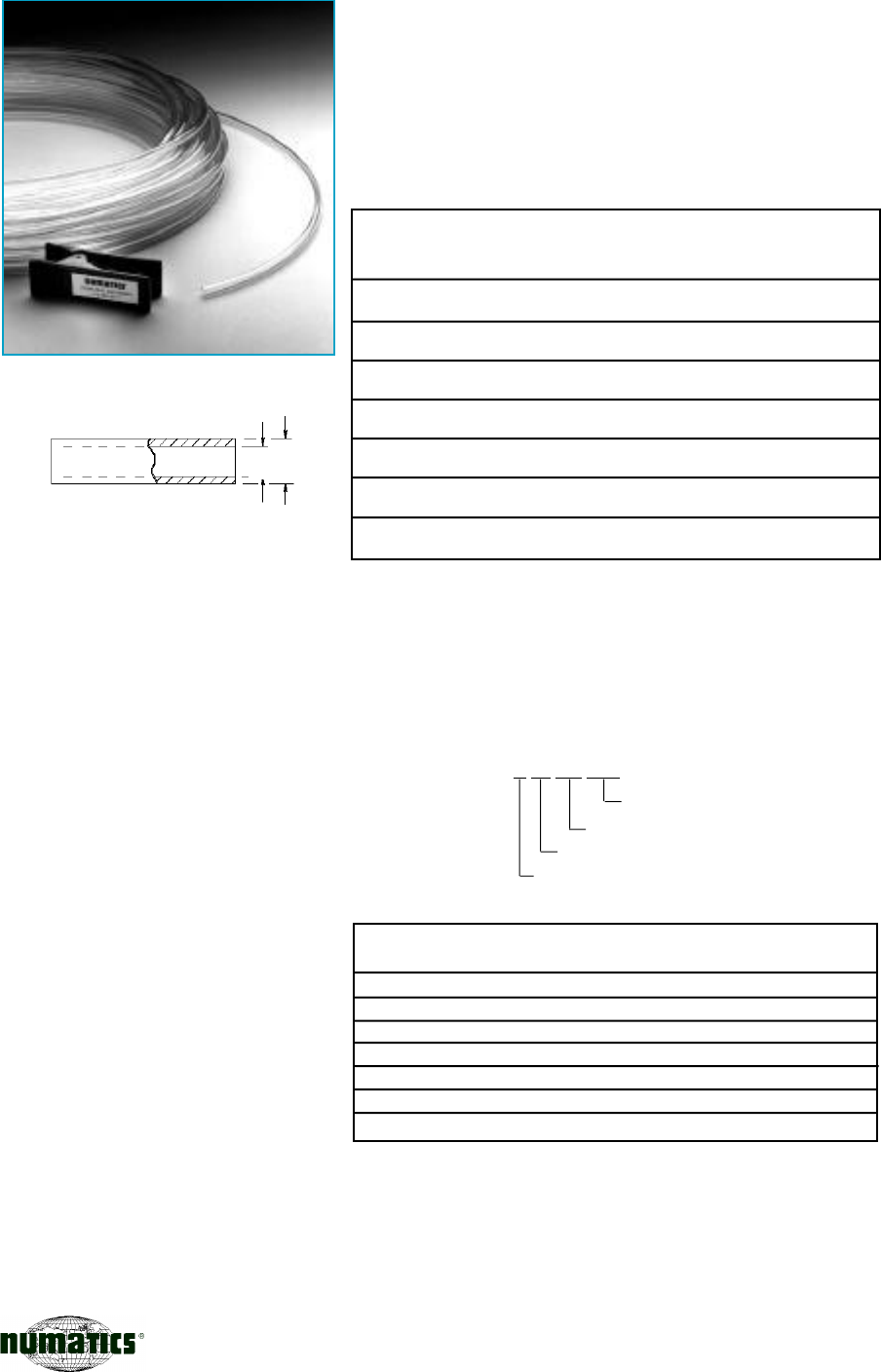

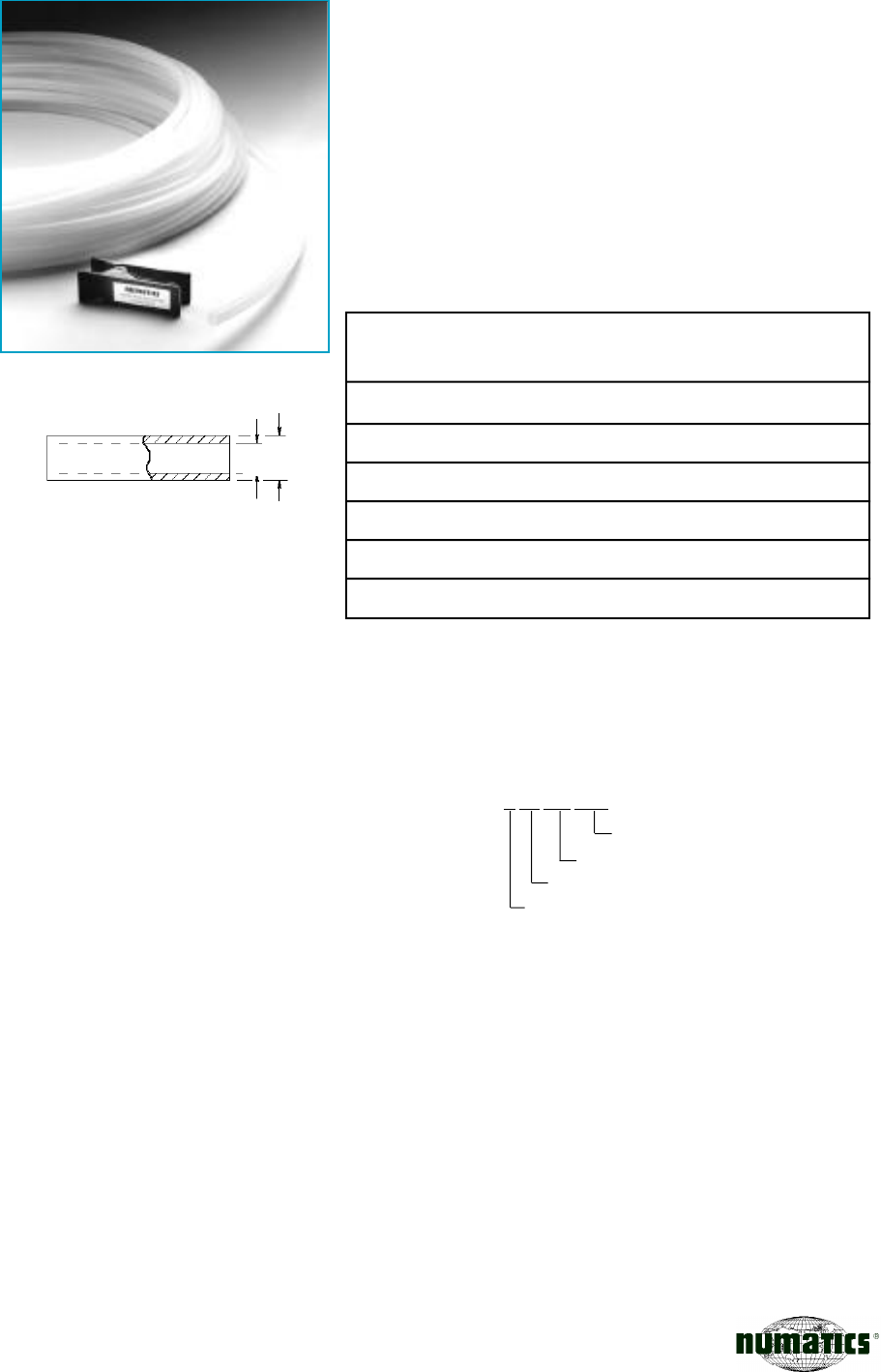

Nylon 11
page A-17
Low Density
page A-18 Poly 95
page A-19 QR300071
page A-20

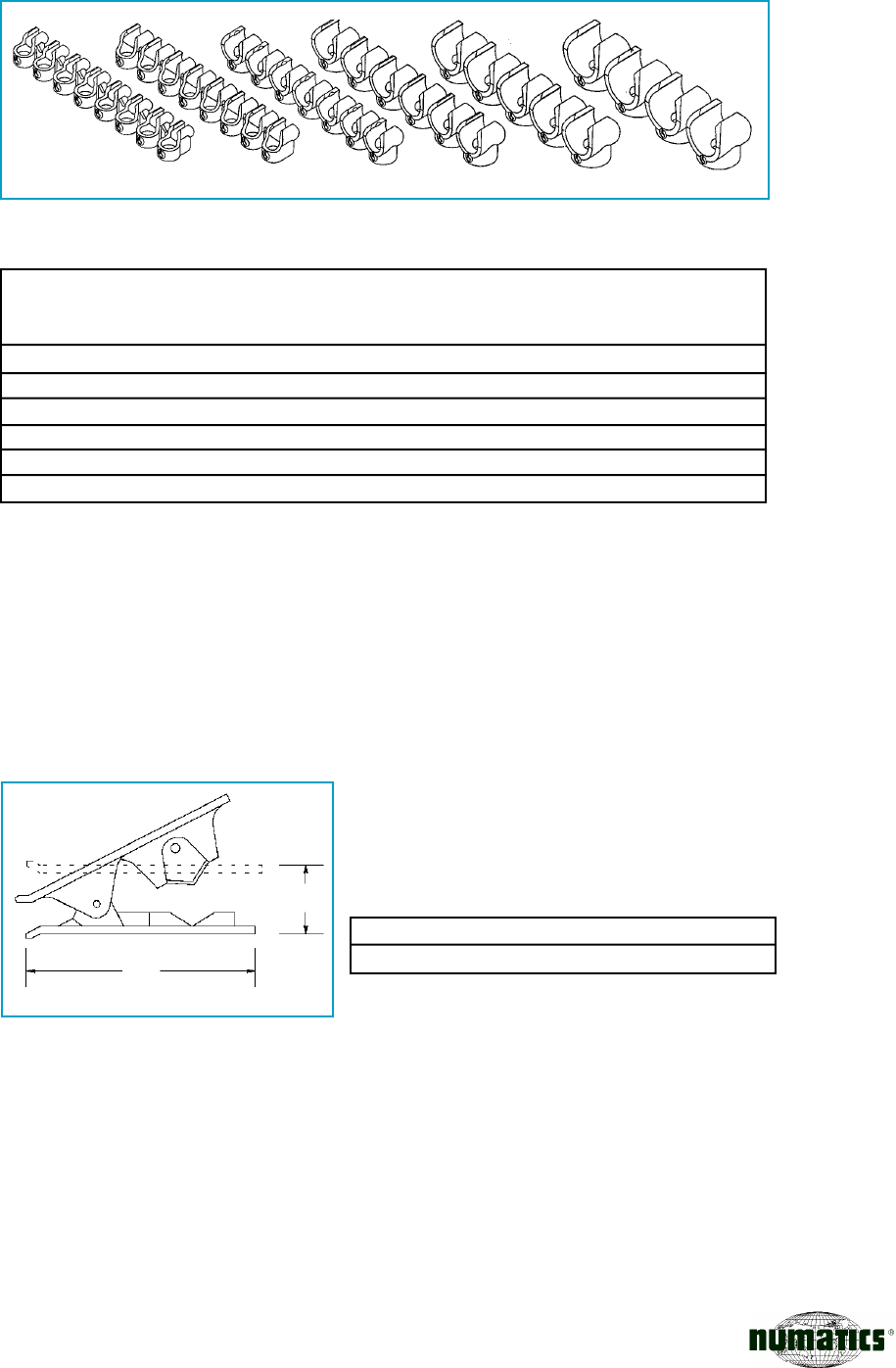

QRCLIP
page A-20
push-in fittings — tube to male or female n.p.t.

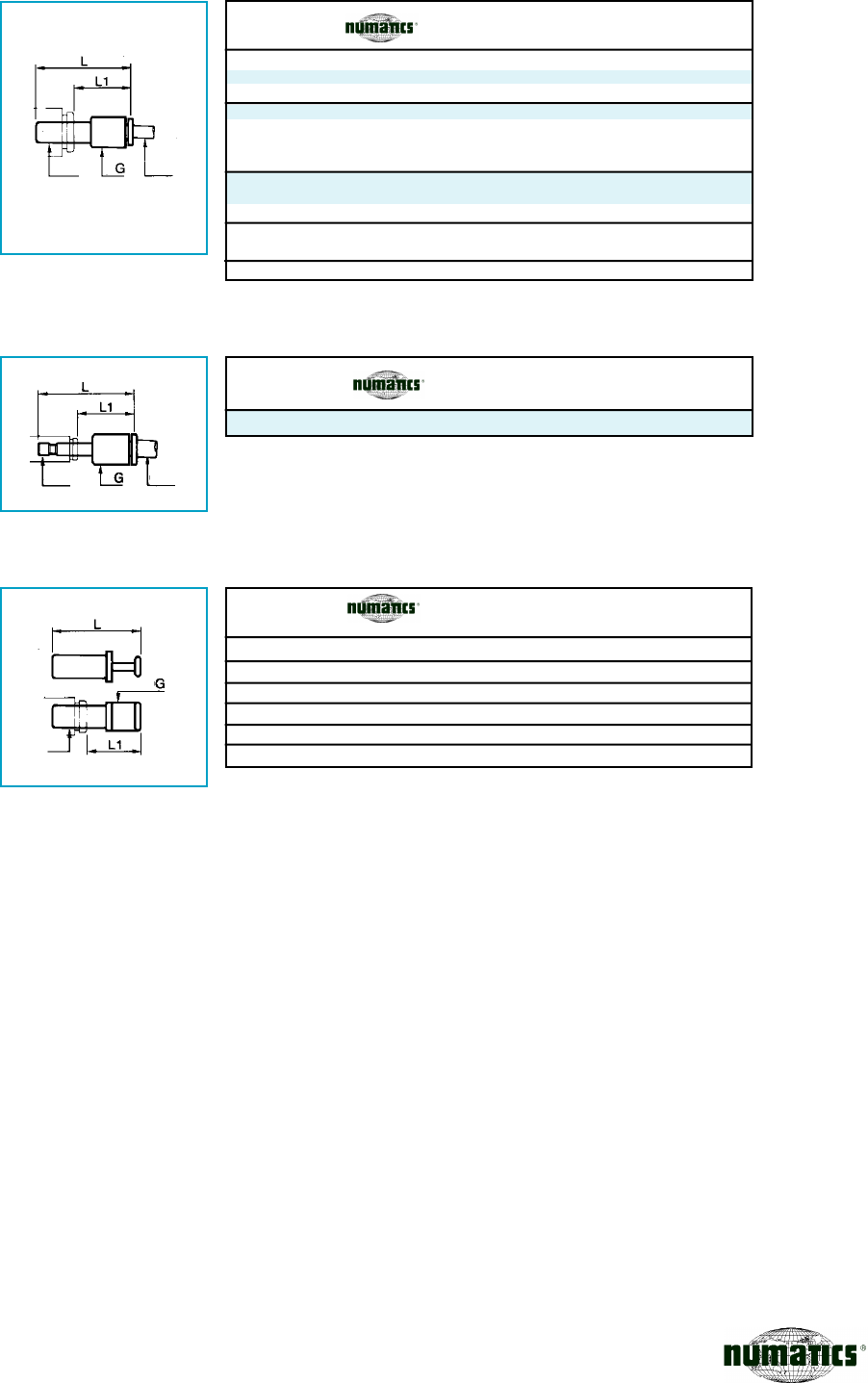

tube-to-tube fittings and accessories: plug-in fittings

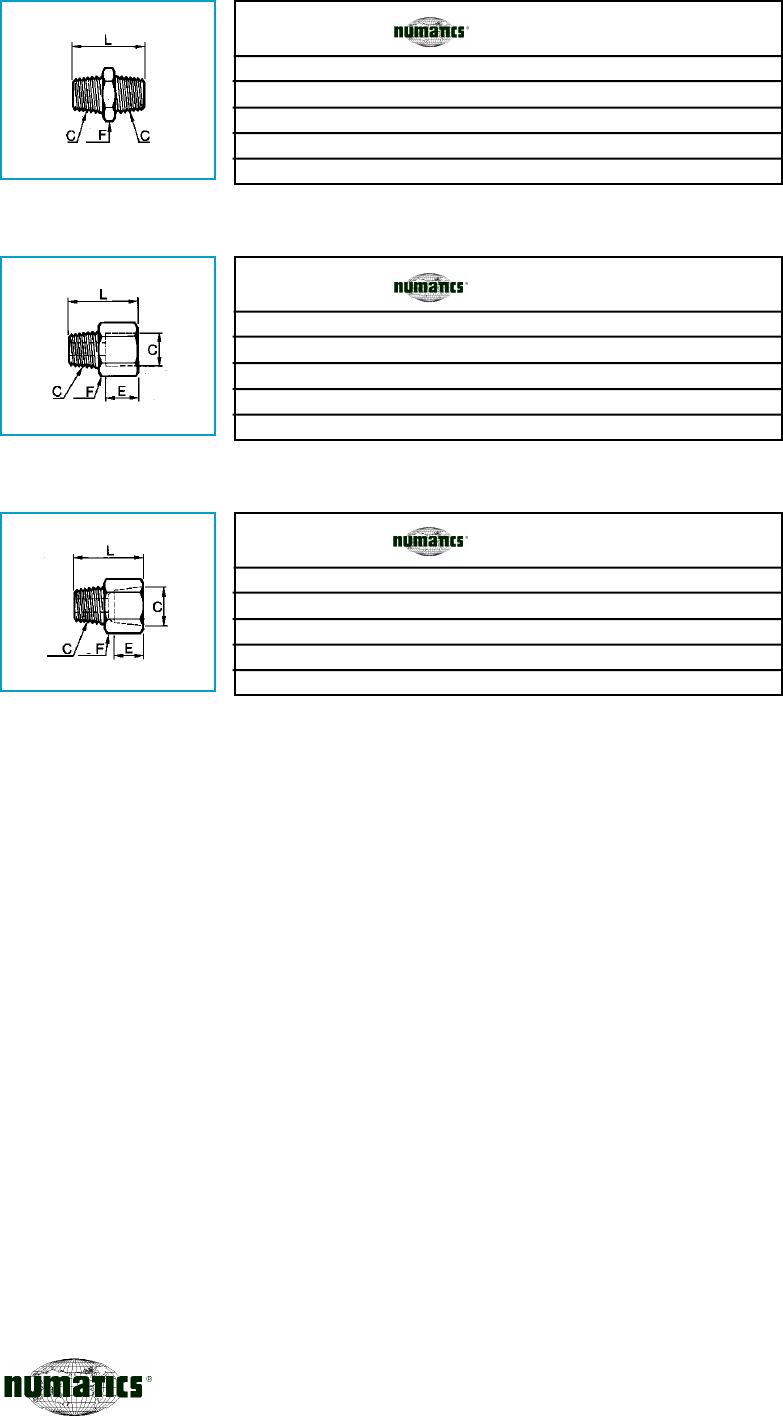

n.p.t. to b.s.p. adaptors
QR3129
page A-7 QR3108
page A-7
QR3109
page A-7
QR3118
page A-8
QR3129
page A-24
A-5
QR3175
page A-22 QR3148
page A-23
QR3101
page A-22 QR3158
page A-23
QR3114
page A-23 QR3109
page A-24 QR3199
page A-24 QR3169
page A-25
QR3108
page A-26 QR3103
page A-26 QR3198
page A-26
QR3106
page A-27 QR3106
page A-27 QR3102
page A-27 QR3104
page A-27 QR3140
page A-28 QR3144
page A-28 QR3156
page A-29
QR3332
page A-29
QR3304
page A-29
QR3166
page A-30 QR3168
page A-30 QR3126
page A-30
QR3183
page A-29
QR3142
page A-31 QR3143
page A-31 QR3120
plastic
page A-31
QR3170
page A-31
push-in fittings - tapered (with pre-coating) parallel and metric (with washer)
tube to tube fittings and accessories: plug-in fittings
tubing and accessories
the complete range of QR3000 push to connect fittings
metric tube to BSP and M5 threads
the complete accessory line from Numatics
SEV
page A-35
Metric
Poly 95
page A-33
QR300071
page A-34
QRCLIP
page A-34
OA22-1
page A-35 MV
page A-36 A1MN
page A-36
134
page A-41
B1MN
page A-36 M1MN/FN
page A-37 P0MN
page A-38 FCRN
page A-39
2FC1K
page A-40 FC2
page A-40 FC3
page A-40 135
page A-42
1FC1
page A-40
QR3330
page A-32
Valves, silencers, flow controls and Numatrol fittings & tubing
quick exhaust
valve
inline

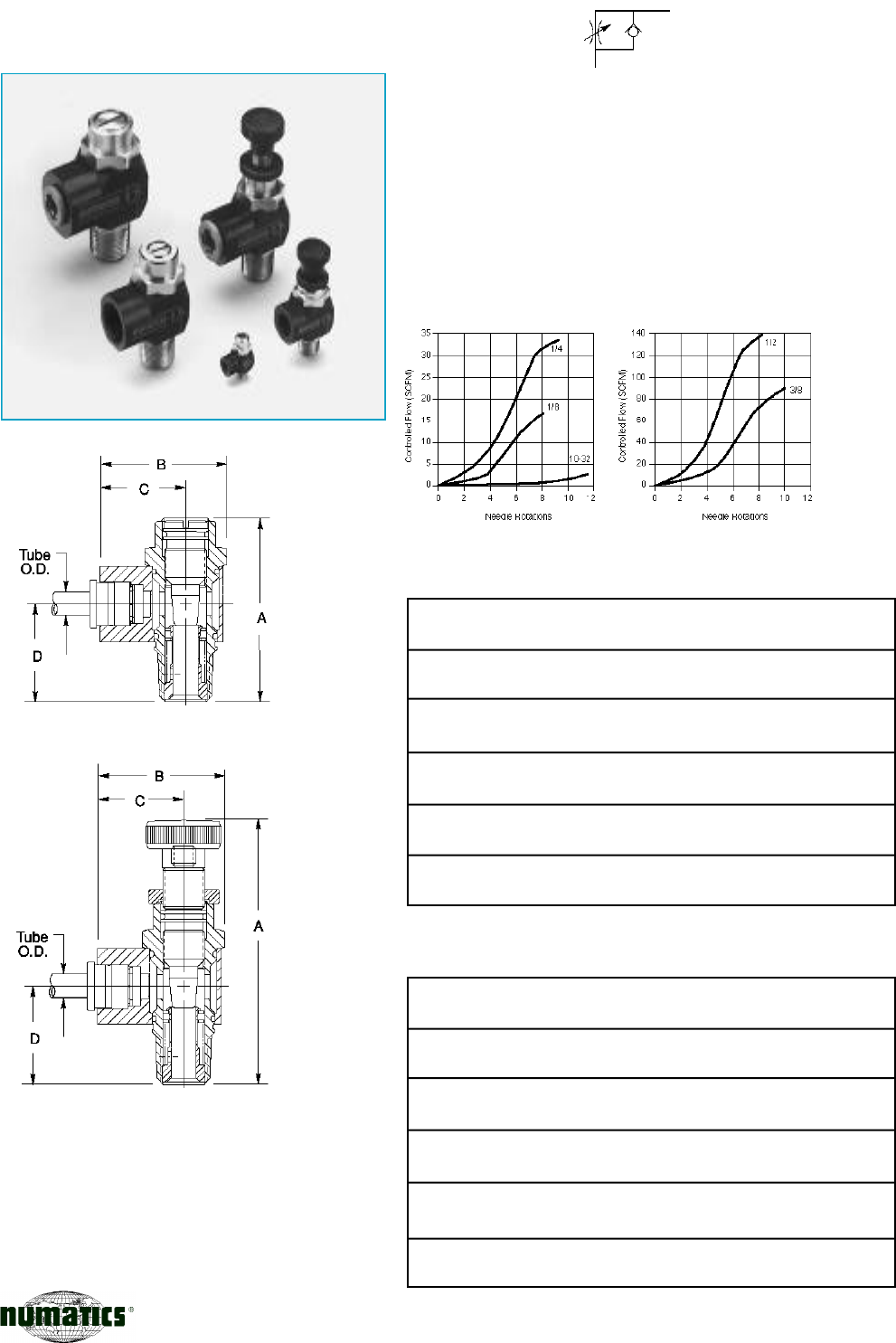

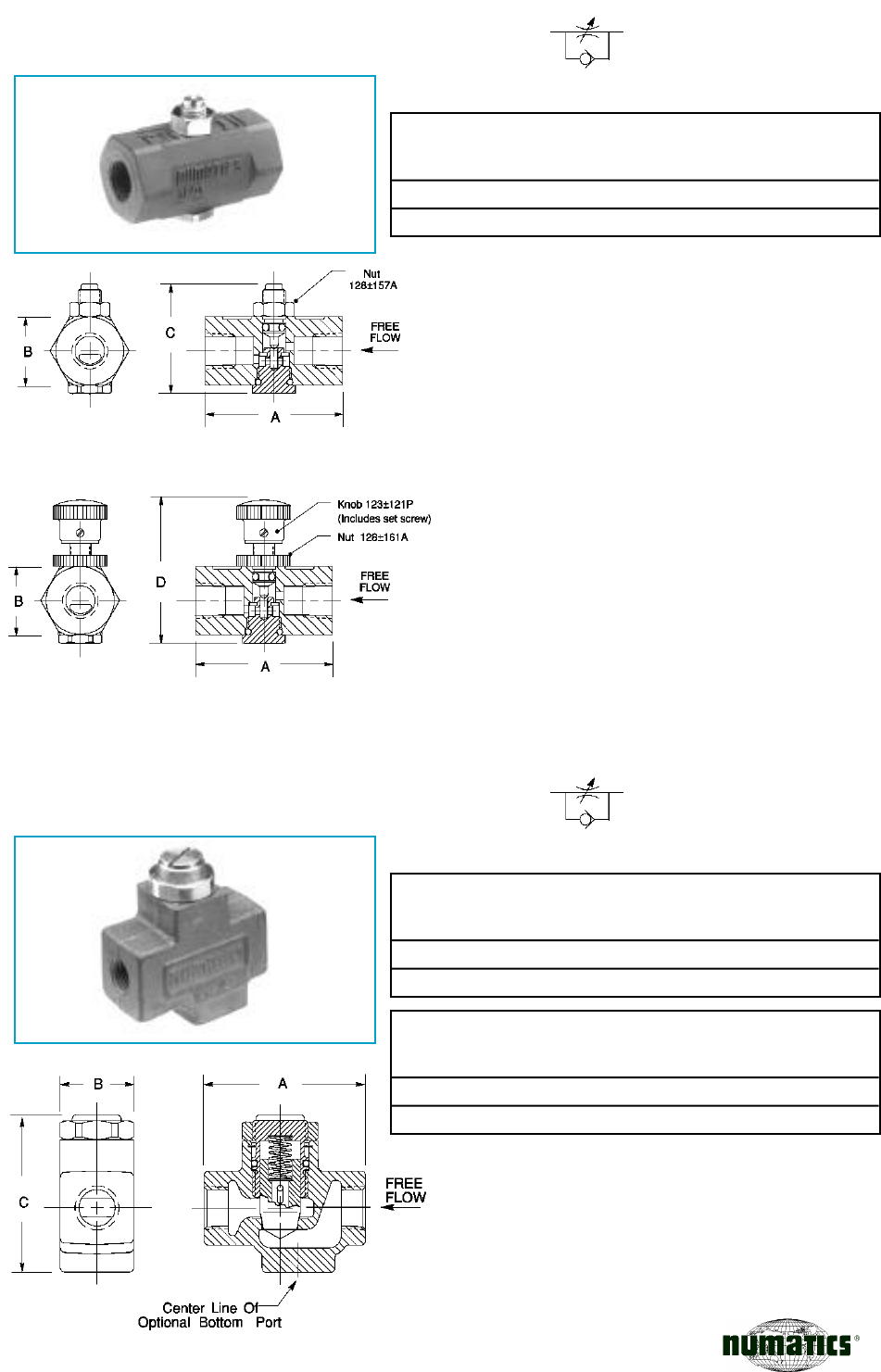

flow control inline
flow control inline

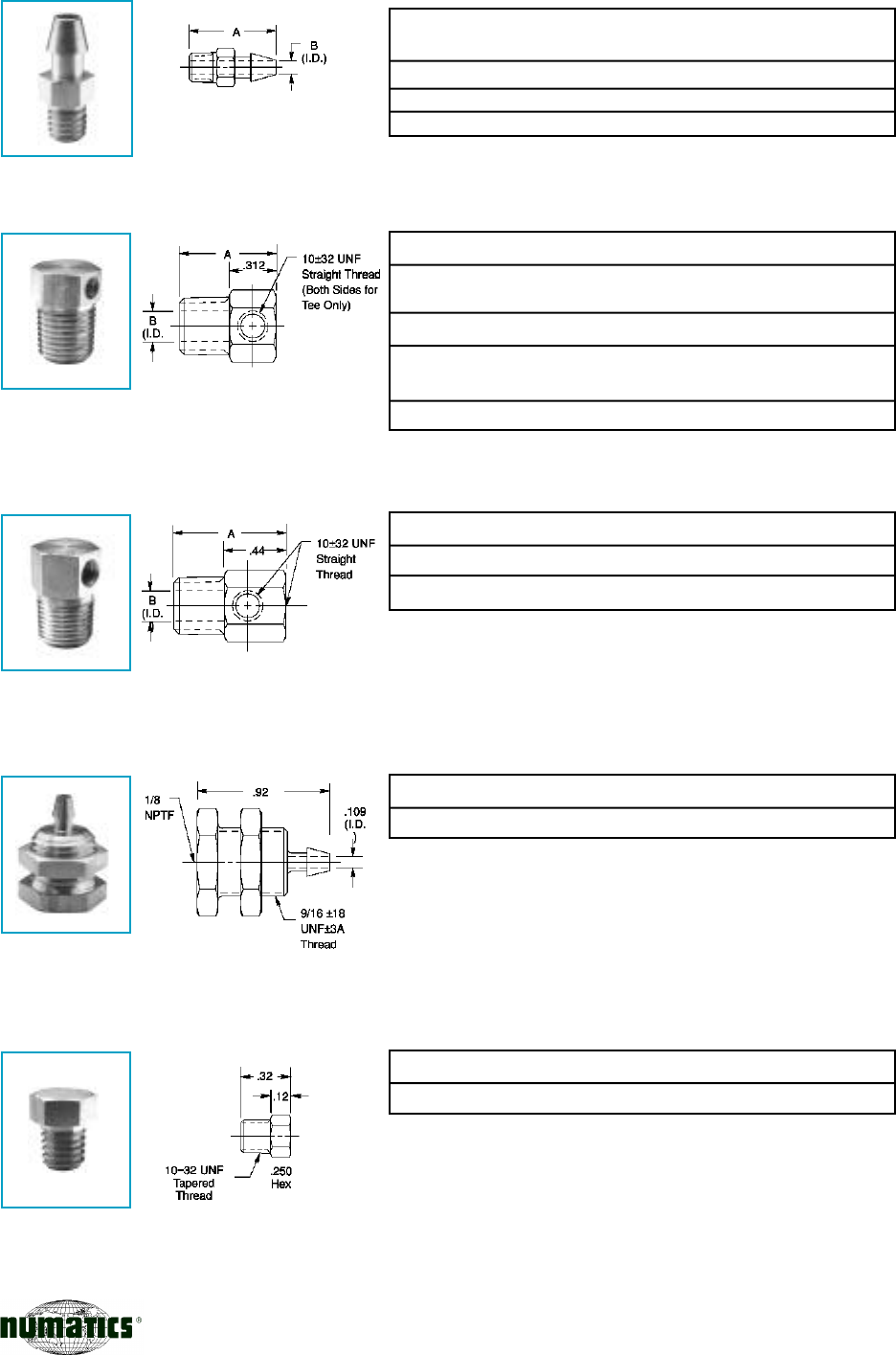

flow control Numatrol fittings Numatrol tubing
shuttle valve metering valve speed control

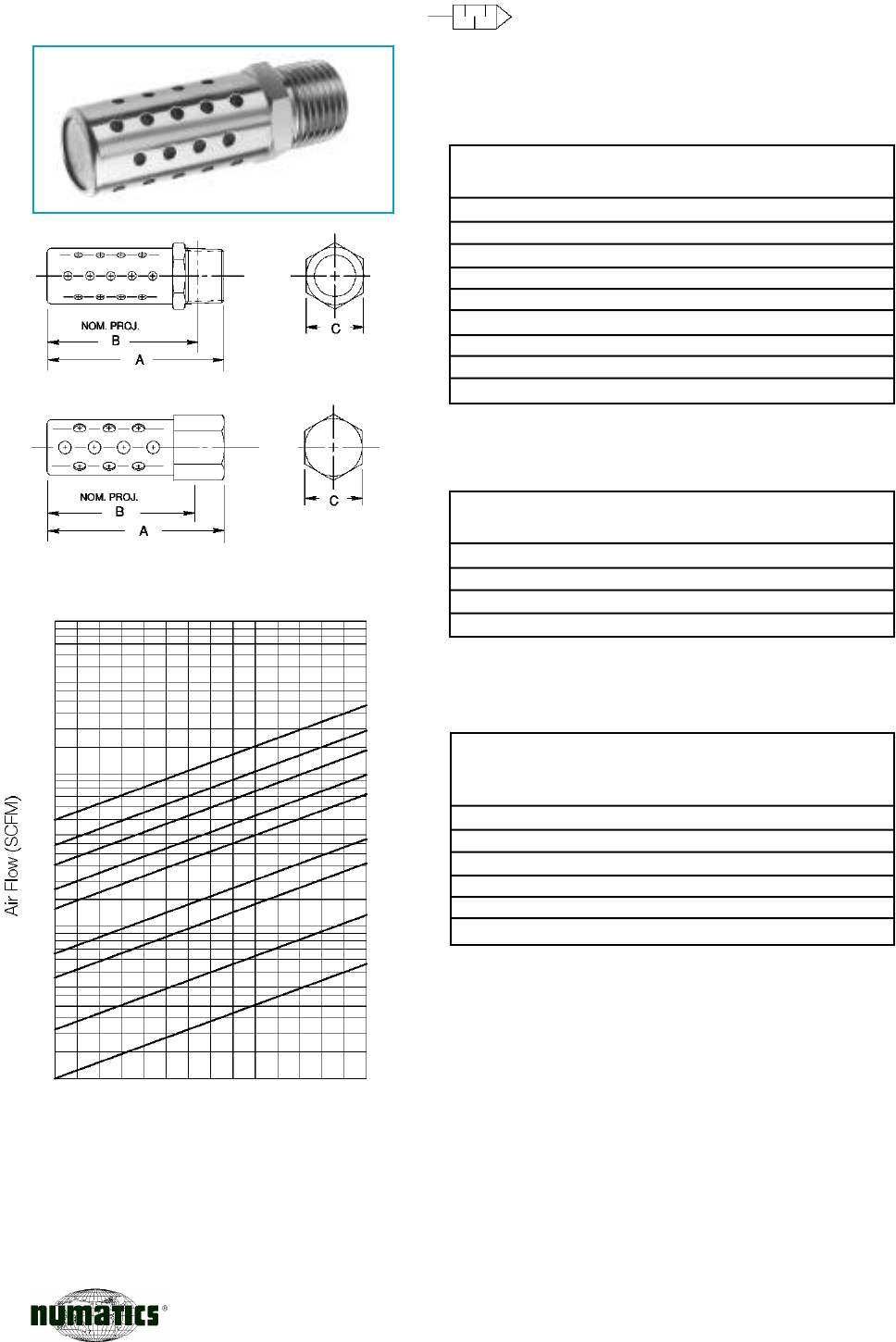

muffler breather vent
silencer metal air

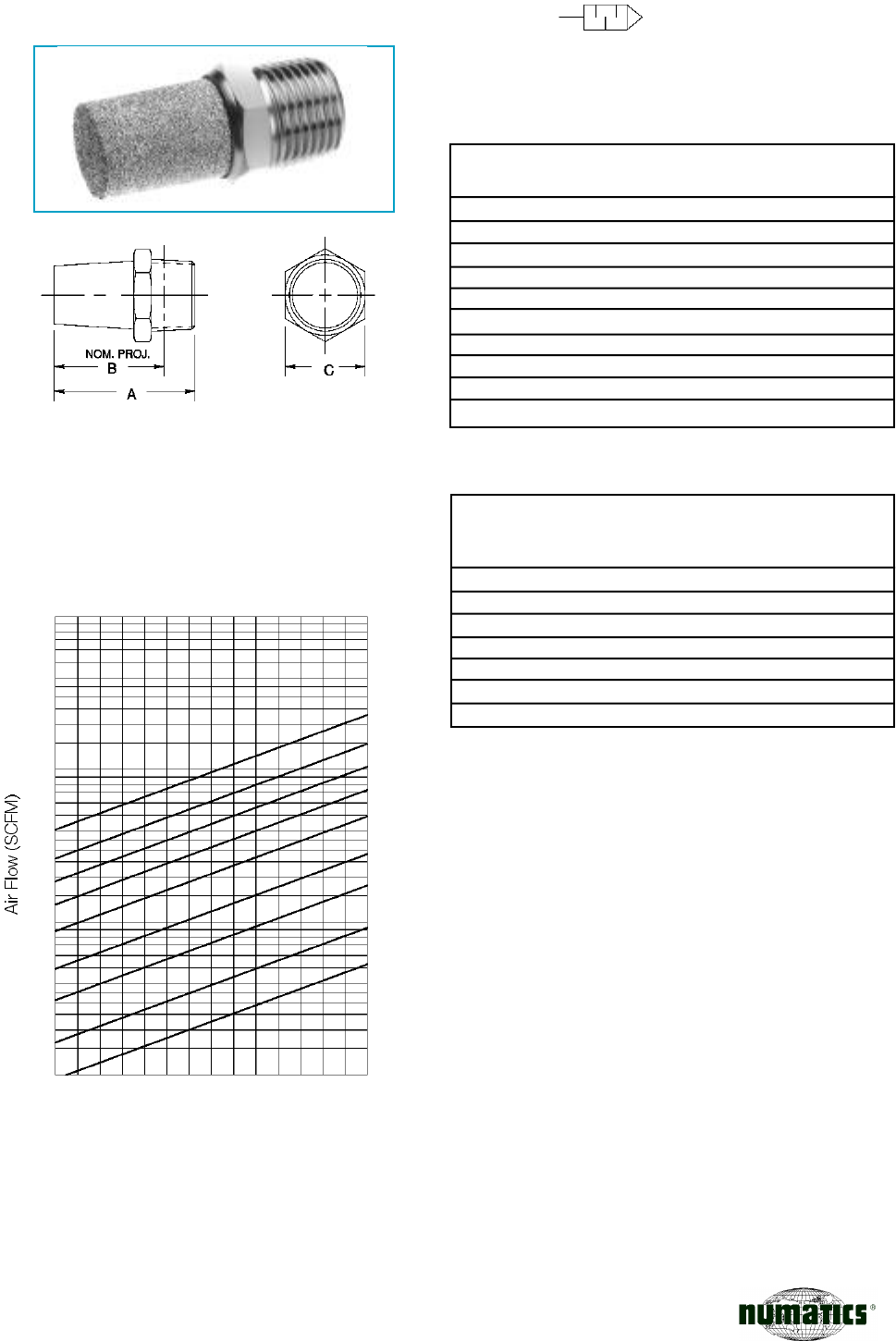

silencer porous bronze
air silencer right angle
flow control inline
flow control
threaded fittings

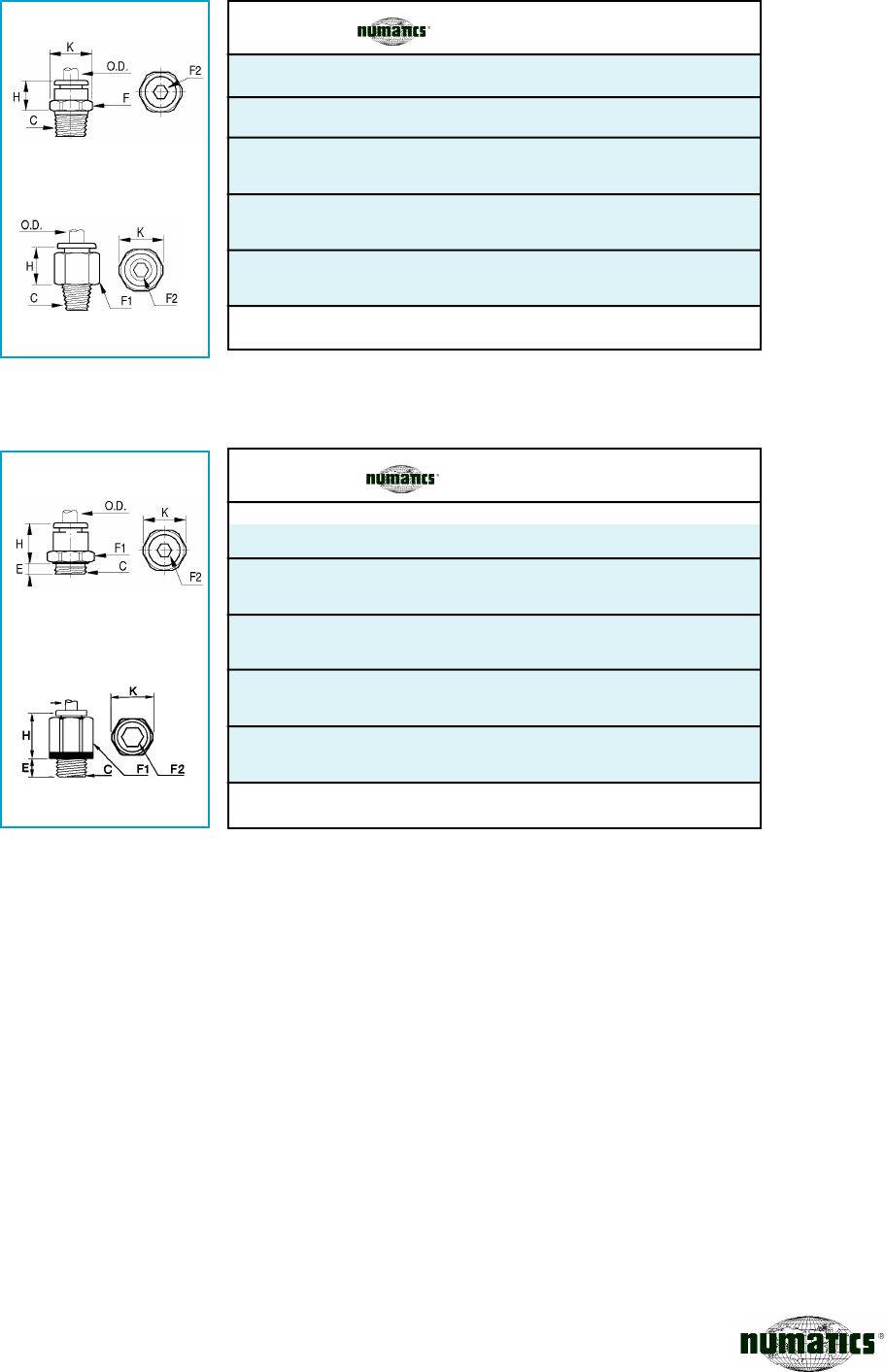

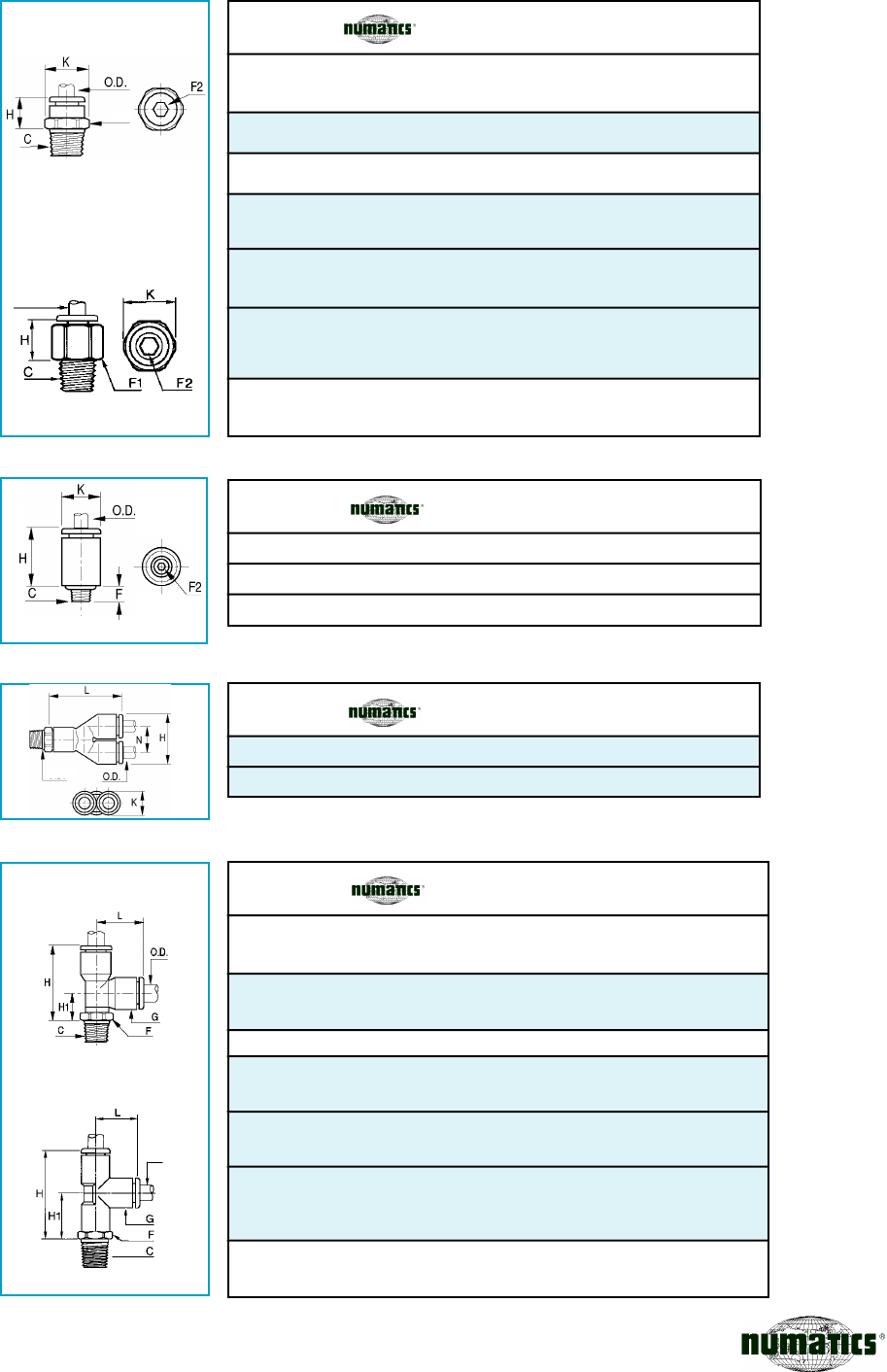

QR3175/3115
A-6
O.D. C
Previous QR
F1 F2 H K
TUBE NPT
Part Number
1/8 1/16
QR3175 53 08
3115 53 08 7/16 7/64 .59 .51 .35
1/8 1/8
QR3175 53 11
3115 53 11 7/16 7/64 .49 .51 .35
1/8 1/4
QR3175 53 14
3115 53 14 9/16 7/64 .39 .65 .53
5/32 1/8 QR3175 04 11 3115 54 11 11mm 2.5mm .34 .47 .35
5/32 1/4 QR3175 04 14 3115 54 14 14mm 2.5mm .28 .59 .53
3/16 1/8 QR3175 55 11 3115 55 11 7/16 1/8 .61 .51 .67
3/16 1/4 QR3175 55 14 3115 55 14 9/16 5/32 .59 .65 .81
1/4 1/8 QR3175 56 11 3115 56 11 11mm 2.5mm .34 .47 .63
1/4 1/4 QR3175 56 14 3115 56 14 14mm 4mm .37 .59 .74
1/4 3/8 QR3175 56 18 3115 56 18 18mm 4mm .30 .77 .99
5/16 1/8 QR3175 08 11 3115 58 11 13mm 5mm .79 .55 .63
5/16 1/4 QR3175 08 14 3115 58 14 14mm 5mm .66 .59 .74
5/16 3/8 QR3175 08 18 3115 58 18 18mm 5mm .46 .77 .99
3/8 1/8 QR3175 60 11 3115 60 11 16mm 5/32 .894 .689 1.02
3/8 1/4 QR3175 60 14 3115 60 14 16mm 9/32 .807 .689 1.02
3/8 3/8 QR3175 60 18 3115 60 18 18mm 9/32 .689 .767 1.41
3/8 1/2 QR3175 60 22 3115 60 22 22mm 9/32 .61 .945 2.61
1/2 1/4 QR3115 62 14 7/8 1/4 1.00 1.01 2.29
1/2 3/8 QR3115 62 18 7/8 5/16 1.00 1.01 2.43
1/2 1/2 QR3115 62 22 7/8 3/8 1.00 1.01 2.29
tube to male NPT
QR3171 tube to 10-32 UNF
O.D. C
Previous QR
FF2 H K
TUBE UNF
Part Number
(mm)
1/8
10-32
QR3171 53 20 2 .55 .35 .17
5/32 10-32 QR3171 04 20 3171 54 20 2 .45 .55 .18
1/4 10-32 QR3171 56 20 0.16 2 .63 0.42 .19

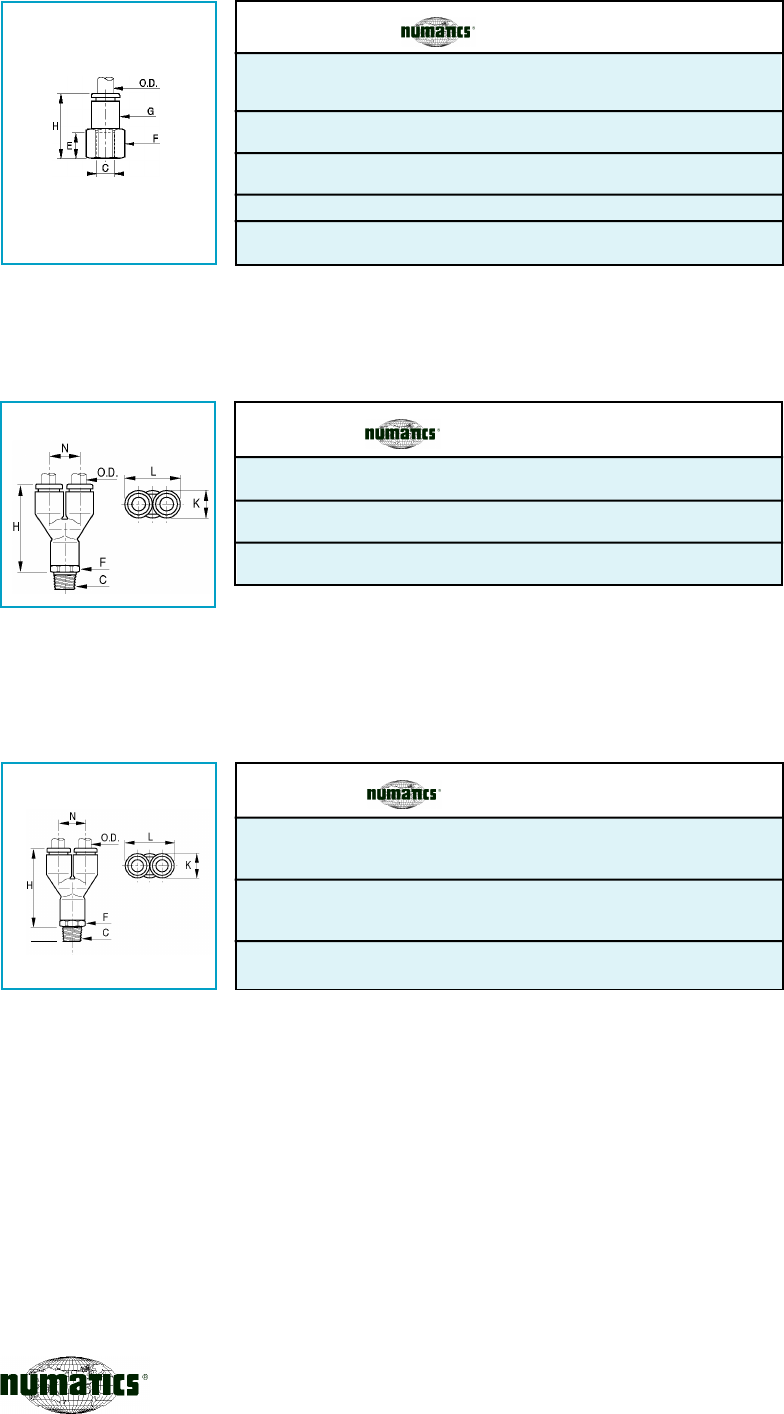

QR3148 "Y" male NPT — tube
O.D. C
Previous QR
F H K L N
TUBE NPT
Part Number
5/32 1/8 QR3148 04 11 3148 54 11 10 1.22 .334 .688 .354 .35
5/32 1/4 QR3148 04 14 3148 54 14 14 1.24 .334 .688 .354 .63
q
oz
q
oz
q
oz

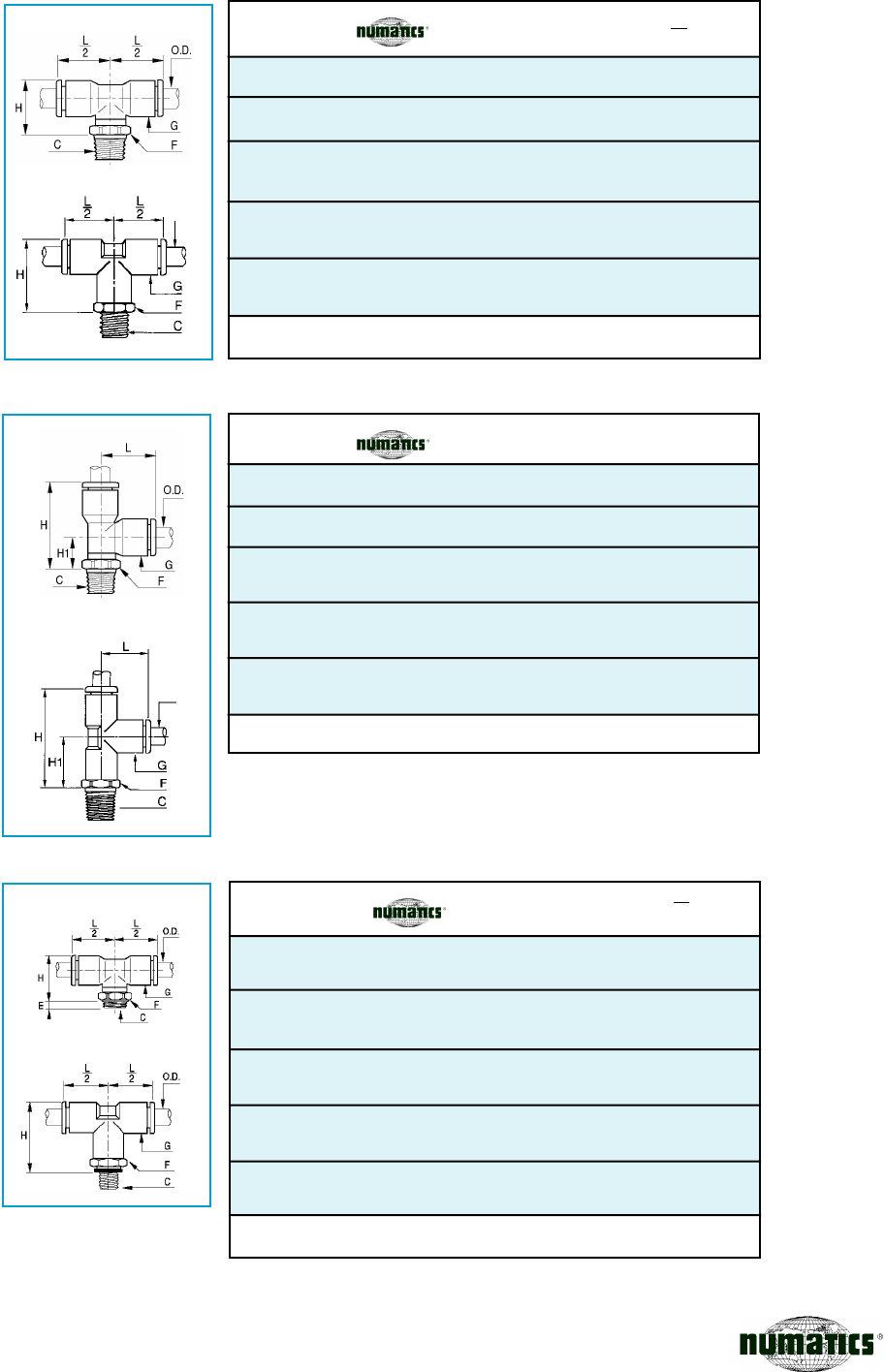

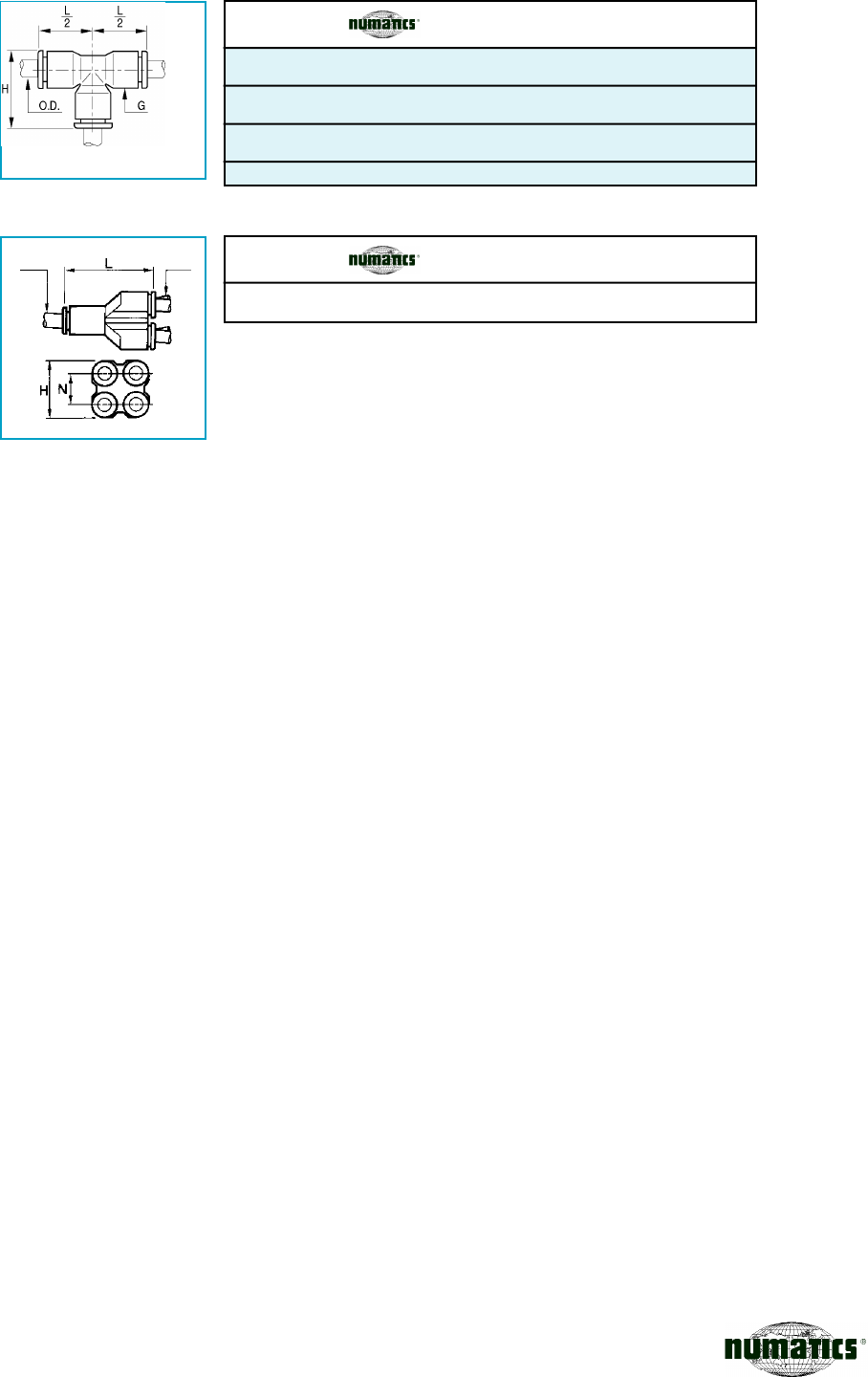

male run tee — tube to tube to male NPT
O.D. C
Previous QR
F G H H1 L
TUBE
NPT/UNF
Part Number
1/8 10-32
QR3103 53 20
7/16 .42 1.44 .72 .73 .46
1/8 1/16
QR3103 53 08
7/16 .42 1.48 .75 .73 .50
1/8 1/8
QR3103 53 11
7/16 .42 1.48 .75 .73 .53
5/32 10-32
QR3103 04 20
3103 54 20 8mm .33 1.02 .45 .57 .21
5/32 1/8
QR3103 04 11
3103 54 11 11mm .33 .93 .53 .57 .25
5/32 1/4
QR3103 04 14
3103 54 14 14mm .33 .94 .37 .57 .28
3/16 1/8
QR3103 55 11
7/16 .43 1.48 .75 .73 .71
1/4 1/8
QR3103 56 11
11mm .43 1.16 .45 .71 .32
1/4 1/4
QR3103 56 14
14mm .43 1.12 .41 .71 .60
1/4 3/8
QR3103 56 18
18mm .43 1.14 .43 .71 .65
5/16 1/8
QR3103 08 11
3103 58 11 11mm .53 1.38 .49 .91 .56
5/16 1/4
QR3103 08 14
3103 58 14 14mm .53 1.34 .45 .91 .67
5/16 3/8
QR3103 08 18
18mm .53 1.36 .47 .91 .78
3/8 1/8
QR3103 60 11
15mm .63 1.63 .60 1.04 2.30
3/8 1/4
QR3103 60 14
15mm .63 1.63 .60 1.04 2.44
3/8 3/8
QR3103 60 18
18mm .63 1.60 .55 1.04 2.44
3/8 1/2
QR3103 60 22
22mm .63 1.63 .59 1.04 3.00
1/2 1/4
QR3103 62 14
7/8 .95 2.46 1.26 1.20 3.11
1/2 3/8
QR3103 62 18
7/8 .95 2.46 1.26 1.20 3.25
1/2 1/2
QR3103 62 22
7/8 .95 2.50 1.30 1.20 3.88
q
oz
QR3103
10-32 O-Ring replacement part number 31419
Shaded areas designate part numbers available from the 3rd Generation collection.
The 3rd generation hex is metric.
Dimensions are fractional inch unless otherwise noted.
O . D .
3rd generation
nickel plated brass
nickel plated brass
brass
2nd generation
3rd generation
2nd generation
O . D .
C
O.D. C
Previous QR
F G H L
TUBE NPT
Part Number
5/32 1/8
QR3129 04 11
3129 54 11 11mm .33 .91 .75 .74
5/32 1/4
QR3129 04 14
3129 54 14 14mm .33 .93 .75 1.34
1/4 1/8
QR3129 56 11
11mm .43 1.12 .93 1.31
1/4 1/4
QR3129 56 14
14mm .43 1.08 .93 1.55
5/16 1/8
QR3129 08 11
13mm .53 1.32 1.16 1.31
5/16 1/4
QR3129 08 14
14mm .53 1.28 1.16 1.55
3/8 1/4
QR3129 60 14
17mm .63 1.41 1.33 2.22
3/8 3/8
QR3129 60 18
18mm .63 1.45 1.33 3.53

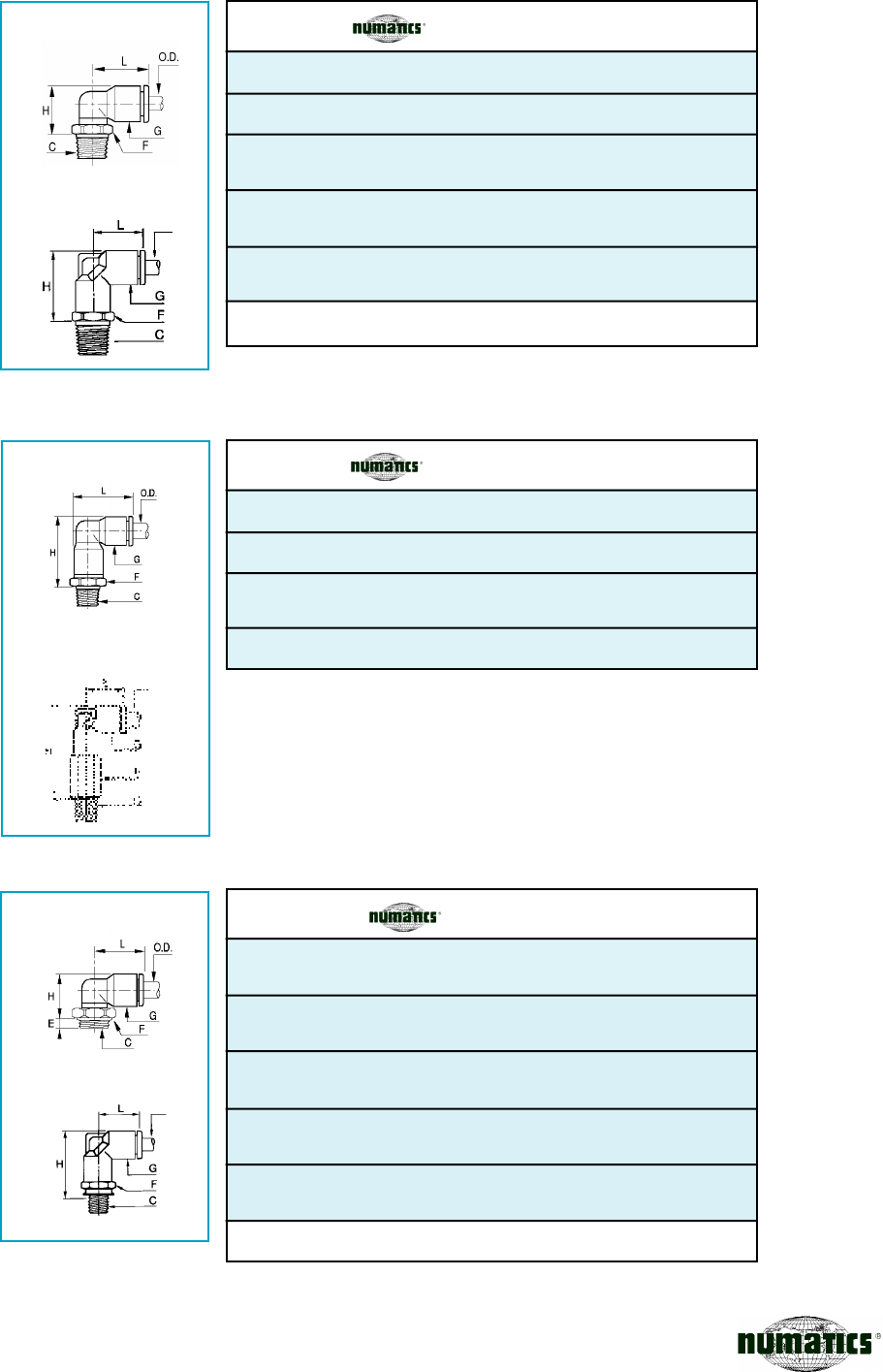

QR3129 extended male elbow — tube to male NPT q
oz
O.D. C
Previous QR
F G H L
TUBE
NPT/UNF
Part Number
2
1/8 10-32
QR3108 53 20
7/16 .42 .92 .73 .46
1/8 1/16
QR3108 53 08
7/16 .42 .96 .73 .50
1/8 1/8
QR3108 53 11
7/16 .42 .96 .73 .53
5/32 10-32
QR3108 04 20
3108 54 20 8mm .33 .71 .55 .20
5/32 1/8
QR3108 04 11
3108 54 11 11mm .33 .61 .55 .25
5/32 1/4
QR3108 04 14
3108 54 14 14mm .33 .63 .55 .28
3/16 1/8
QR3108 55 11
7/16 .43 .96 .73 .71
1/4 1/8
QR3108 56 11
11mm .43 .67 .71 .32
1/4 1/4
QR3108 56 14
14mm .43 .63 .71 .60
1/4 3/8
QR3108 56 18
18mm .43 .65 .71 .71
5/16 1/8
QR3108 08 11
3108 58 11 11mm .53 .87 .91 .57
5/16 1/4
QR3108 08 14
3108 58 14 14mm .53 .83 .91 .67
5/16 3/8
QR3108 08 18
3108 58 18 18mm .53 .85 .91 .74
3/8 1/8
QR3108 60 11
15mm .63 .99 1.04 2.30
3/8 1/4
QR3108 60 14
15mm .63 .99 1.04 2.44
3/8 3/8
QR3108 60 18
18mm .63 .95 1.04 2.44
3/8 1/2
QR3108 60 22
22mm .63 .98 1.04 3.00
1/2 1/4
QR3108 62 14
7/8 .95 1.73 1.98 3.11
1/2 3/8
QR3108 62 18
7/8 .95 1.73 1.98 3.25
1/2 1/2
QR3108 62 22
7/8 .95 1.77 1.98 3.88

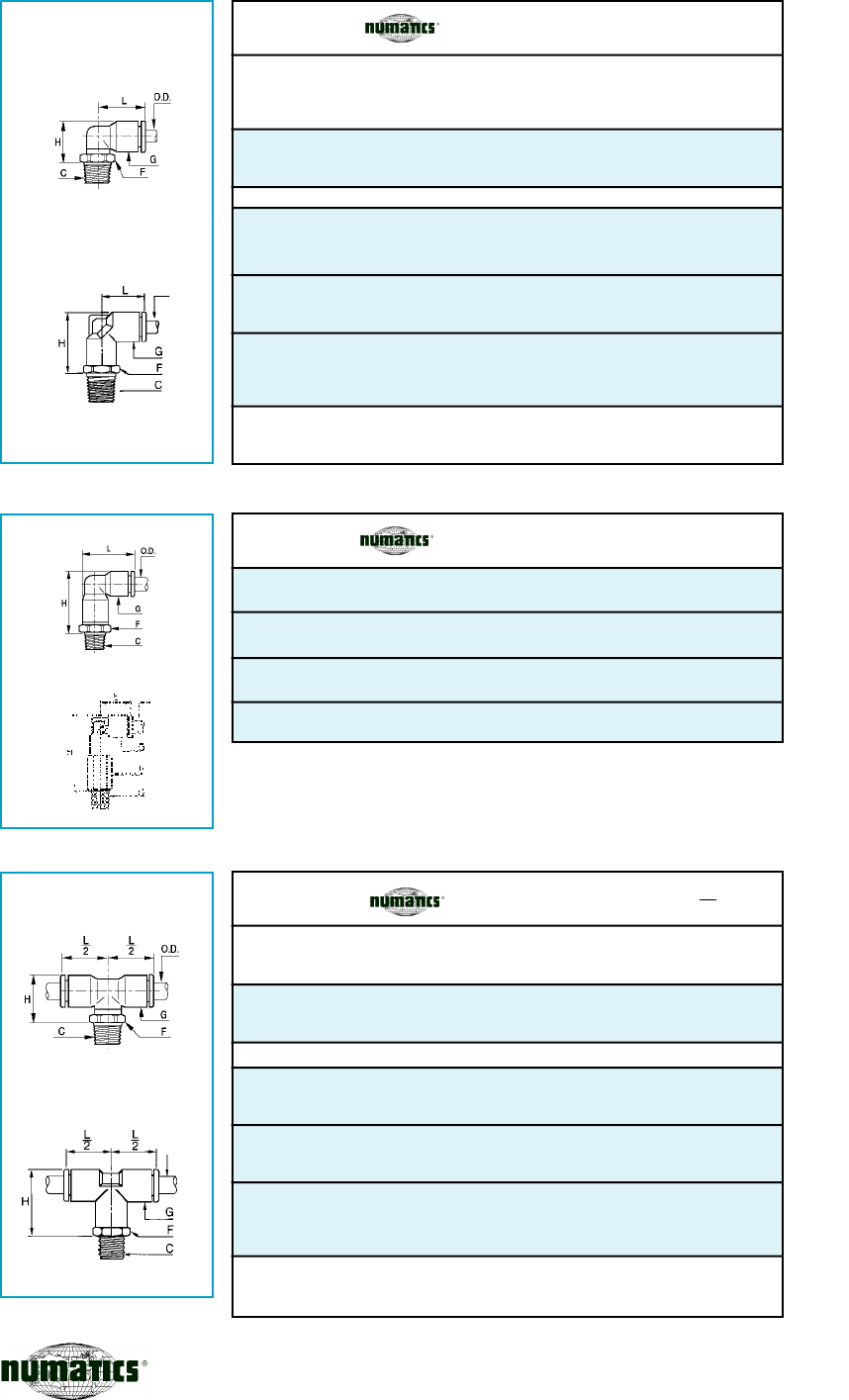

QR3108 male branch tee — tube to male NPT to tube q
oz
O.D. C
Previous QR
F G H L
TUBE
N P T / U N F
Part Number
1/8 10-32
QR3109 53 20
7/16 .42 .92 .73 .35
1/8 1/16
QR3109 53 08
7/16 .42 .96 .73 .35
1/8 1/8
QR3109 53 11
7/16 .42 .96 .73 .42
1/8 1/4
QR3109 53 14
9/16 .42 .96 .73 .67
5/32 10-32
QR3109 04 20
3109 54 20 8mm .33 .53 .55 .17
5/32 1/8
QR3109 04 11
3109 54 11 11mm .33 .53 .55 .21
5/32 1/4
QR3109 04 14
3109 54 14 14mm .33 .55 .55 .50
3/16 1/8
QR3109 55 11
7/16 .43 .96 .73 .56
1/4 10-32
QR3109 56 20
11mm .43 .63 .71 .17
1/4 1/8
QR3109 56 11
11mm .43 .67 .71 .21
1/4 1/4
QR3109 56 14
14mm .43 .63 .71 .53
1/4 3/8
QR3109 56 18
18mm .43 .65 .71 .62
5/16 1/8
QR3109 08 11
3109 58 11 11mm .53 .75 .91 .46
5/16 1/4
QR3109 08 14
3109 58 14 14mm .53 .71 .91 .53
5/16 3/8
QR3109 08 18
18mm .53 .73 .91 .64
3/8 1/8
QR3109 60 11
15mm .63 .91 1.08 1.89
3/8 1/4
QR3109 60 14
15mm .63 .91 1.08 1.94
3/8 3/8
QR3109 60 18
18mm .63 .87 1.08 2.12
3/8 1/2
QR3109 60 22
22mm .63 .91 1.08 3.25
1/2 1/4
QR3109 62 14
7/8 .95 1.73 1.20 2.51
1/2 3/8
QR3109 62 18
7/8 .95 1.73 1.20 2.61
1/2 1/2
QR3109 62 22
7/8 .95 1.77 1.20 3.25
A-7
threaded fittings
QR3109 male elbow — tube to male NPT q
oz
10-32 O-Ring replacement part number 31419
Shaded areas designate part numbers available from the 3rd Generation collection.
The 3rd generation hex is metric.
Dimensions are fractional inch unless otherwise noted.
O . D .
3rd generation
2nd generation
3rd generation
O . D .
2nd generation
3rd generation
2nd generation
O . D .
O.D. C F H J L1 L2
TUBE UNF
1/8 10-32 QR3118 53 20 5/16 .53 3/8 .19 .85 .46
5/32 10-32 QR3118 54 20 5/16 .53 3/8 .19 .85 .46
1/4 10-32 QR3118 56 20 5/16 .53 1/2 .19 .87 .65
A-8
threaded fittings

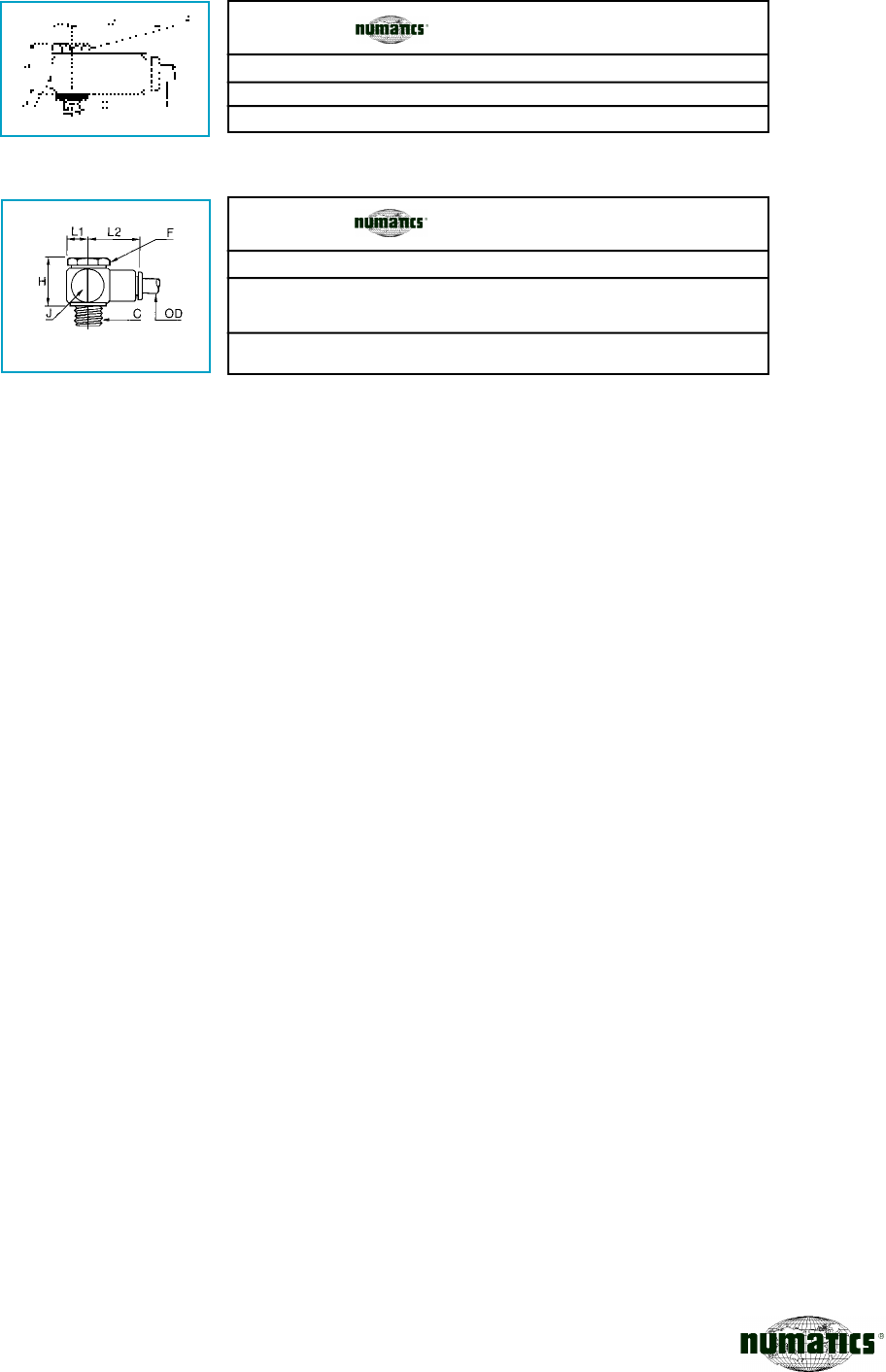

QR3118 banjo — tube to 10-32 UNF
O.D. C F H J L1 L2
TUBE NPT
5/32 1/8 QR3018 54 11 1/2 .77 .63 .32 .90 .67
1/4 1/8 QR3018 56 11 1/2 .78 .63 .36 .96 .74
1/4 1/4 QR3018 56 14 11/16 .78 .79 .42 1.02 .99
1/4 3/8 QR3018 56 18 7/8 .81 .98 .49 1.57 1.73
3/8 1/4 QR3018 60 14 7/8 .81 .98 .49 1.57 2.05
3/8 3/8 QR3018 60 18 7/8 .81 .98 .49 1.57 2.15
QR3018 banjo — tube to NPT
q
oz
q
oz
O . D .
10-32 O-Ring replacement part number 31419
Shaded areas designate part numbers available from the 3rd Generation collection.
The 3rd generation hex is metric.
Dimensions are fractional inch unless otherwise noted.
A-9
O.D. C
Previous QR
F G H E
TUBE NPT
Part Number
1/8 1/8 QR3014 53 11 3114 53 11 9/16 1.06 .74
1/8 1/4 QR3014 53 14 3114 53 14 11/16 1.26 1.13
5/32 1/8 QR3014 04 11 3114 54 11 13mm .32 .89 .37 .35
5/32 1/4 QR3014 04 14 3114 54 14 16mm .32 1.06 .55 .56
3/16 1/8 QR3014 55 11 3114 55 11 9/16 1.06 .92
3/16 1/4 QR3014 55 14 3114 55 14 11/16 1.26 1.27
1/4 1/8 QR3014 56 11 3114 56 11 13mm .42 .98 .37 .39
1/4 1/4 QR3014 56 14 3114 56 14 16mm .42 1.16 .55 .56
5/16 1/8 QR3014 08 11 3114 58 11 13mm .53 1.14 .37 .71
5/16 1/4 QR3014 08 14 3114 58 14 16mm .53 1.32 .55 .95
3/8 1/4 QR3014 60 14 3114 60 14 16mm .61 1.40 .55 2.50
3/8 3/8 QR3014 60 18 3114 60 18 22mm .61 1.51 .65 2.58
female threaded fittings
QR3014 straight female connector — tube to NPT
QR3009 female elbow — tube to NPT
O.D. C
Previous QR
F G H E L
TUBE NPT
Part Number
1/8 1/8
QR3009 53 11
9/16 .42 1.21 .73 .42
5/32 1/8
QR3009 04 11
3009 54 11 13mm .33 .91 .37 .55 .40
5/32 1/4
QR3009 04 14
3009 54 14 16mm .33 1.08 .55 .55 .45
1/4 1/8
QR3009 56 11
13mm .43 1.02 .37 .71 .42
1/4 1/4
QR3009 56 14
16mm .43 1.18 .55 .71 .49
5/16 1/8
QR3009 08 11
3009 58 11 13mm .53 1.12 .37 .91 .66
5/16 1/4
QR3009 08 14
3009 58 14 16mm .53 1.28 .55 .91 .69
3/8 1/4
QR3009 60 14
16mm .63 1.52 .55 1.04 .81
1/2 3/8
QR3009 62 18
7/8 .95 2.17 1.20 3.25
QR3008 female branch tee — tube to NPT
O.D. C
Previous QR
F G H E L
TUBE NPT
Part Number
2
q
oz
q
oz
q
oz
1/8 1/8
QR3008 53 11
9/16 .42 1.21 .73 .53
5/32 1/8
QR3008 04 11
3008 54 11 13mm .33 .91 .37 .55 .40
5/32 1/4
QR3008 04 14
3008 54 14 16mm .33 1.08 .55 .55 .45
1/4 1/8
QR3008 56 11
13mm .43 1.02 .37 .71 .42
1/4 1/4
QR3008 56 14
16mm .43 1.18 .55 .71 .49
5/16 1/8
QR3008 08 11
3008 58 11 13mm .53 1.24 .37 .91 .66
5/16 1/4
QR3008 08 14
3008 58 14 16mm .53 1.40 .55 .91 .69
3/8 1/4
QR3008 60 14
16mm .63 1.60 .55 1.04 2.44
1/2 3/8
QR3008 62 18
7/8 .95 2.17 1.20 3.25
Shaded areas designate part numbers available from the 3rd Generation collection.
The 3rd generation hex is metric.
Dimensions are fractional inch unless otherwise noted.
3rd generation
2nd generation
3rd generation
2nd generation
3rd generation
2nd generation
O . D .
O . D .
H
O.D.
Previous QR
G L
TUBE
Part Number
1/8 QR3106 53 00 .42 1.45 .21
5/32 QR3106 04 00 3106 54 00 .33 .98 .07
3/16 QR3106 55 00 .43 1.26 .28
1/4 QR3106 56 00 .43 1.16 .14
5/16 QR3106 08 00 3106 58 00 .53 1.50 .25
3/8 QR3106 60 00 .63 1.65 .95
1/2 QR3106 62 00 .95 1.92 1.16

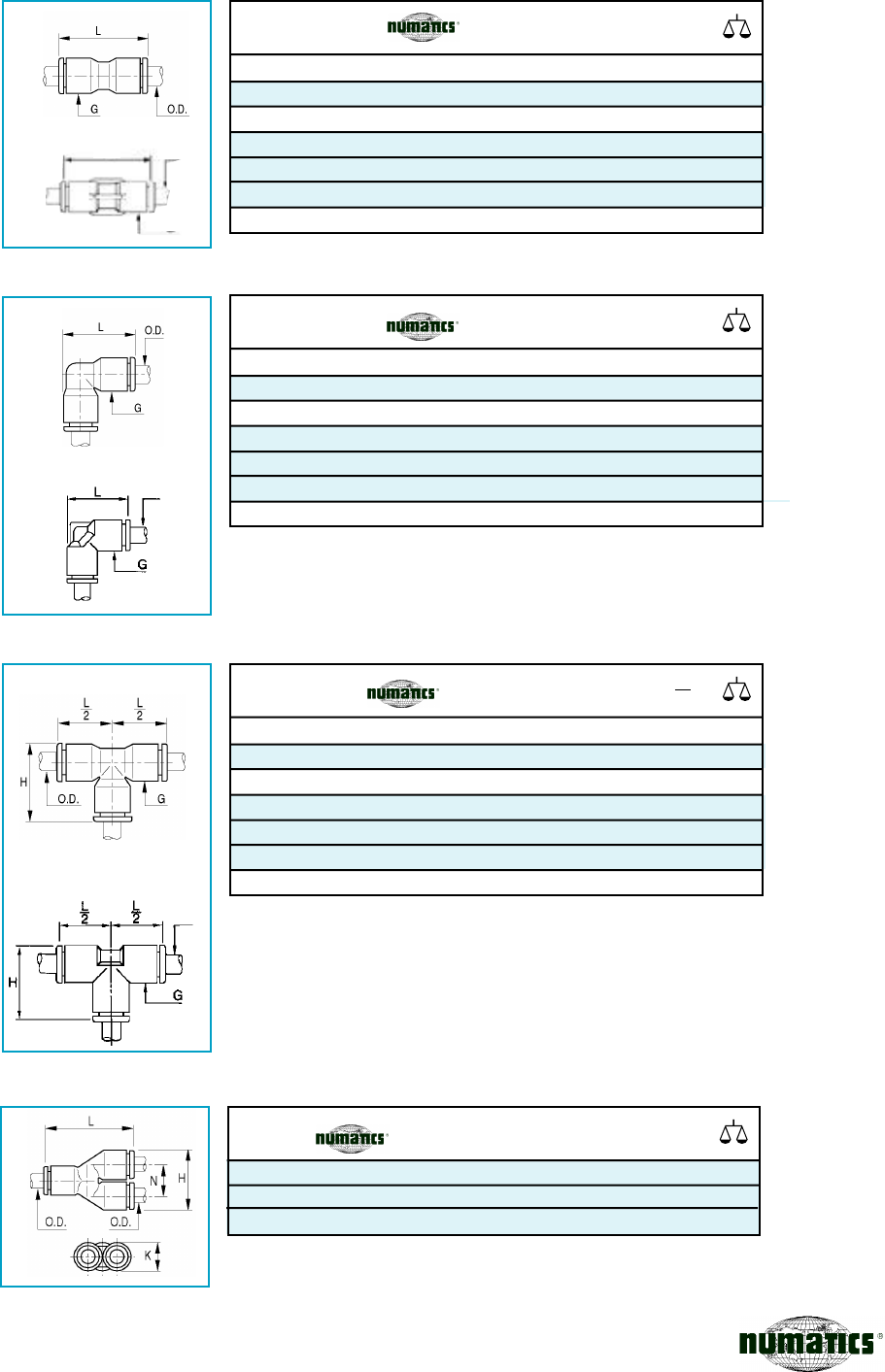

tube to tube fittings

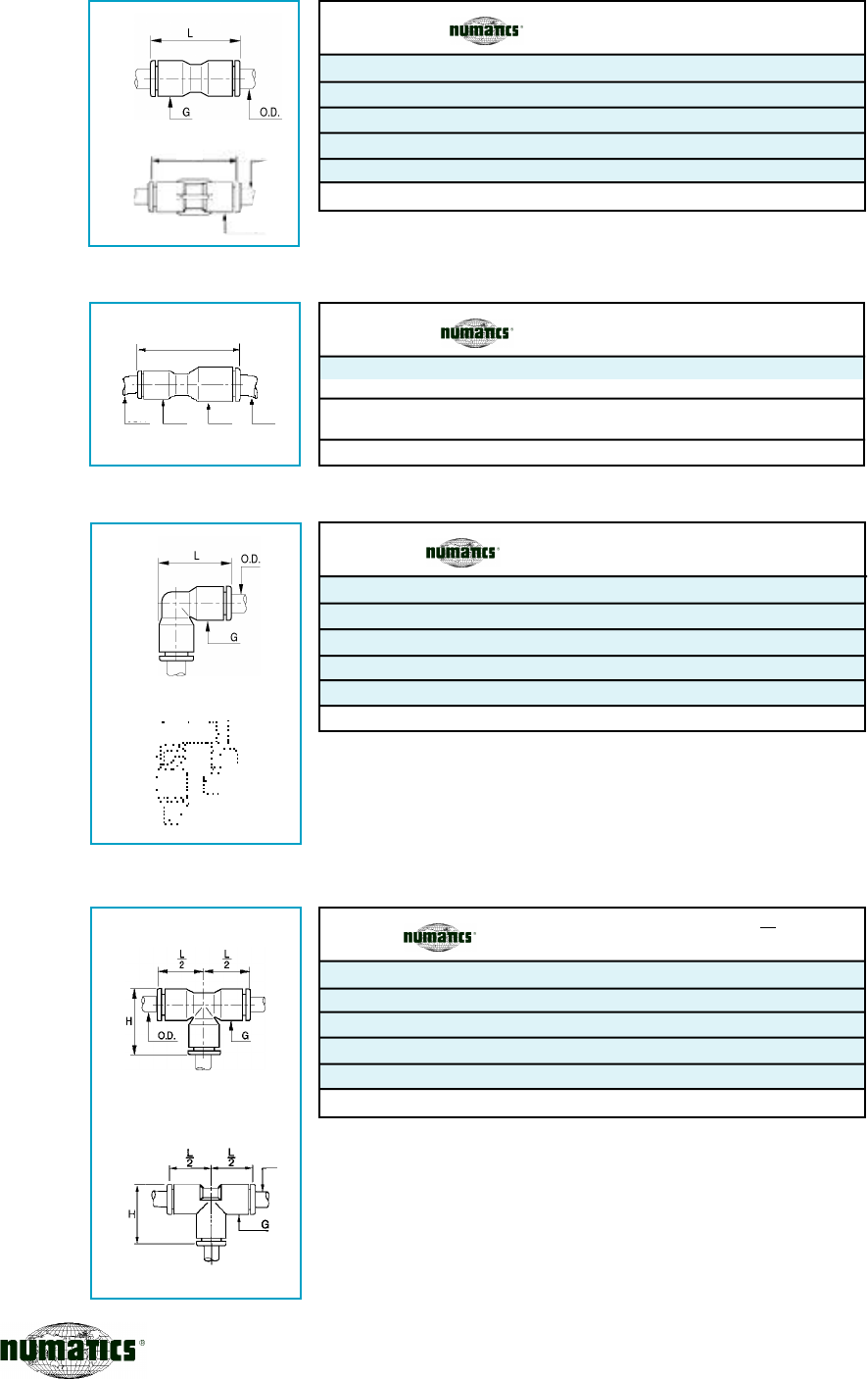

QR3106 union — tube to tube
oz
O.D.
Previous QR
G L
TUBE
Part Number
1/8 QR3102 53 00 .42 .93 .21
5/32 QR3102 04 00 3102 54 00 .33 .75 .07
3/16 QR3102 55 00 .43 .95 .28
1/4 QR3102 56 00 .43 .93 .14
5/16 QR3102 08 00 3102 58 00 .53 1.16 .25
3/8 QR3102 60 00 .63 1.33 .95
1/2 QR3102 62 00 .95 1.67 1.23
QR3102 union elbow — tube to tube
oz
A-10
O.D.
Previous QR
G H L
TUBE
Part Number
2
1/8 QR3104 53 00 .42 .93 .73 .35
5/32 QR3104 04 00 3104 54 00 .33 .75 .57 .14
3/16 QR3104 55 00 .43 .94 .73 .42
1/4 QR3104 56 00 .43 .93 .73 .49
5/16 QR3104 08 00 3104 58 00 .53 1.16 .91 .32
3/8 QR3104 60 00 .63 1.33 1.015 1.48
1/2 QR3104 62 00 .95 1.67 1.20 2.08
QR3104 tee — tube to tube to tube
oz
O.D.
Previous QR
H K L N
TUBE
Part Number
5/32 QR3140 04 00 3140 54 00 .69 .34 1.12 .35 .14
5/16 QR3140 08 00 1.10 .53 1.77 .57 .46
3/8 QR3140 60 00 1.30 .63 2.09 .67 .52
QR3140 "Y" — tube to tube
oz
3rd generation
O . D .
G
L
2nd generation
3rd generation
O . D .
2nd generation
3rd generation
2nd generation
O . D .
Shaded areas designate part numbers available from the 3rd Generation collection.
The 3rd generation hex is metric.
Dimensions are fractional inch unless otherwise noted.
O.D.1 O.D.2 H L1 LN T
TUBE TUBE 2
1/4 5/32 QR3304 56 54 1.04 1.42 1.38 .43 .13 .81
1/4 1/4 QR3304 56 56 1.18 1.86 1.56 .55 .17 1.0

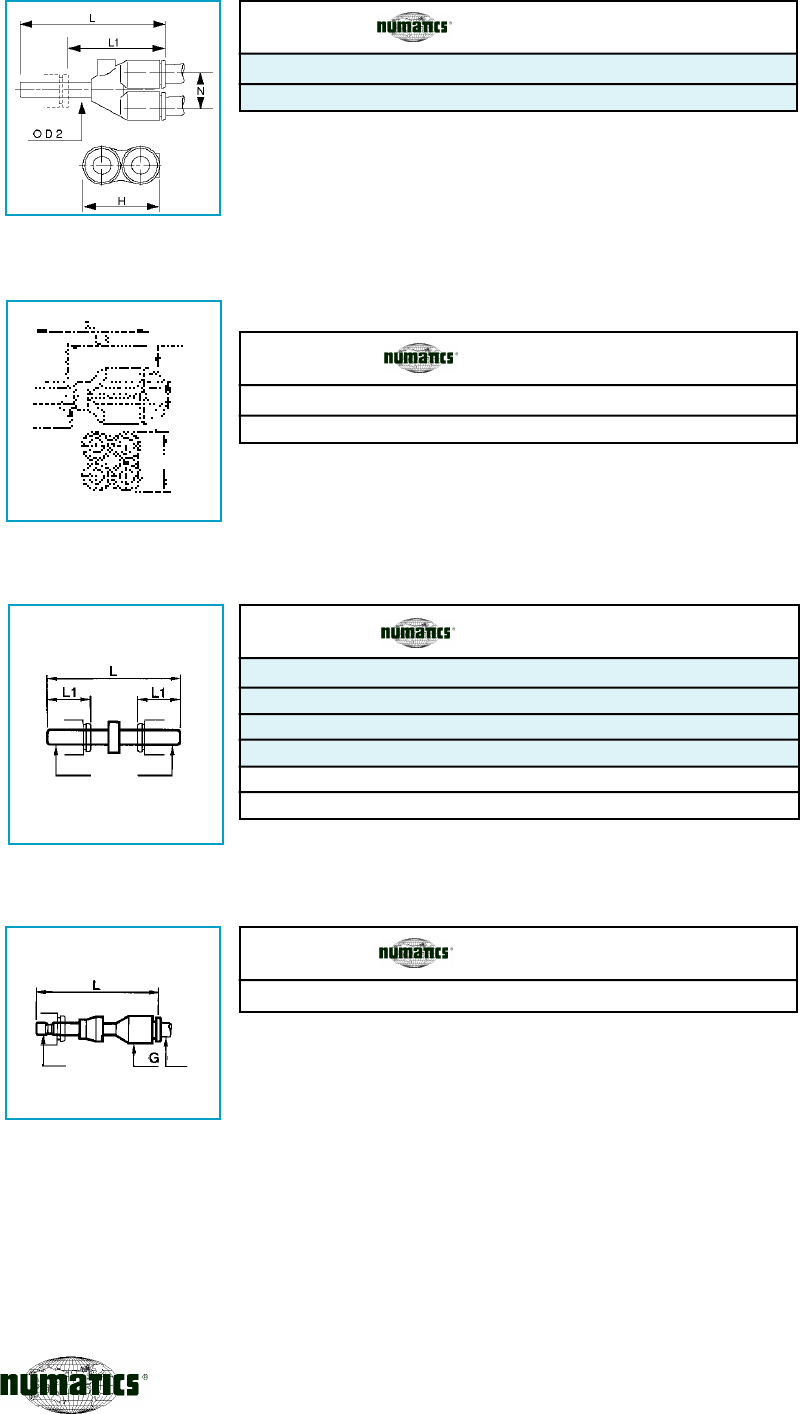

QR3304 multiple tee with mounting holes
oz
O . D . 2
O . D . 1
A-11
tube to tube fittings
Dimensions are fractional inch unless otherwise noted.
Numatics has a variety of plug-in accessories. Please refer to pages A-16 thru A-20.
O.D.1 O.D.2 H L N
TUBE TUBE
5/32 1/4 QR3144 54 56 .87 1.47 .43 1.1
5/32 5/32 QR3144 04 04 .86 1.40 .43 1.1
QR3144 double "Y" — tube to tube
oz
O . D . 2 O . D . 1
L
H N
Required hole dimension.
Minimum centers between fittings.
O.D. 5/32" 1/4" 5/16" 3/8" 1/2"
ØT mm 15.87 19.05 22.22 28.57 31.75
in 5/8" 3/4" 7/8" 1 1/8" 1 1/4"
N mm22.5 25.5 27.5 34 38
ØT : +0.3 - 0.1
O.D. G L1 L2 T
TUBE MIN
5/32 QR3156 04 00 .83 .26 1.08 .62 .25
1/4 QR3156 56 00 .93 .26 1.24 .75 .39
5/16 QR3156 58 00 1.02 .30 1.28 .87 .53
3/8 QR3156 60 00 1.34 .30 1.63 1.12 1.09
1/2 QR3156 62 00 1.44 .30 1.71 1.25 1.34
A-12

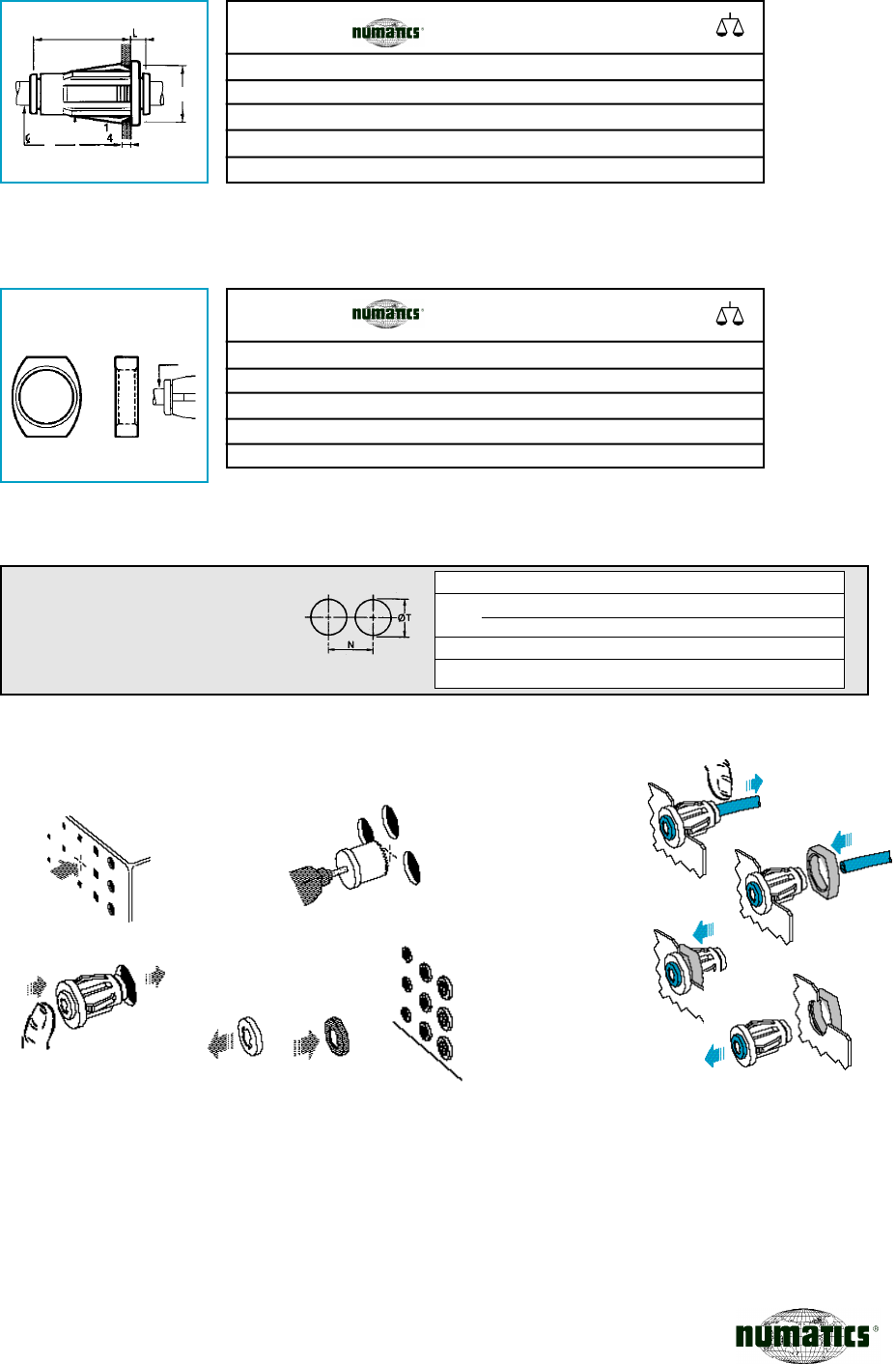

plug-in bulkhead fitting

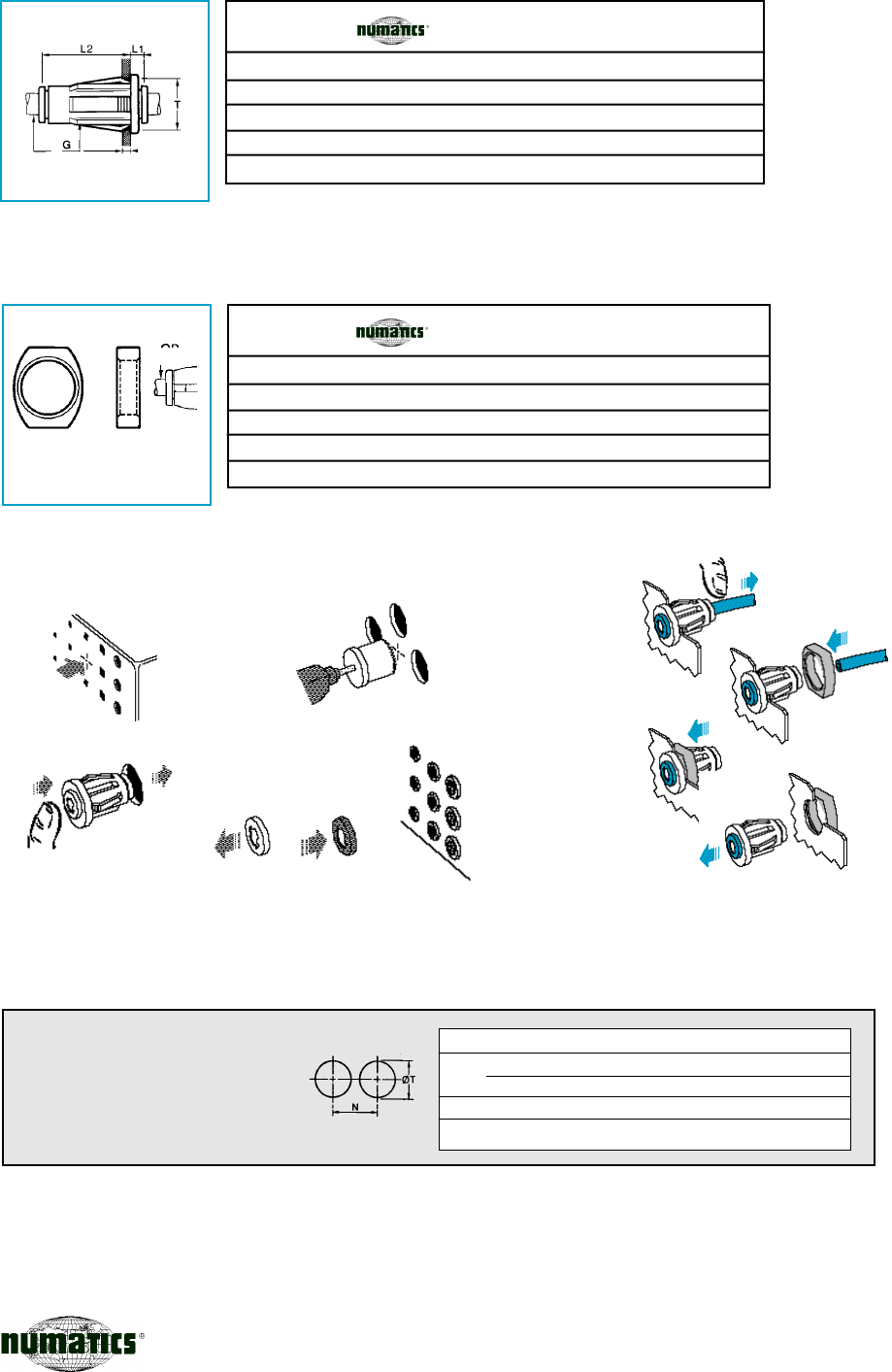

QR3156 plug-in bulkhead union — tube to tube
O.D.
TUBE
5/32 QR3332 54 01 .14
1/4 QR3332 56 01 .14
5/16 QR3332 58 01 .18
3/8 QR3332 60 01 .28
1/2 QR3332 12 01 .32
QR3332 demounting tool for removing pop-in bulkhead
oz
oz
plastic
O . D .
O . D .
INSTALLATION
1. Mark out the mounting hole.
4. To identify circuits, simply
remove the green release button
and replace with a colored one.
(See model No. 3330)
2. Drill hole in panel.
3. Push the fitting into
the panel.
REMOVAL
1. Disconnect
the tube.
2. Put the removal tool
on the fitting.
3. Push the tool
over the fitting
to the bulkhead face.
4. Simply remove the fitting.
Numatics has a policy of continual product development and reserves the right to change dimensions or
specifications without prior notification.
Dimensions are fractional inch unless otherwise noted.
G
L 2
T
L 1
A-13
O.D. FKL1 L2 T
TUBE MAX MIN
1/8 QR3186 53 00 9/16 .26 .25 1.07 .51 .67
5/32 QR3186 54 00 9/16 .26 .25 .99 .51 .67
3/16 QR3186 55 00 9/16 .26 .25 1.07 .51 1.23
1/4 QR3186 56 00 11/16 .28 .25 1.18 .59 1.02
5/16 QR3186 58 00 13/16 .28 .29 1.18 .71 1.16
3/8 QR3186 60 00 1 .47 .29 1.55 .91 2.96
1/2 QR3186 62 00 1-1/8 .51 .29 1.65 1.02 3.60
bulkhead
QR3186 bulkhead union — tube to tube
oz
Dimensions are fractional inch unless otherwise noted.
L 2
K
T
F
F
L 1
O . D .
O.D. O.D.2
Previous QR
G L L1
TUBE
Part Number
1/8 5/32
QR3166 53 04
3166 53 54 .43 1.79 .13 .11
1/8 3/16
QR3166 53 55
.43 1.79 1.22 .13
1/8 1/4
QR3166 53 56
.40 1.37 1.22 .15
5/32 3/16
QR3166 04 55
3166 54 55 .335 1.48 .826 .21
5/32 1/4
QR3166 04 56
3166 54 56 .335 1.48 .905 .25
5/32 5/16
QR3166 04 08
3166 54 58 .335 1.48 .748 .32
5/32 3/8
QR3166 54 60
.40 1.63 .66 .39
3/16 1/4
QR3166 55 56
.43 1.44 .60 .25
3/16 5/16
QR3166 55 08
3166 55 58 .43 1.79 1.06 .23
3/16 1/4
QR3166 55 56
.43 1.79 1.22 .25
1/4 5/16 QR3166 56 08
3166 56 58 .43 1.61 .89 .53
1/4 3/8
QR3166 56 60
.43 1.61 .81 .35
1/4 1/2
QR3166 56 62
.63 1.97 .98 .38
5/16 3/8
QR3166 08 60
3166 58 60 .53 1.93 1.12 .53
5/16 1/2
QR3166 08 62
3166 58 62 .63 2.01 1.02 .53
5/16 1/2
QR3166 60 62
.63 2.01 1.04 .53
plug-in fittings and multiple tee
QR3166 reducer
oz
A-14
O.D. O.D.2
Previous QR
G L L1
TUBE
Part Number
1/4 1/8
QR3168 56 53
.43 1.61 .965 .28
1/4 5/32
QR3168 56 04
3168 56 54 .43 1.61 1.14 .32
1/4 3/16
QR3168 56 55
.807 1.61 1.00 .32
QR3168 expander
oz
O.D.
Previous QR
G L
TUBE
Part Number
1/8
QR3126 53 00
.20 1.06 .04
5/32
QR3126 04 00
.25 1.06 .04
3/16
QR3126 55 00
.30 1.06 .05
1/4
QR3126 56 00
3126 56 00 85 .38 1.06 .04
5/16
QR3126 58 00
.40 1.50 .07
3/8
QR3126 60 00
.48 1.50 .07
1/2
QR3126 62 00
.60 1.50 .08
QR3126 plug
oz
Shaded areas designate part numbers available from the 3rd Generation collection.
The 3rd generation hex is metric.
Dimensions are fractional inch unless otherwise noted.
L
O . D . G
3rd generation
2nd generation
3rd generation
2nd generation
G
LL 1
* See below
* See below
Plastic
plug-in fittings and multiple tee
A-15
QR3142 plug-in "Y" — male-tube
O.D.1 O.D.2 H L L1 N
TUBE TUBE
1/8 1/8
QR3142 53 00
.866 1.693 0.794 .452 .29
5/32 5/32
QR3142 04 00
.87 1.57 1.09 .45 .32
5/32 1/4
QR3142 54 56
.87 1.75 0.98 .43 .46
oz
* 3rd generation accessories can be used with either
3rd generation or 2nd generation fittings. 2nd generation.
accessories can ONLY be used with 2nd generation fittings.
QR3120 double male union
3rd generation
2nd generation
O.D.
Previous QR
L L1
TUBE
Part Number
5/32 QR3120 04 00 3120 54 00 85 1.36 .47 .04
3/16 QR3120 55 00 85 1.24 .57 .07
1/4 QR3120 56 00 3120 56 00 85 1.52 .57 .05
5/16 QR3120 08 00 3120 58 00 85 1.61 .73 .07
3/8 QR3120 60 00 3120 60 00 85 2.03 .81 .09
oz
O . D . O . D .
Shaded areas designate part numbers available from the 3rd Generation collection.
The 3rd generation hex is metric.
Dimensions are fractional inch unless otherwise noted.
* See below
Plastic
O . D . 1
O . D . 2
L 1
L
N
. 4 3
H
O.D.1 O.D.2 L L1 N
TUBE TUBE
5/32 1/4
QR3143 04 06
1.88 1.10 .43 .95
5/32 5/16
QR3143 04 08
1.81 1.13 .43
QR3143 multiple plug-in "Y" — male tube
oz
O.D.2
O.D.1
22
N
A-16
O.D. white black green red blue yellow
TUBE
tubing and accessories
QR3330
1/8 QR3330 53 00 QR3330 53 01 QR3330 53 02 QR3330 53 03 QR3330 53 04 QR3330 53 05 .04
5/32 QR3330 04 00 QR3330 04 01 QR3330 04 02 QR3330 04 03 QR333004 04 QR3330 04 05 .04
3/16 QR3330 55 00 QR3330 55 01 QR3330 55 02 QR3330 55 03 QR3330 55 04 QR3330 55 05 .04
1/4 QR3330 56 00 QR3330 56 01 QR3330 56 02 QR3330 56 03 QR3330 56 04 QR3330 56 05 .04
5/16 QR3330 08 00 QR3330 08 02 QR3330 08 03 QR333008 04 QR3330 08 05 .04
3/8 QR3330 60 00 QR3330 60 02 QR3330 60 03 QR3330 60 04 QR3330 60 05 .04
1/2 QR3330 62 00 QR3330 62 01 QR3330 62 02 QR3330 62 03 QR3330 62 04 QR3330 62 05 .04
manual release buttons 3rd generation
oz
Numatics manual release buttons are supplied in package quantities
of 100.
QR3000 fittings are supplied standard, with green manual release
buttons for easy disconnect.
REMOVABLE on 1/8, 5/32, 1/4, 3/16, and 1/2 sizes, these release
buttons help for the identification of circuits:
Replace the green release button with a button of another color. On
5/16 and 3/8 sizes, colored buttons fit over the green release button.
6 colors are available which allow a color coding to be used on
circuits, in association with the tubes of the same color.
tubing and accessories
Fractional nylon 11 tubing
application
Flexible nylon tubing used for air and lubrication lines, instrumen-
tation and process lines for chemicals and solvents. Contact facto-
ry for specific applications.
features
Has excellent resistance to a wide range of chemicals including
petroleum products, soaps, salt solutions and bases.
specifications
Temperature Range: -60° to 200° F
available colors
Natural (NA), Black (BK), Red (RD), Green (GN), Blue (BU), Yellow
(YW)
how to order
Complete the model number with the desired tube color and
length.
P/N Example: QRT N 12 GN 100’
A-17
For fractional tube clips, see page A-20.
I.D. O.D.
Min. Min. Coil/Reel
Burst Bend Length
O.D. I.D. QRTN Wall (PSI) Radius (Feet)
1/8 .093 QRTN12_ _ .017 1000 3/8” 100’ Coil
500’-1000’ Reel
5/32 .106 QRTN16_ _ .025 1000 1/2” 100’ Coil
500’-1000’ Reel
3/16 .138 QRTN19_ _ .024 1000 5/8” 100’ Coil
500’-1000’ Reel
1/4 .180 QRTN25_ _ .035 1000 1” 100’ Coil
500’-1000’ Reel
5/16 .232 *QRTN31_ _ .040 1000 1 1/4” 100’ Coil
500’-1000’ Reel
3/8 .275 QRTN38_ _ .050 1000 1 1/2” 100’ Coil
500’-1000’ Reel
1/2 .375 *QRTN50_ _ .062 1000 2” 100’ Coil
500’ Reel
Material: (N) = Nylon
Tube Size
Color
Length
Size Working Pressure (PSI)
Inches or MM @75°F @100°F @125°F @150°F
1/8x.093 225 168 133 125
5/32x.106 275 200 169 160
3/16x.138 225 158 120 113
1/4x.180 250 183 160 140
5/16x.232 220 170 141 121
3/8x.275 220 165 148 128
1/2x.375 200 145 133 125
Dimensions are fractional inch unless otherwise noted.
A-18
fractional low density polyethylene tubing
For fractional tube clips, see page A-20.
I.D. O.D.
Min. Min. Coil/Reel
Burst Bend Length
O.D. I.D. QRTE Wall (PSI) Radius (Feet)
1/8 .062 QRTE12_ _ .020 400 1” 100’ Coil
500’-1000’ Reel
5/32 .106 QRTE16_ _ .025 400 1” 100’ Coil
500’-1000’ Reel
1/4 .170 QRTE25_ _ .040 400 1” 100’ Coil
500’-1000’ Reel
5/16 .188 QRTE31_ _ .062 600 1 1/8” 100’ Coil
500’ Reel
3/8 .250 QRTE38_ _ .062 400 1 1/4” 100’ Coil
500’ Reel
1/2 .375 QRTE50_ _ .062 300 2 1/2” 100’ Coil
250’ Reel
tubing and accessories
application
Low density polyethylene tubing has a wide range of uses includ-
ing waterlines, beverage tubing, air lines, instrumentation, plus
uses in industrial, agricultural and chemical applications.
features
Good chemical resistance to alkalis, dilute acid, ammonia gas,
ammonium hydroxide, brine water and most aqueous solutions of
metallic salts.
specifications
Natural compuond meets the Food and Drug Administration Code
of Federal Regulations, Title 21, Part 177.1520(c) 2.1 for a resin
which may not be processed for use involving contact with human
food.
Temperature Range: -60° to 175° F
available colors
Natural (NA), Black (BK), Red (RD), Green (GN), Blue (BU), Yellow (YW)
* NOTE: 5/32 is not available in yellow, 5/16 is not available in
green or yellow.)
how to order
Complete the model number with the desired tube color and
length.
P/N Example: QRT E 12 GN 100’
Material: (E) = Low Density Polyethylene
Tube Size
Color (see note above)
Length
tubing and accessories
fractional polyurethane 95 tubing
available colors
Clear (CL), Black (BK), Red (RD), Green (GN), Blue (BU), Yellow (YW)
NOTE: 3/16 is available in clear and black only.
how to order
Complete the model number with the desired tube color and
length.
P/N Example: QRT U 12 GN 100’
For fractional tube clips, see page A-20.
I.D. O.D.
Min. Min. Coil/Reel
Burst Bend Length
O.D. I.D. QRTU Wall (PSI) Radius (Feet)
1/8 .066 QRTU12_ _ .031 800 1” 100’ Coil
500’-1000’ Reel
5/32 .093 QRTU16_ _ .031 600 1” 100’ Coil
500’-1000’ Reel
3/16 .107 QRTU19_ _ .062 400 1” 100’ Coil
500’-1000’ Reel
1/4 .160 QRTU25_ _ .045 400 1 1/8” 100’ Coil
500’-1000’ Reel
5/16 .216 QRTU31_ _ .062 400 1 1/8” 100’ Coil
500’ Reel
3/8 .250 QRTU38_ _ .062 400 1 1/4” 100’ Coil
500’ Reel
1/2 .320 QRTU50_ _ .062 400 1 1/2” 100’ Coil
250’ Reel
Material: (U) = Polyurethane
Tube Size
Color (see note above)
Length
Size Tolerance Working Pressure (PSI) Weight
Inches or MM inches @75°F @100°F @125°F @150°F lbs/100’
1/8x1/16 ±.005 233 186 151 117 0.5
5/32x3/32 ±.005 176 141 114 88 0.7
3/16x.107 ±.005 148 118 96 74 1.5
1/4x.160 ±.005 148 118 96 74 1.5
5/16x.216 ±.005 133 106 86 67 3.9
3/8x1/4 ±.005 147 117 95 73 3.4
1/2x.320 ±.005 140 112 91 70 5.1
application
Polyurethane tubing is ideal for compressed air systems and vacu-
um applications
features
Has excellent abrasion resistance and shape retention while work-
ing in high humidity and low temperatures. Withstands salt water.
Ages well. Good vibration absorption. Excellent tear resistance.
specifications
Temperature Range: -4° to 160° F
A-19
QRCLIP tubing clips 3rd generation
Characteristics of the new clip
Material: Black Nylon 12
Mounting Screw: At least one self-tapping screw per clip is provided in each package. Same
screw for all clip sizes (9.5mm length).
Quantity of screws per box: 20 minimum to 40 maximum.
Product Range
6 models including 3 to clip either tubing or Numatics QR3000 3rd generation fittings as follows:
PART number of tube size QR3000 3g number of
NUMBER clips per strip to clip fitting to clip clips per box
(min. order qty.)
CLIP 0400 8 clips 4mm (5/32) — 5
CLIP 06 00 8 clips 6mm (1/4, 3/16) — 5
CLIP 08 00 7 clips 8mm (5/16) 4mm (5/32) 5
CLIP 10 00 6 clips 10mm (2/8) 6mm (1/4) 5
CLIP 12 00 5 clips 12mm (1/2) — 5
CLIP 14 00 4 clips 14mm 8mm (5/16) 5
QR300071 tube cutter
This tool will cut all plastic tubes (e.g. nylon, teflon,
polyurethane, braided polyethylene, soft rubber, etc.)
from 1/8” to 1/2” diameter inclusive. It is designed to
give a clean cut at right angles to tube axis. A spring
maintains the cutter in the closed position.
Replacement blades are available.
Blades No.: QR3000 71 05 (Sold in packages of two)
L
H
Model No. Height Length
QR3000 71 00 .98 3.11
Dimensions are fractional inch unless otherwise noted.
A-20
tubing and accessories
C C F L
NPT BSPT
1/8 1/8 QR0121 11 10 .43 .75 .32
1/4 1/4 QR0121 14 13 .55 1.06 .74
3/8 3/8 QR0121 18 17 .67 1.10 .88
1/2 1/2 QR0121 22 21 .87 1.42 1.8
3/4 3/4 QR0121 28 27 1.06 1.57 3.1
QR0121 double male adaptors — NPT to BSPT q
oz
brass adaptors
C C E F L
NPT BSPP
1/8 1/8 QR0164 11 10 .30 .55 .79 .53
1/4 1/4 QR0164 14 13 .43 .67 1.08 .99
3/8 3/8 QR0164 18 17 .45 .87 1.12 1.5
1/2 1/2 QR0164 22 21 .59 1.06 1.44 2.8
3/4 3/4 QR0164 28 27 .65 1.26 1.52 3.9
QR0164 male/female adaptors — NPT to BSPP q
oz
C C E F L
BSPT NPT
1/8 1/8 QR0167 10 11 .31 .55 .83 .56
1/4 1/4 QR0167 13 14 .45 .67 1.12 1.0
3/8 3/8 QR0167 17 18 .47 .87 1.16 1.6
1/2 1/2 QR0167 21 22 .61 1.06 1.48 3.0
3/4 3/4 QR0167 27 28 .67 1.26 1.56 4.2
QR0167 male/female adaptors — BSPT to NPT q
oz
A-21
BSPP
NPT
NPT
BSPT
Dimensions are fractional inch unless otherwise noted.
threaded fittings
QR3175
A-22
tube to male BSPT
O.D. C F1 F2 H K
TUBE BSPT
4 1/8 QR3175 04 10 10 3 9.5 11 .21
4 1/4 QR3175 04 13 14 3 6.5 15 .45
6 1/8 QR3175 06 10 10 4 11.5 11 .17
6 1/4 QR3175 06 13 14 4 8.5 15 .38
8 1/8 QR3175 08 10 13 5 20 14 .35
8 1/4 QR3175 08 13 14 6 17 15 .42
8 3/8 QR3175 08 17 17 6 13 18.5 .52
10 1/4 QR3175 10 13 16 7 20 17.5 .59
10 3/8 QR3175 10 17 17 8 16.5 18.5 .77
10 1/2 QR3175 10 21 21 8 14 23 1.1
12 1/4 QR3175 12 13 19 7 26.5 21 2.2
12 3/8 QR3175 12 17 19 9 24 21 2.4
12 1/2 QR3175 12 21 21 10 19.5 23 2.2
14 3/8 QR3175 14 17 22 9 28 24 2.0
14 1/2 QR3175 14 21 22 11 24.5 24 2.1
q
oz
QR3101 male connector tube to BSPP or M5 thread
O.D. C F1 F2 E H K
TUBE
BSPP/M5
4 M5 QR3101 04 19 8 2.5 3.5 14 9 .10
4 1/8 QR3101 04 10 13 3 5 11.5 14 .24
4 1/4 QR3101 04 13 16 3 5.5 10.5 17.5 .38
6 M5 QR3101 06 19 10 2.5 3.5 16 11 .14
6 1/8 QR3101 06 10 13 4 5 13 14 .24
6 1/4 QR3101 06 13 16 4 5.5 12.5 17.5 .38
8 1/8 QR3101 08 10 13 5 5 21 14 .24
8 1/4 QR3101 08 13 16 6 5.5 19.5 17.5 .59
8 3/8 QR3101 08 17 20 6 5.5 18 22 .74
10 1/4 QR3101 10 13 16 7 5.5 23 17.5 .59
10 3/8 QR3101 10 17 20 8 5.5 16.5 22 .74
10 1/2 QR3101 10 21 24 8 7.5 18.5 26 1.1
12 1/4 QR3101 12 13 19 7 5.5 27.5 21 1.1
12 3/8 QR3101 12 17 20 9 5.5 27 21 1.2
12 1/2 QR3101 12 21 24 10 7 22.5 26 2.5
14 3/8 QR3101 14 17 22 9 8 30 24 1.9
14 1/2 QR3101 14 21 24 11 9.5 26.5 26 2.3
q
oz
O . D .
O . D .
Shaded areas designate part numbers available from the 3rd Generation collection.
Numatics has a policy of continual product development and reserves the right to change dimensions or
specifications without prior notification.
Dimensions are in millimeters unless otherwise noted.
3rd generation
2nd generation
brass
nickel plated brass
3rd generation
2nd generation
O . D .
brass
nickel plated brass
QR3148 "Y" tube to male BSPT
O.D. C F H K L N
TUBE BSPT
4 1/8 QR3148 04 10 10 32.5 8.5 17.5 9 .352
4 1/4 QR3148 04 13 14 33 8.5 17.5 9 .634
6 1/8 QR3148 06 10 10 39.5 10.5 21.5 11 .423
6 1/4 QR3148 06 13 14 40 10.5 21.5 11 .670
8 1/8 QR 3148 08 10 13 56.5 13.5 28 14.5 1.164
8 1/4 QR3148 08 13 14 55.5 13.5 28 14.5 1.305
q
oz
threaded fittings
QR3158 "Y" tube to male BSPP thread
O.D. C E F H K L N
TUBE BSPP
4 M5 QR3158 04 19 3.5 8 32.5 8.5 17.5 9 .35
4 1/8 QR3158 04 10 5 13 32 8.5 17.5 9 .352
4 1/4 QR3158 04 13 5.5 16 32 8.5 17.5 9 .529
6 M5 QR3158 06 19 3.5 10 39.5 10.5 21.5 11 .39
6 1/8 QR3158 06 10 5 13 39 10.5 21.5 11 .493
6 1/4 QR3158 06 13 5.5 16 39 10.5 21.5 11 .670
8 1/8 QR3158 08 10 5 13 56 13.5 28 14.5 1.164
8 1/4 QR3158 08 13 5.5 16 55 13.5 28 14.5 1.375
q
oz
A-23
All QR3000 fittings with parallel BSP and M5 threads are supplied complete with a pre-assembled nylon sealing washer. This permits the
instant assembly of the fitting without preparation of the thread and provides a fixed assembled height to the fitting.
Dimensions are in millimeters unless otherwise noted.
QR3114 straight female connector tube to BSPP or M5 thread
O.D. C E F H
TUBE BSPP/M5
4 M5
QR3114 04 19
6.5 8 19.5 .176
4 1/8
QR3114 04 10
9.5 13 22.5 .352
4 1/4
QR3114 04 13
13.5 16 26.5 .564
6 1/8
QR3114 06 10
9.5 13 24.5 .388
6 1/4
QR3114 06 13
13.5 16 28.5 .564
8 1/8
QR3114 08 10
9.5 13 29 .705
8 1/4
QR3114 08 13
13.5 16 33 .952
10 3/8
QR3114 10 17
14 19 36 1.410
12 3/8
QR3114 12 17
14 19 40 3.245
12 1/2
QR3114 12 21
19.5 24 45.5 4.021
q
oz
Shaded areas designate part numbers available from the 3rd Generation collection.
3rd generation
3rd generation
3rd generation
E
QR3129 extended male elbow — tube to BSPT
O.D. C F G H L
TUBE BSPT
4 1/8 QR3129 04 10 10 8.5 23 19 .740
4 1/4 QR3129 04 13 14 8.5 23.5 19 1.340
6 1/8 QR3129 06 10 10 10.5 27 22.5 1.305
6 1/4 QR3129 06 13 14 10.5 27.5 22.5 1.552
8 1/8 QR3129 08 10 13 13.5 33.5 29.5 .881
8 1/4 QR3129 08 13 14 13.5 32.5 29.5 .917
8 3/8 QR3129 08 17 17 13.5 33 29.5 1.234
10 1/4 QR3129 10 13 15 16 39.5 34.5 1.09
10 3/8 QR3129 10 17 17 16 39.5 34.5 1.446
q
oz
QR3109 male elbow — tube to BSPT
O.D. C F G H L
TUBE BSPT
4 1/8 QR3109 04 10 10 8.5 13.5 14 .211
4 1/4 QR3109 04 13 14 8.5 14 14 .493
6 1/8 QR3109 06 10 10 10.5 15.5 16 .211
6 1/4 QR3109 06 13 14 10.5 16 16 .529
8 1/8 QR3109 08 10 10 13.5 19 23 .458
8 1/4 QR3109 08 13 14 13.5 18 23 .529
8 3/8 QR3109 08 17 17 13.5 18 23 .634
10 1/4 QR3109 10 13 15 16 22 26.5 .564
10 3/8 QR3109 10 17 17 16 22 26.5 .670
10 1/2 QR3109 10 21 21 16 22 26.5 .670
12 1/4 QR3109 12 13 15 19 25 31 2.504
12 3/8 QR3109 12 17 17 19 25 31 2.610
12 1/2 QR3109 12 21 21 19 25 31 3.245
14 3/8 QR3109 14 17 24 25.5 51 33.5 3.209
14 1/2 QR3109 14 21 24 25.5 51 33.5 3.351
q
oz
threaded fittings
A-24 Dimensions are in millimeters unless otherwise noted.
Shaded areas designate part numbers available from the 3rd Generation collection.
O . D .
3rd generation
2nd generation
2nd generation
3rd generation
O . D .

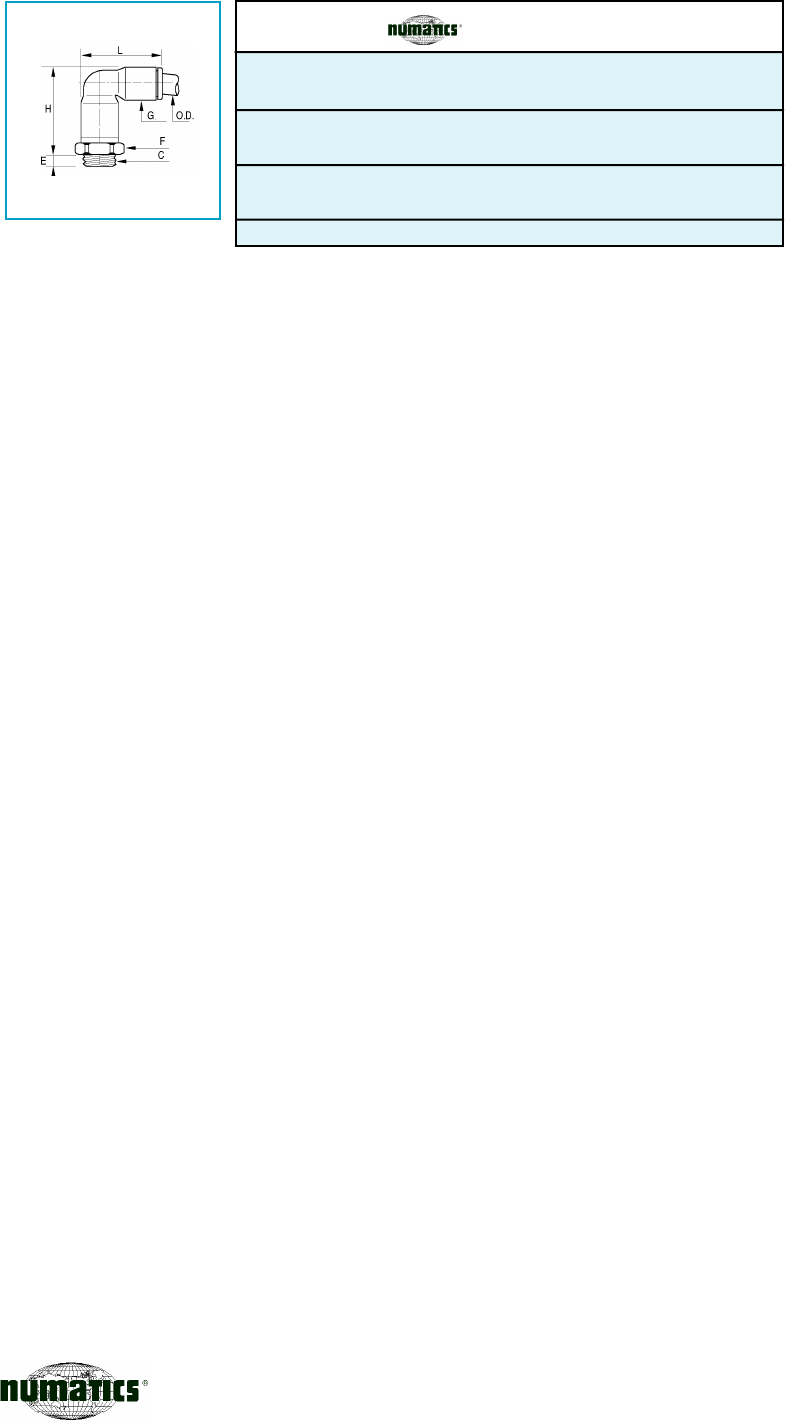

QR3199 male elbow tube to BSPP or M5
O.D. C E F G H L
TUBE
BSPP/M5
4 M5 QR3199 04 19 3.5 8 8.5 13.5 14 .105
4 1/8 QR3199 04 10 5 13 8.5 13 14 .246
4 1/4 QR3199 04 13 5.5 16 8.5 13 14 .423
6 M5 QR3199 06 19 3.5 8 10.5 15.5 16 .529
6 1/8 QR3199 06 10 5 13 10.5 15 16 .282
6 1/4 QR3199 06 13 5.5 16 10.5 15 16 .458
8 1/8 QR3199 08 10 4.5 13 13.5 20.5 23 .493
8 1/4 QR3199 08 13 5.5 16 13.5 18.5 23 .599
8 3/8 QR3199 08 17 5.5 20 13.5 18.5 23 .811
10 1/4 QR3199 10 13 5.5 16 16 23.5 26.5 1.022
10 3/8 QR3199 10 17 5.5 20 16 22 26.5 1.164
10 1/2 QR3199 10 21 7.5 24 16 22 26.5 1.269
12 1/4 QR3199 12 13 5.5 16 19 26.5 31 2.433
12 3/8 QR3199 12 17 5.5 20 19 25 31 2.433
12 1/2 QR3199 12 21 7 24 19 25 31 3.174
14 3/8 QR3199 14 17 8 24 25.5 53 33.5 3.06
14 1/2 QR3199 14 21 9.5 27 25.5 54 33.5 3.421
q
oz
O . D .
3rd generation
2nd generation
threaded fittings and banjos
A-25
Dimensions are in millimeters unless otherwise noted.
Shaded areas designate part numbers available from the 3rd Generation collection.
QR3169 extended male stud elbow, BSPP and M5 thread
O.D. C E F G H L
TUBE
BSPP/M5
4 M5
QR3169 04 19
3.5 8 8.5 23 19 0.25
4 1/8
QR3169 04 10
5 13 8.5 23 19 0.32
4 1/4
QR3169 04 13
5.5 16 8.5 23 19 0.49
6 M5
QR3169 06 19
3.5 10 10.5 26.5 22.5 0.32
6 1/8
QR3169 06 10
5 13 10.5 26.5 22.5 0.42
6 1/4
QR3169 06 13
5.5 16 10.5 26.5 22.5 0.60
8 1/8
QR3169 08 10
4.5 13 13.5 35 29.5 0.88
8 1/4
QR3169 08 13
5.5 16 13.5 33 29.5 0.92
8 3/8
QR3169 08 17
5.5 20 13.5 33 29.5 1.23
10 3/8
QR3169 10 17
5.5 20 16 40.5 34.5 1.41
q
oz
QR3198 male branch tee — tube to BSPP or M5
O.D. C F G H
BSPP/M5
E
TUBE
4 M5
QR3198 04 19
3.5 8 8.5 17.5 14 .14
4 1/8
QR3198 04 10
5 13 8.5 15 14 .28
4 1/4
QR3198 04 13
5.5 16 8.5 15 14 0.458
6 M5
QR3198 06 19
3.5 8 10.5 19.5 16 0.211
6 1/8
QR3198 06 10
5 13 10.5 17 16 .52
6 1/4
QR3198 06 13
5.5 16 10.5 17 16 .52
8 1/8
QR3198 08 10
4.5 13 13.5 23.5 23 .59
8 1/4
QR3198 08 13
5.5 16 13.5 21.5 23 .70
8 3/8
QR3198 08 17
5.5 20 13.5 21.5 23 .811
10 1/4
QR3198 10 13
5.5 16 16 26 26.5 .74
10 3/8
QR3198 10 17
5.5 20 16 24 26.5 .84
10 1/2
QR3198 10 21
7.5 24 16 24 26.5 1.375
12 1/4
QR3198 12 13
5.5 16 19 29 31 3.104
12 3/8
QR3198 12 17
5.5 20 19 27 31 2.857
12 1/2
QR3198 12 21
7 24 19 27 31 3.245
14 3/8
QR3198 14 17
8 24 25.5 53 32.5 3.8
14 1/2
QR3198 14 21
9.5 27 25.5 54 32.5 4.2
q
oz
L
2
3rd generation
2nd generation
QR3108 male branch tee — tube to BSPT
O.D. C F G H
TUBE BSPT
4 1/8 QR3108 04 10 10 8.5 15.5 14 .246
4 1/4 QR3108 04 13 14 8.5 16 14 .529
6 1/8 QR3108 06 10 10 10.5 17.5 16 .317
6 1/4 QR3108 06 13 14 10.5 18 16 .599
8 1/8 QR3108 08 10 10 13.5 22 23 .564
8 1/4 QR3108 08 13 14 13.5 21 23 .670
8 3/8 QR3108 08 17 17 13.5 21 23 .705
10 1/4 QR3108 10 13 15 16 24 26.5 .740
10 3/8 QR3108 10 17 17 16 24 26.5 .846
10 1/2 QR3108 10 21 21 16 24 26.5 .987
12 1/4 QR3108 12 13 15 19 27 31 3.315
12 3/8 QR3108 12 17 17 19 27 31 3.245
12 1/2 QR3108 12 21 21 19 27 31 3.844
14 3/8 QR3108 14 17 24 25.5 51 33.5 3.985
14 1/2 QR3108 14 21 24 25.5 51 33.5 4.021
q
oz
threaded fittings
A-26
QR3103 male run tee — tube to BSPT
O.D. C F G H H1 L
TUBE BSPT
4 1/8 QR3103 04 10 10 8.5 23.5 9 14.5 .246
4 1/4 QR3103 04 13 14 8.5 24 9.5 14.5 .352
6 1/8 QR3103 06 10 10 10.5 27.5 10 17.5 .317
6 1/4 QR3103 06 13 14 10.5 28 10.5 17.5 .599
8 1/8 QR3103 08 10 10 13.5 35 12 23 .564
8 1/4 QR3103 08 13 14 13.5 34 11 23 .670
8 3/8 QR3103 08 17 17 13.5 34 11 23 .705
10 1/4 QR3103 10 13 15 16 40.5 14 26.5 .740
10 3/8 QR3103 10 17 17 16 40.5 14 26.5 .846
10 1/2 QR3103 10 21 21 16 40.5 14 26.5 .987
12 1/4 QR3103 12 13 15 19 46.5 15.5 31 3.315
12 3/8 QR3103 12 17 17 19 46.5 15.5 31 3.245
12 1/2 QR3103 12 21 21 19 46.5 15.5 31 4.021
14 3/8 QR3103 14 17 24 25.5 71.5 38 33.5 3.985
14 1/2 QR3103 14 21 24 25.5 71.5 38 33.5 4.021
q
oz
Dimensions are in millimeters unless otherwise noted.
L
2
Shaded areas designate part numbers available from the 3rd Generation collection.
3rd generation
2nd generation
O . D .
3rd generation
2nd generation
O . D .
Dimensions are in millimeters unless otherwise noted. A-27
O.D. G L
TUBE
4 QR3106 04 00 8.5 25 .07
6 QR3106 06 00 10.5 28.5 .14
8 QR3106 08 00 13.5 38 .24
10 QR3106 10 00 16 42 .31
12 QR3106 12 00 19 50.5 .53
14 QR3106 14 00 25.5 53 1.5
tube to tube fittings
QR3106 union — tube to tube q
oz
O.D.1 O.D.2 G1 G2 L
TUBE TUBE
4 6 QR3106 04 06 8.5 11 28 .282
4 8 QR3106 04 08 16 16 47 .352
6 8 QR3106 06 08 16 16 48 .423
6 10 QR3106 06 10 21 21 49 .634
8 10 QR3106 08 10 21 21 49 .705
QR3106 unequal union — tube to tube q
oz
O.D. G L
TUBE
4 QR3102 04 00 8.5 19 .07
6 QR3102 06 00 10.5 22.5 .14
8 QR3102 08 00 13.5 29.5 .24
10 QR3102 10 00 16 34.5 .52
12 QR3102 12 00 19 40.5 .60
14 QR3102 14 00 25.5 46.5 1.5
QR3102 union elbow — tube to tube q
oz
O.D. G H
TUBE
4 QR3104 04 00 8.5 19 14.5 .141
6 QR3104 06 00 10.5 22.5 17.5 .211
8 QR3104 08 00 13.5 29.5 23 .317
10 QR3104 10 00 16 34.5 26.5 .493
12 QR3104 12 00 19 40.5 31 .67
14 QR3104 14 00 25 26 33.5 2.363
QR3104 tee — tube to tube q
oz
L
2
Shaded areas designate part numbers available from the 3rd Generation collection.
3rd generation
O . D .
G
L
2nd generation
3rd generation
O . D .
G
L
2nd generation
3rd generation
2nd generation
O . D .
O . D . 2
G 1 G 2
L
O . D . 1
O.D.1 O.D.2 H K L N
TUBE TUBE
4 4 QR3140 04 00 17.5 8.5 28.5 9 .14
4 6 QR3140 04 06 17.5 10.5 33 9 .18
6 6 QR3140 06 00 21.5 10.5 35 11 .25
6 8 QR3140 06 08 22.5 13.5 41 11.5 .67
8 8 QR3140 08 00 28 13.5 45 14.5 .46
8 10 QR3140 08 10 28 16 47 14.5 .53
10 10 QR3140 10 00 33 16 53 17 .71
QR3140 "Y" — tube to tube q
oz
O.D.1 O.D.2 H L N
TUBE TUBE
4 6 QR3144 04 06 22 35.5 11 .952
4 4 QR3144 04 04 22 36 11 1.12
QR3144 double "Y" — tube to tube q
oz
O . D . 1O . D . 2
Dimensions are in millimeters unless otherwise noted.
A-28
tube to tube fittings
Shaded areas designate part numbers available from the 3rd Generation collection.
O.D. G L1 L2 T
TUBE MIN.
4 QR3156 04 00 21 6.5 27.5 15.87 .25
6 QR3156 06 00 23.5 6.5 31.5 19.05 .39
8 QR3156 08 00 26 7.5 32.5 22.22 .53
10 QR3156 10 00 34 7.5 41.5 28.57 1.09
12 QR3156 12 00 36.5 7.5 43.5 31.75 1.34
plug-in bulkhead fitting
QR3156 plug-in bulkhead union q
oz
A-29
Fittings are supplied complete with collar.
O.D.
TUBE
4 QR3332 04 01 .14
6 QR3332 06 01 .14
8 QR3332 08 01 .18
10 QR3332 10 01 .28
12 QR3332 12 01 .32
QR3332 demounting tool for bulkhead connectors q
oz
Diameter of fixing hole.
Minimum distance between fittings.
O.D. 4 6 8 10 12
ØT mm 15.87 19.05 22.22 28.57 31.75
in 5/8" 3/4" 7/8" 1-1/8" 1-1/4"
N mm 22.5 25.5 27.5 34 38
ØT : +0.3 - 0.1
O . D .
O . D .
INSTALLATION
1. Mark out the mounting hole.
4. To identify circuits, simply
remove the black release button
and replace with a colored one.
(See model No. 3330)
2. Drill hole in panel.
3. Push the fitting into
the panel.
REMOVAL
1. Disconnect
the tube.
2. Put the removal tool
on the fitting.
3. Push the tool
over the fitting
to the bulkhead face.
4. Simply remove the fitting.
min. - 1 mm
m a x . - 4 mm
Dimensions are in millimeters unless otherwise noted.
Dimensions are in millimeters unless otherwise noted.
A-30 Shaded areas designate part numbers available from the 3rd Generation collection.
plug-in fittings and accessories
QR3166 O.D.1 O.D.2 G L L1
TUBE TUBE
reducer q
oz
4 6 QR3166 04 06 12 39 22.5 .14
4 8 QR3166 04 08 8.5 37.5 19 .14
4 10 QR3166 04 10 12 44 22.5 .18
6 8 QR3166 06 08 10.5 37.5 20 .14
6 10 QR3166 06 10 14.5 44 22.5 .21
6 12 QR3166 06 12 14.5 46 23 .25
6 14 QR3166 06 14 14.5 48 23 .28
8 10 QR3166 08 10 13.5 49 28.5 .32
8 12 QR3166 08 12 13.5 49 24.5 .35
8 14 QR3166 08 14 17 48 23 .35
10 12 QR3166 10 12 21.5 56.5 33.5 .67
10 14 QR3166 10 14 21.5 58.5 33.5 .70
12 14 QR3166 12 14 23.5 58.5 33.5 .81
QR3168
O.D.1 O.D.2 G L L1
TUBE TUBE
expander q
oz
6 4 QR3168 06 04 10.5 35 23 .10
QR3126
O.D. G L L1
TUBE
plug q
oz
4 QR3126 04 00 4 30 15.5 .035
6 QR3126 06 00 8 33 16.5 .035
8 QR3126 08 00 10 33 17.5 .070
10 QR3126 10 00 12 42 21 .10
12 QR3126 12 00 14 45 22 .14
14 QR3126 14 00 16 49 23.5 .18
O . D . 1
O . D . 2
O . D . 1
O . D . 2
O . D .
A-31
Dimensions are in millimeters unless otherwise noted.
Shaded areas designate part numbers available from the 3rd Generation collection.
O.D.1 O.D.2 H L L1 N
TUBE TUBE
4 4 *QR3142 04 00 17.5 37 25 9 .15
4 6 *QR3142 04 06 17.5 38 25 9 .17
plug-in fittings
QR3142 "Y" — male tube q
oz
* Plastic
O.D.1 O.D.2 L L1 N
TUBE TUBE
4 6 QR3143 04 06 48 34 8.5 .68
4 8 QR3143 04 08 48 34 8.5 .69
QR3143 multiple plug-in "Y" — male tube
q
oz
O.D. L L1
TUBE
4 QR3120 04 00 1.36 .47 3.53
6 QR3120 06 00 1.52 .55 3.53
8 QR3120 08 00 1.61 .73 7.05
10 QR3120 10 00 2.03 .81 .11
12 QR3120 12 00 2.38 .90 .14
14 QR3120 14 00 2.54 .98 .18
QR3120 double male union q
oz
O.D. G L
TUBE
4 QR3170 04 00 .45 1.87 .18
QR3170 one-handed disconnect fitting q
oz
O . D .
O . D .
O . D .
O . D .
all plastic
O.D.2
O.D.1
22
N
accessories
cartridges
QR3330 manual release buttons
QR3330 04 00 QR3330 04 01 QR3330 04 02 QR3330 04 03 QR3330 04 04 QR3330 04 05 3.53
QR3330 06 00 QR3330 06 01 QR3330 06 02 QR3330 06 03 QR3330 06 04 QR3330 06 05 3.53
QR3330 08 00 QR3330 08 01 QR3330 08 02 QR3330 08 03 QR3330 08 04 QR3330 08 05 3.53
QR3330 10 00 QR3330 10 01 QR3330 10 02 QR3330 10 03 QR3330 10 04 QR3330 10 05 3.53
QR3330 12 00 QR3330 12 01 QR3330 12 02 QR3330 12 03 QR3330 12 04 QR3330 12 05 3.53
QR3330 14 00 QR3330 14 01 QR3330 14 02 QR3330 14 03 QR3330 14 04 QR3330 14 05 3.53
white black green red blue yellow q
oz
4
6
8
10
12
14
O . D .
T U B E
Numatics manual release buttons are supplied in package quantities of 100.
QR3000 fittings are supplied standard, with black manual release buttons for easy disconnect. Removable
on 4mm and 6mm sizes, these release buttons help for the identification of the circuits:
Replace the black release button with a button of another color. On 8mm+ sizes, colored buttons fit over the
black release button.
6 colors are available which allow a color coding to be used on circuits, in association with the tubes of the
same color.
A-32
cartridges for the integration of the QR3000 instant connection into components
Dimensions are in millimeters unless otherwise noted.
Economy and compactness are two important benefits afforded by the application of Numatics cartridge
inserts. The cartridge is made up of an outer sleeve, a slotted collet, washer and an o-ring assembled to a car-
rier pin. The carrier pin maintains the component assembly and acts as an insertion guide. This complete
assembly is press fit into a cavity using a form tool. Once assembled, the carrier pin is discarded and the tub-
ing is inserted.
Using cartridges offers application advantages not available with most threaded connectors. Please consult
Numatics for specific information about these products and assembly data. We work closely with customers on
cartridge applications as well as the manufacture of molded components with preassembled cartridges.
cartridge pin
CAVITY
sleeve
collet
washer
(optional)
o-ring
PM
L
R
r
E MIN.
ØA
ØB
ØC
ØS
tubing
4mm .327 .283 .165 .130 .472 .386 .295 .016 .012 .039
5mm .366 .327 .205 .146 .551 .433 .335 .020 .016 .039
6mm .406 .366 .244 .157 .551 .433 .335 .020 .016 .059
8mm .484 .445 .323 .236 .571 .461 .335 .024 .016 .059
10mm .650 .606 .402 .315 .748 .630 .453 .028 .016 .059
12mm .728 .685 .480 .394 .787 .669 .492 .031 .020 .079
14mm .787 .728 .559 .472 .866 .709 .539 .031 .020 .079
1/8 .307 .244 .132 .079 .472 .378 .295 .016 .012 .039
5/32 .327 .283 .165 .130 .472 .386 .295 .016 .012 .039
3/16 .335 .307 .197 .138 .472 .386 .295 .016 .012 .039
1/4 .413 .382 .258 .177 .551 .433 .335 .020 .016 .059
3/8 .650 .583 .382 .295 .748 .630 .453 .028 .016 .059
1/2 .748 .709 .508 .394 .787 .669 .492 .031 .020 .079
DIMENSIONS (in inches)
O.D. ØA ØB ØC ØS L M P R r E
SIZE +.002+.002 ±.002 +.012 +.010 +.006 MIN
-.000 -.000 -.000 -.000 -.000
metric polyurethane 95 tubing
application
Polyurethane metric tubing is ideal for compressed air systems
and vacuum (28”Hg.) applications. Our 95 durometer hydrolyticaly
stable ether based compounds offer optimum strength and wall
rigidity needed for most brands of metric push-to-connect fittings.
features
• Excellent memory
• High compression strength
• Low compression set
• Extreme flexibility
• Very kink resistant
• Low gas and vapor permeability
• Naturally transparent, yet easily colored
• Good resistance to fuels and oils
• Vacuum rating for all sizes + 28” Hg.
specifications
Temperature Range: -40° to 165° F
available colors
Black (BK), Red (RD), Green (GN), Blue (BU), Yellow (YW), White
(YW)
NOTE: All colors are opaque.
how to order
Complete the model number with the desired tube color and
length.
P/N Example: QRM U 12 GN 100’
For metric tube clips, see page A-34.
I.D. O.D.
Min. Min. Coil/Reel
Burst Bend Length
O.D. I.D. QRMU Wall (PSI) Radius (Feet)
4 2.4 QRMU04_ _ .085 1800 14 mm 100’ Box
400’-1000’ Reel
6 4.0 QRMU06_ _ 1.00 1200 21 mm 100’ Box
500’-1000’ Reel
8 5.0 QRMU08_ _ 1.00 800 28 mm 100’ Box
500’ Reel
10 6.5 QRMU10_ _ 1.25 800 35 mm 50’ Box
500’ Reel
12 8.0 *QRMU12_ _ 1.50 800 45 mm 50’ Coil
250’ Reel
Material: (U) = Polyurethane
Metric
Tube Size
Color
Length
tubing and accessories
A-33
Size Tolerance Working Pressure (PSI) Weight
Metric inches @75°F @100°F @125°F @150°F lbs/100’
4.0x2.4 ±.005 120 97 70 50 0.7
6.0x4.0 ±.005 127 93 60 50 1.3
8.0x5.0 ±.005 147 117 87 80 2.6
10.0x6.5 ±.005 143 120 90 67 3.9
12.0x8.0 ±.005 120 93 80 57 5.3
QRCLIP tubing clips 3rd generation
Characteristics of the new clip
Material: Black Nylon 12
Mounting Screw: At least one self-tapping screw per clip is provided in each package. Same
screw for all clip sizes (9.5mm length).
Quantity of screws per box: 20 minimum to 40 maximum.
Product Range
6 models including 3 to clip either tubing or Numatics QR3000 3rd generation fittings as follows:
PART number of tube size QR3000 3g number of
NUMBER clips per strip to clip fitting to clip clips per box
(min. order qty.)
CLIP 0400 8 clips 4mm (5/32) — 5
CLIP 06 00 8 clips 6mm (1/4, 3/16) — 5
CLIP 08 00 7 clips 8mm (5/16) 4mm (5/32) 5
CLIP 10 00 6 clips 10mm (2/8) 6mm (1/4) 5
CLIP 12 00 5 clips 12mm (1/2) — 5
CLIP 14 00 4 clips 14mm 8mm (5/16) 5
QR300071 tube cutter
This tool will cut all plastic tubes (e.g. nylon, teflon,
polyurethane, braided polyethylene, soft rubber, etc.)
from 1/8” to 1/2” diameter inclusive. It is designed to
give a clean cut at right angles to tube axis. A spring
maintains the cutter in the closed position.
Replacement blades are available.
Blades No.: QR3000 71 05 (Sold in packages of two)
L
H
Model No. Height Length
QR3000 71 00 .98 3.11
tubing and accessories
A-34 Dimensions are in millimeters unless otherwise noted.
Numatics valves
A-35
SEV quick exhaust valve
ANSI SYMBOL
specifications
Quick exhaust valve, line mounting
Temperature Range: -40° to 165° F
Pressure range: 3.9 to 145 PSI
ports dimensions
NPTF SEV__AN A B C D E
1/8 SEV10AN 1/8 1.30 1.10 1.65 .55
1/4 SEV25AN 1/4 1.58 1.30 2.05 .71
1/2 SEV50AN 1/2 2.17 1.69 2.80 1.06
ports dimensions (mm)
G tap SEV__ A B C D E
1/8 SEV10A G1/8 33 28 42 14
1/4 SEV25A G1/4 40 33 52 18
1/2 SEV50A G1/2 55 43 71 27
3/4 SEV75 G3/4 74 64 90 42
1 SEV100 G1 88 80 108 48
OA22-1 shuttle valve
ANSI SYMBOL
specifications
Temperature Range: -4° to 194° F
Pressure range: 3.9 to 145 PSI
ports dimensions
NPTF OA22–1 A B C D E F G
1/8 OA22-1 1.93 .95 .75 1.26 .91 .87 .20
ABC dimensions = inches.
Numatics Silencers
MV metering valve
ANSI SYMBOL
ports dimensions
NPTF MV__ Cv A B C
1/8 MV 05 .46 .90 1.09 .44
1/4 MV 10 .80 1.16 1.44 .50
1/4 MV 25 1.80 1.37 1.50 .69
3/8 MV 37 1.80 1.31 1.50 .69
1/2 MV 50 3.38 1.62 2.00 .87
3/4 MV 75 8.34 2.00 2.37 1.06
1 MV 100 8.34 3.00 3.50 1.37
A__MN speed control muffler
ANSI SYMBOL
ports dimensions
NPTF A__MN Cv A B C
1/8 A1MN .35 1.12 1.31 .50
1/4 A2MN .67 1.42 1.56 .63
3/8 A3MN .90 1.47 1.63 .69
1/2 A4MN 1.35 1.75 2.00 .88
3/4 A5MN 1.67 2.00 2.38 1.06
1 A6MN 2.32 2.25 2.50 1.31
B__MN breather vent silencer
ANSI SYMBOL
ports dimensions
NPTF B__MN Cv A B
1/8 B1MN .44 .44 .44
1/4 B2MN .65 .63 .56
3/8 B3MN 1.12 .75 .68
1/2 B4MN 1.77 .88 .88
3/4 B5MN 4.72 1.00 1.06
1 B6MN 7.30 1.31 1.31
1 1/4 B7MN 10.63 1.41 1.68
1 1/2 B8MN 12.72 1.50 2.0
A-36 ABC dimensions = inches.
Numatics Silencers
M Series metal air silencers
NPTF male
ANSI SYMBOL
threads dimensions
NPTF M_MN Cv A B C
1/8 M1MN 1.17 1.38 1.22 .44
1/4 M2MN 2.54 1.75 1.53 .56
3/8 M3MN 5.08 2.25 2.00 .69
1/2 M4MN 7.32 2.72 2.41 .88
3/4 M5MN 13.87 3.16 2.81 1.06
1 M6MN 19.53 3.88 3.47 1.31
1 1/4 M7MN 28.32 4.50 4.16 1.69
1 1/2 M8MN 38.09 5.00 4.59 2.00
2 M9MN 52.73 5.50 5.06 2.38
NPTF metric male
metric
threads dimensions
tapered M_MB Cv A B C
1/8 M1MB 1.17 1.38 1.22 .44
1/4 M2MB 2.54 1.75 1.53 .56
3/8 M3MB 5.08 2.25 2.00 .69
1/2 M4MB 7.32 2.72 2.41 .88
3/4 M5MB 13.87 3.16 2.81 1.06
1 M6MB 19.53 3.88 3.47 1.31
NPTF female
threads dimensions
NPTF M_FN Cv A B C
1/8 M1FN 1.17 1.38 1.22 .50
1/4 M2FN 2.54 1.75 1.53 .62
3/8 M3FN 5.08 2.25 2.00 .75
1/2 M4FN 7.32 2.72 2.41 .94
A-37
ABC dimensions = inches unless otherwise noted.
Pressure (PSIG)
8
6
5
4
3
2
1000
8
6
5
4
3
2
2
1-1/2
1-1/4
1
3/4
1/2
3/8
1/4
1/8
M9MN
M8MN
M7MN
M6MN
M5MN
M4MN
M3MN
M2MN
M1MN
100
8
6
5
4
3
2
10 4 8 15 30 45 60 75 90
A-38 ABC dimensions = inches unless otherwise noted.
Numatics Silencers
P Series porous bronze air silencer
NPTF male
ANSI SYMBOL
threads dimensions
NPTF P_MN Cv A B C
10-32 P0MN .23 .75 .62 .38
1/8 P1MN 1.07 .84 .69 .44
1/4 P2MN 1.78 1.20 .97 .56
3/8 P3MN 2.30 1.45 1.20 .69
1/2 P4MN 5.66 1.89 1.58 .88
3/4 P5MN 9.67 2.12 1.78 1.06
1 P6MN 14.06 2.84 2.44 1.31
1 1/4 P7MN 20.51 3.44 3.00 1.69
1 1/2 P8MN 29.10 4.00 3.56 2.00
2 P9MN 44.92 4.75 4.31 2.38
metric male
metric
threads dimensions
tapered P_MB Cv A B C
M5 POMB .23 .75 .62 .38
1/8 P1MB 1.07 .84 .69 .44
1/4 P2MB 1.78 1.20 .97 .56
3/8 P3MB 2.30 1.45 1.20 .69
1/2 P4MB 5.66 1.89 1.58 .88
3/4 P5MB 9.67 2.12 1.78 1.06
1 P6MB 14.06 2.84 2.44 1.31
Pressure (PSIG)
2
1-1/2
1-1/4
1
3/4
1/2
3/8
1/4
1/8
P9MN
P8MN
P7MN
P6MN
P5MN
P4MN
P3MN
P2MN
P1MN
4 8 15 30 45 60 75 90
8
6
5
4
3
2
1000
8
6
5
4
3
2
100
8
6
5
4
3
2
10
A-39
ABCD dimensions = inches.
Numatics Flow Controls
FCRN and FCTN right angle flow controls
standard flow control
(with and without push-in fitting)
ANSI SYMBOL
ports without with tube Cv dimensions
NPTF push-in push-in O.D. non-metered A B C D
10-32 0FCRN 0FPRN4 1/8 .06 .89 .62 .43 .69
0FPRN5 5/32
1/8 1FCRN 1FPRN8 1/4 .34 1.46 .98 .65 1.00
1FPRN5 5/32
1/4 2FCRN 2FPRN8 1/4 .67 1.78 1.28 .91 1.03
2FPRN12 3/8
3/8 3FCRN 3FPRN12 3/8 1.85 2.23 1.45 1.02 1.30
3FPRN16 1/2
1/2 4FCRN 4FPRN12 3/8 2.84 2.82 1.84 1.28 1.40
4FPRN16 1/2
knob adjust flow control
(with and without push-in fitting)
ports without with tube Cv dimensions
NPTF push-in push-in O.D. non-metered A B C D
10-32 0FCTN 0FPTN4 1/8 .06 1.21 .62 .43 .69
0FPTN5 5/32
1/8 1FCTN 1FPTN8 1/4 .34 2.21 .98 .65 1.00
1FPTN5 5/32
1/4 2FCTN 2FPTN8 1/4 .67 2.50 1.28 .91 1.03
2FPTN12 3/8
3/8 3FCTN 3FPTN12 3/8 1.85 3.23 1.45 1.02 1.30
3FPTN16 1/2
1/2 4FCTN 4FPTN12 3/8 2.84 3.96 1.84 1.28 1.40
4FPTN16 1/2
features
Body swivels 360°, provides accurate speed control in
a compact size and eliminates need for fitting.
specifications
Temperature Range: 0° to 160° F
Maximum Operating Pressure: 175 PSIG (12 bar)
materials of construction
Body: anodized aluminum; cartridge: nickel plated
brass; screw: stainless steel; spring: stainless steel;
seals: Buna N
A-40 ABC dimensions = inches.
Numatics Flow Controls
1FC1 and 2FC1 inline flow controls
ANSI SYMBOL
without with
ports knurled knurled dimensions
NPTF knob knob Cv A B C D
1/8 1FC1 1FC1K .22 1.50 .75 1.08 1.66
1/4 2FC1 2FC1K .22 1.50 .75 1.08 1.66
FC2 and FC3 inline flow controls
ANSI SYMBOL
without with
ports bottom bottom dimensions
NPTF port port Cv A B C
1/4 2FC2 2FC2B 2.3 2.34 1.06 2.21
3/8 3FC2 3FC2B 2.7 2.34 1.06 2.21
without with
ports bottom bottom dimensions
NPTF port port Cv A B C
1/2 4FC3 4FC3B 6.0 3.28 1.50 3.17
3/4 5FC3 5FC3B 7.5 3.28 1.50 3.17
Optional Knurled Knob (suffix K)
A-41
Numatrol Fittings
connector
tube
thread 134– O.D.-I.D. Hex A B qty.
1/8 NPTF 134-223 1/4-1/8 .438 .84 .109 25/bag
10-32 134-224 1/4-1/8 .250 .62 .109 25/bag
10-32 134-236 1/4-1/8 .250 .54 .047 25/bag
tube to male thread
elbow and branch tee (male to female thread)
thread 134– Hex A B qty.
elbow
1/8 NPTF 134-225 .438 .70 .203 15/bag
10-32 134-226 .375 .54 .109 15/bag
branch tee
1/8 NPTF 134-227 .438 .70 .203 10/bag
10-32 134-228 .375 .54 .109 10/bag
male to female thread
run tee (male to female thread)
thread 134– Hex A B qty.
10-32 134-233 .375 .68 .84 10/bag
1/8 NPTF 134-234 .438 .84 .203 10/bag
male to female thread
bulkhead adapter (1/4 tube to 1/8 NPTF female thread)
bulkhead 134– qty.
134-238 1/bag
plug
plug 129– qty.
129-127 5/bag
how to order Numatrol fittings
Fittings are packaged in specific quantites–see “qty.” column in
each corresponding chart. Order the total quantity required,
making certain to order in even multiples.
A-42 ABC dimensions = inches.
polyurethane tubing for Numatrol series
features
Numatrol polyurethane offers superior performance to other plastic
tubing with regard to kink resistance, low temperature flexibility,
higher working pressures, and resistance to ambient ozone oil,
grease, fuels and most chemicals.
The highly flexible tubing allows easy “push-in” connections and
neat installation with sharp bends possible in less than one inch.
Many Numatrol II installations that previously required the use of
nylon tubing for high pressure, clamp functions for example, can
now be easily accomplished with this new tubing.
O.D. I.D. 135- length
1/4 1/8 135-124 1000’ roll
1/4 1/8 135-125 100’ roll
1/8 1/8 135-127 1000’ roll
1/8 1/8 135-126 100’ roll
Numatrol tubing
Ambient Temperature - Fahrenheit
Tubing Temperature/Pressure Specifications
For tube cutter, see page A-34.
For fractional tube clips, see page A-34.
