Safety. Detection. Control.
Safety Contactless Sensors and Devices
SAFETY SENSORS
Product catalogue
Issue 1
new
new
2
Magnus RFID:
next generation sensors for machine safety

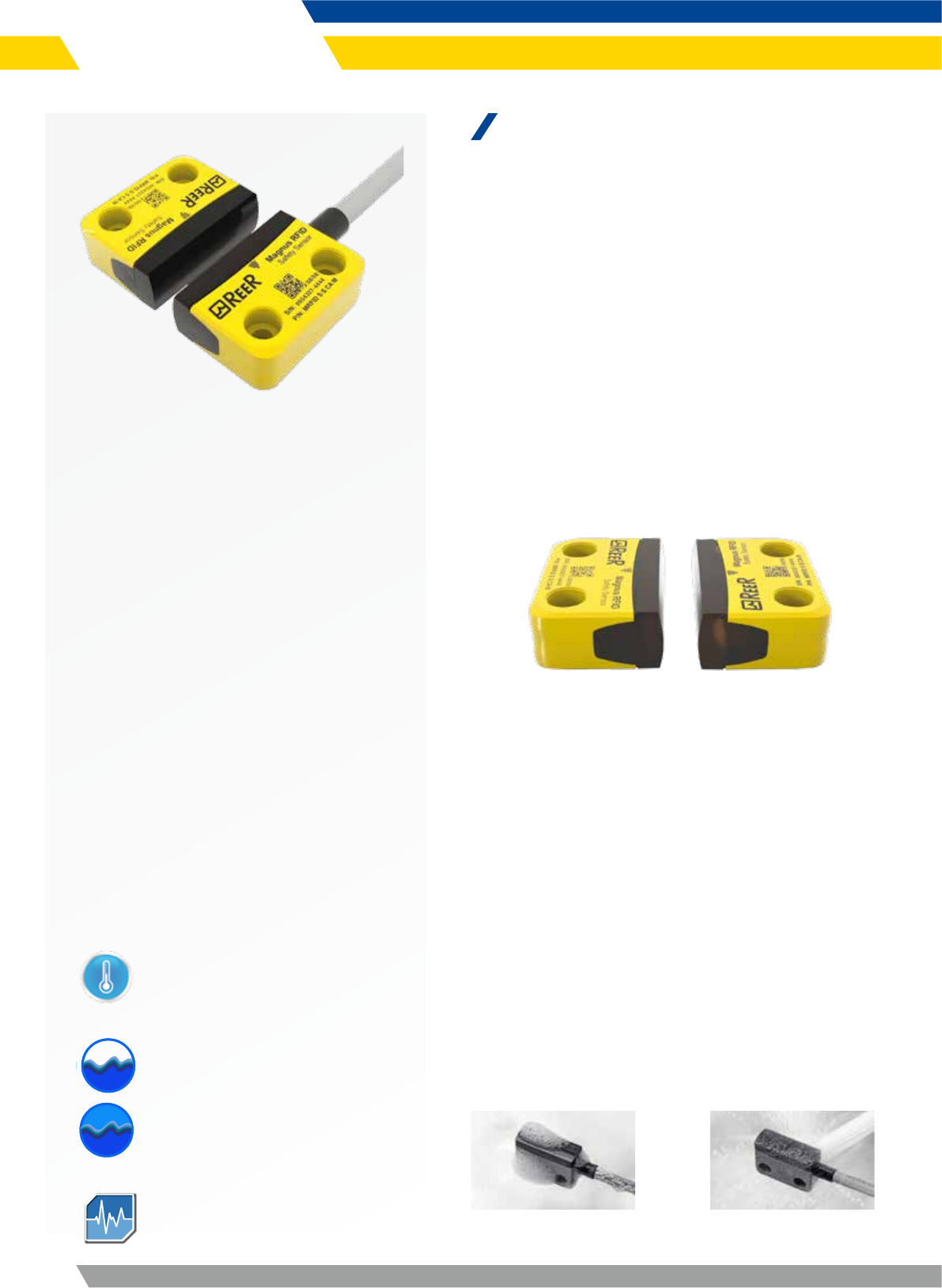

Magnus RFID
RFID safety switch
See page 4
new

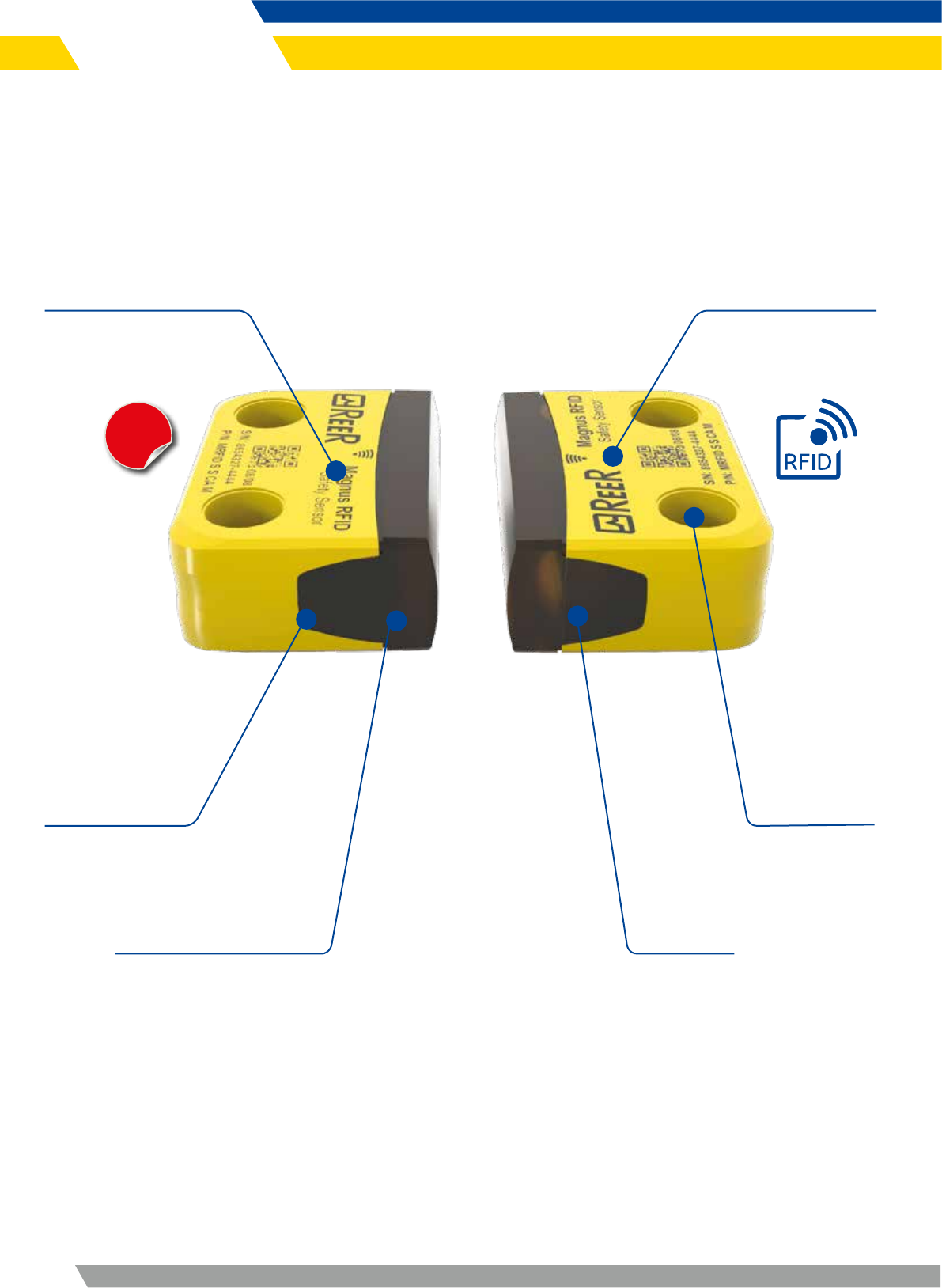

OVERVIEW
SAFETY CONTACTLESS SENSORS AND DEVICES
Available with
22 or 78 mm interaxis
State-of-the-art
RFID technology
M12 connector pigtail
or 5 meters cable
coding levels
IP67 and
IP69K approved
Anti-tampering
protective caps
3

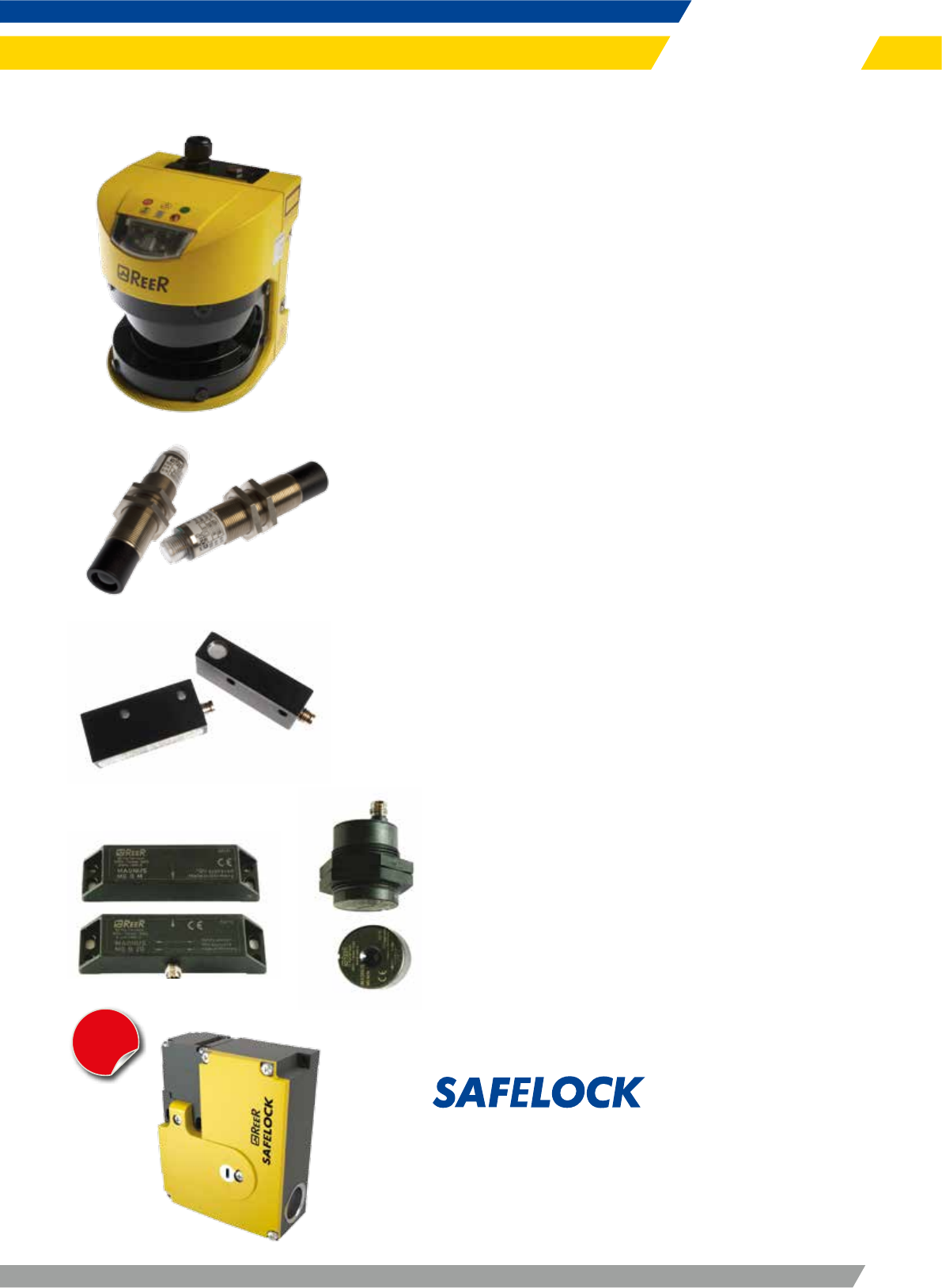

Pharo

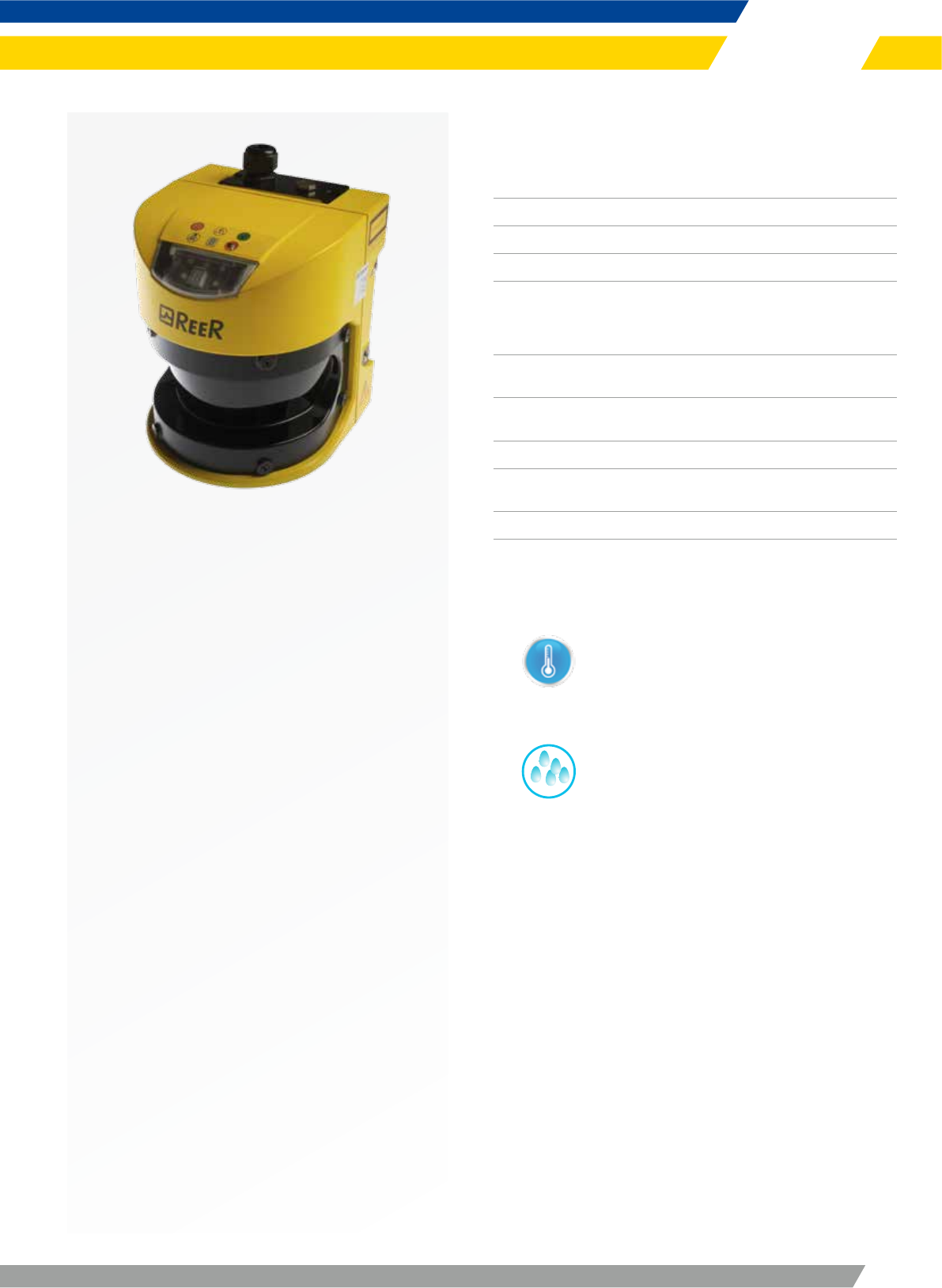

Type 3 laser scanner
See page 17
Ilion
Type 2 safety photocells
See page 21
Ulisse
Type 2 safety photocells
See page 23
Magnus MG
Magnetic safety switches
See page 11
Safety switch with guard locking
See page 25
new
SAFETY CONTACTLESS SENSORS AND DEVICES
OVERVIEW
4
MAGNUS RFID
PL e, SIL 3 RFID SAFETY SENSORS
■Wear-free technology allows for longer life time
■Status LED and diagnostic output
■Smallest design of RFID safety sensors
■Full mechanical compatibility with Magnus MG S
and MG B
■Can be used as a stand-alone
The best in safety
■Tampering protection in accordance with DIN EN
14119, the highest in its class
■Screw covers prevent easy removal
■Series connection up to PL e / SIL 3
■Dual mounting options
■M12 connector or cable
■IP67 and IP6K9K protection grade for use in harsh
environments
■Complies with the strict hygiene and cleaning
requirements of the food and packaging industry
■
■Extension cables for series connection
-25 ... +70 ºC
Operating temperature:
-25 ... +70 °C
High protection classes IP67 and
IP6K9K for use in harsh environ-
ments.
Resistant to aggressive media, e.g.
cleaning agents used in the food
industry.
Vibration resistance:
10…55 Hz, amplitude 1 mm.
IP67
IP65
OVERVIEW
The application of Magnus RFID sensors can be extremely
wide thanks to the compact and versatile design.
-
plete mechanical compatibility with Magnus MG series
make this product extremely valuable for users.
The RFID technology enables Magnus RFID sensors to be
-
propriate tampering protection in all applications. The hi-
one only assigned actuator.
The RFID technology used allows to reach safety levels up
to PL e / SIL 3 also when connecting the sensors in series.
As a result, Magnus RFID sensors can be simply integrated
-
tion for modifying and upgrading machines.
Multiple options of actuation technology
■
The actuator is programmed via teach-in and per-
manently assigned to the sensor during set-up (the
process can be repeated if necessary)
■Unique coding
The actuator is permanently assigned to the sensor
during manufacturing (it cannot be replaced with
another actuator)
■Actuator coded
to the sensor (one actuator can work with multiple
sensors)
Ideal also in the most demanding applications
Unique mechanical characteristics allow protection again-
ts cleaning agents and washdown processes, a typical
requirement of the food industry.
IP6K9K
5
MAGNUS RFID
PL e, SIL 3 RFID SAFETY SENSORS

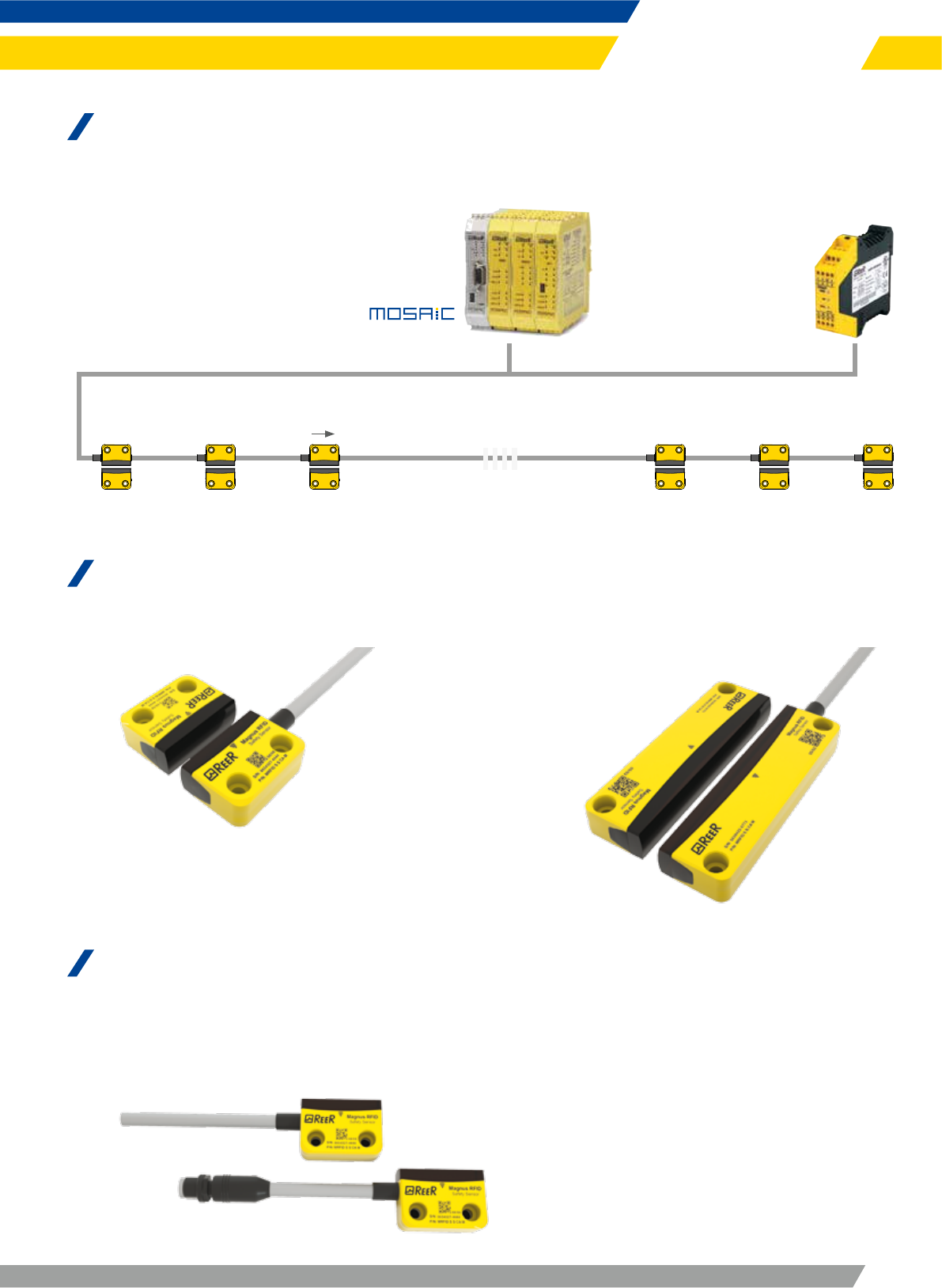

SERIES CONNECTION WITH MAXIMUM SAFETY
Reliable evaluation,
e.g. with the modular safety
controller Mosaic...
…or with the AD SR1
control unit
Up to ()
according to EN ISO 13849-1
MAGNUS RFID RANGE
CONNECTIVITY
Cable or M12 Connector
Cable (5 m)
M12 Connector (15 cm pigtail)
S series
22 mm interaxis
B series
78 mm interaxis
Dimensions compatible with Magnus MG S series
Dimensions compatible with Magnus MG B series
Transition time between Input and Output: 3 ms, the shortest in the market
I O
6
ESPE
MAGNUS RFID
PL e, SIL 3 RFID SAFETY SENSORS
CODE LEGEND (ORDERING INFORMATION)
Combo (Sensor + Actuator)1
M RFID C S I A 5
M
5
A
I
U
C
S
B
M12 Connector
5 m cable
Automatic EDM input
Individual coding
Unique coding
Actuator coded
22 mm interaxis
78 mm interaxis
Extension cable (for series connection)
M RFID EC S 4 5 1
3
5
10
4
8
S
L
C
1 m cable
3 m cable
5 m cable
10 m cable
4 poles connector
4 wires cable
8 poles connector
8 wires cable
Male - Female
M12 connector
(straight)
Male - Female
M12 connector (90°)2
Female M12
connector
T Connectors (for series connection)
M RFID TC A A
B
C
M12 Type A
M12 Type B
M12 Type C
Accessories
M RFID SP
M RFID TP
Spacers available for S or B series
(recommended for mounting on
metal surfaces)
Termination plug (to close the last
Type B connector in series
connections of 2 or more sensors)
APPROVALS
• 2006/42/EC “Machine Directive”
• 2014/30/EC “Electromagnetic Compatibility Directive”
• 2014/35/EC “Low Voltage Directive”
• IEC 61508-1 (ed. 2) (SIL3) “Functional safety of electrical/electronic programmable electronic safety related systems -
General requirements”
• IEC 61508-2 (ed. 2) (SIL3) “Functional safety of electrical/electronic/programmable electronic safety related systems -
Requirements for electrical/electronic/programmable electronic safety-related systems”
• IEC 61508-3 (ed. 2) (SIL3) “Functional safety of electrical/electronic programmable electronic safety related systems:
Software requirements”
• IEC 62061: “Safety of machinery - Functional safety of safety-related electrical, electronic and programmable electronic
control systems”
• ISO 13849-1:2015 “Safety of machinery - Safety-related parts of control systems - Part 1: General principles for design”
SAFETY LEVEL
SIL 3 - SILCL 3
PL e
Cat. 4
1. Each Combo set is provided with a Sensor and the corresponding Actuator. Sensors and Actuators can be also orde-
red separately, please enquire within
2. 4-pole version available only
7
S series
B series
MAGNUS RFID
PL e, SIL 3 RFID SAFETY SENSORS

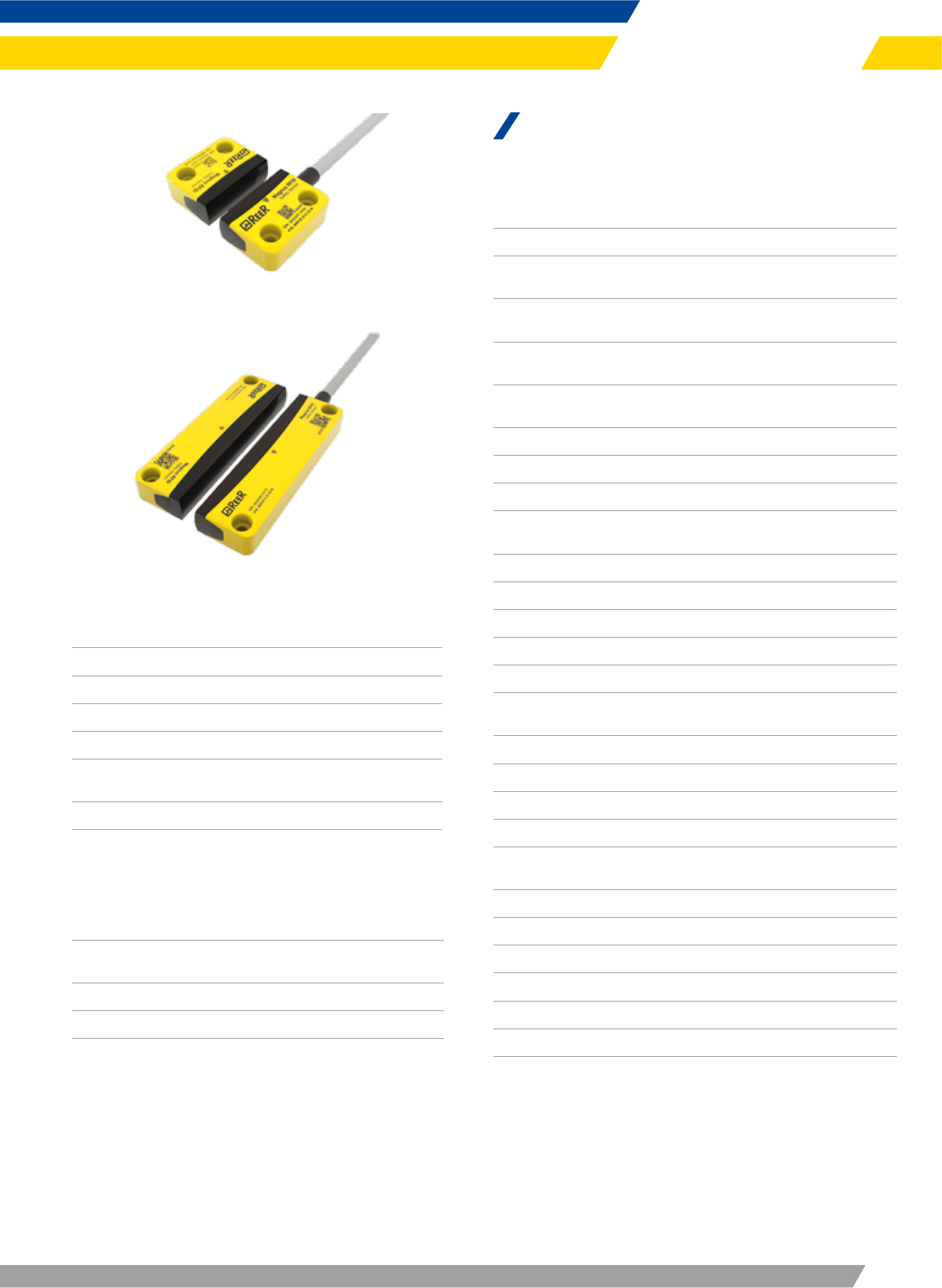

Mechanical data
S series B series
Housing material PBT / PC
Housing Rectangular
Connector type Pigtail M12 / 8-pole / 150mm
Cable 5 m PVC / 8 wires
Cross-section of wire
(mm)0,25
Dimensions h w d (mm) 26 x 36 x 13 26 x 88 x 13
Fastening M4 screws (countersunk)
S series / B series
Protection class IP67 (all versions)
IP6K9K (cable versions only)
Operating temperature - 25 °C ... +70 °C
Shock resistance 30 g /11 ms
Vibration resistance (Hz) 10…55 , amplitude 1 mm
TECHNICAL FEATURES
S series / B series
24 ± 10%
Max. switching
Supply voltage ± 0,2 V
Switching current
safety output (mA) Max. 400
Switching current control output
(mA) Max. 50
Response time (ms) Input-Output: 3
Sensor-Actuator: 75
Contact form OSSD
Switching frequency (Hz) 3
No. of safety outputs electronic 2
No. of diagnostic outputs
electronic 1
Number of safety inputs 2
EDM input Yes
Start button Yes
Functional category DC-12 / DC-13
Assured switching distance (mm) 8
Safe distance for
18
Minimum air-gap (mm) 0,5
Misalignment actuator max. (mm) Max. 8
Yes
Short-circuit proof outputs Yes
Current consumption per
input (mA) 2,75
Indication LED Three-colour
Operating direction Any direction
Switching principle Electronic
Repeating accuracy R (mm) < 0,5
Hysteresis (mm) 2
Series connection Max. 30 sensors
Technology RFID
8
MAGNUS RFID
PL e, SIL 3 RFID SAFETY SENSORS
PART NUMBERS
Combo (Sensor + Actuator) 22 mm interaxis
Ordering code Models Connection Description
1292000 MRFID C S CA M M12 connector Actuator coded
1292003 MRFID C S CA 5 5 m cable
1292010 MRFID C S IA M M12 connector Individual coding
1292013 MRFID C S IA 5 5 m cable
1292020 MRFID C S UA M M12 connector Unique coding
1292023 MRFID C S UA 5 5 m cable
Combo (Sensor + Actuator) 78 mm interaxis
Ordering code Models Connection Description
1292100 MRFID C B CA M M12 connector Actuator coded
1292103 MRFID C B CA 5 5 m cable
1292110 MRFID C B IA M M12 connector Individual coding
1292113 MRFID C B IA 5 5 m cable
1292120 MRFID C B UA M M12 connector Unique coding
1292123 MRFID C B UA 5 5 m cable
Ordering code Models Connection Description
1292200 MRFID S S CA M M12 connector Actuator coded
1292203 MRFID S S CA 5 5 m cable
1292210 MRFID S S IA M M12 connector Individual coding
1292213 MRFID S S IA 5 5 m cable
Ordering code Models Connection Description
1292300 MRFID S B CA M M12 connector Actuator coded
1292303 MRFID S B CA 5 5 m cable
1292310 MRFID S B IA M M12 connector Individual coding
1292313 MRFID S B IA 5 5 m cable
Ordering code Models Description
1292290 MRFID A S Actuator for sensors 22 mm interaxis
1292390 MRFID A B Actuator for sensors 78 mm interaxis
Spacers
Ordering code Models Description
1292401 MRFID SP S Spacer for sensors 22 mm interaxis
1292400 MRFID SP B Spacer for sensors 78 mm interaxis
CABLES AVAILABLE
■Male - Female M12 4-pole or 8-pole straight connectors. See page 36
■Male - Female M12 4-pole 90° angled connectors. See page 36
■Female M12 4-pole or 8-pole connectors. See page 37
■Type A, D, C T connectors. See page 37
■Termination plug. See page 37
9
A
48
8
B
8
4 4
C
2
43

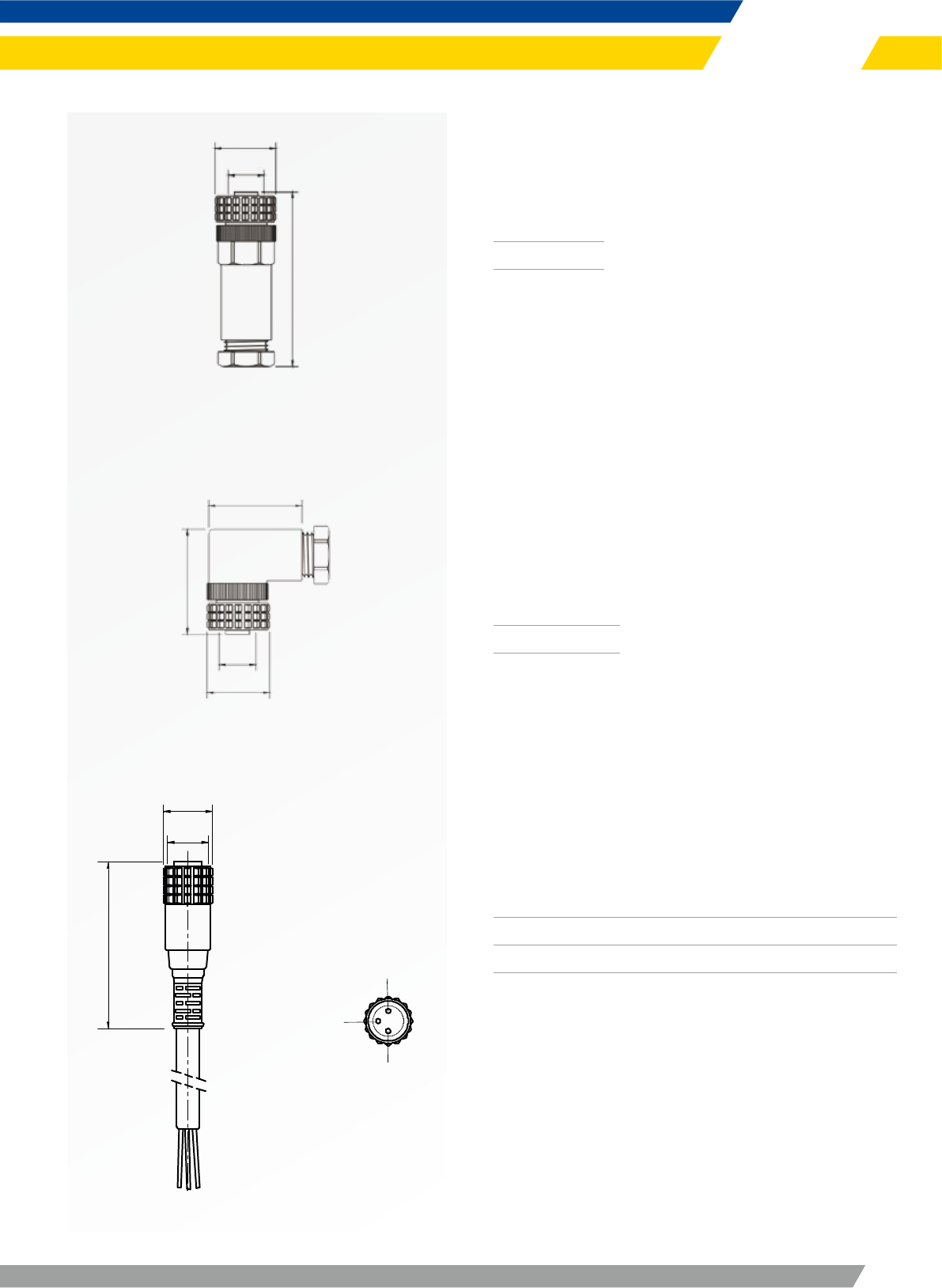

Extension cables
Type S
Male - Female
M12 connector (straight)
Lenght: 1, 3, 5, 10 m
Poles: 4 or 8
Type L
Male - Female
M12 connector (90°)
Lenght: 1, 3, 5, 10 m
Poles: 4
Type C
Female M12 connector
Lenght: 1, 3, 5, 10 m
Poles/wires: 4 or 8
MAGNUS RFID
PL e, SIL 3 RFID SAFETY SENSORS

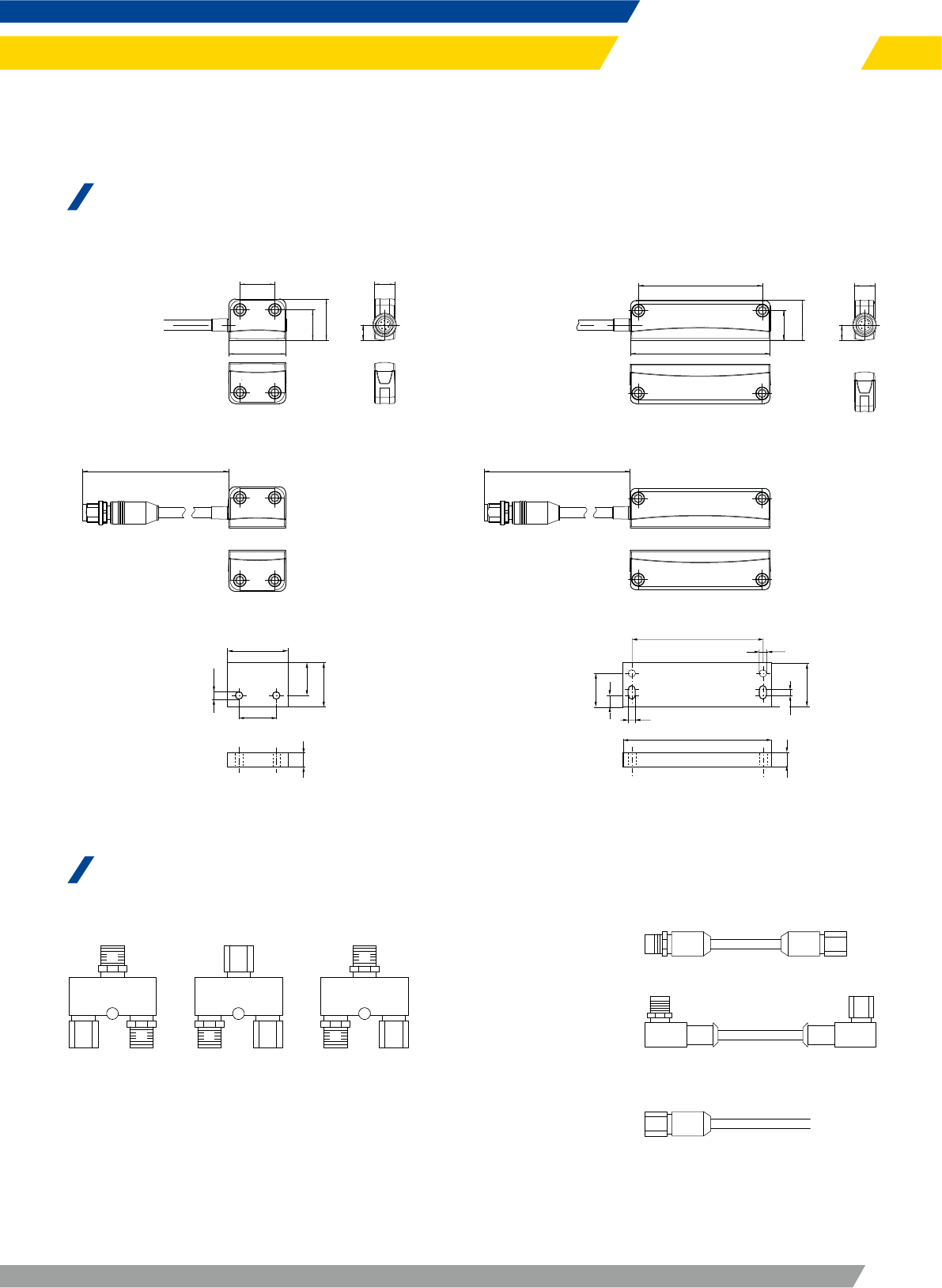

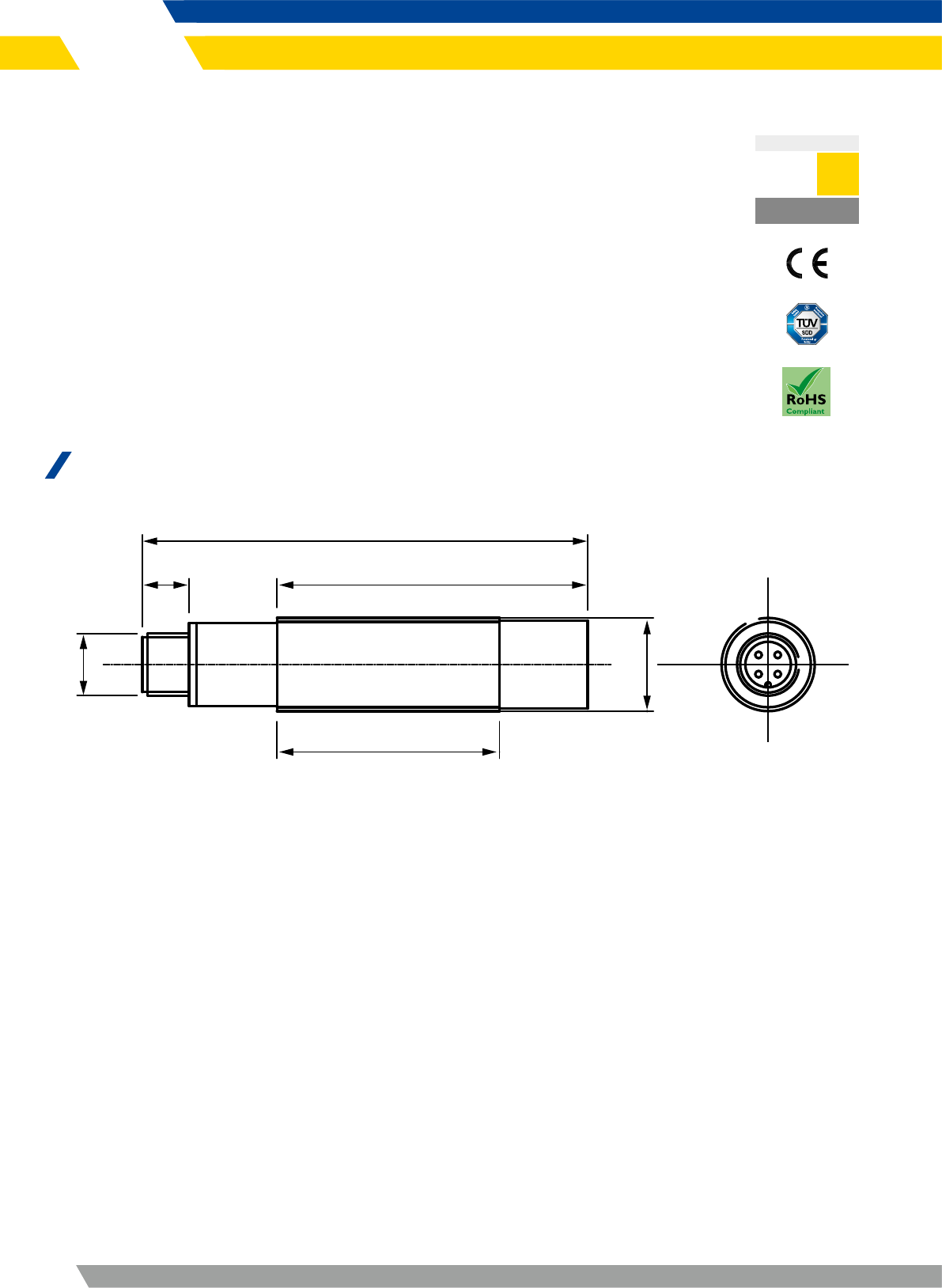

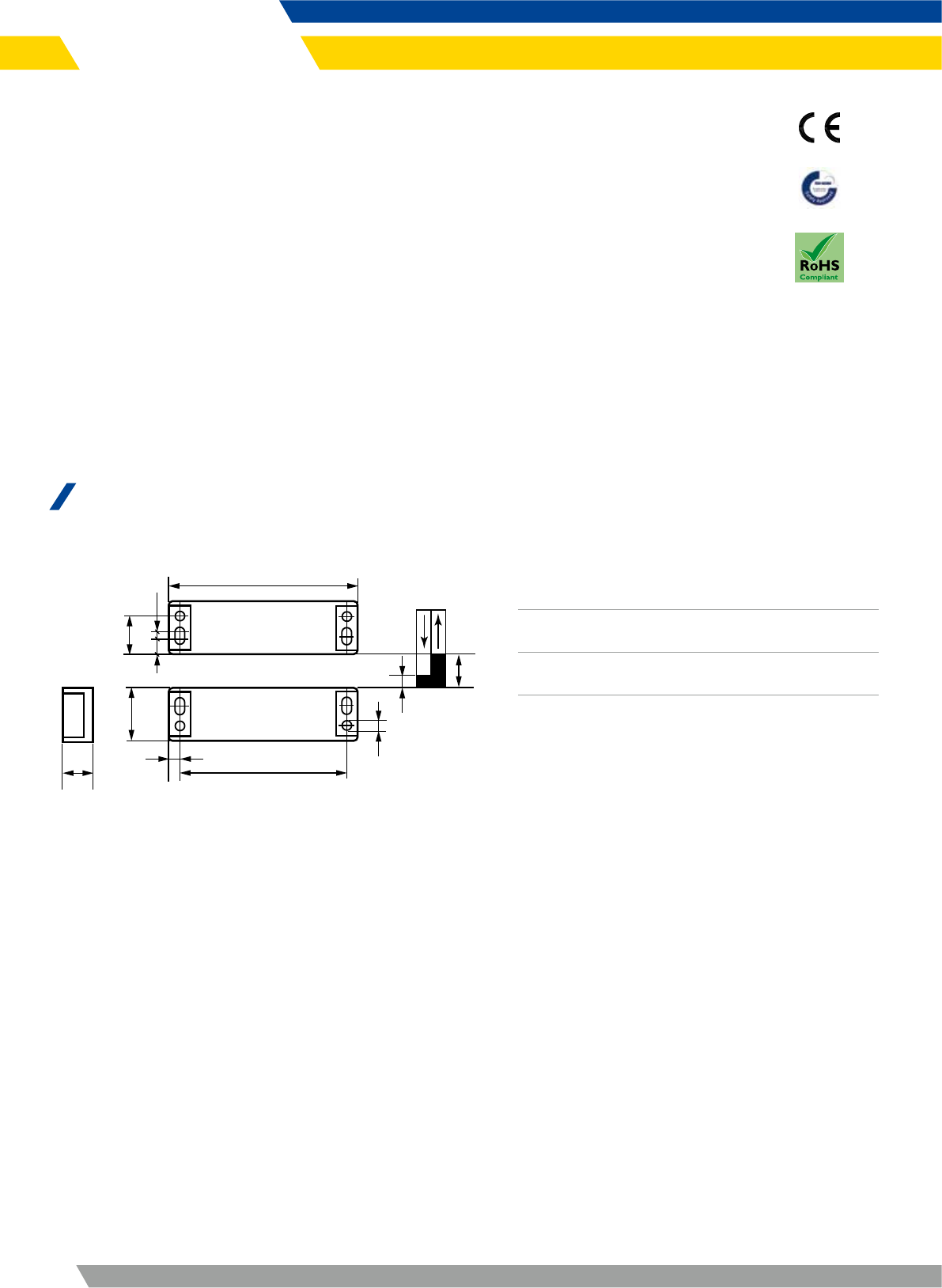

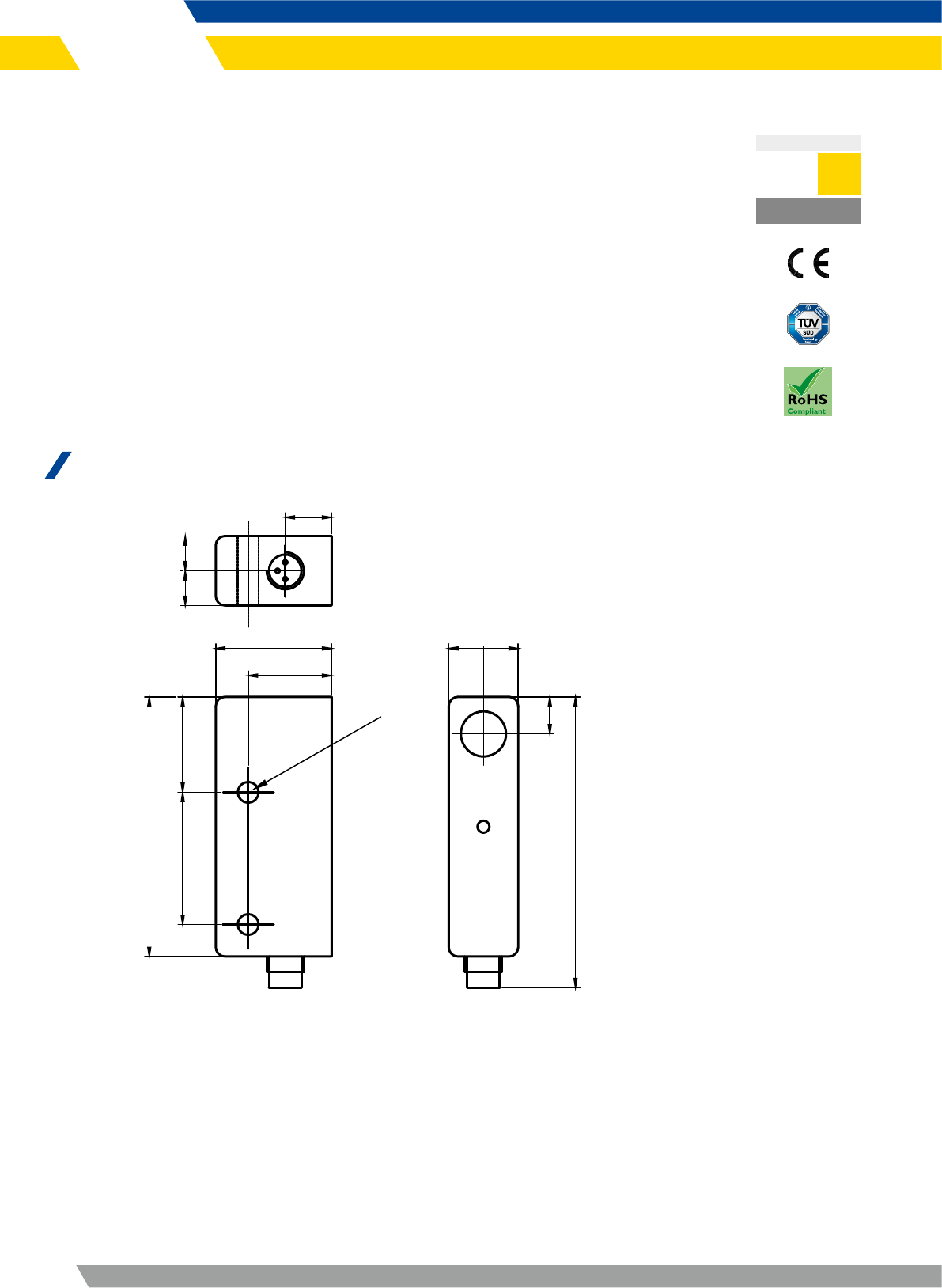

MECHANICAL DATA
DIMENSIONS
9,5
1322
19
25,9
36
9,5
1378
18,5
25
88
150150
Ø 4,5
22
36
19
26
10
4,5
78
25
10
4,5
18,5
7
88
3,5
Sensor
Sensor
Sensor
Sensor
Actuator
Actuator Actuator
Actuator
S series B series

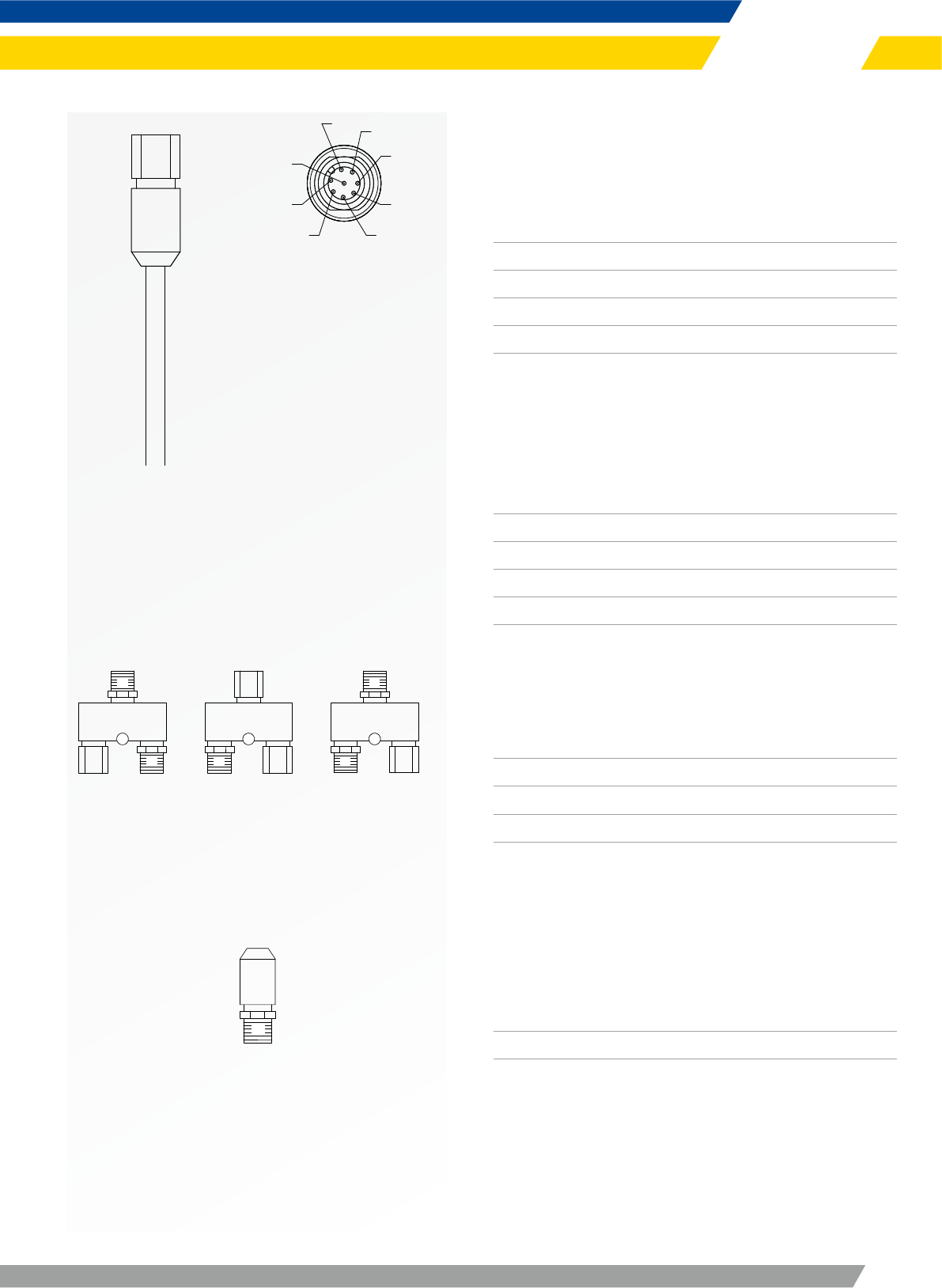

T Connectors
Dimensions: mm
ACCESSORIES
Type A To gain status output from the connected sensor
Type B For series connections of 2 or more sensors
Type C To introduce additional power supplies in long series
Spacer S Spacer B
10
MAGNUS RFID
PL e, SIL 3 RFID SAFETY SENSORS
48
48
8
8
8
8
44
4
8
44
2
4
4 4
3
M RFID EC L 4 1
M RFID EC L 4 3
M RFID EC L 4 5
M RFID EC L 4 10
M RFID EC S 8 1
M RFID EC S 8 3
M RFID EC S 8 5
M RFID EC S 8 10
M RFID TC B
M RFID TC A
M RFID TC BM RFID TC C
Additional
power supply
Series
connection
Series
connection
Male - Female
M12 connector (90°)
Lenght: 1, 3, 5, 10 m
Poles: 4
Male - Female
M12 connector (straight)
Lenght: 1, 3, 5, 10 m
Poles: 8
Male - Female
M12 connector (straight)
Lenght: 1, 3, 5, 10 m
Poles: 4
Female M12 connector
Lenght: 1, 3, 5, 10 m
Poles/wires: 4
Female M12 connector
Lenght: 1, 3, 5, 10 m
Poles/wires: 4
Female M12 connector
Lenght: 1, 3, 5, 10 m
Poles/wires: 4
Female M12 connector
Lenght: 1, 3, 5, 10 m
Poles/wires: 8
Male - Female
M12 connector (90°)
Lenght: 1, 3, 5, 10 m
Poles: 4
M RFID TP
Termination plug
Status output
Status output
M RFID TC A
M RFID EC C 4 1
M RFID EC C 4 3
M RFID EC C 4 5
M RFID EC C 4 10
M RFID C S series
M RFID C B series
M RFID C S series
M RFID C B series
M RFID EC C 4 1
M RFID EC C 4 3
M RFID EC C 4 5
M RFID EC C 4 10
M RFID EC C 4 1
M RFID EC C 4 3
M RFID EC C 4 5
M RFID EC C 4 10
M RFID EC C 4 1
M RFID EC C 4 3
M RFID EC C 4 5
M RFID EC C 4 10
M RFID EC S 4 1
M RFID EC S 4 3
M RFID EC S 4 5
M RFID EC S 4 10
M RFID EC L 4 1
M RFID EC L 4 3
M RFID EC L 4 5
M RFID EC L 4 10
Type B
Type A
48
8
Type A
Type BType C
4 4 4
8
4
4
4
4
M RFID EC C 8 1
M RFID EC C 8 3
M RFID EC C 8 5
M RFID EC C 8 10
M RFID C S series
M RFID C B series
8 8

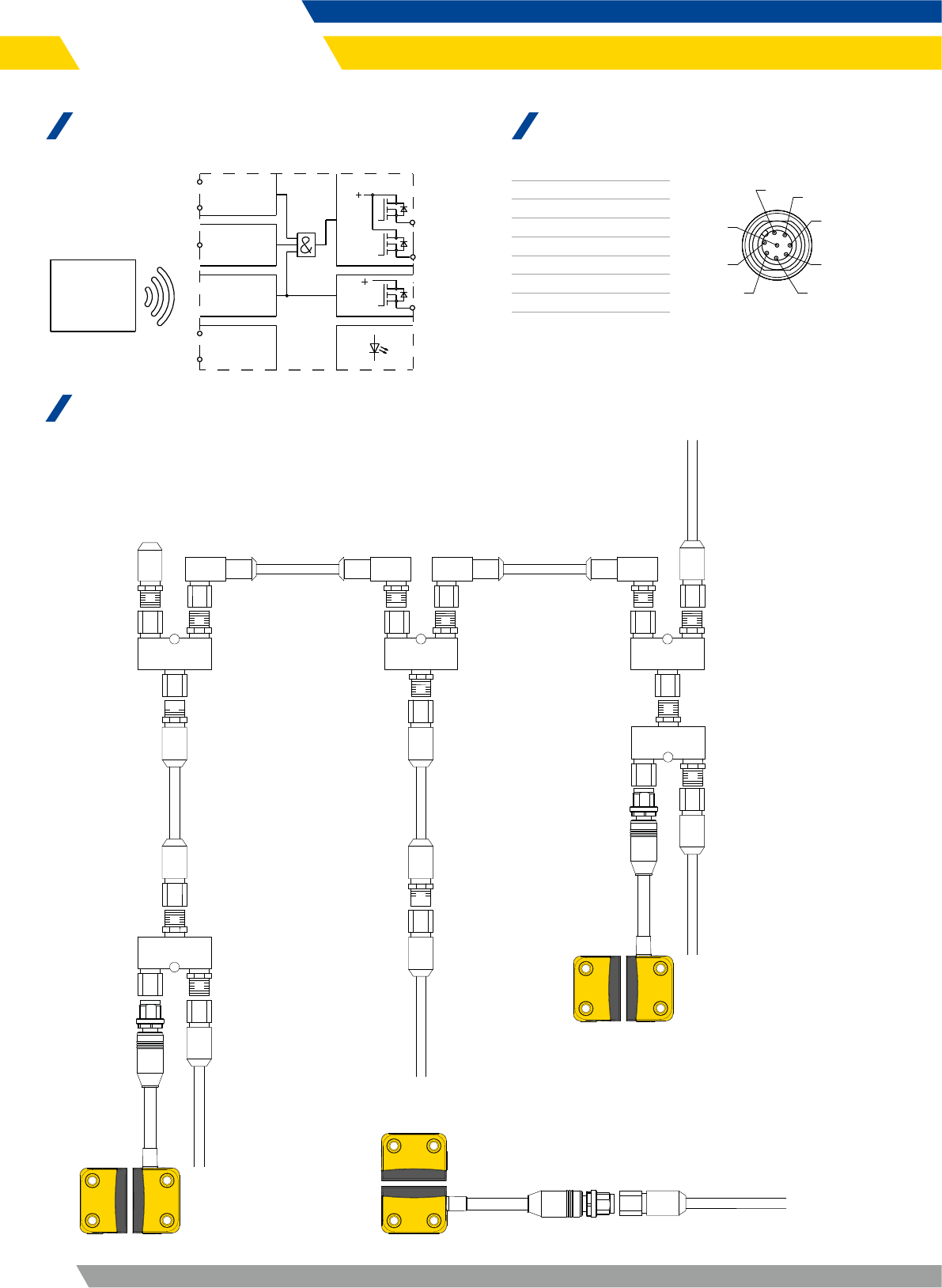

SERIES CONNECTION EXAMPLE
Inputs
EDM
+
1
3Power
Receiver
8
2
6
4
7
5
-
OSSD
Actuator
8
2
6
3 4
5
7
1
CIRCUIT DIAGRAM PIN-OUT
Pin Function
1 VDC
2 Safety input 1
3 GND
4 Safety output 1
5 Diagnostic output
6 Safety input 2
7 Safety output 2
8 EDM input
11
3 1
4 2
MAGNUS MG
MAGNETIC SAFETY SWITCHES
MG S 20
MG S M
Compact and robust thermoplastic enclosure (PBT).
Coded magnetic operation – Tamper resistant.
controller (PL e) or to the dedicated safety control
unit MG d1 (PL d).
MG S switches connected to Mosaic safety controller
Switching distance: 3 - 10 mm.
Sensor with 4 wires: 2 NO contacts.
-25 ... +75 ºC
IP67
IP65
Operating temperature: -25 ... +75 °C
IP67 rating

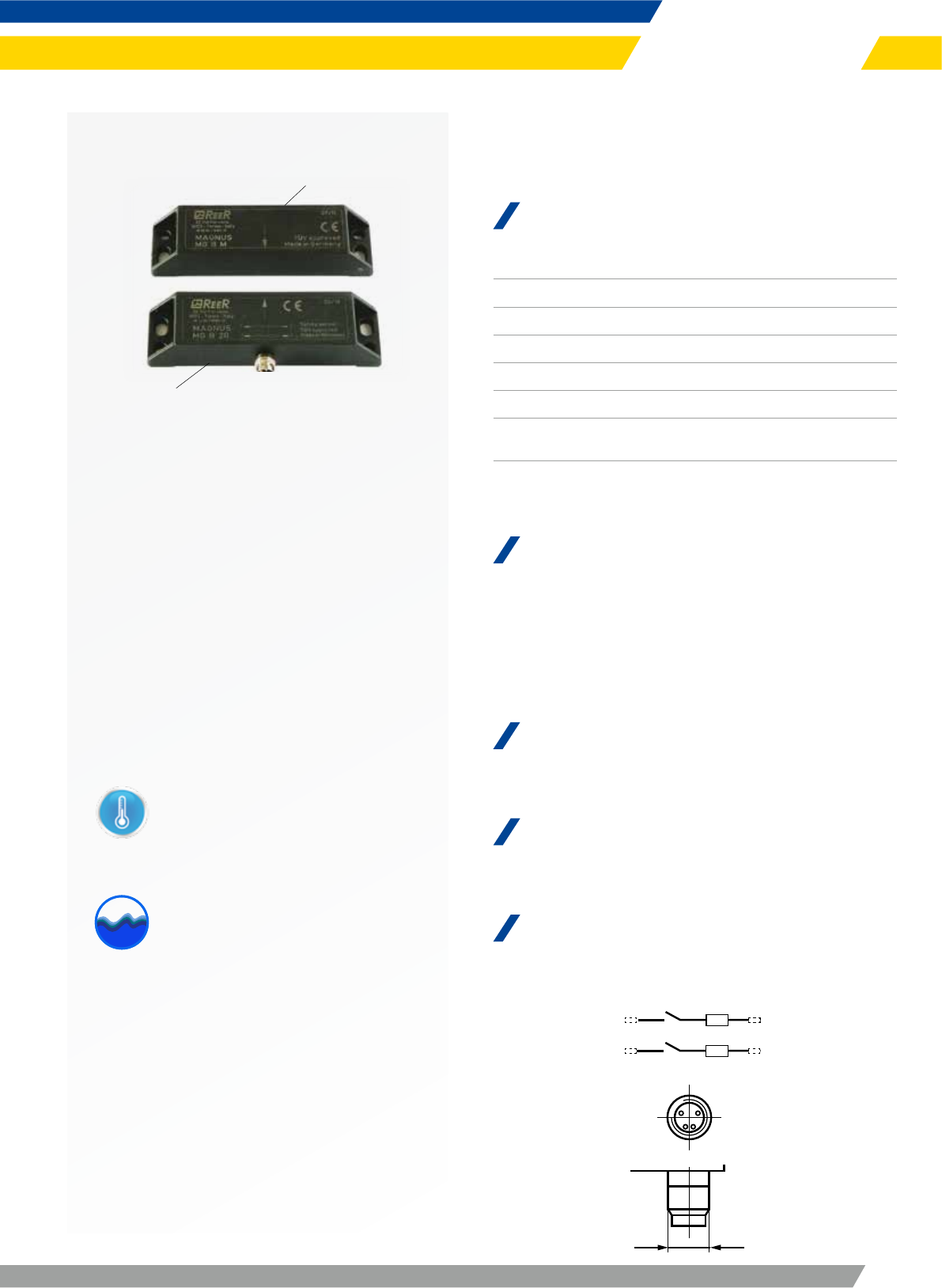

MG S
RECTANGULAR COMPACT HOUSING
TECHNICAL FEATURES
24
Switching current (mA) Max. 100
Series resistance (Ohm) 22
Switching power (W) 3
Shock resistance (Hz/g) 10 - 2000/35
Housing material PBT
Possible actuation magnets MG S M to be ordered separately
PART NUMBERS
Magnus MG S includes multi-language instruction manual
and CE declaration of conformity.
MG S 20 ordering code: 1291000
MG S M ordering code: 1291001
CABLES NEEDED
M8 4-pole. See page 33 (CGx, CG9x)
ACCESSORIES
MG d1 Control Unit. See page 31

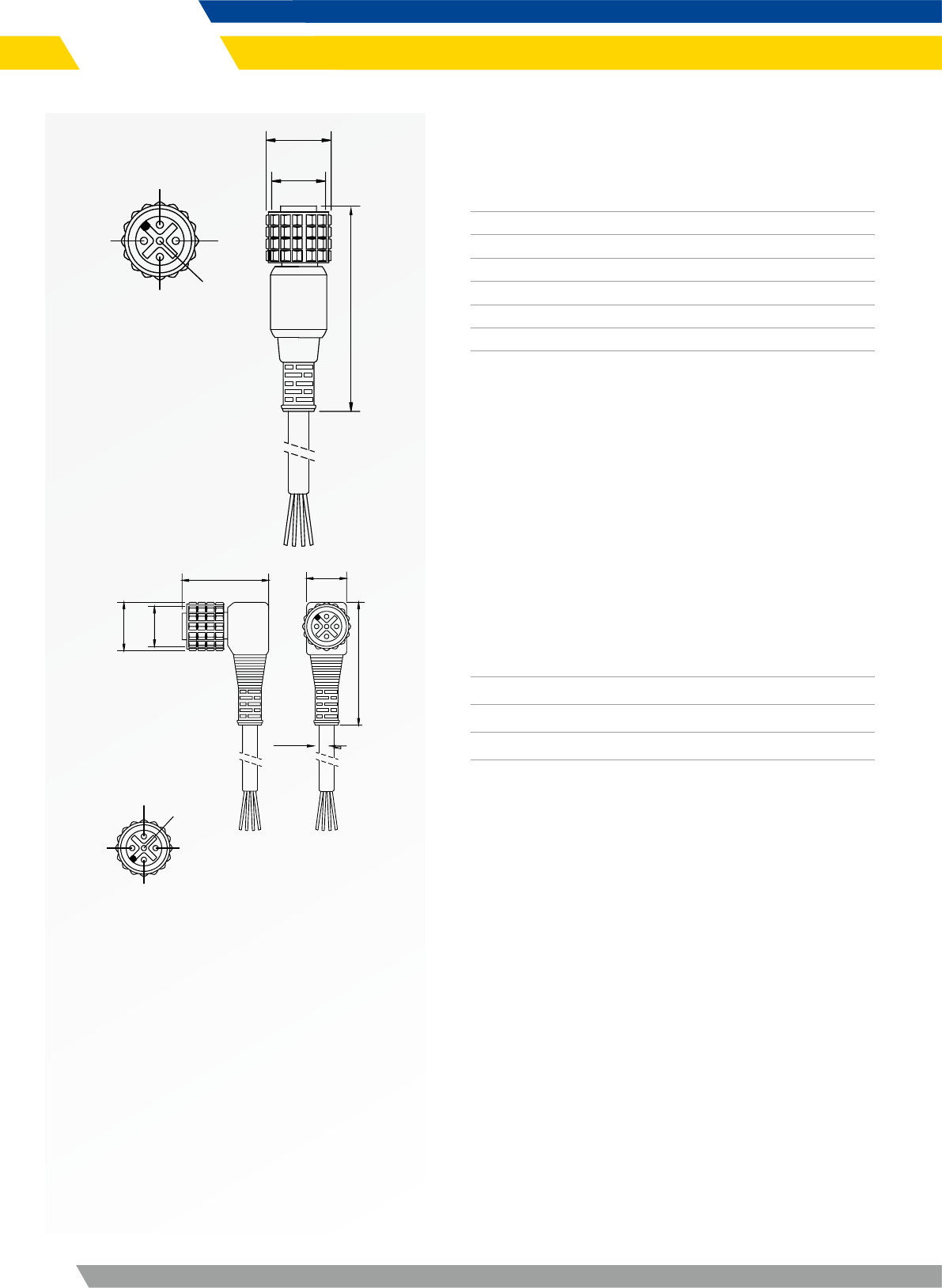

CONNECTOR
M8 4-pole connector.
1 WH
3 GN
BN 2
YE 4
M8x1
12
MAGNUS MG
MAGNETIC SAFETY SWITCHES
APPROVALS
Safety Level PL e when connected to Mosaic
Up to PL d when connected to MG d1
• 2006/42/EC: “Machine Directive”
• 2014/30/EU: “Electromagnetic Compatibility Directive”
• 2014/35/EU: “Low Voltage Directive”
• EN 61508-1:1998 “Functional safety of electrical/electronic programmable electronic safety related systems - General
requirements”
• EN 61508-2:2000 “Functional safety of electrical/electronic/programmable electronic safety related systems - Require-
ments for electrical/electronic/programmable electronic safety-related systems”
• EN 61508-3:1998 “Functional safety of electrical/electronic programmable electronic safety related systems: Software
requirements”
• ISO 13849-1:2008 “Safety of machinery - Safety-related parts of control systems - Part 1: General principles for design”
• IEC 62061: “Safety of machinery - Functional safety of safety-related electrical, electronic and programmable electronic
control systems”

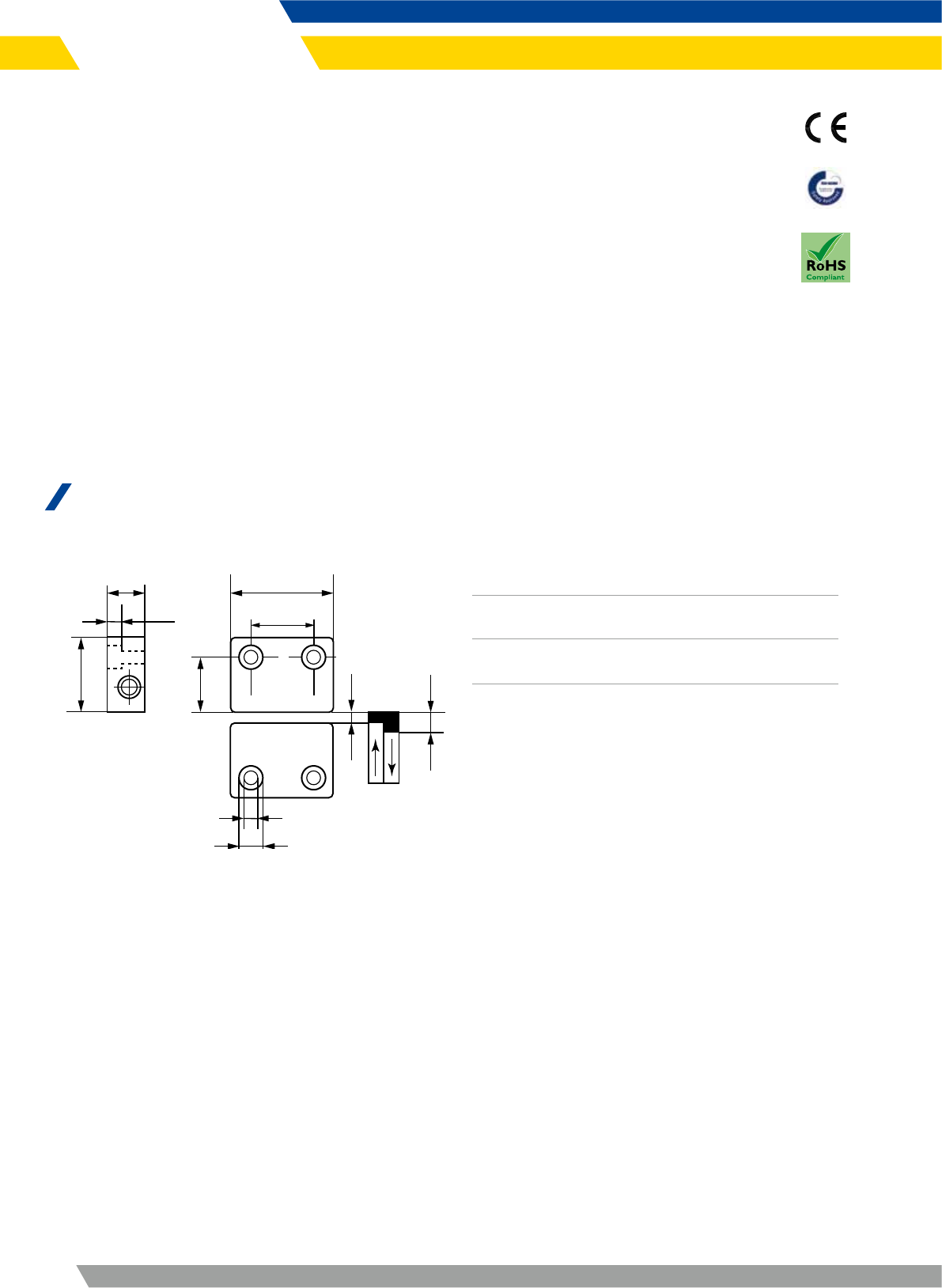

MECHANICAL DATA
DIMENSIONS
Gaps (operating distance) for safe switching function in mm:
MINIMUN
GAP 0,5 -
ON 3 a
OFF 10 b
Dimensions: mm
13
26
36
522
19
4,5
8,5
a b
13
MAGNUS MG
MAGNETIC SAFETY SWITCHES

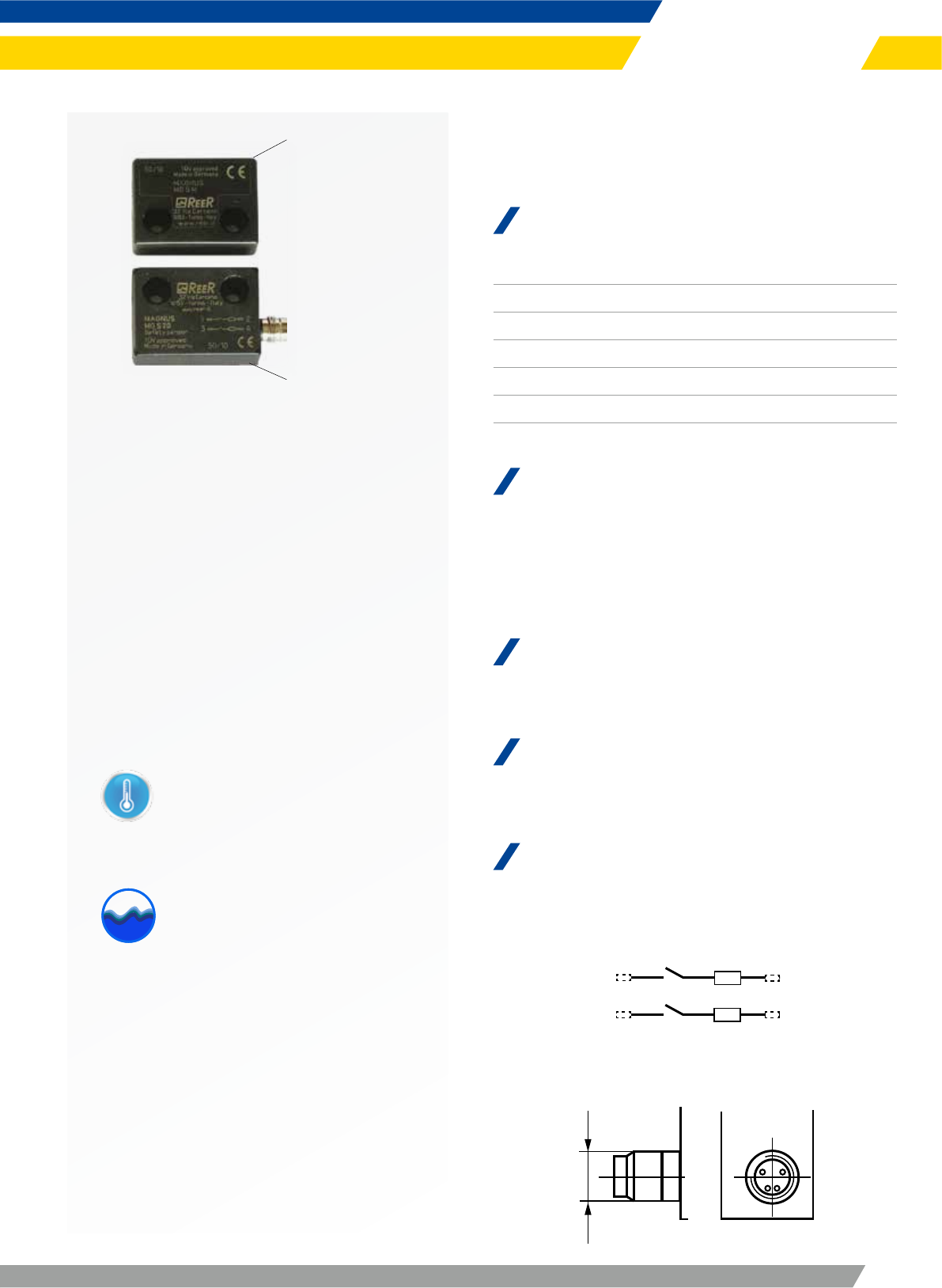

MG B M
MG B M+
MG B 20
Robust thermoplastic enclosure (PBT).
Coded magnetic operation – Tamper resistant.
controller (PL e) or to the dedicated safety control
unit MG d1 (PL d).
MG B switches connected to Mosaic safety controller
Switching distance:
■4 - 16 mm
■7 - 18 mm with magnet MG B M+
Sensor with 4 wires: 2 NO contacts
MG B
RECTANGULAR HOUSING
TECHNICAL FEATURES
24
Switching current (mA) Max. 100
Series resistance (Ohm) 22
Switching power (W) 3
Shock resistance (Hz/g) 10 - 2000/35
Housing material PBT
Possible actuation
magnets MG B M to be ordered separately
Possible actuation
reinforced magnets
MG B M+ to be ordered separately
(only use reinforced actuation magnets if a
gap of more than 4 mm is unavoidable)
PART NUMBERS
Magnus MG M includes multi-language instruction manual
and CE declaration of conformity.
MG B 20 ordering code: 1291010
MG B M ordering code: 1291011
MG B M+ ordering code: 1291012
CABLES NEEDED
M8 4-pole. See page 33 (CGx, CG9x)
ACCESSORIES
MG d1 Control Unit. See page 31
CONNECTOR
M8 4-pole connector
-25 ... +75 ºC
IP67
IP65
Operating temperature: -25 ... +75 °C
IP67 rating
3 1
4 2
1 WH
3 GN
BN 2
YE 4
M8x1
14
MAGNUS MG
MAGNETIC SAFETY SWITCHES
APPROVALS
Safety Level PL e when connected to Mosaic
Up to PL d when connected to MG d1
• 2006/42/EC: “Machine Directive”
• 2014/30/EU: “Electromagnetic Compatibility Directive”
• 2014/35/EU: “Low Voltage Directive”
• EN 61508-1:1998 “Functional safety of electrical/electronic programmable electronic safety related systems - General
requirements”
• EN 61508-2:2000 “Functional safety of electrical/electronic/programmable electronic safety related systems -
Requirements for electrical/electronic/programmable electronic safety-related systems”
• EN 61508-3:1998 “Functional safety of electrical/electronic programmable electronic safety related systems: Software
requirements”
• ISO 13849-1:2008 “Safety of machinery - Safety-related parts of control systems - Part 1: General principles for design”
• IEC 62061: “Safety of machinery - Functional safety of safety-related electrical, electronic and programmable electronic
control systems”
MECHANICAL DATA
DIMENSIONS
Gaps (operating distance) for safe switching function in mm:
MINIMUM GAP normal
with + magnet
0,5
3
ON normal
with + magnet
4
7a
OFF normal
with + magnet
16
18 b
+ = reinforced
Dimensions: mm
88
18,5
4,5
78
ab
14
25
5
15
MAGNUS MG
MAGNETIC SAFETY SWITCHES
MG M 20
MG M M

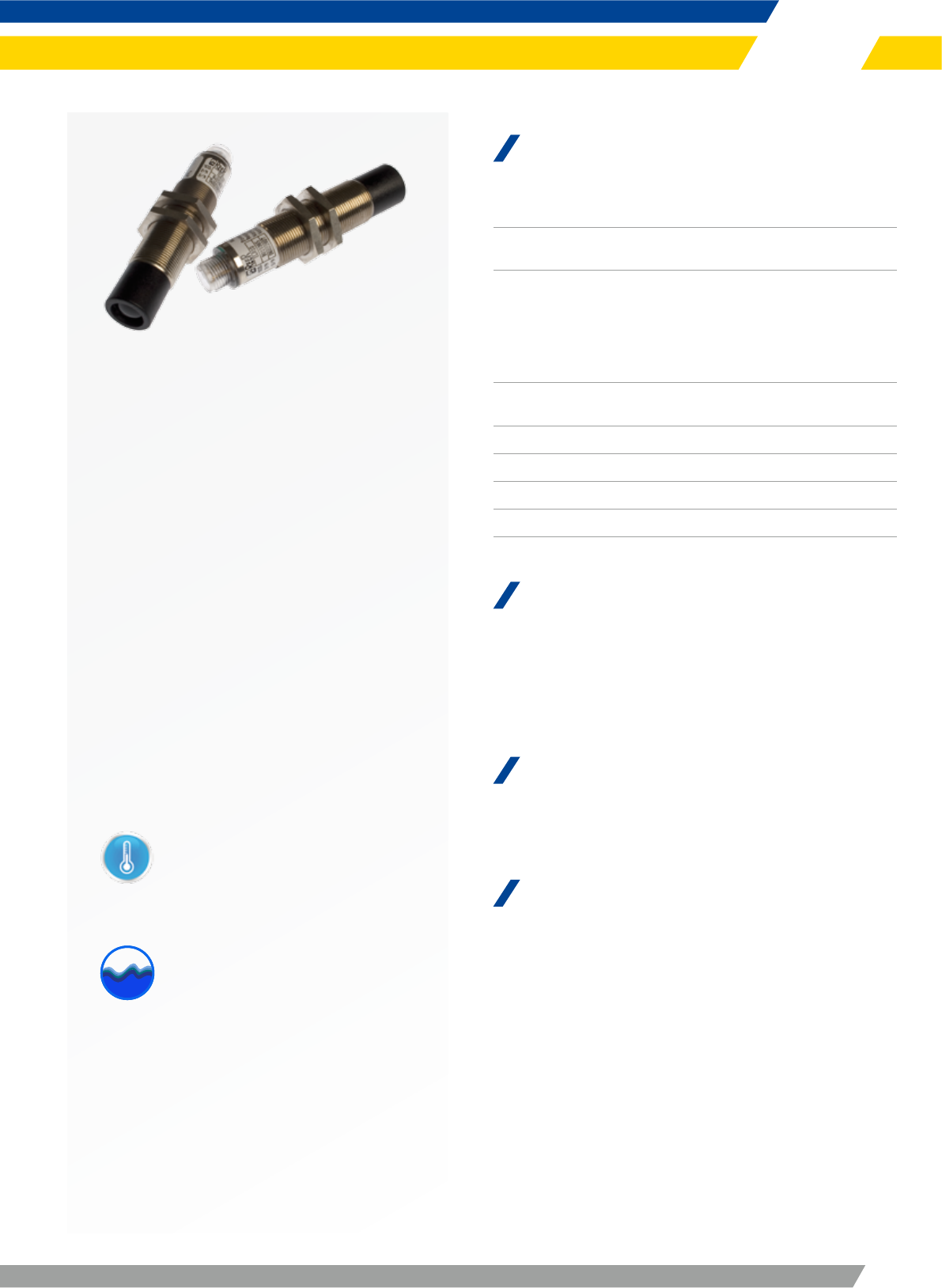

MG M M+

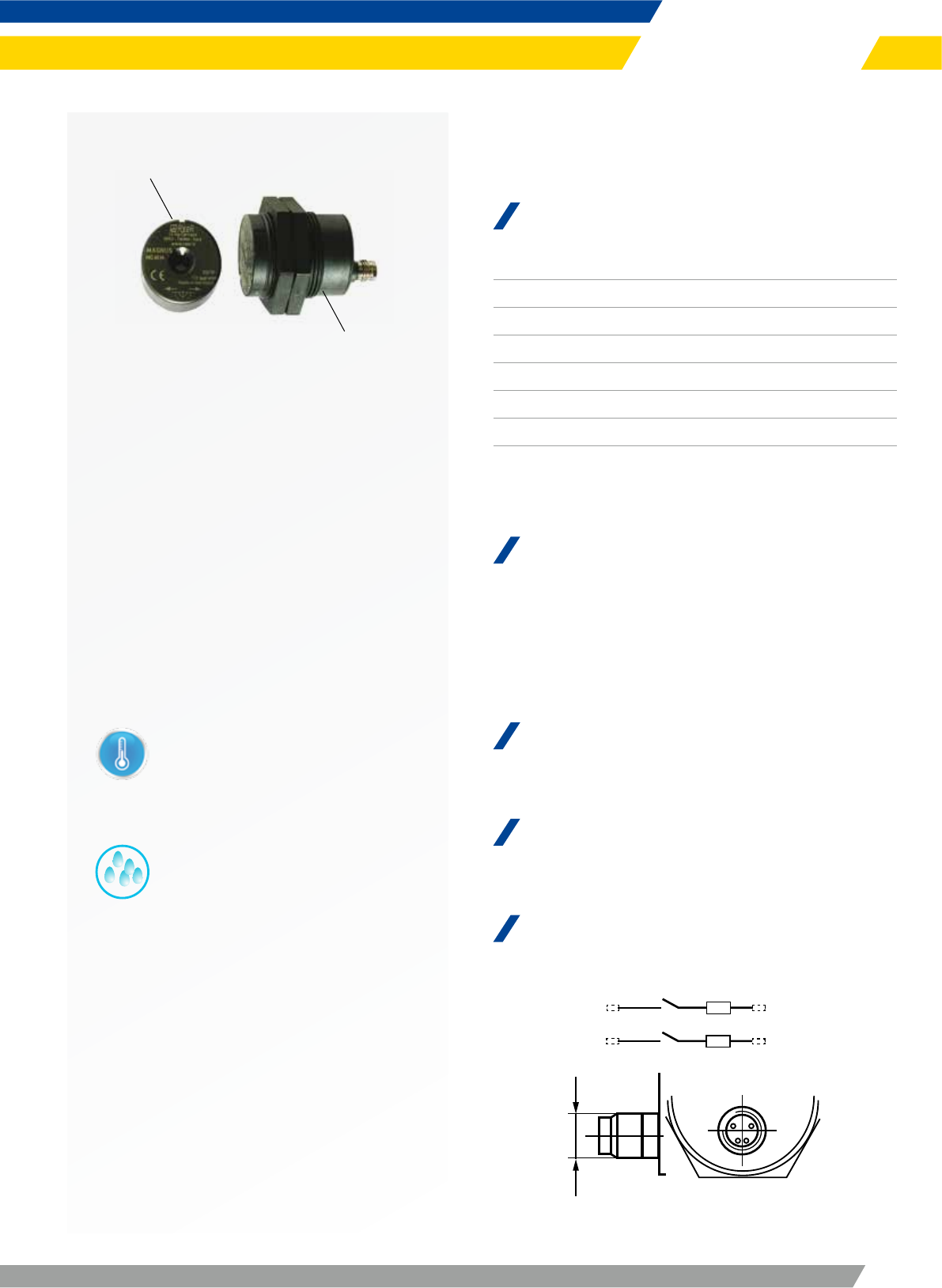

Robust cylindrical thermoplastic enclosure.
30 mm diameter.
Coded magnetic operation – Tamper resistant.
-
troller (PL e) or to the dedicated safety control unit
MG d1 (PL d).
MG M switches connected to Mosaic safety controller
Switching distance:
■4 - 16 mm
■7 - 20 mm with magnet MG M M+
Sensor with 4 wires: 2 NO contacts.
-25 ... +75 ºC
IP67
IP65
Operating temperature: -25 ... +75 °C
IP65 rating
MG M 20
CYLINDRICAL HOUSING
TECHNICAL FEATURES
24
Switching current (mA) max. 100
Series resistance (Ohm) 22
Switching power (W) 3
Shock resistance (Hz/g) 10 - 2000/35
Housing material PBT
Possible actuation magnets MG M M to be ordered separately
Possible actuation
reinforced magnets
MG M M+ to be ordered separately
(only use reinforced actuation magnets
if a gap of more than 4 mm is
unavoidable)
PART NUMBERS
Magnus MG M 20 includes multi-language instruction
manual and CE declaration of conformity
MG M 20 ordering code: 1291020
MG M M ordering code: 1291021
MG M M+ ordering code: 1291022
CABLE NEEDED
M8 4-pole. See page 33 (CGx, CG9x)
ACCESSORIES
MG d1 Control Unit. See page 31
CONNECTOR
M8 4-pole connector
3 1
4 2
1 WH
3 GN
BN 2
YE 4
M8x1
16
MAGNUS MG
MAGNETIC SAFETY SWITCHES
APPROVALS
Safety Level PL e when connected to Mosaic
Up to PL d when connected to MG d1
• 2006/42/EC: “Machine Directive”
• 2014/30/EU: “Electromagnetic Compatibility Directive”
• 2014/35/EU: “Low Voltage Directive”
• EN 61508-1:1998 “Functional safety of electrical/electronic programmable electronic safety related systems - General
requirements”
• EN 61508-2:2000 “Functional safety of electrical/electronic/programmable electronic safety related systems -
Requirements for electrical/electronic/programmable electronic safety-related systems”
• EN 61508-3:1998 “Functional safety of electrical/electronic programmable electronic safety related systems: Software
requirements”
• ISO 13849-1:2008 “Safety of machinery - Safety-related parts of control systems - Part 1: General principles for design”
• IEC 62061: “Safety of machinery - Functional safety of safety-related electrical, electronic and programmable electronic
control systems”
MECHANICAL DATA
DIMENSIONS
Gaps (operating distance) for safe switching function in mm:
MINIMUM GAP normal
with + magnet
0,5
3
ON normal
with + magnet
4
7a
OFF normal
with + magnet
16
18 b
+ = reinforced
Dimensions: mm
36
M30X1,5
SW 36 a
b
28
6
30
16
30
5,5
17
TYPE 3 SAFETY LASER SCANNER
PHARO

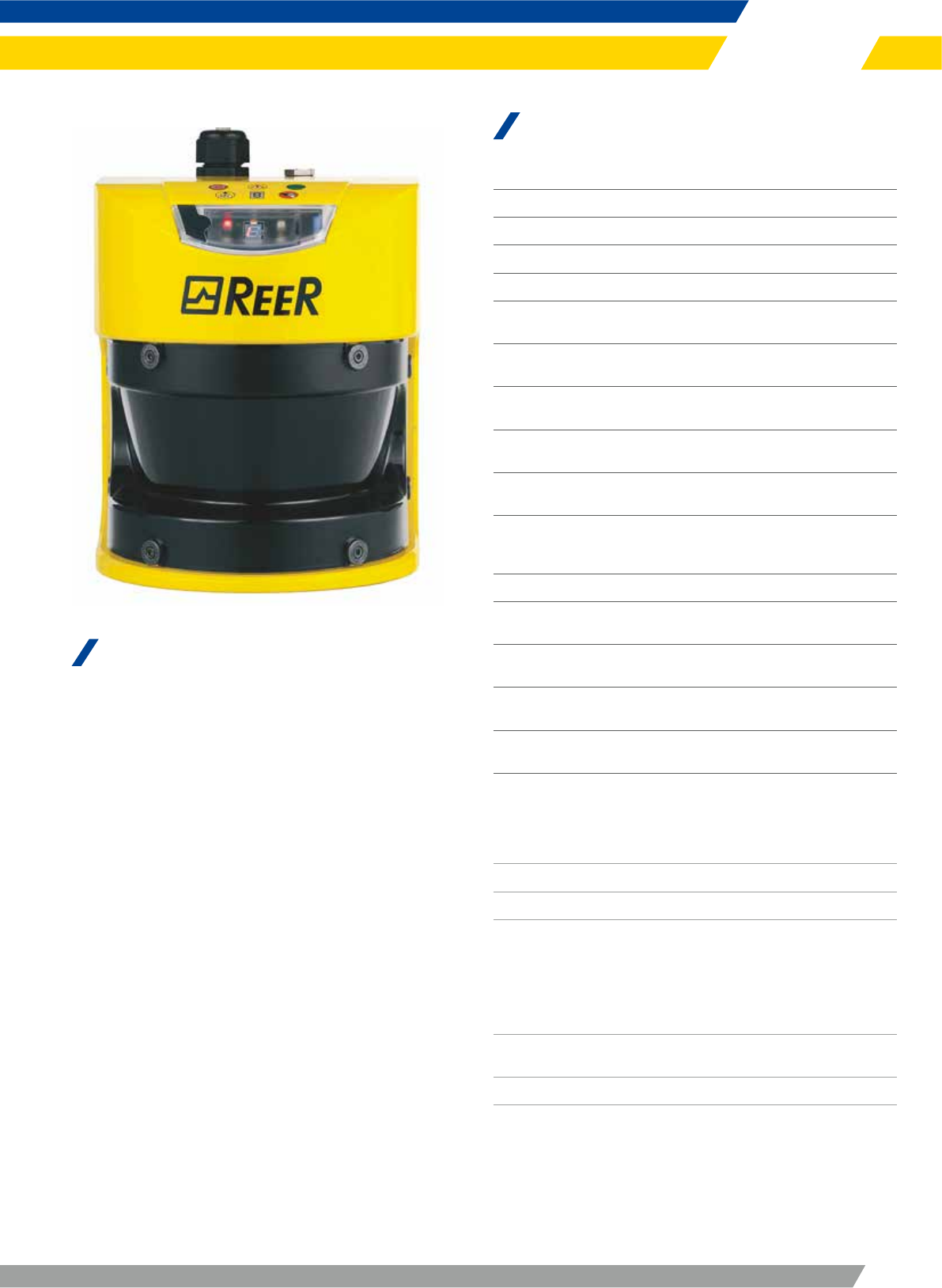

The Pharo Safety Laser Scanner is an optoelectronic
protection device for accident prevention. Pharo is
suitable for the protection of personnel exposed to
risks deriving from both machines and systems with
dangerous organs as well as from possible collisions
with automatic guided vehicles (AGVs).
With the Pharo Safety Laser Scanner it is possible to
create programmable protected horizontal or ver-
tical areas of variable shape suitable to all applica-
receiver.
The device does not require an external control unit
because all the safety functions are built-in.
-
ration Memory Module built into the removable con-
nector, which stores the data related to the protected
zones programmed and to the operating parameters
set.
This module enables the user to replace a faulty sen-
-
guration and therefore maintaining the pre-existing
tampering.
personnel.
Each sensor can create 2 independently program-
mable controlled zones:
■2 safety zones with maximum radius of 4 metres
■2 warning zones with maximum radius of 20
metres
MAIN FEATURES
Model PHR 332
2 programmable
Warning zones 2 programmable
Scanning area 190° / 4 m radius
Programming by means
- graphic user interface
- teach-in
another laser scanner).
Resolution
from hand detection to access control
Memory Module Yes for easy re-installation
Software via RS 232 serial port
Diagnostic Detailed self-diagnosis via display and
remote serial output
Start/restart interlock Built-in start/restart interlock, selectable
EDM Feedback input for control of external
relays (EDM)
-10 ... +50 ºC
IP67
IP65
Operating temperature: -10 ... +50 °C
IP65 protection rating
18
SAFETY LEVEL
SIL 2 - SILCL 2
PL d - Cat. 3
TYPE 3
ESPE
Optical windows
section
M8x9
5535
53,2 78,5
185
160
93
65,227,8
13,5
23
63
77,5
155
211
TYPE 3 SAFETY LASER SCANNER
PHARO
APPROVALS
• 2006/42/EC: “Machine Directive”
• 2014/30/EU: “Electromagnetic Compatibility Directive”
• 2014/35/EU: “Low Voltage Directive”
• EN 61496-1:2004/A1:2008 “Safety of machinery - Electro sensitive protective equipment - General requirements and
tests”
• IEC 61496-3:2008 "Safety of machinery - Electro-sensitive protective equipment - Particular requirements for
• EN 62061:2005 “Safety of machinery - Functional safety of safety-related electrical, electronic and programmable
electronic control systems”
• EN ISO 13849-1:2008 + AC:2009 “Safety of machinery - Safety-related parts of control systems - Part 1: General
principles for design”
• IEC 61508 parts 1-7:1998/2000 "Functional safety of electrical/electronic programmable electronic safety related
systems"
• EN 50178:1997 “Electronic equipment for use in power installations”
• EN 60204-1:2006/A1:2009 "Safety of machinery - Electrical equipment of machines"
• EN 60950-1:2006/A1:2010 "Information technology equipment - Safety"
• UL (C+US) mark for USA and Canada
• ANSI B11.19:2003
• ANSI/RIA R15.06:1999
MECHANICAL DATA
DIMENSIONS
19
TYPE 3 SAFETY LASER SCANNER
PHARO
PART NUMBERS
English and Italian and multi-language instruction
manual and CE declaration of conformity.
Ordering code: 1350041
TECHNICAL DATA
Light source Laser diode wavelength 905 nm
Laser source class 1 - according to EN 60825-1
Scanning angle 190°
Angular resolution 0,25° ... 0,50°
Response time (ms)
Start/Restart Automatic - timed automatic - manual
reset (selectable via software)
Serial interface
RS 232
Serial interface
data transmission RS 422
-
ing parameter setting
Module Built into the main connector
Signalling
Display indications in 7 segments and
LEDs for self-diagnosis and sensor
status
Power supply (VDC) 24 -30% +20%
External relay control Feedback input with enabling, se-
lectable
Main connection Connector with screw terminals (13
poles cable)
Serial interface connection
Cable pre-wired with 2 connectors: M8
4-pole / subD 9-pole
Electrical connections Max. cable length 30 m, cross-section
0.5 mm²
SAFETY ZONE
Max. range (m) 4
Resolution (mm)
1,8%
Safety outputs 2 PNP self-testing - 500 mA at 24 VDC
WARNING ZONE
Max. range (m)
Resolution (mm) Depending on the distance of the
obstacle
20% at 20 m
Signalling outputs 1 PNP - 200 mA at 24 VDC
20

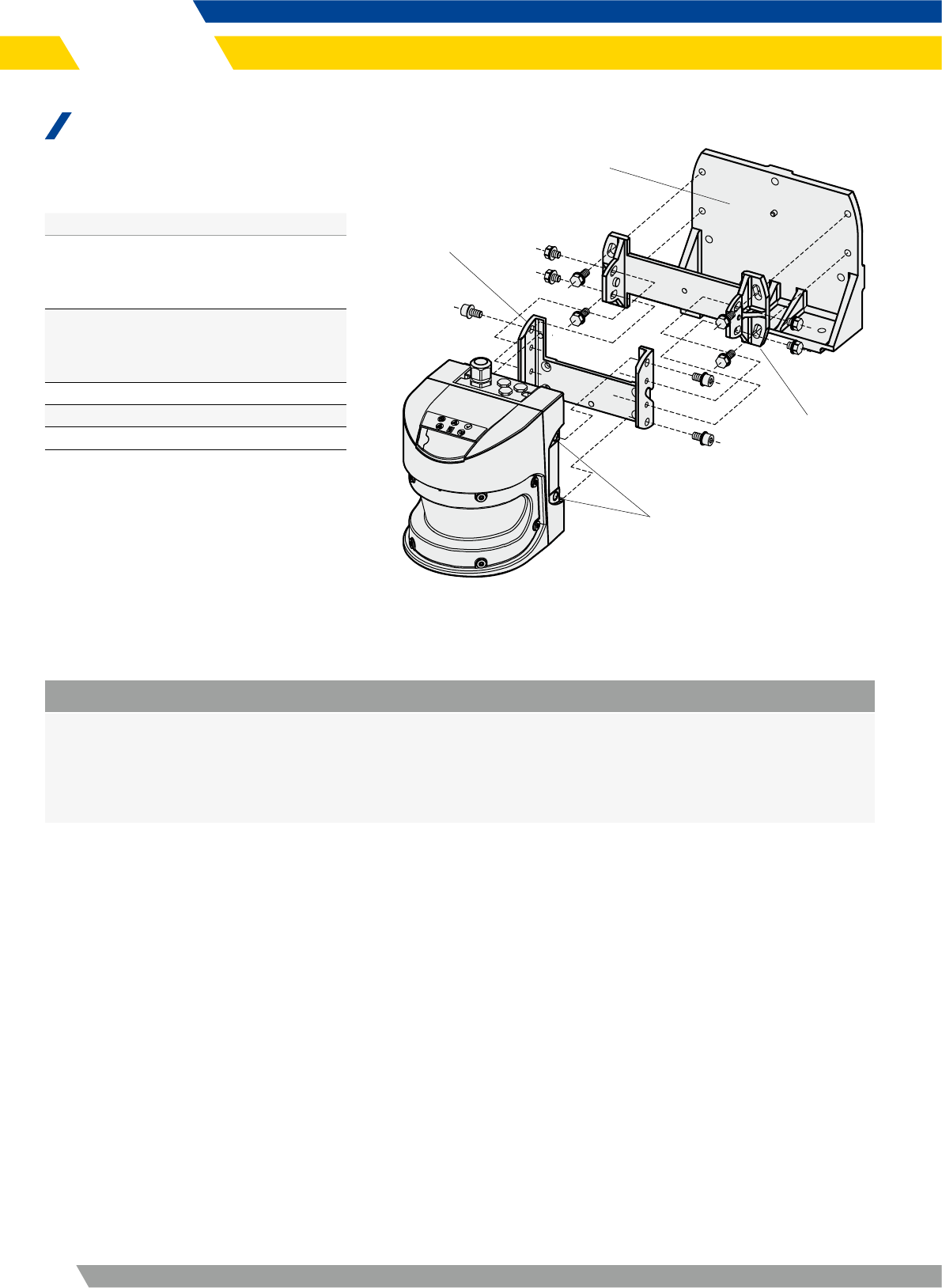

Floor mounting bracket
PHR B5
Adjustable brack-
et PHR B4
Fixed bracket
PHR B3
Installation taps M8x9
TYPE 3 SAFETY LASER SCANNER
PHARO
ACCESSORIES
The following accessories are available for
Pharo, to be ordered separately:
Model Codes Description
PHR C3L5 1350061
30 poles connector pre-wired with
13-wire cable 5 m long
Built-in Conguration Memory
Module
PHR CSL2 1350070
Cable for serial connection between
Pharo sensor and PC for conguring
M8 4-pole / subD 9-pole connector,
length 2 m
PHR B3 1350050 xed attachment bracket
PHR B4 1350051 adjustable attachment bracket
PHR B5 1350052 oor mounting bracket
WARNING!
For the main connection of the Pharo laser scanner, it is necessary to provide a 13-wire cable with 0.56 mm2 cross-
section. This cable is supplied with the PHR C3L5 main connector.
To use the PHR B4 adjustable bracket it is also necessary to order the PHR B3 xed bracket.
To use the PHR B5 oor mounting bracket it is also necessary to order the PHR B3 xed bracket and the PHR B4 adju-
stable bracket.
21

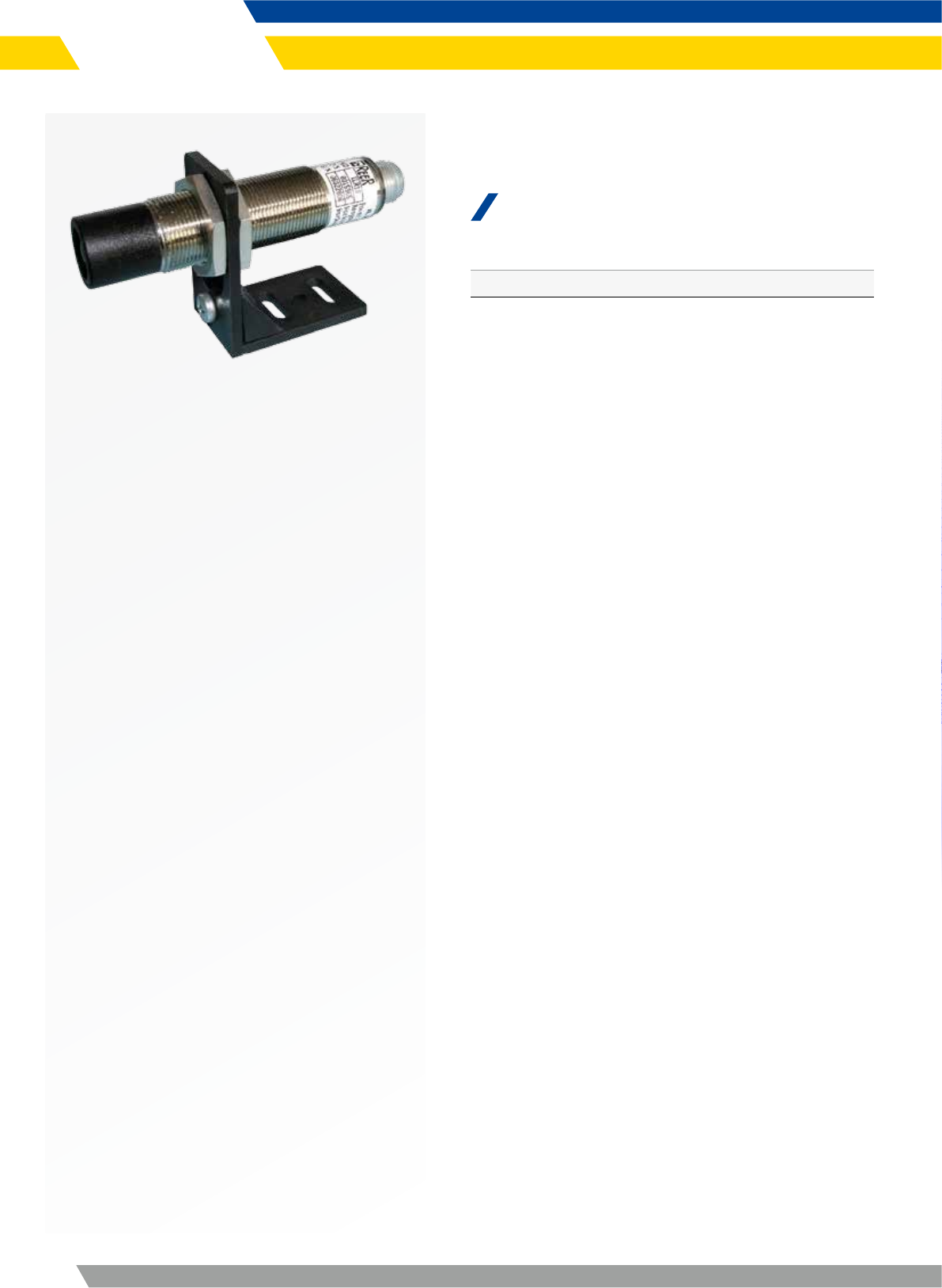

TYPE 2 SINGLE-BEAM SAFETY PHOTOCELLS
ILION
Ilion is a Type 2 safety photocell with M18 cylindrical
metal body.
The photocells must be connected to control unit for
esample: AU SX or AU SXM control unit with Muting
to form a protection system that can be composed of
1, 2, 3 or 4 single beam photocells or Mosaic.
In case of connection with Mosaic safety controller,
-
tion of the protection system (for details on the in-
terface see AU SX, AU SXM and Mosaic control units).
The compact size of the photocells makes it possible
while the possibility to use more photocells provides
beams.
All connections through M12 4-pole connectors. Un-
shielded cables up to 50 meter long (between sensor
and control unit).
TECHNICAL FEATURES
Minimum detectable
object (mm) 12
Max. range (m) 8 IL 10
20 IL 20
Number of photocells
per control unit
1 ... 4 with AU SX and AU SXM control
units
In case of the Mosaic safety controller
the number of photocells depends to
the number available input related to
Response time for each
photocell (ms) 7
Output PNP - 100 mA
Signalling Status led
Power supply (VDC) 24 ± 20%
Electrical connections M12 4-pole
Dimensions (mm) Ø 18 x 85
PART NUMBERS
Ilion photocell includes multi-language instruction manual
and CE declaration of conformity.
IL 10 ordering code: 1200201
IL 20 ordering code: 1200202
CABLES NEEDED
M12 5-pole. Pin 5 not connected
See page 32 (CDx, CD 9x, CDM 9”, CDM 99)
ACCESSORIES
■Safety interface AU SX. See page 29
■Safety interface AU SXM. See page 30
■page 38
0 ... +55 ºC
IP67
IP65
Operating temperature: 0 ... +55 °C
IP67 protection rating
22
SAFETY LEVEL
SILCL 1
PL c - Cat. 2
TYPE 2
TYPE 2 SINGLE-BEAM SAFETY PHOTOCELLS
ILION
APPROVALS
• 2006/42/EC: “Machine Directive”
• 2014/30/EU: “Electromagnetic Compatibility Directive”
• 2014/35/EU: “Low Voltage Directive”
• IEC 61496-1 (ed.3) “Safety of machinery - Electro sensitive protective equipment - General requirements and tests”
• IEC 61496-2 (ed.3) “Safety of machinery - Electro-sensitive protective equipment - Particular requirements for equipment
using active opto-electronic protective devices (AOPDs)"
• ISO 13849-1:2006 “Safety of machinery - Safety-related parts of control systems - Part 1: General principles for design”
• IEC 62061 (ed.1) “Safety of machinery - Functional safety of safety-related electrical, electronic and programmable
electronic control systems”
• EN 50178:1997 “Electronic equipment for use in power installations”
• EN 55022:2110 “Information Technology Equipment - Radio Disturbance Characteristics - Limits and Methods of
Measurement”
MECHANICAL DATA

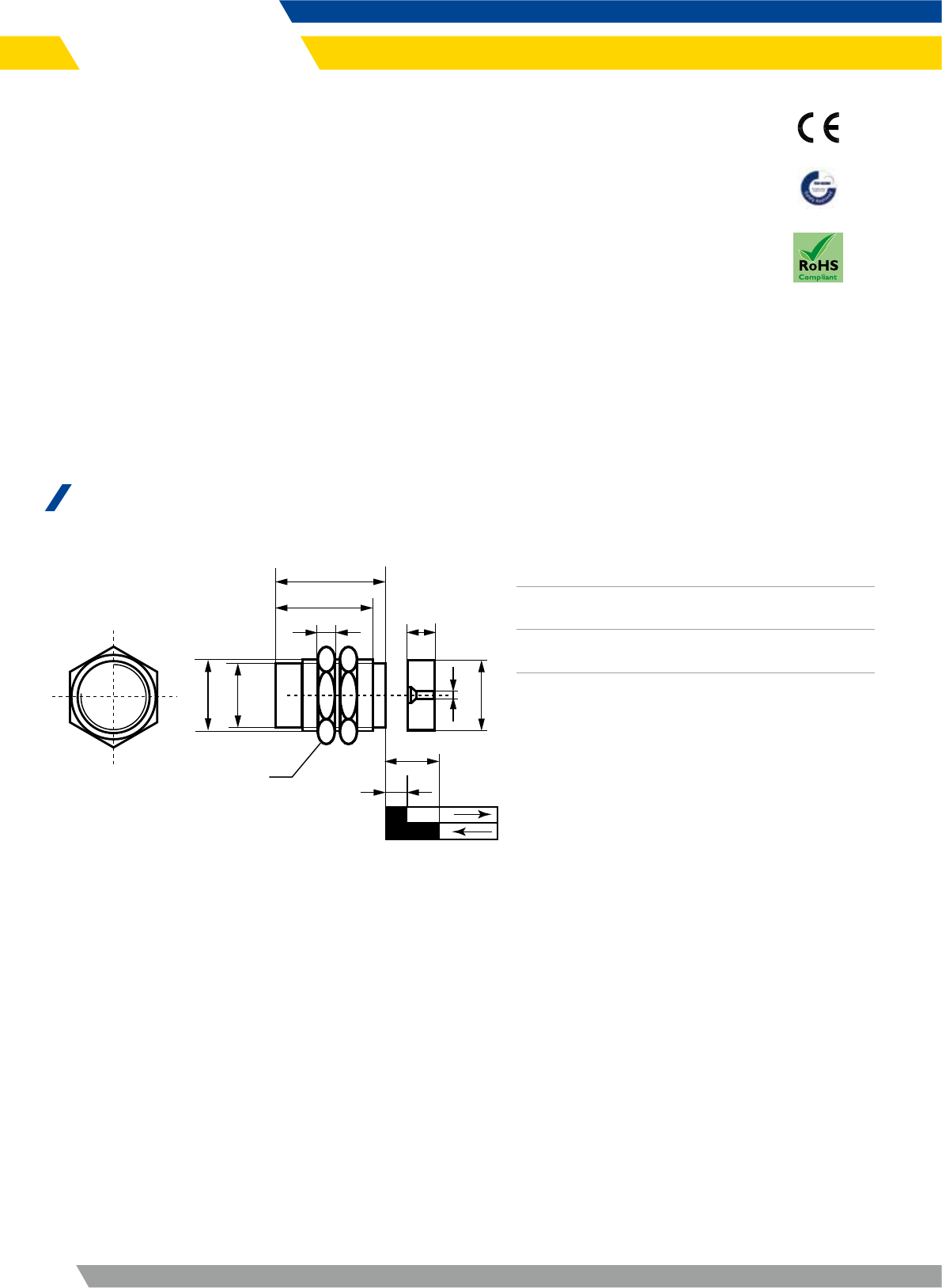

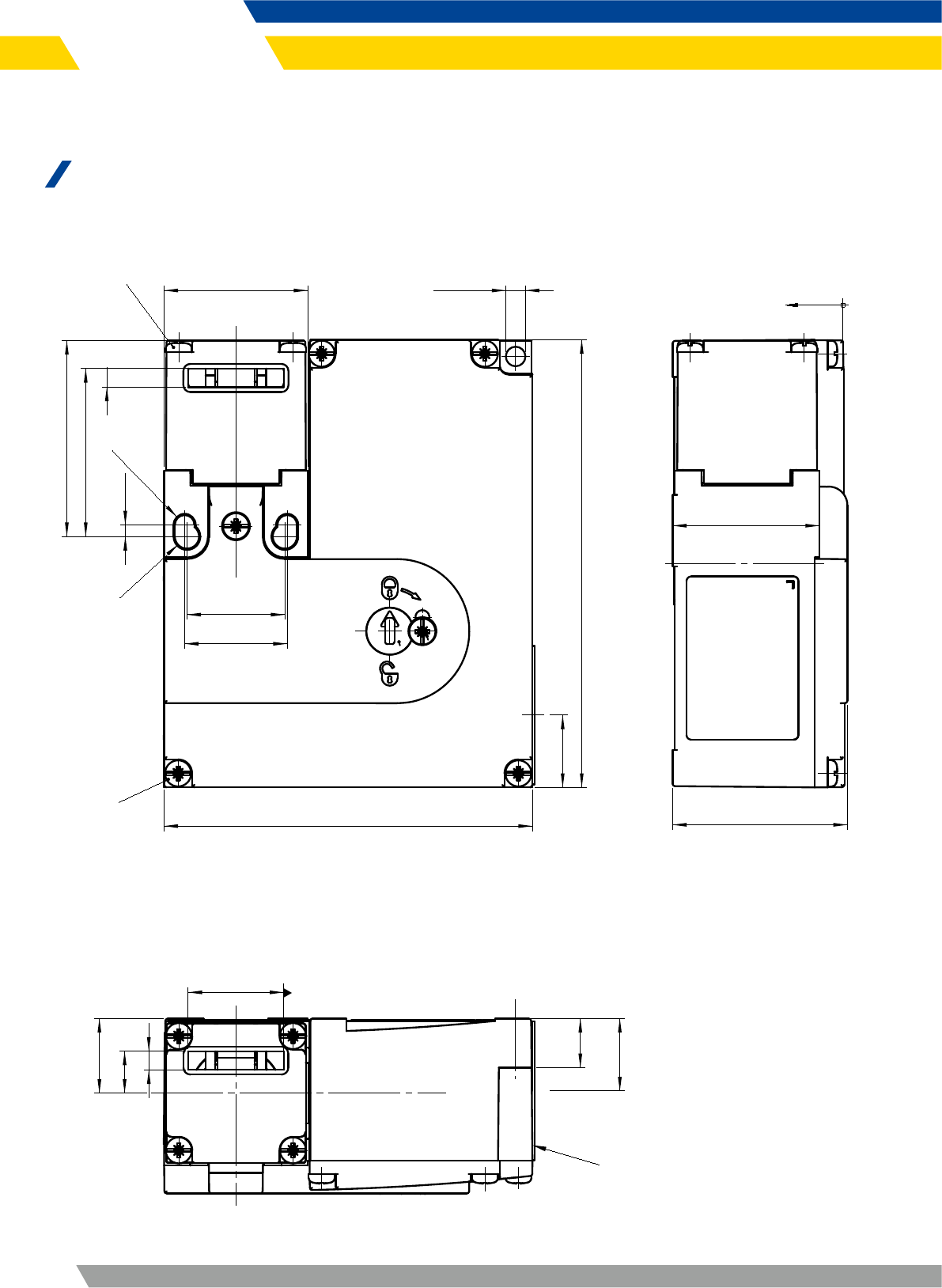

DIMENSIONS
Dimensions: mm
86
60
43
M12
9
M18
23

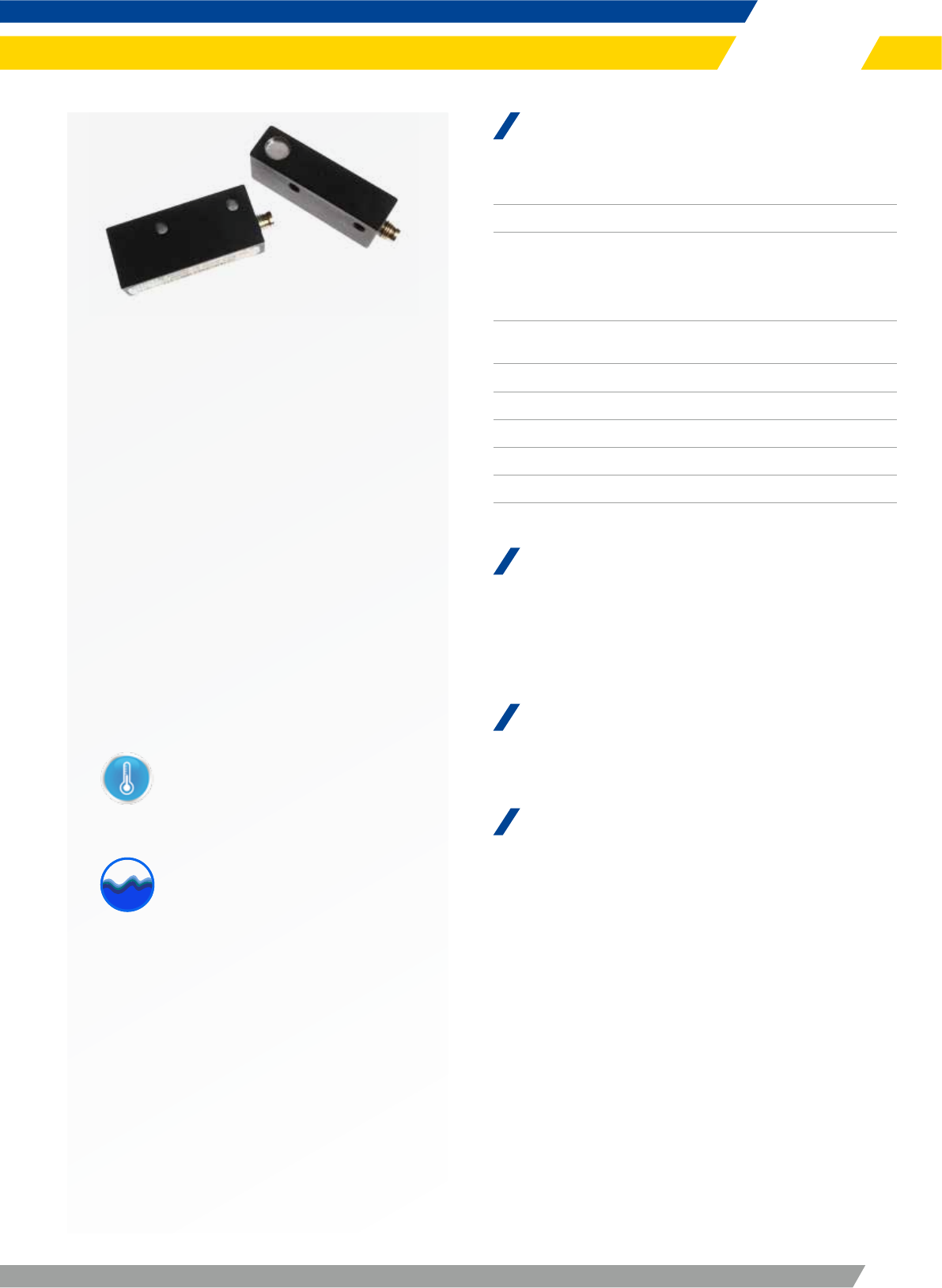

ULISSE
TYPE 2 SINGLE-BEAM SAFETY PHOTOCELLS
Ulisse is a Type 2 safety photocell with metal body
and M8 3-pole connector.
The photocells must be connected to control unit for
esample: standard AU SX or AU SXM control unit with
Muting or Mosaic to form a protection system that
can be composed of 1, 2, 3 or 4 single beam photo-
cells.
In case of connection with Mosaic safety controller,
-
tion of the protection system (for details on the in-
terface see AU SX, AU SXM and Mosaic control units).
Thanks to the very small size, the anodised aluminium
case and the glass lenses free from electrostatic dust
attraction, Ulisse is the ideal solution for the pro-
tection of weaving machines as well as of other ap-
plications characterised by high levels of mechanical
stress or very restricted spaces.
0 ... +55 ºC
IP67
IP65
Operating temperature: 0 ... +55 °C
IP67 protection rating
TECHNICAL FEATURES
Minimum detectable
object (mm) 8
Max. range (m) 6
Number of photocells per
control unit
1 ... 4
In case of the Mosaic safety controller
the number of photocells depends to
the number available input related to
Response time for each
photocell (ms) 7
Output PNP - 100 mA
Signalling Status led
Power supply (VDC) 24 ± 20%
Electrical connections M8 3-pole
Max. cable length (m) 50 (between sensor and control unit)
Dimensions h x w x d (mm) 58 x 15 x 25
PART NUMBERS
Ulisse photocell includes multi-language instruction man-
ual and CE declaration of conformity.
UPC ordering code: 1200300
CABLES NEEDED
M8 3-pole. See page 33 (C 8x, C 895)
ACCESSORIES
■Safety interface AU SX. See page 29
■Safety interface AU SXM. See page 30
24
SAFETY LEVEL
SILCL 1
PL c - Cat. 2
TYPE 2
ULISSE
TYPE 2 SINGLE-BEAM SAFETY PHOTOCELLS
APPROVALS
• 2006/42/EC: “Machine Directive”
• 2014/30/EU: “Electromagnetic Compatibility Directive”
• 2014/35/EU: “Low Voltage Directive”
• IEC 61496-1 (ed.3) “Safety of machinery - Electro sensitive protective equipment - General requirements and tests”
• IEC 61496-2 (ed.3) “Safety of machinery - Electro-sensitive protective equipment - Particular requirements for equipment
using active opto-electronic protective devices (AOPDs)"
• ISO 13849-1:2006 “Safety of machinery - Safety-related parts of control systems - Part 1: General principles for design”
• IEC 62061 (ed.1) “Safety of machinery - Functional safety of safety-related electrical, electronic and programmable
electronic control systems”
• EN 50178:1997 “Electronic equipment for use in power installations”
• EN 55022:2110 “Information Technology Equipment - Radio Disturbance Characteristics - Limits and Methods of
Measurement”
MECHANICAL DATA
DIMENSIONS
Dimensions: mm
10
56
25
18
15
= =
= =
20,628,5
8
62,7
A 4,5
25

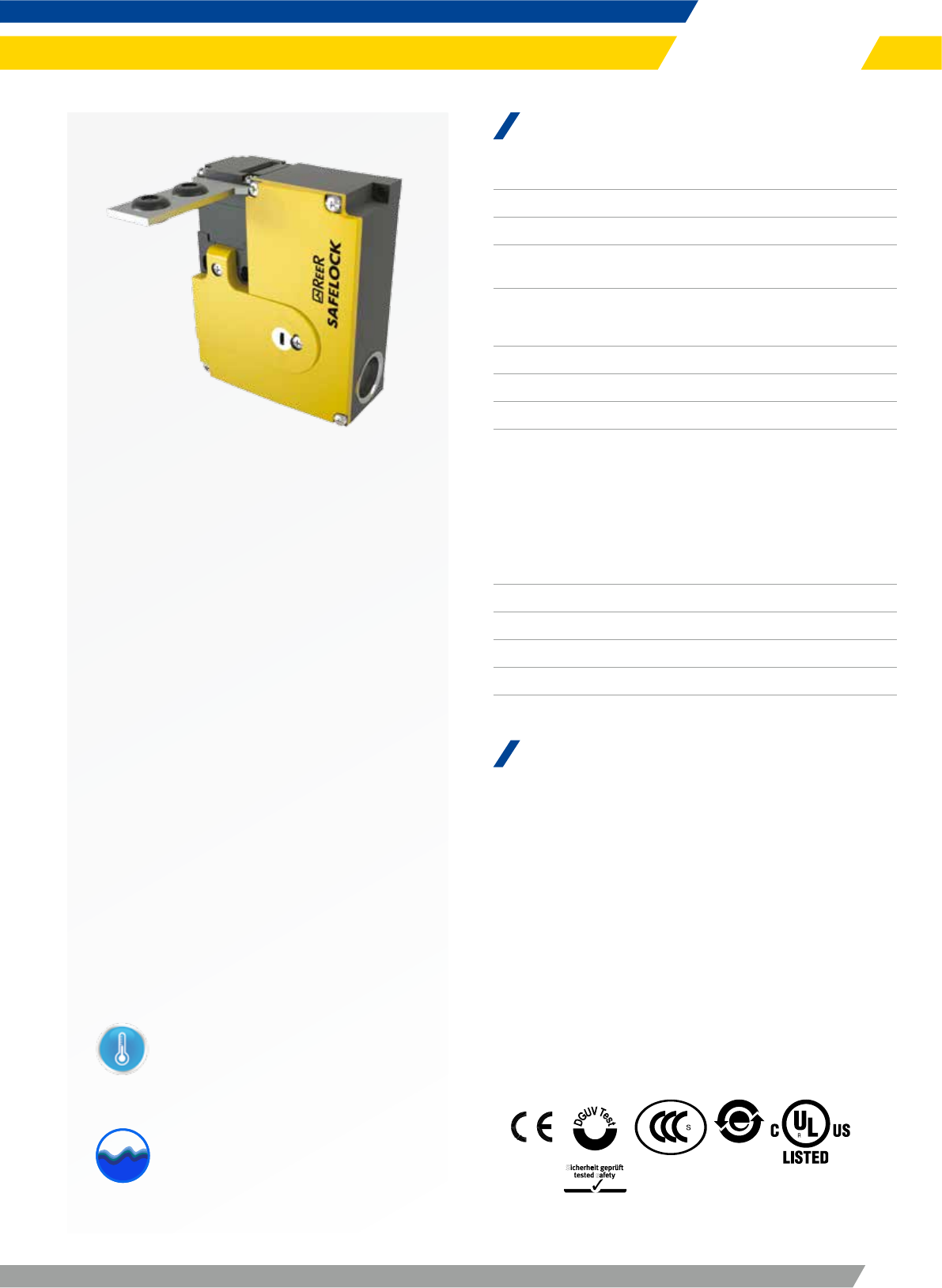

SAFELOCK
SAFETY SWITCH WITH GUARD LOCKING
Safelock is a safety switch utilised in the protection of
personnel when opening doors leading to dangerous
areas. It acts by monitoring and interrupting the sa-
fety circuit during dangerous scenarios.
The solenoid locks and unlocks access to the dange-
rous area, guaranteeing safety until the danger has
stopped. Available models
SLK-M
Retention mechanism actuated by a spring and
unlocked by ON current. Guard locking by spring for-
ce, release by applying voltage to the guard locking
solenoid.
SLK-E
Retention mechanism actuated by ON current and
unlocked by spring. Guard locking by applying voltage
to the guard locking solenoid, release by spring force.
■Actuating head made of plastic or metal
■Auxiliary release on the front. Used for
releasing the guard locking with the aid of a tool.
To protect against tampering, the auxiliary
release is sealed with sealing lacquer
■Approach direction: horizontal and vertical. Can
be adjusted in 90° steps
■Any installation position
-20 ... + 55 ºC
IP67
IP65
Operating temperature: -20 ... +55 °C
IP67 protection rating
TECHNICAL FEATURES
Housing material Reinforced thermoplastic
Contact material
Switching principle Slow-action switching contact
Number of door position
2
Number of guard lock
contacts
1
Approach speed Max. 20 m/min
Actuation frequency 1200 1/h
Guard locking principle Closed-circuit current principle
Force
Locking force (Fmax):
Locking force (FZh):
1,5 kN 0,7 kN (plastic), 1,5 kN (metal)
Retention force: 20 N
Extraction force: 30 N
Actuating force: 35 N
AC/DC 24 V -15% ... +10%
Short circuit protection 4 A
12 V Min at 10 mA
Switching current 1 mA Min at 24 V
Power consumption 6 W
APPROVALS
• 2006/42/EC: “Machine Directive”
• EN 60947-5-1:2004/A1:2009 Low-voltage switchgear and
controlgear. Control/circuit devices and switching elements.
Electromechanical control circuit devices
• EN 60947-5-1:2004/A1:2009 Annex K
• EN ISO 14119:2013 Safety of machinery - Interlocking devices
associated with guards - Principles for design and selection
26
2NC Model
For monitoring the guard locking (built-in solenoid)
slow-action switching contact 2 NC
NC NO Model
For monitoring the guard locking (built-in solenoid)
slow-action switching contact 1 NC +1 NA
B
A
B
A
22
21
12
11
12
11
E1
E2
21 22
11 12
11 12
24
23
12
11
E1
E2
23 24
11 12
11 12
12
11
SAFELOCK
SAFETY SWITCH WITH GUARD LOCKING
PART NUMBERS
Ordering codes Models Guard lock Description
1290100 SLK-M-P-2NC-24
Mechanical
Safelock with mechanical guard lock and plastic actuating head.
Switching element: 2 NC, feedback 1 NC
1290101 SLK-M-P-NCNO-24 Safelock with mechanical guard lock and plastic actuating head.
Switching element: 1 NC + 1 NO, feedback 1 NC
1290102 SLK-M-M-2NC-24 Safelock with mechanical guard lock and metal actuating head.
Switching element: 2 NC, feedback 1 NC
1290103 SLK-M-M-NCNO-24 Safelock with mechanical guard lock and metal actuating head.
Switching element: 1 NC + 1 NO, feedback 1 NC
1290104 SLK-E-P-2NC-24
Elecrtrical
Safelock with electrical guard lock and plastic actuating head.
Switching element: 2 NC, feedback 1 NC
1290105 SLK-E-P-NCNO-24 Safelock with electrical guard lock and plastic actuating head.
Switching element: 1 NC + 1 NO, feedback 1 NC
1290106 SLK-E-M-2NC-24 Safelock with electrical guard lock and metal actuating head.
Switching element: 2 NC, feedback 1 NC
1290107 SLK-E-M-NCNO-24 Safelock with electrical guard lock and metal actuating head.
Switching element: 1 NC + 1 NO, feedback 1 NC

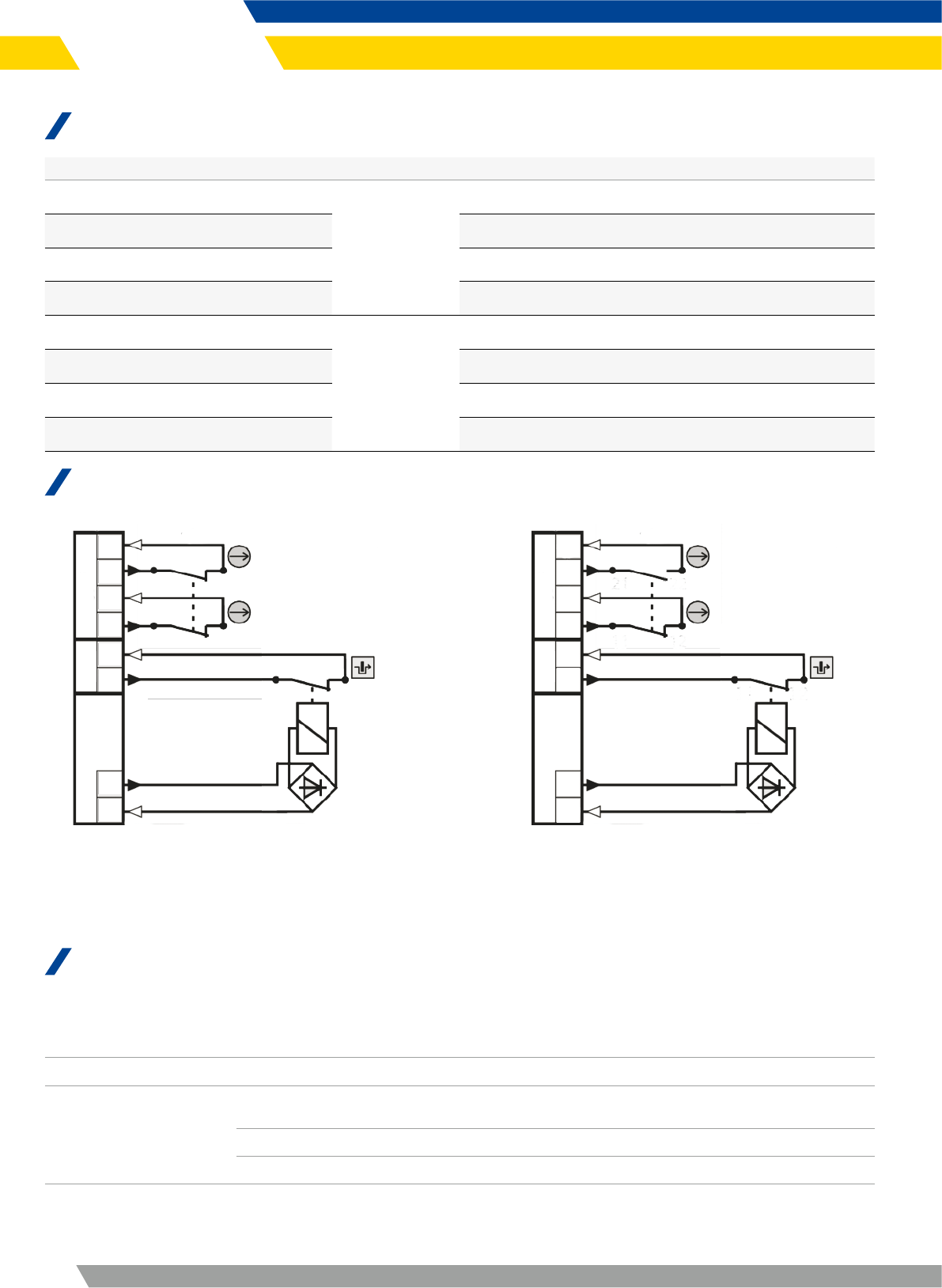

BLOCK DIAGRAM
LIVELLI DI SICUREZZA
Cat. 1 / PL c 1 Safelock + 1 safety relay AD SRE3C or 1 input of the Mosiac safety controller
Cat. 3 / PL d
1 Safelock + 1 safety relay AD SRE3C or 2 inputs of the Mosiac safety controller + fault exclusion according to
the standard (EN ISO 13849-2)
1 Safelock + 2 Magnus RFID + safety relay AD SR1 or 2 inputs of the Mosiac safety controller
2 Safelock + 1 safety relay AD SRE3C or 2 inputs of the Mosiac safety controller
Cat. 4 / PL e 2 Safelock + 2 safety relay AD SRE4C or 4 inputs of the Mosiac safety controller
27
SAFELOCK
SAFETY SWITCH WITH GUARD LOCKING

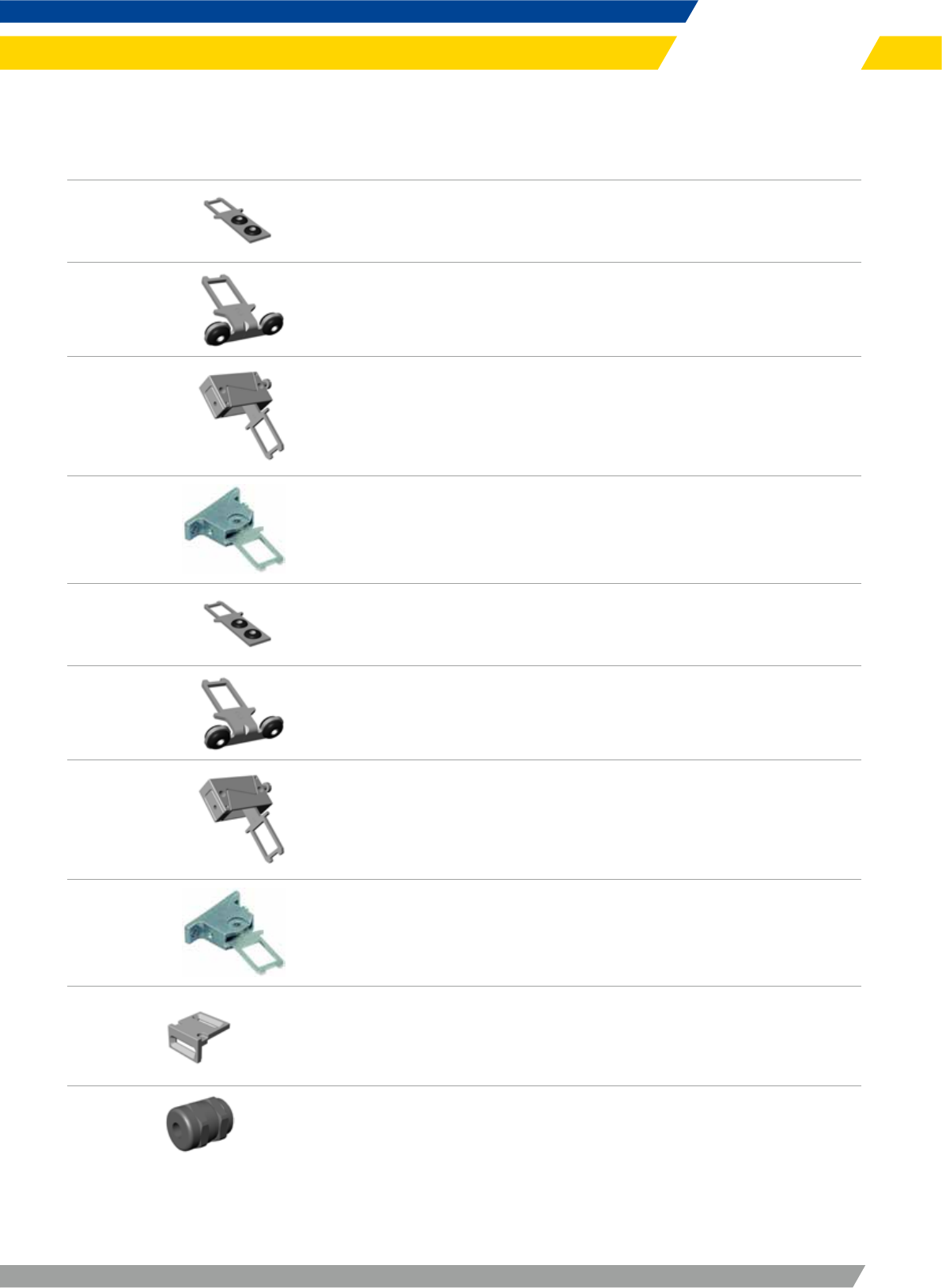

ACTUATORS
Model Ordering codes Description
ACT-S-S-RB 1290302
Actuator standard, straight with rubber bush
Two stainless safety screws per actuator
Actuators with rubber bushings
ACT-S-A-RB 1290303 Actuator standard, angled with rubber bush
Two stainless safety screws per actuator
ACT-S-H-TB 1290304
Actuator standard, hinged, top-botton
Actuators made of stainless steel
Two stainless safety screws per actuator
For doors hinged at top and bottom
ACT-S-H-LR 1290305
Actuator standard, hinged, left-right
Actuators made of stainless steel
Two stainless safety screws per actuator
For doors hinged on right and left
ACT-F-S-RB 1290306
Actuator for insertion funnels, straight with rubber bush
Two stainless safety screws per actuator
Actuators with rubber bushings
ACT-F-A-RB 1290307
Actuator for insertion funnels, angled with rubber bush
Two stainless safety screws per actuator
Actuators with rubber bushings
ACT-F-H-TB 1290308
Actuator for insertion funnels, hinged, top-botton
Actuators made of stainless steel
Two stainless safety screws per actuator
For doors hinged at top and bottom
ACT-FH-LR 1290309
Actuator for insertion funnels, hinged, left-right
Actuators made of stainless steel
Two stainless safety screws per actuator
For doors hinged on right and left
ACT-F-IF 1292426 Insertion funnel
CG M20 1290310 Cable glands
28
SAFELOCK
SAFETY SWITCH WITH GUARD LOCKING
MECHANICAL DATA
DIMENSIONS
Dimensions: mm
31
2,5
Ø4,7
79
15,5
22
21
Ø5,2
Ø4,2
96
42
36
4
M=0,5 Nm
M = 0,6 Nm
16
9
15,5
10,5
4
20,5
M20x1,5
37,5
31,5
h
29

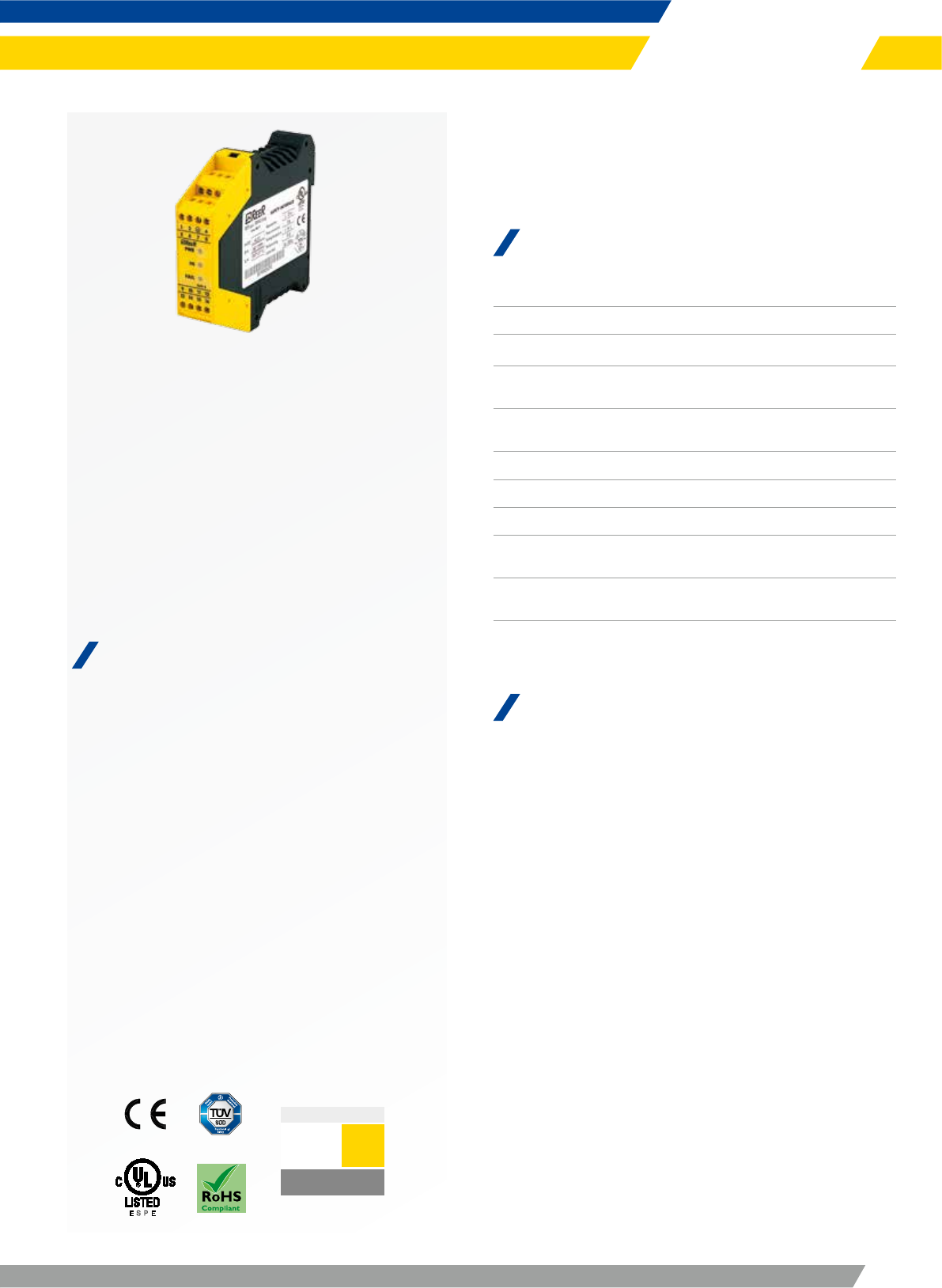

ACCESSORIES
INTERFACES
Control unit for safety photocells Ilion and Ulisse,
which can be combined to form a Type 2 safety
system.
Up to 4 photocells may be connected.
With guided-contact safety relays.
Start/Restart interlock.
EDM Feedback input for external contactors
monitoring.
Self test every 5 seconds.
APPROVALS
• 2006/42/EC: “Machine Directive”
• 2014/30/EU: “Electromagnetic Compatibility Directive"
• 2014/35/EU: “Low Voltage Directive”
• EN 61496-1:2013 “Safety of machinery - Electro sensitive
protective equipment - General requirements and tests”
• IEC 62061 (ed.1) “Safety of machinery - Functional safety of
safety-related electrical, electronic and programmable electro-
nic control systems”
• EN ISO 13849-1:2008 “Safety of machinery - Safety-related
parts of control systems - Part 1: General principles for design”
• EN 50178:1997 “Electronic equipment for use in power
installations”
• EN 55022:2010 “Information Technology Equipment- Radio
Disturbance Characteristics - Limits and Methods of
Measurement”
• UL (C+US) mark for USA and Canada
AU SX

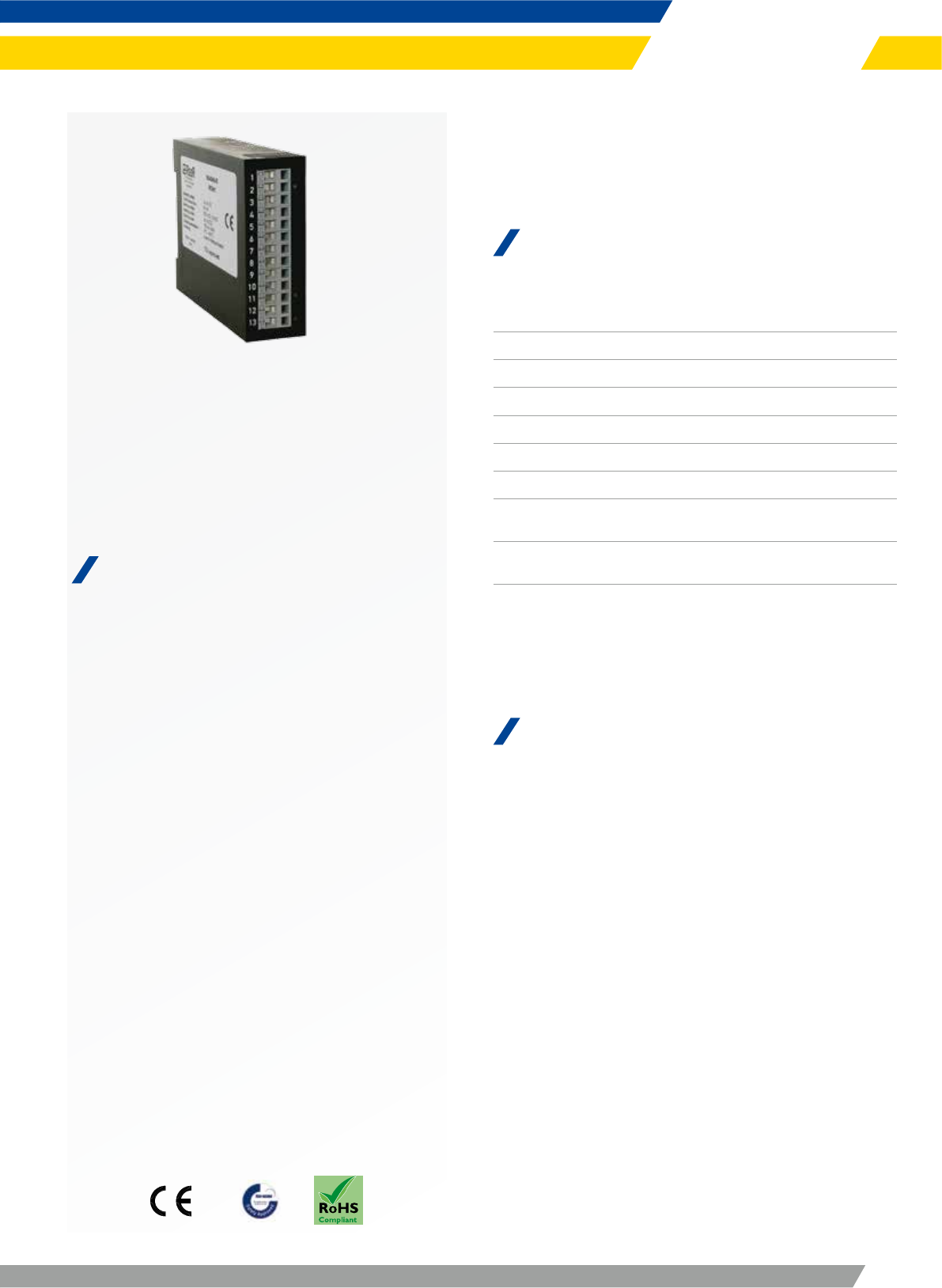

TYPE 2 CONTROL UNIT FOR ILION AND
ULISSE PHOTOCELLS
TECHNICAL FEATURES
Safety relay outputs 2 NO - 2 A 250 VAC
Status output PNP - 100 mA at 24 VDC
Response time (ms)
Start/Restart command ac-
cording to IEC 61496-1
Manual or automatic Start/Restart
selectable on terminal block
Signalling LED indication of input/output
status and diagnosis
Power supply (VDC) 24 ± 20%
Electrical connections On terminal block
Operating temperature (°C) 0 ... 55
Protection rating IP20 for housing
IP2X for terminal block
Fastening DIN rail fastening according to
EN 50022-35 standard
Dimensions h x w x d (mm) 99 x 22,5 x 114
PART NUMBERS
AU SX module includes multi-language instruction manual
and CE declaration of conformity.
Ordering code: 1201710
SAFETY LEVEL
SILCL 1
PL c - Cat. 2
TYPE 2
ESPE
30
ACCESSORIES
INTERFACES
AU SXM control unit, with integrated Muting
functions, for safety photocells Ilion and Ulisse,
which can be combined to form a Type 2 safety
system.
Up to 4 photocells may be connected.
2-sensor Muting logics.
With guided-contact safety relays.
Muting time-out selectable.
Start/Restart interlock.
EDM Feedback input for extra external contactors
monitoring.
Self test every 5 seconds.
APPROVALS
• 2006/42/EC: “Machine Directive”
• 2014/30/EU: “Electromagnetic Compatibility Directive”
• 2014/35/EU: “Low Voltage Directive”
• EN 61496-1:2013 “Safety of machinery - Electro sensitive
protective equipment - General requirements and tests”
• IEC 62061 (ed.1) “Safety of machinery - Functional safety of
safety-related electrical, electronic and programmable
electronic control systems”
• EN ISO 13849-1:2008 “Safety of machinery - Safety-related
parts of control systems - Part 1: General principles for design”
• EN 50178:1997 “Electronic equipment for use in power
installations”
• EN 55022:2010 “Information Technology Equipment- Radio
Disturbance Characteristics - Limits and Methods of
Measurement”
• UL (C+US) mark for USA and Canada
SAFETY LEVEL
SILCL 1
PL c - Cat. 2
TYPE 2
ESPE
AU SXM
TYPE 2 CONTROL UNIT WITH
INTEGRATED MUTING FOR ILION AND
ULISSE PHOTOCELLS
TECHNICAL FEATURES
Inputs for Muting sensors 2 inputs 0 or 24 VDC – PNP or relay –
dark-on
Muting Enable input 0 or 24 VDC – PNP or relay
Safety relay outputs 2 NO - 2A 250 VAC
Status output PNP - 100 mA at 24 VDC
Muting lamp output 24 VDC; 0,5 - 5 W
Muting time-out
2 operating modes selectable: manual
action with hold to run or automatic
with pulse command
15
Response time (ms)
Start/Restart command
according to IEC 61496-1
Manual or automatic Start/Restart
selectable on terminal block
Signalling LED indications of input/output status,
Muting sensor inputs, diagnosis
Power supply (VDC) 24 ± 20%
Electrical connections On terminal blocks
Operating temperature (°C) 0 ... 55
Protection rating IP20 for housing
IP2X for terminal blocks
Fastening DIN rail fastening according to
EN 50022-35 standard
Dimensions h x w x d (mm) 99 x 35 x 114
PART NUMBERS
AU SXM module includes multi-language instruction ma-
nual and CE declaration of conformity.
Ordering code: 1201711
31
ACCESSORIES
INTERFACES
MG d1 is a safety control unit for monitoring up to 8
Magnus safety switches in series.
With 1 safety switch connected, a PL d safety level is
reached.
It features a two positively mechanically linked
contacts and EDM (External Device Monitoring).
APPROVALS
• 2006/42/EC: “Machine Directive”
• 2014/30/EU: “Electromagnetic Compatibility Directive”
• 2014/35/EU: “Low Voltage Directive”
• EN 61508-1:1998 “Functional safety of electrical/electronic
programmable electronic safety related systems - General
requirements”
• EN 61508-2:2000 “Functional safety of electrical/electronic/
programmable electronic safety related systems -
Requirements for electrical/electronic/programmable electro-
nic safety-related systems”
• EN 61508-3:1998 “Functional safety of electrical/electronic
programmable electronic safety related systems: Software
requirements”
• ISO 13849-1:2008 “Safety of machinery - Safety-related parts
of control systems - Part 1: General principles for design”
• IEC 62061: “Safety of machinery - Functional safety of sa-
fety-related electrical, electronic and programmable electronic
control systems”

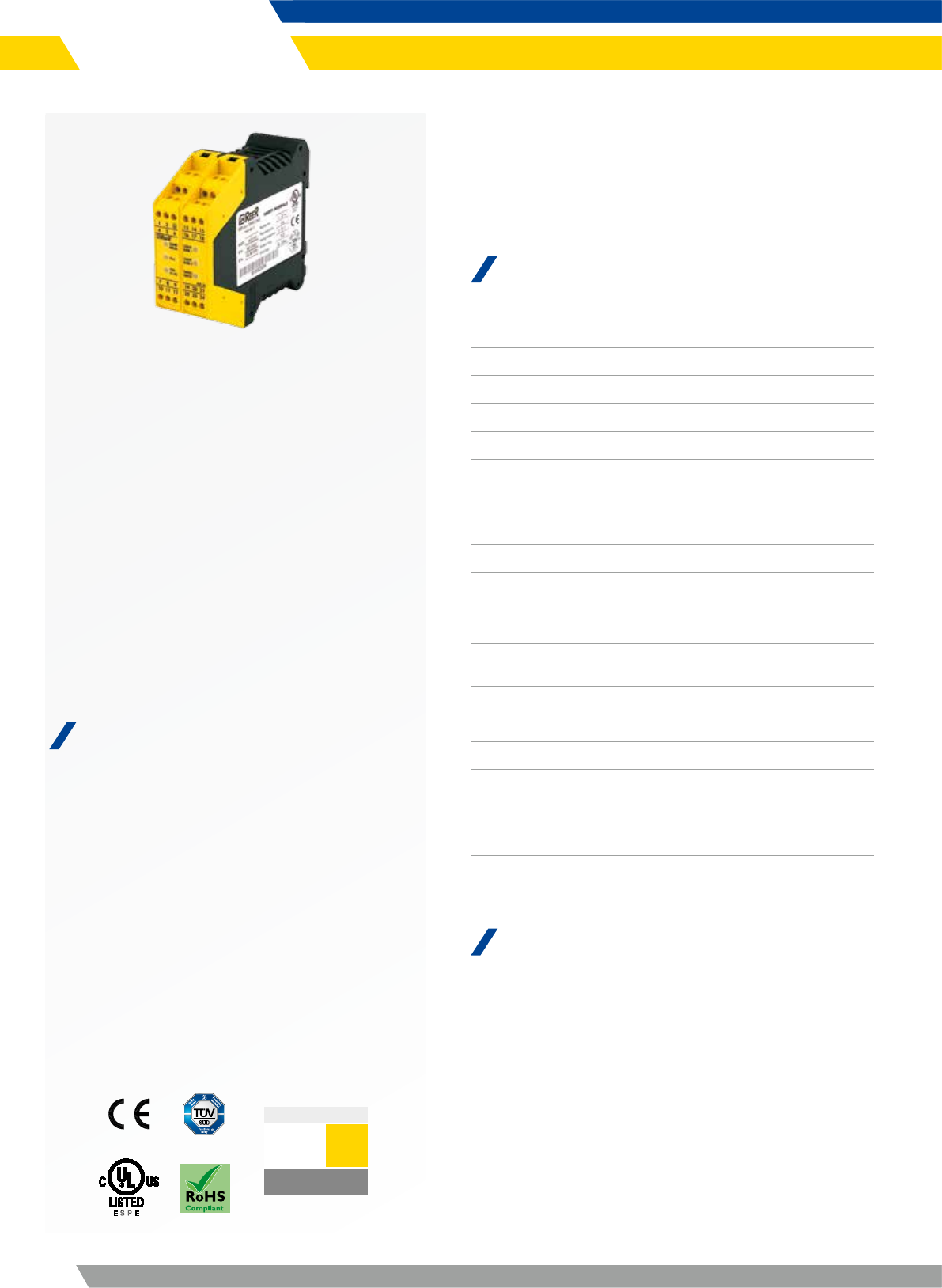

MG d1
PL D CONTROL UNIT FOR MAGNUS
MAGNETIC SWITCHES
TECHNICAL FEATURES
Safety relay outputs
2 NO - 3 A - 250 VAC
Each NO safety output line is
interrupted twice by the two relays
Response time (ms) < 20
Yes
Signalling LED indicators for status and diagnostic
Power supply (VDC) 24 (±10%)
Electrical connection On terminal block
Operating temperature (°C) 0 ... 55
Protection rating IP40 for housing
IP2X for terminal block
Fastening DIN rail fastening according to
EN 50022-35 standard
Dimensions h x w x d (mm) 75 x 25 x 94
MG d1 module includes multi-language instruction
manual and CE declaration of conformity.
PART NUMBERS
Ordering code: 1291050
Ø 14,5
M 12x1
46
1 - Brown
2 - White
3 - Blue
4 - Black
5 - Grey
2
3
5
4
1
32
ACCESSORIES
CABLES

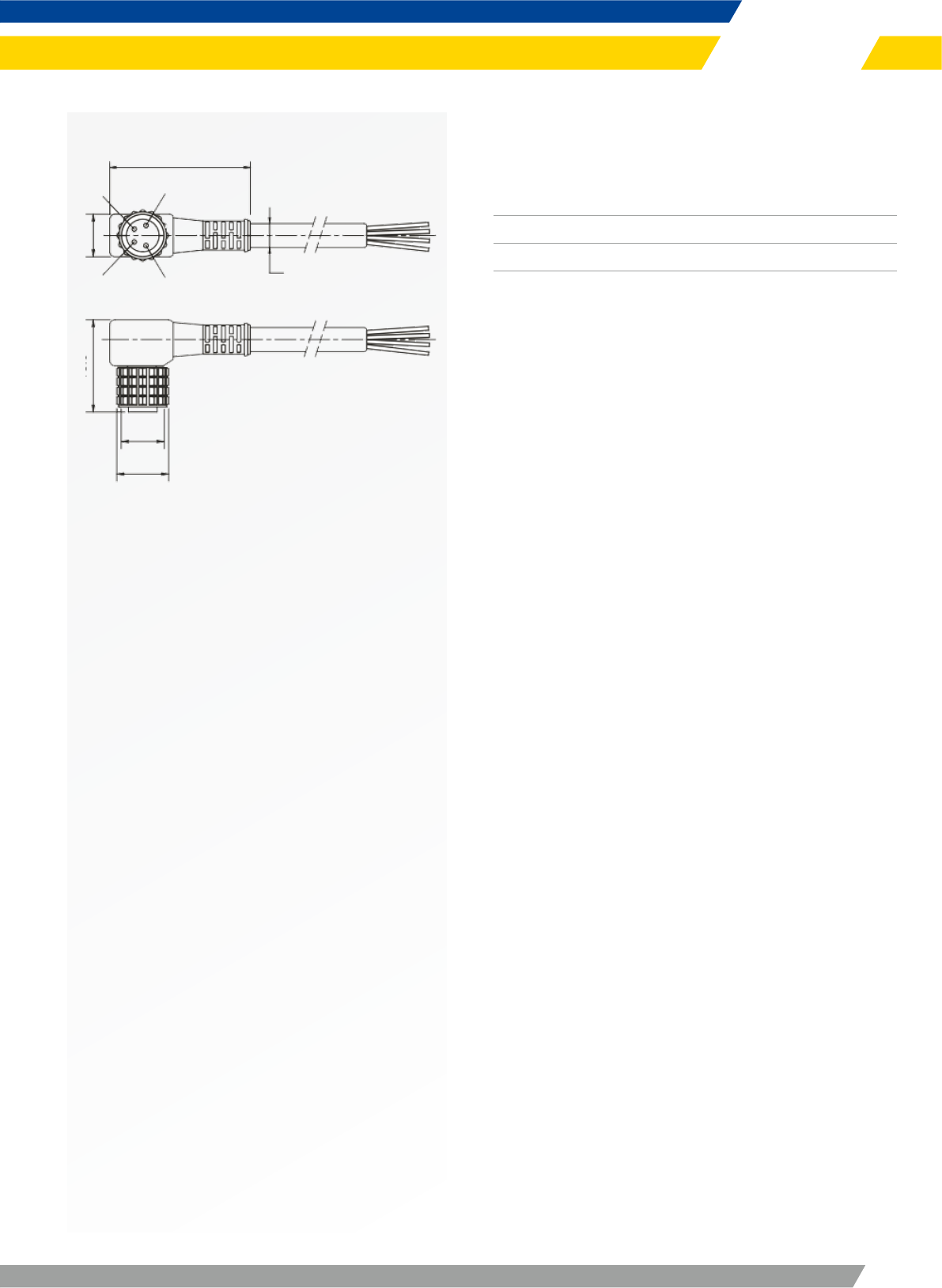

CD x
Models Codes Description
CD 5 1330950 Pre-wired cable 5 m
CD 10 1330956 Pre-wired cable 10 m
CD 15 1330952 Pre-wired cable 15 m
CD 20 1330957 Pre-wired cable 20 m
CD 25 1330949 Pre-wired cable 25 m
CD 50 1330965 Pre-wired cable 50 m
Note - Pin 5 not connected
CD 9x
Models Codes Description
CD 95 1330951 Pre-wired cable 5 m
CD 910 1330958 Pre-wired cable 10 m
CD 915 1330953 Pre-wired cable 15 m
Note - Pin 5 not connected
Ø 14,5
M 12x1
1 - Brown
2 - White
3 - Blue
4 - Black
5 - Grey
5
26 12
Ø 4,5
35,5
3
4
1
2
33
ACCESSORIES
CABLES
CDM 9
SCREW TERMINAL, PG9 CABLE GLAND
Model Code
CDM 9 1330954
CDM 99
SCREW TERMINAL, PG9 CABLE GLAND
Model Code
CDM 99 1330955

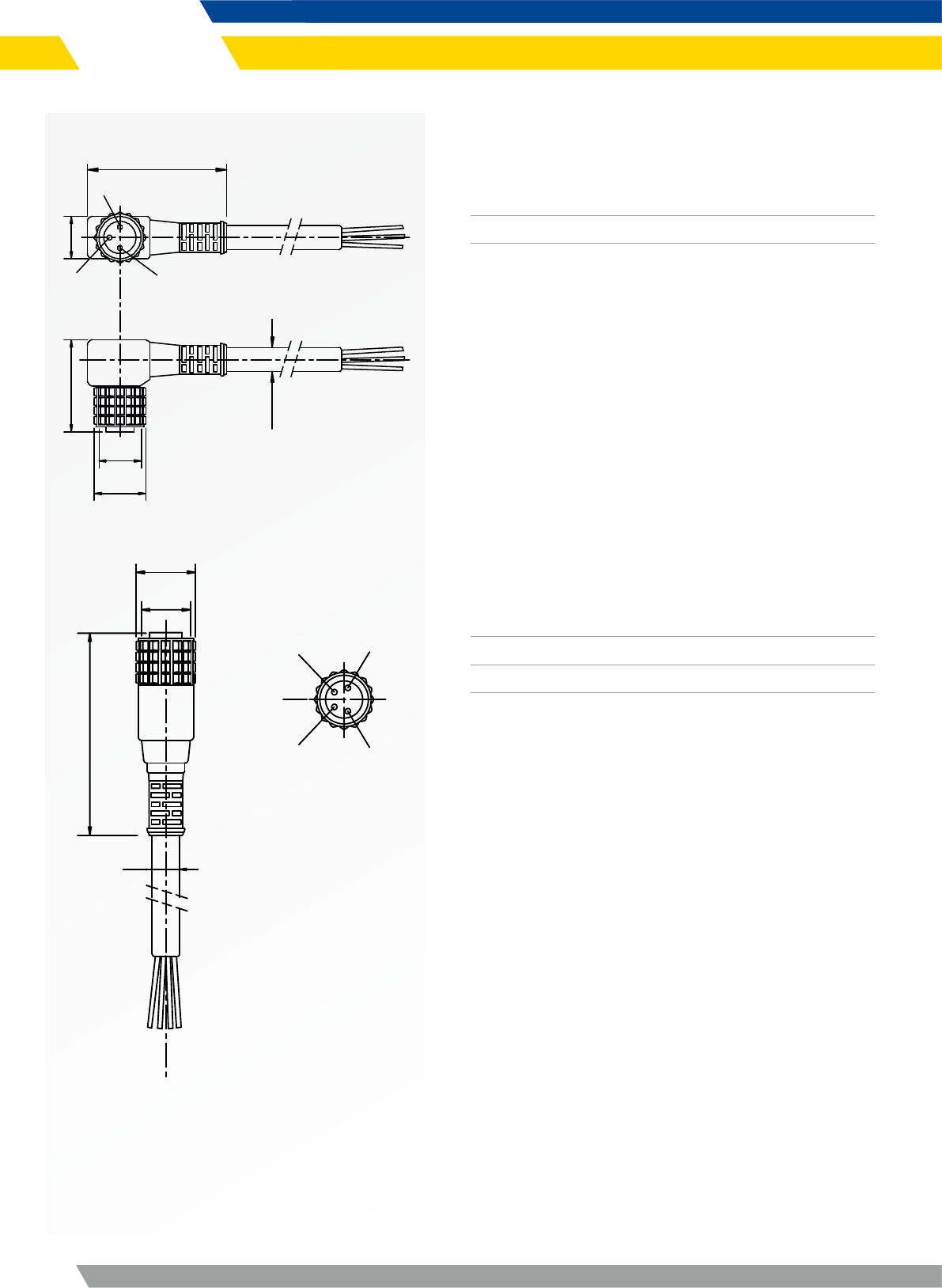

CABLES C 8X
Model Codes Description
C 85 1200217 Pre-wired cable 5 m
C 815 1200219 Pre-wired cable 15 m
Ø 20
M 12x1
35
M 12x1
30,5
Ø 20
M 8
33
Ø 10,2
1
2
3
1 - Marrone
2 - Nero
3 - Blu
34
M 8
1
2
3
1 - Brown
2 - White
3 - Blue
4 - Black
30
Ø 10
Ø 4,5
4
ACCESSORIES
CABLES
C 895
Model Code Description
C 895 1200217 Pre-wired cable 5 m
C8 Gx
Model Codes Description
C8 G3 1291070 Pre-wired cable 3 m
C8 G5 1291072 Pre-wired cable 5 m
M 8
1
2 3
1 - Brown
2 - Black
3 - Blue
27
16,5 8,5
Ø 10,5
Ø 4,5
35
ACCESSORIES
CABLES
C8 G9x
Model Codes Description
C8 G93 1291071 Pre-wired cable 3 m
C8 G95 1291073 Pre-wired cable 5 m
1
23
27
8,5
4
1 - Brown
2 - White
3 - Blue
4 - Black
M 8
16,5
Ø 10,5
Ø 4,5
36
ACCESSORIES
CABLES

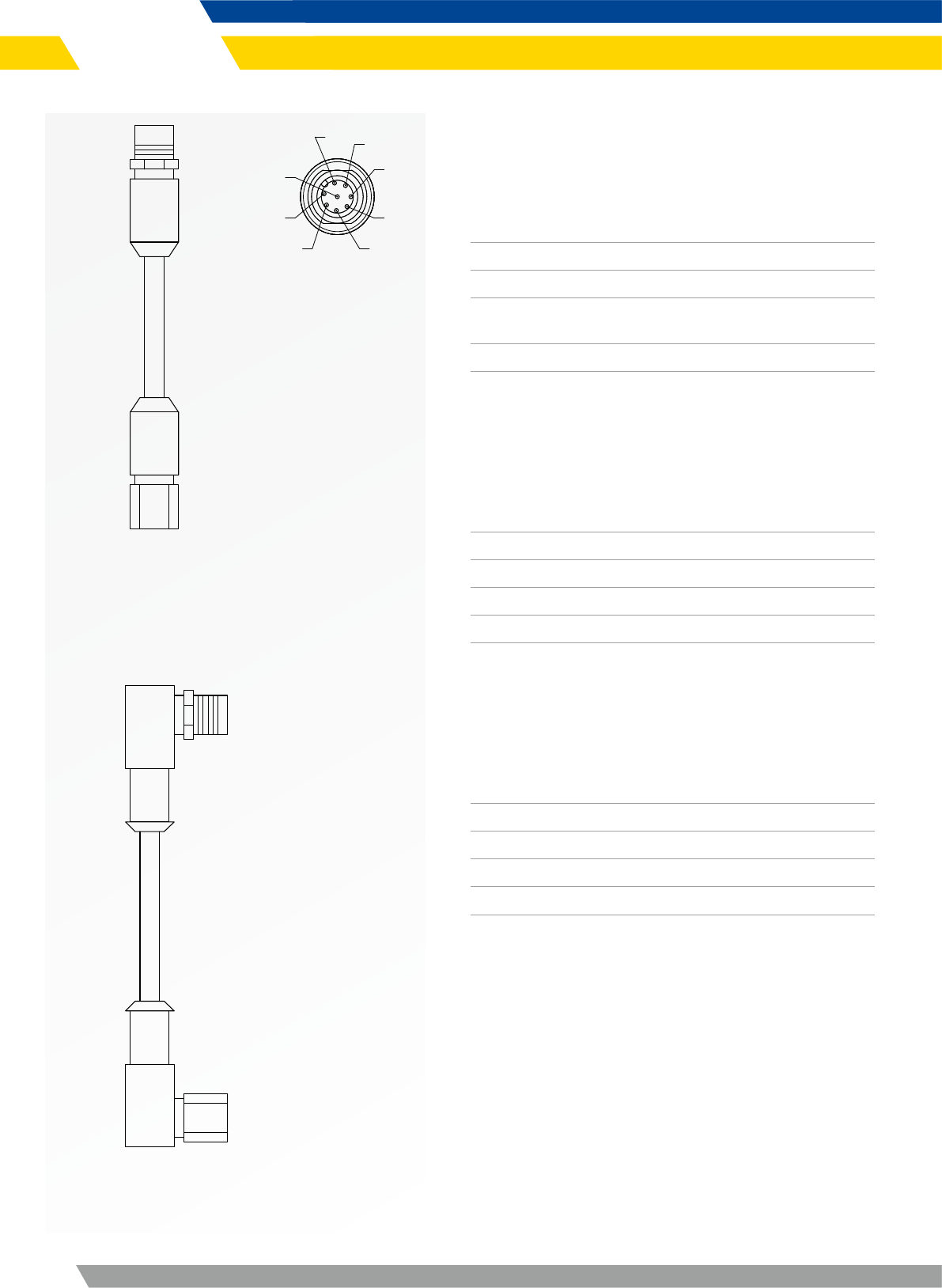

EC S4 x
Model Codes Description
MRFID EC S4 1 1292414 Pre-wired cable 1 m
MRFID EC S4 3 1292415 Pre-wired cable 3 m
MRFID EC S4 5 1292416 Pre-wired cable 5 m
MRFID EC S4 10 1292417 Pre-wired cable 10 m
EC S8 x
Model Codes Description
MRFID EC S8 1 1292422 Pre-wired cablee 1 m
MRFID EC S8 3 1292423 Pre-wired cable 3 m
MRFID EC S8 5 1292424 Pre-wired cable 5 m
MRFID EC S8 10 1292425 Pre-wired cable 10 m
EC L4 x
Model Codes Description
MRFID EC L4 1 1292418 Pre-wired cable 1 m
MRFID EC L4 3 1292419 Pre-wired cable 3 m
MRFID EC L4 5 1292420 Pre-wired cable 5 m
MRFID EC L4 10 1292421 Pre-wired cable 10 m
1 - Brown
2 - White
3 - Blue
4 - Black
5 - Grey
6 - Pink
7 - Violet
8 - Orange
1 - Brown
2 - White
3 - Blue
4 - Black
17
6
5
43
2
8
37
A
48
8
B
8
4 4
C
2
43
ACCESSORIES
CABLES
EC C4 x
FEMALE M12 STRAIGHT CONNECTOR
Model Codes Description
MRFID EC C4 1 1292406 Pre-wired cable 1 m
MRFID EC C4 3 1292407 Pre-wired cable 3 m
MRFID EC C4 5 1292408 Pre-wired cable 5 m
MRFID EC C4 10 1292409 Pre-wired cable 10 m
EC C8 x
FEMALE M12 STRAIGHT CONNECTOR
Model Codes Description
MRFID EC C8 1 1292410 Pre-wired cable 1 m
MRFID EC C8 3 1292411 Pre-wired cable 3 m
MRFID EC C8 5 1292412 Pre-wired cable 5 m
MRFID EC C8 10 1292413 Pre-wired cable 10 m
T CONNECTOR M12
T ADAPTER
Model Codes Description
MRFID TC A 1292403 M12 T type A connector
MRFID TC B 1292404 M12 T type B connector
MRFID TC C 1292405 M12 T type C connector
TP
TERMINATION PLUG
Model Code Description
MRFID TP 1292402 Termination plug
1 - Brown
2 - White
3 - Blue
4 - Bleck
5 - Grey
6 - Pink
7 - Violet
8 - Orange
Type A To gain status output from the connected sensor
Type B For series connections of 2 or more sensors
Type C To introduce additional power supplies in long series
48
48
8
8
8
8
44
4
8
44
2
4
4 4
3
M RFID EC L 4 1
M RFID EC L 4 3
M RFID EC L 4 5
M RFID EC L 4 10
M RFID EC S 8 1
M RFID EC S 8 3
M RFID EC S 8 5
M RFID EC S 8 10
M RFID TC B
M RFID TC A
M RFID TC BM RFID TC C
Additional
power supply
Series
connection
Series
connection
Male - Female
M12 connector (90°)
Lenght: 1, 3, 5, 10 m
Poles: 4
Male - Female
M12 connector (straight)
Lenght: 1, 3, 5, 10 m
Poles: 8
Male - Female
M12 connector (straight)
Lenght: 1, 3, 5, 10 m
Poles: 4
Female M12 connector
Lenght: 1, 3, 5, 10 m
Poles/wires: 4
Female M12 connector
Lenght: 1, 3, 5, 10 m
Poles/wires: 4
Female M12 connector
Lenght: 1, 3, 5, 10 m
Poles/wires: 4
Female M12 connector
Lenght: 1, 3, 5, 10 m
Poles/wires: 8
Male - Female
M12 connector (90°)
Lenght: 1, 3, 5, 10 m
Poles: 4
M RFID TP
Termination plug
Status output
Status output
M RFID TC A
M RFID EC C 4 1
M RFID EC C 4 3
M RFID EC C 4 5
M RFID EC C 4 10
M RFID C S series
M RFID C B series
M RFID C S series
M RFID C B series
M RFID EC C 4 1
M RFID EC C 4 3
M RFID EC C 4 5
M RFID EC C 4 10
M RFID EC C 4 1
M RFID EC C 4 3
M RFID EC C 4 5
M RFID EC C 4 10
M RFID EC C 4 1
M RFID EC C 4 3
M RFID EC C 4 5
M RFID EC C 4 10
M RFID EC S 4 1
M RFID EC S 4 3
M RFID EC S 4 5
M RFID EC S 4 10
M RFID EC L 4 1
M RFID EC L 4 3
M RFID EC L 4 5
M RFID EC L 4 10
Type B
Type A
48
8
Type A
Type BType C
4 4 4
8
4
4
4
4
M RFID EC C 8 1
M RFID EC C 8 3
M RFID EC C 8 5
M RFID EC C 8 10
M RFID C S series
M RFID C B series
8 8
17
6
5
43
2
8
38
ACCESSORIES
BRACKETS
The IL FB bracket allows both vertical and horizontal
adjustment of the optical axis of the photocell.
IL FB
ADJUSTABLE FIXING BRACKET
PARTS NUMBERS
Model Code Description
IL FB 1200090 Set of 2 adjustable brackets
39
CUSTOMER SERVICE
ReeR after sales service is committed to support all customers that need technical
guidance regarding functionality, handling and installation of our products.
Customer Service Hotline
+39 011 24 82 215
Monday to Friday 8.30 -12.30 and 13.30-18.00 (CET)
or contact
aftersales@reer.it
For product returns please visit www.reersafety.com for further information.
Safety. Detection. Control.
ReeR SpA
Via Carcano, 32
10153 Torino
Italy
T +39 011 248 2215
F +39 011 859 867
www.reersafety.com | info@reer.it
More than 50 years of quality and innovation
Founded in Turin (Italy) in 1959, ReeR distinguished
itself for its strong commitment to innovation and
technology.
A steady growth throughout the years allowed ReeR
to become a point of reference in the safety
automation industry at a worldwide level.
The Safety Division is in fact today a world leader in
the development and manufacturing of safety
optoelectronic sensors and controllers.
ReeR is ISO 9001, ISO 14001 and BS OHSAS 18001 certied.
Made in Italy
since 1959
Issue 1
Rev. 0.2
March 2017
8946228 Safety Sensor Catalogue English
Printed in Italy
ReeR SpA does not guarantee that product information in this catalogue are the most current available.ReeR
SpA reserves the right to make changes to the products described without notice and assumes no liability as
a result of their use or application. Our goal is to keep the information on this catalogue timely and accurate,
however ReeR SpA accepts no responsibility or liability whatsoever with regard to the information on this
catalogue. Reproduction is not authorised, except with the expressed permission of ReeR SpA.
