Usres Manual
February 2015
© 2015 Fluke Corporation. All rights reserved. Specifications are subject to change without notice.
All product names are trademarks of their respective companies.
TiX520, TiX560
Expert Series Thermal Imager
Users Manual
LIMITED WARRANTY AND LIMITATION OF LIABILITY
Each Fluke product is warranted to be free from defects in material and workmanship under normal use and service. The warranty period is two years and begins on the date of
shipment. Parts, product repairs, and services are warranted for 90 days. This warranty extends only to the original buyer or end-user customer of a Fluke authorized reseller, and
does not apply to fuses, disposable batteries, or to any product which, in Fluke's opinion, has been misused, altered, neglected, contaminated, or damaged by accident or abnormal
conditions of operation or handling. Fluke warrants that software will operate substantially in accordance with its functional specifications for 90 days and that it has been properly
recorded on non-defective media. Fluke does not warrant that software will be error free or operate without interruption.
Fluke authorized resellers shall extend this warranty on new and unused products to end-user customers only but have no authority to extend a greater or different warranty on
behalf of Fluke. Warranty support is available only if product is purchased through a Fluke authorized sales outlet or Buyer has paid the applicable international price. Fluke
reserves the right to invoice Buyer for importation costs of repair/replacement parts when product purchased in one country is submitted for repair in another country.
Fluke's warranty obligation is limited, at Fluke's option, to refund of the purchase price, free of charge repair, or replacement of a defective product which is returned to a Fluke
authorized service center within the warranty period.
To obtain warranty service, contact your nearest Fluke authorized service center to obtain return authorization information, then send the product to that service center, with a
description of the difficulty, postage and insurance prepaid (FOB Destination). Fluke assumes no risk for damage in transit. Following warranty repair, the product will be returned to
Buyer, transportation prepaid (FOB Destination). If Fluke determines that failure was caused by neglect, misuse, contamination, alteration, accident, or abnormal condition of
operation or handling, including overvoltage failures caused by use outside the product’s specified rating, or normal wear and tear of mechanical components, Fluke will provide an
estimate of repair costs and obtain authorization before commencing the work. Following repair, the product will be returned to the Buyer transportation prepaid and the Buyer will
be billed for the repair and return transportation charges (FOB Shipping Point).
THIS WARRANTY IS BUYER'S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. FLUKE SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES OR LOSSES, INCLUDING LOSS OF DATA, ARISING FROM ANY CAUSE OR THEORY.
Since some countries or states do not allow limitation of the term of an implied warranty, or exclusion or limitation of incidental or consequential damages, the limitations and
exclusions of this warranty may not apply to every buyer. If any provision of this Warranty is held invalid or unenforceable by a court or other decision-maker of competent
jurisdiction, such holding will not affect the validity or enforceability of any other provision.
Fluke Corporation
P.O. Box 9090
Everett, WA 98206-9090
U.S.A.
Fluke Europe B.V.
P.O. Box 1186
5602 BD Eindhoven
The Netherlands
11/99
To register your product online, visit http://register.fluke.com
.
i
Table of Contents
Title Page
Introduction .................................................................................................................... 1
How to Contact Fluke .................................................................................................... 2
Safety Information .......................................................................................................... 2
Operation in Extreme Conditions .............................................................................. 3
Radio Frequency Data .............................................................................................. 3
Accessories ................................................................................................................... 5
Before You Start ............................................................................................................ 6

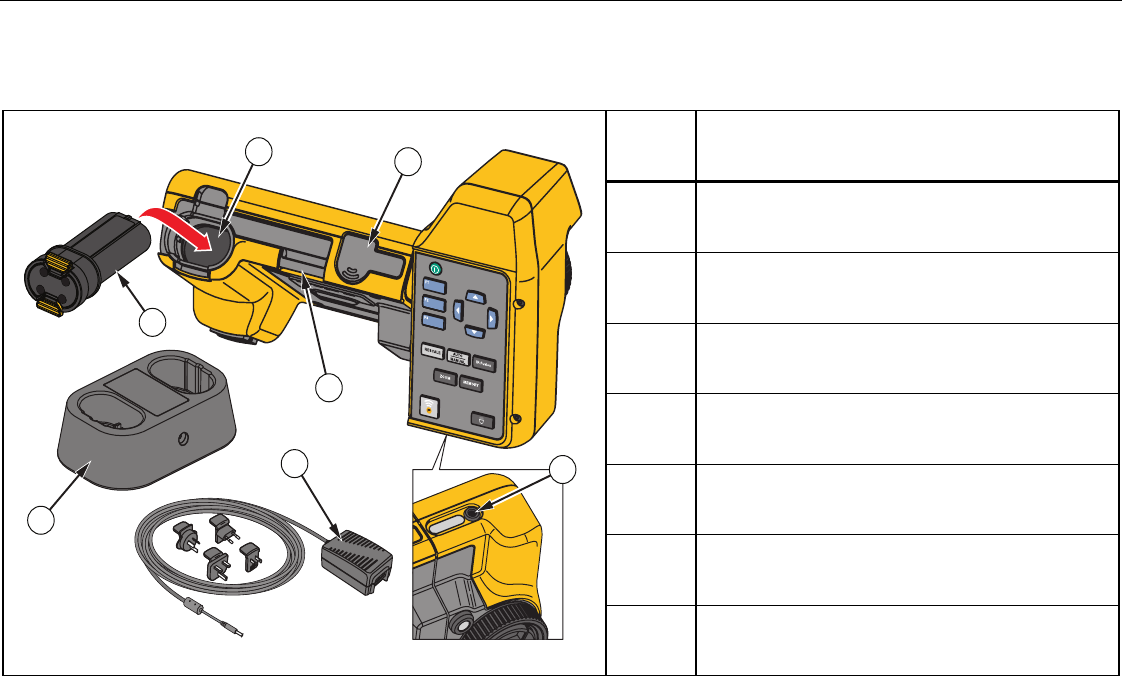

Battery ...................................................................................................................... 7
Two-Bay Battery Charger Base ............................................................................ 7
On-Imager AC Power Socket ............................................................................... 7
Optional 12 V Vehicle Charger ............................................................................. 8
Features and Controls .............................................................................................. 10
Power On and Off ..................................................................................................... 11
Focus ........................................................................................................................ 11
Image Capture Button ............................................................................................... 12
Control Buttons ......................................................................................................... 12
Touch Screen............................................................................................................ 15
How to Use the Menus .............................................................................................. 16
Neck Strap ................................................................................................................ 16
Image Capture ............................................................................................................... 17
TiX520, TiX560
Users Manual
ii
IR-PhotoNotes™ ....................................................................................................... 17
Voice Annotation (Recording) ................................................................................... 18
Listen to a Voice Annotation (Recording) .................................................................. 18
Edit Captured Infrared Image .................................................................................... 18
Save Captured Infrared Image .................................................................................. 19
Micro SD Memory Card ................................................................................................. 19
Temperature Measurement ........................................................................................... 19
SmartView
Software .................................................................................................... 20
Menus ............................................................................................................................ 20
Measurement Menu .................................................................................................. 20
Range ................................................................................................................... 20
Level/Span ........................................................................................................... 21
Emissivity Adjustment .......................................................................................... 22
Background (Reflected Background Temperature Compensation) ...................... 23
Transmission/Transmittance Adjustment ............................................................. 24
Spot Temperatures ............................................................................................... 24
Center Box ........................................................................................................... 24
Markers ................................................................................................................ 25
Image Menu .............................................................................................................. 26
Palette .................................................................................................................. 26
IR-Fusion
®
Technology ........................................................................................ 27
Color Alarms ........................................................................................................ 27
Display Graphics Presentation ............................................................................. 28
Logo ..................................................................................................................... 29
Distance ............................................................................................................... 29
Camera Menu ........................................................................................................... 29
Auto Focus ........................................................................................................... 29
Backlight ............................................................................................................... 30
Video .................................................................................................................... 30
HDMI .................................................................................................................... 31
Auto Capture ........................................................................................................ 31
Wireless Connectivity ........................................................................................... 32
Memory Menu ........................................................................................................... 33
Review Image Files .............................................................................................. 33
Contents (continued)
iii
Edit Image Files ................................................................................................... 33
Delete Image Files ............................................................................................... 33
Settings Menu ........................................................................................................... 34
Units ..................................................................................................................... 34
File Format ........................................................................................................... 34
Auto Off ................................................................................................................ 35
Localization .......................................................................................................... 35
Image Storage ...................................................................................................... 36
Advanced Settings ............................................................................................... 36
Fluke Connect™ Wireless System ............................................................................ 38
Fluke Connect App ............................................................................................... 38
Fluke Connect Tools ............................................................................................ 38
Remote Control.............................................................................................................. 39
Maintenance .................................................................................................................. 39
How to Clean the Case ............................................................................................. 40
Battery Care .............................................................................................................. 40
General Specifications ................................................................................................... 41
Detailed Specifications .................................................................................................. 43
TiX520, TiX560
Users Manual
iv
v
List of Tables
Table Title Page
1. Symbols ................................................................................................................................ 4
2. Accessories .......................................................................................................................... 5
3. Bottom Panel ........................................................................................................................ 9

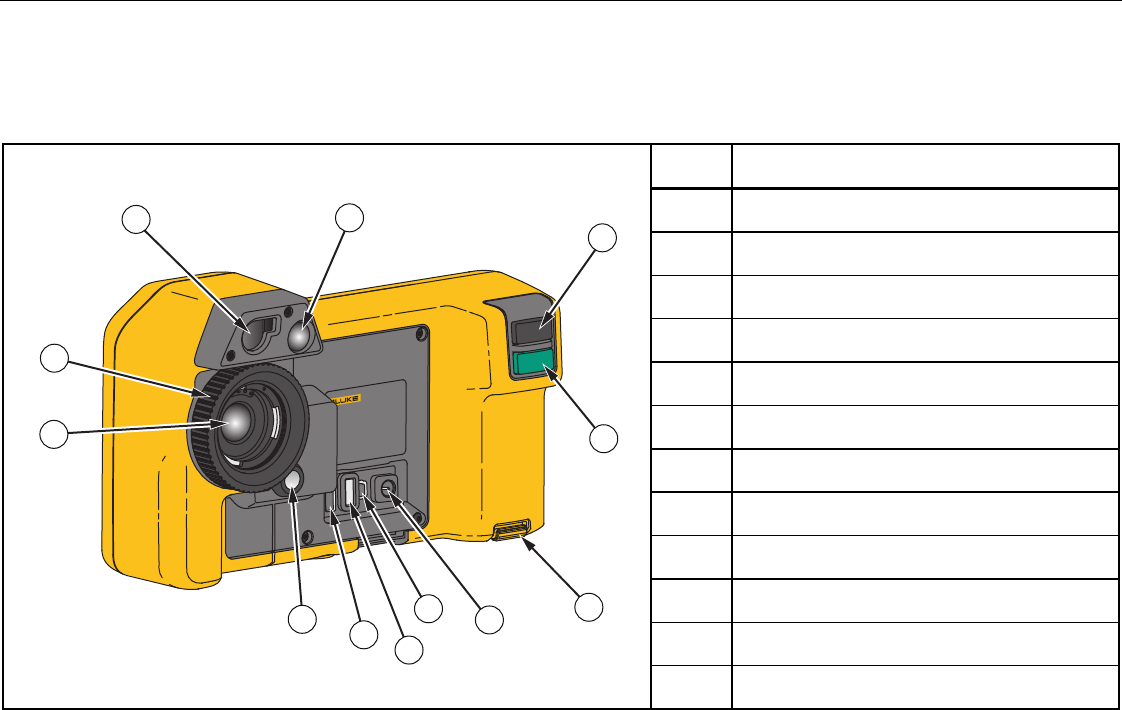

4. Features ................................................................................................................................ 10

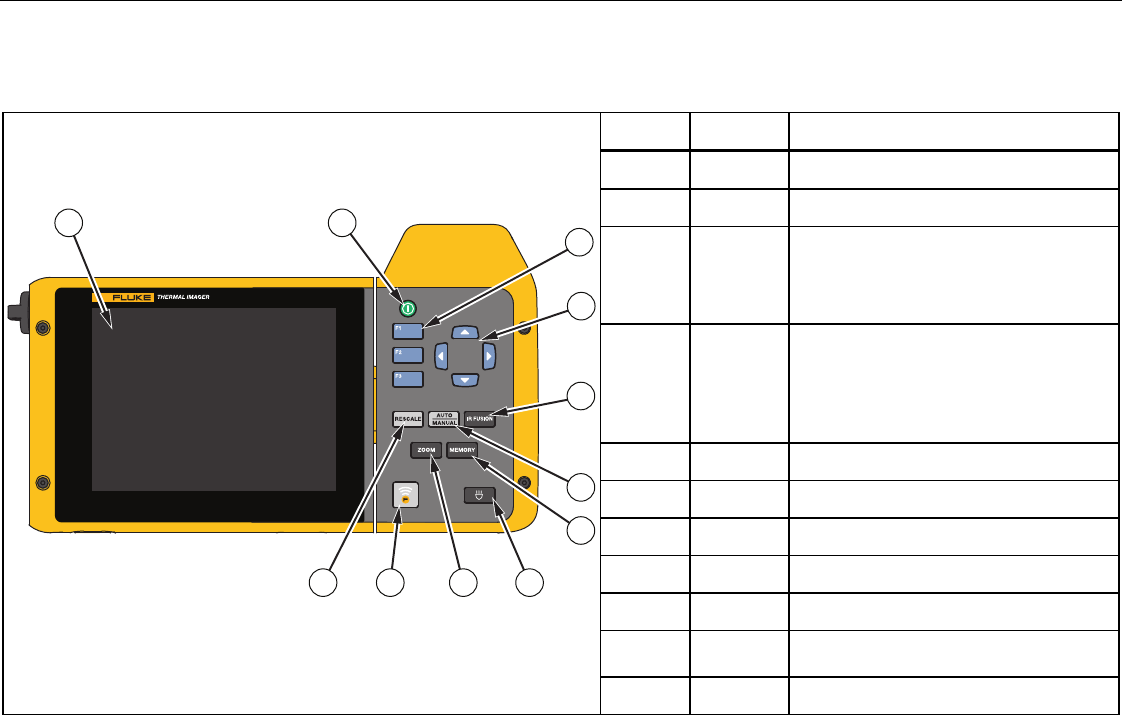

5. Controls ................................................................................................................................ 13
6. Touch Targets ....................................................................................................................... 15

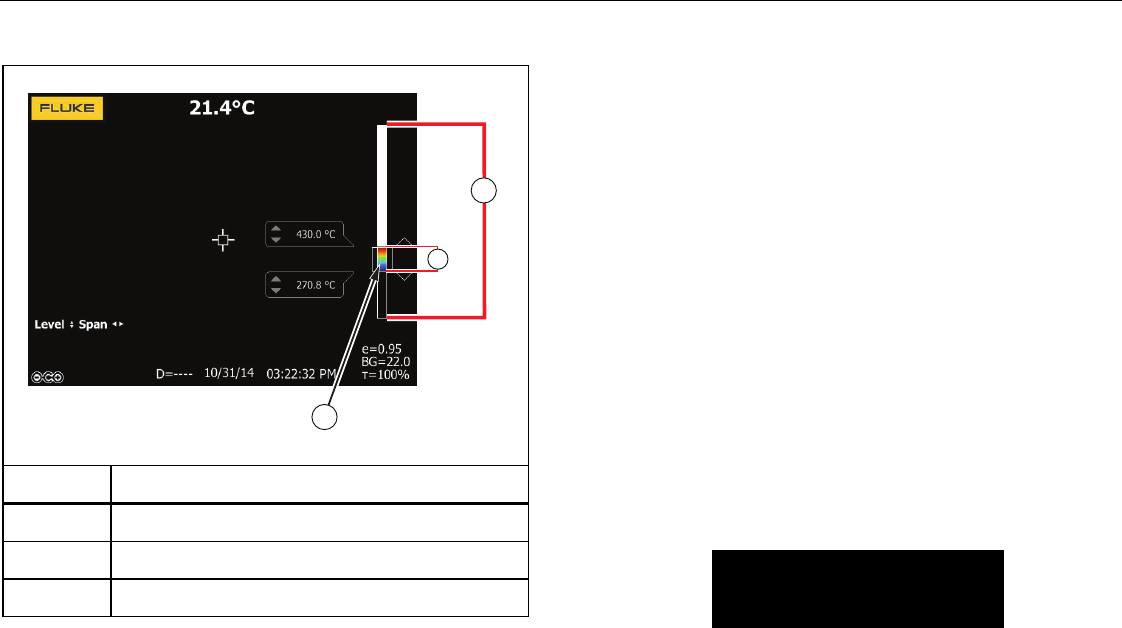

7. Level and Span Settings ....................................................................................................... 22
8. Palettes ................................................................................................................................. 26
TiX520, TiX560
Users Manual
vi
vii
List of Figures
Figure Title Page
1. Laser Warning ...................................................................................................................... 2

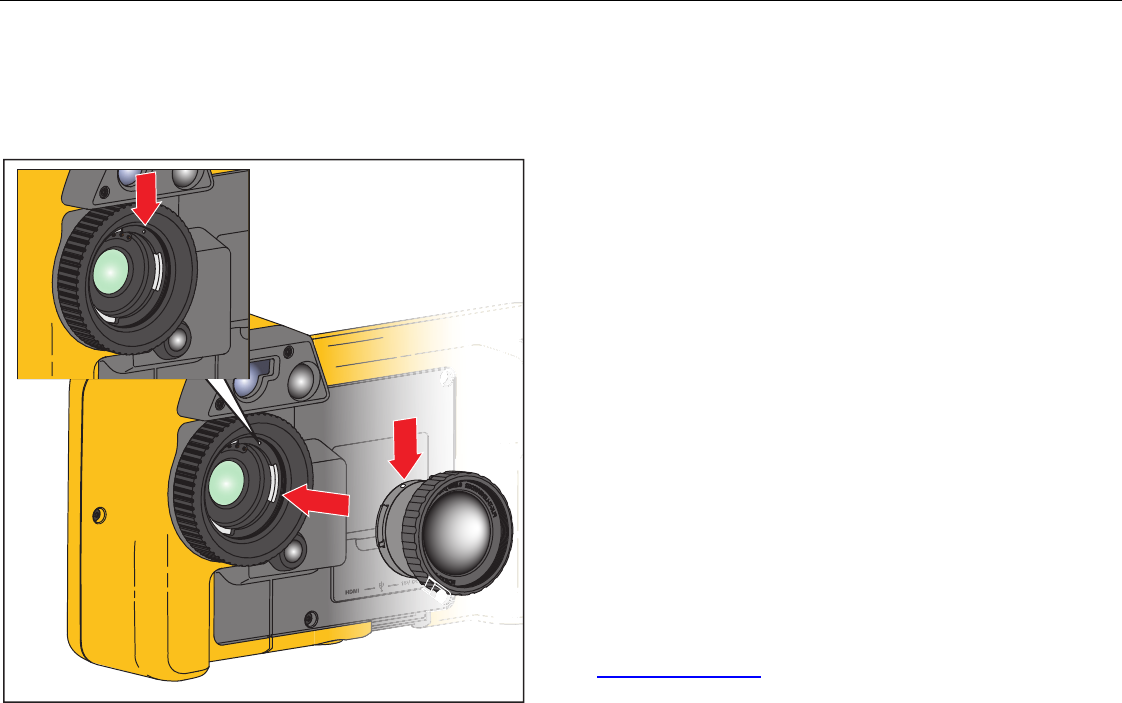

2. Add-On Lens Installation ....................................................................................................... 6

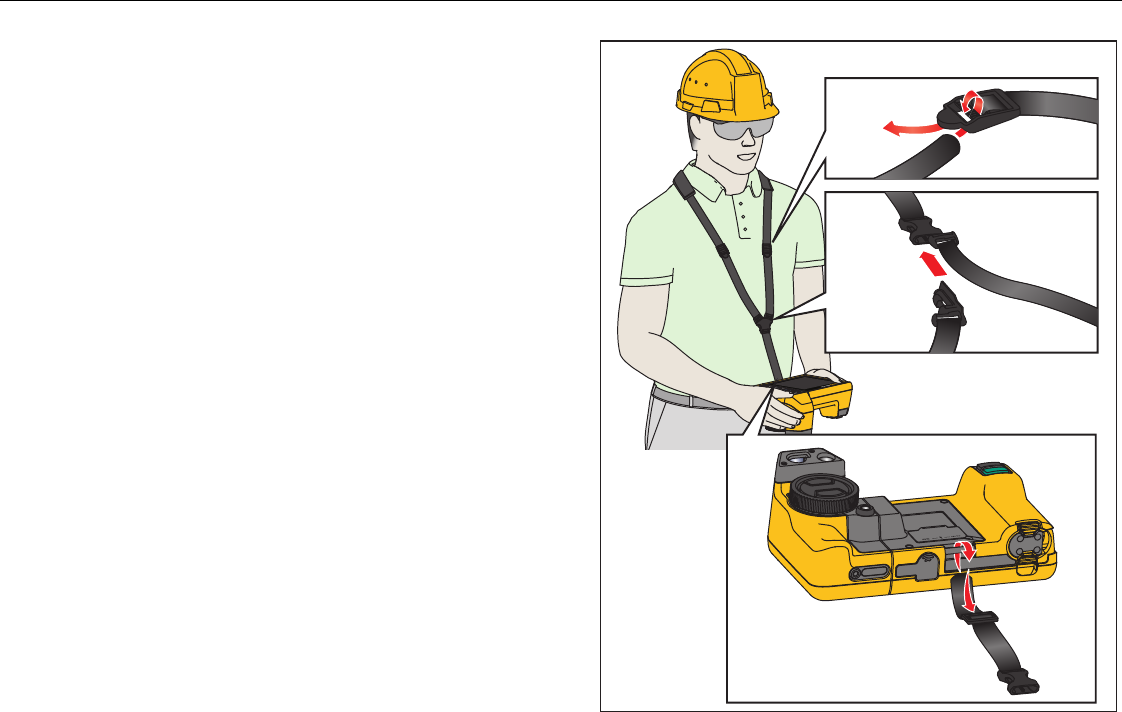

3. Adjustable Neck Strap .......................................................................................................... 16
TiX520, TiX560
Users Manual
viii
1
Introduction
The Fluke TiX520 and TiX560 Expert Series Thermal
Imagers (the Product or Imager) are handheld, infrared
imaging cameras for use in multiple applications. These
applications include equipment troubleshooting, preventive
and predictive maintenance, building diagnostics, and
research and development.
The lens is able to swivel 180° independently from the
display to take measurements in hard-to-reach areas. With
wireless connectivity, you have several options for how to
manage and share these measurements.
Productivity Features
• Voice Annotation/Reviewable playback on Imager
(requires Bluetooth headset)
• IR-PhotoNotes™
• Fluke Connect™ / WIFI connectivity
• Streaming video
• Remote control and operation
Image Presentation
• Standard Palettes: Red, Grayscale, Inverted
Grayscale, High Contrast, Amber, Inverted Amber, Hot
Metal, Ironbow
• Ultra Contrast™ Palettes: Blue-Red Ultra, Grayscale
Ultra, Inverted Grayscale Ultra, High Contrast Ultra,
Amber Ultra, Inverted Amber Ultra, Hot Metal Ultra,
Ironbow Ultra
• Image Sharpening mode
• Filter mode for improved NETD
IR-Fusion
®
Technology
• Automatically aligned (parallax corrected) visual and
infrared
• Picture-In-Picture (PIP) infrared
• Full screen infrared
• AutoBlend mode with continuous AutoBlend feature
(TiX560 only)
• Full screen visible
• Color alarms (temperature alarms) for high
temperature and low temperature (user selectable)
TiX520, TiX560
Users Manual
2
How to Contact Fluke
To contact Fluke, call one of the following telephone
numbers:
• USA: 1-800-760-4523
• Canada: 1-800-36-FLUKE (1-800-363-5853)
• Europe: +31 402-675-200
• Japan: +81-3-6714-3114
• Singapore: +65-6799-5566
• Anywhere in the world: +1-425-446-5500
Or, visit Fluke's website at www.fluke.com.
To register your Product, visit http://register.fluke.com.
To view, print, or download the latest manual supplement,
visit http://us.fluke.com/usen/support/manuals.
To download SmartView
®
software visit
www.fluke.com/smartviewdownload.
To download the Fluke Connect app, go to iTunes or
Google play and download Fluke Connect.
Safety Information
A Warning identifies conditions and procedures that are
dangerous to the user. A Caution identifies conditions and
procedures that can cause damage to the Product or the
equipment under test.
Warning
To prevent eye damage and personal injury:
• Do not look into the laser. Do not point the
laser directly at persons or animals or
indirectly off reflective surfaces.
• Do not open the Product. The laser beam is
dangerous to eyes. Have the Product
repaired only through an approved
technical site.
Additional laser warning information is on the inside of the
Product swivel, see Figure 1.
LASER RADIATION DO NOT STARE
INTO BEAM CLASS 2 LASER PRODUCT
675nm
RAYONNEMENT LASER NE PAS REGARDER
DANS LE FAISCEAU APPAREIL LASER DE
CLASSE 2
COMPLIES WITH IEC/EN 60825-1:2007
21 CFR 1040.10,1040.11
hwj010.eps
Figure 1. Laser Warning
Expert Series Thermal Imager
Safety Information
3
Warning
To prevent personal injury:
• Read all safety information before you use
the Product.
• Carefully read all instructions.
• Use the Product only as specified, or the
protection supplied by the Product can be
compromised.
• Replace the batteries when the low battery
indicator shows to prevent incorrect
measurements.
• Do not use the Product if it operates
incorrectly.
• Do not use the Product if it is damaged.
• See emissivity information for actual
temperatures. Reflective objects result in
lower than actual temperature
measurements. These objects pose a burn
hazard.
• Do not use the Product around explosive
gas, vapor, or in damp or wet
environments.
Operation in Extreme Conditions
Storage and/or continual operation of the Imager in
extreme ambient temperature conditions can result in
temporary interruption of operation. If this occurs, let the
Imager stabilize (cool down or warm up) before you
resume operation.
Radio Frequency Data
The Imager ships with the radio disabled. See Wireless
Connectivity for instructions on how to enable the radio.
See Imager Information for instructions on how to access
digital copies of the radio licenses on the Imager.
TiX520, TiX560
Users Manual
4
Table 1 is a list of symbols used on the Imager and in
this manual.
Table 1. Symbols
Symbol Description Symbol Description
Important information. See manual. Warning. Laser.
Connected to ac power. Battery removed.
Battery status. Battery charging when animated.
On/Off symbol
Conforms to requirements of European Union
and European Free Trade Association.
Conforms to relevant Australian standards.
Conforms to relevant North American Safety
Standards.
Conforms to relevant South Korean EMC
standards. Japan Quality Association
This Product contains a lithium-ion battery. Do not mix with the solid waste stream. Spent batteries should be
disposed of by a qualified recycler or hazardous materials handler per local regulations. Contact your
authorized Fluke Service Center for recycling information.
This product complies with the WEEE Directive (2002/96/EC) marking requirements. The affixed label indicates
that you must not discard this electrical/electronic product in domestic household waste. Product Category:
With reference to the equipment types in the WEEE Directive Annex I, this product is classed as category 9
“Monitoring and Control Instrumentation” product. Do not dispose of this product as unsorted municipal waste.
Go to Fluke's website for recycling information.
Expert Series Thermal Imager
Accessories
5
Accessories
Table 2 is a list of the accessories available for the Imager.
Table 2. Accessories
Model Description Part Number
FLK-TI-SBP4 Smart Battery Pack 4597142
FLK-TI-SBC3B Charging Base/Power Supply with Adapters 4354922
TI-CAR CHARGER 12 V Vehicle Charger Adapter 3039779
FLUKE-TIX5xx Neck Strap 4574715
FLUKE-TIX5xx Hand Strap 4574703
FLK-Bluetooth Bluetooth Headset 4603258
FLK-HDMI Cable HDMI Cable 4388596
FLK-HDMI Adapter HDMI Adapter 4613365
BOOK-ITP Introduction to Thermography Principles 3413459
FLK-LENS/TELE2 2X Telephoto Infrared Lens 4335377
FLK-LENS/WIDE2 Wide-Angle Infrared Lens 4335361
FLK-LENS/4XTELE2 4X Telephoto Infrared Lens 4607058
FLK-LENS/25MAC2 25-Micron Macro Infrared Lens 4607064
TiX520, TiX560
Users Manual
6
Optional telephoto and wide-angle lenses expand the
flexibility and allow more applications for your infrared
inspection work. See Figure 2 for information about how to
install a lens.
hwj008.eps
Figure 2. Add-On Lens Installation
Before You Start
Carefully unpack the items in the shipment box:
• Thermal Imager
• AC Power Supply with Mains Adapters
• Two-Bay Battery Charge Base
• 2 Lithium-ion Smart Batteries
• Hard Carrying Case
• USB-to-PC Cable
• HDMI Video Cable
• Removable Memory Card
• Hard Transport Case
• Adjustable Hand Strap (left-hand or right-hand use)
• Adjustable Neck Strap
• Quick Reference Guide
• Users Manual/SmartView
®
Software (on USB Drive)
• Warranty Registration Card
Fluke recommends the removable memory card that is
supplied with the Imager or available from Fluke. Fluke
does not warrant the use or reliability of aftermarket
memory cards of different brands or capacities.
To request a printed manual, email Fluke at
TPubs@fluke.com. Specify the product name and
language preference in the subject line.
Expert Series Thermal Imager
Before You Start
7
Battery
Before you use the Imager for the first time, charge the
battery for a minimum of 2.5 hours. The battery status
shows on the five-segment charge indicator.
Warning
To prevent personal injury, do not put battery
cells and battery packs near heat or fire. Do
not put in sunlight.
Note
New batteries are not fully charged. Two to ten
charge/discharge cycles are necessary before the
battery charges to its maximum capacity.
To charge the battery, use one of the options that follow:
Two-Bay Battery Charger Base
1. Connect the ac power supply to the ac wall outlet and
connect the dc output to the charger base.
2. Put one or two smart batteries into bays of charger
base.
3. Charge batteries until charge indicators show “full.”
4. Remove smart batteries and disconnect the power
supply when batteries are fully charged.
On-Imager AC Power Socket
1. Connect the ac power adapter into an ac wall outlet
and connect the dc output to the Imager’s ac power
socket. flashes on the display while the battery
charges with the ac power adapter.
2. Charge until the charge indicator on the display does
not flash.
3. Disconnect ac power adapter when the smart battery
is fully charged.
TiX520, TiX560
Users Manual
8
Note
Make sure that the Imager is near room
temperature before you connect it to the charger.
See the charging temperature specification. Do
not charge in hot or cold areas. When you charge
the battery in extreme temperatures, battery
capacity may be decreased.
shows in the lower left-hand corner of the display
when the Imager is connected to ac power and the battery
is removed. When the Imager’s power is off and the ac
power adapter is connected, flashes in the center of
the display to show that the battery charge is in process.
Keep the Imager attached to the charger until the icon
shows a full charge. If you remove the Imager from the
charger before a full charge shows, it may have a reduced
run-time.
Note
When the battery is connected to ac power or the
unit is in video mode, the Sleep Mode/Auto Off
feature is disabled automatically.
Optional 12 V Vehicle Charger
1. Connect the 12 V adapter into the 12 V accessory
socket of the vehicle.
2. Connect the output to the ac power socket of the
Imager.
3. Charge until the indicator until the icon shows a
full charge on the screen.
4. Disconnect the 12 V adapter and Imager when battery
is fully charged.
Caution
To prevent damage to the Imager, remove it from the 12 V
vehicle charger before you start or jump start the vehicle.
Expert Series Thermal Imager
Before You Start
9
Table 3 shows the location of the battery and interfaces.
Table 3. Bottom Panel
6
7
3
2
14
5
hwj002.eps
Item Description
Smart Battery Port
Lithium-ion Smart Battery
Anchor for Neck Strap
SD Memory Card Slot
Tripod Mount
2-Bay Battery Charging Base
AC Power Adapter with Universal Adapter
TiX520, TiX560
Users Manual
10
Features and Controls
Table 4 shows the Imager features.
Table 4. Features
TiX520
THERMAL IMAGER
1
12 9
10
2
34
6
5
8
7
11
hwj004.eps
Item Description
Infrared Camera Lens
Focus Control
Laser Distance Finder
Visual Camera and Lens
Laser Distance Finder Button
Image Capture Button
Hand Strap Anchor
AC Adapter/Charger Input Terminal
USB-to-PC Cable Connection
USB Accessory Connection
HDMI Video Connection
LED Light
Expert Series Thermal Imager
Before You Start
11
Power On and Off
To turn on or turn off the Imager, push and hold
for two
seconds. The Imager has Power Save and Auto Off
features. For more information about how to set these
features, see Settings Menu.
Note
All thermal imagers need sufficient warm-up time
for the most accurate temperature measurements
and best image quality. This time can often vary
by model and by environmental conditions.
Although most imagers are fully warmed up in 3-5
minutes, it is always best to wait a minimum of 10
minutes if the most accurate temperature
measurement is important to your application.
When you move the Imager between
environments with large differences in ambient
temperature, more adjustment time can be
required.
Focus
The Imager uses the LaserSharp™ Auto Focus System
and an advanced manual focus system. Correct focus is
important in all imaging applications. Correct focus makes
sure that the infrared energy is correctly directed onto the
pixels of the detector. Without correct focus, the thermal
image can be blurry and the radiometric data may be
inaccurate. Out-of-focus infrared images are frequently
unusable or of little value.
The Fluke LaserSharp Auto Focus System uses a
precision-adjusted and aligned laser pointer to indicate the
area of focus. To focus with the LaserSharp Auto Focus
System, depress the large black button (see Table ). Aim
the laser pointer at the target. When satisfied with the
location of the laser pointer, release the button. The
system automatically focuses on the precise point where
the laser was aimed.
Note
• You can enable and disable the LaserSharp
Auto Focus System.
• The laser pointer is aligned parallel to the
infrared lens. If using AutoBlend Mode, the
laser pointer dot will always be positioned just
above the center point marker on the LCD.
However, it is easier to use your eyes to locate
the visible laser pointer on the target.
To focus with the advanced manual focus system, place
finger on the electronically-driven focus wheel control and
rotate the control until the target is in proper focus.
Note
The advanced manual focus can be used as a
manual override of the LaserSharp™ Auto Focus
System.
TiX520, TiX560
Users Manual
12
Image Capture Button
The large green button is the Image Capture Button (see
Table ). In normal operation, the function of the Image
Capture Button is to capture a thermal image that you can
save to memory.
Control Buttons
The function and cursor buttons are the primary controls.
These buttons move the cursor through the menu structure
to set the features.
Controls and Adjustments
• User-selectable temperature scale
• Language/localization selection
• Time and date settings
• Emissivity selection
• Reflected background temperature compensation
• Transmission correction
• User-selectable hot spot and cold spot, and center
point on the image
• Expand/contract measurement box with
MIN-AVG-MAX
• Color alarms
• User-selectable backlight setting
• Graphic information display (selectable)
• Laser distance display
In general, push:
to set the change and go back to the live view.
to set the change and go back to the previous menu.
to cancel the change and go back to the live view.
to move the cursor and highlight an option.
In live Manual Mode, the arrow buttons are always active
to adjust Level and Span.
Expert Series Thermal Imager
Before You Start
13
Table 5 is an overview of the buttons and their actions.
Table 5. Controls
11
6
7
910 8
5
4
3
12
hwj001.eps
Item Button Description
--- LCD Touch Screen
Power On/Off
Function Buttons (F1, F2, F3)
Cursor Buttons
Go to IR Fusion Menu
Manual/Auto Level and Span
Go to internal Image Memory
LED Light
Zoom In/Zoom Out
Fluke Connect™
Rescale
TiX520, TiX560
Users Manual
14
IR-Fusion
®
TiX520
Push
to go directly to the adjustment menu for
IR-Fusion. See page 27 for more information about the
IR-Fusion feature.
TiX560
Push
to open the scroll bar that adjusts the
IR-Fusion mode. Use it to infinitely adjust the picture from
Full IR mode to Full Visible mode.
Auto/Manual Level and Span
Push and release
to set the Imager to Auto Range
or Manual Range. The icon in the upper right-hand corner
of the LCD screen identifies the setting as Auto or Manual.
Memory
Push
to go directly to the preview images of stored
files. See page 33 for more information about the Memory
feature.
LED Light
The LED Light illuminates darker work areas. Push to
turn on and turn off the LED light at any time during
operation.
Zoom
TiX520
Push
to set the zoom function between no zoom, 2x,
and 4x.
TiX560
Push
to set the zoom function between no zoom, 2x,
4x, and 8x.
Fluke Connect
The Imager supports the Fluke Connect™ Wireless
System (may not be available in all regions). Push to
go directly to the wireless setup menu. More information
about Fluke Connect is on page 38.
Rescale
Push and release
to automatically rescale the level
and span for objects in the thermal field of view. This
feature operates the Imager in a semi-automatic mode if
manual fine re-adjustment of level and span with the arrow
buttons is not necessary. Rescaling is done as often as
needed.
Note
The Imager always powers up in the same Level
and Span mode, Auto or Manual, as when it was
powered down.
Expert Series Thermal Imager
Before You Start
15
Touch Screen
The touch screen is a shortcut to the most often used
adjustments: date, time, emissivity, palette, temperature
degrees, level and span, AutoBlend level, and background
temperature. With the touch screen, you interact directly
with what is displayed. To change parameters or select
functions and options, touch a target on the display with a
finger.
The touch screen has a backlight for work in dimly lit
spaces. To change the backlight intensity, see Camera
Menu.

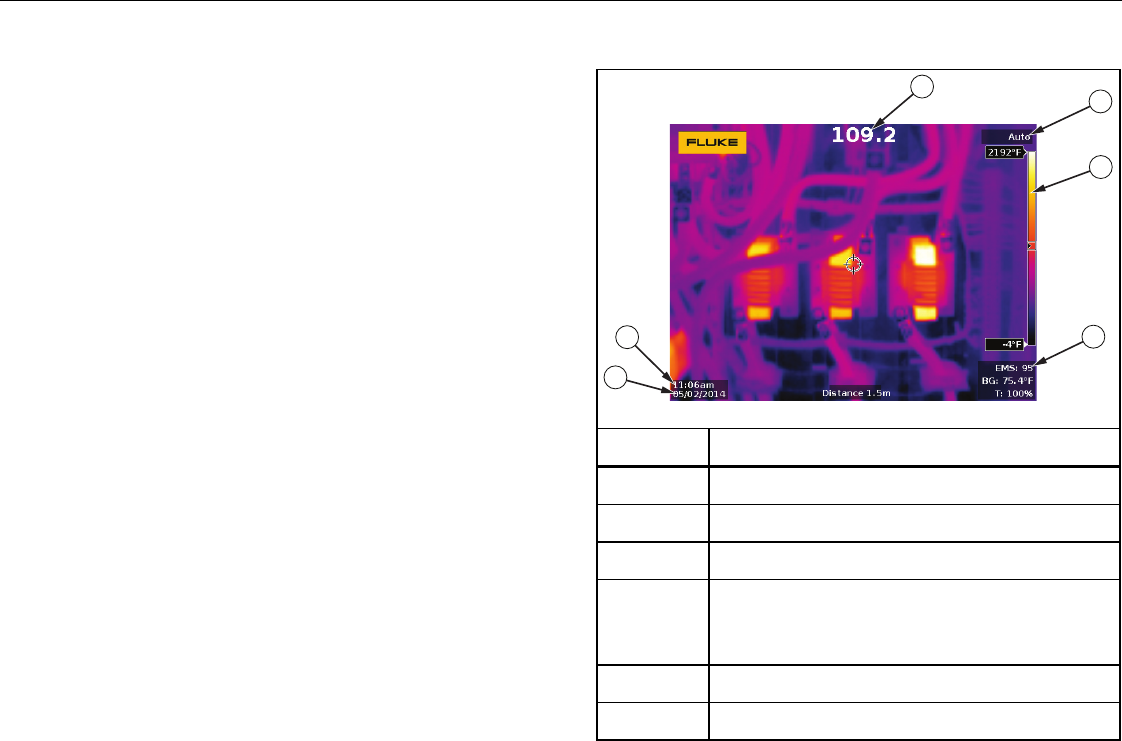

Table 6 shows the location of each touch target.
Table 6. Touch Targets
1
2
3
4
6
5
hwj012.eps
Item Description
Go to Temperature Unit Adjustment menu
Manual/Auto Toggle
Go to Palette menu
Go to Measurement menu for span/level,
emissivity, and background temperature
adjustments
Go to Date Adjustment menu
Go to Time Adjustment menu
TiX520, TiX560
Users Manual
16
How to Use the Menus
The menus, coupled with the three function button and
arrow buttons, are the access point for:
• Thermal image display
• Camera features
• Measurement
• Advanced functions
• Memory review
• Settings for date, time, language, units, file format
• Information about the Imager
To open the primary menu, push . The primary menu
shows five secondary menus for Measurement, Image,
Camera, Memory, and Settings. The text labels on the
right-hand edge of the touchscreen correspond to the
, , buttons. You can use the buttons or the
touch screen interchangeably for these functions.
Push to open the primary menu.
Push
to cycle through the secondary menus.
Each secondary menu lists an options menu.
Push
to cycle through the options.
The primary, secondary, and option menus close
10 seconds after the last push of a function button. The
option selection menu stays open until you make the
selection, go up a menu level, or cancel the action.
Neck Strap
The neck strap makes it easy to carry the Imager with you
on the job and supports extended use of the Imager. It is
simple to attach and adjust without any tools. See
Figure 3.
hwj003.eps
Figure 3. Adjustable Neck Strap
Expert Series Thermal Imager
Image Capture
17
Image Capture
Point the Imager at the target object. Focus on the object
using the LaserSharp™ Auto Focus System or advanced
manual focus (see page 11). Push and release the Image
Capture (green) button. This will capture and freeze the
image. The image is now in the memory buffer and you
can choose to save or edit the image. Push to save
the image or to cancel and return to the live view.
Depending on the selected file format settings, the Imager
shows the captured image and a menu bar. The menu bar
lets you save the image, edit some image settings, and
add voice annotation or IR-PhotoNotes™ digital photos.
To change the file format, see File Format on page 34.
IR-PhotoNotes™
The IR-PhotoNotes™ photo annotation system allows you
to capture and add up to five visible (digital) images of
various objects, text, or other information that is related to
the analysis and reporting of an infrared image. Examples
of possible annotations include motor name plates, printed
information or warning signs, larger views of the
environment or room, and related equipment or objects.
Up to five images can be captured with the visible image
that is stored in addition to the aligned infrared and visible
images used in IR-Fusion
®
technology. These visible
images are only available in the .is2 file format and are
stored in the file so you do not need to collate multiple files
at a later time.
To add photos using the IR-PhotoNotes annotation
system:
1. With an infrared image in the buffer, push to open
the EDIT IMAGE menu.
2. Push / to highlight IR-PhotoNotes.
3. Push to enter the Picture mode.
4. Focus the Imager on the object and push the Image
Capture button.
5. Push when done.
6. Push the Image Capture button to capture additional
pictures.
7. Push save the pictures with the image.
TiX520, TiX560
Users Manual
18
i
Voice Annotation (Recording)
A Bluetooth headset is required and the radio must be
enabled for voice (audio) recording. This feature may not
be available in all regions.
To record:
1. With an infrared image in the buffer, push to open
the EDIT IMAGE menu.
2. Push / to highlight Add Audio.
3. Push to record up to 60 seconds of audio. The
display updates to show the recorded time.
4. Push to pause the recorder.
5. Push when done.
6. Push to review the audio file or to save the
audio with the image.
Voice annotation is only available in the .is2 file format and
is stored in the file so you do not need to collate multiple
files at a later time.
Listen to a Voice Annotation (Recording)
The
i
icon identifies each file that has a voice
annotation. The voice (audio) recording replays through a
Bluetooth headset or when you use SmartView software.
To play back:
1. Do the steps in the Review Image Files section on
page 33 to see the image on the display.
2. Push .
3. Push to set Audio.
4. Push to listen to the audio.
5. Push again to pause the audio.
Edit Captured Infrared Image
Before and after you save a file, use the Imager to edit or
modify the image. You can add IR-PhotoNotes, voice
annotation, and text annotation as well as change the
palette and IR Fusion mode.
A Bluetooth headset is required and the radio must be
enabled for voice (audio) annotation. This feature may not
be available in all regions.
To edit:
1. With an image in the buffer, go to EDIT IMAGE > Edit
Image.
2. Push any arrow button to highlight an option or use the
touch screen to select an option.
3. Push to save the changes with the file.
Expert Series Thermal Imager
Micro SD Memory Card
19
Save Captured Infrared Image
To save an image as a data file:
1. Focus on the object of interest or inspection area.
2. Push the Image Capture button to capture the image.
The image is now in the buffer and you can save or
edit.
3. Push to save the image as a file and go back to
the live view.
Micro SD Memory Card
To eject a Micro SD memory card, push in on the exposed
edge of the card and then release. The card should pop
partially out after you release it. Carefully pull the card out
of the slot.
To insert the Micro SD memory card, push the card in until
it catches.
The Micro SD memory card includes an SD adapter for
insertion into a PC or multi-function card reader.
For information about how to save data, see page 19. For
information about how to view or erase a stored image,
see page 33.
Temperature Measurement
All objects radiate infrared energy. The quantity of energy
radiated is based on the actual surface temperature and
the surface emissivity of the object. The Imager senses the
infrared energy from the surface of the object and uses
this data to calculate an estimated temperature value.
Many common objects and materials such as painted
metal, wood, water, skin, and cloth are very good at
radiating energy and it is easy to get relatively accurate
measurements. For surfaces that are good at radiating
energy (high emissivity), the emissivity factor is ≥90 % (or
0.90). This simplification does not work well on shiny
surfaces or unpainted metals as they have an emissivity of
<0.60. These materials are not good at radiating energy
and are classified as low emissivity. To more accurately
measure materials with a low emissivity, an emissivity
correction is necessary. Adjustment to the emissivity
setting will usually allow the Imager to calculate a more
accurate estimate of the actual temperature.
Warning
To prevent personal injury, see emissivity
information for actual temperatures. Reflective
objects result in lower than actual temperature
measurements. These objects pose a burn
hazard.
More information is available on emissivity at
http://www.fluke.com/emissivity and
http://www.fluke.com/emissivityexplanation. We
recommend the study of this topic to get the most accurate
temperature measurements.
TiX520, TiX560
Users Manual
20
SmartView
Software
SmartView
®
software is supplied with the Imager or and is
available for free download at
www.fluke.com/smartviewdownload. This software is
intended for Fluke Imagers and contains features to
analyze images, organize data and information, and make
professional reports. SmartView allows audio annotations
and photos from the IR-PhotoNotes™ annotation system
to be reviewed on a PC. SmartView is used to export IR
and visible images as .jpeg, .jpg, .jpe, .jfif, .bmp, .gif, .dib,
.png, .tif, or .tiff formatted files.
SmartView Mobile Software is also available for flexibility
away from your PC or in the field.
Menus
The menus are the access points for thermal image
display, camera features, memory setup, and settings for
date, time, language, units, file format, and Imager
information.
Measurement Menu
The Measurement Menu has settings for the calculation
and display of radiometric temperature measurement data
related to the thermal images. These settings include the
Temperature Range selection, Level/Span adjustment,
Emissivity, Background, Transmission, Spot
Temperatures, Center Box, and Markers.
Range
Preset measurement ranges and a Full Automatic Range
are available on the Imager. To select the range:
1. Go to Measurement > Range.
2. Push / to select between the preset ranges
or the full automatic range.
3. Push to set the range.
Expert Series Thermal Imager
Menus
21
Level/Span
Level and span are set for automatic or manual
adjustment. To choose between automatic or manual level
and span:
1. Push or go to Measurement > Set Level/Span.
2. Push
/
to select between the Auto and
Manual ranging or Set Level/Span.
3. Push to set the new selection.
In manual mode the Set Level/Span control is active. Use
/
to adjust the level setting. Use
/
to adjust the
span setting. See the section, Detailed Specifications, for
more information about the minimum span.
In manual mode, level and span are also adjustable from
the touch screen. Tap the left margin of the touch screen
to reveal the temperature scale. Use your finger to adjust
the setting. You can use two fingers (pinch) to adjust both
the upper and lower settings at the same time.
Temperature Level for Manual Operation Mode
When put into manual ranging, the level setting moves the
thermal span up or down within the total temperature
range. In the live manual mode, the arrow buttons are
always available to adjust the level and span.
To set the level:
1. Push
to move the range to a higher temperature
level.
2. Push
to move the range to a lower temperature
level.
While you adjust the manual level, the scale along the right
side of the display shows the thermal span as it moves to
different levels within the total range. See Table 7.
Temperature Span for Manual Operation Mode
When in manual mode, you can control the span setting to
contract or expand in a selected palette in a temperature
range within the total range. Use either the touch screen or
the buttons to make adjustments to the settings. In the live
manual mode, the arrow buttons are always available to
adjust the level and span. See Table 7.
TiX520, TiX560
Users Manual
22
Table 7. Level and Span Settings
1
2
3
hwj011.eps
Item Description
Level
Span
Total Imager Range
To adjust the temperature span:
1. Push
or the touch screen to increase or widen the
temperature span.
2. Push
or the touch screen to decrease or narrow the
temperature span.
While you adjust the manual span, the scale along the
right side of the display shows the thermal span increasing
or decreasing in size.
Emissivity Adjustment
The correct emissivity values are important for the Imager
to make the most accurate temperature measurement
calculations. Emissivity of a surface can have a large
effect on the apparent temperatures that the Imager
observes. Understanding the emissivity of the surface
being inspected can, but not always, allow you to obtain
more accurate temperature measurements.
If you set a value that is <0.60, shows on the Imager
display with this caution:
Caution:
Emissivit
y
<0.6
(see Manual)
Expert Series Thermal Imager
Menus
23
Note
Surfaces with an emissivity of <0.60 make reliable
and consistent determination of actual
temperatures problematic. The lower the
emissivity, the more potential error is associated
with the Imager's temperature measurement
calculations. This is also true even when
adjustments to the emissivity and reflected
background adjustments are performed properly.
Emissivity is set directly as a value, or from a list of
emissivity values for some common materials.
Note
If the Display is set to Display All, you see the
information about current emissivity as ε = x.xx.
Adjust by Number
To set the emissivity value:
1. Go to Measurement > Emissivity > Adjust Number.
2. Push
/
to change the value.
A custom emissivity value is indicated when any value not
in the standard emissivity table is selected.
Select by Table
To select from a list of common materials:
1. Go to Measurement > Emissivity > Select Table.
2. Push
/
to highlight the material.
3. Push to select the material.
Background (Reflected Background
Temperature Compensation)
Compensation for reflected background temperature is set
in the Background tab. Very hot objects or very cold
objects can affect the apparent temperature and
measurement accuracy of the target or object of interest,
especially when surface emissivity is low. Adjustment of
the reflected background temperature can make the
temperature measurement better in many situations. For
more information, see Emissivity Adjustment.
To adjust the background temperature:
1. Go to Measurement > Background.
2. Push
/
to change the value.
3. Push or when done.
Note
If the Display is set to Display All, you see the
information about current reflected background
temperature as BG = xx.x.
TiX520, TiX560
Users Manual
24
Transmission/Transmittance Adjustment
When you do infrared inspections through infrared-
transparent windows (IR windows), not all of the infrared
energy emitted from the objects of interest is transmitted
through the optical material in the window. If the
transmission percentage of the window is known, you can
adjust this percentage in the Imager or in the SmartView
®
software. Adjustment of the transmission correction can
make the accuracy of the temperature measurement better
in many situations.
To adjust the transmission percentage:
1. Go to Measurement > Transmission.
2. Push
/
to adjust the percentage between 10 %
and 100 %.
3. Push or when done.
Note
If Display Information is set to Display All, you
see the information about current transmission
correction as τ = xx.
Spot Temperatures
The Spot Temperatures are floating HI and LO
temperature indicators that move on the display as the
temperature measurements of the image fluctuate.
To turn on/off the hot and cold spot indicators:
1. Go to Measurement > Spot Temp.
2. Push
/
to highlight ON or OFF.
3. Select Hot or Cold.
4. Push or to set the new value.
Center Box
The Center Box feature is an adjustable temperature
measurement zone (box) that you can center on the
infrared image. This zone (box) expands and contracts to
different levels within the infrared image. The zone lets the
user see an approximate maximum (MAX), average
(AVG), and minimum (MIN) temperature measurement in
that area. When in AUTO Level and Span mode, the
Imager automatically sets the level and span according the
infrared scene within the parameters of the Center Box.
Note
When using the Center Box, the level and
span of the Imager is adjusted to the thermal
scene within the Center Box.
Expert Series Thermal Imager
Menus
25
To enable or disable the Center Box feature:
1. Go to Measurement > Center Box.
2. Push
/
to highlight ON or OFF.
3. Push to set the new value.
To set the size of the Center Box when enabled:
1. Push
/
to highlight Set Size.
2. Push to go to the adjustment screen.
3. Push
to increase the size of the Center Box.
4. Push
to reduce the size of the Center Box.
5. When satisfied with the size of the Center Box, push:
• to set the change and exit the menus.
• to set the change and go back to the
previous menu.
• to cancel the change and go back to the live
view.
Markers
Up to three adjustable, fixed-temperature spot markers are
available on the display. You can use these markers to
highlight a region before you save the image. The marker
selection is set as All Off, One Marker, Two Markers, or
Three Markers.
To set a Marker:
1. Go to Measurement > Markers.
2. Push the
/
to highlight the function between All
OFF, One Marker, Two Markers, and Three
Markers.
3. Push to set the marker option and go to the
“Move Marker” display. You will see the Move Marker
icon and the labels on the function buttons change to
Done, Next, and Cancel.
To change the Marker position on the display:
1. Push
to move the Marker location on the
image.
2. Push to highlight the next marker. Do Step 1
again.
3. Do Step 2 for a third marker.
4. Push when done.
TiX520, TiX560
Users Manual
26
Image Menu
The Image menu has controls for different features used in
the presentation of the infrared image on the Imager's LCD
and some saved image files.
Note
Data saved as .is2 or .is3 formats can easily be
modified within SmartView software. Still images
saved in .bmp or .jpg format, as well as video
saved in .avi format will retain image settings at
the time of capture and save.
Palette
The Palette menu lets you change the false-color
presentation of the infrared images on the display. Some
palettes are more suitable for specific applications and can
be set as required. Two different palette presentation
modes are available, see Table 8. The Standard Palettes
offer an equal, linear presentation of colors that allow for
best presentation of detail. The Ultra Contrast™ Palettes
offer a weighted presentation of colors. These palettes
work best in situations with high thermal contrast for extra
color contrast between the high temperatures and low
temperatures.
Table 8. Palettes
Standard Palettes Ultra Contrast™ Palettes
Grayscale Grayscale Ultra
Grayscale Inverted Grayscale Inverted Ultra
Blue-Red Blue-Red Ultra
High Contrast High Contrast Ultra
Hot Metal Hot Metal Ultra
Ironbow Ironbow Ultra
Amber Amber Ultra
Amber Inverted Amber Inverted Ultra
To switch between palettes:
1. Go to Image > Palette > Standard or Ultra Contrast.
2. Push
/
to highlight a palette.
3. Push to set the new palette.
To change the palette color:
1. Go to Image > Palette > Set Palette.
2. Push
/
to highlight the palette color.
3. Push to set the new palette color.
Saturation Colors is an option that you can choose as off,
standard, red/blue, or white/black.
Expert Series Thermal Imager
Menus
27
IR-Fusion
®
Technology
IR-Fusion
®
technology makes it easier to understand,
analyze, and communicate infrared images through the
use of an aligned visible image and infrared image. The
Imager automatically captures a visible image with every
infrared image to show you precisely where a potential
problem might be, and then allows you to more effectively
communicate it to others.
IR-Fusion
®
technology has different modes:
Icon TiX520 TiX560
-Picture-in-Picture (PIP)
-AutoBlend
(min, mid, max)
Picture-in-Picture (PIP)
Full Screen AutoBlend
(min, mid, max) Full Screen IR
Visible NA
Note
The visible image and infrared image can be
customized or separated in SmartView and
SmartView Mobile Software when you use the .is2
file format.
To set the IR-Fusion
®
technology
mode:
1. Go to Measurement > Image > IR-Fusion.
2. Push
/
to highlight an option.
3. Push to set the new option.
TiX560
The TiX560 model has an adjustable IR Level.
Push
to open the scroll bar that adjusts the
IR-Fusion mode. Use it to infinitely adjust the picture from
Full IR mode to Full Visible mode.
Color Alarms
The Imager has various apparent temperature color
alarms. The high-temperature color alarm shows a full
visible image and only shows infrared information on
objects or areas that are above the set apparent
temperature alarm level. The low-temperature (or dew
point) color alarm shows a full visible image and only
shows infrared information on objects or areas that are
below the set apparent temperature (or set dew point)
color alarm level. The user must manually determine and
set these parameters.
TiX520, TiX560
Users Manual
28
Note
The Imager does not sense ambient or surface
dew point level automatically. To use the low-
temperature color alarm function as a dew point
color alarm, manual determination and input of
surface dew point temperature will yield the best
results. Depending on the situation, the colors
presented may help identify areas of concern with
possible dew point condensation.
To view the Color Alarm menu:
1. Go to Image > Color Alarm.
2. Push to view the menu.
Set High-Temperature Color Alarm
To set a high-temperature color alarm:
1. Go to Image > Color Alarm > Set High Alarm.
2. Push
/
to adjust the temperature setting.
3. Push or set the new value.
Set Low-Temperature (or Dew Point) Color Alarm
To set a low-temperature/dew point color alarm:
1. Go to Image > Color Alarm > Set Low Alarm.
2. Push
/
to adjust the temperature setting.
3. Push or set a new value.
Outside/Inside Alarm
If you set values for the high-temperature color alarm and
a low-temperature color alarm, the Imager will have the
options for inside or outside color alarms.
To set an outside/inside color alarm:
1. Go to Image > Color Alarm > Outside or Inside.
2. Push:
to set the change and go back to the live view.
to set the change and go back to the previous menu.
to cancel the change and go back to the live view.
Display Graphics Presentation
The options for how you view the on-screen graphics are
in the Display menu. These options are Display All, Details
and Scale, Scale Only, and Image Only.
To set the display:
1. Go to Image > Display.
2. Push
/
to highlight an option.
3. Push or set a new option.
Note
Features that have ON/OFF controls must be
turned on and turned off with those controls.
Expert Series Thermal Imager
Menus
29
Logo
A Fluke logo shows on the display and captured images.
You can choose to turn on or turn off the logo:
1. Go to Image > Logo.
2. Push
/
to highlight on or off.
3. Push to set.
With SmartView software you can upload a custom logo to
the Imager from your PC through the USB connection.
Distance
The Imager has a laser distance finder that measures, up
to 30 meters, the distance from the Imager to a target. You
can choose to show the distance on the display in imperial
or metric units. The distance is saved to memory as part of
the image.
Warning
To prevent eye damage and personal injury:
• Do not look into the laser. Do not point the
laser directly at persons or animals or
indirectly off reflective surfaces.
• Do not open the Product. The laser beam is
dangerous to eyes. Have the Product
repaired only through an approved
technical site.
To do a distance measurement:
1. Point the Imager at the target.
2. Push the Laser Distance Finder button.
3. Locate the red laser dot on the target.
4. Release the Laser Distance Finder button.
The distance measurement shows on the bottom of the
display. The measurement shows as “- - - -” when not able
to take a measurement. If this is the case, steady the
Imager and retake the measurement. Or, use a tripod. The
Imager will show an error message for excessive laser
movement due to an out of range distance.
Camera Menu
The Camera menu has controls and options for secondary
camera features such as auto focus, backlight level, and
torch.
Auto Focus
The laser pointer on the Imager is both a sighting aid and
a part of the LaserSharp™ Auto Focus System. In
addition, the advanced manual focus of the Imager works
both when the auto focus system is enabled or disabled.
Warning
To prevent eye damage and personal injury, do
not look into the laser. Do not point the laser
directly at persons or animals or indirectly off
reflective surfaces.
The laser warning symbol () shows at the top of the
display when you push the Laser Distance Finder button.
TiX520, TiX560
Users Manual
30
To turn on or turn off the LaserSharp Auto Focus System
and the laser pointer:
1. Go to Camera > Auto Focus.
2. Push
/
to select on or off.
3. to set the change and go back to the live view.
When the laser pointer is turned on, the Laser Distance
Finder button is the control for the LaserSharp Auto Focus
System. Point the Imager in the general direction of the
object of interest. Push and hold the Laser Distance Finder
button to locate the laser dot on the specific area of
interest. Release the button. The auto focus system will
quickly and accurately focus on the object.
Backlight
The backlight level control is set to low, medium, and high.
To set the backlight:
1. Go to Camera > Backlight.
2. Push
/
to highlight high, medium, or low.
3. Push to set a new value.
Video
The Imager can record infrared and IR-Fusion™ to the SD
card or internal memory in .is3 or .avi format.
To record:
1. Go to Camera > Video.
2. Push
/
to select Video/Audio or Video ONLY.
A Bluetooth headset is required and the radio must be
enabled for voice (audio) recording. This feature may
not be available in all regions.
3. Touch the Record Video target to enable the
recording mode.
The p icon shows on the display to identify the start
recording mode.
4. Push and release the Image Capture button to start
recording.
The r icon shows on the display while recording is
in process.
5. Push and release the Image Capture button to stop
recording.
Expert Series Thermal Imager
Menus
31
HDMI
HDMI
®
(High-Definition Multimedia Interface) is a compact
audio/video interface for transferring uncompressed data
and compressed/uncompressed digital audio data from the
Imager to a compatible HDMI device.
To set up:
1. Attach the included HDMI cable to the HDMI port on
the Imager.
2. Connect the other end to an HDMI video device.
Auto Capture
The Auto Capture feature allows you to set the Imager to
capture and save an infrared image, or series of images,
automatically. Image capture can be triggered manually or
with an “apparent temperature” trigger. The temperature
trigger is set to start when a value is above or below a set
limit. Regardless of how the capture starts, you can set the
interval for when successive images are captured and
saved. You also can set the number of images that are
captured and saved. The upper limit on number is
dependent on the amount of storage memory available.
To set and operate the Auto Capture feature:
1. Go to Camera > Auto Capture.
2. Push Start Capture to start the capture sequence.
In the Auto Capture sub-menu, you will see these options:
• Start Capture: Executes the Auto Capture settings in
camera memory.
• Interval: Set the hours, minutes, and seconds
between individual image capture events. Push
/
to select the number of hours, minutes, or
seconds as an interval between images.
• Image Count: Select the number of images that are
captured in a sequence. Push
/
to manually
select a number of images. Or, push the Maximum
Memory button to select the option that will continue
capturing and saving images until the chosen storage
memory is filled or battery power is depleted.
• Manual Trigger: When Manual Trigger is selected,
push Start Capture to start the automatic capture of a
series of images.
• Temp Trigger: Select Temp Trigger and then select
Set Temp Trigger to open the adjustment menu.
Note
The minimum interval available can be affected by
the file type and visible light camera settings
chosen by the user. Some combinations create
larger file sizes which take longer to capture and
save, creating a higher minimum interval
compared to others.
TiX520, TiX560
Users Manual
32
Wireless Connectivity
The Imager is equipped with WiFi, Bluetooth, and
Bluetooth Low Energy wireless connectivity options.
Wireless connectivity enhances your ability to work more
efficiently and better communicate results. The Imager
ships with the radio disabled. For first-time use, you must
enable the radio to use wireless connectivity.
To enable the radio:
1. Connect the Imager to a PC with internet access and
Fluke SmartView software.
SmartView detects that the radio is disabled in the
Imager and prompts you to register at www.fluke.com
and enable the radio.
2. When you opt in, SmartView opens up a browser
window to the Fluke registration web page. The web
page provides the Imager serial number, choice of
radio, and UI language.
3. Type the registration information into the web page.
The server checks if the radio can be enabled for this
address. If yes, a passphrase is provided to paste into
SmartView.
SmartView validates that the passphrase is correct and
then enables the radio in the Imager.
Bluetooth
®
Bluetooth is available to connect a device such as a
wireless headset. When on,
shows on the display
(upper left corner).
WiFi™ Hotspot
You can wirelessly send a picture from the Imager to a PC,
an iPhone, and an iPad through the WiFi connection. A
transferred image can be viewed with Fluke Connect™ or
SmartView Analysis and Reporting software if installed in
the device.
WiFi™ Network
Infrastructure WiFi is a wireless local area network
(WLAN) that links your Imager to other wireless devices
using its radio and providing a connection through an
access point to the wider Internet. This gives you the
ability to move around within a local coverage area and
still be connected to the network.
Expert Series Thermal Imager
Menus
33
To turn on the WiFi Network feature:
1. Go to Settings > Wireless > WiFi > WiFi Network.
2. Push
/
to highlight ON.
3. Push Select to scan for available networks within
range of the camera.
4. Push
/
to select a network.
5. Push to connect/disconnect.
6. Enter a password if you are prompted.
Memory Menu
The Memory Menu allows you to review captured images,
audio and text annotations, and IR-PhotoNotes™. Files in
memory are shown in a large preview format. You can
scroll through long lists with the touch screen and open a
full-size image with a touch.
Change the setting for visible and thermal image and then
view all images in the same format.
An icon shows to indicate any additional items saved with
the infrared image or IR-Fusion technology image:
IR-PhotoNotes photos
Voice annotation
Review Image Files
To view stored images on the memory card:
1. Go to Memory.
2. Push
/
to highlight the preview image of the file
for review.
3. Push to review the file.
Edit Image Files
You can make all the same adjustments to a file in
memory as you can in real time, including
IR-PhotoNotes™.
Delete Image Files
To erase one image from the memory card:
1. Go to Memory.
2. Push
/
to highlight the preview image of the file
to delete.
3. Push to open the Delete menu.
4. Highlight Selected Image and push . The Imager
prompts you to continue or cancel.
5. Push again to delete the file.
To erase all the images from memory:
1. Go to Memory.
2. Push .
3. Highlight All Images and push . The Imager
prompts you to continue or cancel.
4. Push to delete all files in memory.
TiX520, TiX560
Users Manual
34
Settings Menu
The Settings menu has adjustments for user preferences
such as units of temperature measurement, file format of
stored data, “save to” location choice, auto off settings,
WiFi and Bluetooth settings, date, time, localization, and
language. This menu also has a section that displays
information about the Imager such as model number,
serial number, and firmware versions. Certificates and
licenses are available from this menu.
Units
To change the temperature units:
1. Go to Settings > Units.
2. Push
/
to highlight an option.
3. Push to set an option.
File Format
Data can be saved to the internal memory, micro SD
memory card, or a USB flash memory device in different
file formats. Image format selections are .bmp, .jpg, and
.is2. These selections remain valid when you turn the
Imager off or on.
To change the file format:
1. Go to Settings > File Format.
2. Push
/
to highlight an option.
3. Push to set the option.
Images saved in the .is2 file format have the consolidation
of all data into a single file and are more flexible for
analysis and modification in the included SmartView
software. This file format consolidates the infrared image,
radiometric temperature data, visible image, voice
annotation, and photos from the IR-PhotoNotes™ photo
annotation system into one location.
For situations where a smaller file size with maximum
resolution is needed and modification is not, choose the
.bmp file format. For the smallest file size where
modification is not needed and image quality and
resolution are not as important, choose the .jpg file format.
The .bmp and .jpg files can be emailed and then opened
on most PC and MAC systems without special software.
These formats do not allow full analysis capabilities or
modification.
The .is2 file format can be emailed and then opened with
SmartView and Fluke Connect Software. This format has
the maximum versatility. Visit the Fluke website or contact
Fluke to find out how to download SmartView analysis and
reporting software at no charge.
Expert Series Thermal Imager
Menus
35
Auto Off
The Auto Off timer is user-defined separately for the LCD
and power.
Note
Auto Off is automatically disabled when the
Imager is connected to ac power.
To set the Auto Off feature:
1. Go to Settings > Auto Off.
2. Push
/
to highlight LCD Time Out or Power Off.
3. Push
/
to set the timer between 1 minute and
120 minutes.
4. Push to set.
Localization
The Imager has several settings for localization:
• Date
• Time
• Language
• Decimal Separator
Date
The date can be displayed in one of two formats:
MM/DD/YY or DD/MM/YY.
To set the date:
1. Go to Settings > Date.
2. Push
/
to highlight the date format.
3. Push to set a new format.
4. Push
/
to highlight Set Date.
5. Push to open the Set Date menu.
6. Push
/
to select highlight day, month, or year.
7. Push
/
to change the settings.
8. Push to set the date and exit the menu.
Time
To set the time:
1. Go to Settings > Time.
Time displays in two different formats: 24 hour or 12
hour. To set the time format:
2. Push
/
to highlight time format.
3. Push to select.
4. Highlight Set Time.
5. Push to open the Set Time menu.
TiX520, TiX560
Users Manual
36
6. Push
/
to highlight hours or minutes.
The 12 hour format has a selection to set the time as
AM or PM.
7. Push
or
to change the setting.
8. Push to set the change.
Language
To change the display to a different language:
1. Go to Settings > Language.
2. Push
or
to highlight the setting.
3. Push to set a new language.
Decimal Separator
To make the decimal separator a period or comma:
1. Go to Settings > Localization.
2. Push
or
to highlight the setting.
3. Push to set a new separator.
Image Storage
The storage setting allows you to choose to save images
to the internal memory, micro SD memory card, or USB
flash memory.
1. Go to Settings > Image Storage.
2. Push
or
to change the setting.
3. Push to select the new storage setting.
Advanced Settings
Filename Prefix
The default filename starts with IR_. You have the option
to change this prefix to a different 3-character name with
the touch screen keyboard.
Reset Filename
You can reset the file number to 00001.
Factory Defaults
Erases all user-set preferences and restores all of the
factory default settings.
Imager Information
You can access information about the version,
certifications, and licenses for the Imager from the Settings
Menu.
Expert Series Thermal Imager
Menus
37
To show the Imager Info:
1. Go to Settings > Advanced > Imager Info.
2. Push
/
to highlight Version.
3. Push to view the information screen with model
number, serial numbers, and firmware versions.
4. Push to close the information screen.
To display the electronic certifications:
1. Go to Settings > Advanced > Imager Info.
2. Push
/
to highlight Certificates.
3. Push to view the information screen with the
Imager certifications.
4. Push to close the information screen.
To show the license information:
1. Go to Settings > Advanced > Imager Info.
2. Push
/
to highlight Licenses.
3. Push to view the information screen with a list of
Open Source Software Licenses.
4. Push
/
to scroll to a specific license.
5. Touch the license name on the screen to view the
information screen with the specific license agreement.
6. Push to close the information screen.
Adjust Parallax
With the use of optional add-on lenses, you can fine-tune
the parallax adjustment to precisely align the image.
1. Go to Settings > Advanced > Adjust Parallax.
2. Follow the on-screen prompts to adjust.
Image Enhancement
Image enhancement is available on the TiX560 with the
Image Sharpening and SuperResolution modes.
Image Sharpening uses post-processing of the image to
remove blurring from the image and improve image
quality. This feature is most effective for work in the high
temperature ranges. You can expect several seconds in
delay when using this mode.
SuperResolution uses micro movements to produce an
image that is 640 x 480 pixels using a 320 x 240 sensor.
Results are viewable on the Imager after they are captured
on the TiX560. The TiX520 requires SmartView software
to view a SuperResolution image. Expect a 10-second
delay for the Imager when using this mode.
To set:
1. Go to Settings > Advanced > Enhancement.
2. Push
or
or touch the target to change the
setting.
3. Push or touch Done to select the new setting.
TiX520, TiX560
Users Manual
38
Filter Mode
Low, medium, and high filter levels are available to
improve the useful sensitivity of the Imager and give you
better images. For best results, hold the Imager steady as
you do the inspection.
To set:
1. Go to Settings > Advanced > Filter Mode.
2. Push
or
or touch the target to change the
setting.
3. Push or touch Done to select the new setting.
Fluke Connect™ Wireless System
The Imager supports the Fluke Connect™ Wireless
System (may not be available in all regions). Fluke
Connect™ is a system that wirelessly connects your Fluke
test tools with an app on your smartphone or tablet. It can
show images from your infrared camera on your
smartphone or tablet screen, save images to the asset's
EquipmentLog™ history in the Fluke Cloud™, and share
images with your team.
Fluke Connect App
The Fluke Connect app works with the Apple and Android
products. The app is available for download from the Apple
App Store and Google play.
How to access Fluke Connect:
1. Insert the Fluke Connect Wireless SD Card into the
Imager.
2. Power on the Imager.
3. On your smartphone, go to Settings > Wi-Fi.
4. Select the Wi-Fi network that begins with "Fluke..".
5. Go to the Fluke Connect App and select "Thermal
Imager" from the list.
You are now able to take images on the Imager.
6. Push the Image Capture button on the Imager to
capture the image. The image is now in the buffer and
you can save or edit.
7. Push to save the image and view the image on
the phone app.
Go to www.flukeconnect.com for more information about
how to use the app.
Fluke Connect Tools
To discover a Fluke Connect-supported tool:
1. If not already on, turn on each wireless tool and make
sure the wireless feature is enabled. See the
documentation of each tool for more information about
how to use.
2. Turn on the Imager.
3. On the Imager, go to Menu > Fluke Connect.
4. Push / or touch On to select.
The Fluke Connect button starts to flash. The Imager
starts to scan and presents a list with the ID and name
of available tools found within the 20 m distance. You
Expert Series Thermal Imager
Remote Control
39
can expect several minutes in delay before the scan is
complete.
5. Push / or touch the target to select a tool
name.
6. Push or touch Done to select the tool.
The labels change to include an Edit function. By
default, the Imager shows and saves the data for the
selected tools.
To edit the selection:
1. Push / to highlight the tool name.
2. Push or touch the Edit target. The Edit menu
gives you a choice to display the measurement data
and/or save it to the SD memory card.
The display updates to show the wireless icon and live
measurement for each selected wireless tool.
Remote Control
You can view the display of the Imager with a PC that has
SmartView software installed or the Fluke Connect mobile
app. The TiX560 Imager has the additional ability so you
can also remotely control the Imager with SmartView
software or the Fluke Connect app.
To set up:
1. Attach the included USB cable to the USB port on the
imager.
2. Connect the other end to a USB port on a PC.
3. In SmartView software, choose Remote Display from
the drop down menu to begin live video streaming on
the PC.
To remotely control and show the Imager’s display:
1. If not installed, install the latest version of SmartView
software on your PC.
2. Attach the included USB cable to the USB port on the
Imager.
3. Connect the other end of the cable to a USB port on
the PC. appears in the SmartView workspace.
4. Select Remote Display from the drop down menu.
TiX560 only
5. Use the buttons and touch screen on the UI the same
as the physical Imager.
6. Follow the instructions in the software help files for
additional information about the controls on the
software UI.
Maintenance
The Imager does not require maintenance.
Warning
To prevent eye damage and personal injury, do
not open the Product. The laser beam is
dangerous to eyes. Have the Product repaired
only through an approved technical site.
TiX520, TiX560
Users Manual
40
How to Clean the Case
Clean the case with a damp cloth and a weak soap
solution. Do not use abrasives, isopropyl alcohol, or
solvents to clean the case or lens/window.
Battery Care
Warning
To prevent personal injury and for safe operation
of the Product:
• Do not put battery cells and battery packs near
heat or fire. Do not put in sunlight.
• Do not disassemble or crush battery cells and
battery packs.
• Remove batteries to prevent battery leakage
and damage to the Product if it is not used for
an extended period.
• Connect the battery charger to the mains power
outlet before the Product or battery.
• Use only Fluke approved power adapters to
charge the battery.
• Keep cells and battery packs clean and dry.
Clean dirty connectors with a dry, clean cloth.
Caution
To prevent damage, do not expose Product to
heat sources or high-temperature
environments such as an unattended vehicle
in the sun.
To get the best performance from the lithium-ion battery,
use the guidelines that follow:
• Do not store the Imager on the charger for more than
24 hours as reduced battery life may result.
• Charge the Imager for a two-hour minimum at six-
month intervals for maximum battery life. Without use,
the battery will self-discharge in approximately six
months. Batteries stored for long periods will need two
to ten charging cycles for full capacity.
• Always operate in the specified temperature range.
• Do not store the batteries in extreme cold
environments.
• Do not attempt to charge the batteries in extreme cold
environments.
Caution
Do not incinerate the Product and/or battery.
Expert Series Thermal Imager
General Specifications
41
General Specifications
Temperature
Operating ............................................................ -10 °C to +50 °C (14 °F to 122 °F)
Storage ............................................................... -20 °C to +50 °C (-4 °F to +122 °F) without batteries
Relative Humidity.................................................. 10 % to 95 % non-condensing
Altitude
Operating ............................................................ 2,000 m (6,562 ft)
Storage ............................................................... 12,000 m (39,370 ft)
Display ................................................................... 14.5 cm (5.7 in) diagonal landscape color VGA (640 x 480) LCD with backlight
Software ................................................................. SmartView
®
full analysis and reporting software available for free download at www.fluke.com
Power
Batteries ............................................................. 2 Lithium-ion rechargeable smart battery packs with 5-segment LED display to show charge level.
Battery Life ......................................................... 3 hours continuous use for each battery pack (assumes 50 % brightness of LCD)
Battery Charge Time .......................................... 2.5 hours to full charge
AC Battery Charge ............................................. Ti SBC3B Two Bay Battery Charger (110 V ac to 220 V ac, 50/60 Hz, included), or in-Imager charging. AC
mains adapters included. Optional 12 V automotive charging adapter.
AC Operation ..................................................... AC operation with included power supply: 110 V ac– 220 V ac, 50/60 Hz, ac mains adapters included
Power Save ........................................................ User-selectable Sleep and Power Off modes
TiX520, TiX560
Users Manual
42
Safety Standards .................................................. IEC 61010-1, CAT None, Pollution Degree 2
IEC 60825-1, Class II, <1mW
Electromagnetic Compatibility (EMC)
International ........................................................ IEC 61326-1: Controlled Electromagnetic Environment
CISPR 11: Group 1, Class A
Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy
that is necessary for the internal function of the equipment itself.
Class A: Equipment is suitable for use in all establishments other than domestic and those directly
connected to a low-voltage power supply network that supplies buildings used for domestic purposes.
There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to
conducted and radiated disturbances.
Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a
test object.
Korea (KCC) ....................................................... Class A Equipment (Industrial Broadcasting & Communication Equipment)
Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or
user should take notice of it. This equipment is intended for use in business environments and not to be
used in homes.
USA (FCC) ......................................................... 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
Vibration ................................................................ 2.5 G, IEC 68-2-6
Shock ..................................................................... 25 G, IEC 68-2-29
Drop ....................................................................... 1 m (3.3 ft) with standard lens
Size (H x W x L) ..................................................... 27.3 cm x 15.9 cm x 9.7 cm (10.8 in x 6.3 in x 3.8 in)
Weight (includes battery) ..................................... 1.54 kg (3.4 lb)
Enclosure Rating .................................................. IP54
Warranty ................................................................ 2 years
Calibration Cycle .................................................. 2 years (assumes normal operation and normal aging)
Supported Languages .......................................... Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese,
Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
Expert Series Thermal Imager
Detailed Specifications
43
Detailed Specifications
Temperature Measurements
Temperature Range (not calibrated below -10 °C)
TiX520 ............................................................ -20 °C to +850 °C (-4 °F to +1562 °F)
TiX560 ............................................................ -20 °C to +1200 °C (-4 °F to +2192 °F)
Accuracy
Range 1, 2 ...................................................... ±2 °C or 2 % (whichever is greater) at 25 °C ambient
Range 3 .......................................................... ±4 °C or 2 % (whichever is greater) at 25 °C ambient
On-screen emissivity correction ......................... 1 % to 100 %
On-screen reflected background
temperature compensation ................................. yes
On-screen transmission correction ..................... 1 % to 100 %
Imaging Performance
Image Capture Frequency .................................. 9 Hz or 60 Hz refresh rate
Detector Type ..................................................... 320 X 240 Focal Plane Array, uncooled microbolometer
Thermal Sensitivity (NETD)
TiX520 ............................................................ 50 mK (40 mK with Filter Mode)
TiX560 ............................................................ 45 mK (30 mK with Filter Mode)
Total pixels ......................................................... 76,800
Infrared spectral band ......................................... 8 μm to 14 μm (long wave)
Visual (Visible Light) Camera
Type .................................................................... Industrial performance 5.0 megapixel
Minimum parallax alignment
with standard IR lens .......................................... ~60 cm (~24 in)
TiX520, TiX560
Users Manual
44
Infrared Lenses
Lens Field of View Spatial Resolution (IFOV) Minimum Focus Distance
Standard IR Lens 24 ° x 18 ° 1.31 mRad 15 cm (6 in)
Optional 2x Telephoto 12 ° x 9 ° 1.05 mRad 45 cm (18 in)
Optional Wide-angle 48 ° x 36 ° 4.19 mRad 15 cm (6 in)
Optional 4X Telephoto
Go to www.fluke.com for more information.
Optional 25-micron macro
Focus Mechanism
LaserSharp™ Auto Focus System ..................... all models
Advanced Manual Focus .................................... all models
Level and Span
Smooth Auto-Scaling and Manual scaling of level and span
Fast auto setting/switching between manual and auto modes
Fast auto rescale in manual mode
Minimum Span (in manual mode) ................... 2.0 °C (3.6 °F)
Minimum span (in auto mode) ........................ 3.0 °C (5.4 °F)
Expert Series Thermal Imager
Detailed Specifications
45
Image and Data Storage
File Formats ........................................................ BMP, JPG, IS2, IS3, AVI (No analysis software required for .bmp and .jpg files)
Export File Formats with
SmartView
®
Software ......................................... JPEG, JPG, JPE, JFIF, BMP, GIF, DIB, PNG, TIF, TIFF
Memory Review .................................................. Preview image navigation and review selection
Video Recording
Standard, Non-Radiometric ............................ Viewable through Smart View software, Windows Media Player, Quicktime, and on Imager. H.264 MPEG
encoding AVI will also allow voice recording in addition to captured video. Video functions to include:
record, stop, rewind, fast forward, pause/play. Maximum recording time = minimum of ten minutes @
30 Hz (requires class 10 micro SD).
Radiometric .................................................... Viewable on Imager and with SmartView software in proprietary .is3 format. Supports voice recording in
addition to captured video Video functions to include: stop, rewind, fast forward, pause/play. Maximum
recording time = minimum of ten minutes @ 30 Hz.
Storage Medium
Micro SD Memory Card .................................. Includes ≥4 GB memory card to store at least 2000 fully radiometric (.is2) IR and linked visual images each
with 60 seconds voice annotations or 5000 basic (.bmp or .jpg) images
Internal on-board flash memory ...................... 4 GB available for storage
USB direct download with USB-to-PC cable connection
USB accessory connection
Note
The addition of IR-PhotoNotes or other saved items can vary the total
number of images that can be stored on the SD memory card.
TiX520, TiX560
Users Manual
46
