1. User Manual
2. Users Manual

Users Manual

March 2014

All product names are trademarks of their respective companies.

BT521

Battery Analyzer

Users Manual

LIMITED WARRANTY AND LIMITATION OF LIABILITY

Each Fluke product is warranted to be free from defects in material and workmanship under normal use and

service. The warranty period is three years and begins on the date of shipment. Parts, product repairs, and

services are warranted for 90 days. This warranty extends only to the original buyer or end-user customer of

a Fluke authorized reseller, and does not apply to fuses, disposable batteries, or to any product which, in

Fluke's opinion, has been misused, altered, neglected, contaminated, or damaged by accident or abnormal

conditions of operation or handling. Fluke warrants that software will operate substantially in accordance

with its functional specifications for 90 days and that it has been properly recorded on non-defective media.

Fluke does not warrant that software will be error free or operate without interruption.

Fluke authorized resellers shall extend this warranty on new and unused products to end-user customers

only but have no authority to extend a greater or different warranty on behalf of Fluke. Warranty support is

available only if product is purchased through a Fluke authorized sales outlet or Buyer has paid the

applicable international price. Fluke reserves the right to invoice Buyer for importation costs of

repair/replacement parts when product purchased in one country is submitted for repair in another country.

Fluke's warranty obligation is limited, at Fluke's option, to refund of the purchase price, free of charge repair,

or replacement of a defective product which is returned to a Fluke authorized service center within the

warranty period.

To obtain warranty service, contact your nearest Fluke authorized service center to obtain return

authorization information, then send the product to that service center, with a description of the difficulty,

postage and insurance prepaid (FOB Destination). Fluke assumes no risk for damage in transit. Following

warranty repair, the product will be returned to Buyer, transportation prepaid (FOB Destination). If Fluke

determines that failure was caused by neglect, misuse, contamination, alteration, accident, or abnormal

condition of operation or handling, including overvoltage failures caused by use outside the product’s

specified rating, or normal wear and tear of mechanical components, Fluke will provide an estimate of repair

costs and obtain authorization before commencing the work. Following repair, the product will be returned to

the Buyer transportation prepaid and the Buyer will be billed for the repair and return transportation charges

(FOB Shipping Point).

THIS WARRANTY IS BUYER'S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY

OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. FLUKE SHALL NOT BE LIABLE

FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES,

INCLUDING LOSS OF DATA, ARISING FROM ANY CAUSE OR THEORY.

Since some countries or states do not allow limitation of the term of an implied warranty, or exclusion or

limitation of incidental or consequential damages, the limitations and exclusions of this warranty may not

apply to every buyer. If any provision of this Warranty is held invalid or unenforceable by a court or other

decision-maker of competent jurisdiction, such holding will not affect the validity or enforceability of any other

provision.

Fluke Corporation

P.O. Box 9090

Everett, WA 98206-9090

U.S.A.

Fluke Europe B.V.

P.O. Box 1186

5602 BD Eindhoven

The Netherlands

11/99

Table of Contents

Chapter Title Page

1 Product Overview and Specifications ................................................. 1-1

Introduction .............................................................................................. 1-1

Contact Fluke ........................................................................................... 1-1

Product Overview ..................................................................................... 1-1

Standard Equipment ................................................................................ 1-3

Safety Information .................................................................................... 1-4

Keys and I/O Terminals of the Product ................................................... 1-6

General Specifications ............................................................................. 1-8

Accuracy Specifications ........................................................................... 1-9

2 Basic Operation and Setup of the Product ......................................... 2-1

Introduction .............................................................................................. 2-1

Tilt Stand .................................................................................................. 2-1

Adjust Display Contrast ........................................................................... 2-2

Set Language ........................................................................................... 2-2

Set Date and Time ................................................................................... 2-2

Turn On/Off Beep ..................................................................................... 2-3

AutoHold and AutoSave Modes .............................................................. 2-3

Set Auto Power Off Time ......................................................................... 2-4

View Device Information .......................................................................... 2-4

Reset to Factory Mode ............................................................................ 2-4

View Memory Usage Information ............................................................ 2-4

3 Use the Product ..................................................................................... 3-1

Introduction .............................................................................................. 3-1

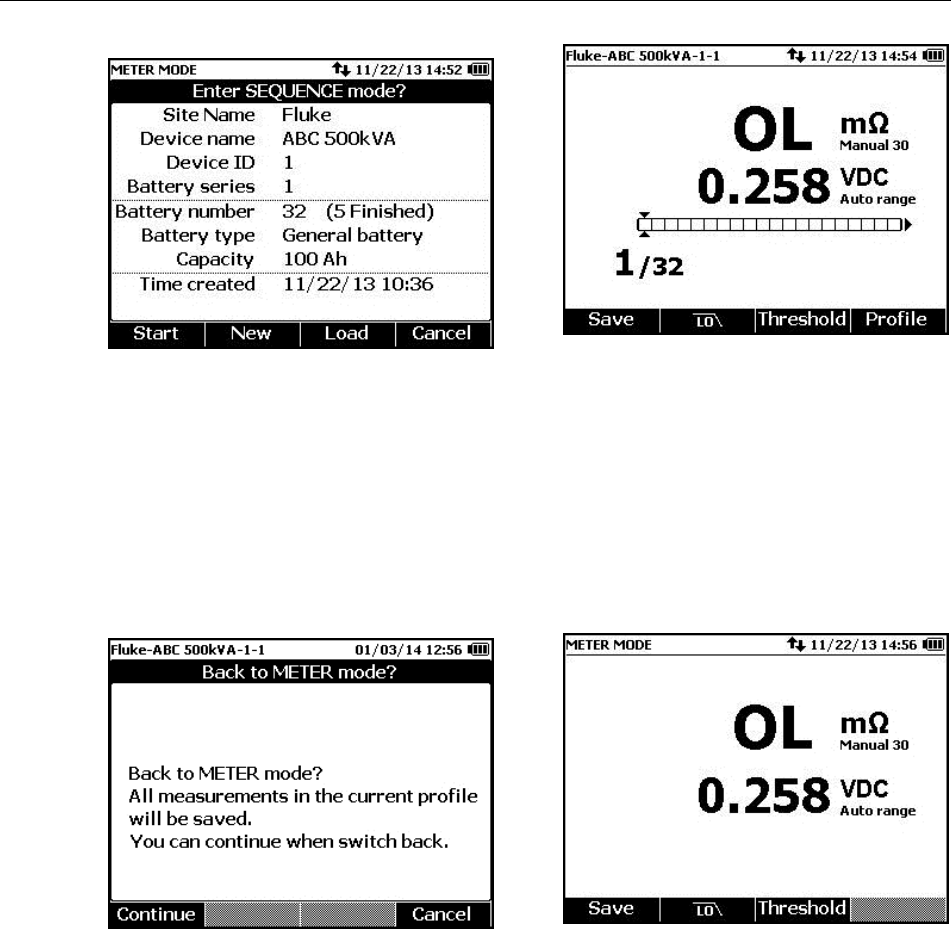

Switch Between Meter Mode and Sequence Mode ................................ 3-1

Use a Profile in Sequence Mode ............................................................. 3-3

Manage Profiles ................................................................................... 3-3

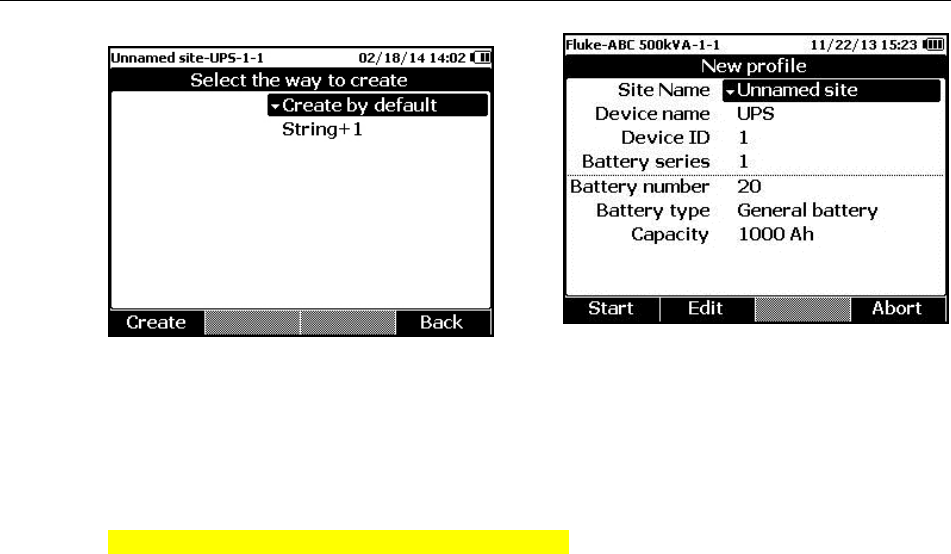

Create a Profile .................................................................................... 3-3

Edit a Profile ......................................................................................... 3-4

Edit a Profile During Creation .......................................................... 3-4

Modify a Profile During Measurement ............................................. 3-4

Load a Profile ....................................................................................... 3-5

BT521

Users Manual

Load a Profile When Switched to Sequence Mode ......................... 3-5

Make Measurements ............................................................................... 3-5

Test Battery Resistance and Voltage .................................................. 3-5

Battery Test Probes ......................................................................... 3-6

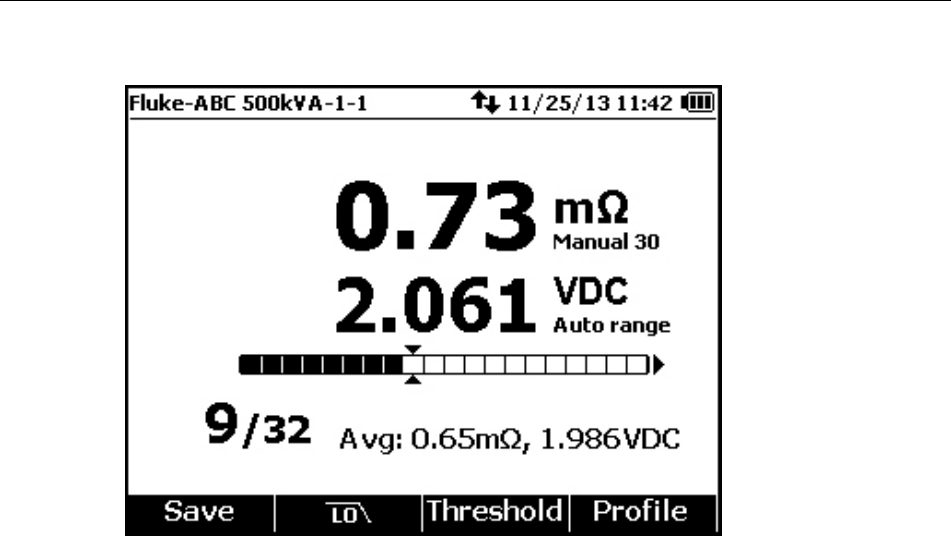

View Test Readings on the Screen ................................................. 3-6

Set Measurement Range ................................................................. 3-7

Save Battery Test Readings ............................................................ 3-8

Erase Test Readings ....................................................................... 3-8

Activate Low-Pass Filter for Resistance Measurement .................. 3-8

Set Measurement Thresholds ......................................................... 3-9

How the Thresholds Work ............................................................... 3-10

Measure DC Voltage ........................................................................... 3-11

Set Measurement Range ................................................................. 3-11

Save DC Voltage Readings ............................................................. 3-11

Measure AC Voltage ............................................................................ 3-12

Measurement Range ....................................................................... 3-12

Save AC Voltage Readings ............................................................. 3-12

Measure Ripple Voltage ...................................................................... 3-13

Set Measurement Range ................................................................. 3-13

Save Ripple Voltage Readings ........................................................ 3-13

Measure Discharge Voltage ................................................................ 3-13

Make Measurements ....................................................................... 3-13

Typical Display ................................................................................. 3-14

4 Use the Handle and Probes .................................................................. 4-1

Introduction .............................................................................................. 4-1

BTL21 Overview ...................................................................................... 4-1

Connect the Probe to the Product ........................................................... 4-2

Configure the Handle on the Product ...................................................... 4-2

Set the Handle Audio ........................................................................... 4-2

Set Temperature Unit .......................................................................... 4-2

Turn On/Off the Handle Power (BTL20/BTL21) ...................................... 4-3

Understand the Handle Display ............................................................... 4-3

Interchange Long and Short Probes ....................................................... 4-4

Replace the Probe Tips ........................................................................... 4-5

Use the Attachable Torch ........................................................................ 4-5

Zero Calibration ....................................................................................... 4-6

Measure Temperature ............................................................................. 4-6

5 View Memory .......................................................................................... 5-1

Introduction .............................................................................................. 5-1

View Data Saved in Meter Mode ............................................................. 5-1

Delete Data Saved in Meter Mode .......................................................... 5-1

View Profiles Saved in Sequence Mode ................................................. 5-2

Delete Profiles Saved in Sequence Mode ............................................... 5-2

6 Connection to PC or Mobile Device ..................................................... 6-1

Introduction .............................................................................................. 6-1

Connect the Product to PC ...................................................................... 6-1

Connect the product to Mobile device ..................................................... 6-1

7 Maintenance ........................................................................................... 7-1

Introduction .............................................................................................. 7-1

Contents (continued)

iii

Install or Replace the Battery Pack ......................................................... 7-3

Replace the Fuse ..................................................................................... 7-4

Clean the Product .................................................................................... 7-5

Charge the Battery ................................................................................... 7-5

Parts and Accessories ............................................................................. 7-6

BT521

Users Manual

List of Tables

Table Title Page

1-1. Standard Equipment .................................................................................... 1-3

1-2. Symbols ....................................................................................................... 1-5

1-3. Keys of the Product...................................................................................... 1-6

4-1. Elements of the Handle ............................................................................... 4-2

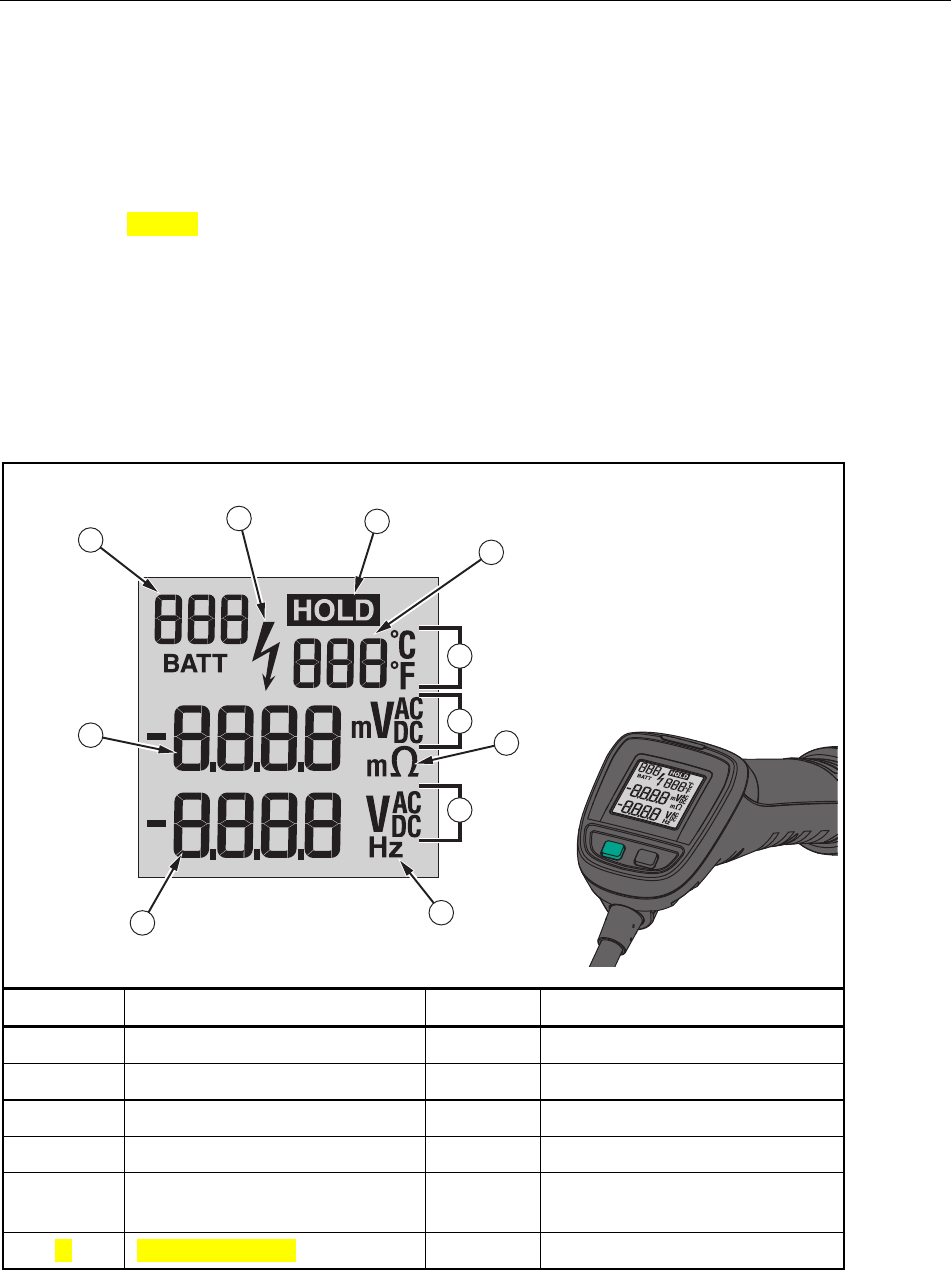

4-2. Typical Elements on the Handle Display ..................................................... 4-3

7-1. Parts and Accessories ................................................................................. 7-6

BT521

Users Manual

vii

List of Figures

Figure Title Page

1-1. I/O Terminals of the Product ........................................................................ 1-7

2-1. Tilt Stand, USB Port and Battery Charger Input. ........................................ 2-1

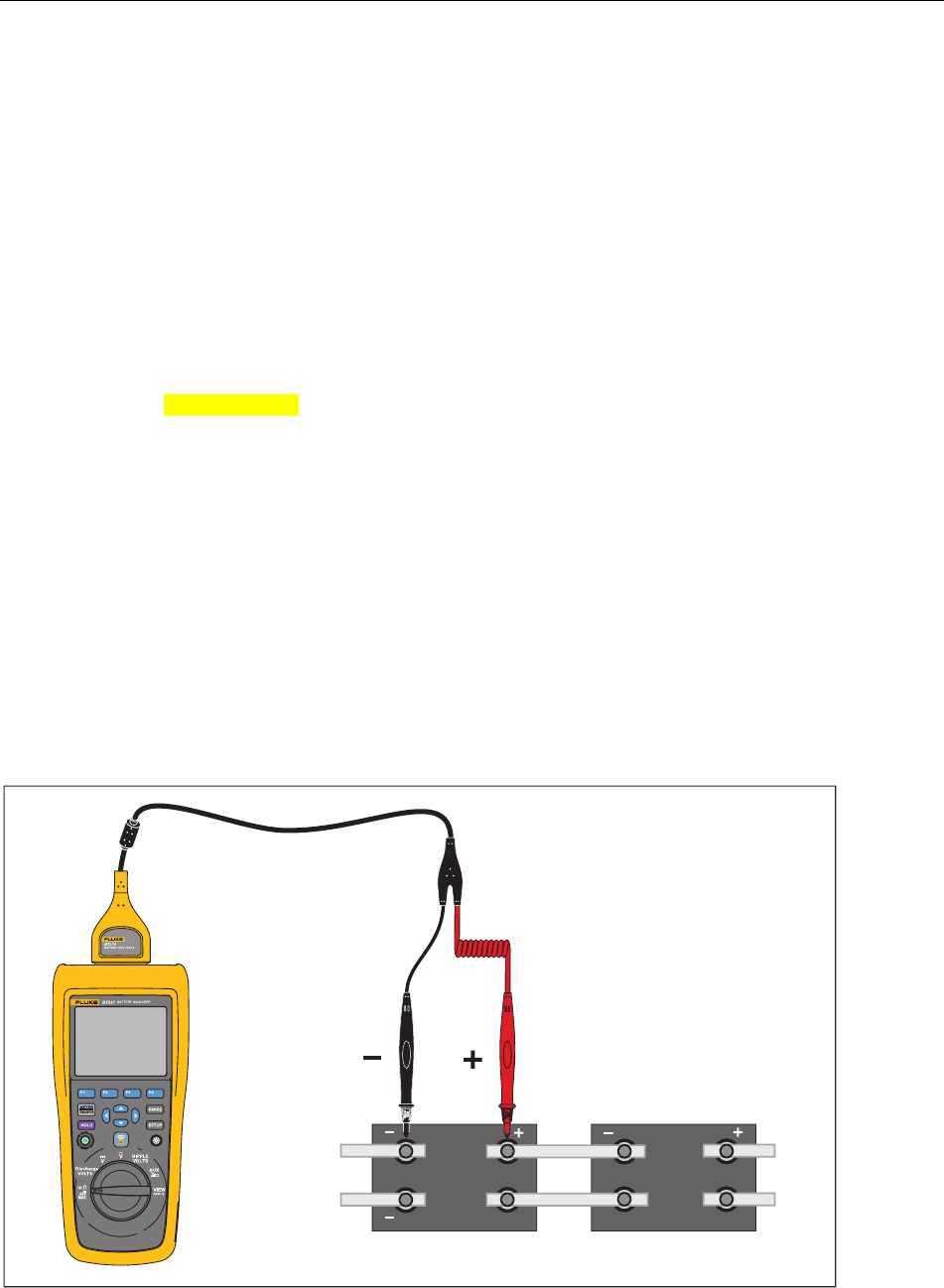

3-1. Test Battery Resistance and Voltage .......................................................... 3-5

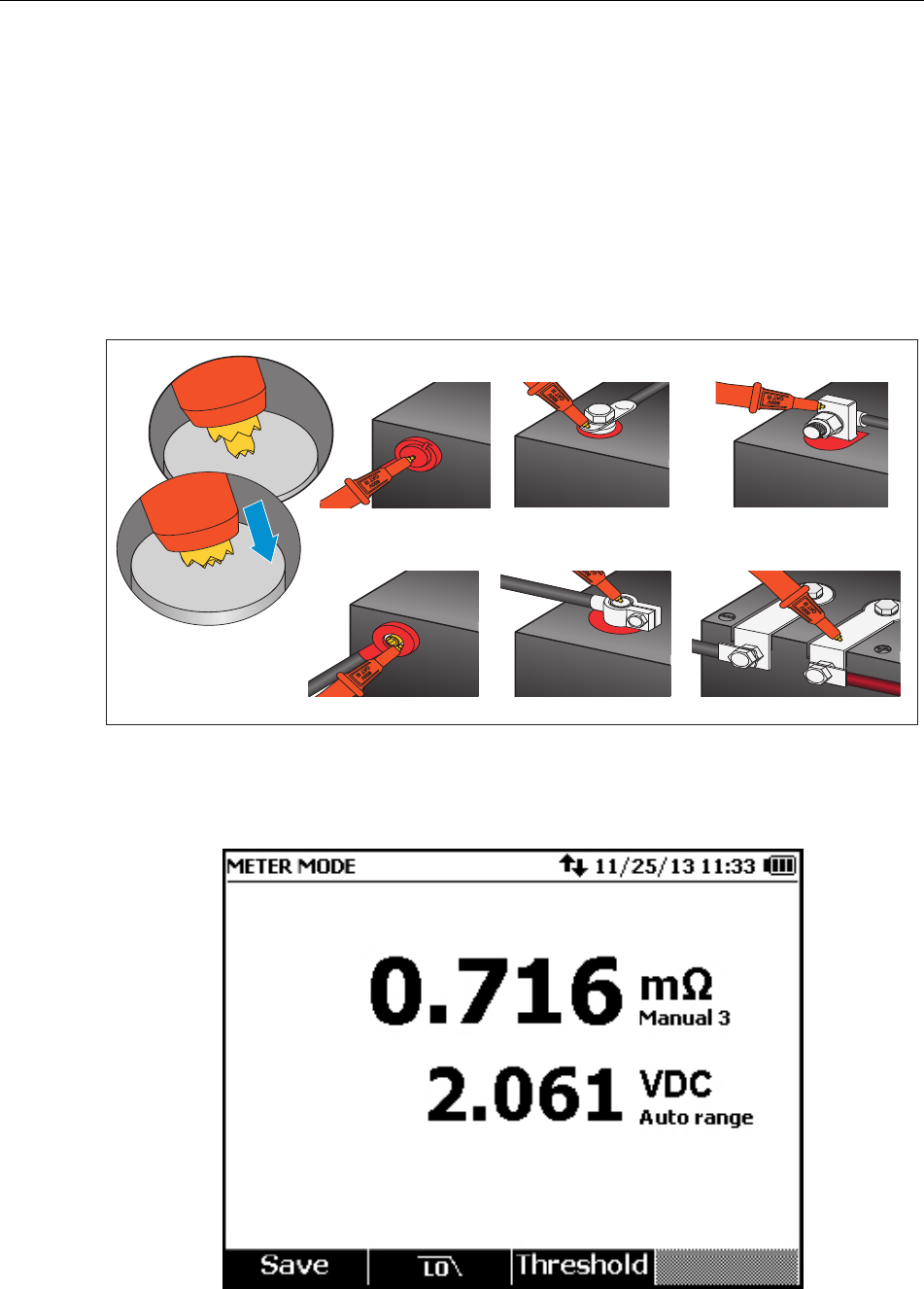

3-2. Connect Test Lead to Battery Pole ............................................................. 3-6

3-3. Measure DC Voltage ................................................................................... 3-11

3-4. Measure AC Voltage .................................................................................... 3-12

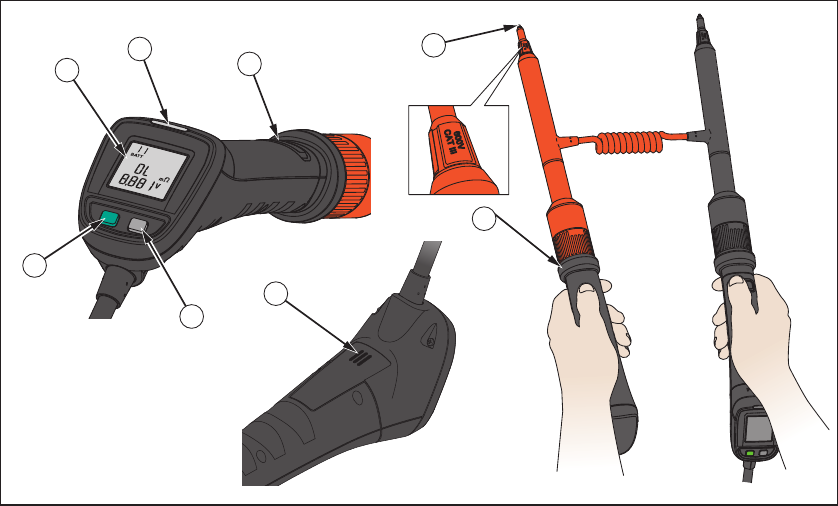

4-1. Interactive Handle ........................................................................................ 4-1

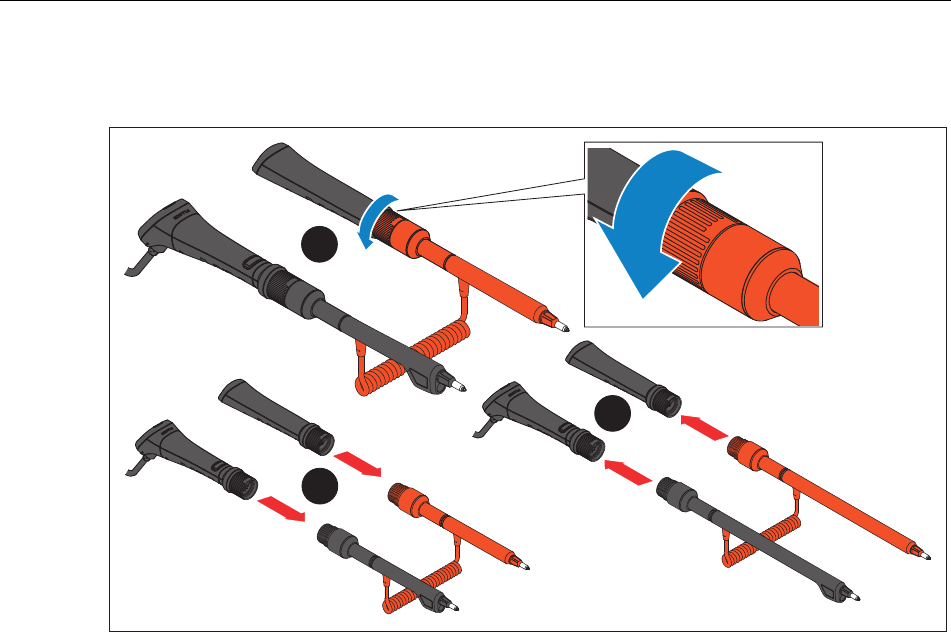

4-2. Interchange the Long and Short Probes ..................................................... 4-4

4-3. Replace the 4-Wire Pins .............................................................................. 4-5

4-4. Attachable Torch .......................................................................................... 4-5

4-5. Meaure the Temperature of a Battery Pole ................................................. 4-6

7-1. Install or Replace a Battery Pack ................................................................ 7-3

7-2. Replace the Fuse ......................................................................................... 7-4

BT521

Users Manual

viii

1-1

Chapter 1

Product Overview and Specifications

Introduction

This chapter supplies information about the Product, safety information, contact

information, and specifications.

Contact Fluke

To contact Fluke, call one of the following telephone numbers:

• Technical Support USA: 1-800-44-FLUKE (1-800-443-5853)

• Calibration/Repair USA: 1-888-99-FLUKE (1-888-993-5853)

• Canada: 1-800-36-FLUKE (1-800-363-5853)

• Europe: +31 402-675-200

• China: +86-400-810-3435

• Japan: +81-3-6714-3114

• Singapore: +65-6799-5566

• Anywhere in the world: +1-425-446-5500

Or, visit Fluke's website at www.fluke.com.

To register your product, visit http://register.fluke.com.

To view, print, or download the latest manual supplement, visit

http://us.fluke.com/usen/support/manuals.

Product Overview

The Fluke BT521 Battery Analyzer (the Product) is a multifunctional meter designed for

the test and measurement of a stationary battery system. The Product can measure the

battery internal resistance (hereinafter referred to as “resistance”) and voltages. These

measurements can be used to determine the overall condition of the system. It can also

measure electrical parameters for battery system maintenance, including dc voltage up

to 1000 V, ac voltage up to 600 V, and ripple voltage.

Features of the Product include:

• Threshold and Warning – Users can configure a maximum of 10 sets of thresholds

and receive a Pass/Fail/Warning indication after each measurement.

• Meter and Sequence Modes – The Meter mode is for a quick test or trouble-

shooting. In this mode you can save and read the readings in a time sequence. The

Sequence mode is for maintenance tasks with multiple power systems and battery

BT521

Users Manual

1-2

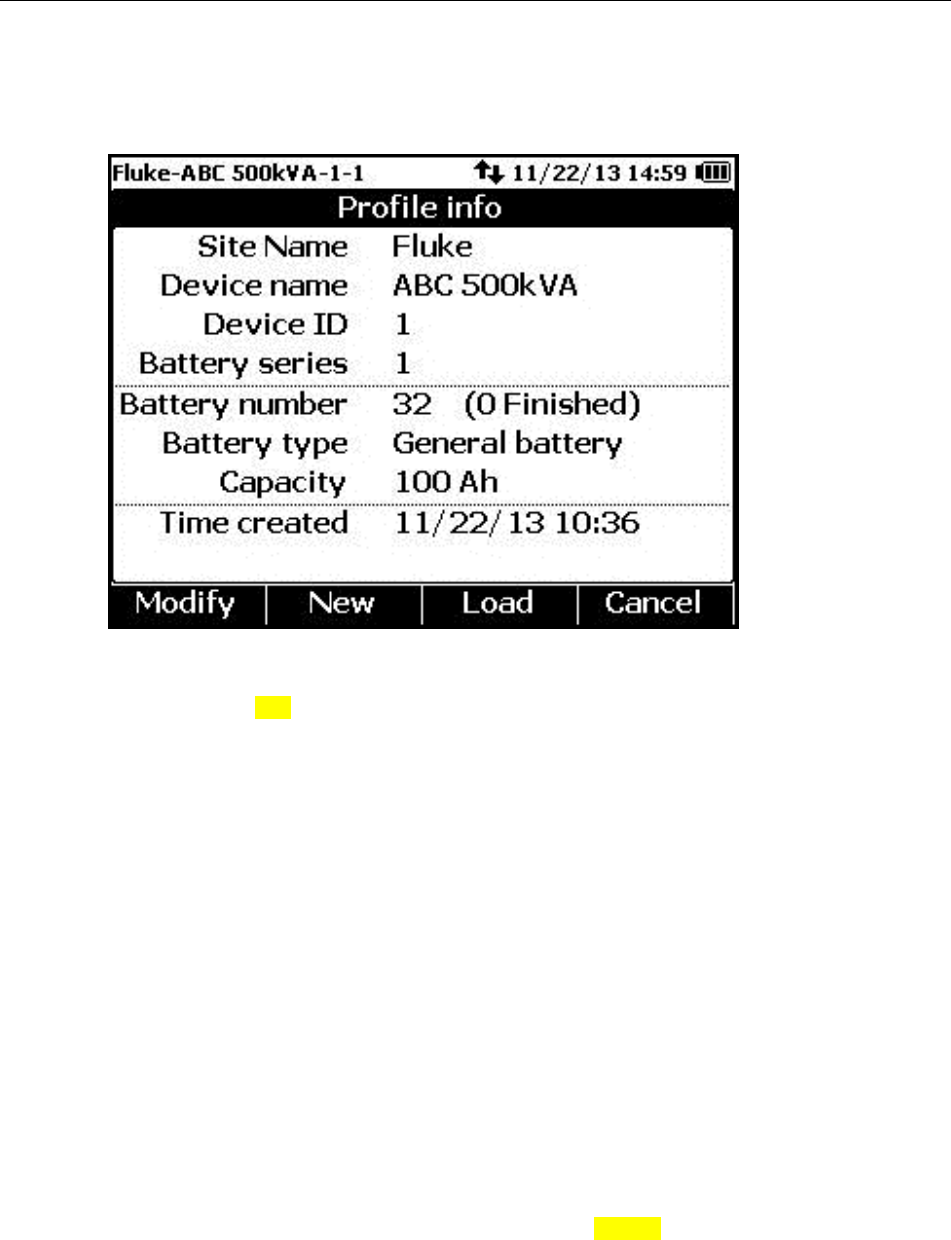

strings. Before a task starts, users can configure a profile for the task for data

management and report generation.

• Discharge Volts – The Discharge mode collects the voltage of each battery several

times at a certain interval during a discharge or load test. Users can calculate the

time a battery takes to drop to the cut-off voltage and use this time to determine the

capacity loss of this battery.

• AutoHold – When AutoHold is turned on, the Product freezes the reading when it

remains stable for 1 second. The frozen reading is released when a new

measurement starts.

• AutoSave – When the AutoSave mode is on, measured values are saved to the

internal memory of the Product automatically after AutoHold.

• CAT III 600 V Safety Rated – The product can measure a maximum of 600 V ac in a

Category III environment.

• Ripple Voltage Test – Measures the unwanted residual ac component of the

rectified voltage in dc charging and inverter circuits. Allows users to test ac

components in dc charging circuits and find one of the root causes of battery

deterioration.

• Fluke Battery Analyze Software – Easily import data from the Product to a PC. The

measurement data and battery profile information is stored and archived with the

Analyze Software and can be used for comparison and trend analysis. All

measurement data, battery profile and analysis information can be used to easily

generate reports.

Product Overview and Specifications

Standard Equipment 1

1-3

Standard Equipment

The items listed in Table 1-1 are included with the Product.

Table 1-1. Standard Equipment

Item No. Description Quantity Remarks

1 BT521 Meter 1

2 BP500 (battery) 1 7.4 V 3000mAh Lithium-ion

battery

3 BC500 (charger) 1 18 V dc power adapter

4 Power cord 1

5 BTL10 1

6 BTL Adapter 1

7 TL175 1

8 Current clamp i410 1

9 Magnetic plate 1

10 Belt strap 1

11 Shoulder strap 1

12 USB cable 1 Cable length: 1m

13 Safety Sheet 1

14 Large bag 1

15 Zero calibration 1

16 BTL21 1

17 Torch 2

18 Spare fuse 1

BT521

Users Manual

1-4

Safety Information

A Warning identifies conditions and procedures that are dangerous to the user. A

Caution identifies conditions and procedures that can cause damage to the Product or

the equipment under test.

Warning

To prevent possible electrical shock, fire, or personal injury:

• Carefully read all instructions.

• Read all safety information before you use the Product.

• Use the Product only as specified, or the protection supplied by the

Product can be compromised.

• Do not use the Product around explosive gas, vapor, or in damp or wet

environments.

• Do not use the Product if it is damaged.

• Do not use the Product if it operates incorrectly.

• Do not apply more than the rated voltage, between the terminals or

between each terminal and earth ground.

• Do not touch voltages > 30 V ac rms, 42 V ac peak, or 60 V dc.

• Do not exceed the Measurement Category (CAT) rating of the lowest

rated individual component of a Product, probe, or accessory.

• Do not use the HOLD function to measure unknown potentials. When

HOLD is turned on, the display does not change when a different

potential is measured.

• Do not use test leads if they are damaged. Examine the test leads for

damaged insulation or exposed metal. Check test lead continuity.

• Avoid simultaneous contact with battery and frame racks or hardware

that may be grounded.

• Comply with local and national safety codes. Use personal protective

equipment (approved rubber gloves, face protection, and flame-

resistant clothes) to prevent shock and arc blast injury where

hazardous live conductors are exposed.

• Examine the case before you use the Product. Look for cracks or

missing plastic. Carefully look at the insulation around the terminals.

• Use only correct measurement category (CAT), voltage, and amperage

rated probes, test leads, and adapters for the measurement.

• Measure a known voltage first to make sure that the Product operates

correctly.

• Limit operation to the specified measurement category, voltage, or

amperage ratings.

• Keep fingers behind the finger guards on the probes.

• Remove all probes, test leads, and accessories before the battery door

is opened.

• Use the correct terminals, function, and range for measurements.

Product Overview and Specifications

Safety Information 1

1-5

• Use only current probes, test leads, and adapters supplied with the

Product.

• Install the CAT III protective cap of test lead when you use the product

in CAT III environment. The CAT III protective cap decreases the

exposed probe metal to < 4 mm.

• Do not operate the Product with covers removed or the case open.

Hazardous voltage exposure is possible.

See Table 1-2 for a list of symbols used in this manual and on the Product.

Table 1-2. Symbols

Symbol Description Symbol Description

 Risk of danger. Important

information. See manual.  AC (Alternating Current)

 Hazardous voltage.  DC (Direct Current)

 Earth ground.  Battery

 Fuse CAT II

Measurement Category II is applicable to

test and measuring circuits connected

directly to utilization points (socket outlets

and similar points) of the low-voltage

MAINS installation.

CAT III

Measurement Category III is

applicable to test and measuring

circuits connected to the

distribution part of the building’s

low-voltage MAINS installation.

CAT IV

Measurement Category IV is applicable to

test and measuring circuits connected at the

source of the building’s low-voltage MAINS

installation.

 Inspected and licensed by TÜV

Product Services.  Conforms to relevant North American Safety

Standards.



Conforms to European Union

directives. Conforms to relevant Australian Standards.



This product complies with the WEEE Directive (2002/96/EC) marking requirements. The

affixed label indicates that you must not discard this electrical/electronic product in domestic

household waste. Product Category: With reference to the equipment types in the WEEE

Directive Annex I, this product is classed as category 9 "Monitoring and Control

Instrumentation” product. Do not dispose of this product as unsorted municipal waste. Go to

Fluke’s website for recycling information.

BT521

Users Manual

1-6

Keys and I/O Terminals of the Product

Table 1-3 identifies and describes the keys.

Table 1-3. Keys of the Product

1 2 3

89 4

hsz001.eps

Item Key Function

 12

34 Softkeys that work flexibly for various functions on the display.

 L Selects an item in a menu and scrolls through information.

  Switches between manual ranging and auto ranging. Cycles through all ranges in

manual ranging mode.

  Turns on or turns off backlight.

  Opens the Setup menu for configurations such as contrast, language, date/time,

and power off time.

  Enables connection between the Product and nearby mobile devices for data

transmission.

 M

Switches between Meter and Sequence measurement modes. For details, see

Chapter 3. Switches between Meter and Sequence memories. For details, see

Chapter 4.

  Turns on or turns off the Product.

  Freezes the current reading on the display and allows the display reading to be

saved. Also enables AutoHold.

Product Overview and Specifications

Keys and I/O Terminals of the Product 1

1-7

Figure 1-1 shows the terminals of the Product.

hpo002.eps

Figure 1-1. I/O Terminals of the Product

BT521

Users Manual

1-8

General Specifications

 Fuse Protection for Resistance ...................... 0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part

only

Power Supply

Battery power ...................................................... BP500 smart battery pack: double cell lithium-ion, 7.4 V, 3000 mAh

Battery life ........................................................... >8 hours in continuous full-load operation

Battery charging time .......................................... ≤4 hours

Power adapter output voltage ............................. Use only BC500 battery charger: 18 V, 840 mA

Line power .......................................................... 100 V ac to 240 V ac adapter with country specific plug

Frequency ........................................................... 50 Hz to 60 Hz

Temperature

Operating ............................................................ 0 °C to 40 °C

Storage ............................................................... -20 °C to 50 °C

Lithium-ion battery charging ............................... 0 °C to 40 °C

Relative Humidity (non-condensing, 10 °C)

Operating ............................................................ ≤80 % at 10 °C to 30 °C

≤75 % at 30 °C to 40 °C

Storage ............................................................... ≤95 %

Altitude

Operating ............................................................ 2,000 m

Storage ............................................................... 12,000 m

Temperature Coefficient ....................................... 0.1 x (specified accuracy) /°C (<18 °C or >28 °C)

Vibration ................................................................ Complies with MIL-PRF-28800F Class 2

Dimensions

Length ................................................................. 220 mm

Width ................................................................... 103 mm

Depth .................................................................. 58 mm

Weight ................................................................. 850 g

Screen Size ........................................................ 77.00 mm x 56.50 mm

Memory

Data/Setup flash memory ................................... 8 MB

IP Rating ................................................................ IEC 60529: IP 40

Safety ..................................................................... IEC 61010-1, IEC 61010-2-030, Pollution Degree 2

600 V CAT III, 1000 V dc max; Derated to CAT II with CAT II probe cap

installed

Electromagnetic Environment ............................. IEC 61326-1: Portable

Certifications ......................................................... , , , 

Product Overview and Specifications

Accuracy Specifications 1

1-9

Accuracy Specifications

Accuracy is specified for a period of one year after calibration, at 18 °C to 28 °C (64 °F

to 82 °F), with relative humidity to 80 %. Accuracy specifications are given as: ±([% of

reading] + [number of least significant digits]). Accuracy specification assumes ambient

temperature stable ±1 °C.

Function Range Resolution Accuracy

Battery Resistance[1]

3 mΩ 0.001 mΩ 1 % + 8

30 mΩ 0.01 mΩ 0.8 % + 6

300 mΩ 0.1 mΩ 0.8 % + 6

3000 mΩ 1 mΩ 0.8 % + 6

V dc

6 V 0.001 V

0.09 % +5

60 V 0.01 V

600 V 0.1 V

1000 V 1 V

V ac (45 Hz to 500 Hz with low-

pass filter) 600 V 0.1 V 2 % + 10

Frequency (Display with V ac)

Trigger level: ≥ 10 mV @V ac;

≥ 10 A @A ac

45 Hz to 500 Hz 0.1 Hz 0.5 % + 8

AC Voltage Ripple (20 kHz

max)

600 mV

6000 mV

0.1 mV

1 mV

3 % + 20

3 % + 10

Amps dc/Amps ac (With

accessory Fluke i410) 400 A 1 A 3.5 % + 2

Temperature 0 °C to 60 °C 1 °C ±2 °C

[1] The measurement is based on ac injection method. The injected source signal is <100 mA, 1 kHz.

BT521

Users Manual

1-10

2-1

Chapter 2

Basic Operation and Setup of the

Product

Introduction

This chapter describes the basic operation and setup of the Product.

Tilt Stand

The Product has a tilt stand that lets you see the screen at an angle when placed on a

flat surface. See Figure 2-1. This figure also shows the locations of the USB port and the

battery charger input. This port allows communication with bundled software.

USB Port

hsz007.eps

Figure 2-1. Tilt Stand, USB Port and Battery Charger Input

BT521

Users Manual

2-2

Adjust Display Contrast

To adjust display contrast:

1. Push  to open the Setup menu.

Contrast is already highlighted.

2. Push the – softkey to lighten contrast, or push the + softkey to darken contrast.

Note

If – is pushed too far, the display is blank.

3. Push the Back softkey to return to normal operation.

Set Language

The default display language is English. To select another language:

1. Push  to open the Setup menu.

2. Use L to move the menu selector to highlight Language/English.

3. Push the Select softkey to open the Language menu.

4. Use L and  to highlight the desired language, and then push the Confirm softkey.

5. Push the Confirm softkey to return to normal operation.

Set Date and Time

The internal clock of the Product is used on the display and for time-stamping recorded

measurements.

To change the date and time:

1. Push  to open the Setup menu.

2. Use L and  to highlight General and push the Select softkey.

Date/time is selected by default.

3. Push the Adjust softkey to open the Date/time – Adjust screen.

4. Use  and  to highlight the field to be edited. Use  and L to increase or decrease

value.

5. When the correct date and time is set, push the OK softkey.

6. Push the Back softkey to return to normal operation.

To change the date format:

1. Push  to open the Setup menu.

2. Use L and  to highlight General and push the Select softkey.

Date/time is selected by default.

3. Push the Format softkey to open the Date format menu.

4. Use L and  to highlight the correct date format.

5. Push the Confirm softkey.

6. Push the Back softkey to return to normal operation.

Basic Operation and Setup of the Product

Turn On/Off Beep 2

2-3

Turn On/Off Beep

To turn on or turn off beep:

1. Push  to open the Setup menu.

2. Use L to highlight Beep, and push the Select softkey.

3. Use  and L to highlight Off or On, and push the Confirm softkey.

AutoHold and AutoSave Modes

Note

AutoHold and AutoSave are only available for the Battery

Resistance & Voltage and the Discharge functions.

When AutoHold is turned on, the "heart beat" icon shows on the display. The Product

will hold the reading when it remains stable for 1 second. After a successful AutoHold,

the HOLD icon shows on the display. The auto-held reading will not be released until the

user disconnects the test leads from the test object.

In AutoSave mode, the AutoSave icon shows on the display. The auto-held reading will

be automatically saved to the internal memory.



Warning

To prevent possible electrical shock, fire, or personal injury, do

not use the HOLD function to measure unknown potentials.

When HOLD is turned on, the display does not change when a

different potential is measured.

To set AutoHold and AutoSave mode:

1. Push  to open the Setup menu.

2. Use L and  to highlight Auto mode.

3. Push the Select softkey to open the Auto mode menu.

4. Use L and  to highlight Disable, HOLD, or HOLD+SAVE.

5. Push the Confirm softkey.

6. Push the Back softkey to return to normal operation.

BT521

Users Manual

2-4

Set Auto Power Off Time

The Product has an auto power off function to save power. It enables or disables auto

power off. It also allows users to set the time between last operation and auto power off.

To set the time for auto-power off:

1. Push  to open the Setup menu.

2. Use L and  to highlight General and push the Select softkey.

3. Use L and  to highlight Power off, and push the Select softkey.

4. Use L and  to highlight 5 Minutes, 15 Minutes, 30 Minutes, or Never.

5. Push the Confirm softkey.

6. Push the Back softkey to return to the Setup screen.

View Device Information

The Product provides the following device information: model number, serial number,

version, analog board version, and calibration date.

To view the device information:

1. Push  to open the Setup menu.

2. Use L and  to highlight General, and push the Select softkey.

3. Use L and  to highlight Device info., and push View softkey.

The Device info… screen shows.

4. Push the Back softkey to return to the Setup screen.

Reset to Factory Mode

To reset the Product to factory mode:

1. Push  to open the Setup menu.

2. Use L and  to highlight General, and push the Select softkey.

3. Use L and  to highlight Factory mode, and push the Reset softkey.

4. Push the Confirm softkey to reset the Product to factory mode.

Note

If the Product is reset to factory mode, all current measurement data

will be lost.

View Memory Usage Information

To view memory usage information:

1. Push  to open the Setup menu.

2. Use L and  to highlight Memory info., and push the Select softkey.

The screen shows the memory usage information in Meter mode and Sequence

mode.

Use the Product

Introduction 3

3-1

Chapter 3

Use the Product

Introduction

This chapter provides information about how to use the Product. The Product provides

two modes for different measurement purposes: Meter mode and Sequence mode.

Meter mode lets you perform easy and fast measurements and save the measurement

readings and timestamp to the Product memory. In this mode, the Product measures

battery resistance and voltage, dc voltage, ac voltage, and ripple voltage.

Sequence mode is designed for professional battery maintenance personnel who work

between multiple test sites. In this mode, you can create a profile for each battery string

to be tested. The profile specifies information such as user-defined test site, device type,

serial number, battery quantity, and battery model. During the test, all test data, including

battery resistance, voltage, and ripple voltage is stored in the profile. After a battery

string test is completed, you can create a new profile for the next battery string or test

site. You can also recall or delete the test data in a history profile.

With the integrated profile management and the analysis software on the PC, you can

analyze the trend of maintenance data and create reports in an efficient way. For

example, you can create a comprehensive test and maintenance report for a test site or

analyze the resistance changes of one battery string over time.

Switch Between Meter Mode and Sequence Mode

Each time you power on the Product, it is in Meter mode by default. METER MODE

shows on the upper-left corner of the display.

To switch to Sequence mode:

1. Push M.

The Enter SEQUENCE mode? screen shows.

2. Push the New, Continue, or Load softkey and make other required selections to

enter the measurement screen of Sequence mode.

BT521

Users Manual

3-2



To switch back to Meter mode:

1. Push M.

2. When the Back to METER mode? screen shows, push the Continue softkey.

The measurement screen of Meter mode shows.

Note

All measurements taken in Sequence mode will be saved to the

memory.



Use the Product

Use a Profile in Sequence Mode 3

3-3

Use a Profile in Sequence Mode

In Sequence mode, the Product lets you manage, categorize, and analyze data by

profiles. The figure below shows a typical profile.


Manage Profiles

Each Product stores up to 100 profiles. A profile describes the battery maintenance

environment in a tree view.

For example:

• Site Name: Fluke

• Device name: ABC 500kVA

• Device ID: 1

• Battery series: 1

The PC software uses the same structure to categorize the profile.

It is recommended that you always use the same profile name for one battery string for

better analysis. The profiles are distinguished by their timestamps.

Create a Profile

The Product provides these options to create a profile:

• Create by default: Uses system default data to create each profile.

• String+1: Copies data from the previous profile and increases 1 to the value of

Battery string.

To create a profile in Sequence mode:

1. On the measurement screen of Sequence mode, push the Profile softkey.

The Profile info menu shows on the screen.

2. Push the New softkey. The Select the Way to Create menu shows on the screen.

BT521

Users Manual

3-4



3. Use  and L to select Create by default or String+1.

4. Push the Create softkey.

The New Profile menu shows on the screen.

5. When necessary, push the Edit softkey, and then use the arrow keys and softkeys to

edit the field values.

6. Push the Done softkey to exit the edit status.

7. Push the Start softkey to enter the measurement screen.

Note

• Once a profile is created, the battery number cannot be changed. Other

data values are editable.

• When the same battery string is tested periodically, it is recommended that

the same profile name is used. In this way, test data can be archived and

the data trend can be viewed easier.

• After test of one battery string is completed in a system, the String+1

function lets you easily switch to the next battery string without the need of

repeated data input.

Edit a Profile

In Sequence mode, profiles can be edited during creation or during measurement.

Edit a Profile During Creation

To edit a profile during creation:

1. On the New Profile menu, use  and L to highlight a data field to be edited.

2. Edit the data value.

a. For Device ID and Battery string, use the – and +.softkeys to change the value.

b. For other data fields, push the Edit softkey and use the arrow keys to change the

data value. Use the Select softkey for each selection and the Done softkey to

complete a data field.

3. Push the Start softkey to confirm the change and enter the measurement screen.

Modify a Profile During Measurement

To edit a profile during measurement:

1. Push the Profile softkey.

Use the Product

Make Measurements 3

3-5

The Profile info screen shows.

2. Push the Modify softkey.

The Edit profile screen shows.

3. Use  and L to highlight the data field to be edited.

4. Use the method in the “Edit a profile during creation” section to edit the profile.

Load a Profile

In Sequence mode, the Product can load a previously saved profile during measurement

or when it is switched to Sequence mode.

Load a Profile When Switched to Sequence Mode

To load a profile when switched to Sequence mode:

1. On the Enter SEQUEUNCE mode? screen, push the Load softkey.

The Load profile screen shows the list of history profiles in the Product memory.

2. Use  and L to highlight the number of the profile to be loaded.

3. Push the View softkey.

Configurations of the selected profile show on the screen.

4. Push the Continue softkey to confirm loading the selected profile.

Name of the loaded profile shows on the upper-left corner of the screen.

Make Measurements

Test Battery Resistance and Voltage

The Product can simultaneously test the resistance and voltage of a battery. This helps

you to understand the overall state of the battery health.

To test battery resistance and voltage, turn the rotary switch to mΩ. See Figure 3-1.

AB CD

hsz018.eps

Figure 3-1. Test Battery Resistance and Voltage

BT521

Users Manual

3-6

Battery Test Probes

To connect test probes to the battery pole:

1. Use the inner tip of the test probe to touch the target surface.

2. Push the test lead to set-back the inner tip, until both the inner tip and the outer tip

are fully connected to the target surface. This will ensure a proper 4-wire connection

to the battery terminal.

Note

Stable and correct readings are shown only when both the inner tip

and the outer tip of the test lead are fully connected to the target

surface. See Figure 3-2.

Small Hole Cylinder Screw Cube

Circle StripCylinder Clamp

hpo008.eps

Figure 3-2. Connect Test Lead to Battery Pole

View Test Readings on the Screen

This is a typical display of battery test in Meter mode.


Use the Product

Make Measurements 3

3-7

This is a typical display of battery test in Sequence mode:


Battery number: The number to the left of / indicates the number of the battery that is

being tested. The number to the right of / indicates the total number of batteries in the

profile.

Progress bar: The progress bar is generated according to the total number of batteries

in the profile. Each cell corresponds to one battery. An empty cell indicates the

corresponding battery is not tested yet. A full cell indicates the corresponding battery has

been tested and the readings have been saved. A cross mark in a full cell indicates that

the threshold function is enabled.

Cursors: When  and  are used to move the two cursors, the number of the currently

tested battery changes accordingly. When the cursors are positioned on a full cell, the

corresponding reading of that battery will be shown under the progress bar.

Average readings: After two or more sets of test readings are saved, the Product

shows the average readings, including average resistance and average voltage.

Tip: If the test readings of a battery are significantly different from the average readings,

it could indicate the battery health has been compromised.

Set Measurement Range

Caution

Examine for open fuse before mΩ measurement by connecting

the outer tips of both probes. If the mΩ reading changes from

OL to dashes and then backs to OL, the fuse is good. mΩ

reading remains as OL, the fuse is open and needs a

replacement.

Battery resistance only has manual ranges. The default range for battery resistance

measurement is 30 mΩ. You can push  to cycle through different ranges in this

sequence: 30 mΩ > 300 mΩ > 3000 mΩ > 3 mΩ.

BT521

Users Manual

3-8

Note

The battery voltage measurement is in auto ranging mode, and the

range cannot be changed.

Caution

In this function, the voltage between the positive and negative

poles of a battery must be < 60 V. A voltage >60 V exceeds the

rating of the fuse in the Product and causes an open circuit.

Save Battery Test Readings

In Meter mode, push the Save softkey to save the current resistance, voltage and time.

All saved data is stored in chronological order.

In Sequence mode, push the Save softkey to save the current resistance and voltage

readings. The current serial number increases by 1. The test progress bar moves to the

right by one cell.

Erase Test Readings

To erase the test readings for a certain battery in Sequence mode:

1. Use  and  to point the cursors to the cell that corresponds to the correct battery.

2. Push the Erase softkey.

The pointed cell becomes empty. Push the Save softkey to save new test readings

for this battery.

Activate Low-Pass Filter for Resistance Measurement

Excessive high level of ac ripple voltage can have a negative impact on the battery

resistance measurement. Use the built-in low pass filter to stabilize or reduce the impact

of ac ripple on resistance measurements.

To activate the low-pass filter for battery resistance measurement, push the LO softkey.

The display shows the LO icon.


Use the Product

Make Measurements 3

3-9

Set Measurement Thresholds

The Product can define upper and lower measurement thresholds or tolerance ranges.

These defined threshold values are then compared to the measured values to

automatically identify and prompt the user with a PASS, FAIL or WARN indicator of

battery out of tolerance conditions.

The threshold function is disabled by default. You can set up to 10 set of thresholds and

select one threshold as needed.

To set and select measurement thresholds:

1. On the measurement screen, push the Threshold softkey to open the Select

Threshold menu.

2. Use  and  to select one threshold set out of 10.


3. Use  and L to highlight the value to be edited among Voltage lower, Reference,

Warning, Fail, Lower, and Notes.

4. Edit the selected field.

a. Use the – and + softkeys to change the values for Warning and Fail.

b. For other fields, push the Edit softkey, use the arrow keys to edit the value, and

then push the Confirm softkey to save the value.

5. Once all threshold values are correct, push the Confirm softkey on the save the

threshold set.

The threshold set is applied and the T:X (X stands for value of No.) icon and the

corresponding PASS/WARN/FAIL indication shows on the screen.

BT521

Users Manual

3-10

To disable measurement thresholds:

1. On the measurement screen, push the Threshold softkey to open the Select

Threshold menu.

The value of No. is already highlighted.

2. Use  to set No. to ---.

3. Push the Confirm softkey.

The T-X icon no longer shows on the display.

How the Thresholds Work

When a threshold set is applied, the Product compares each resistance reading with the

resistance reference in the current threshold set.

• If the reading is greater than reference x (1+Fail threshold), the Product shows FAIL

on the screen, indicating that the tested battery is potentially compromised and

should be further investigated.

• If the reading is greater than Reference x (1 + Warning threshold) but less than

Reference x (1 + Fail threshold), the Product shows WARN on the screen, indicating

that the tested battery requires further attention and increase in test frequency.

• If the reading is less than Reference (1+ Warning threshold), the Product shows

PASS on the screen, indicating that the tested battery is within the defined tolerance

limits.

For example, you have applied a threshold set where Resistance Reference is set to

3.00 mΩ, Warning set to 20 %, and Fail set to 50 %. The Product shows FAIL for

resistance readings greater than 3.00 x (1 + 50 %) = 4.50 mΩ. It shows PASS for

resistance readings less than 3.00 x (1 + 20 %) = 3.60 mΩ. It shows WARN for

resistance readings less than 4.50 mΩ but greater than 3.60 mΩ.

At the same time, the Product compares each stable voltage reading with the lower

voltage from the applied threshold set. If the reading is less than the lower voltage

threshold, the product shows FAIL on the display. If the reading is greater than the

threshold, the product shows PASS on the display.

Note

If the resistance test and the voltage test have different results, the

Product shows the worse result. For example, the resistance

indicates PASS but the voltage indicates FAIL, the Product still

shows FAIL on the display.

Use the Product

Make Measurements 3

3-11

Measure DC Voltage

The Product can measure dc voltage. It also shows the polarity on the display.

To measure dc voltage, turn the rotary switch to . See Figure 3-3 for connections.

The linked image cannot be displayed. The file may have been moved, renamed, or deleted. Verify that the link points to the correct file and location .

hsz019.eps

Figure 3-3. Measure DC Voltage

Set Measurement Range

In this measurement mode, auto range is used by default. When the input signal reaches

110 % of the upper limit of the current range, the Product automatically increases a

range. When the input signal reaches 90 % of the lower limit of the current range, the

Product automatically decreases a range.

To manually set the range, push  to cycle through 6 V, 60 V, 600 V, and 1000 V.

Save DC Voltage Readings

In Meter mode, push the Save softkey to save the current dc voltage reading and the

timestamp. All saved data is stored in chorological order.

In Sequence mode, push the Save softkey to save the current dc voltage reading and

the timestamp. The current battery number automatically increases by 1. The cell that

corresponds to the tested battery becomes full, and the cursors move forward.

Note

Up to 20 dc voltage readings can be saved in one profile.

BT521

Users Manual

3-12

Measure AC Voltage

The Product supplies two independent readings to show the rms and frequency of ac

voltage.

To measure ac voltage, turn the rotary switch to . See Figure 3-4 for connections.

Vac UPS

hsz021.eps

Figure 3-4. Measure AC Voltage

Measurement Range

The ac voltage measurement has only one range: 600 V. The frequency measurement

uses auto ranging. This cannot be changed.

Save AC Voltage Readings

In Meter mode, push the Save softkey to save the current ac voltage reading and the

timestamp. All saved data is stored in chorological order.

In Sequence mode, push the Save softkey to save the current ac voltage reading and

the timestamp. The current battery number increases 1 automatically. The cell that

corresponds to the tested battery becomes full, and the cursors move forward.

Note

Up to 20 ac voltage readings can be saved in one profile.

Use the Product

Make Measurements 3

3-13

Measure Ripple Voltage

The Product can measure the ac component on a dc voltage, which is also known as ac

ripple. A high ac ripple may result in a battery overheat and negatively impact the battery

life. In addition, it may cause extra energy loss to the system.

To measure ripple voltage, turn the rotary switch to RIPPLE VOLTS.

Set Measurement Range

In ripple voltage function, both ac voltage and dc voltage use auto range by default.

To manually set the range for ac voltage, push  to switch between 600 mV and

6000 mV.

The measurement of dc voltage uses auto range. This cannot be changed.

Save Ripple Voltage Readings

In Meter mode, push the Save softkey to save the current ripple voltage reading and the

timestamp. All saved data is stored in chorological order.

In Sequence mode, push the Save softkey to save the current ripple voltage reading and

the timestamp. The current battery number automatically increases by 1. The cell that

corresponds to the tested battery becomes full, and the cursors move forward.

Note

Up to 20 ripple voltage readings can be saved in one profile.

Measure Discharge Voltage

In a typical battery load discharge test, you need to test the voltage of each battery in a

battery string multiple times. In a typical load discharge test, the voltage of each battery

is monitored from the start of the test when the batteries are at full capacity, until the

voltage of any one battery while under constant load reaches a pre-defined minimum

voltage level.

Make Measurements

To test discharge voltage:

1. Push M as necessary to enter Sequence mode.

2. Turn the rotary switch to Discharge VOLTS.

Note

Discharge voltage can only be measured in Sequence mode.

BT521

Users Manual

3-14

Typical Display

This is a typical display of discharge voltage measurement.


Battery number: The number to the left of / indicates the number of the battery that is

being tested. The number to the right of / indicates the total number of batteries in the

profile.

Progress bars: The upper progress bar has eight cells. Each cell corresponds to one

round of discharge voltage measurement. The Product can store up to eight sets of

voltage test data as well as the intervals.

After one round of discharge voltage measurement is completed, this progress bar

moves forward by one cell. The interval between this and the last round of measurement

shows in this cell.

The lower progress bar is generated according to the total number of batteries in the

profile. Each cell corresponds to one battery. An empty cell indicates the corresponding

battery is not tested yet. A full cell indicates the corresponding battery has been tested

and the readings have been saved.

Cursors: When you use  and  to move the two cursors, the number of currently

tested battery changes accordingly. If the cursors are moved to a cell that corresponds

to a battery with readings, the readings show under the progress bar.

Average readings: After you have saved two or more sets of test readings, the Product

show the average readings, including average impedance and average voltage.

4-1

Chapter 4

Use the Handle and Probes

Introduction

This Product is shipped with an interactive handle. This chapter provides the information

about how to use the interactive handle and the test probes.

BTL21 Overview

Warning

To prevent possible electrical shock, fire, or personal injury,

hold the handle behind the tactile barrier ().

Figure 4-1 shows the interactive handle. Table 4-2 describes the elements.

hsz022.eps

Figure 4-1. Interactive Handle

BT521

Users Manual

4-2

Table 4-1. Elements of the Handle

Item No. Name Function

 Display Shows information such as measurement

readings.

 LED

Indicates the status of a measurement. Green

means Pass; orange means Warning; red means

Fail.

 Save button Manually saves a measurement reading.

 Power key Turns on or turns off the handle.

 Backlight key Turns on or turns off the backlight for the handle.

 Speaker Plays audio reminders when enabled.

 Probe tip Connects the handle to the measured unit. The

probe tips can be replaced.

 Tactile barrier Hold the handle behind the tactile barrier to

prevent personal injury.

Connect the Probe to the Product

Before the handle and probes are used, connect the probe to the Product. See the

section “Keys and I/O Terminals of the Product”.

Configure the Handle on the Product

Set the Handle Audio

The interactive handle has a speaker that can play audio reminders.

To set the handle audio:

1. Push  to open the Setup screen.

2. Use L to highlight Handle, and push the Select softkey.

Audio is already highlighted.

3. Push the Select softkey.

4. Use  and L to highlight Disable, Threshold result, Battery number, or Both.

5. Push the Confirm softkey.

6. Push the Back softkey to return to the Setup screen.

Set Temperature Unit

To set the temperature unit for the handle:

1. Push  to open the Setup screen.

2. Use L to highlight Handle, and push the Select softkey.

3. Use L to highlight Temperature unit, and push the Select softkey.

4. Use  and L to highlight Celsius or Fahrenheit, and push the Confirm softkey.

5. Push the Back softkey to return to the Setup screen.

Turn On/Off the Handle Power (BTL20/BTL21) 4

4-3

Turn On/Off the Handle Power (BTL20/BTL21)

The interactive handle is powered by the Product.

The handle powers on when it is connected to the Product. Push the power key below

the display to turn on or turn off the handle power.

When the handle is connected to the Product, the handle automatically turns on.

To conserve product battery power, push the power key below the handle display.

Note

When the handle power is off, temperature measurement is disabled

(BTL21 only). Other measurement functions are not affected.

Understand the Handle Display

Table 4-1 describes the typical elements on the handle display.

Table 4-2. Typical Elements on the Handle Display

hsz027.eps

Item No. Description Item No. Description

 Battery ID(Sequence mode)  Unit of impedance

 Hazardous voltage  V ac or V dc

 AutoHold function is enabled.  Unit of frequency

 Temperature reading  Voltage or frequency reading

 Unit of temperature (Celsius or

Fahrenheit)  Voltage or impedance reading

 V ac, mV ac, or V dc

BT521

Users Manual

4-4

Interchange Long and Short Probes

Figure 4-2 shows how to interchange the long and short probes.

hsz024.eps

Figure 4-2. Interchange the Long and Short Probes

Note

To get accurate readings, the connectors between the handle and

probes should be fully fastened.

Replace the Probe Tips 4

4-5

Replace the Probe Tips

Figure 4-3 shows how to replace the probe tips.

 Warning

To prevent possible electrical shock, fire, or personal injury,

use correct tip covers (CAT II or CAT III) in different CAT

environments.

hsz026.eps

Figure 4-3. Replace the Probe Tips

Use the Attachable Torch

The handle is provided with an attachable torch accessary for illumination. The torch

accessory uses two changeable 3-volt watch batteries and has a battery life of 10 hours.

Figure 4-4 shows how to attach the torch to the probe and how to turn on or turn off the

torch.

hsz025.eps

Figure 4-4. Attachable Torch

BT521

Users Manual

4-6

Zero Calibration

Each time before a probe is replaced, a zero calibration is required.

To do zero calibration:

1. Locate the zero calibration board on a flat surface horizontally.

2. Insert the red and black probe tips to the calibration holes.

3. Turn the rotary switch to mΩ and enter Meter mode. Then push F4 to enter zero

calibration mode.

The product starts zero calibration for all function ranges. After the zero calibration is

completed, the Product beeps to indicate a success and automatically exits zero

calibration mode.

Note

During zero calibration, make sure the inner and outer pins of the

probe tips are fully connected to the calibration board.

Measure Temperature

The black probes (long and short) each has an IR temperature sensor at the tip. The IR

temperature sensors can measure the temperature of battery poles (negative pole).

To measure the temperature of a battery pole:

1. Aim the IR sensor on the battery pole.

2. Adjust the emission angle (approximately 10 degrees) to let the flare cover the

battery pole. See Figure 4-5.

The temperature reading shows on the LCD of the handle.

3. Push the Save key on the handle.

The temperature reading is saved the Product memory.

Figure 4-54-5 shows the emission angle for measurement of a battery pole.

BTL21

Test Lead

hsz023.eps

Figure 4-5. Measure the Temperature of a Battery Pole

Note

To set objective surface emissivity in accordance with battery post

material, push Setup > Handle > Emissivity.

5-1

Chapter 5

View Memory

Introduction

This chapter provides information about how to view measurement data that is manually

or automatically saved to the Product memory.

The Product has an internal memory that stores measurement data that can be viewed.

Measurement data in Meter mode and Sequence mode shows separately.

View Data Saved in Meter Mode

To view measurement data that is saved in Meter mode:

1. Turn the rotary switch to VIEW memory.

2. Push M until MEMORY – METER MODE shows on the upper left corner of the

display.

3. View the memory items, and push the Next softkey to view next page as required.

4. Use 1 to cycle through these four data sets: mΩ.V, VDC, VAC, Ripple, and AUX.

Delete Data Saved in Meter Mode

To delete data saved in meter mode:

1. Turn the rotary switch to VIEW memory.

2. Push M until MEMORY – METER MODE shows on the upper left corner of the

display.

3. When the data to be deleted shows on the display, push the More softkey.

a. To delete data entries one by one, use and L to highlight a data entry, and

then push the Delete softkey.

When the display shows Confirm to delete the reading?, push the

Delete softkey.

b. To delete all data in the measurement set, push the Delete all softkey.

When the display shows Confirm to delete all readings?, push the Delete

softkey.

BT521

Users Manual

5-2

View Profiles Saved in Sequence Mode

To view measurement data that is saved in Sequence mode:

1. Turn the rotary switch to VIEW memory.

2. Push M until MEMORY – SEQUENCE MODE shows on the upper left corner of the

display.

The Load profile menu shows on the display.

3. Use  and  to highlight a profile, and push the View softkey.

4. View the memory items, and push the Next softkey to view next page as required.

5. Use 1 to cycle through these four data sets: mΩ.V, Dis.V, VDC, VAC, Ripple,

and Aux.

Delete Profiles Saved in Sequence Mode

To delete data saved in Sequence mode:

1. Turn the rotary switch to VIEW memory.

2. Push M until MEMORY – SEQUENCE MODE shows on the upper left corner of the

display.

3. When the View profile menu shows on the display, use  and L to highlight a

profile, and push the More softkey.

a. To delete only the highlighted profile, push the Delete softkey.

When the display shows Confirm to delete current profile?, push the Delete

softkey.

b. To delete all profiles, push the Delete all softkey.

When the display shows Confirm to delete all profiles?, push the Delete

softkey.

6-1

Chapter 6

Connection to PC or Mobile Device

Introduction

This chapter contains information about how to connect the Product to a PC or mobile

device.

Connect the Product to PC

The Product has a USB port that lets you connect the Product to a PC through a USB

cable. The USB port is located at the lower right side of the Product, as shown in

Figure 2-1.

When connected to a PC, the PC Application can:

• View data from Product memory

• Export data from Product memory

• Import data to Product memory

• Delete data from the Product memory

Note

Please refer to PC Application help file for how to use the application.

Connect the product to Mobile device

You can connect the product with mobile device (iPhone, iPad) through Bluetooth.

When connected to a mobile device, the Mobile Apps can:

• View profile and associated data

• Send emails with profiles and associated data as .csv files

Note

To check FCC manual about the Support mobile device with BLE

(Bluetooth Low Energy)

BT521

Users Manual

6-2

7-1

Chapter 7

Maintenance

Introduction

This chapter covers basic maintenance procedures.

Warning

For safe operation and maintenance of the Product:

• Use only specified replacement parts.

• Use only specified replacement fuses.

• Have an approved technician repair the Product.

• The battery door must be closed and locked before you

operate the Product.

• Batteries contain hazardous chemicals that can cause burns

or explode. If exposure to chemicals occurs, clean with

water and get medical aid.

• Remove the input signals before you clean the Product.

• Do not disassemble or crush battery cells and battery packs.

• Do not put battery cells and battery packs near heat or fire.

Do not put in sunlight.

• A low battery indication on display may prevent the Product

from taking a measurement.

• Keep the battery pack out of the reach of children and

animals.

• Do not subject battery packs to severe impacts such as

mechanical shock.

• Do not use any charger other than that specifically provided

for use with the Product.

• Do not use any battery which is not designed or

recommended by Fluke for use with the Product.

• Remove all probes, test leads, and accessories before the

battery door is opened.

• Repair the Product before use if the battery leaks.

BT521

Users Manual

7-2

• Remove the batteries if the Product is not used for an

extended period of time, or if stored in temperatures that

exceed the specification of the battery manufacturer. If the

batteries are not removed, battery leakage can damage the

Product.

• Connect the battery charger to the mains power outlet

before the Product.

• Use only Fluke approved power adapters to charge the

battery.

• Keep cells and battery packs clean and dry. Clean dirty

connectors with a dry, clean cloth.

• Do not keep cells or batteries in a container where the

terminals can be shorted.

• Ensure fuse continuity. If the protective fuse opens, the mΩ

function will display 'OL' with all probe tip conductors short

circuited.

• Replace a blown fuse with exact replacement only for

continued protection against arc flash.

• After extended periods of storage, it may be necessary to

charge and discharge the battery packs several times to

obtain maximum performance.

Maintenance

Install or Replace the Battery Pack 7

7-3

Install or Replace the Battery Pack

Warning

Never operate the Product with the Battery Cover removed.

Hazardous voltage exposure may occur.

To install or replace a Battery Pack:

1. Make sure the Product is off.

2. Remove all probes and/or test leads.

3. Unlock the battery cover at the rear of the Product. Turn the screw a quarter turn

counter clockwise.

4. Install the battery pack.

5. Put the battery cover back on the unit.

6. Tighten the screw.

Figure 7-1 shows how to install or replace a battery pack.

hpo005.eps

Figure 7-1. Install or Replace a Battery Pack

BT521

Users Manual

7-4

Replace the Fuse

Warning

To prevent possible electrical shock, fire, or personal injury:

• Use only specified replacement fuses.

• Replace a blown fuse with exact replacement only for

continued protection against arc flash.

To replace the fuse:

1. Make sure the Product is off and any test leads are disconnected.

2. Install the new fuse.

3. Use a screwdriver to loosen the captive screw on the fuse cover at the upper end of

the Product.

4. Install the new fuse.

5. Reinstall the fuse cover.

6. Tighten the fuse cover screw.

See Figure 7-2.

hpo006.eps

Figure 7-2. Replace the Fuse

Maintenance

Clean the Product 7

7-5

Clean the Product

Warning

For safe operation and maintenance of the Product, disconnect

the Product and its accessories from all voltage sources during

cleaning.

Clean the Product with a damp cloth and a mild soap. Do not use abrasives, solvents, or

alcohol. These may damage the Product markings and labels.

Charge the Battery

When the Product is powered by the battery, the battery charge symbol in the screen

header informs you about the charge condition. This symbol ranges from fully charged to

empty.

The % increments are:

• Empty: 5 % - 20 %

• 1 cell: 20 % - 50 %

• 2 cells: 50 % - 70 %

• 3 cells: 70 % - 100 %

To keep the battery in optimal condition, it must discharge fully and then charge it. A full

charge takes approximately 3 hours with the Product turned off. Repeat this at least

twice a year.

Figure 7-3 shows how to charge the battery.

BT521

Users Manual

7-6

Parts and Accessories

Table 7-1 lists the user-replaceable parts and accessories. To order replacement parts

or additional accessories, contact your nearest Fluke Service Center. See the “Contact

Fluke” section.

Table 7-1. Parts and Accessories

Item Quantity Fluke Part Number

Fuse 1 943121

BP500, LITHUM-ION, battery pack 1 4398817

BC500, 18V DC battery charger 1 4459488

BTL10 1 4500803

BTL Adapter 1 4490325

Current Clamp i410 1 617727

USB cable 1 4499448

Zero calibration board 1 4497419

Torch 2 4463544

Probe tips, Kelvin, 3.9mmx36.5mm 2 4408615

BTL21 - Interactive handle 1 4486216

BTL21 - Dummy handle 1 4486421

BTL21 - long probe 1 4486442

BTL21 - short probe 1 4486439

BTLXX CAP,CAT III,LONG,BLACK 1 4397081

BTLXX CAP,CAT III,LONG,RED 1 4397096

BTLXX CAP,CAT II,SHORT,BLACK 1 4397107

BTLXX CAP,CAT II,SHORT,RED 1 4397118

Fuse DOOR 1 4345750

BATTERY DOOR 1 4345745
