Fluke 1523 Users Manual

1524 to the manual b32d8319-818d-40ac-9561-8502477a17d6

2015-02-02

: Fluke Fluke-1523-Users-Manual-427920 fluke-1523-users-manual-427920 fluke pdf

Open the PDF directly: View PDF PDF.
Page Count: 36

1523, 1524
Thermometer Readout
User’s Guide
Rev. 891001_EN
Fluke Corporation, Hart Scientific Division
799 E. Utah Valley Drive • American Fork, UT 84003-9775 • USA
Phone: +1.801.763.1600 • Telefax: +1.801.763.1010
E-mail: support@hartscientic.com
www.hartscientific.com
Specications subject to change without notice. • Copyright © 2008 • Printed in USA
Limited Warranty & Limitation of Liability
Each product from Fluke Corporation, Hart Scientic Division (“Hart”) is warranted to be free from defects in material
and workmanship under normal use and service. The warranty period is one year(s) for the Reference Thermometer. The
warranty period begins on the date of the shipment. Parts, product repairs, and services are warranted for 90 days. The
warranty extends only to the original buyer or end-user customer of a Hart authorized reseller, and does not apply to fuses,
disposable batteries or to any other product, which in Hart’s opinion, has been misused, altered, neglected, or damaged
by accident or abnormal conditions of operation or handling. Hart warrants that software will operate substantially in ac-
cordance with its functional specications for 90 days and that it has been properly recorded on non-defective media. Hart
does not warrant that software will be error free or operate without interruption. Hart does not warrant calibrations on the
Reference Thermometer.
Hart authorized resellers shall extend this warranty on new and unused products to end-user customers only but have no
authority to extend a greater or different warranty on behalf of Hart. Warranty support is available if product is purchased
through a Hart authorized sales outlet or Buyer has paid the applicable international price. Hart reserves the right to
invoice Buyer for importation costs of repairs/replacement parts when product purchased in one country is submitted for
repair in another country.
Hart’s warranty obligation is limited, at Hart’s option, to refund of the purchase price, free of charge repair, or replace-
ment of a defective product which is returned to a Hart authorized service center within the warranty period.
To obtain warranty service, contact your nearest Hart authorized service center or send the product, with a description
of the difculty, postage, and insurance prepaid (FOB Destination), to the nearest Hart authorized service center. Hart
assumes no risk for damage in transit. Following warranty repair, the product will be returned to Buyer, transportation
prepaid (FOB Destination). If Hart determines that the failure was caused by misuse, alteration, accident or abnormal con-
dition or operation or handling, Hart will provide an estimate or repair costs and obtain authorization before commencing
the work. Following repair, the product will be returned to the Buyer transportation prepaid and the Buyer will be billed
for the repair and return transportation charges (FOB Shipping Point).
THIS WARRANTY IS BUYER’S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER WAR-
RANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. HART SHALL NOT BE LIABLE FOR ANY
SPECIAL, INDIRECT, INCIDENTAL. OR CONSEQUENTIAL DAMAGES OR LOSSES, INCLUDING LOSS OF
DATA, WHETHER ARISING FROM BREACH OF WARRANTY OR BASED ON CONTRACT, TORT, RELIANCE
OR ANY OTHER THEORY.
Since some countries or states do not allow limitation of the term of an implied warranty, or exclusion or limitation of
incidental or consequential damages, the limitations and exclusions of this warranty may not apply to every buyer. If any
provision of this Warranty is held invalid or unenforceable by a court of competent jurisdiction, such holding will not af-
fect the validity or enforceability of any other provision.
Fluke Corporation, Hart Scientic Division
799 E. Utah Valley Drive • American Fork, UT 84003-9775 • USA
Phone: +1.801.763.1600 • Telefax: +1.801.763.1010
E-mail: support@hartscientic.com
www.hartscientic.com
Specications subject to change without notice. •Copyright © 2008 • Printed in USA
i
Table of Contents
1 Before You Start .......................................................................1
1.1 Introduction ............................................................................................... 1
1.2 Standard Equipment ................................................................................. 1
1.3 Safety Information ..................................................................................... 2
1.3.1 Warning .....................................................................................................2
1.3.2 Cautions ..........................................................................................................3
1.4 CE Comments ........................................................................................... 5
1.4.1 EMC Directive .................................................................................................5
1.4.2 Immunity Testing .............................................................................................5
1.5 Using Clamp-On Ferrites .......................................................................... 5
1.6 Emissions Testing ..................................................................................... 6
1.7 Low Voltage Directive (Safety) .................................................................. 6
1.8 Authorized Service Centers ...................................................................... 7
2 Quick Start ................................................................................9
2.1 Setup ......................................................................................................... 9
2.2 Specifications ......................................................................................... 24
1523, 1524 Thermometer Readout
ii
Figures
Figure 1 Clamp-On Ferrite ................................................................................. 6
Figure 2 Input/Output Connections - 1523 ........................................................ 9
Figure 3 Input/Output Connections - 1524 ...................................................... 10
Figure 4 Keys ................................................................................................... 11
Figure 5 1523 Menu ......................................................................................... 14

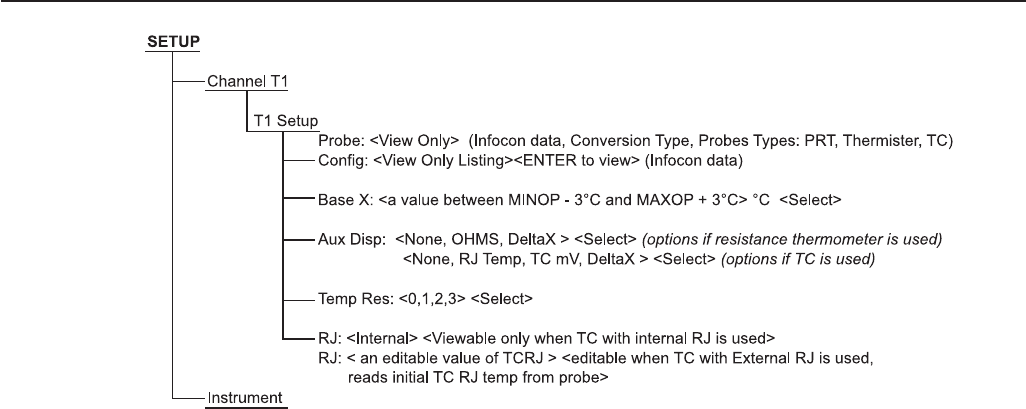

Figure 6 1523 Menu (cont) ............................................................................. 15
Figure 7 1523 Menu (cont) ............................................................................. 16

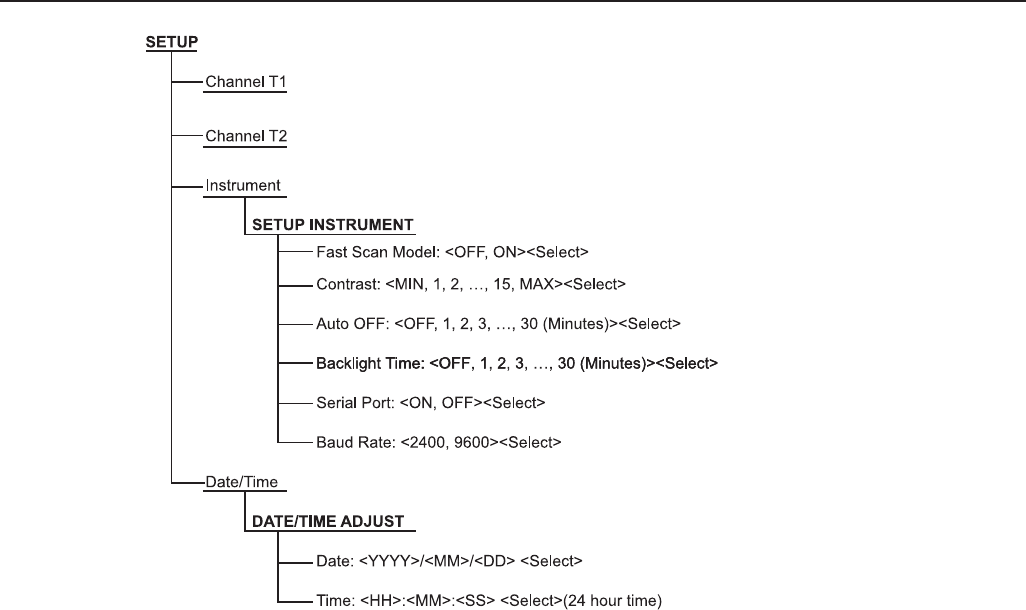

Figure 8 1524 Menu ........................................................................................ 19

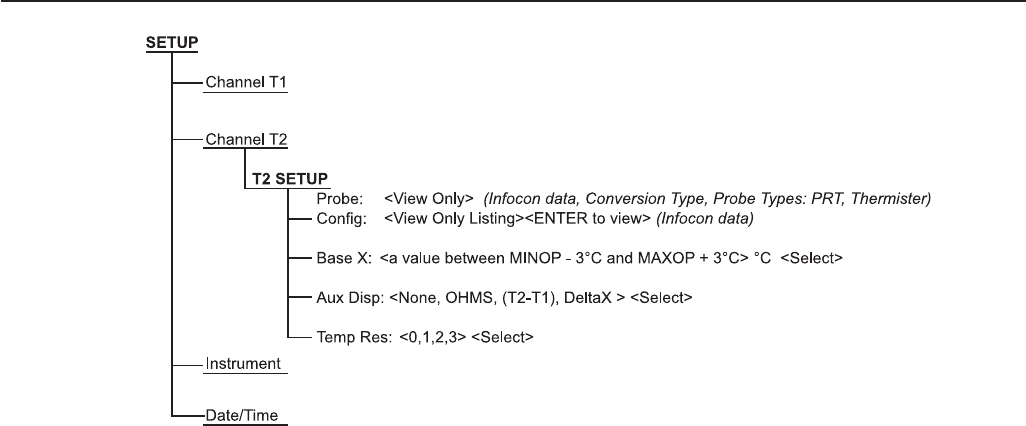

Figure 9 1524 Menu (cont) ............................................................................. 20
Figure 10 1524 Menu (cont) ........................................................................... 21
Figure 11 1524 Menu (cont) ........................................................................... 22
Figure 12 1524 Menu (cont) ........................................................................... 23
Figure 13 1524 Menu (cont) ........................................................................... 24
iii
Tables
Table 1 International Symbols ............................................................................ 4
Table 2 1523 Input/Output Connections ............................................................ 9
Table 3 1524 Input/Output Connections .......................................................... 10
Table 4 1523 Key Functions ............................................................................. 12
Table 5 1524 Key Functions ............................................................................. 17
Table 6 General Specifications ........................................................................ 24
Table 7 Millivolt Measurement .......................................................................... 25
Table 8 Ohms Measurement, RTDs ................................................................. 25
Table 9 Ohms Measurement, Thermistor ......................................................... 26
Table 10 Temperature, Thermocouples ........................................................... 26
Table 11 Temperature, RTD Ranges, and Accuracies (ITS-90) ....................... 28
Table 12 Temperature, Thermistor ................................................................... 28
Before You Start
Standard Equipment
1
Before You Start1
Introduction1.1
The Reference Thermometer Readouts (1523, 1524) are designed to be reliable, stable, temperature measur-
ing instruments that can be used in the eld or laboratory. They offer accuracy, portability, and speed for near-
ly every eld calibration application. The instruments have been designed with the eld user in mind and are
easy to use while maintaining stability, uniformity, and accuracy comparable to some laboratory instruments.
Your Fluke 1523 and 1524 thermometer readout is a handheld, battery operated instrument that measures tem-
perature using Platinum resistance Thermometers (PRT), Thermistors, and Thermocouples (TC).
Standard Equipment1.2
Unpack the instrument carefully and inspect it for any damage that may have occurred during shipment. If
there is shipping damage, notify the carrier immediately.
Verify that the following components are present:
1523/1524 Reference Thermometer Readout with 3 AA batteries
AC Adapter, with power cord
RS-232 Cable
User’s Guide
Documentation CD
Report of Calibration and calibration label
Clamp-on ferrite(s)
If all items are not present, contact an Authorized Service Center. (See Section 1.8, Authorized Service Cen-
ters on page 7.)
1523, 1524 Thermometer Readout
Safety Information
2
Safety Information1.3
The Reference Thermometer is designed in accordance with EN 61010-1 {2nd Edition}, and CAN/CSA 22.2
No 61010.1-04. Use this instrument only as specied in this manual, otherwise the protection provided by the
instrument may be impaired.
A Warning identies conditions and actions that pose hazard(s) to the user; a Caution identies conditions
and actions that may damage the instrument being used.
International symbols used on the reference thermometer and in this manual are explained in Table 1 on page
4.
1.3.1 Warning
To avoid possible electric shock or personal injury:
Do not use the reference thermometer in environments other than those listed in the user’s guide.
Do not use the reference thermometer for any application other than that which is specied. The
instrument was designed for temperature measurement and calibration. Any other use of the instrument
may cause unknown hazards to the user.
If the reference thermometer is used in a manner not in accordance with the equipment design, the
operation and the protection provided by the instrument may be impaired. In addition, safety hazards
may arise.
Do not apply more than the rated voltage, as marked on the reference thermometer, between the inputs,
or between any input and earth ground (30 V, 24 mA max all terminals).
Follow all equipment safety procedures.
Calibration equipment should only be used by trained personnel.
The reference thermometer is intended for indoor use only.
Before you use the instrument, inspect the case. Look for cracks or missing plastic. Pay particular
attention to the insulation surrounding the connectors. Do not use the reference thermometer if it
Before You Start
Safety Information
3
appears damaged or operates abnormally. Protection may be impaired. When in doubt, have the
instrument serviced.
Always use an isolated RTD or PRT (metal sheath isolated from lead wires).
Make sure the battery door is closed and latched before you operate the reference thermometer.
Do not operate the reference thermometer around explosive gas, vapor, or dust.
For battery operation use only 3 AA batteries, properly installed in the reference thermometer case.
1524 model, thermocouples can only be used on channel 1.
Cautions1.3.2
To avoid possible damage to the reference thermometer or to equipment under test:
Do not apply more than the rated voltage, as marked on the reference thermometer, between the inputs,
or between any input and earth ground (30 V 24 mA max all terminals).
Unless recalibrating the instrument DO NOT change the values of the calibration constants from
the factory set values. The correct setting of these parameters is important to the safety and proper
operation of the instrument.
The instrument and any thermometer probes used with it are sensitive instruments that can be easily
damaged. Always handle these devices with care. DO NOT allow them to be dropped, struck, stressed,
or overheated.
DO NOT operate this instrument in an excessively wet, oily, dusty, or dirty environment.
Use the proper probes, function and range for your measurement.
Ensure probe coefcients are downloaded.
1523, 1524 Thermometer Readout
Safety Information
4

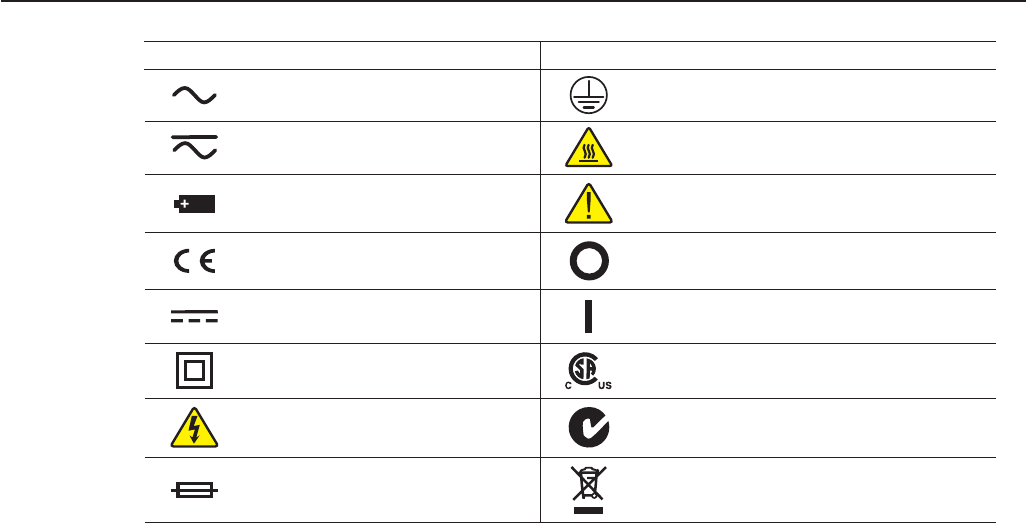

Table 1 International Symbols
Symbol Description Symbol Description
AC (Alternating Current) PE Ground
AC-DC Hot Surface (Burn Hazard)
Battery Read the User’s Guide (Important Information)
Complies with European Union directives Off
DC On
Double Insulated Canadian Standards Association
Electric Shock C-TICK Australian EMC mark
Fuse The European Waste Electrical and Electronic
Equipment (WEEE) Directive (2002/96/EC) mark.
Before You Start
Using Clamp-On Ferrites
5
CE Comments1.4
EMC Directive1.4.1
Hart Scientic’s equipment has been tested to meet the European Electromagnetic Compatibility Directive
(EMC Directive, 2004/108/EC ). The Declaration of Conformity for your instrument lists the specic stan-
dards to which the unit was tested.
The instrument was designed specically as a test and measuring device. Compliance to the EMC direc-
tive is through EN 61326-1:2006 Electrical equipment for measurement, control and laboratory use – EMC
requirements
As noted in the EN 61326-1, the instrument can have varying congurations. The instrument was tested in a
typical conguration with shielded RS-232 cables.
Immunity Testing1.4.2
The instrument was tested to the requirements for laboratory locations.
Using Clamp-On Ferrites1.5
Clamp-on ferrites are provided for use in improving the instrument’s electromagnetic (EM) immunity in envi-
ronments of excessive EM interference, like areas of heavy industrial equipment. We recommend placing the
ferrites on the cables of probes attached to the instrument.
To attach a ferrite to a probe cable, make a loop in the cable near the connector and clamp the ferrite around
half of the loop as shown in the diagram. The ferrite can be easily detached and moved to a new probe when
needed. (See Figure 1 on next page.)
1523, 1524 Thermometer Readout
Emissions Testing
6

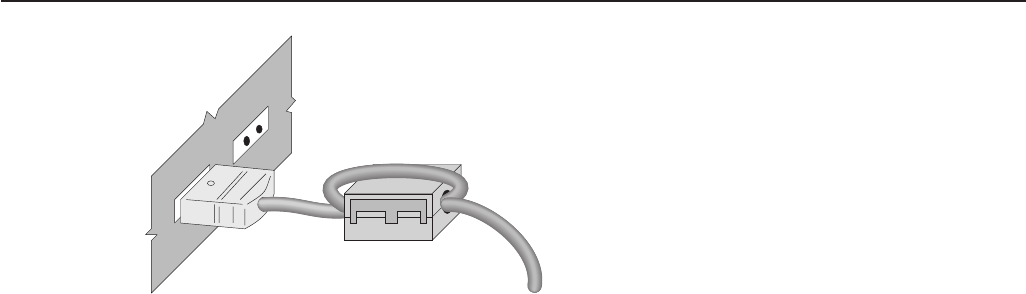

Figure 1
clamp-on ferrite
probe cable
Clamp-On Ferrite
Emissions Testing1.6
The instrument fullls the limit requirements for Class B.
Low Voltage Directive (Safety)1.7
In order to comply with the European Low Voltage Directive (2006/95/EC), Fluke equipment has been de-
signed to meet the EN 61010-1.
Before You Start
Authorized Service Centers
7
1.8 Authorized Service Centers
Please contact one of the following authorized Service Center to coordinate service on your Fluke product:
Fluke Corporation
Hart Scientic Division
Phone: +1.801.763.1600
Fluke Nederland B.V.
Phone: +31-402-675300
Fluke Int'l Corporation - CHINA
Phone: +86-10-6-512-3436
Fluke South East Asia Pte Ltd. - SINGAPORE
Phone: +65-6799-5588
When contacting a Service Center for support, please have the following information available:
Model Number
Serial Number
Complete description of the problem
Quick Start
Setup
9
Quick Start2
Setup2.1
SAVE
NEXT
HOME
ENTER
RESET TREND
RECALL
HOLDSTATS
°
C
°
F
SETUP
mV
RS232 12 V DC
30
V MAX
1523 CALIBRATION
THERMOMETER
READOUT

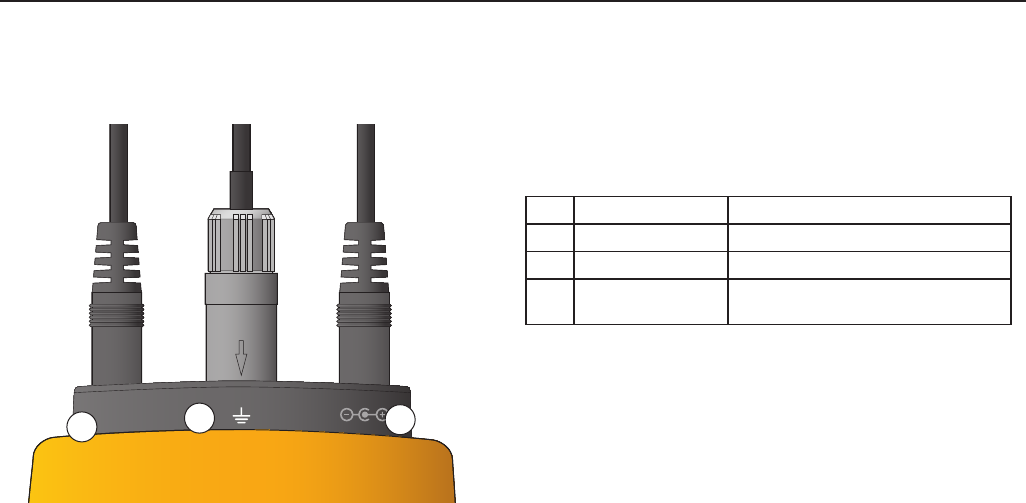

Figure 2 Input/Output Connections - 1523
1523 Input/Output ConnectionsTable 2
No. Name Description
1 Serial Serial interface connector
2 Connector, T1 Sensor Connector, Channel 1
4 Power External Power adapter connection
124
1523, 1524 Thermometer Readout
Setup
10
SAVE
NEXT
HOMELOG
RESET
ENTER
RECALL
HOLDSTATS °C °F
SETUP
TRENDmV
RS232 12
V DC
30 V MAX
T1 T2
1524 CALIBRATION
THERMOMETER
READOUT
Figure 3 Input/Output Connections - 1524
1524 Input/Output ConnectionsTable 3
No Name Description
1 Serial Serial interface connector
2 Connector, T1 Sensor Connector, Channel 1
3 Connector, T2 Sensor Connector, Channel 2
4 Power External Power adapter connection
124
3
Quick Start
Setup
11
SAVE
NEXT
HOMELOG
RESET
ENTER
RECALL
HOLDSTATS °C °F
SETUP
TRENDmV
RS232 12
V DC
30 V MAX
T1 T2
1524 CALIBRATION
THERMOMETER
READOUT
1
10
11
4
3
2
56
7
8
9
12
Figure 4 Keys
1523, 1524 Thermometer Readout
Setup
12

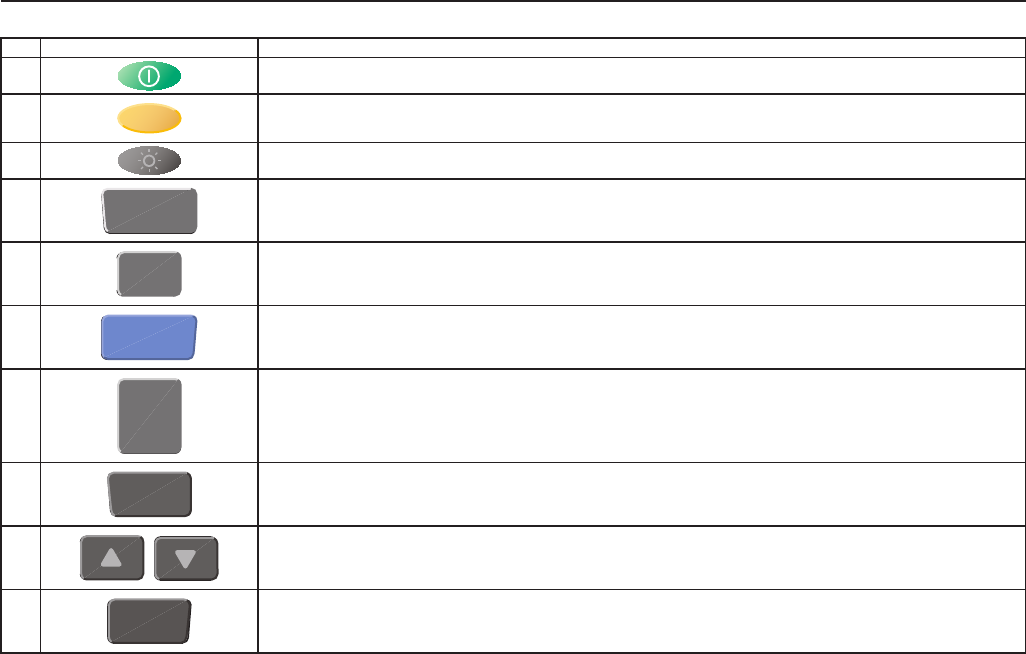

1523 Key FunctionsTable 4
No Key Description
1Power on or off
2Yellow Second or Special Function Key
3Turns the backlight on or off
4
STATS
1st Press: MAX, 2nd Press: MIn, 3rd Press: AVE, 4th Press: STD DEV
5
°C °F
Units, °C/°F
6
HOLD
1st press - Holds value on screen "-- HOLD --" across bottom of screen. 2nd press - Releases Screen hold.
7
SETUP
Enters setup menu, see menu structure
8
SAVE
Saves measurement as a logged data point
9Arrows increment or decrement selections in an active field. In Graph Mode, Arrows change the scale of the graph.
10
Selects highlighted selection, Saves a new selection.
Quick Start
Setup
13

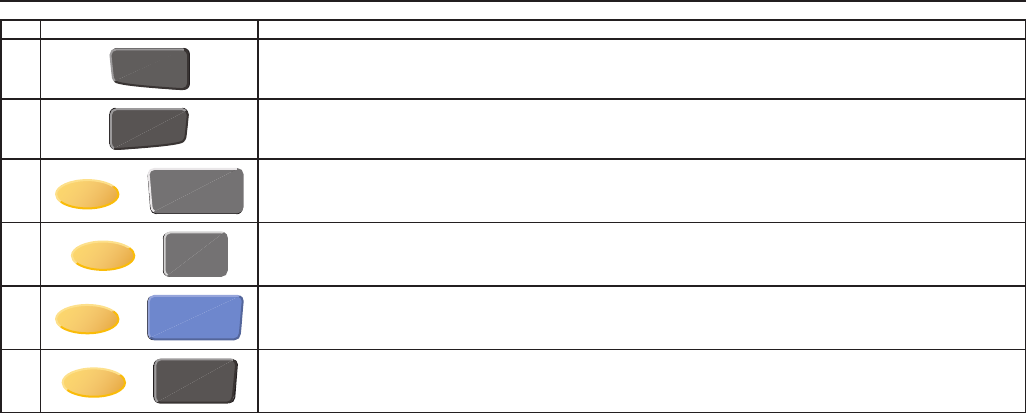

No Key Description
11
RECALL
1st Press - Enters Recall menu, 2nd Press - Exits Recall Menu
12
NEXT
Moves down to next option on screen.
13
+
STATS
“RESET” - Resets Stats Data
14
+
°C °F
“Ω mV” - Toggles from °C to Ω or Ω to °C (PRT, thermistor), °C to mV or mV to °C (TC)
15
+
HOLD
“TREND” - Starts Graphing data
16
+
“HOME” Returns user to main screen
1523, 1524 Thermometer Readout
Setup
14

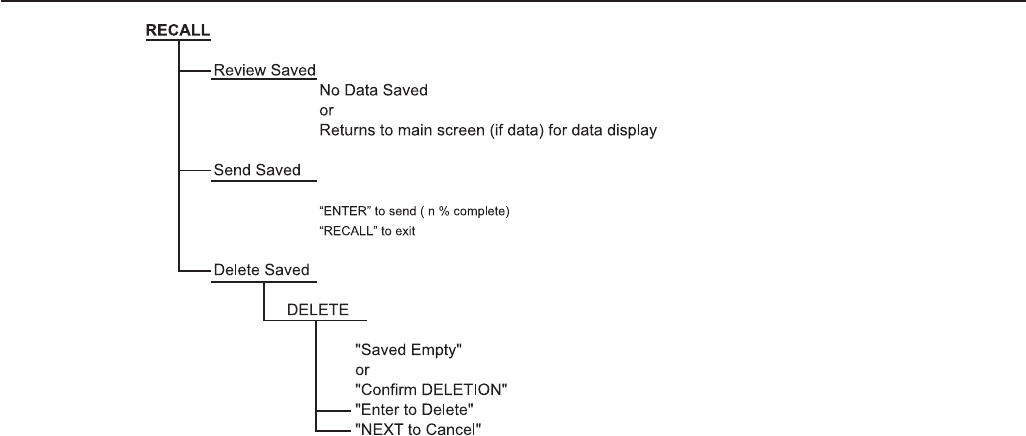

Figure 5 1523 Menu
Quick Start
Setup
15

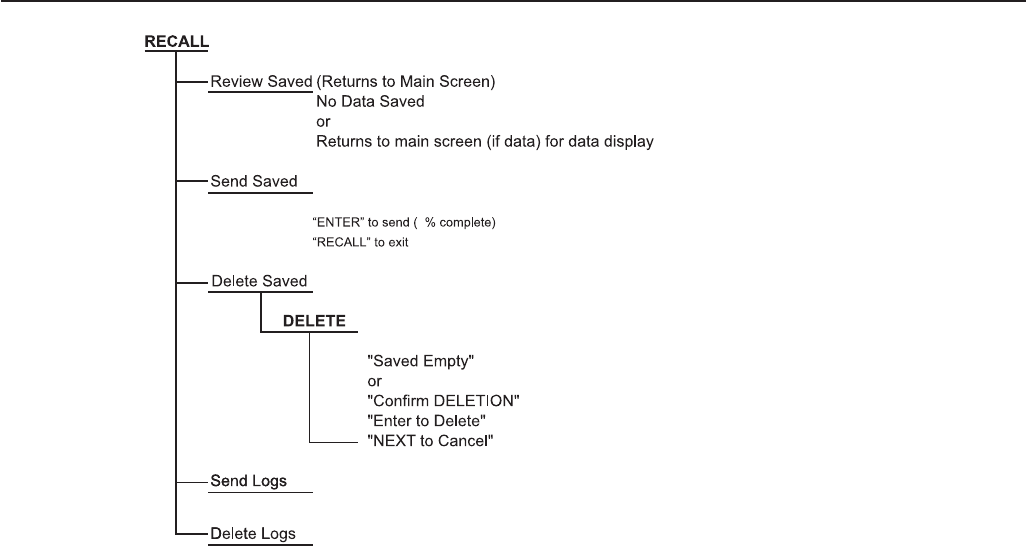

Figure 6 1523 Menu (cont)
1523, 1524 Thermometer Readout
Setup
16

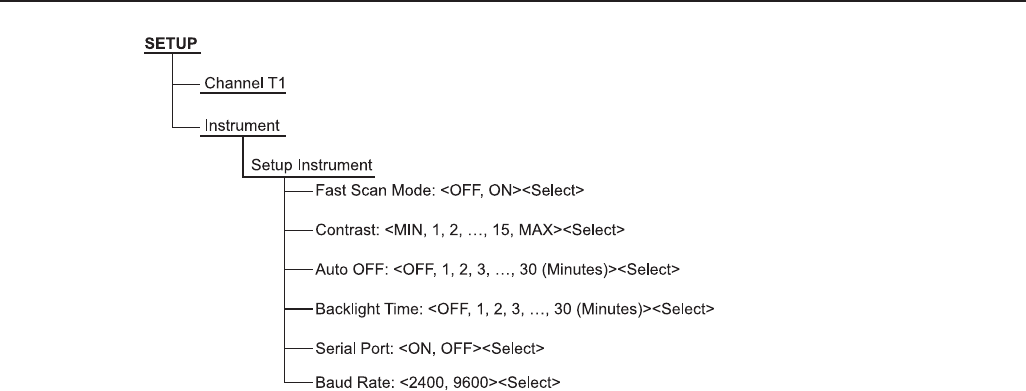

Figure 7 1523 Menu (cont)
Quick Start
Setup
17

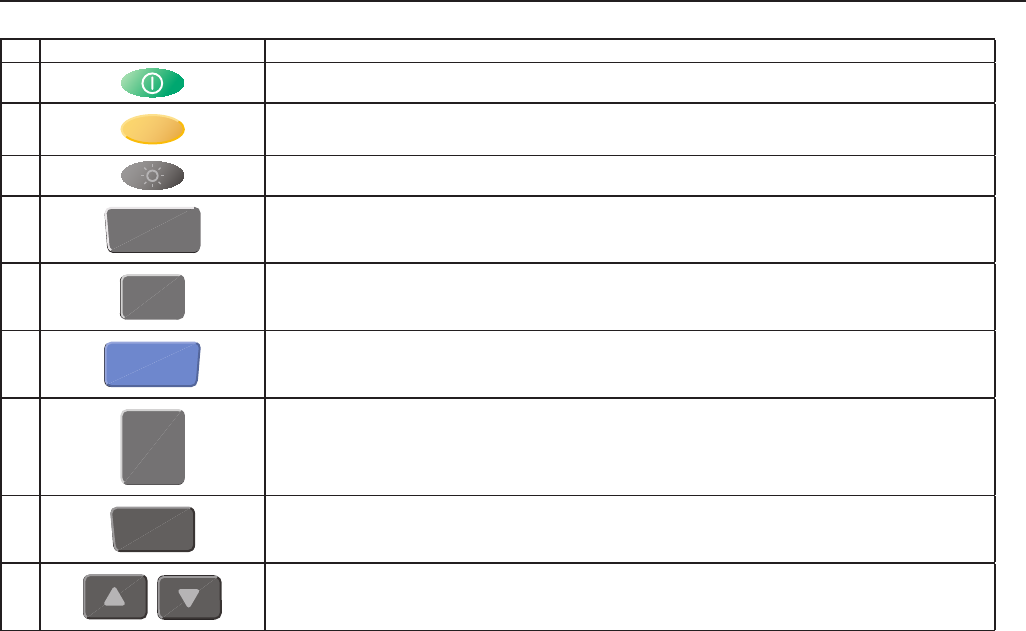

1524 Key FunctionsTable 5
No Key Description
1Power on or off
2Yellow Second or Special Function Key
3Turns the backlight on or off
4
STATS
1st Press: Max, 2nd Press: Min, 3rd Press: Ave, 4th Press: STD DEV
5
°C °F
Units, °C/°F
6
HOLD
1st press - Holds value on screen "-- HOLD --" across bottom of screen. 2nd press - Releases Screen hold.
7
SETUP
Enters setup menu, see menu structure
8
SAVE
Saves measurement as a logged data point
9Arrows increment or decrement selections in an active field. In Graph Mode, Arrows change the scale of the
graph.
1523, 1524 Thermometer Readout
Setup
18

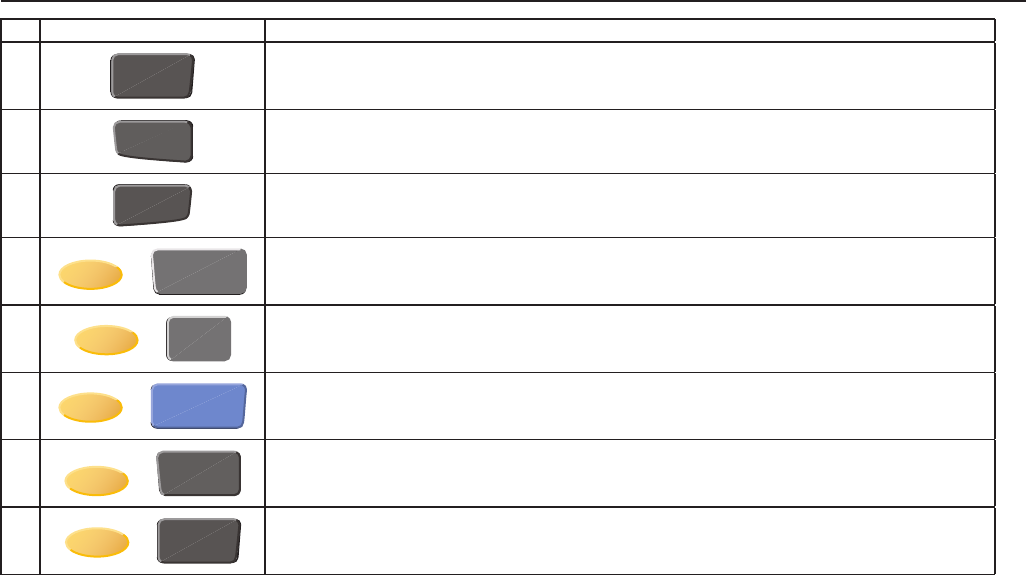

No Key Description
10
Selects highlighted selection, Saves a new selection.
11
RECALL
1st press - Enters Recall Menu, 2nd press - Exits Recall Menu
12
NEXT
Moves down to next option on screen.
13
+
STATS
“RESET” - Resets Stats Data
14
+
°C °F
“Ω mV” - Toggles from °C to Ω or Ω to °C (PRT, thermistor), °C to mV or mV to °C (TC)
15
+
HOLD
“TREND” - Starts Graphing data
16
+
SAVE
“LOG” - Log a series of measurements, see Auto Log in menu structure
17
+
“HOME” Returns user to main screen
Quick Start
Setup
19

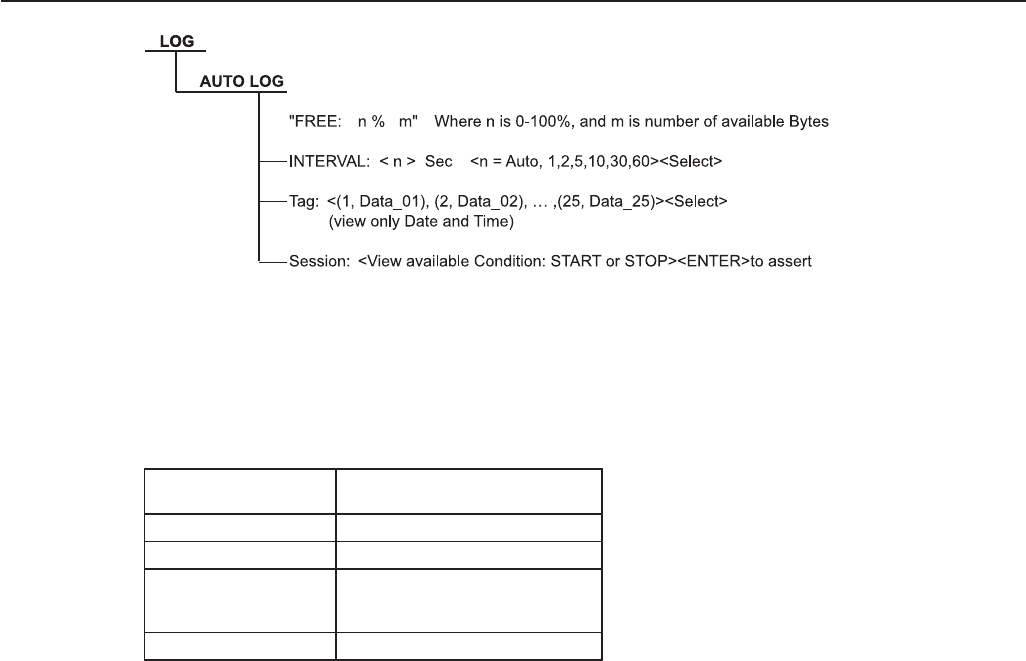

Figure 8 1524 Menu
1523, 1524 Thermometer Readout
Setup
20
Figure 9 1524 Menu (cont)
Quick Start
Setup
21

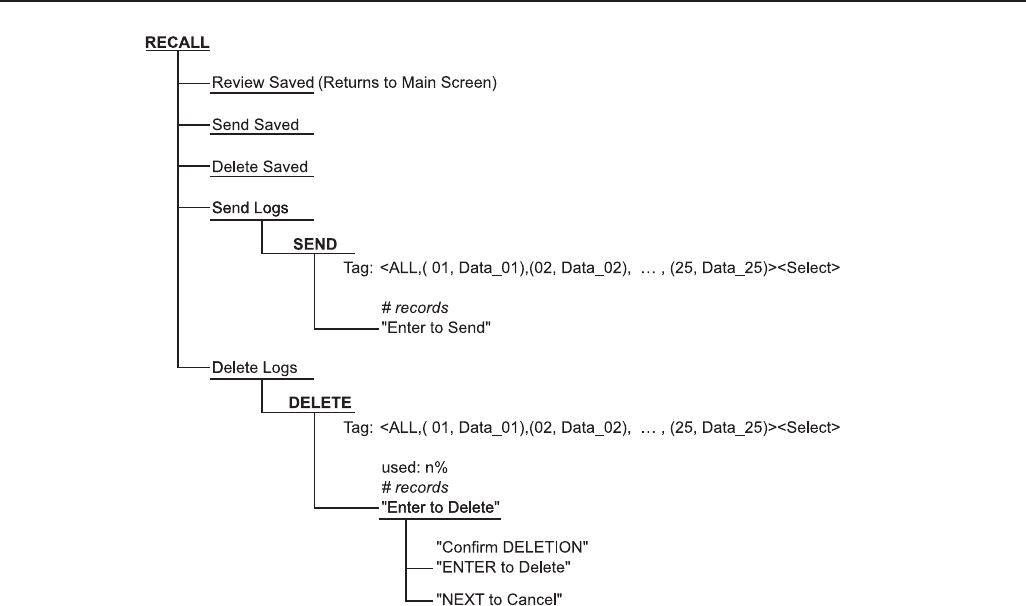

Figure 10 1524 Menu (cont)
1523, 1524 Thermometer Readout
Setup
22
Figure 11 1524 Menu (cont)
Quick Start
Setup
23
Figure 12 1524 Menu (cont)
1523, 1524 Thermometer Readout
Specications
24
Figure 13 1524 Menu (cont)
Specications2.2
Specications are based on a one year calibration cycle and apply from 13 °C to 33 °C unless stated
otherwise. All specications assume a ve minute warm up period.
General SpecificationsTable 6
Operating
Temperature†
–10 °C to 60 °C
Storage Temperature –20 °C to 70 °C
Operating altitude 10,000 meters above mean sea level
Relative Humidity (%
RH operating without
condensation)
0 % to 90 % (non condensing)
Vibration Random, 2g, 5–500 Hz
Quick Start
Specications
25
Power requirements 3 AA alkaline batteries
12 V dc universal power supply
Size 96 x 200 x 47 mm
(3.75 x 7.9 x 1.86 inches)
Weight 0.65 kg (1.4 lb)
Safety EN 61010-1:2001, CAN/CSA C22.2 No.
61010.1-04
†Environmental conditions for all specifications: 13 °C to 33 °C
Millivolt MeasurementTable 7
Range Resolution Accuracy
–10 mV to 75 mV 0.001 mV ± (0.005 % + 5 µV)
Temperature Coefficient ( –10 °C to 13 °C, +33 °C to 60 °C):
± (0.001 %/°C + 1 µV/°C)
Ohms Measurement, RTDsTable 8
Ohms Range
Accuracy ± Ω
4 Wire
0 Ω to 400 Ω± (0.004 % + 0.002 Ω)
Temperature Coefficient ( –10 °C to 13 °C, +33 °C to 60 °C):
0.0008 %/°C + 0.0004 Ω
Excitation Current: 1 mA
1523, 1524 Thermometer Readout
Specications
26
Ohms Measurement, ThermistorTable 9
Ohms Range Accuracy ± Ω, 4 Wire
200 Ω to 50 kΩ± (0.01 % + 0.5 Ω)
50 kΩ to 500 kΩ± (0.03 %)
Temperature Coefficient ( –10 °C to 13 °C , +33 °C to 60 °C):
0.002 %/°C + 0.1 Ω (0 Ω to 50 kΩ)
0.06 %/°C + 0.1 Ω (50 kΩ to 500 kΩ)
Excitation Current: 10 µA (0 Ω to 50 kΩ)
2 µA (50 kΩ to 500 kΩ)
Equivalent temperature accuracies derived from primary specications (Ω, mV)
Temperature, ThermocouplesTable 10
Type Range
Measure
Accuracies (ITS-90)
B 600 °C to 800 °C
800 °C to 1000 °C
1000 °C to 1800 °C
0.85 °C
0.68 °C
0.57 °C
C 100 °C to 550 °C
550 °C to 2300 °C
0.32 °C
0.71 °C
E –200 °C to 0 °C
0 °C to 950 °C
0.52 °C
0.22 °C
J –200 °C to 0 °C
0 °C to 1200 °C
0.52 °C
0.23 °C
K –200 °C to 0 °C
0 °C to 1370 °C
0.61 °C
0.24 °C
Quick Start
Specications
27
Type Range
Measure
Accuracies (ITS-90)
L –200 °C to 0 °C
0 °C to 900 °C
0.36 °C
0.23 °C
M –20 °C to 0 °C
0 °C to 400 °C
400 °C to 1400 °C
0.26 °C
0.25 °C
0.22 °C
N –200 °C to 0 °C
0 °C to 1300 °C
0.72 °C
0.28 °C
R –20 °C to 0 °C
0 °C to 500 °C
500 °C to 1750 °C
1.09 °C
0.97 °C
0.49 °C
S –20 °C to 0 °C
0 °C to 500 °C
500 °C to 1750 °C
1.05 °C
0.95 °C
0.56 °C
T –200 °C to 0 °C
0 °C to 400 °C
0.60 °C
0.25 °C
U –200 °C to 0 °C
0 °C to 400 °C
0.54 °C
0.24 °C
Resolution: 0.01 °
Note 1: Accuracies are based on internal Reference
Junction Compensation. Refer to Technical manual for
equivalent external reference accuracies.
1523, 1524 Thermometer Readout
Specications
28
Temperature, RTD Ranges, Table 11
and Accuracies (ITS-90)
Accuracy ± °C 4 Wire Probe
± 0.011 at –100 °C
± 0.015 at 0 °C
± 0.019 at 100 °C
± 0.023 at 200 °C
± 0.031 at 400 °C
± 0.039 at 600 °C
Resolution: 0.001°C (0.001°F)
Temperature, ThermistorTable 12
Accuracy ± °C
± 0.002 at 0 °C
± 0.003 at 25 °C
± 0.006 at 50 °C
± 0.014 at 75 °C
± 0.030 at 100 °C
Resolution: 0.001 °C (0.001 °F)
Based on a 10 kΩ (at 25 °C) thermister
with a beta value of 4000 Ω. See
technical manual for details.

Navigation menu
